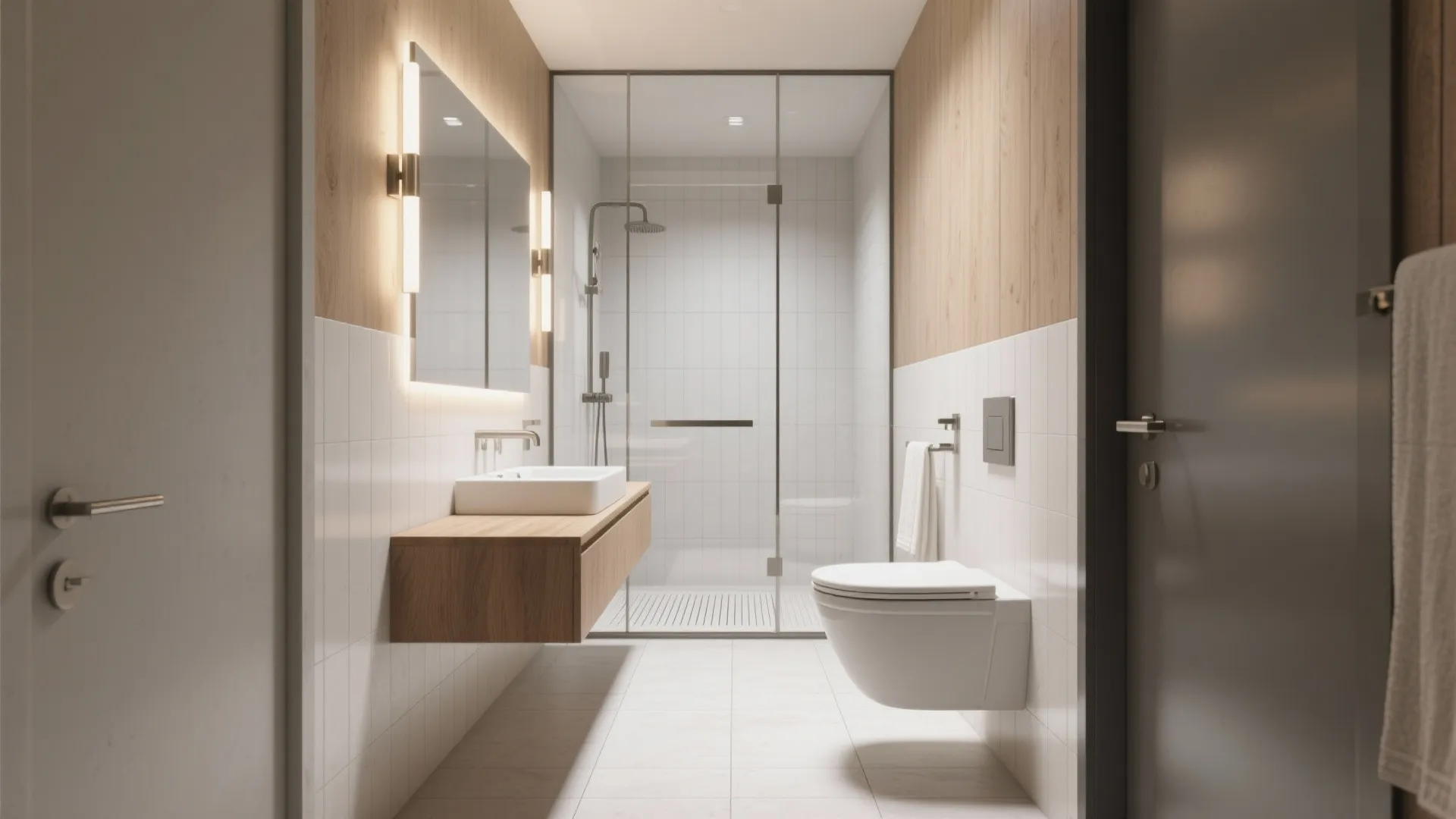

5 Rectangular Bathroom Designs I Swear By: Smart, stylish ideas to make your long-and-narrow bath feel bigger, brighter, and easier to use

[Section: 引言]

Rectangular bathroom designs are everywhere lately, especially in urban apartments and compact homes where every inch matters. Over the last decade, I’ve remodeled more long-and-narrow baths than I can count, and they always remind me that small spaces spark big creativity. In this guide, I’ll share 5 design inspirations that I rely on, blending my own project stories with expert data so you can plan with confidence.

Trends I’m seeing now? Frameless glass, microcement or large-format tiles for fewer grout lines, wall-hung vanities and WCs, and warm layered lighting that turns a tight bath into a calm retreat. If your space is a simple rectangle, don’t worry—your layout actually gives you clear rules to bend artfully. Below are five ideas I use to make a rectangular bathroom feel wider, smarter, and more livable.

[Section: 灵感列表]

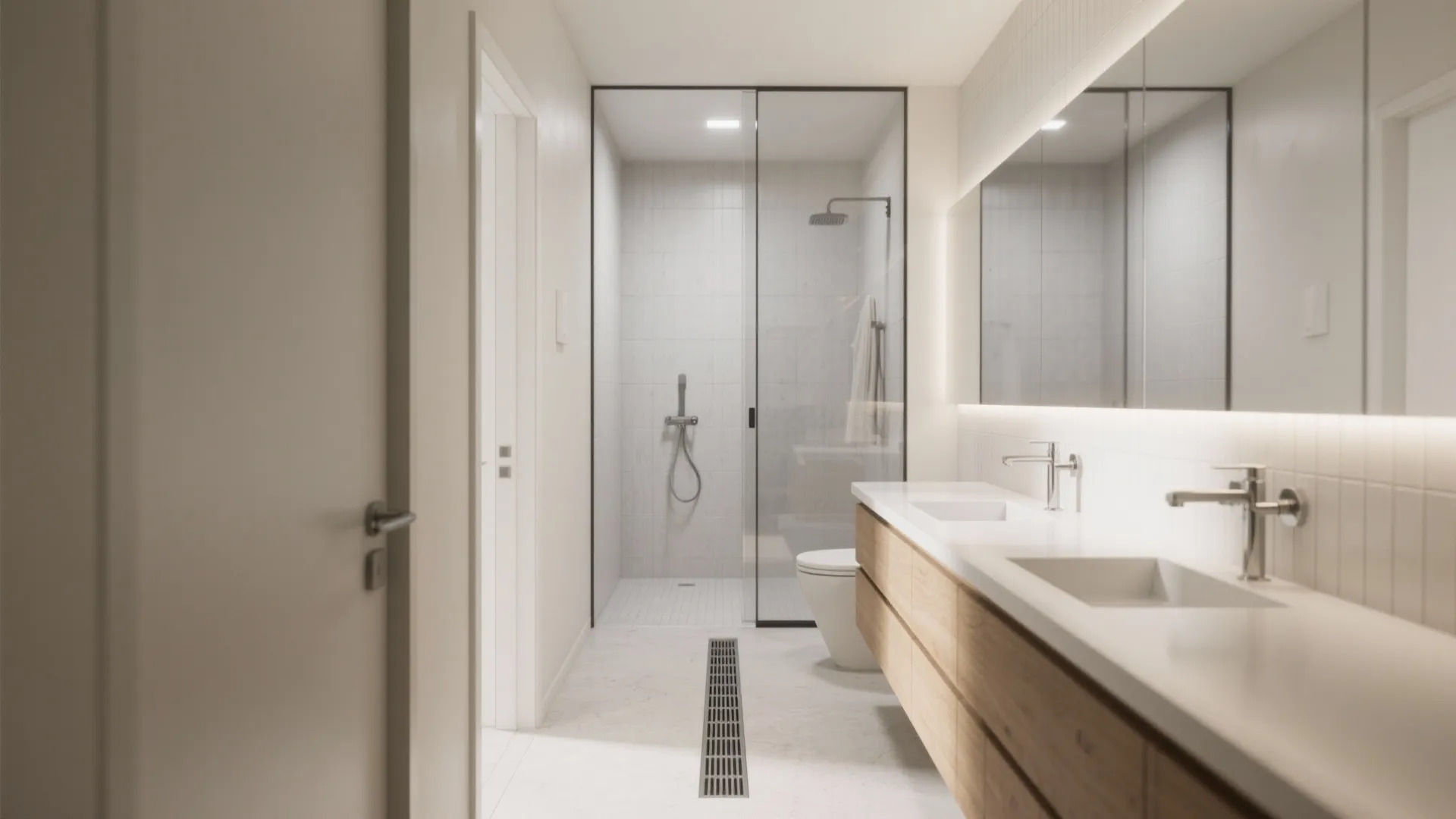

1) Linear wet zone at one end: keep circulation clean

My Take

When a room is long, I like to stack the shower (or tub) and vanity on one wall and push the “wet zone” to one end. It creates a straight, friction-free path so you’re not side-stepping fixtures. In one 5-by-10 remodel, we reclaimed almost 18 inches of usable walkway simply by shifting the shower and using frameless glass keeps the shower bright instead of a curtain.

Pros

This one-wall bathroom plan makes a narrow room feel organized, and a walk-in shower in a rectangular bathroom layout visually widens the space. Fewer plumbing chases can also reduce costs, and a linear drain keeps floors sleek. The long sightline from door to back wall—especially with light, reflective tile—adds the perception of extra length.

Cons

Water management is crucial. If the shower is too close to the door, spray and humidity escape quickly, which can fog mirrors and warp wood if ventilation is weak. Also, if you love a deep soaking tub plus a big vanity, this layout may require downsizing one of them to maintain clearances in a small rectangular bathroom design.

Tips / Case / Cost

Use a 30–36 inch wide door panel for the glass opening and slope the floor at least 1/4 inch per foot toward the drain. In my projects, linear drains add $250–$800 versus a center drain, but the aesthetic win in a long and narrow bathroom layout is huge.

save pin

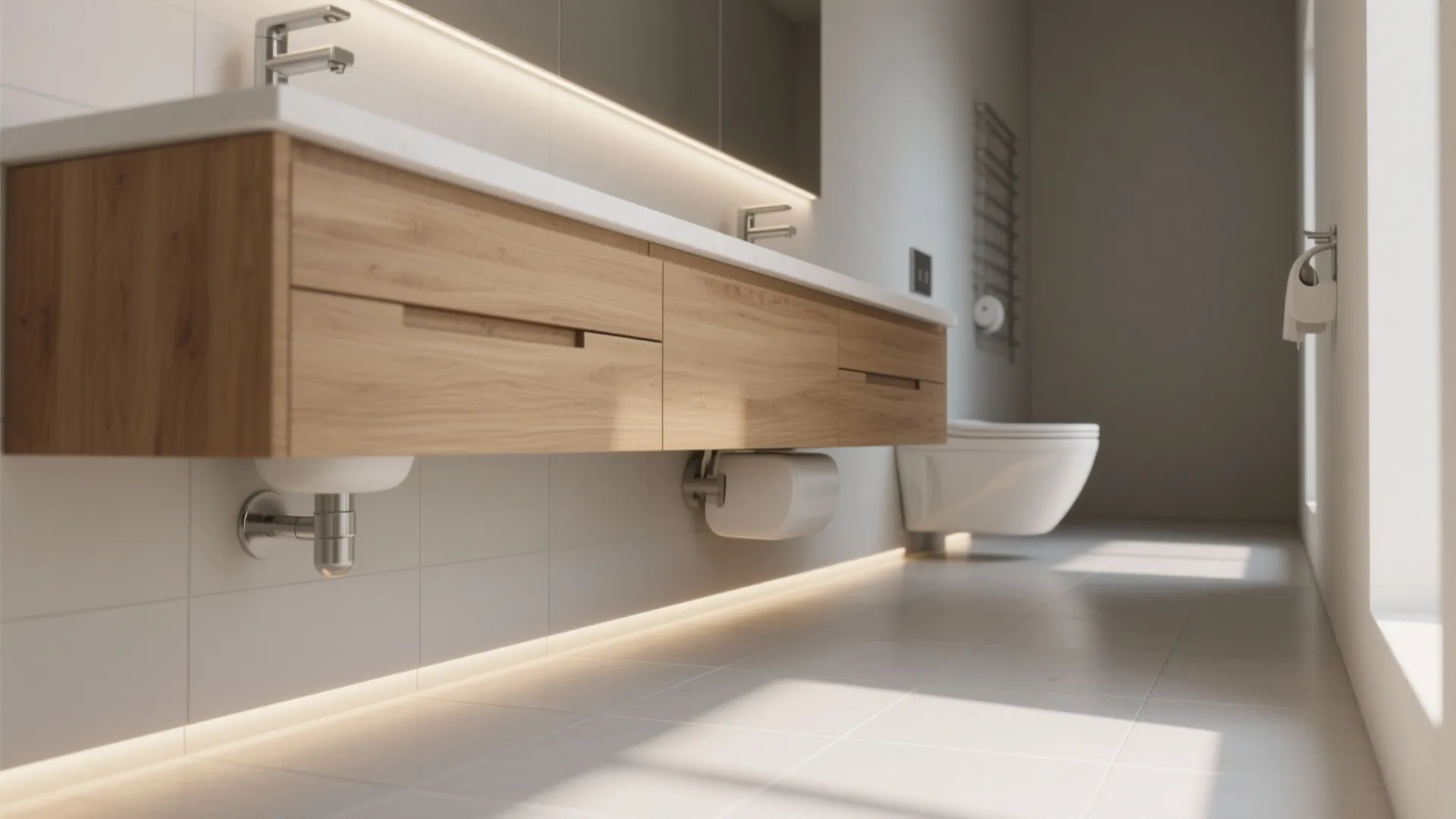

2) Floating vanity + wall-hung toilet: open up the floor

My Take

In narrow bathrooms, I always try to get fixtures off the floor. A floating vanity and wall-hung WC expose more floor tile, tricking the eye into reading the room as wider and calmer. On a recent condo bath, we lifted both and tucked an LED toe-kick under the vanity—at night, it looked like the vanity was hovering.

Pros

With a floating vanity in a long, narrow bathroom, cleaning is easier and you can run large-format tile wall-to-wall for a seamless look. Wall-hung toilets paired with an in-wall tank save a few inches in depth—gold in a tight rectangular bathroom design. The openness supports narrow bathroom storage ideas like shallow drawers and recessed medicine cabinets.

Cons

Wall-hung systems need a sturdy wall and a compatible carrier frame; relocating plumbing in an older building can add labor. Also, drawer storage can be shallower; if you hoard tall bottles or hair tools, plan organizers carefully so the minimalist look stays practical in your small rectangular bathroom design.

Tips / Case / Cost

Budget roughly $800–$1,500 for an in-wall carrier (plus install) and confirm wall framing early. I aim for a vanity depth of 18–20 inches in tight rooms, paired with a mirrored cabinet 4–6 inches deep to keep the profile slim but useful.

save pin

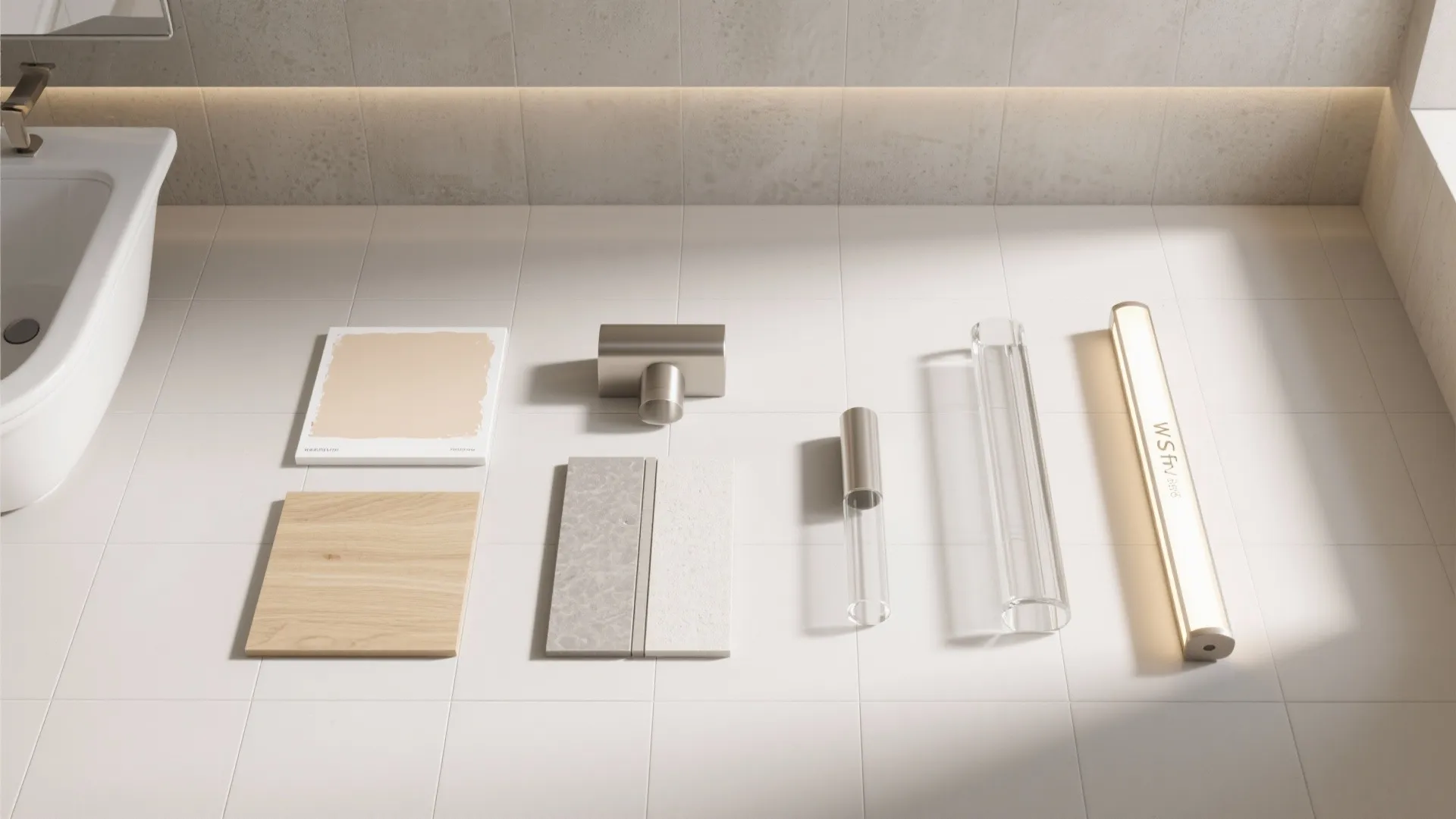

3) Layered lighting and tile zoning: add depth without adding inches

My Take

Lighting and finishes can zone a rectangular bathroom without any walls. I usually combine a matte floor, satin wall tile to mid-height, and a smooth paint or microcement above. Then I layer vertical sconces at eye level plus dimmable overheads—suddenly the room reads as taller and more balanced.

Pros

Layered light supports task, ambient, and accent needs in a long and narrow bathroom; vertical sconces give even, shadow-free light for grooming. Using a lighter tile on the long walls and a slightly darker tone on the short end wall creates a focal moment that counteracts the bowling-alley feel. If you’re unsure where to start, try multiple layout options for a long, narrow bath to test zoning ideas and fixture placements virtually before you commit.

Cons

Over-lighting can flatten a small rectangular bathroom; instead, go for dimmable, layered control. Too many tile transitions can also chop up the space—keep palettes tight, and let grout lines align door-to-door for calm, linear flow.

Tips / Case / Cost

For bathrooms, I follow the National Kitchen & Bath Association guidance for clearances and layout planning, which helps place switches and mirrors where they truly work—NKBA recommends at least 21 inches clear in front of vanities and toilets, 30 inches preferred for comfort (source: NKBA Bathroom Planning Guidelines: https://nkba.org). Pair that with high-CRI (90+) LEDs for true color at the mirror. For humidity, meet the 50 cfm intermittent or 20 cfm continuous exhaust standard found in many codes aligned with ASHRAE 62.2 (https://www.energy.gov and https://www.ashrae.org provide useful summaries).

save pin

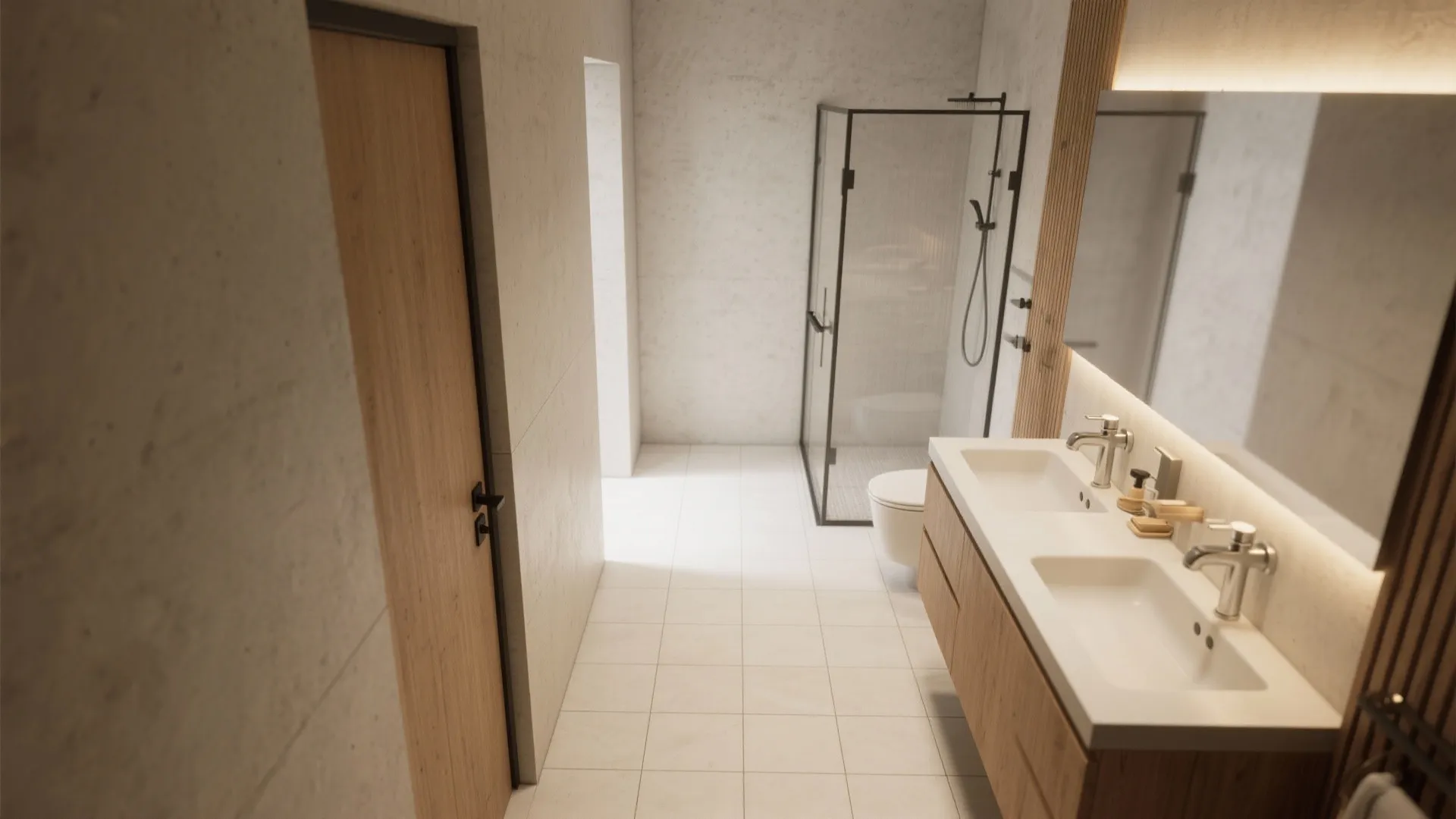

4) Pocket door and clear glass: reclaim circulation

My Take

In rectangular bathroom designs, door swings steal precious inches. If structure allows, I spec a pocket door at the entry and use a clear, frameless shower partition instead of a swing door. You gain a steady walkway and the eye travels right to the far wall—instant roominess.

Pros

Pocket doors remove swing conflicts with vanities and tall storage, and a clear shower screen makes the bath feel continuous. In a tight one-wall bathroom plan, even 28–30 inches of sliding entry can feel liberating, and the transparent plane keeps light moving end-to-end.

Cons

Not every wall can take a pocket door (plumbing, wiring, or structural posts may be in the way). If privacy is a concern, acid-etched or reeded glass adds blur, but it reduces the open feel slightly—trade-offs are part of the game in a small rectangular bathroom design.

Tips / Case / Cost

Budget $400–$1,000 for a quality pocket door kit plus carpentry. I silence rattles with soft-close hardware and make sure the finished pocket cavity is flat and true. For lighting, I’ll often show clients a spa-like indirect lighting glow before we order fixtures—it’s amazing how a cove or toe-kick wash can calm a long, narrow room.

save pin

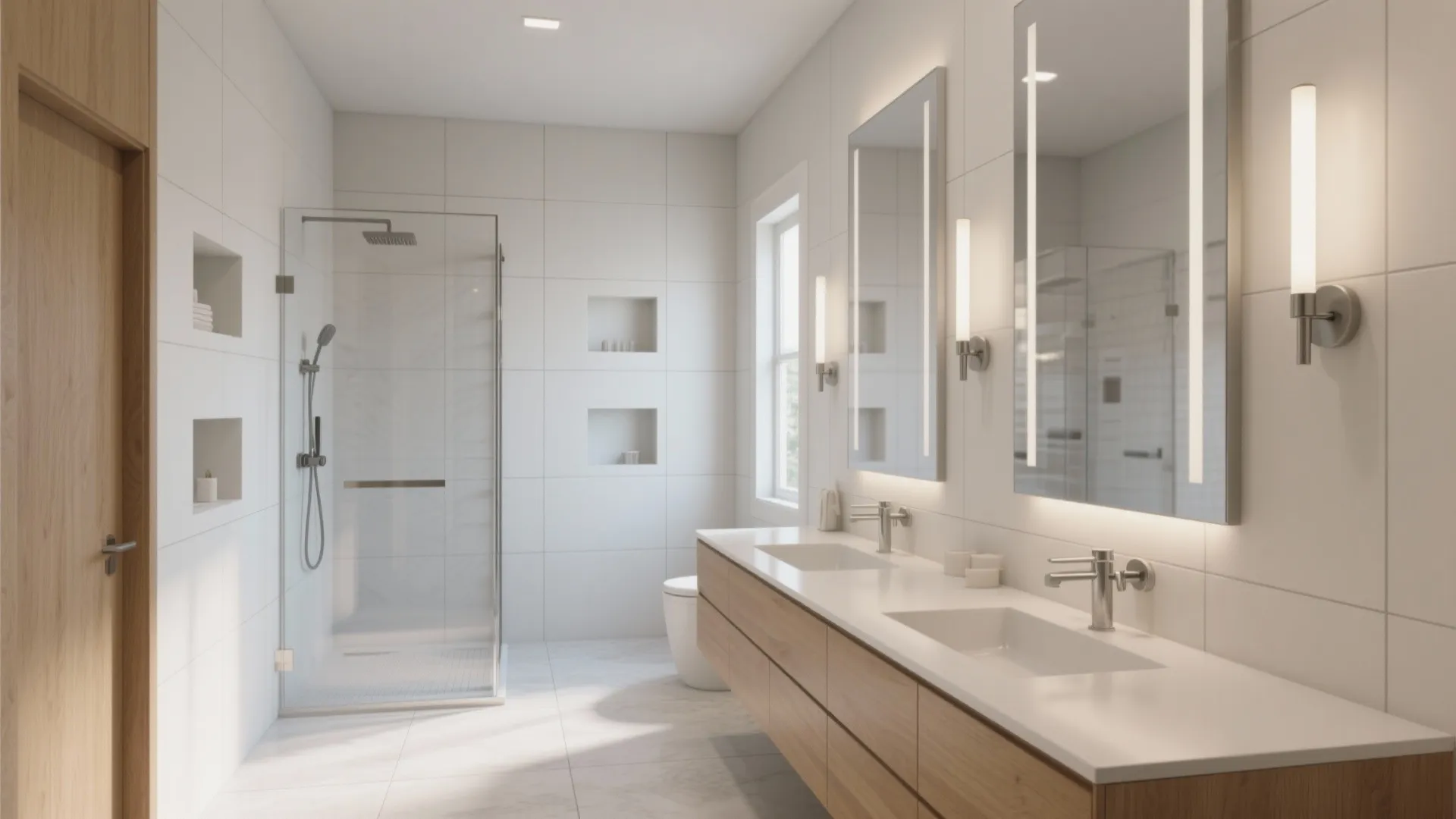

5) Built-in niches and mirrored walls: storage and light in-plane

My Take

When the footprint is fixed, I build storage into the walls. Recessed shower niches, slim niches near the toilet, and mirrored cabinets with integrated outlets keep counters clear. I once recessed a full-width mirrored cabinet just 3 inches deep across a 6-foot wall—suddenly, the entire bath felt a foot wider.

Pros

Recessed storage keeps the rectangular bathroom layout clean and reduces visual clutter, which makes a long space feel broader. Mirrored walls bounce light and double sightlines; pairing them with a floating vanity and soft, continuous floor tile enhances the perception of width. Choosing WaterSense-labeled fixtures saves water while keeping pressure satisfying—ideal for compact showers (EPA WaterSense: https://www.epa.gov/watersense).

Cons

Niches require careful waterproofing; a poorly sloped niche can pool water and stain. Large mirrored surfaces can be high-maintenance if you’re splashy—plan a drip rail or smoke the lower inch to hide spots in a family bath.

Tips / Case / Cost

For a long and narrow bathroom, align niche grout lines with wall tile for a custom built-in look. Many mirrored cabinets can be recessed as little as 3–4 inches; I plan outlet strips inside for razors and brushes, so counters stay clear in everyday life. If you’re selecting showerheads for a tight enclosure, check flow rates (2.0 gpm or less for WaterSense) to balance comfort and conservation.

[Section: 总结]

Rectangular bathroom designs don’t limit you—they invite smarter moves. By lining up a clean wet zone, freeing the floor with floating fixtures, zoning with light and finishes, reclaiming circulation with sliders and glass, and building storage into the walls, a small bath can feel generous and serene. The NKBA’s clearance guidance remains my north star for livability, and pairing it with a few strategic upgrades turns constraints into design clarity. Which of these five ideas are you most excited to try in your own rectangular bathroom?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the best layout for rectangular bathroom designs?

For most homes, a one-wall or end-wet-zone layout works best: stack shower/tub and vanity along one long wall and keep circulation straight. It simplifies plumbing and makes a narrow room feel organized.

2) How do I make a long and narrow bathroom look wider?

Use a floating vanity and wall-hung toilet to reveal more floor, choose large-format tiles with aligned grout, and keep glass clear. Layer lighting—vertical sconces at eye level and dimmable overheads—to add visual depth.

3) What clearances should I follow in a small rectangular bathroom?

As a rule of thumb, aim for at least 21 inches clear in front of a toilet and vanity (30 inches preferred), and keep walk paths open. These numbers align with NKBA recommendations, which I use as a baseline for comfort (NKBA: https://nkba.org).

4) Are pocket doors good for rectangular bathroom designs?

Yes—pocket doors eliminate swing conflicts and streamline circulation in narrow rooms. Confirm there’s no structural or plumbing obstruction in the pocket wall, and use soft-close hardware for a solid, quiet feel.

5) What tile choices work best for a long rectangular bathroom?

Go for larger tiles on floors and walls to reduce grout lines and emphasize lengthwise direction. Consider a slightly darker tile or paint on the short end wall to create a focal moment and reduce the “tunnel” effect.

6) How can I add storage without crowding a narrow bath?

Build in: recessed niches, shallow mirrored cabinets, and slim shelves between studs. A floating vanity with organized drawers and a recessed medicine cabinet keeps essentials handy without stealing floor space.

7) What ventilation do I need in a compact rectangular bathroom?

Target 50 cfm intermittent or 20 cfm continuous exhaust, which reflects common residential ventilation standards aligned with ASHRAE 62.2. Good ventilation protects mirrors, paint, and joinery in small spaces.

8) Are water-saving fixtures comfortable in a small rectangular bathroom design?

Yes—modern WaterSense showerheads (2.0 gpm or less) deliver a satisfying spray while saving water. In smaller enclosures, the right head and spray pattern can feel even more luxurious (EPA WaterSense: https://www.epa.gov/watersense).
