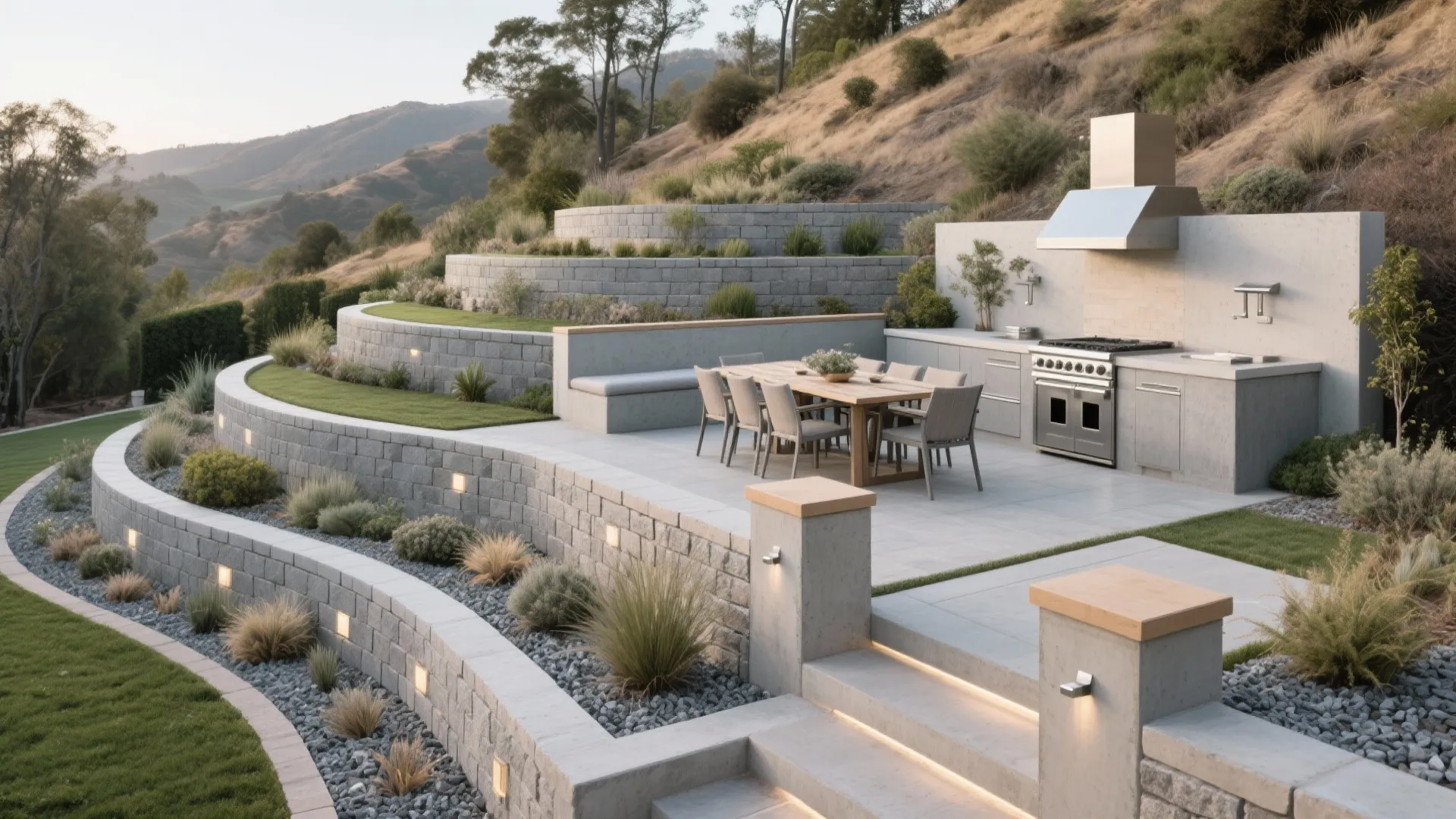

5 Segmental Retaining Wall Design Software Ideas: A senior designer’s field-tested tips for modeling, stabilizing, and beautifying SRWs in small outdoor spaces

[Section: 引言]

I’ve seen a surge in segmental retaining wall design software over the past few years, and it’s changed how I plan hillside yards, tiny terraces, and outdoor kitchens tucked beside slopes. As someone who started on interior remodels and moved outdoors when clients asked for seamless patio-to-kitchen transitions, I’ve learned that small space can spark big creativity—especially when a smart SRW unlocks level ground.

Today I’ll share 5 design inspirations that I rely on, blending personal experience with expert data and standards. If you’ve ever tried to carve out a 2-meter-wide dining nook from a steep backyard, you’ll know why modeling geogrid, drainage, and surcharge loads inside the software matters. Let’s get into the ideas and the practical choices that make segmental retaining wall design software earn its keep.

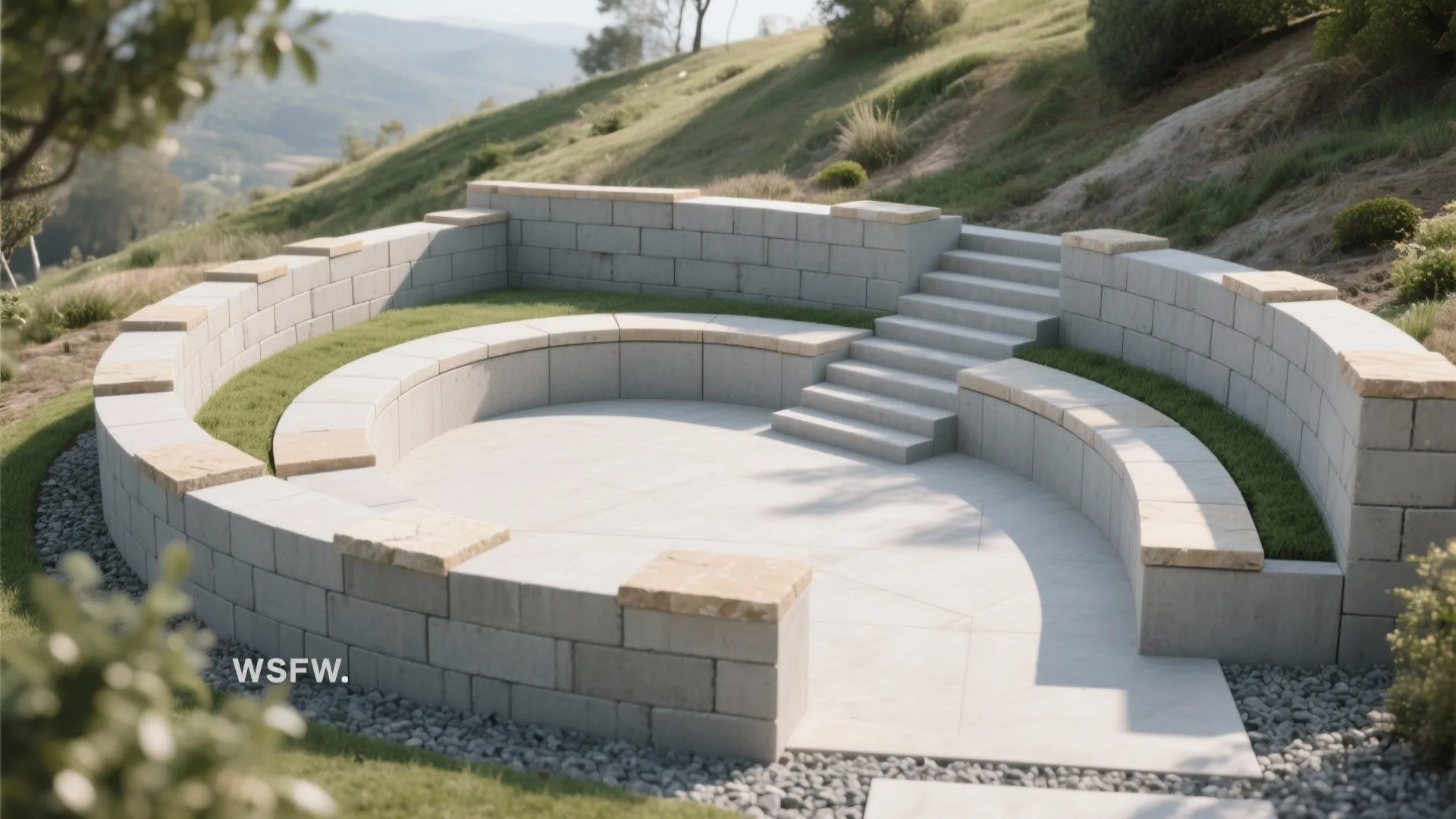

[Section: 灵感列表] Modular Block Libraries & Parametric Walls

My Take

I love starting with a well-built block library—face textures, cap profiles, corner units, and radius-friendly modules—so I can iterate fast. Parametric wall tools let me trace curves and step the wall without redrawing everything when the client wants one more planter or a softer corner.

Pros

- A curated SRW block library speeds decisions on face style and unit size, and segmental retaining wall design software makes it easy to swap textures while keeping geometry intact.

- Parametric walls accelerate edits when you add stairs, seat walls, or a return; long-tail needs like “retaining wall block library with curved radius support” are handled without manual rework.

Cons

- Too many face options can slow early decisions; I’ve seen clients compare split-face versus smooth for hours. It’s a good problem, but analysis paralysis is real.

- Parametric tools don’t replace engineering judgment; you can sketch a perfect curve that still wants more geogrid length or a thicker base—been there, fixed that.

Tips / Case / Cost

- Lock your palettes early: pick two face textures and one cap style so you can price quickly. Many suppliers have tiered costs; smooth architectural faces can add 10–20% to material budgets.

- I often present photorealistic renderings of terraced yards to help clients choose textures and cap details before we finalize the BOM. This reduces change orders later.

save pin

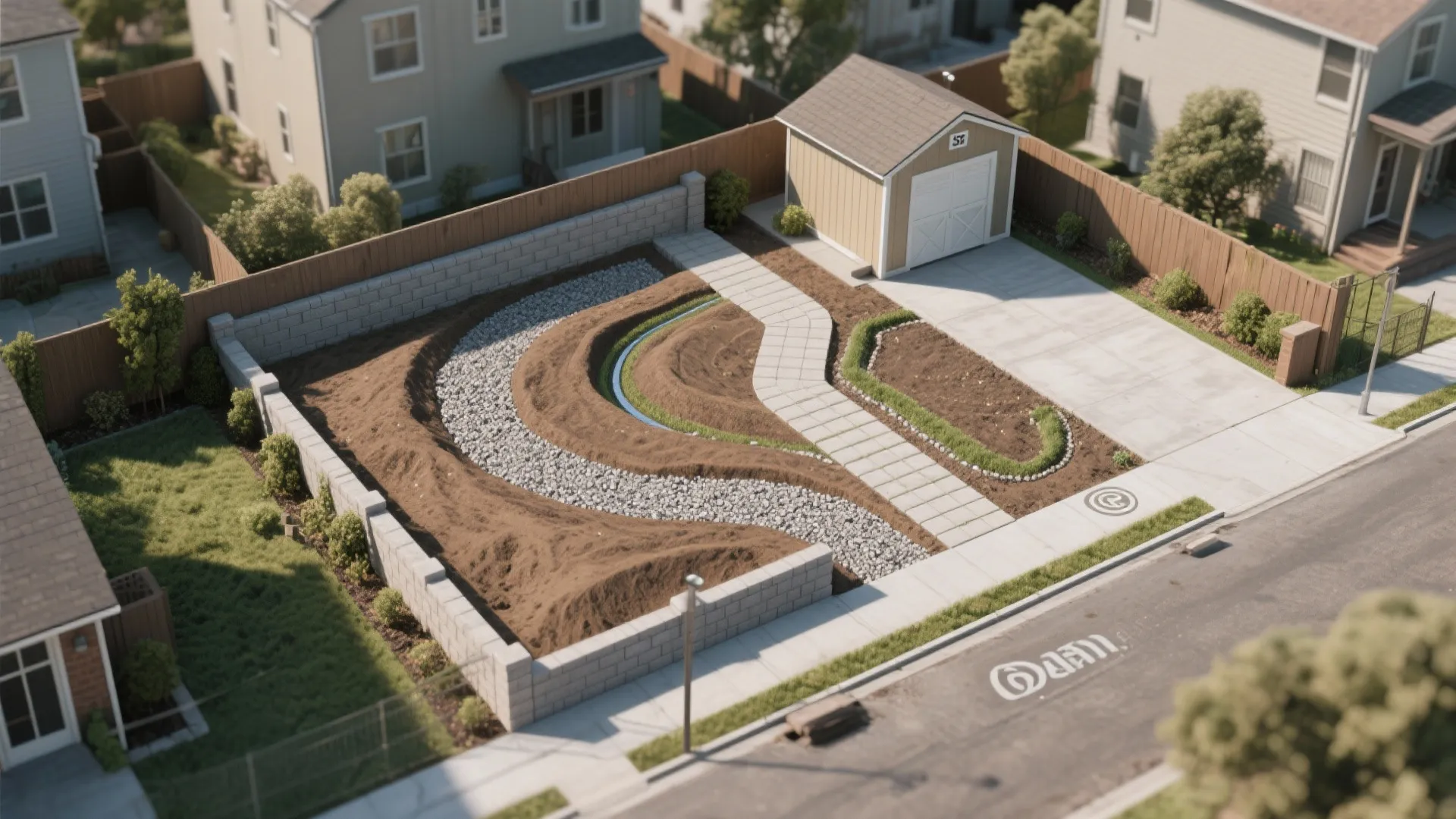

Terrain Modeling, Surveys & Surcharges

My Take

Real-world slopes are messy. Importing site surveys or LIDAR-based terrain—and modeling patios, sheds, and driveway loads—saves me from surprises. When space is tight, setbacks and property lines are non-negotiable, so the terrain tools are my compass.

Pros

- Proper terrain modeling captures slope breaks, drainage paths, and utility lines; long-tail tasks like “import site survey for retaining wall design” keep you aligned with reality.

- You can simulate live load surcharges from vehicles, fences, and garden structures, which is essential in small urban lots where every meter counts.

Cons

- Rough surveys lead to rough models; if the data is noisy, your wall heights and geogrid lengths can drift. I’ve redone plenty of models when new topo lands in the inbox.

- Surcharges scare budgets—the moment you add a driveway load near the wall, you might need deeper reinforcement. Clients groan; it’s still better than a failure.

Tips / Case / Cost

- Always model setbacks to adjoining structures and property lines; small yards force conservative designs and guard against future disputes.

- If you suspect a high water table or poor soils, plan for geotechnical input early; those fees can save far bigger costs in rework or reinforcement upgrades later.

save pin

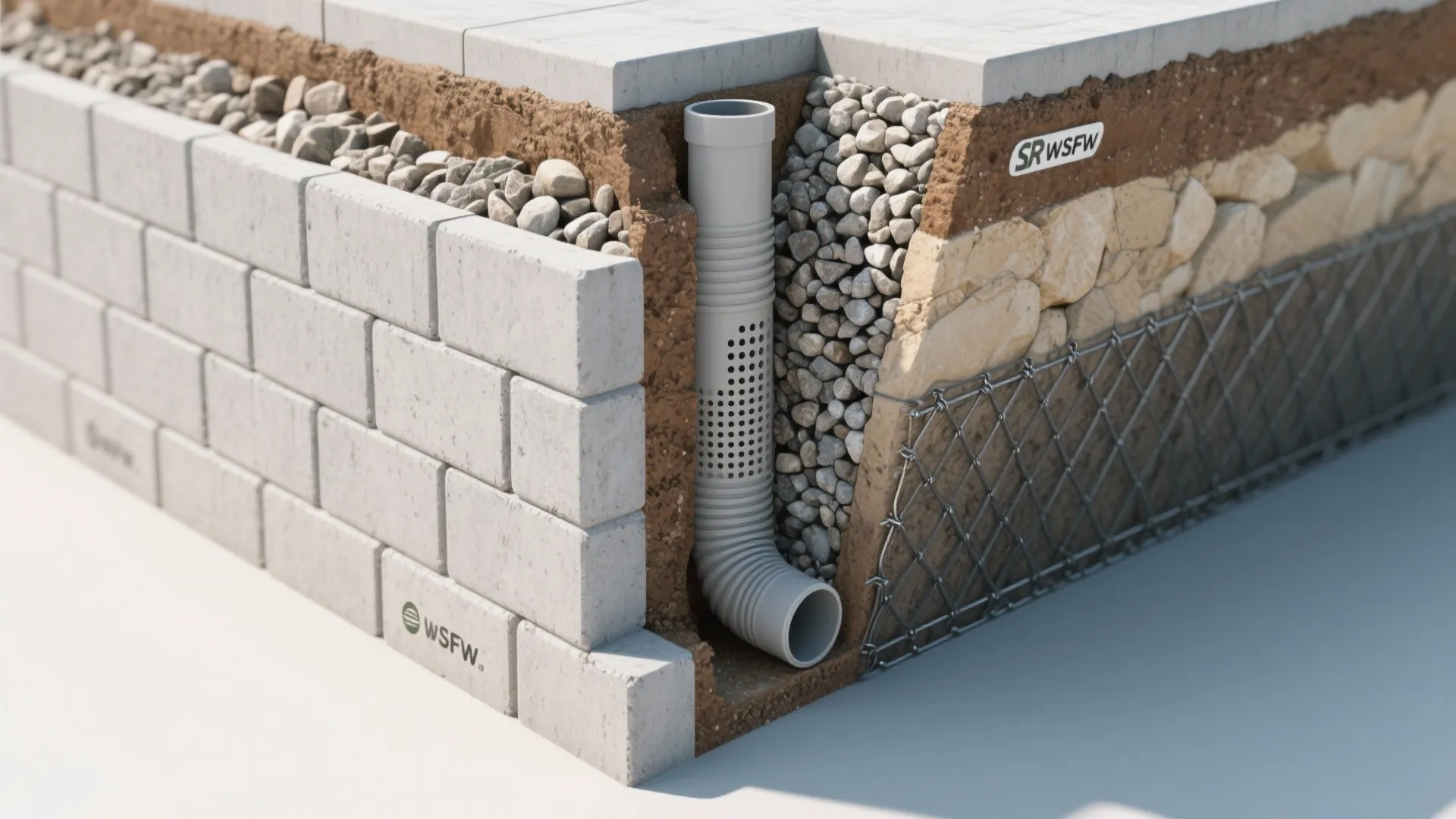

Drainage, Geogrid & Stability Checks

My Take

Drainage makes or breaks an SRW. I’ve rescued walls where hydrostatic pressure was the silent villain. Segmental retaining wall design software that lets me visualize drain pipes, weep paths, and geogrid layers is where the project starts to feel real.

Pros

- Modeling toe drains, chimney drains, and open-graded backfill helps you minimize hydrostatic pressure; long-tail details like “retaining wall drainage design with perforated pipe and gravel” become tangible.

- Visual geogrid layers and length sensitivity checks are critical; I use AI-assisted layout exploration for complex slopes to test scenarios before sending plans to the engineer.

Cons

- Software defaults can lull you into trust; I’ve seen templates with grid lengths that are fine for garden beds but not for driveway surcharges—always verify against project conditions.

- Drainage components add line items; clients sometimes question “invisible” spend on gravel and pipe. I joke that good drainage is a design feature you’ll never notice—because it works.

Tips / Case / Authority

- Reference NCMA Design Manual for Segmental Retaining Wall Systems (3rd Edition): typical reinforced zone lengths often range from 0.7H to 1.0H depending on loading and soil friction, and open-graded backfill reduces hydrostatic build-up.

- FHWA NHI-10-024 on MSE walls emphasizes proper drainage and reinforced soil design; I use those benchmarks to sanity-check geogrid spacing and backfill specs before finalizing the cut sheet.

save pin

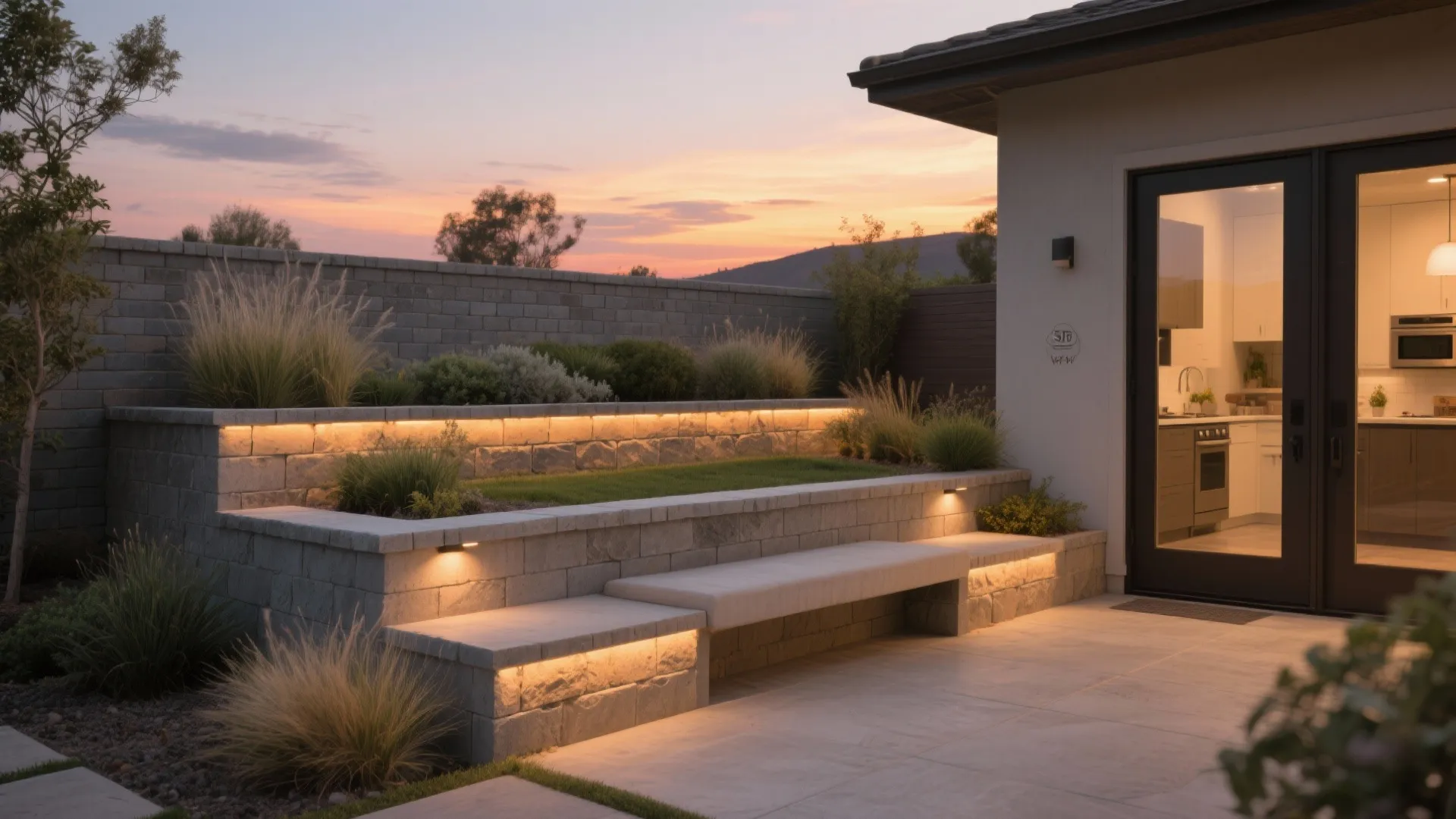

Tiered Aesthetics: Planting, Lighting & Texture

My Take

Once the structure is sound, I focus on the feel—soft plantings, warm cap stones, and subtle lighting to make small terraces inviting. I’ve turned a tight 3-meter slope into two cozy outdoor rooms by tiering walls and sneaking in a bench.

Pros

- Integrating step-backs for planters adds visual softness and erosion control; long-tail goals like “two-tier retaining wall with planting troughs” blend form and function.

- Lighting tucked under caps creates safe circulation and a welcoming glow—perfect for tiny patios transitioning to an indoor kitchen.

Cons

- Over-planting can trap moisture against faces or disrupt drainage; I learned to keep root balls clear of the chimney drain zones.

- Aggressive textures fight minimalist patios; I’ve swapped face units mid-project when the outdoor palette needed a calmer backdrop.

Tips / Case / Cost

- Set planting zones at least a few centimeters behind the face to protect drainage paths; choose drought-tolerant species to reduce irrigation near walls.

- Cap lighting systems vary wildly in cost; budget a buffer because fixtures and low-voltage wiring add up faster than clients expect.

save pin

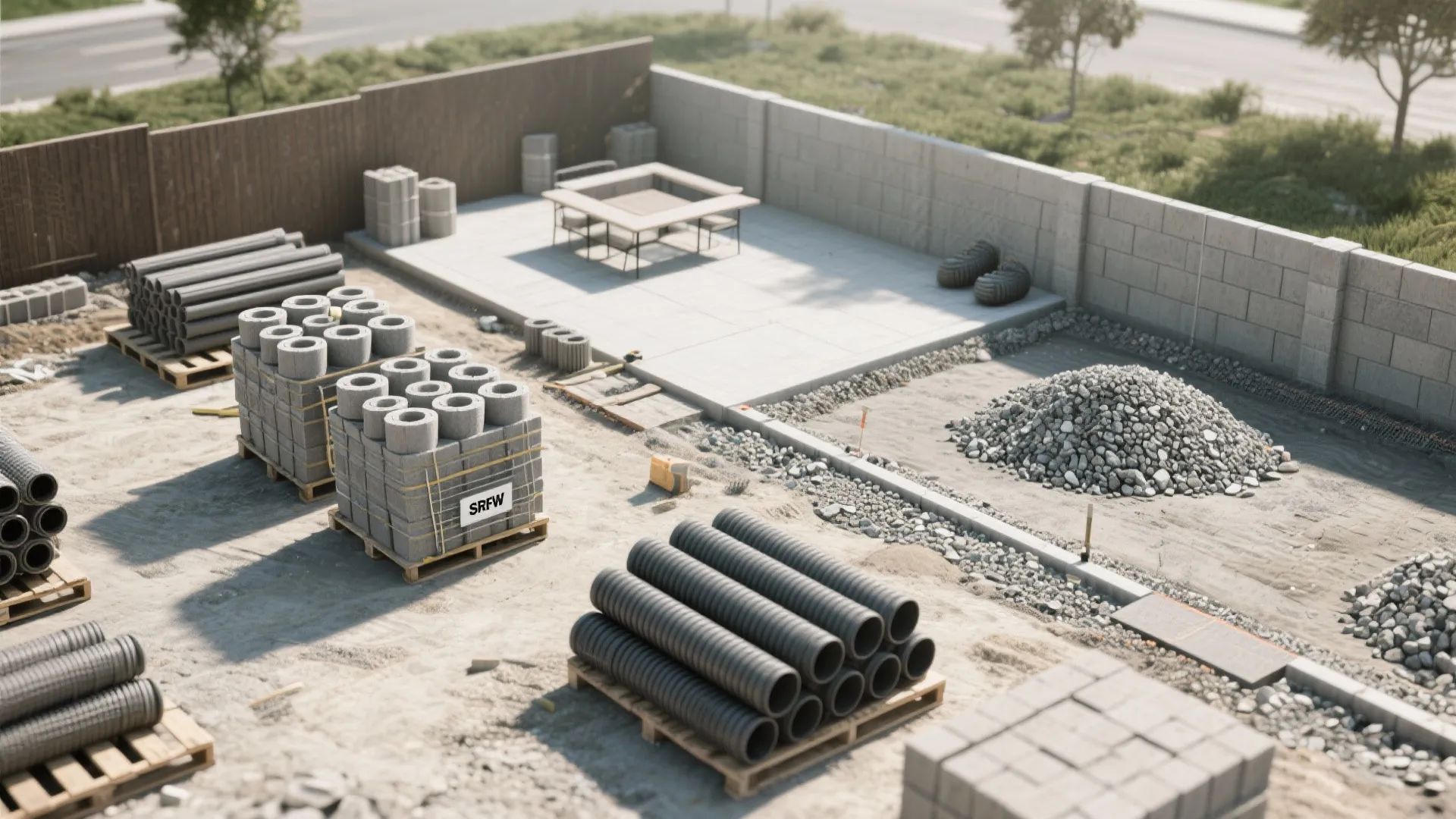

Estimating, Phasing & Collaboration

My Take

Clear estimates and phased construction keep small sites manageable—especially when we juggle a compact patio, a short SRW, and an outdoor kitchen. I use takeoffs to lock quantities, then share models with the contractor and geotech for one aligned plan.

Pros

- Detailed BOMs for units, caps, geogrid, drainage pipe, and gravel reduce surprises; long-tail wins like “retaining wall cost estimation with material takeoff” make bids more accurate.

- Sharing models and notes streamlines approvals and site coordination. Terrain files and wall sections help everyone see the same reality.

Cons

- Phasing in small yards means juggling deliveries; I’ve had pallets arrive too early and eat the only staging space—lesson learned: sequence the drops.

- Collaboration adds time up front; I’ve had clients ask why we’re still “planning.” The answer is simple: good coordination saves time and money on site.

Tips / Case

- Build in a weather contingency; wet soils delay compaction and can force drain redesigns. Keep flexible milestones and a small overtime allowance.

- For layouts touching patios and garden rooms, I lean on terrain-informed site planning to keep grade transitions smooth and accessible.

[Section: 总结]

Small kitchens taught me that constrained footprints reward clever detailing; segmental retaining wall design software proves the same idea outdoors. A small yard doesn’t limit you—it pushes smarter decisions: better drainage, tuned geogrid, and thoughtful textures that make tight terraces feel generous. The NCMA and FHWA guidance anchor those decisions, while today’s modeling tools make them visible to clients and crews. Which of these five inspirations would you try first on your own slope or compact backyard?

save pin

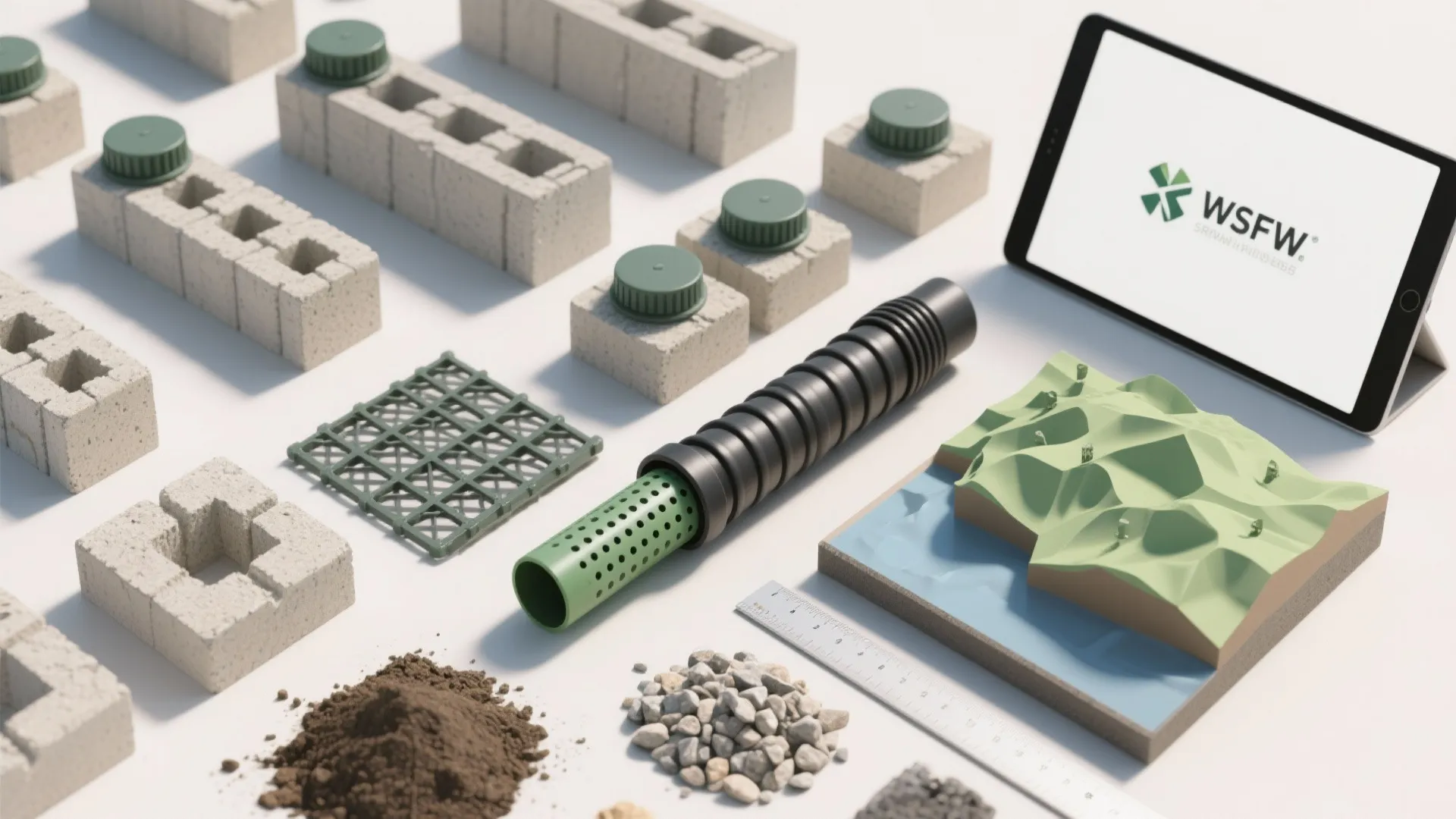

[Section: FAQ 常见问题] FAQ

1) What is segmental retaining wall design software?

It’s software that models SRW blocks, terrain, drainage, and reinforcement (like geogrid) so you can visualize and validate a wall before construction. I use it to balance aesthetics with engineering in small outdoor spaces.

2) Do I still need an engineer if I use SRW software?

Yes. Software helps you iterate, but a licensed engineer or geotechnical professional should review walls with meaningful height, surcharges, or tricky soils. FHWA NHI-10-024 emphasizes proper design for reinforced soil structures.

3) How do I model drainage in the software?

Include toe drains, weep paths, and open-graded backfill zones. The NCMA Design Manual for Segmental Retaining Wall Systems recommends granular backfill and careful compaction to reduce hydrostatic pressure.

4) What block library features matter most?

Radius-capable units, corner pieces, step blocks, and diverse face textures. A solid retaining wall block library lets you test curves, steps, and caps without redrawing each option.

5) Can the software handle surcharges like vehicles near a wall?

Good tools let you simulate live loads and adjust geogrid length accordingly. In tight urban yards, modeling surcharges is essential to avoid under-designed reinforcement.

6) How accurate are quantity takeoffs?

They’re as accurate as your model and site data. If you import reliable terrain and define wall sections correctly, takeoffs for blocks, caps, geogrid, gravel, and pipe can be very close to actual needs.

7) Is photorealistic rendering worth the effort?

Yes—clients make faster decisions on textures, caps, and lighting when they can see the wall in context. It often reduces change orders because expectations are aligned.

8) What’s a smart first step for a small backyard?

Get a basic survey, define desired flat zones, and test one or two SRW alignments with drainage and planting tiers. Segmental retaining wall design software helps you visualize trade-offs before you commit.
