In the past few years, I’ve seen a clear trend: cleaner walls, smarter switches, and safer circuits that blend into the decor. When I plan a simple room electrical wiring diagram, especially in small homes, I find that tight spaces spark big creativity. Early in concept design, I sketch furniture and traffic first, then electrical layers on top—often cross-checking with compact room layout mockups so my outlets and switches land exactly where life happens.

I learned this the hard way during a studio remodel: we forgot a convenient switch for a reading nook. The lamp looked perfect, but the cord snaked across the walkway. Ever since, I map switching logic around habits—where you enter, sit, read, and stash devices.

In this guide, I’ll share 5 practical ideas to design a simple room electrical wiring diagram. I’ll mix my on-site experience with expert data where it matters, and keep it friendly and doable even if your room is only 10–12 square meters.

[Section: Inspiration List]

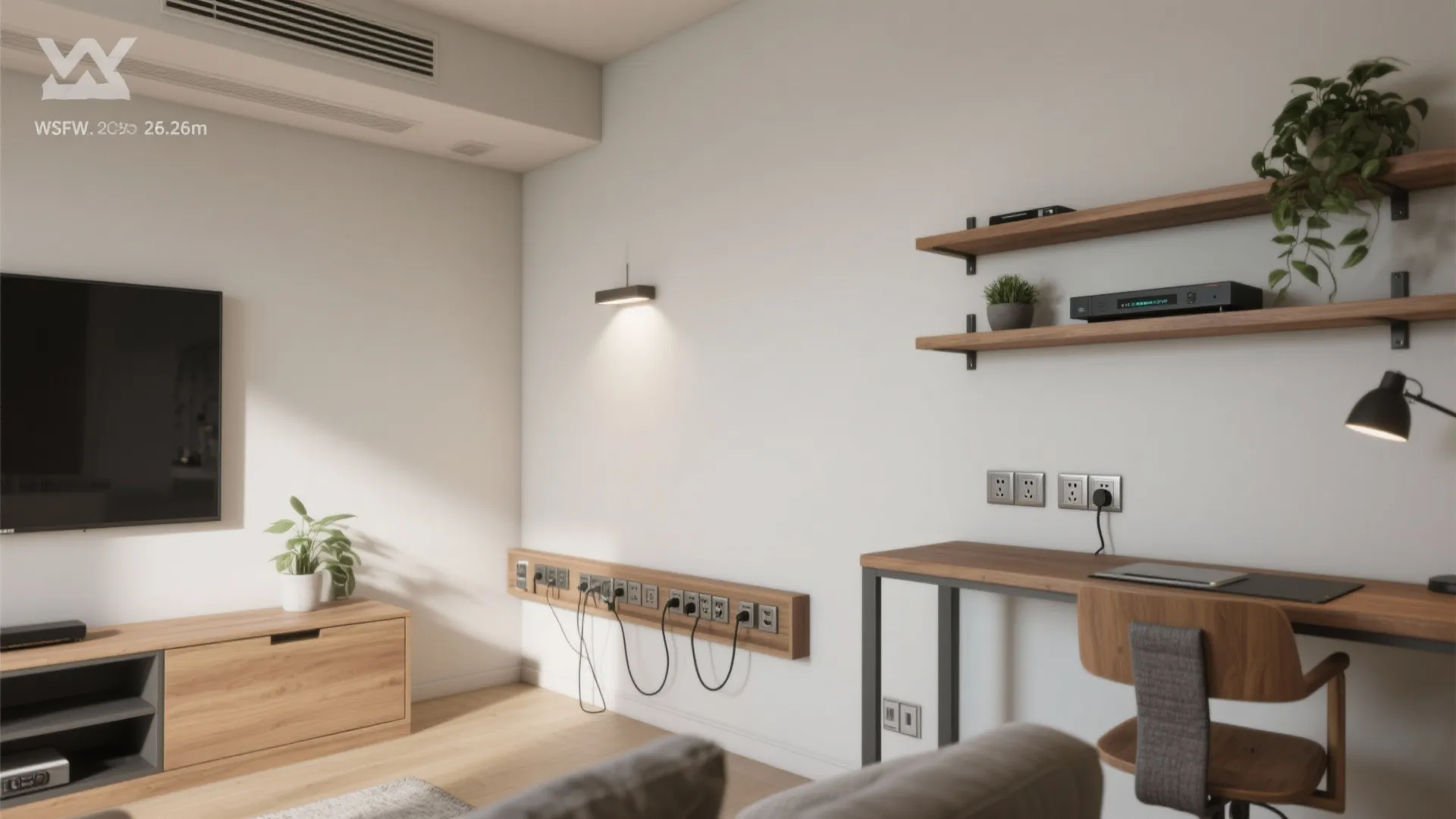

Circuit Zoning That Matches How You Live

My Take

When I zone a small room, I separate lighting from receptacles, and sometimes create a micro-zone for media or a desk. It makes the space more resilient—if a device trips, the room doesn’t go dark.

Pros

Separating lighting and outlet runs keeps your simple room electrical wiring diagram clear and easier to troubleshoot. A small room wiring plan with distinct zones also future-proofs smart upgrades (e.g., adding a dimmer or smart switch later). If you like rearranging furniture, a dedicated media or desk zone can reduce extension cords and clutter.

Cons

More zones can mean slightly longer wire runs and a few extra junctions, which add time and cost. In tiny renovations, the panel may be tight on breaker spaces, so you’ll need to plan carefully. Over-zoning a basic one room circuit diagram can confuse future owners if it’s not labeled clearly.

Tips / Case / Cost

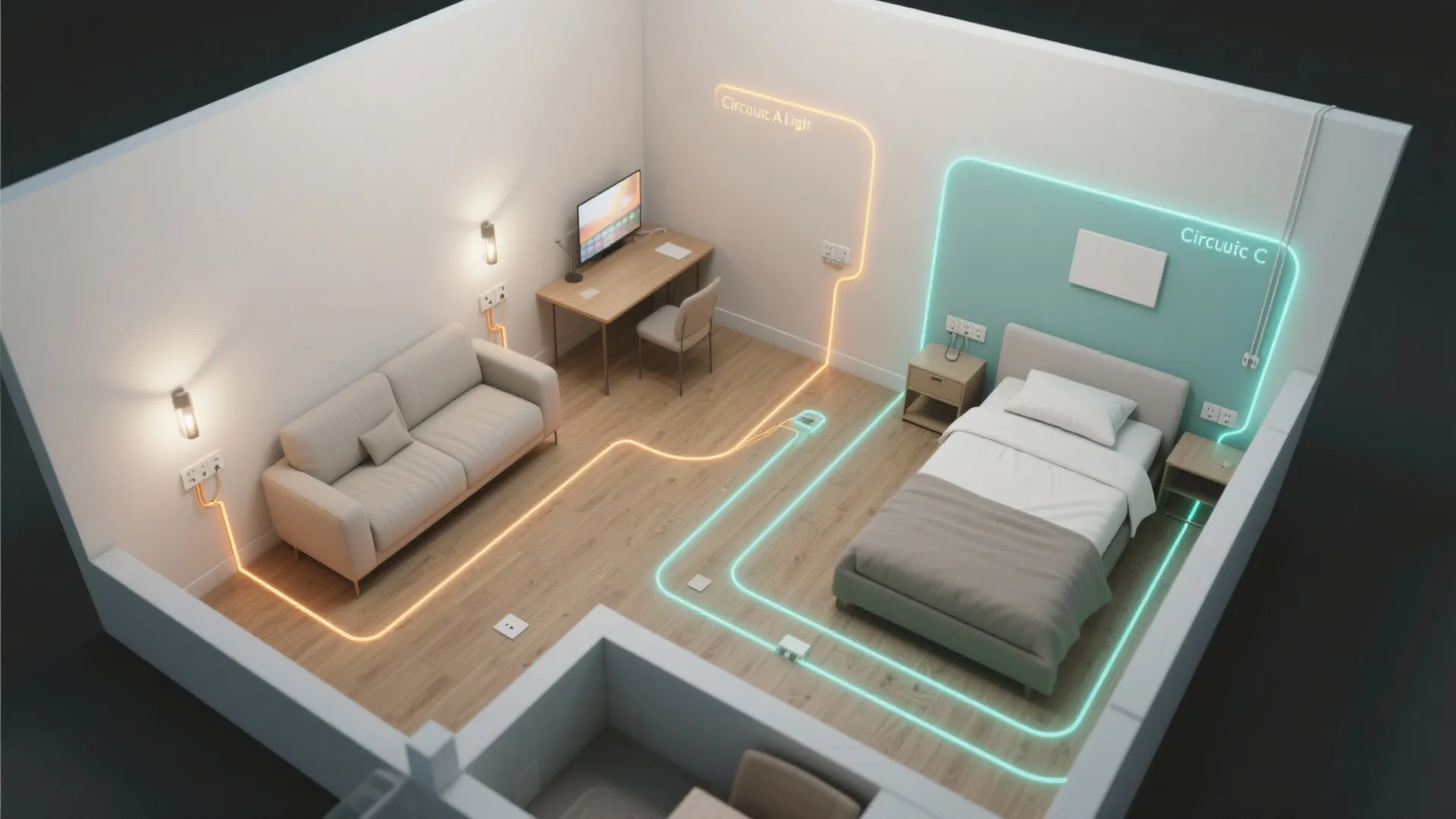

Label every circuit on the plan and in the panel; future you will say thanks. For studios, consider: Circuit A = lighting; Circuit B = general receptacles; Circuit C = desk/media. Expect minor added cost for an extra breaker and a few meters of cable; the payoff is reliability.

save pin

save pin

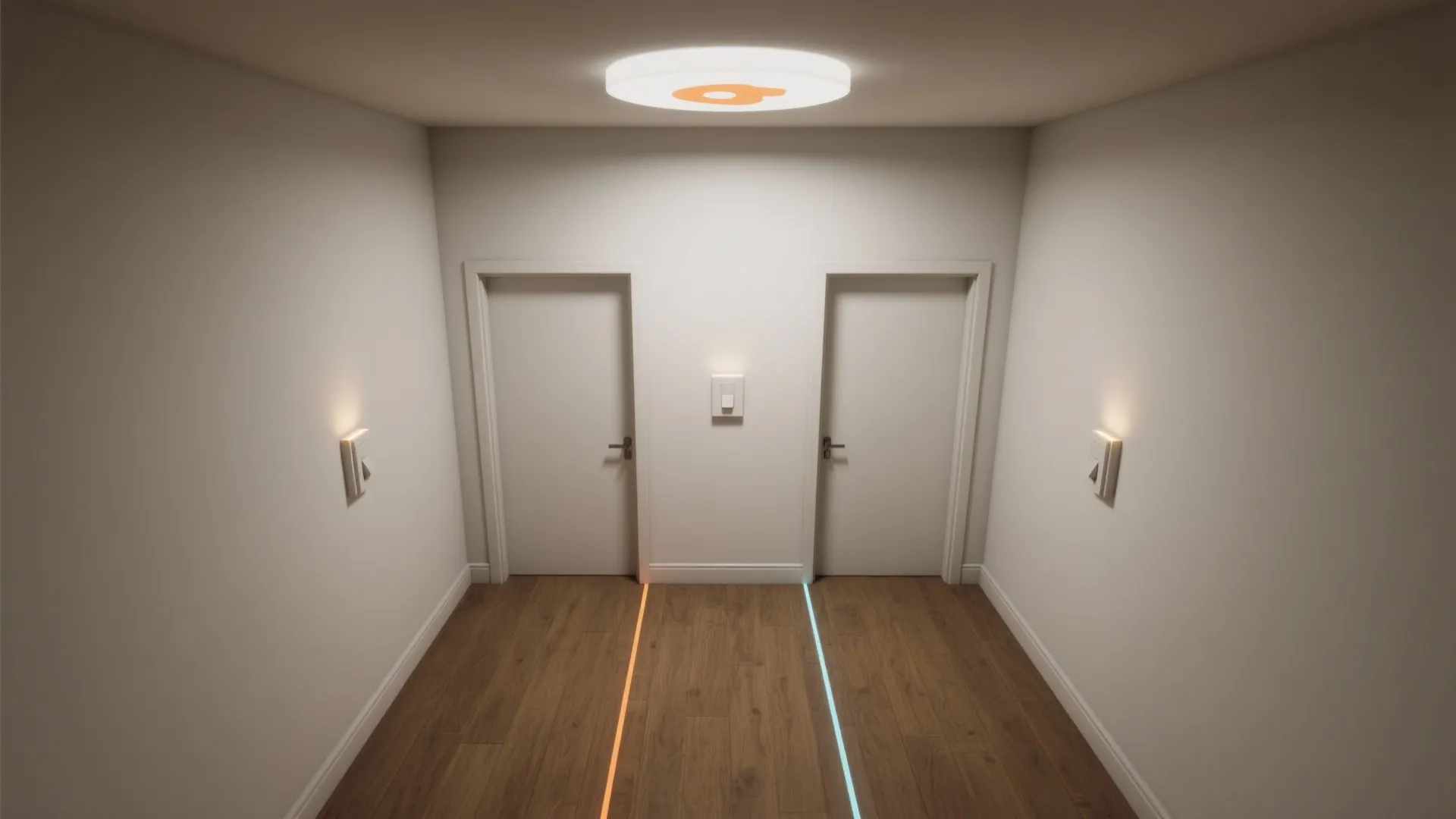

Switch Loops and 3-Way Convenience in One Room

My Take

I almost always add a 3-way switch pair if there are two natural entry points—say, an entry door and a balcony door. It keeps the room from feeling like a maze of dark corners.

Pros

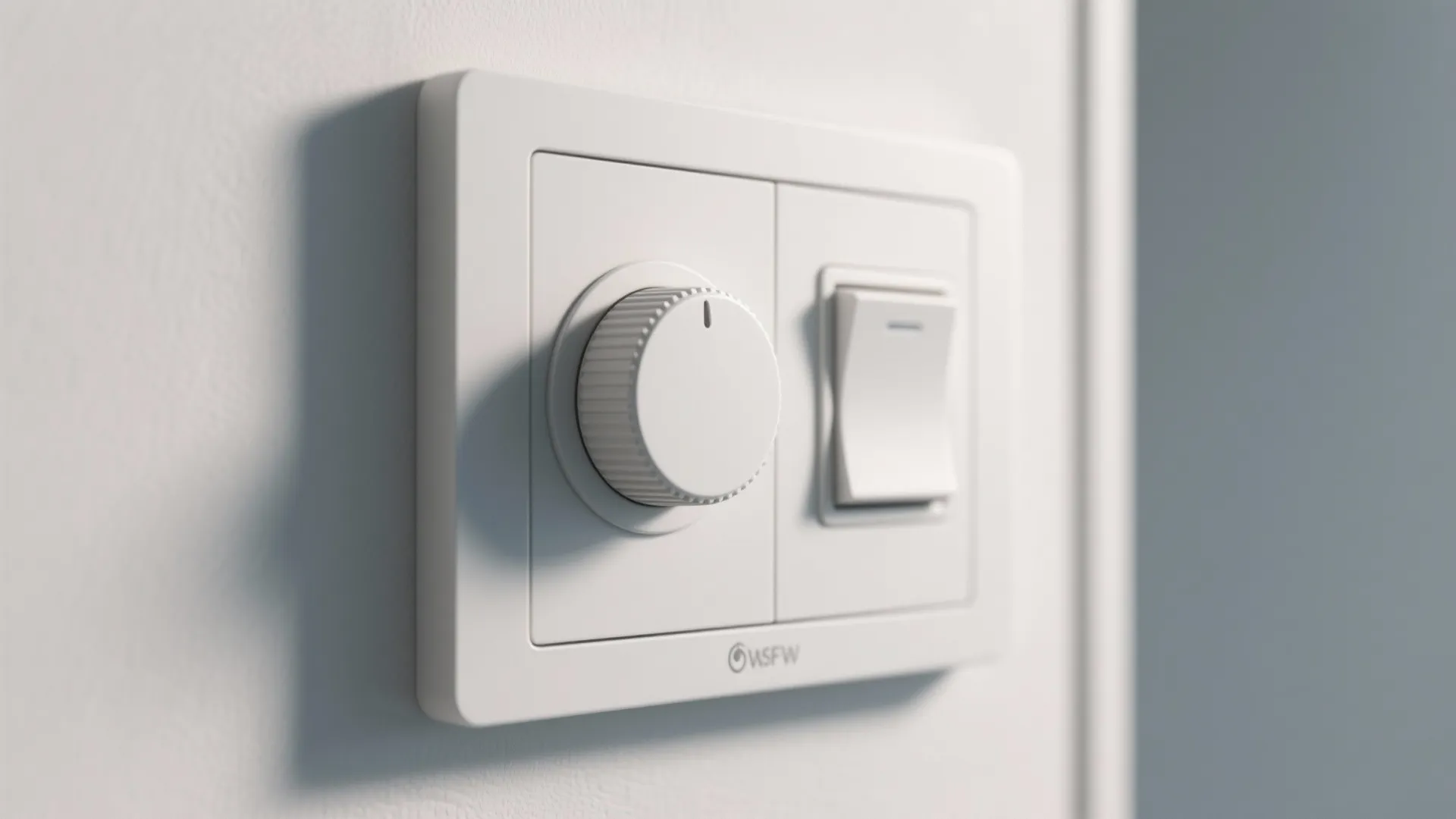

Adding a 3-way pair makes your one room electrical layout more intuitive—enter, light on; exit, light off. Incorporating switch loop wiring in a small room reduces cable clutter when you can’t run a neutral to every switch box (consult local code requirements). When combined with a dimmer at the primary location, you get instant mood control without hunting for lamps.

Cons

Old walls can make routing travelers for a 3-way tricky, especially in concrete structures. Some smart switches require neutral wires in the box, which older homes may lack. If you choose wireless smart remotes instead, the batteries need occasional changing—small trade-off for flexibility.

Tips / Case / Cost

Place 3-way switches where you naturally enter and exit. If neutral conductors are missing in switch boxes, consider smart dimmers with wireless auxiliaries that don’t need a hardwired traveler. Budget a little extra for smart controls if you want to skip wall chasing.

save pin

save pin

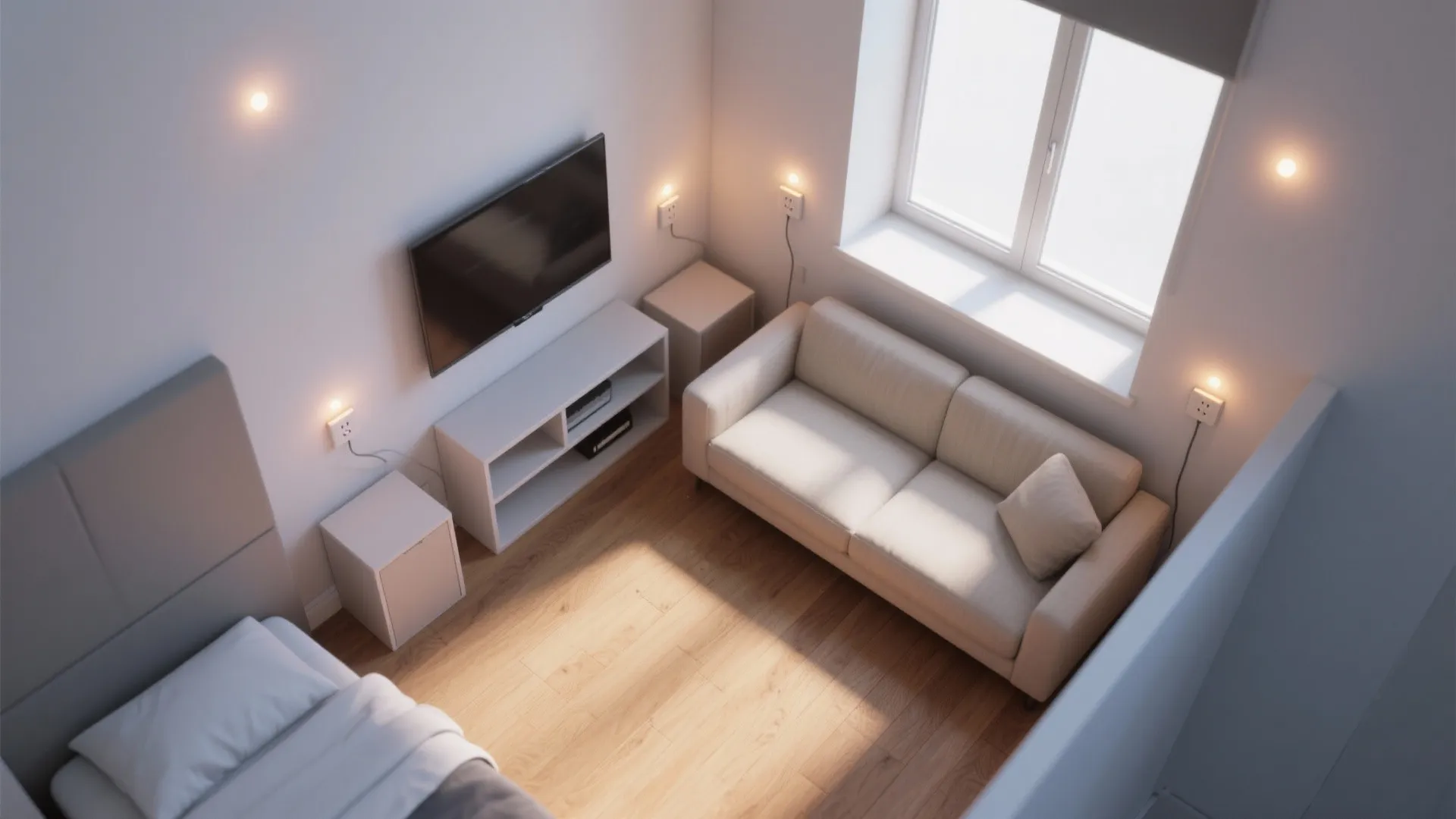

Receptacle Spacing, Heights, and Loads Made Simple

My Take

Nothing dates a room faster than extension cords everywhere. I plan receptacles to match furniture and tech—charging near the sofa, a hidden outlet behind media, and one near the window for seasonal decor.

Pros

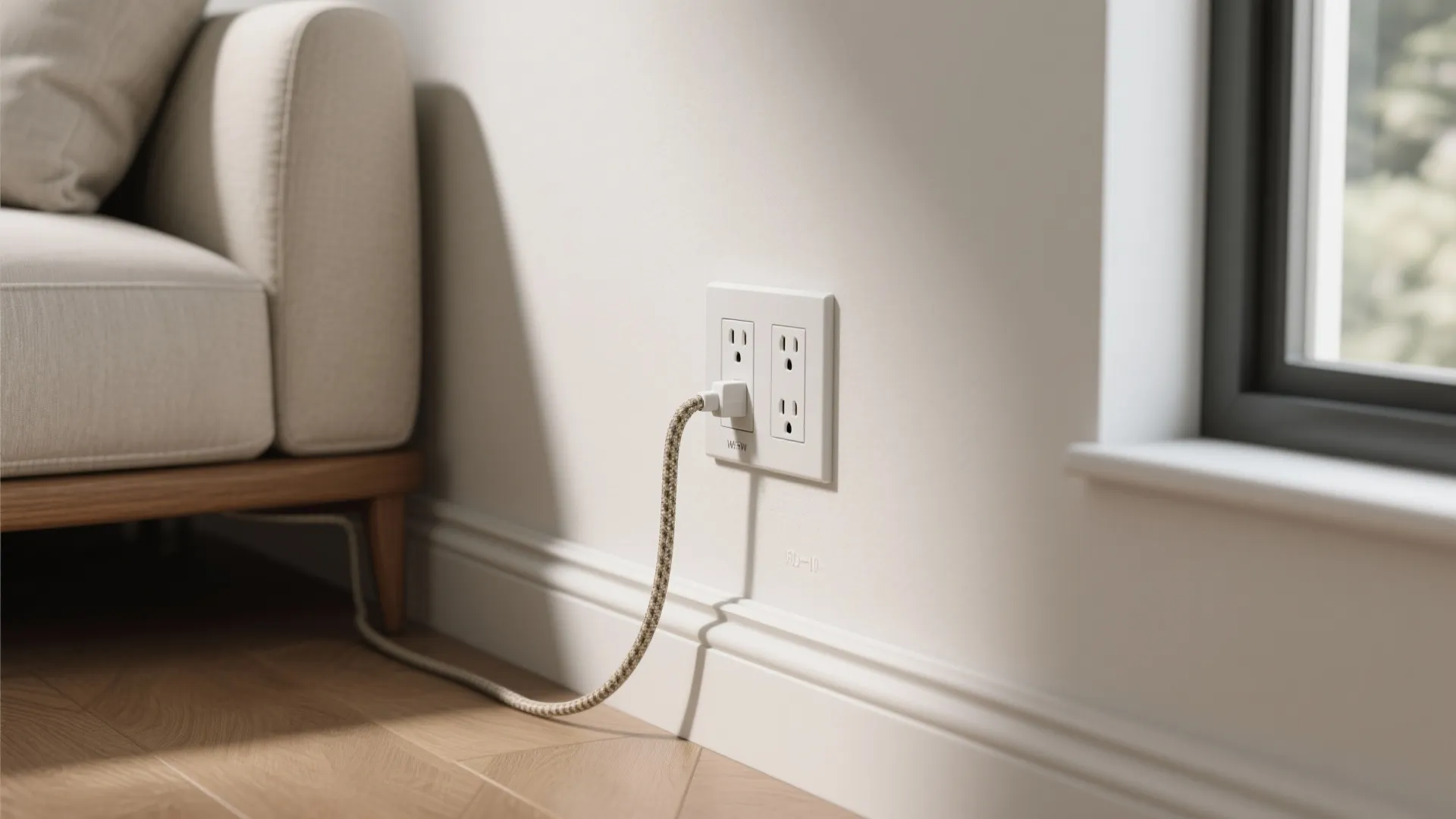

A basic single-room circuit diagram that respects good spacing reduces cable runs across floors and improves safety. In the U.S., a common guideline is to place receptacles so no point along the floor line is more than 6 ft from an outlet (see NEC 210.52 for details; reference: NFPA 70). Planning realistic heights (e.g., 12–16 in to center for general use) makes furniture placement easier and keeps plugs discreet.

Cons

Strict spacing plus furniture-driven placement can increase box count in a tiny room. In masonry walls, each additional box means more cutting and patching. Overloading a 15A circuit with too many high-draw devices is a risk if you don’t consider loads.

Tips / Case / Cost

Sketch your furniture first, then place outlets; confirm there’s one at each side of the bed or sofa where you charge devices. Use a simple load check: VA = Volts × Amps; a 15A, 120V circuit is 1,800 VA max—derate in practice so you’re not at the limit. Before finalizing, walk the plan visually; if needed, use 3D floor visualization to confirm every outlet sits where you’ll actually plug in.

save pin

save pin

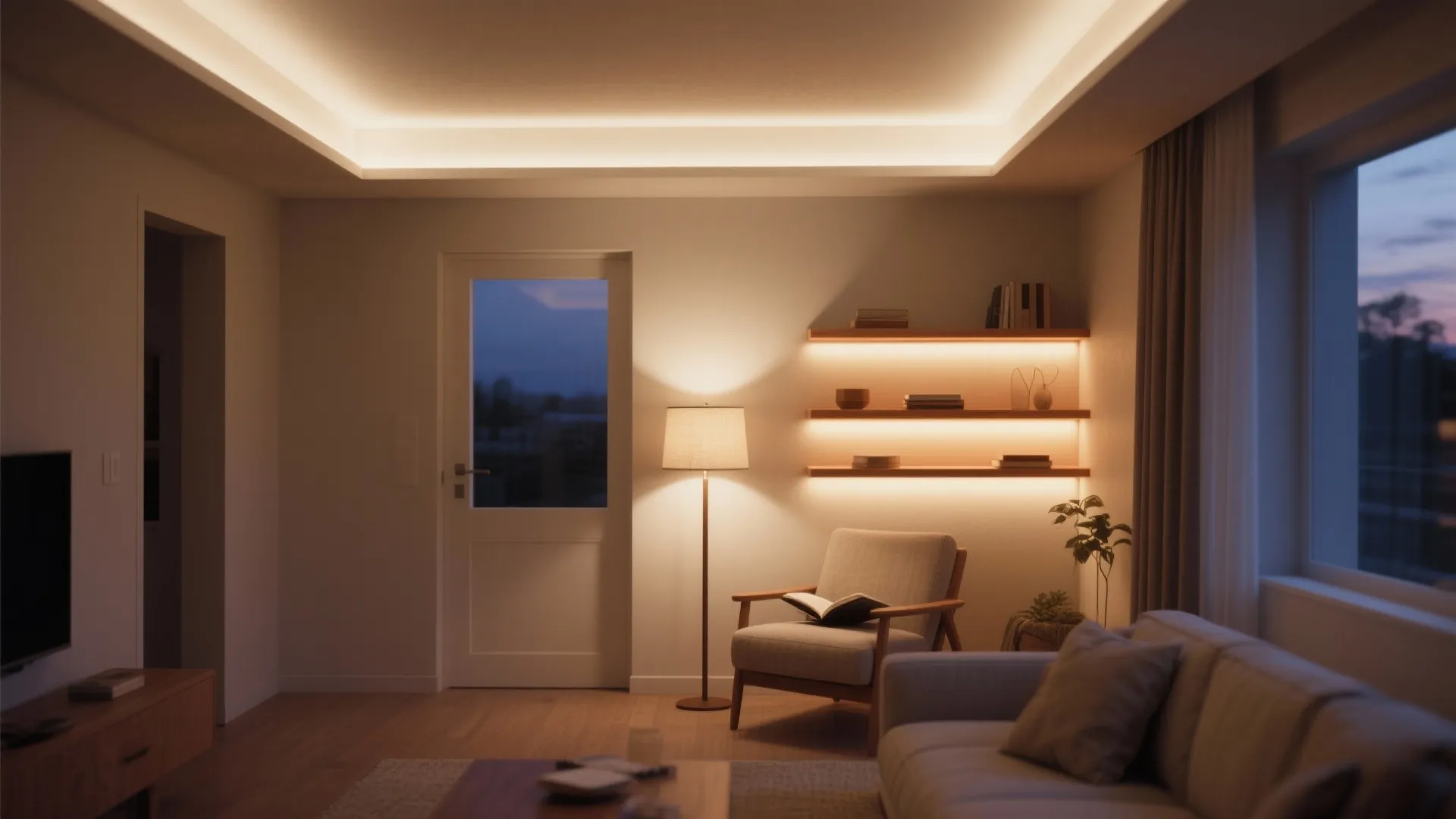

Layered Lighting That Doubles as Wayfinding

My Take

In small rooms, layered lighting does double duty. General ceiling light for cleaning, a soft wall sconce for reading, and a slim LED strip under a shelf for glow—simple layers, huge payoff.

Pros

A small room electrical layout with ambient, task, and accent layers feels bigger and more adaptable. Dimmers let you swing from work mode to movie night without moving furniture. Motion or vacancy sensors by the door can guide you safely at night without flooding the space with light.

Cons

Multiple layers mean more switches or controls on the wall—consider a 2-gang or 3-gang box and label them well. Dimming compatibility can be finicky—mixing LEDs and older fixtures may cause flicker. Wireless controls are great, but remember to document pairings so guests aren’t baffled.

Tips / Case / Cost

Bundle low-watt accent lights on one circuit with a dimmer to keep the main lighting clean. If wall space is scarce, combine a multi-function control and use voice or app scenes. Budget for quality dimmers; cheap ones often hum or flicker.

save pin

save pin

Safety Essentials: Grounding, GFCI/AFCI, and Box Fill

My Take

As a designer, I want beautiful results, but safety is non-negotiable. Proper grounding, correct device ratings, and protection where required keep your diagram safe long after the paint dries.

Pros

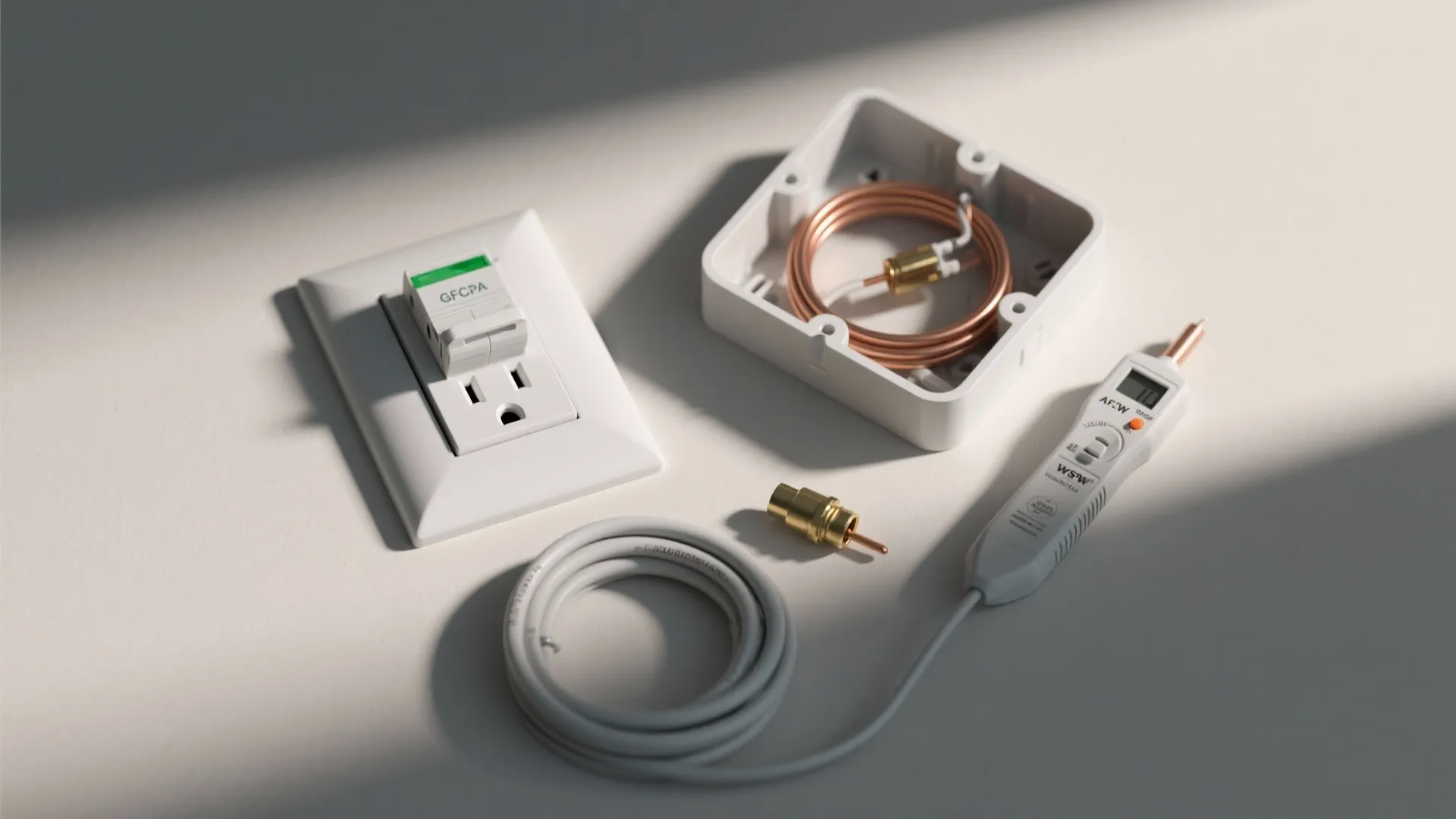

Grounding continuity and correct enclosure sizes make the basic one room electrical layout safer and easier to inspect. GFCI and AFCI protection—where local code requires—provide lifesaving layers against shock and arc faults, especially near baths or sleeping areas. Box fill calculations prevent overheating and help you choose the right box depth for neat, serviceable wiring.

Cons

Upgrading older wiring to include grounds and modern protection can increase costs. GFCI/AFCI devices are pricier than standard devices, and combination breakers add more. Box fill math can feel tedious, but skipping it invites problems.

Tips / Case / Cost

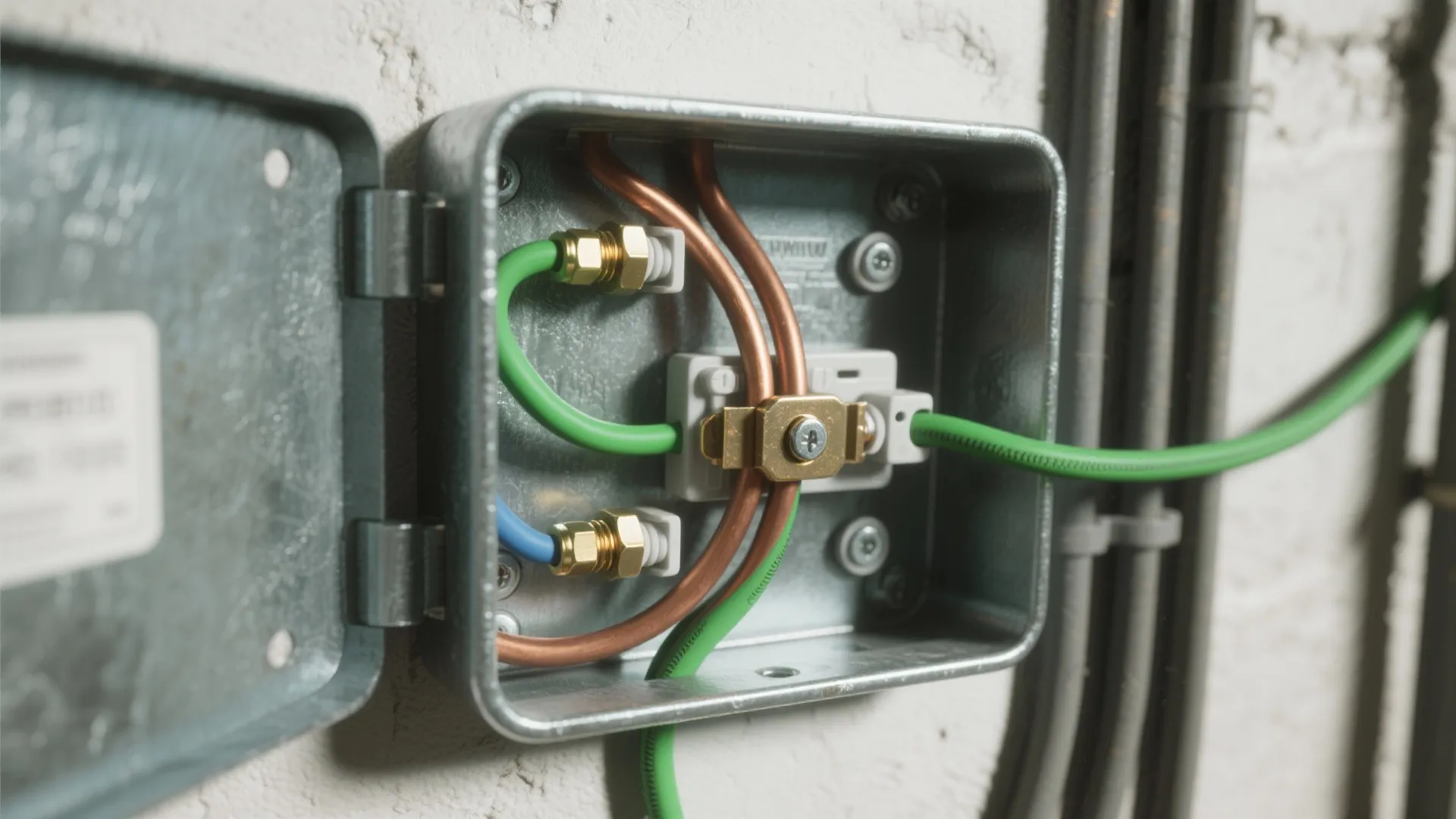

Document grounding paths on your simple room electrical wiring diagram so every metal box and device is bonded. If you’re modernizing an older space, ask your electrician about combination AFCI/GFCI solutions that meet your local code and simplify the panel. For planning and iteration, I sometimes test multiple switch-box groupings with AI-assisted interior concepts to keep the wall plate layout tidy without sacrificing safety.

[Section: Summary]

A small room doesn’t limit you; it nudges you toward smarter choices. A thoughtful simple room electrical wiring diagram—zoned circuits, logical switches, right-sized outlet spacing, layered lighting, and safety basics—creates a space that works beautifully day and night. Codes vary, so verify details locally and lean on a licensed electrician for implementation; the design intent keeps the project cohesive and safe. Which of these five ideas do you want to try first?
