5 Sleeper Retaining Wall Design Ideas That Work: A senior designer’s practical, data-backed sleeper retaining wall design guide for small yards, sloped sites, and smart budgets

[Section: Meta 信息]

Meta info is provided in the JSON meta field.

[Section: 引言]

I’ve spent over a decade helping clients turn tricky slopes into calm, green backdrops, and lately I’m seeing a clear trend: natural materials, clean lines, and greener terraces that double as planting beds. A sleeper retaining wall can look humble, but when you get the proportions, drainage, and finishes right, it elevates the whole outdoor room. And yes—small spaces spark big creativity; the tighter the yard, the smarter the detailing.

In this sleeper retaining wall design guide, I’ll share five ideas I lean on in real projects, weaving in my field notes, what’s worked (and not), and a couple of expert sources where code or drainage decisions matter. Expect practical details—from steel H-beam posts to gravel backfill—and honest costs and trade-offs. Let’s dive into the five ideas.

[Section: 灵感列表]

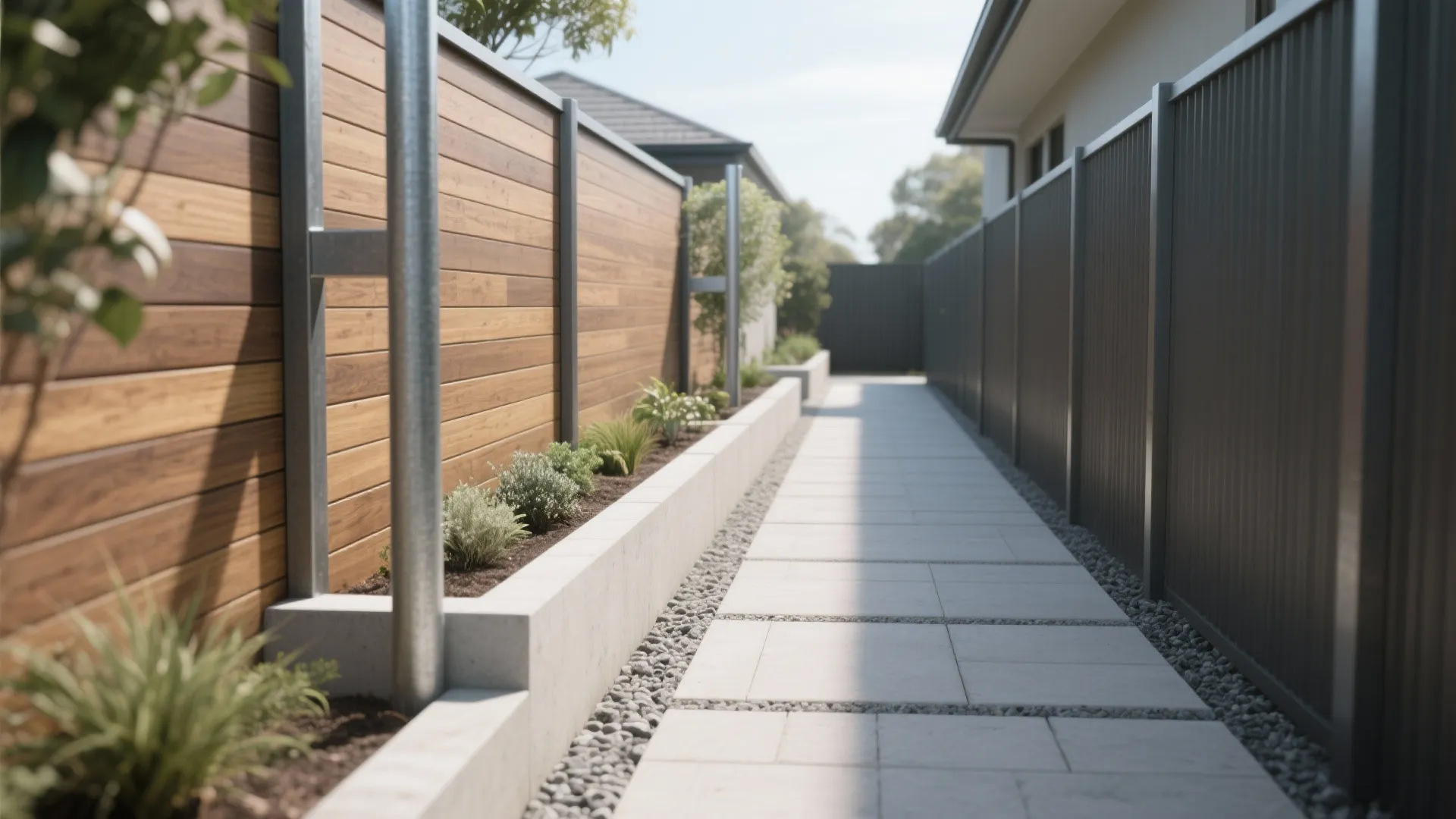

1) Slim Sleeper Walls for Tight Yards

My Take: On narrow side yards or split-level patios, I design “slimline” sleeper walls that keep structure compact and usable area maximized. Think steel H-beam posts with slender sleepers so you gain every inch of path or planting bed. I’ll mock up textures early to test tone, especially when timber meets pale pavers—those details sell the whole scene, including natural timber textures.

Pros: A slim sleeper retaining wall uses a tight footprint, which is gold on narrow sites. Steel post channels let you span longer with fewer posts, reducing visual clutter while keeping the sleeper retaining wall design consistent across changes in grade. For long runs, this strategy keeps edges crisp and enables future upgrades like a cap or seating ledge without rebuilding.

Cons: Steel and quality hardwood or composite sleepers can raise the initial cost per foot compared with basic treated pine sleeper retaining wall builds. Slim builds demand more precision—if posts are out of plumb, you’ll read it in the lines. And where there’s a neighbor boundary, even a compact wall may still need approvals if you exceed height limits.

Tips / Cost: For DIY, pre-plan your post centers (e.g., 4–6 ft) and over-order sleepers by 5–10% for cuts and selection. Budget-wise, steel H-posts plus hardwood sleepers can run higher upfront, but they often win on lifespan and low deflection over time.

save pin

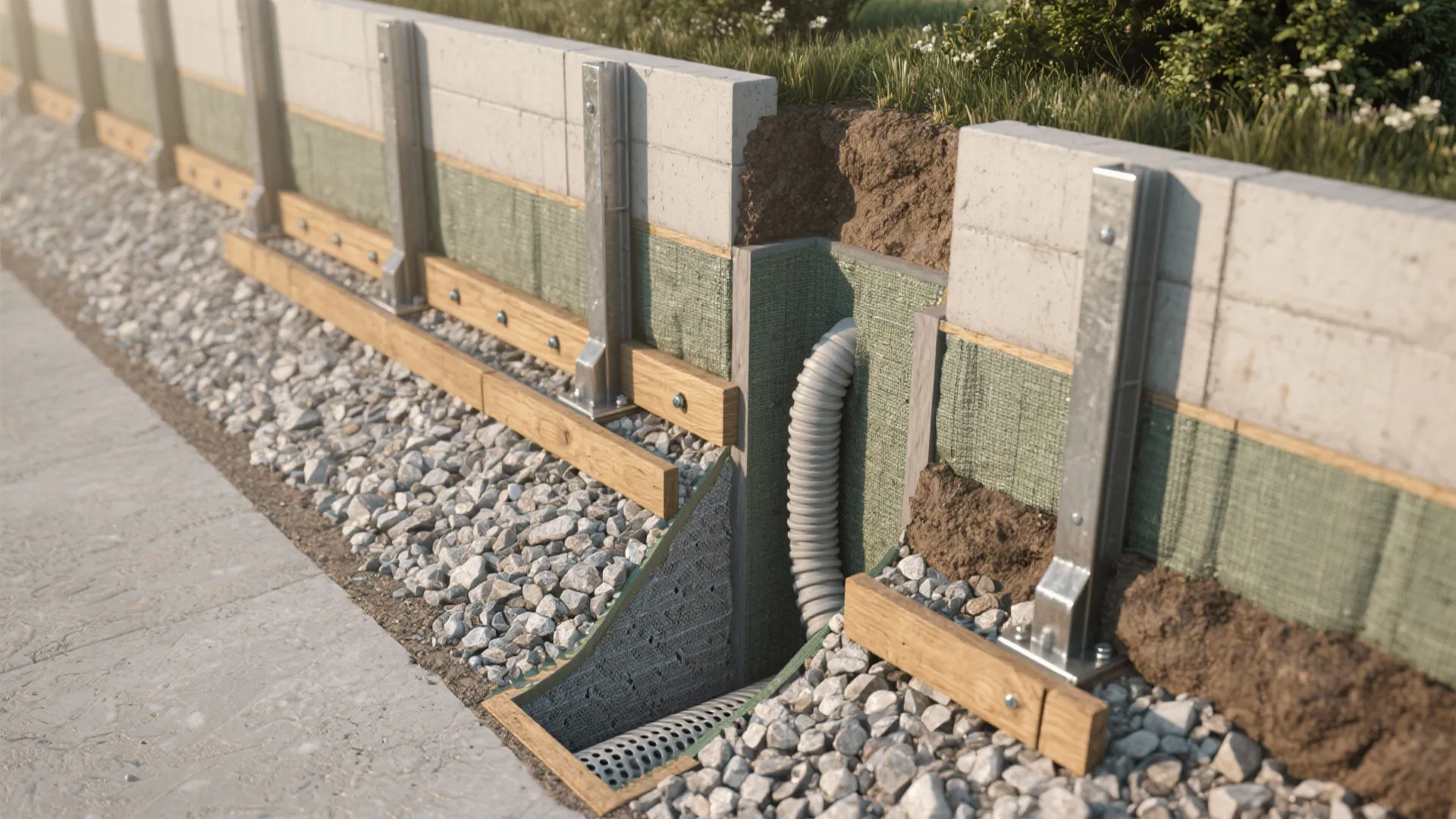

2) Drainage-First Sleeper Wall Detailing

My Take: The prettiest sleeper wall will fail without the right drainage. I once revisited a garden where a wall looked perfect on day one but bowed slightly a year later—turns out the backfill was dense clay with no free-draining zone. Since then, I treat drainage like the invisible hero: gravel backfill, geotextile wrap, and weep points where it makes sense.

Pros: Proper “sleeper retaining wall drainage details” protect against hydrostatic pressure, extending the life of timber or concrete sleepers. A layer of free-draining aggregate (typically 3/4 in. clean gravel) and a filter fabric between soil and gravel reduce fines migration and clogging, which helps keep weep holes functional. University extensions consistently emphasize drainage; Clemson Cooperative Extension notes that retaining walls require adequate back drainage and weep systems to prevent pressure buildup (see Clemson HGIC 1257: Retaining Walls, https://hgic.clemson.edu/factsheet/retaining-walls/).

Cons: Drainage adds time and line items—aggregate, perforated pipe, filter fabric—so the “cheap-and-fast” mindset fights you here. In heavy clay, trenching and managing spoils can be messy. And if you’re retrofitting drainage behind an existing wall, access is limited and labor can spike.

Tips / Case / Cost: On sites with downspouts nearby, I’ll route a perforated drain at the wall base to daylight wherever feasible. Budget about 10–20% of the wall cost for drainage materials and labor; it’s preventative medicine you’ll be glad you paid for.

save pin

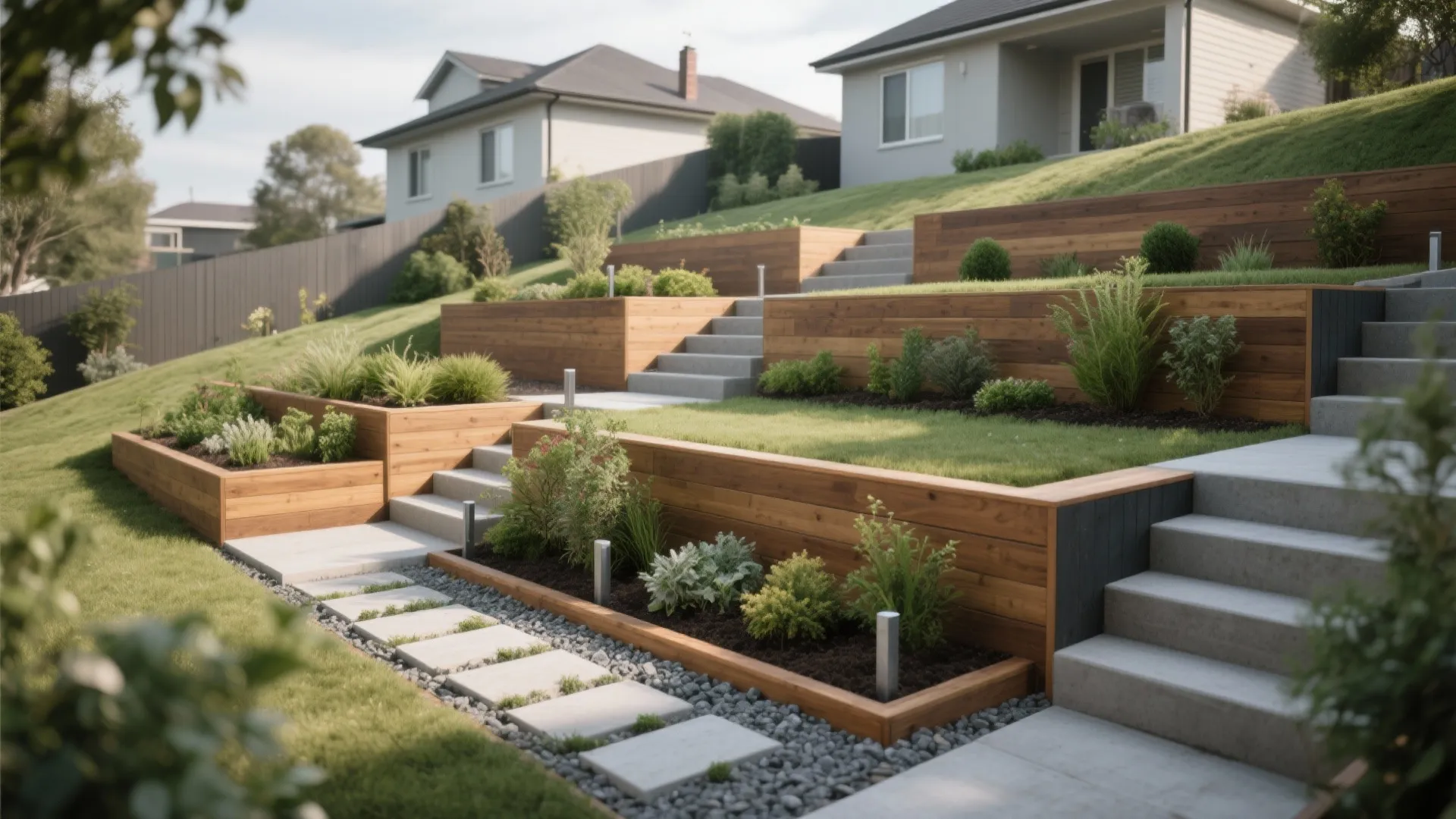

3) Terraced Planters and Integrated Steps

My Take: Terracing is my go-to when a single tall wall would feel imposing or trigger permit complexity. Instead, two or three staggered, low sleeper retaining wall tiers create human scale, better planting pockets, and naturally break up loads. On one townhouse slope, a terraced herb garden made a tiny yard feel like a layered hillside.

Pros: Terraced sleeper retaining wall layouts improve water percolation and reduce singular wall height, often steering you under thresholds that require engineering. Integrated steps allow a gentle climb and a seamless path across levels, and “terraced sleeper retaining wall with steps” becomes a purposeful design feature, not just a structural fix. You also gain microclimates for herbs, shrubs, and pollinator plants at each tier.

Cons: Multiple small walls mean more edges and transitions to detail—caps, fence tie-ins, irrigation runs—which add coordination time. If planting beds are narrow, maintenance can be awkward unless you plan step-outs or stepping stones. And irrigation overspray can prematurely weather timber unless you recess spray heads thoughtfully.

Tips / Case / Cost: I like risers at 5.5–7 in. to feel comfortable underfoot, and I’ll align step treads with sleeper lengths to minimize cuts. For planning, I run quick site-specific layout studies to check sightlines from the indoors—your living room view matters as much as the yard experience.

save pin

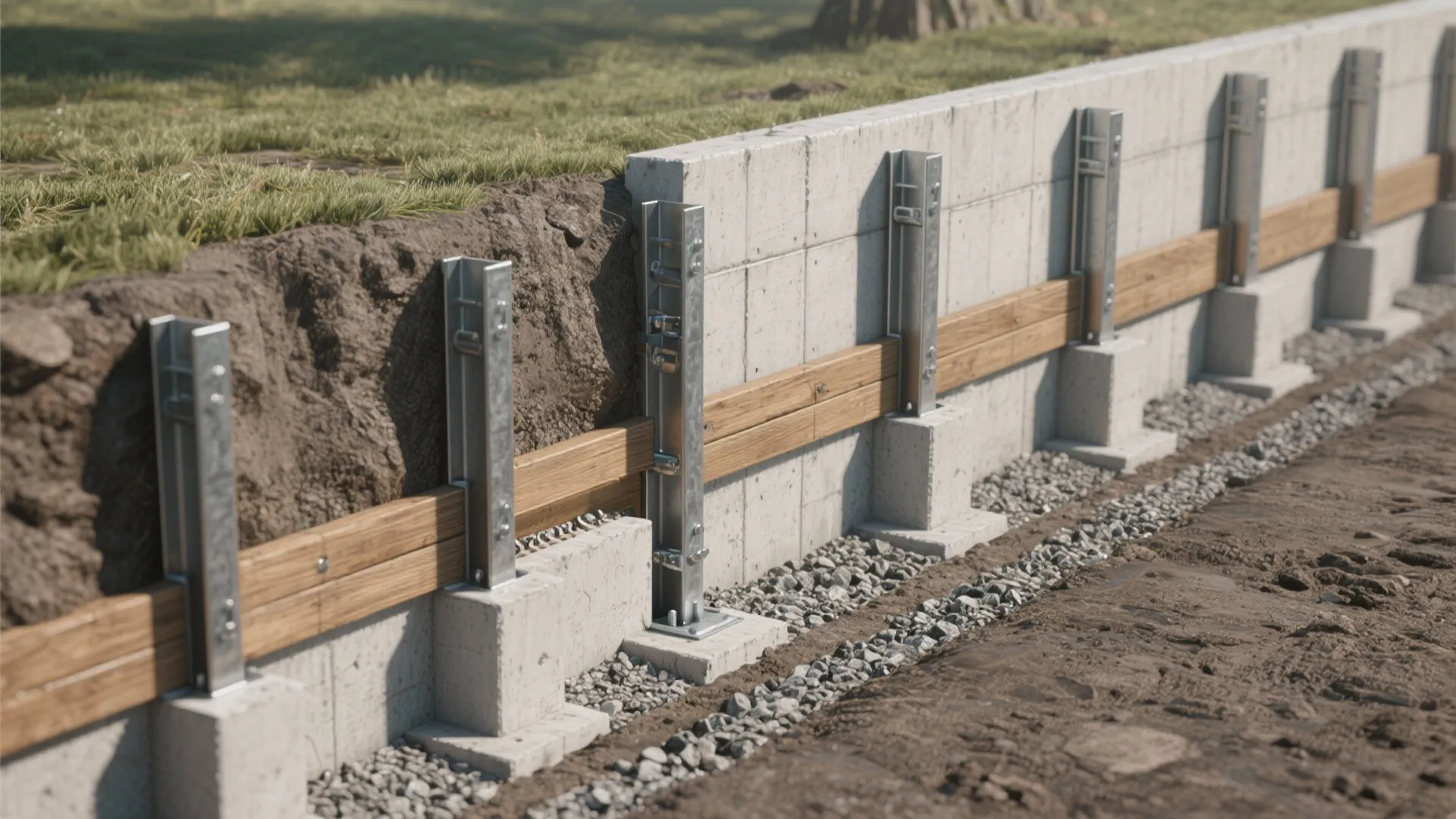

4) Steel Posts, Footings, and Height Limits—No Surprises

My Take: Sleeper walls look simple, but the skeleton matters. I’ve fixed too many wobbly “weekend” builds where posts were too shallow, spans too long, or height limits overlooked. Upfront clarity—post embedment, wall height, surcharge (like a driveway), and local permits—saves headaches and neighbor drama.

Pros: Using steel H-beam posts with adequate embedment in concrete footings improves lifespan and stiffness, particularly for “sleeper retaining wall design” on clay or sloped sites. Keeping the wall under 4 ft (measured from the bottom of footing) can simplify permitting in many jurisdictions, but always verify. The International Residential Code (IRC) notes that walls over 4 ft or supporting a surcharge typically require engineered design and permits (ICC IRC 2021, R105.2; https://codes.iccsafe.org/content/IRC2021P1/chapter-1-scope-and-administration).

Cons: Engineering and permitting add cost and time, and not all municipalities interpret the rules the same way. Steel prices fluctuate, and deeper footings mean more concrete and excavation. On tight sites, setting posts dead-plumb with proper cover and drainage clearance can be time-consuming.

Tips / Case / Cost: For typical backyard loads, many designers keep post centers at 4–6 ft with 75–100 mm sleepers, but confirm with local code and soil conditions. If there’s a surcharge—parking pads, slopes above, or fences—plan for engineering even under 4 ft. Build a contingency of 10–15% for permit and inspection-related changes.

save pin

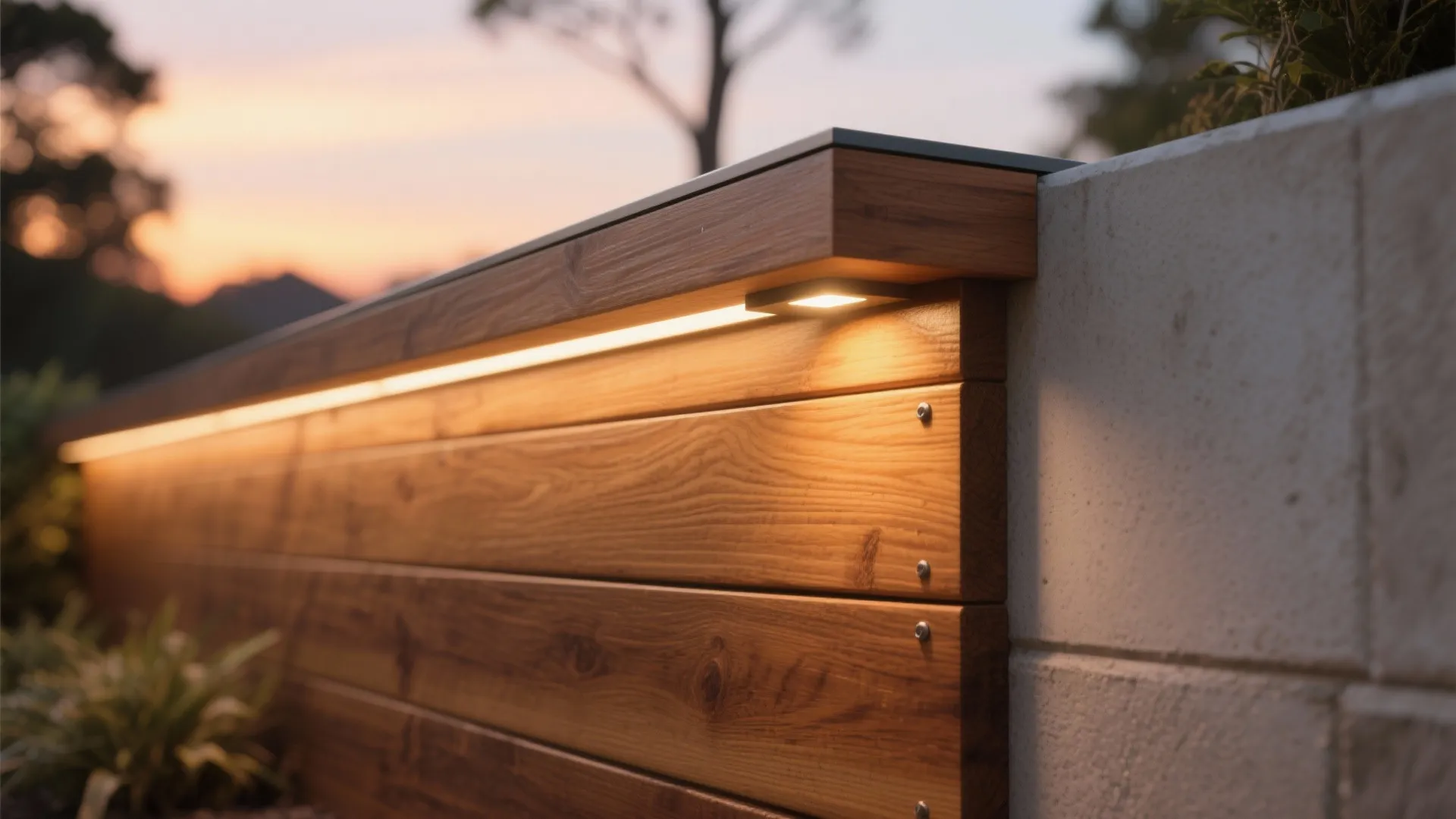

5) Finishes, Lighting, and Long-Term Care

My Take: The final 10%—caps, stains, integrated low-voltage lighting—makes the wall feel designed, not just built. I like a chamfered timber cap where seating is expected, or a slim metal angle cap for clean modern lines. For evening gardens, downlights tucked under caps can make the textures glow without glare.

Pros: A “treated pine sleeper retaining wall” benefits from UV-stable stain or oil, which slows checking and graying while maintaining grain character. Discreet path lights and stair lights increase safety and add depth; “sleeper retaining wall with lighting” turns a practical structure into a feature. Planning finishing touches early also keeps conduit routes and junction boxes tidy.

Cons: Finishes and lighting add maintenance—expect to re-oil or re-stain timber every 1–3 years depending on climate and exposure. Low-voltage systems are simple, but they still need occasional bulb or driver replacement. If you rush cap details, water can trap and accelerate rot; the devil’s in the drips.

Tips / Case / Cost: On showpiece yards, I do a quick light-and-shadow visualization before finalizing fixture locations. For timber, choose ACQ- or MCA-treated sleepers rated for ground contact and add a breathable barrier between timber and soil where appropriate; on concrete sleepers, a sealing wash can curb efflorescence. Schedule a spring inspection checklist: clean weep holes, re-level any washed gravel, and touch up finishes.

[Section: 总结]

A sleeper retaining wall isn’t a limitation—it’s an invitation to design smarter. When you combine drainage-first detailing, right-sized posts and spans, and thoughtful finishes, even a compact yard can bloom across levels. I’ve seen modest terraces transform the indoor-outdoor flow and property vibe. And remember: codes and soils differ, so if you’re near thresholds or surcharges, an engineer’s hour can save months—ICC guidance on height limits is a good starting point to check against your local rules.

Which of these five sleeper retaining wall ideas are you most excited to try in your space?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is a sleeper retaining wall?

A sleeper retaining wall uses horizontal sleepers (timber, composite, or concrete) held by vertical posts to retain soil. It’s popular for small yards because it’s compact, adaptable, and cost-effective compared to masonry.

2) Do I need a permit for a sleeper retaining wall?

Often, walls over 4 ft high or supporting surcharges require permits and engineering. Many jurisdictions reference the International Residential Code (IRC R105.2) for thresholds—confirm with your local building department.

3) How deep should steel posts be for a sleeper retaining wall?

Depth depends on wall height, soil, and loads, but posts typically embed below frost depth with concrete backfill. On typical residential builds, designers often target 1/3–1/2 of wall height as a rule of thumb—verify with local code or an engineer.

4) What are essential sleeper retaining wall drainage details?

Use a free-draining gravel zone behind the wall, filter fabric to keep fines out, and a perforated drain to daylight where possible. University extensions like Clemson HGIC emphasize proper drainage to prevent hydrostatic pressure and wall failure (https://hgic.clemson.edu/factsheet/retaining-walls/).

5) Treated pine vs hardwood vs concrete sleepers—how to choose?

Treated pine is budget-friendly and easy to cut; hardwood is durable and warmer in tone; concrete sleepers are dimensionally stable and low maintenance. Match the choice to climate exposure, lifespan goals, and the wall’s visual role in your design.

6) Can I build a terraced sleeper retaining wall on a small site?

Yes—terracing is ideal for small spaces, creating multiple planting zones and keeping each wall tier lower. It can also help you stay under permit thresholds, but check local rules if combined heights or surcharges apply.

7) What does a sleeper retaining wall cost per foot?

DIY treated pine can be relatively affordable; steel posts with hardwood or concrete sleepers increase cost but extend lifespan. Add 10–20% for drainage materials; lighting, caps, and finishes add to the final number.

8) How do I maintain a sleeper retaining wall?

Annually clear weep holes, check for erosion, and re-level washed gravel. Re-oil or re-stain timber every 1–3 years depending on sun exposure; concrete sleepers may benefit from a sealing wash to manage efflorescence.
