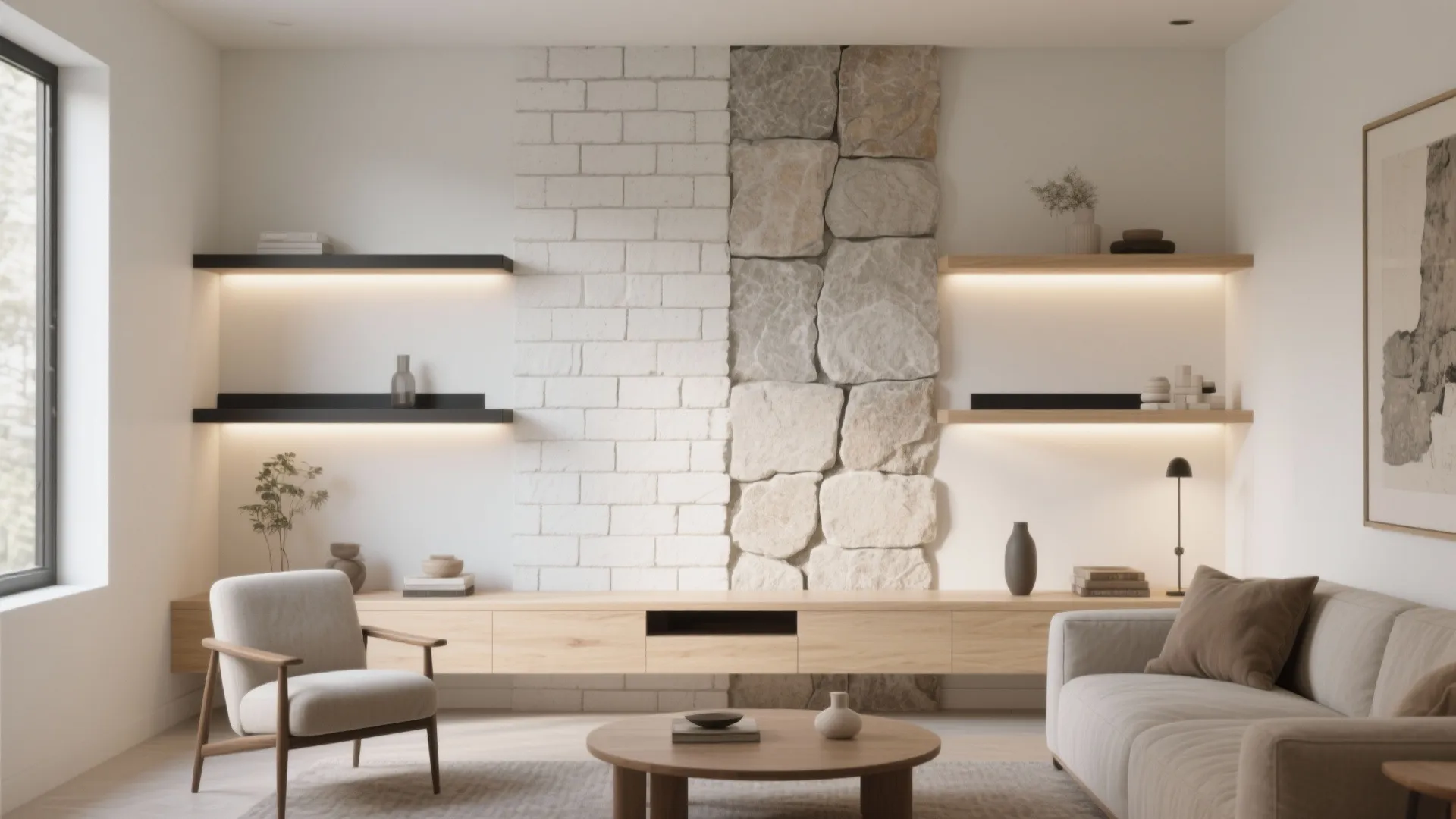

5 Split Face Block Wall Design Ideas That Work: Small-space friendly textures, lighting, and layout strategies from a senior interior designer

Textured surfaces are having a big moment, and few materials deliver tactile character like split face CMU. In the last decade of my practice, I’ve leaned on split face block wall design to bring handcrafted depth into both compact apartments and breezy courtyards—because small spaces can spark big creativity. I’ll share 5 ideas that blend real-world experience with expert data, and I’ll point out where a textured masonry feature wall truly elevates the vibe.

If you’ve ever touched a split face block, you know it reads like rough-hewn stone but installs like a reliable modular system. The trick is guiding that rugged texture with calm color, clever light, and smart detailing so the wall feels intentional, not busy. Below are the five design inspirations I find myself recommending most often in homes and small commercial spaces.

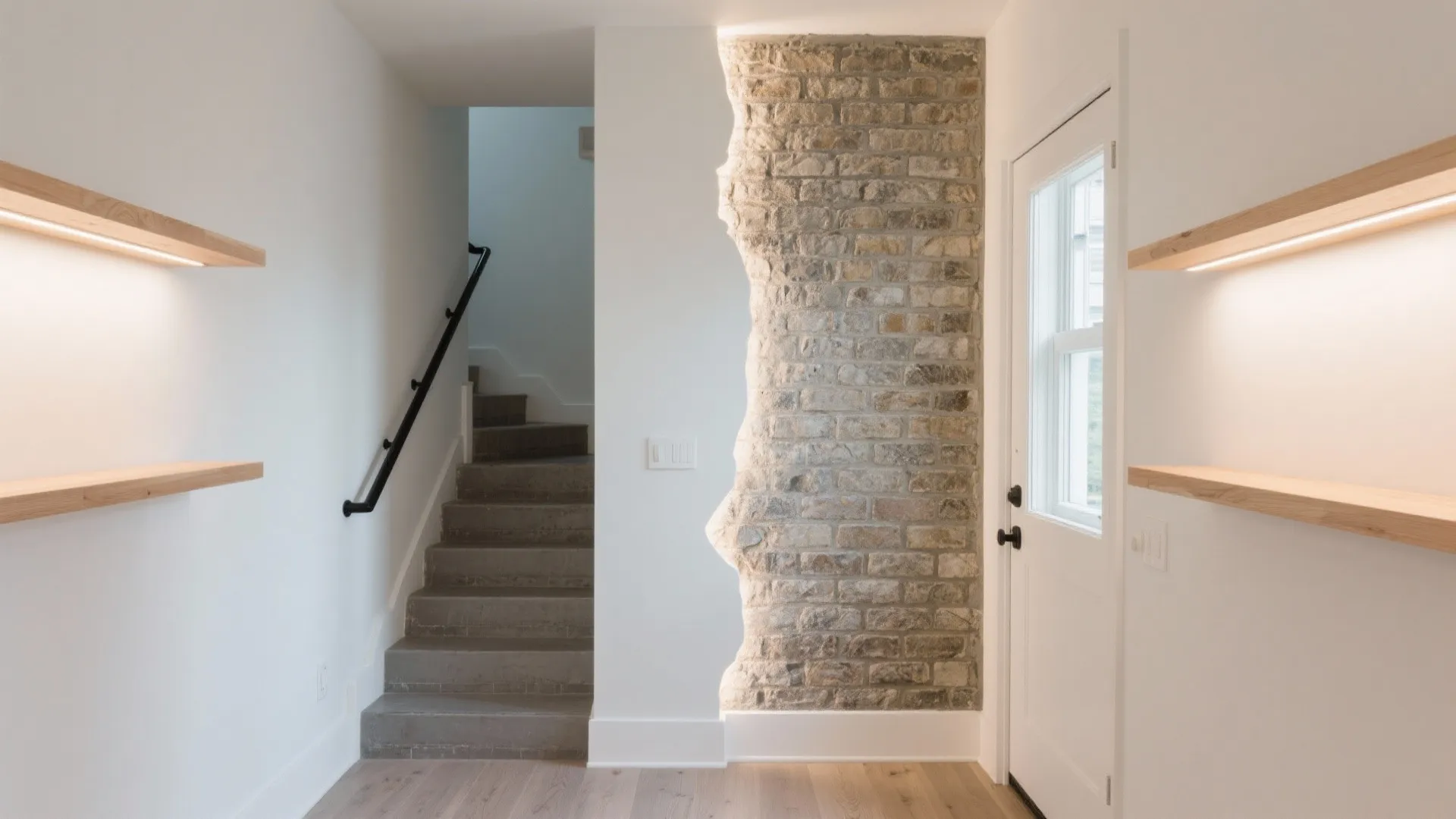

Calm Palette, Bold Split Face Accent

My Take

I still remember a 42-square-meter micro-loft where we shifted the entry’s entire mood with a single split face block accent wall. We kept everything else quiet—bone white paint, pale oak shelves, and a matte black rail—so the texture could take center stage without overwhelming the small footprint. That one wall became the home’s signature moment and a great icebreaker for guests.

Pros

- A restrained color story lets a split face block accent wall shine, making the rough-cut stone look feel elevated, not rustic-by-accident. With a low-contrast grout and light wash, the wall reads as sculpture.

- Calm palettes are small-space friendly: you get a big dose of texture without visual clutter. Long-tail bonus: pair with “LED wall washing lighting for textured walls” to sculpt highlights and shadows.

- It’s cost-smart too. Investing in one focus area concentrates material spend where it has the most impact and keeps maintenance localized.

Cons

- A single strong texture can dominate if accessories compete—think too many patterned pillows crowding the scene. Edit to keep balance.

- Split face block is dust-prone. In bright sunlight, you’ll see it. Plan an occasional soft-brush vacuuming session (I set reminders for clients who appreciate low-maintenance routines).

- If your living area is ultra-narrow, a highly shadowed wall can feel slightly closer. Neutral lighting helps counter that effect.

Tips / Case / Cost

- Opt for a mineral whitewash or breathable lime finish if you want to soften the color while keeping the texture legible.

- For budget planning: one feature wall in a 3–4 meter span typically runs mid-range—labor to set CMU, plus sealing. If you’re swapping drywall for block, add structural and substrate prep to your estimate.

save pin

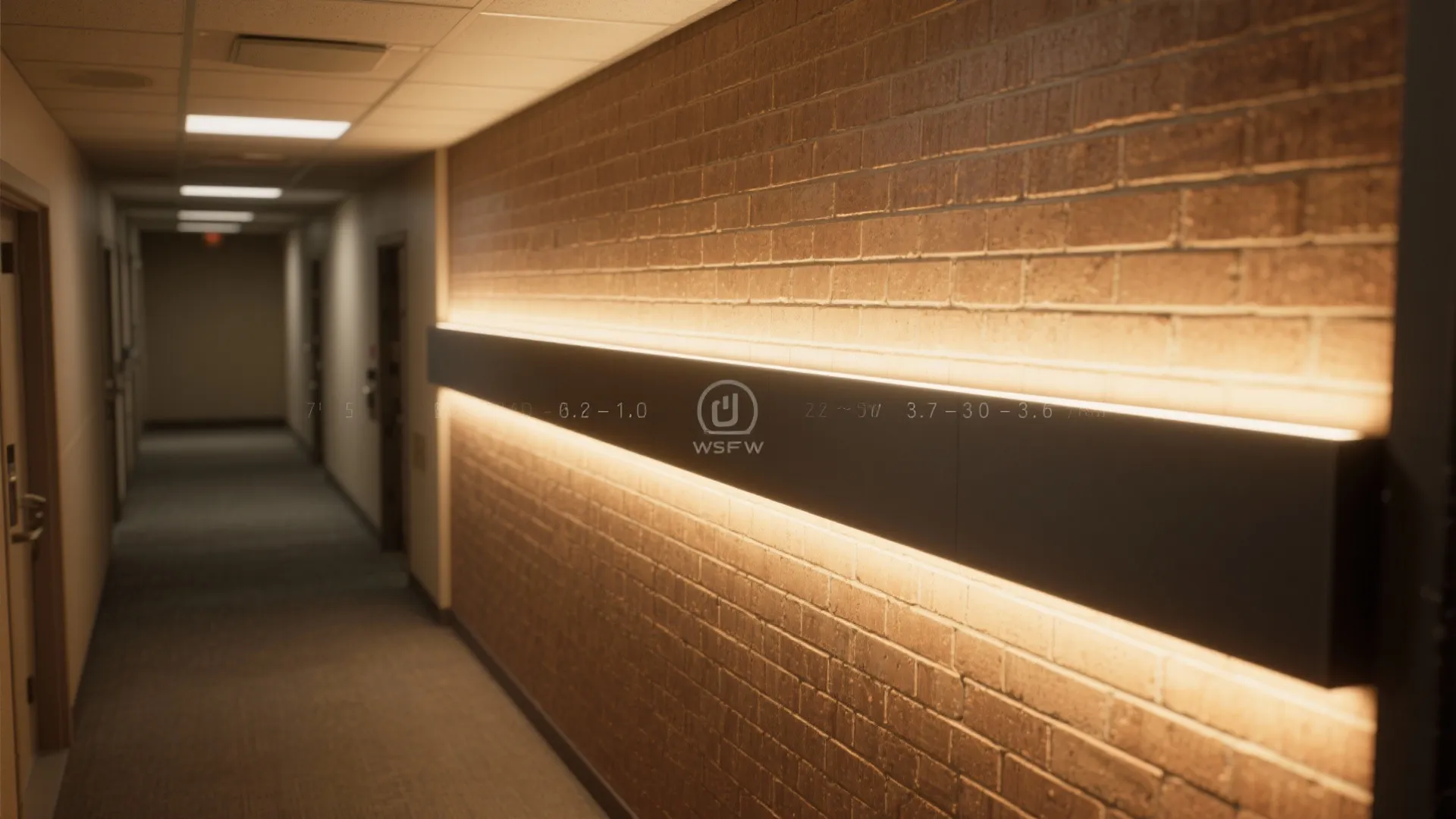

Light Grazing to Sculpt the Wall

My Take

Lighting can make or break split face block. I once retrofitted a dim hallway with a graze using a low-profile LED strip mounted close to the wall. The transformation was wild—the subtle peaks and troughs suddenly felt like an art installation, and the corridor seemed intentional, not leftover.

Pros

- Wall grazing emphasizes texture, turning a simple split face block wall design into a dynamic focal piece. Position lights 6–12 inches from the wall to ruffle the surface and reveal depth.

- Dimmers create day-to-night flexibility; warm (2700–3000K) LEDs keep the rough material cozy instead of cold.

- Credible guidance: the IES Lighting Handbook recommends close-offset grazing to accentuate surface relief, a reliable standard when planning fixtures and beam spreads (IES, 10th ed., Wall Grazing guidance).

Cons

- Grazing also reveals imperfections. If your units vary wildly, you’ll see it—lean into the wabi-sabi, or use a slightly wider wash to be more forgiving.

- Strong raking light shows dust; plan easy-access fixtures so you can wipe lenses and vacuum the wall occasionally.

- Overbright spots can feel theatrical in a small living room. Dimmer switches are your best friend.

Tips / Case / Cost

- Choose high-CRI LEDs (90+) so the natural color of the block reads true. If your block leans warm, avoid cool-white lamps that can make it look flat.

- Budget-wise, an LED graze is often less than you think compared to a major material upgrade—especially if the wiring already runs along that wall.

save pin

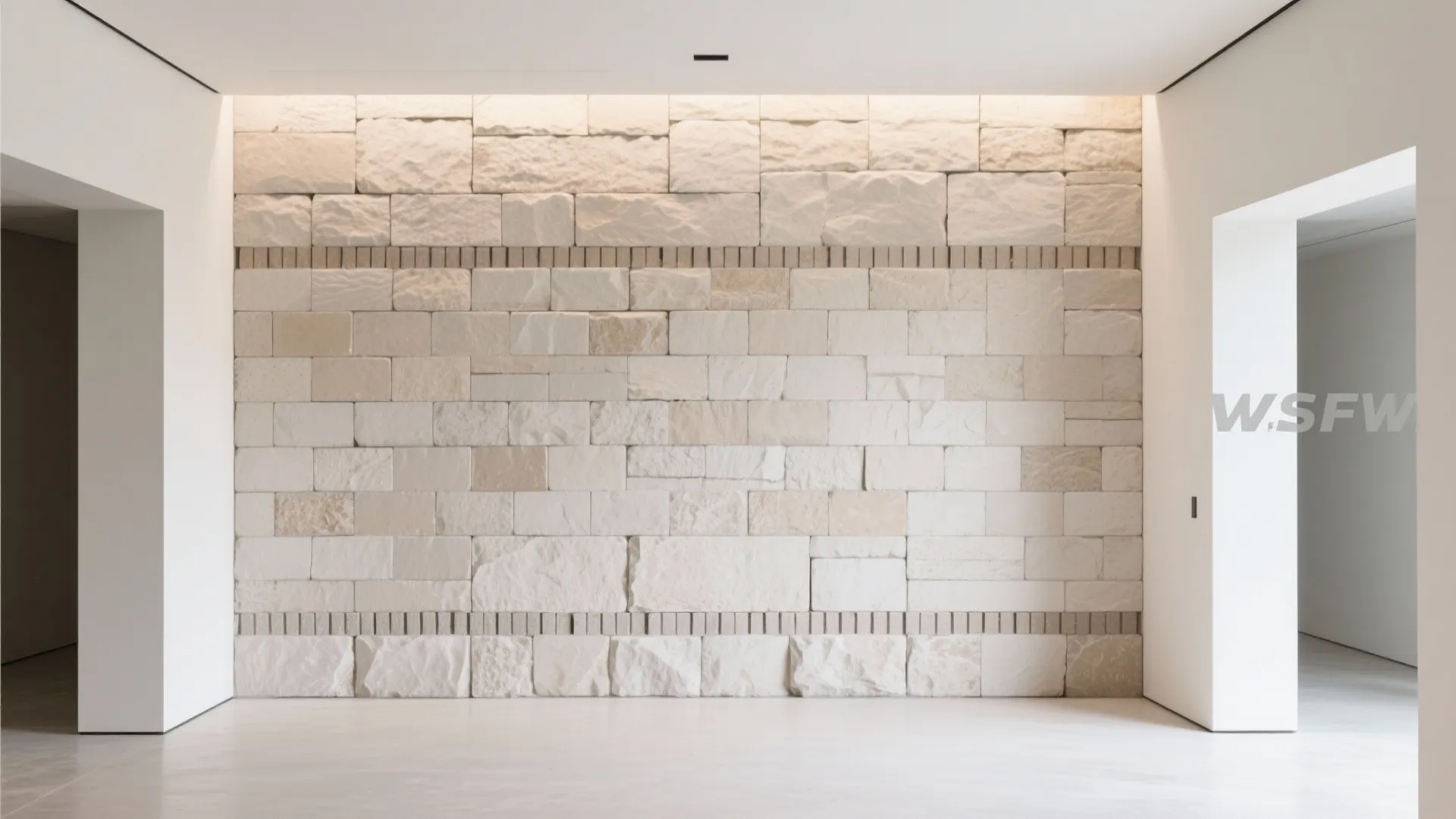

Smarter Bonds and Patterns (Beyond Running Bond)

My Take

When a client worries that CMU will look too “institutional,” I reach for pattern. A subtle stack bond with periodic soldier courses, or alternating bands of different split depths, can make a wall feel curated. In one townhouse stairwell, we rotated a course every third row to catch light differently, and it looked custom without a premium price.

Pros

- Pattern play—think stack bond, soldier course, or alternating ribbed units—adds design intent. Precise coursing and module coordination prevent awkward cuts, a key detail in any split face block wall design.

- Two-tone approaches using a light and a mid-tone block create a soft “zebra” effect that reads crafted, not busy. Long-tail bonus: a staggered bond pattern for visual rhythm adds depth without adding thickness.

- Visual rhythm from simple module changes is a budget-friendly design move. You’re designing with layout, not just buying more expensive materials.

Cons

- Complex patterns require meticulous layout and alignment. If your installer rushes, small deviations become very visible over a large surface.

- You may generate more cutting waste with nonstandard turns or rotations. Order a bit extra and select a mason comfortable with specialty bonds.

- Pattern can skew busy in a tight room if grout color contrasts too much with the block. Keep contrast low for calm results.

Tips / Case / Cost

- Most CMU modules are 8×8×16 nominal; plan openings, corners, and control joints around the module to reduce cuts.

- Ask for a dry lay mock-up or a small test panel so you can sign off on the pattern before full install.

save pin

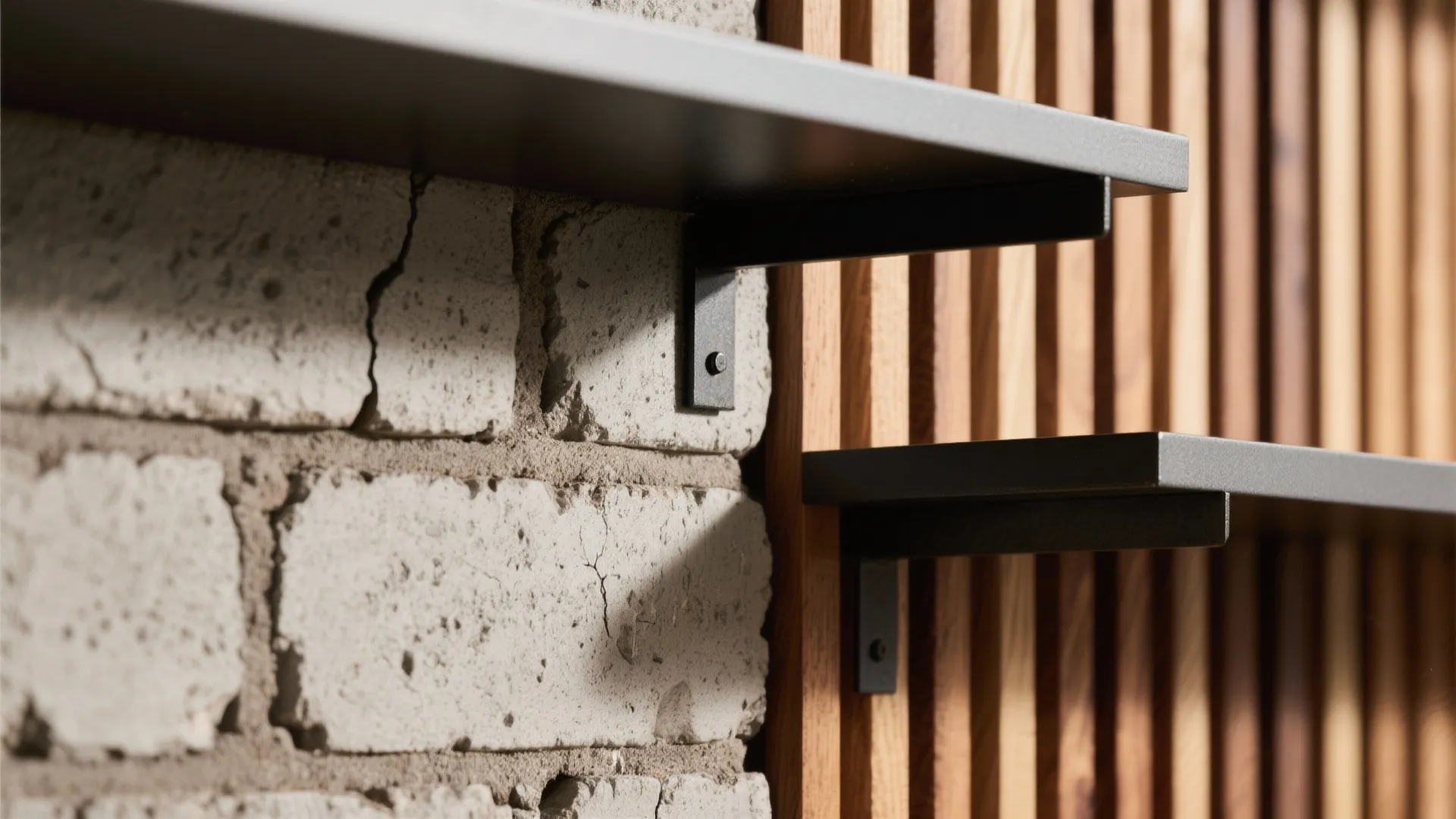

Mix Warm Wood and Clean Metals With Rough Block

My Take

My favorite client reactions happen when we pair opposites: rough block with warm oak, or rugged texture next to satin-brushed metal. In a café project, oak slats in front of a split face wall instantly softened the space and made people linger longer—sales data even nudged upward after the refresh.

Pros

- Material contrast is magic. Warm wood elements against a rough block surface feel balanced and human, an easy way to land a modern organic vibe.

- People respond well to biophilic cues; wood has been linked to reduced stress in interior environments (University of British Columbia & FPInnovations, “Wood as a Restorative Material in Healthcare Environments,” 2010).

- Metal trims and shelves offer crisp lines that temper the organic texture—great for an “elevated industrial” direction, especially in small kitchens or entries.

Cons

- Transitions are dust traps. Where wood meets block, detail a small reveal or shadow gap for easier cleaning and visual clarity.

- Real hardwood costs more; if the budget bites, consider durable wood-look laminates or engineered veneers that still read warm.

- If you lean too heavy on metal, the room can slip from “refined” to “cold.” Keep a plant or textural textile in the mix.

Tips / Case / Cost

- Try blackened steel brackets with oak shelving over a split face block accent wall for an easy, high-impact vignette.

- Oil or seal wood appropriately—split face block can hold micro-dust, so keeping wood surfaces protected is worth it.

save pin

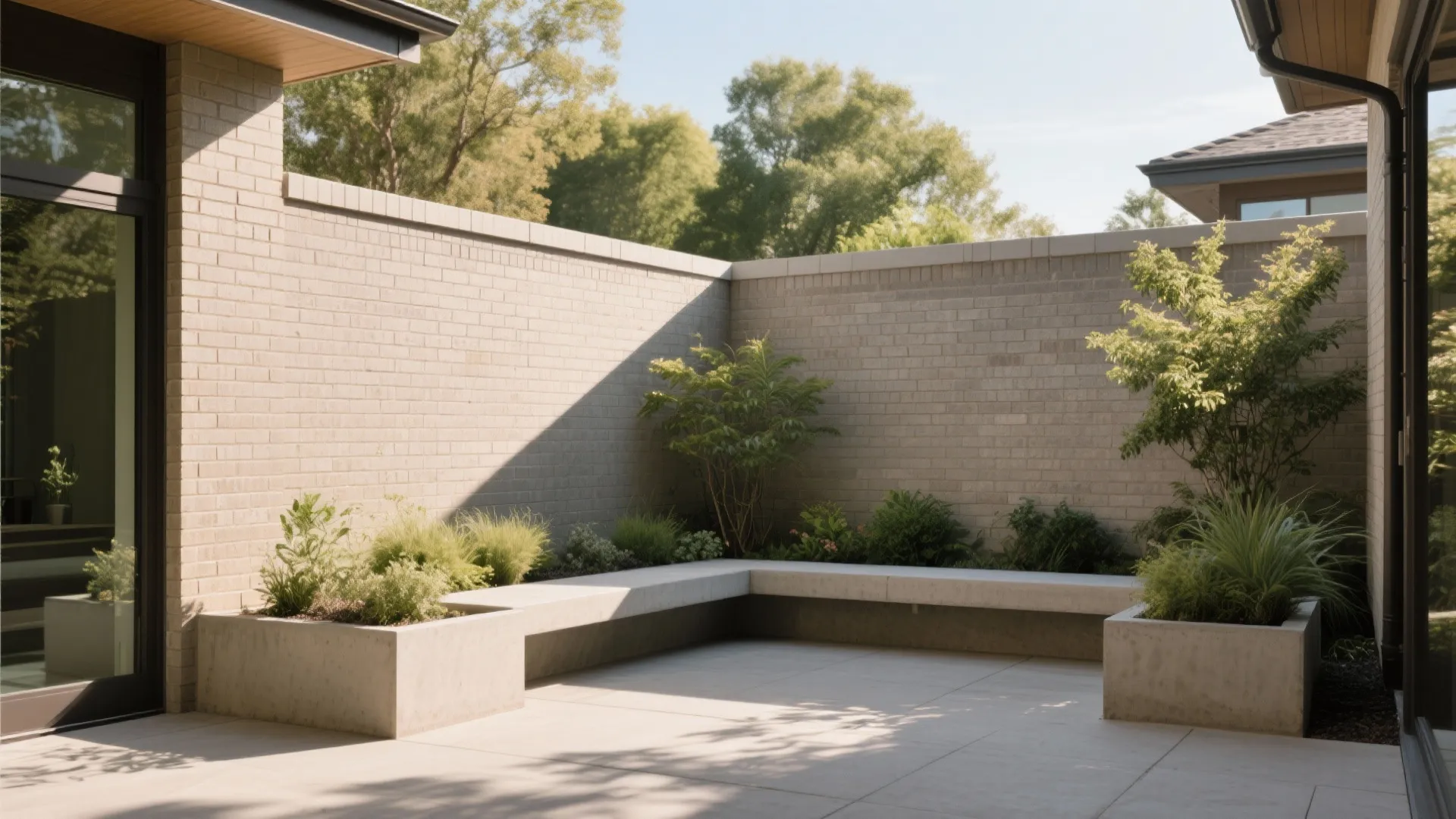

Weather-Savvy Outdoor Walls That Age Well

My Take

Outdoors, split face blocks deliver that stone-like presence without the stone-like price. I’ve used them for courtyard privacy walls with integrated benches and planters. The key is weather detailing—caps, flashing, breathable sealers—so the wall stays handsome for years instead of mottled and leaky after one season.

Pros

- Split face CMU is durable and low-maintenance when detailed correctly. Use a sloped cap with drip edges, proper flashing at transitions, and a breathable silane/siloxane sealer to resist bulk water while letting vapor escape.

- For exterior split face block wall design, joint tooling and control joints help keep cracks in check and drive water away. The NCMA notes detailing is central to water penetration resistance in CMU walls (NCMA TEK 19-1 Guidance on Water Penetration Resistance).

- The texture creates beautiful shadow play throughout the day; jogs, pilasters, and planters enhance those shadows and add seating and greenery without extra wall thickness.

Cons

- Poor detailing will betray you. Without caps, flashing, and weeps, moisture can find pathways and leave stains—fixes cost more than doing it right upfront.

- In freeze–thaw climates, make sure units and mortar are rated appropriately. Even good sealers need reapplication over time.

- Deep crevices collect pollen and dust; a gentle seasonal wash keeps the wall fresh and less hospitable to biological growth.

Tips / Case / Cost

- In tight courtyards, keep a simple muted color to prevent the wall from feeling too close. Add greenery to soften without hiding the texture.

- If you want more drama with the sun, articulate the face with shallow returns or vertical fins—think shadow lines that deepen the facade—for strong morning and afternoon silhouettes.

save pin

Summary

In my projects, split face block wall design is not a constraint—it’s a catalyst. Small kitchens, narrow halls, compact living rooms: texture plus smart lighting and detailing turns “tight” into “tailored.” Respect the module, choose calm companions, and treat water and light as design materials. If you love tactile surfaces and long-life materials, this is a wonderful canvas to build around. Which of these five ideas would you try first?

For technical backup on moisture and performance, the National Concrete Masonry Association (e.g., TEK 19-1) and the IES Lighting Handbook are solid places to start when you’re coordinating with your builder and electrician.

save pin

FAQ

1) What is split face block wall design?

It’s the use of concrete masonry units with a “split” rough surface to create stone-like texture in interiors or exteriors. Designers leverage the tactile face for accent walls, courtyards, and entries, pairing it with calm palettes and focused lighting.

2) Is split face block good for small spaces?

Yes—used thoughtfully. A single feature wall with neutral finishes and controlled lighting brings depth without clutter. In small rooms, keep grout low-contrast and lighting dimmable to prevent the wall from feeling heavy.

3) How do I light a split face block wall?

Use wall grazing or washing to sculpt texture. Keep fixtures close (about 6–12 inches) and choose warm, high-CRI LEDs; this approach aligns with best practices outlined in the IES Lighting Handbook for accenting textured surfaces.

4) Do split face blocks help with sound?

Rough surfaces scatter reflections and can mellow flutter echo, especially versus perfectly flat walls. For true sound isolation (STC), you’ll still rely on wall mass and assembly design; NCMA TEK resources summarize acoustic ratings for CMU assemblies.

5) What sealers work for exterior split face block?

Breathable silane/siloxane sealers are commonly recommended to shed liquid water while allowing vapor to escape. Always detail caps, flashing, and weeps—NCMA TEK 19-1 emphasizes detailing as the driver of water resistance.

6) Can I paint or limewash split face block?

Yes. Mineral or lime-based finishes maintain breathability and keep the texture legible. If you prefer paint, choose masonry-rated products and expect a little more maintenance in high-sun or high-dust areas.

7) What patterns can make block feel more “designed”?

Try stack bond with periodic soldier courses, alternating split depths, or two-tone bands. Module-coordinated openings and reveals prevent awkward cuts and make the wall look custom without blowing the budget.

8) How much does a split face block accent wall cost?

Pricing varies by region, wall size, and prep. As a guideline, one living-room feature wall is a mid-range investment; detailing, electrical for grazing lights, and sealing add to the total but also extend longevity and performance.
