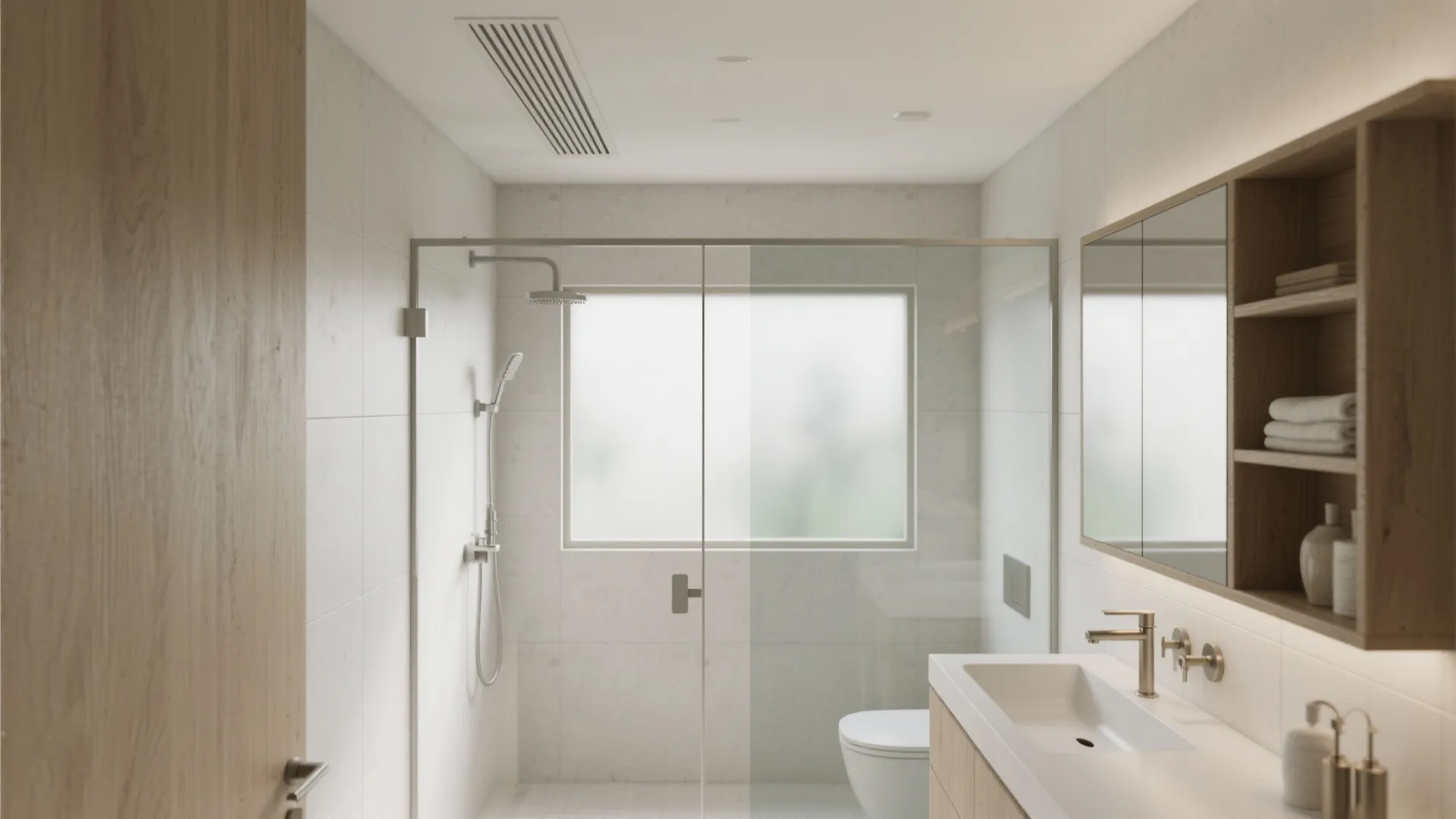

5 Small Bathroom Fan Ideas: Quiet, Powerful, Space-Savvy: A senior interior designer’s real-world playbook for choosing the best small bathroom fan—balancing airflow, noise, and style in tight spaces.

[Section: 引言]

This year’s home trends lean hard into wellness and quiet tech—especially in baths. As a designer who has remodeled more small bathrooms than I can count, I’ve learned a small bathroom fan can make or break comfort. Smart, quiet ventilation for compact baths is also where design and building science happily meet, and it’s worth planning early in the layout. I’ll even sketch a quiet ventilation for compact baths concept before I choose tile, because air control affects everything from mirror fog to grout longevity.

Small spaces spark big creativity. I’ve seen the right fan placement rescue tiny ensuites from constant condensation, and the wrong one ruin a beautiful ceiling. In this guide, I’ll share 5 design inspirations for choosing a small bathroom fan, blending my project notes with expert data you can trust.

[Section: 灵感列表]

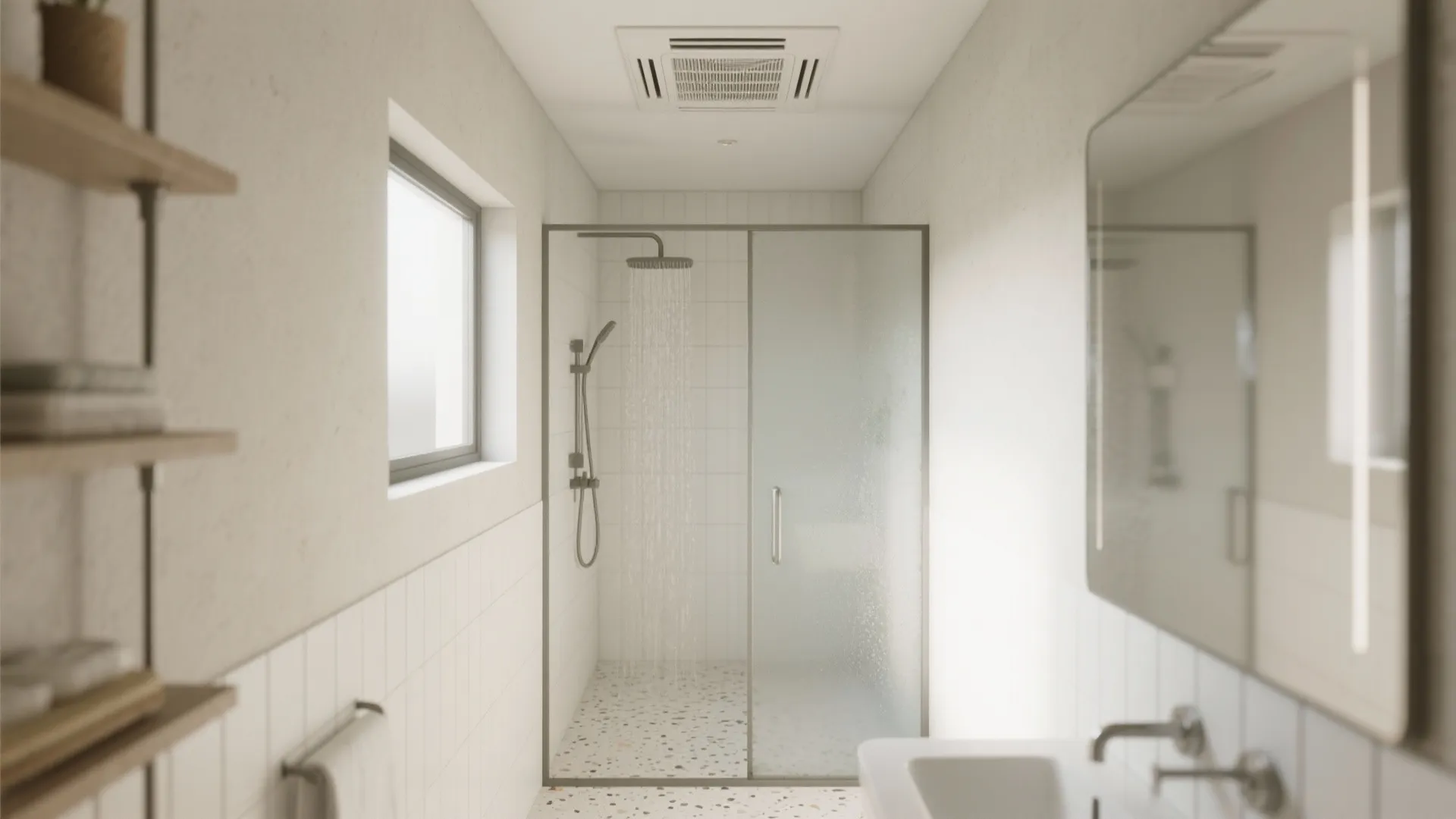

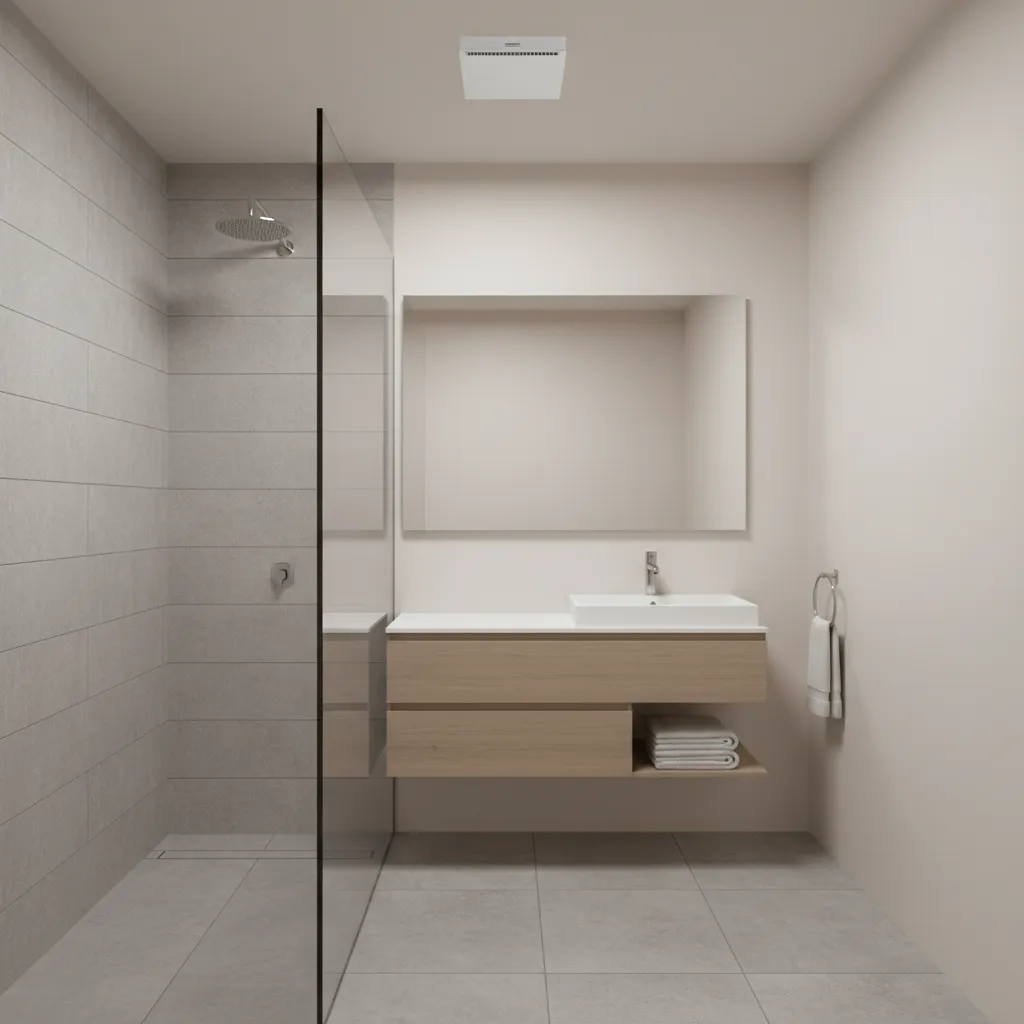

Ultra-quiet humidity-sensing fan in a tiny bath

My Take — In a 40-square-foot studio bath, we swapped a dated, rattly unit for an ultra-quiet bathroom exhaust fan with a built-in humidity sensor. My brief: silence first, then smarts. The change felt instant—no more post-shower rainforest, and the sensor saved clients from babysitting a switch.

Pros — A humidity sensing small bathroom fan turns on automatically when RH spikes, then ramps down, which preserves paint and keeps mold at bay. I aim for 0.3–1.0 sones for bedrooms and small baths; an ultra quiet bathroom exhaust fan means you’ll actually use it. For sizing, I follow ASHRAE 62.2 guidance: 50 CFM intermittent or 20 CFM continuous for a bathroom; that standard is the industry baseline for residential ventilation (ASHRAE 62.2).

Cons — Humidity sensors can be conservative out of the box. If it short-cycles, you may need to tweak its setpoint (try 55–60% RH). Budget a little extra—quiet fans and smart sensors cost more up front, but they pay back with longevity and comfort.

Tips / Case / Cost — For a small bathroom fan, I start with ~1 CFM per square foot, then add capacity if the room is shower-heavy or has a long duct run. Choose ENERGY STAR models for better airflow-to-noise ratios. Add a backdraft damper and a 20–30-minute run-on timer; most clients forget to switch fans off, and a soft auto-off preserves air quality without wasting power.

save pin

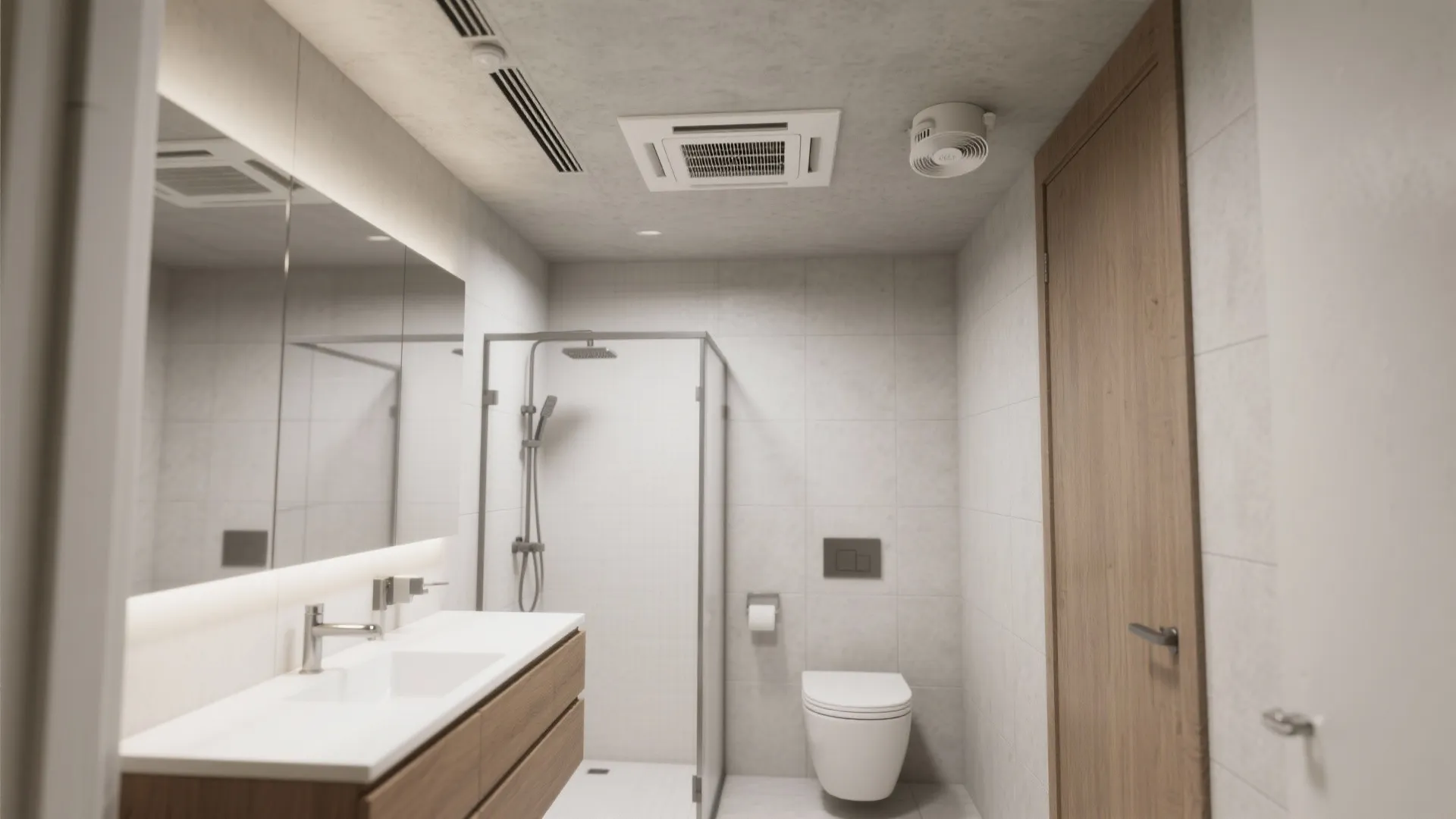

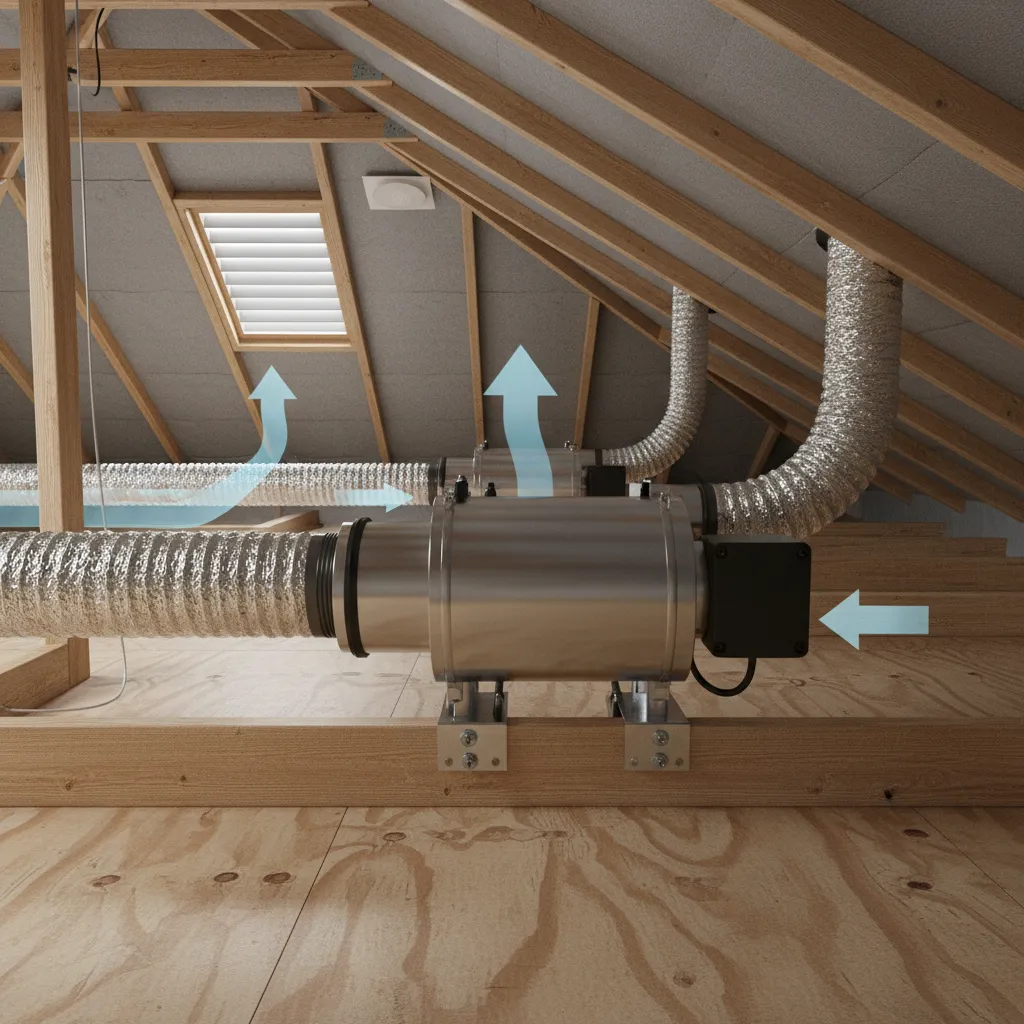

Inline remote-motor fan to keep noise outside the room

My Take — When a client works night shifts, noise is non-negotiable. We moved the motor into the attic and used a discreet ceiling grille in the bath. The difference from a standard ceiling unit is like whisper vs. whispering in another room.

Pros — An inline bathroom exhaust fan for small spaces places the motor remotely, so what you hear is mostly air moving, not the motor itself. It’s also brilliant for longer ducts and tight joist bays; you can choose a 4-inch or 6-inch duct and keep pressure drop low for better real-world CFM. Inline systems can serve two pickup grilles (toilet and shower) with one quiet motor, simplifying maintenance.

Cons — You’ll need access to a crawlspace or attic and a thoughtful route for insulated ducting. If the duct runs are long, slope them slightly toward the outside to prevent condensation pooling. Expect higher installation cost than a drop-in ceiling fan, mostly for routing and hangers.

Tips / Case / Cost — Use smooth-walled rigid duct where possible, with gentle sweeps instead of sharp elbows. In very tight ceilings, a low-profile grille keeps the design clean. If you’re upgrading from 3-inch flex to 4- or 6-inch duct, order an adapter kit and confirm the roof or wall cap can accept the larger size.

save pin

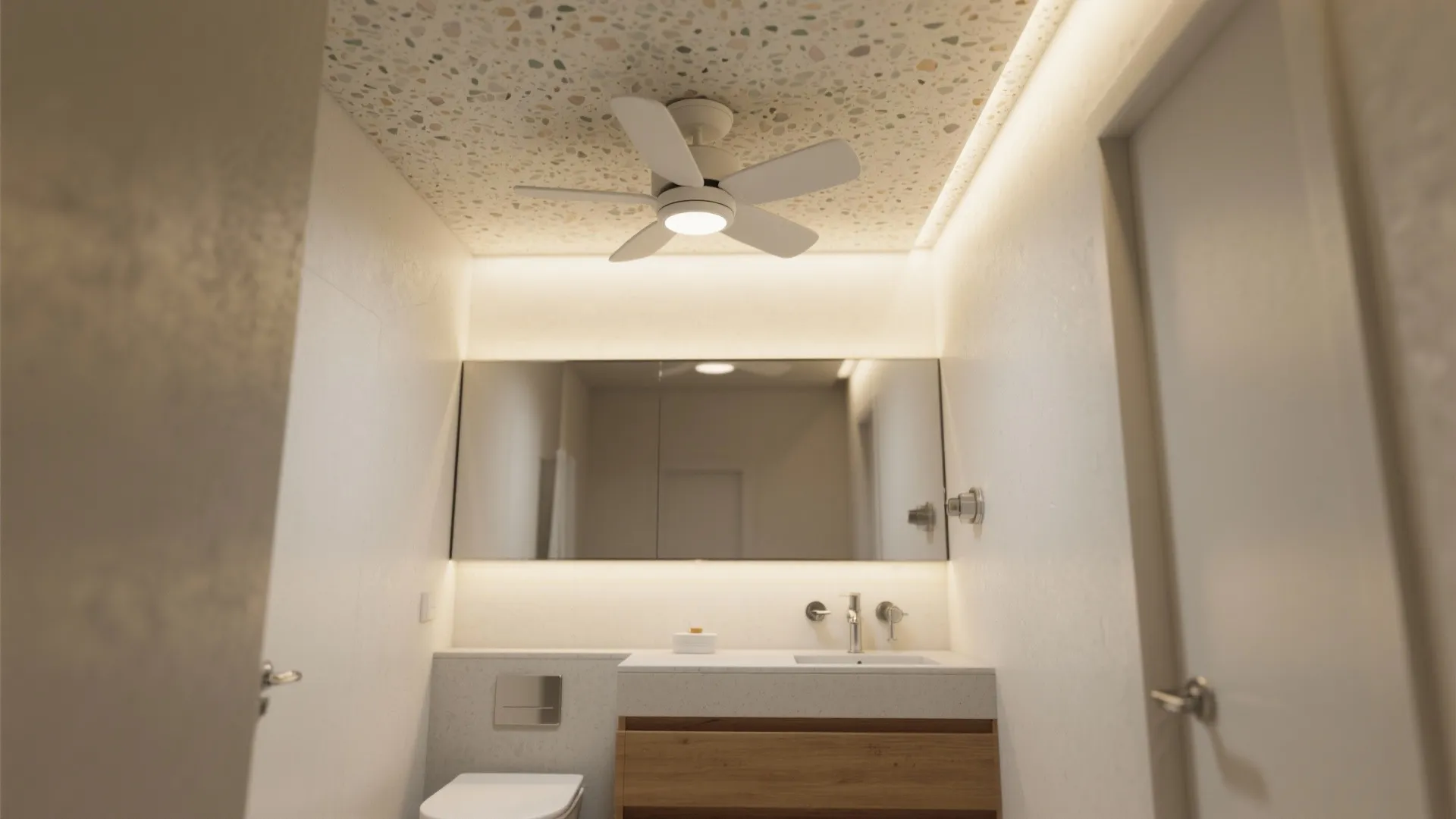

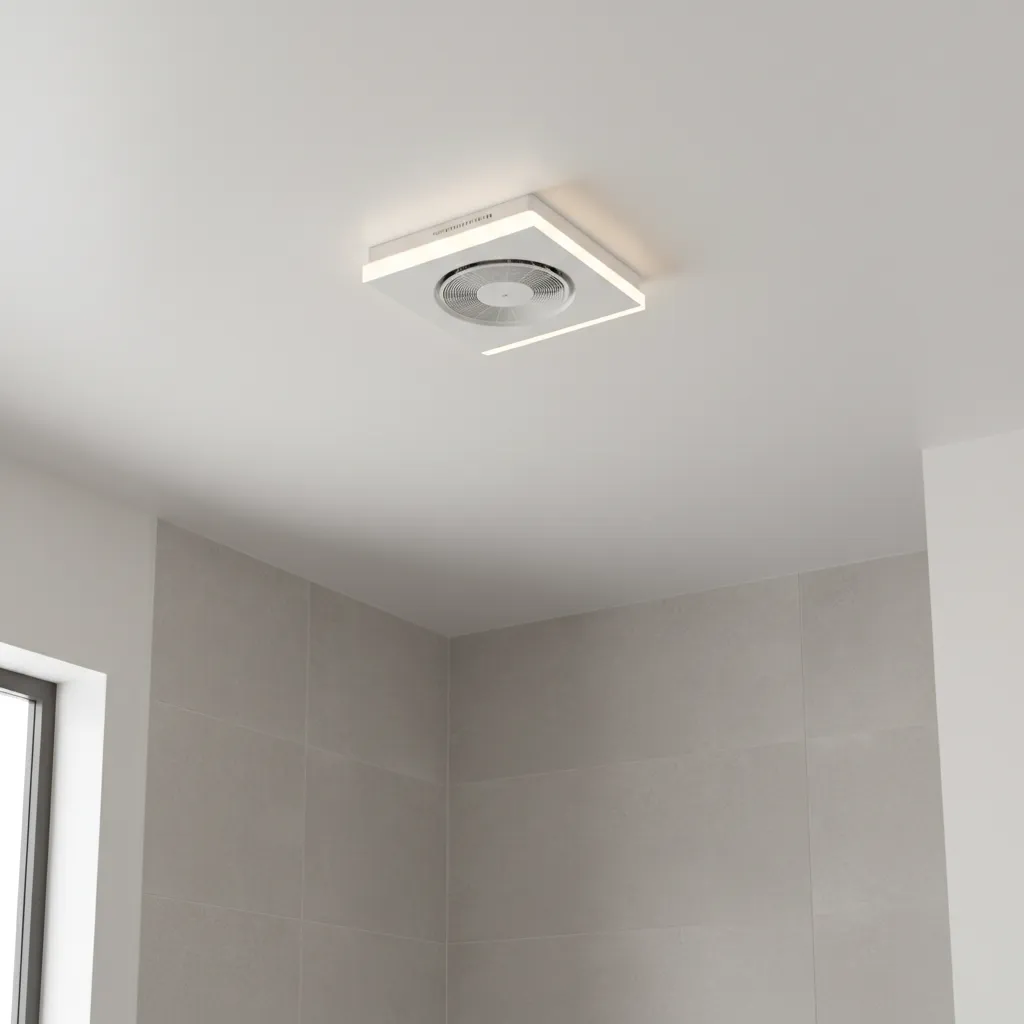

Fan-and-light combo to declutter a tight ceiling

My Take — In a 1.2m × 2.0m bath, separate recessed cans plus a fan looked busy and made the ceiling feel lower. We switched to a small bathroom fan with light (a combo unit), warmed up the color temperature, and instantly gave the room a calmer, more cohesive look.

Pros — A fan-light combo collapses two devices into one, which is perfect when joists or beams limit your cutouts. Many models add a night-light or tunable white LED, so you get task lighting, soft late-night light, and extraction in one. Look for “small bathroom fan with light” units rated at 700–1000 lumens and CRI 90+ so skin tones look natural.

Cons — Combo units can be a touch louder than the quietest single-purpose fans, and if the light driver fails you might need to replace the whole faceplate. Light spread can be slightly narrower than a dedicated downlight; supplement with a vanity sconce if mirrors look dim.

Tips / Case / Cost — On finishes, I favor matte white trims that fade into painted ceilings; they pair nicely with microcement or light terrazzo. For acoustics, target ≤1.5 sones and confirm the rated CFM at 0.1 in. w.c. (not just free air). If you’re reworking joist spacing, test a ceiling layout that frees headroom before you cut—every hole matters in a tiny bath.

save pin

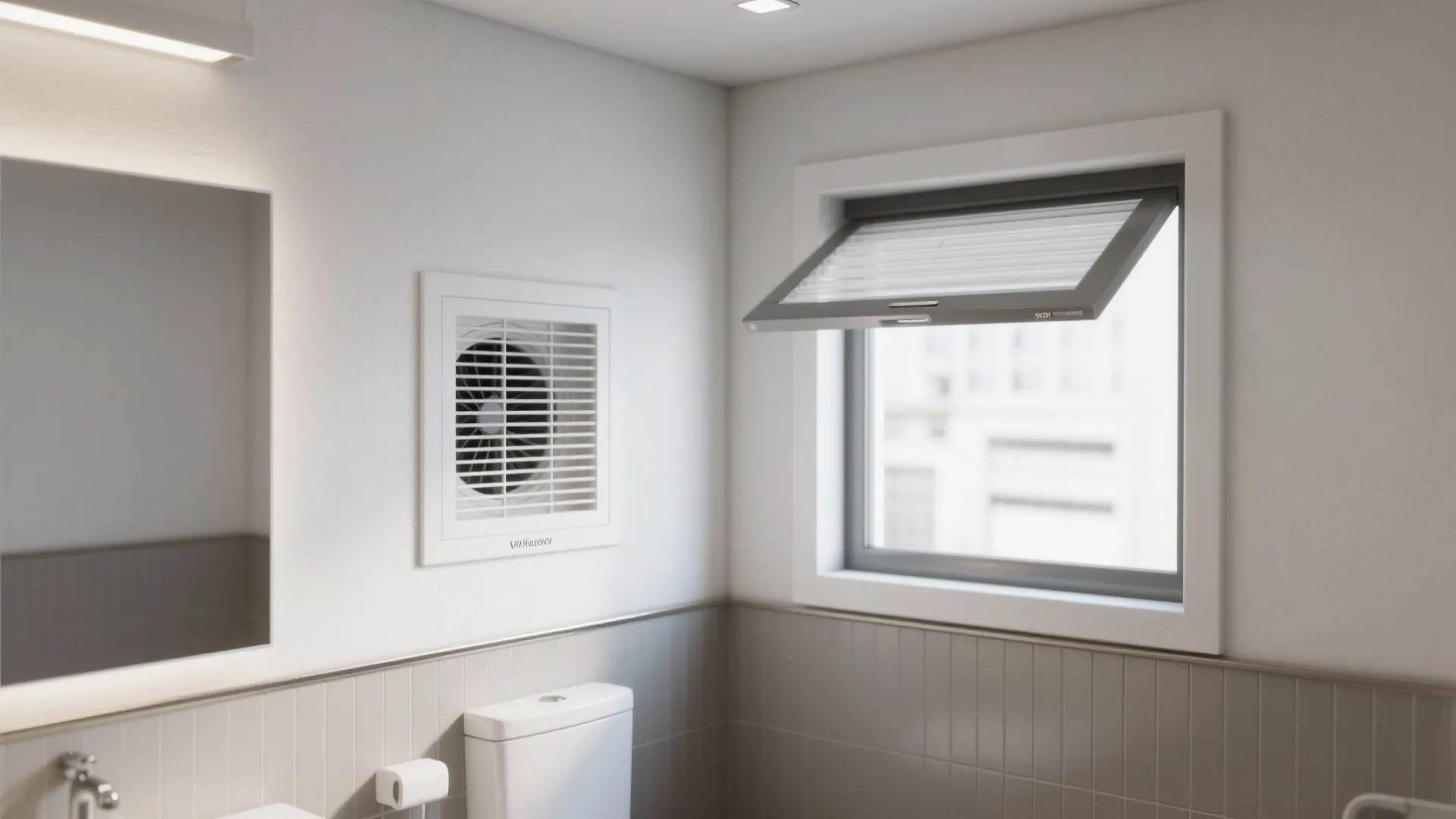

Through-the-wall or window exhaust when ducting is impossible

My Take — I’ve renovated pre-war apartments where venting through the roof was a fantasy. In one brick walk-up, we used a through-the-wall bathroom exhaust fan with an insulated sleeve and a low-profile exterior hood. In another, a custom window panel held a compact, reversible fan with a tight-sealing backdraft damper.

Pros — Direct-to-outside solutions avoid the performance losses that long, kinked ducts create. They’re lifesavers in HOA-controlled buildings or where joists run the wrong way and soffits would ruin the design. A window or wall exhaust is also a strong retrofit option because you’re not fishing ducts through every stud bay.

Cons — You’ll trade a bit of thermal performance; any penetration is a potential heat leak. Cheaper models can be louder, so vet the sone rating and weather seals. Always confirm exterior appearance rules with your HOA and check local code for clearances and height above grade.

Tips / Case / Cost — Choose a low-profile exterior hood with a bird screen and backdraft damper, and seal the sleeve with foam to stop whistling. If you’re in a cold climate, specify a fan with insulated shutters. For windows, use laminated glass or a custom acrylic panel so the install looks intentional, not improvised.

save pin

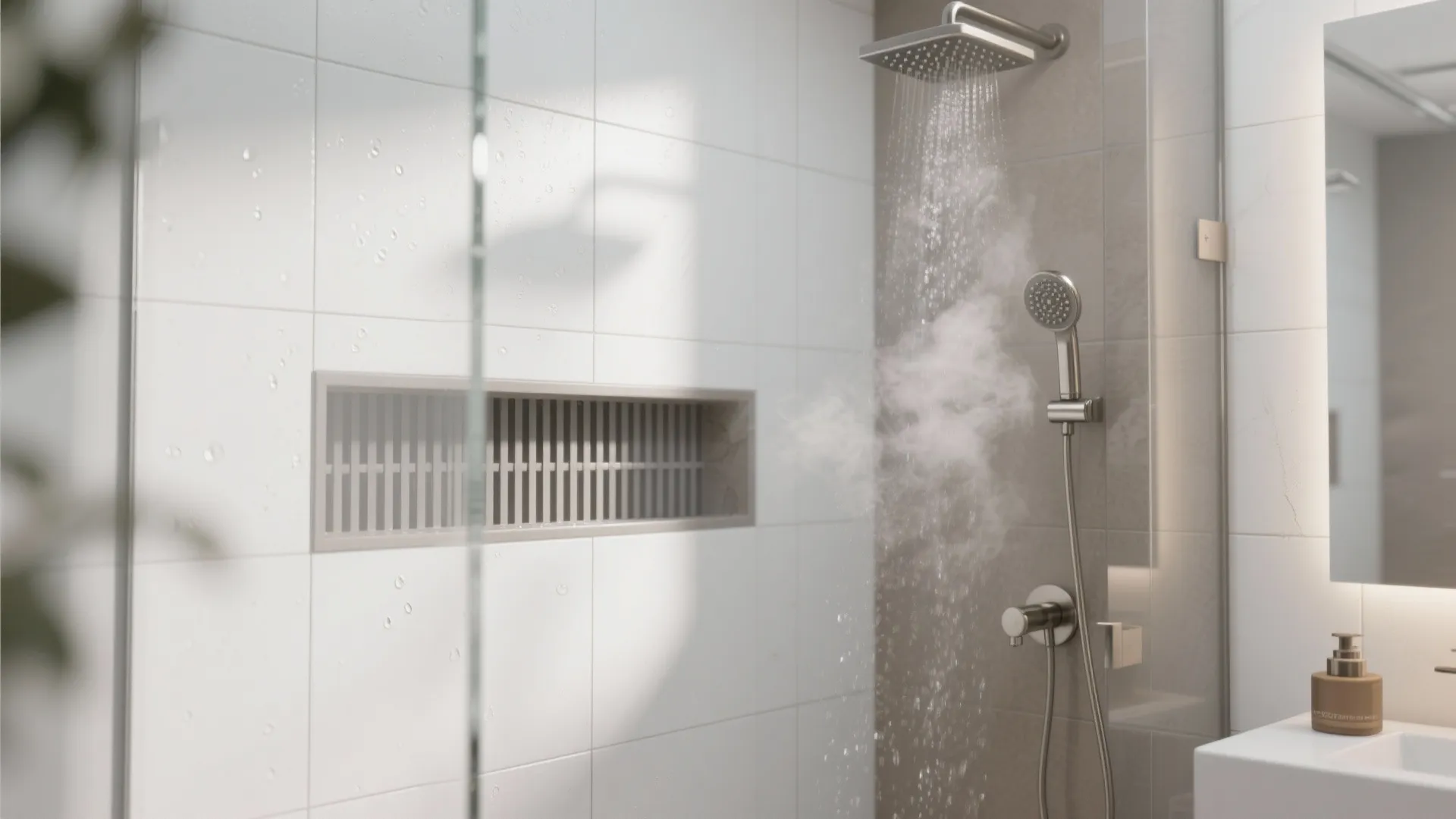

Wet-zone extraction right at the shower

My Take — The best way to stop fog is to catch steam at the source. In a steamy family bath, we added a wet-rated shower pickup grille connected to an inline motor, and the mirror finally stopped fogging during back-to-back showers.

Pros — A bathroom fan above shower (or just outside the spray) captures moist air before it spreads. In the UK and EU, wet areas typically call for IPX4 or higher fittings in Zone 1; that’s a useful benchmark even elsewhere if you’re choosing a shower-zone grille (IET Wiring Regulations, BS 7671; IEC 60529). Pair with a GFCI/RCD-protected circuit and you’ve got robust, safe extraction for the most moisture-intensive zone.

Cons — Expect more installation effort: tile or stone ceilings need careful coring, and you’ll want a corrosion-resistant grille. Inline fans plus separate grilles cost more than a single box fan, but the performance difference shows up every single shower.

Tips / Case / Cost — I like pickups 12–18 inches from the shower head to avoid pulling spray into the grille while still capturing steam. A 20–30 minute run-on timer after lights out is perfect for drying. For visuals, plan exhaust capture right at the shower while you’re laying out tile courses, so the grille lines up with grout joints and looks purposeful.

[Section: 总结]

In tight homes, a small bathroom fan isn’t a compromise—it’s an invitation to design smarter. Between ultra-quiet motors, humidity sensors, and shower-zone pickups, you can dial in comfort without cluttering the ceiling. Small spaces don’t limit us; they focus us on what matters most. For performance, I use ASHRAE 62.2 as my baseline and build up from there for real-life moisture loads. Which of these five ideas are you most excited to try in your own bath?

[Section: FAQ 常见问题]

save pin

FAQ

1) What CFM do I need for a small bathroom fan?

For most small baths, start with the ASHRAE 62.2 guideline: 50 CFM intermittent or 20 CFM continuous. If you have frequent showers or a long, bendy duct, size up for real-world performance (ASHRAE 62.2).

2) How quiet should a small bathroom fan be?

Under 1.5 sones feels genuinely quiet; under 1.0 is whisper-level. ENERGY STAR’s product list is a good place to find low-sone, high-efficiency models that actually hit their rated CFM.

3) Is a small bathroom fan with light worth it?

In compact rooms, a combo unit declutters the ceiling and frees joist space. Pick CRI 90+ and 2700–3000K for flattering skin tones, and aim for 700–1000 lumens so the mirror doesn’t look dim.

4) Can I vent a small bathroom fan into the attic?

No—exhaust must go outdoors to prevent moisture and mold in the structure. The International Residential Code requires ducted exhaust to discharge outside the building envelope (IRC M1501.1).

5) Do humidity-sensing fans really help prevent mold?

Yes. Automatically removing humid air after showers helps keep surfaces dry; controlling moisture is a key step in preventing mold growth (U.S. EPA, Mold and Moisture Guidance).

6) Inline fan vs. ceiling-mounted: which is better for small bathrooms?

Inline fans are quieter because the motor lives outside the room, and they handle longer duct runs well. Ceiling-mounted units are simpler to install and cost less; choose based on access and your noise tolerance.

7) How do I stop cold drafts from the bathroom fan?

Use a quality backdraft damper, an exterior hood with tight shutters, and insulated ducting. In cold climates, consider a damper at both the fan and the exterior cap to reduce winter backflow.

8) Can one small bathroom fan serve two bathrooms?

It’s possible with an inline fan and backdraft dampers on each branch, usually when the bathrooms are adjacent. Always check your local code and confirm the fan’s rated CFM supports both rooms simultaneously.
