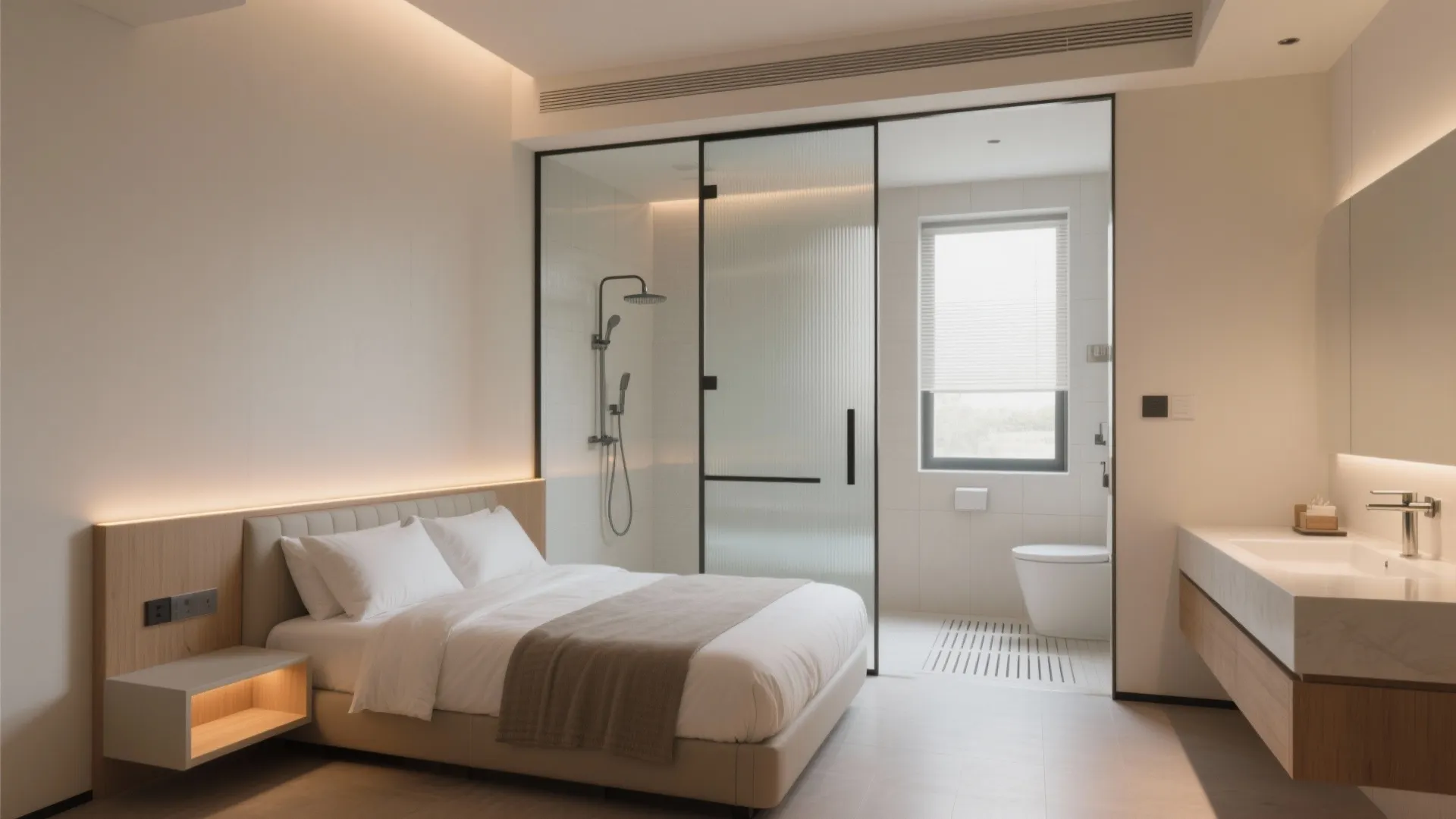

5 Small Bedroom With Bathroom Plan Ideas That Work: My proven, space-smart strategies for designing a small bedroom with bathroom plan—functional, beautiful, and realistic

I’ve remodeled enough compact apartments to know this: a small bedroom with bathroom plan can feel luxe, not limiting. Lately, micro-suite layouts and studio primary suites are trending, and I’m here for it. Small spaces force big creativity, and today I’ll share 5 design inspirations—pulled from my projects and supported by expert data—to help you shape a practical, serene mini-suite. In the first apartment I owned, a 7.5 m² bedroom squeezed in an ensuite; that challenge taught me lessons I still use daily. If you want to visualize options and compare flows, I often start clients with a quick test layout like “L-shaped vanity plus sliding door” in a planning case; one example I reference is L shaped vanity plus sliding door for fast spatial testing.

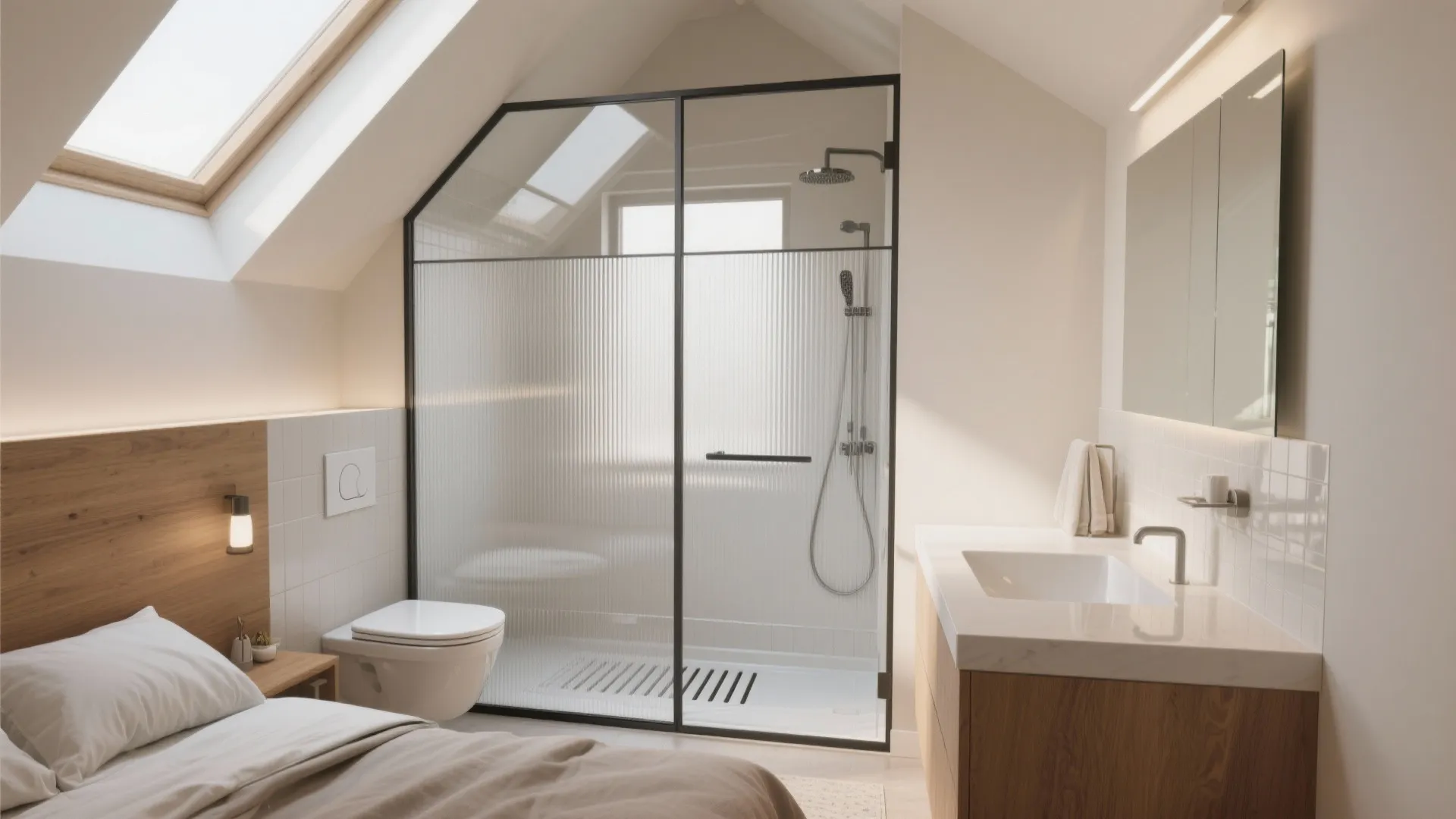

Glass partition ensuite with privacy layers

My Take

I first tried a glass partition ensuite in a 9 m² attic bedroom where walls would have killed the light. We used fluted glass and a 2/3 height partition to borrow daylight without feeling exposed, and the room transformed from cave to cocoon.

Pros

- Daylight sharing improves perceived size; a translucent glass partition makes a small bedroom with bathroom plan feel unified and airy.

- With frosted or fluted glass, you keep privacy while benefiting from a brighter, more open flow—especially effective with a wall-hung toilet and compact shower tray.

- According to the WELL Building Standard (v2) and CIBSE guidance on daylighting, visual connection to daylight supports comfort and orientation; translucent partitions can help deliver that in interiors.

Cons

- Glass needs frequent cleaning; water spots show under downlights—budget a squeegee and a microfiber routine.

- Poor acoustic isolation: if you’re noise sensitive, choose laminated acoustic glass or add a ceiling-mounted curtain for showers.

- Smarter ventilation planning is required to prevent fog; otherwise, the “spa vibe” becomes a steam room.

Tips / Cost

- Fluted or reeded glass (8–10 mm tempered) often costs 15–30% more than clear, but privacy payoff is huge.

- Use a low-iron frosted panel by the shower and clear or reeded by the vanity to balance clarity and privacy.

- Pair with a linear drain and 800×1200 mm shower tray to keep footprints tight.

save pin

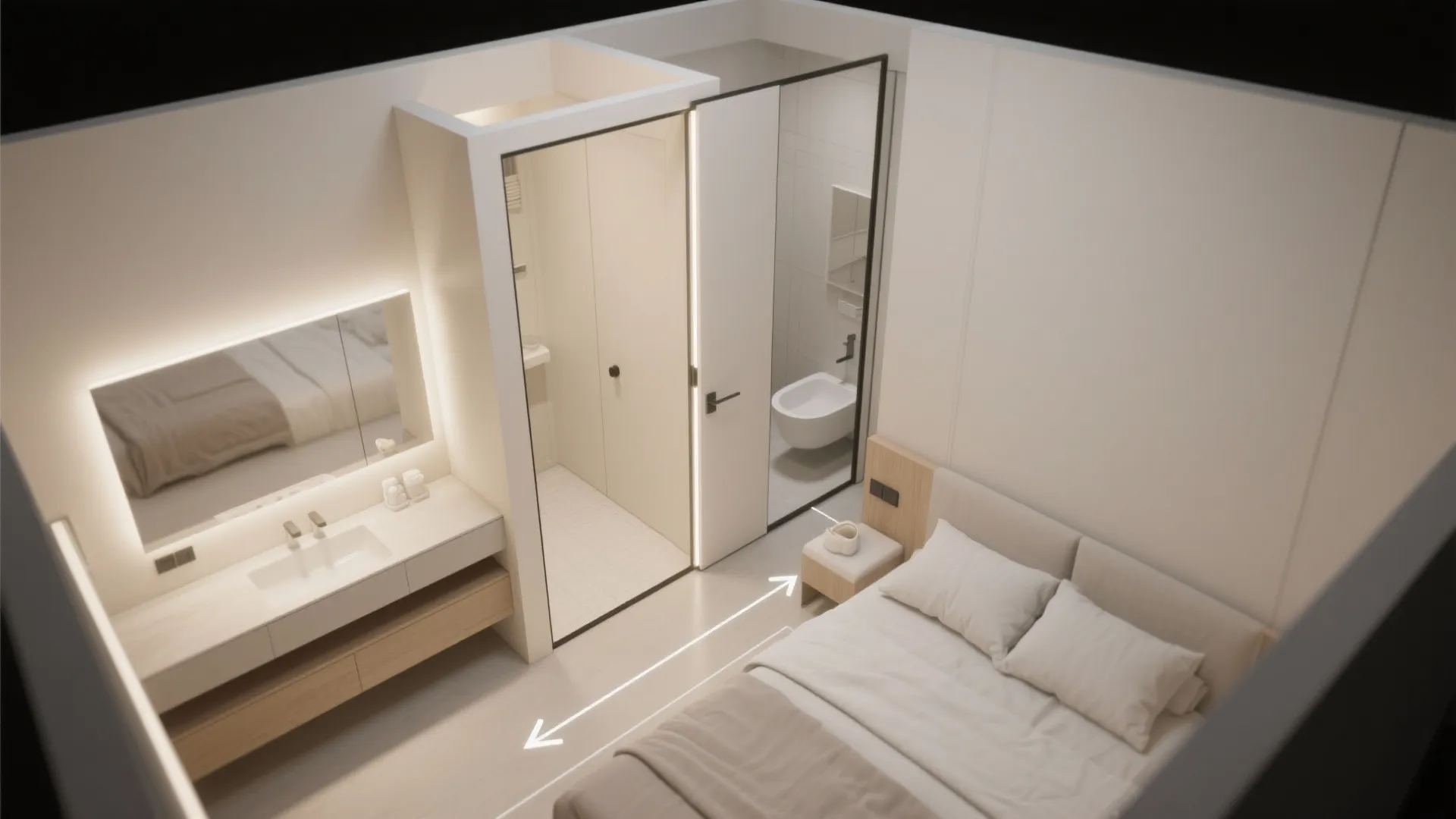

Pocket door bath to reclaim circulation

My Take

On a recent rental upgrade, the swing door ate 0.5 m²—almost an entire nightstand. We swapped it for a pocket door and freed a clear path around the bed, which is everything in tight rooms.

Pros

- A pocket or cavity slider returns 0.4–0.6 m² of circulation, a big win in any small bedroom with bathroom plan.

- It reduces door conflict at the vanity and keeps the entry zone clean—especially when the bed sits near the bath wall.

- Long-tail benefit: soft-close pocket kits minimize slam noise at night, improving perceived privacy.

Cons

- Not ideal for heavy acoustic control; hollow cavities transmit sound more than solid swing doors.

- Retrofitting requires wall thickness and checking for services; structural and plumbing reroutes can add cost unexpectedly.

- In older buildings, framing might not be square; expect extra carpentry hours to get smooth travel.

Tips / Case

- Choose a 70–80 mm soft-close kit with full-height leaf to maximize openness; use finger pulls to keep it flush.

- In wet zones, specify moisture-resistant jambs and a floor guide that won’t catch toes.

- Mid-article resource for testing furniture-to-door clearances: see bed-to-vanity clearance mockup to simulate pocket door paths before committing.

save pin

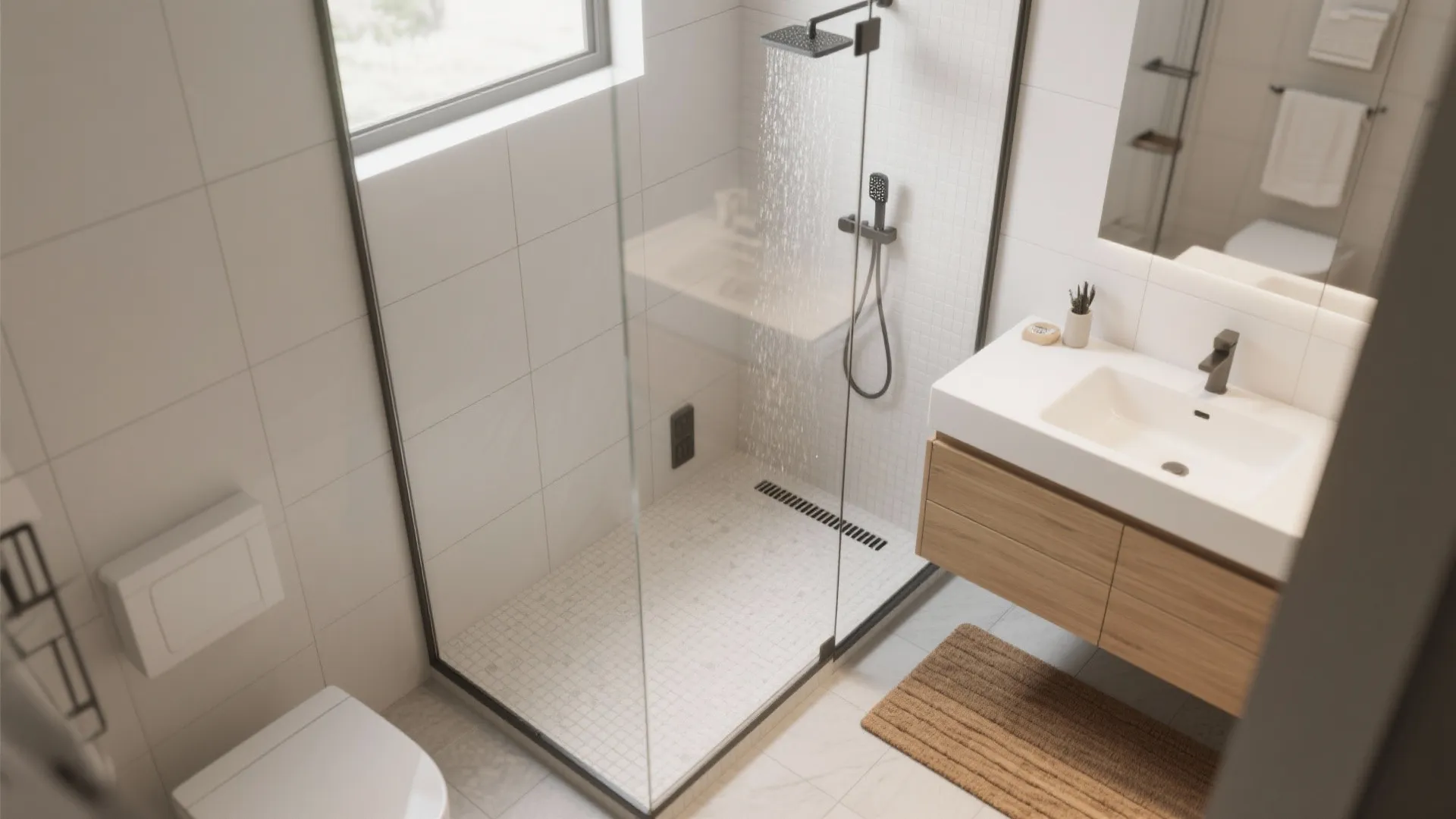

Wet room micro-ensuite with linear drain

My Take

When the footprint is under 2 m², I default to a wet room approach: continuous floor tile, one glass panel, and a linear drain. I did this in a narrow 1.1 m width and still got a rain head—client was shocked it didn’t feel cramped.

Pros

- Eliminating the shower curb simplifies transitions and makes the small bedroom with bathroom plan feel larger and more accessible.

- A linear drain allows a single-plane slope, keeping tile layouts clean; large-format tiles reduce grout lines and maintenance.

- Citing the UK’s Approved Document M and the ADA’s guidance on barrier-free showers, curbless entries improve usability and safety when properly detailed.

Cons

- Waterproofing must be meticulous—membrane at walls and floor, corners banded; any shortcut shows up as leaks months later.

- Humidity control is critical; without a 15–20 l/s extractor (or ~50 CFM), mirrors fog and paint peels.

- Sound of water on tile can echo; add a teak mat or textured porcelain to soften acoustics.

Tips / Cost

- Budget: quality linear drains start around mid-range pricing; include slope build-up and membrane costs in your estimate.

- Specify 10×10 cm mosaic or a textured R10 tile for grip; pair with a single fixed glass screen of 700–900 mm.

- Keep the vanity shallow (350–380 mm) to maintain knee clearance and keep flows clear.

save pin

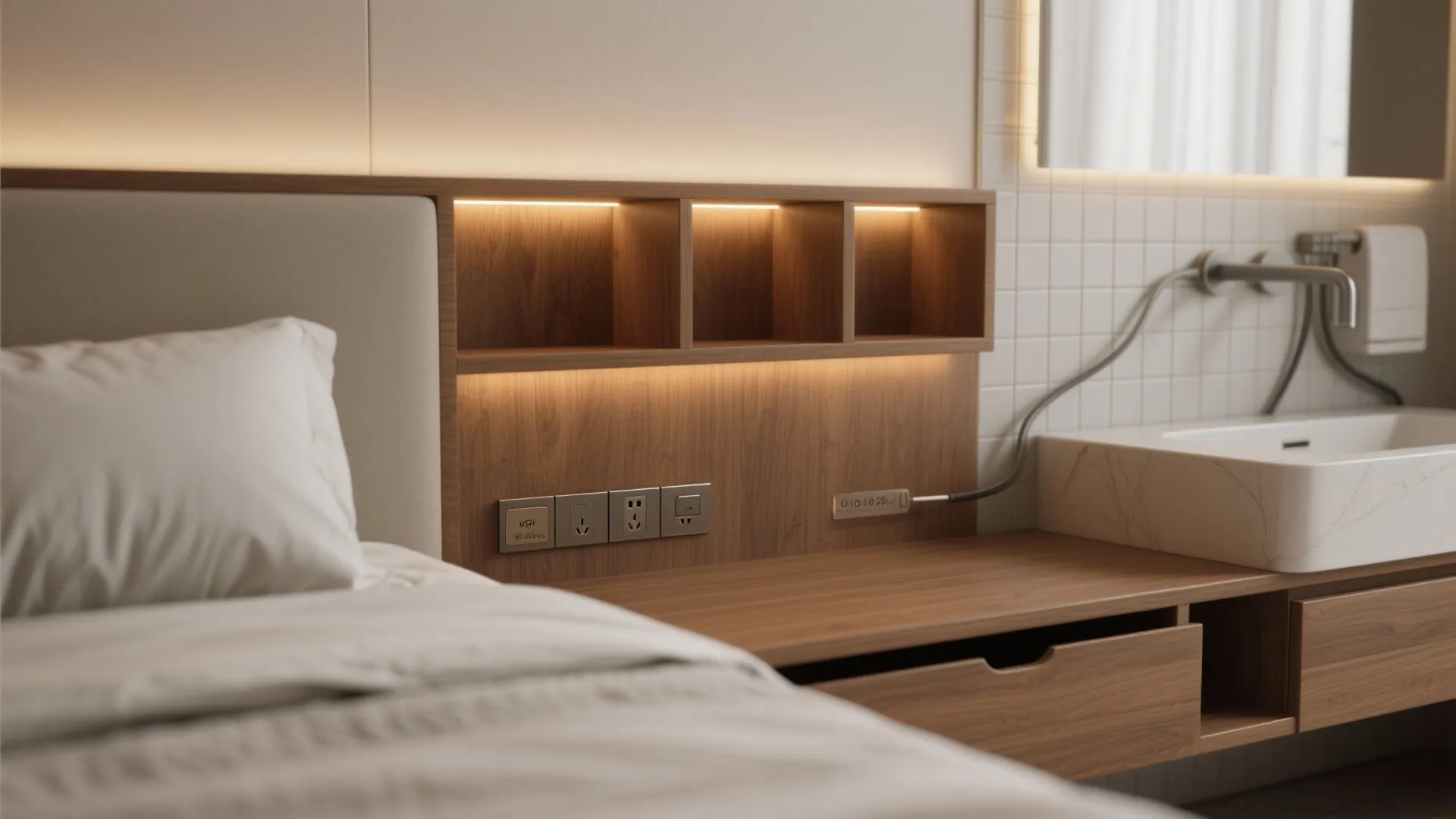

Built-in storage headboard meets vanity wall

My Take

Storage is the silent hero. In one micro-suite, I wrapped a shallow headboard with hidden cabinets and aligned the bath vanity on the opposite side of the same wall—one build, two functions.

Pros

- Shared service wall reduces plumbing runs and thick walls, which is gold in a small bedroom with bathroom plan.

- A built-in headboard (180–220 mm deep) swallows reading lights, outlets, and cubbies without protruding furniture.

- The visual calm helps sleep quality—less clutter, more intention—and makes weekly cleaning faster.

Cons

- Overstuffing niches makes the space feel busy; edit your display and stick to a three-object rule per shelf.

- Electric coordination is fussy: dimmers, GFCI in the bath, and switched bedside circuits need a clear plan.

- If you’re renting, major millwork might be off-limits; consider modular shelves and a freestanding vanity instead.

Tips / Case

- Keep vanity depth at 420–480 mm and use a 12 o’clock faucet placement for tighter basins.

- Warm LED (2700–3000K) in the headboard calms the room; a CRI 90+ strip under the vanity helps grooming.

- For 3D visualization with accurate millwork clearances, I like using a sample like cabinet alignment and service wall routing to sanity-check depths before fabrication.

save pin

Color zoning and materials that cheat scale

My Take

When structure won’t budge, color does the heavy lifting. In a 2.2 m ceiling studio, I painted the bath soffit and vanity wall the same hue as the bedroom trim—suddenly the bath felt “inside” the room instead of tacked on.

Pros

- Continuous materials—same floor tile into the bath, or same wall color band—visually expand a small bedroom with bathroom plan.

- High-reflectance finishes near the vanity (eggshell paint, satin tile) bounce light and reduce fixture load.

- Research from the Lighting Research Center notes that surface reflectance dramatically impacts perceived brightness; pale, matte walls can cut glare while lifting the ambient level.

Cons

- Too much shine looks clinical; balance satin with matte to avoid “bathroom creep” into the bedroom.

- Dark stone in tiny baths is luxurious but unforgiving with limescale—keep a daily spray nearby.

- Color matching across paint and tile batches can be tricky; always do a large sample board in the actual light.

Tips / Cost

- Aim for 70–80% LRV on main walls and 30–40% on accents to control depth without flattening the space.

- Use one bold move only—like a vertical color band that lines up with the vanity mirror—to lead the eye and fake height.

- Around 80% into a project, I run a final materials check in a 3D mock; a great example is material continuity test render to preview color zoning before ordering.

save pin

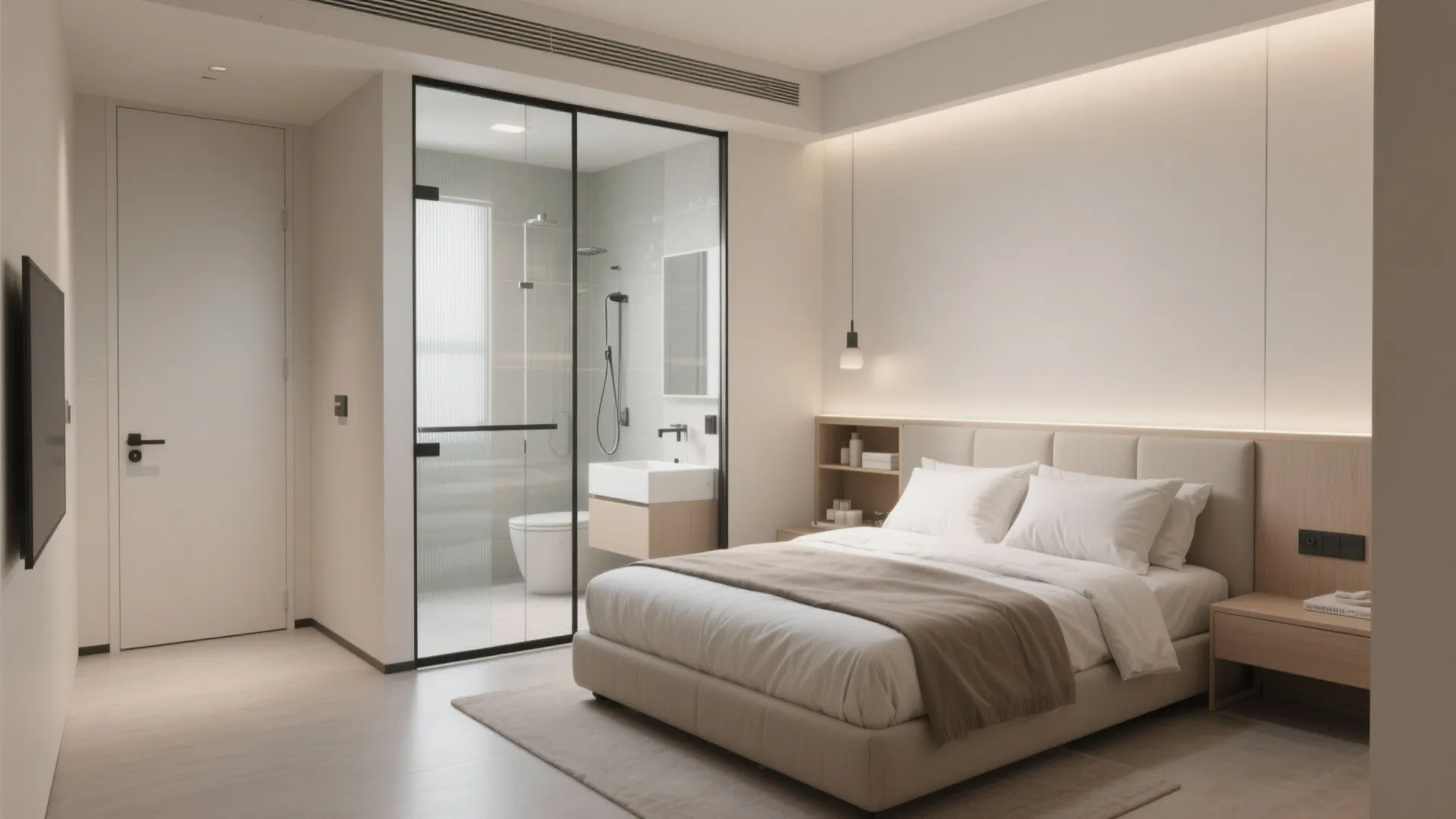

Summary

A small bedroom with bathroom plan isn’t a compromise; it’s an invitation to design smarter. From glass partitions and pocket doors to wet rooms and color zoning, each move stretches scale, light, and function. The WELL Standard and accessibility guidelines echo what I’ve seen on site: good light, clear circulation, and barrier-free details improve comfort in any size. Which idea would you try first in your own mini-suite?

save pin

FAQ

1) What is the minimum size for a small bedroom with bathroom plan?

In many cities, I aim for about 7–9 m² for the bedroom and 1.8–2.5 m² for a compact ensuite. Check local codes for clearances; for example, the International Residential Code outlines fixture spacing and door requirements.

2) How do I keep privacy with a glass ensuite?

Use fluted or frosted tempered glass, add a ceiling-mounted privacy curtain, and place the vanity to block direct sightlines. An acoustic door sweep or laminated glass helps with sound control.

3) Can a wet room work in timber floors?

Yes, with proper subfloor reinforcement and a full waterproofing system (sheet membrane, banded corners, bonded drain). Follow the manufacturer’s installation guide—Schluter and Wedi publish detailed specs.

4) What door is best for tight spaces?

A pocket door saves up to 0.5 m² of swing space and reduces door conflicts. If sound is a concern, a solid-core sliding door with brush seals is a good compromise.

5) How do I ventilate a small ensuite effectively?

Target at least 50 CFM (≈ 15–20 l/s) with a timer or humidity sensor. Duct runs should be short and smooth; ASHRAE 62.2 provides guidance on residential ventilation rates.

6) What lighting plan suits a tiny bedroom-bath combo?

Layer it: warm ambient in the bedroom (2700–3000K), crisp task lighting at the vanity (3500–4000K, CRI 90+), and a dim night pathway. Keep switches simple and reachable from the bed.

7) Which materials make the space look larger?

Continuous flooring, large-format tiles, and pale matte walls with higher LRV make rooms read bigger. A single textured surface—like microcement—removes visual seams and calms the eye.

8) Any quick way to test layout options?

Mock up clearances on the floor with painter’s tape, then build a simple digital plan to tweak door swings and vanity depths. If you want to visualize in 3D, try a sample case like “material continuity test render” to preview finishes before buying.
