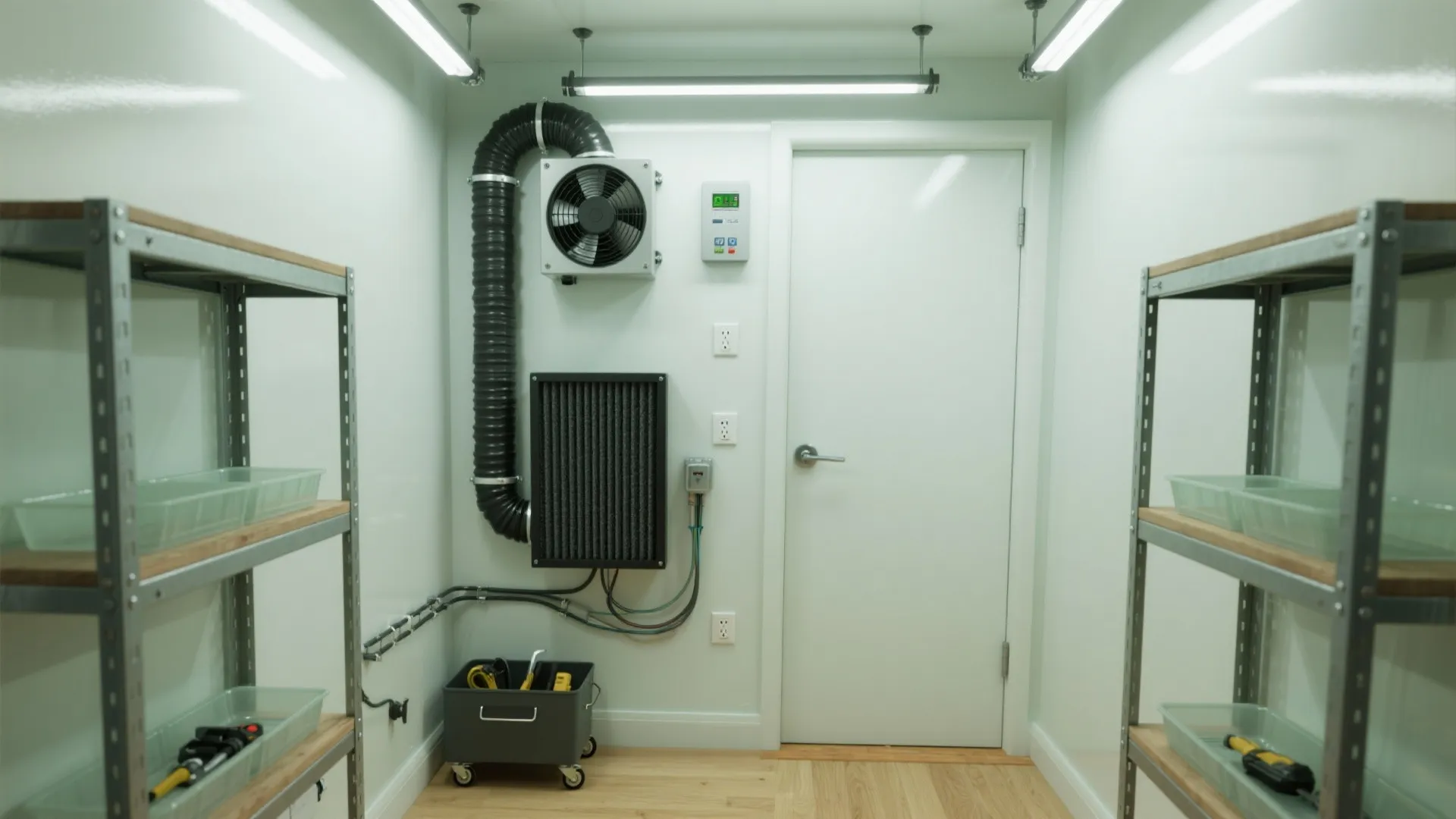

5 Small Grow Room Design Plans: Pro Tips & Layouts: A senior interior designer’s playbook for lighting, airflow, storage, water, and safety across tiny indoor grow spaces—based on real projects and expert data

Trends in indoor design aren’t just about sofas and stone; they’ve also nudged a surge in compact, efficient grow spaces at home. Over the past decade, I’ve drafted and tested many small grow room design plans—from spare closets to box rooms—and I’ve learned that small spaces spark big creativity. Before I even set a shelf, I like to build a quick visual—sometimes a high-fidelity 3D render of light and airflow—so I can estimate clearances, fan placement, and how reflective walls will redistribute light. In this guide, I’ll share 5 design inspirations that I actually use, blending personal experience with reliable research and practical tips you can put to work today.

Whether you’re nursing leafy greens or nurturing flowering houseplants, the constraints of a small room can become your allies. I’ll walk you through the core systems—light, airflow, storage, water, and safety—so your layout stays tidy, productive, and easy to maintain.

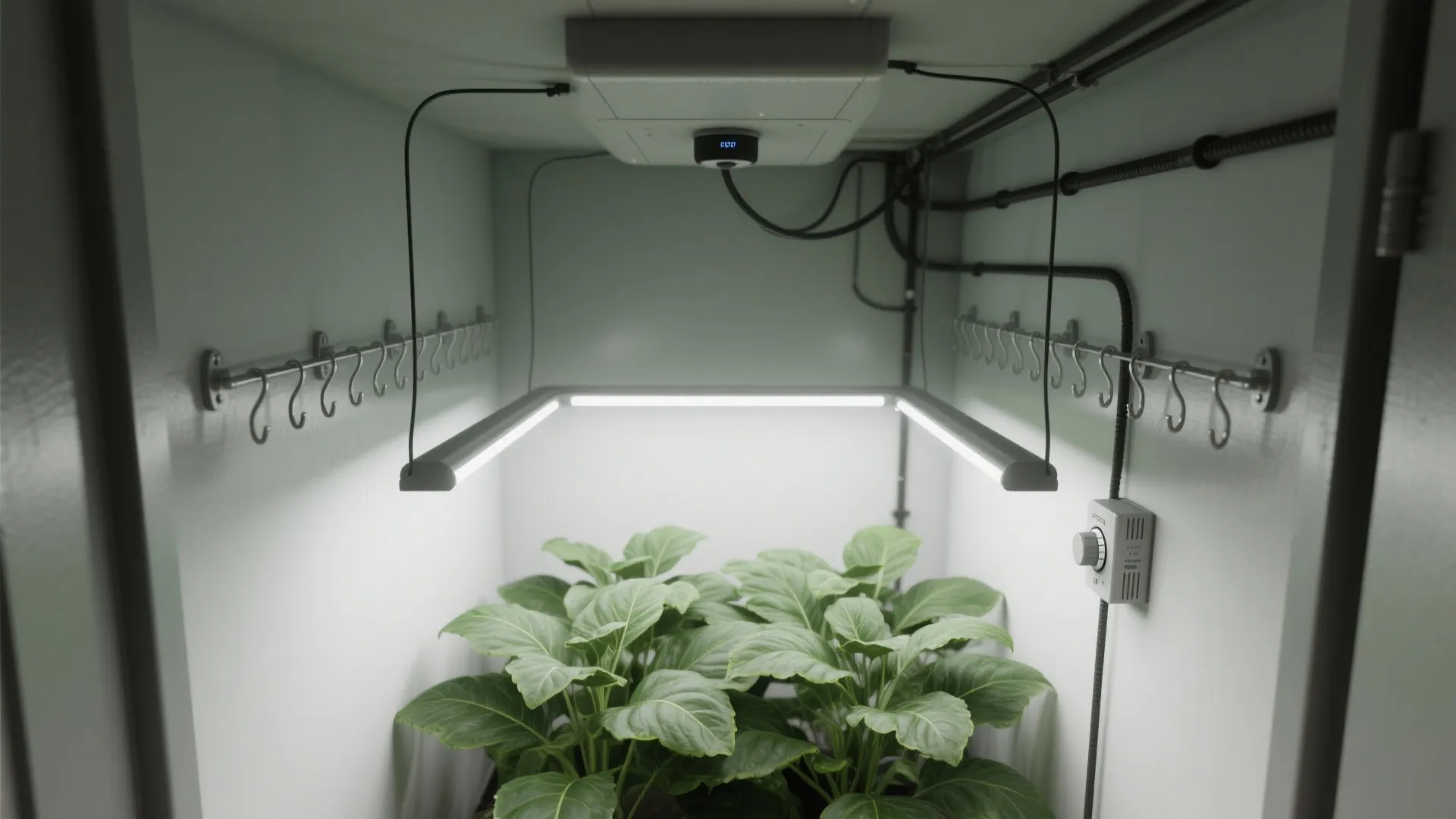

Reflective Surfaces & PPFD Mapping

My Take: My first ever micro-grow was a converted hallway closet with a single bar light and matte white paint. I quickly learned that the wall finish and fixture height made or broke the harvest. Since then, I start each plan with PPFD targets and a reflectance strategy, because efficient light is the cheapest growth boost.

Pros: Dialing in a PPFD lighting layout for small rooms lets you hit target intensities without stacking fixtures, which saves budget and reduces heat. In my projects for leafy greens, I aim for roughly 200–400 µmol/m²/s at canopy in veg, then tweak. Research from Michigan State University’s floriculture team notes that high-reflectance white surfaces can rival specialty films in practical setups, and evenness of distribution is as important as raw intensity for plant quality.

Cons: Glossy paints can create hot spots and glare; in tight spaces, they’re not always worth it. Mylar films wrinkle easily and can trap moisture behind panels if not sealed well—ask me about the time I created a mini-rainforest behind a wall. Over-lighting also drives heat and VPD swings that your ventilation might not keep up with.

Tips / Case / Cost: If you’re on a budget, choose flat or satin white with high reflectance; most reputable interior paints list LRV (light reflectance value). Mount lights on adjustable ratchets and spot-check PPFD with a sensor or app-based estimator—then add a dimmer to fine-tune intensity rather than lifting fixtures too high. Keep cables clear of canopies to avoid shadowing.

save pin

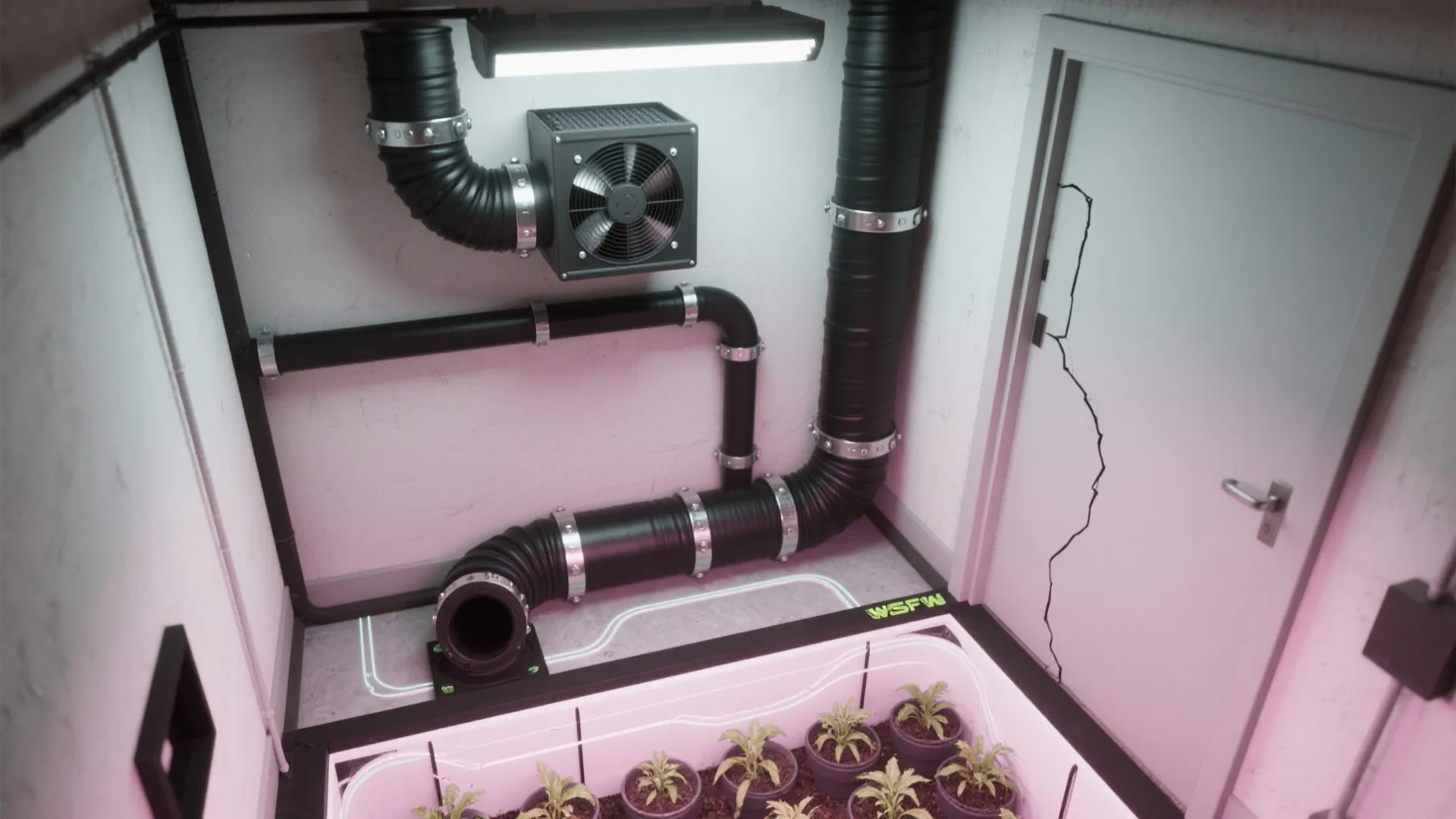

Smart Ventilation & Odor Control

My Take: Airflow is the difference between a productive micro-room and a sticky, stressed one. On one project, simply flipping the fan orientation to maintain consistent negative pressure fixed odor bleed-through and stabilized humidity in a weekend.

Pros: A small grow room ventilation design with negative pressure prevents smells from drifting and funnels warm, moist air out efficiently. Inline fans paired with a matched carbon filter dampen odor while smoothing airflow. The U.S. EPA advises keeping indoor relative humidity below 60% (ideally 30–50%) to deter mold, which aligns well with good plant health and equipment longevity.

Cons: Inline fans can be louder than expected, and cheap ducting amplifies noise. Carbon filters add resistance, so undersizing the fan is a common mistake. And yes, in a small room, every 90-degree bend steals performance—your airflow hates origami.

Tips / Case / Cost: Choose an inline fan with a little headroom for filter resistance and duct length; speed controllers let you tune noise later. Use straight duct runs where possible and isolate fans with rubber mounts. For stealth and stability, set your intake lower and your exhaust higher to leverage heat rise; add a low-Watt circulation fan to eliminate dead zones behind plants.

save pin

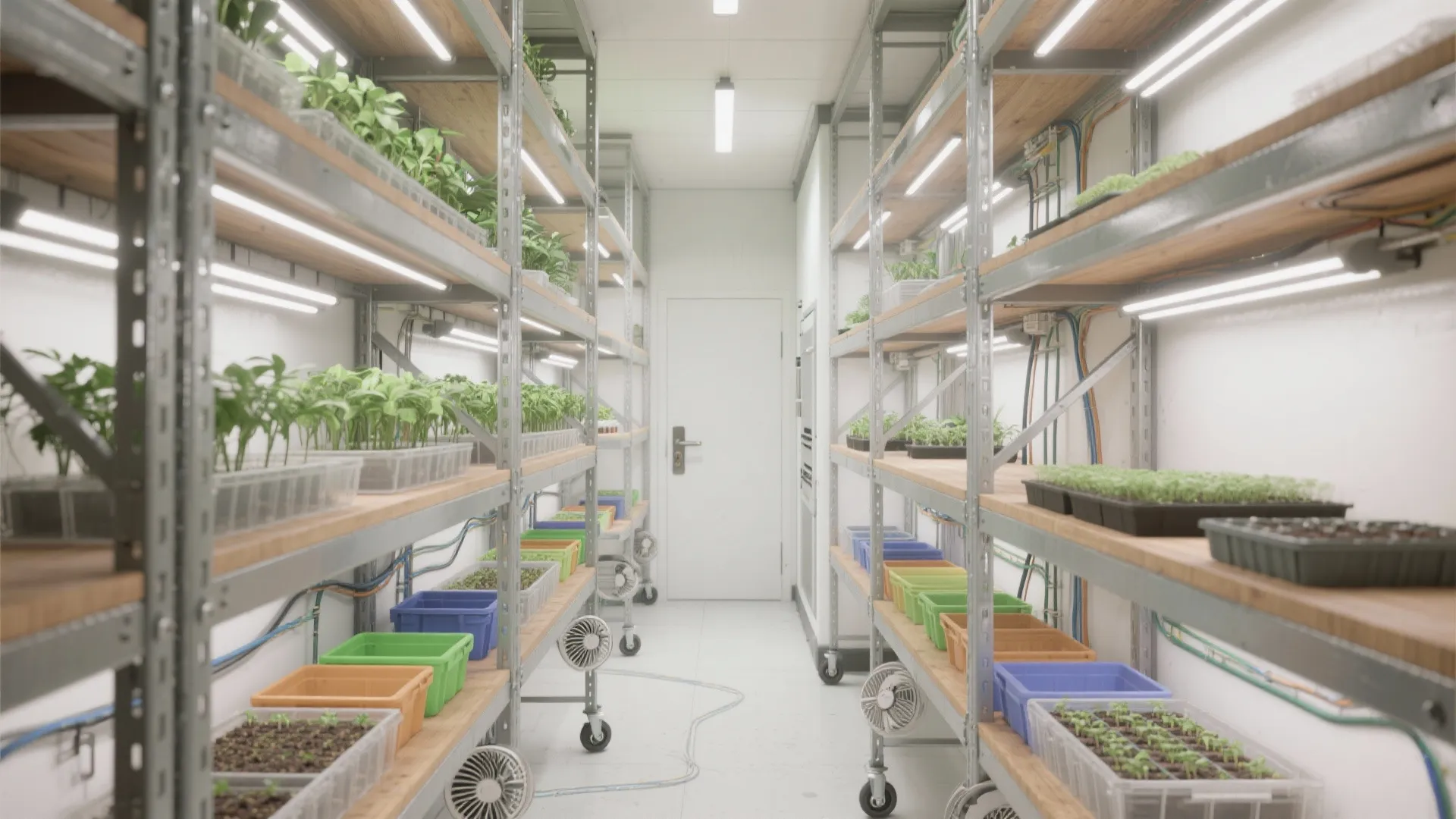

Modular Vertical Storage & Aisle Strategy

My Take: In small rooms, I design storage and aisles like a galley kitchen: one clear service lane and wall-hugging function. My favorite micro-room used modular shelves that could reconfigure in minutes—from seedling tiers to a single tall bay for fruiting plants.

Pros: A grid-based shelving plan for vertical gardens returns massive space gains without crowding your workflow. Narrow, consistent aisle widths (think 60–70 cm / 24–28 inches) keep you moving without bumping foliage. Adjustable shelves make seasonal rotation painless and help maintain ideal plant-to-light distances.

Cons: Cheap wire racks can wobble and rattle under fans; add cross-bracing or you’ll hear a symphony at 2 a.m. Over-stacking plants creates maintenance blind spots—pruning becomes yoga. Deep shelves can block airflow to lower tiers if you don’t add under-shelf fans.

Tips / Case / Cost: Use steel shelves with lockable wheels for cleaning day; anchor tall units for safety. Label tiers (propagation, veg, bloom) and color-code bins for tools and nutrients. If you plan frequent reconfiguration, consider click-in cable trays for tidy wiring and quick swaps. For layout iterations, I often sketch a grid-based shelving plan for vertical gardens before committing to hardware—seeing aisles, reach zones, and door swings at scale saves money and headaches.

save pin

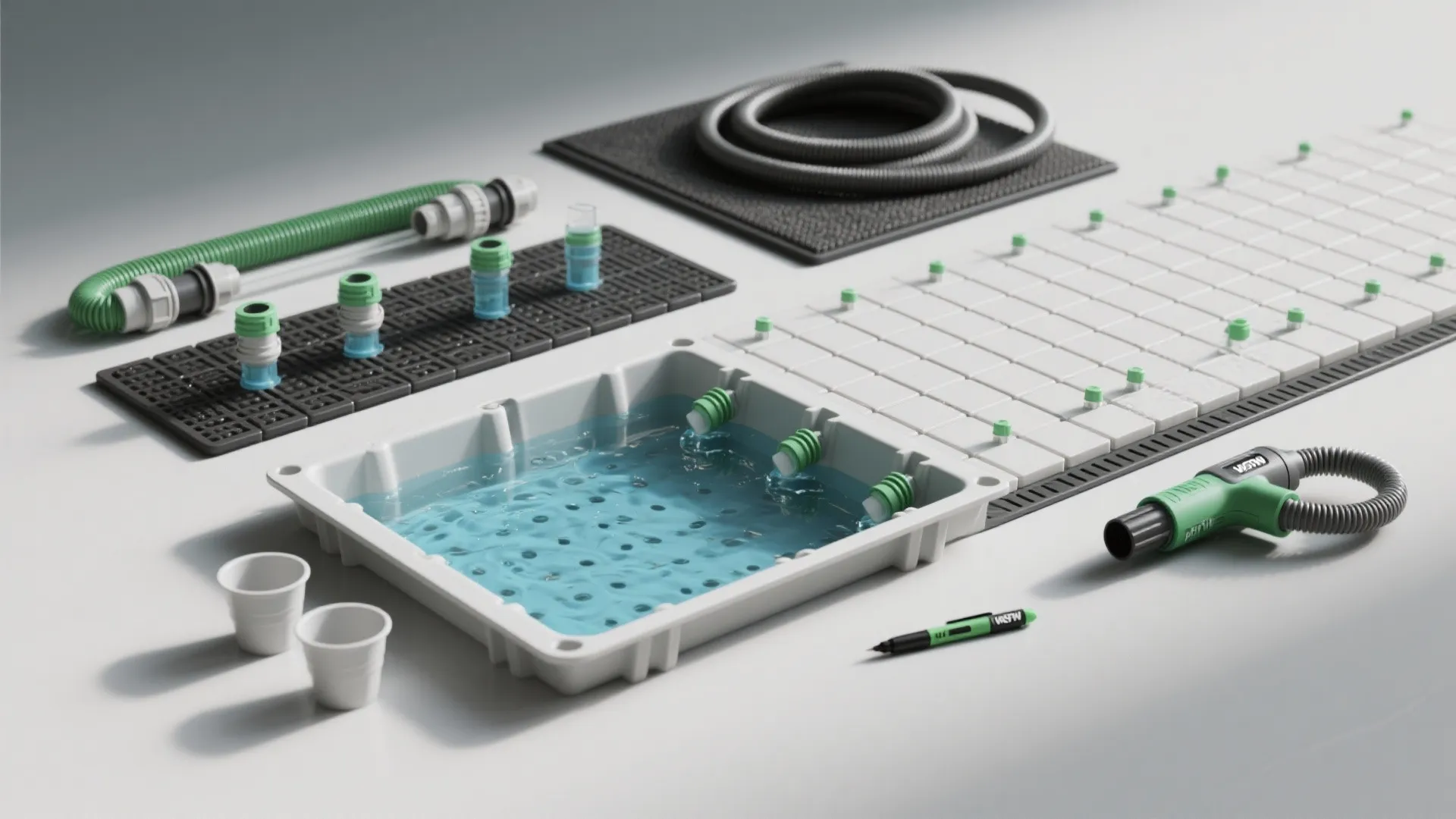

Water Management: Trays, Floors, and Hydro Choices

My Take: I learned the hard way that a single overzealous watering can soak subfloors and cause mold. Now, every small grow room design plan I draft starts with a “what if it leaks?” scenario—because eventually, it will.

Pros: A dedicated water containment strategy—raised flood trays, waterproof mats, and sloped catch pans—prevents damage and makes cleanup fast. In tight rooms, simple drip irrigation in a closed loop can cut spills and keep root zones consistent. When planned well, hydroponic drip irrigation in tight spaces reduces daily labor and stabilizes growth.

Cons: Recirculating systems need maintenance discipline; if you’re not testing pH/EC often, you’ll chase problems. Gravity can be your enemy in small rooms with inconsistent floor levels; one shim out of place and water pools where you least expect it. And yes, trays heavy with water add real weight—check load limits on shelves.

Tips / Case / Cost: Use interlocking drainage tiles under trays to keep cords and wood off wet floors. Tuck a compact wet/dry vac in a corner and route a “spill path” to the door with threshold dams if possible. For renters, a removable sealed tray system to contain spills protects floors and deposits to boot.

save pin

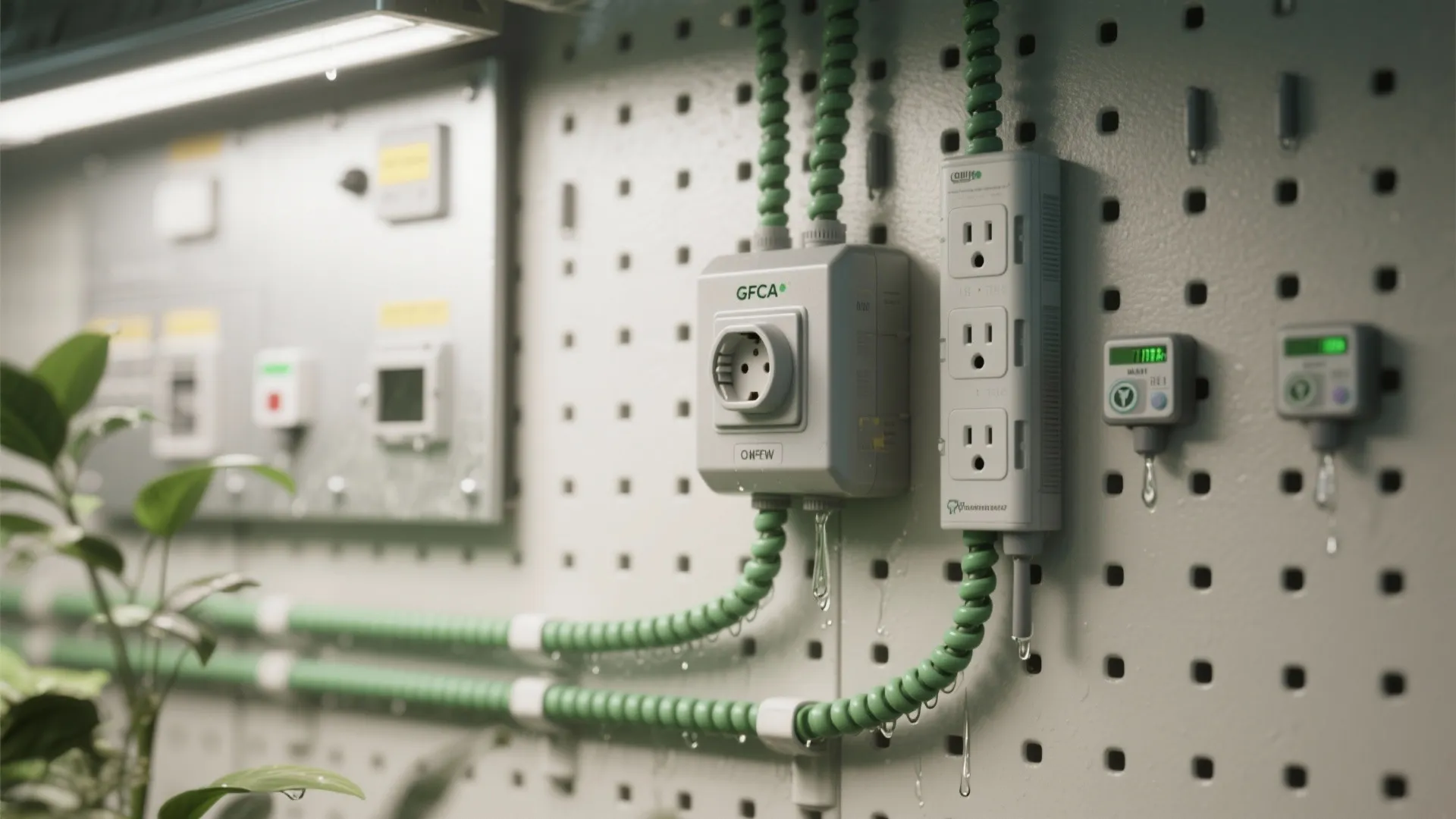

Safety, Wiring, and Set-and-Forget Schedules

My Take: The prettiest room is worthless if it trips breakers or risks shocks. I’ve retrofitted aging apartments where a single power strip powered lights, fans, and pumps—don’t do this to yourself.

Pros: A compact electrical plan with GFCI-protected outlets and drip loops dramatically reduces risk in damp environments. Grouping loads by function (lights on one circuit, environmental controls on another) keeps schedules reliable. OSHA and the National Electrical Code (NFPA 70) emphasize GFCI protection in damp/wet areas; adhering to this guidance turns a risky setup into a resilient one.

Cons: Timers and controllers can multiply fast; if they’re not wall-mounted, you’ll tangle cables and chase faults. Older buildings may need an electrician to add circuits or upgrade outlets. Also, cost creep is real—buy once, cry once applies to safe power hardware.

Tips / Case / Cost: Plan cable routes high, then drop down in a “waterfall” to avoid wicking. Use labeled, weather-resistant power strips mounted vertically, and dedicate a small panel or pegboard for controllers, sensors, and timers. I’m a fan of checklists taped next to controls: light schedule, feeding window, and maintenance dates. For tidy operation and safer movement, wall-mounted timers and cable raceways keep aisles clear and help prevent accidental unplugging.

save pin

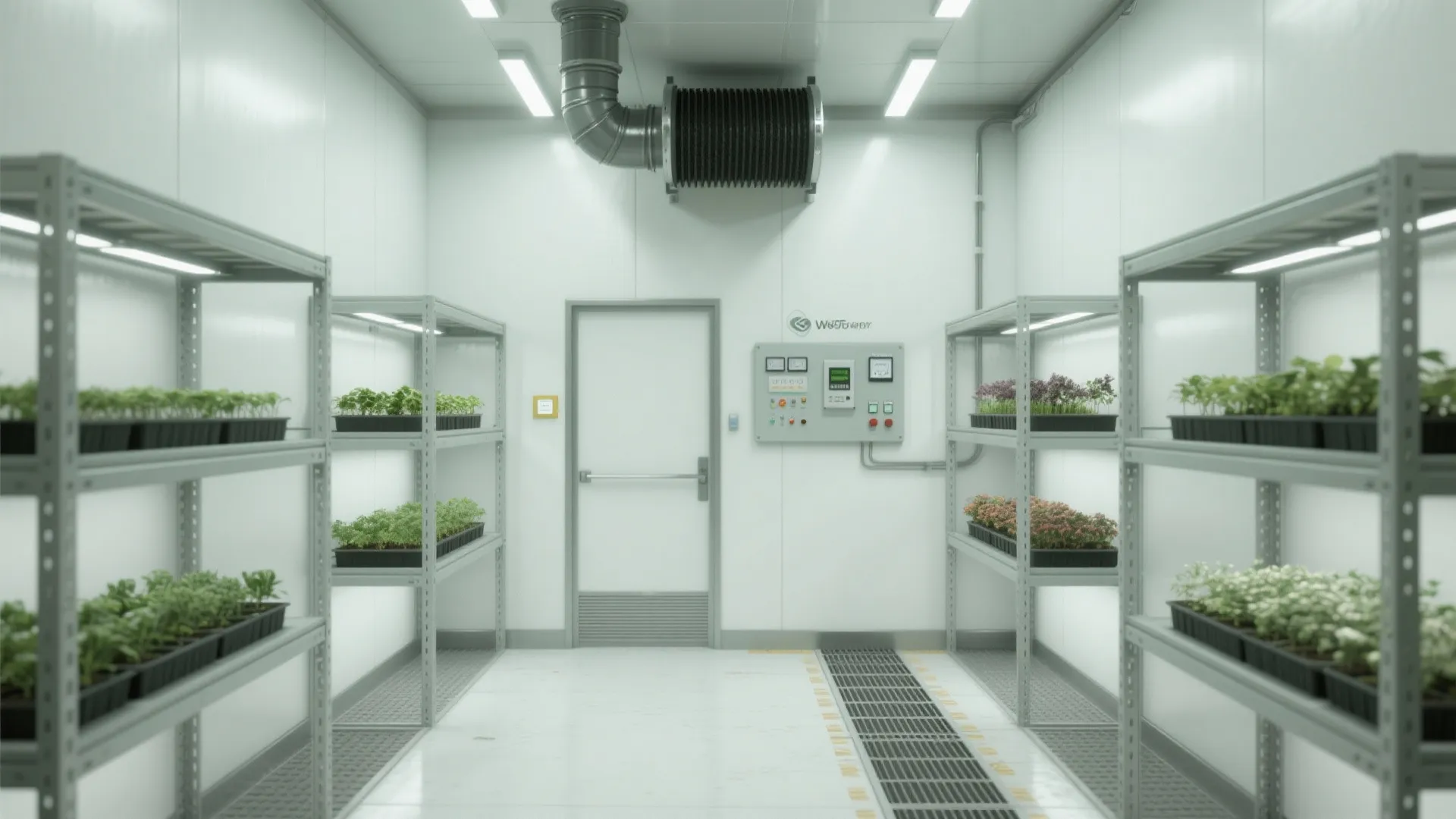

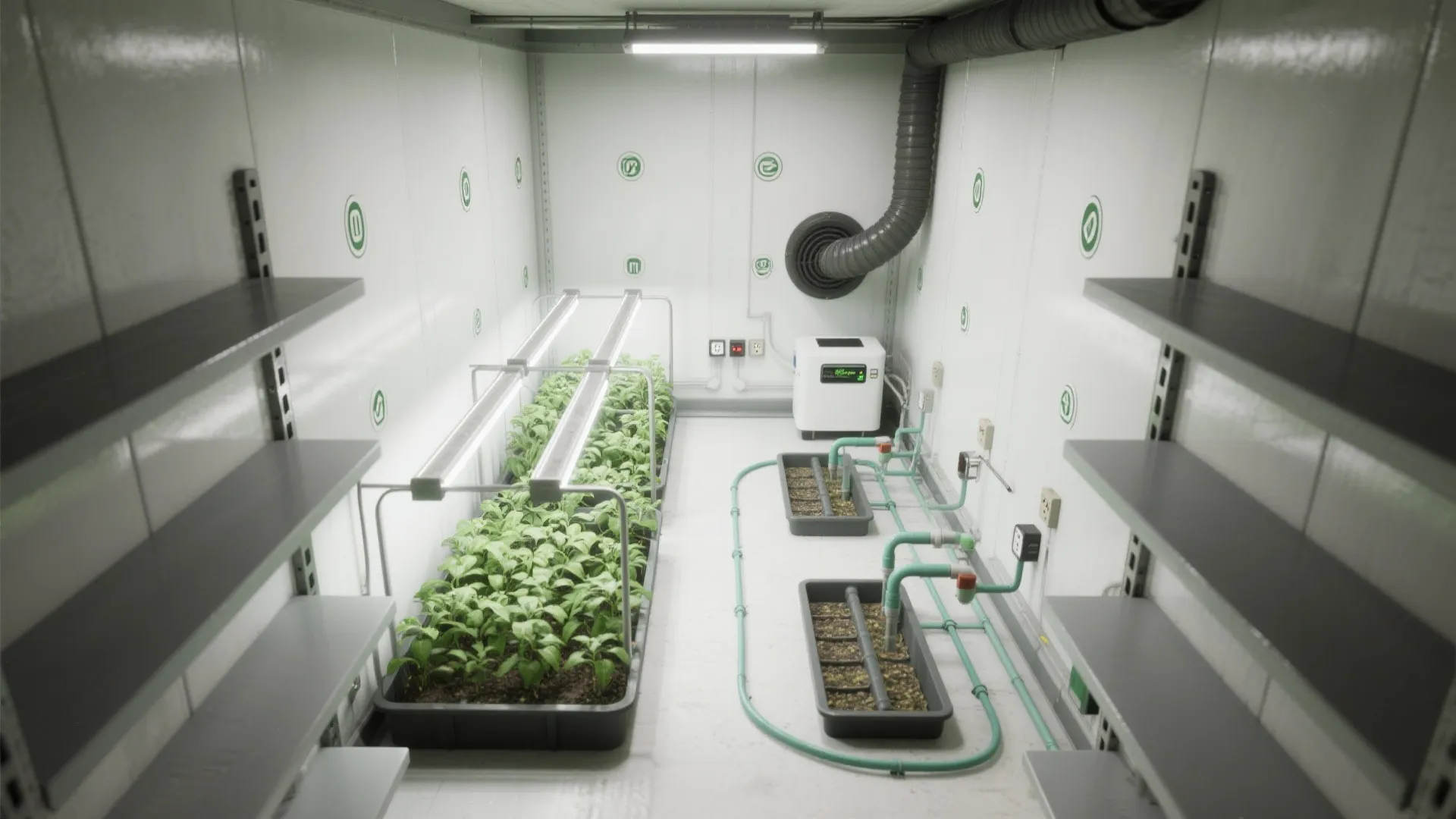

Putting It All Together: A Sample Micro-Room Layout

My Take: Here’s how I usually stitch these ideas into one cohesive micro-room: I start with reflectance (satin white paint), then place lights for an even PPFD at target height. Next, I locate the exhaust high and intake low to draft past the canopy, and I mock shelves to protect a single service aisle.

Pros: This sequence—light, air, storage, water, safety—keeps you from boxing in essentials. It’s a repeatable method that scales from a wardrobe to a spare room. By prioritizing PPFD lighting layout and small grow room ventilation design first, you keep heat and humidity within control from day one.

Cons: Every room has quirks: doors that clash, outlets in the wrong corner, or stubborn noise through shared walls. Expect at least one compromise and budget for an extra duct elbow or a quieter fan. And yes, measuring twice before drilling still applies—studs aren’t always where you think.

Tips / Case / Cost: Sketch your room with rough measurements and define one “clean wall” for your control board. Keep your heaviest gear (water, filters) on the floor or lower shelves. If you need to hide the setup visually, use a solid core door, door sweep, and a weather strip to reduce light and noise leaks. For authoritative targets and guardrails: EPA humidity guidance (aim for 30–50%), Michigan State University’s lighting recommendations for indoor crops, and local code for GFCI are my baseline references when customizing the final details.

save pin

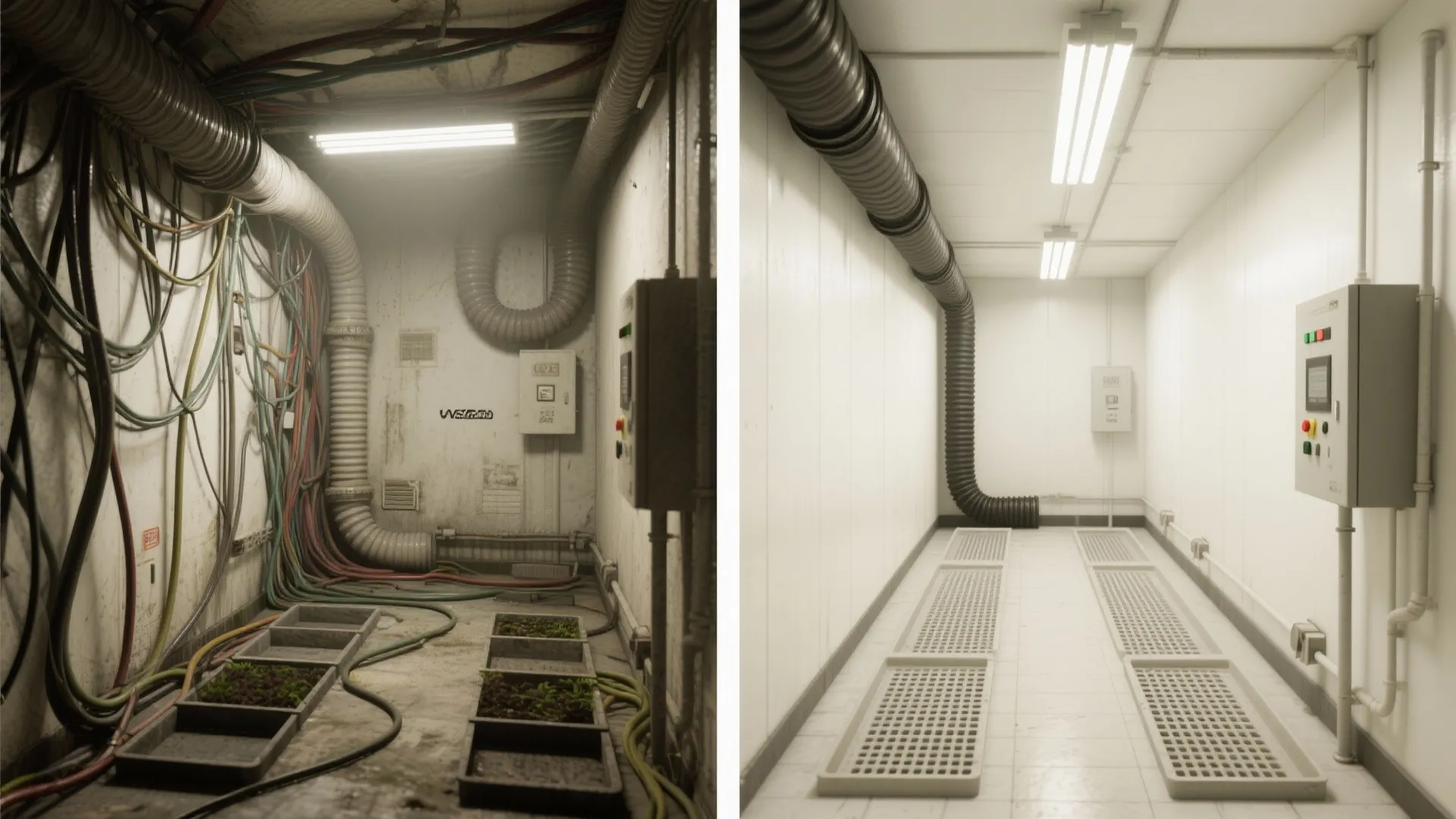

Summary

Small kitchens taught me something that applies perfectly here: small grow room design plans are not limits—they’re invitations to design smarter. By tackling reflectance and PPFD first, dialing in negative pressure and humidity control, stacking vertical storage around a clear aisle, containing water, and wiring safely with GFCI and clean schedules, you convert constraints into consistency. The result is a tidy room, predictable growth, and a process you’ll actually enjoy repeating.

I’m curious—what’s the first upgrade you’re excited to try: reflectance tweaks, a quieter exhaust, or tighter cable management?

save pin

FAQ

1) What size qualifies as a “small” grow room?

In practice, anything from a 0.5–3 m² footprint (5–30 sq ft) is “small.” The key is to plan one clear service aisle and use vertical space. In all small grow room design plans, I prioritize reach zones so maintenance stays stress-free.

2) How do I target the right PPFD for a tiny room?

Start with crop needs: many leafy greens thrive near 200–400 µmol/m²/s at canopy, while light-hungry ornamentals may prefer higher. Keep fixtures dimmable and test at the plant—not just at the source—because reflective walls change the final PPFD.

3) What’s the best reflective surface—white paint or mylar?

High-quality satin or flat white is cost-effective, durable, and surprisingly efficient. Specialty films can add a few points of reflectance, but proper installation matters more than brand—wrinkles create hotspots and reduce uniformity.

4) How should I design ventilation for a small grow room?

Aim for consistent negative pressure with an inline fan slightly stronger than intake and keep duct runs straight. Place intake low and exhaust high to skim heat and humidity off the canopy. A carbon filter at the exhaust helps with odor without extra footprint.

5) Do I really need a carbon filter in a tiny space?

If odor control matters to you or your neighbors, yes. A matched fan-and-filter pair keeps smells contained and supports overall airflow quality in a small grow room ventilation design.

6) How do I control humidity and prevent mold?

Keep relative humidity below 60%, ideally 30–50% per U.S. EPA guidance, and ensure constant air movement through the canopy. Use a dehumidifier sized for the room and schedule watering earlier in the light period to reduce overnight moisture.

7) Should I try hydroponics in a small room?

It can work beautifully if you’re disciplined. Simple hydroponic drip irrigation in tight spaces reduces daily watering, but build in spill containment and monitor pH/EC to avoid chasing imbalances.

8) Is GFCI protection necessary?

Yes—damp locations demand it. Following NEC/NFPA 70 and OSHA best practices, use GFCI-protected outlets and keep all connections elevated with drip loops; it’s a low-cost, high-impact safety upgrade.
