5 Small-Kitchen Design Ideas (6ft x 4ft) with Dimensions: Real-world tips, layouts, and measurements from a senior interior designer

I’ve redesigned more than a dozen micro kitchens, and the 6ft x 4ft footprint is where small-space magic happens. Current kitchen design trends are all about clean lines, modular storage, and brighter surfaces—and small spaces amplify those ideas. In this guide, I’ll share 5 kitchen design inspirations for a 6ft x 4ft kitchen with dimensions, blending my own project notes with expert-backed data. Small spaces spark big creativity, and I’ll show you exactly how.

For a visual-first reader, I often mock up plans that illustrate exact clearances and cabinet modules. In one recent studio, we squeezed a 60cm cooktop, 45cm sink, and 60cm under-counter fridge into a single run—without it feeling cramped. To get a sense of how “minimalist storage” scales in tight quarters, I recommend exploring examples like L-shaped layout frees more counter space to see proportion and sightlines in small kitchens.

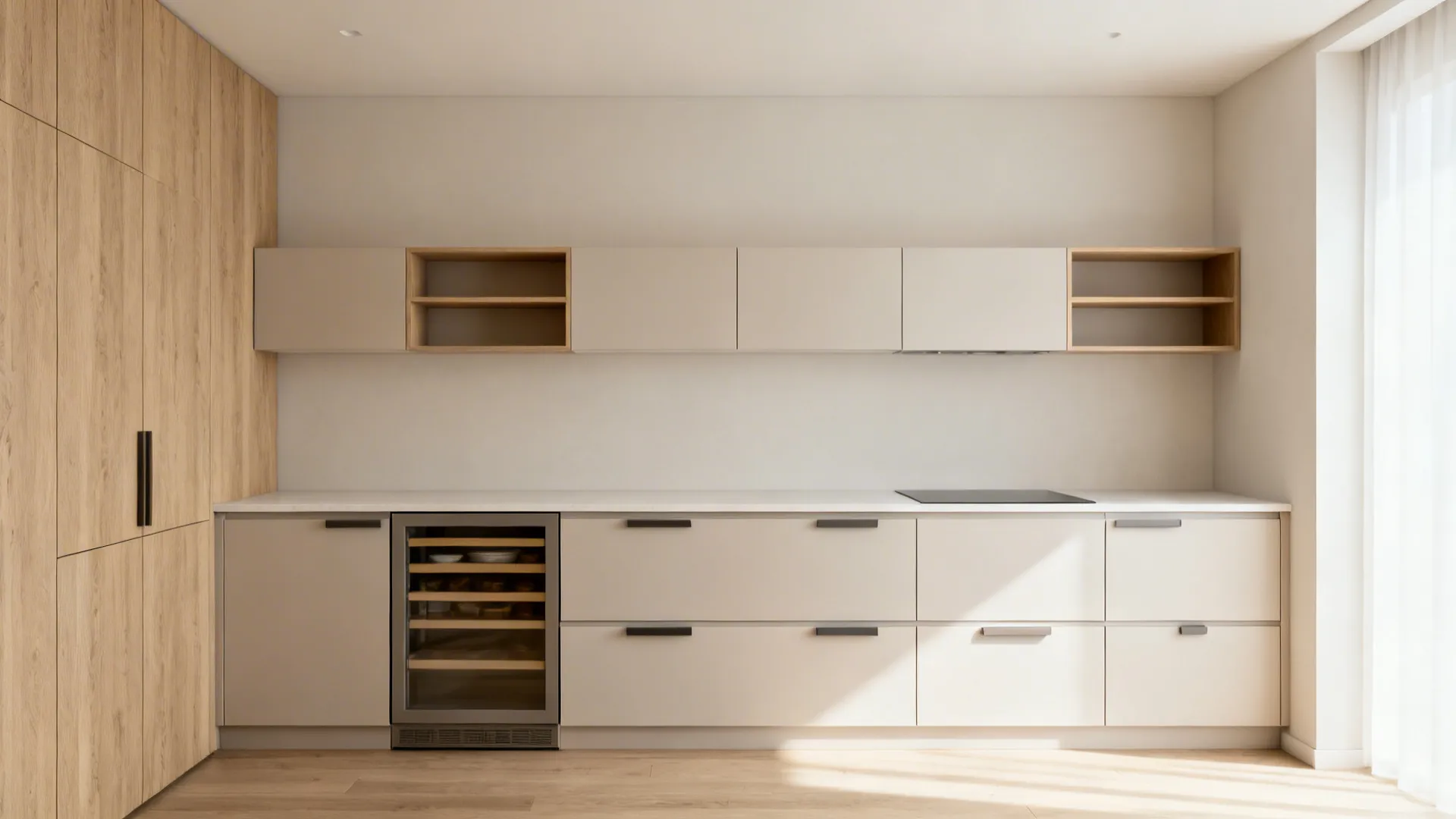

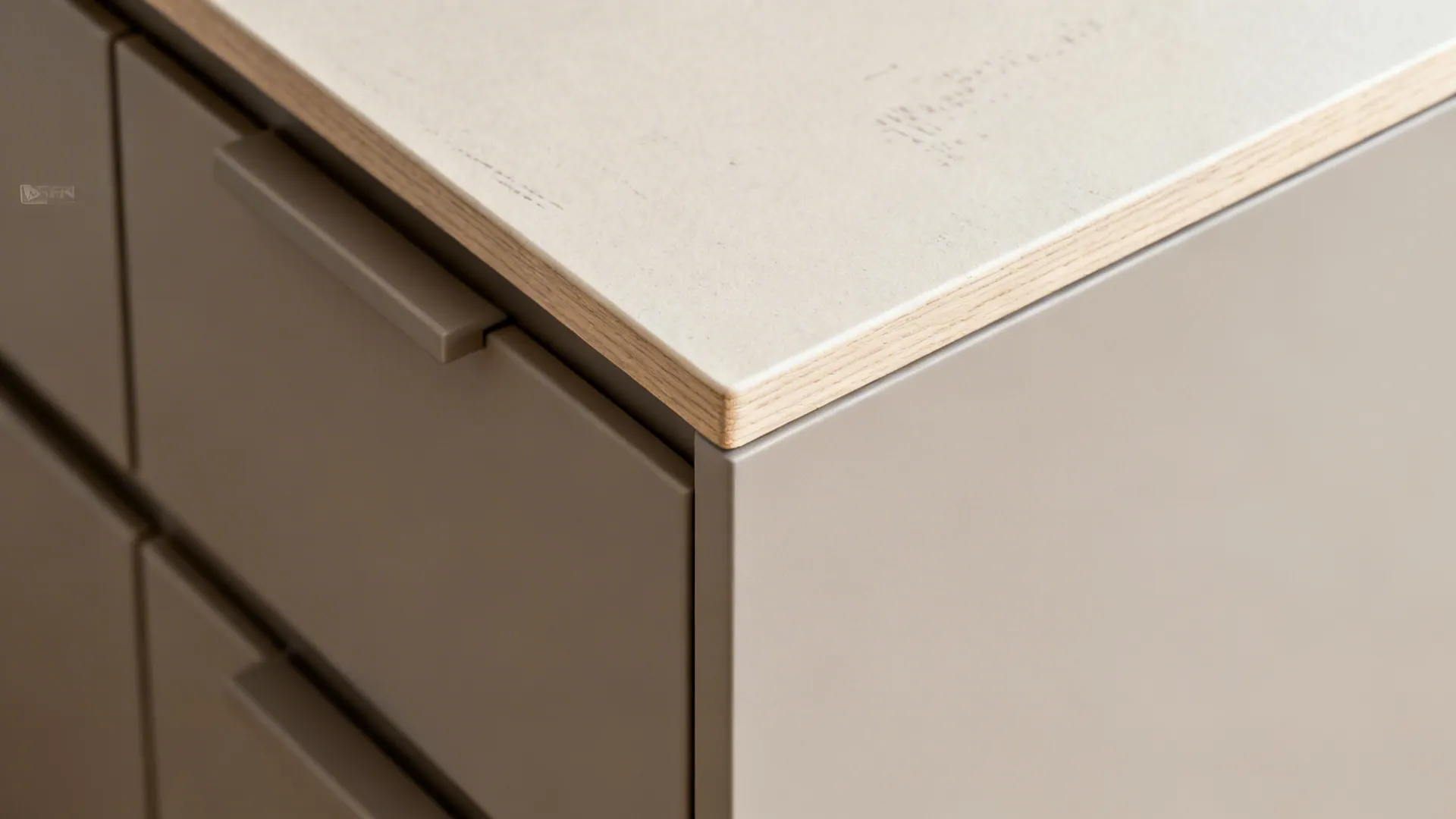

Minimalist Storage Wall with Clear Dimensions

My Take:

I once transformed a dim 6ft x 4ft kitchenette by dedicating one 6ft run to slim, modular cabinets. We used 300mm and 400mm base units with a 20mm worktop, and kept wall cabinets shallow (250–300mm) to preserve headroom. The result: a visually calm wall that concealed recycling, utensils, and a pull-out pantry.

Pros:

- A minimalist storage wall uses narrow-depth cabinets and a continuous 600–650mm counter depth, a long-tail approach that keeps prep zones practical without bulk.

- With 450–600mm aisle clearance in front, the “one-wall micro kitchen” remains accessible and uncluttered, especially when paired with integrated handles and matte finishes.

- According to the National Kitchen & Bath Association (NKBA), a 24-inch (≈610mm) minimum clear counter depth and consistent vertical stacking improve usability in compact kitchens.

Cons:

- Ultra-slim wall cabinets (250mm) limit dinner-plate storage; I’ve had to rotate plates diagonally like a pizza trick.

- A single run can feel tight when two people cook; you may negotiate turns more than recipes.

- Concealed handles look clean but smudge easily—keep a microfiber cloth handy.

Tips / Dimensions:

- Base cabinet modules: 300/400/600mm widths; depth 560–600mm; worktop 20–30mm thick.

- Wall cabinets: 250–300mm depth; place bottom at 1350–1400mm from floor to keep headroom.

- Consider a 450mm-width pull-out pantry for spices and oils; it’s a micro miracle.

save pin

save pin

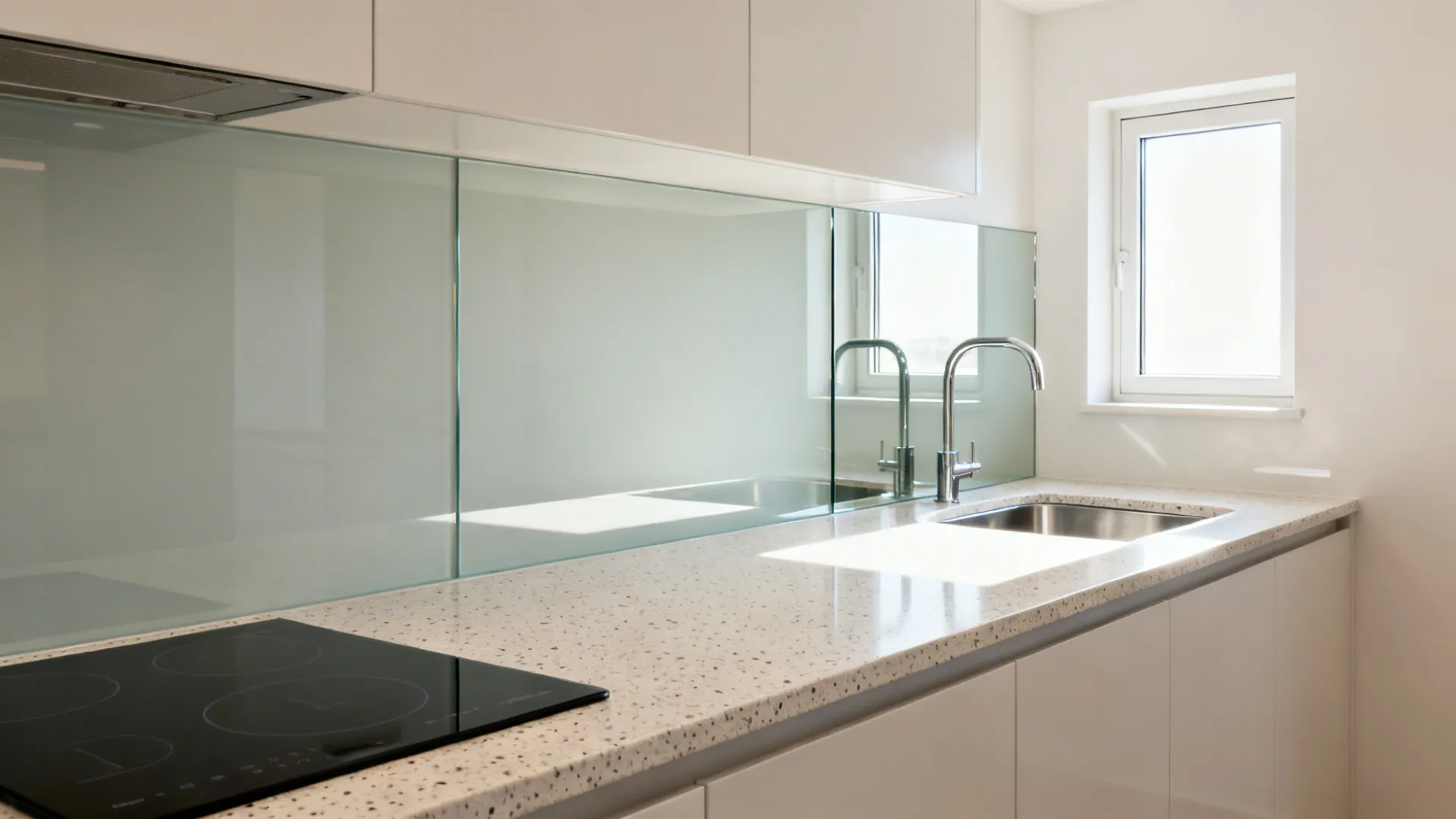

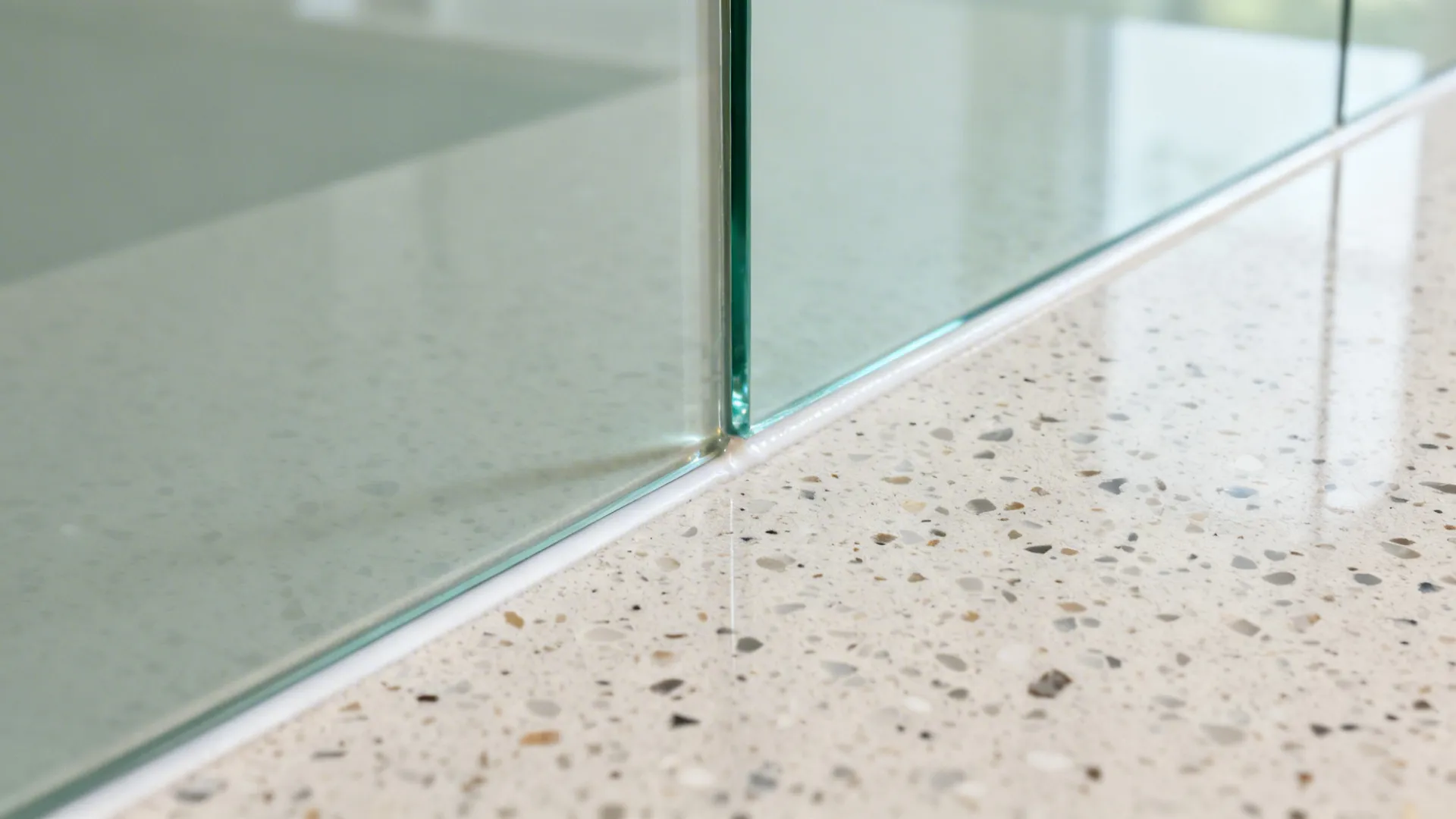

Glass Backsplash for Light and Depth

My Take:

In a basement apartment project, swapping a matte tile splash for back-painted glass instantly brightened the 6ft run. We even added a mirror-glass panel behind the sink to bounce light from a small window. That one change made the 4ft width feel closer to 5.

Pros:

- Back-painted or mirror glass creates the perception of depth—a long-tail trick for small kitchen design images 6 feet x 4 feet with dimensions because it visually extends the plane behind a 600–650mm worktop.

- Easy to clean; with minimal grout lines, hygiene improves, which matters when the cooktop (600mm) and sink (450–500mm bowl) are close.

- Research from the WELL Building Standard emphasizes the impact of light reflectance on perceived spaciousness; high-LRV surfaces can reduce visual clutter.

Cons:

- Mirror glass behind a cooktop reflects everything—including your “I burned the toast” face.

- Custom glass panels cost more than basic tile; handle cutouts for sockets and taps add up.

- Scratches show; I always specify tempered, low-iron glass for clarity and durability.

Tips / Dimensions:

- Standard backsplash height: 450–600mm; for a tiny kitchen, 550mm strikes a nice balance.

- Socket centers: ~1050mm from floor (above a 900mm worktop height), check local code.

- For extra bounce, choose LRV > 70 for painted glass; avoid green cast by using low-iron.

save pin

save pin

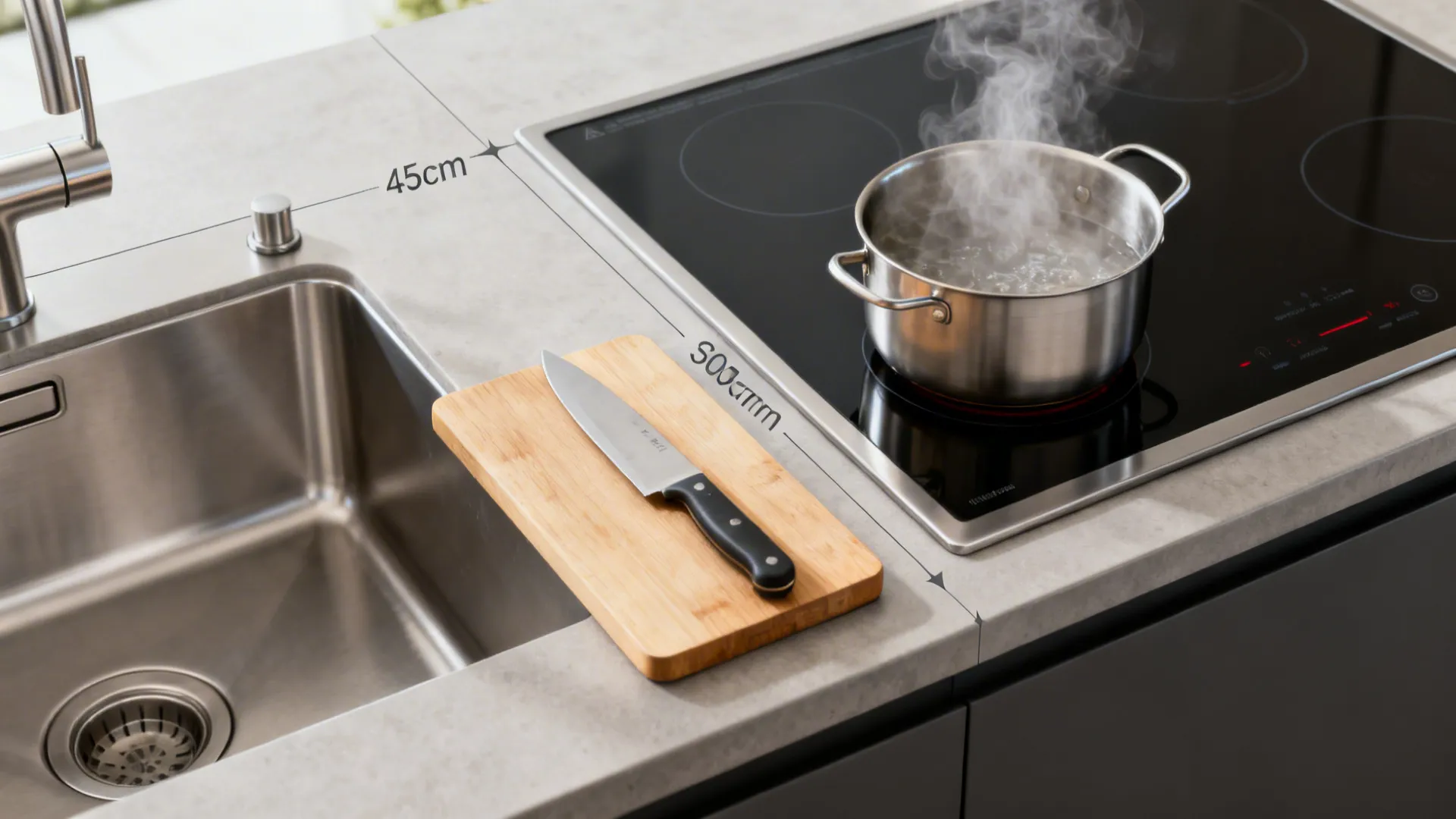

Precision One-Wall Layout (Sink–Prep–Hob)

My Take:

For a 6ft x 4ft kitchen, the one-wall line-up keeps circulation simple. In a recent micro loft, we arranged from left to right: 450mm sink base, 300mm prep gap, 600mm hob base, then a 600mm under-counter fridge. The rhythm was tight but workable.

Pros:

- A linear “sink–prep–hob” keeps the working triangle in a straight path, a classic long-tail optimization for narrow kitchen layouts with dimensions clearly defined.

- Short reach distance reduces steps; I’ve clocked under 2m of movement for basic meals.

- NKBA guidelines suggest a minimum 24-inch (≈610mm) continuous prep space; hitting that on a 6ft run is feasible if you plan modules precisely.

Cons:

- One-wall layouts mean zero backup zones; when the chopping board is busy, there’s no overflow.

- Heat and moisture concentrate; upgrade extraction to a 60cm hood with ≥300 m³/h airflow.

- Dishwasher space is tricky; consider a 450mm slimline or countertop model.

Tips / Dimensions:

- Worktop height: 900mm (±20mm); toe kick: 80–100mm.

- Leave at least 300mm counter space between sink and hob; 450mm is gold if you can get it.

- If using a 45cm sink, pick a 180–200mm deep bowl for splash control in tight quarters.

Browse scaled examples that demonstrate this sequencing—like glass backsplash makes the kitchen airier—to visualize clearances before you commit.

save pin

save pin

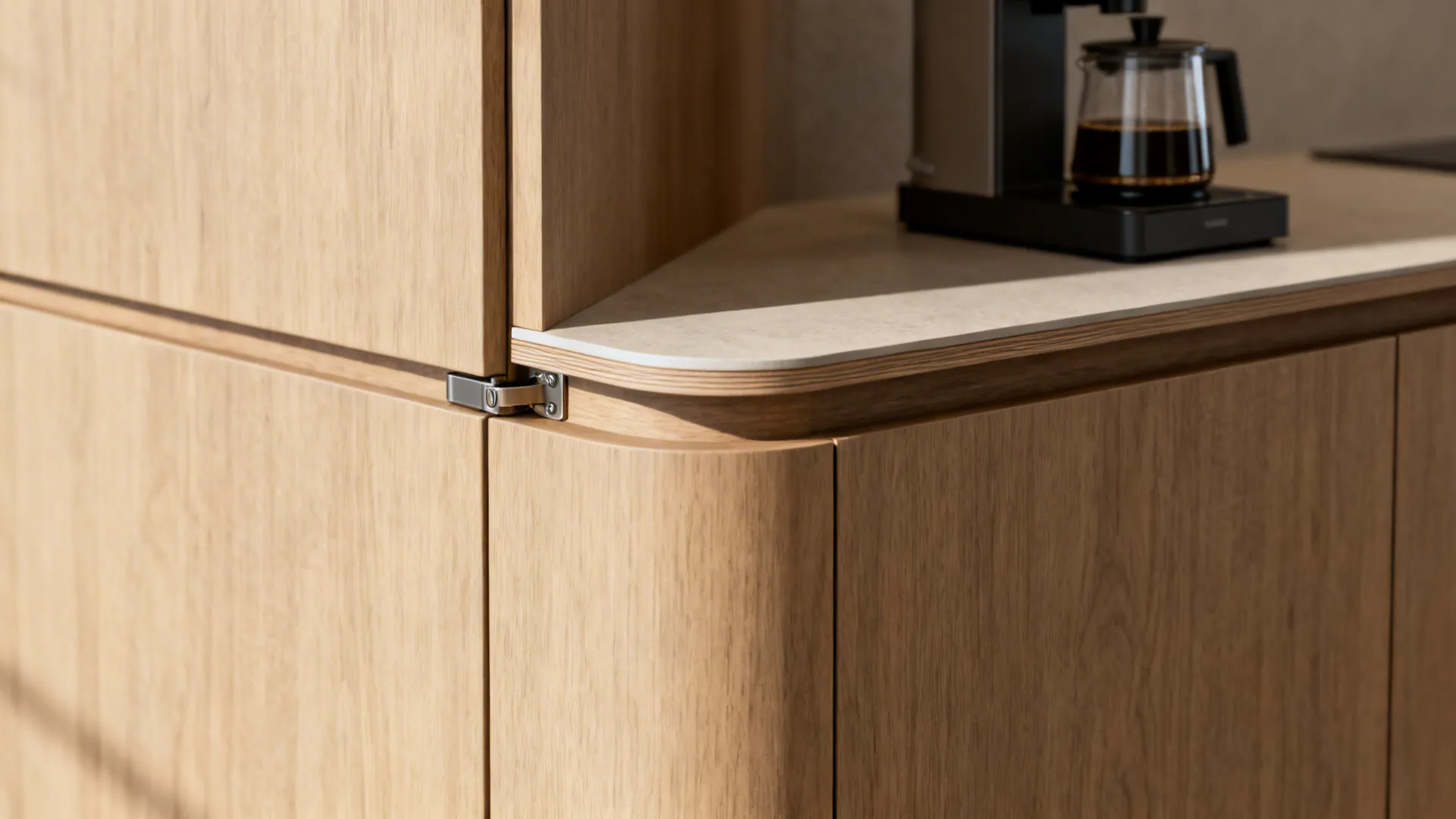

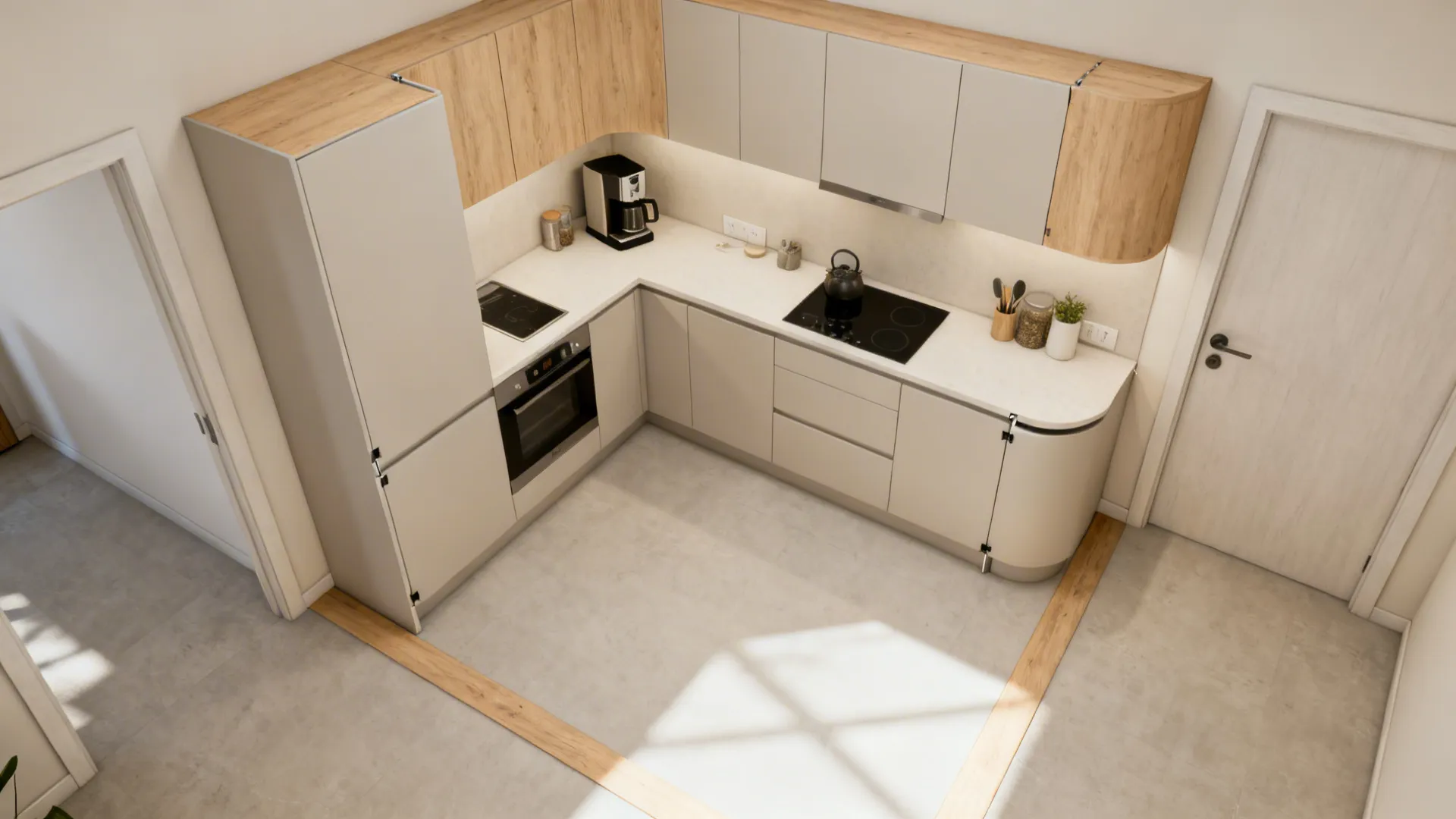

Compact L-Shape to Gain Counter Return

My Take:

When the entry door allows it, I love turning the 4ft side into a short return. In a 6ft x 4ft nook, we ran 1200mm on the short side with a 300mm-deep counter for coffee gear. It felt like a tiny command station without blocking flow.

Pros:

- A compact L-zone adds a valuable landing spot, a long-tail benefit for meal assembly and appliance parking with a 300–450mm return depth.

- Corner solutions—like a 270° hinge or 3/4 carousel—maximize the dead zone without bulky hardware.

- Studies on human factors in kitchens note that additional perching spots reduce task interference, which helps when two people share six linear feet.

Cons:

- Tight corners collect crumbs; I’ve crawled in more than once with a headlamp.

- The return may clash with door swings; always plot arcs and handle projections in the plan.

- Shallow returns (300mm) can’t host full-size appliances; keep them for small gadgets.

Tips / Dimensions:

- Keep 900–1000mm clear walkway at the kitchen edge; in a 4ft width, that means tight discipline on handle depths and door swings.

- If the short side is only 1200mm, use drawers: 600mm + 600mm beats a single 900mm door cabinet.

- Consider a 20mm compact laminate top for slimness and durability.

To test L-configurations and see how a short return affects movement, study references like warmth from wood accents that showcase small-footprint planning in 3D.

save pin

save pin

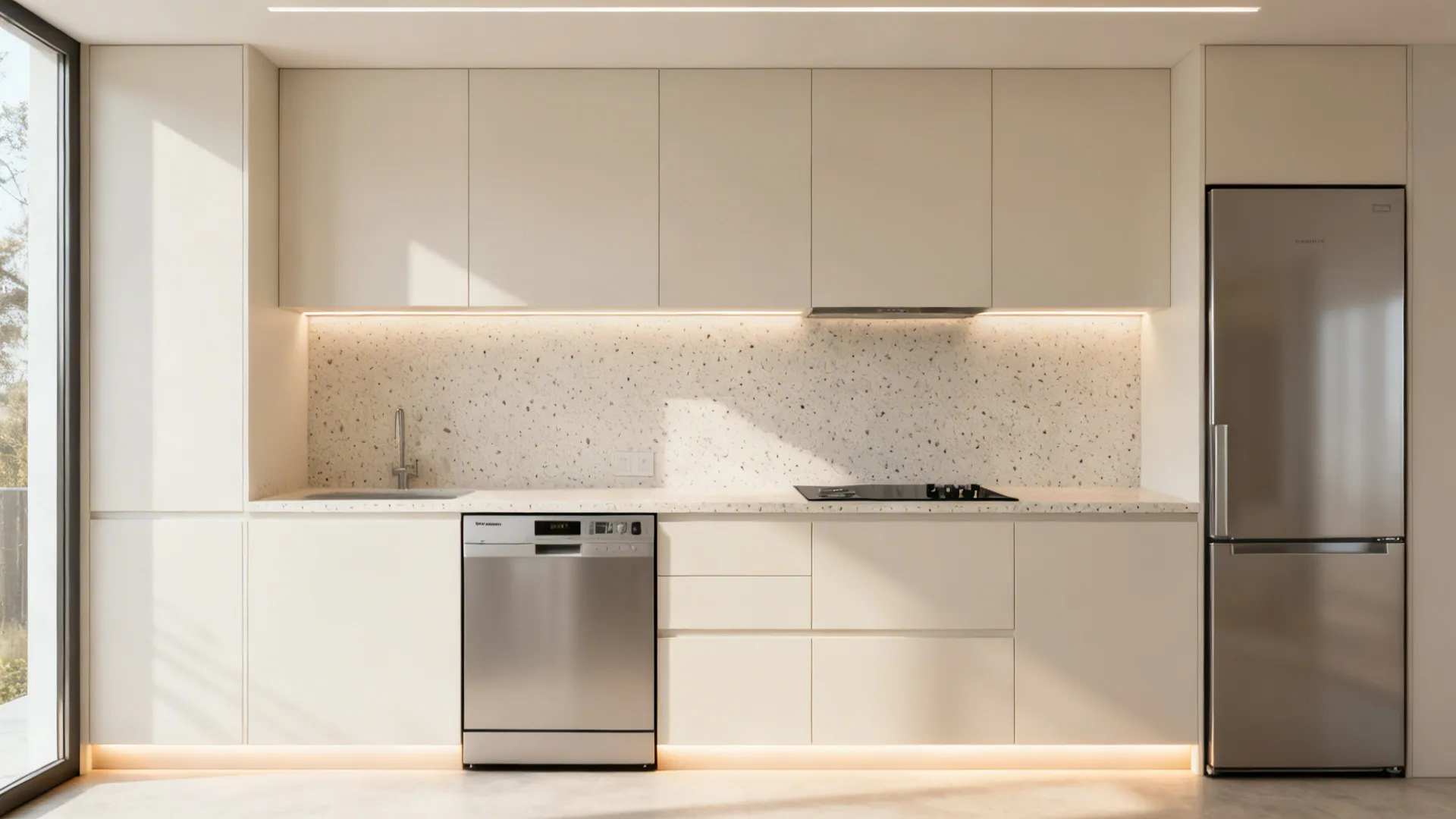

Light-Toned Surfaces and Slim Appliances

My Take:

In my tiniest commission—a 6ft x 4ft micro-kitchen in a rental—we combined a 60cm induction hob, 45cm-wide dishwasher, and a 60cm fridge with light-toned fronts and a pale terrazzo top. The space photographed twice as big and cleaned up fast.

Pros:

- Light cabinetry (LRV 60–80) and pale counters brighten sightlines—an SEO-friendly long-tail strategy for kitchen design images 6 feet x 4 feet with dimensions that photograph beautifully.

- Slimline appliances (450mm dishwasher, 300–400mm pull-outs) preserve 600mm prep stretches without sacrificing function.

- Consumer Reports and NKBA both emphasize right-sizing appliances for the room; compact models improve circulation and energy use in small kitchens.

Cons:

- White fronts show every curry splash; I swear by satin finishes and color-matched sealant.

- Compact appliances may have reduced capacity; plan grocery frequency accordingly.

- Terrazzo and light quartz can reflect glare under strong LEDs—diffuse the lighting.

Tips / Dimensions:

- LED task lights: 3000–3500K, CRI ≥ 90, 250–350 lux at the counter; add a dimmer.

- Toe-kick lighting adds depth; set strips 50–70mm back from the face for a floating effect.

- If upper cabinets feel heavy, swap a pair for 2 open shelves at 300mm depth.

save pin

save pin

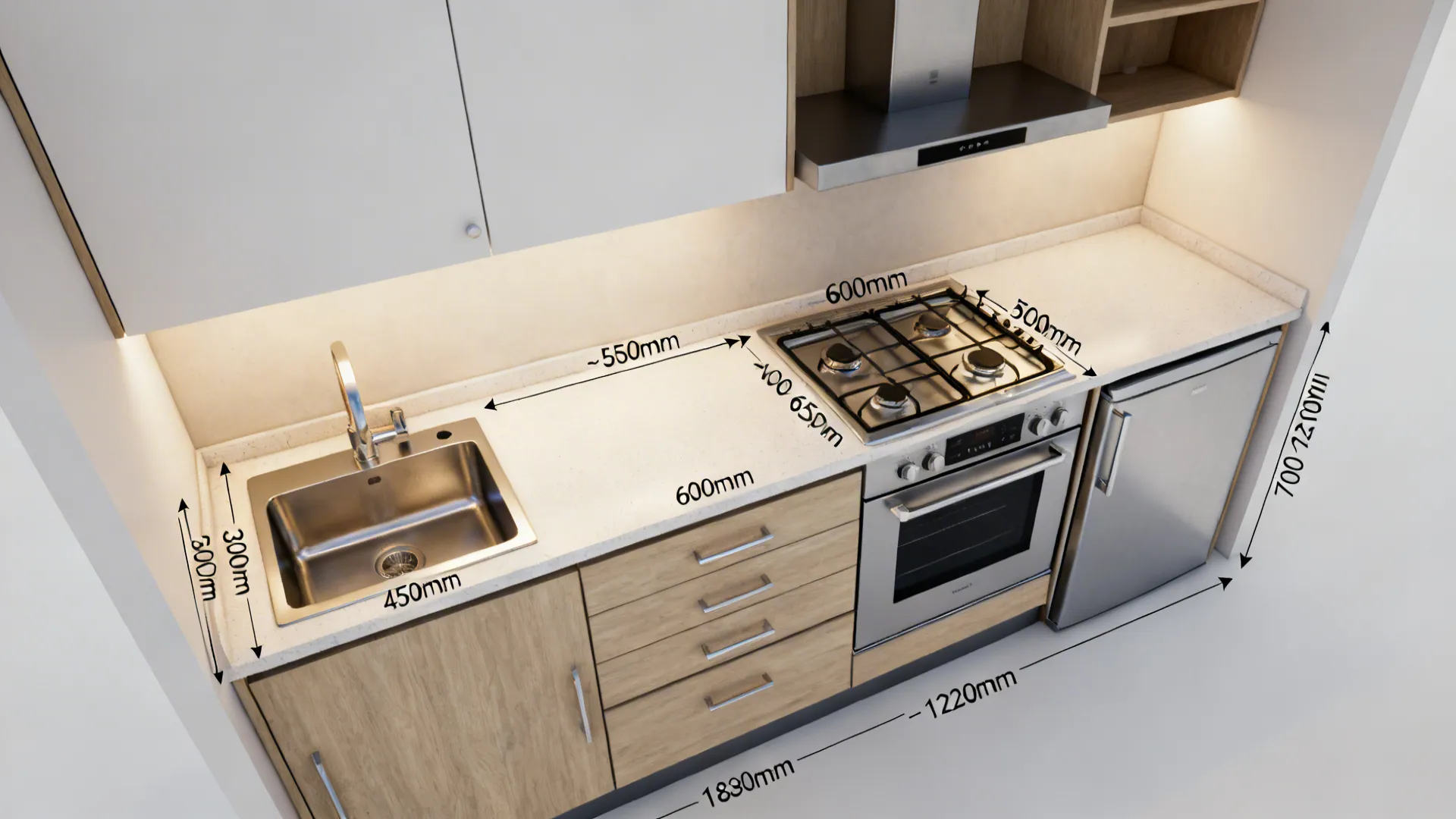

Detailed 6ft x 4ft Micro Plan (Sample Dimensions)

My Take:

Below is a composite plan I’ve used with clients. Think of it as a starting point you can tweak depending on plumbing and doors. It balances storage, prep, and safety clearances in a 6ft x 4ft footprint.

Plan Outline:

- Overall footprint: 6ft (≈1830mm) length x 4ft (≈1220mm) depth.

- Base sequence (L→R): 450mm sink base, 300mm drawer stack (prep), 600mm hob/oven base, 600mm under-counter fridge or drawers.

- Counter: 600–650mm deep; worktop height ~900mm; backsplash 550mm high.

- Wall units: 300mm depth above sink/hob, with 600mm clearance above hob to hood.

- Aisle/clearances: 700–800mm from counter edge to opposite wall if door swing permits; minimum 600mm in micro scenarios.

- Appliances: 60cm hob, 60cm hood, 45cm sink bowl, 60cm fridge; optional 45cm dishwasher if plumbing allows.

Pros:

- Every module is standard-sized with clear dimensions, a reliable long-tail solution for repeatable small kitchen planning.

- The 300mm drawer stack preserves a continuous prep zone exactly where you need it.

- Clearances respect NKBA minimums (e.g., 24-inch continuous prep space), minimizing retrofit surprises.

Cons:

- Oven under hob eats into drawer capacity; consider an elevated microwave instead.

- Only one primary work zone; big meal preps need sequencing.

- If the aisle dips below 650mm, shoulder turns can feel tight in winter coats.

Tips / Visualization:

- Print a scale plan at 1:20; cut paper modules to test appliance swaps on the 6ft run.

- Use painter’s tape on the floor to simulate the 4ft width—walk the route with a tray.

- When ready to iterate 3D options, explore cases like minimalist storage in a small kitchen to compare proportions and elevation choices.

save pin

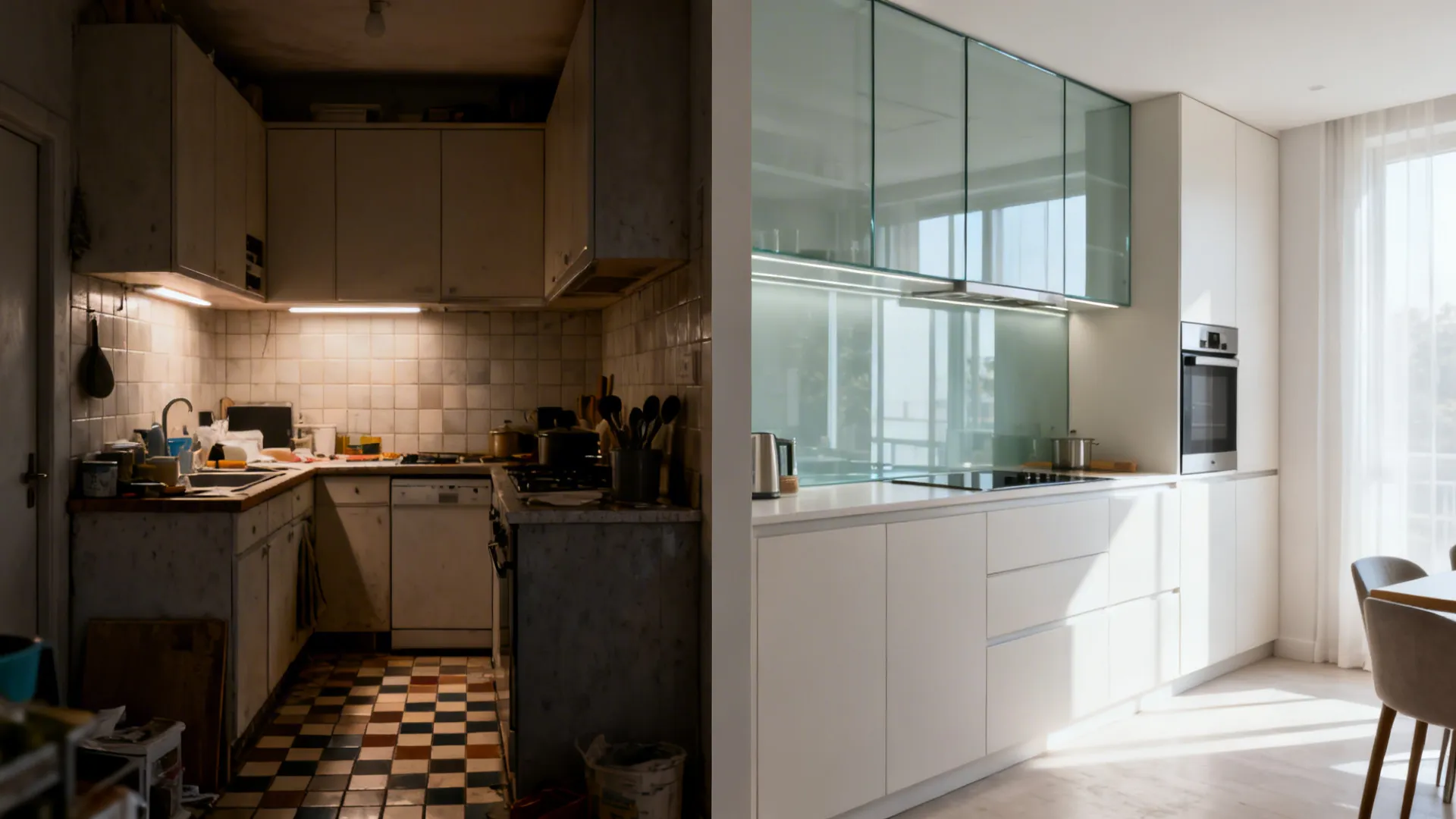

Summary

A 6ft x 4ft kitchen isn’t a constraint—it’s an invitation to design smarter. From minimalist storage walls to compact L-returns and light-reflective surfaces, every millimeter counts. NKBA-backed clearances and right-sized appliances anchor the plan so it works day-to-day. Which idea are you most excited to try in your own 6ft x 4ft kitchen design?

save pin

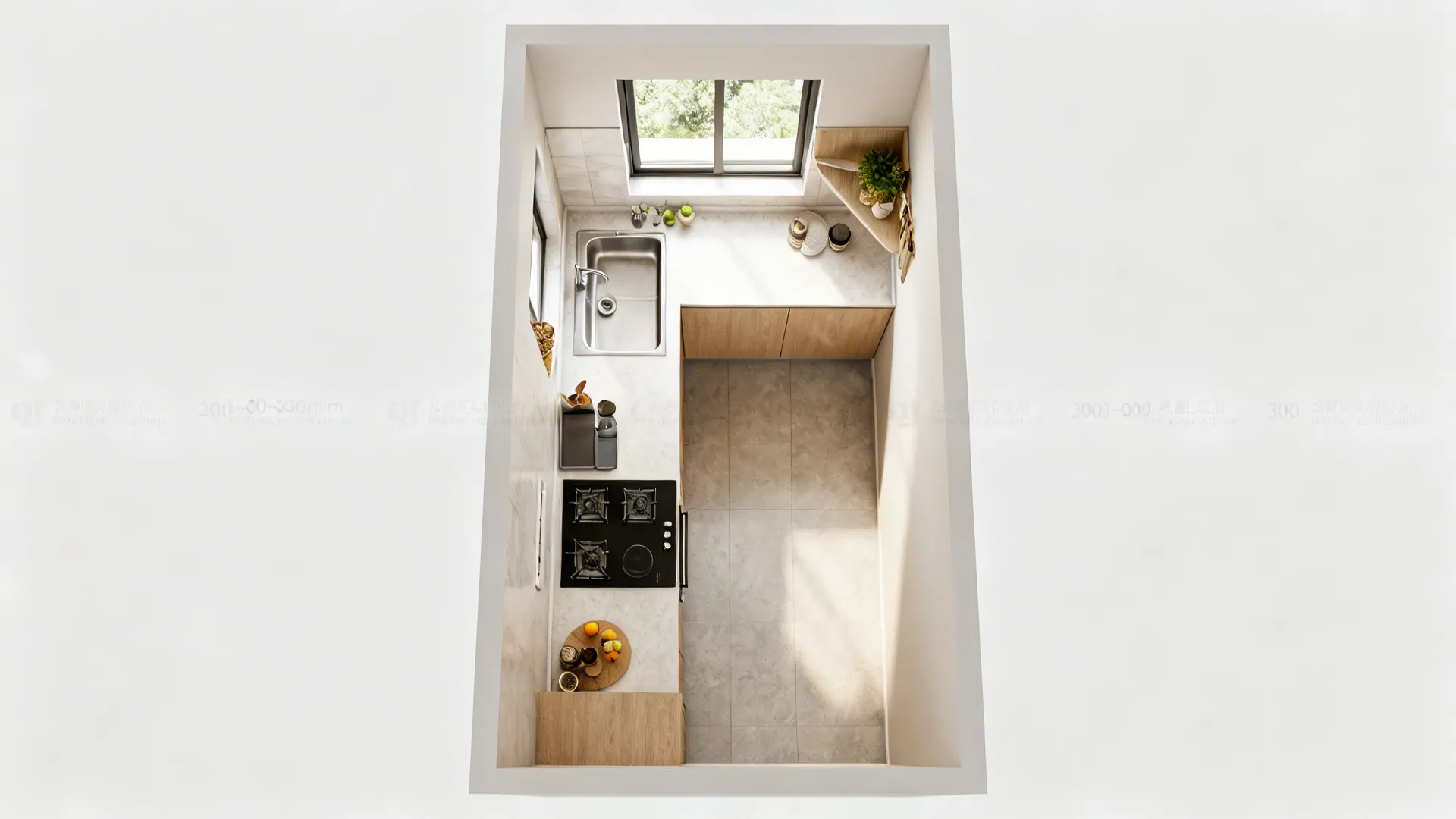

FAQ

1) What is the best layout for a 6ft x 4ft kitchen?

A one-wall sequence—sink, prep, hob—often works best for clear circulation. If the door allows, add a shallow L-return (300–450mm deep) to gain a landing zone without crowding the aisle.

2) How deep should the countertop be in a 6ft x 4ft kitchen?

A 600–650mm depth is standard and comfortable for appliances and prep. Keep at least a 300mm stretch between sink and hob for a usable work zone.

3) Can I fit a dishwasher in a 6ft x 4ft kitchen?

Yes—choose a 450mm slimline model and place it near the sink for plumbing efficiency. Plan the door swing to avoid blocking the aisle.

4) What is the ideal worktop height for small kitchens?

About 900mm is a good starting point, adjustable ±20mm to suit user height. Taller users can go up to 920–940mm for comfort.

5) How do I make a small kitchen look bigger in photos?

Use light-toned fronts, high-LRV backsplashes (like back-painted glass), and continuous lines. Under-cabinet lighting and mirror accents increase perceived depth in images.

6) Are there recommended clearances for tiny kitchens?

The NKBA recommends a minimum 24-inch (≈610mm) continuous prep surface and appropriate clearances around cooking zones. Following NKBA guidelines helps maintain safety and usability (Source: NKBA Kitchen Planning Guidelines).

7) What appliances suit a 6ft x 4ft layout?

Right-size to 60cm hob, 60cm hood, 60cm under-counter fridge, and consider a 45cm dishwasher. Compact sinks (45–50cm) with 180–200mm depth help control splash.

8) Do I need wall cabinets in a small kitchen?

No, but shallow 250–300mm wall units or two open shelves can add valuable storage. Balance storage with visual openness so the 4ft width doesn’t feel boxed in.
