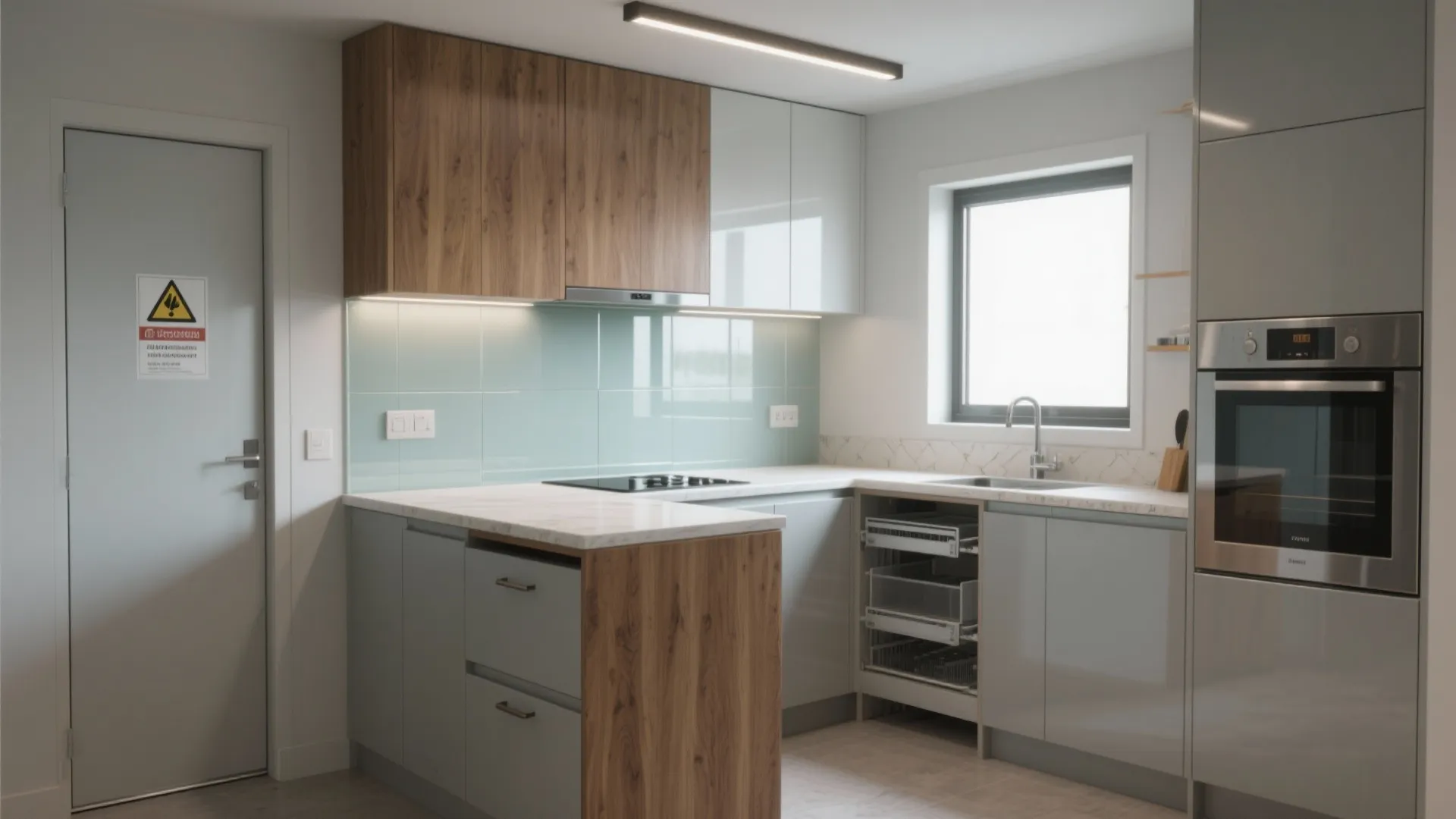

5 Small Kitchen Design Ideas for a 3-Hour UL Fire Wall: Real-world tips from a senior interior designer on integrating a UL-rated 3-hour fire wall into compact kitchen layouts—without sacrificing style or function

As a designer who’s rebuilt more than a few compact kitchens around code-heavy constraints, I’ve learned that small spaces spark big creativity—especially when a UL-listed 3-hour fire wall shapes the plan. Fire-resistance ratings can feel intimidating, but they’re simply another design parameter. In this guide, I’ll share 5 kitchen design ideas that respect a 3-hour UL fire wall requirement, blending safety, flow, and storage. You’ll see my personal take, pros and cons, plus data-driven notes where relevant.

Right up front: I’ve integrated multiple UL-rated assemblies in residential projects, including condo kitchens pressed against shared walls. In those tight footprints, every inch counts, and a compliant fire wall becomes the backbone of the layout. Small spaces push smarter decisions. Below are five inspirations backed by field experience and expert references.

We’ll explore: minimal cabinetry strategies, heat-safe backsplashes, L-shaped layouts near rated partitions, warm materials that still meet code, and ventilation that plays nice with fire-resistance. I’ll mix anecdotes with the technical reality that the core kitchen design must coexist with a 3-hour UL fire wall. I’ll also add three helpful case links along the way to illustrate planning visuals.

L-shaped layout releases more countertop space

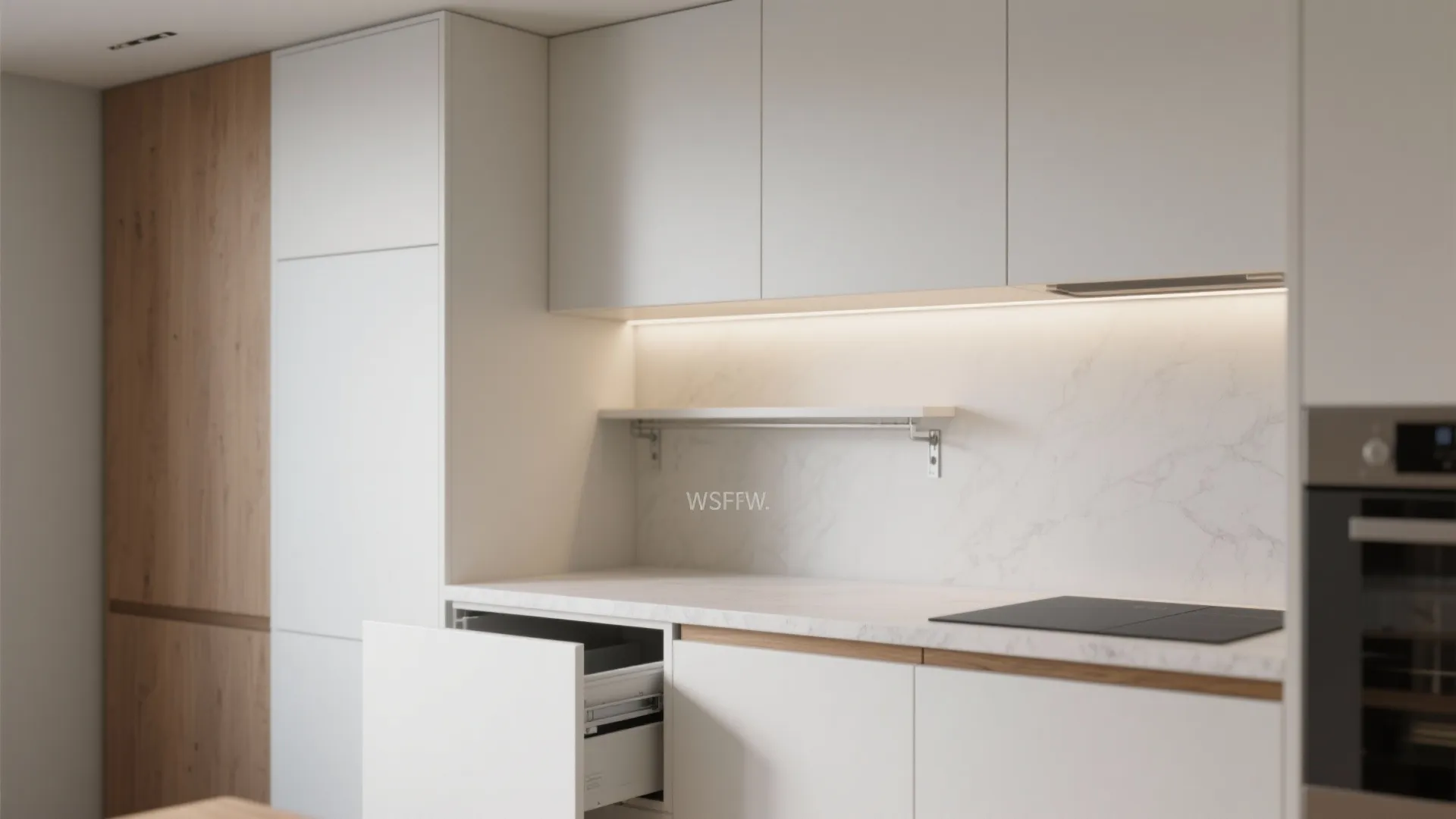

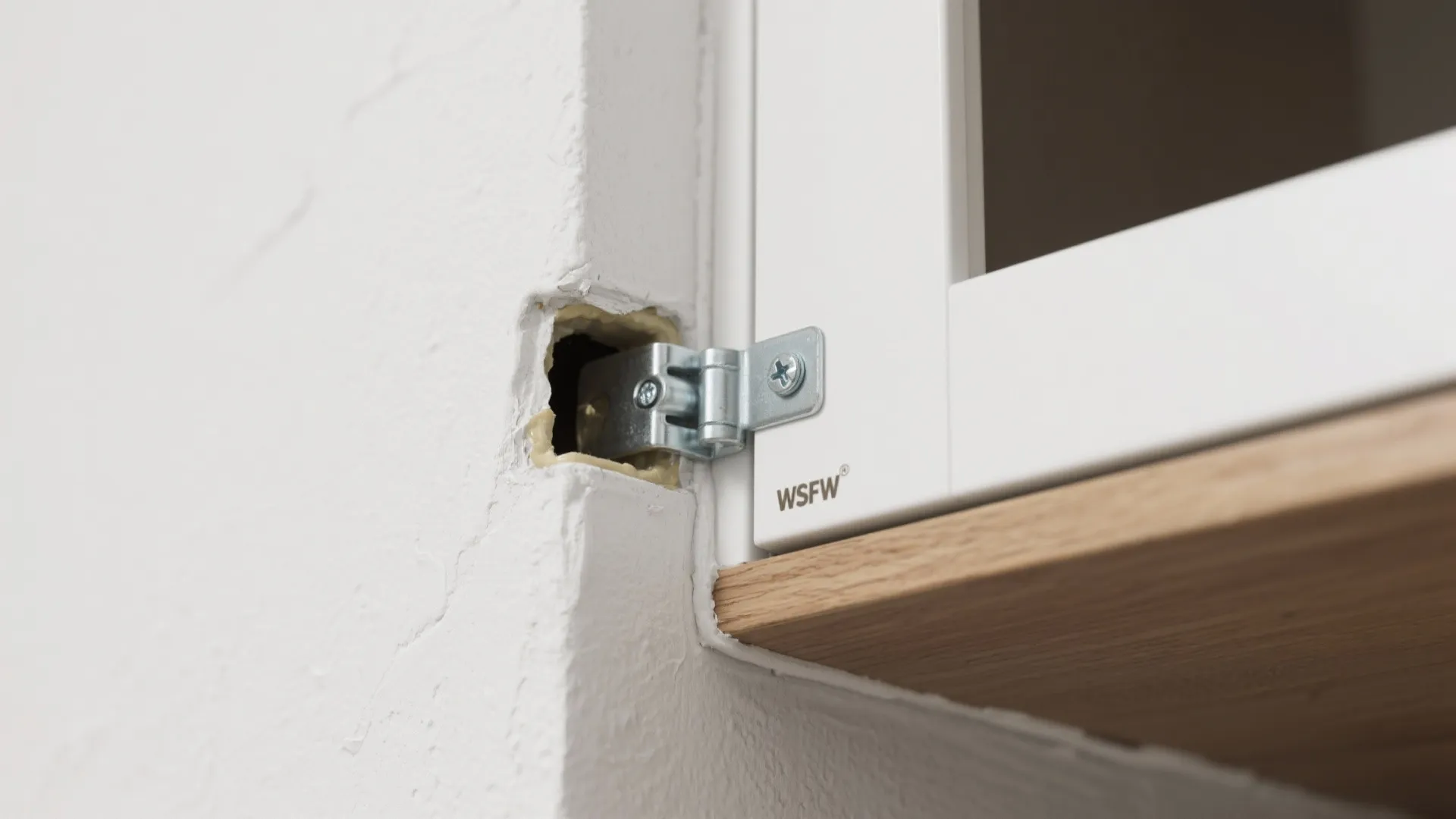

Minimalist Kitchen Storage That Respects the 3-Hour UL Fire Wall

My Take: Minimal doesn’t mean bare. In a few condo updates, I thinned upper cabinets on the wall that included the UL-rated 3-hour assembly, focusing storage on adjacent walls. It kept the rated partition less penetrated while making the kitchen feel bigger.

Pros: A “minimalist kitchen storage” plan reduces mechanical penetrations into the UL 3-hour fire wall, easing compliance with long-tail criteria like “UL-listed 3-hour assembly penetrations” and “fire-resistive wall cabinet mounting.” Fewer fixtures against the wall mean simpler inspection and fewer sleeve details.

Cons: You may lose some upper-cab space; I’ve had clients grumble about seasonal baking gear having to move. And the clean look can highlight clutter on countertops if you don’t commit to a tidy routine—trust me, I’ve failed that test after a party.

Tips / Cost: Shift deep storage to a pull-out pantry on a non-rated wall. Budget extra for compliant fasteners and any fire-rated sealants if you do need limited attachments—small line items, big peace of mind.

save pin

save pin

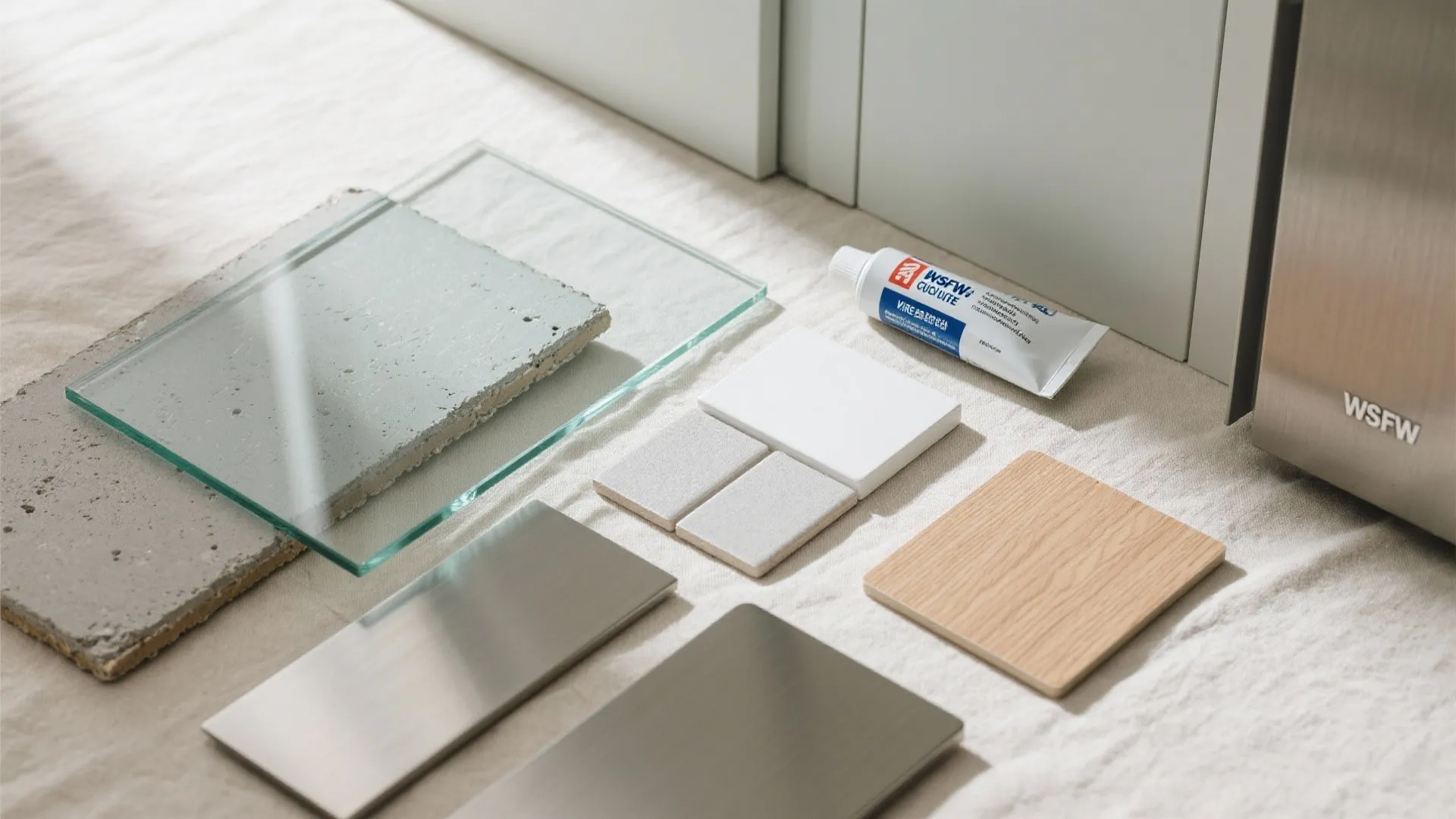

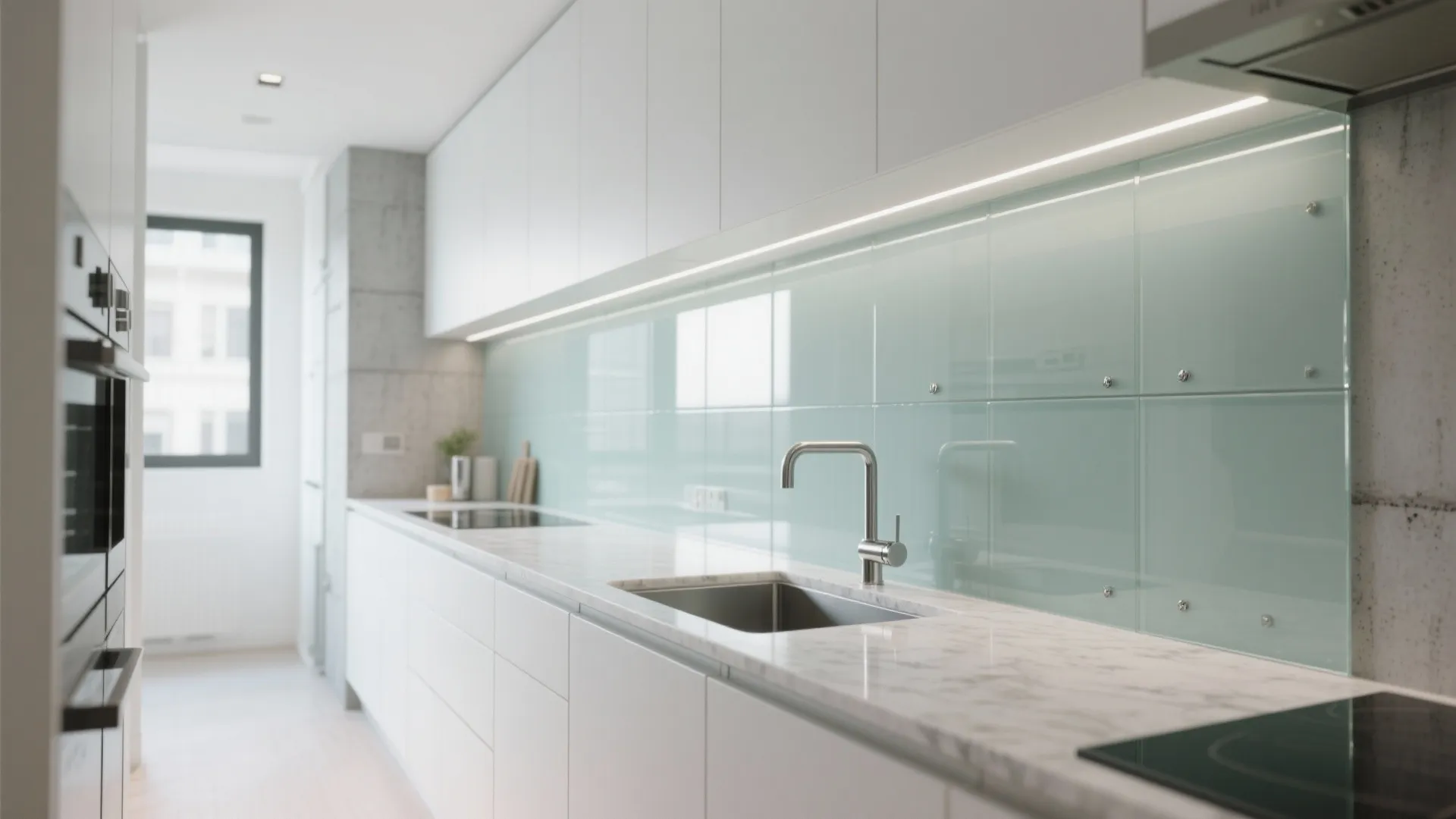

Glass Backsplash for Light—and Low-Impact Wall Penetrations

My Take: In a narrow galley with a 3-hour firewall, I used a tempered glass backsplash over a cement board substrate. It bounced light beautifully and limited heavy anchoring in the rated partition.

Pros: A “glass backsplash that makes the kitchen more airy” pairs well with protected assemblies because it relies on surface adhesion rather than deep mechanical anchors, aligning with long-tail needs like “low-penetration finishes on UL 3-hour walls.” It’s easy to clean and visually expands tight spaces.

Cons: Glass shows smudges—my espresso rituals leave perfect fingerprints. Also, custom panels can be pricier than tile, and you’ll want pros comfortable working near fire-rated assemblies.

Authority Note: For fire-resistance continuity, keep penetrations and junctions sealed per the assembly design. UL’s Fire Resistance Directory provides tested assemblies; follow the listed details for materials and joints (UL Online Certifications Directory).

save pin

save pin

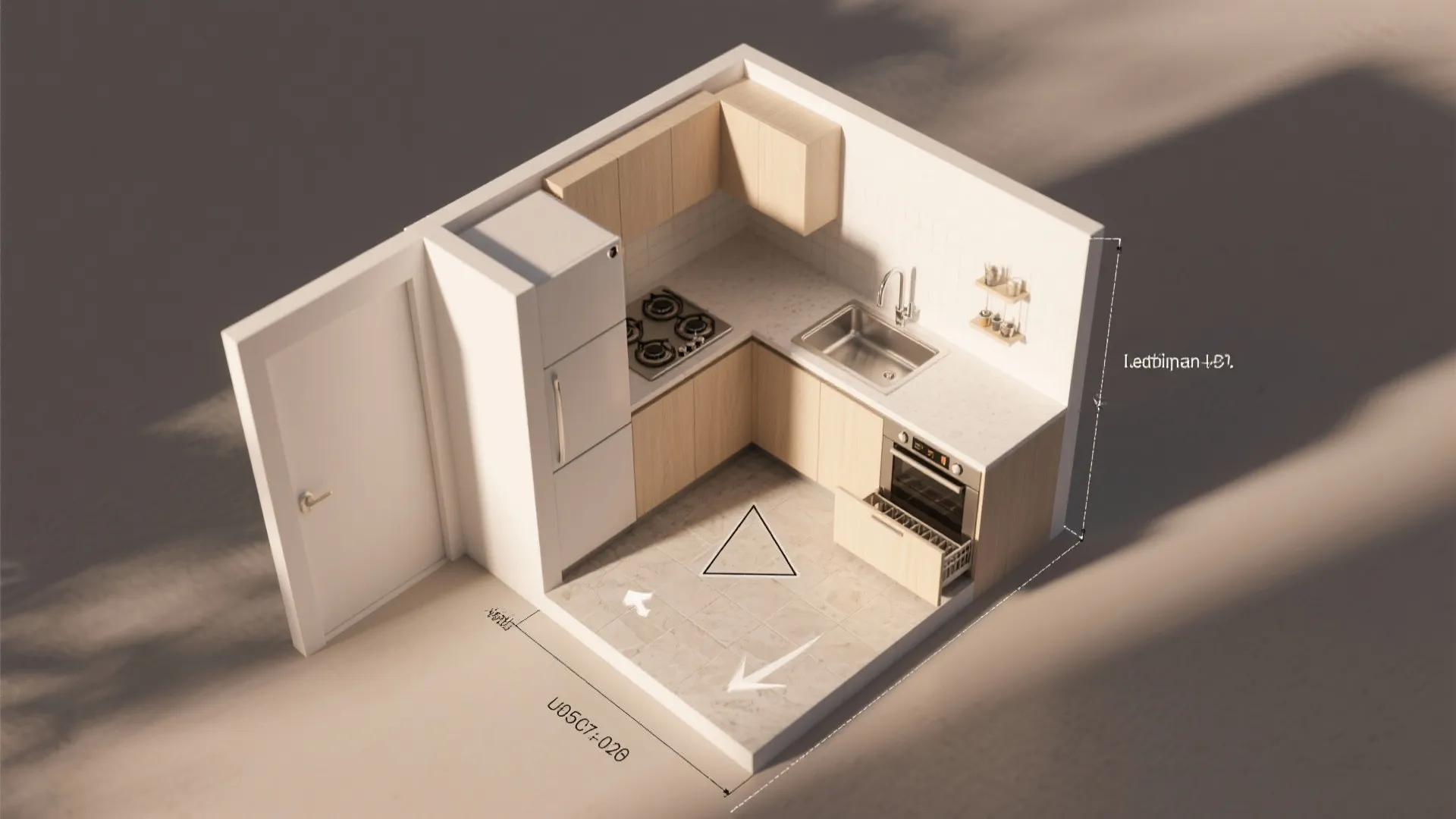

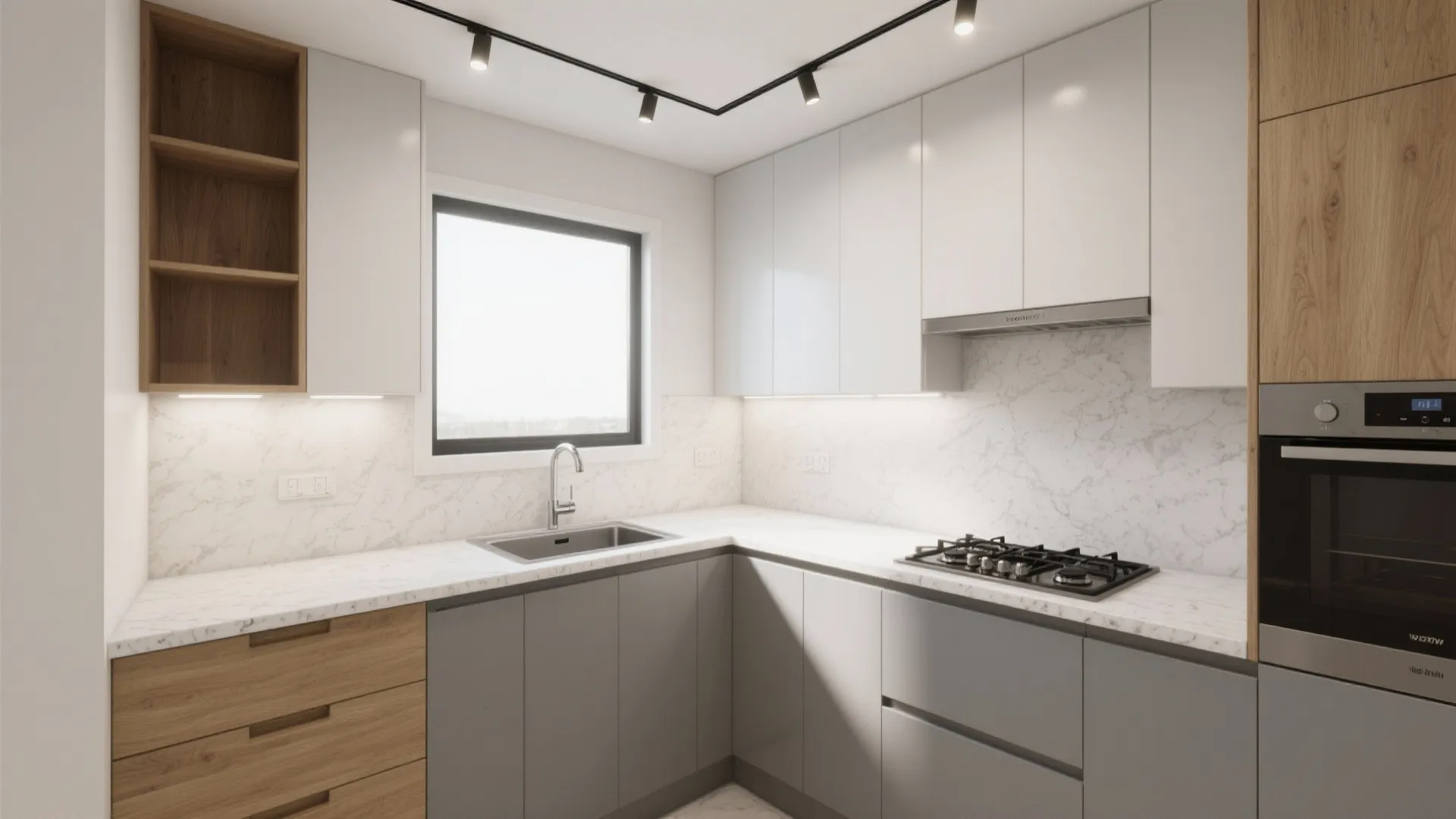

L-Shaped Small Kitchen Near a Rated Partition

My Take: I love L-shaped layouts in small homes. In one duplex, the shorter leg ran along the UL 3-hour fire wall with limited fixtures, while the longer leg held the cooktop and sink. We got great prep runs without complicating the wall’s rating.

Pros: “L-shaped small kitchen layout near a fire-resistive partition” creates clear work triangles and reserves heavier mechanicals for non-rated or easier-to-detail sides. It typically boosts usable counter length—a long-tail win for “compact kitchen work triangles with code-compliant walls.”

Cons: The corner can be awkward. Lazy Susans love to jam, and I’ve fished out more dropped spice lids than I care to admit. Also, routing electrical can require careful coordination to respect the assembly’s limits.

Case Link: minimalist kitchen storage design

Tips / Case: Keep appliances concentrated on the long leg. Use low-profile lighting tracks to limit box penetrations on the rated wall. Corner drawers are a sleek alternative to bulky swing doors.

save pin

save pin

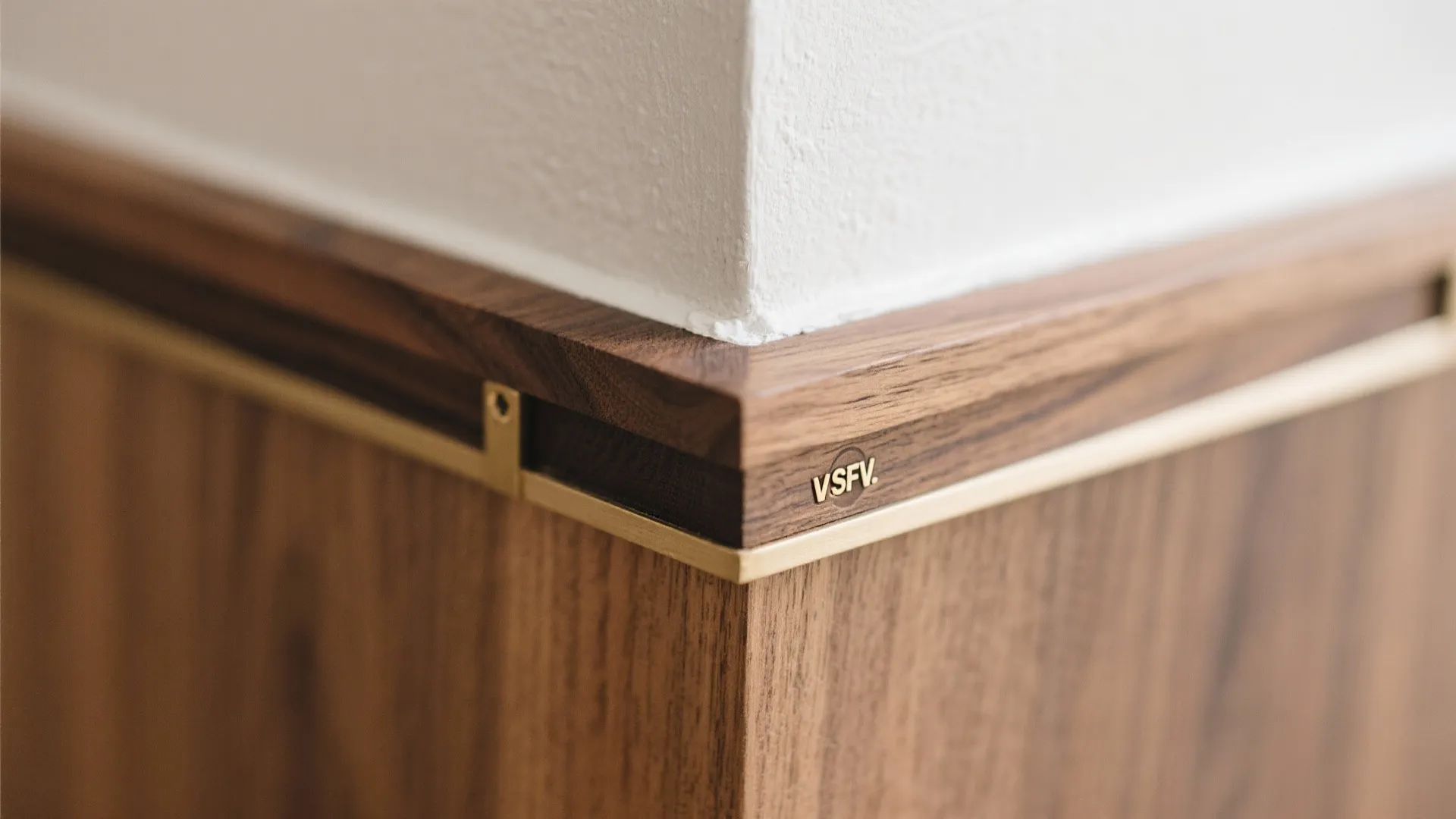

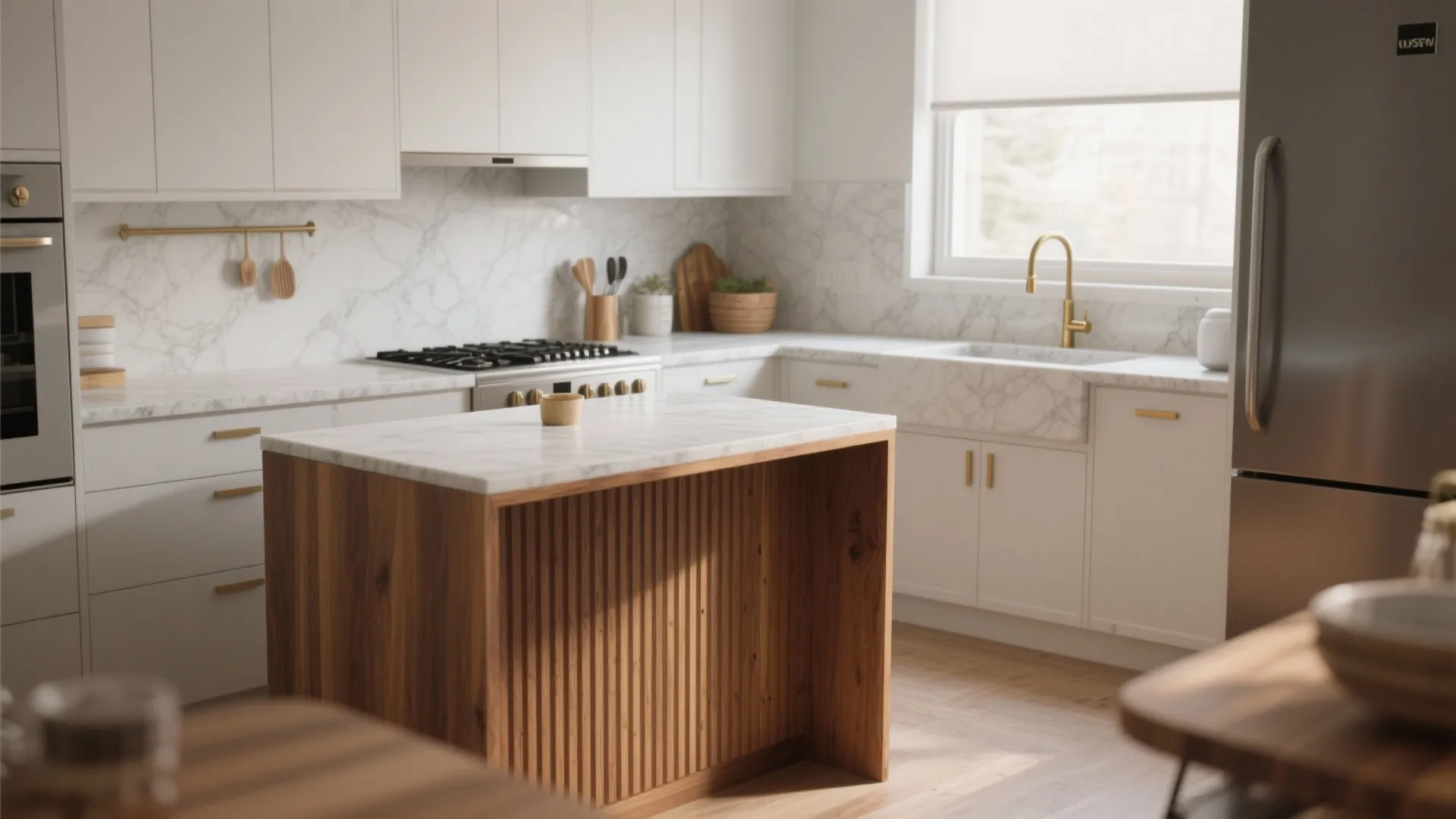

Warm Wood Accents with Fire-Safe Assemblies

My Take: Clients fear that a fire-rated wall means a sterile look. I often introduce wood—like oak edge details, butcher-block inserts away from the cooktop, or ribbed panels—on safer surfaces, keeping ratings intact while adding warmth.

Pros: “Wood elements that bring a warm atmosphere” can be layered on cabinetry and islands, while the rated wall retains compliant finishes. It’s a balanced approach that meets long-tail goals like “aesthetic continuity with UL 3-hour wall constraints” and “small kitchen material zoning.”

Cons: Wood needs maintenance—oil, gentle cleaning, avoiding direct flame exposure. I once scorched a cutting board under a hyperactive broiler; lesson learned. Also, some jurisdictions flag combustible trims too close to cooktops—check local code.

Authority Note: NFPA 5000 and the International Building Code provide guidance on use of combustible finishes near cooking appliances; always verify with your local building official.

Case Link: warm wood accents that elevate small kitchens

save pin

save pin

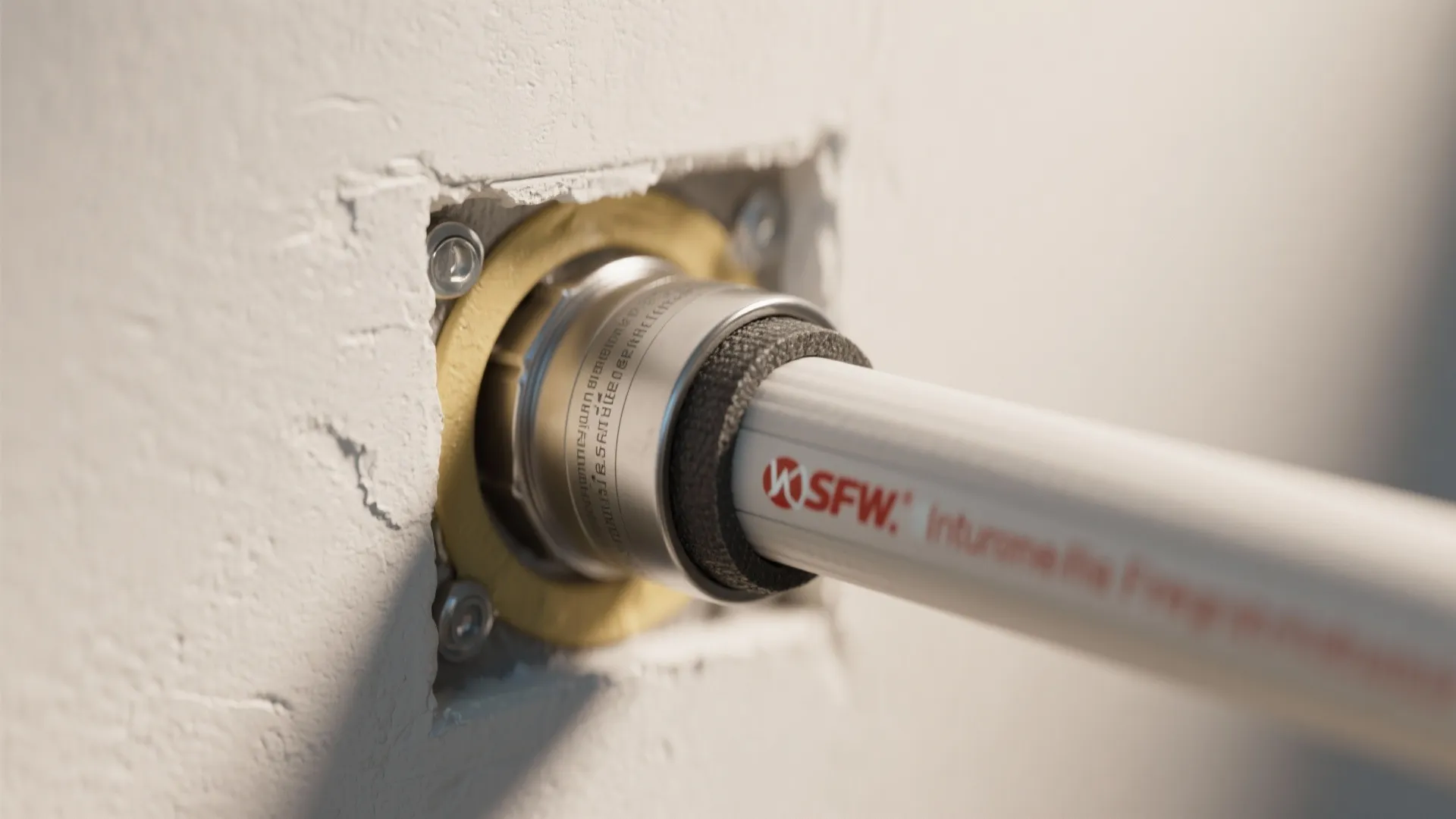

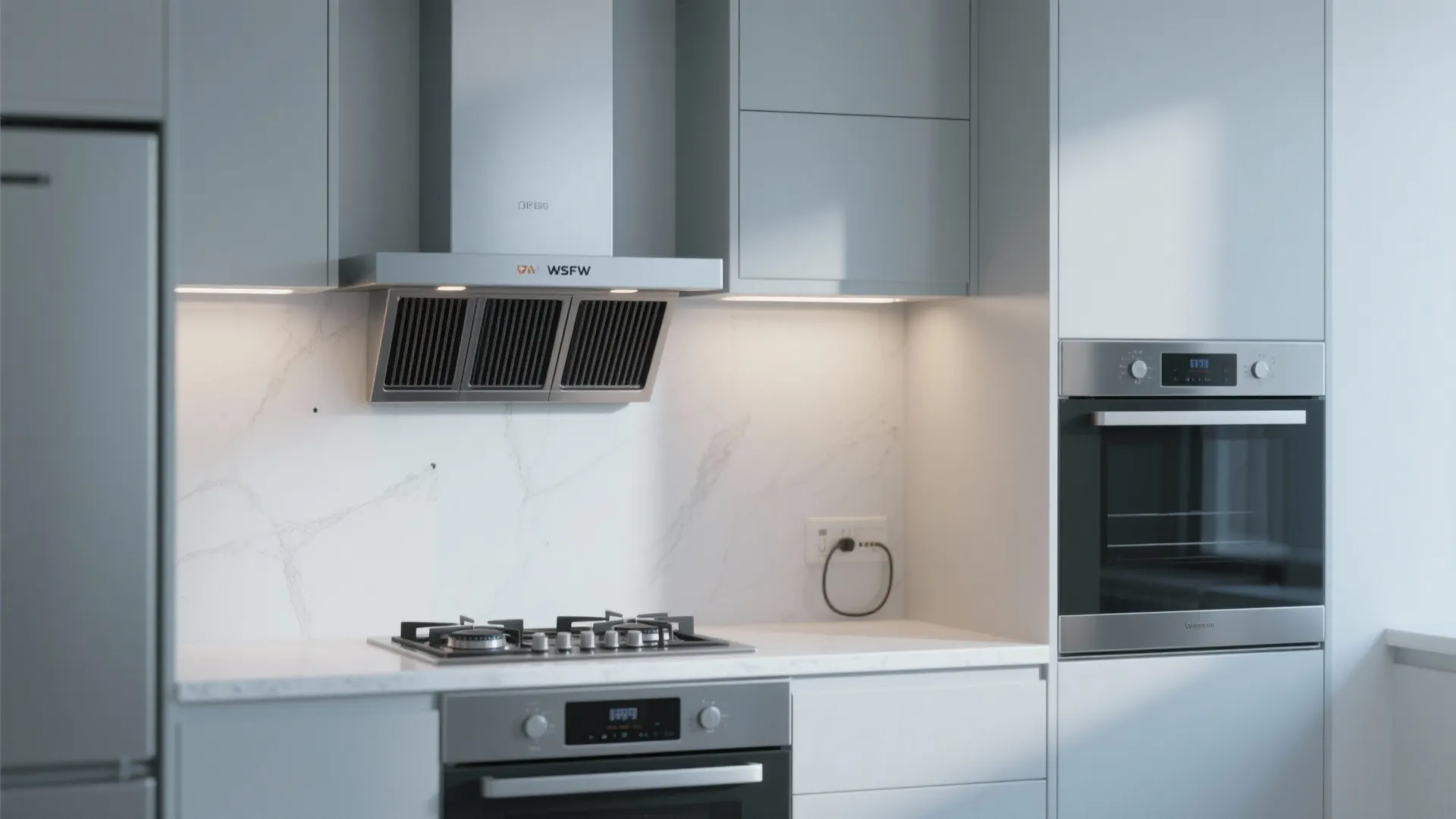

Ventilation and Sealed Penetrations That Respect the UL 3-Hour Rating

My Take: Venting is where many projects go sideways. In a tight studio, we swapped an external duct route for a recirculating hood with a carbon filter, keeping penetrations minimal on the 3-hour wall while improving actual cooking comfort.

Pros: Thoughtful “ventilation solutions for UL 3-hour fire walls” reduce or relocate penetrations, supporting continuous fire-resistance. Sealed sleeves and listed firestop systems meet long-tail needs like “tested firestop assemblies at duct and cable openings.” Air quality improves without breaking the wall’s rating.

Cons: Recirculating hoods aren’t perfect for heavy frying; I learned to love oven-baked wings. Firestop components add cost and require careful installation—DIY shortcuts are a bad idea here.

Authority Note: UL-listed firestop systems and the International Mechanical Code specify methods for protecting penetrations. Match the exact assembly and follow manufacturer instructions for the tested system.

Case Link: ventilation planning that respects rated partitions

save pin

save pin

Summary

Small kitchens don’t limit you—they ask you to design smarter. With a UL-rated 3-hour fire wall, the trick is aligning layout, materials, and penetrations to the tested assembly while keeping daily life easy. Minimalist storage, light-bouncing glass, an L-shaped footprint, warm woods, and careful ventilation are practical paths. The core kitchen design coexists with the 3-hour UL wall when we honor the details and stay creative. According to UL’s Fire Resistance Directory, listed assemblies and firestop systems provide the framework—our job is to use them elegantly.

Which of these five inspirations would you try in your own small kitchen?

save pin

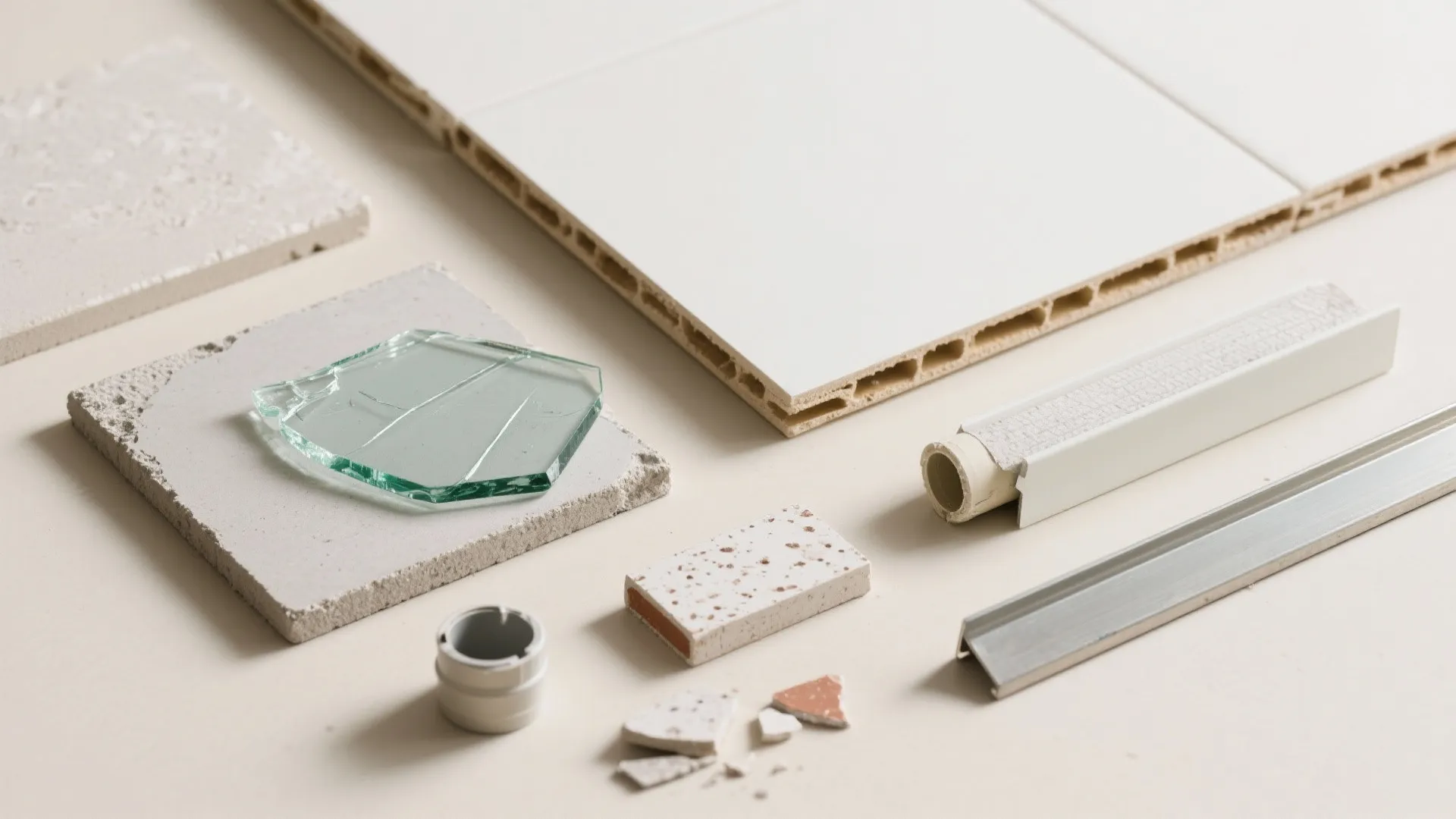

FAQ

1) What is a 3-hour UL fire wall in a kitchen? It’s a wall assembly tested by UL to resist fire for three hours, including specific materials, layers, and joint treatments. In kitchens, it often separates dwelling units or protects a shared boundary.

2) How does a 3-hour UL wall affect small kitchen layouts? It limits penetrations and dictates how you mount cabinets, outlets, or ductwork. Plan heavier utilities on non-rated walls and use shallow fixtures or surface finishes on the rated partition.

3) Can I install upper cabinets on a 3-hour UL wall? Yes, but you should minimize deep anchors and coordinate with the assembly details. Consult your local building official and the UL listing to ensure attachment methods don’t compromise the rating.

4) What backsplash works best on a fire-rated wall? Glass or large-format tile on appropriate substrates can reduce penetrations. Adhesive and thinset-based installations help preserve the assembly’s continuity.

5) Do I need special firestop products for wiring and ducts? Typically yes. Use UL-listed firestop systems matched to the assembly and penetration type. UL’s Online Certifications Directory lists tested configurations and installation methods.

6) Is an L-shaped layout better near a rated partition? Often, because it pushes heavier utilities to the other leg and leaves the rated wall simpler. It also expands countertop runs in small kitchens.

7) Are wood finishes allowed next to a 3-hour fire wall? Wood is fine on cabinetry and islands away from direct heat. Check local code for clearances near cooktops, and favor non-combustible finishes on the rated wall surface.

8) Where can I visualize compliant planning ideas? You can explore inspiration with planning visuals like L-shaped layout releases more countertop space. Pair visuals with code guidance from UL and your local building department.
