5 Small Kitchen Design Ideas in AutoCAD for a 12x12 Room: How I plan and optimize a 12x12 kitchen-dining room using AutoCAD and real-world tricks

As a designer, I’ve seen the 12x12 kitchen-dining room become a sweet spot in today’s compact living trend. Small spaces spark big creativity, and AutoCAD helps me translate ideas into precise, build-ready layouts. In this guide, I’ll share 5 design inspirations I actually use in 12x12 rooms, blending my hands-on experience with expert data to help you plan smarter.

In my last renovation, a 12x12 footprint felt tight on paper, but we unlocked surprising efficiency by prioritizing flow, storage, and lighting. I’ll break down what worked, where I stumbled, and how you can tailor these ideas to your own space. We’ll keep it real—with pros, cons, costs, and a few of my favorite planning moves.

Here’s what to expect: 5 practical kitchen-dining strategies for a 12x12 room in AutoCAD, complete with layout notes, finish ideas, and storage tactics. I’ll also link a few visual case pages—like “Glass backsplash makes the kitchen feel more open”—that mirror the concepts I sketch for clients.

Minimalist kitchen storage for a 12x12 room

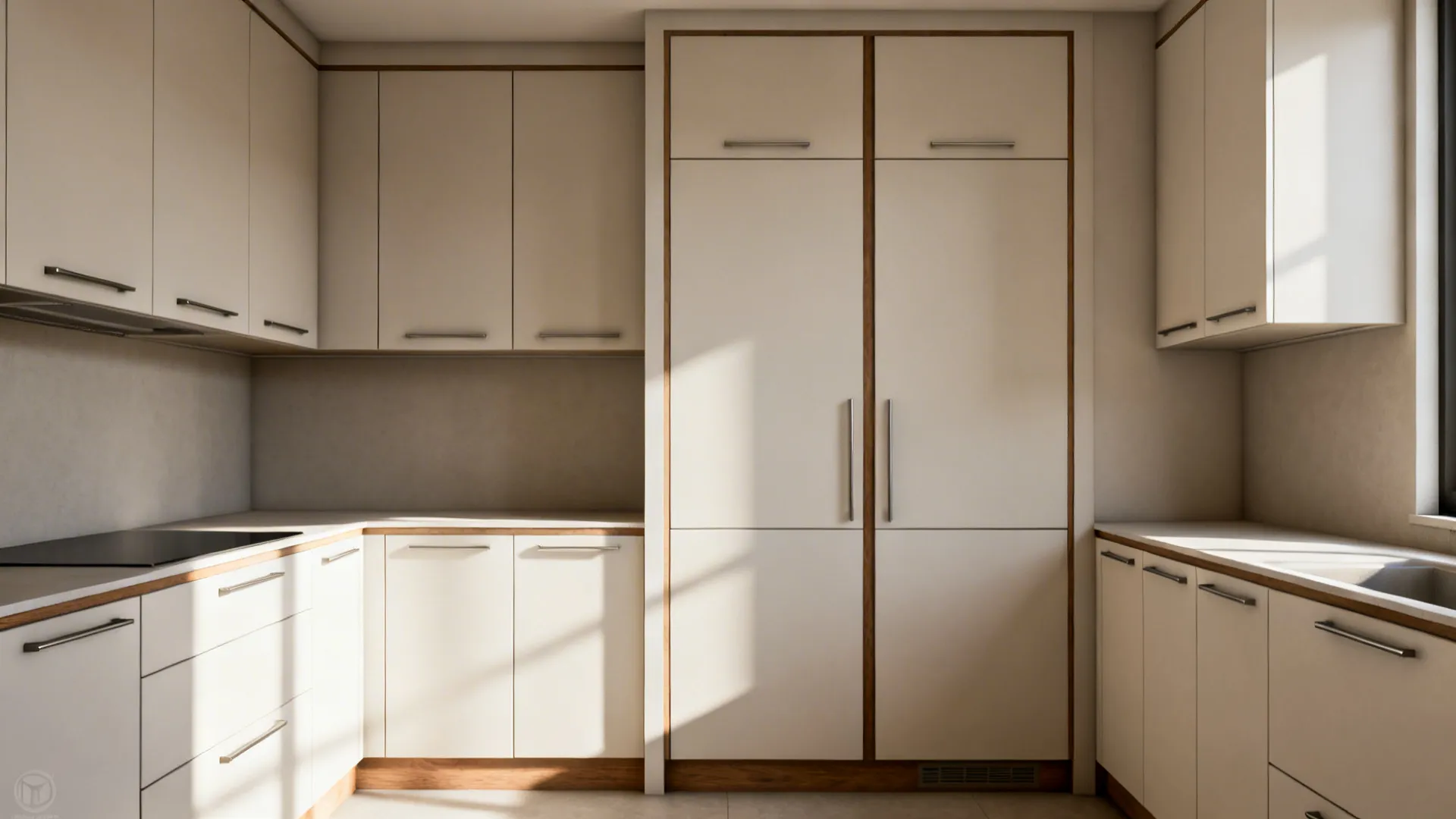

My Take: When I draft a 12x12 kitchen-dining room in AutoCAD, the first thing I simplify is the storage line. I learned early that clean fronts, consistent lines, and shallow uppers help reduce visual noise. In one client project, we trimmed upper cabinet-depth to 12–13 inches and gained a lighter feel without sacrificing core storage.

Pros: Minimal fronts with integrated pulls reduce visual clutter and make a small kitchen feel larger—an ideal approach for the long-tail keyword “12x12 kitchen storage ideas.” Narrow uppers and tall pantries optimize vertical space, and AutoCAD sections help verify shelf heights for small appliances. According to the NKBA storage guidelines, dedicating zones by task (prep, cook, clean) can cut steps and boost usability in compact kitchens.

Cons: Minimalist designs can expose messes fast—one stray toaster cord ruins the vibe. Handleless doors may show fingerprints more, and push-latch hardware needs careful alignment in the field.

Tip/Cost: In AutoCAD, I use parametric blocks for pantry widths (18, 21, 24 inches) to compare costs quickly—taller units often cost more per linear foot but reduce the need for multiple uppers. Start with a simple line elevation and test shelf spacing for your tallest items.

For more visual inspiration similar to this approach, I often reference Glass backsplash makes the kitchen feel more open to clients who want light, clean planes that bounce light.

save pin

save pin

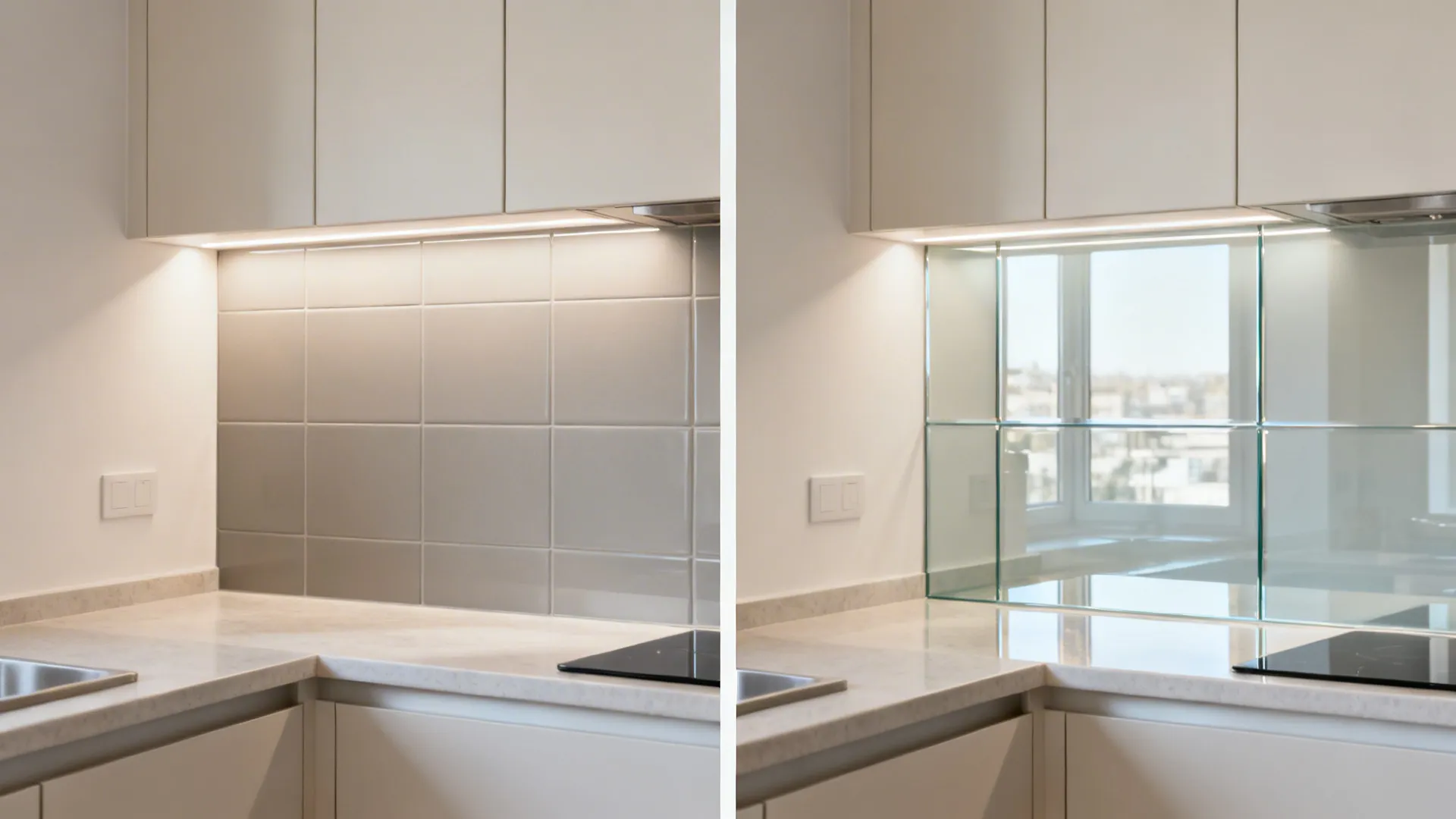

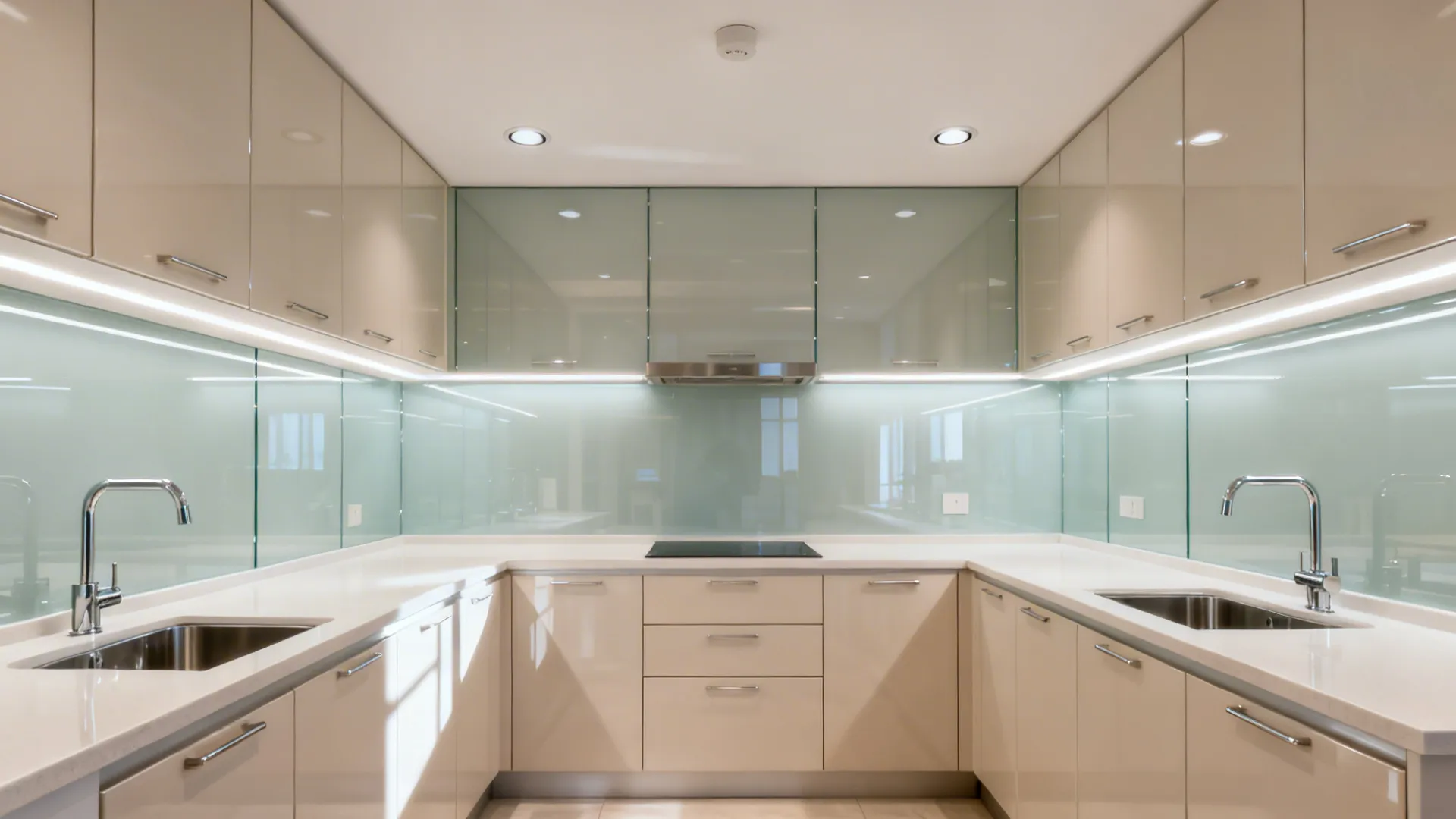

Open sightlines with a glass backsplash and bright finishes

My Take: I’m a fan of reflective surfaces in small rooms because they expand sightlines without knocking down walls. In a 12x12 kitchen-dining layout, a simple low-iron glass backsplash or glossy tile, paired with pale cabinetry, can make the back wall recede visually.

Pros: A glass backsplash is easy to clean and amplifies natural light—great for “small kitchen lighting ideas.” Using a satin or gloss finish on doors further boosts brightness, and in AutoCAD render previews, you can quickly test how reflections affect perceived depth. The American Lighting Association notes that layered lighting significantly impacts small-kitchen perception, especially when task and under-cabinet lighting are planned together.

Cons: Reflective surfaces show smudges; if you cook a lot, you’ll wipe more often. Glass installation requires precise wall flatness, or you’ll see ripples.

Tip/Case: I keep a default AutoCAD layer set for under-cab strips, puck lights, and ceiling cans—this lets me run quick photometric approximations in my workflow before full rendering. Consider warm 2700–3000K LEDs to soften gloss glare.

save pin

save pin

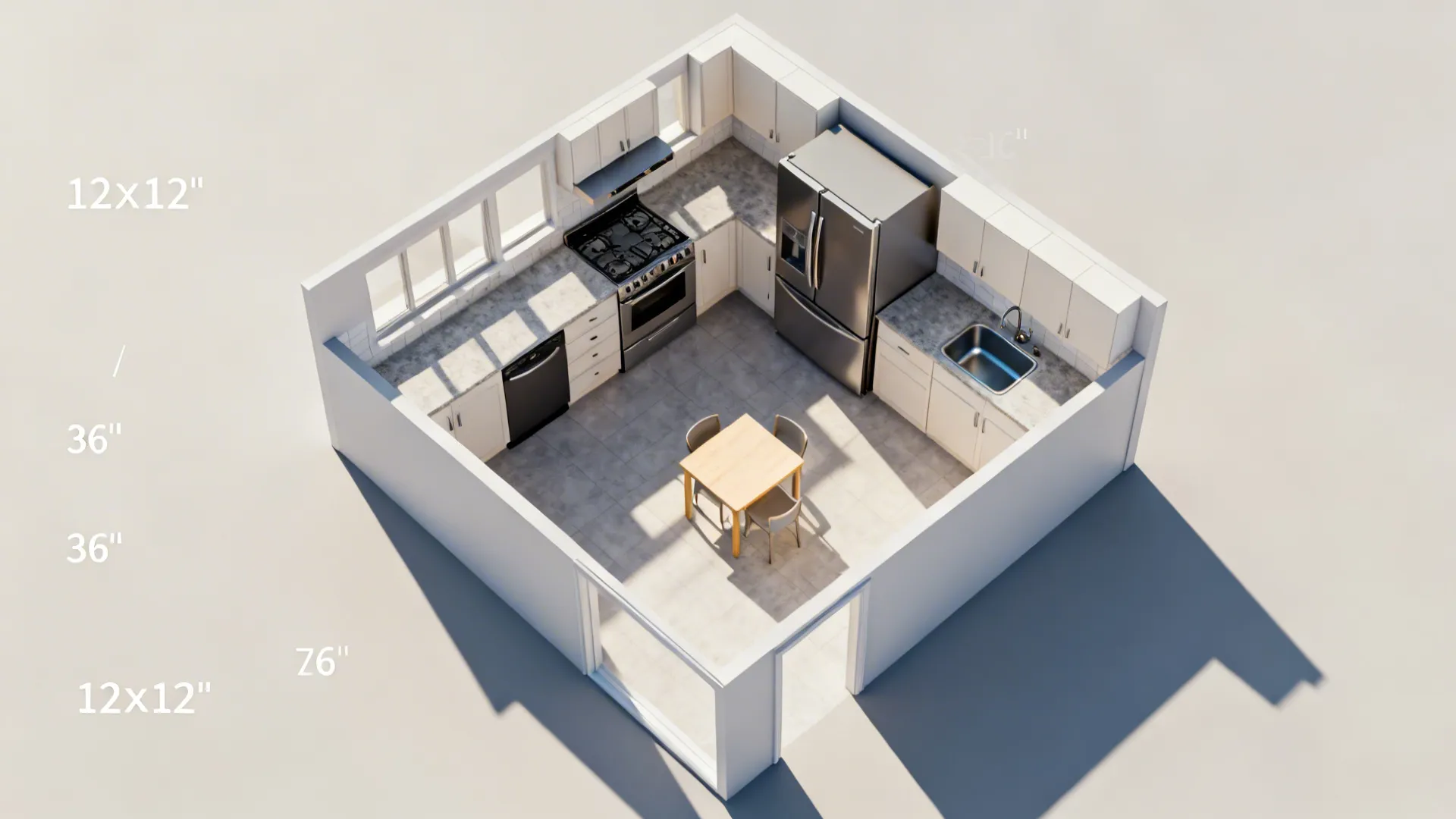

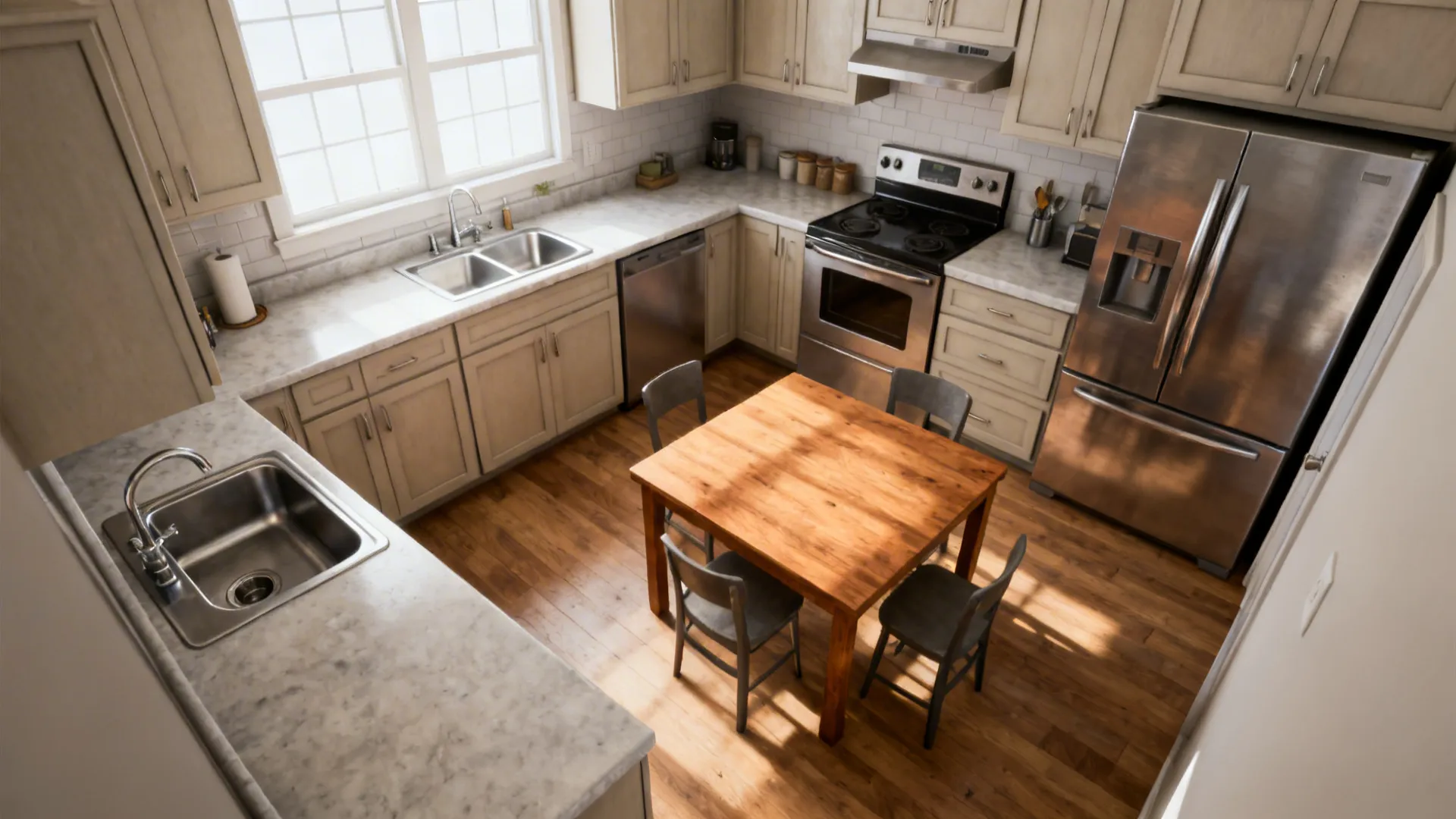

L-shaped layout to release more counter space

My Take: In a square 12x12, the L-shaped layout is my workhorse. It opens the center for circulation or a petite dining table, and it gives me uninterrupted counter runs for prep. When clients want both cooking power and weekday-function dining, the L does the heavy lifting.

Pros: An L plan creates clear work zones and supports the long-tail keyword “12x12 L-shaped kitchen with dining.” It’s budget-friendly—fewer corners than a U-shape—and typically yields one long run for appliances plus a shorter leg for the sink. AutoCAD helps me fine-tune corner clearances and verify the work triangle or, better yet, the modern work zones model.

Cons: Corner storage can be tricky—lazy Susans or corner drawers add cost. If the dining table creeps too close to the fridge, door swings clash—something I’ve learned the hard way on tight turnarounds.

Tip/Cost: Keep at least 36 inches clearance between the table and any appliance handles; AutoCAD blocks with true swing arcs are gold here. If you want a compact peninsula alternative, try a movable console that doubles as a landing zone.

If you’re exploring layout permutations, I like to show clients cases akin to L-shaped layout frees more counter space to compare traffic flow before committing to cabinetry orders.

save pin

save pin

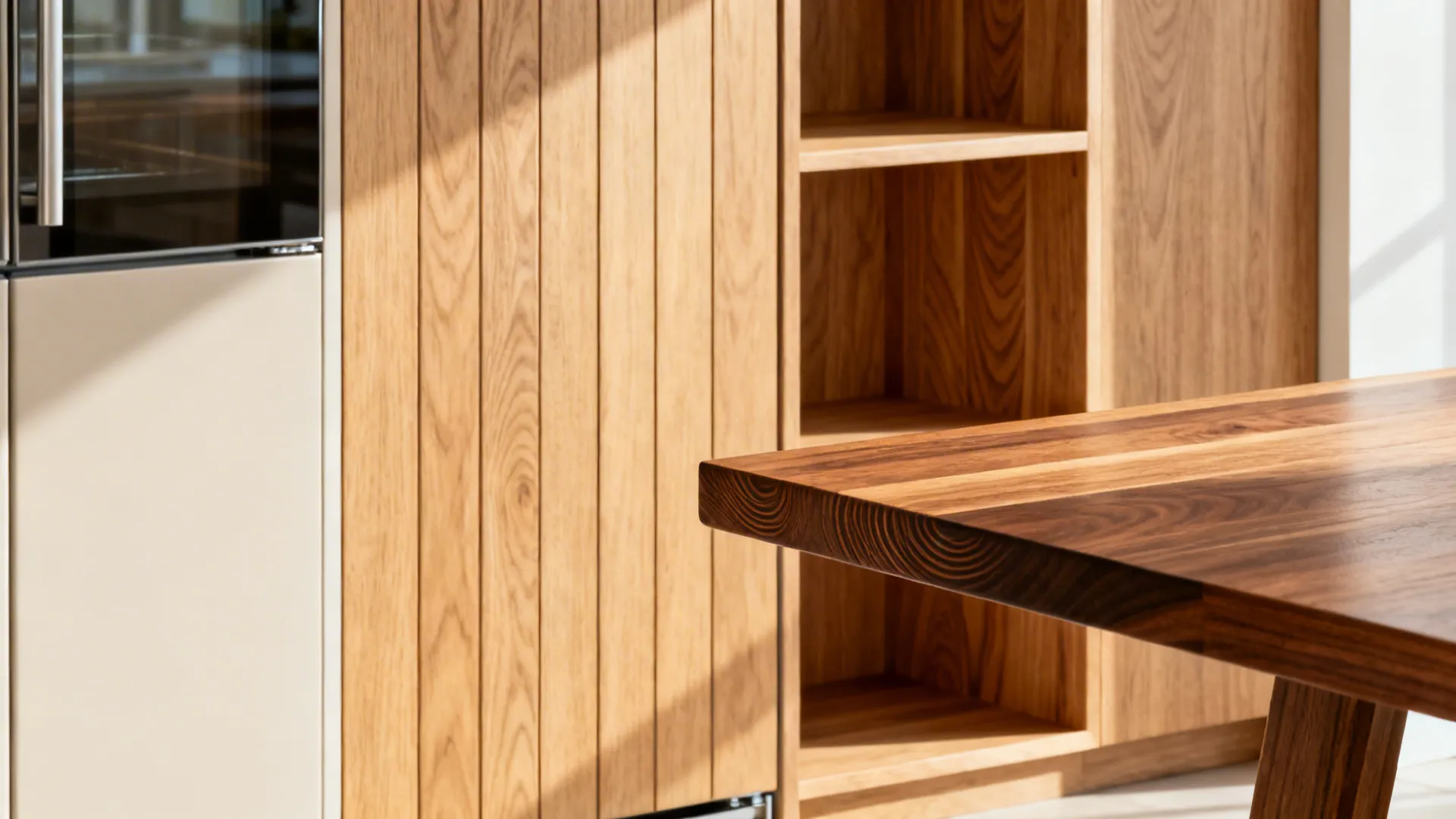

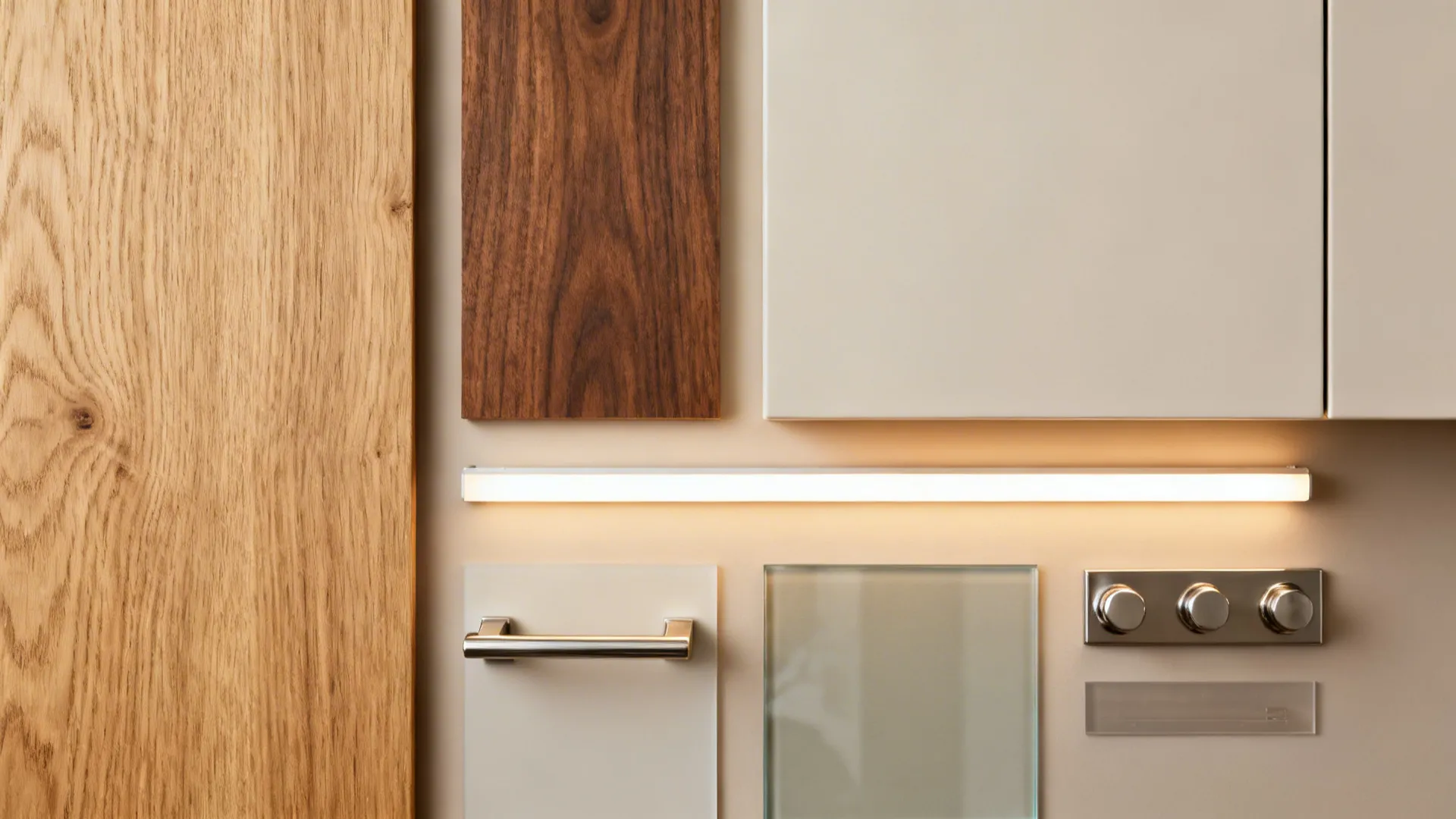

Warmth with wood accents in a modern palette

My Take: Small kitchens risk feeling clinical when everything is white and glossy. I love introducing a wood element—maybe a rift oak panel on the fridge, a slim wood shelf, or a walnut-toned dining tabletop—to ground the space emotionally.

Pros: Wood accents add tactile warmth and support the long-tail keyword “small kitchen wood accents.” A single material repeated—like the dining table and an open shelf—ties the kitchen and dining zone together. In AutoCAD elevations, I designate wood planes to check balance so the room doesn’t skew too dark.

Cons: Natural wood near the cooktop needs extra sealing, and some species yellow under strong sunlight. Matching veneer grains across panels can increase lead times.

Tip/Case: If budget is tight, use laminate lookalikes on verticals and save real wood for touch points like the table edge. Keep trims slim (18–22 mm) to maintain the minimalist read in a 12x12 footprint.

save pin

save pin

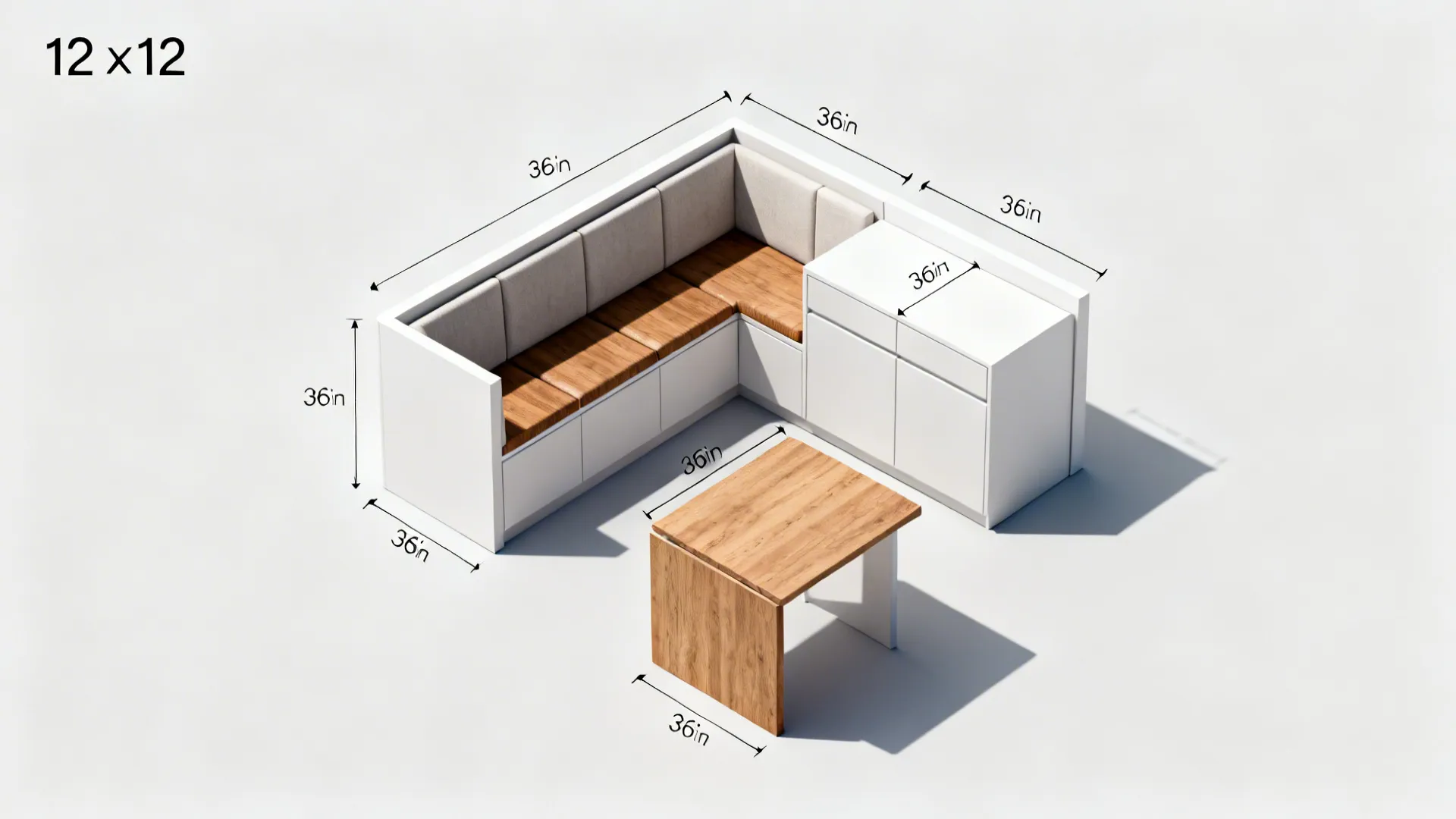

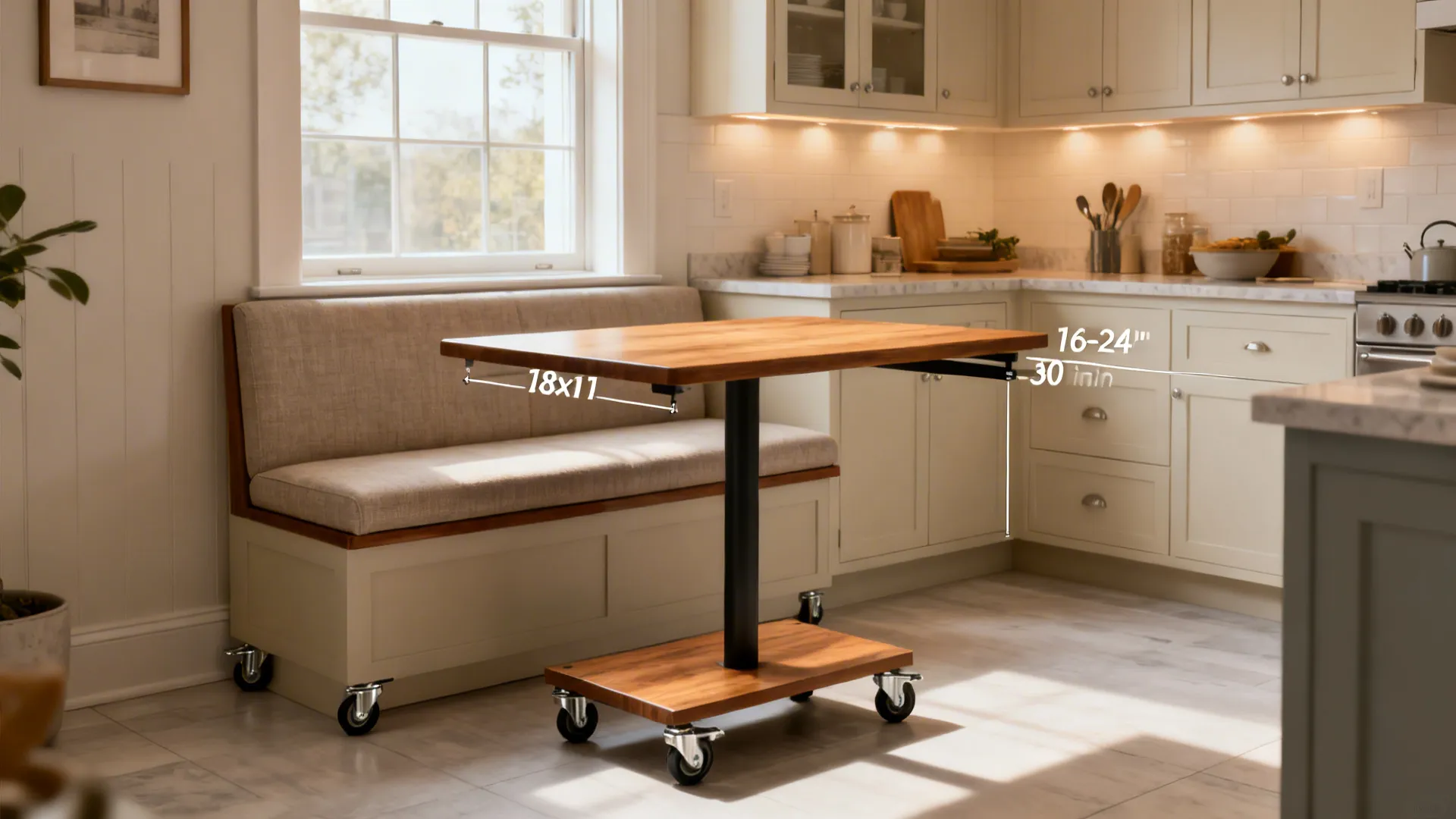

Compact dining that multitasks—banquette or island table

My Take: In several 12x12 projects, I’ve replaced bulky chairs with a tight banquette against the window or used a slim island table on casters. The dining zone becomes flexible: breakfast nook by day, laptop station by afternoon, extra prep surface at dinner.

Pros: Banquettes maximize seating per square foot and hit the long-tail keyword “banquette seating for small kitchens.” A movable island table can add a 16–24 inch overhang for casual dining and tucks away when you need floor space. I test leg clearance and seat depths in AutoCAD sections to avoid knee-bump regrets.

Cons: Deep banquettes can eat space if you don’t constrain dimensions; I aim for 18-inch seat depth and 30-inch table height. Casters must lock well—nothing ruins soup like a traveling island.

Tip/Cost: Upholster banquette cushions in performance fabric for everyday spills. If you crave more ventilation around seating, keep the backrest low and add a mirror panel or art above to extend the line of sight.

For clients balancing dining with workflow, I reference visuals similar to Warm wood elements for a cozy atmosphere to demonstrate how finish choices make small multifunction zones feel inviting.

save pin

save pin

FAQ

1) What is the best layout for a 12x12 kitchen-dining room in AutoCAD?

For most square rooms, an L-shaped layout with a compact dining table or banquette works well. It preserves flow and gives you a long prep run. Use AutoCAD swing arcs to validate fridge and oven clearances.

2) How do I fit more storage into a 12x12 without crowding it?

Go vertical with a tall pantry and slim uppers, and keep fronts minimal. Drawer organizers and pull-outs increase capacity without bulk. In AutoCAD, stack sections to confirm usable shelf heights for small appliances.

3) Can I include an island in a 12x12 kitchen-dining space?

Yes, but keep circulation at 36–42 inches. A narrow island or a movable island table works better than a deep fixed block. Test clearances in plan and 3D to avoid squeeze points.

4) What lighting works best for small kitchens?

Layered lighting—ambient, task, and accent—improves function and perception of space. The American Lighting Association emphasizes layering to reduce shadows and glare in compact rooms.

5) Are glossy finishes good for small kitchens?

They reflect light and can make the room feel larger, especially paired with glass backsplashes. Balance them with matte or wood accents to avoid a sterile look.

6) How do I plan a 12x12 kitchen layout for workflow?

Focus on zones: prep near the sink, cook near the range, and cleaning near the dishwasher. NKBA guidelines suggest grouping tasks to reduce steps; verify reach and landing zones in your CAD drawing.

7) What’s a budget-friendly way to update a 12x12?

Swap hardware, add under-cabinet lighting, and refresh the backsplash. Consider laminate wood-look fronts paired with one real-wood touchpoint like the dining tabletop.

8) Can AutoCAD help me visualize materials and lighting?

Yes—while AutoCAD is primarily for precision drafting, you can preview lighting positions and material assignments or export to a renderer. For case visuals akin to reflective finishes, see Glass backsplash makes the kitchen feel more open for inspiration.

Summary

A small kitchen isn’t a limitation—it’s an invitation to design smarter. For a 12x12 kitchen-dining room in AutoCAD, lean on minimalist storage, reflective surfaces, an L-shaped plan, warm wood accents, and flexible dining to maximize comfort and function. As NKBA and lighting experts remind us, zoning and layered light transform compact spaces. Which of these five ideas would you try first in your own 12x12 kitchen-dining room?
