5 Small Laundry Room Floor Plans That Actually Work: I’m sharing 5 proven small laundry room floor plans—with pro tips, costs, and real-life tradeoffs—to help tiny spaces do big things

[Section: Meta 信息] Meta Title and Keywords are provided in the meta field below. [Section: 引言] As a residential designer who’s remodeled more than a dozen compact utility spaces, I’ve seen how small laundry room floor plans are driving current interior trends: clean lines, concealed storage, and multi‑functional nooks that flex for family life. Small spaces spark big creativity—especially when every inch must earn its keep. In this guide, I’ll share 5 design ideas for small laundry room floor plans, blending my hands-on experience with expert data you can trust. For a deeper dive into space planning logic, I often study real-world cases like “L 型布局释放更多台面空间,” which inspired clever counter runs in utility corners: L-shaped countertop flow. [Section: 灵感列表]

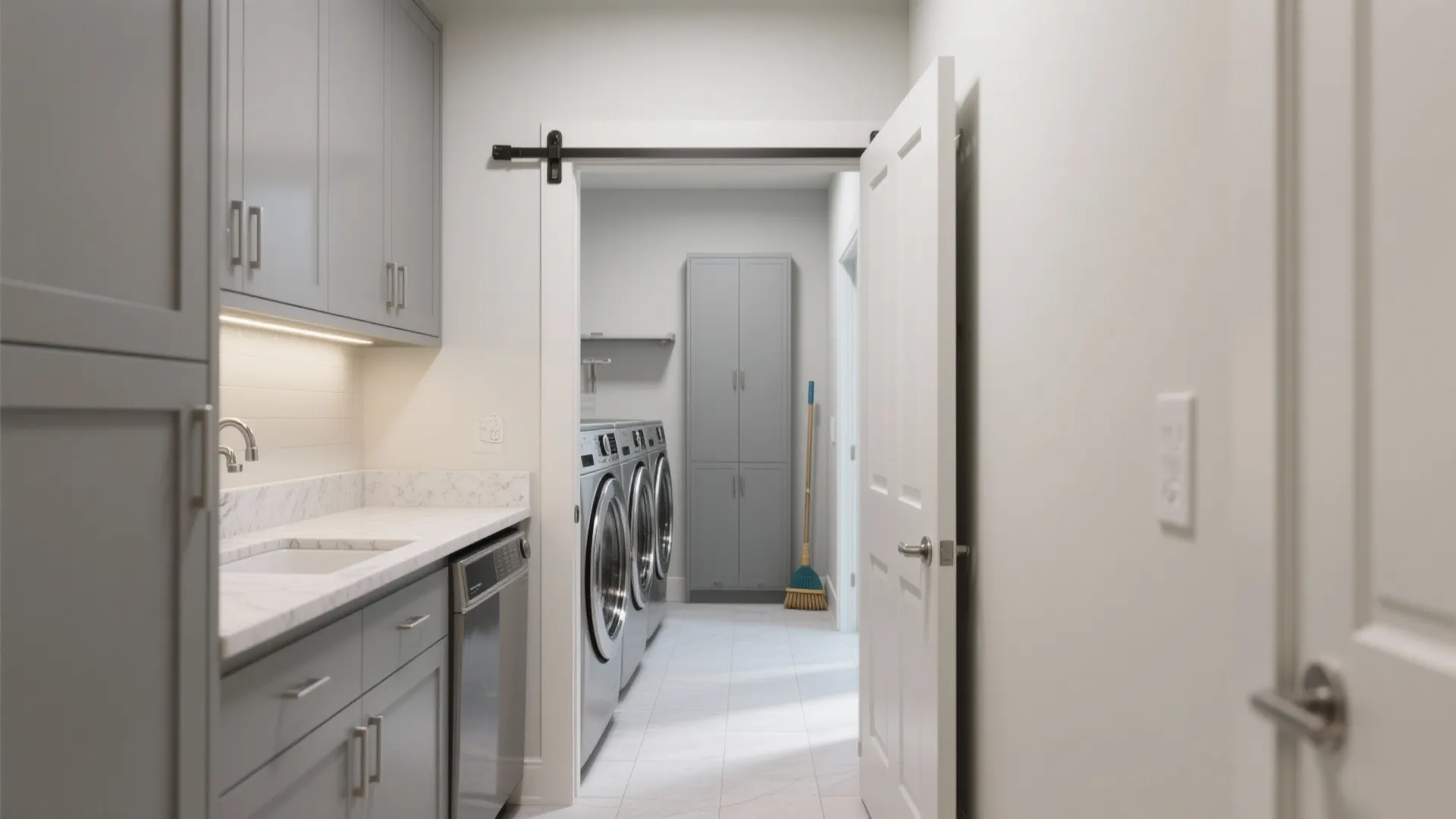

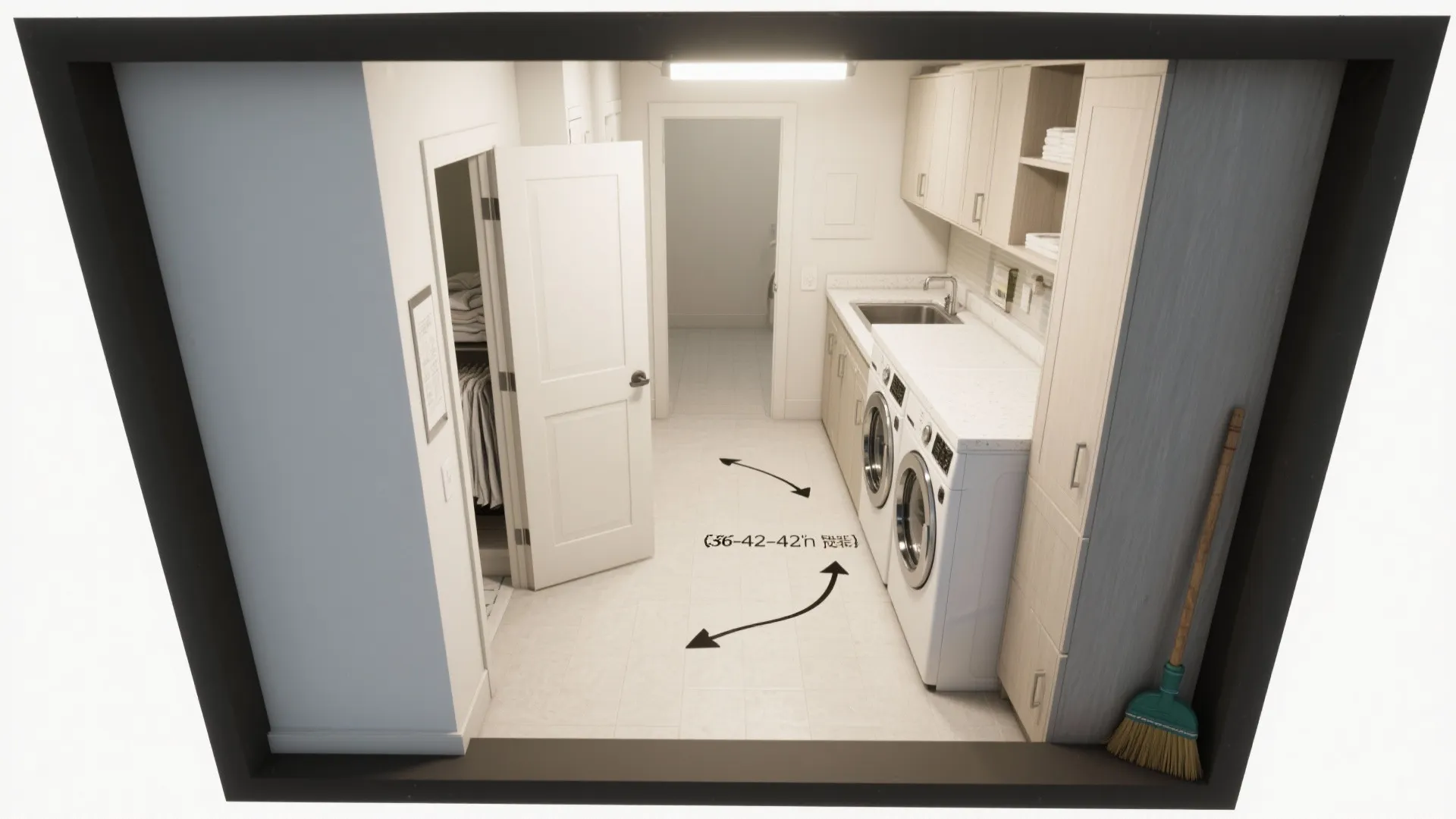

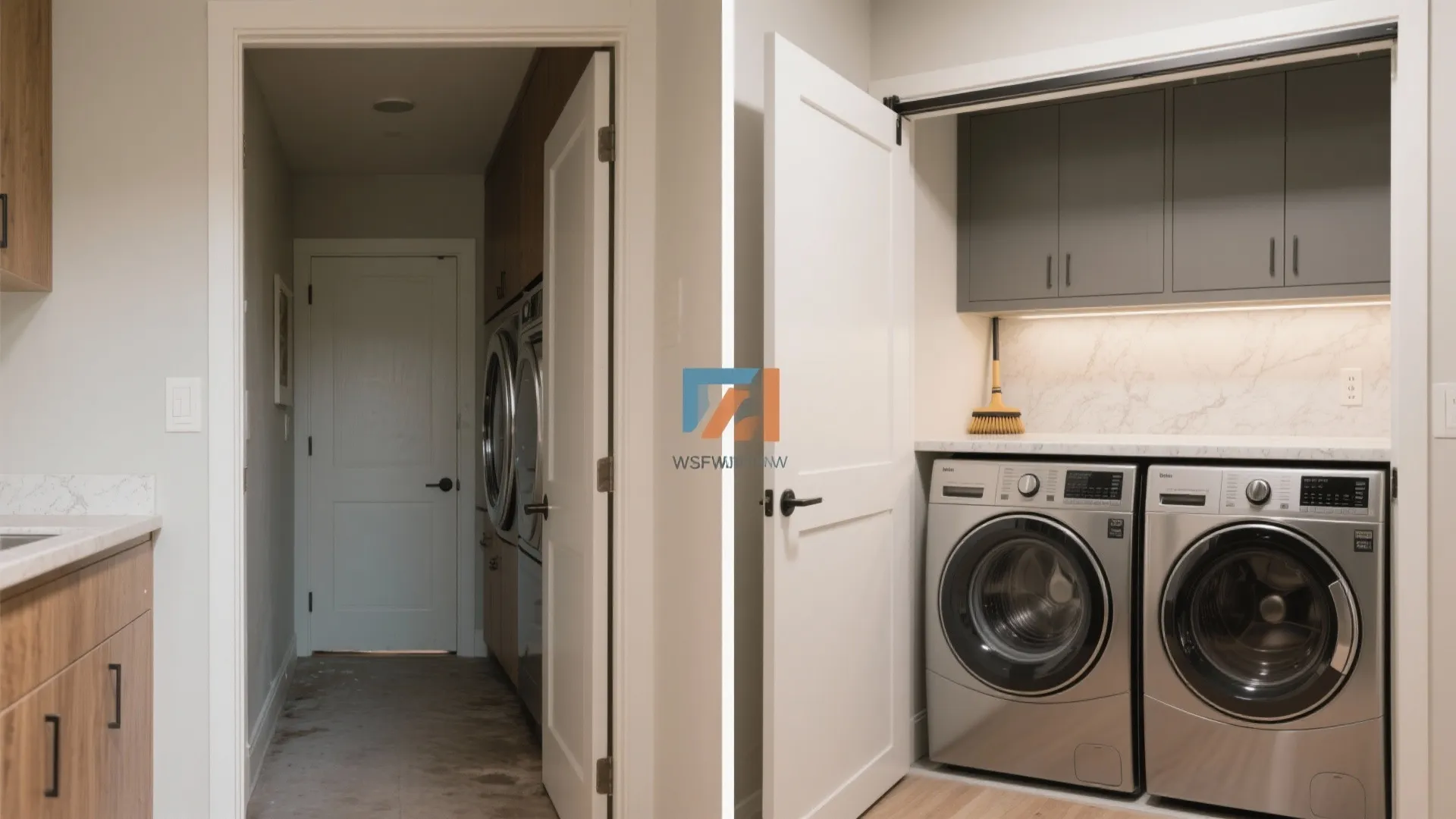

Galley Laundry With Sliding Pocket Door

My Take

I once turned a 44-inch-wide hallway alcove into a galley laundry by swapping a swing door for a pocket door—suddenly the machines, a folding shelf, and a tall broom cabinet all fit. The change felt small on paper but massive in daily use.

Pros

- A pocket door frees up swing clearance, crucial for small laundry room floor plans where 36–42 inches of aisle is all you have. Adding a shallow countertop above a front-loader creates immediate folding space.

- Galley lines keep plumbing and vent runs short, which can lower install costs and simplify future maintenance—great for long-term value and easy access.

Cons

- Pocket doors need a clean wall cavity; you’ll lose spots for heavy wall anchors or deep niches. If the wall is load-bearing or full of wiring, retrofitting can get fussy (and dusty).

- Narrow galleys can feel tight if two people use the room at once—be honest about how often that happens in your household.

Tips / Cost

- If you can’t do a pocket door, use a flat-track barn door to save swing space. Budget 600–1,200 USD for door change and trim, plus drywall touch-ups.

save pin

save pin

save pin

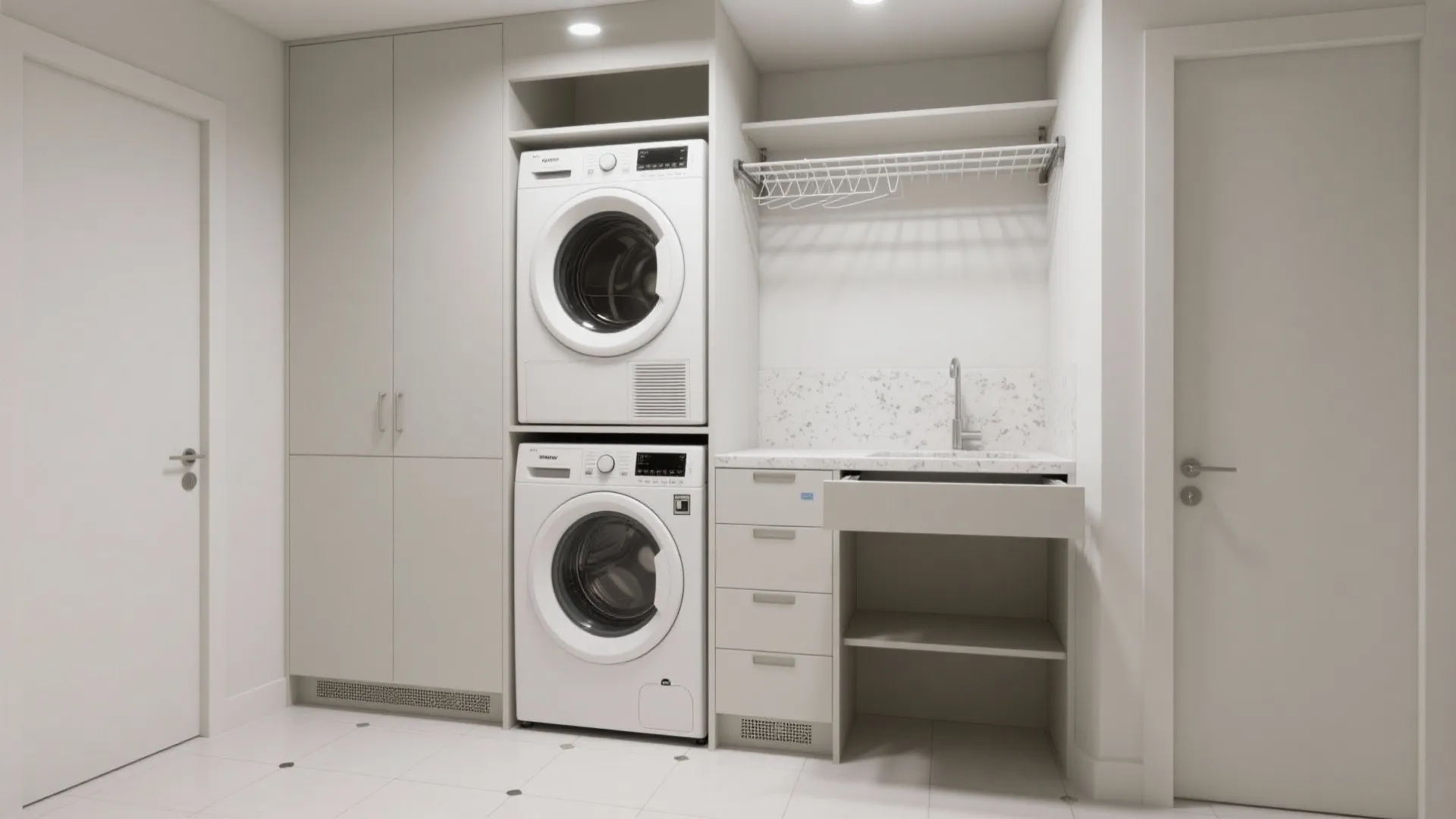

Stacked Washer-Dryer With Pull-Out Worktop

My Take

In a 5'×5' laundry, I stacked the appliances and installed a pull-out worktop between them and a side cabinet. It became the client’s favorite spot for quick stain treatment and basket staging.

Pros

- Stacking instantly shrinks the footprint, a classic win for small laundry room floor plans. A pull-out worktop offers task space only when you need it, then disappears.

- Vertical layouts help with ergonomics when paired with a wall-mounted drying rack at eye level—your back will thank you during long wash days.

Cons

- Stacked units can vibrate more if floors aren’t level; plan for anti-vibration pads and solid subflooring. You’ll also need a sturdy enclosure or side panels to keep the stack looking tidy.

- Maintenance is higher up—cleaning the dryer lint filter may require a small step stool, so consider a built-in niche to store it safely.

Tips / Authority

- The U.S. Department of Energy notes that vented dryers need short, straight exhaust ducts for efficiency; stacked setups often allow a direct run that improves performance (U.S. DOE, Energy Saver).

save pin

save pin

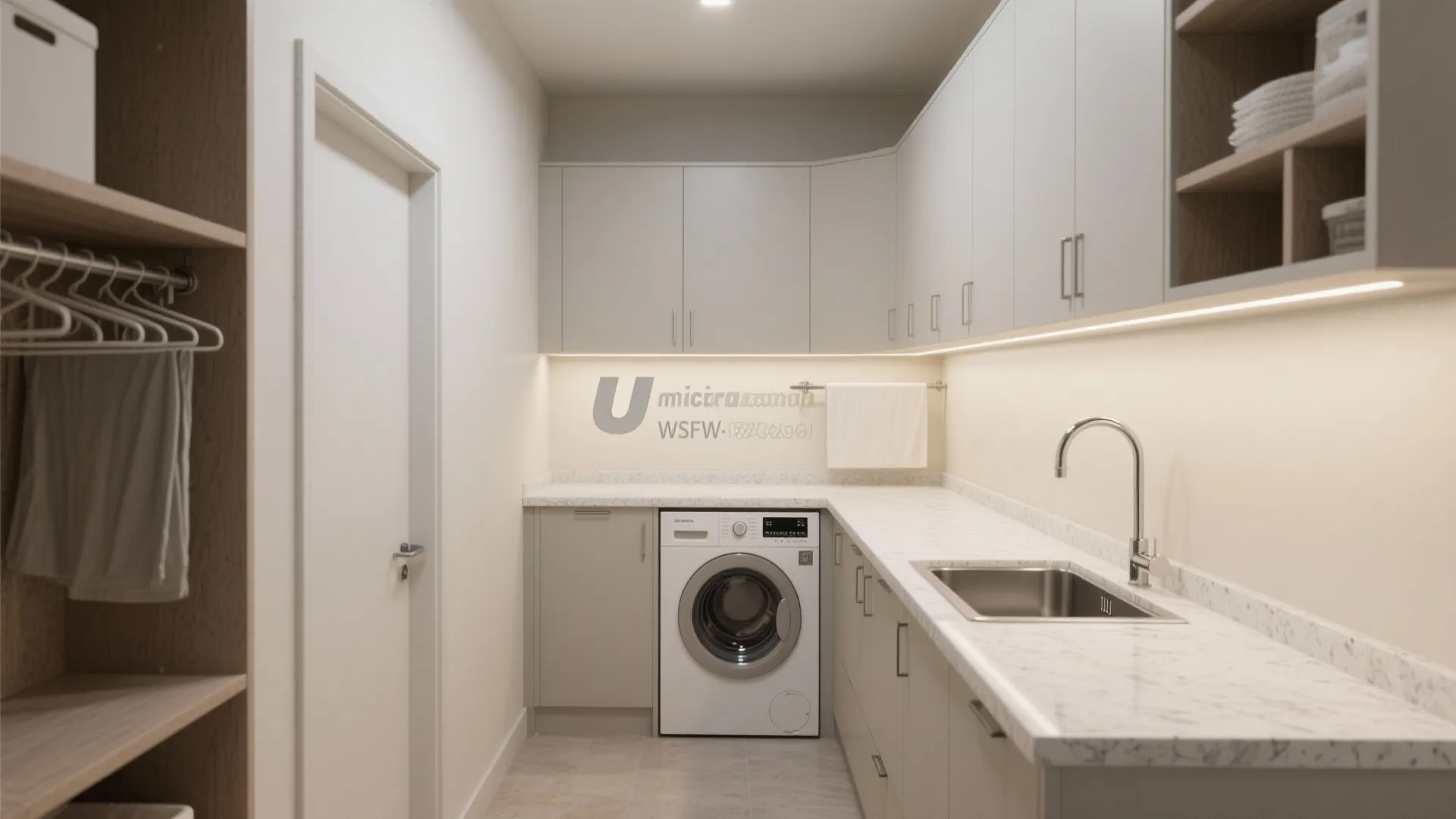

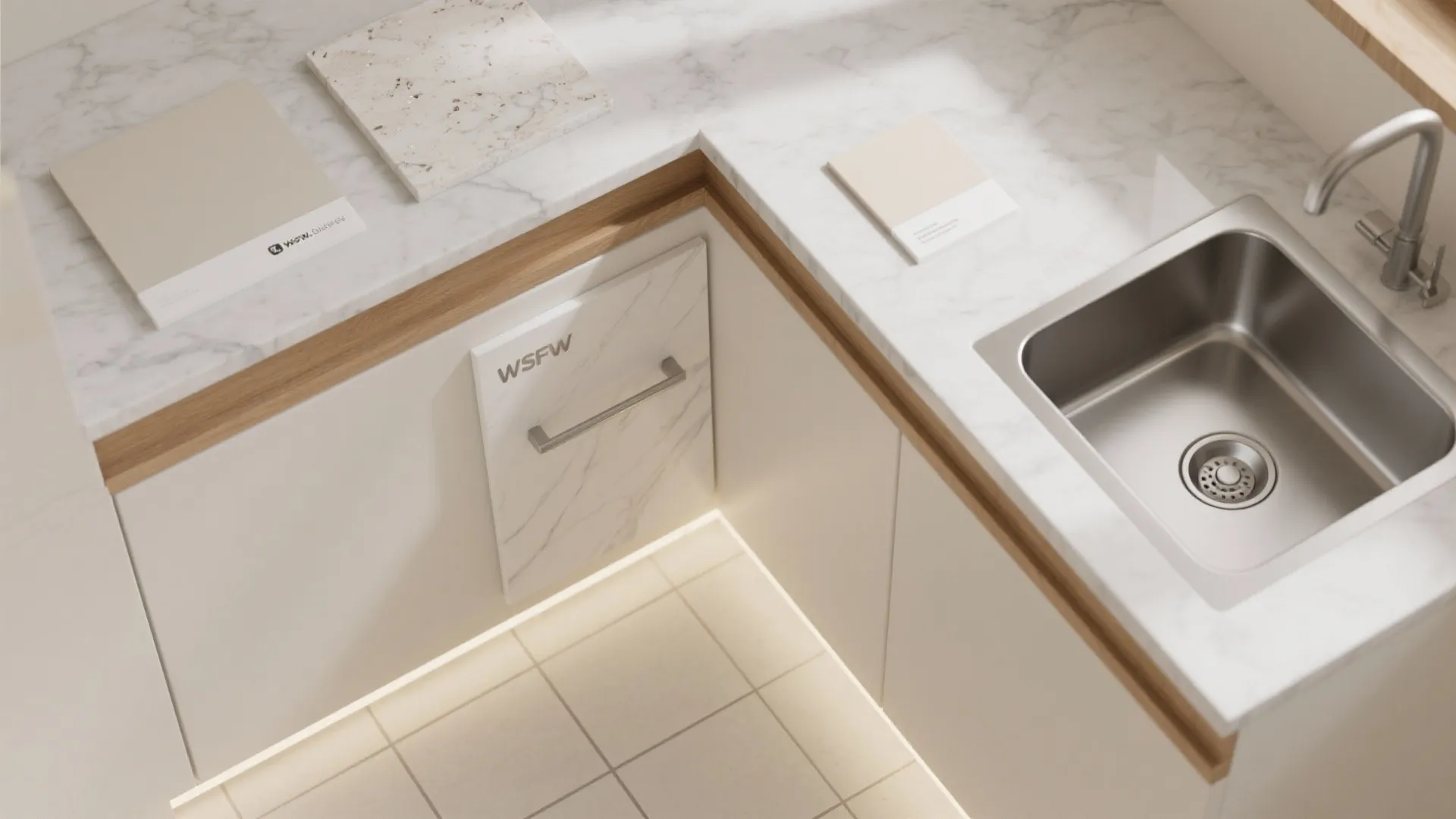

U-Shaped Micro Laundry With Corner Sink

My Take

I converted a pantry into a U-shaped micro laundry by tucking a compact sink into the corner. That sink saved countless shirts from stains and made handwashing less of a chore.

Pros

- A U-shape maximizes three sides for storage and counter, an efficient strategy for small laundry room floor plans that need both washing and folding zones.

- Corner sinks free up straight counter runs for baskets and a folding mat, while upper cabinets can align around the corner for uninterrupted storage.

Cons

- Tight U’s can feel enclosed; under-cabinet lighting and a pale, satin wall finish help avoid a cave vibe. Avoid bulky hardware that sticks out into your elbows.

- Corner bases are pricier and trickier to plumb. If budget is tight, use a compact straight sink and leave the corner for a lazy Susan of detergents.

Case / Mid-Article Internal Link

- When I plan tight U-runs, I map clear counter depths and turning radii with digital layouts. Seeing how “L 型布局释放更多台面空间” principles translate to utility rooms is helpful: perimeter counter mapping.

save pin

save pin

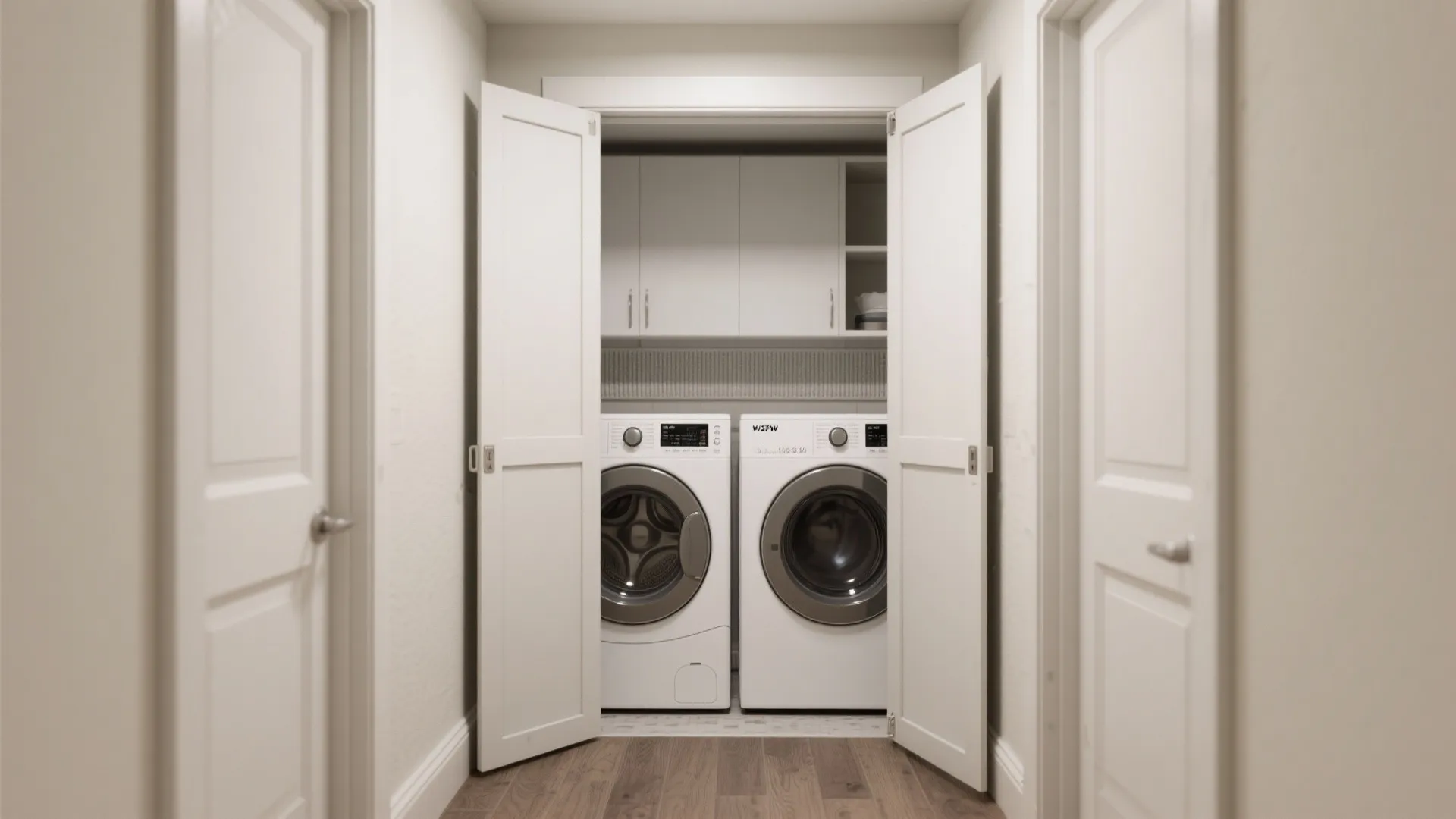

Hallway Laundry Niche With Bi-Fold Panels

My Take

In a city apartment, we carved a 30-inch-deep niche off the hallway, added bi-fold panels, and squeezed in compact units plus an upper shelf. It reads like a millwork wall until wash day.

Pros

- Bi-folds clear wide openings without full swing, ideal for small laundry room floor plans set in corridors. Add acoustic seals to reduce appliance noise bleeding into living areas.

- A shallow upper cabinet (12–14 inches) keeps detergent accessible while maintaining headroom, preventing the closet effect.

Cons

- Venting can be tricky in interior halls; consider a ventless heat-pump dryer. These are energy efficient but require good room airflow and periodic filter cleaning.

- Sightlines matter—choose paneling that matches adjacent doors so the niche visually disappears, otherwise it can feel like an afterthought.

Tips / Authority

- For safety and performance, maintain manufacturer-recommended clearances around vents and intakes; the Association of Home Appliance Manufacturers (AHAM) publishes guidance on installation clearances.

save pin

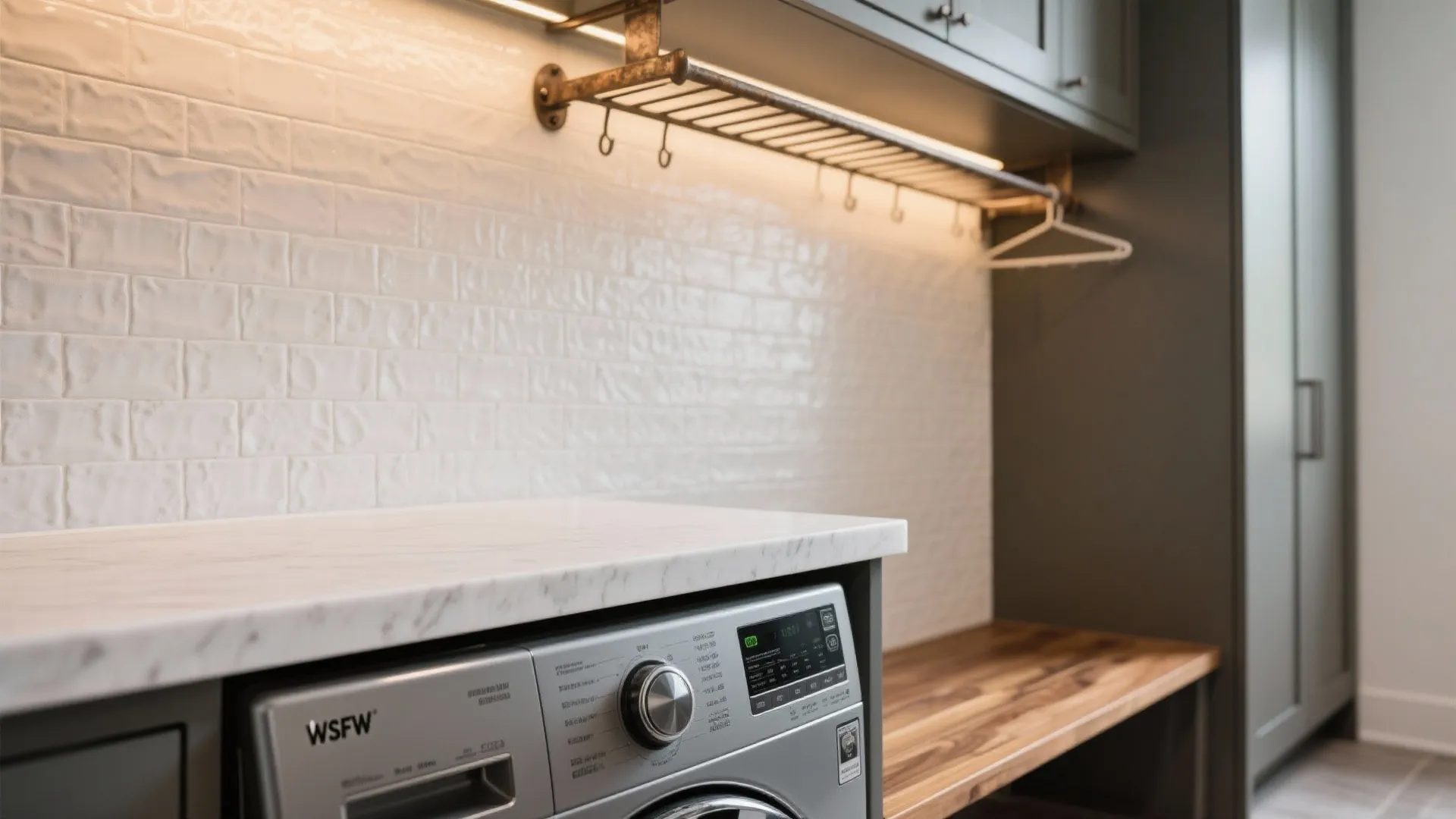

Laundry-Mudroom Combo With Bench and Cubbies

My Take

My favorite family build merged a 6'×8' laundry with a mudroom bench: shoes under, cubbies above, and a durable quartz shelf over the washer for drop zones. Chaos finally had a landing pad.

Pros

- Blending functions is a hero move for small laundry room floor plans: one room handles outdoor gear, pet stuff, and laundry flow. Zoning with a bench prevents piles on machines.

- Durable surfaces—quartz, porcelain tile, and high-pressure laminate—resist drips and scuffs. A wall-hung drying rail over the bench doubles as a ventilated drip area.

Cons

- Mudrooms attract dirt; add a washable runner and a hose-friendly floor drain if local code allows. Without airflow planning, odors can linger after rainy days.

- More millwork means more budget; prioritize closed storage for visual calm and use open cubbies only where it helps speed daily routines.

Budget / Late-Article Internal Link

- When combining zones, I sketch elevations to balance bench height, cubby spacing, and appliance clearance—seeing it in 3D prevents crowding. I look to examples like “木质元素带来的温暖氛围” to keep it welcoming: warm wood texture balancing.

[Section: 细节策略与尺寸要点] - Aisle width: Aim for 36 inches minimum; 42 inches feels comfortable. For side-by-side machines, plan 60 inches clear width plus 1–2 inches per side for vibration.

- Counter height: 34–36 inches above finished floor; if stacking, keep a pull-out at 30–32 inches height for ergonomics.

- Vent path: Short and straight is best—use rigid metal ducting where allowed. Heat-pump dryers eliminate vents but need airflow and regular filter maintenance.

- Sound and vibration: Add rubber pads and line machine pedestals with anti-slip mats. Consider mass-loaded vinyl behind drywall if bedrooms are adjacent.

- Lighting: A 3000–3500K LED panel with 80+ CRI over the folding surface keeps whites looking true. Add a motion sensor for hands-free starts. [Section: 材料与收纳建议] - Surfaces: Quartz or compact laminate for counters; porcelain tile or luxury vinyl tile for floors—both handle moisture well. Matte finishes hide lint better than gloss.

- Walls: Semi-gloss paint or scrubbable vinyl wallcovering behind sinks. If you air-dry, add a tiled splash zone 12–18 inches high.

- Storage: Use 12-inch-deep uppers to avoid head bumps; install one 15–18-inch-deep cabinet for bulk supplies. Pull-out vertical tray for ironing board saves space.

- Drying: Ceiling-mounted rack or fold-down wall unit near supply air. For delicates, a mesh pull-out over a heat register speeds drying without direct heat. [Section: 规划与动线（含电气/管线）] - Electrical: Dedicated 240V for dryers (country dependent) and GFCI near the sink. Place outlets above counter at 42 inches AFF to keep cords tidy.

- Water: Add a washer pan with a drain where code permits; include dual shutoff valves at reachable height. Braided hoses only; replace every 5–7 years.

- Ventilation: Target 6–8 air changes per hour in tiny rooms using a quiet rated fan (≤1.0 sone). Keep makeup air via a door undercut if doors seal tight.

- Workflow: Dirty in, sort, treat, wash, dry, fold, store—map this as a straight or U-shaped path. Label baskets by family member to prevent pile-ups. [Section: 成本与时间线参考] - Light refresh (paint, shelves, lighting): 800–2,000 USD, 2–4 days.

- Moderate remodel (stacking kit, counters, cabinets): 3,500–8,000 USD, 1–2 weeks.

- Full rework (plumbing moves, venting, custom millwork): 9,000–20,000+ USD, 3–5 weeks. Always keep 10–15% contingency for surprises. [Section: 内链回顾] - 20%: L-shaped countertop flow → kitchen-layout planning logic for laundry counters.

- 50%: perimeter counter mapping → visualizing tight U-runs in 3D.

- 80%: warm wood texture balancing → blending laundry and mudroom warmth. [Section: 总结] Small laundry room floor plans don’t limit you—they push you toward smarter, calmer design. With clear zones, compact layouts, and the right materials, even a 5'×5' space can earn its keep. As the U.S. DOE and AHAM guidelines reinforce, good venting, airflow, and appliance clearances are the foundation of performance and safety. Which of these five ideas are you most excited to try in your own home? [Section: FAQ 常见问题] 1) What is the minimum size for small laundry room floor plans?

Most effective layouts start around 5'×5' for stacked units or 5'×7' for side-by-side. You’ll want 36 inches of aisle and manufacturer-specified clearances on all sides. 2) Are ventless dryers good for tiny laundry rooms?

Yes—modern heat-pump dryers are efficient and avoid long ducts, making them ideal for interior niches. Ensure proper room airflow and clean filters regularly. 3) How do I plan storage in a very narrow galley?

Use 12-inch-deep uppers, a shallow wall rail with hooks, and a countertop over front-loaders. Add a slim pull-out for detergents to keep the aisle clear. 4) Do I need a floor drain under the washer?

Not always, but it’s great insurance if local code allows. At minimum, install a pan with a leak sensor for early alerts. 5) What lighting works best for folding accuracy?

A 3000–3500K LED fixture with 80+ CRI above the folding surface keeps colors true. Add under-cabinet strips to banish shadows. 6) How can I reduce noise next to bedrooms?

Choose quiet-rated appliances, add anti-vibration pads, and consider resilient channels or mass-loaded vinyl in shared walls. Soft-close doors help at night. 7) Are there standards for dryer vent length and materials?

Yes—follow your appliance manual and local code; the U.S. Department of Energy recommends short, straight runs using rigid metal duct where allowed (U.S. DOE Energy Saver). This improves efficiency and safety. 8) Can I combine a mudroom and laundry in a small space?

Absolutely. Keep a clear bench zone and closed storage to contain clutter. For planning visuals, I like referencing examples of compact entry-to-laundry flow when sketching traffic paths.
