5 Small-Space Ideas: How to Draw Rooms in a House: My pro guide to mapping compact floor plans with clarity, flow, and real-life tips

[Section: Meta 信息] Meta Title and other metadata are provided in the meta field. [Section: 引言] As an interior designer who’s mapped countless compact homes, I’ve learned that how to draw rooms in a house is less about perfect lines and more about planning how you’ll live. Small spaces spark big creativity—constraints make us sharper. In this guide, I’ll share 5 design inspirations backed by my own projects and expert data, so you can sketch a home layout that’s beautiful, practical, and ready for real life. On my very first studio apartment project, I spent more time aligning doors and pathways than choosing furniture—and it paid off. A clear, scaled drawing helps you spot circulation bottlenecks, daylight opportunities, and storage zones before you lift a hammer. Below are the five ideas I use most when drawing rooms for compact homes. [Section: 灵感列表]

Minimalist Storage Mapping for Small Kitchens

My Take

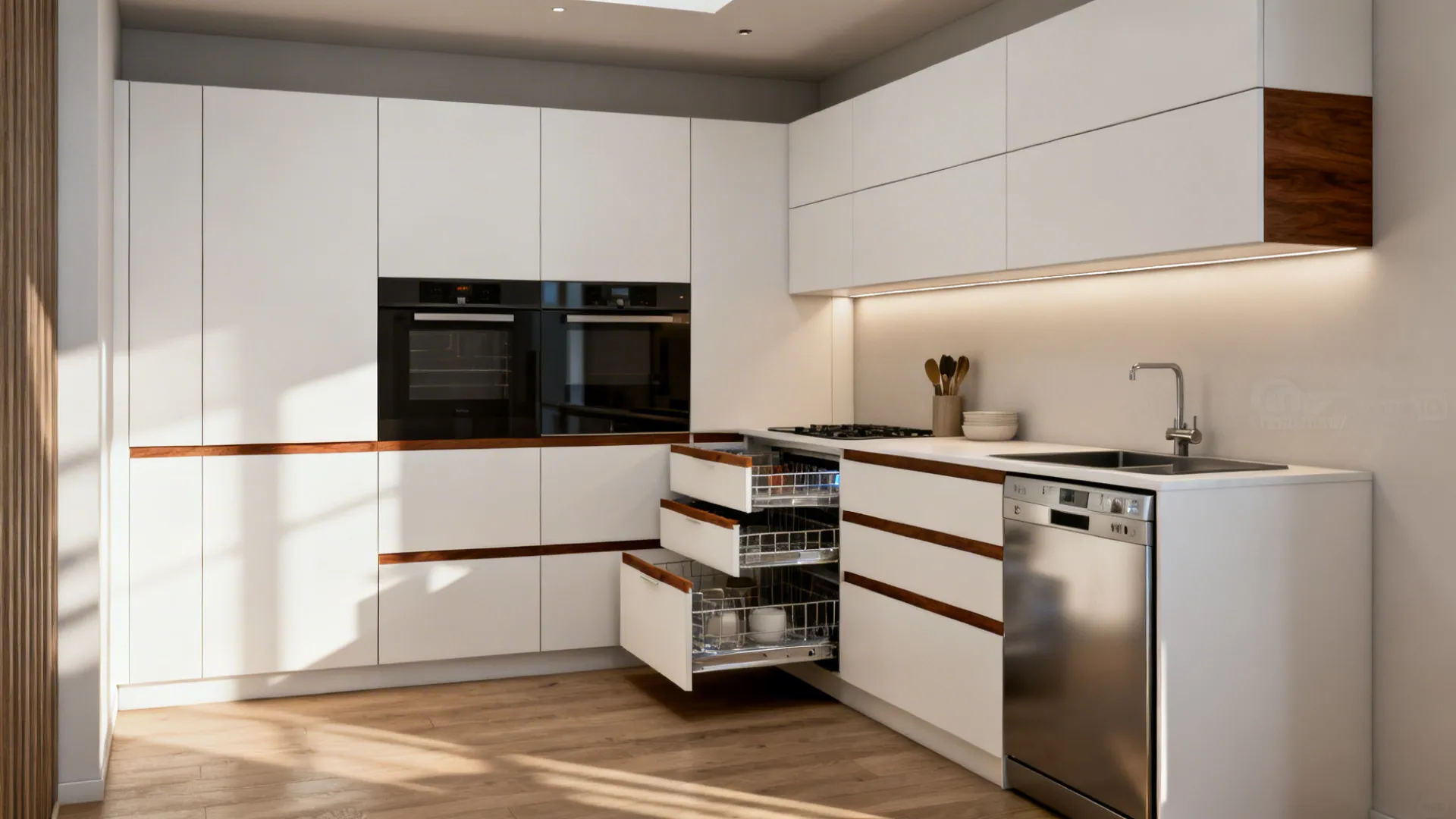

I start kitchen drawings by mapping storage first—pots, pantry, appliances—before I place a single cabinet line. In a 42 m² home I did last year, this storage-first sketch cut clutter and gave the cook a calm, streamlined space.

Pros

Focusing on “minimalist kitchen storage design” clarifies zones and reduces visual noise in small footprints. With a scaled plan (1:50 or 1/4"=1'-0"), you’ll predict clearances for drawers and dishwashers, a crucial long-tail detail many miss. The triangle or zoned workflow (prep–cook–clean) improves efficiency, and lighting layers become easier to place when storage lines are set early, per NKBA guidelines on clearances and workflow.

Cons

If you over-edit storage to keep things minimal, overflow ends up on countertops—been there! Deep drawers are great, but in ultra-narrow kitchens, full-extension slides may hit handles if you don’t fine-tune the plan.

Tips / Case / Cost

Budget tip: prioritize one bank of full-height pantry storage; it’s cheaper than custom corner solutions. In tiny spaces, I’ll sketch two elevations for the same wall—open shelves vs. closed cabinets—to compare visual weight before finalizing.

First-screen resource for planning compact kitchen layouts: L-shaped layout opens more counter space.

save pin

save pin

Transparent Surfaces to Extend Sightlines

My Take

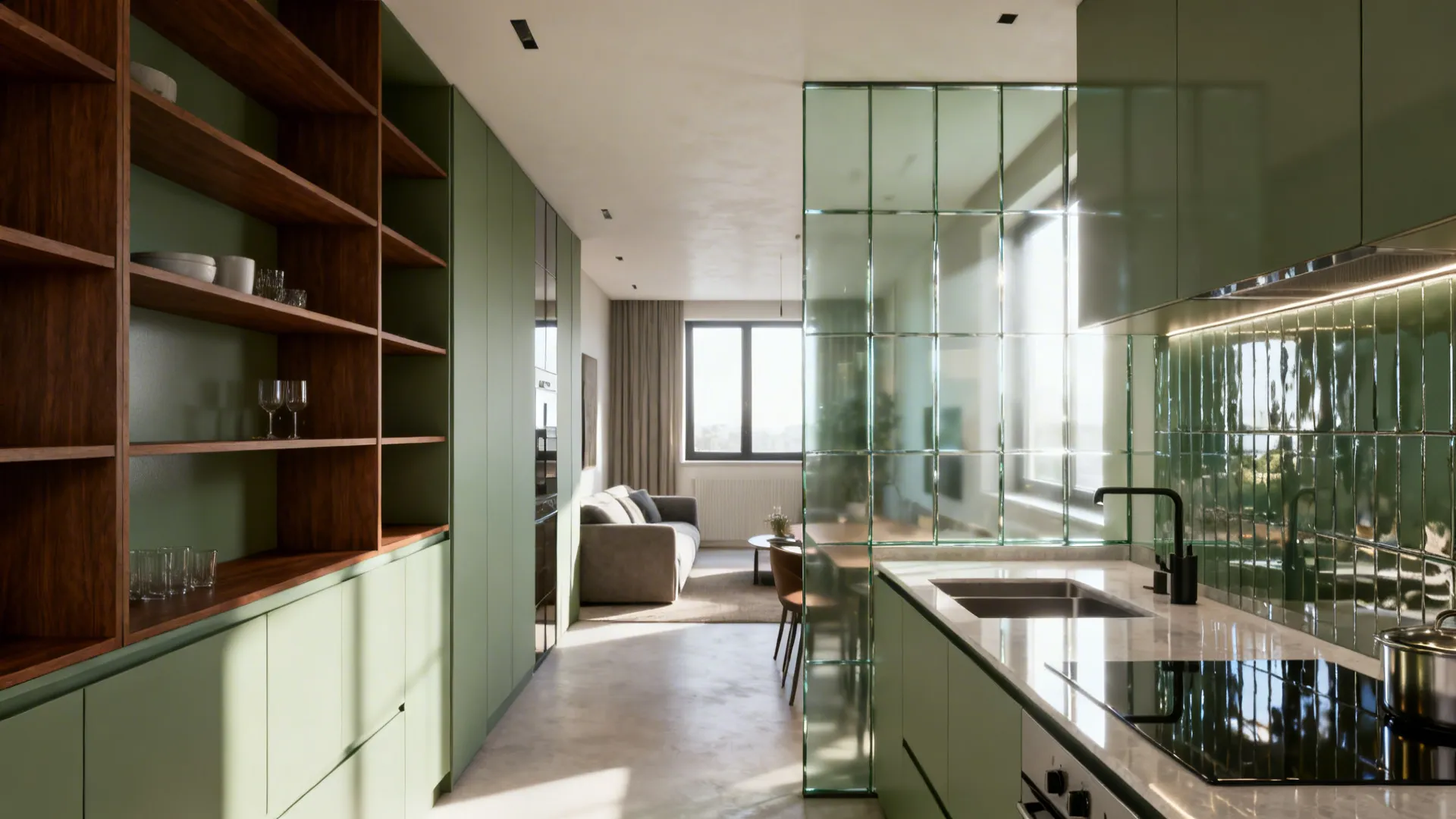

When I draw small living–kitchen combos, I often use glass or translucent dividers to stretch the eye. In one micro-loft, a glass backsplash aligned with a window bounced light across the plan and made the room feel wider.

Pros

Using a “glass backsplash for a brighter kitchen” or glazed partitions keeps the plan airy while maintaining zones. Daylight penetration can reduce artificial lighting loads during the day; CIBSE lighting guidance shows improved uniformity with reflective surfaces, which I’ve seen reduce glare in real projects. It’s also renter-friendly if you use freestanding screen frames.

Cons

Glass equals fingerprints—clients with kids know the drill. In acoustically lively studios, transparent partitions don’t block sound, so you’ll need soft materials elsewhere.

Tips / Case / Cost

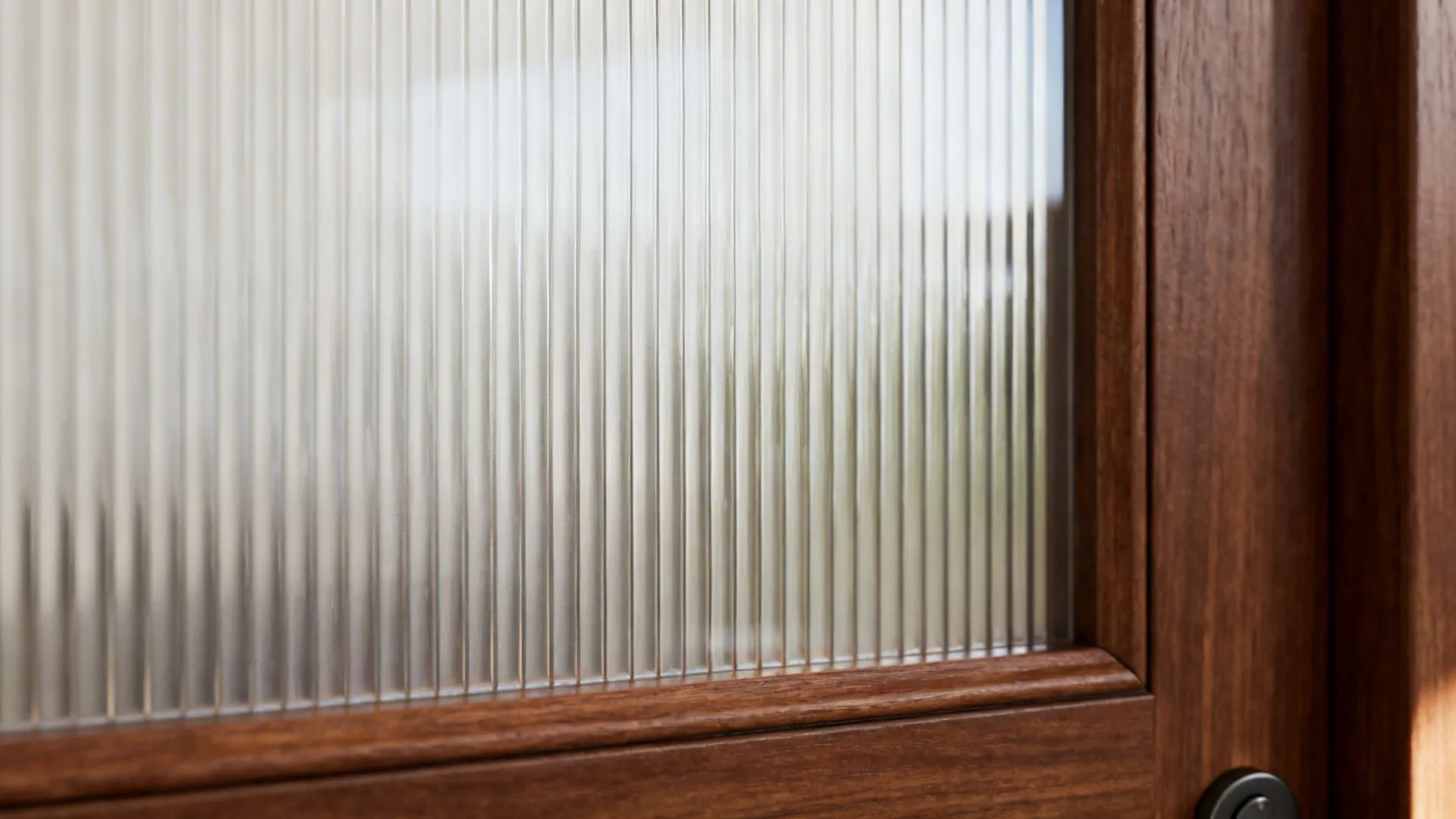

Frosted or reeded glass gives privacy with 60–80% light transmission depending on product. I note sill heights and switching lines directly on the drawing to avoid awkward socket placements behind glass.

save pin

save pin

Smart Circulation: The 900 mm Rule

My Take

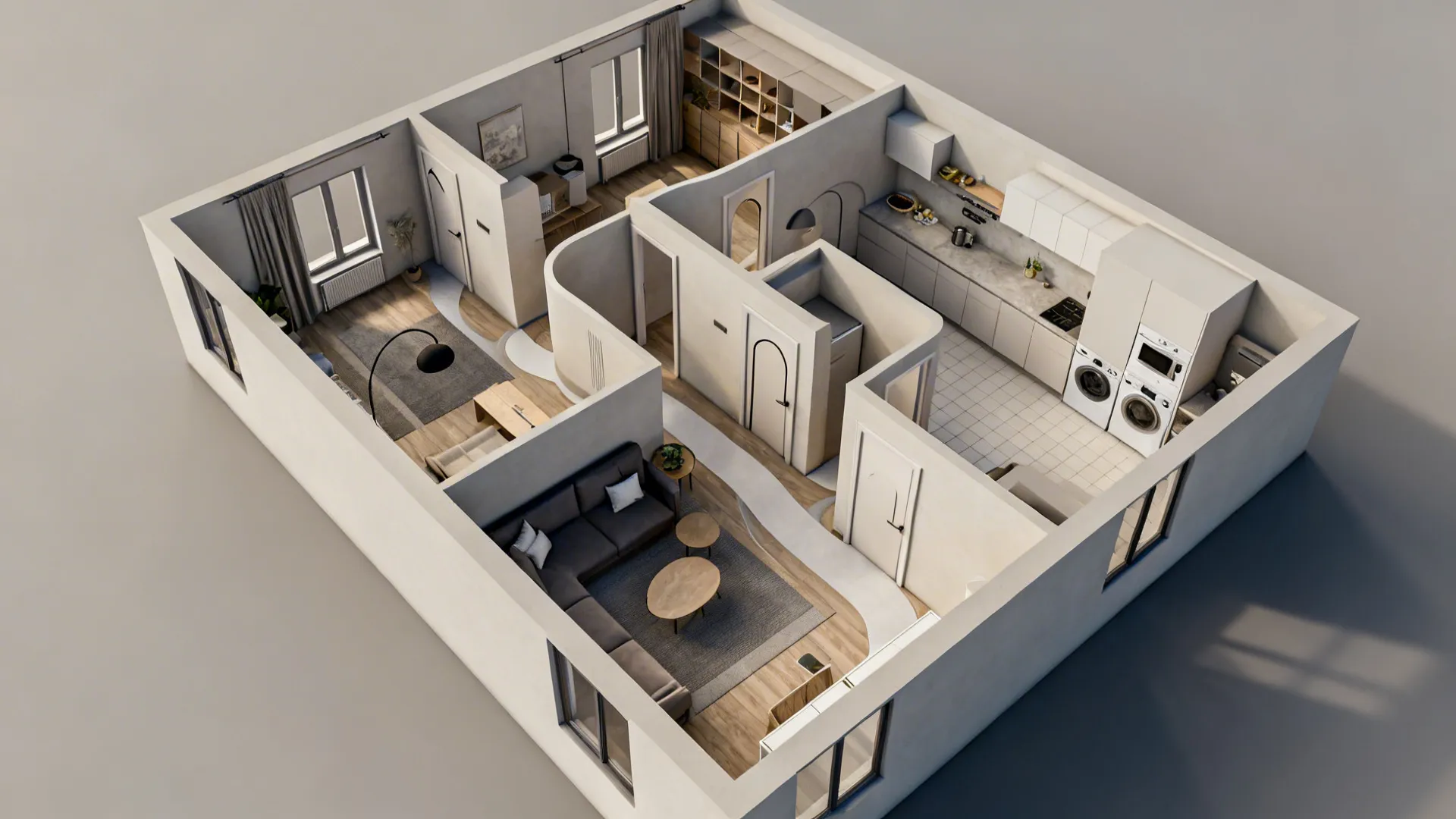

One lesson I repeat: circulation first, furniture second. I draw 900 mm (about 36") clear paths as continuous ribbons, then fit rooms around them. This made a narrow 2-bed feel calm and navigable without widening a single wall.

Pros

Planning hallways and room entries with “36-inch walkway clearance in small homes” keeps flow intuitive and wheelchair-friendly in many cases. Doors that swing away from paths and pocket doors near tight bathrooms can free 0.2–0.4 m²—small but mighty. The International Residential Code and ADA recommendations inform these clearances; using them early stops costly door relocations.

Cons

There’s a point where chasing perfect circulation steals usable area. I joke that a hallway can’t be your biggest room—guard against over-zoning. Pocket doors are pricier and need clean wall cavities; retrofits can be tricky.

Tips / Case / Cost

Draw swing arcs and appliance doors on your plan. If arcs collide, re-think the hinge or swap to a cavity slider. For long runs, I mark a 1000–1200 mm primary path and 800–900 mm secondary paths for realistic movement.

Deep-dive layouts benefit from a modular planning tool: 3D floor plan with accurate clearances.

save pin

L-Shaped Small Kitchen Layout

My Take

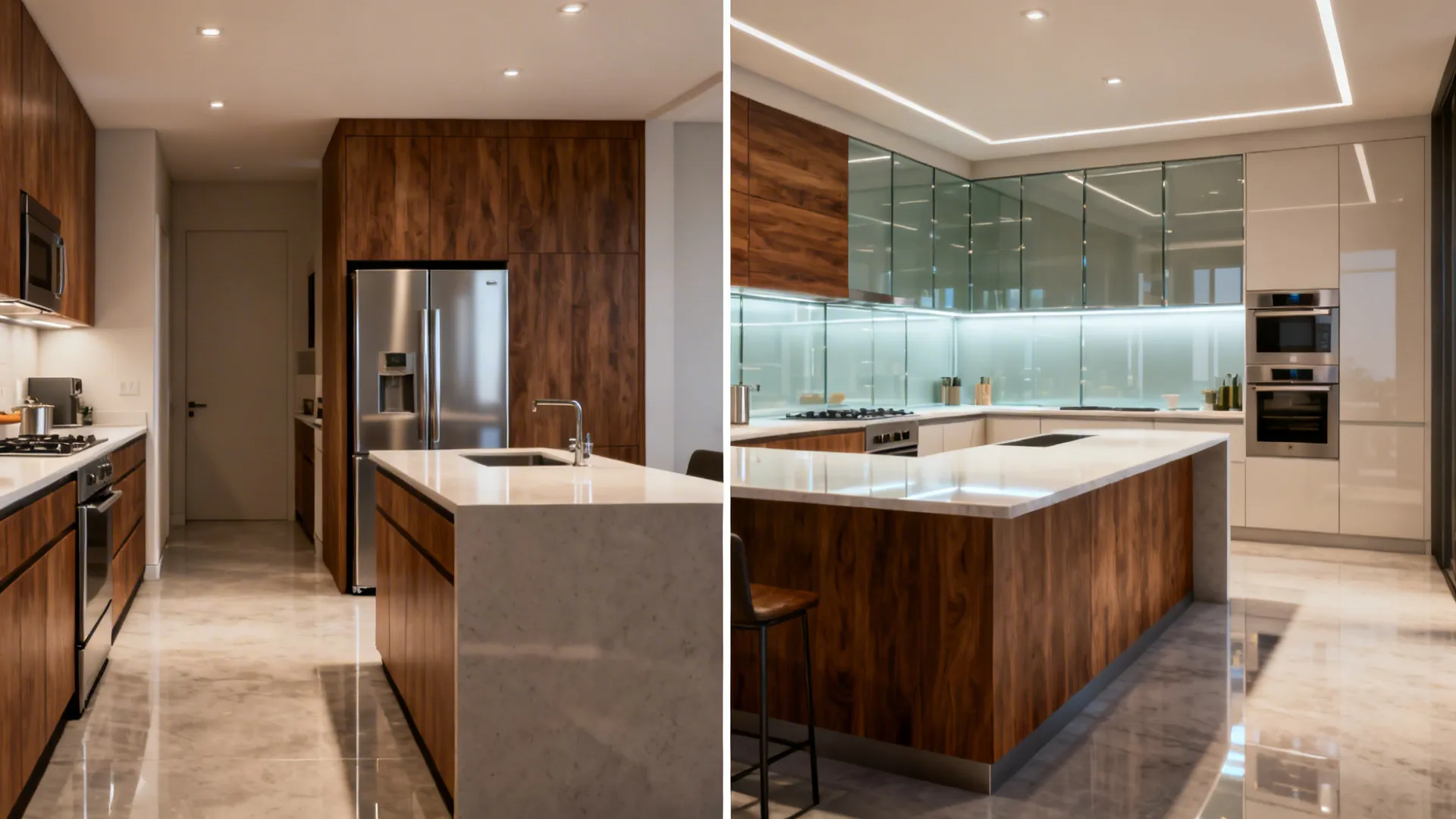

I’ve leaned on L-shaped kitchens in countless compact homes because they unlock corner efficiency and free up a social edge. In my own apartment, shifting to an L gave me 1.2 meters more prep space without expanding the footprint.

Pros

The “L-shaped small kitchen layout for more counter space” concentrates plumbing and power runs while maintaining good workflow distances (1.2–2.7 m between zones). Corner carousels or blind-corner pullouts can reclaim 30–50% of lost storage, and peninsulas create casual dining in micro homes. According to the NKBA, recommended aisle widths (1020–1220 mm) pair well with L shapes for two cooks.

Cons

Corner units can be expensive; a simple open shelf may be more budget-friendly. If the L is too tight, fridge door swings might block the main path—check clearances in your drawing twice.

Tips / Case / Cost

Keep the sink or cooktop off the exact corner to avoid cramped elbows. If budget is tight, use one row of drawers and one row of doors to balance cost and function.

save pin

save pin

Warmth with Wood, Contrast with Color

My Take

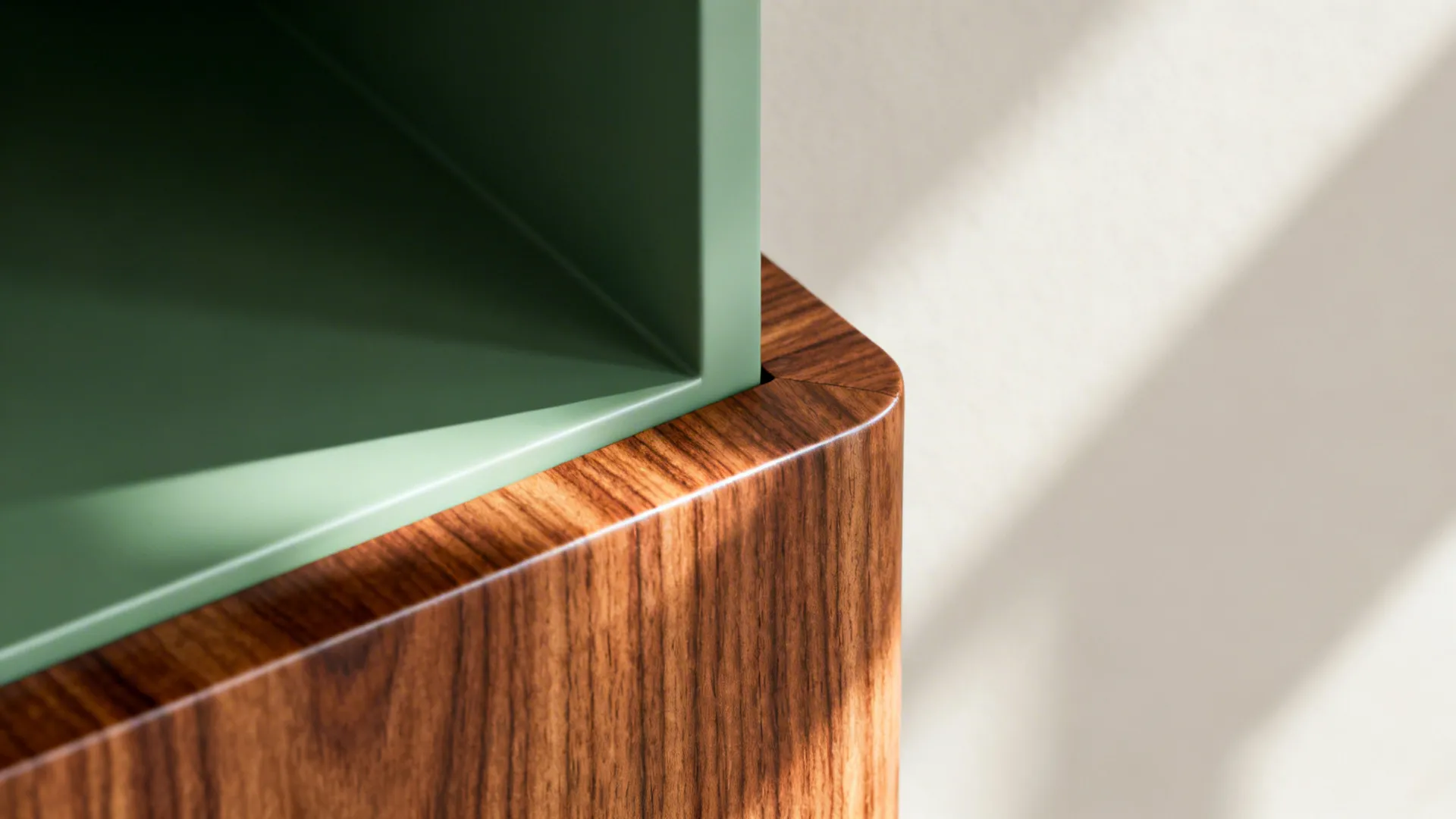

When I sketch a small home, I add wood accents and one contrasting color block to anchor zones without heavy partitions. A walnut shelf under a window can double as a desk and visual divider—drawn right into the plan.

Pros

“Wood elements for a cozy small kitchen” and modest color blocking create hierarchy, so rooms feel intentional, not improvised. In my projects, a single-tone cabinetry run plus a contrasting niche simplifies visual lines, making measured drawings cleaner and more legible. Wood also absorbs some sound in lively open plans.

Cons

Too many species or stains make small rooms look busy. Natural wood near sinks needs finish vigilance; water rings tell no lies.

Tips / Case / Cost

Limit to two wood tones and one accent color. I tag material codes on the plan (e.g., oak veneer, RAL/paint swatch) so procurement stays aligned with the drawing.

For AI-assisted mood and zoning tests right on your plan, try: glass backsplash makes the kitchen feel airier.

[Section: 画法与流程：从草图到定稿] - Start with a bubble diagram: label functions (sleep, cook, eat, work) and connect them with arrows to mark frequency of movement. - Set a scale: 1:50 metric or 1/4"=1'-0" imperial. Measure walls, doors, windows, sill heights, and ceiling drops. Note structural elements early. - Draw fixed points first: plumbing stacks, windows, radiators, electrical risers—these anchor decisions. - Lay out circulation ribbons (primary and secondary). Add door swings and appliance arcs. - Block furniture by footprint, not wish lists. If it doesn’t fit at scale, it doesn’t fit in life. - Layer services: outlets, switches, task lighting, and ventilation runs. Add notes for CFM or duct size where known. - Iterate 2–3 options. I always produce at least two plans: one conservative, one bold. - Sanity-check ergonomics: counter heights (860–920 mm), dining knee space (600 mm depth), bed access (600–760 mm each side), and workstation depth (600–700 mm). [Section: 权威数据与参考] - NKBA Kitchen Planning Guidelines for clearances and workflow efficiencies in small kitchens. - CIBSE Lighting Guides for daylighting strategies and reflective surface planning. - International Residential Code and ADA guidelines for practical path and doorway clearances in compact homes. [Section: 总结] Small kitchens and compact homes don’t limit you; they ask you to design smarter. When you’re learning how to draw rooms in a house, think storage first, see-through where possible, keep circulation honest, lean on the L where it helps, and warm it up with wood and color. Those choices add up to a layout that lives well on paper and even better in person. Which of these five ideas are you most excited to try in your own plan? [Section: FAQ 常见问题] 1) What’s the best scale to draw rooms at home? Use 1:50 (metric) or 1/4"=1'-0" (imperial) for room-level planning. It’s detailed enough for furniture and clearances while staying readable on A3/11x17 paper. 2) How do I start drawing a small kitchen layout? Map appliances and storage first, then add counters and circulation. L-shaped small kitchen layout for more counter space is a strong baseline for tiny homes. 3) How wide should walkways be in compact homes? Aim for 900–1000 mm (36–40") for main paths and 800–900 mm for secondary ones. ADA and IRC-influenced clearances help keep spaces accessible and livable. 4) Where should I place the fridge in an L-shaped plan? Keep it on an end, not the corner, with a clear landing zone. Verify door swing in your scaled drawing so it doesn’t block the path or prep area. 5) What’s a simple way to make small rooms feel larger? Use transparent or translucent dividers and reflective finishes. A glass backsplash for a brighter kitchen can throw light deeper into the plan. 6) Do I need professional software to draw rooms? No, paper and a scale rule work great. If you want 3D checks and quick renders, tools like a 3D floor plan with accurate clearances can speed iterations: https://www.coohom.com/case/3d-floor-planner 7) How do I budget for corner storage in small kitchens? Prioritize essentials: one tall pantry, then a simple corner shelf or a mid-range pullout. Avoid over-customizing corners if it strains the budget. 8) What are must-have dimensions for bedrooms? Plan at least 600–760 mm on each side of a bed for access, 600–700 mm desk depth, and 900 mm for the main circulation path. These basics keep rooms comfortable and functional.
