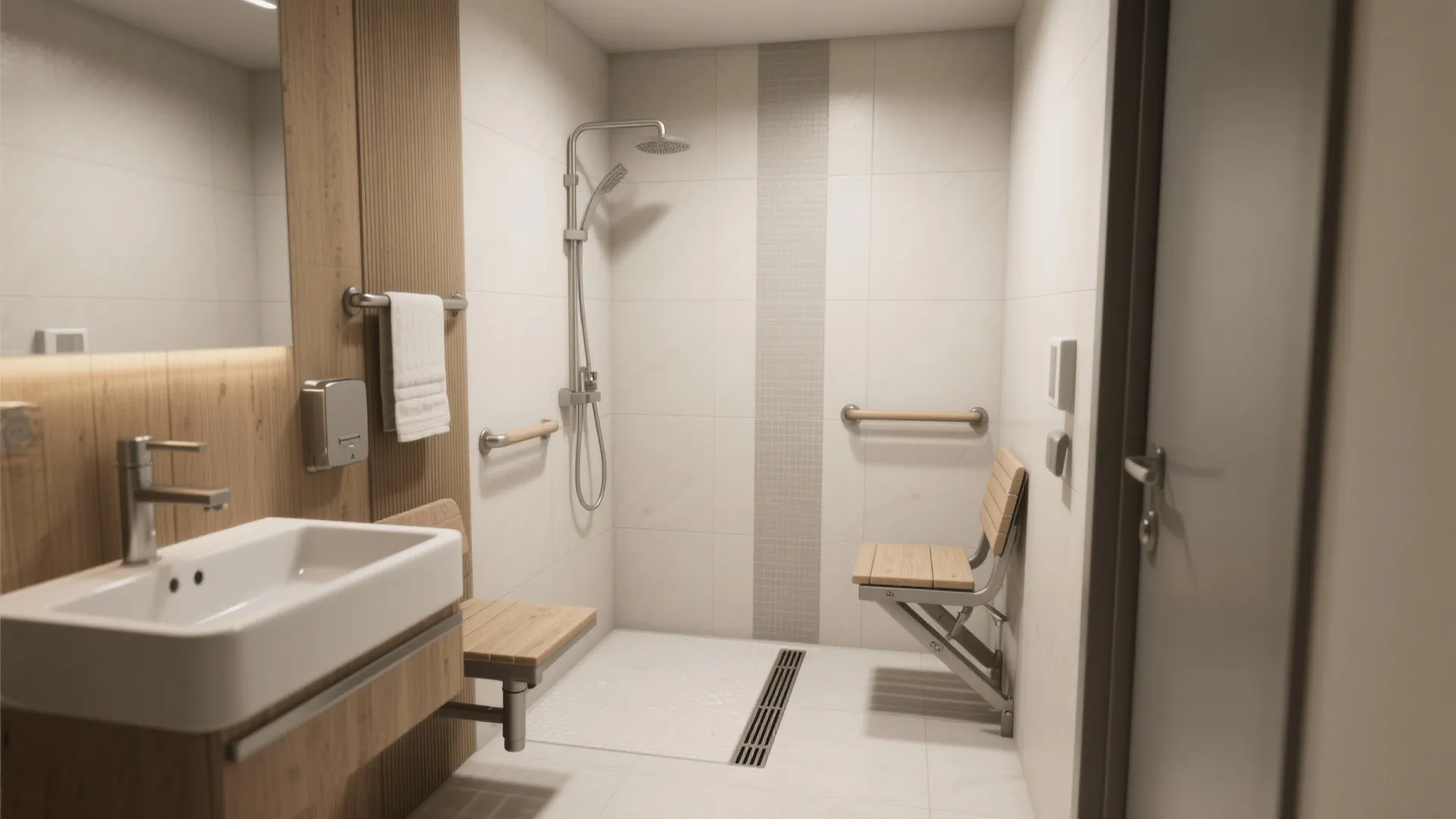

5 Small Wet Room Ideas for Disabled: Designer Tips: A designer’s guide to inclusive, space‑efficient wet rooms that feel safe, calm, and easy to use

Inclusive design has finally become a mainstream trend, and I’m thrilled it’s here to stay. I’ve redesigned dozens of compact wet rooms, and small spaces really do spark big ideas when accessibility is the priority. When I start a plan for small wet room ideas for disabled clients, I usually begin with a level-access shower layout to remove thresholds and simplify movement. In this guide, I’m sharing 5 design inspirations, blending my field experience with expert standards and real-world tips.

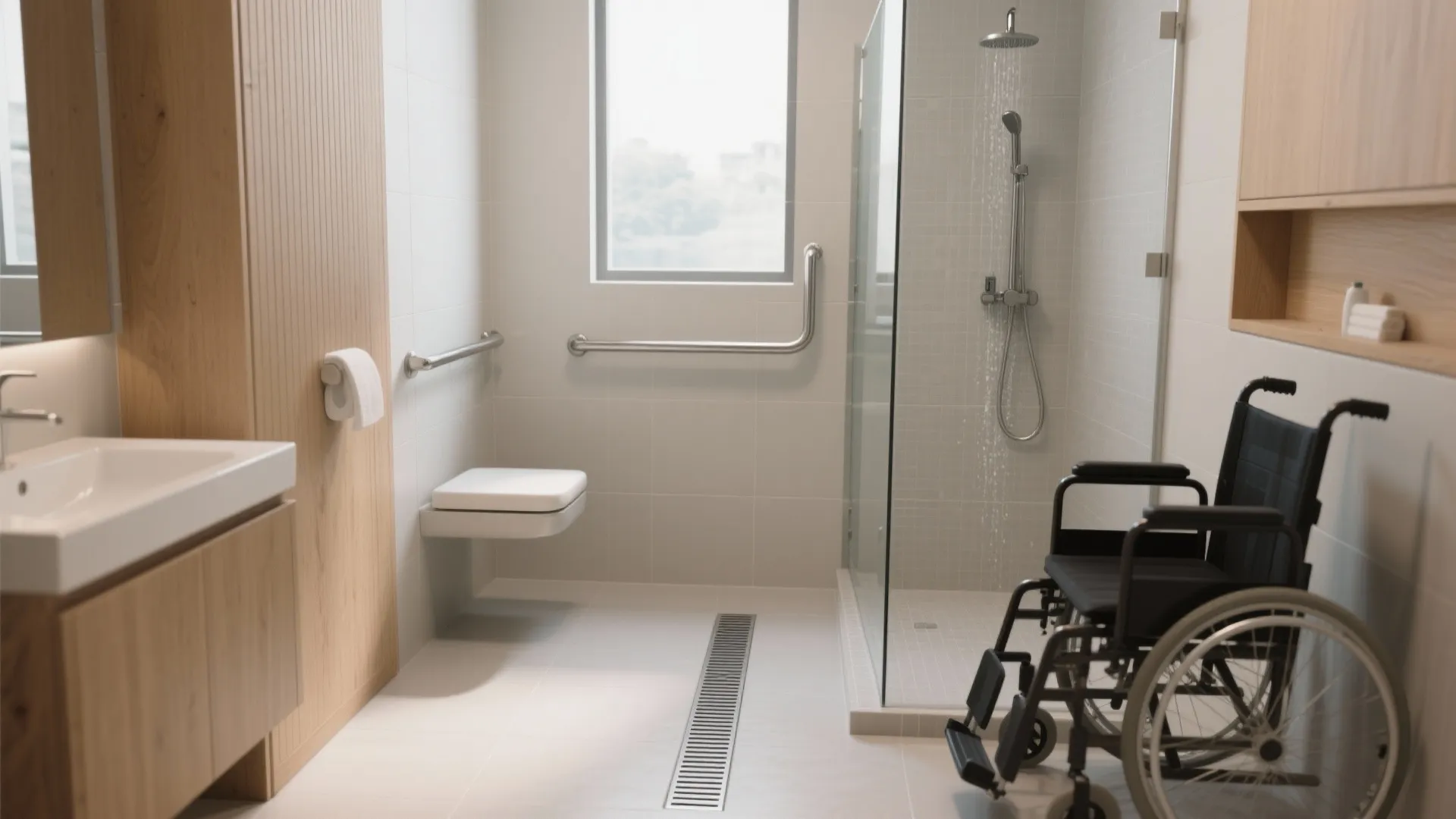

Level-Access Showers with Smart Drainage

My Take: My most successful compact wet rooms began with a level floor—no step, no fuss. In a 4 m² project for a stroke survivor, we used a linear drain against the wall and a gentle floor gradient so the wheelchair felt stable. The whole room could be hosed down, but it still looked like a spa.

Pros: A level-access shower for wheelchair users reduces tripping risks and makes transfers smoother. Linear drains with a 1–2% fall keep water moving without a steep slope; continuous tanking membranes and taped corners deliver leak-free longevity. ADA guidance (2010 Standards, typical floor slope max 1:48) supports gentle gradients that feel secure underfoot.

Cons: Water can wander if the gradient is too shallow, especially in very small rooms. Line drains need regular hair-trap cleaning; skip it and you’ll notice pooling. Fully open showers can feel cooler—add warmth elsewhere.

Tips / Case / Cost: For tiny footprints, place the linear drain along the longest wall, then pitch the floor towards it. A full wet-room tanking kit plus labor can run $1,500–$3,500, depending on substrate and local rates. Seal niches and penetrations thoroughly—weak points love leaks.

save pin

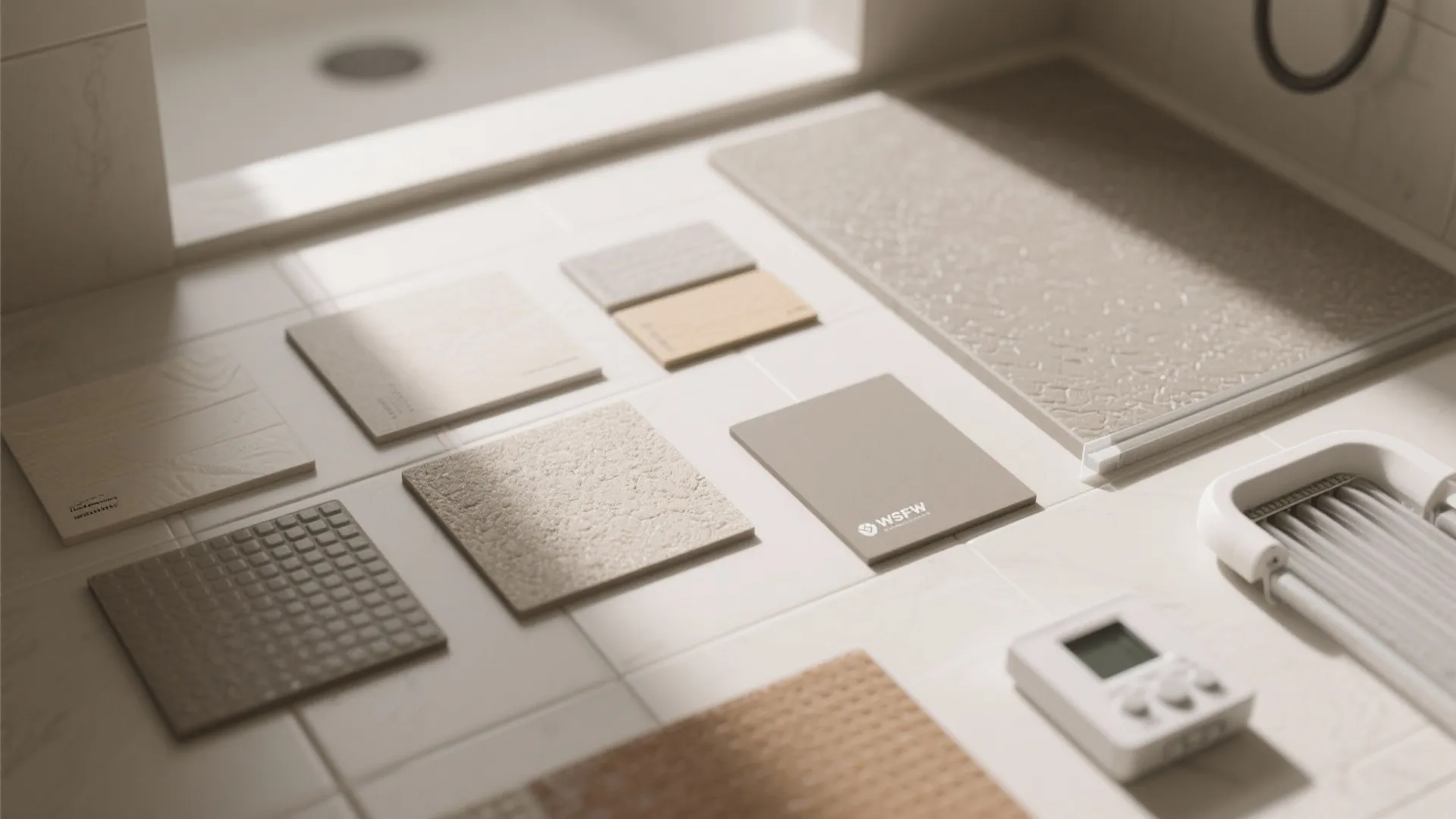

Non-Slip, Warm-to-Touch Surfaces

My Take: Texture matters. I favor matte, non-slip porcelain tiles or safety vinyl because they’re easy to clean and calm underfoot. Where clients fear “cold tiles,” I add radiant underfloor heating set low—comfort without glare or clutter.

Pros: Non-slip flooring for wet rooms with a wet Pendulum Test Value (PTV) ≥36 or an R11 rating offers safer traction; the UK HSE endorses PTV ≥36 for wet areas. Warm-to-touch materials and anti-glare finishes reduce surprises for users with neuropathy or low vision. Epoxy grout and coved skirtings resist moisture ingress and mold.

Cons: Very rough tiles (R12/R13) can feel abrasive on bare skin, especially during transfers. Safety vinyl can scuff if you drag a shower chair; choose a reinforced grade. Underfloor heating adds cost and needs insulation beneath to be efficient.

Tips / Case / Cost: Choose larger tiles with a fine texture to balance grip and cleanability. Radiant heat mats in small wet rooms typically add $400–$900 plus controls. Test a tile sample with wet hands—real grip beats spec sheets.

save pin

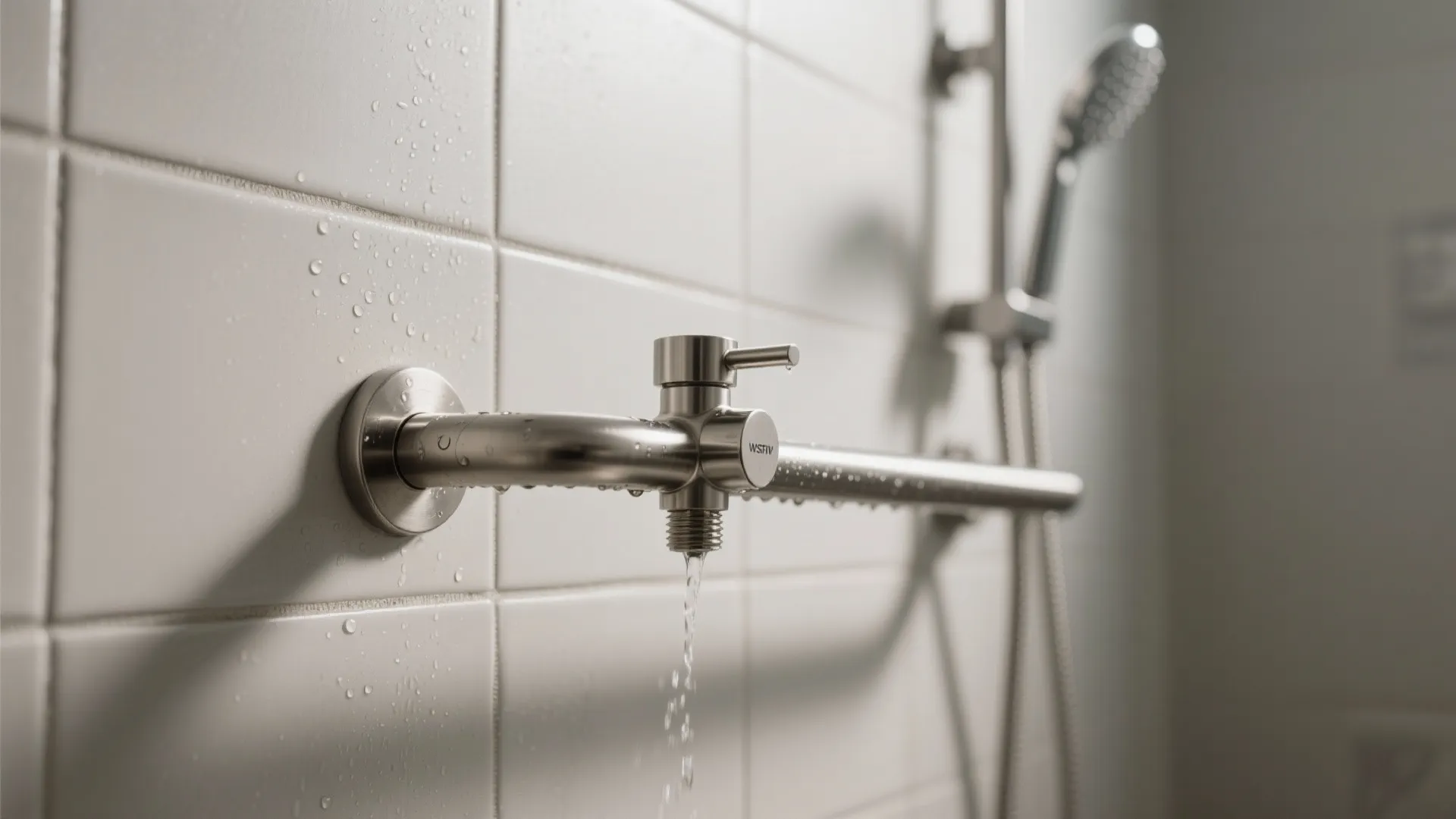

Ergonomic Grab Bars and Adjustable Fixtures

My Take: I’ve seen confidence rise the moment grab bars are placed where a client naturally reaches. I map transfers, then set bars at the right heights and angles—and I often specify fold-down shower seats and thermostatic mixers to prevent sudden temperature changes.

Pros: Per ADA 2010 Standards (Section 609.4), horizontal grab bars should sit 33–36 inches above the finished floor, with anchors rated for at least 250 lbs. Adjustable-height hand showers and a thermostatic mixer valve reduce scald risk and let caregivers assist without contortions. Fold-down seats at 17–19 inches high (ADA 610.3) support safer seated bathing.

Cons: Bars in the wrong place become wall decorations. Over-specifying fixtures can make tight rooms feel crowded—less but better is the rule. Some stainless finishes show water spots; brushed finishes hide them well.

Tips / Case / Cost: Use blocking in walls wherever a bar might be needed—future-proofing is cheap insurance. Quality grab bars range $60–$150 each; fold-down seats often cost $150–$400. Position a vertical assist bar near the shower entry for an extra “first touch.”

save pin

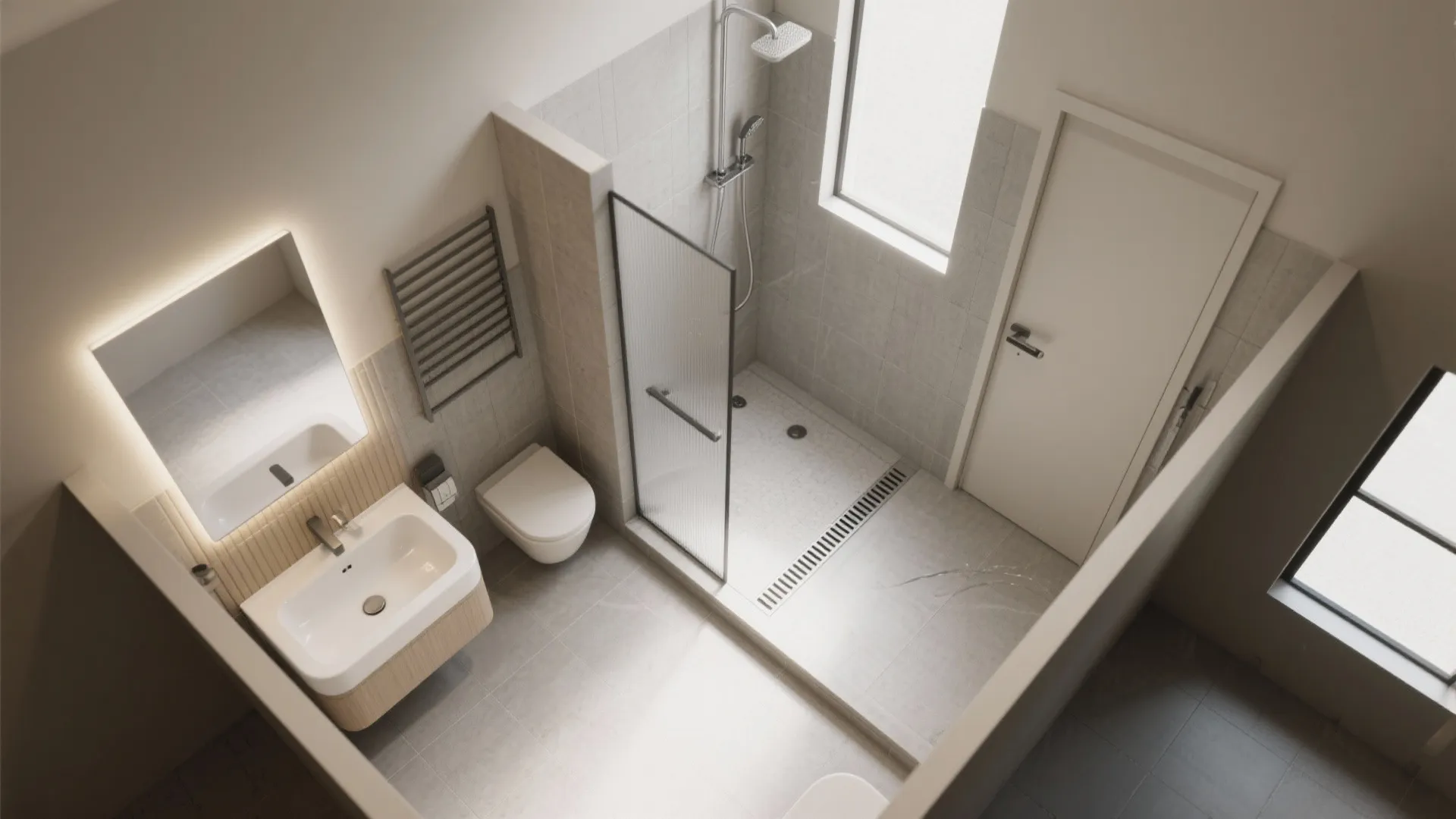

Space-Savvy Layouts: Doors, Basins, and Storage

My Take: Layout is where small rooms win or lose. I’ve had the best results with outward-swinging or pocket doors, wall-hung basins, and slim storage that stays out of circulation zones. L-shaped flow patterns help the room feel bigger than it is.

Pros: Wall-hung basins with knee clearance (27 inches high minimum is a common target) give wheelchair users room to approach. A pocket door frees floor area and avoids door swings colliding with chairs or carers. An wheelchair-friendly turning radius of 60 inches is the gold standard many codes reference, letting users pivot smoothly.

Cons: Pocket doors need robust tracks; cheap ones jam and become a hazard. Wall-hung fixtures demand solid mounting—no drywall-only installs. Overhead storage can be out of reach; keep essentials between 15–48 inches off the floor.

Tips / Case / Cost: In a 3.5 m² retrofit, we used an L-shaped circulation with a wall-hung basin and fold-down seat, keeping a 900 mm clear path. Expect $700–$1,500 for a quality pocket-door system and carpentry. Mark the turning circle in tape during planning—it’s the fastest way to catch conflicts.

save pin

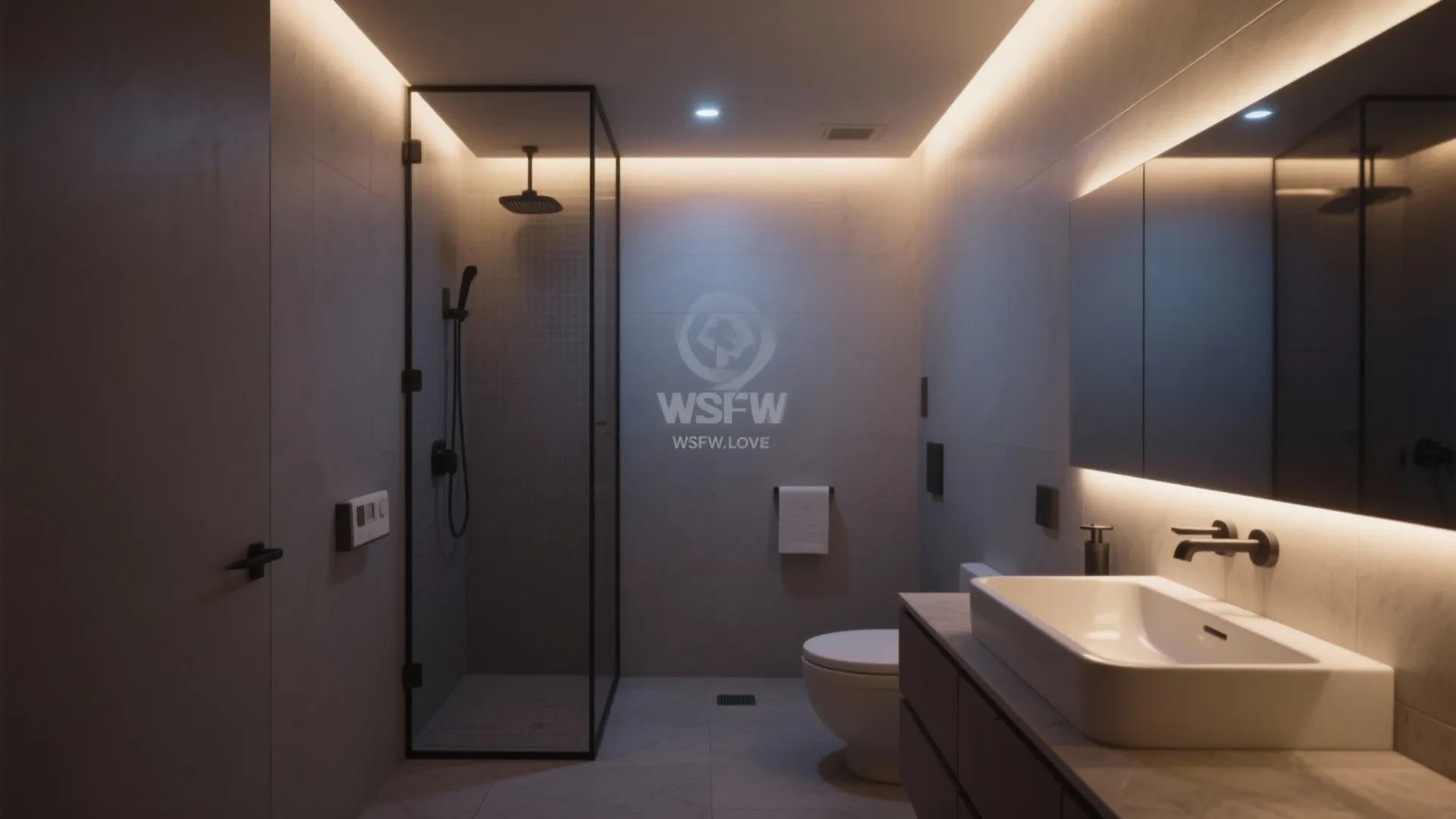

Lighting, Contrast, and Sensory Cues

My Take: Good light calms the brain and clarifies decisions. I layer diffuse lighting with task spots, then use color contrast to highlight edges and controls. In low-vision projects, I add tactile wayfinding so users can navigate by touch.

Pros: High-CRI, low-glare lighting reduces reflections on wet surfaces; motion sensors can trigger gentle night lighting. Strong light–dark contrast between floor, walls, and fixtures improves depth perception—ISO 21542 and BS 8300 emphasize adequate luminance contrast for accessible environments. Clear, tactile controls and anti-scald devices make routines feel safer and simpler.

Cons: Too many sensors can surprise or confuse; keep behavior predictable. Glossy tiles can bloom with glare—stick to satin or matte. High-contrast schemes can feel stark if overdone; balance soothing tones with clear differentiation.

Tips / Case / Cost: Aim for 300–500 lux general lighting with 500–700 lux at the basin. Use warm white (2700–3000K) for evening comfort and neutral white (3500–4000K) for task clarity. I often mock up a 3D render of grab bar positions to validate sightlines and reach before drilling a single hole.

save pin

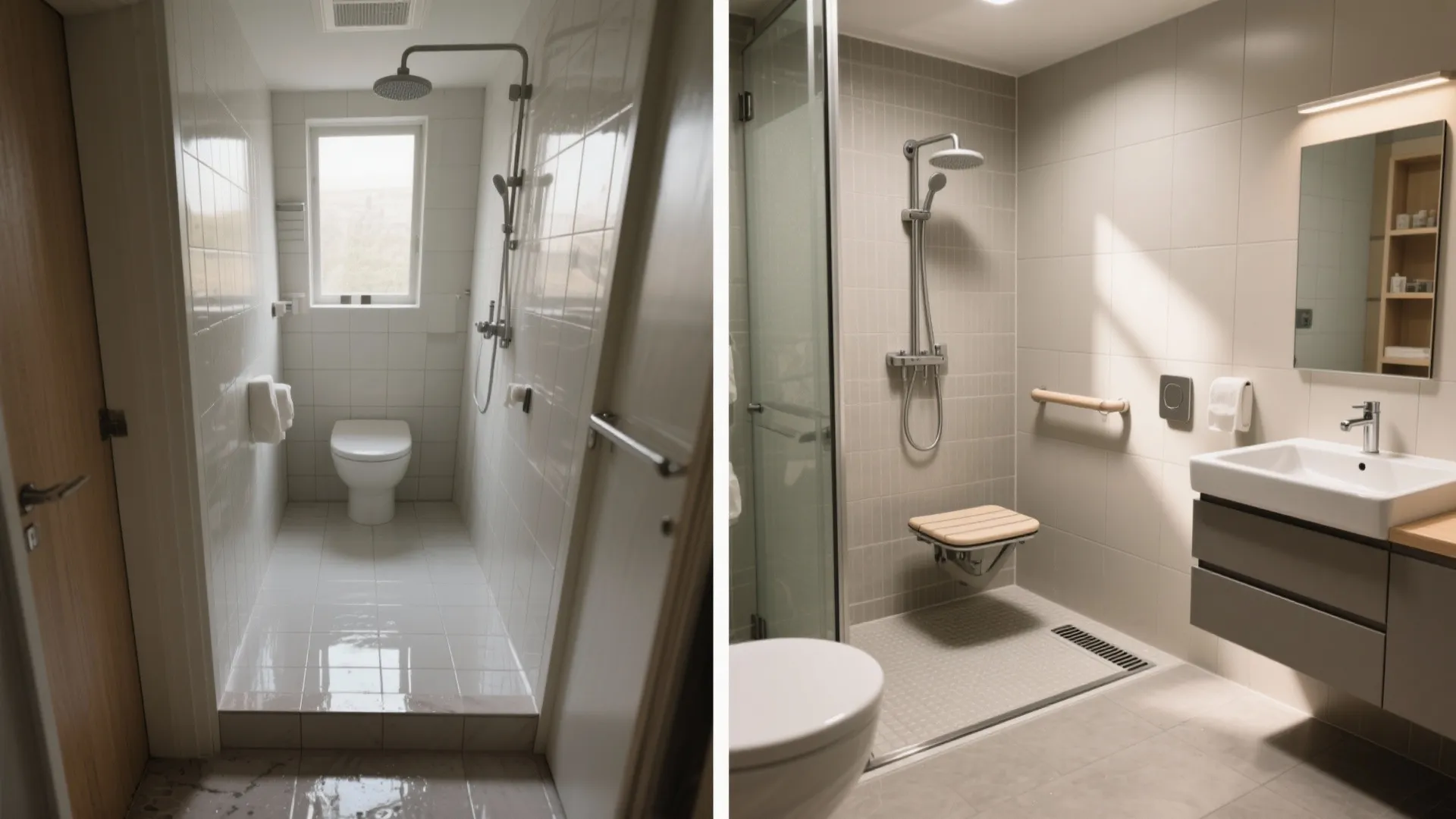

Summary

Small wet room ideas for disabled users aren’t about compromise—they’re about smarter, more thoughtful design. Level floors, non-slip surfaces, ergonomic fixtures, space-savvy layouts, and calm lighting together make a compact room feel supportive and dignified. As ADA and BS 8300 principles show, consistent dimensions and clearances turn good intentions into daily ease. Which idea would you try first in your space?

save pin

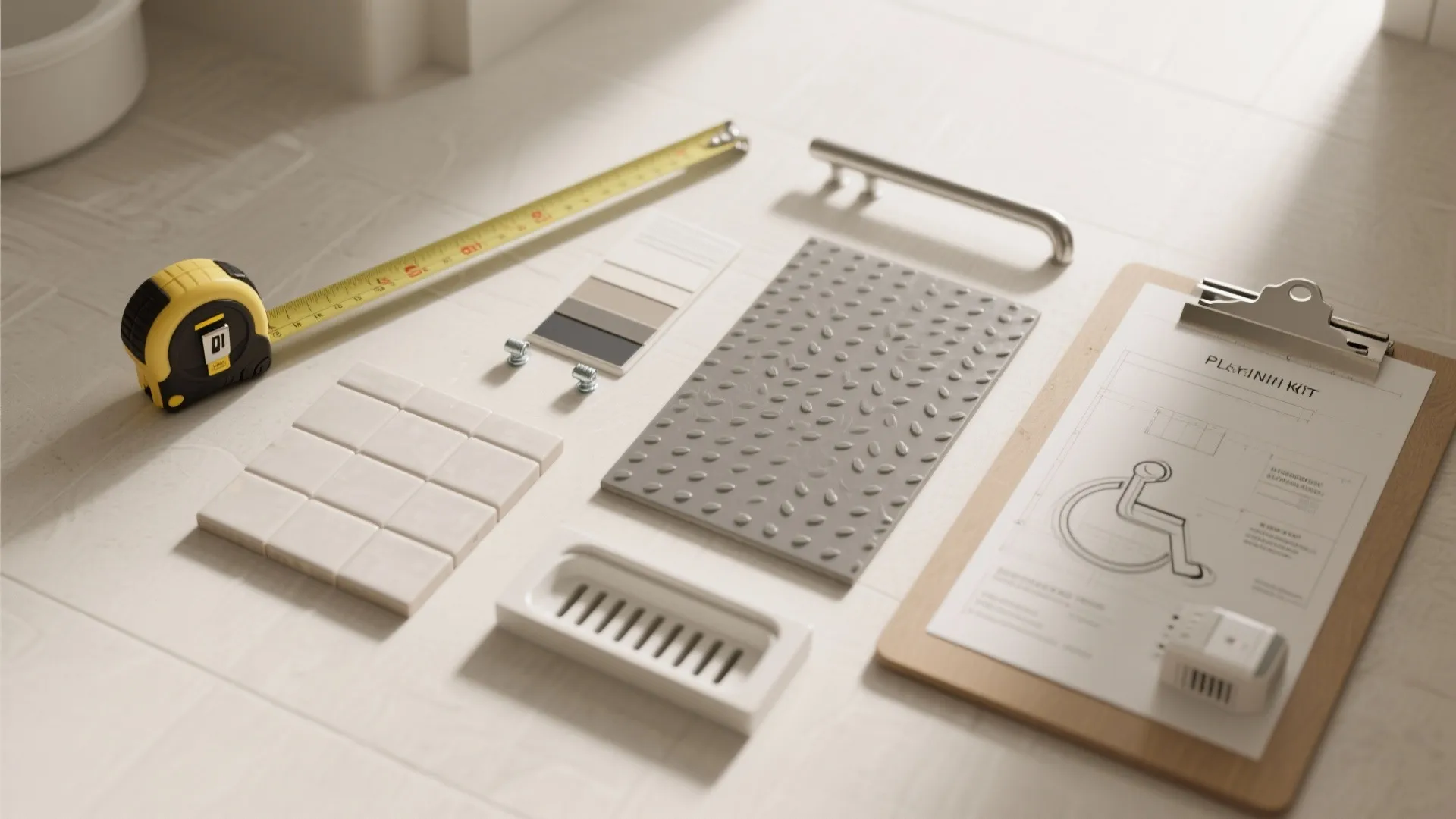

FAQ

1) What counts as a “small wet room” for disabled access? In practice, anything under roughly 4–5 m² starts to feel tight, but smart planning keeps it functional. Small wet room ideas for disabled focus on level-access showers, non-slip flooring, and layouts that maintain clear turning and transfer spaces.

2) What turning space do I need? A 60-inch (1525 mm) turning circle is widely referenced for wheelchair maneuvering in accessible design. ADA 2010 Standards and ICC A117.1 detail 60-inch diameters and 30x48-inch clear floor spaces near fixtures—plan them first.

3) What are the best non-slip floors? Look for wet PTV ≥36 (UK HSE guidance) or an R11 tile rating, plus matte finishes to reduce glare. Safety vinyl with integral cove and welded seams is great in micro-spaces; epoxy grout resists moisture and staining.

4) Do I need a shower seat? A fold-down seat is invaluable for fatigue or balance challenges. ADA suggests 17–19 inches seat height; pair it with a vertical assist bar near the seat edge and an adjustable hand shower within easy reach.

5) Where should grab bars go? Horizontal bars typically sit 33–36 inches above finished floor with strong blocking, and vertical assists near entries help first steps. ADA 2010 Standards (Sections 609 & 610) specify bar heights, loading, and placement—following them avoids guesswork.

6) How do I waterproof a tiny wet room? Use a full tanking system: liquid or sheet membranes, corner tapes, and upstands behind skirtings and thresholds. Pitch the floor gently to a linear drain and seal penetrations for valves and niches meticulously.

7) Are pocket doors suitable? Yes, if you invest in high-quality tracks and maintain a clear opening of at least 32 inches (36 inches preferred). Soft-close hardware and easy-grip pulls help users with limited dexterity or tremors.

8) What budget should I expect? For a small accessible wet room, typical ranges are $8,000–$20,000 depending on waterproofing, finishes, fixtures, and carpentry. Costs drop with simple materials and rise with custom cabinetry, underfloor heat, and premium fittings.
