5 Small Wine Room Designs That Maximize Every Inch: Pro-backed ideas, layouts, and lighting to turn tight footprints into beautiful, climate-stable wine rooms

[Section: 引言]

Small wine room designs are having a real moment, and I love it. In the past few years, I’ve helped clients turn closets, awkward corners, and even stair nooks into rooms that showcase bottles like art. If you’ve ever dreamed of a glass-enclosed wine room but assumed you needed a basement, let me show you how compact spaces can look grand.

I’ve learned that small spaces spark big creativity. Constraints force sharper choices—smarter layouts, better cooling strategies, and lighting that flatters labels rather than fighting them. In this guide, I’ll share 5 design inspirations grounded in real projects and expert data, plus the pitfalls to dodge.

[Section: 灵感列表]

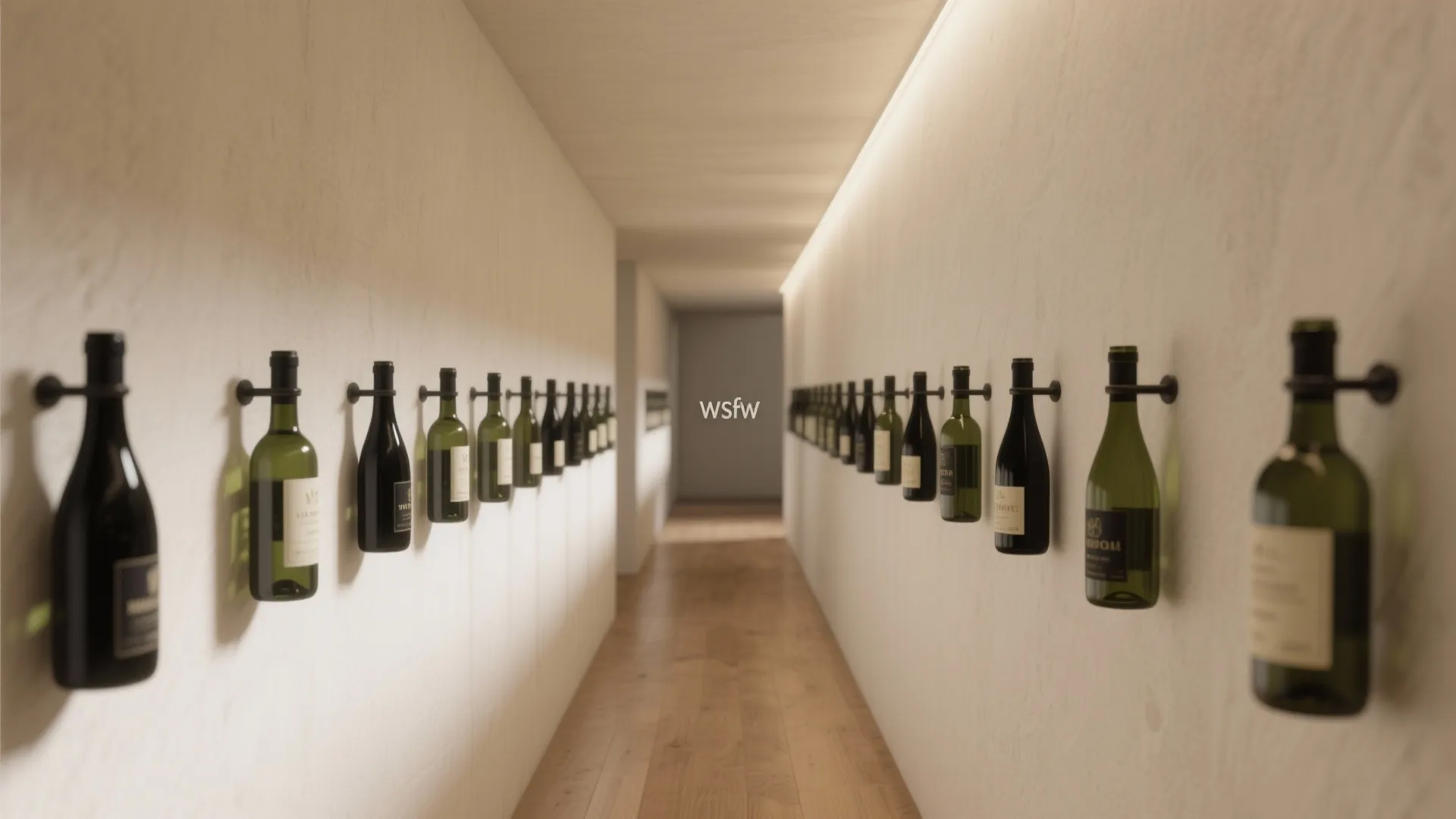

Minimalist Wine Wall Storage

My Take — When I design small wine room designs, a floor-to-ceiling wine wall is often my first move. It reads like an art installation, keeps labels visible, and makes a narrow room feel taller. My favorite build used slim black pegs on a matte plaster wall; the bottles seemed to float.

Pros — Minimalist racking visually reduces bulk and supports compact wine cellar ideas without sacrificing capacity. Open systems with label-forward pegs let you find a specific bottle fast, and they scale well from 50 to 500 bottles. Fewer heavy cabinets also improve air circulation, which helps small wine room cooling stay more even.

Cons — Open racking exposes bottles to more light, so you’ll need low-UV lighting and ideally no direct sun. Dust can collect more easily, which is mildly annoying on a busy weeknight. If you crave a furniture-like look, minimalism may feel a bit too austere.

Tips/Case/Cost — I often recommend powder-coated steel or anodized aluminum pegs for durability. Plan for a 2–3 inch reveal from wall to bottle center to prevent label scuffs. Budget-wise, peg systems start around mid-range pricing but can be more cost-effective than custom millwork, especially in tight footprints.

save pin

The Clarity of a Glass Enclosure

My Take — A glass enclosure is my go-to when clients want the room to feel integrated with living areas. I once enclosed a 3-foot-deep niche between kitchen and dining with low-iron glass; it looked airy, not boxed in. The display became the home’s quiet showpiece.

Pros — Glass makes small wine room designs visually expand, especially with clear corners and minimal hardware. It’s perfect for a glass enclosed wine room off a great room, letting you enjoy the bottles daily. With proper seals and a right-sized cooling unit, you can maintain the 55°F sweet spot and stable humidity in a compact footprint.

Cons — Glass doesn’t insulate as well as framed walls, so you need quality glazing and gaskets. Fingerprints will happen, and I’ve played the role of “designing sommelier” with a microfiber cloth more times than I can count. If your space gets strong sun, you’ll likely need films or strategic shading to protect wine.

Tips/Case/Cost — Use tempered, low-iron glass with tight perimeter seals; swing doors contain the climate better than sliders. For real-world targets, the UC Davis Department of Viticulture & Enology cites ideal storage near 55°F (12–13°C) with relative humidity around 60–70%, which keeps corks healthy and labels flat. Expect higher costs for specialty glass and hardware, but the visual impact justifies it when the wine room lives in a social space.

save pin

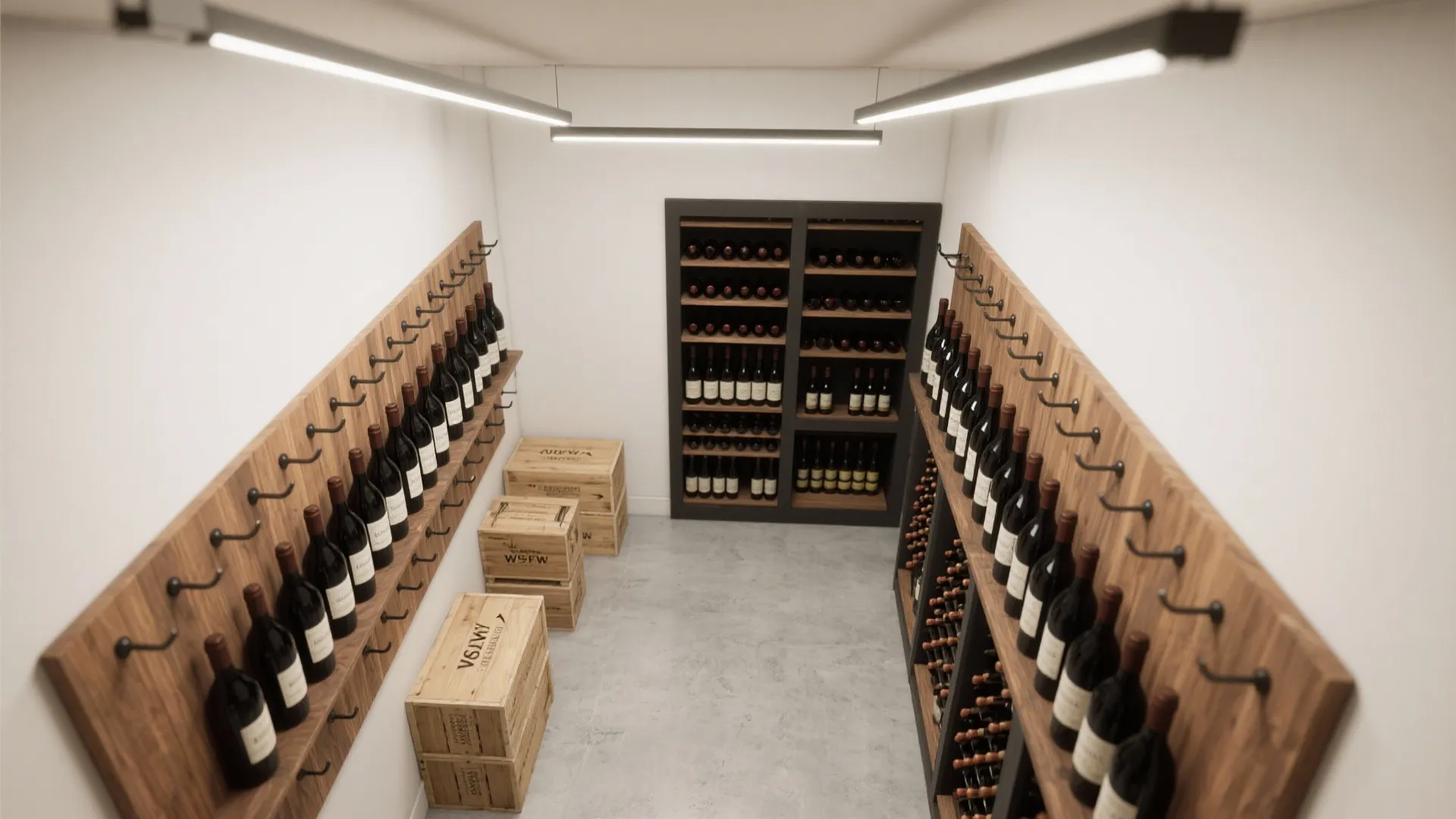

L-Shaped Layout for Micro Cellars

My Take — L-shaped layouts are my secret handshake for irregular rooms. I once wrapped racking around a jogged wall and turned a would-be dead corner into magnum storage. The client joked that it “felt like a boutique store, not a compromise.”

Pros — An L-shaped wine room layout hugs the perimeter, freeing the center for movement while boosting bottle capacity where it counts. Corner turns are perfect for bulk storage or larger formats, key for a small wine room design that still collects Barolo and Champagne. When planned well, you can mix label-forward display on one leg and case storage on the other.

Cons — Corners complicate airflow, so cooling design needs attention to avoid warm pockets. If the legs are too narrow, you might bump shoulders while selecting a bottle—speaking from experience after a celebratory dinner. Lighting lines in corners can show hot spots unless you ceiling-wash or use continuous channels.

Tips/Case/Cost — I like 14–16 inches depth on the “display leg” and slightly deeper on the “storage leg.” Use a continuous ceiling LED channel to smooth corner shadows. If you’re mapping dimensions, an L-shaped layout maximizes bottle capacity when you prioritize label-forward racks within arm reach and reserve corner depths for crates.

save pin

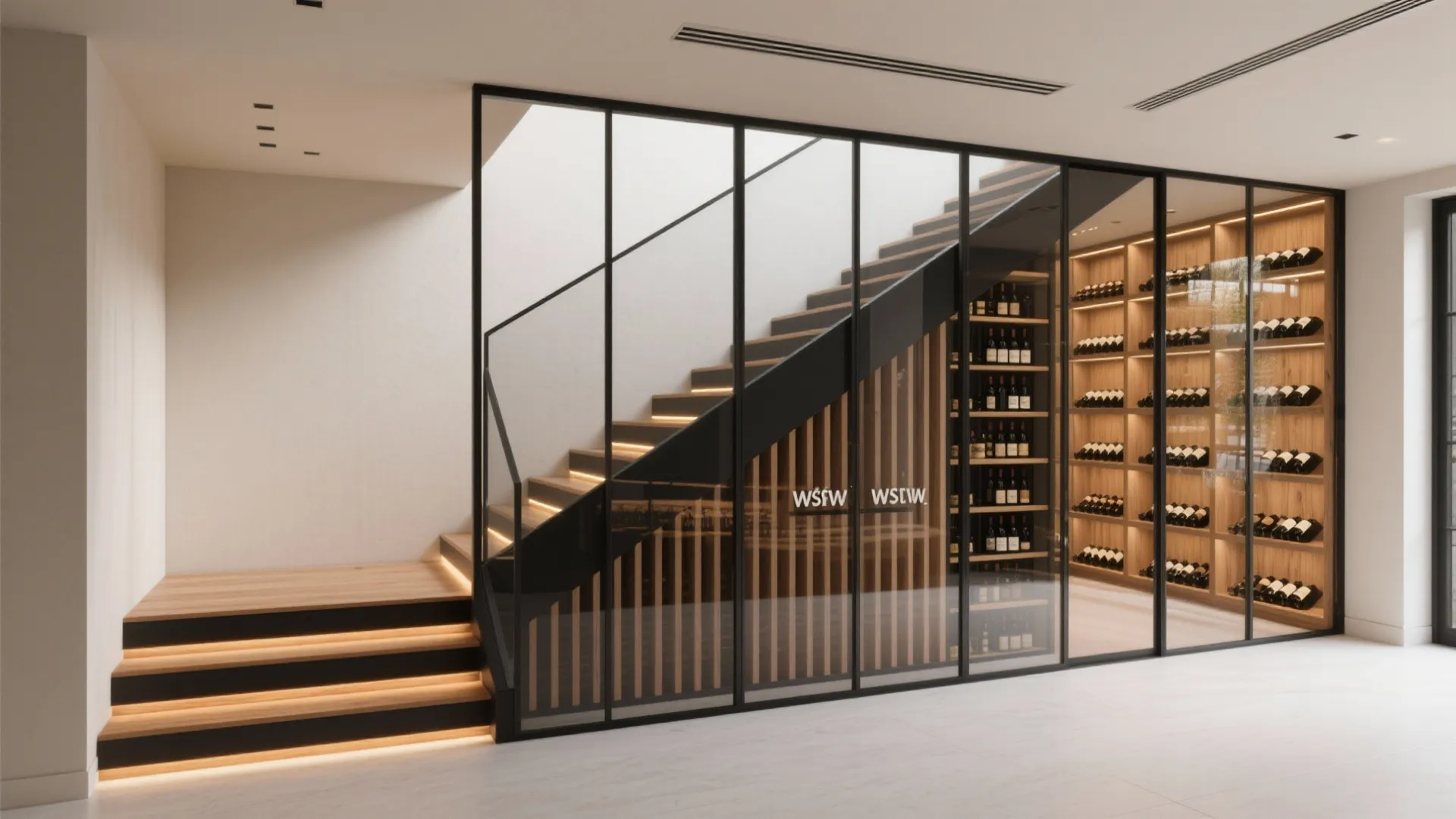

Under-Stairs Niche Wine Room

My Take — The area under a staircase is prime real estate for small wine room designs. I transformed a builder-grade closet into a sloped, glass-fronted cellar that became the foyer’s conversation starter. It’s a lovely “why didn’t we do this earlier?” moment.

Pros — Under-stairs wine cellar design takes an awkward void and turns it into a showcase with real capacity. The sloped ceiling naturally frames illuminated labels, especially when you graze light down from the taller side. It often keeps costs lower because you’re working inside an existing cavity.

Cons — Odd geometry can force custom doors and racks. The stair tread line may transmit noise, so quiet cooling matters. If you have open risers, you’ll need careful light control and a good vapor barrier to protect wine from heat swings.

Tips/Case/Cost — I recommend a split-system or well-insulated self-contained unit sized for the actual cubic footage, not the floor area. For humidity stability, follow guidance similar to museum microclimates in the ASHRAE Handbook—consistent temperature changes are more important to avoid than absolute precision. Expect carpentry and glazing to be the bigger budget items, especially for custom angles.

save pin

The Warmth of Wood and Soft Lighting

My Take — Wood plus dimmable lighting is the soul of a cozy cellar. One of my favorite rooms used rift-sawn white oak slats with warm LEDs, and the labels glowed like a quiet gallery. Guests wandered in and lingered, which is exactly the vibe you want.

Pros — Wood tones soften the clinical feel that compact wine cellar ideas can sometimes have. Oak, walnut, or even thermally modified ash offer durability with elegant grain that plays beautifully with brass or black metal. Layered light—ceiling wash, shelf accents, and toe-kick glow—flatters labels without blasting UV or heat.

Cons — Solid hardwood racks cost more and require acclimation in climate-controlled rooms. Very dark stains can hide dust but also make the space feel smaller if overused. And yes, you’ll compare board samples by the dozen before landing on that perfect hue—occupational hazard.

Tips/Case/Cost — I aim for 2700–3000K LEDs with high CRI for true label color. Pre-finish panels and seal end grains to avoid humidity warping. For a crafted look without full millwork, consider slatted back panels behind pegs; the pattern creates shadow lines that feel bespoke. If you want to visualize finishes before you commit, a 3D visualization of warm oak slats with LED grazing helps fine-tune tone and brightness before installation.

[Section: 设计要点与专业建议]

Cooling and Humidity — For small wine room designs, right-sizing the cooling unit is essential. Oversized systems short-cycle and fluctuate humidity, which dries corks; undersized systems never reach target temperatures. I aim for 55°F and about 60–70% RH, checking that insulation and a continuous vapor barrier are in place to avoid condensation inside walls.

Light Control — Labels and corks like low UV. I specify LED fixtures with tight beam spreads, indirect cove runs for ambient light, and minimal heat. When a room adjoins glazing, film or shades can mitigate solar gain without killing the view.

Materials and Finishes — Avoid porous paints inside the envelope. I prefer moisture-resistant paint, closed-cell foam or rigid insulation where code allows, and stable woods. Metal pegs with nylon bushings prevent bottle scuffs and reduce vibration transfer.

Accessibility — Even in tight rooms, plan a 30–36 inch clear aisle where possible and a turn radius near the door. Place prized wines between waist and eye level to avoid awkward reaches. Label-forward displays not only look great but also streamline selection during dinners.

Budget and Phasing — Start with the envelope (air seal, insulation, vapor barrier), then cooling, then racking and lighting. If budget dictates, use a mix of premium display zones and simpler bulk storage elsewhere. I’ve phased builds in two stages successfully: climate + racks first, then glass and lighting upgrades later.

[Section: 小结]

Small kitchens taught me a lesson that applies here: constraints make us design smarter. Small wine room designs don’t limit you; they nudge you toward clarity—better envelopes, tighter layouts, and lighting that celebrates the bottle. As UC Davis notes for wine storage, stable temperature and moderate humidity protect both corks and character, and those fundamentals are even more achievable in compact rooms where the environment is easier to control.

I’m curious—of the five ideas above, which one would you try first in your home? The minimalist wine wall? The under-stairs niche? Or would you champion that glowing glass enclosure?

[Section: FAQ 常见问题]

save pin

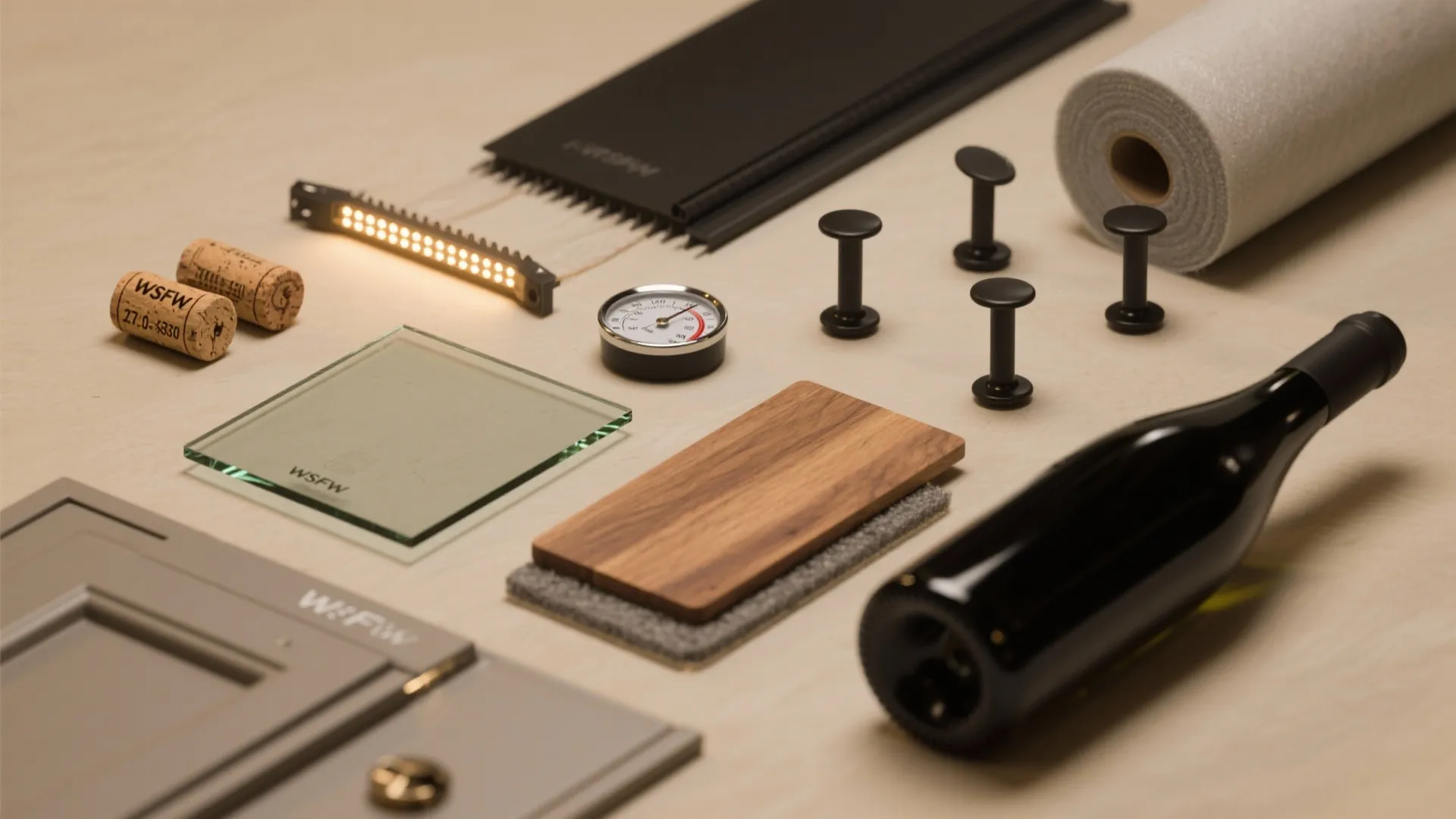

FAQ

Q1: What is the ideal temperature and humidity for a small wine room? A: Aim for around 55°F (12–13°C) and 60–70% relative humidity. These targets help keep corks elastic and flavors intact, which is standard guidance in enology education (e.g., UC Davis).

Q2: Can I build a small wine room without a basement? A: Yes. Many small wine room designs live under stairs, in hall niches, or off the dining room. Focus on insulation, vapor barrier, and a properly sized cooling unit to keep conditions steady.

Q3: How many bottles can a tiny wine room hold? A: In a 3-by-6-foot footprint, I often get 250–400 bottles depending on racking style. Label-forward systems hold fewer per square foot than high-density cubbies, but they look stunning and are easier to navigate.

Q4: Is a glass-enclosed wine room bad for insulation? A: Glass insulates less than framed walls, but with quality glazing, tight seals, and correct cooling, you can maintain the same 55°F target. Use low-iron tempered glass and consider door sweeps and perimeter gaskets.

Q5: Do I need a vapor barrier in a small cellar? A: Yes. A continuous interior-side vapor barrier helps prevent warm, moist air from condensing in the wall assembly. Pair it with closed-cell foam or rigid insulation, and seal penetrations carefully.

Q6: What lighting is best for a compact wine room? A: Warm, high-CRI LEDs (around 2700–3000K) with dimming. Combine indirect washes with subtle shelf accents to avoid hotspots and UV exposure while keeping labels readable.

Q7: Which layout works best for awkward spaces? A: L-shaped and wrap-around perimeters are excellent for irregular rooms. They balance circulation with capacity, and you can dedicate corners to bulk storage or magnums.

Q8: How much should I budget? A: Costs vary widely by glazing, millwork, and cooling. For a modest glass-fronted niche with peg racking and a self-contained unit, many of my clients invest in a mid-to-high four-figure range; custom millwork and specialty glass can push it higher.
