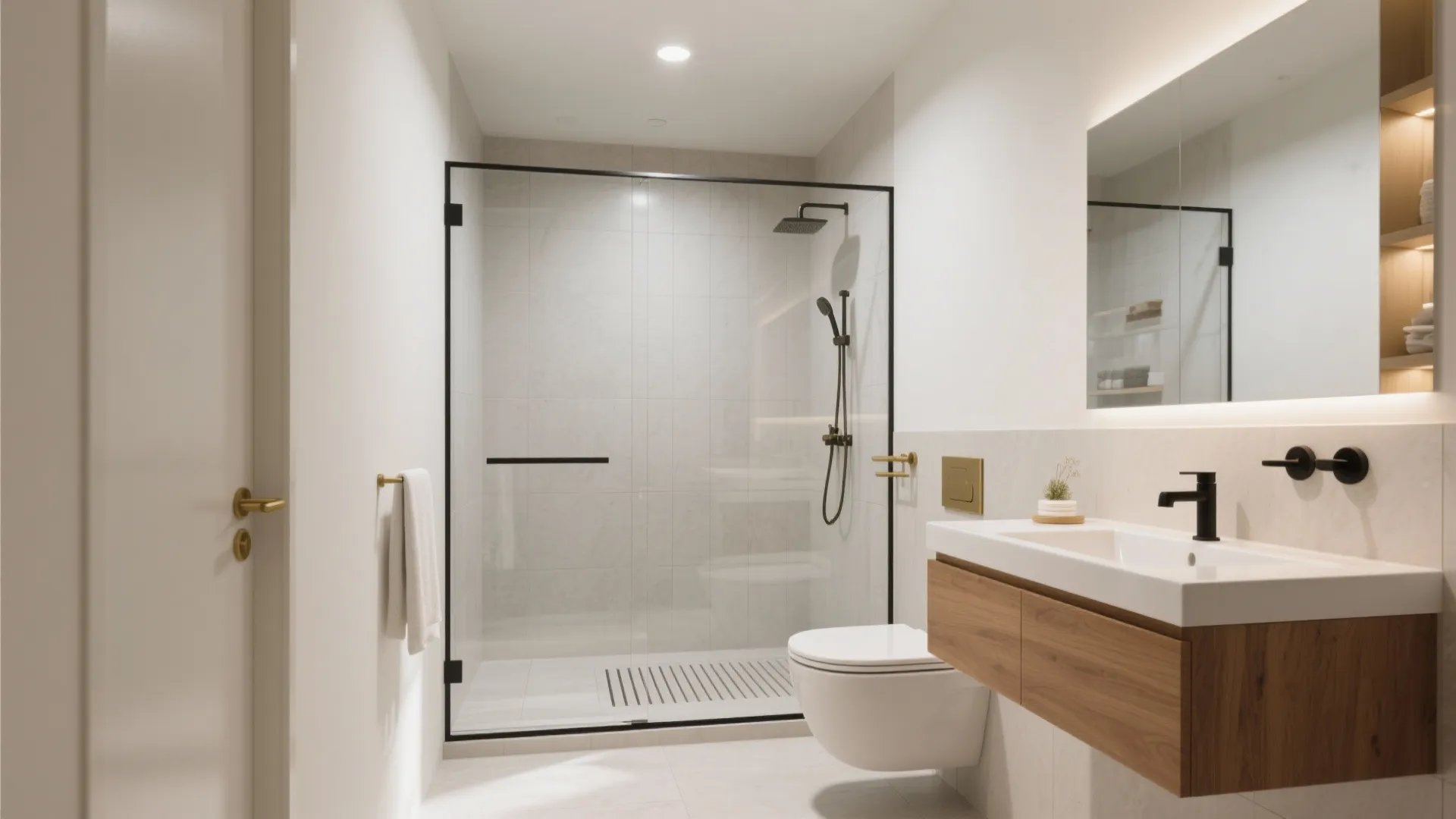

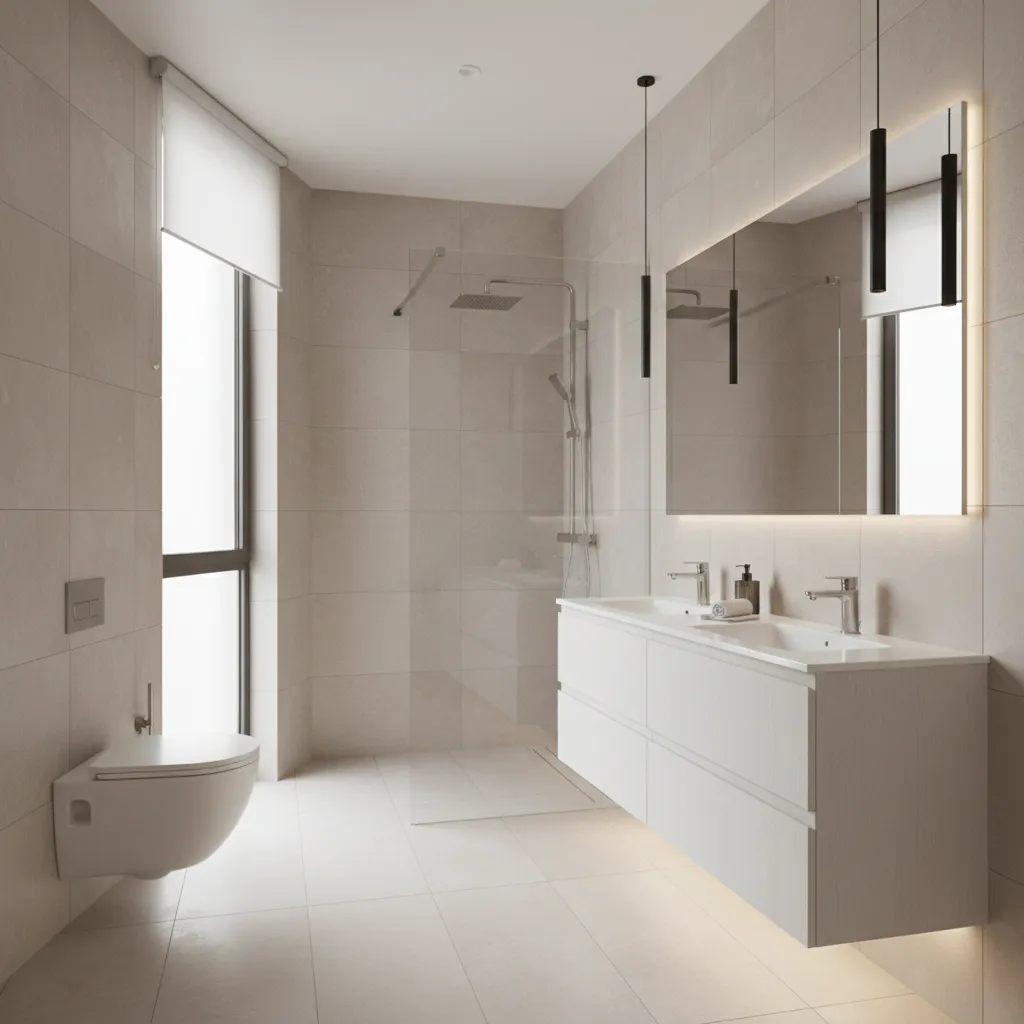

5 Smart 5 by 7 Bathroom Design Ideas: How I stretch comfort, style, and storage in a compact 5x7 bath

[Section: 引言]

Small bathrooms are having a moment. From warm minimal palettes to frameless showers and slim, wall-mounted fixtures, today’s interiors celebrate clean lines and calming function. As a designer who’s renovated more 5 by 7 bathroom design projects than I can count, I’ve learned that tight footprints unlock bold, clever ideas.

In fact, small spaces demand clarity. Good circulation, layered lighting, and materials that bounce light can make 35 square feet feel surprisingly serene. I’ve also found that small budgets go further if we focus on big-impact moves—think glass, mirrors, and smart storage—rather than chasing every trend.

In this guide, I’ll share 5 design inspirations for a 5 by 7 bathroom design, blending my field notes with expert data. My goal is to help you see constraints as creative fuel. Let’s turn that compact bath into your favorite room.

[Section: 灵感列表]

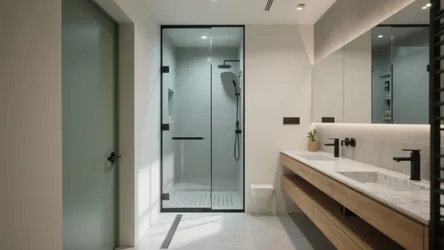

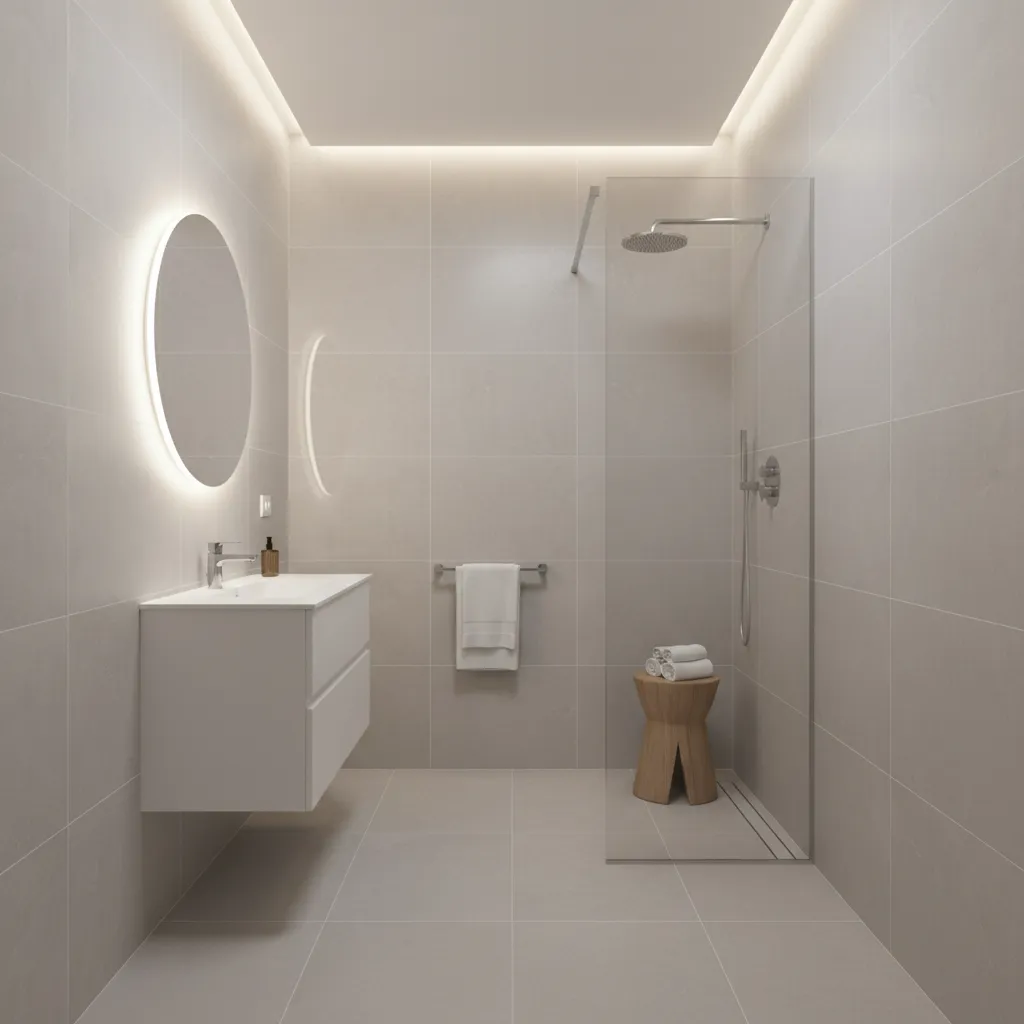

Clear Glass Shower and Seamless Surfaces

My Take

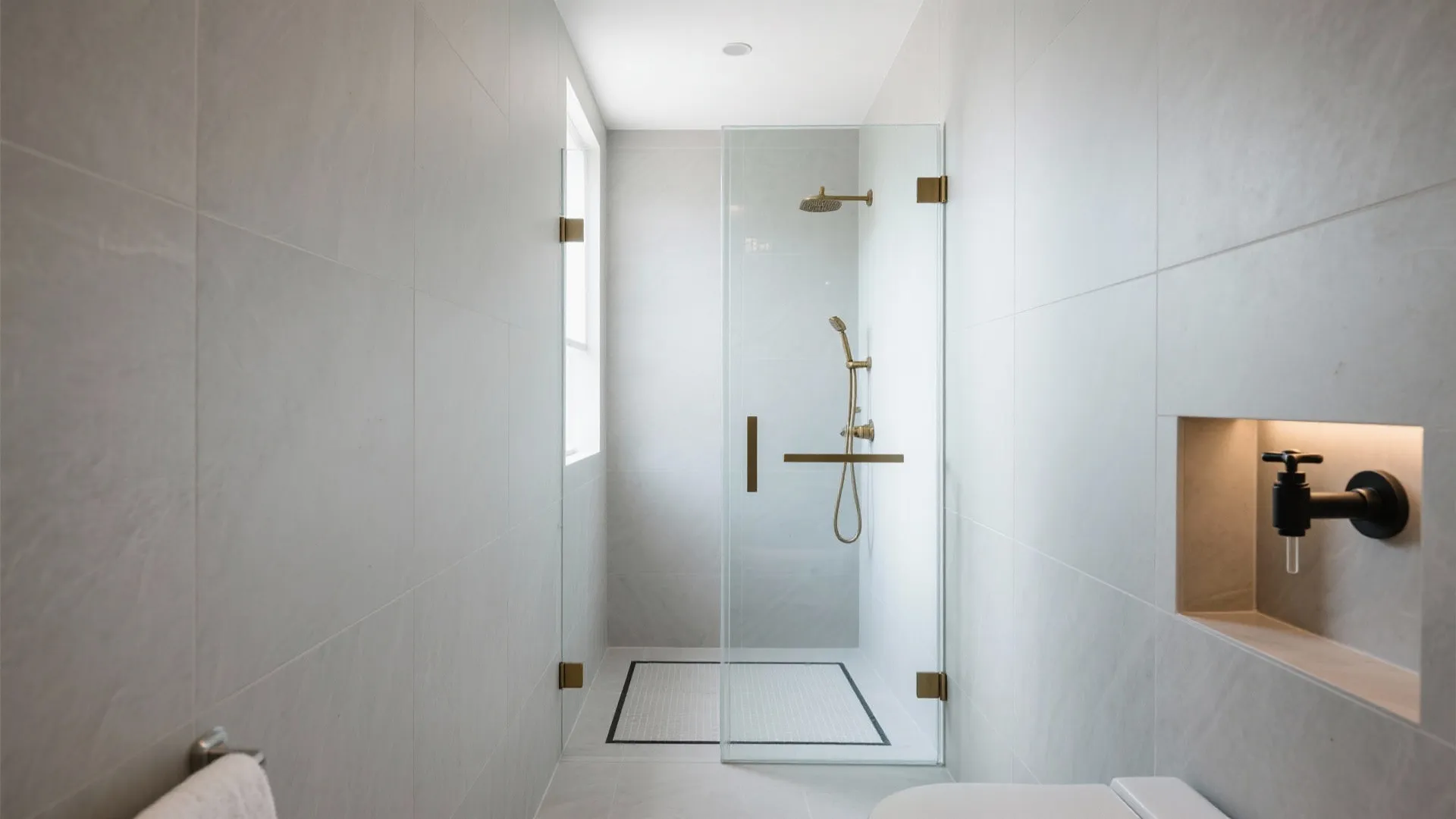

I still remember a city loft where the 5x7 bath felt like a tunnel. We swapped a heavy shower curtain for frameless glass, ran the same large-format tile from floor to walls, and suddenly the room felt a foot wider. The client joked it looked like the bathroom lost weight.

Pros

Frameless glass and continuous materials create sightlines that visually stretch a 5 by 7 bathroom layout. Large-format porcelain (24x48 or 30x30) reduces grout lines and keeps the eye moving, which is huge in a 5x7 bathroom with shower. A curbless entry with a linear drain adds an unbroken plane—less trip hazard, more spa.

According to the NKBA Bathroom Planning Guidelines, keeping at least 30 inches of front clearance at fixtures improves usability and safety; a clear glass shower helps preserve that visual and physical openness. Pair that with a matte or honed finish to reduce glare while still reflecting light.

Cons

Frameless glass isn’t shy about water spots, so soft water or a quick squeegee habit helps. Curbless showers need proper slope and waterproofing; skimping there is a costly mistake. Large-format tile also requires a competent installer for flatness and clean cuts.

Tips / Case / Cost

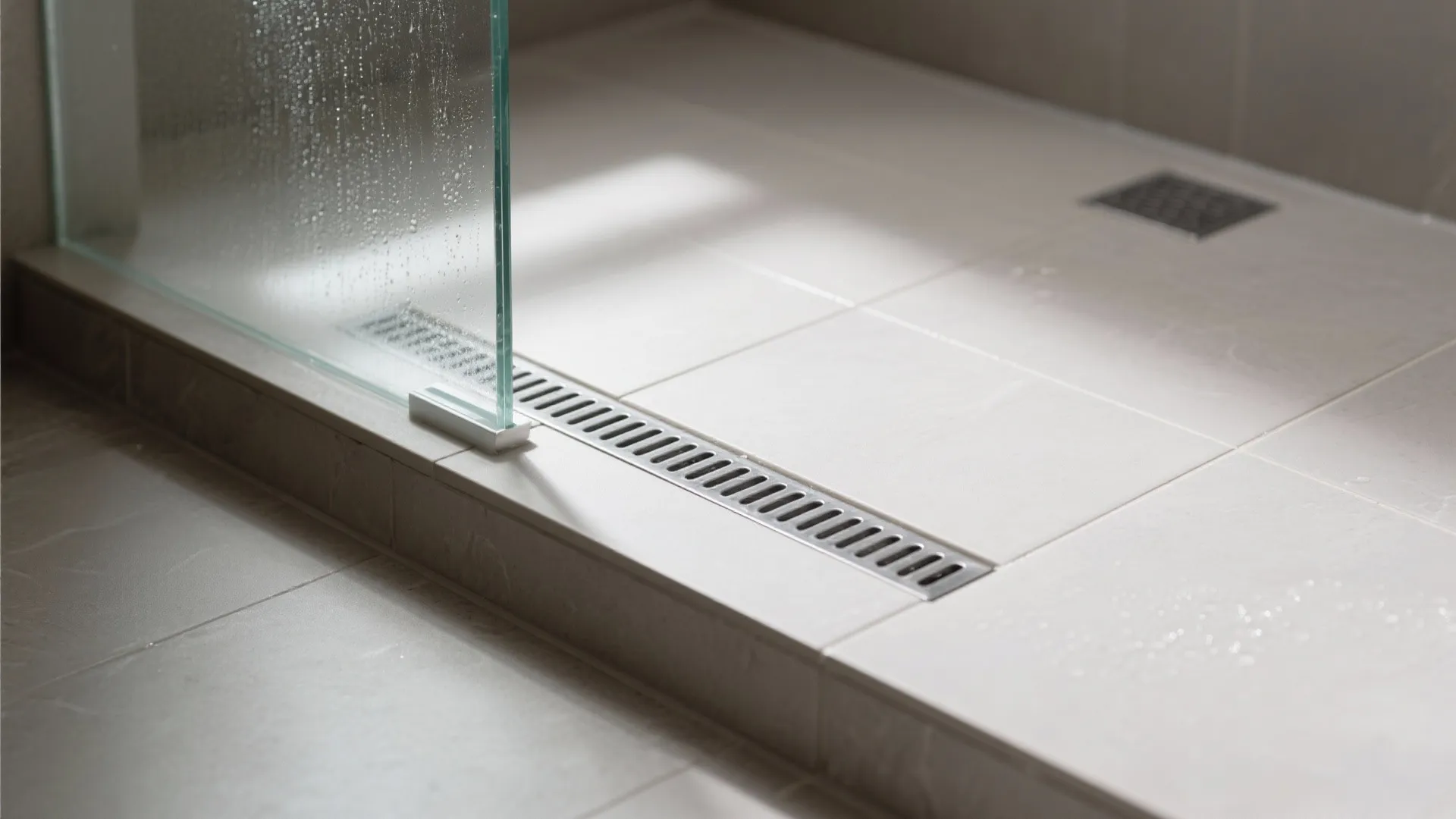

Budget $1,200–$2,500 for a quality frameless shower panel and hardware; add $500–$1,500 for a linear drain and prep. If curbless isn’t feasible, keep the curb low and match the curb tile to the floor to maintain flow. Mirrored medicine cabinets amplify light without crowding.

For clients who are visual thinkers, I often suggest exploring a clear glass shower to expand the room virtually to see how light and sightlines change before demolition.

save pin

save pin

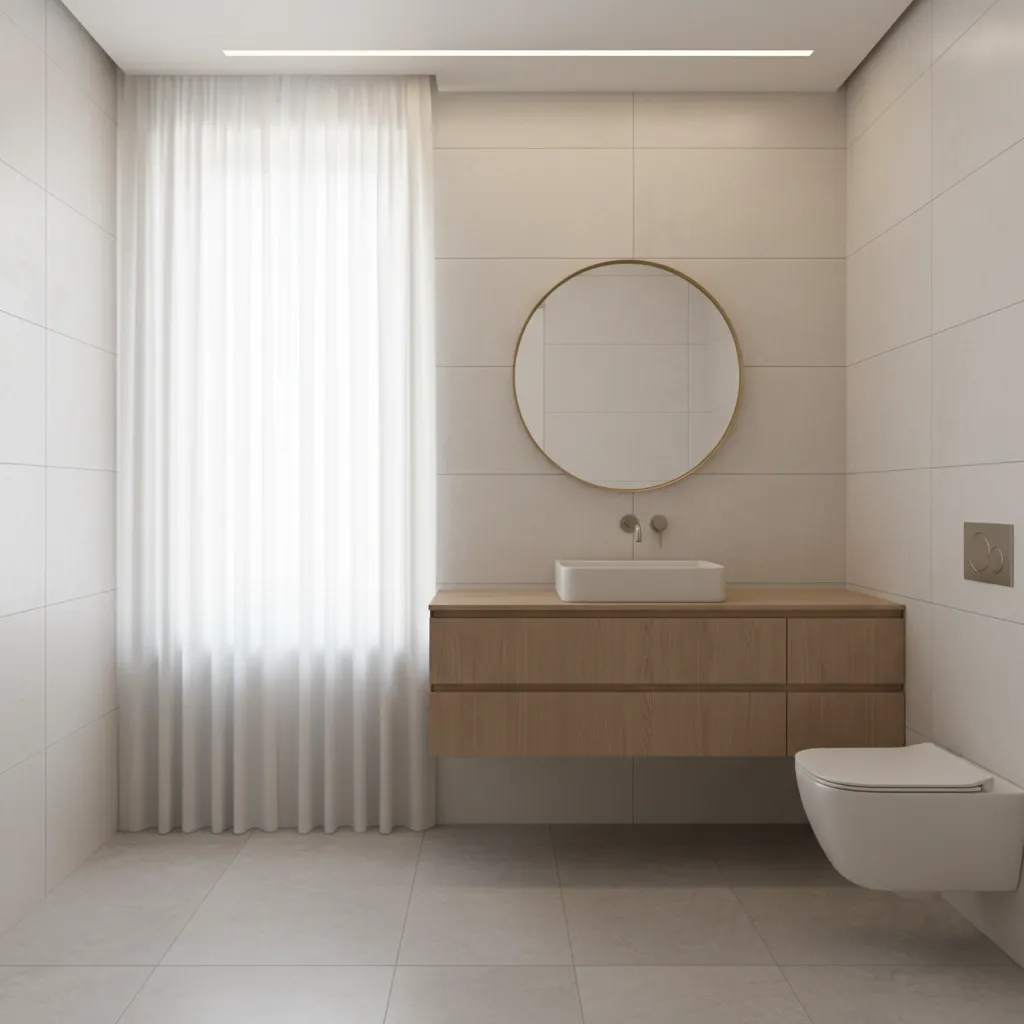

Floating Vanity, Wall-Hung Toilet, and Slim Storage

My Take

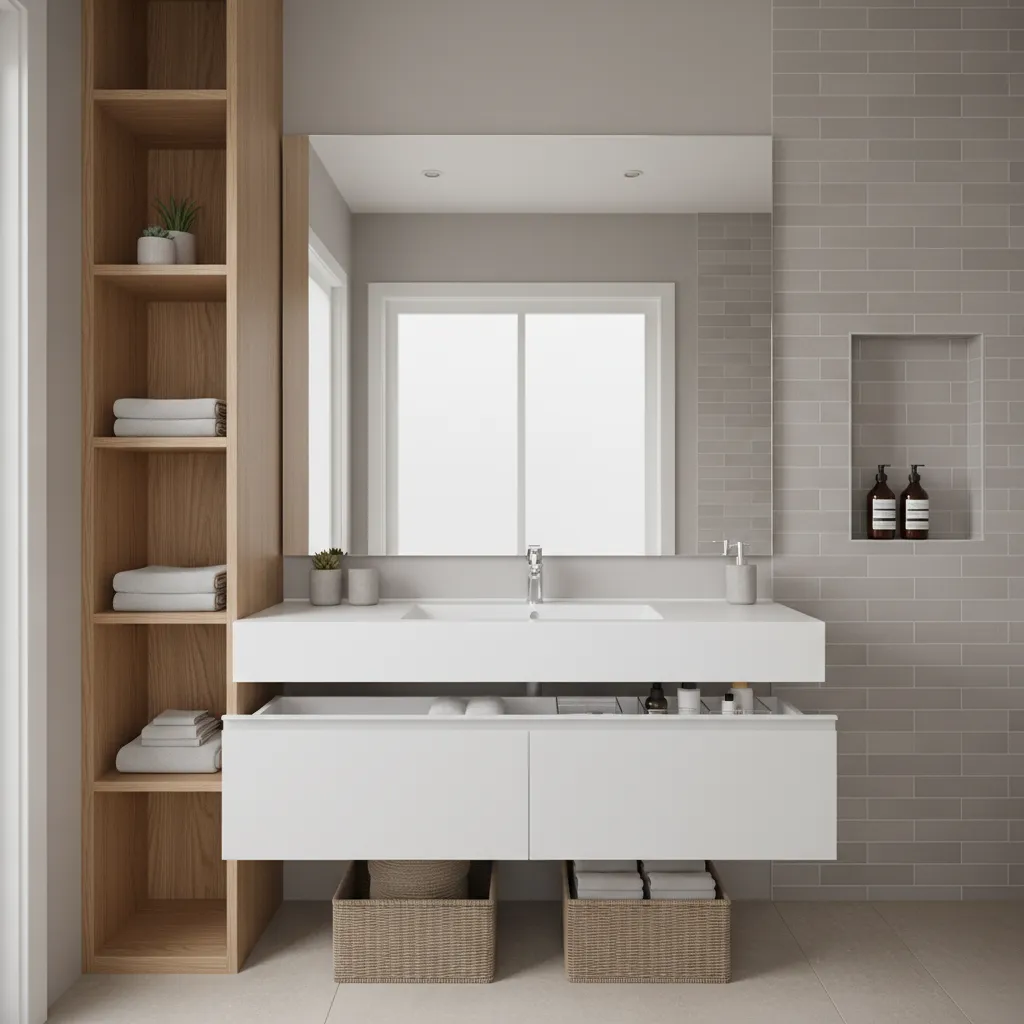

In most 5 by 7 bathroom design jobs, the vanity depth is the silent space hog. Swapping to a 16–18 inch deep floating vanity and a wall-hung toilet freed up knee room in a recent micro-condo and made cleaning much easier. We added niches everywhere—above the toilet, in the shower, even a shallow cabinet behind the door.

Pros

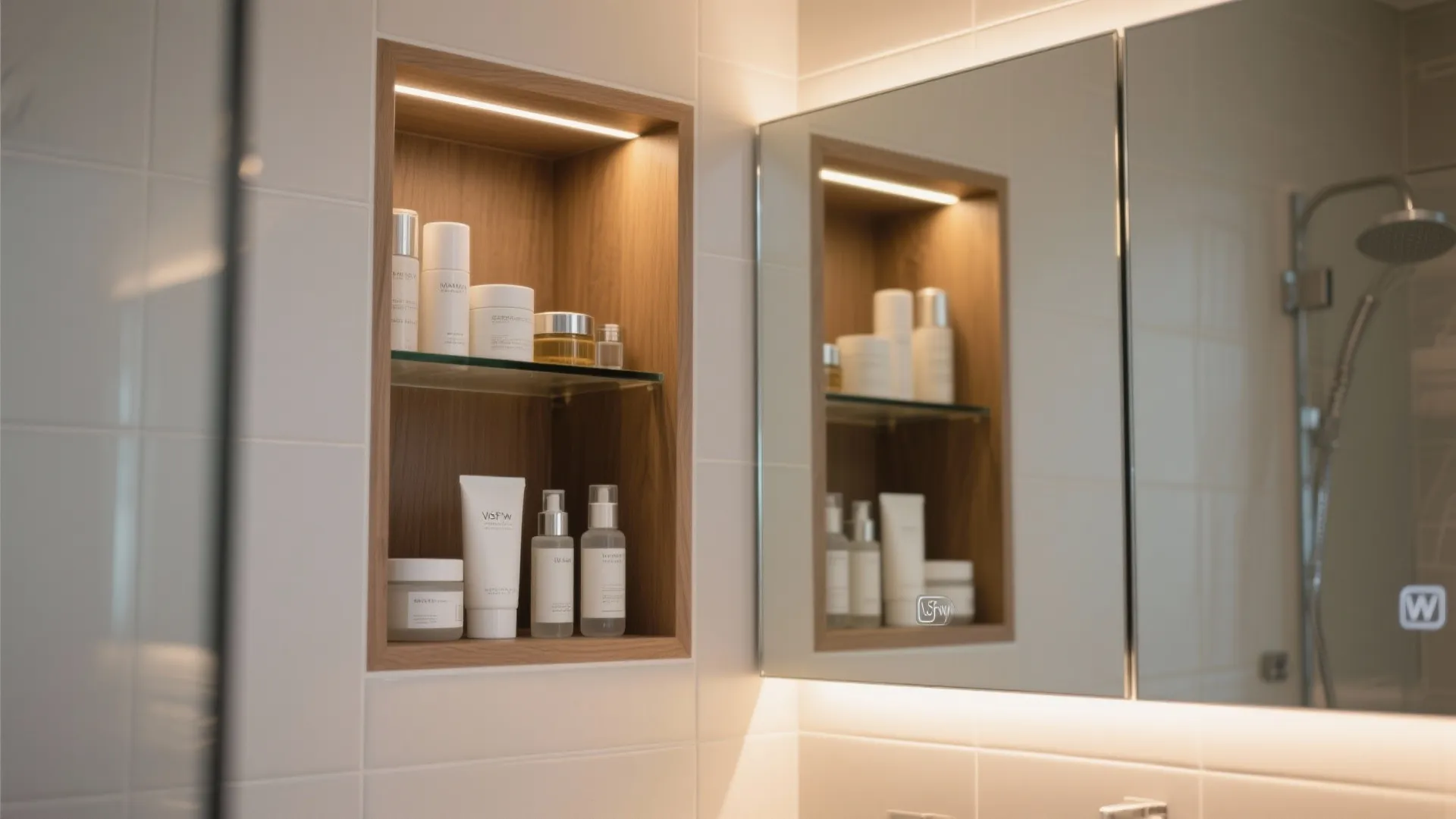

A floating vanity visually lifts the floor, boosting the sense of width in a small bathroom remodel. Wall-hung toilets can shorten projection by several inches, a game-changer in a narrow bathroom layout. Recessed niches and mirrored cabinets turn dead space into organized storage, perfect for a 5x7 bathroom with limited walls.

Integrated lighting inside medicine cabinets doubles as task lighting and eliminates countertop clutter. If towels are an issue, install a slim, 6–8 inch deep cabinet over the tank or a heated towel rail that doubles as a drying station.

Cons

In-wall carriers for wall-hung toilets add upfront cost and require sturdy framing. Recessing storage means planning around plumbing vents and studs. Slim vanities limit deep drawers, so you’ll need insert organizers and a decluttering mindset.

Tips / Case / Cost

Expect $800–$1,800 for a compact floating vanity with sink, plus $250–$600 for a mirrored medicine cabinet. Wall-hung toilet systems range $900–$2,000 installed. If storage is still tight, install a shelf ledge around the room at 48 inches high for plants, soaps, and art—eye candy and function in one thin line.

save pin

save pin

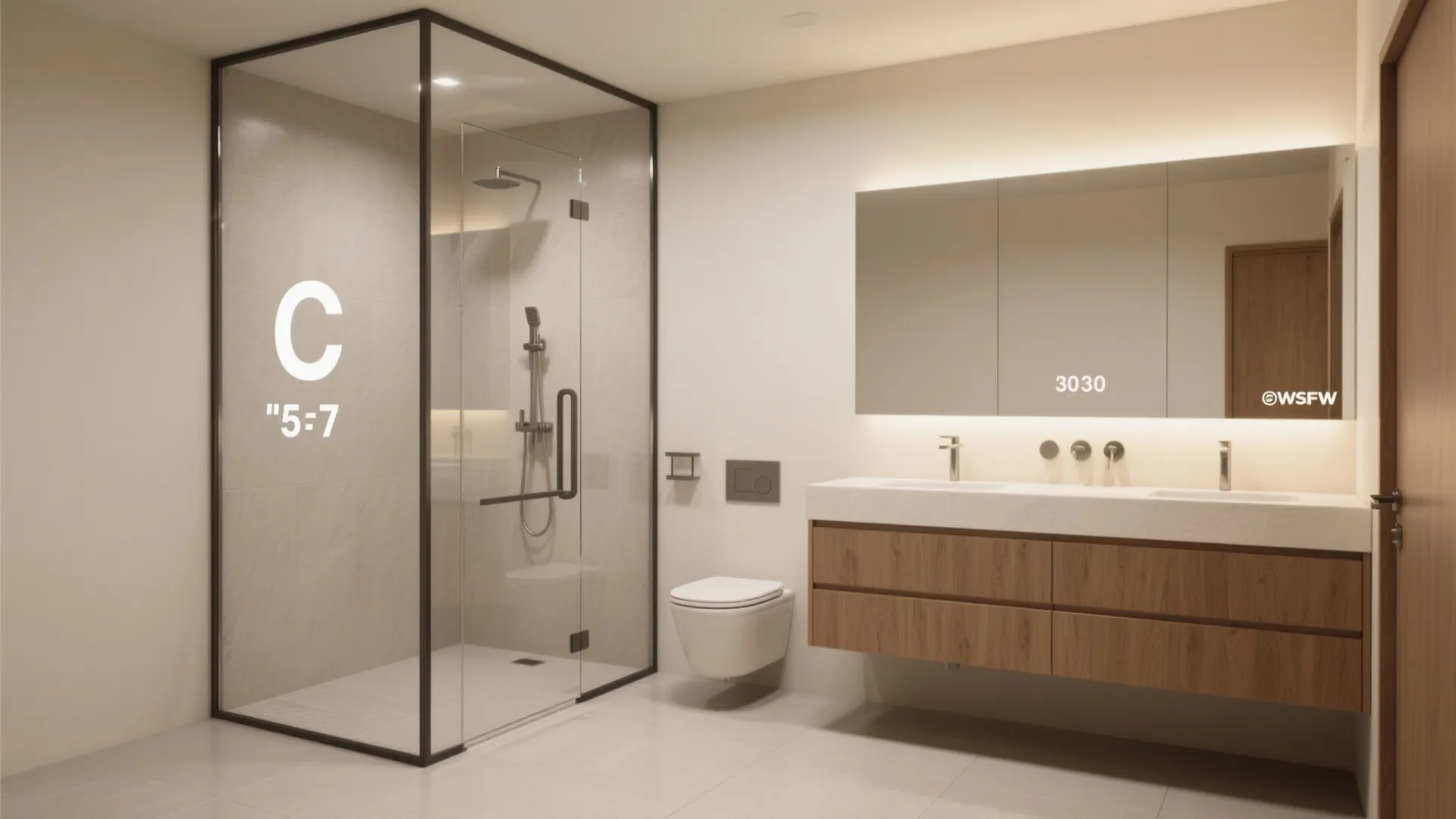

Three Proven 5x7 Layouts That Flow

My Take

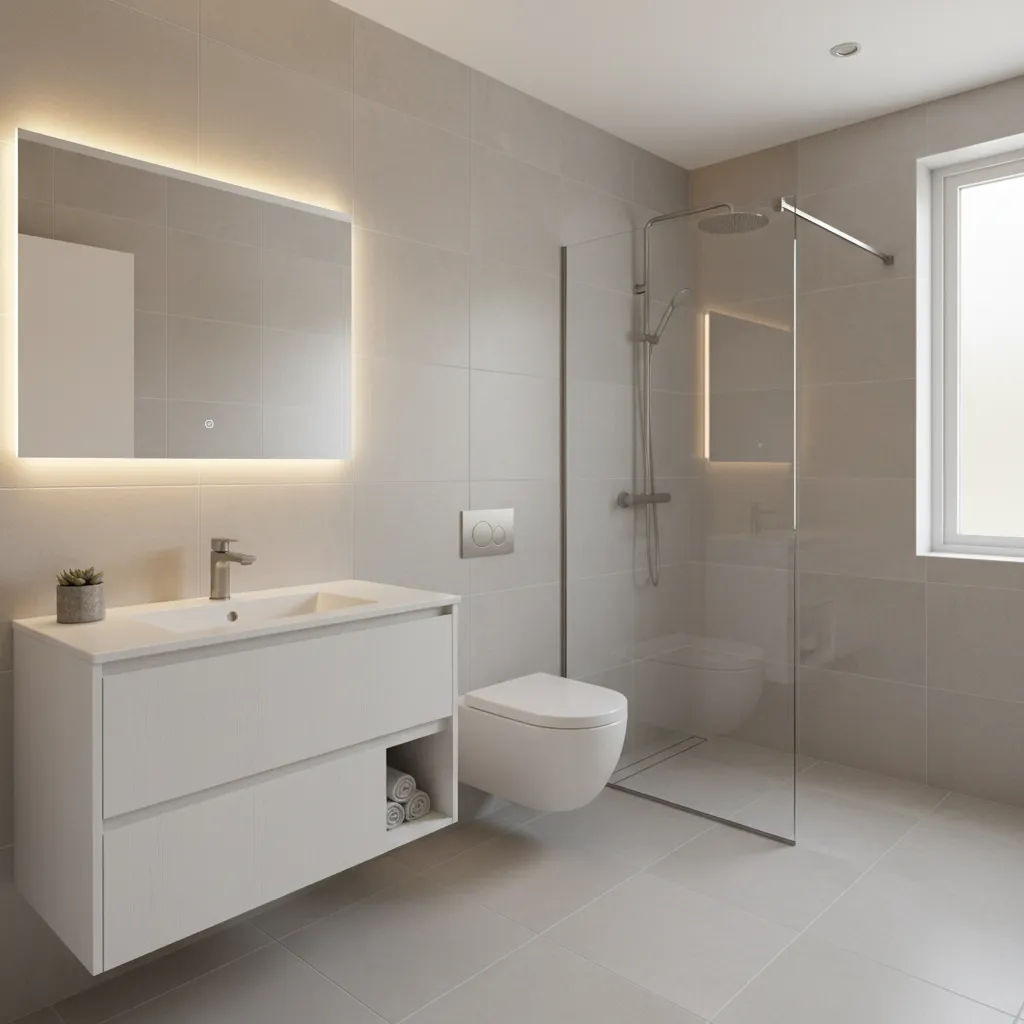

Over the years, I keep coming back to three patterns for 5 by 7 bathroom design: (A) tub or shower along the 7-foot wall with toilet and vanity on the opposite 7-foot wall; (B) shower along the 5-foot wall with a compact vanity opposite; and (C) corner shower with a centered vanity for symmetry. The right one depends on your door swing, window placement, and plumbing stack.

Pros

Layout A works brilliantly if you want a tub; it gives a generous 60-inch bathing zone and a predictable 5 by 7 bathroom layout for resale. Layout B suits a walk-in shower 5x7 upgrade, maximizing shower width while keeping the pathway clear. Layout C shines when you have an awkward door or window—centering the vanity establishes a focal point and balanced traffic flow.

The NKBA recommends at least 24 inches of clear space in front of a shower entry (30 inches preferred), and minimum fixture spacing that avoids knee-knocking; these guidelines help anchor a safe, efficient small bath plan. If a swinging door eats your clearance, consider a pocket or barn-style slider.

Cons

Corner showers can look cramped if you pick a small neoclassical base; go rectangular and frameless instead. Sliders are elegant but need a true, plumb opening—old houses may need reframing. Moving the toilet far from the original stack adds cost fast.

Tips / Case / Cost

I like to offset the bathroom door by a few inches to create a “reveal” for the vanity and keep sightlines clean. If you can’t shift the door, use a full-height mirror opposite the entry for a depth trick. For a tight renovation timeline, stick to the existing fixture wall and reroute only within that line.

When planning circulation, an offset entry to improve circulation can be the small tweak that makes a tight plan feel gracious.

save pin

save pin

Light, Color, and Texture: Calm, Not Clinical

My Take

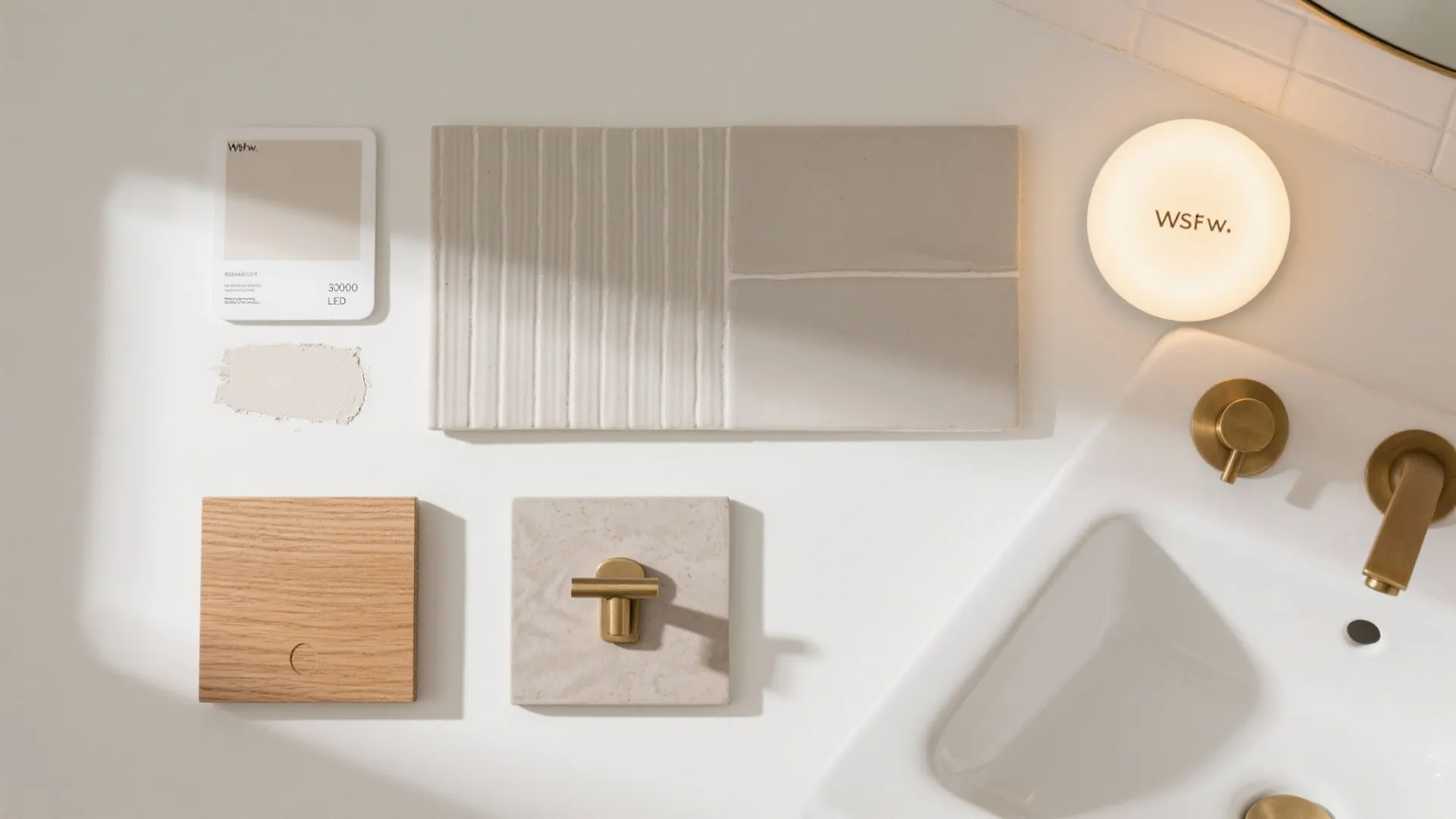

Clients often beg me to avoid the “clinic white” look. In a 5 by 7 bathroom, soft light neutrals paired with one tactile accent keep things airy yet warm. Think warm white walls, a pale greige floor, a textured tile in the shower, and one natural element—maybe a wood stool or vanity.

Pros

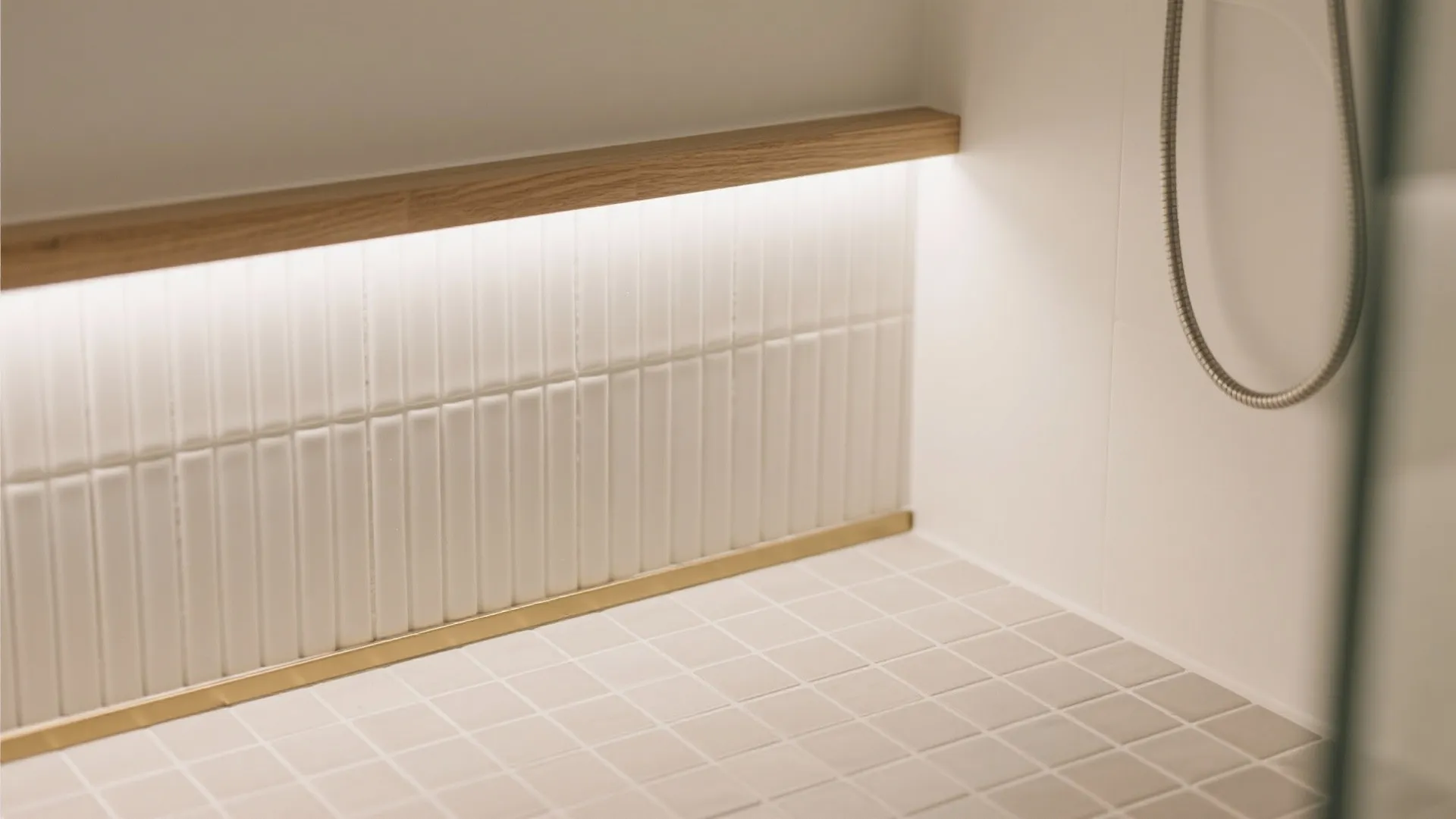

Light, low-contrast palettes soften corners and make a small bathroom color scheme feel spacious. A single feature tile—ribbed ceramic, zellige, or a stone mosaic—adds depth without chopping the room. Backlit mirrors and 3000K LED task lights deliver flattering color while keeping the space bright for morning routines.

Texture is your friend in a 5x7 bathroom with shower floors: a small-format mosaic provides slip resistance without visual clutter. If you love pattern, confine it to one wall or the floor so the eye has a place to rest.

Cons

All-white grout can be high-maintenance; warm gray hides life better. Dark feature walls shrink a narrow room if overused. Ultra-gloss tiles can glare under strong vanity lights—pretty in photos, harsh at 7 a.m.

Tips / Case / Cost

Choose paint with a washable, moisture-resistant finish; many modern “eggshell” formulas do fine in bathrooms. Consider anti-fog, backlit mirrors for function and glow. Use dimmers to shift from energizing morning light to a relaxing evening soak.

If you want a cozy vibe, preview warm wood accents for a spa feel to see how tone-on-tone neutrals and natural finishes affect perceived size before you commit.

save pin

save pin

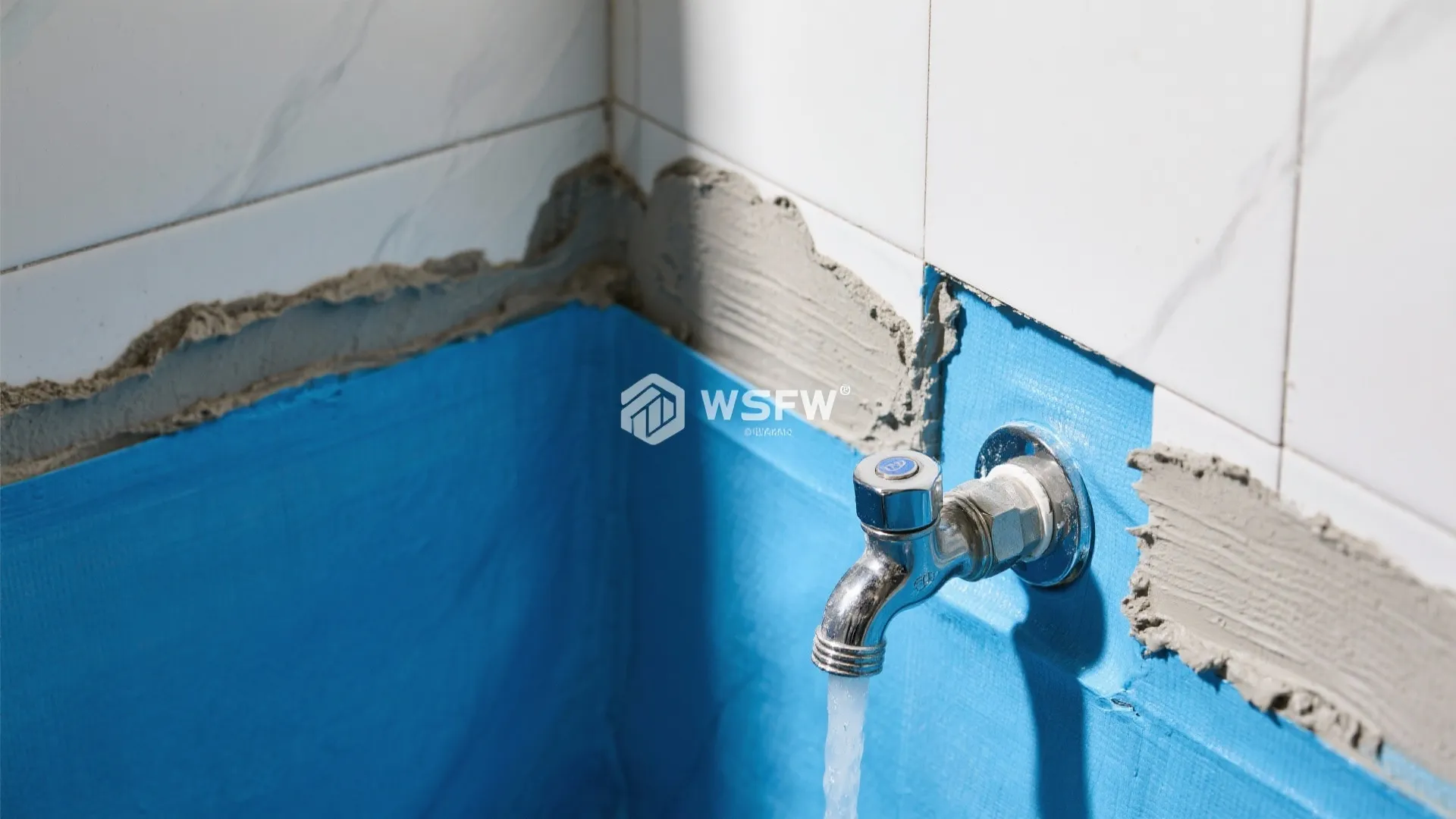

Ventilation, Waterproofing, and Water-Saving Fixtures

My Take

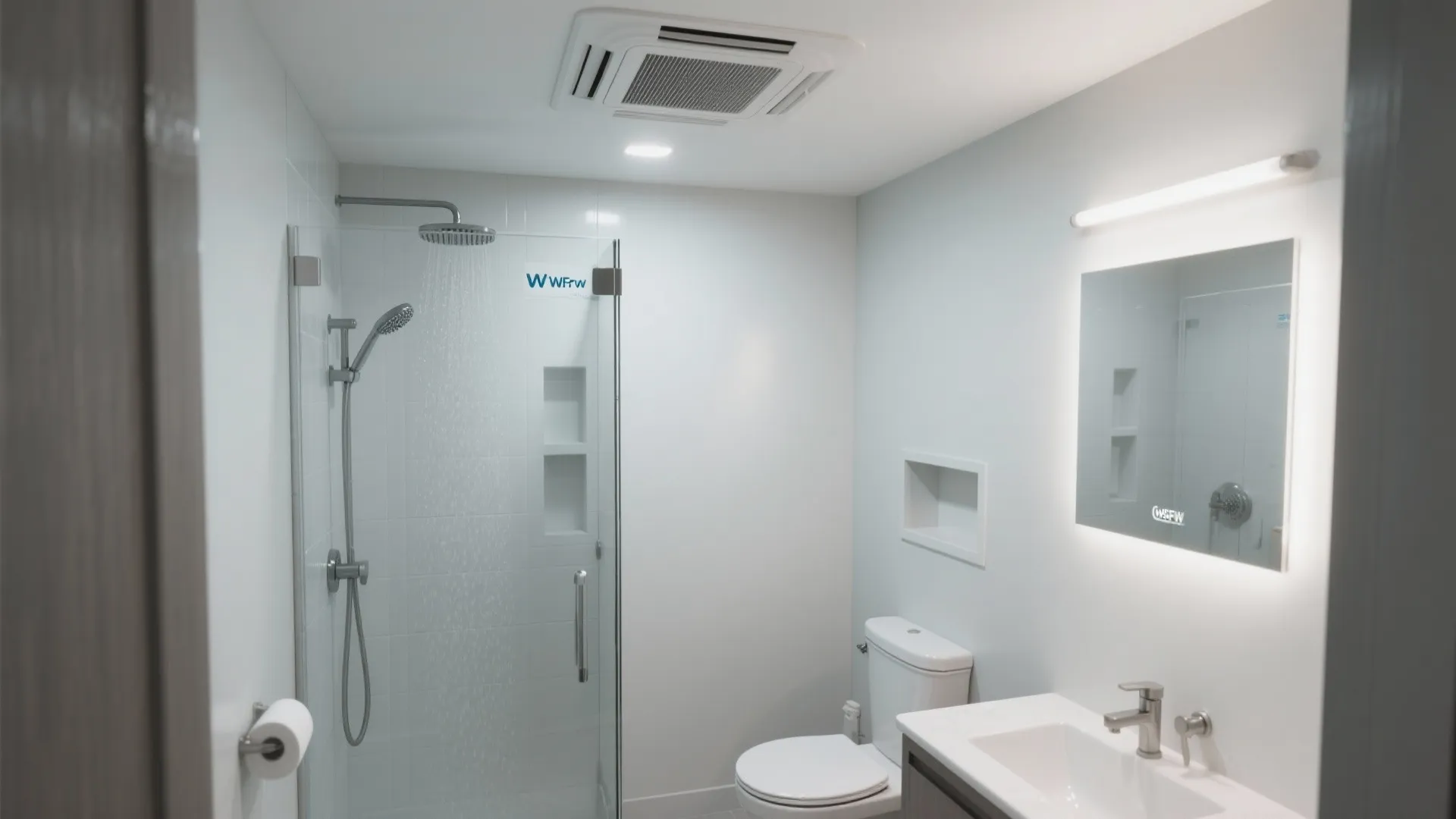

The prettiest 5 by 7 bathroom design falls flat without fresh air and a dry shell. In one retrofit, a silent, humidity-sensing fan and a full waterproofing membrane stopped mirror fogging and mold cold. We also swapped to WaterSense fixtures and cut water use without sacrificing a good shower.

Pros

ASHRAE 62.2 recommends at least 50 cfm intermittent or 20 cfm continuous mechanical ventilation for bathrooms; in a compact 5x7, that keeps humidity in check and finishes healthy. A continuous waterproofing membrane behind tile protects corners and niches—the vulnerable spots in small showers. EPA WaterSense-labeled showerheads (2.0 gpm max) and 1.28 gpf toilets reduce bills while supporting a sustainable small bathroom remodel.

Humidity-sensing exhaust fans reduce user error; they kick on when steam rises and ramp down automatically. Properly sealed penetrations around valves and niches pay off in longevity—cheap insurance.

Cons

Quiet fans cost more; loud fans go unused. Membranes add material and labor time, but leaks are far more expensive. Some low-flow showerheads feel weak if your water pressure is already low—choose models with pressure-compensating tech.

Tips / Case / Cost

Look for a fan with a low sone rating (1.5 or less) and a timer or humidity sensor. Expect $400–$900 for a full shower waterproofing system. For fixtures, test a few WaterSense showerheads in a showroom if possible—performance varies and your morning mood matters.

Authority notes: ASHRAE 62.2 sets residential ventilation standards; the EPA’s WaterSense program certifies water-efficient bathroom fixtures; and the NKBA’s Bathroom Planning Guidelines outline clearances that keep tight bathrooms safe and comfortable.

[Section: 总结]

Here’s the big takeaway: a 5 by 7 bathroom design is not a limitation—it’s an invitation to design smarter. Clear glass, continuous materials, scaled storage, balanced layouts, and hard-working systems turn 35 square feet into a sanctuary. When in doubt, honor circulation, layer light thoughtfully, and invest in waterproofing and ventilation.

I’ve watched these principles rescue countless small baths, and the data-backed touches from NKBA, ASHRAE, and EPA make them resilient. Which idea are you most excited to try in your own 5x7?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is the best 5 by 7 bathroom layout?

There isn’t a single “best,” but placing the tub or shower along the 7-foot wall with the vanity and toilet opposite is a reliable, resale-friendly 5 by 7 bathroom layout. If you prefer a walk-in, use the 5-foot wall for the shower and keep the pathway clear.

2) Can I fit a double vanity in a 5x7 bathroom?

Usually it’s too tight. A better approach is a single, wider sink or integrated trough with generous counter space and a large, backlit mirror. That delivers the feel of a double without cramping circulation.

3) What clearances should I follow in a 5 by 7 bathroom design?

Follow NKBA Bathroom Planning Guidelines where possible: aim for 30 inches of front clearance at fixtures (21 inches minimum by many codes), and maintain proper spacing between toilet centerline and adjacent elements. These standards keep tight spaces safe and comfortable.

4) Is a curbless shower practical in a 5x7?

Yes, if your structure allows proper slope and waterproofing. A curbless entry visually expands the room and improves accessibility, especially in a 5x7 bathroom with shower. Use a linear drain and ensure careful waterproofing at all transitions.

5) How do I choose lighting for a small bathroom?

Layer it: soft, even ambient light; bright, glare-free task light at the mirror; and a dim night light under the vanity. Warm white (around 3000K) with high CRI (90+) flatters skin tones and finishes.

6) What’s the best way to add storage in 35 square feet?

Think vertical and recessed. A floating vanity with drawer organizers, a mirrored medicine cabinet, shower niches, and over-the-toilet cabinets all add capacity without crowding the floor.

7) Do I really need a high-quality fan in a 5x7 bath?

Yes. ASHRAE 62.2 recommends at least 50 cfm intermittent or 20 cfm continuous extraction for bathrooms to control humidity and protect finishes. A quiet, humidity-sensing fan is worth the upgrade in a compact bath.

8) Will water-saving fixtures feel weak?

Look for WaterSense-labeled models with pressure-compensating technology. The EPA’s WaterSense program sets performance criteria so you can save water without sacrificing a satisfying shower.
