5 Smart 6x8 Bathroom Designs to Maximize Space: A senior interior designer’s guide to making a 6x8 bathroom look and live larger with five practical, data-backed ideas

I’ve spent more than a decade turning compact floor plans into calm, camera-ready spaces, and 6x8 bathroom designs are a sweet spot. Small spaces truly spark big creativity, and the difference between cramped and comfortable often comes down to flow. I’ll usually start with an L-shape that tucks the vanity and shower along adjacent walls, because an L-shaped layout frees up circulation without adding a single square foot.

In this guide, I’m sharing 5 design inspirations I lean on for 6x8 bathrooms. Each idea blends on-site experience with data-backed guidelines, so you can decide what fits your routine, your budget, and your style. Let’s make your 6x8 feel bigger, brighter, and easier to live in—every single day.

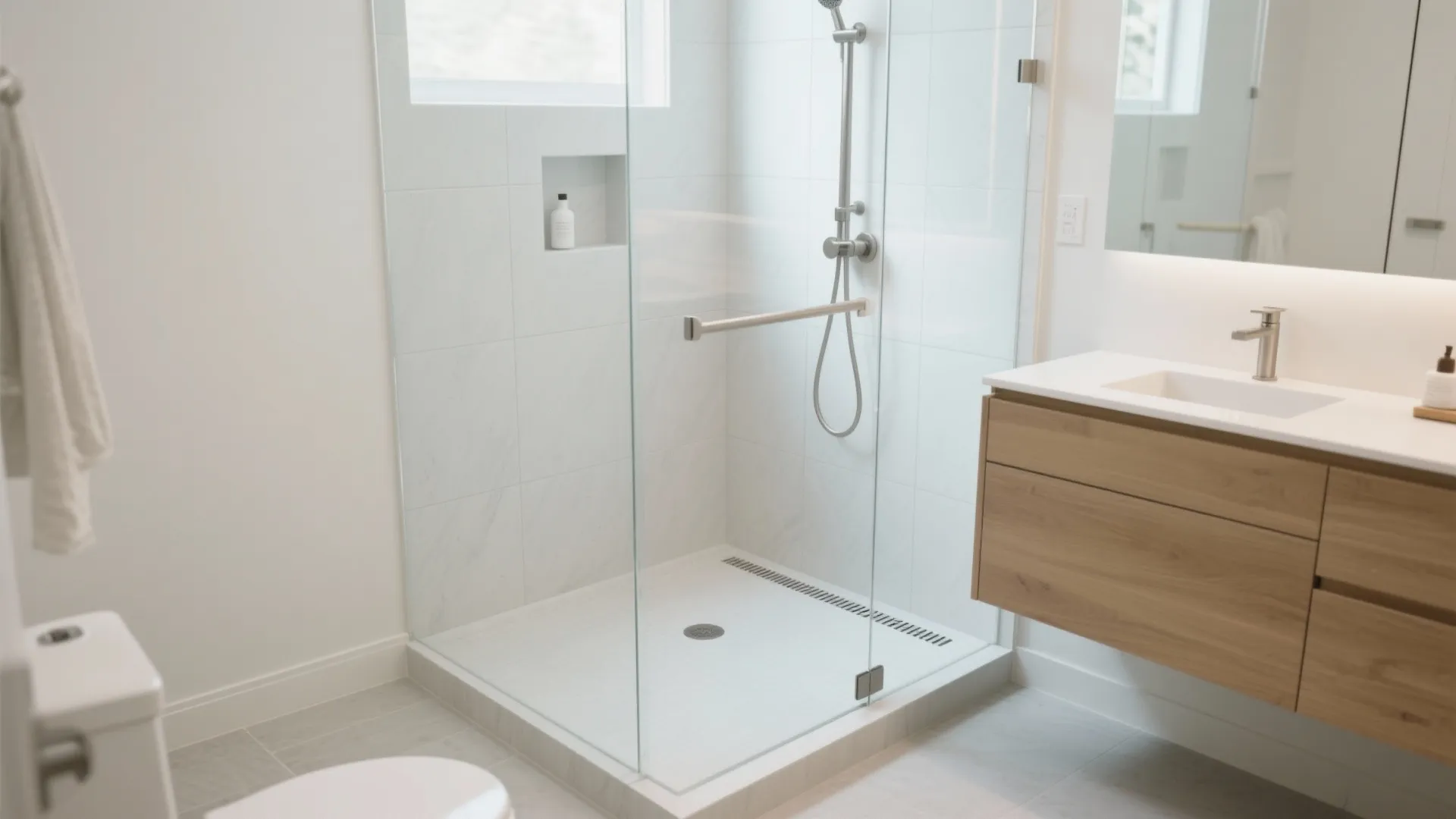

Curbless walk-in shower that visually expands space

My Take: I’ve converted plenty of tub-shower combos to curbless walk-ins in 6x8 footprints, and the effect is immediate. The floor flows, light travels farther, and the room reads cleaner. Clients always tell me it “feels like a hotel”—without the housekeeping bill.

Pros: A curbless shower in a 6x8 bathroom removes visual barriers, which makes the footprint read wider and calmer. With a frameless glass panel and large-format tile, you get fewer lines and a more seamless look—ideal for a small bathroom layout. According to NKBA Bathroom Planning Guidelines, a 36 in x 36 in shower is recommended for comfort, with a 30 in x 30 in minimum meeting basic code; keeping these dimensions in mind helps you preserve safe clearances (NKBA, 2023).

Cons: Proper waterproofing and floor slope add cost and labor, especially if you’re working in an older building. The open look can feel cooler in winter, and if privacy matters, all that glass might feel a bit exposed. I’ve also seen clients underestimate splash zones—water still wants to travel.

Tips/Case/Cost: If you’re on slab, plan a linear drain to simplify slope; on wood subfloors, budget extra for framing and membrane. Add a heated floor mat in the shower zone for comfort. In my market, a curbless conversion typically adds 10–20% to the shower budget, but the daily comfort often wins out.

save pin

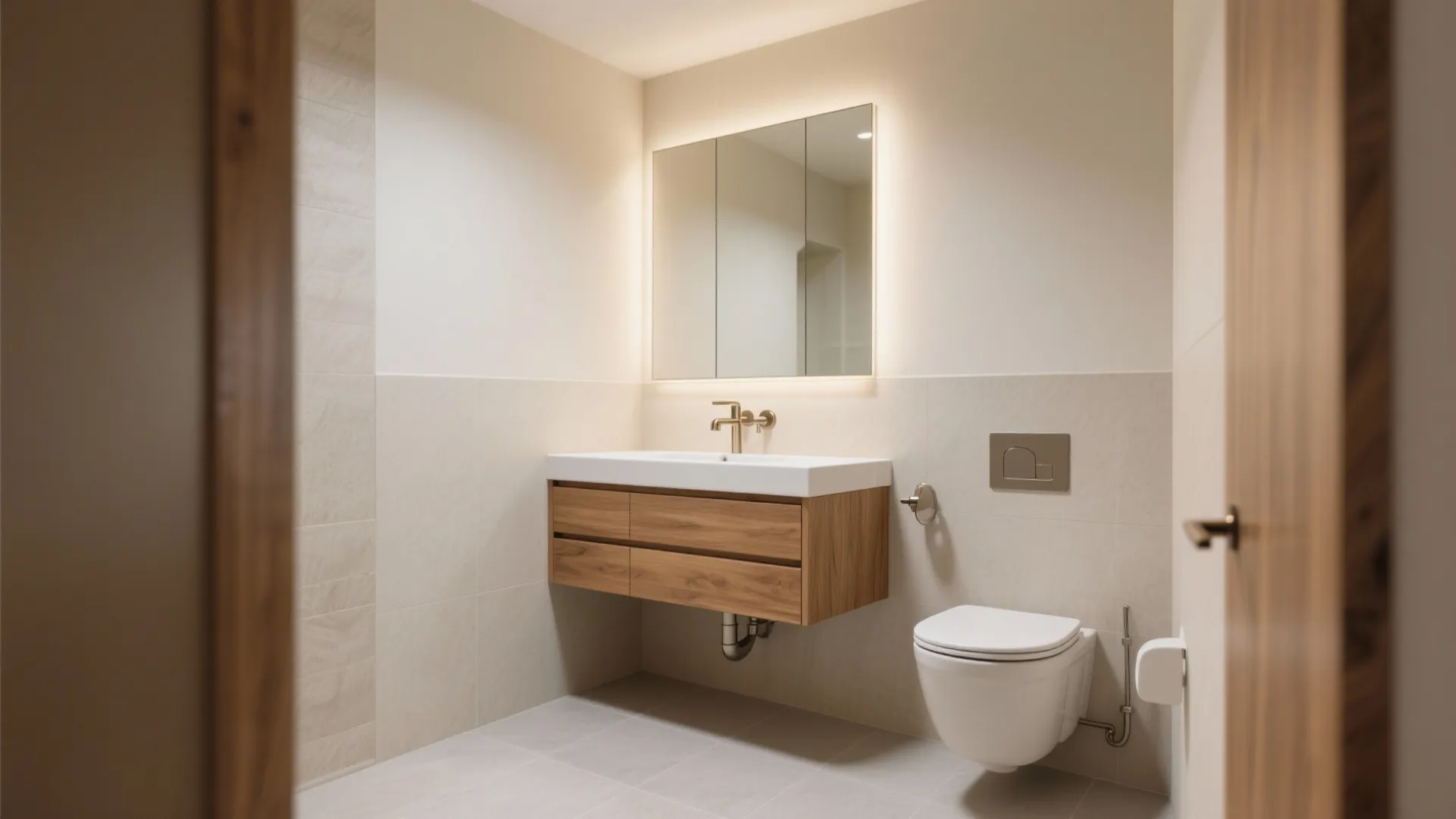

Floating vanity and wall-mounted toilet to free the floor

My Take: In tight bathrooms, I’m a fan of wall-mount everything. The day I installed my first floating vanity in a 6x8, the client walked in and said, “Where did the floor come from?” Seeing more continuous floor tricks the eye into reading a larger room—simple but powerful.

Pros: A floating vanity for small bathrooms creates visual breathing room and makes cleaning easy. Pair it with a wall-mounted toilet using an in-wall tank to save depth—great for a 6x8 bathroom layout where every inch counts. You can also set the vanity at a custom height, helpful for tall or short users.

Cons: In-wall carriers and wall-mount plumbing add complexity and cost, and you’ll want a solid wall or added blocking. Access panels must be planned for maintenance. If you’re a “rest your foot on the toe-kick” person, the floating look takes a week to get used to—then you’ll never go back.

Tips/Case/Cost: Aim for a vanity depth of 18–20 in to keep circulation clear. I usually center a 24–30 in sink base on the short wall in a 6x8, then choose drawers over doors for better small bathroom storage ideas. Expect the wall-mount toilet and carrier to add $600–$1,200 plus install, depending on brand and framing.

save pin

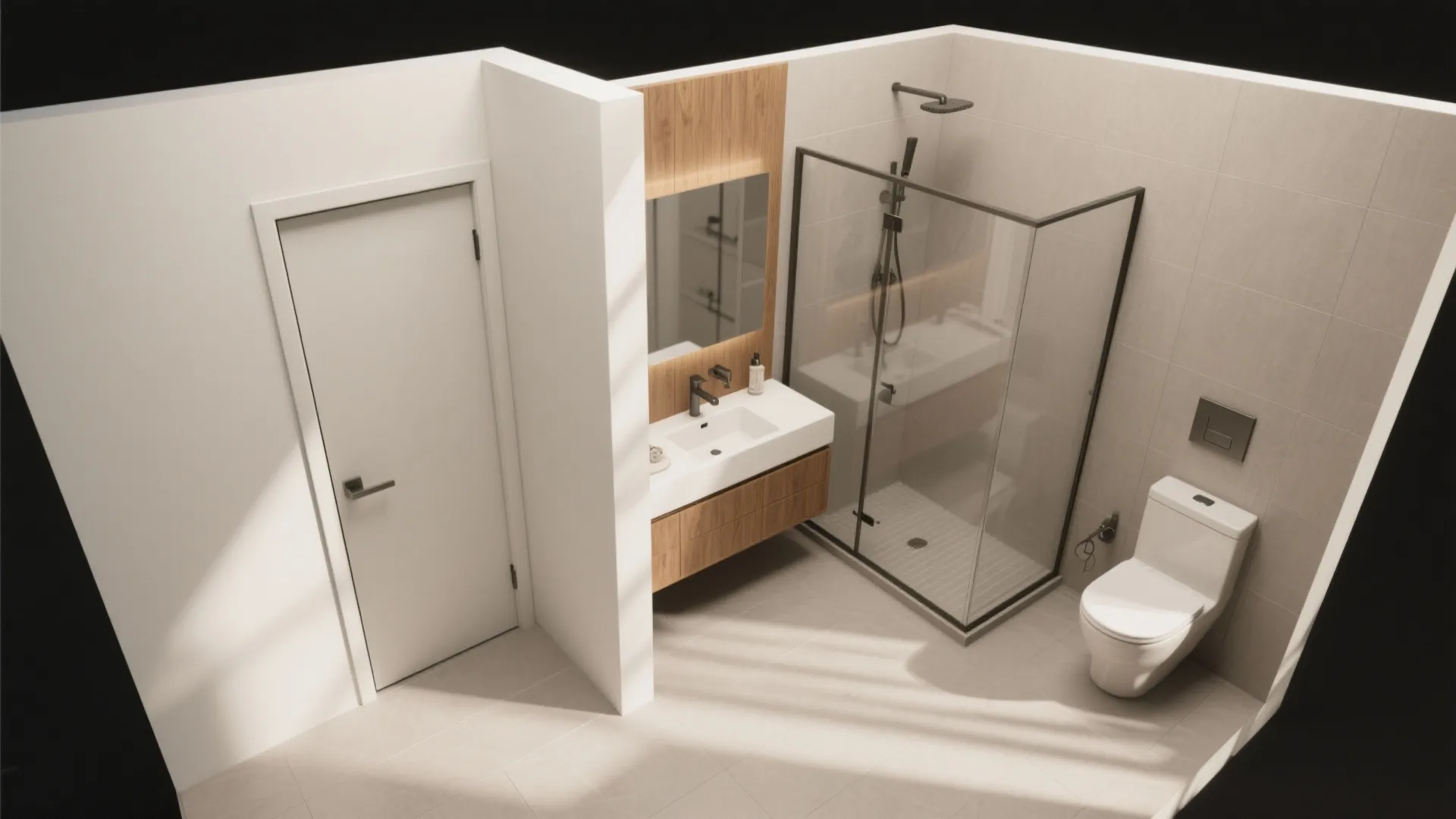

Pocket door and clearance-first planning

My Take: Swapping a swing door for a pocket door is one of my favorite “instant space” moves. In a 6x8 bathroom, reclaiming that swing arc keeps hips, towels, and vanity corners from colliding. It also opens up layout options you might have ruled out too quickly.

Pros: A pocket door bathroom cuts the door’s footprint, giving you more flexible placement for a vanity or storage tower. Planning around clearances first—like a 24–30 in clear space in front of fixtures—creates a 6x8 bathroom layout that feels intentional and safe. NKBA recommends at least 30 in of clear floor space in front of a lavatory and toilet where possible, and 15 in from the toilet centerline to side walls; following these guardrails keeps your plan comfortable (NKBA, 2023).

Cons: Pocket doors need straight, plumb framing and can complicate switches or sconces in that wall. Sound and light transfer is a touch higher than a solid swing door. If you live in a historic home, you may hit surprise plumbing or vent stacks in the pocket wall—x-ray the wall before you commit.

Tips/Case/Cost: If a recessed pocket isn’t feasible, a soft-close surface slider is a good second choice. Pair your pocket with a single fixed glass panel at the shower—think frameless glass for a brighter shower—to keep sightlines open but splashes controlled. I like to run the floor tile straight into the shower for a long, clean line.

save pin

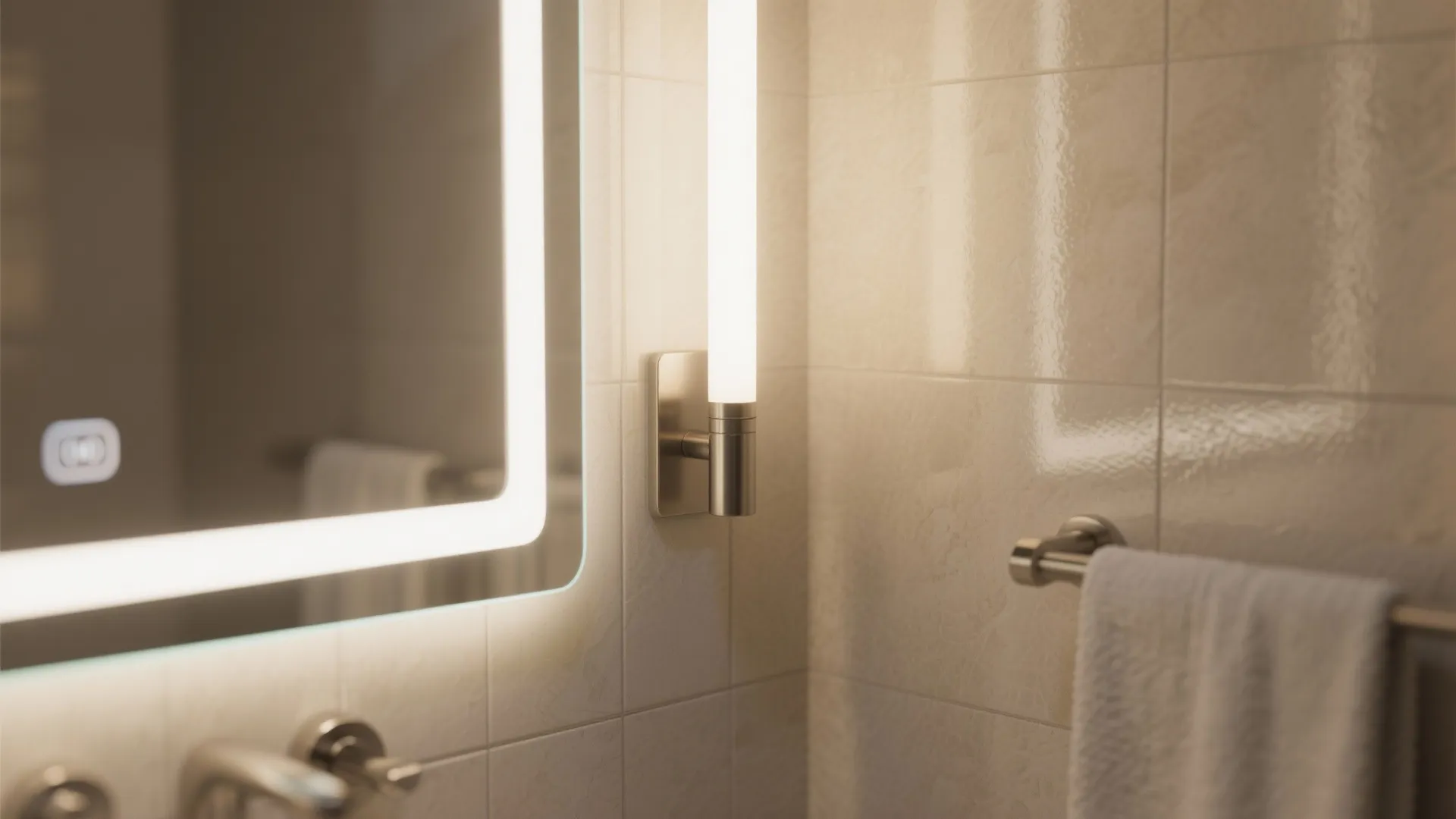

Layered lighting and mirror magic

My Take: Lighting is the cheapest way to make a 6x8 look bigger overnight. When I layer a backlit mirror, clean task sconces, and a dimmable overhead, faces look better, grout looks softer, and the corners melt away. It’s like giving your bathroom a new lens.

Pros: A backlit LED mirror in a 6x8 bath gives even, shadow-free grooming light and frees wall space from bulky fixtures. Keep color temperature around 3000–3500K with a CRI of 90+ so skin tones look natural and tile colors stay true. A dimmer lets you go from “wake-up bright” to spa-soft without changing bulbs.

Cons: Cheap LED strips can flicker or shift color over time, so buy from reputable brands. Too many shiny surfaces can bounce glare; you want layered, not blinding. Electricians will roll their eyes if you ask for seven zones in a 6x8—keep the control stack simple.

Tips/Case/Cost: Use damp-rated fixtures (IP44 or better in splash zones) and seal any mirror demister connections per code. If you wear makeup, consider vertical sconces 66–70 in off the finished floor to reduce shadows. A quality backlit mirror runs $250–$800 and is worth every penny in a compact space.

save pin

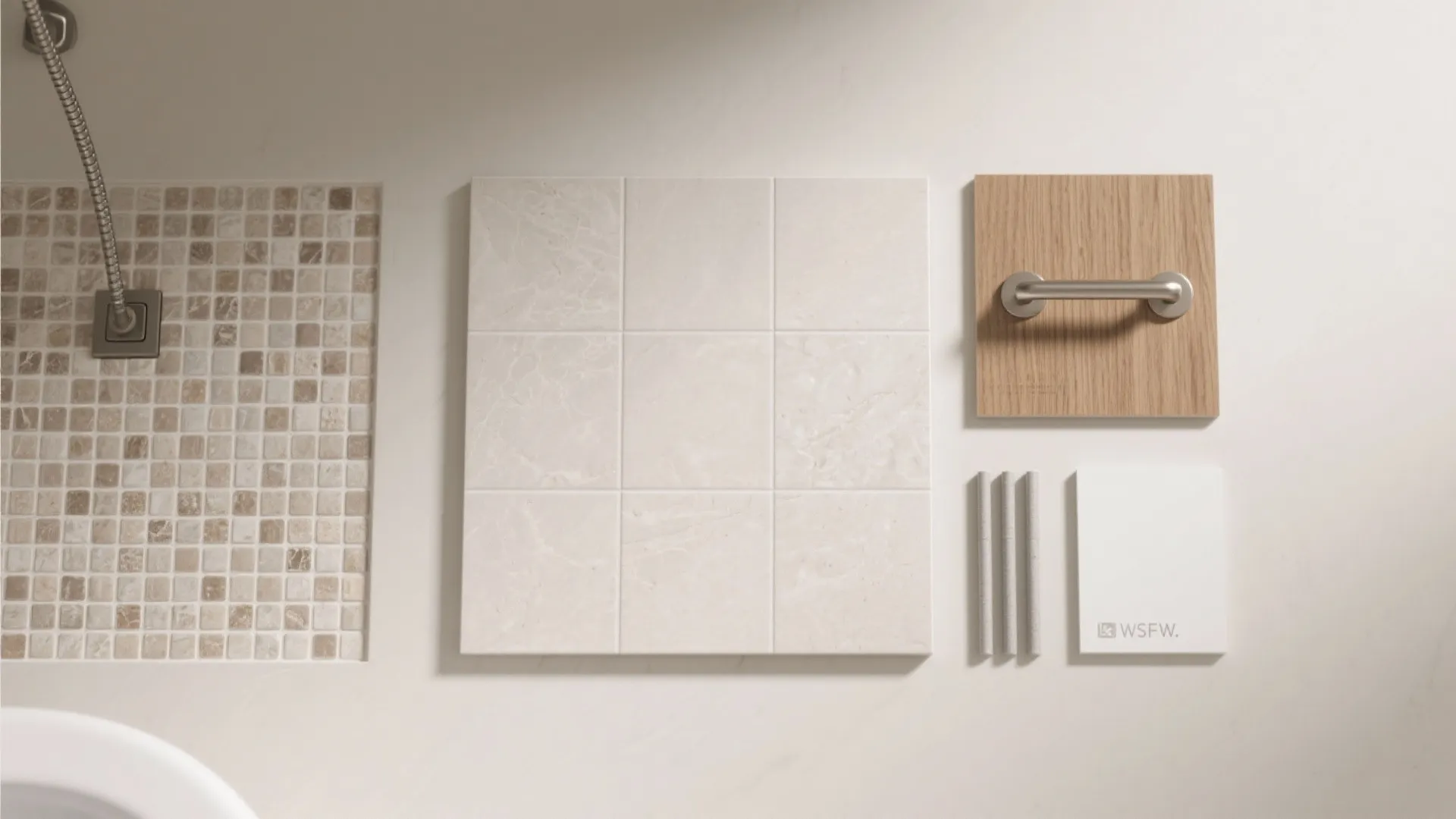

Light, large-format finishes and built-in storage

My Take: Material continuity is your friend in small rooms. In a 6x8, I often choose a light, low-contrast palette and let texture do the talking—satin porcelain, subtle veining, a touch of warm wood—to keep the eye moving and the room calm.

Pros: Large-format tile in a small bathroom means fewer grout lines and less visual clutter. Vertical tile stacking or a slim ribbed tile draws the eye up, making the ceiling feel higher. Niches between studs, shallow medicine cabinets, and a slim tower above the toilet build in storage without eating floor area.

Cons: Polished surfaces can be slippery; choose a higher DCOF tile for the wet zone. Strong veining can look busy in tight quarters, so sample at full scale. Natural wood needs proper sealing—especially near a steamy shower—unless you like “rustic” a bit too much.

Tips/Case/Cost: Keep grout within a shade or two of your tile to extend lines. Run the same floor tile into the shower and use a coordinating slab sill on the niche for a crisp edge. I’ll often specify a pale stone-look porcelain with a matte finish, then add a warm oak detail at the vanity—yes, a floating vanity opens floor space and softens all that tile visually.

save pin

Summary

Done right, 6x8 bathroom designs aren’t about compromise—they’re about clarity. You’re choosing flow, light, and storage with intention, not fighting the footprint. If you follow solid clearances, keep sightlines open, and let finishes work smarter, a 6x8 can feel like the best room in the house. According to EPA WaterSense, swapping to WaterSense-labeled showerheads and faucets can cut water use by at least 20% without sacrificing performance—good for utility bills and daily comfort (EPA WaterSense, 2024). Which of these five ideas are you most excited to try first?

save pin

FAQ

What is the best 6x8 bathroom layout?

A clearance-first plan is best: keep 30 in clear in front of the toilet and vanity when possible, and 15 in from the toilet centerline to side walls. I like an L-shaped arrangement with the vanity on the short wall and the shower along the long wall for smooth circulation.

Can I fit a double vanity in a 6x8 bathroom?

It’s tight. A 48 in double works only if you protect circulation and door swing, and you may sacrifice storage depth. Many clients choose a 36–42 in single with generous drawers and a tall medicine cabinet for better small bathroom storage.

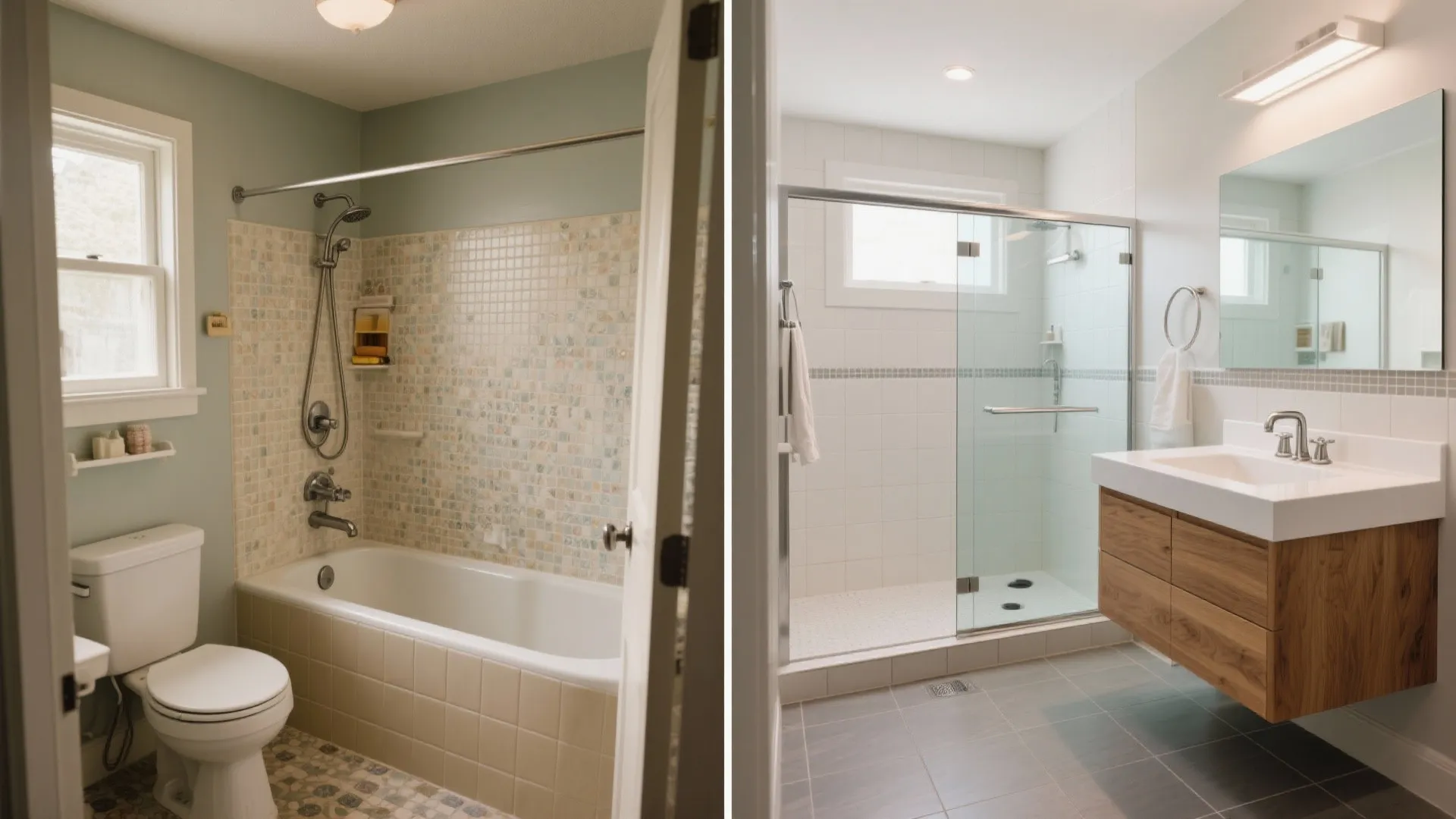

Is a tub or shower better for 6x8 bathroom designs?

A walk-in shower typically makes the space feel larger and is easier to keep clean. If you need a tub, look for a compact 54–60 in model with a clean apron, and keep tile and glass simple to reduce visual breaks.

What door works best in a 6x8 bathroom?

A pocket door or soft-close surface slider saves the swing arc and reduces collisions with the vanity. If you keep a swing door, consider reversing the swing or using a 24–28 in door to protect clearances.

How should I light a 6x8 bathroom?

Layer it: a backlit mirror for face-friendly light, a dimmable overhead, and a shower downlight rated for wet locations. Aim for 3000–3500K and CRI 90+ so colors look right and the room feels warm, not clinical.

What ventilation do I need in a 6x8?

Follow ASHRAE 62.2: 50 CFM intermittent or 20 CFM continuous exhaust for bathrooms, and run the fan 20–30 minutes after showers (ASHRAE 62.2, 2022). A quiet fan (≤1.0 sone) encourages you to actually use it.

How much does a 6x8 bathroom remodel cost?

Costs vary by region and scope, but a modest refresh with tile, a new vanity, and lighting often starts in the mid four figures. Curbless showers, in-wall carriers, and custom storage push budgets higher—plan a 10–20% contingency for surprises.

What tile size works best in a 6x8?

Large-format floors like 12x24 or 24x24 calm the grid; pair with a smaller mosaic on the shower floor for traction. Keep grout close in tone to stretch lines and make the room read bigger.
