5 Smart Ideas for a Small Kitchen Plan (AutoCAD Tips Inside): My practical guide to small-kitchen planning, with five inspiring ideas, real project notes, and pro-level tips for using a kitchen plan in AutoCAD—optimized for space and style

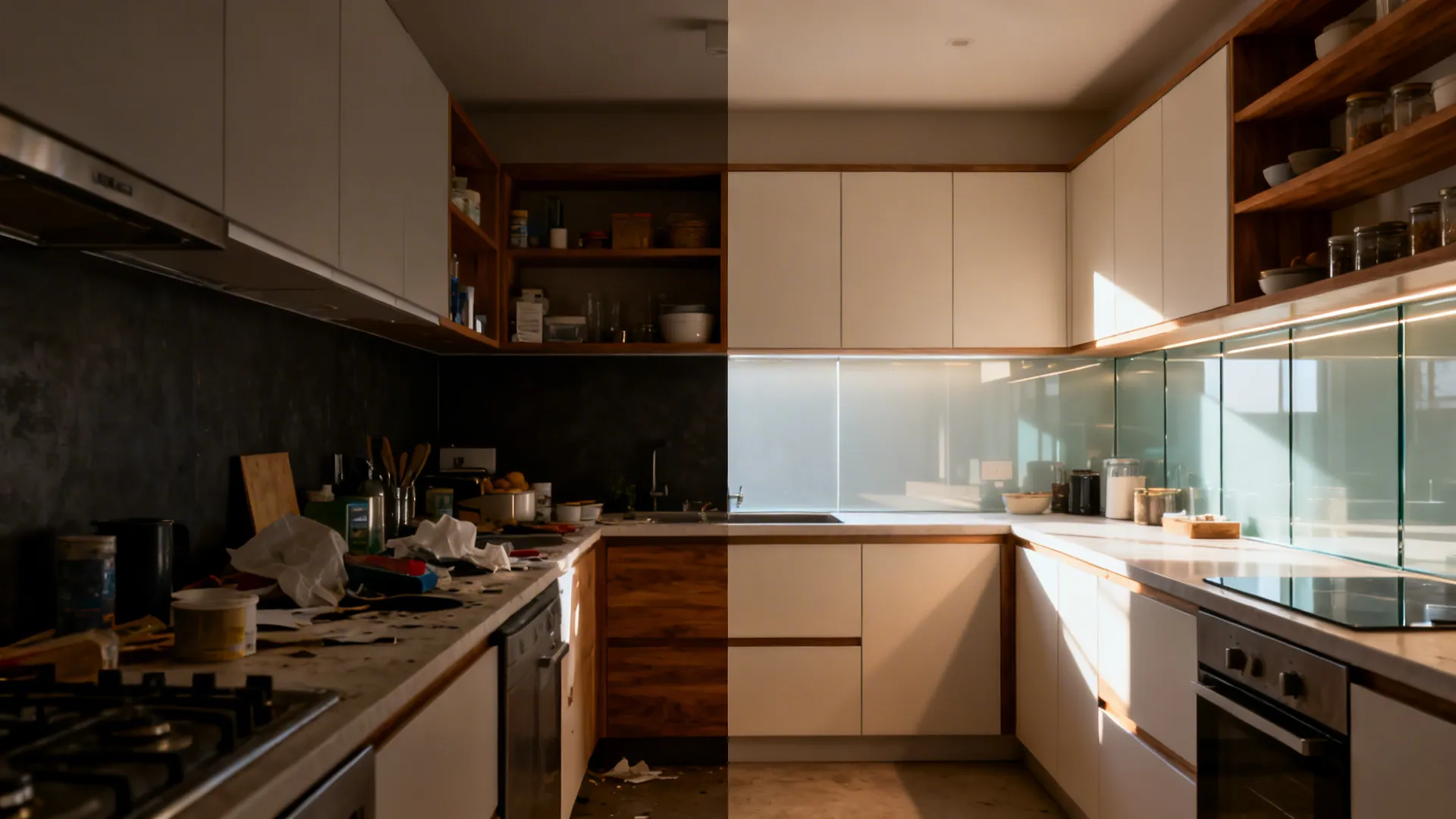

As a residential designer, I’ve seen how today’s kitchen design trend leans toward compact, efficient spaces with clean lines and multifunctional zones. Small spaces really do spark big creativity. In this guide, I’ll share 5 design inspirations for a small kitchen plan—based on my own remodels and expert data—plus how I approach an AutoCAD kitchen plan when you want a tidy, accurate layout before any demo begins. You’ll also find where to responsibly source templates (and why “free download” isn’t always the safest route) and how to adapt a plan to your real-life cooking routine. To kick things off, here’s a project snapshot I love exploring for L-shaped layout frees more counter space—it’s the backbone of many tiny-kitchen wins.

Minimalist Storage That Works Hard

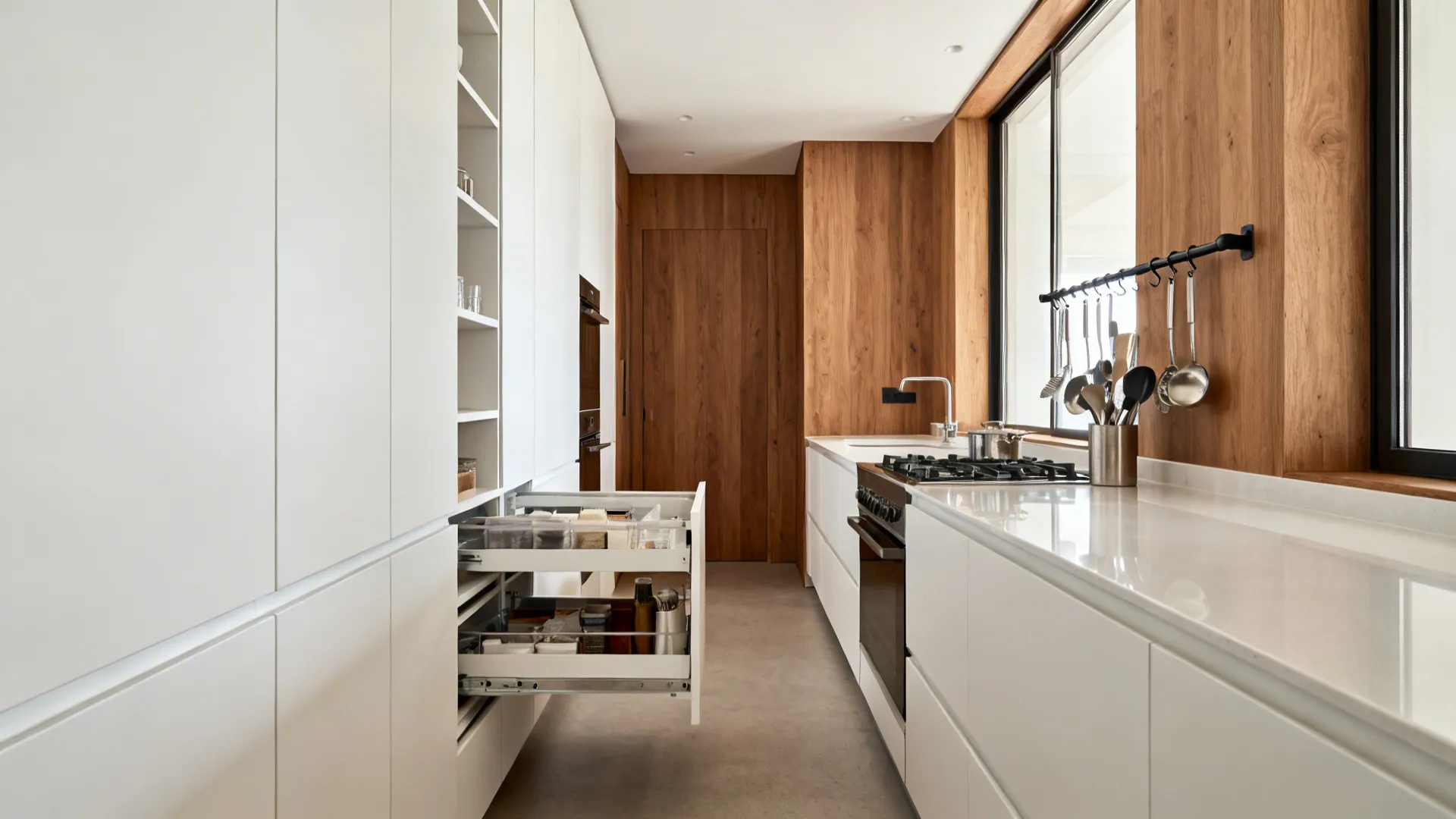

My Take. I learned the beauty of minimalist storage while renovating a 6.5 m² galley kitchen for a young couple. We swapped bulky uppers for sleek, full-height pantry pullouts and a rail system near the cooktop; their daily prep sped up, and the counters finally breathed.

Pros. Minimalist cabinetry simplifies the kitchen plan and reduces visual clutter, which is crucial for a compact kitchen plan in AutoCAD where every millimeter shows. Tall, slim modules with integrated organizers keep long utensils, oils, and baking sheets straight and accessible—great for a small kitchen layout with a narrow aisle. Studies on visual load suggest cleaner lines reduce perceived density, making tight spaces feel larger (University of Minnesota, 2017, environmental perception research).

Cons. The downside? If you’re a gadget collector, minimalist fronts hide, but don’t magically store, everything—it forces you to edit. Also, ultra-clean faces show fingerprints; I’ve wiped more than a few pantry doors before client walk-throughs.

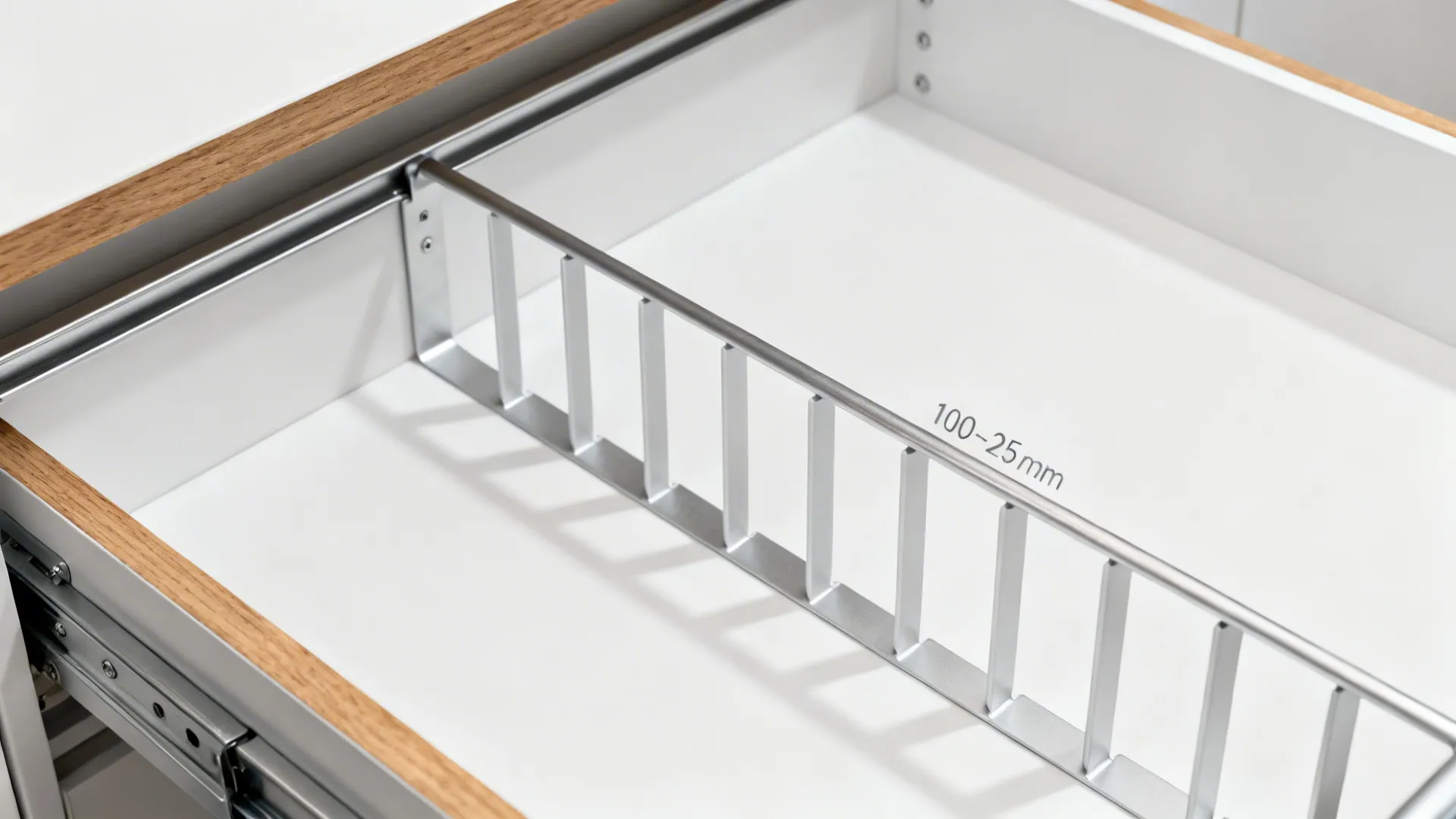

Tips. In your CAD file, lock in 600 mm modules where possible and specify interior organizers (sheet pan dividers at 100–125 mm). For renters, consider a freestanding slim pantry (400 mm) to test the flow before commissioning built-ins.

save pin

save pin

Transparent Backsplash for Light and Depth

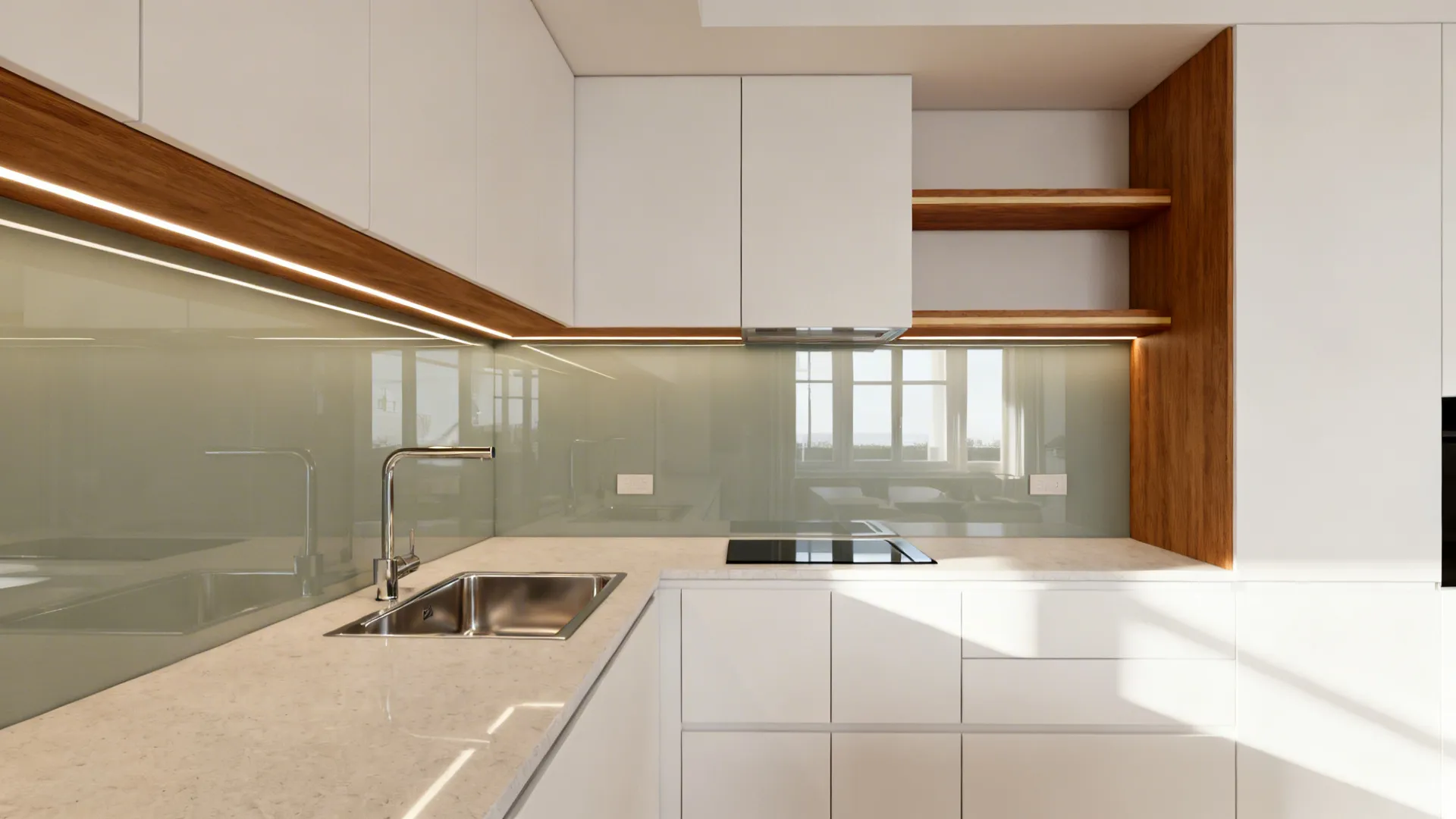

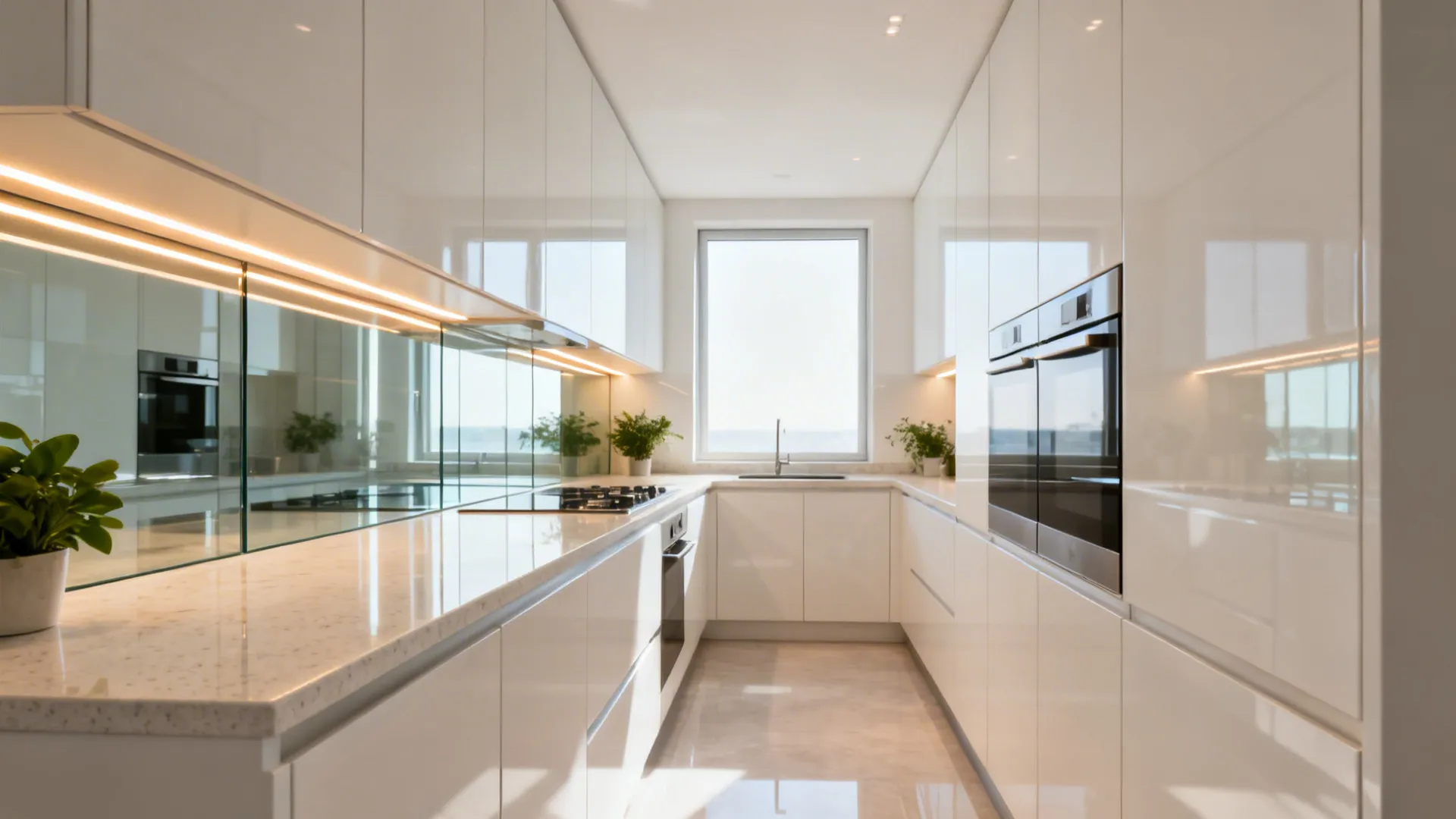

My Take. The first time I installed a low-iron glass backsplash in a windowless kitchenette, it was like switching on an extra light. Paired with warm LEDs, the reflection doubled the perception of depth.

Pros. Glass or mirrored backsplash surfaces amplify light and make a small kitchen plan look wider in both reality and your AutoCAD elevations. Low-iron glass keeps colors true, and if you’re modeling in CAD, you can tag it for easy cleaning zones near the hob. The NKBA recommends at least 500–600 mm clearance between cooktop and combustible surfaces; glass helps meet safety while keeping things airy (NKBA Kitchen Planning Guidelines).

Cons. Fingerprints and splatters show up, especially in high-traffic cooking. And if you choose mirror, be ready to see everything—great for plants, not for yesterday’s dishes.

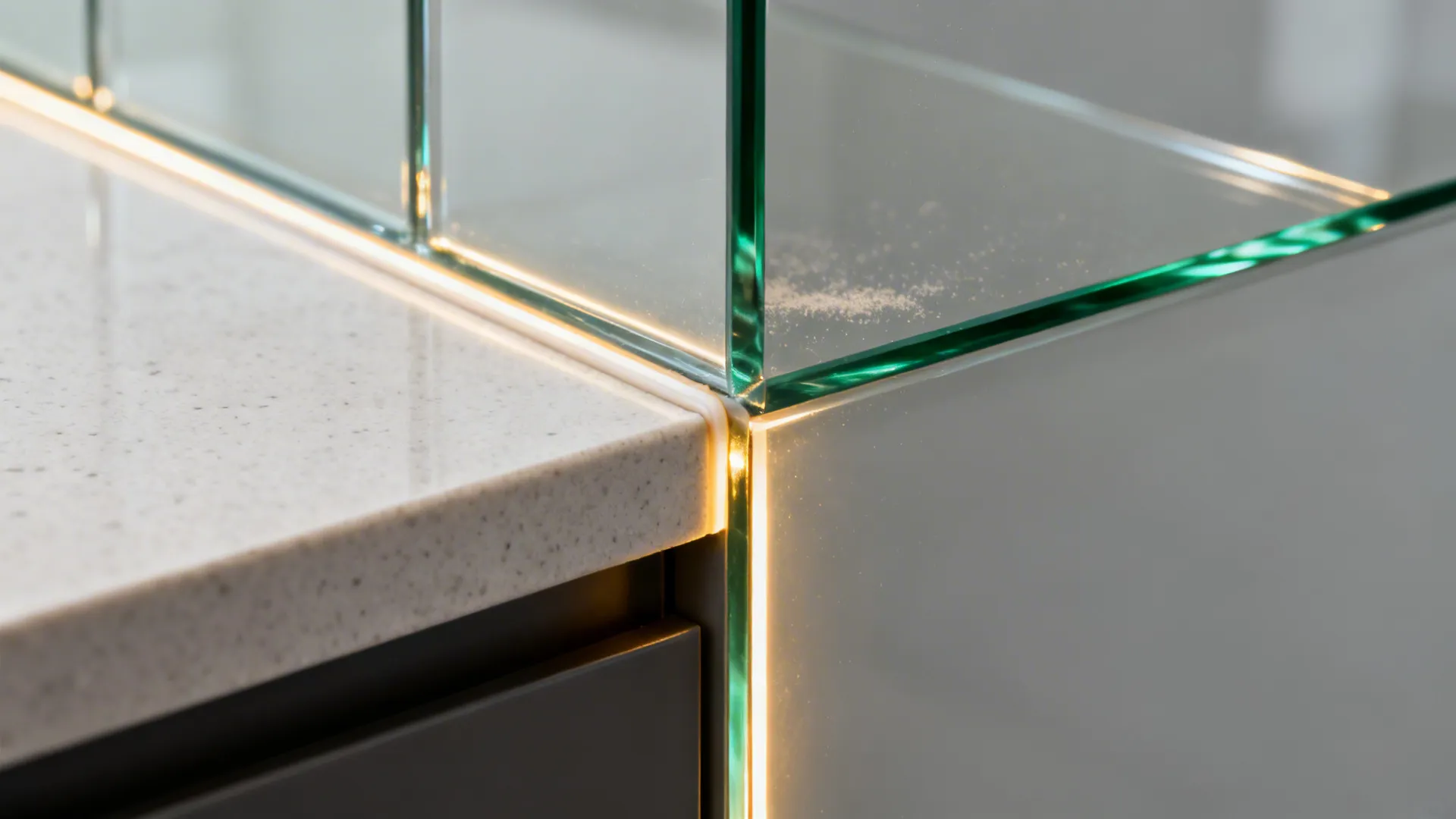

Case & Cost. Tempered glass panels typically run mid-tier; in a 2.4 m run, expect costs to be comparable to mid-range tile after labor. If you’re modeling, note thickness (6–8 mm) to align outlets flush. For more visual strategies around light and sightlines, I often reference glass backsplash makes the kitchen feel more open in 3D previews before clients commit.

save pin

save pin

L-Shaped Layout to Unlock Counter Space

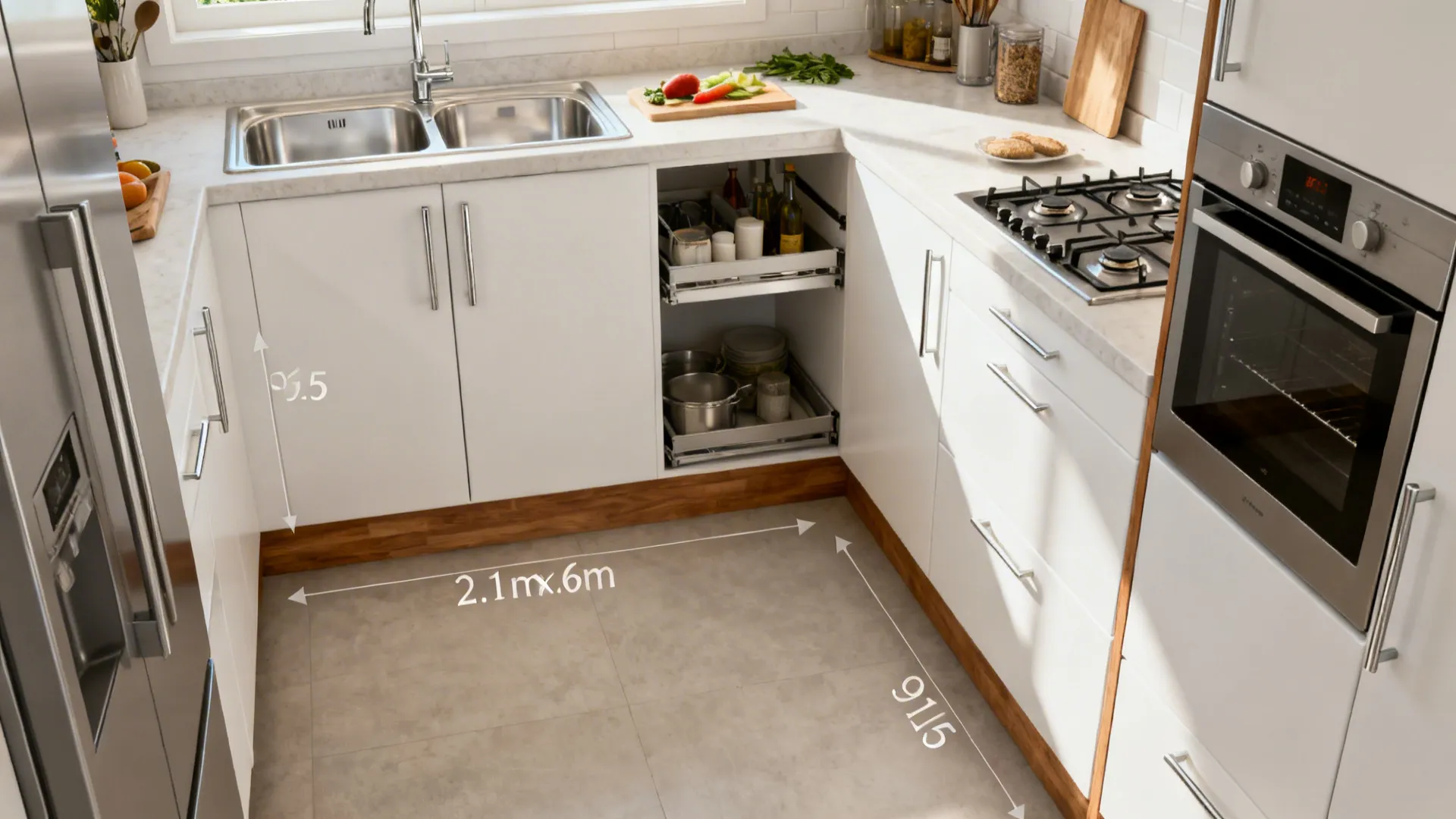

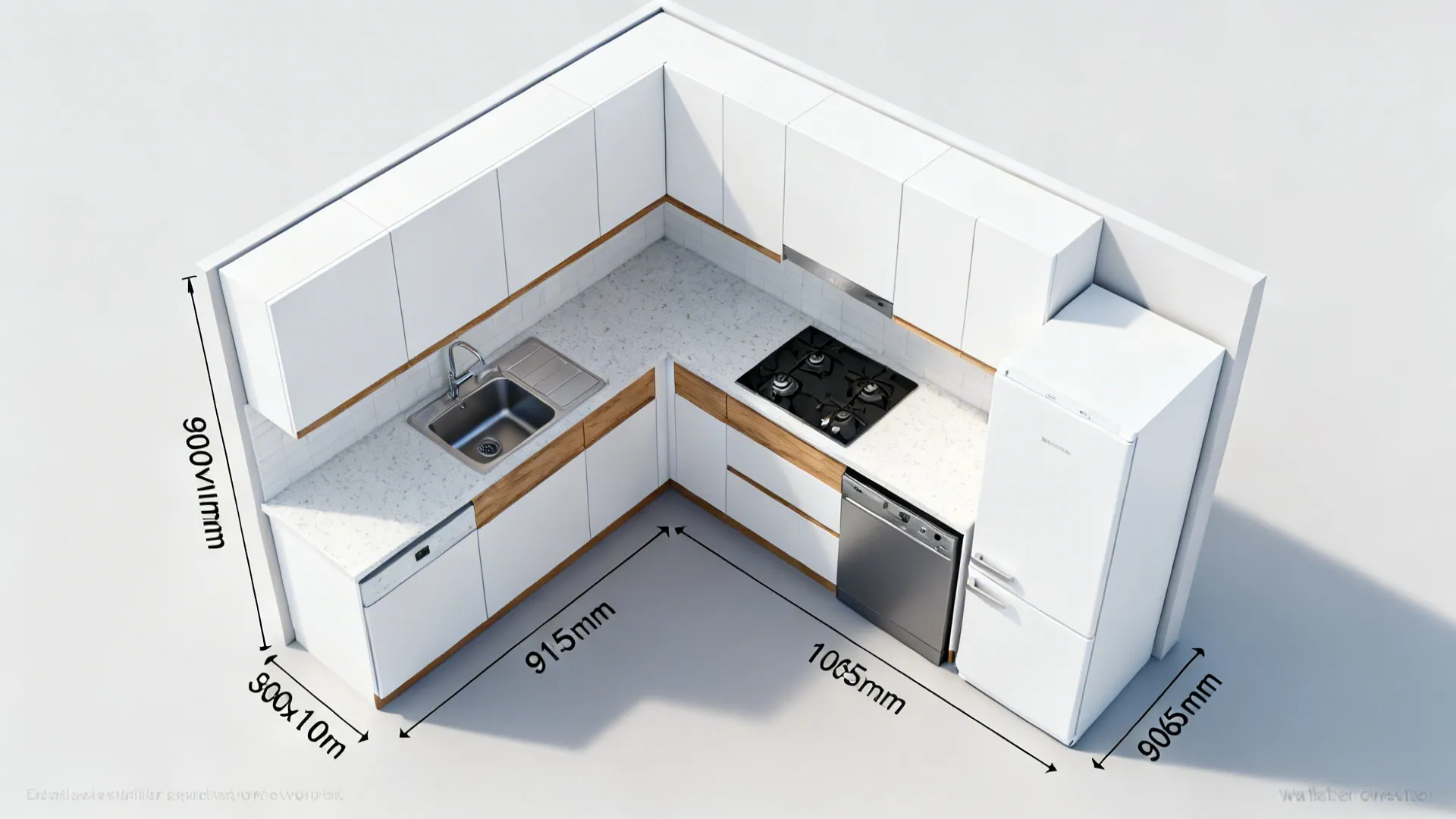

My Take. An L-shaped tiny kitchen saved one of my trickiest apartments: a 2.1 m x 2.6 m room with a structural column. By tucking prep along one leg and the sink/hob along the other, we gained a continuous counter run without crowding the aisle.

Pros. The L-shaped kitchen plan supports a compact work triangle while maximizing prep length—perfect for a small kitchen plan in AutoCAD where corners can be optimized with blind-corner pullouts. It’s flexible for one-cook workflows and still allows a slim peninsula if you have 900 mm clearance. Research from the NKBA suggests maintaining at least 1,065 mm of walkway for multiple cooks; in small homes, 915 mm can work with careful appliance placement (NKBA Guidelines).

Cons. Corner solutions can be pricey, and poorly planned L-shapes can create dead zones. I’ve seen fridges land in no-man’s land, forcing awkward pivots—measure swing clearances carefully.

Tips. In CAD, set your base corner to 900 x 900 mm for common hardware; flag door swings, handle projections, and dishwasher clearance (min 600 mm door arc plus 600 mm standing zone). When you need a quick layout sandbox, test proportions against warm wood accents for a cozy mood to visualize material warmth and balance with appliance finishes.

save pin

save pin

Warmth Through Wood Accents

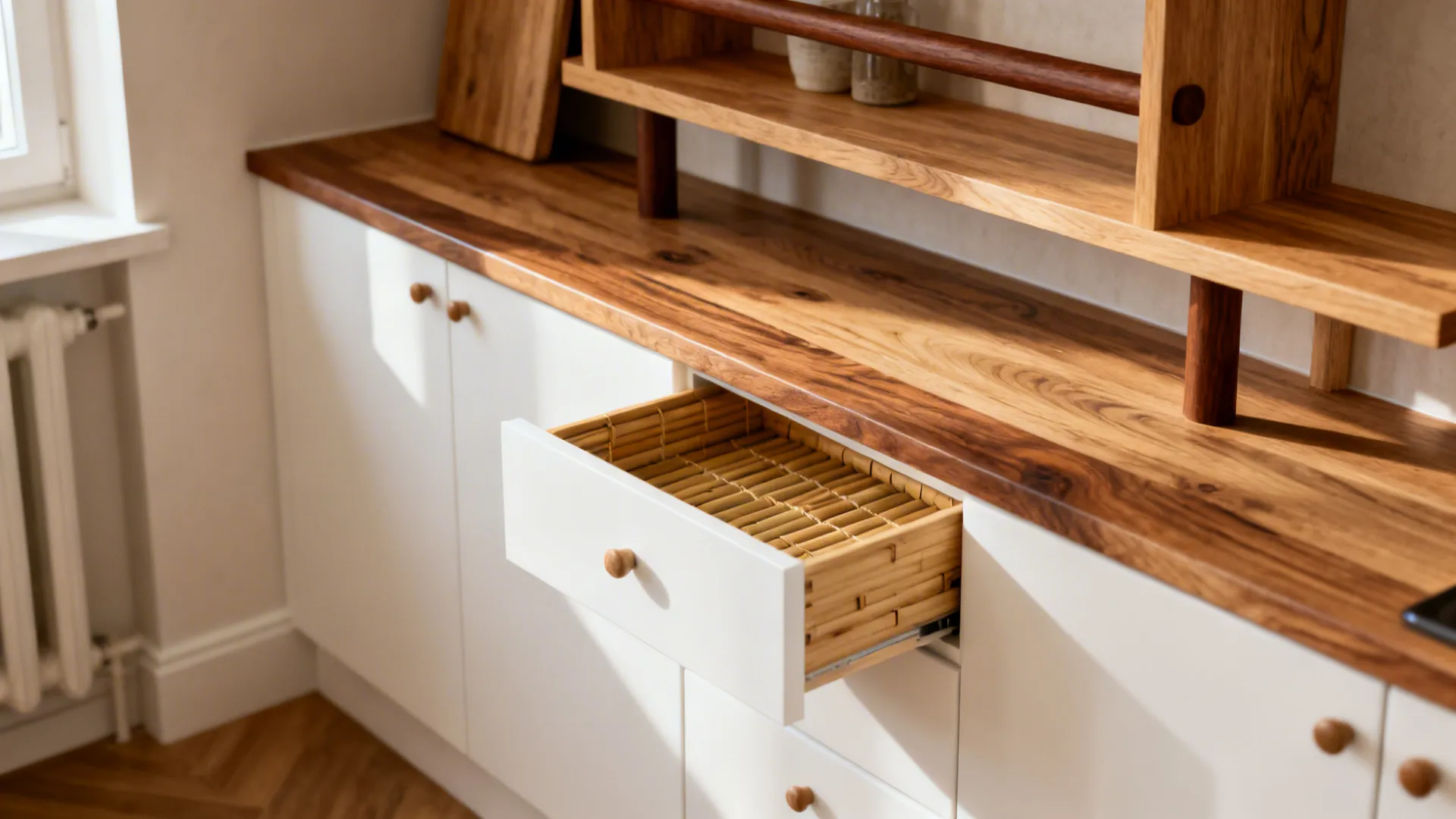

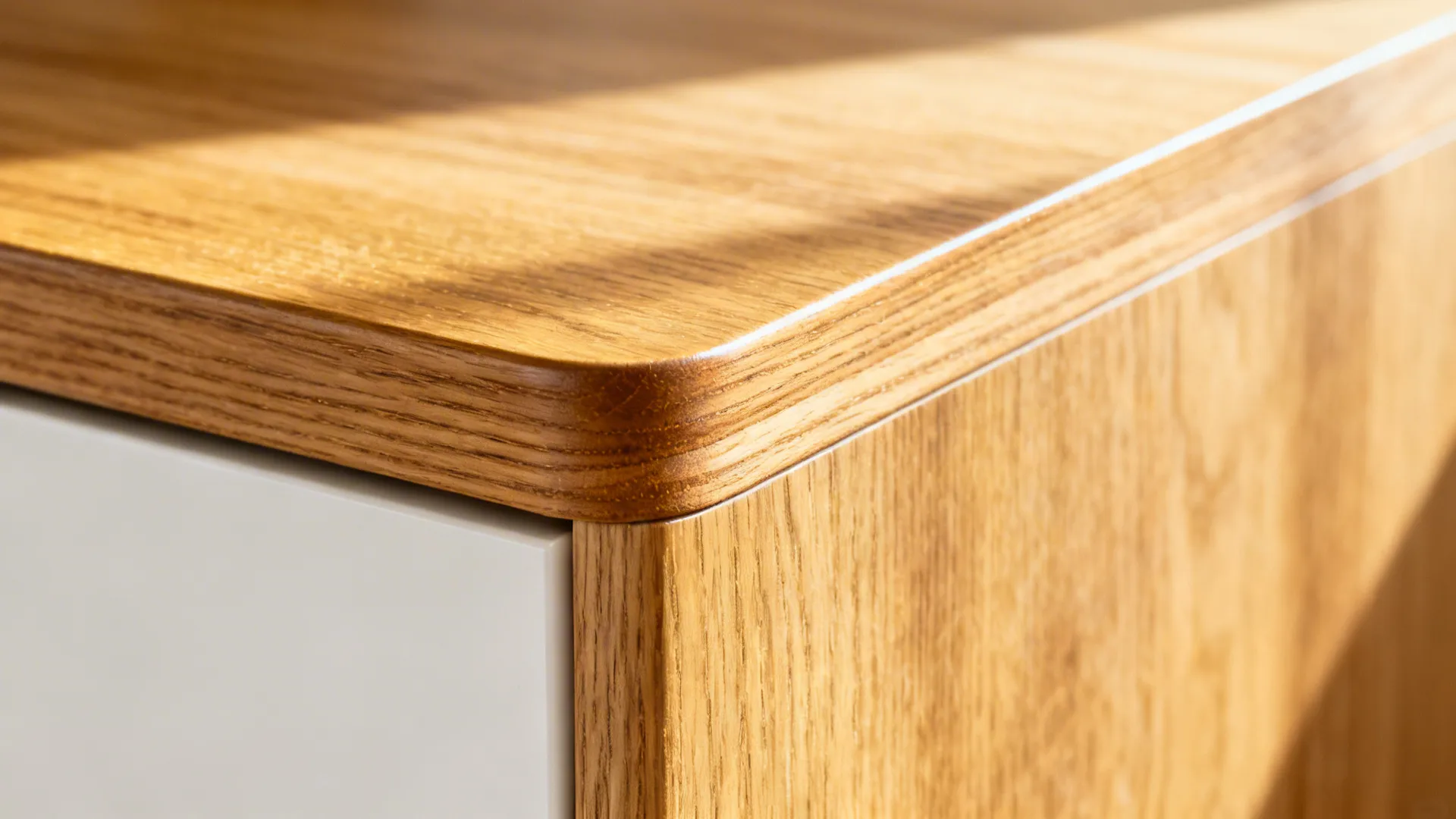

My Take. I’m a big fan of wood accents as a softness layer—think oak edge banding on shelves, walnut rails, or bamboo drawer inserts. In tiny kitchens, I use wood strategically so it doesn’t overpower the space.

Pros. Wood elements introduce tactile warmth and reduce the sterile feel that small kitchens sometimes have. In a compact kitchen plan, pairing wood with matte finishes can lower glare and enrich texture—great when your AutoCAD elevations look a bit too clinical. FSC-certified veneers keep costs manageable while hitting sustainability goals.

Cons. Natural wood near sinks needs care; water and steam can cause movement. I once rescued a warped shelf by switching to veneered plywood with a sealed edge—lesson learned.

Cost & Care. Veneer fronts are typically 30–40% less than solid wood in my market. Specify durable topcoats (2K polyurethane or hardwax oil) and include a “maintenance note” in your drawings so it’s not forgotten on site.

save pin

save pin

Zone Lighting With Smarts

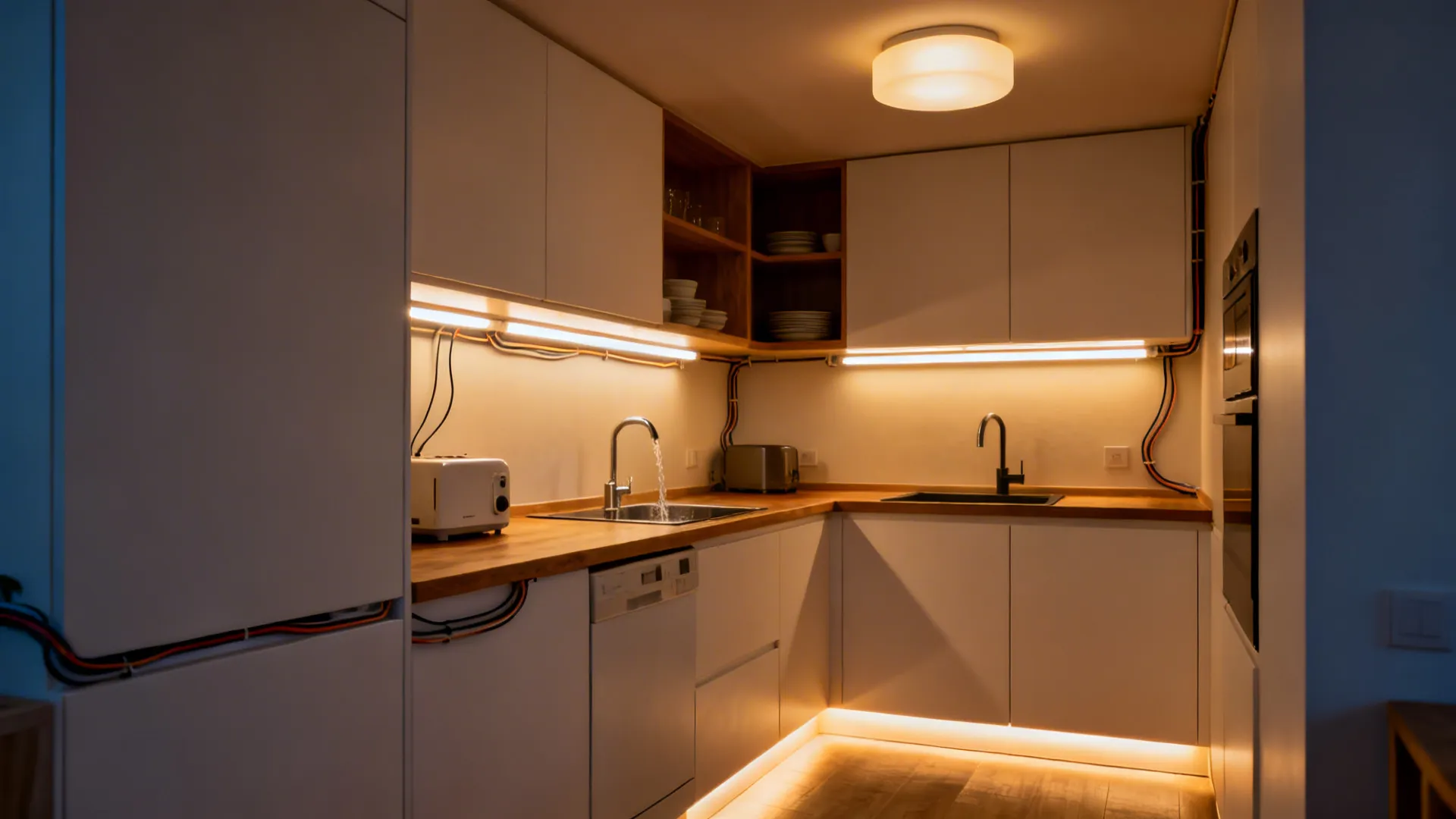

My Take. Task lighting changed everything in a 5.8 m² rental we upgraded in stages. We started with under-cabinet LED strips on a motion sensor. Prep finally moved off the dining table because the counters were bright where it mattered.

Pros. Layered lighting—task, ambient, accent—elevates efficiency and mood in a small kitchen and can be precisely plotted in your AutoCAD reflected ceiling plan. Under-cabinet LEDs reduce shadows on the cutting board, while toe-kick lights guide nighttime trips. According to the IES Lighting Handbook, task surfaces often target 300–500 lux; even simple strips can get you there with proper spacing.

Cons. Too many control apps can turn cooking into a software update. I’ve simplified dozens of systems by consolidating to one dimmer and one motion sensor for the most-used zones.

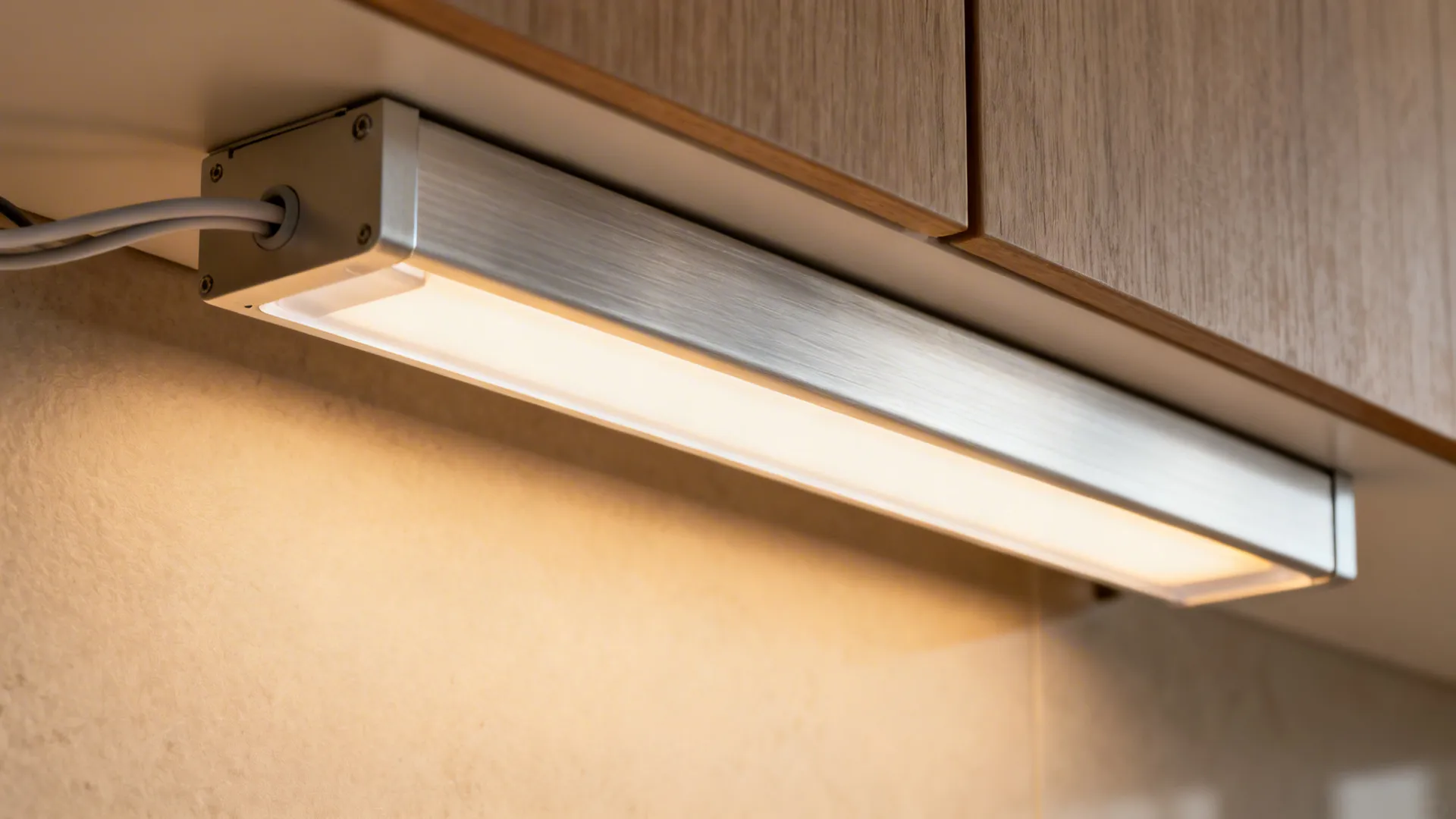

Tips. Add LED channel specs (profile depth, diffuser type) to your drawings, note transformer access, and create a simple control schedule (prep, dine, clean). For quick spatial tests of ceiling and wall light placement in small rooms, I also look at transparent partitions for brighter kitchens as a cue for borrowing light through adjacent zones.

save pin

save pin

Getting Practical With Your AutoCAD Kitchen Plan

My Take. Clients often ask for a “kitchen plan AutoCAD drawing free download.” I get it—templates save time. But I’ve learned to treat downloads as a starting point, not a blueprint. Real kitchens vary: wall plumb, appliance specs, and local code clearances always change the details.

Pros. A well-built AutoCAD kitchen plan template gives you quick module grids, common appliance blocks, and standard clearances—great for rapid iterations of a small kitchen plan. It’s also ideal for testing long-tail details like ‘dishwasher door clearance’ and ‘under-sink waste sorting’ directly on your model. If you’re starting from a template, lock layers, label dimensions, and use dynamic blocks for flexibility.

Cons. Free downloads can be outdated or regionally incompatible—counter heights, toe-kicks, and gas line offsets differ by market. I’ve seen templates miss venting and GFCI requirements; always cross-check against current codes and manufacturer cut sheets.

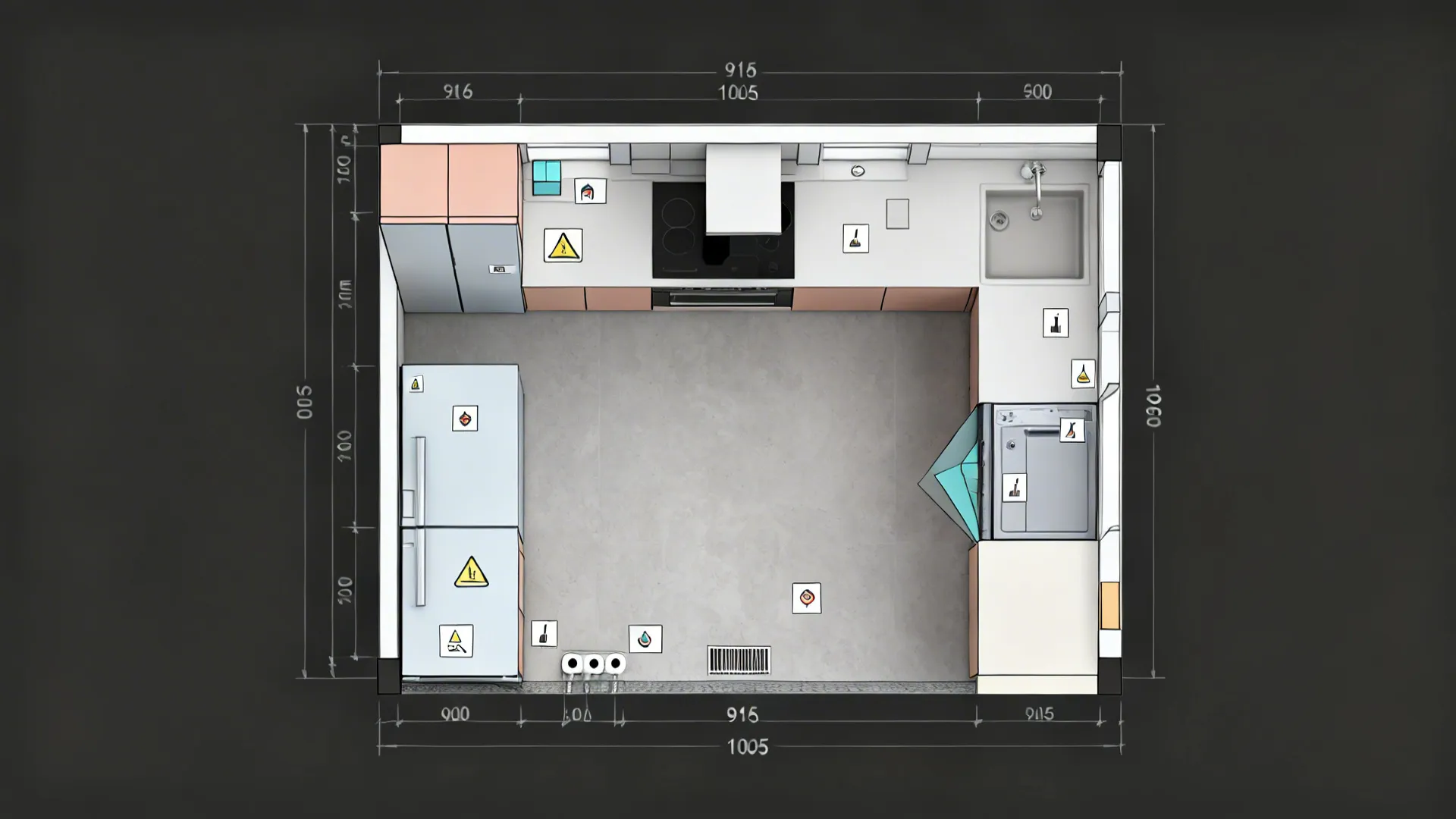

Tips & Sourcing. If you do source a free DWG, verify: base cabinet depth (commonly 600 mm), working aisle (915–1,065 mm), and appliance clearances from manufacturer PDFs. Reference NKBA and local code for outlets and ventilation. Build your own dynamic block library over time—my most-used include corner units, sink bases with trash pullouts, and refrigerator swing envelopes. And remember: a clean, annotated CAD file is your best communication tool with contractors.

save pin

save pin

Summary

Small kitchens aren’t limitations—they’re invitations to design smarter. From minimalist storage and a transparent backsplash to an L-shaped layout, warm wood accents, and strategic lighting, the right small kitchen plan makes cooking easier and more enjoyable. When using a kitchen plan AutoCAD drawing (even from a free download), treat it as a framework and validate dimensions, clearances, and codes; the NKBA guidelines remain a reliable benchmark for function and safety. Which of these five ideas are you most excited to try in your space?

save pin

FAQ

1) How do I start a small kitchen plan in AutoCAD?

Begin by measuring the room precisely (to the nearest 5 mm), draw walls, doors, and windows, then add appliance blocks with manufacturer clearances. Set layers for walls, fixtures, electrical, and dimensions so edits remain clean.

2) Where can I find a kitchen plan AutoCAD drawing free download?

Look for reputable sources that provide clear licensing and up-to-date standards. Even with free templates, verify cabinet depths (600 mm typical), working aisles (915–1,065 mm), and appliance envelopes against current manufacturer specs.

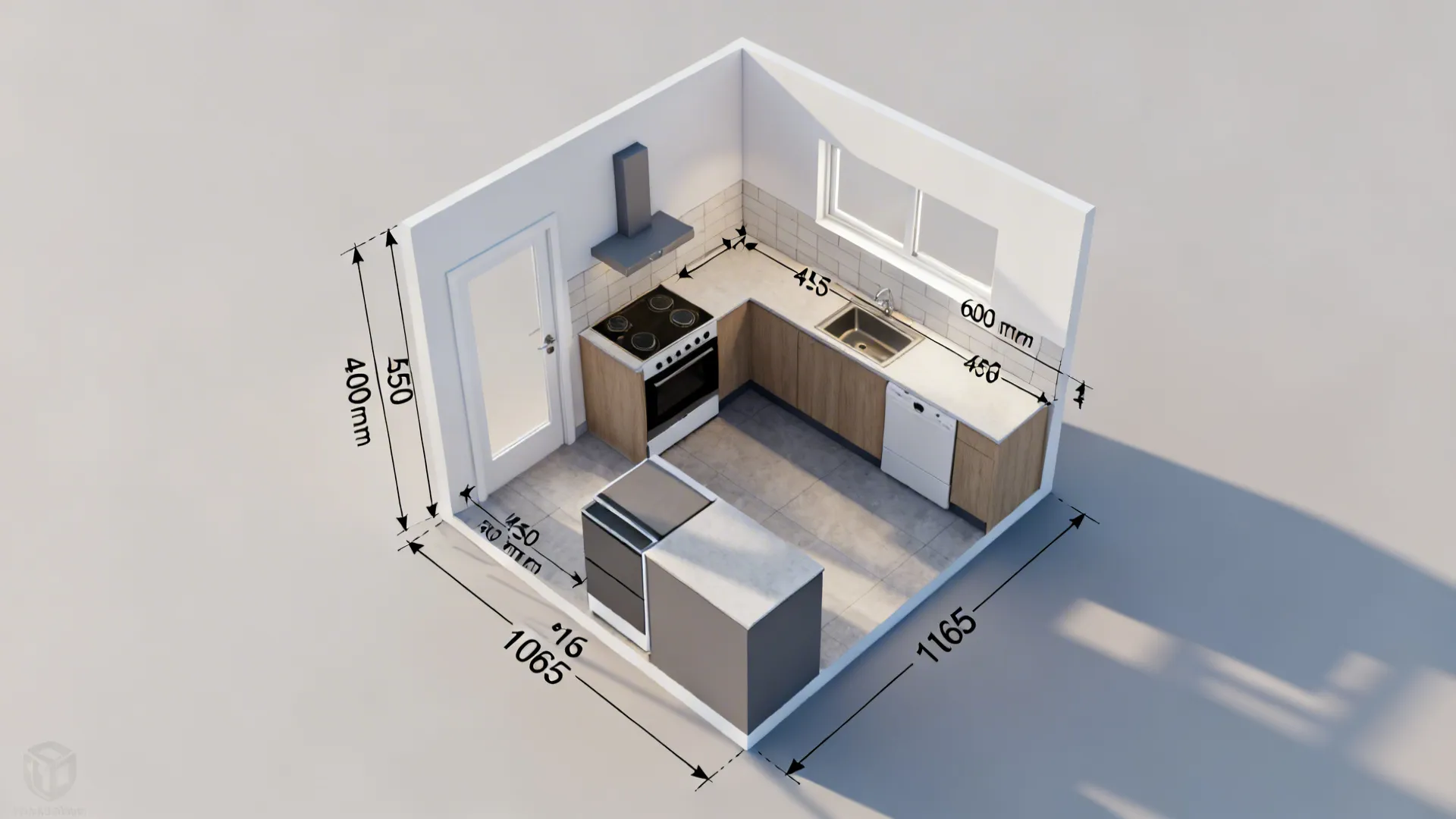

3) What’s the ideal aisle width for a small kitchen?

For one cook, 915 mm is commonly workable; for two, 1,065 mm or more is recommended by the NKBA. If your room is tight, prioritize safe appliance door swings and a continuous prep run.

4) Are L-shaped layouts better for tiny kitchens?

Often yes. An L-shape can provide a longer continuous counter, improved work triangle, and fewer crowding points. Corner pullouts or lazy Susans help turn awkward corners into usable storage.

5) How high should my backsplash be in a compact kitchen?

Standard is 450–600 mm above the counter, with cooktop clearances following manufacturer and code requirements. Glass or slab backsplashes are easy to clean and visually expand the space.

6) What lighting levels should I target for food prep?

Aim for 300–500 lux on worktops, according to the IES. Under-cabinet LED strips with diffusers and 3000–3500K color temperature give warm, comfortable task lighting.

7) How do I model appliance clearances accurately?

Use manufacturer DWGs when available and include swing envelopes for fridges, ovens, and dishwashers. Add a note for ventilation and electrical/GFCI placement per local code and NKBA guidance.

8) Can I visualize my small kitchen plan before building?

Yes. Export your AutoCAD plan to a 3D tool for quick iterations of materials and lighting; testing ideas like an L-shaped run or a glass backsplash virtually can prevent costly changes later. If you need a fast layout sandbox, tools that show “L-shaped layout frees more counter space” or “glass backsplash makes the kitchen feel more open” can be helpful for client buy-in.
