5 Smart Ideas for Commode Bathroom Design: Space-savvy, code-smart, and beautifully livable toilet zones for small bathrooms

[Section: Introduction]

Commode bathroom design has shifted fast in the past few years—clean lines, wall-hung fixtures, and easy-clean materials are the new normal. In my own projects, a tiny toilet room often ends up as the most transformative space, because small spaces spark big ideas. If you’re dealing with a narrow powder room or a compact family bath, a wall-hung commode to free floor space can be the first domino that makes everything else click.

I’ve led dozens of toilet zone makeovers, from cramped 800-mm niches to master suites with privacy partitions. Throughout, I’ve learned to blend aesthetics with code, water savings, and low-maintenance details. In this guide, I’ll share 5 design inspirations for commode bathroom design, each grounded in my field notes and supported by expert data where it helps.

Expect pros and cons (no sugarcoating), a few stories from site, and practical tips on budget and timing. Let’s make your toilet area look bigger, feel cleaner, and function smarter—without losing personality.

[Section: Inspiration List]

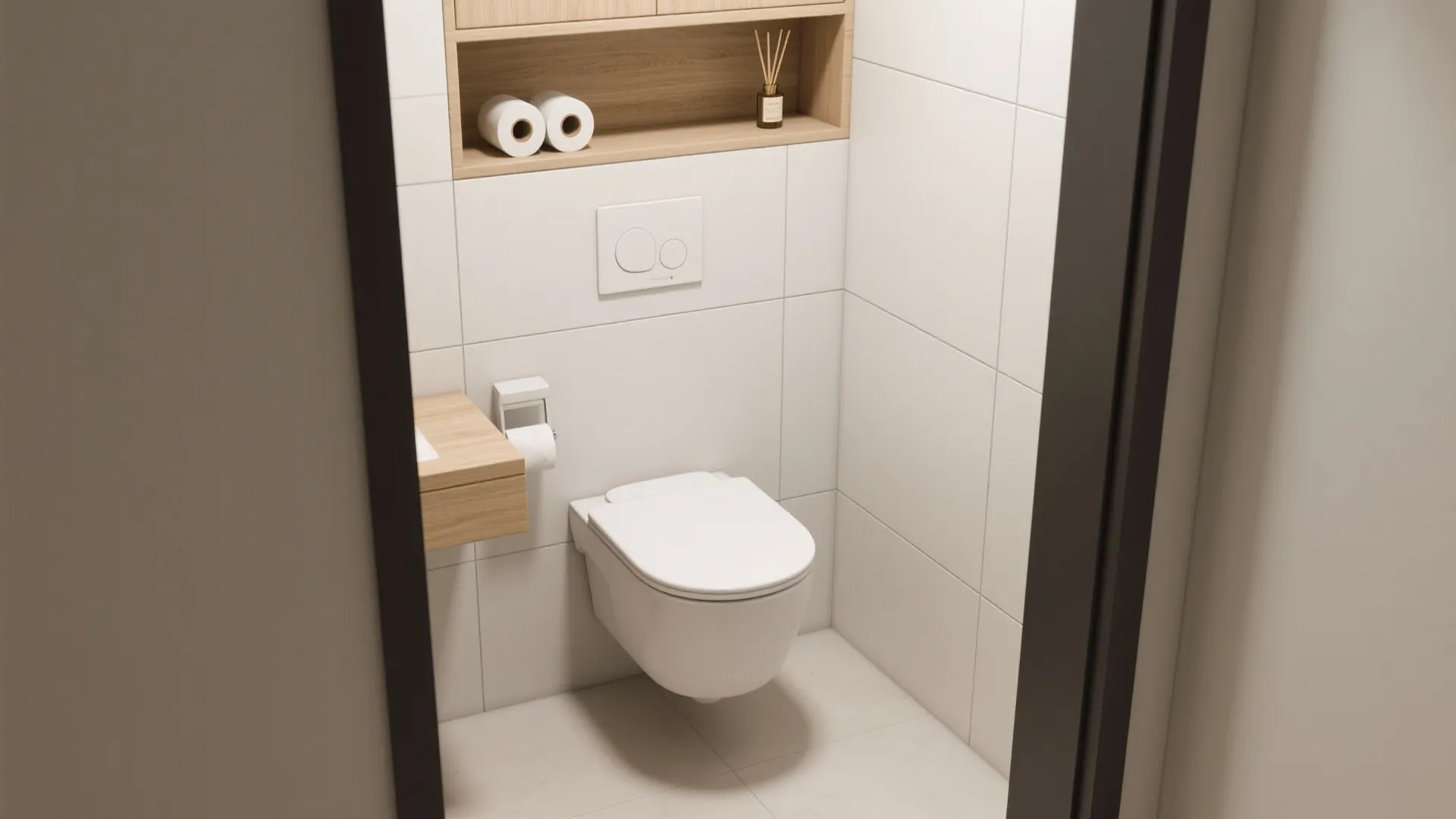

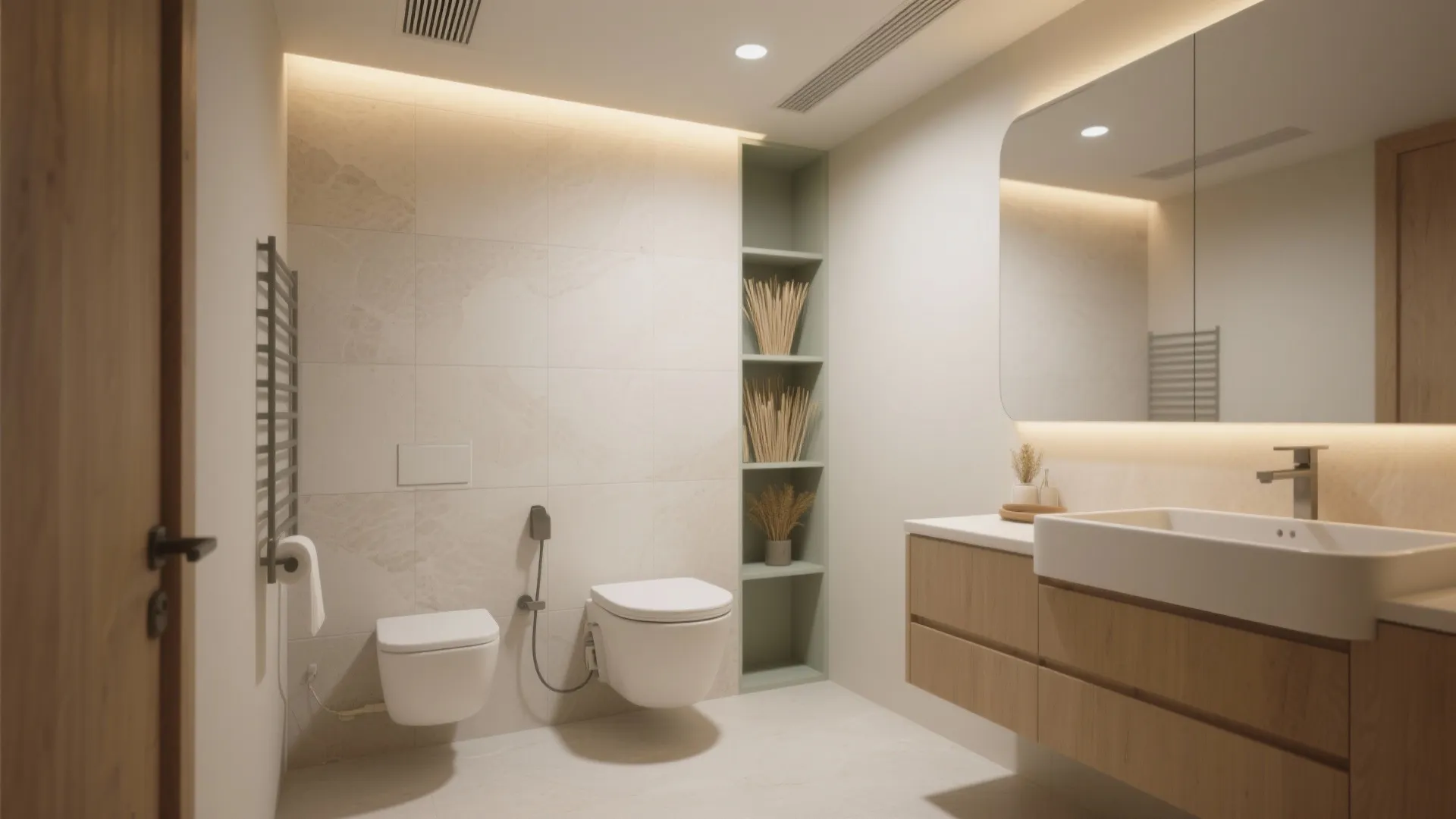

Wall-Hung Commode + Concealed Cistern

My Take

The first time I installed a wall-hung toilet in a 32-inch-wide alcove, the client messaged me, “Did we just gain a foot?” The visible floor line and the slimmer tank wall immediately made the room feel calmer. I now default to this in tight footprints when the structure allows.

Pros

• A wall-hung toilet for tiny bathrooms visually enlarges the floor, which makes a small bathroom commode layout feel lighter and easier to clean. The concealed cistern hides the bulk and enables a sleek shelf above for décor or storage.

• Adjustable mounting height improves comfort and can support universal design, a long-tail win if aging in place is on your roadmap. Pair with a dual-flush mechanism to save water.

• Many frames are serviceable via the flush plate, so maintenance isn’t the horror story people imagine—especially with reputable brands.

Cons

• Framing and in-wall rough-in increase cost and complexity; not ideal for concrete or block walls unless you plan for furring. If you’re very budget-sensitive, a high-quality floor-mounted compact toilet may be better.

• Access panels and carrier specs matter; cut corners here and future repairs get frustrating. If your walls aren’t straight, aligning the bowl can add labor.

Tip / Cost

Budget roughly $800–$1,800 for the carrier and bowl, plus installation. If you’re opening walls anyway, take the opportunity to add a narrow niche above the concealed tank for extra rolls and a reed diffuser—small luxury, big utility.

save pin

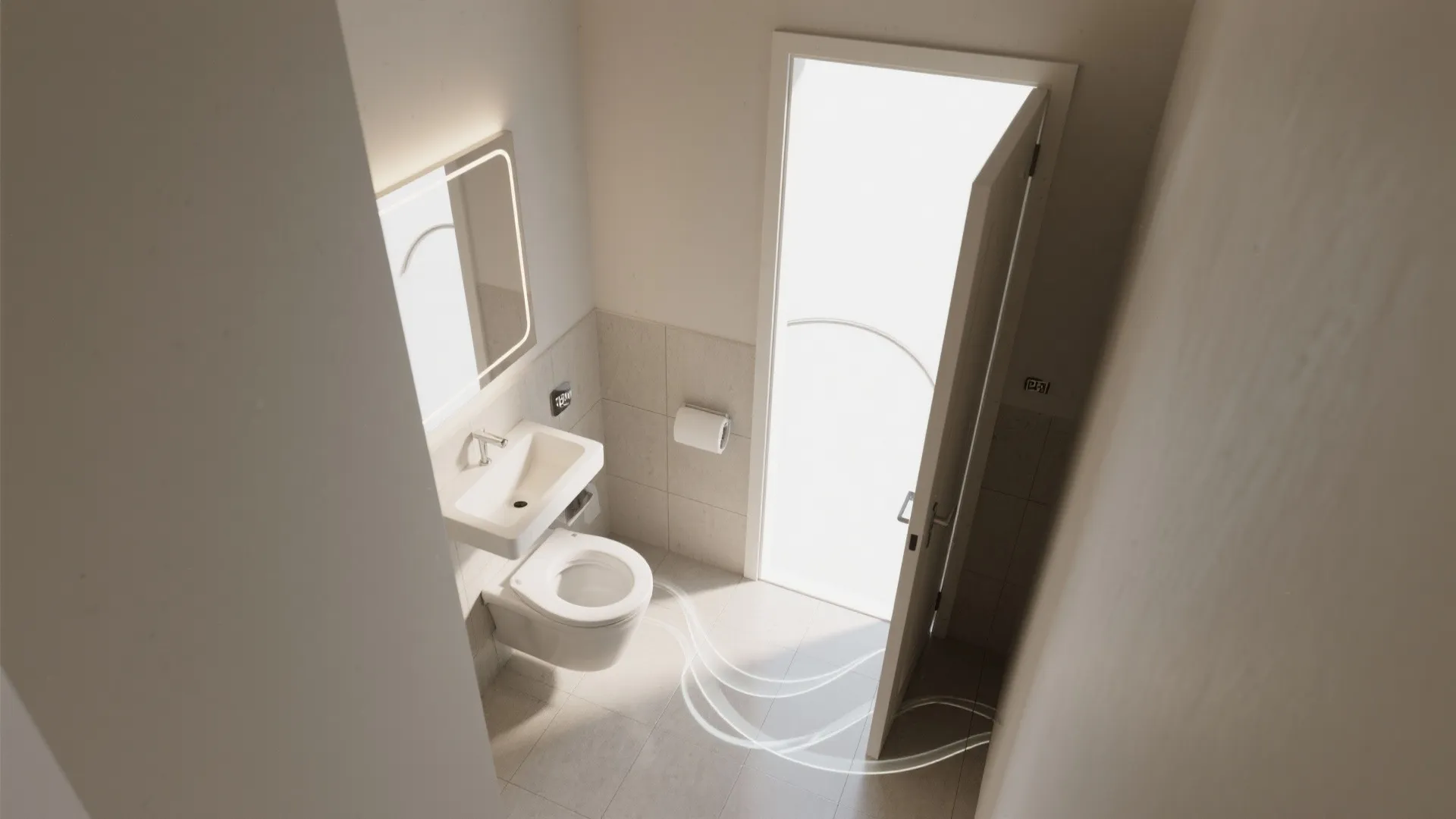

Clearances That Feel Generous (Even in Tight Quarters)

My Take

I once rescued a powder room where knees grazed the door. We kept the same footprint but rebalanced clearances: 15 inches from centerline to each side object and a comfortable 24 inches in front. The space suddenly felt intentional, not cramped.

Pros

• Following evidence-based guidelines makes a small bathroom commode layout safer and more comfortable. The National Kitchen & Bath Association recommends at least 15 inches from the toilet centerline to side obstructions and 24 inches of clear space in front; code minimums often allow 21 inches in front (NKBA Planning Guidelines; ICC/IRC, local amendments apply).

• Pocket or outswing doors can unlock precious inches in tiny rooms without moving plumbing. This keeps circulation clear and improves accessibility.

Cons

• In heritage homes with thick walls, installing a pocket door can eat into structure or chase space; you might settle for a quality barn track or outswing hinge.

• Strict adherence to the book can clash with quirky existing conditions; I sometimes negotiate a compromise between code minimums and NKBA best practices.

Tip / Case

If you can’t change the door, try trimming the vanity depth or elbowing the wall slightly out at knee height—a subtle bump-out can make sitting feel more relaxed without a full rebuild.

save pin

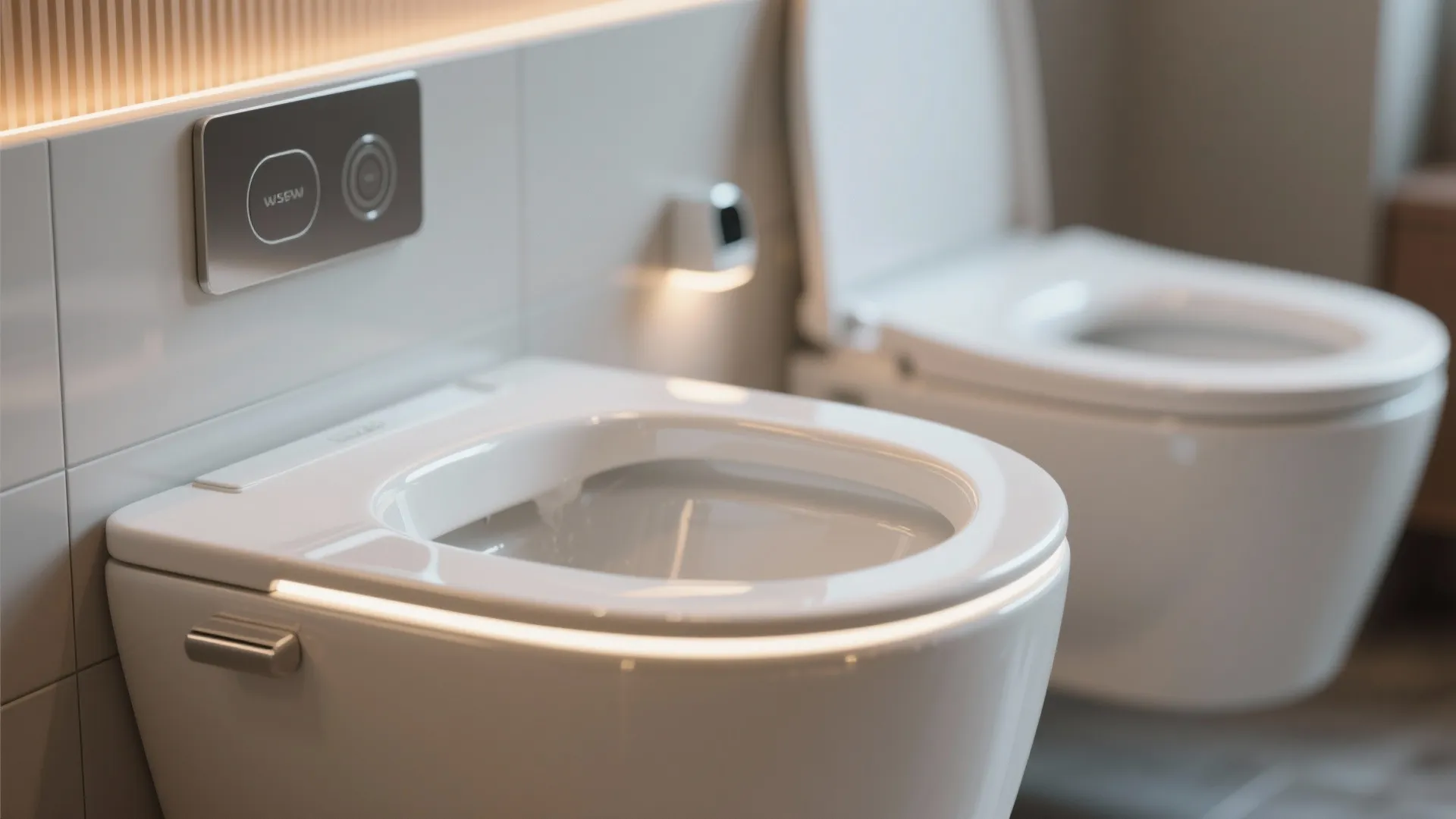

Hygiene Tech: Bidet Seats, Rimless Bowls, and Touchless Flush

My Take

I converted a traveling couple to a heated bidet seat during a winter renovation. They texted from the airport: “We miss our toilet.” Comfort aside, these upgrades reduce paper use and simplify cleaning, which matters in busy households.

Pros

• Upgrading to a bidet seat in a commode bathroom design improves hygiene and can reduce TP consumption; many seats fit standard bowls and include gentle wash, heated water, and night lights.

• Rimless bowl designs and touchless flush plates cut down germy touchpoints and make deep-cleaning faster—critical in small bathrooms where odors concentrate.

• Water-saving, WaterSense-labeled toilets use 1.28 gallons per flush or less, saving at least 20% compared to 1.6 gpf models (U.S. EPA WaterSense). Pairing a dual-flush with a bidet seat balances comfort and conservation.

Cons

• Bidet seats need a nearby GFCI outlet; fishing power into a tiled wall can add cost. If you skip a heated model to save money, winter mornings may test your resolve.

• Touchless sensors can be finicky if aimed at glossy tiles; a quick field test during install helps avoid accidental triggers.

Tip / Plan

Map outlet locations early. I like to visualize the layout in 3D to check sightlines, reach, and sensor positions before we close walls. Add a small shelf for wipes and spare rolls—but keep it out of splash zones.

save pin

Materials That Clean Themselves (Almost)

My Take

As a designer who also values low-maintenance living, I gravitate to large-format tiles, epoxy grout, and seamless wall panels behind the toilet. I’ve seen clients go from weekend scrub marathons to quick microfiber wipe-downs.

Pros

• Large-format porcelain or sintered stone panels limit grout lines, making the commode zone faster to clean. Paired with epoxy grout, you get better stain resistance in splash-prone areas.

• Non-porous, matte finishes disguise water spots and hairline scratches, especially in high-traffic powder rooms. A soft matte also calms reflections in a narrow toilet alcove.

• Rounded vanity corners and soft-close seats reduce bumps and noise, enhancing comfort in compact bathrooms.

Cons

• Ultra-matte or textured finishes can be trickier to touch up if chipped. Keep a spare tile or color-matched filler on hand.

• Solid panels are heavier; confirm your wall substrate and adhesive system. Cutouts for the flush plate and niches must be precise—measure twice, cut once.

Tip / Cost

Expect a premium for panels and epoxy grout but factor in the lifetime cleaning savings. For a budget variant, use standard tile with a darker, high-performance grout on the lower third and paint above—a durable, layered look without the spend.

save pin

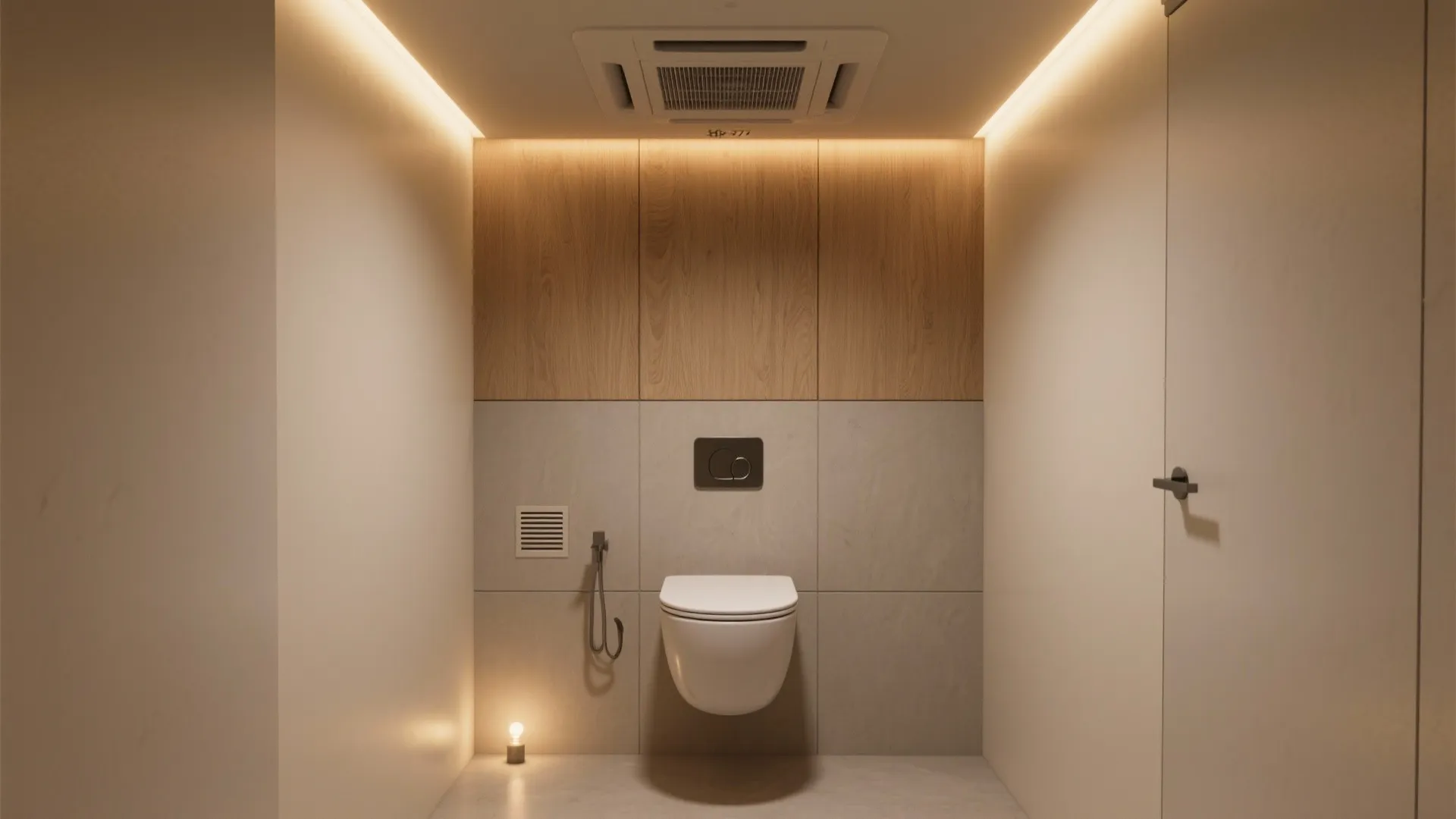

Ventilation, Lighting, and Odor Control That Actually Work

My Take

Good lighting and ventilation are the unsung heroes of commode bathroom design. The projects clients rave about months later are the ones where mirrors don’t glare, air smells fresh, and the night path is subtle and safe.

Pros

• Ventilation that meets ASHRAE 62.2 helps manage humidity and odors: 50 cfm intermittent or 20 cfm continuous is a solid target (ASHRAE 62.2-2019). A quiet, properly ducted fan prevents backdrafts and stale air.

• Layered lighting—soft ambient, a dedicated task light, and a low-level night light—keeps glare down and makes small rooms feel larger. Warm 2700–3000K LEDs flatter skin tones and soften shadows.

• Activated-carbon filters or in-wall odor extraction tied to the flush plate can further control smells, especially in doorless water closets off a primary suite.

Cons

• Fans ducted into attics (not outside) just move the problem; watch for installers cutting corners. Roof or wall caps with backdraft dampers are worth the extra steps.

• Overly cool, bright lights amplify every splash mark on glossy tiles. If you love dramatic sheen, pair it with dimming and a warm color temperature.

Tip / Detail

Put the fan on a timer switch—10 to 20 minutes after use is ideal. A motion sensor can softly bring on a night light without waking the whole house.

[Section: Summary]

Small bathrooms don’t limit you; they ask you to design smarter. From wall-hung fixtures and evidence-based clearances to water-saving, WaterSense toilets and ASHRAE-level ventilation, commode bathroom design rewards every thoughtful detail. In my experience, once you prioritize comfort, cleanability, and code-smart planning, the room feels bigger and behaves better. Which of these five ideas would you try first in your own space?

[Section: FAQ]

save pin

FAQ

1) What is the best commode for a small bathroom?

For most tight rooms, a compact elongated or round-front, WaterSense-labeled toilet is a great pick. If budget and structure allow, a wall-hung commode with a concealed cistern opens floor area and visually enlarges the space.

2) How much clearance does a commode need?

Best practice is 15 inches from the toilet centerline to each side obstruction and 24 inches clear in front; many codes require at least 21 inches in front. Check NKBA guidelines and your local code (ICC/IRC may vary by jurisdiction).

3) Are bidet seats worth it in a commode bathroom design?

Yes if you value hygiene and comfort. Many retrofit onto existing bowls, adding warm water wash, seat heat, and night lights, while potentially reducing toilet paper consumption.

4) How do I control odor in a tiny toilet room?

Specify an ASHRAE 62.2-compliant exhaust fan (50 cfm intermittent or 20 cfm continuous) vented outdoors, plus good door undercut for make-up air. Consider carbon filtration or an in-wall odor extraction system for extra control.

5) Which materials are easiest to clean behind the toilet?

Large-format porcelain or sintered stone panels with epoxy grout minimize joints and staining. Matte finishes help hide water spots, while rimless bowls cut down on grime traps.

6) What’s the cost difference between wall-hung and floor-mounted toilets?

Wall-hung systems typically add for the carrier, in-wall plumbing, and finishing—often $800–$1,800 plus install. A quality floor-mounted compact model costs less to install but won’t free the same floor space.

7) How can lighting improve a commode nook?

Use layered lighting: soft ambient, low-glare task light, and a night light on sensors. Dimmable, 2700–3000K LEDs keep the space calming and flatter finishes and skin tones.

8) Do efficient toilets really save water?

Yes. WaterSense-labeled toilets are independently certified to use 1.28 gpf or less—at least 20% less than 1.6 gpf models (U.S. EPA WaterSense). Over time, that’s a noticeable reduction on your water bill.
