5 Smart Ideas for Kitchen Chimney Heights (With Drawings): A senior interior designer’s guide to getting kitchen chimney height right—5 ideas, pros & cons, and real-world tips

As a designer who’s spent over a decade optimizing compact kitchens, I’ve seen how the right chimney height transforms both performance and comfort. Small spaces spark big creativity—especially when every millimeter matters around cooktops, cabinets, and the ceiling line. In this guide, I’ll share 5 kitchen chimney height ideas, backed by field experience and expert data, plus simple technical drawings you can visualize at home.

Before we dive in, a quick note on trends: slimmer hoods, quieter motors, and mixed-vent (ducted + recirculating) systems are gaining traction, especially in small apartments. I’ll walk you through five practical inspirations that balance efficiency, heat capture, and visual order, so your kitchen looks great and breathes better.

To help you get started, here’s a reference case that shows how layout choices influence duct runs and hood placement: L-shaped layout unlocks more counter area. We’ll come back to drawings in each section—simple elevations and plan views that clarify distances.

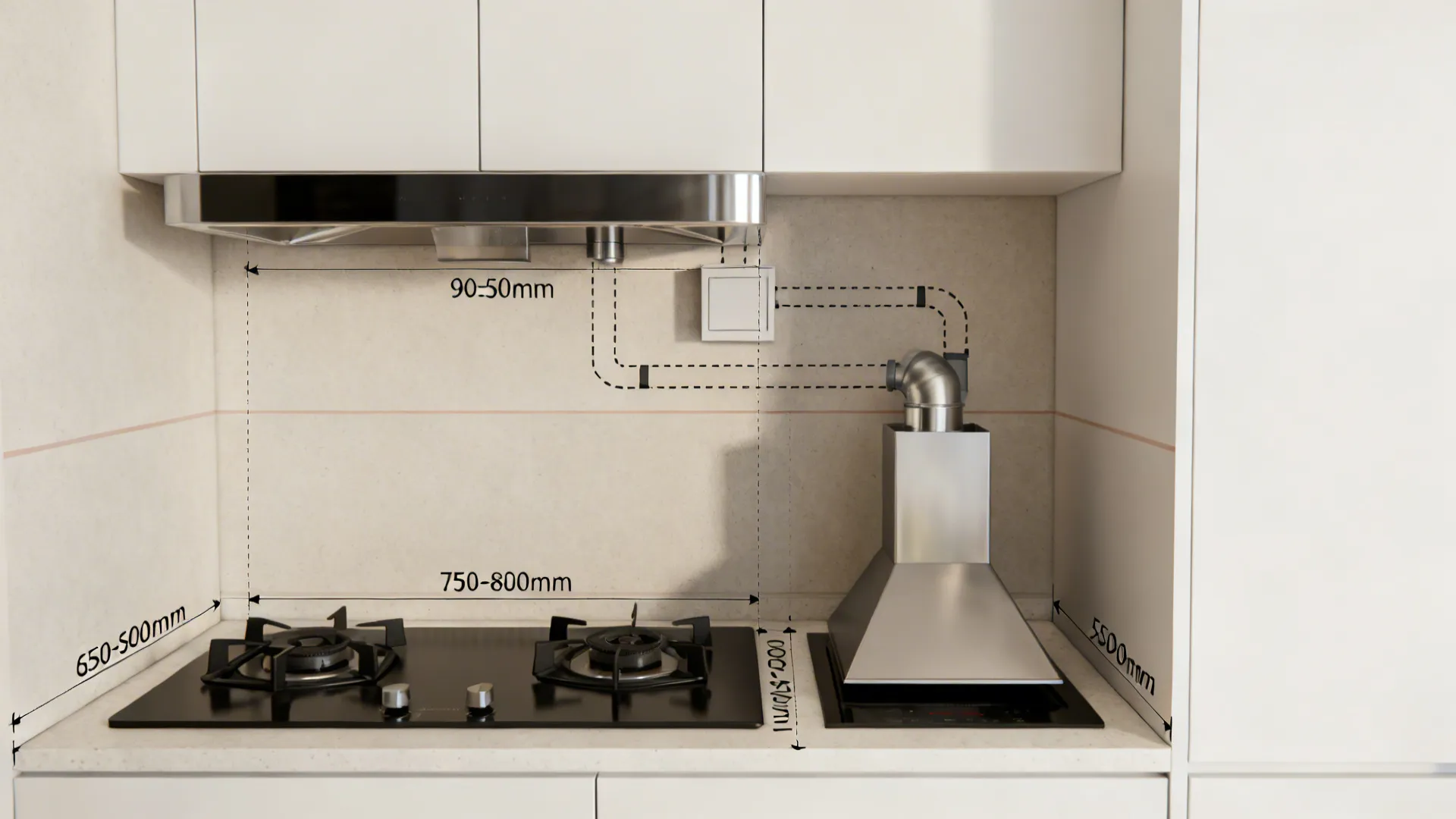

Standard Safe-Range Height Over Gas and Induction

My Take

I usually start clients at a safe, code-adjacent range: 650–750 mm (25.5–29.5 in) above induction, and 700–800 mm (27.5–31.5 in) above gas. It’s the sweet spot that preserves capture while preventing heat damage to the hood and your upper cabinets.

Pros

- Consistent with common manufacturer specs and long-tail best practice like “ideal chimney height above gas stove.”

- Great balance of capture efficiency and sightline; you won’t bump your head while sautéing. According to the Home Ventilating Institute (HVI), capture improves with correct setback and height, reducing cooking effluents.

- Works with most 600–900 mm (24–36 in) hoods, keeping install predictable and budget-friendly.

Cons

- If you’re very tall, even the higher end of this range can feel close when using a deep hood; I’ve nudged installs up by 20 mm to keep head clearance comfortable.

- In older apartments with low bulkheads, duct collars can crowd the top, complicating the elbow and reducing airflow.

Tip / Drawing

Simple elevation drawing: draw a cooktop line, measure 700 mm up for gas (or 680 mm for induction mid-point), mark hood underside. Show upper cabinet underside aligned or 20–40 mm higher to avoid heat warping. Use a dashed line for the duct path and a 90° elbow clearance box.

save pin

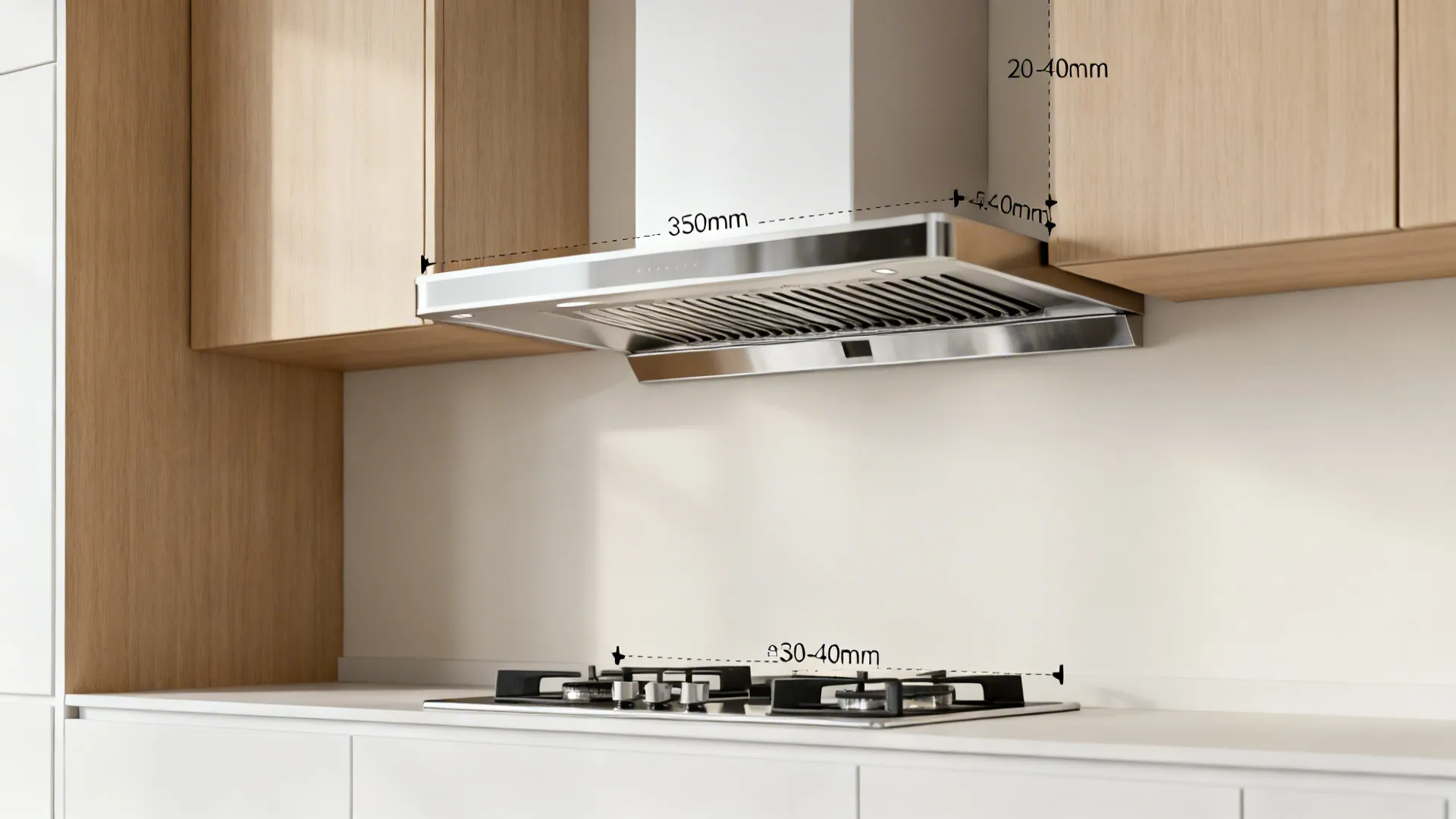

Deeper Canopy, Slightly Higher Mount for Better Headroom

My Take

For taller cooks or tighter zones, I increase the height by 20–40 mm and compensate with a deeper canopy (280–350 mm). This way, you keep a strong capture area without crowding the cook space.

Pros

- Long-tail fit: “best kitchen chimney height for tall users” often pairs a deeper hood with an extra 20–40 mm mounting height.

- Better ergonomics and visual lightness—especially helpful in small kitchens where clear sightlines matter.

- With baffle filters and >650 m³/h airflow (or 380+ CFM), capture remains robust even at a slightly higher set.

Cons

- A deeper canopy may clip swinging cabinet doors; I’ve shifted doors or used 155° hinges to clear the profile.

- Higher set plus a weak motor can underperform; you’ll smell last night’s stir-fry in the morning.

Tip / Drawing

Plan view sketch: show hood depth (e.g., 320 mm) projecting at least to the front burner centerline. Indicate a 20–40 mm increased height in elevation. If ceiling is high, note telescopic chimney extension length.

save pin

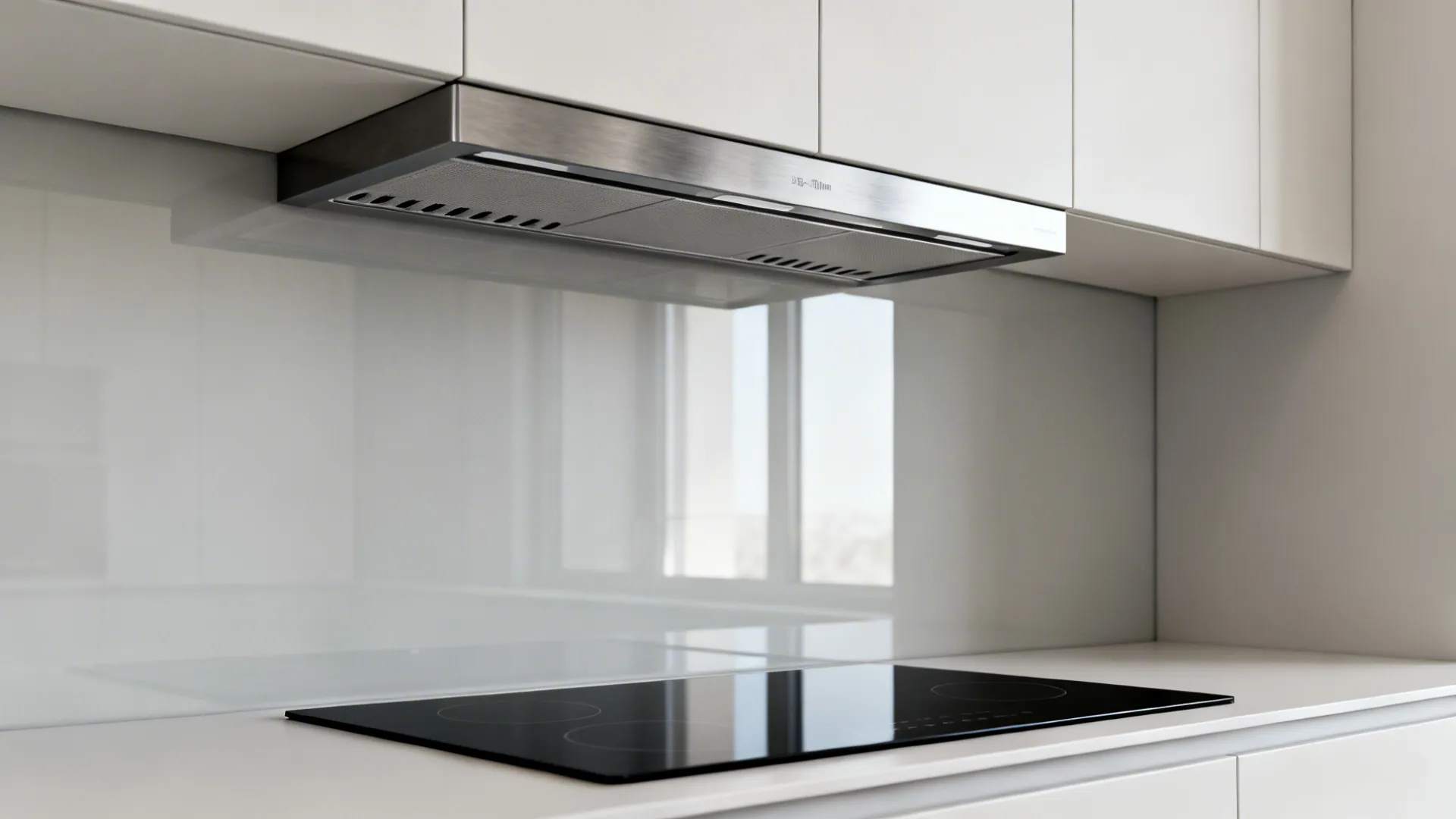

Low-Profile Hoods Under Cabinets (Compact Kitchens)

My Take

In ultra-compact renovations, I often spec a slim under-cabinet hood set to 650–700 mm above induction to keep everything tidy and aligned. The minimal profile integrates seamlessly and preserves storage.

Pros

- Long-tail fit: “under-cabinet chimney height for small kitchen” is efficient and storage-friendly.

- Aligns with modern minimalism; keeps the visual plane clean and reduces dust-catching ledges. Research on kitchen ergonomics supports clearer sightlines reducing task fatigue.

- Recirculating kits let you skip complex ducting in rentals or heritage buildings.

Cons

- Recirculating mode is less effective on high-heat, oily cooking; expect more frequent filter changes (charcoal every 3–6 months depending on use).

- Noise can be higher on slim units at top speed; check sones/decibel ratings before buying.

Case Link

Halfway through the planning, consider a case that shows vertical clearances and cabinet continuity: glass backsplash makes the kitchen airier. It demonstrates how wall finishes and cabinet depths influence hood placement and perceived height.

save pin

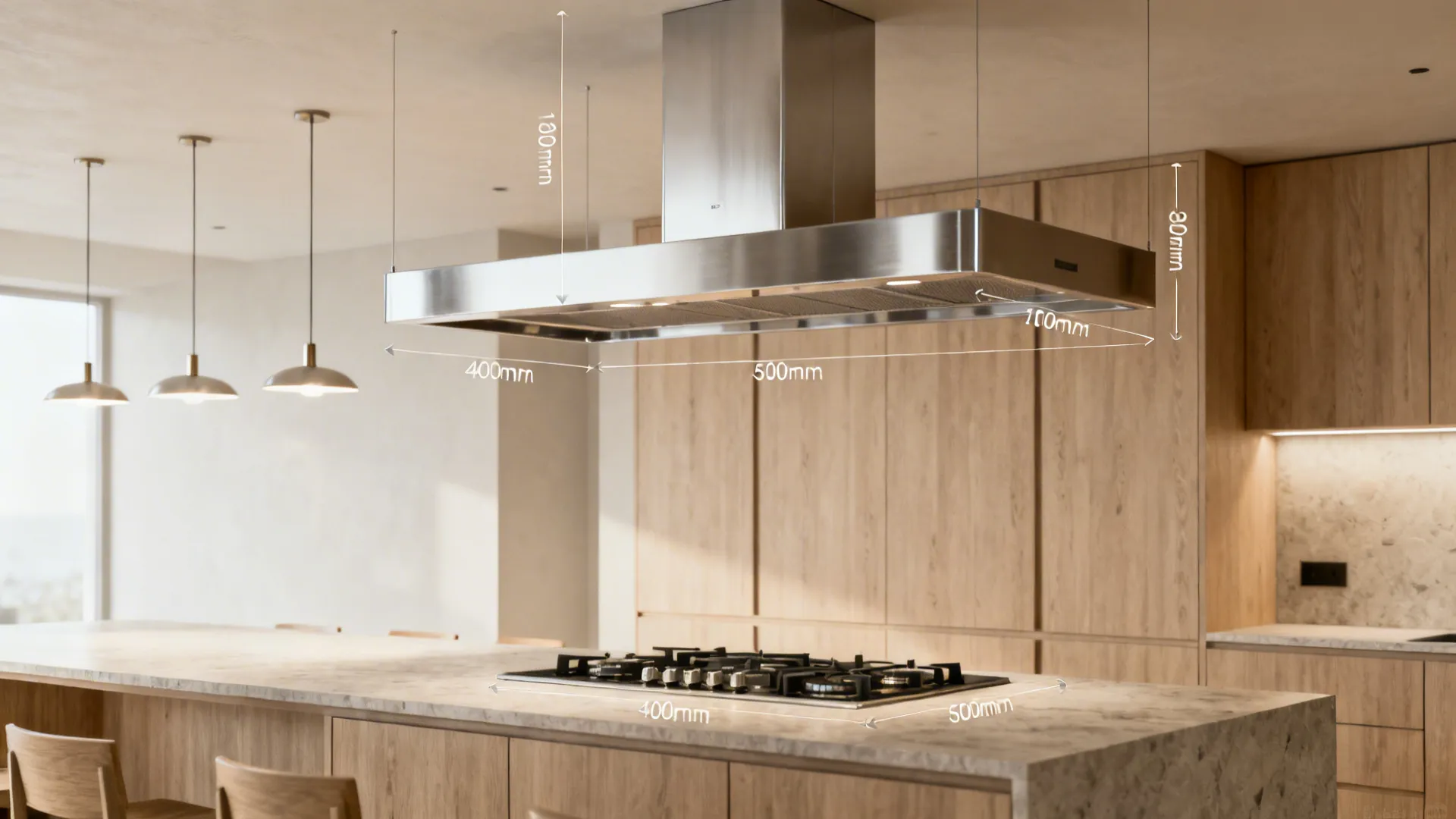

Island Range Hoods: Wider Capture, Careful Height

My Take

On islands, there are no side walls to corral steam, so I spec a wider hood (at least 100–150 mm wider than the cooktop) and keep the underside at 750–850 mm. I’ve found this range balances airflow and open-sight aesthetics.

Pros

- Long-tail fit: “ideal island chimney height and width” to improve capture in open plans.

- With higher mounting, pendant lighting and ventilation can coexist; I often coordinate hood glass and pendant drops for a clean ceiling rhythm.

- According to HVI guidance and ASHRAE fundamentals, increased width improves capture in cross-draft-prone spaces.

Cons

- Higher islands need stronger CFM (500–700+ CFM) to compensate; otherwise, plumes drift quickly into the room.

- Ducting through the ceiling adds cost, and soffit chases may lower parts of the ceiling, affecting proportion.

Tip / Drawing

Elevation: mark counter height at 900 mm, cooktop line, then hood at 800 mm above. Plan: hood width at cooktop + 150 mm, centerline matched. Show make-up air grille location if required by local code.

save pin

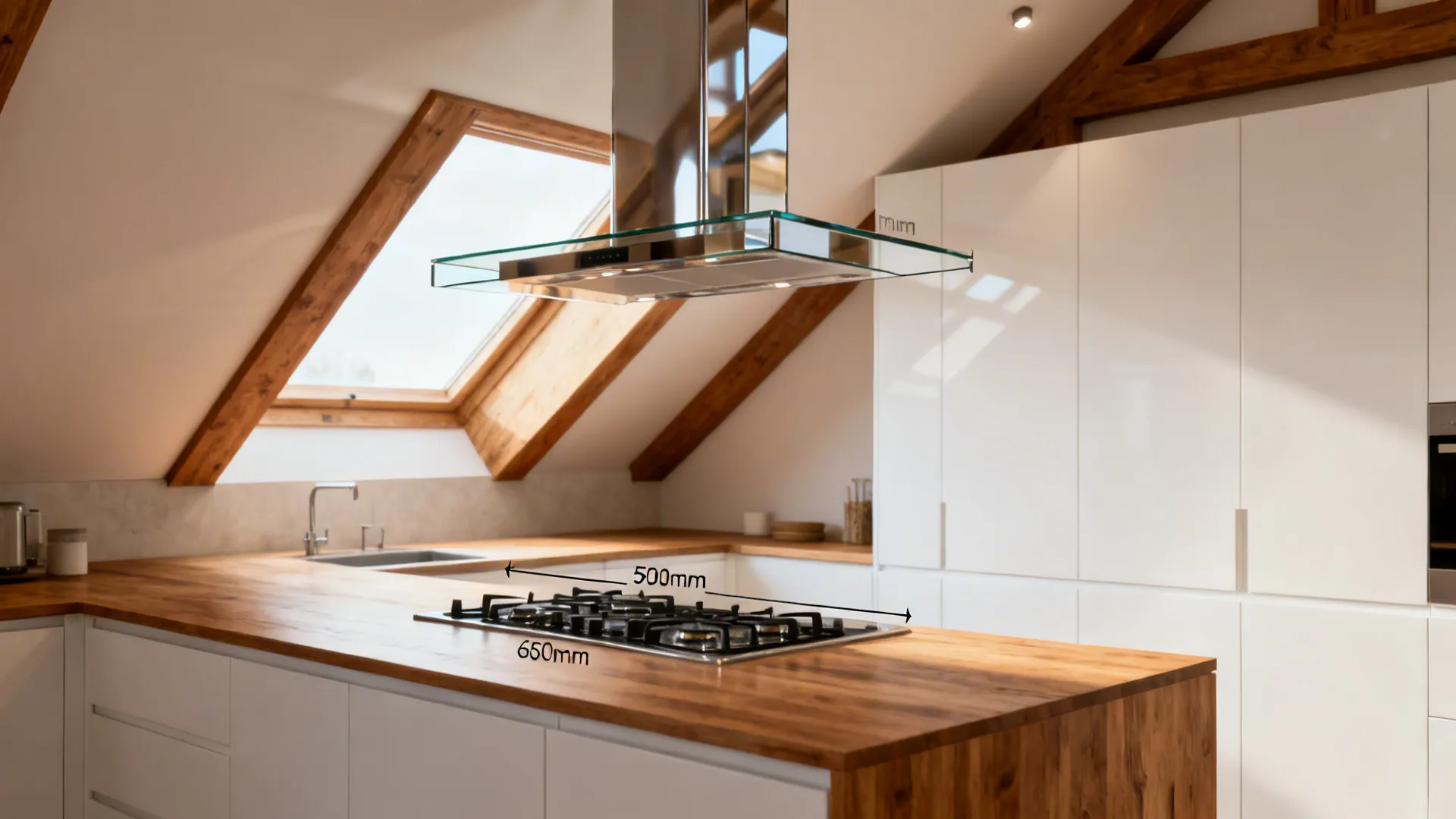

Angled Chimneys and Sloped Ceilings: Custom Heights

My Take

In lofts and attics, angled hoods or adjustable flues are lifesavers. I set height by aligning the hood’s front lip with the front burner centerline and keep the underside between 700–780 mm above gas, then adapt the flue with an angle kit.

Pros

- Long-tail fit: “chimney height on sloped ceiling” solves tricky geometry while preserving capture.

- Angled glass hoods improve headroom and sightlines; they also reflect light, brightening tight corners.

- Many brands offer telescopic/angled duct covers with trim rings, streamlining the finish against non-level ceilings.

Cons

- Angled glass shows splatter; I plan for a wipeable finish and a robust lighting strip.

- Cutting an angled duct hole through rafters requires structural caution; bring in a contractor or structural tech.

Case Link

When ceilings complicate duct routing, review a case study that visualizes path options: warm wood accents soften the kitchen mood. Notice how finishes and lines guide eye height, which affects where the hood feels “right.”

save pin

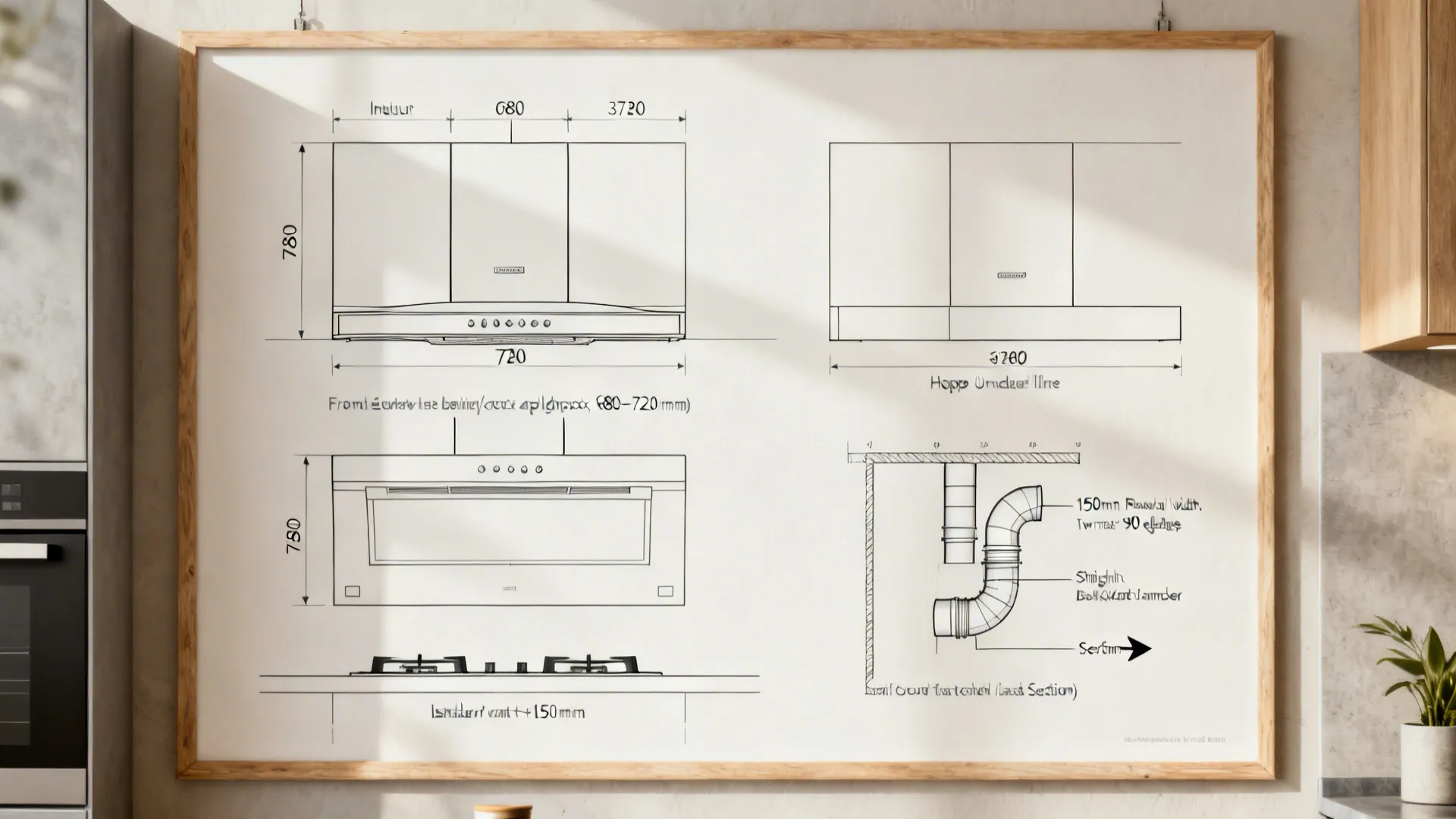

Technical Drawing Basics: Heights, Clearances, and Ducting

My Take

Clients love a simple drawing that demystifies measurements. I prepare one-page technical sheets: front elevation, side section, and plan. Each shows the cooktop, underside of hood, cabinet lines, duct size, and any elbows or soffits.

Pros

- Long-tail fit: “technical drawing for kitchen chimney height” helps align installers, suppliers, and clients.

- A clear drawing reduces site errors—especially misaligned wall anchors—and keeps the duct run short and straight, which improves real airflow (less static pressure loss).

- Per HVI and many manufacturer manuals, straight, smooth duct with gentle elbows preserves CFM and lowers noise.

Cons

- It takes an extra hour to draft well; skipping it often costs two hours on-site. Trust me, I’ve learned the hard way.

- Older walls can be out of plumb; even a perfect drawing needs shims and patience during install.

Drawing Checklist

- Elevation: show cooktop line; mark 680–720 mm (induction) and 720–780 mm (gas) bands; place hood underside; show upper cabinet underside and 50–75 mm clearance to hood body for heat.

- Plan: show hood width at least cooktop width; for islands, add 100–150 mm; note front lip reaching front burner centerline.

- Section: duct diameter (usually 150 mm/6 in), max two 90° elbows, total equivalent length within manufacturer limits; show backdraft damper arrow. If your project includes an L-run, cross-check a planning case like minimalist kitchen storage concept to visualize cabinet and duct alignments.

save pin

Summary

A compact kitchen doesn’t limit good ventilation—it demands smarter design. Get the chimney height right for your cooktop, use deeper canopies or wider hoods when you raise the mounting, and document everything in a simple technical drawing. HVI and manufacturer tables are your best friends for airflow and duct-length limits. Which of these five ideas would you try first in your kitchen?

save pin

FAQ

1) What is the standard kitchen chimney height?

Most manufacturers recommend 650–750 mm above induction and 700–800 mm above gas. This core guideline keeps capture efficient and protects finishes—our core keyword, kitchen chimney height, fits squarely here.

2) Does chimney height differ for island vs wall hoods?

Yes. Island hoods often sit slightly higher (750–850 mm) and wider to handle cross-drafts. Without walls to help, a broader canopy and higher CFM balance the extra height.

3) What’s the best height if I’m tall?

Increase by 20–40 mm and choose a deeper hood so the front lip reaches the front burners. This retains capture while improving headroom.

4) How do I handle a sloped ceiling?

Use angled/telescopic duct covers and set the underside within the safe band. A quick plan and elevation drawing avoids misaligned flues and odd trim gaps.

5) Do codes specify chimney height?

Many regions defer to manufacturer instructions and performance standards. The Home Ventilating Institute (HVI) offers guidance on capture and ducting best practices; check local code plus your hood manual.

6) Can I mount higher if I have a powerful motor?

Yes, to a point. If you raise the hood, widen the canopy and ensure proper duct sizing (150 mm/6 in). Too many elbows or reducers kill real airflow even with big CFM.

7) What duct size should I use?

Most 400–700 CFM hoods need 150 mm (6 in) round ducts. Keep runs short and straight with no more than two 90° elbows to maintain performance and reduce noise.

8) Any resource for visualizing layouts?

Try a case that highlights cabinet continuity and hood positioning—“glass backsplash makes the kitchen airier” shows how finishes and heights interact: glass backsplash makes the kitchen airier. It’s a quick way to sanity-check proportions while planning the right kitchen chimney height.
