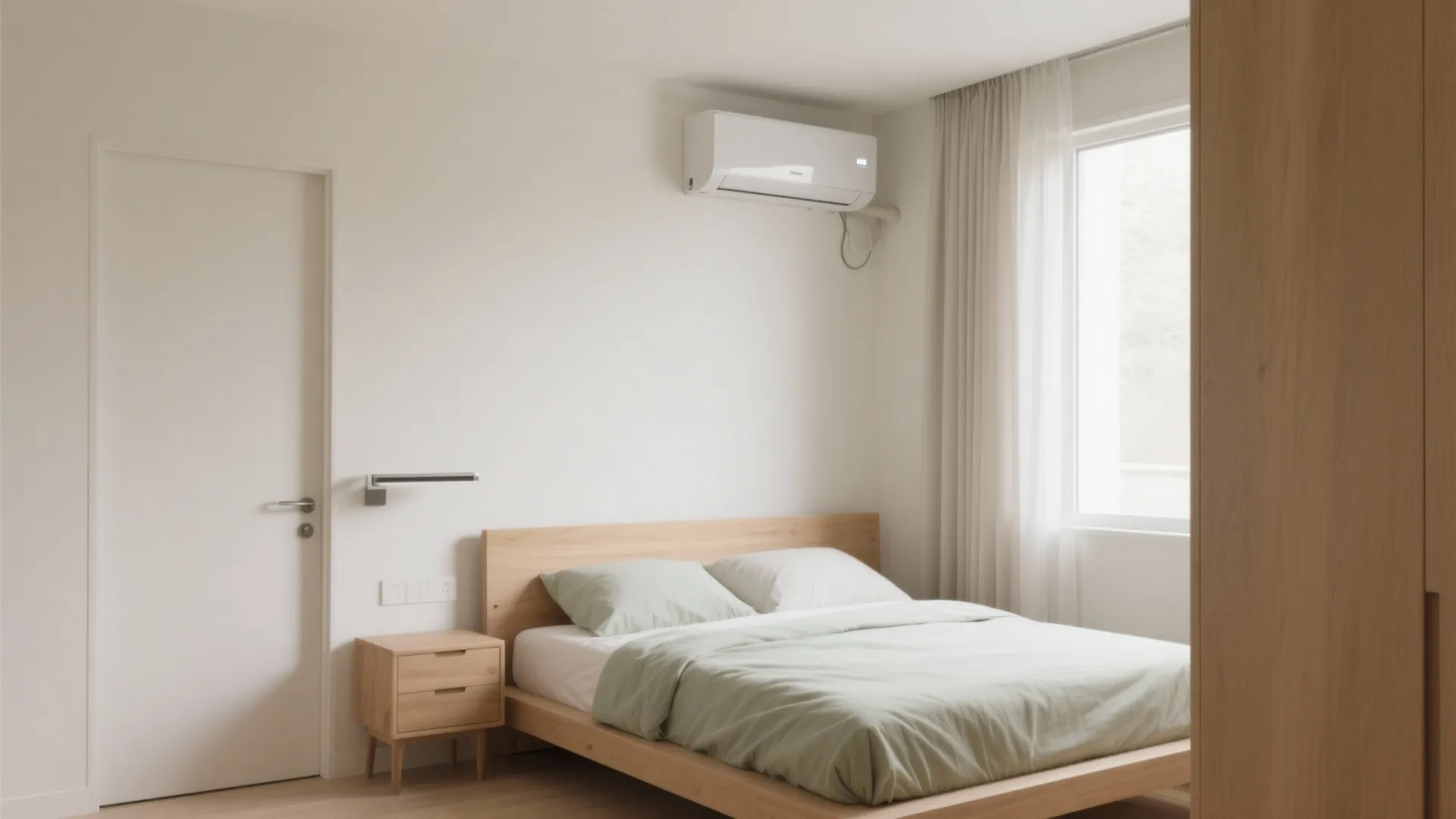

5 Smart Ideas: mini split for small room design: How I integrate ductless comfort into tiny spaces without sacrificing style

[Section: 引言]

Over the last few years, ductless heat pumps have quietly become a design-forward favorite—sleeker indoor units, higher SEER2 ratings, and smarter controls. In my projects, a mini split for small room can be the difference between a space you tolerate and a sanctuary you love. I usually start with a realistic 3D room render to test sightlines, air throw, and where the eye naturally rests.

I’ve redesigned dozens of compact bedrooms, home offices, and studio nooks, and the pattern is clear: small spaces spark big ideas. The trick is choosing the right capacity, the right placement, and a finish strategy that feels intentional—not like someone glued a white box to your wall.

In this guide, I’m sharing 5 design inspirations for integrating a mini split for small room comfort. You’ll get my field-tested tips, pros and cons, budget notes, and a couple of data points from sources like the U.S. Department of Energy and ACCA to keep things honest.

[Section: 灵感列表]

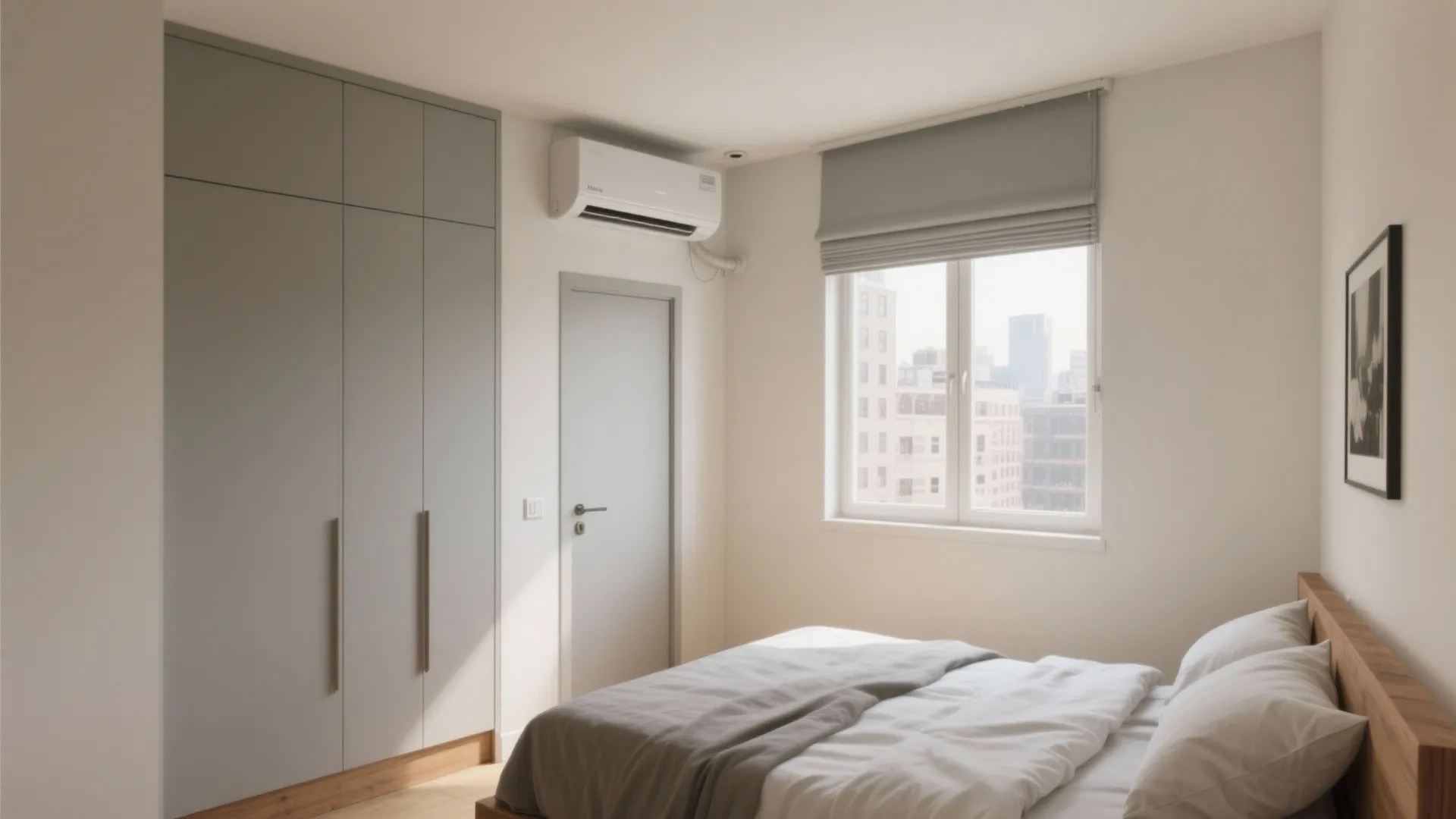

High-wall, High-Style: Above the Sightline

My Take

I learned this on a 9 m² city bedroom with one window and one door: mount the indoor unit high and just above the door header, where the eye rarely lingers. I color-matched the wall and cable duct, and the unit practically disappeared—yet airflow swept the bed evenly.

Pros

Strategic mini split placement above door height clears furniture, keeps throws off the coils, and drives air across the room instead of into your face. On a tiny footprint, a high-wall unit preserves floor and shelf space while still delivering efficient SEER2-level performance. With a 7–8 inch clearance above and sides per manufacturer guidance, service remains easy.

Cons

Installing high means you’ll need a step ladder to clean filters, and if the wall is out of plumb, line-set covers can reveal imperfections. In very low-ceiling rooms, the unit might feel too close to crown molding, so you’ll need slimmer profiles. Also, a blast toward the pillow at Turbo can ruffle bedtime vibes—use gentle fan settings.

Tips / Case / Cost

On capacities: most small bedrooms (80–150 ft²) land around 6,000–9,000 BTU/h, but always size by load—more on ACCA Manual J later. Expect $2,500–$5,500 for a quality single-zone install, depending on line-set length, electrical, and brand.

save pin

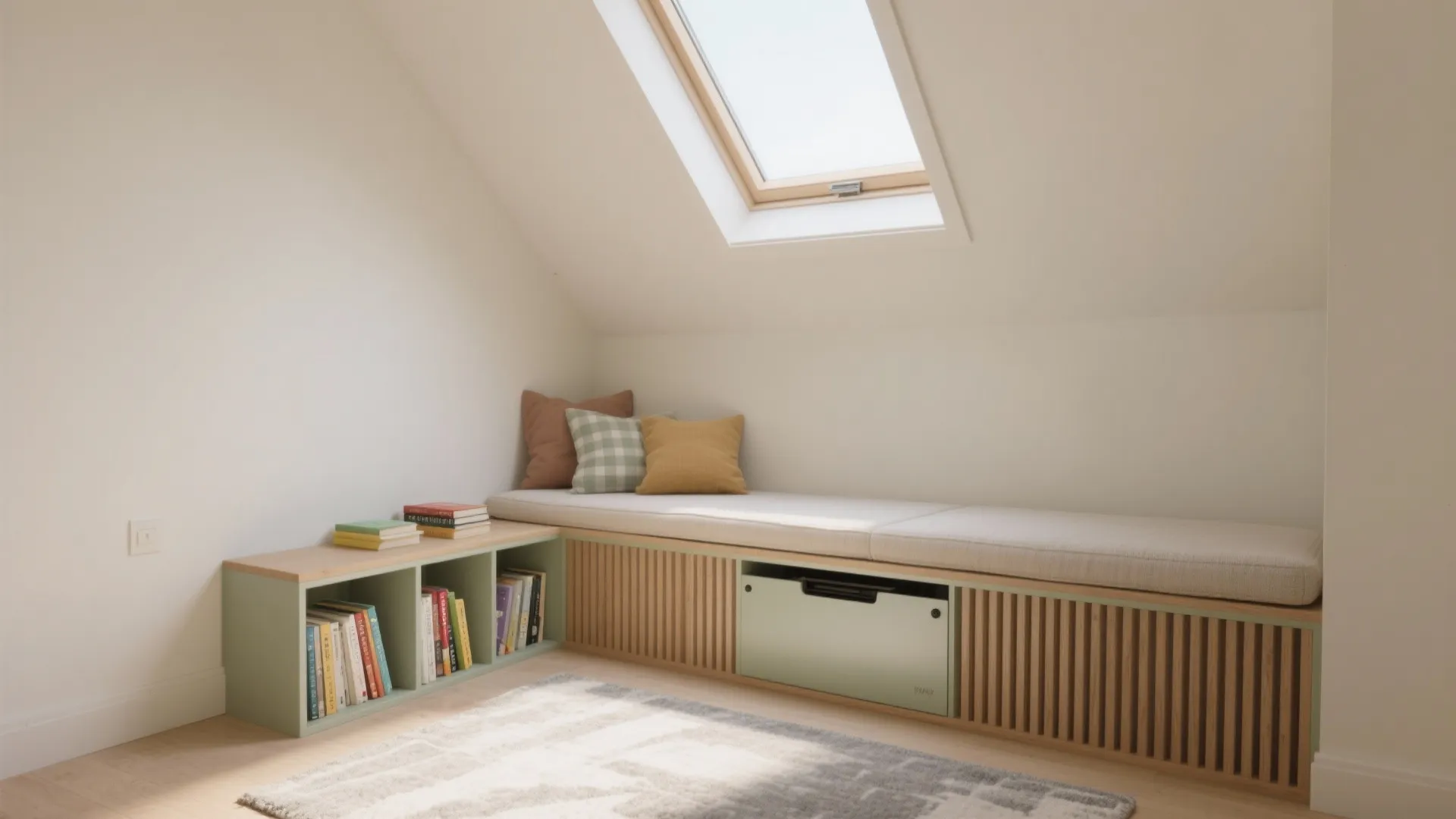

Low-Wall Console That Doubles as a Bench

My Take

In an attic reading nook with sloped ceilings, a low-wall mini split was the only option that didn’t fight the architecture. We built a shallow bench around it with a removable slatted front—kids loved the perch, and the airflow still breathed freely.

Pros

A low-wall mini split for attic or eaves rooms keeps airflow under the slope and provides toasty legs in heat mode. It also solves the “no place for art” issue on upper walls by shifting the unit to the baseboard zone. If you’re working with thick insulation and small volume, the lower throw can feel gentler and reduce draft sensation.

Cons

Consoles can be bulkier in depth than high-wall units, which affects furniture layout. If you enclose it carelessly, you may block intake or discharge—watch the free area and grille spacing. Curious toddlers and pets will find buttons, so pick a child lock or remote control placement out of reach.

Tips / Case / Cost

Leave 6–12 inches clear above the intake and follow the brand’s frontal clearance spec. Use a furniture toe-kick grille or horizontal slats with generous spacing to protect airflow. These units are often on par with high-wall costs; the millwork adds $400–$1,200 depending on finish.

save pin

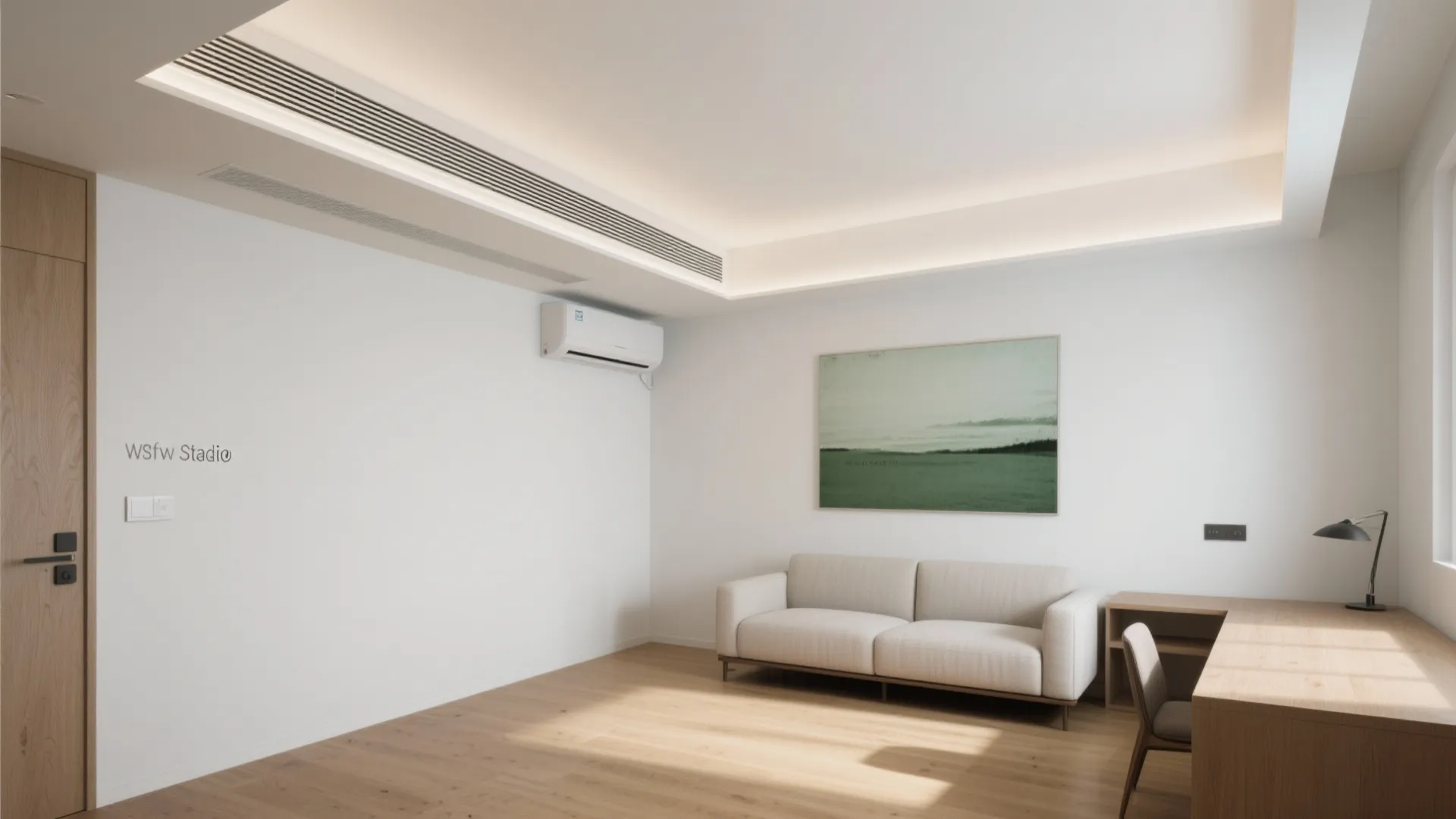

Slim-Duct Concealment in a Shallow Soffit

My Take

For a 22 m² studio, we tucked a slim-duct mini split into a perimeter soffit with a linear slot diffuser. The result: wall art stayed uninterrupted, the room line looked continuous, and air distribution felt hotel-quality.

Pros

A concealed duct mini split uses short, insulated runs to deliver even distribution while preserving a clean aesthetic. You get the visual calm of a seamless feature line and the comfort of multi-direction supply without a big indoor head. The U.S. Department of Energy notes typical duct losses in conventional systems can reach 20–30%; by keeping runs very short and inside conditioned space, you maintain efficiency more effectively than long runs.

Cons

Carpentry, access panels, and diffuser hardware add cost and coordination. Filter access needs planning—design a hinged or magnetic panel. If the soffit is too shallow, you may increase noise or restrict service space; always verify manufacturer-required clearances for the air handler.

Tips / Case / Cost

We frame soffits at 6–8 inches deep minimum, more if the unit or duct collar demands it. Before you frame, run a compact bedroom layout study to check door swings, curtain stacks, and lighting conflicts. Expect $4,500–$9,000 for equipment plus carpentry in many markets; linear slots and paint-grade soffits push to the higher end.

save pin

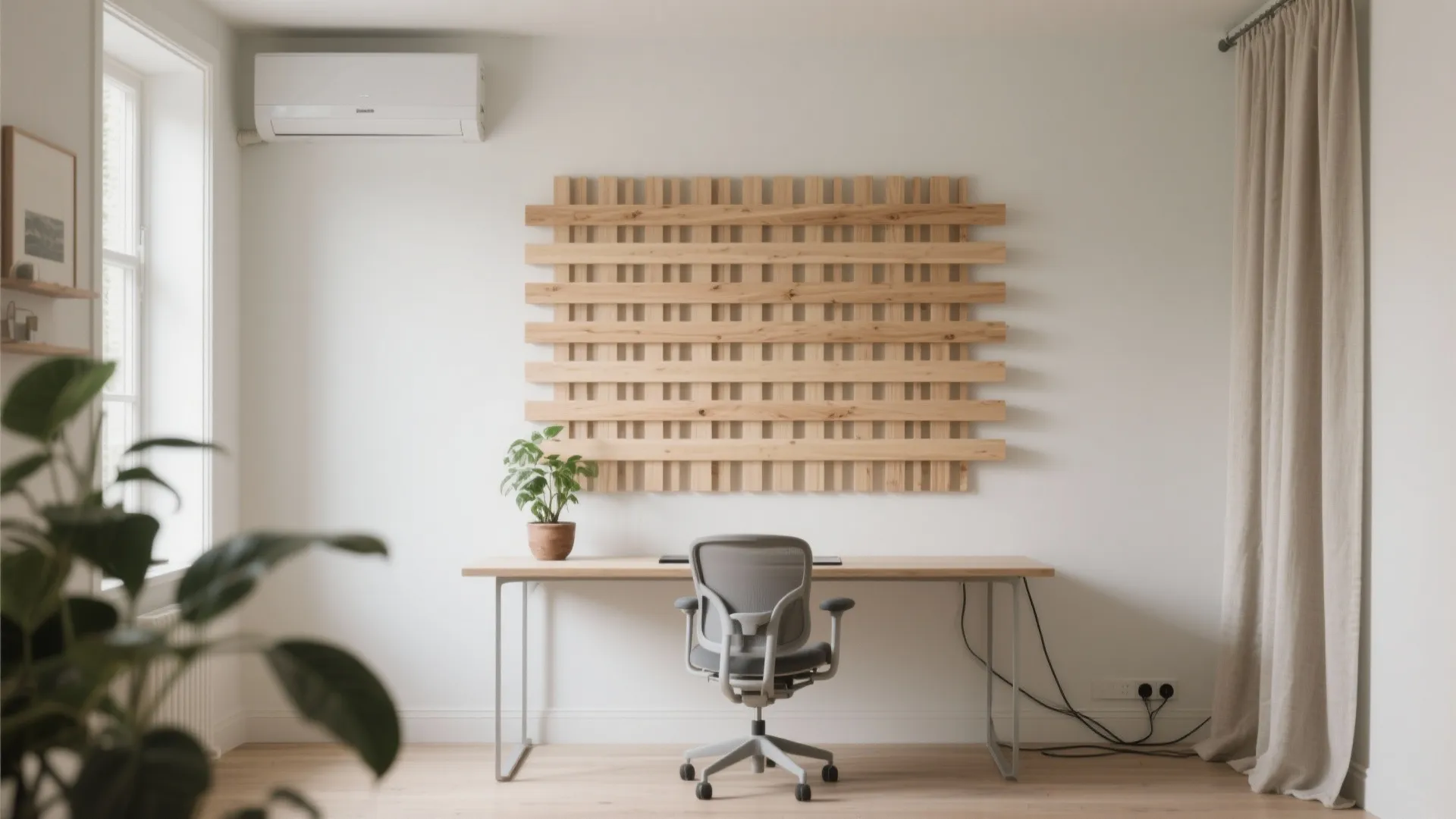

Slatted Feature Wall That Softens the Look

My Take

One client dreaded the look of an indoor head in her calm, Scandinavian-inspired office. We built a light oak slat screen floating 2 inches off the wall, with generous free area in front of the unit. The vibe stayed minimal, and maintenance was simple.

Pros

A wood-slat feature can visually blend the unit while honoring airflow and service clearances. Using natural finishes complements small-space biophilic design and makes the mini split feel part of the architecture. With the right spacing, you retain intake/discharge performance and reduce the mechanical “appliance” feel.

Cons

Poorly spaced slats can choke intake and cause the unit to run harder, potentially raising energy use or creating noise. You’ll need to dust slats regularly; they collect the same particles the filter catches. If you rely on IR remotes, the screen may reduce signal reliability—use a repeater or app-based controls.

Tips / Case / Cost

Follow the manufacturer’s clearances; many high-wall units prefer 6 inches or more above and at the sides, and unblocked front intake/discharge. I mock up slat spacing at 1:1 on cardboard before building, and I often run quick AI-powered interior mockups to preview how the screen affects the room’s focal points. Budget $600–$2,000 for custom millwork depending on species, finish, and hardware.

save pin

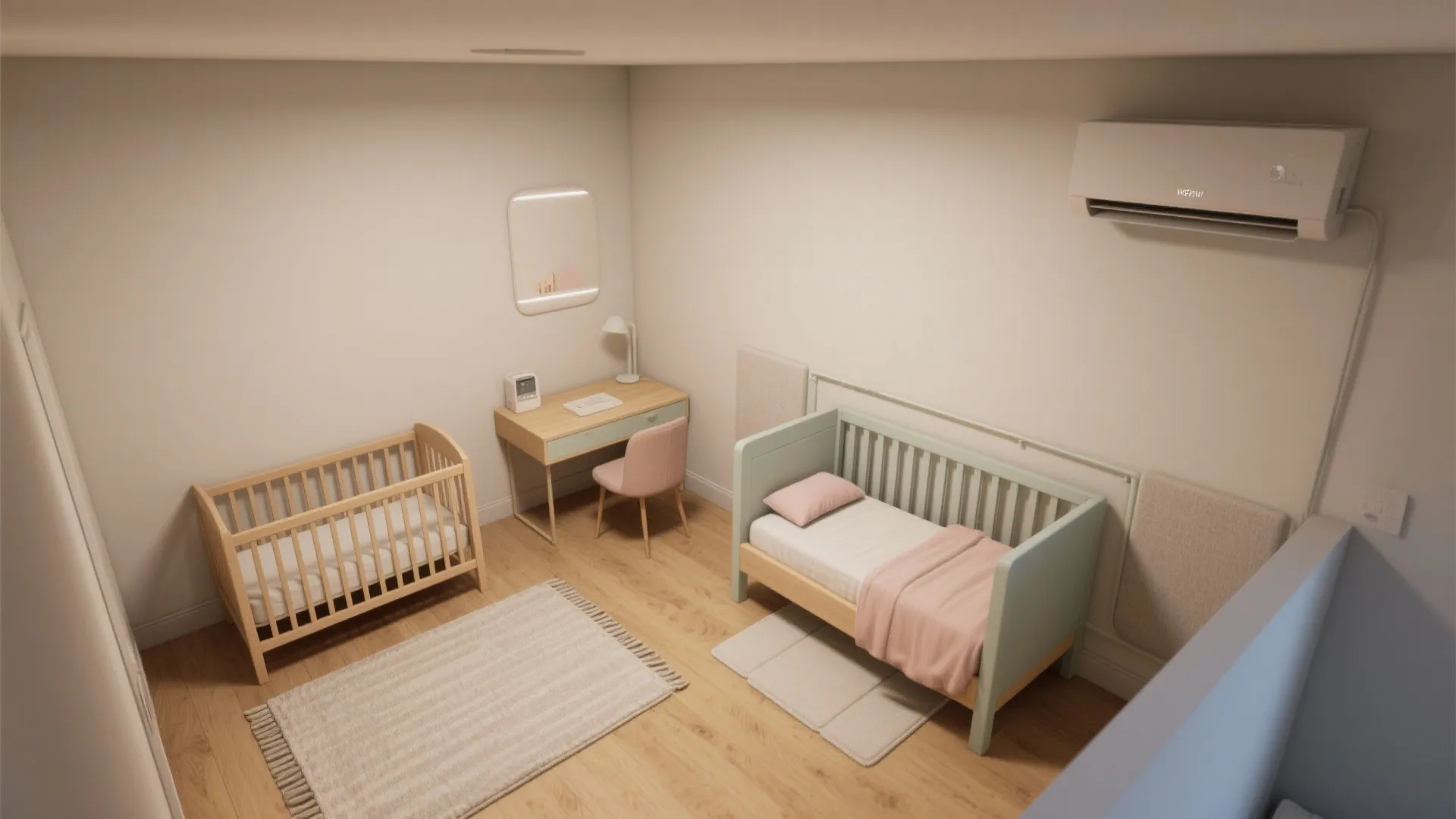

Quiet-First Layout for Better Sleep and Focus

My Take

I’m noise-sensitive, and many clients are too. On a compact nursery and a small podcast room, our whole strategy started with sound: right-size the capacity, isolate vibrations, and place the unit so air never blasts directly at the workstation or crib.

Pros

Choosing a quiet mini split (indoor sound as low as ~19–24 dB) and a “best mini split size for small bedroom” approach prevents short cycling and keeps humidity steady. ACCA Manual J load calculations are the gold standard for sizing; right-sizing improves comfort and noise because the unit runs longer at lower fan speeds. Sleep mode and low-fan settings feel more natural in tiny rooms with limited mixing volume.

Cons

Oversized units can feel loud at low loads, cycling on/off and drying the air inconsistently. Chasing the absolute lowest dB spec sometimes trades off with features or cost. Routing line sets through thin walls can transmit vibration if not isolated with pads and proper clamps.

Tips / Case / Cost

Ask for the indoor dB rating at multiple fan speeds, not just the minimum. Use rubber isolation at brackets, avoid tight line-set bends, and keep the outdoor unit off bedroom windows. If you control with an app, set schedules to pre-condition early; that way you can run on whisper mode when you’re home. Cost impacts here are modest—proper mounting hardware and a bit more labor save you years of noise complaints.

[Expert Notes You Can Trust]

• Sizing: ACCA Manual J is the industry method for residential load calculations and helps avoid oversizing that causes short cycling and humidity swings.

• Efficiency: The U.S. Department of Energy reports that typical duct losses in homes can reach 20–30%; ductless mini splits avoid most of those losses, especially when line sets are short and within conditioned space.

[Section: 总结]

A small room doesn’t limit you—it demands smarter choices. A mini split for small room comfort works best when you treat the unit like any other design element: give it purpose, proportion, and a place in the visual hierarchy. Whether you hide it, feature it, or hush it, comfort and style can absolutely coexist.

From my projects (and reinforced by DOE and ACCA guidance), right-sizing and thoughtful placement deliver the biggest wins in tiny spaces. Which idea are you most excited to try—high-wall stealth, a low-wall bench, or the slatted feature wall?

[Section: FAQ 常见问题]

save pin

FAQ

1) What size mini split for small room is best?

Most small bedrooms (80–150 ft²) land in the 6,000–9,000 BTU/h range, but the accurate path is an ACCA Manual J load calculation that accounts for windows, insulation, and climate. Right-sizing avoids short cycling and keeps humidity more stable.

2) Where should I place a mini split in a small bedroom?

High on a long wall or above the door is common, so airflow sweeps the room without blasting the bed. Keep manufacturer clearances and avoid blocking intake/discharge with curtains or tall wardrobes.

3) How quiet are mini splits for small rooms?

Quality indoor heads can be as low as ~19–24 dB at the lowest fan speed—quieter than a library. Ask for the full dB range (Low/Med/High) and consider sleep mode to keep sound consistent overnight.

4) Can a mini split both heat and cool a small room?

Yes—most are heat pumps that cool in summer and heat efficiently in shoulder seasons and winter. Cold-climate models maintain capacity at lower outdoor temps; check the performance tables for your climate zone.

5) How much does a mini split for small room cost?

Single-zone installs often run $2,500–$5,500, influenced by line-set length, electrical work, and brand. Add $400–$2,000 for finish carpentry like soffits or slatted screens.

6) Do mini splits save energy in tiny spaces?

They can. The U.S. Department of Energy notes ducts in conventional systems can lose 20–30% of energy; ductless systems avoid most of that, especially with short, well-routed line sets. Right-sizing further boosts efficiency and comfort.

7) Will a low-wall unit work under sloped ceilings?

Yes—low-wall consoles are great under eaves because they avoid the slope and keep air movement comfortable. Ensure clearance above the intake and keep furniture from blocking the front panel.

8) How often should I clean filters in a small-room mini split?

Check monthly and clean every 1–3 months depending on dust and pets. In tiny rooms, filters load faster because air volume is small and cycles frequently—staying on top of it preserves airflow and keeps noise down.
