Smart Kitchen Cabinet Sectional Elevation Ideas for Better Layout: Practical sectional elevation concepts that improve storage planning, workflow, and visual balance in modern kitchens

Direct Answer

Smart kitchen cabinet sectional elevation ideas focus on how cabinets stack vertically, integrate appliances, and organize storage zones within a wall section. The best designs combine ergonomic height planning, appliance integration, and layered storage so the kitchen works efficiently while still looking balanced.

In real projects, sectional elevation planning often determines whether a kitchen feels cluttered or effortlessly organized.

Quick Takeaways

1. Sectional elevation planning determines cabinet usability more than cabinet style.
2. Appliance integration is the most overlooked part of cabinet elevation drawings.
3. Vertical zoning improves both storage capacity and cooking workflow.
4. Hidden storage layers prevent visual clutter in modern kitchens.
5. Balanced cabinet heights create a more professional looking kitchen wall.

Introduction

When clients ask me to review their kitchen plans, one issue appears again and again. The layout may look beautiful in a floor plan, but the kitchen cabinet sectional elevationtells a completely different story.

After more than a decade designing residential kitchens, I have learned that elevation drawings are where real functionality lives. They show appliance placement, cabinet heights, ventilation clearances, and how storage actually works day to day.

Many homeowners focus on finishes or door styles first. Designers, however, usually look at sectional elevation first because it reveals hidden problems long before construction begins.

Below are five sectional elevation ideas I often use in real projects to improve storage, balance, and usability.

save pin

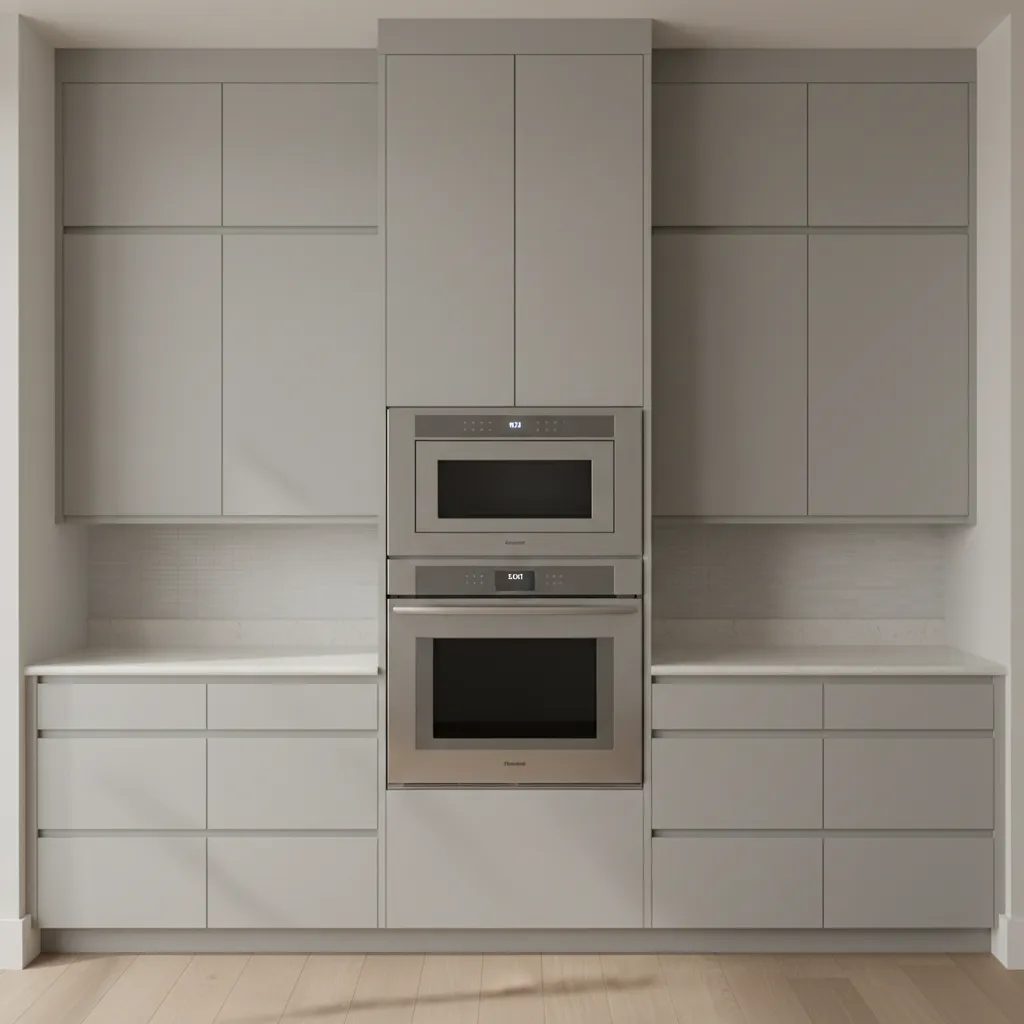

Why Does Kitchen Cabinet Sectional Elevation Matter So Much

Key Insight: A well designed sectional elevation prevents functional mistakes that floor plans alone cannot reveal.

Floor plans show horizontal layout, but kitchens operate vertically. The sectional elevation reveals cabinet stacking, hood clearance, appliance alignment, and ergonomic reach zones.

Common problems I often see in poorly planned elevations include:

1. Microwaves placed too high for daily use
2. Upper cabinets blocking hood ventilation
3. Awkward gaps above refrigerators
4. Wall cabinets that visually overpower the space

Professional designers often sketch sectional elevations early in the design process because they expose these problems instantly. The National Kitchen and Bath Association also emphasizes vertical planning guidelines for ergonomic kitchen design.

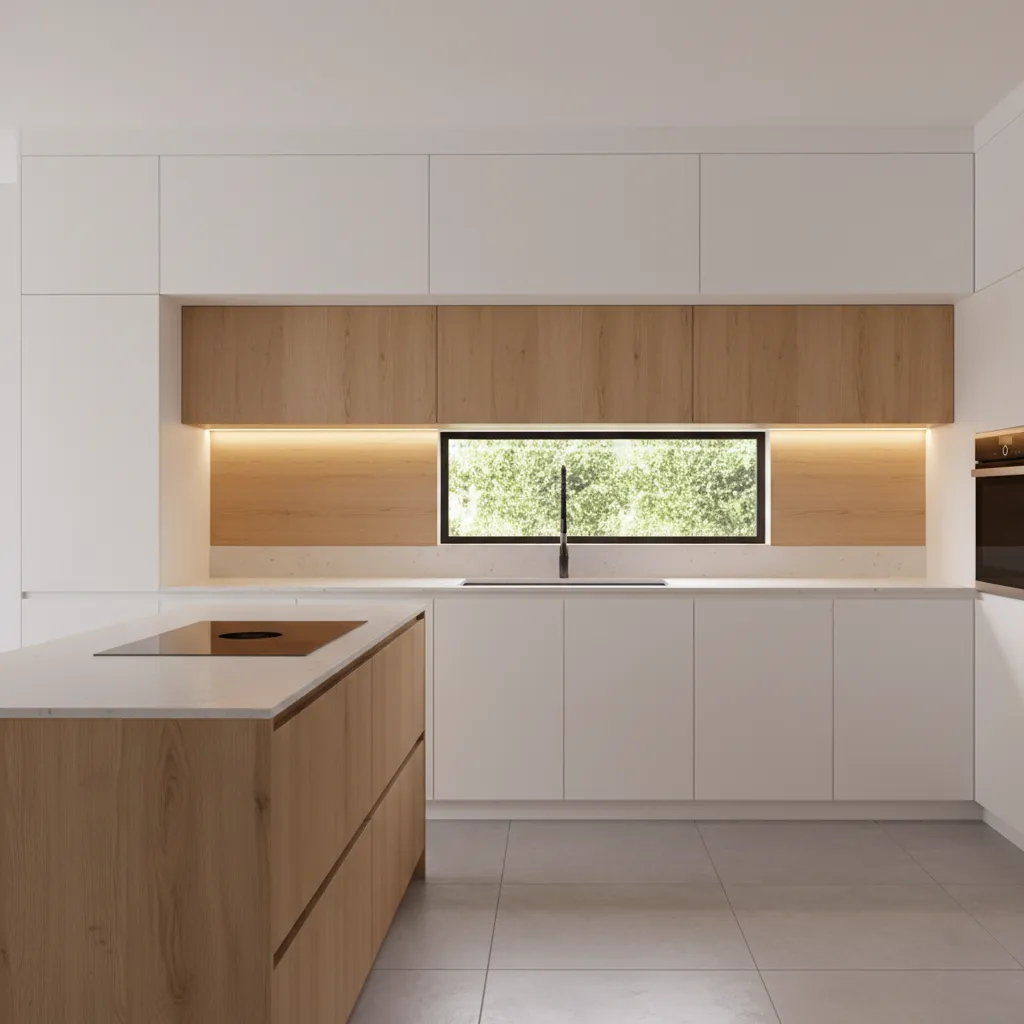

Idea 1 Layered Upper Cabinets Create Visual Depth

Key Insight: Splitting upper cabinets into two tiers adds storage while making the wall elevation feel lighter.

One trick I frequently use in modern kitchens is layered upper cabinetry. Instead of a single tall cabinet block, the elevation uses two horizontal layers.

Typical configuration:

1. Primary upper cabinets at standard height
2. Secondary shallow cabinets above
3. Integrated lighting between layers

This approach works particularly well in kitchens with 9 to 10 foot ceilings. It prevents the empty "dead zone" above cabinets while avoiding the heavy look of oversized units.

Design benefit comparison:

1. Single tall cabinet wall feels bulky
2. Two layer elevation creates visual rhythm
3. Additional shallow cabinets store rarely used items

save pin

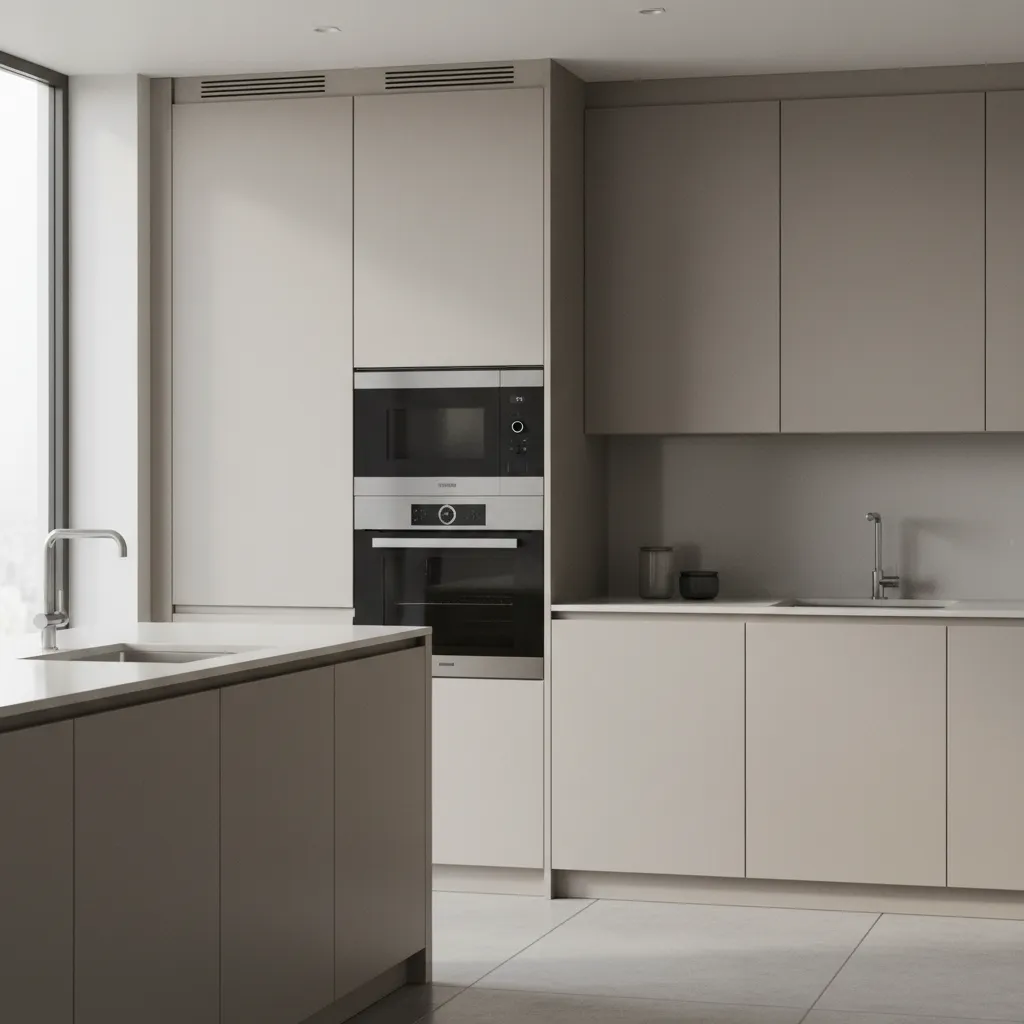

Idea 2 Appliance Tower Integration

Key Insight: Grouping ovens, microwaves, and warming drawers in a vertical tower simplifies both workflow and cabinet elevation structure.

One of the biggest improvements in modern kitchen elevations is the appliance tower concept.

Instead of spreading appliances across the kitchen, they stack vertically inside a dedicated cabinet column.

Typical appliance tower stack:

1. Microwave or speed oven at chest height
2. Main oven below
3. Storage drawers underneath

This configuration reduces bending, keeps cooking equipment in one zone, and creates a clean vertical anchor in the sectional elevation.

From a visual standpoint, it also balances tall elements like refrigerators.

save pin

What Is the Most Common Sectional Elevation Mistake

Key Insight: The most common mistake is ignoring ventilation and clearance requirements around appliances.

Many elevation drawings look perfect on paper but fail once appliances are installed.

Typical hidden problems include:

1. Insufficient hood clearance above cooktops
2. Cabinets blocking refrigerator door swing
3. Microwaves placed outside ergonomic reach zones
4. Poor spacing around built in ovens

Manufacturers such as Bosch and GE publish detailed installation clearance diagrams for appliances. Ignoring those specifications often forces costly redesigns during installation.

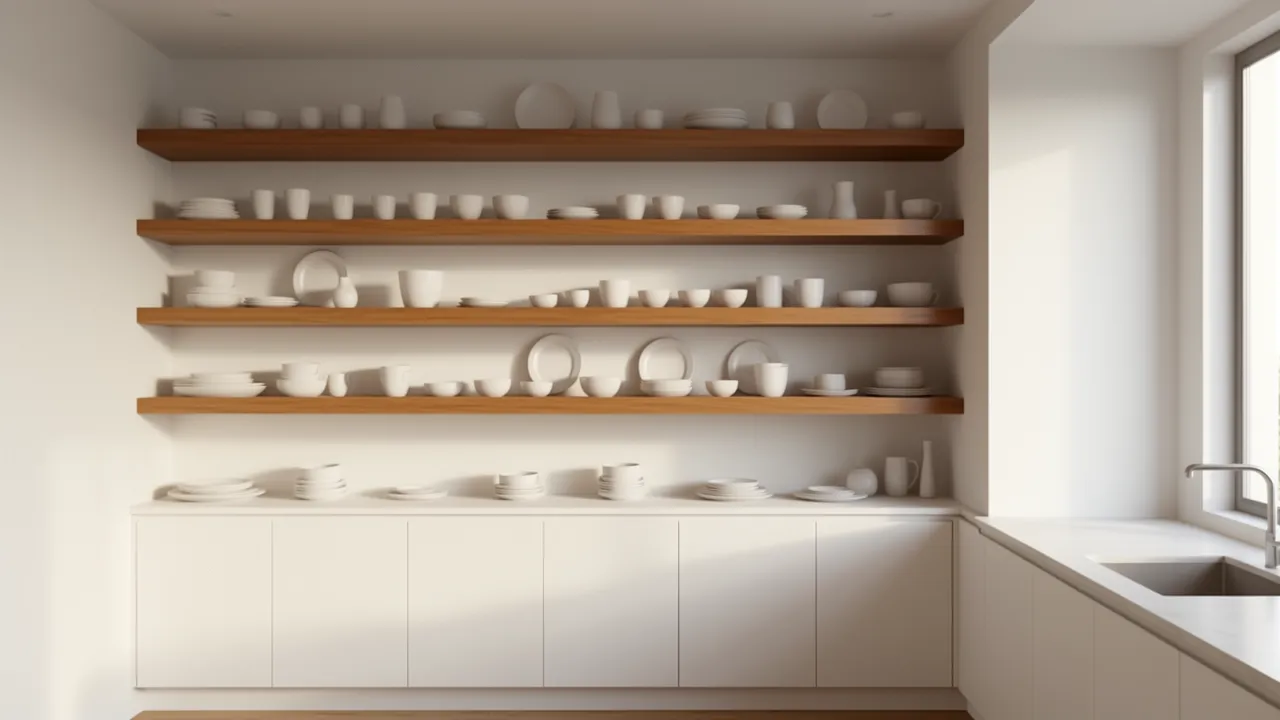

Idea 3 Mixed Open and Closed Cabinet Sections

Key Insight: Alternating open shelves with closed cabinets breaks up heavy cabinet walls.

Many kitchens look crowded because every section is filled with doors.

In sectional elevation drawings, I often introduce open shelf zones to reduce visual weight.

Example layout structure:

1. Closed cabinet near cooktop for spices
2. Two open shelves for daily dishes
3. Closed storage above for seasonal items

This pattern creates a visual pause inside the elevation while keeping most storage hidden.

Interior design trend reports from Houzz show increasing demand for mixed shelving and cabinetry in modern kitchens.

save pin

Answer Box

The best kitchen cabinet sectional elevation ideas focus on vertical zoning, appliance integration, and balanced cabinet heights. When elevations are planned carefully, kitchens gain better storage, safer appliance placement, and a cleaner visual structure.

Designing elevations early prevents costly layout corrections during construction.

Idea 4 Hidden Storage Behind Tall Pantry Panels

Key Insight: Tall pantry panels hide large storage volumes without overwhelming the elevation.

A common challenge in modern kitchens is storing bulky items without making the room look like a cabinet wall.

Tall integrated pantry panels solve this problem.

Typical pantry elevation structure:

1. Full height panel doors
2. Internal pull out shelving
3. Integrated appliance garage zones

From the outside, the elevation appears minimal and architectural. Inside, the pantry contains substantial storage.

This approach is especially effective in smaller kitchens where visual simplicity makes the room feel larger.

Idea 5 Framed Range Zone Elevation

Key Insight: Framing the cooking area with symmetrical cabinets creates a strong focal point.

In many projects, the cooktop wall becomes the visual centerpiece of the kitchen.

A framed elevation organizes the elements around it.

Typical framed elevation layout:

1. Range hood centered
2. Equal cabinet stacks on both sides
3. Lower drawers aligned with hood width

This symmetry makes the kitchen look professionally designed, even in relatively simple layouts.

It is a technique widely used in transitional and modern classic kitchens.

Final Summary

1. Kitchen cabinet sectional elevation determines real kitchen usability.
2. Vertical appliance towers improve ergonomics and workflow.
3. Layered cabinets maximize storage in tall kitchens.
4. Balanced elevations create cleaner visual design.
5. Clearance planning prevents expensive installation mistakes.

FAQ

What is a kitchen cabinet sectional elevation?

A kitchen cabinet sectional elevation is a vertical drawing showing cabinet heights, appliance placement, and internal storage structure within a wall section.

Why are sectional elevations important in kitchen design?

They reveal vertical relationships between cabinets, appliances, and ceilings that floor plans cannot show.

What height should upper cabinets be in a kitchen?

Most upper cabinets start about 18 inches above the countertop, but the exact height depends on ceiling height and appliance placement.

Can sectional elevation help improve kitchen storage?

Yes. A well planned kitchen cabinet sectional elevation organizes vertical zones and often increases usable storage.

How tall should a kitchen cabinet appliance tower be?

Typically between 84 and 96 inches depending on ceiling height and appliance configuration.

Should all upper cabinets be the same height?

Not necessarily. Mixing heights or adding layered cabinets can improve both storage and visual balance.

What software is used to create cabinet elevations?

Designers commonly use SketchUp, AutoCAD, Revit, and specialized kitchen planning software.

Is open shelving good in kitchen elevations?

When used strategically, open shelving breaks up heavy cabinet walls and improves visual balance.
