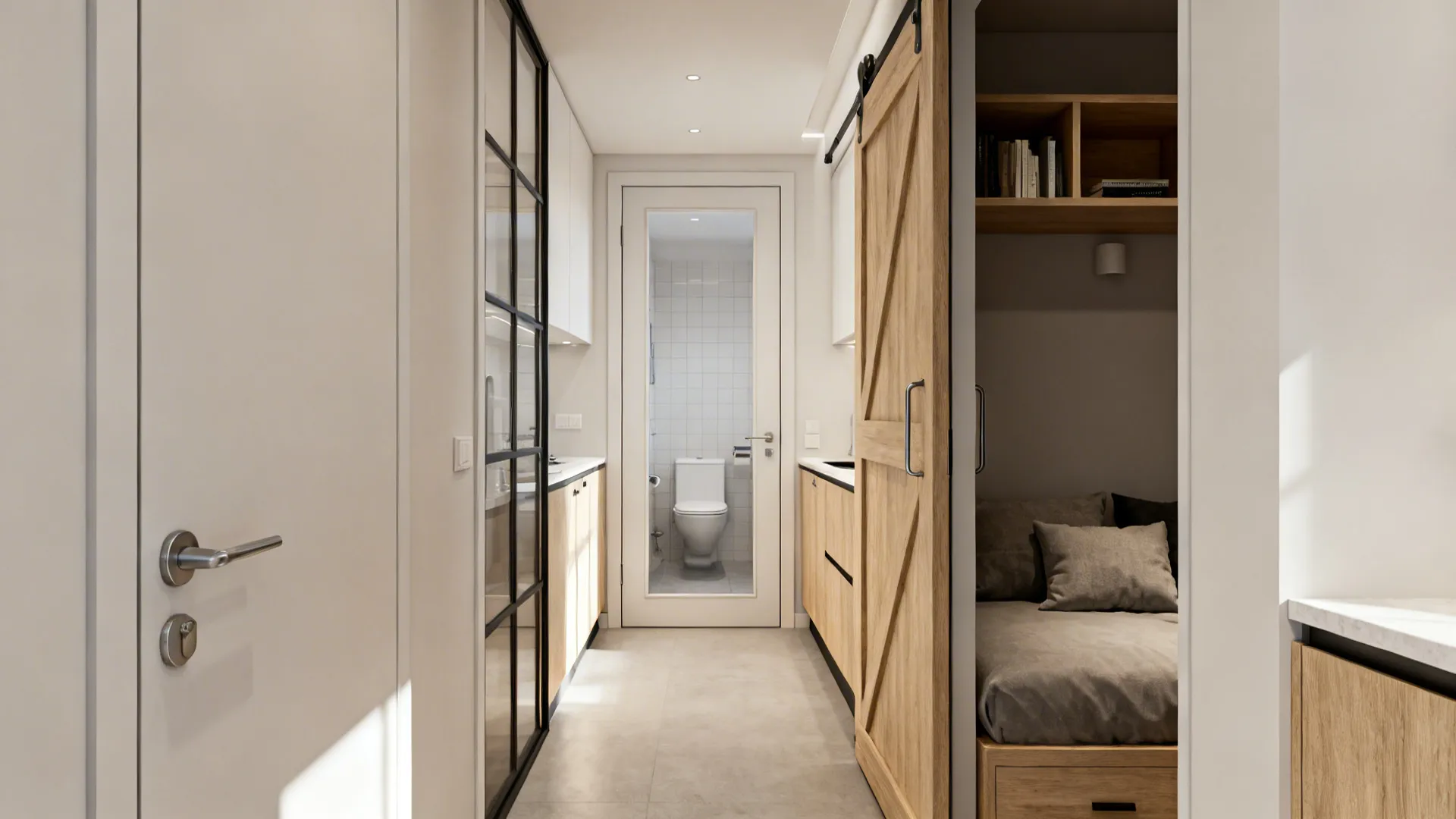

5 Smart Small-Kitchen Door Ideas in AutoCAD: My seasoned take on bed–toilet–kitchen door design with 5 data-backed ideas you can draft in AutoCAD

As a residential designer who’s spent a decade optimizing tight homes, I’ve learned that small-space planning thrives on crisp drawings and smarter door choices. Today’s trend leans toward clean lines, flexible partitions, and integrated storage—perfect for compact apartments. Small spaces spark big creativity, and in this guide I’ll share 5 design inspirations for bed–toilet–kitchen door layouts you can confidently draft in AutoCAD, blending my on-site experience with expert data.

On a recent micro-studio project, the client’s wish list was ambitious: a private sleeping nook, a hygienic toilet zone, and a compact kitchen—without feeling boxed in. We hit the sweet spot by rethinking door types, swing paths, and transitions, then translating it into precise AutoCAD layers and blocks for contractors. If you’re after a clear AutoCAD-ready plan, start with the openings; doors dictate both flow and safety.

Before we dive in, here’s a quick orientation I use: dedicate one layer to doors (with color differentiation for swing vs. slider), another to sanitary fixtures, and a third to kitchen casework. This way, scheduling hardware and clearances becomes easy. If you’re curious how I visualized a recent micro-kitchen concept, peek at this case using the phrase “Glass backsplash opens up the kitchen”—it’s a great reminder of how transparency amplifies space: Glass backsplash makes the kitchen feel lighter.

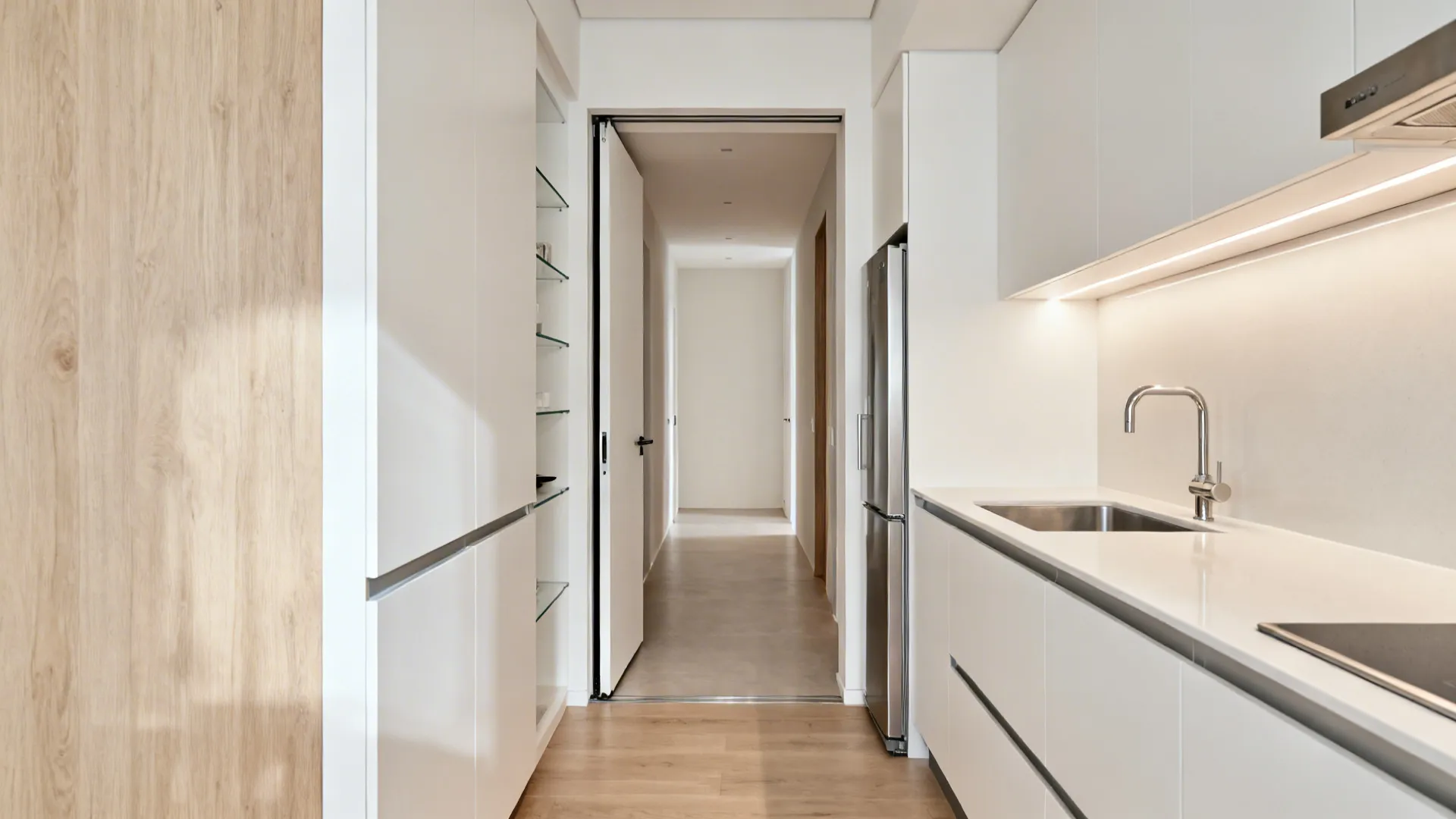

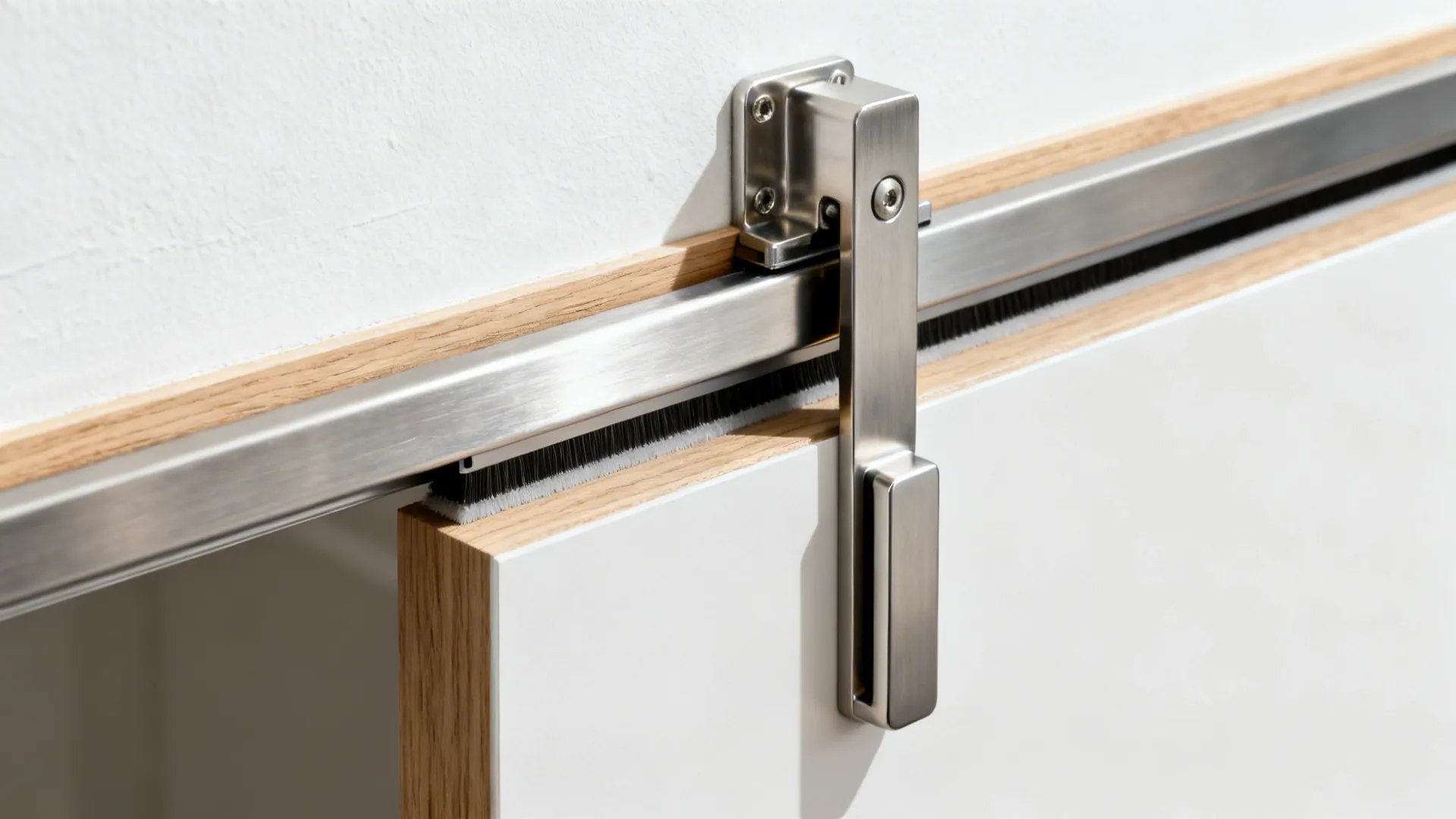

Sliding Pocket Door between Kitchen and Hall

My Take

I first leaned on pocket sliders when a 1.8 m wide kitchen needed every centimeter of aisle. A conventional swing would smack the fridge. The pocket door tucked into the wall cavity, and the kitchen finally breathed. Drafting in AutoCAD, I lock its pocket path on a dashed line and tag a 90 cm clear opening for comfort.

Pros

– Space-saving door hardware lets you preserve a 100–110 cm working corridor, a vital long-tail consideration in narrow galley kitchens.

– With a soft-close track, noise drops and you keep cross-ventilation by leaving the door partially open without blocking flow.

– Research-backed: accessibility guidelines often highlight wider clear openings for maneuvering; keeping a 32–36 inch clear width aligns with best-practice clearances (see ADA Standards, 2010, for minimum door clearances in accessible contexts).

Cons

– You need a wall cavity free of plumbing/electrics; in renovations that can mean re-routing—and costs add up fast. I once found a main riser exactly where the pocket needed to go. Cue the plan B.

– Acoustic privacy is weaker than a solid swing with seals, so if the kitchen hums at night, light sleepers may notice.

Tips / Cost

– In AutoCAD, show the recess line within the stud wall and tag track length. Specify a minimum 2.03 m clear height for standard doors.

– Budget: mid-range pocket kits run 150–400 USD; carpentry to relocate services can exceed that, so plan early.

save pin

save pin

Barn-Style Slider for Bedroom Nook

My Take

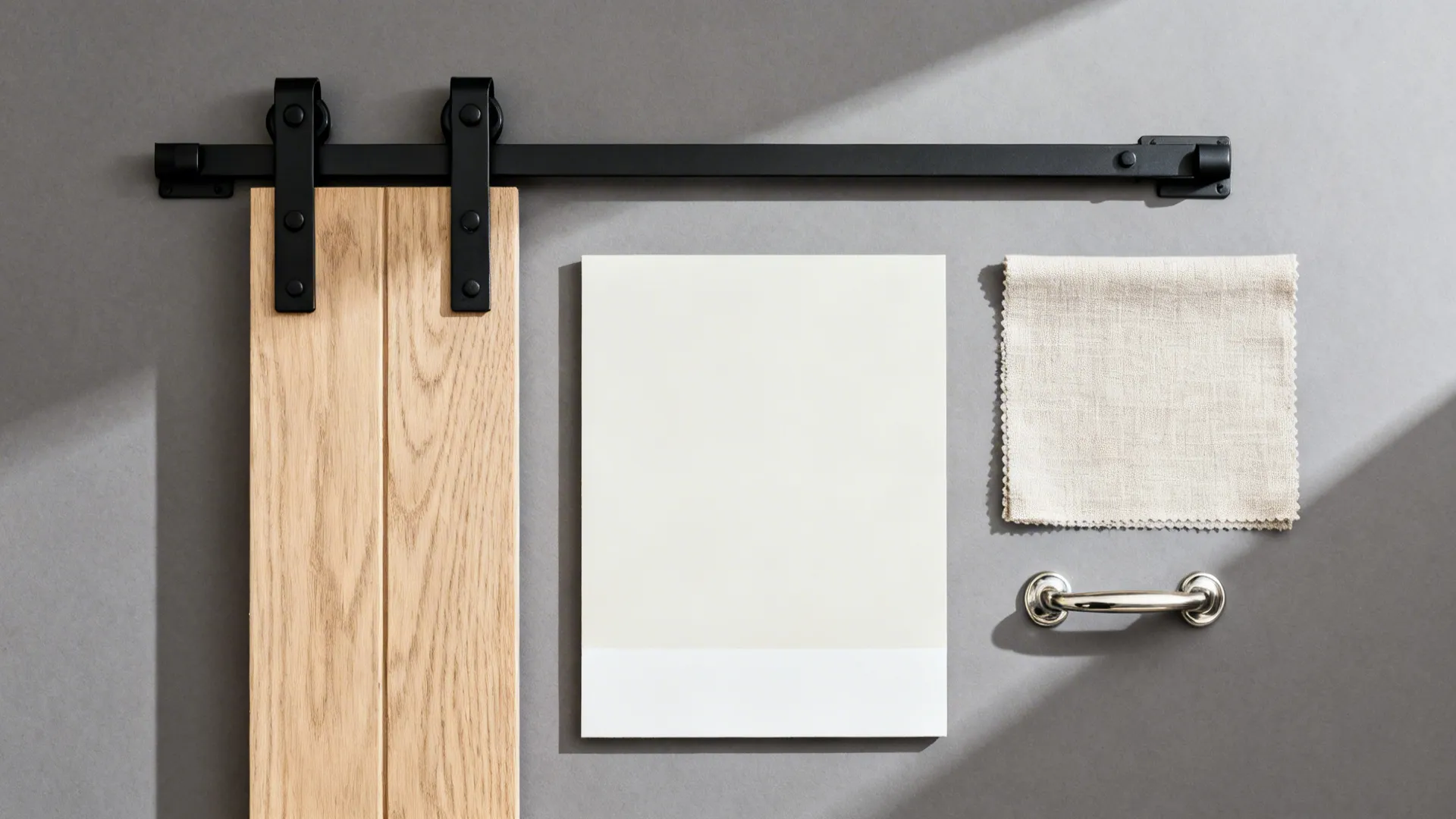

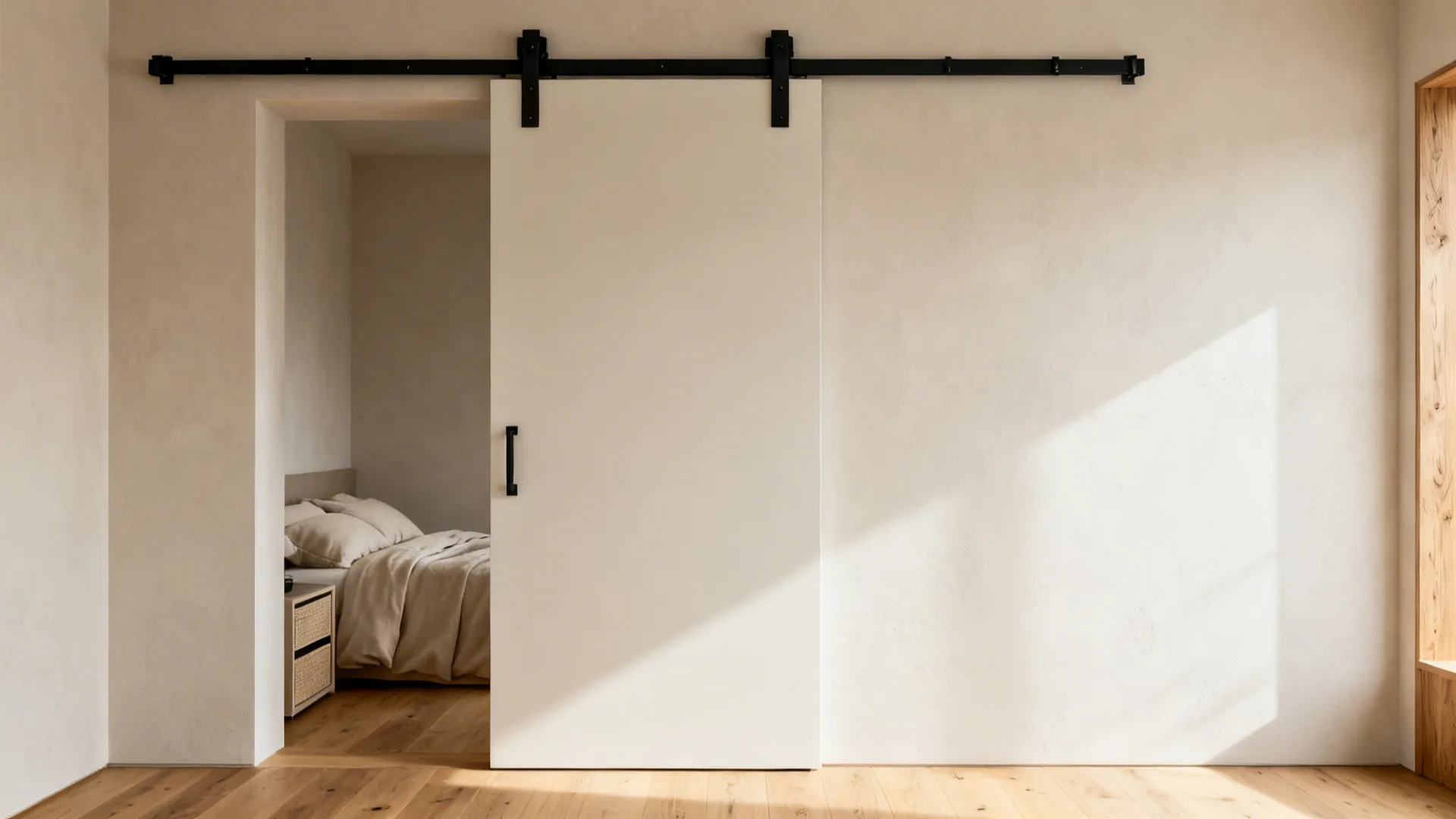

When a client loved the warmth of exposed hardware, I used a barn-style slider to close off a sleeping nook without sacrificing floor space. In CAD, I always draw the lateral slide clearance and annotate the required wall space so the headboard isn’t in the way.

Pros

– Zero swing radius means you can place bedside storage closer; perfect for compact sleeping niches where every 10 cm counts.

– The long-tail benefit of a top-hung track: avoids floor guides in high-traffic zones, keeping cleaning and transitions simple.

– Visual interest—contrasting hardware adds a focal line that doubles as a design feature in minimalist interiors.

Cons

– Not ideal for bathrooms because of privacy and sealing; light and sound leak around the edges.

– Requires adequate wall span (door width × 2) for the door to slide fully open; apartments with windows or switch banks adjacent may struggle.

Tips / Case

– In AutoCAD, dimension the lateral run and note stud/fastener requirements at 400 mm centers for track support.

– If you’re considering a compact L-shaped kitchen adjacent to a sleeping nook, this case phrase “L-shaped layout frees more counter space” shows how flow improves when doors don’t intrude into prep zones: L-shaped layout frees more counter space.

save pin

save pin

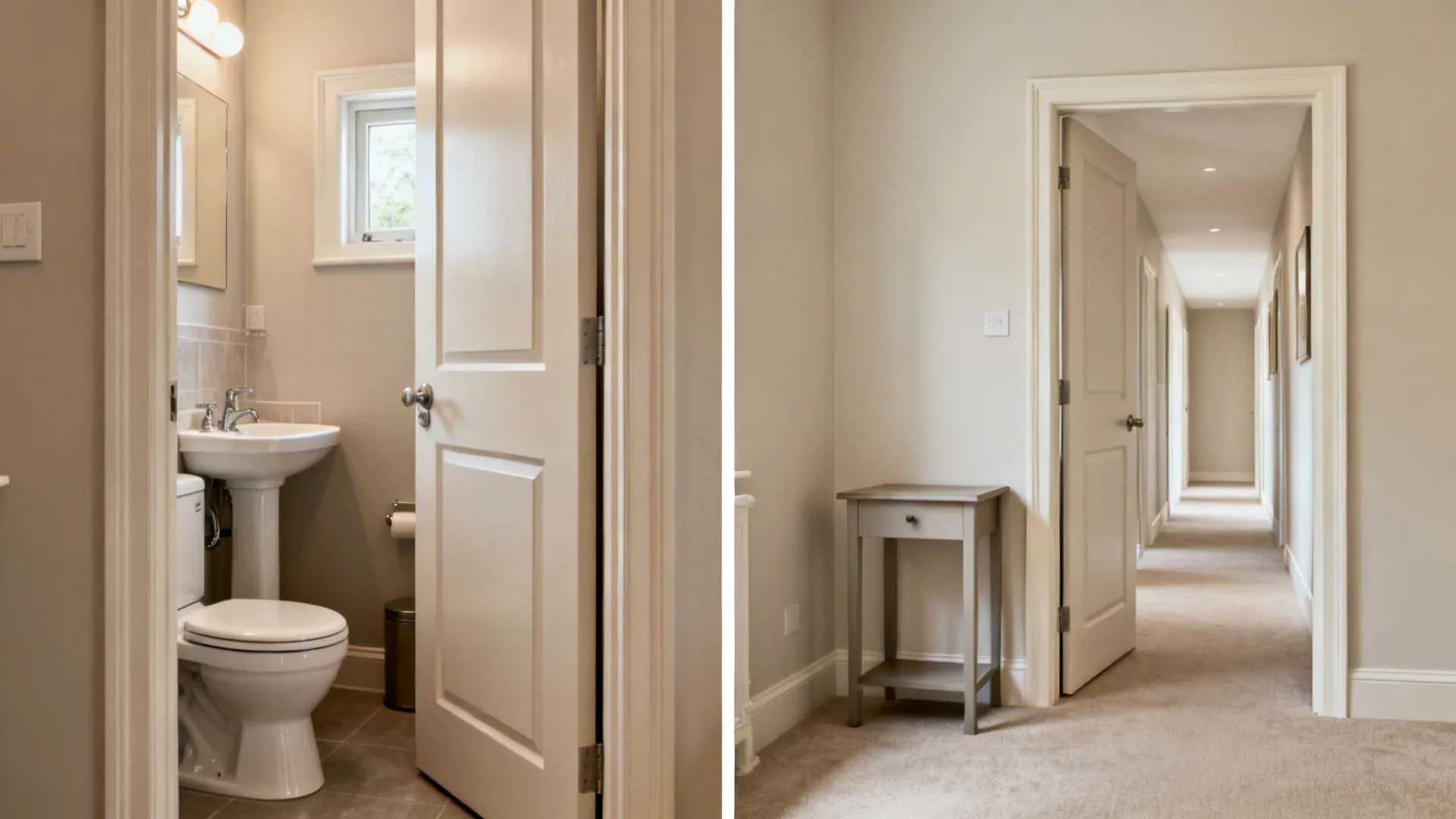

In-Swing vs. Out-Swing Bathroom Door for Safety

My Take

Bathrooms are different: they need privacy, ventilation, and rescue access. I’ve switched multiple projects to an out-swing bathroom door after a tight bath made in-swing a tripping hazard. In AutoCAD, I model both options and tag clearances around the WC and basin to check code-compliance early.

Pros

– Out-swing doors preserve interior clearance, keeping the 60–76 cm approach to the toilet unobstructed—key for compact toilet rooms.

– Safety long-tail keyword: emergency access. If someone collapses behind the door, out-swing allows quicker entry; many local codes recommend or mandate it.

– Authority note: The International Residential Code and various healthcare facility guidelines emphasize egress and unobstructed doorways for safety; aligning your swing with these principles reduces risk in micro bathrooms.

Cons

– Out-swing can conflict with hall traffic; I once clipped a hallway console in a test fit and had to shave the console depth by 5 cm.

– Door swings into circulation—if your corridor is 90 cm or less, consider a pocket or a bifold as a backup.

Tips / Cost

– In AutoCAD, set dynamic blocks for both swing scenarios; overlay to visualize clash detection with corridor furniture.

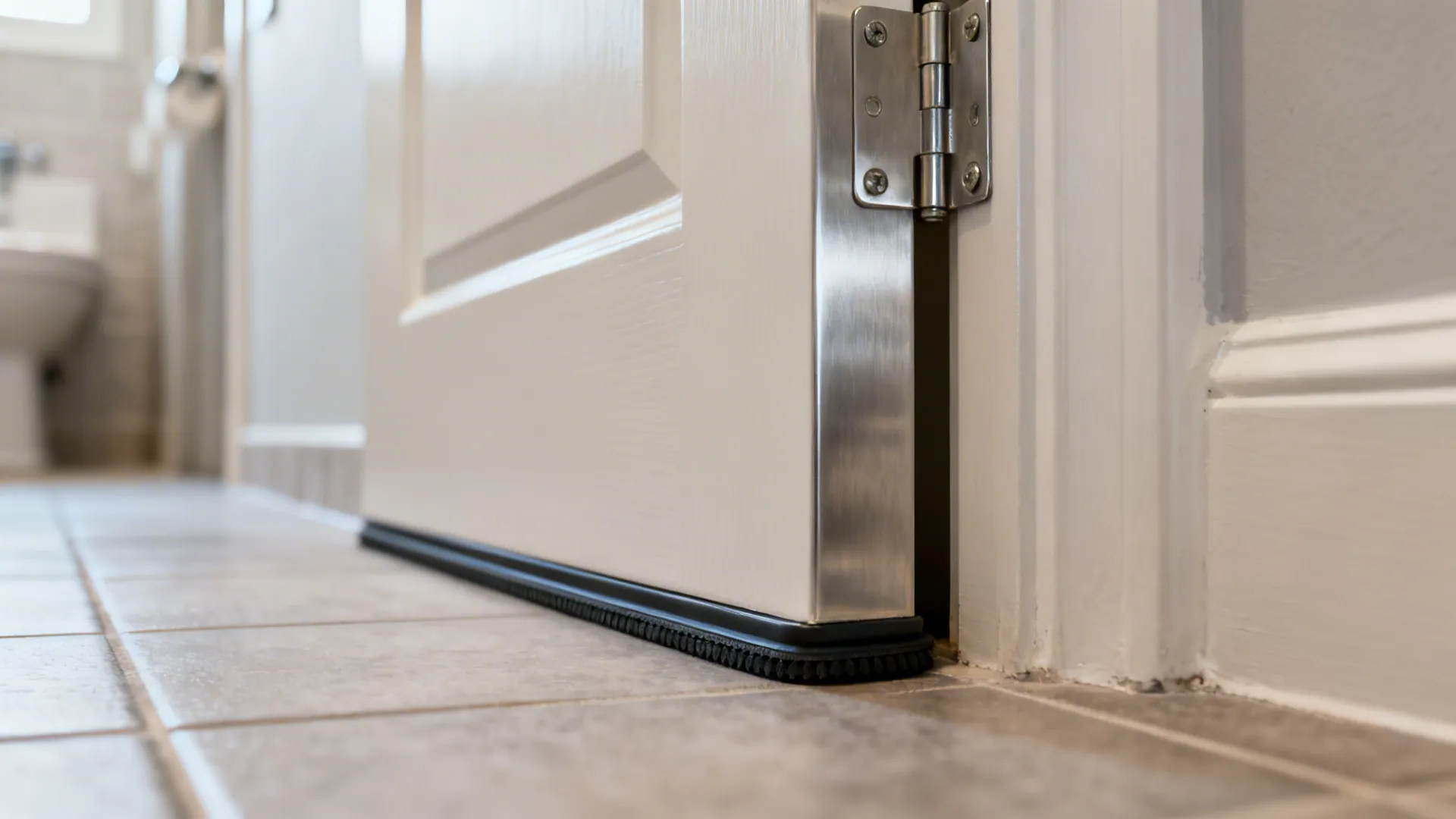

– Add a privacy threshold and drop seal if acoustics matter. Hardware upgrades (hinges, seals) can add 120–250 USD.

save pin

save pin

Half-Glazed Kitchen Door for Light and Hygiene

My Take

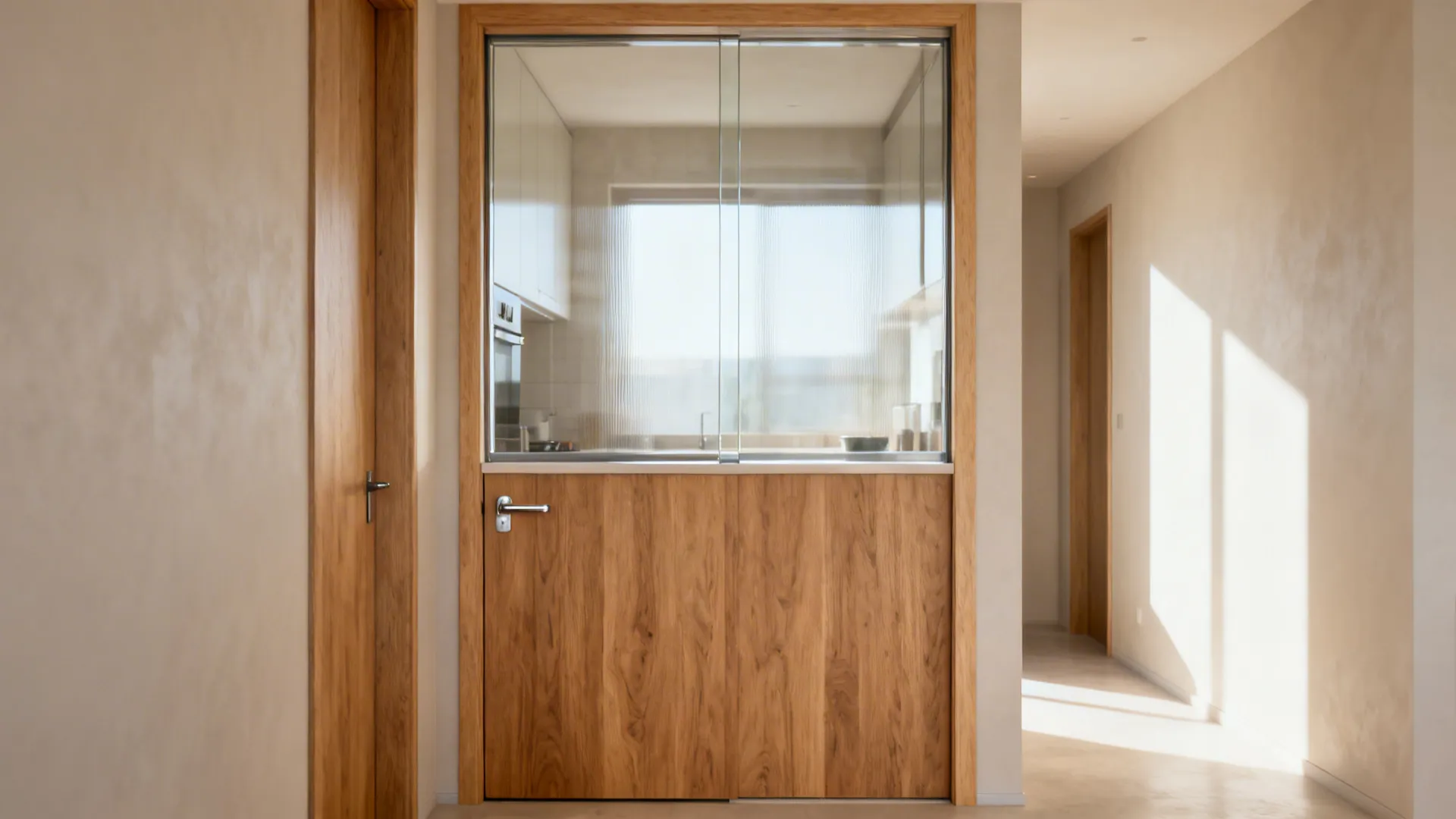

One of my favorite micro-kitchen moves is a half-glazed door: solid below, glass above. It shares light with the hall yet keeps cooking odors at bay when closed. I annotate glazing height, glass spec, and handle positions directly on the CAD door schedule for clarity.

Pros

– Daylight borrowing brightens narrow kitchens—a proven way to reduce perceived crowding and improve task visibility.

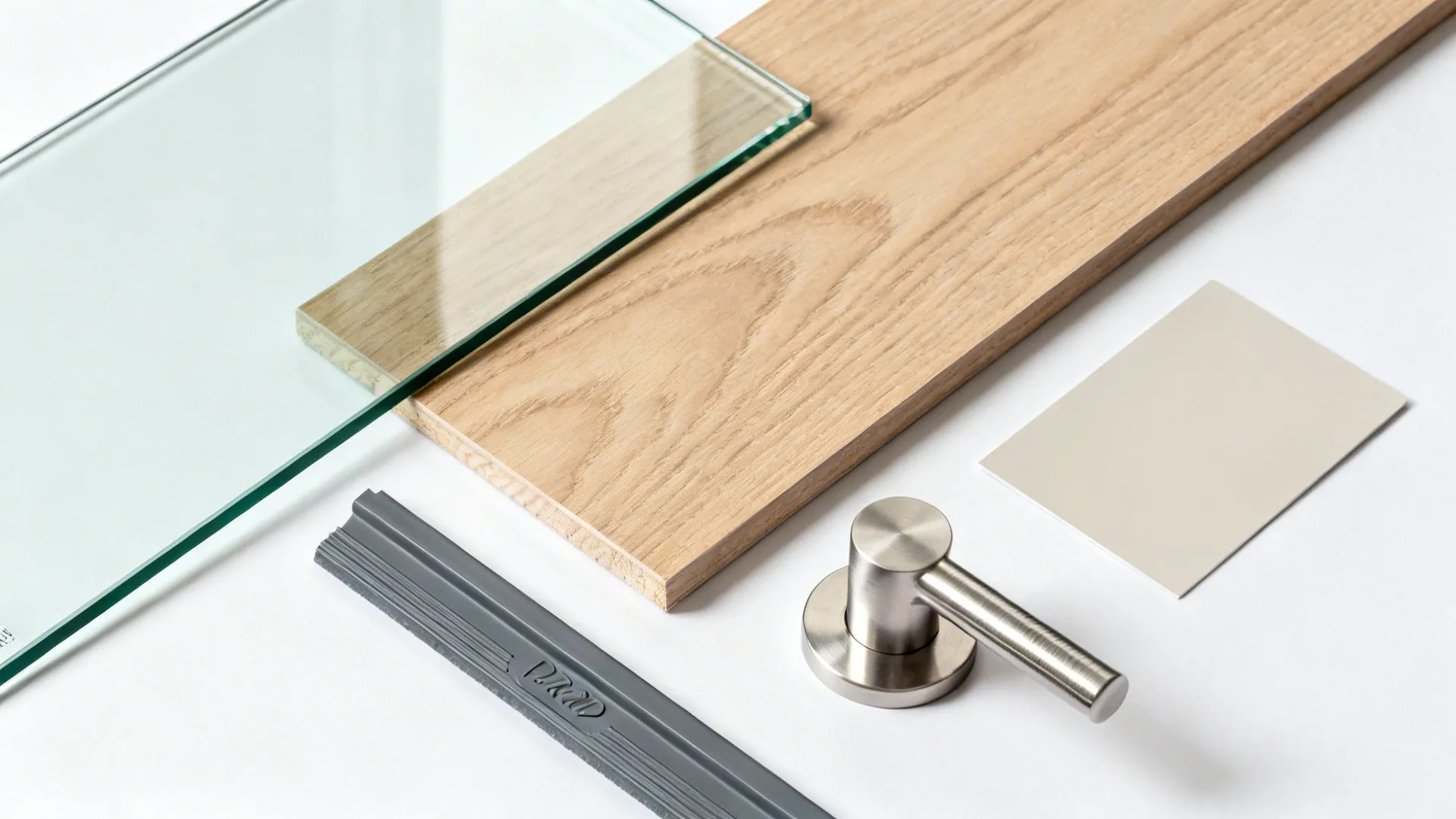

– Tempered or laminated glass with a privacy film balances transparency and hygiene; a practical long-tail solution for small kitchen door design.

– Citing authority: The WELL Building Standard promotes visual connection and adequate lighting for comfort; while not door-specific, borrowing light via glazed panels supports the intent for brighter, healthier interiors.

Cons

– More fingerprints, more wiping; clients with kids often laugh when I hand them the first microfiber cloth.

– Requires careful alignment with switch heights to avoid awkward sightlines; in one project, we had to relocate a sconce 10 cm to clear the transom.

Tips / Case

– In AutoCAD, designate glazing type (e.g., 6 mm tempered) and annotate sill height at ~90–100 cm for balanced proportions.

– For visualization of transparent finishes in compact areas, see this phrase “Wood accents add a warmer mood” in a 3D example: Wood accents add a warmer mood.

save pin

save pin

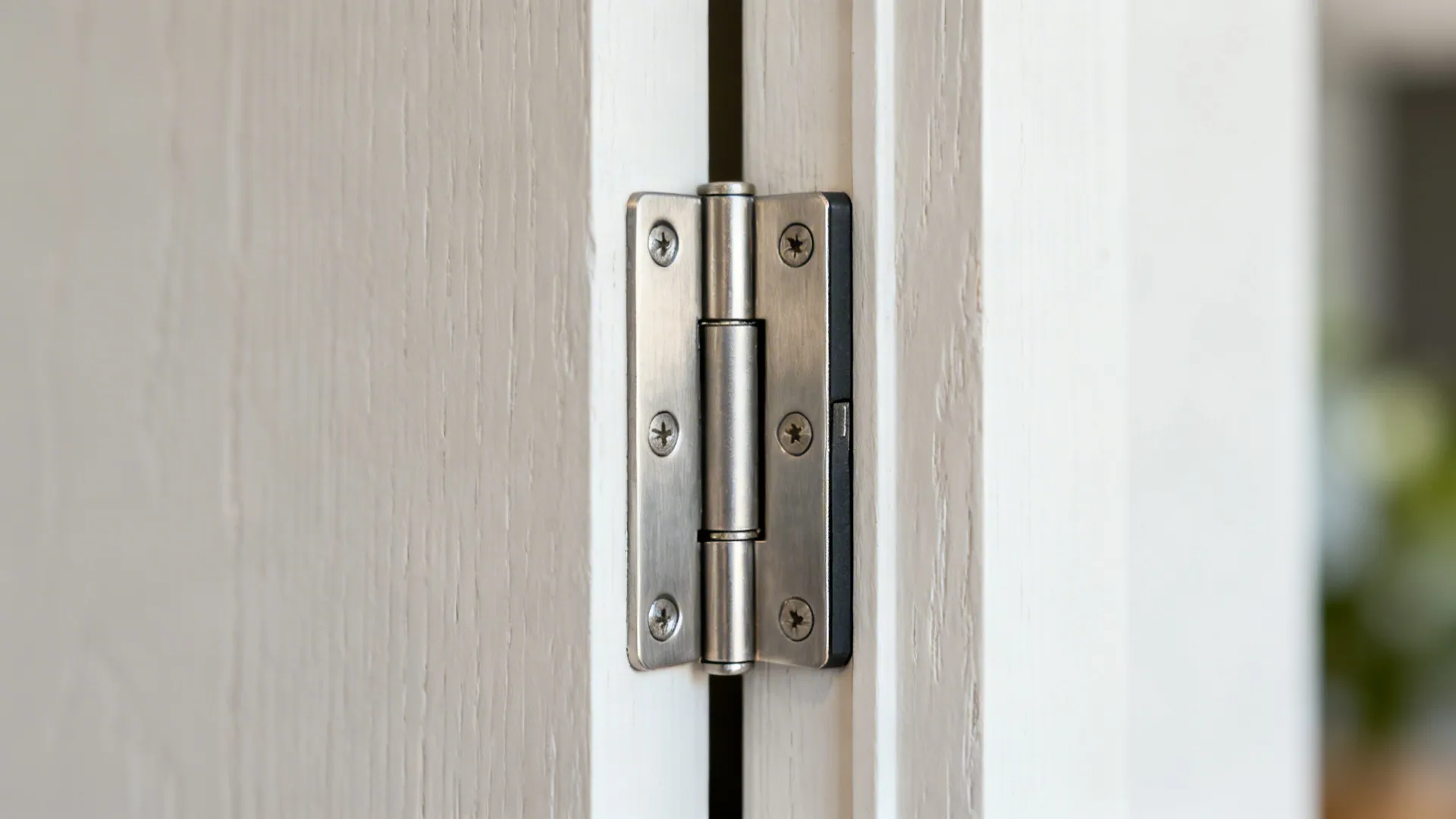

Bifold or Folding Door Where Walls Are Tight

My Take

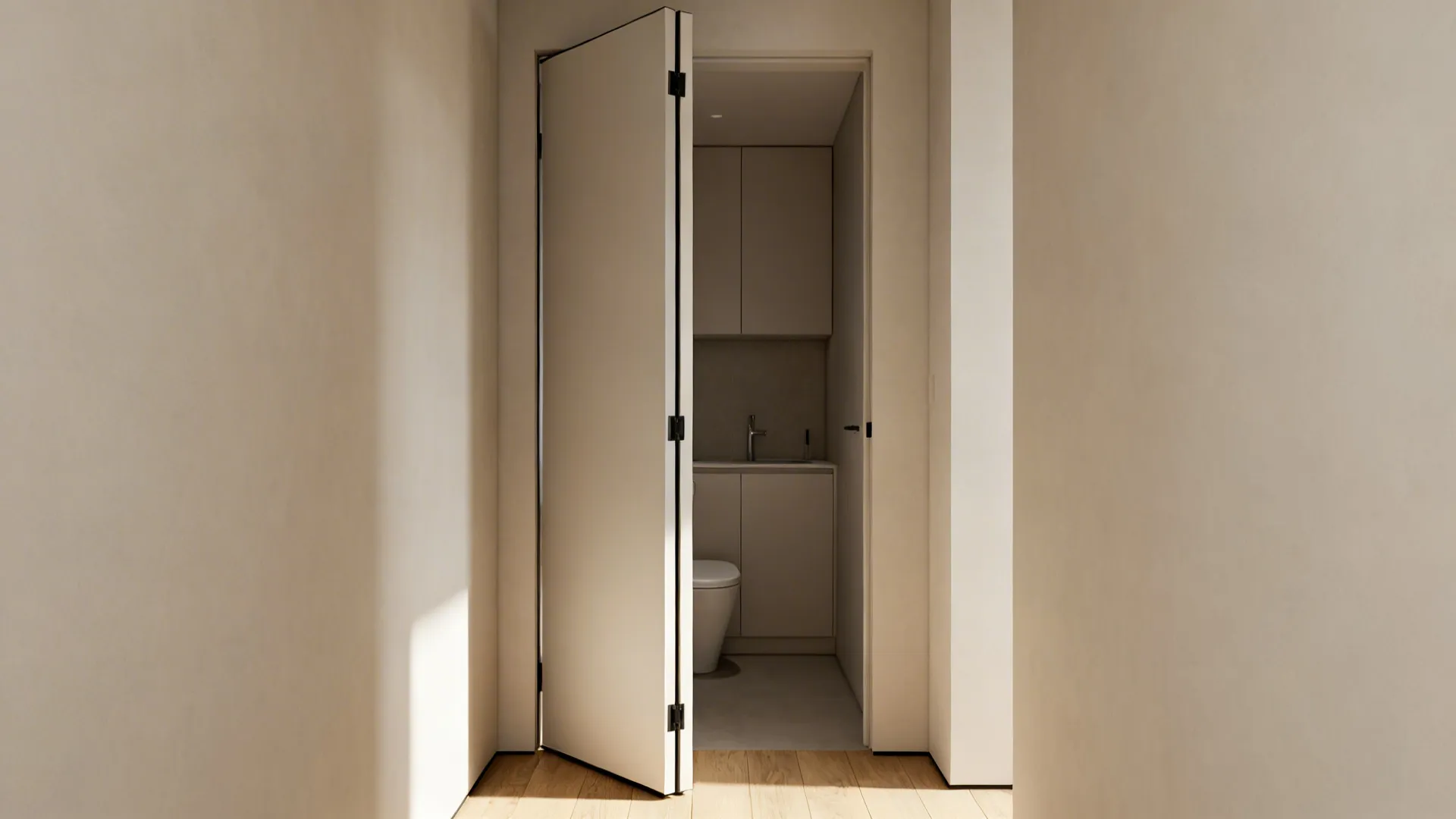

When a wall chase or riser blocks a pocket, I pivot to a bifold. It’s my pressure valve in tough plans. In CAD, I use a custom block showing fold radius and parked position so contractors understand both the open and closed footprints.

Pros

– Reduces swing arc by about half, preserving circulation in narrow corridors—ideal long-tail fit for tiny bathroom entries or kitchenette pantries.

– Hardware is simpler than pockets and avoids deep wall modifications; great for retrofits and budget-conscious updates.

– You can specify wider clear openings with paired panels, easing appliance moves and maintenance access.

Cons

– More joints mean more potential rattles; cheap kits can feel flimsy over time.

– Not as acoustically tight as a solid-core swing; if bedroom privacy is paramount, consider seals or go back to an out-swing.

Tips / Cost

– In AutoCAD, add notes on pivot/hinge positions, identify head clearance, and dimension stack depth in the open position.

– Mid-tier bifold kits range from 120–300 USD; add 100–200 USD for decent handles and magnetic catches.

save pin

save pin

How I Translate These into AutoCAD Files

My Take

I keep a door toolkit: dynamic blocks for pocket, barn, out-swing, glazed, and bifold doors with editable widths and swing diagrams. Layer naming (A-Door, A-Casework, A-Plumb) keeps coordination clean. Every block includes a label for clear opening, track length, and hardware notes. That way, when a contractor requests a door schedule, it’s one export away.

Pros

– Clean documentation reduces site errors; when you carry long-tail annotations like “clear opening 900 mm” and “track length 1800 mm,” installers can price accurately.

– Faster iteration: toggling swing directions or panel counts directly in block parameters helps test multiple layouts in minutes.

– Aligns with best practices in coordinated modeling: consistent layers, clear text styles, and standardized blocks improve readability across teams.

Cons

– Setting up a robust block library takes time; I spent a weekend standardizing text heights and arrowheads so sheets read well at 1:50.

– If walls aren’t square (welcome to renovations), your pristine blocks will need field adjustments; always note “verify on site.”

Tips / Download Notes

– File structure: keep a “Doors-Toolkit.dwg” with xrefs attached to project plans; maintain a separate “Schedules.dwg” for door lists.

– Include door tags (D01, D02) referencing type sheets. If you’re exploring plan alternatives, this mid-article case phrase “Minimalist kitchen storage design” is a solid reference point for micro layouts: Minimalist kitchen storage design.

save pin

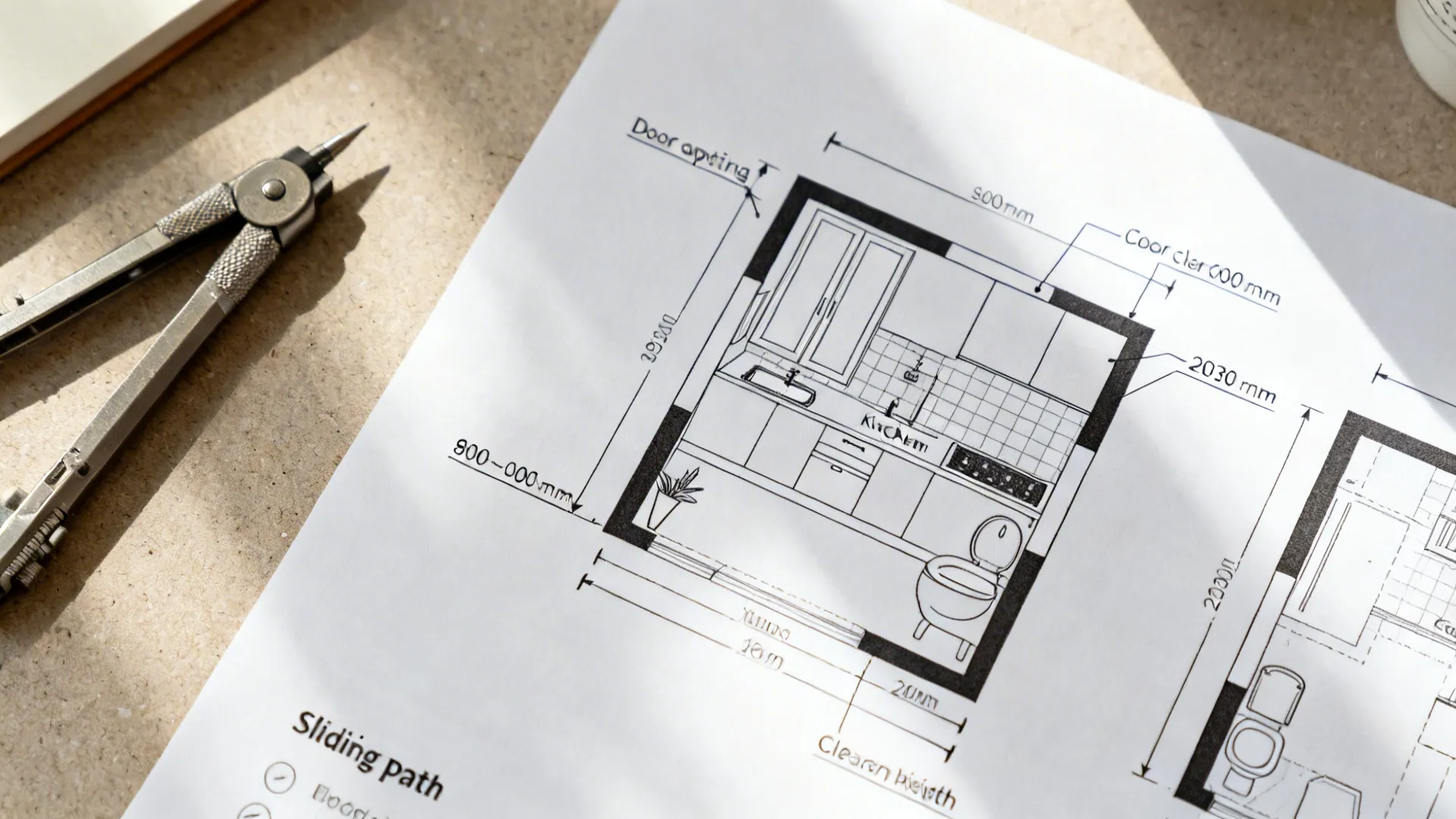

Practical Dimensions and Clearances to Draft

Because I’m often asked for quick numbers to draw directly in AutoCAD, here’s the compact cheat sheet I rely on during schematic design. Always validate against local codes and field conditions, but these are a strong starting point for bed–toilet–kitchen door planning in small apartments:

– Kitchen: target 850–900 mm clear aisle (1000–1100 mm if two people cook). Door clear opening at least 800–900 mm, 2030 mm height. Keep fridge swing from overlapping door swing by maintaining 150 mm clearance at the hinge side where possible.

– Bedroom nook: aim for 600 mm min on one side of bed; if using a barn slider, keep lateral run at least door width × 1.1. Avoid switches within 100 mm of the sliding path to reduce clash.

– Bathroom: favor out-swing with 800–900 mm clear opening; ensure 450–500 mm from toilet centerline to side wall per best-practice comfort; maintain 600 mm clear in front of the toilet. Consider a bifold where hall conflicts occur.

– Ventilation and odor control: if the kitchen shares a corridor, a half-glazed door with drop seal helps; annotate seals on your CAD details.

– Acoustic notes: for bedroom doors near kitchens, specify solid-core leafs and perimeter seals; draw gasket details or reference a standard detail in your sheet index.

save pin

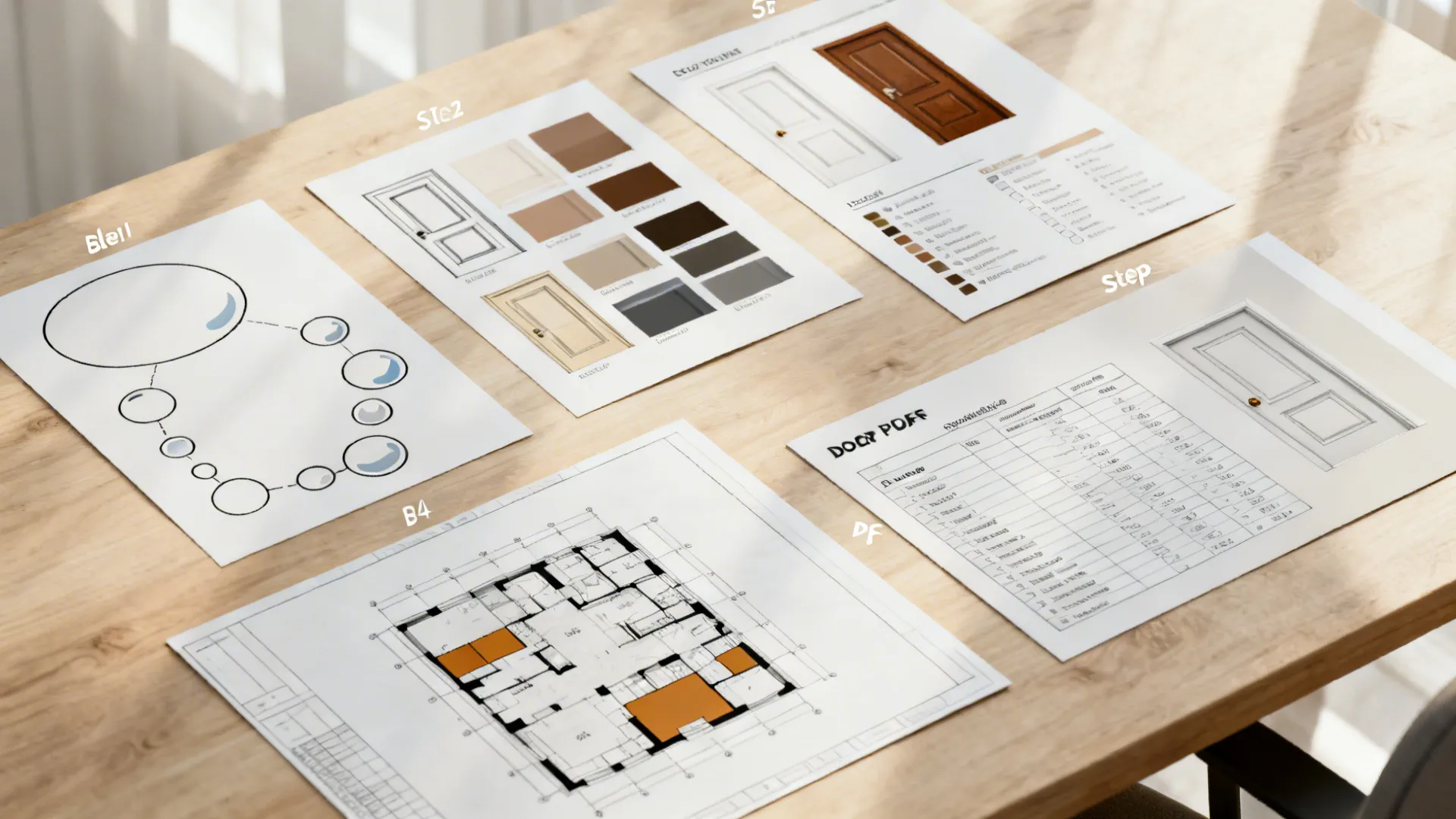

Workflow: From Sketch to Shareable CAD

Here’s how I streamline bed–toilet–kitchen door design into a clean AutoCAD package you can share with builders:

1) Start with a bubble diagram to confirm flows: sleeping → bathroom → kitchen. Keep noisy zones buffered from the bed by at least one transition (hallway, wardrobe, or storage wall).

2) Choose the door types based on spatial conflicts: pocket for narrow kitchens, out-swing for bathrooms, barn slider for sleeping nooks, bifold for blocked walls, and half-glazed for light.

3) Build a base plan in AutoCAD with walls and fixed services, then insert door blocks and test clearances with parametric grips.

4) Add a door schedule with type marks, widths, heights, leaf materials, glazing specs, and hardware notes (soft-close, seals).

5) Export PDFs with a legend and a one-page “Door Strategy” summary—contractors love at-a-glance intent.

save pin

Summary

Small kitchens and compact apartments don’t limit us—they demand smarter design. By choosing the right door for each zone, you unlock circulation, light, and safety without adding square meters. The core keyword here—bed, toilet, kitchen doors—boils down to precision: select pocket sliders for corridors, out-swing for bathrooms, and half-glazed when light matters. If you’re curious, the ADA Standards and WELL intent sections back the ideas of clearances and better lighting; fold those insights into your AutoCAD files and you’ll feel the difference. Which of these five design inspirations are you excited to try in your own layout?

save pin

FAQ

1) What’s the best door type for a tiny kitchen?

A sliding pocket door preserves aisle width and avoids appliance clashes. In AutoCAD, tag a 900 mm clear opening and show the pocket cavity to prevent service conflicts.

2) Should a bathroom door swing in or out?

Out-swing is safer in micro bathrooms because it preserves interior clearances and allows emergency access. ADA Standards (2010) discuss clear opening and maneuvering spaces that inform safe design.

3) Can I use a barn door for a bathroom?

You can, but I don’t recommend it for primary baths due to sound and light leakage. If you must, add seals and specify a privacy latch, then detail it carefully in the CAD schedule.

4) How wide should bedroom doors be in small apartments?

Target 800–900 mm clear openings for comfort and moving furniture. In AutoCAD, maintain a consistent door height (2030 mm) and standardize blocks for coordination.

5) Do half-glazed kitchen doors help with odors?

They help daylight without sacrificing separation; for odors, pair with proper extract and a drop seal. Annotate seal details and glazing spec (tempered 6 mm) in your CAD notes.

6) Are bifold doors durable enough for daily use?

Mid-tier bifold hardware is reliable if installed true and plumb. In small kitchens or pantries, they reduce swing arc while keeping decent access.

7) Can I get a sample layout to reference?

Review a compact layout example based on the phrase “L-shaped layout frees more counter space” here: L-shaped layout frees more counter space. Use it to visualize non-intrusive door strategies.

8) What layers should I use for door drawings in AutoCAD?

I use A-Wall, A-Door, A-Casework, and A-Plumb as a baseline. Keep doors on A-Door with distinct colors for swing arcs vs. slider paths to simplify schedules and clash checks.
