5 smart small restaurant kitchen design layout ideas: As a senior interior designer, here are my top 5 data-backed, field-tested ideas for small restaurant kitchen design layout that boost flow, safety, and speed.

[Section: 引言]

I’ve redesigned dozens of compact commercial kitchens, and the latest small restaurant kitchen design layout trend is all about lean flow, faster handoffs, and hygienic surfaces that still feel warm for open-kitchen concepts. Small spaces spark big creativity—constraints force clearer stations, smarter storage, and tighter cook-to-serve timing. In this guide, I’ll share 5 design inspirations I’ve personally tested, blending on-site lessons with expert data so you can plan a kitchen that cooks faster and safer without feeling cramped. For a visual case walk-through, check how L-shaped layouts free more counter space shaped a recent bistro upgrade.

[Section: 灵感列表]

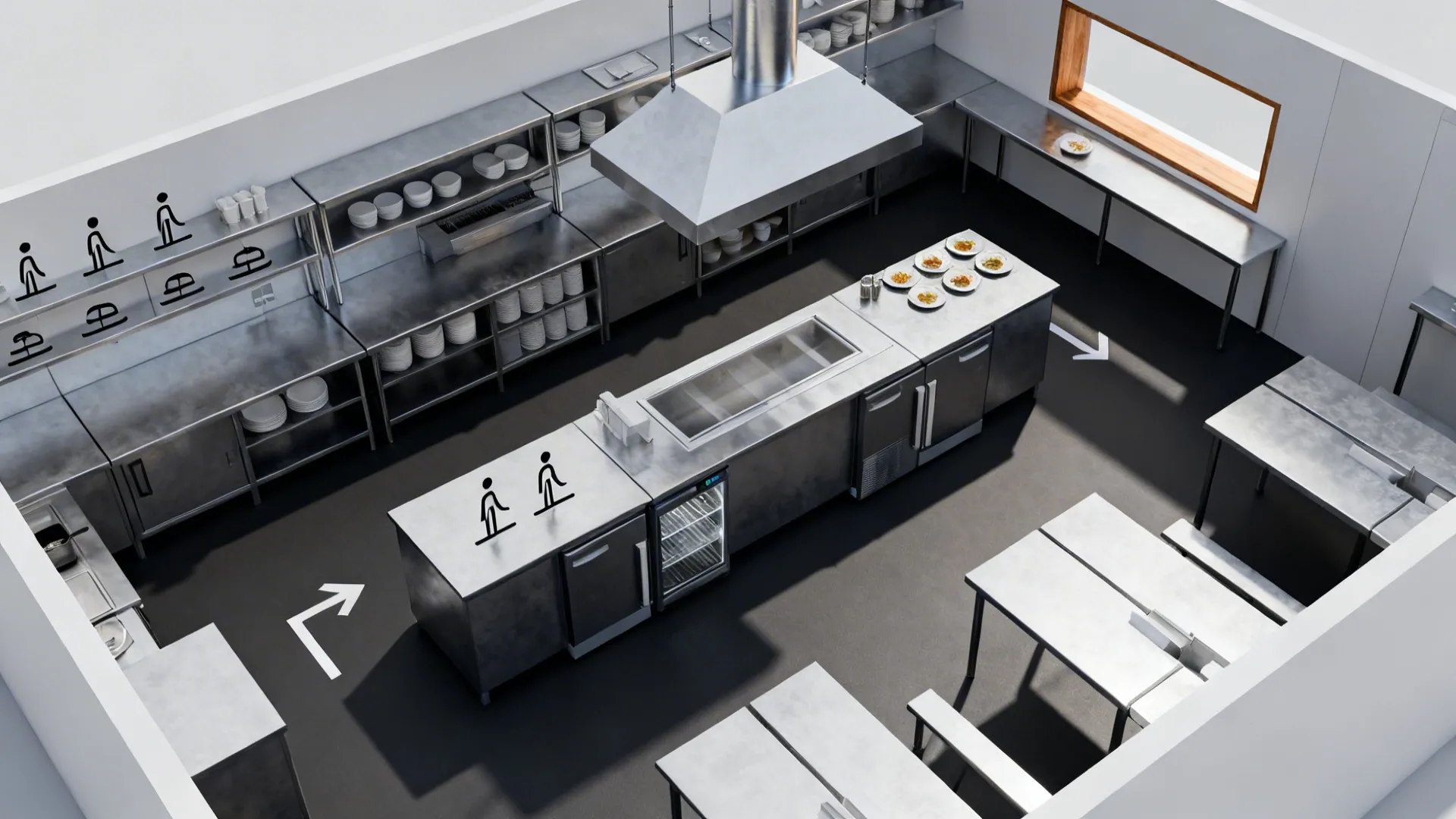

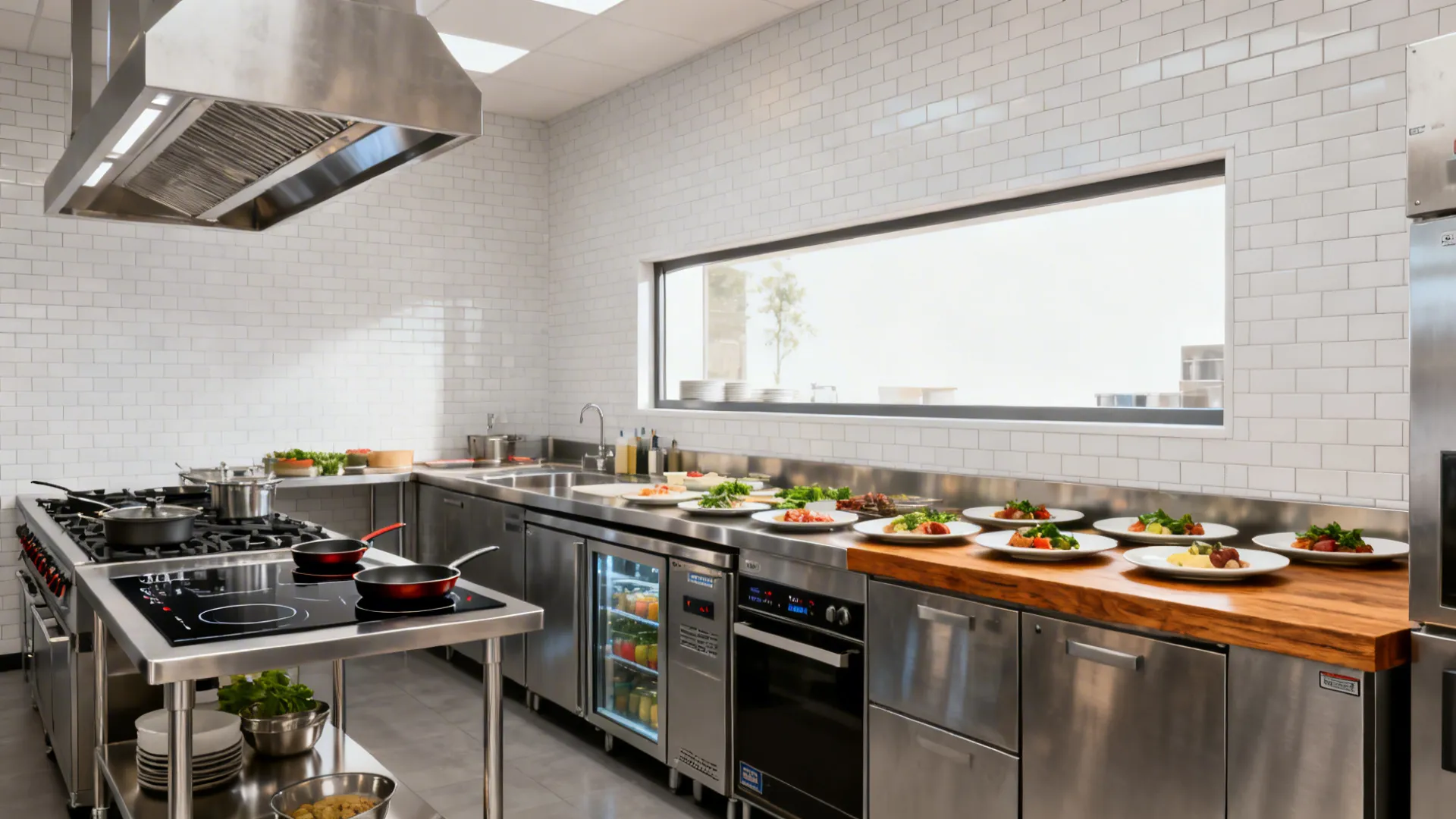

1) Line-cook “Assembly Line” Galley: One-Way Ticket to Speed

My Take: My first tiny galley for a 28-seat ramen bar taught me discipline: every reach had to count. We lined prep → cook → plate in a single direction, with pass-through at the end. It felt like a sushi train—calm, precise, and faster during peak hours.

Pros: A linear flow slashes cross-traffic and cuts steps—ideal for a small restaurant kitchen design layout where seconds matter. With mise en place near the hot line, cooks maintain eye contact and handoffs improve. According to the National Restaurant Association’s kitchen flow guidance, clear zoning and directional movement reduce bottlenecks and near-miss incidents.

Cons: If deliveries and dish returns aren’t routed away from the line, you’ll create a highway jam. Also, a pure galley can feel like a narrow tunnel; heat build-up needs aggressive extraction and makeup air.

Tip/Cost: Budget for a mid- to high-capacity canopy hood and low-profile undercounter refrigeration. Narrow prep tables (18–24 in) leave room to pass without shoulder shoves.

save pin

save pin

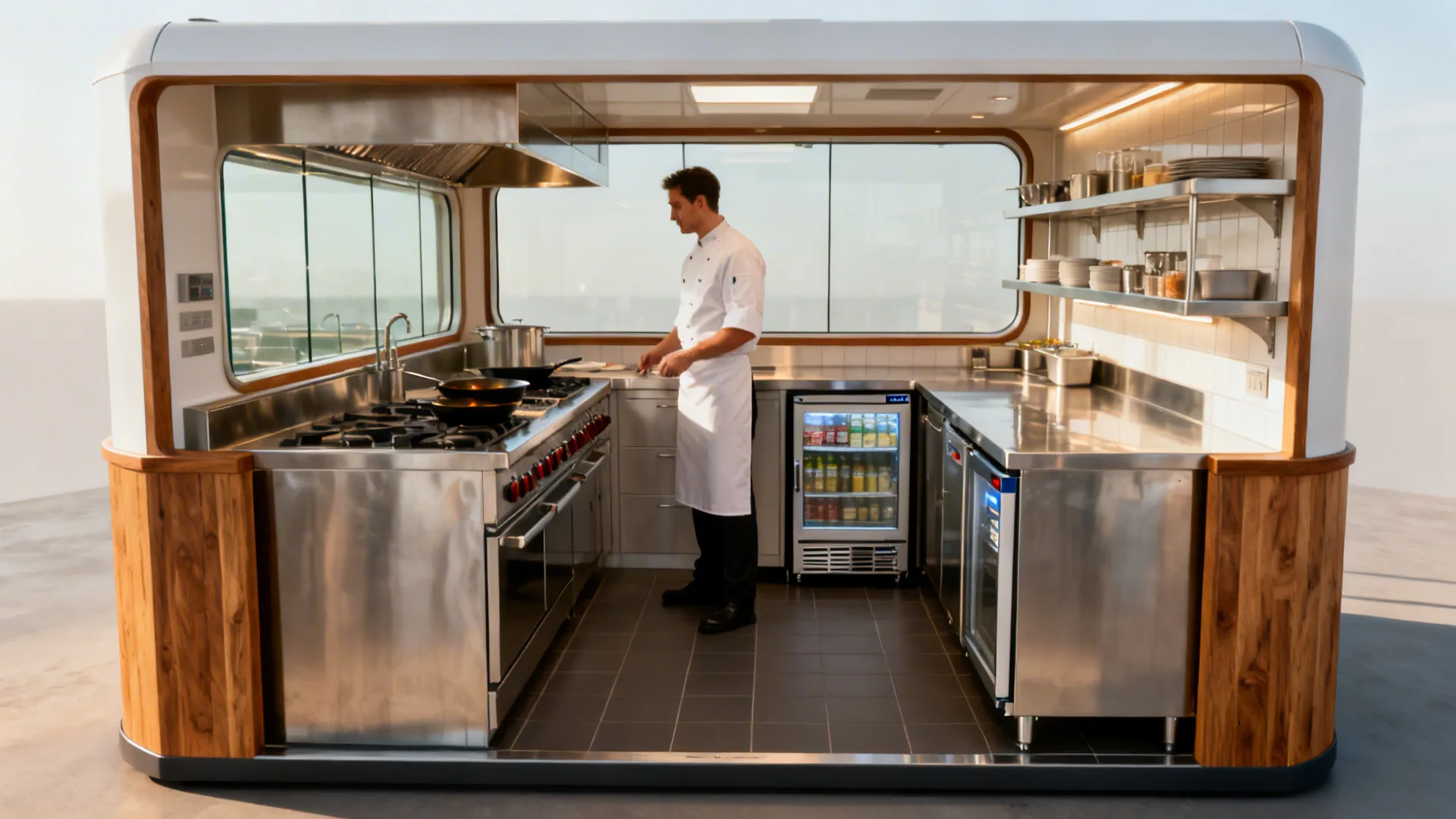

2) U-Shaped Station Pods for Dual-Tasking

My Take: In a 34-seat tapas spot, we wrapped a compact U around the cook so they could pivot between saute, low-boy fridge, and pass. It felt like a cockpit—no wasted motion, just a tight radius spin to plate.

Pros: U-shapes maximize reach, a powerful long-tail trick for small restaurant kitchen design layout where one cook handles multiple stations. Refrigeration under the U shortens time between cold storage and the pan, reducing temperature abuse windows. NSF/ANSI food safety guidelines emphasize minimizing time in the danger zone (41–135°F), which compact reach patterns support.

Cons: Cram too much gear into the U and you’ve built a heat cave. If the U is too tight, two cooks will hip-check each other all night—measure clearances before you fall in love with the sketch.

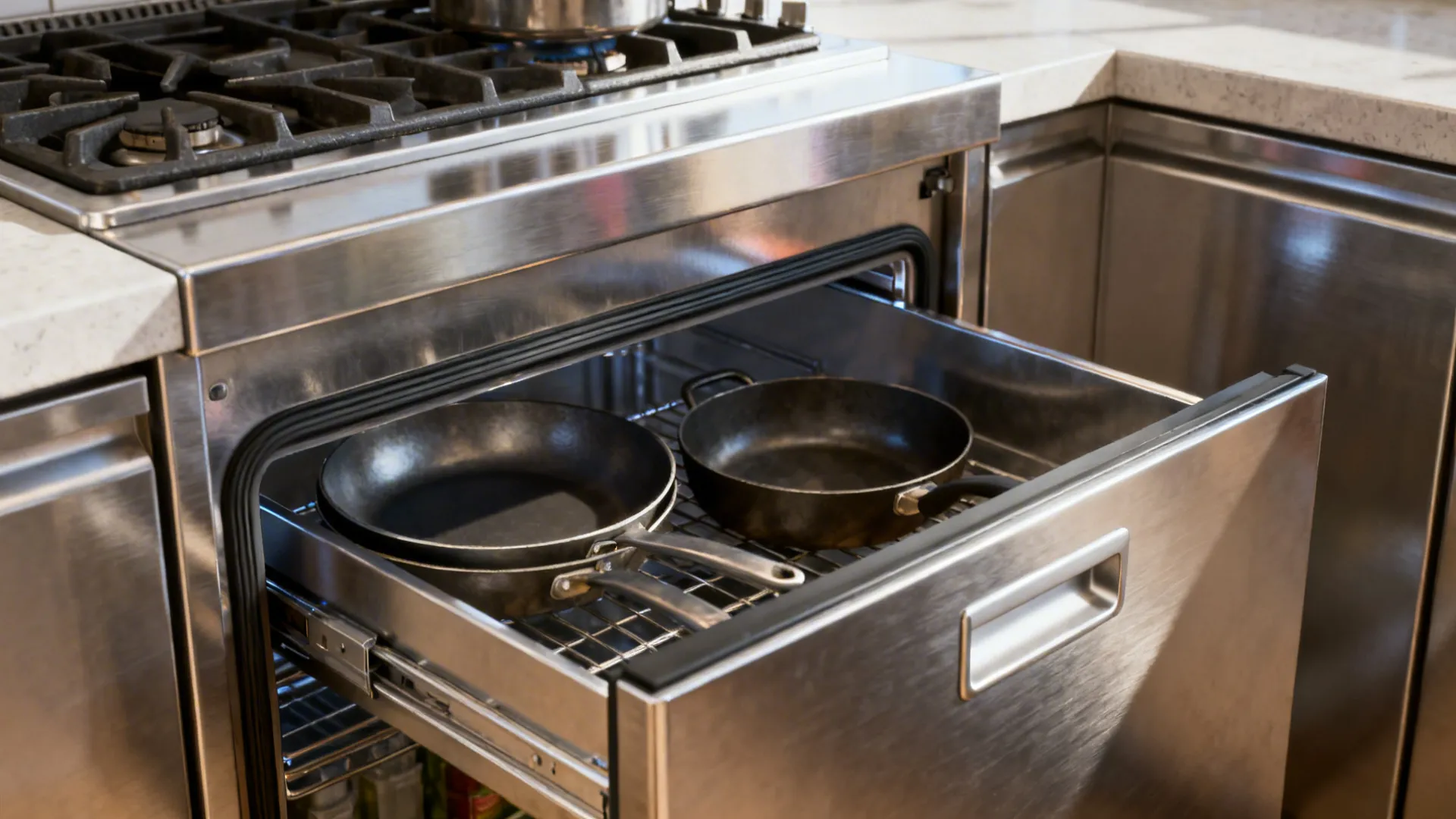

Tip/Case: Keep a minimum 36–42 in internal clearance; use a 27 in refrigerated chef base beneath the cooktop to anchor the hot line. For visualization, I often mock up open-kitchen transparency with glass backsplashes to test sightlines.

save pin

save pin

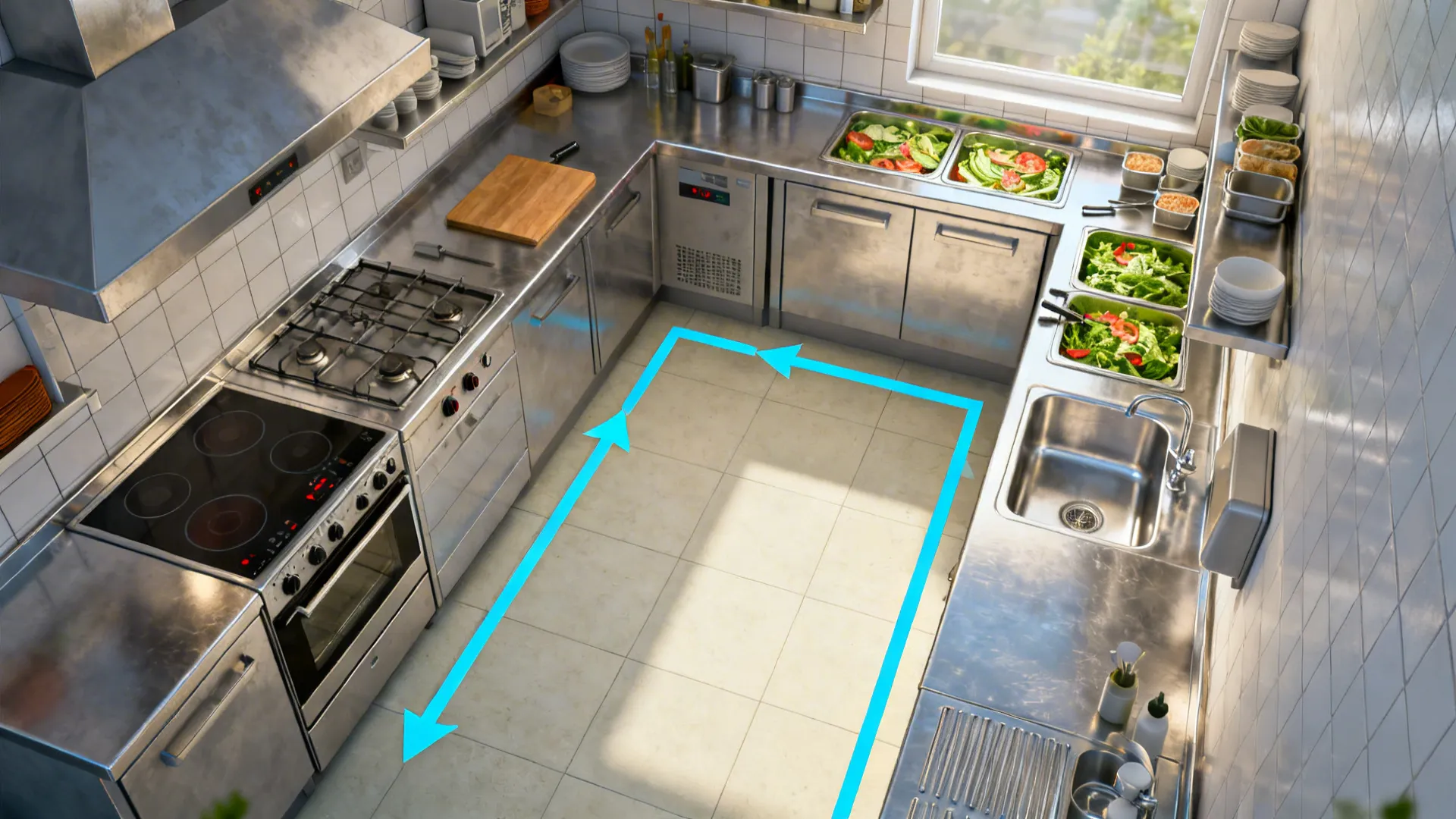

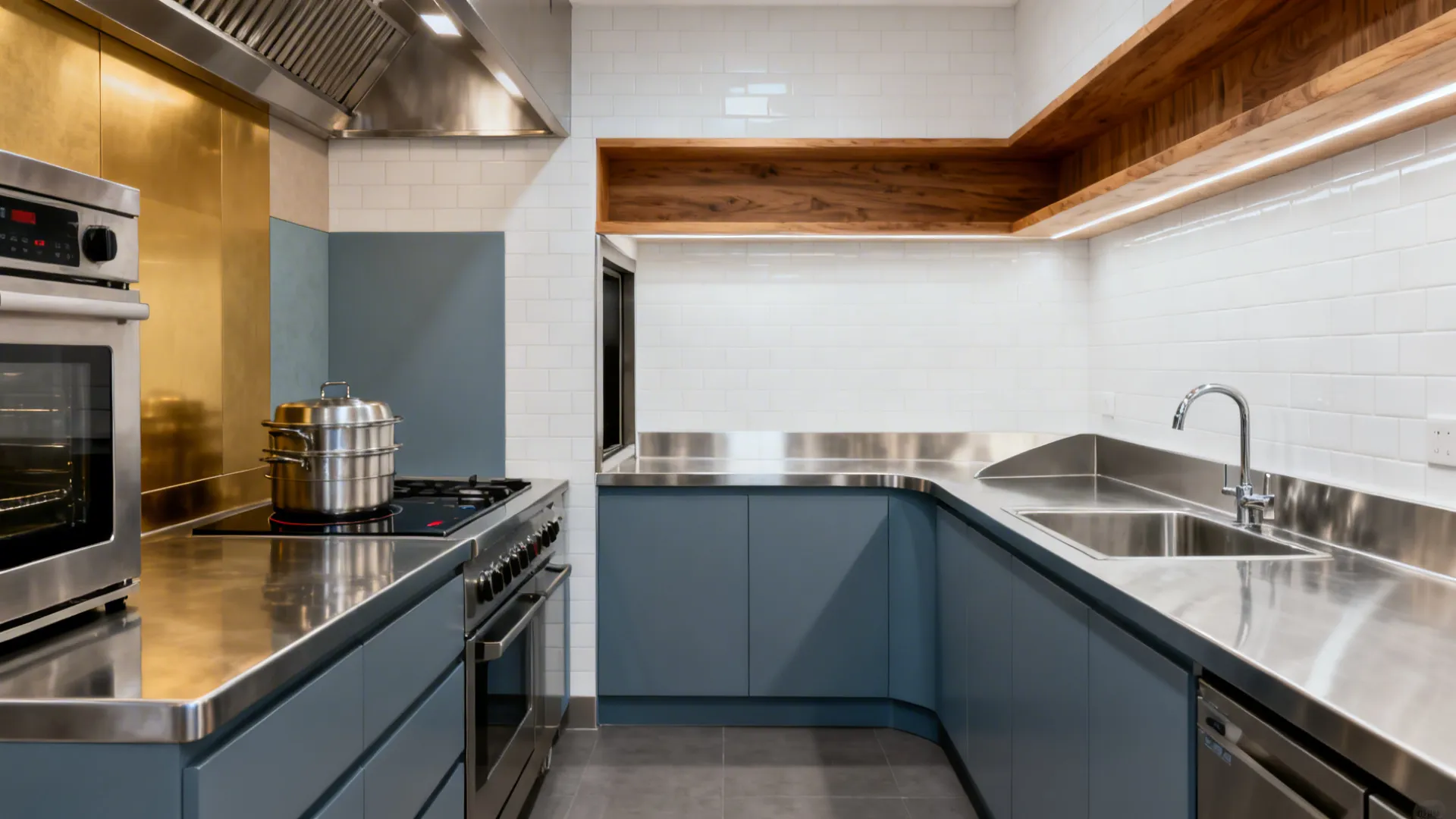

3) L-Shaped Hot–Cold Split for Cross-Contamination Control

My Take: In a micro-bakery café, we separated oven/steam on one leg and salad/cold prep on the other of an L, with the pass at the elbow. The team naturally respected hot vs. cold zones without tape lines on the floor.

Pros: An L-shape supports the classic small restaurant kitchen design layout mantra: “hot on one side, cold on the other,” which aligns with FDA Food Code logic for reducing cross-contamination. Short right-angle turns make service efficient; one cook can pivot from cold garnish to pass, while another stays on the hot leg.

Cons: The elbow can become a collision zone if expo stands there. If you misplace the sink or handwash station, you’ll end up with drips across the pass—annoying and unsafe.

Tip/Cost: Add splash guards at the elbow; specify a handwash sink within 10–15 ft of both legs. If you’re weighing options, study how minimalist kitchen storage ideas can condense the pass without clutter.

save pin

save pin

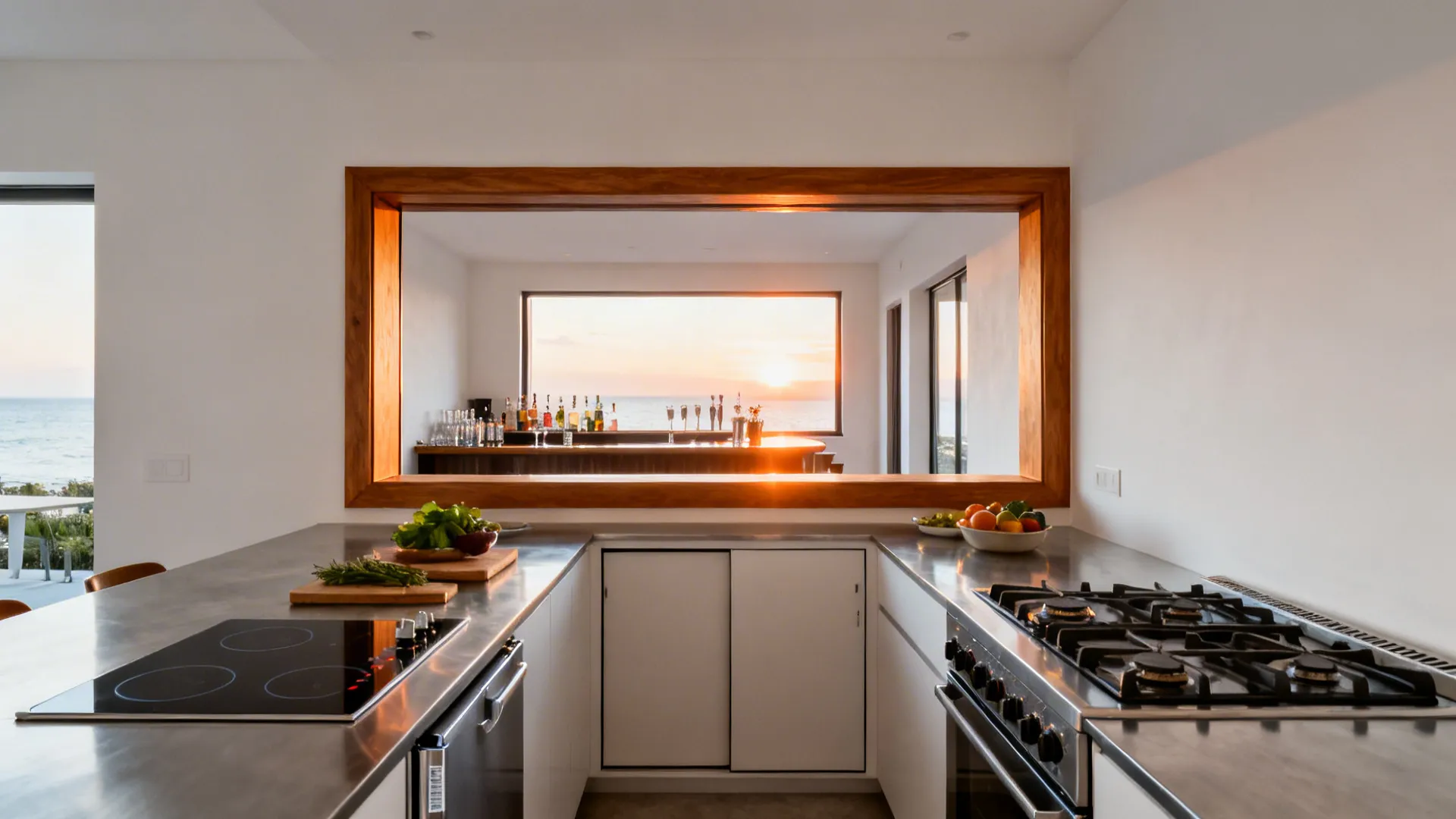

4) Straight-Line Plus Pass-Through Window for Tiny Frontages

My Take: For a 20-seat wine bar with a 7 ft frontage, we ran a single straight line—undercounter fridge, induction, salamander—and cut a pass window to the bar. Orders flowed like a barista line, and plates landed hot in seconds.

Pros: A straight line reduces footprint and helps small restaurant kitchen design layout teams maintain eye contact with front-of-house, improving ticket timing. It’s ideal for open kitchens; the pass-through window doubles as a heat buffer and a presentation frame.

Cons: You’ve got no depth to hide mess—mise discipline must be flawless. The chef becomes the show, which is great until a fryer flare-up tries to steal the spotlight.

Tip/Cost: Use induction to cut ambient heat and narrow clearances; invest in full-height pan racks behind a curtain or shallow sliding doors for “now you see it, now you don’t” storage.

save pin

save pin

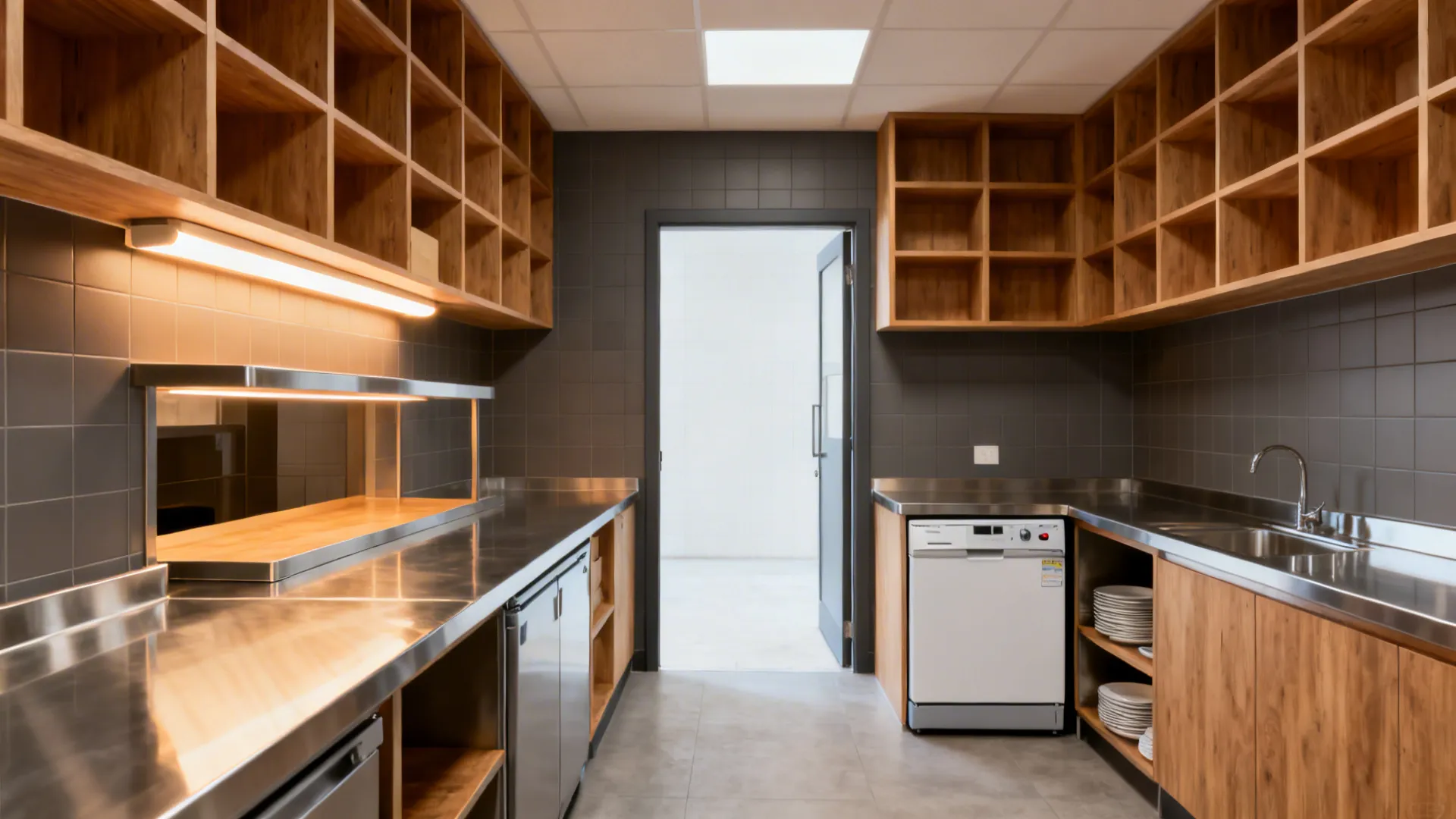

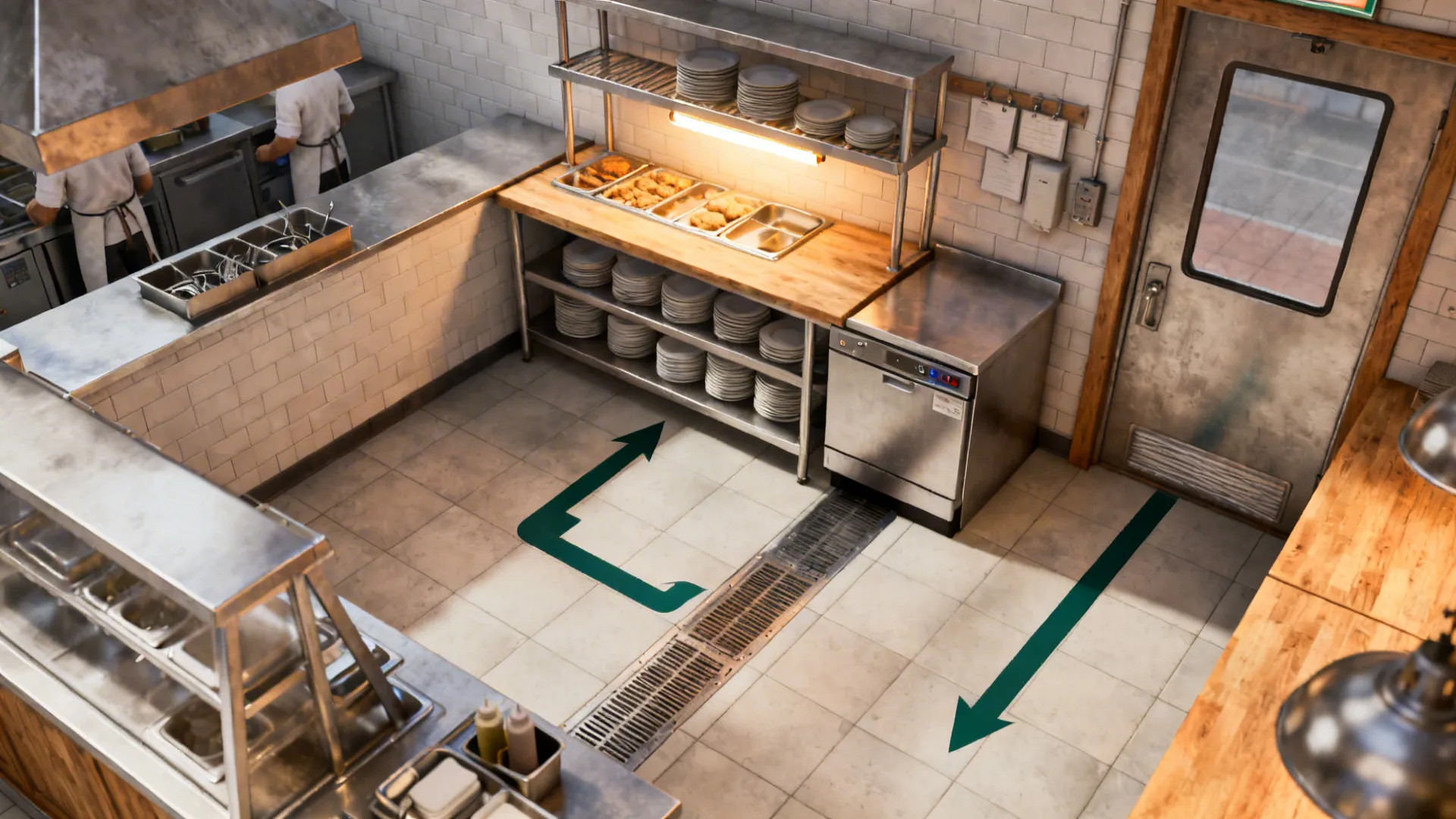

5) Zoning for Delivery-Forward Menus: Separate Pick-Up and Dish Return

My Take: Post-2020, I redesigned multiple kitchens to split dine-in pass from takeout pickup. In tight footprints, a small second window or shelf can keep third-party couriers from crowding hot food lanes.

Pros: Dedicated zones keep the small restaurant kitchen design layout from collapsing under rush-hour congestion. The FDA Food Code and ServSafe training both stress clear pathways for clean vs. soiled items—separate dish return keeps dirty wares from crossing with plated food.

Cons: Carving a pickup nook in a tiny shell means giving up some prep counter. Also, label discipline is non-negotiable; otherwise, to-go bags will play musical chairs.

Tip/Cost: Add a heated shelf or pass lamp for to-go; spec a compact high-temp undercounter dishwasher near the return to keep cycles fast. For concept testing, I prototype a quick “order-to-pass” flow with a simple mock service before final millwork.

[Section: 总结]

Small kitchens aren’t a limitation—they’re an invitation to smarter small restaurant kitchen design layout decisions: shorter reaches, cleaner zones, and deliberate sightlines. When in doubt, sketch the path of a single plate from prep to guest and remove every unnecessary step; as the National Restaurant Association’s operational guidance suggests, clarity of stations and movement is the bedrock of speed and safety. Which of these five ideas are you most excited to test in your space?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is the best small restaurant kitchen design layout for a 20–30 seat venue?

For speed and simplicity, a one-way galley with a defined pass works well, or an L-shaped hot–cold split if you serve both cooked and fresh items. Keep stations tight and refrigeration under the line for minimal reach.

2) How wide should aisles be in a compact commercial kitchen?

Plan 36–42 inches for one-way cook aisles and 48 inches if two cooks must pass. Measure clearances with doors and oven handles extended to avoid surprises during service.

3) What equipment helps control heat in tight layouts?

Induction ranges and efficient hoods reduce ambient heat, and adding makeup air balances pressure. Low-boy refrigeration keeps cold items nearby, cutting door-open time.

4) How do I prevent cross-contamination in a small kitchen?

Physically separate hot vs. cold zones (L-shape is great), and dedicate color-coded boards and tools. FDA Food Code guidance supports zoning and time/temperature control to reduce risk.

5) Can an open-kitchen concept work in a tiny footprint?

Yes—use a straight-line cook run with a framed pass window and compact storage behind sliding doors. Good lighting and clean sightlines keep the show polished even at rush.

6) Where should the dishwasher and dish return go?

Place them away from the pass and food pickup, ideally near a rear entry to keep soiled wares out of traffic. A high-temp undercounter unit speeds cycles without eating floor space.

7) How do I plan for delivery orders without clogging the line?

Create a separate pickup zone or shelf away from the hot line and plate pass. Label tickets clearly and use a heat lamp or heated shelf for hold times under 15 minutes.

8) What’s a quick way to test my small restaurant kitchen design layout?

Stage a mock service with taped floor lines and rolling racks as stand-ins for equipment; time the plate journey from prep to pass. If helpful, visualize stations with a simple 3D test to check sightlines and clearance.
