5 Step-by-Step Kitchen Sink Drawing Ideas: A senior interior designer’s friendly guide to sketching kitchen sinks—5 clear methods with tips, pros & cons, and real-world insights

As an interior designer, I sketch kitchen sinks almost daily—whether I’m testing a compact layout or visualizing faucet clearances. Lately, clean lines and functional minimalism are trending, and small spaces keep proving that constraints spark the best ideas. In this guide, I’ll show you how to draw a kitchen sink step by step through 5 design-forward methods, blending my field notes with data-backed pointers. Along the way, I’ll share practical sketching tricks I use in real projects and why a clear sink drawing can save both budget and time. To start, I often warm up with simple boxes and ellipses; then I refine bowls, rims, and drainboards. If you’re new to plan and elevation views, no stress—we’ll go slow. For extra context on how these drawings translate to planning, I’ll point to a real project trick like “L 型布局释放更多台面空间” seen in professional layouts (L 型布局释放更多台面空间).

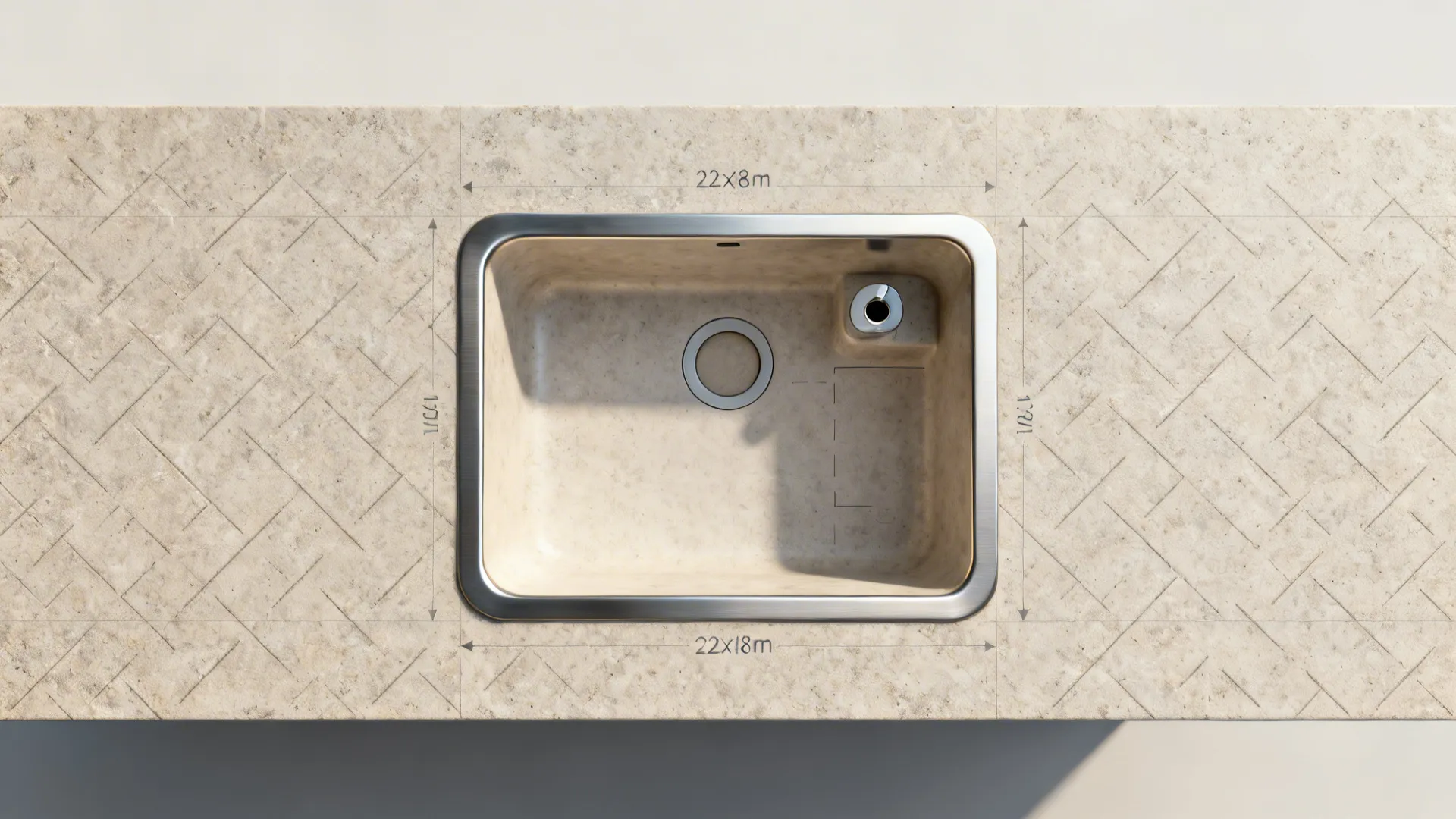

Method 1: Plan View Sink Basics (Top-Down)

My Take

I always start in plan view because it tells me fit and function fast. In small kitchens, a well-drawn top-down sink helps me check if a dish rack or cutting board insert will collide with the cooktop. I learned (the hard way) that even a 10 mm mismatch can ruin a tight countertop rhythm.

Step by Step

1) Draw a rectangle for the countertop cutout (e.g., 22"×18"). 2) Inset a second rectangle to represent the sink bowl rim (3–5 mm). 3) Sketch the bowl shape (rectangular or rounded corners). 4) Add a centered drain circle (or rear-set for modern sinks). 5) Indicate faucet hole and optional soap dispenser. 6) Lightly hatch the countertop; keep bowl interior clean.

Pros

- Quick to assess cabinet size and counter overhang, a critical long-tail detail for small kitchen sink layout.

- Easy to test single- vs. double-bowl footprints and accessories like colanders.

- Scales beautifully for space planning; accurate plan drawings reduce change orders.

Cons

- Doesn’t show depth, so beginners may overestimate basin capacity (been there).

- Faucet clearances to backsplash are easy to miss without side views.

- Rounded corners can look wonky if your ellipses aren’t steady.

Tip

Use a 1:20 scale; keep a 5 mm grid under trace paper. If you’re drafting two bowls, leave at least 30–40 mm between them for a realistic divider.

save pin

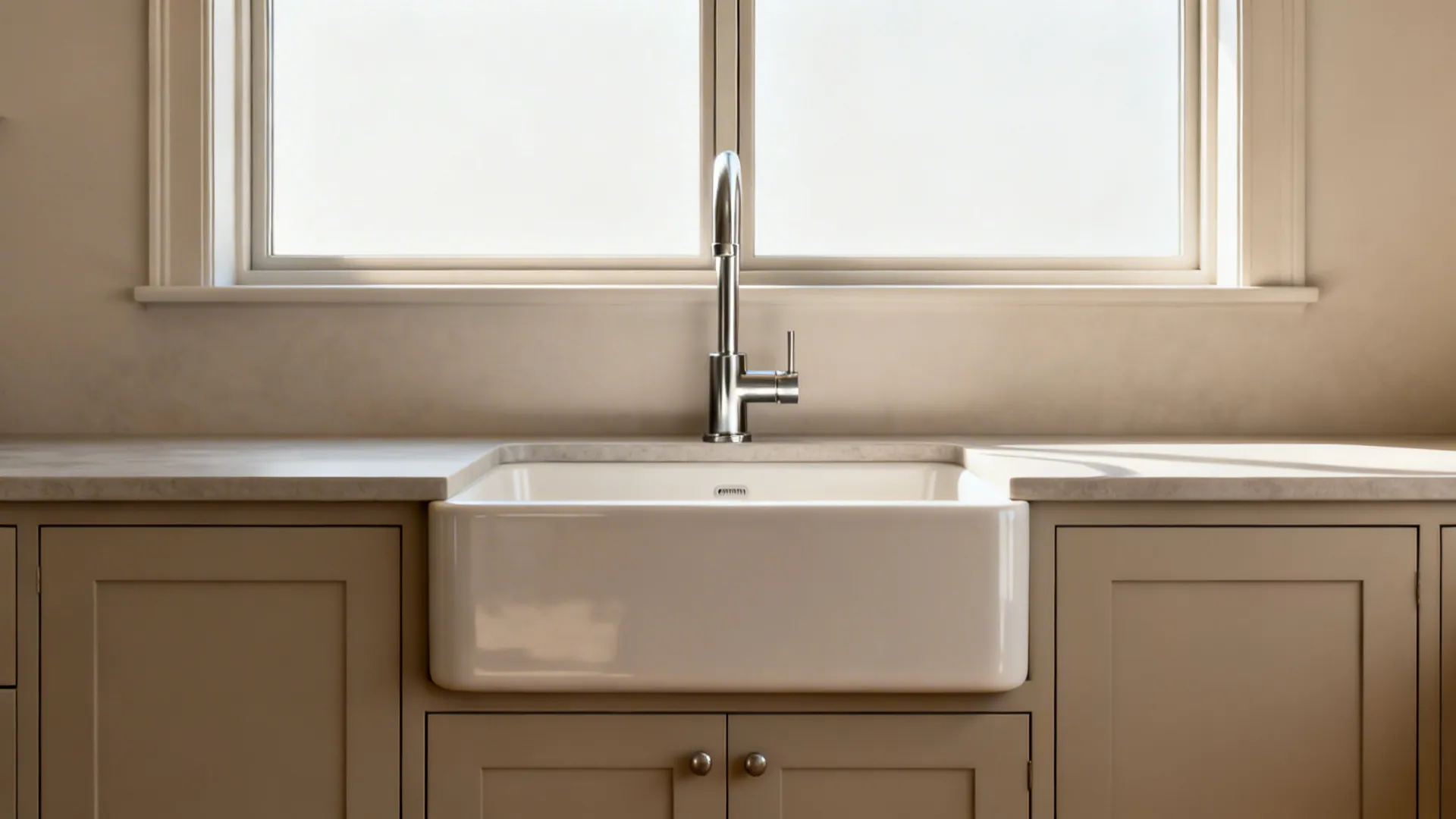

Method 2: Front Elevation for Proportion and Depth

My Take

When clients worry about bowl depth or apron-front looks, I switch to front elevation. This view also helps me balance faucet height with window mullions—a common real-world headache. I once aligned a bridge faucet with a sash rail, and the symmetry sold the design.

Step by Step

1) Draw a horizontal counter line. 2) Drop a rectangle beneath it for the sink front; show the rim or apron. 3) Add the bowl depth (180–250 mm typical). 4) Sketch the faucet arch and handles; mark backsplash height. 5) Add subtle shading to show concavity.

Pros

- Highlights apron-front sink aesthetics and visual weight—great for farmhouse kitchen sink drawing steps.

- Clarifies clearance between faucet and window sill, avoiding installation surprises.

- Communicates ergonomic depth for tall vs. petite users.

Cons

- Less helpful for exact counter cutout dimensions.

- Harder to place drains accurately without a plan reference.

- Reflections on metal are tricky to render cleanly.

Case Note

For apron sinks, I usually render a 10–20 mm reveal below the counter—enough to read visually without overpowering cabinetry. Mid-article, it helps to cross-check proportions with layouts like “极简风的厨房收纳设计,” which often pair shallow uppers with generous sink zones (极简风的厨房收纳设计).

save pin

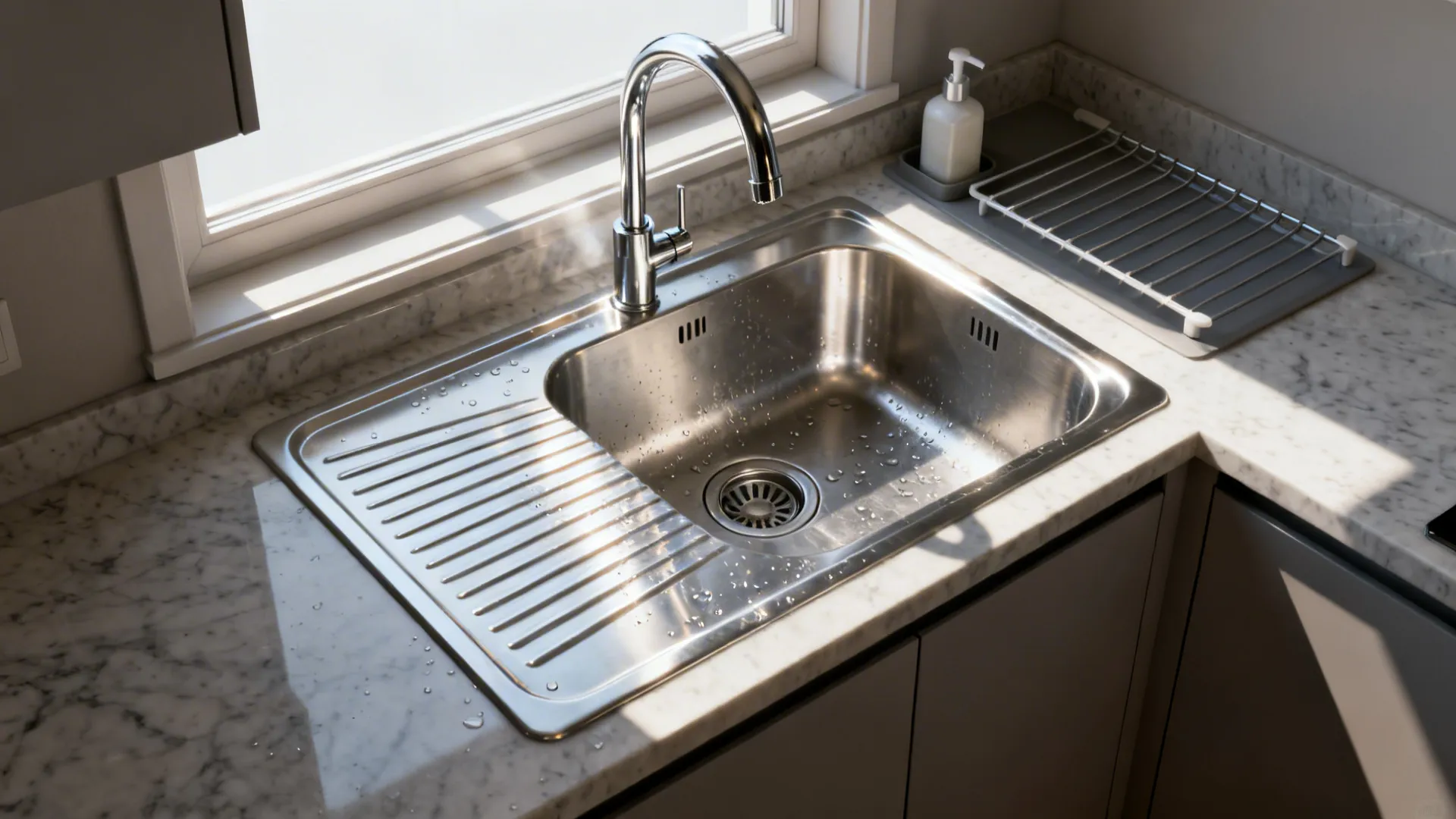

Method 3: Perspective Sketch for Realism

My Take

Clients love a quick perspective of the sink corner—seeing the faucet arc, the window light, the drain grooves. I keep it loose, focusing on form and shadow. In small spaces, perspective helps sell integrated accessories without clutter.

Step by Step

1) Set a horizon line and two vanishing points (2-point perspective). 2) Block in the countertop plane and cabinet faces. 3) Drop the sink cutout as a rectangle in perspective. 4) Build the bowl depth with verticals; add the faucet cylinder and spout arc. 5) Indicate drain grooves with tapering parallel lines; add soft shadows.

Pros

- Brings the kitchen sink drawing to life; perfect for communicating design intent.

- Shows long-tail details like pull-out spray reach and splash zones realistically.

- Useful for evaluating visual clutter around windows, sconces, and dish racks.

Cons

- Takes more time than plan/elevation; easy to overwork shadows.

- Beginners may skew angles; a faint underlay grid helps but slows the flow.

- Harder to extract precise dimensions for fabrication.

Cost/Time Note

A clean perspective sketch can save a 3D rendering round. When budgets are tight, I do one polished perspective plus a dimensioned plan—fast and clear.

save pin

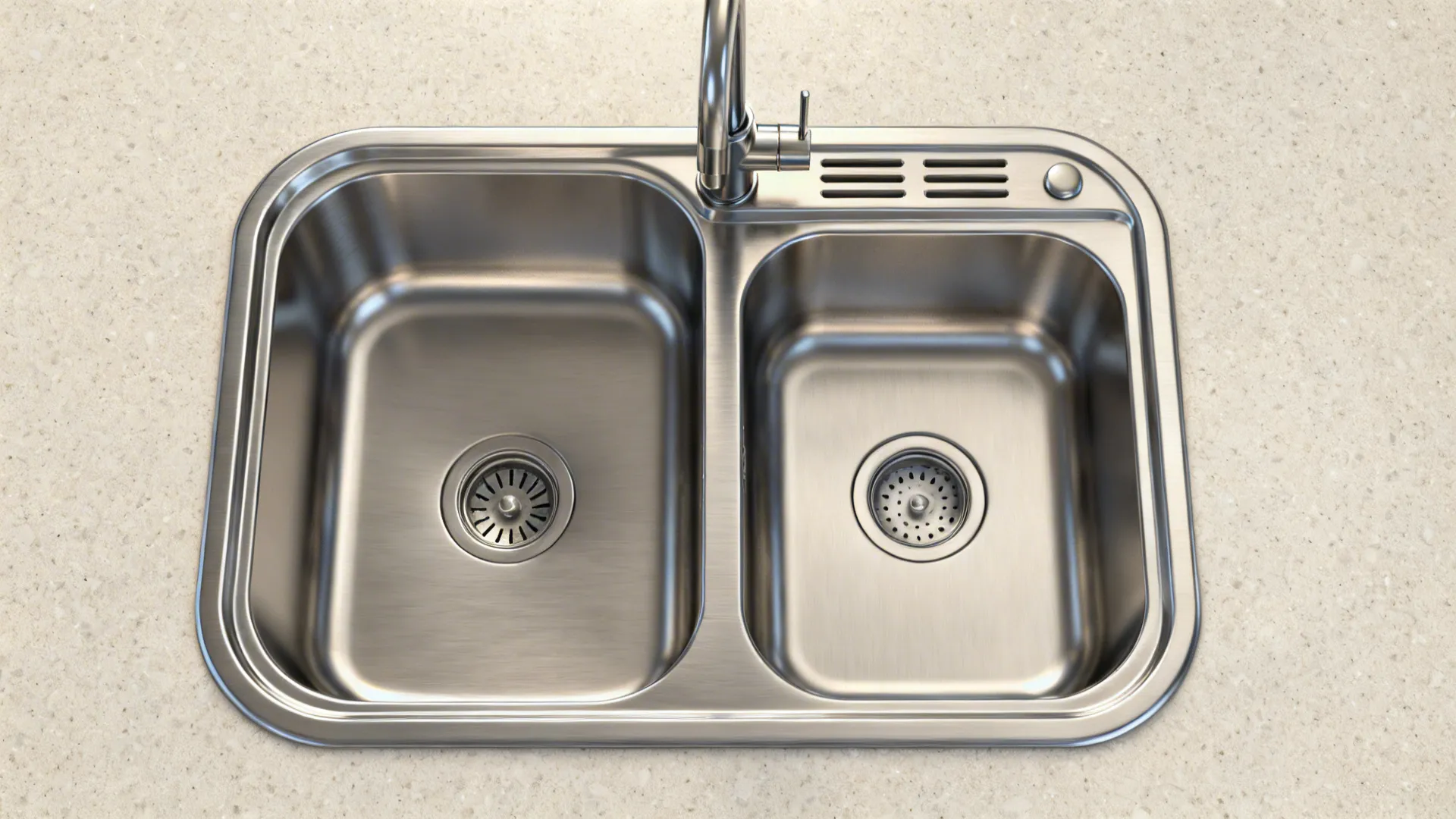

Method 4: Double-Bowl Layout with Accessories

My Take

In compact kitchens, I often draw a 1.5-bowl with a small prep basin. It keeps the rhythm of rinse, prep, and dry tight—especially near dishwashers. My favorite trick: rear-set drains to free space under the cabinet for bins.

Step by Step

1) Start in plan: draw the outer rim, then two bowls—one larger, one smaller. 2) Place drains toward the back; add a slim divider. 3) Sketch accessory rails for cutting boards/colanders. 4) Mark faucet centerline aligned with the divider. 5) Elevation: show bowl depths and divider height.

Pros

- Optimizes small kitchen workflow; ideal long-tail use case for how to draw a kitchen sink step by step with accessories.

- Rear-set drains align with modern plumbing and under-sink storage layouts.

- Easier to communicate wash/prep separation for hygiene.

Cons

- More parts to draw cleanly; misaligned drains look amateur fast (I’ve redrawn plenty).

- Can feel busy in perspective if line weights aren’t controlled.

- Fitting within standard cabinets demands precise scaling.

Evidence

According to the NKBA Kitchen Planning Guidelines (National Kitchen & Bath Association), clear zones for prep and cleanup improve efficiency and reduce cross-traffic; rear-set drains and accessories support that workflow in small footprints.

Workflow Tip

Keep at least 75–100 mm of counter on one side for landing. Around halfway into planning, I sanity-check dimensions against examples where “玻璃背板让厨房更通透” complements sink zones by reflecting light and enlarging the feel (玻璃背板让厨房更通透).

save pin

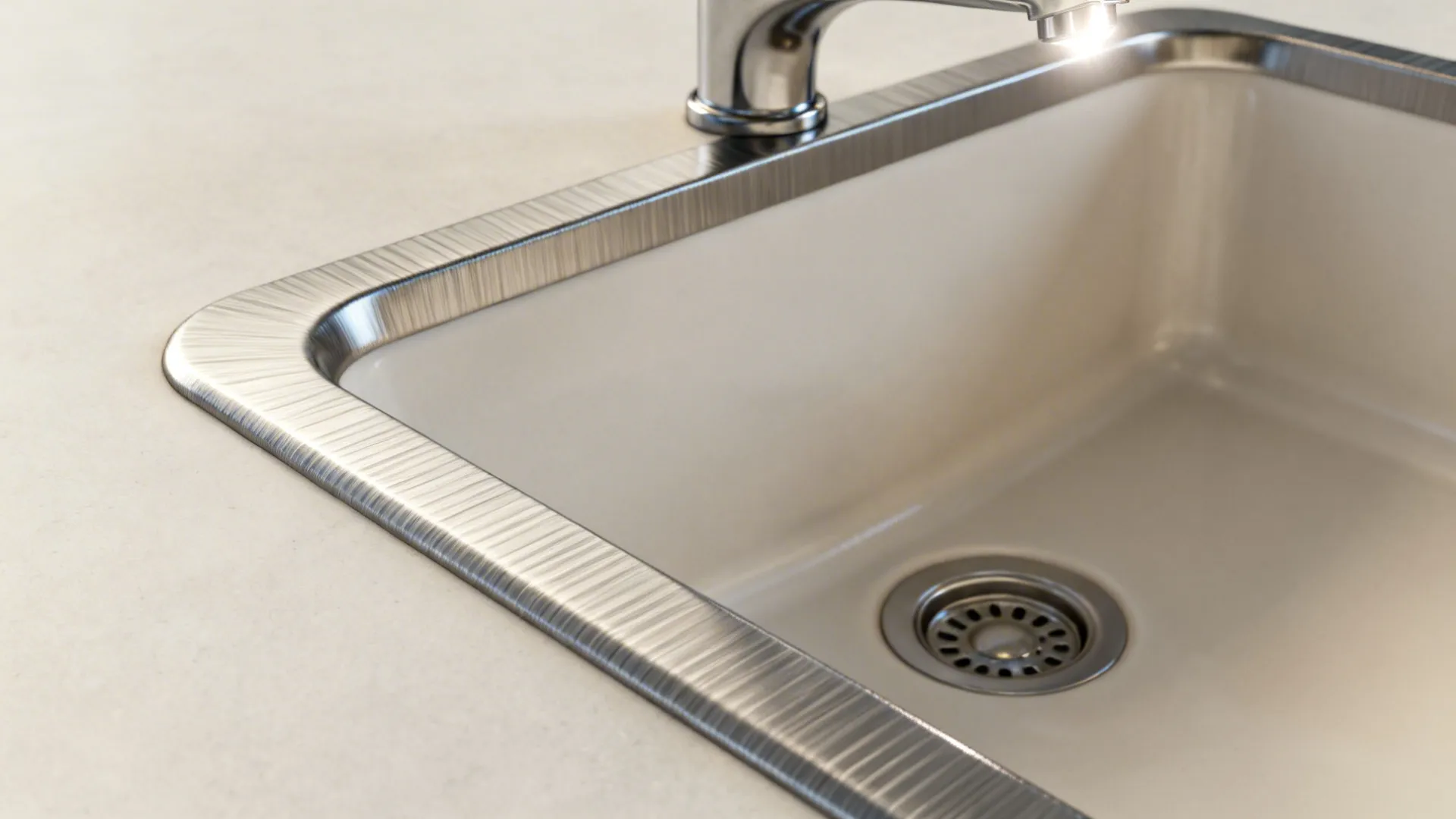

Method 5: Rendering Details—Rims, Corners, and Finishes

My Take

When a client can’t decide between satin stainless and fireclay, I render two small swatches. Textures and rim profiles sell the idea faster than words. I once won a tight-budget job by hand-rendering the micro-radii in the corners—it read “easier to clean.”

Step by Step

1) Draw clean rim lines; differentiate top-mount vs. undermount (show counter lap). 2) Indicate corner radii (R10–R25 for contemporary; R30+ for classic). 3) Add a light gradient wash inside the bowl for depth. 4) Use short diagonal strokes for brushed stainless; smoother fills for fireclay. 5) Add subtle highlights along the faucet spout and drain strainer.

Pros

- Clarifies long-tail choices like undermount vs. drop-in in a kitchen sink drawing.

- Helps clients visualize cleaning ease, splash control, and visual weight.

- Elevates basic linework to a presentation-ready sketch.

Cons

- Over-rendering can muddy edges; less is more with reflections.

- Finish textures can skew dark on photocopies unless kept light.

- Takes practice to balance highlights and shadows consistently.

Mini Case

On a recent condo, we paired a small undermount with a slim radius and a pull-down faucet—clean, compact, and perfect for 600 mm cabinets. Around the 80% mark of planning, I like cross-checking integrated layouts like “木质元素带来的温暖氛围,” which pair warm finishes with crisp sink edges (木质元素带来的温暖氛围).

save pin

Putting It All Together

A good kitchen sink drawing mixes plan precision, elevation clarity, and a touch of perspective for storytelling. Small kitchens aren’t limits; they’re invitations to draw smarter: tighter radii, rear drains, and clean accessories. As the NKBA notes, aligning prep and cleanup zones makes tiny spaces feel bigger through better flow. Which of these five step-by-step methods are you most excited to try in your next sketch?

save pin

FAQ

1) What tools do I need to draw a kitchen sink step by step?

Start with HB and 2B pencils, an eraser, a 5 mm grid underlay, and a ruler. For perspective, add a fine liner and light grey markers for shadows.

2) What are standard sink dimensions I should use in my drawing?

Common single bowls range around 22"×18" with 180–230 mm depth. Always verify the manufacturer’s spec sheet for exact cutouts.

3) How do I draw an undermount vs. a top-mount sink?

Undermount: show the countertop overlapping the rim; keep the inner bowl crisp. Top-mount: draw a visible rim sitting on the counter with a slight shadow.

4) How do I place the drain accurately?

Center drains are classic; rear-set drains maximize under-sink storage. Mark the centerline and measure equal distances from sides in plan view.

5) How deep should I draw the sink in elevation?

Draw 180–250 mm depending on model and user ergonomics. If you sketch for a shorter user, lean toward ~180–200 mm to reduce reach.

6) Any authoritative guidelines I should follow?

The National Kitchen & Bath Association (NKBA) provides planning standards for clearances and workflows; see NKBA Kitchen Planning Guidelines for sink zone best practices.

7) Can I learn perspective quickly for sink sketches?

Yes—start with two-point boxes and add the sink cutout as a rectangle in perspective. Keep vanishing points wide for less distortion.

8) How does a sink drawing help with layout planning?

It reveals cabinet conflicts, faucet-to-backsplash clearance, and accessory fit early. If you want to visualize layouts later, look at examples like “L 型布局释放更多台面空间” (L 型布局释放更多台面空间).
