5 Swimming Pool Lighting Design Ideas: Small spaces, big impact: my 5 pro-tested swimming pool lighting design inspirations with real pros, cons, and costs

As a designer who’s reshaped plenty of compact homes and courtyards, I’ve learned that swimming pool lighting design is where mood and safety meet. Trends right now lean toward layered light, low-glare LEDs, and smart control that adapts from lap-time bright to soirée soft. Small spaces spark big creativity, and in pool zones, that often means thoughtful beam angles, color temperature, and reflections that do the heavy lifting. Today I’ll share 5 lighting ideas I actually use, blending my site-tested experience with expert data to help you plan confidently.

By the way, in one townhouse courtyard I transformed, the right balance of wall washers and shallow in-ground LEDs made a 5x3 m plunge pool feel twice as generous. If you’re exploring space planning before lighting, this look at L-shaped layout releasing more deck space might inspire how you frame light paths around the water.

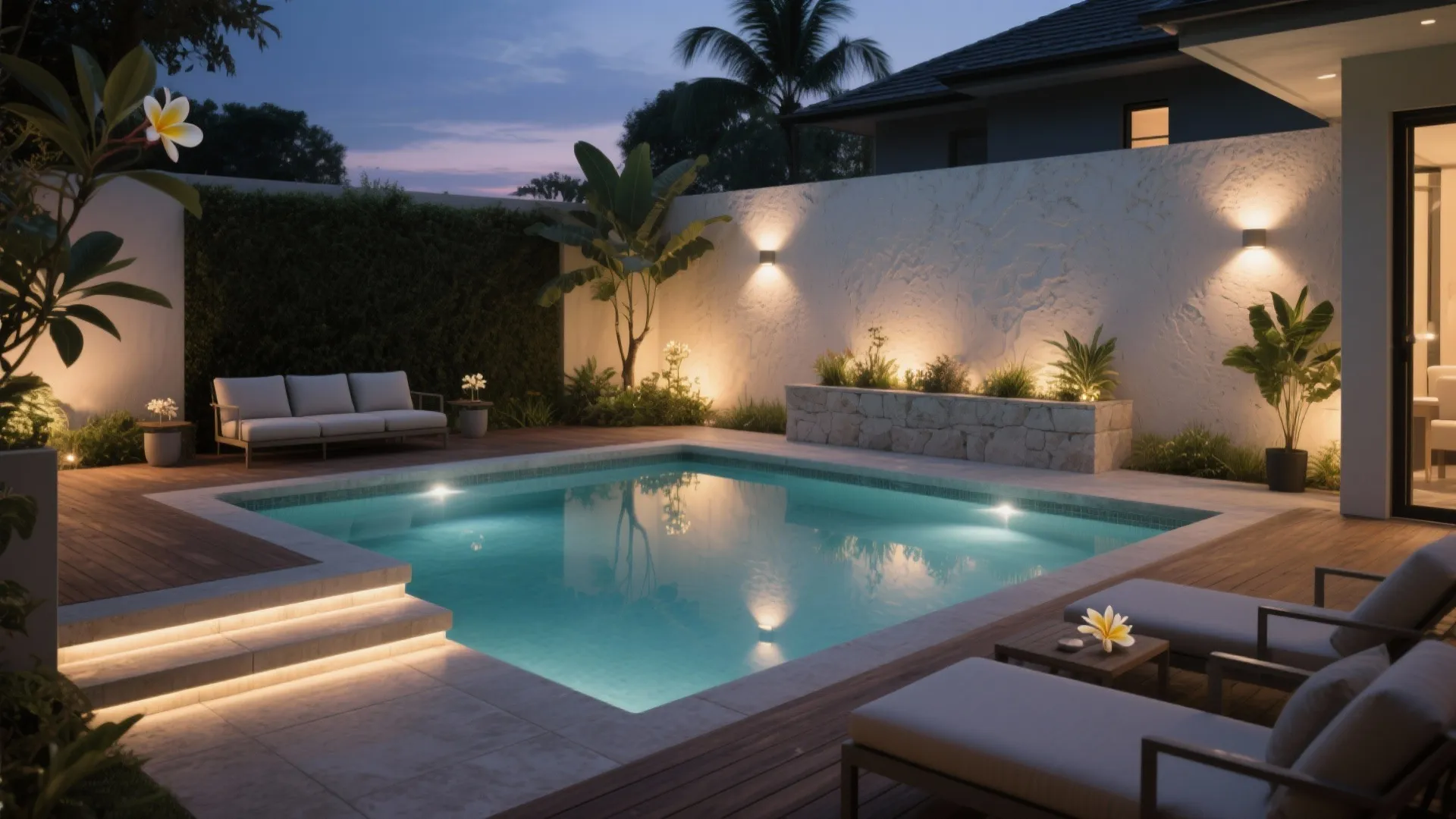

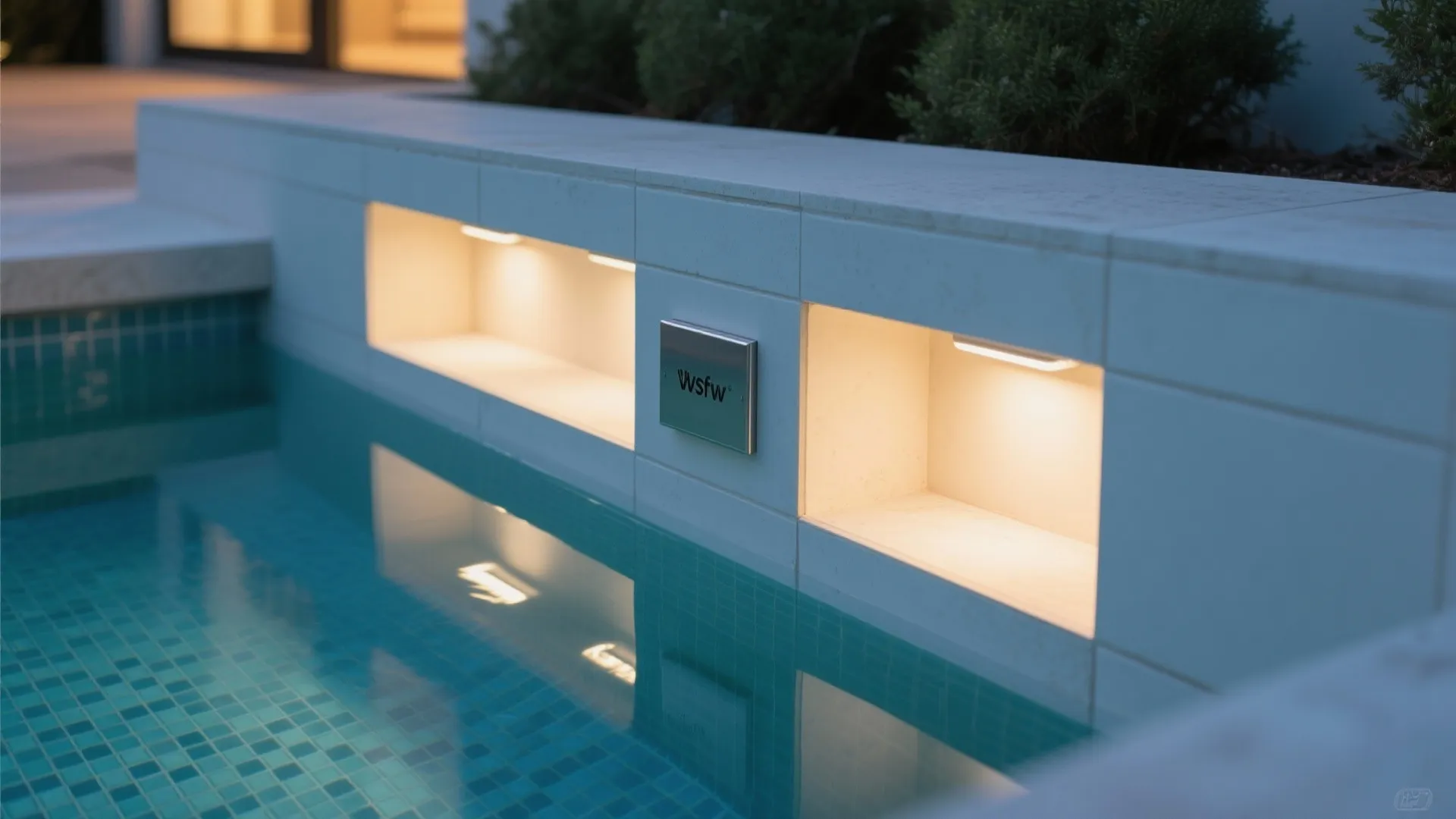

Underwater LED Niches With Layered Beams

My Take

I’m a fan of recessed LED niches placed at staggered depths—one low to graze the pool floor, one mid-wall to model the water’s volume. On a recent retrofit, we used 3000K warm LEDs on the house side and 4000K neutral on the garden side to sculpt contrast without glare.

Pros

- Even at compact sizes, underwater LED pool lights provide uniform illumination and safer step visibility—a core long-tail win for “low-glare pool safety lighting.”

- IP68 fixtures and 316 stainless housings last, and modern drivers are efficient; ENERGY STAR notes LED efficacy trends that support longevity and lower power draw.

- Layered beams reduce “hot spots,” improving visual comfort and perceived depth in small plunge pools.

Cons

- Retrofitting niches into existing shells can be messy; you’ll coordinate core drilling and re-waterproofing (I once scheduled two extra days for curing—worth it).

- If the beam is too narrow, you’ll get striping; too wide and you wash out the texture—mockups are key.

- Warm vs neutral color temp wars are real; agree on a Kelvin target early to avoid change orders.

Tips / Cost

- Budget: $600–$1,200 per underwater fixture installed (quality drivers, stainless faceplates).

- Aim niches 300–450 mm below waterline for mid-wall; keep edges at least 600 mm from steps to avoid glare in eyes.

save pin

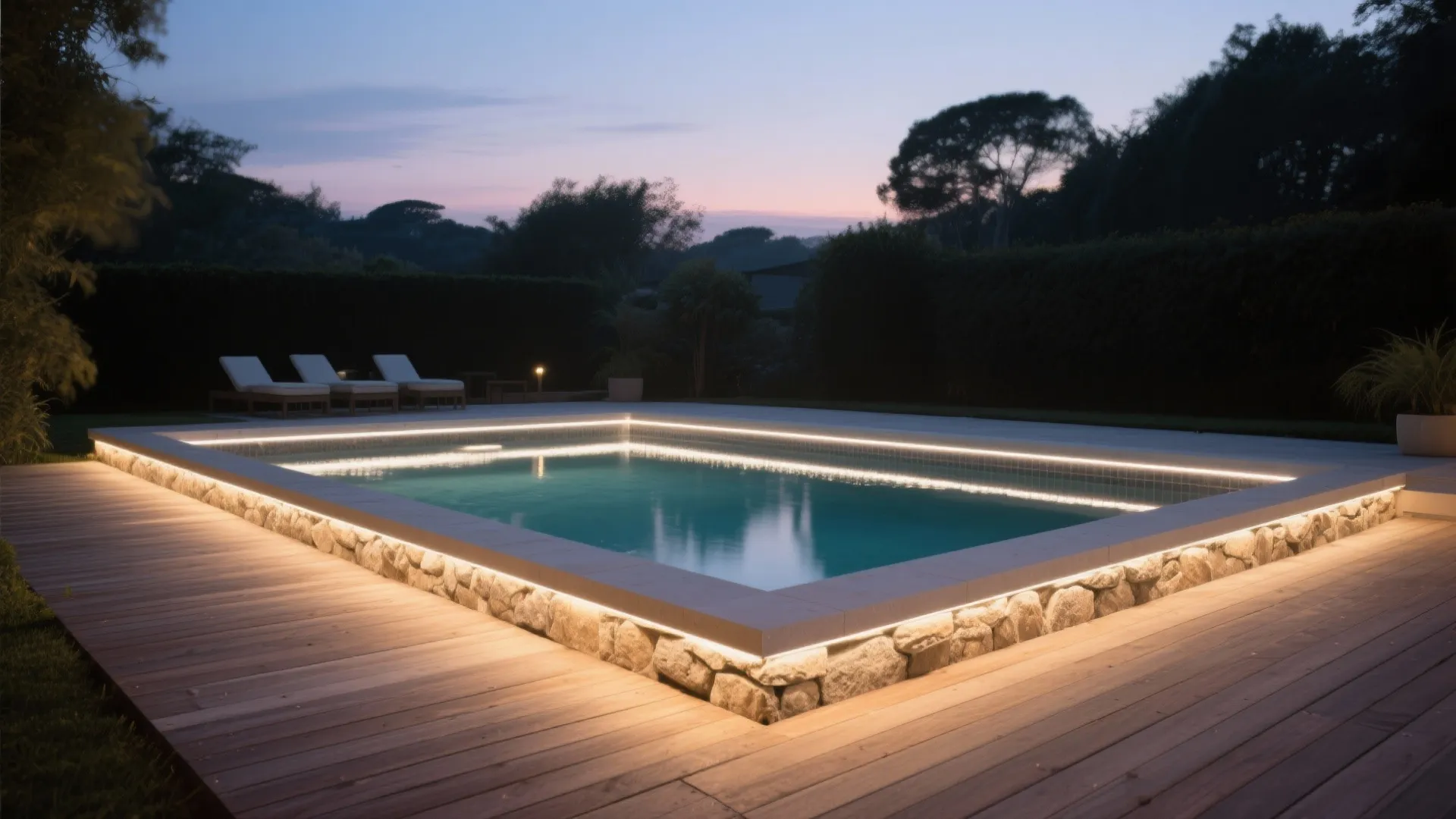

Perimeter Glow: Cove and Coping Underglow

My Take

When deck edges float with a subtle halo, small pools feel luxe. I once tucked silicone-encapsulated LED strips under a stone coping; the “floating water” look made a 2.7 m-wide pool read like a boutique spa.

Pros

- Great for “perimeter LED strip lighting for pools” where you want wayfinding and ambience without overhead glare.

- Continuous soft light reduces contrast between deck and water edge, improving night safety for kids and guests.

- Flexible installation even in tight corners, and dim-to-warm strips can shift from 3000K to 1800K for late-night calm.

Cons

- Moisture and salt are relentless; use marine-grade connectors or you’ll be replacing runs by next summer (ask me how I know).

- Diffusers can yellow if you cheap out; UV-stable profiles are non-negotiable.

- Any uneven mounting telegraphs as wavy lines—measure twice, mount once.

Tips / Case

- Specify IP67 or higher, silicone jacket, and potting at joints; keep drivers in ventilated, serviceable enclosures.

- For wood decks, allow expansion gaps and use aluminum channels for heat dissipation.

save pin

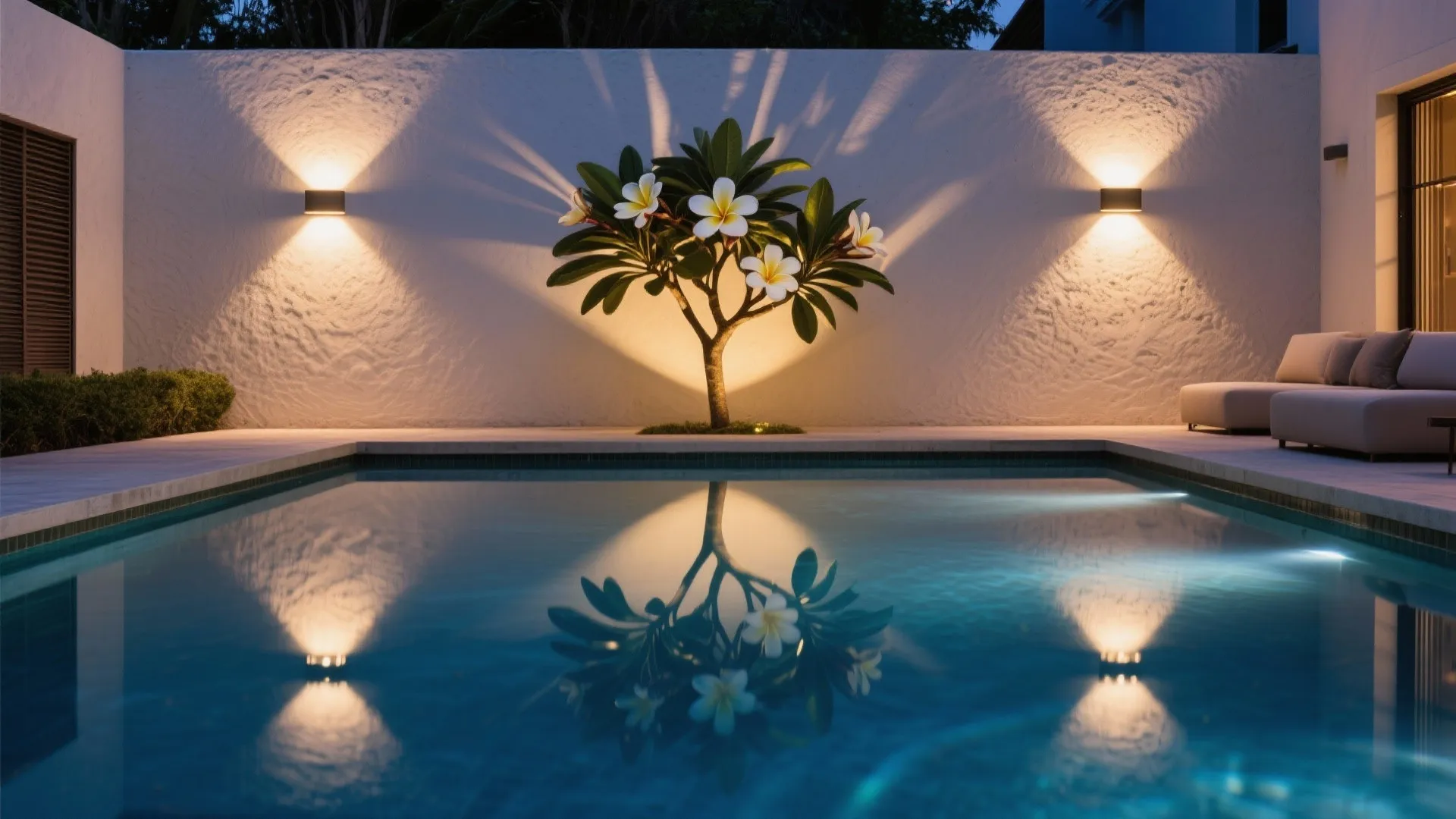

Wall Washers and Plant Uplights for Reflections

My Take

Some of my favorite night scenes rely on reflection more than direct pool lights. Grazing a textured wall or uplighting a frangipani doubles the drama in the water mirror without blinding swimmers. It’s a subtle, editorial look that photographs beautifully.

Pros

- “Architectural wall washing around pools” creates depth perception and extends the visual boundary—perfect for small courtyards.

- Indirect light reduces surface glare, improving comfort for evening swims and dining.

- Targeted uplights consume less energy than flooding the entire yard, aligning with good lighting hierarchy.

Cons

- Over-ambitious aiming can produce spill light into neighbors’ windows—use louvered shrouds.

- Tree growth changes beam patterns; plan for re-aiming and pruning in your maintenance calendar.

- Wet foliage + low-voltage wiring needs meticulous connections; corrosion is sneaky.

Tips / Authority

- The International Dark-Sky Association (IDA) recommends shielded fixtures and warm CCTs to minimize skyglow and glare; following IDA guidelines helps balance ambiance with responsible lighting.

- Place wall washers 600–900 mm from the surface for a smooth gradient; use 10–30° uplight beams for sculptural plants.

At this stage—about halfway through planning—many clients want to test layout options before choosing fixtures. If that’s you, take a look at how glass backsplash making a brighter sightline demonstrates sightline planning that translates well to pool wall-wash strategies.

save pin

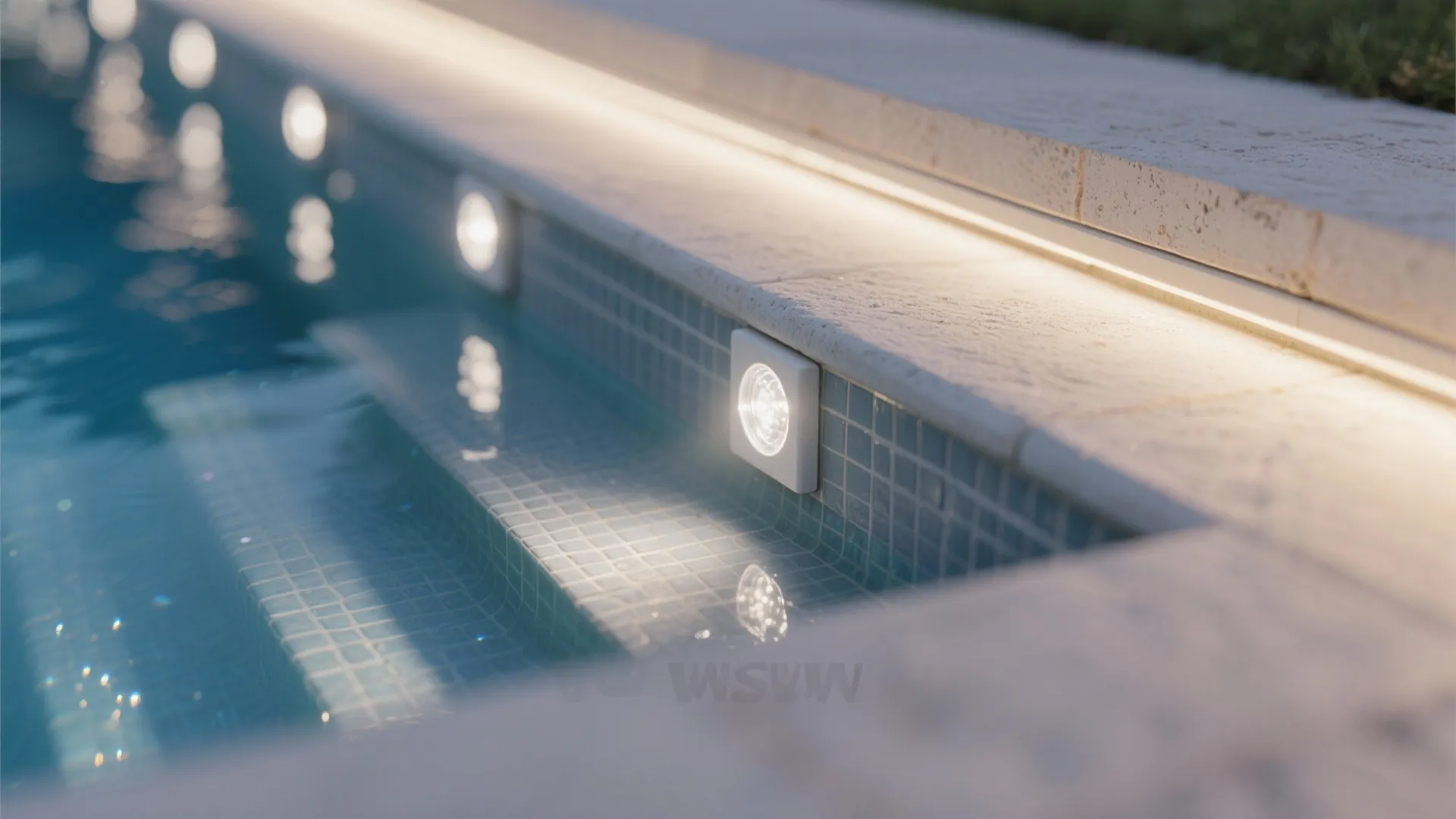

Step, Bench, and Baja Shelf Markers

My Take

I’m meticulous about lighting steps and shallow lounging shelves. On a compact family pool, micro-spot LEDs embedded at risers made nighttime play safer and added a soft sparkle that guests noticed first thing.

Pros

- “LED step markers for pools” enhance safety and ADA-informed visibility without overpowering the scene.

- Low-watt micro-spots with frosted lenses cut glare and pinpoint only what matters—edges, risers, and shelf perimeters.

- Great upgrade for older pools when full rewiring isn’t feasible; localized runs are easy to add.

Cons

- Dotting too many lights looks like a runway—space them 600–900 mm apart and test at dusk.

- Chlorine and shock treatments can cloud lenses; choose chemical-resistant optics.

- Retrofits may need channel cutting in plaster—schedule for off-season to avoid rushed cures.

Tips / Cost

- Expect $120–$250 per micro-spot plus wiring; plan a dedicated low-voltage loop for serviceability.

- Color temperature: 3000–3500K reads warm and welcoming against most pool finishes.

save pin

Smart Scenes: Dimming, CCT Tuning, and RGBW Restraint

My Take

I love a single button that shifts from training laps to dinner-party glow. I program three scenes: Swim (bright, neutral), Lounge (dim, warm), and Party (subtle RGBW accents only—no disco). Clients use all three weekly.

Pros

- “Smart pool lighting scenes” let you tune brightness and color temperature for function and mood, maximizing small-space versatility.

- RGBW with low-saturation color is fantastic for themed nights; keep white channels high for tasteful balance.

- Integrations with outdoor sensors can auto-raise step lights at dusk and dim wall washers post-curfew.

Cons

- App overload is real; consolidate to one ecosystem and label scenes plainly.

- Cheaper RGB kits produce color banding and poor CRI—faces look odd in photos.

- Wi-Fi at the pool edge can be spotty; hardwire a gateway or extend the network.

Tips / Authority

- UL 676 and NEC Article 680 govern pool and spa installations in the U.S.—coordinate with licensed electricians for compliant low-voltage and bonding. The IES Lighting Handbook also supports layered outdoor lighting for task and ambience.

- Program a maximum brightness cap at night to reduce glare for swimmers.

Once your scenes are set, it’s time to visualize the whole yard in 3D before purchasing. I often prototype with a quick render; this example of wood textures bringing a warm atmosphere mirrors how I preview beam spread and reflections against cladding and planting.

save pin

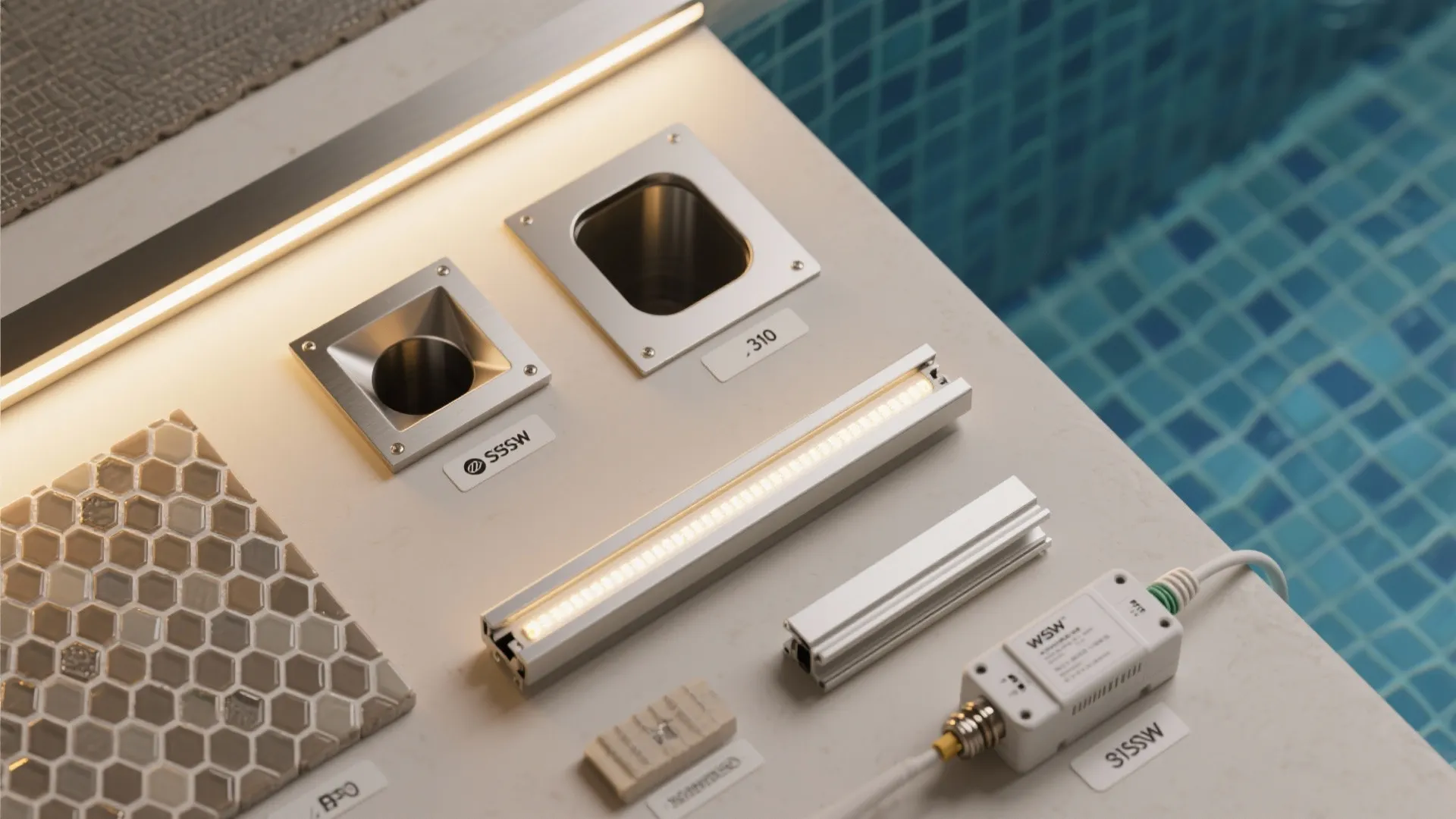

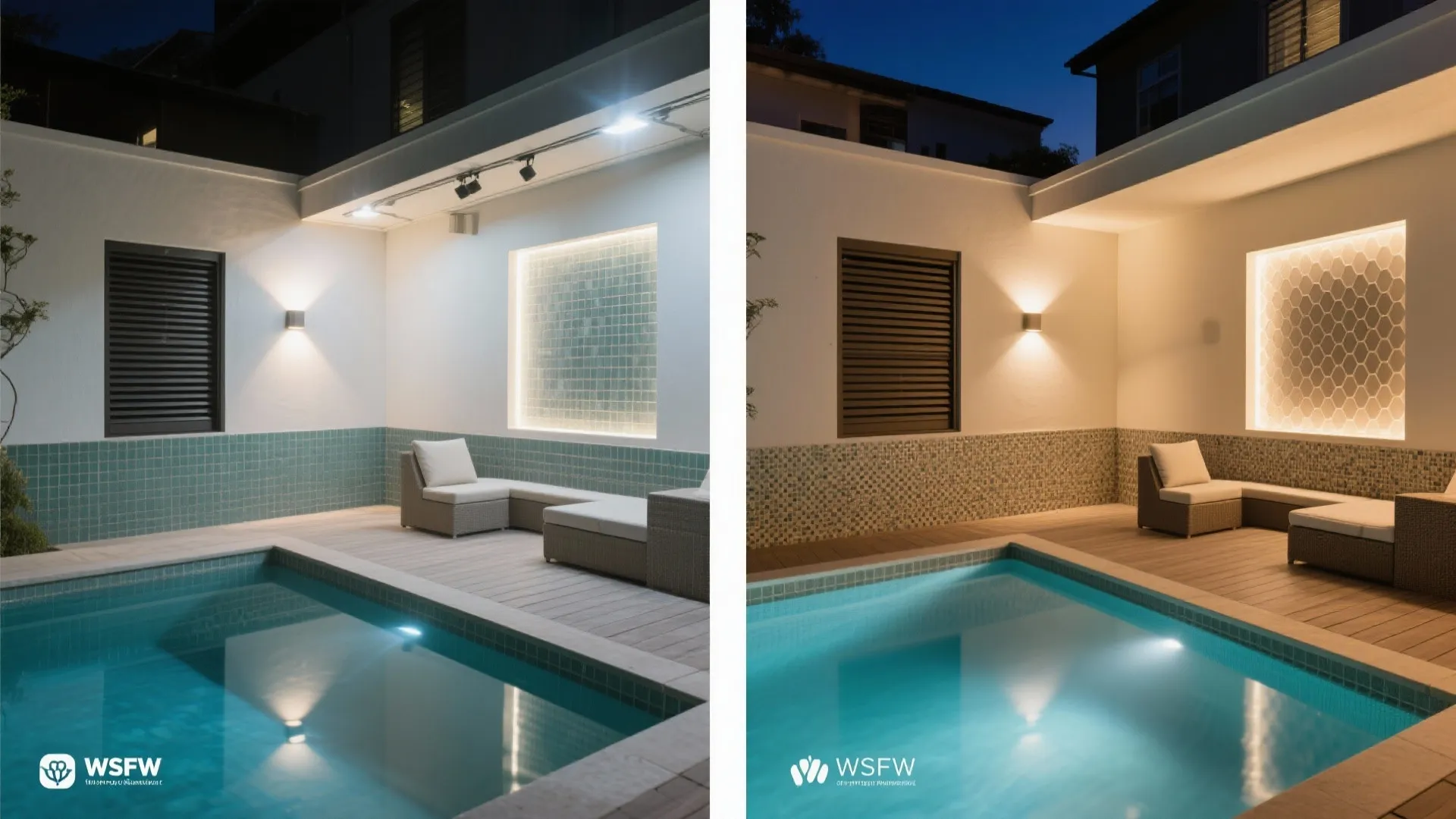

Glare Control: Baffles, Niches, and Finish Choices

My Take

Glare ruins more pool nights than bugs do. I learned early to recess aggressively, specify matte finishes, and angle beams away from sightlines. A small courtyard pool I designed went from “sunglasses at night” to “soft cinema” with baffles alone.

Pros

- “Low-glare swimming pool lighting design” protects visual comfort, crucial in compact yards where boundaries are close.

- Baffled trims, honeycomb louvers, and matte tile reduce reflected brightness by diffusing specular highlights.

- Niche depth and aiming improve compliance with recommended luminance ratios between water and deck.

Cons

- Baffles collect debris; expect seasonal cleaning.

- Matte mosaics are gorgeous but can show mineral deposits—plan gentle maintenance.

- Over-recessing reduces beam reach; model the photometrics to hit your targets.

Tips / Case

- Choose 3000–3500K for general ambience; 4000K sparingly for task—mixing too many CCTs looks chaotic.

- Verify IP ratings, bonding/grounding, and GFCI protection; schedule a night aiming session before you grout or backfill.

For late-stage detailing—about four-fifths into your plan—review a workflow example like minimalist kitchen storage design. The same “hide the hardware, highlight the volume” principle scales beautifully to pool edges and step markers.

save pin

Summary

In short, swimming pool lighting design isn’t about more fixtures; it’s about smarter layers that fit how you live. Small pools aren’t limitations—they’re invitations to tune beams, temperatures, and reflections with precision. The IES’s guidance on task vs. ambient layers echoes what I see on-site: mix underwater, perimeter, and indirect light, then dial in glare control for comfort. Which idea are you most excited to try—underwater niches, perimeter glow, or smart scenes?

save pin

FAQ

1) What’s the best color temperature for swimming pool lighting design?

For ambience, 3000–3500K feels warm and welcoming; use 4000K sparingly for tasks like lap swimming. Keep a consistent CCT per zone to avoid a patchwork effect.

2) How many lumens do I need for a small backyard pool?

For a 3x6 m pool, plan roughly 1,200–2,500 lm underwater in total plus 1,000–2,000 lm indirect around the perimeter. Always test at dusk and dim down for comfort.

3) Are RGB lights practical or just for parties?

RGBW is practical if used lightly—set white as the base and add subtle color washes for events. Over-saturation can reduce visibility and skin-tone accuracy.

4) What safety codes apply to pool lighting?

In the U.S., UL 676 and NEC Article 680 cover pool/spa equipment and electrical safety. The IES Lighting Handbook offers best practices for outdoor and water-adjacent lighting.

5) How do I prevent glare in compact courtyards?

Use recessed niches, honeycomb louvers, and matte finishes near the waterline. Aim beams away from seating and keep luminance ratios gentle between deck and pool.

6) Can I retrofit lighting in an existing concrete pool?

Yes, but plan for core drilling, waterproofing, and bonding checks. In many cases, low-voltage micro-spots and perimeter strips are less invasive than full-size niches.

7) What IP rating should pool-adjacent fixtures have?

Underwater requires IP68; splash and perimeter zones should be IP65–IP67 with marine-grade connectors. Saltwater pools need 316 stainless or corrosion-resistant bronze.

8) Do smart systems help save energy?

Yes—dimming, scheduling, and sensor-triggered scenes reduce run time and wattage. ENERGY STAR and IES efficacy data support LEDs’ efficiency compared to legacy halogens.
