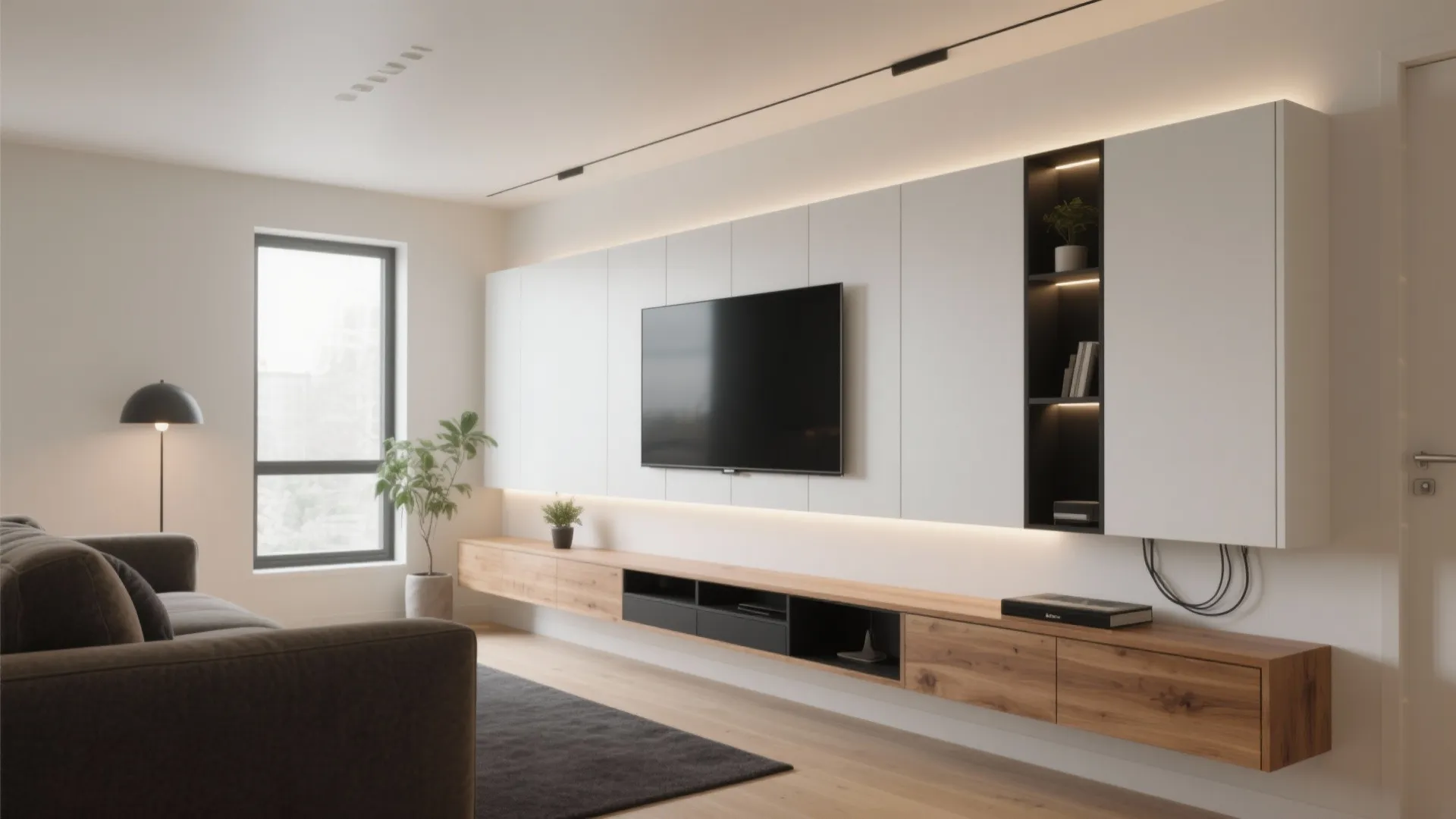

5 TV Unit Wall Mount Design Ideas for Small Spaces: Practical, stylish, and small-space–savvy media walls from a senior interior designer—complete with my field notes, pros/cons, costs, and expert-backed data.

[Section: 引言]

In the past two years, media walls have gone leaner, lighter, and smarter—think floating consoles, slatted wood, and invisible cable runs. As someone who has remodeled dozens of tight living rooms, I’ve learned that small spaces spark big creativity, especially with TV unit wall mount design. In this guide, I’ll share five design ideas I trust, weaving in my real project lessons and expert data points. To set the scene, one client’s 24 m² living room came alive after we planned a floating TV wall with hidden storage—suddenly, the floor felt open and the mess vanished.

If you’re juggling seating depth, viewing height, and cable spaghetti, you’re not alone. I’ll break down what actually works, what might bite back, and how to budget time and money so you don’t stall midway.

[Section: 灵感列表]

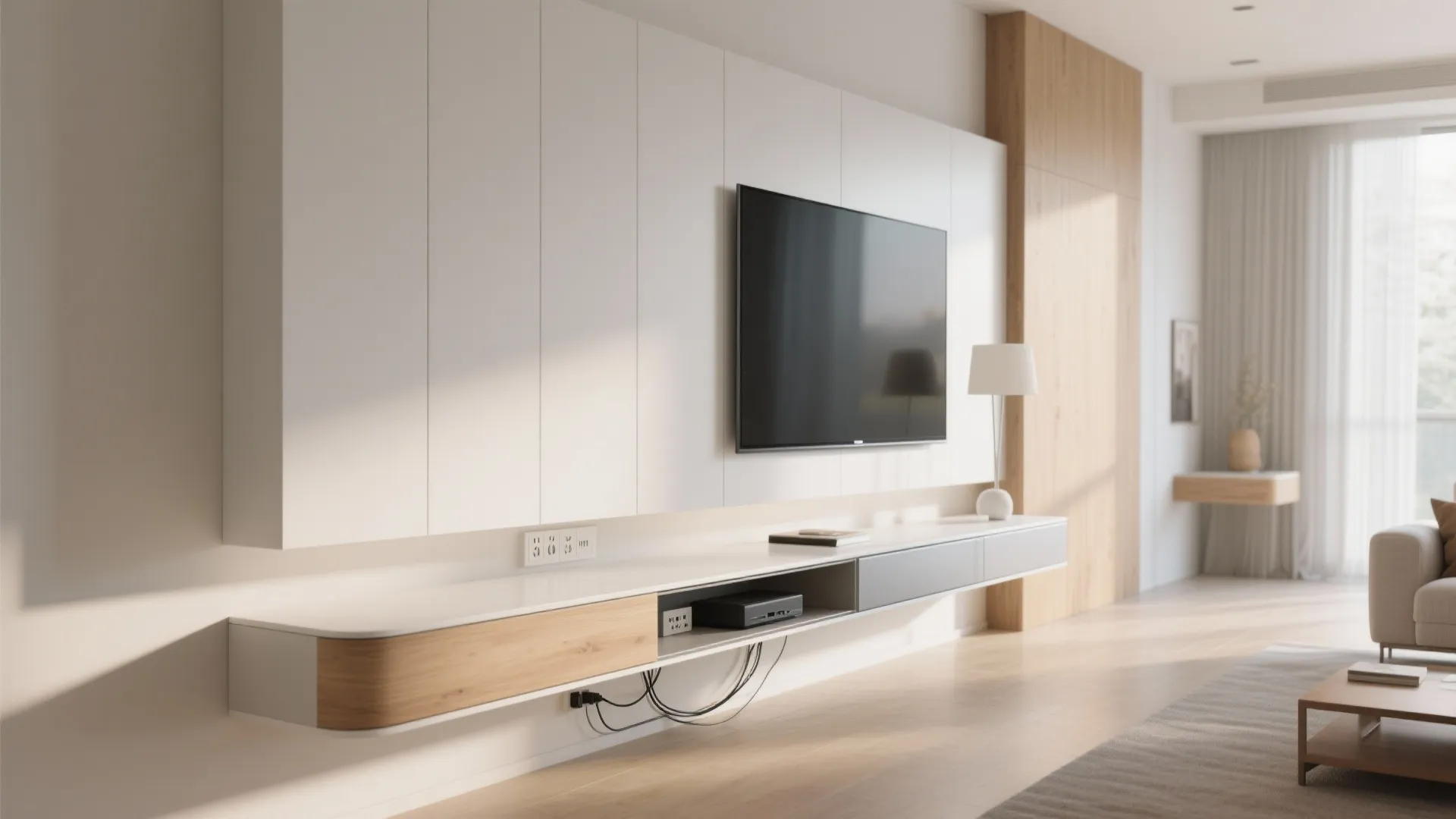

Ultra‑Slim Floating Console + Panel System

My Take

When I’m designing for a studio or a narrow living room, a floating TV unit paired with a slim wall panel is my go-to. I once used a 160 mm‑deep console and a routed panel to hide power and data—clean, modern, and easy to clean under.

Pros

By lifting storage off the floor, you get a lighter sightline and faster cleaning—great for small apartments and pet owners. A purpose‑cut panel simplifies wall‑mounted TV cable management and provides a tidy channel for HDMI, Ethernet, and power, essential for a “floating TV unit with storage” plan. It also future‑proofs upgrades because you can snake new cables without opening the wall again.

Cons

You’ll need solid anchoring (into studs or a plywood backer) or the bracket can flex over time. If you add a heavy soundbar, balancing weights inside the console can get fussy. Depth is limited, so large gaming systems may need careful ventilation or side vents.

Tips / Cost

Keep console depth in the 140–220 mm range for a slim profile. Pre‑install a recessed power outlet and use in‑wall rated cables (CL2/CL3) for safety. Budget: entry from $350–$900 for ready‑made units; $1,200–$3,500 for custom veneer or lacquered millwork, excluding TV and mount.

save pin

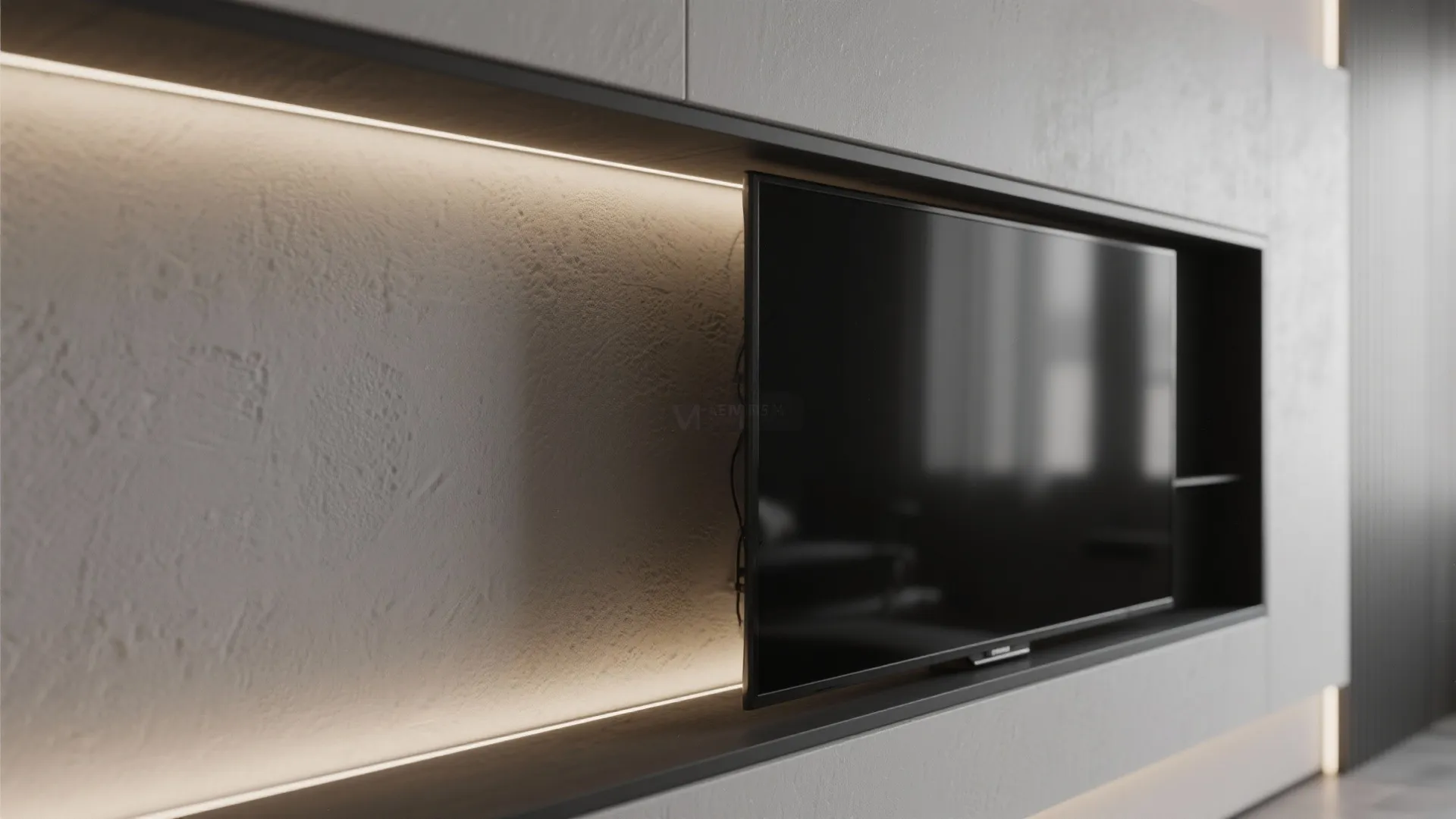

Recessed TV Niche with Shadow Gap and LED Bias Lighting

My Take

For a super streamlined look, I sometimes recess the TV into a gypsum or MDF build‑out with a 5–10 mm shadow gap. A soft LED strip behind the set adds bias lighting that reduces eye strain during movie nights.

Pros

This approach is a small‑space savior—the TV sits flush, which visually frees the room and delivers a premium “TV unit wall mount design for small rooms” vibe. Access doors or removable panels can hide a surge protector, set‑top box, and a compact AVR without visual clutter. Bias lighting also boosts perceived contrast, making SDR content feel richer.

Cons

A niche is less flexible if you change TV sizes; add a concealed spacer panel for future growth. Ventilation matters—pack devices too tight and you’ll shorten their life. The build‑out adds time and dust to the project, so plan for protection and a clean crew.

Tips / Data

Leave at least 25–40 mm clearance around the TV for airflow and cable bends. For comfort, bias lighting should be around 10% of peak screen brightness at a neutral D65 color temperature (a common recommendation among display‑calibration pros and the Imaging Science Foundation community). Budget: $800–$2,500 for carpentry, plus $60–$180 for LED and dimmer.

save pin

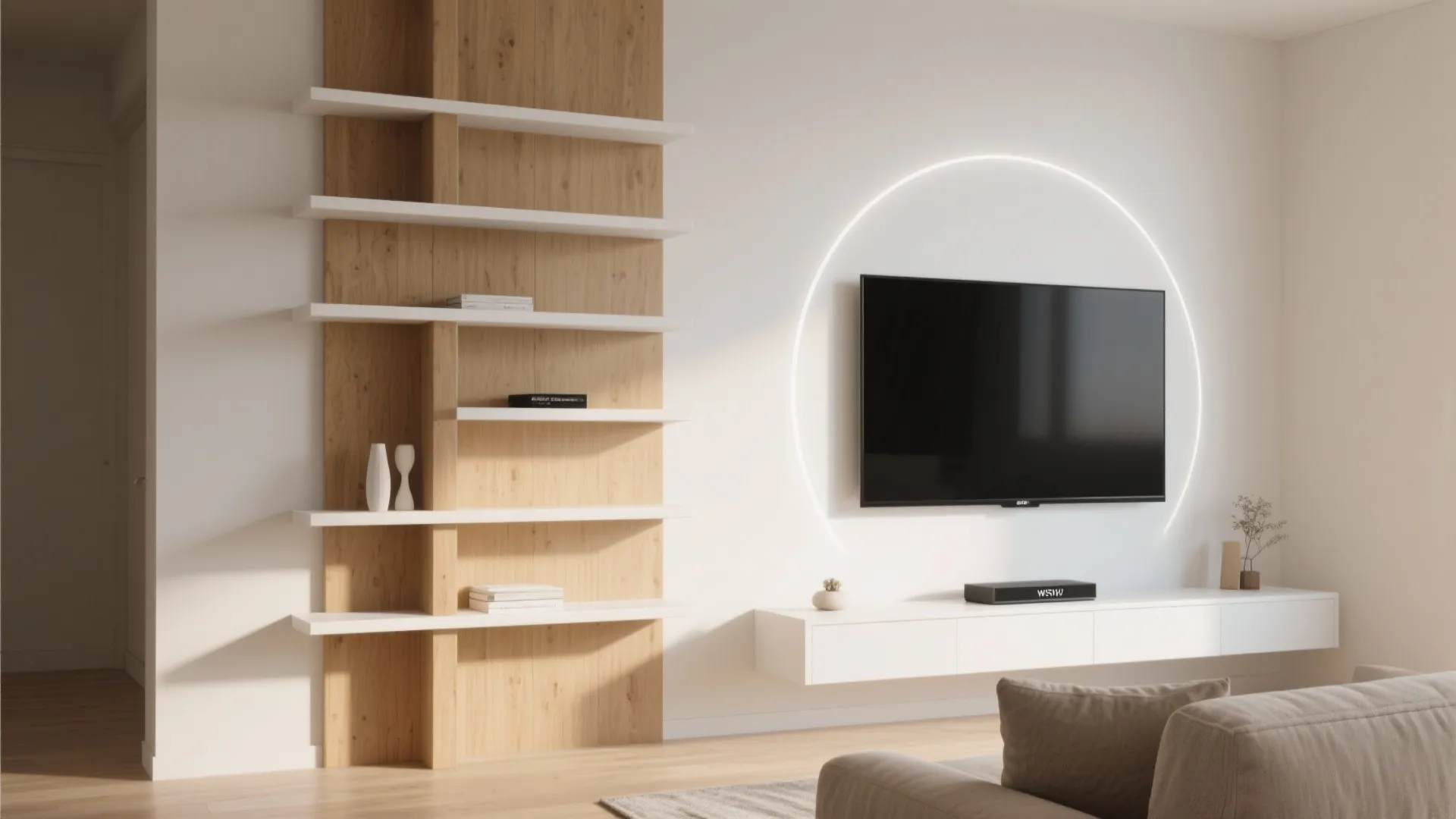

Asymmetrical Shelving Around the TV (Balanced Negative Space)

My Take

In a tight Hong Kong living room, I grouped slim shelves to the left of a 55‑inch TV and left the right side clean. The asymmetry pulled weight away from a window and made space feel wider without moving walls.

Pros

Asymmetry is forgiving; it lets you park books, routers, and decor without crowding the TV. It also shapes focus by balancing negative space—a trick I use to make small rooms feel more intentional. While planning layout and viewing lines, remember that SMPTE and THX generally recommend keeping the center of the screen near eye level (roughly 42–48 inches from the floor for seated viewing) and a viewing angle around 30–40° for comfort.

Cons

Too many small shelves turn into a dust farm and visual noise. If shelves creep too close, you can block IR sensors or cramp a center speaker. Keep a clean “halo” around the TV so your eye can rest.

Tips / Link

Try grouping shelves in a 2:3 or golden‑ratio proportion for a calm layout, and keep at least 100–150 mm of breathing space around the display edge. When I need to preview variants quickly, I mock up an asymmetrical media wall composition to test balance and sightlines with furniture.

save pin

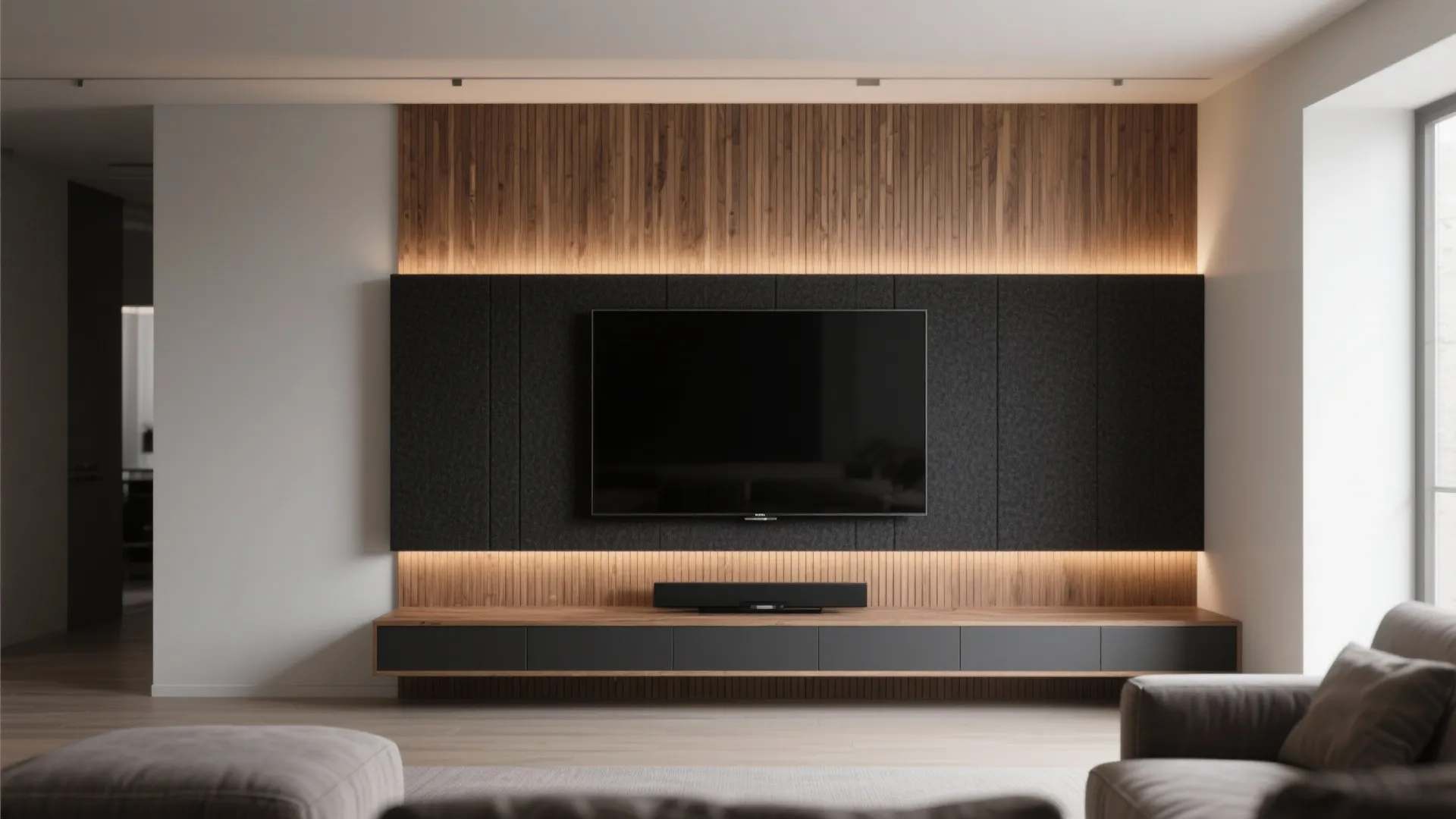

Slatted Wood Media Wall with Hidden Acoustic Layer

My Take

Clients love how wood slats warm up a minimalist room. My favorite setup is oak slats over black felt, with a dimmable 3000K LED strip washing the wall—cozy movie nights, less glare.

Pros

Slats subtly improve acoustics by breaking up reflections, which can tame bright rooms with hard floors. Bias lighting behind the TV reduces perceived contrast shifts between bright screens and dark rooms; display calibrators commonly advise neutral bias light at low luminance to reduce eye fatigue. The slatted motif also hides access panels for cable runs and sound treatment.

Cons

Dust collects between slats; a soft brush or vacuum attachment becomes your best friend. Timber needs acclimation to the space or you risk slight warping. Costs climb with premium species or custom millwork.

Tips / Link / Cost

Space slats at 12–20 mm with black felt for a minimalist rhythm, and keep the TV mount anchored to studs behind a removable section for service. To preview lighting intensity and finishes before committing, I often show clients a softly backlit slatted wood TV wall so we can agree on warmth and glow. Budget: $1,500–$4,500+ depending on timber, finish, and LED controls.

save pin

Corner or L‑Shaped Media Wall with Articulating Mount

My Take

In truly tight rooms where the sofa can’t face a wall directly, I’ll swing the TV into a corner with a full‑motion mount and wrap an L‑shaped console below. It opens the main wall for art and makes circulation feel natural.

Pros

Corner TV wall design for small living rooms repurposes awkward space and often reduces window glare. A full‑motion arm lets you swivel toward the dining table or desk for flexibility. Cable snakes along the arm can be tidy with braided sleeves and in‑wall pass‑throughs.

Cons

Articulating arms transfer load—anchor properly into studs and respect the mount’s torque ratings. The asymmetry can skew stereo imaging; angle speakers toward the main seat and add a small sub to compensate. Long‑throw arms may sag if maxed out—don’t cheap out here.

Tips / Data

Confirm stud positions before buying the mount; some arms need 400–600 mm VESA compatibility. For comfort, a common viewing distance rule of thumb is 1.2–1.6× the TV diagonal for 4K sets; CEDIA and THX guidelines land in a similar range for immersive viewing.

[Section: 总结]

A small living room doesn’t limit you; it invites smarter moves. With the right TV unit wall mount design—be it a floating console, a recessed niche, or a slatted feature wall—you can gain storage, clean sightlines, and better viewing comfort. As CEDIA and display‑calibration best practices remind us, thoughtful viewing height, angle, and bias light boost comfort as much as the looks. Which of these five ideas would you try first in your space?

[Section: FAQ 常见问题]

save pin

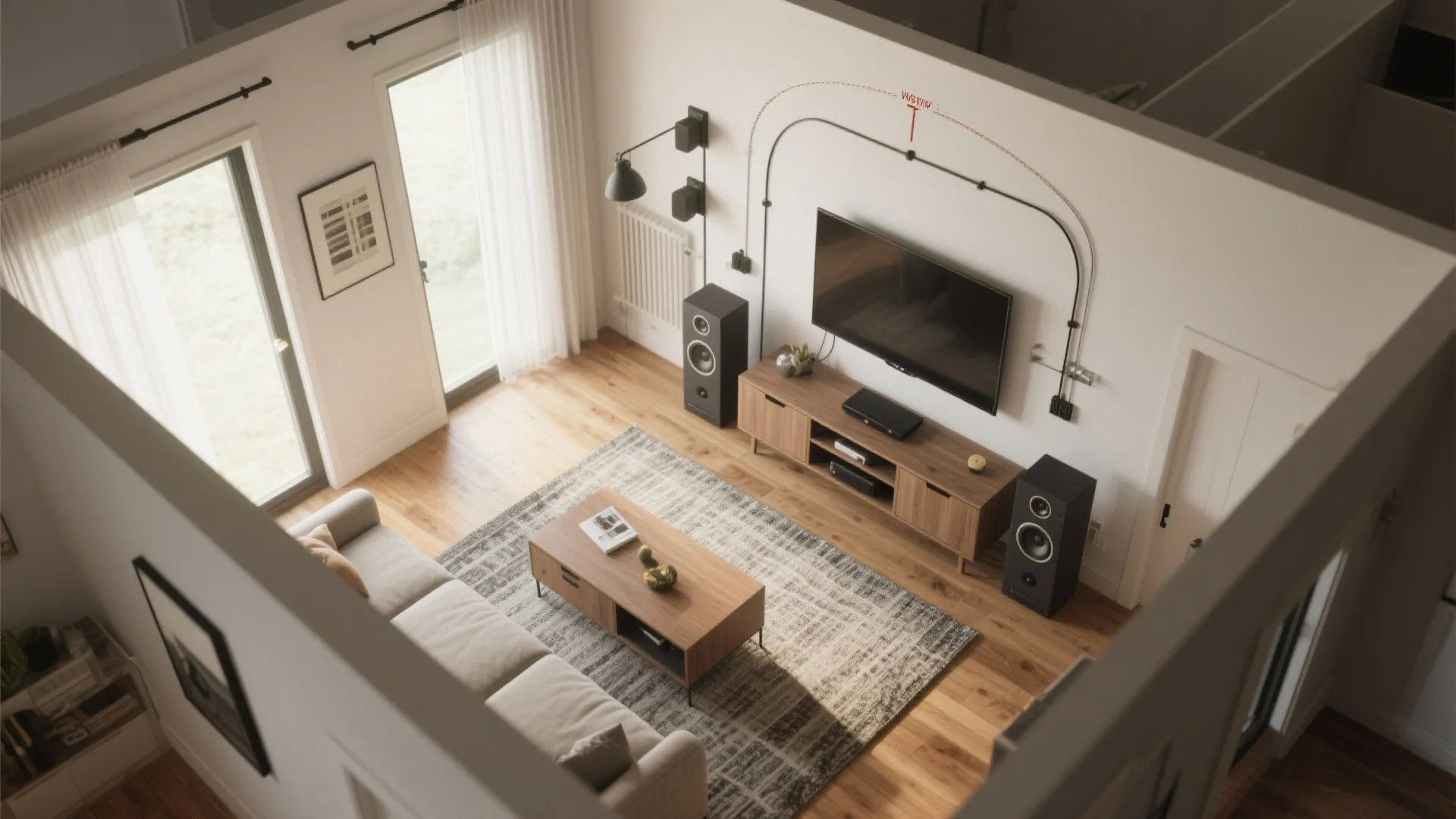

FAQ

1) What is the ideal height for a wall‑mounted TV?

For most sofas, center‑of‑screen at roughly 42–48 inches (106–122 cm) from the floor works well. SMPTE/THX guidance generally keeps the viewing angle comfortable at about 30–40°, so adjust for your seat height and screen size.

2) How far should I sit from a 55‑inch 4K TV?

A practical rule is 1.2–1.6× the screen diagonal, so around 66–88 inches (1.7–2.2 m). This aligns with CEDIA/THX viewing distance recommendations aimed at immersive yet comfortable viewing.

3) How do I hide cables safely in a TV unit wall mount design?

Use in‑wall rated power and low‑voltage cables (CL2/CL3), and add a recessed power kit or outlet behind the TV. A simple conduit or removable panel lets you upgrade HDMI or network cables later without opening walls.

4) Can I mount a TV on drywall without hitting studs?

For safety, anchor into studs or add a plywood backer behind the drywall; large toggle anchors help only for light accessories. Heavy displays and articulating arms need solid structure to prevent sag or failure.

5) Are LED bias lights actually helpful?

Yes. Neutral‑white bias lighting at low luminance (about 10% of peak screen brightness) reduces eye strain and stabilizes perceived contrast—recommendations echoed by ISF‑trained calibrators and SMPTE‑aligned practices.

6) What size console fits a 65‑inch TV?

A console roughly two‑thirds to the same width as the TV looks balanced; 140–200 mm depth keeps a slim profile. Ensure ventilation for consoles that hide streaming boxes or game systems.

7) Is a recessed niche bad for ventilation?

Not if you leave 25–40 mm clearance around the TV and vent any enclosed devices. Add discreet slots or a removable panel so heat can escape and service remains easy.

8) How much should I budget for a full TV wall makeover?

A basic floating unit install can start around $350–$900; custom millwork with lighting often lands between $1,500 and $4,500+. Add the TV, a quality mount, and pro electrical work for a realistic total.
