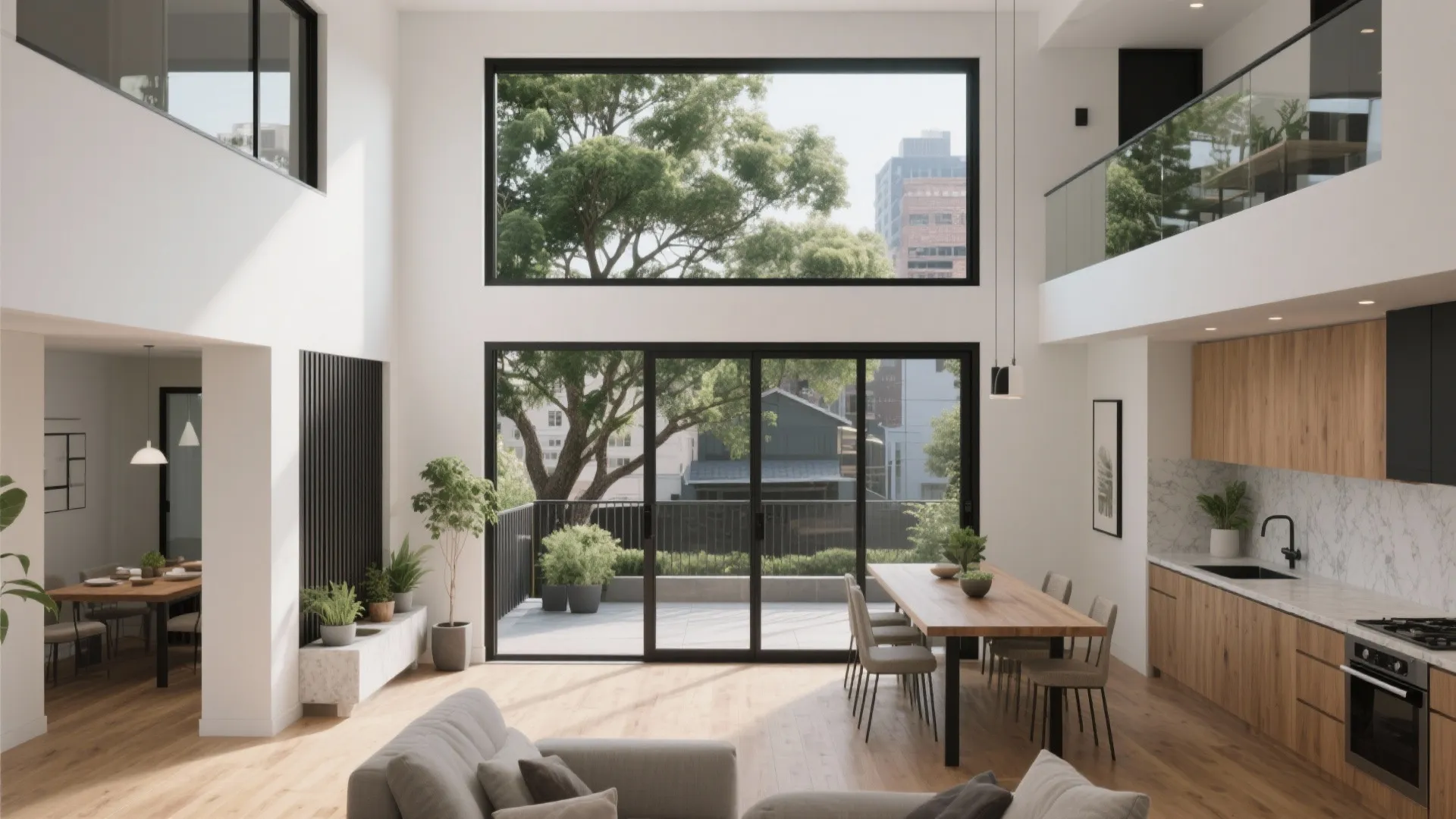

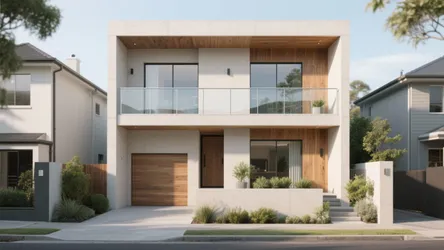

5 two storey house plans with balcony and garage: A senior interior designer’s playbook for bright balconies, smarter garages, and fluid two-storey living on compact lots

[Section: 引言]

I’ve spent the last decade sketching and building two storey house plans with balcony and garage on narrow, urban lots. The biggest shift I’m seeing right now? Clients want brighter upstairs living, a real indoor–outdoor moment, and garages that work harder—storage, EV, even a micro workshop—without bloating the footprint.

Small spaces spark big ideas. When land is tight, every threshold, landing, and balcony edge can do double duty—bringing in light, creating a buffer, or decluttering your entry. In this guide, I’ll share 5 design inspirations for two storey house plans with balcony and garage, blending personal case notes with expert data so you can avoid the usual pitfalls and invest where it counts.

[Section: 灵感列表]

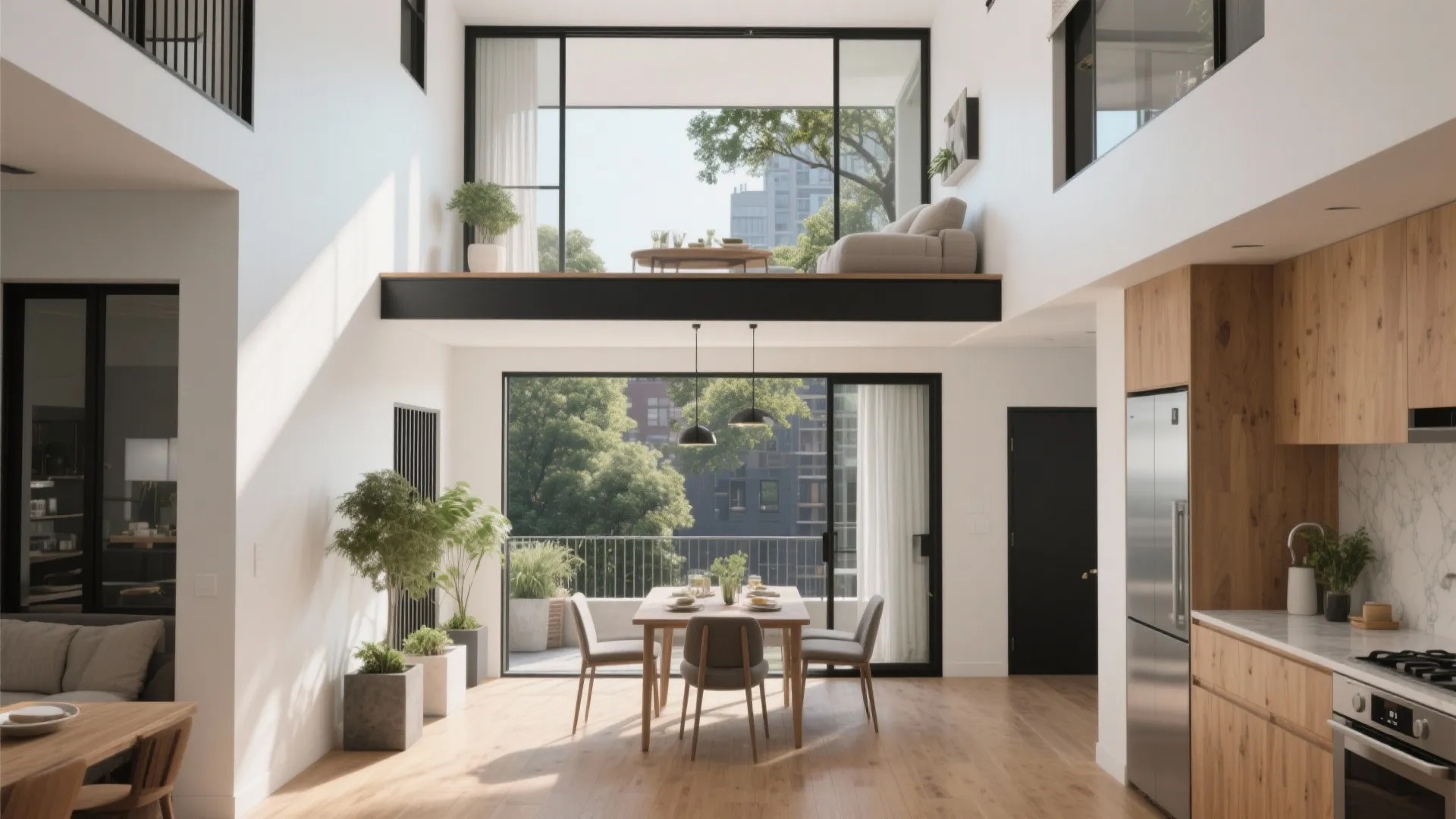

1) Upside-Down Living: Put the Balcony Off Your Main Living

My Take: On tight lots, I often flip the plan—garage, entry, and secondary rooms on the ground floor; living, kitchen, dining, and a generous balcony upstairs. In one Sydney project, we shifted the living room up a level and used balcony glazing that expands the view to borrow the neighborhood’s treetop canopy. Breakfast moved outside, street noise dropped, and the whole home felt like a lightwell.

Pros: You get better light, airflow, and privacy—especially crucial for two storey house plans with balcony and garage on a narrow lot. Elevating the living space means the balcony can act as a sunshade to the glazing, moderating heat gain while opening up long views. The U.S. Department of Energy notes that properly sized overhangs and exterior shading significantly reduce solar heat gain, improving comfort and energy use in sunny climates (Energy Saver, Window Attachments).

Cons: Groceries and strollers now travel upstairs—worth it for the light, but plan a straight, well-lit stair and a landing sizable enough to pause. Structural costs can rise if you cantilever the balcony; you may need deeper joists or steel. And if you love backyard watch, you’ll see less of it—this plan is about stealing the sky.

Tips / Cost Factors: Aim for a balcony depth of 1.2–1.8 m so it’s dine-worthy, not just decorative. A 2.4–3.0 m wide sliding door feels generous and helps with cross-ventilation. Expect $350–$700 per linear foot of balcony edge for higher-spec membranes/rails and integrated drainage, depending on climate and finish.

save pin

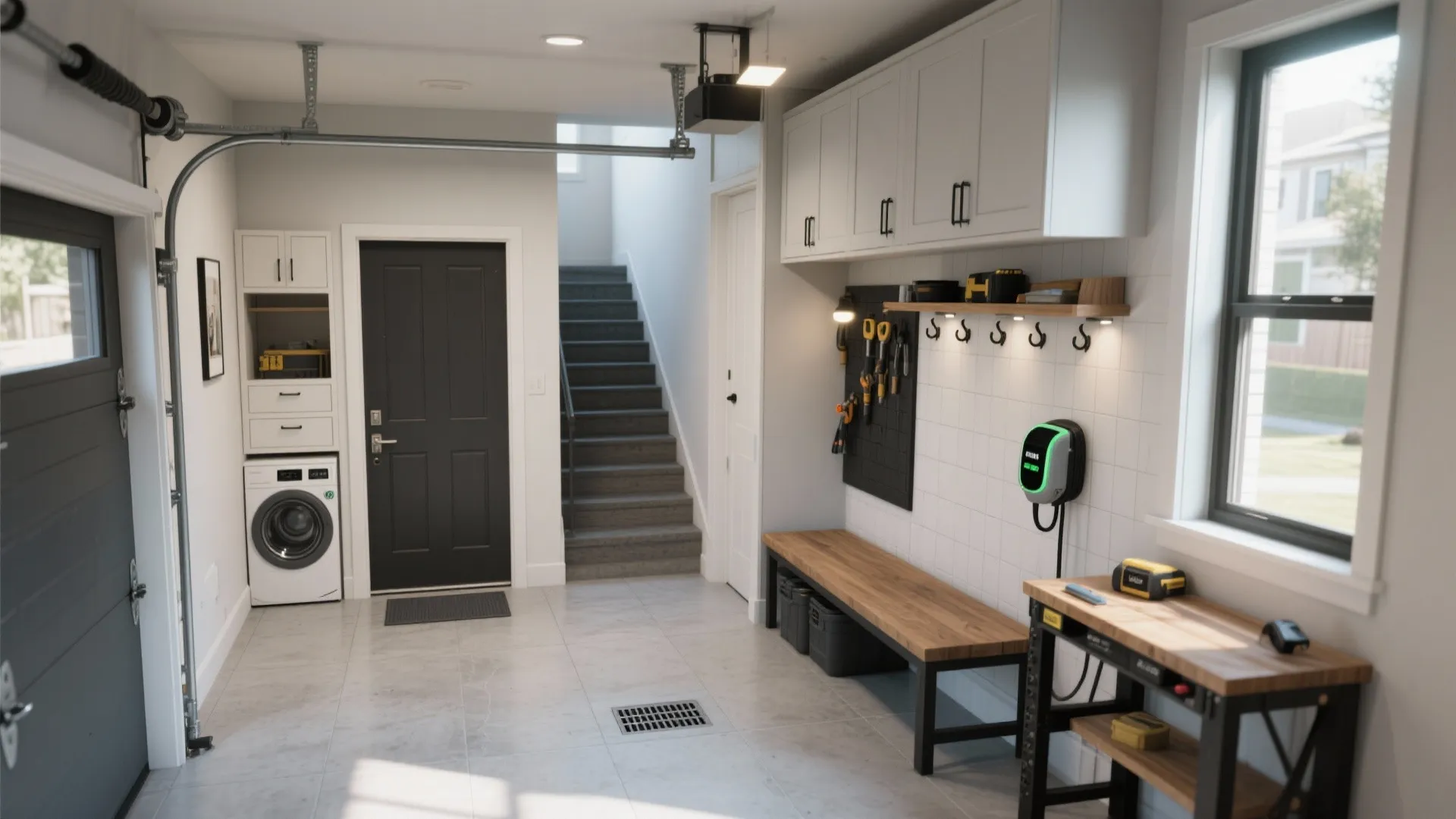

2) The Garage-to-Home Loop: Mudroom, Laundry, and Clutter Control

My Take: Most families don’t want to parade sports gear through the living room. I like to route garage access through a compact mudroom with bench, hooks, and overheads, then past laundry, straight up the stair. One client’s hockey gear finally got a home, and their hall stayed photo-ready even on Saturday mornings.

Pros: An integrated garage design in a two-storey home creates a clean circulation loop: car to drop zone to living. You can isolate smells and noise at the threshold while keeping everyday essentials within arm’s reach. Crucially, good air-sealing at the garage interface helps reduce transfer of pollutants into the home; the U.S. EPA flags attached garages as a common source of VOCs and carbon monoxide and recommends tight air barriers, self-closing doors, and sealed penetrations (EPA, Indoor Air Quality—Attached Garages).

Cons: Square footage gets tight if you try to fit a powder room, laundry, and storage into the garage-to-home link—prioritize ruthlessly. Also, you’ll likely need a self-closing, fire-rated door and proper gaskets, which adds to hardware cost and detailing time. If the mudroom is too tiny, it’ll just become a traffic jam with hooks.

Tips / Cost Factors: Bench length: 1.2–1.8 m minimum; tall cubbies for brooms/sports; and overheads for seasonal gear. Consider a floor drain and durable porcelain or sealed concrete. Budget $5,000–$15,000 for a compact but durable mudroom build-out with custom joinery and ventilation upgrades.

save pin

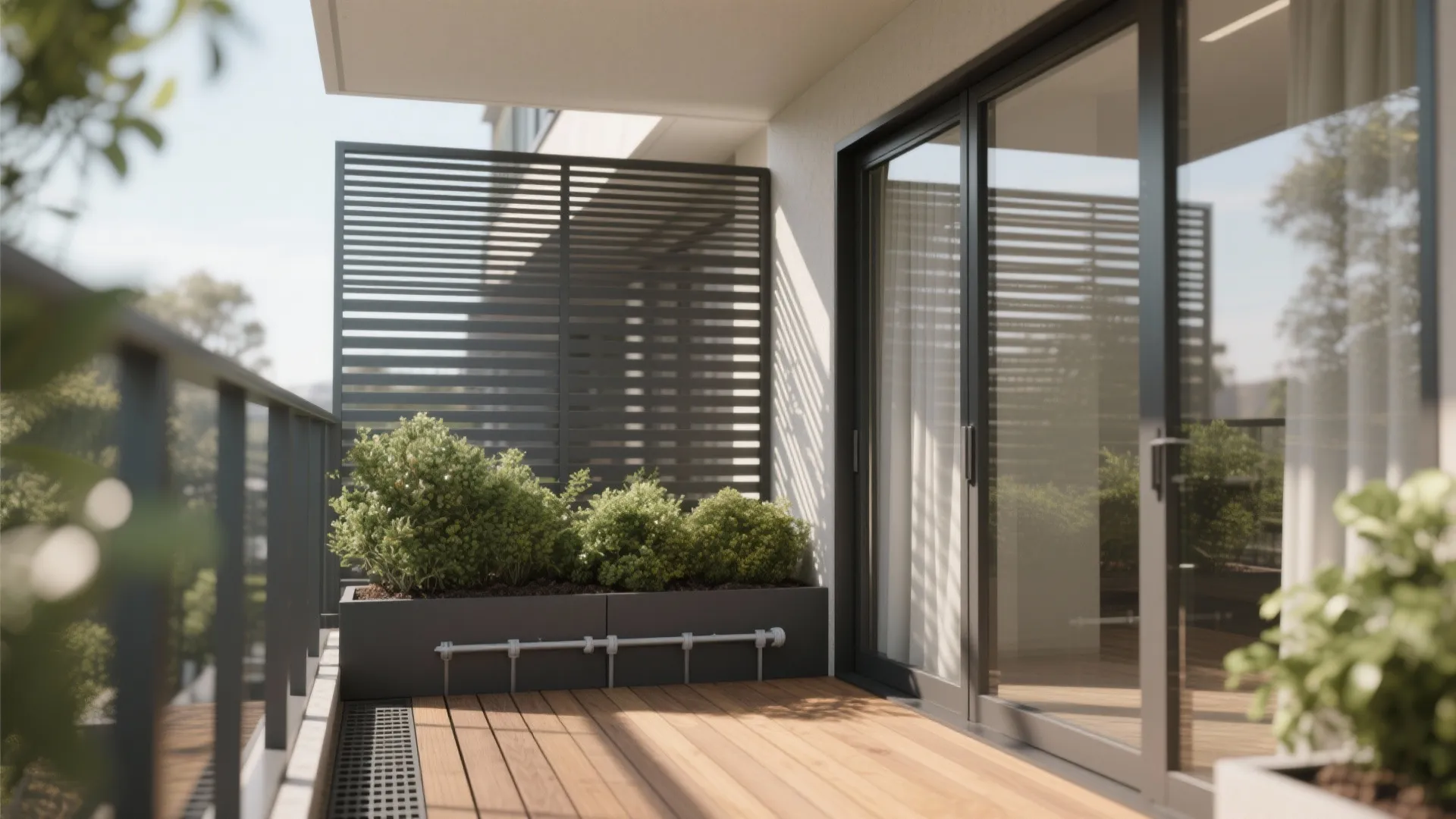

3) The Balcony as Climate Buffer: Screens, Planters, and Privacy

My Take: Balconies can do more than look pretty. In a recent project, we used slatted screens, deep planters, and a bit of ceiling to create an outdoor “room” that cools the glass behind it and softens street views. It felt like a leafy loggia that happened to face the city.

Pros: Screens and planters create a microclimate—shade, evapotranspiration, and filtered light—cutting glare and adding privacy without heavy blinds. On two storey house plans with balcony and garage, these tweaks turn a facade into a performance layer. Guardrails must be safe, of course: the International Residential Code requires guards at least 36 inches high for decks and balconies 30 inches above grade (IRC R312), and local codes may specify infill spacing and loads.

Cons: Anything green needs water, and planters add loads—wet soil is heavy. In windy sites, light screens can rattle; you’ll want structural fixings and to avoid sail-like solid panels. Maintenance is real: powder-coated aluminum and composite timbers weather better than raw steel or unstained wood.

Tips / Cost Factors: Keep planter depths around 300–450 mm for shrubs and small trees; integrate drip irrigation and overflow. For privacy, offset slats to remove direct sightlines but keep airflow—60–70% open area is a sweet spot. Consider perforated metal screens for shade and privacy if you want a modern look with reliability.

save pin

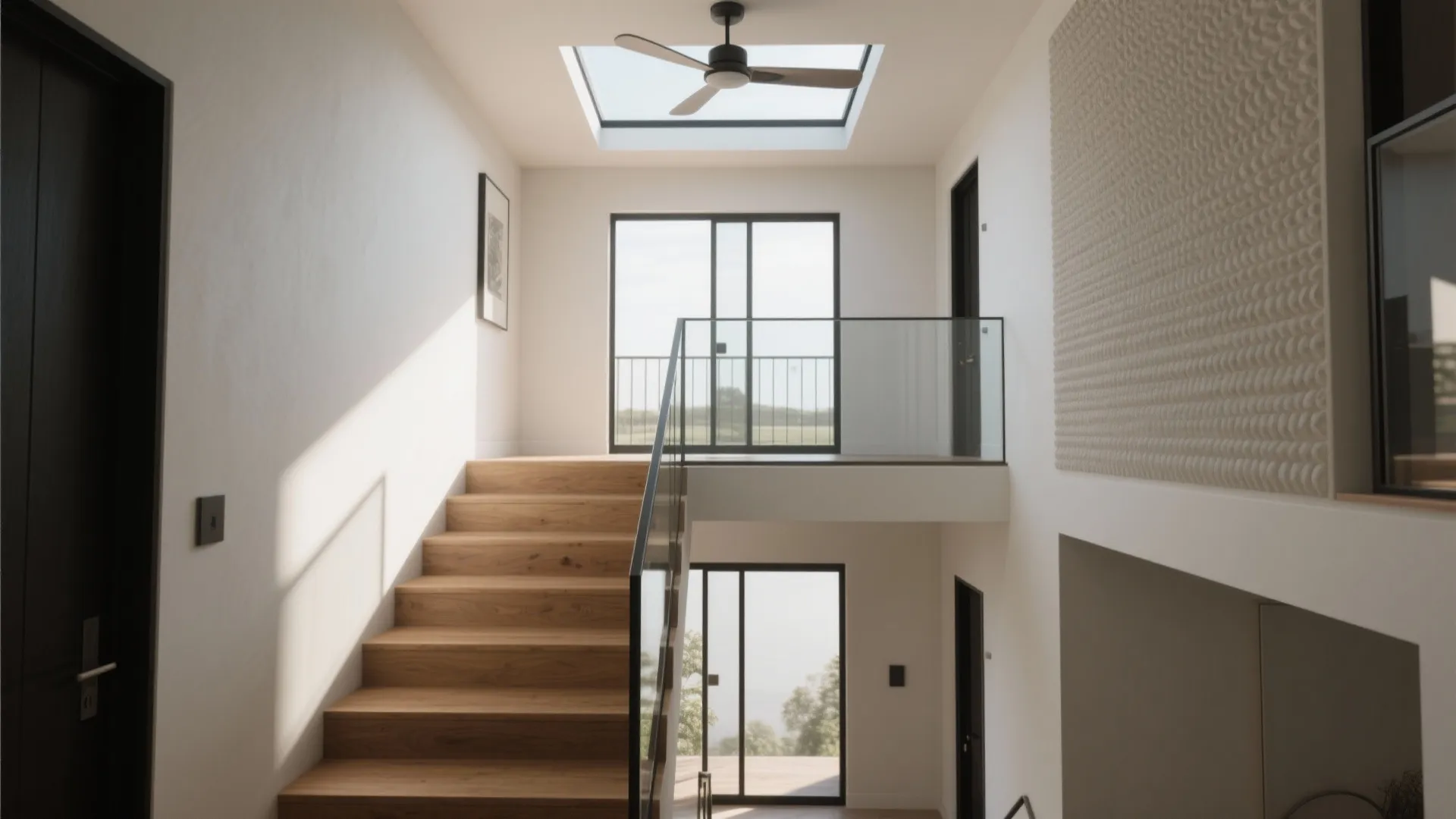

4) Stair-as-Lightwell: A Double-Height Connector That Breathes

My Take: A two-storey home with a central stair can feel like a lantern, especially when skylit and aligned with balcony doors. I’ve used an open-tread stair and a double-height slice to pull light deep into the plan, making even mid-terrace homes feel airy.

Pros: A stair void encourages stack ventilation—warm air rises and escapes higher, drawing cooler air from lower windows, including shaded garage-side entries. It connects floors visually and socially: you can hear “dinner!” without texting. The principle of stack-driven airflow and high-level exhaust is well-documented in natural ventilation literature (e.g., CIBSE AM10 on natural ventilation design), and it can be adapted sensitively for residential with operable skylights.

Cons: Sound travels up voids—great for family life, not for late-night podcasts. Heat can stratify; in cold climates you may want a low-profile ceiling fan to gently destratify in winter. Cleaning high glass is a calendar event—plan for safe access and consider exterior self-cleaning coatings.

Tips / Cost Factors: Keep stair widths 900–1,000 mm for comfort; consider open risers only where code allows. A thermally broken skylight with low-e glass prevents overheating; add a discreet motorized vent for night purges. Acoustic panels or textured plaster on one wall can soften echo without killing the lofty vibe.

save pin

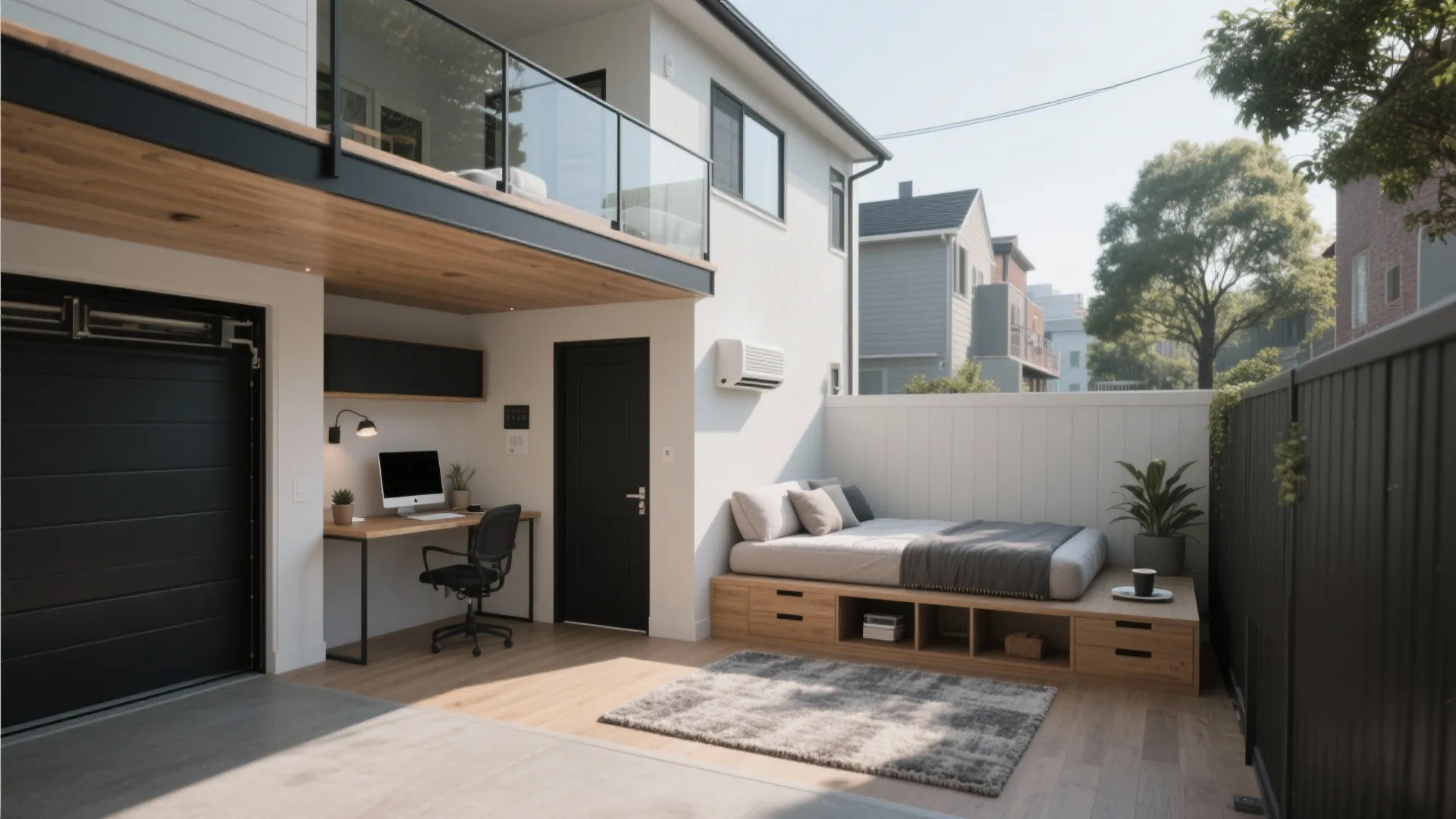

5) Over-Garage Suite or Studio: Quiet, Useful, and Code-Smart

My Take: The most underrated space in two storey house plans with balcony and garage is right over the parking. I’ve built quiet home offices and guest suites there, sometimes with a small balcony or a split-level terrace over the garage for morning coffee—instant retreat, without needing a third storey.

Pros: You reclaim footprint without pushing setbacks, and you separate noise from the main living. With proper detailing, smells and sound stay out of bedrooms. The IRC requires specific separations between garages and habitable rooms—typically 1/2-inch gypsum board on the garage side and 5/8-inch Type X gypsum on ceilings supporting living spaces above (IRC R302.6). Sealing penetrations and weatherstripping the connecting door are essential.

Cons: Structure and vibration matter—cars come and go, and garage doors are basically musical instruments. If you don’t isolate the floor, you’ll hear it. Over-garage rooms can get hot if the roof and ceiling aren’t well insulated and ventilated; get the R-values and airtightness right or pay for it later.

Tips / Cost Factors: Use resilient channels and acoustic insulation under the suite floor; consider a floating floor for premium silence. A mini-split heat pump or compact ducted unit keeps comfort independent from the main zones. Prewire for an EV charger and a small tool bench; add a robust exhaust fan to refresh air after charging cycles.

[Section: 总结]

Designing two storey house plans with balcony and garage isn’t about squeezing—it’s about getting smarter. Elevate the rooms that crave light, make the balcony a hard-working buffer, and turn the garage threshold into a calm, clean gateway. Codes keep you safe (think IRC for guards and garage separation), and small moves—screens, air sealing, and smarter circulation—pay back every day. Which of these five ideas would you try first in your own home?

[Section: FAQ 常见问题]

save pin

FAQ

1) What lot width works for two storey house plans with balcony and garage?

Many designs fit on 8–10 m wide lots with a single garage; for double garages, 11–13 m is more comfortable. Narrow lots benefit from upside-down plans that put living and the balcony upstairs for light and privacy.

2) Is an upstairs living room practical day-to-day?

Yes, if you pair it with a direct, well-lit stair and a drop zone at the garage entry. You’ll carry groceries up, but the payoff is superior daylight, ventilation, and a more usable balcony linked to kitchen/dining.

3) How do I stop garage fumes entering the house?

Air-seal the shared walls and ceiling, weatherstrip the fire-rated door, and seal all penetrations. The U.S. EPA specifically warns about pollutant transfer from attached garages and recommends tight barriers and proper exhaust (EPA, Attached Garages and Indoor Air Quality).

4) What railing height and spacing do I need on my balcony?

In the U.S., the IRC calls for 36-inch minimum guard height for balconies over 30 inches above grade, with infill spacing that prevents a 4-inch sphere from passing (IRC R312). Local codes may vary—always check your jurisdiction.

5) Can I put a bedroom over the garage?

Yes, with proper fire separation, acoustic isolation, and airtightness. Use 5/8-inch Type X gypsum at the garage ceiling and seal every penetration; then add resilient channels and insulation to keep the room quiet and comfortable.

6) How big should a functional balcony be?

For a table and two chairs, 1.2–1.5 m deep works; for lounging/dining, 1.8 m or more is ideal. Keep doors wide (2.4–3.0 m) to extend living space visually and encourage cross-ventilation.

7) What’s a sensible budget for the mudroom link from garage to house?

Expect about $5,000–$15,000 for bench, cabinetry, durable flooring, and ventilation, depending on finishes and custom work. It’s a small spend that delivers daily convenience and helps keep the rest of the home tidy.

8) How do I keep a front balcony private on a busy street?

Use offset slatted screens, perforated metal, or deep planters to block direct sightlines while letting air and light through. A layered approach—screen, vine, and a partial ceiling—creates privacy without a bunker feel.
