5 Wall Mounted Bathroom Vanity Ideas That Maximize Space: A senior interior designer’s real-world tips, tradeoffs, and pro data for choosing and styling a wall mounted bathroom vanity in small bathrooms

[Section: Introduction]

I’ve remodeled more small bathrooms than I can count, and one trend keeps delivering: the wall mounted bathroom vanity. When you lift cabinetry off the floor, the room instantly feels bigger—and yes, a floating vanity frees up floor space so your eye reads more air and less bulk. Small spaces invite big creativity, and this is where smart details matter.

In this guide, I’ll share 5 design ideas I’ve used (and tested) in real homes. You’ll get practical pros and cons, a few cost-and-time notes, and data-backed pointers I lean on in client work. Let’s make your bathroom work harder—and look lighter.

[Section: Inspiration List]

Slim Floating Vanity with Full-Depth Drawers

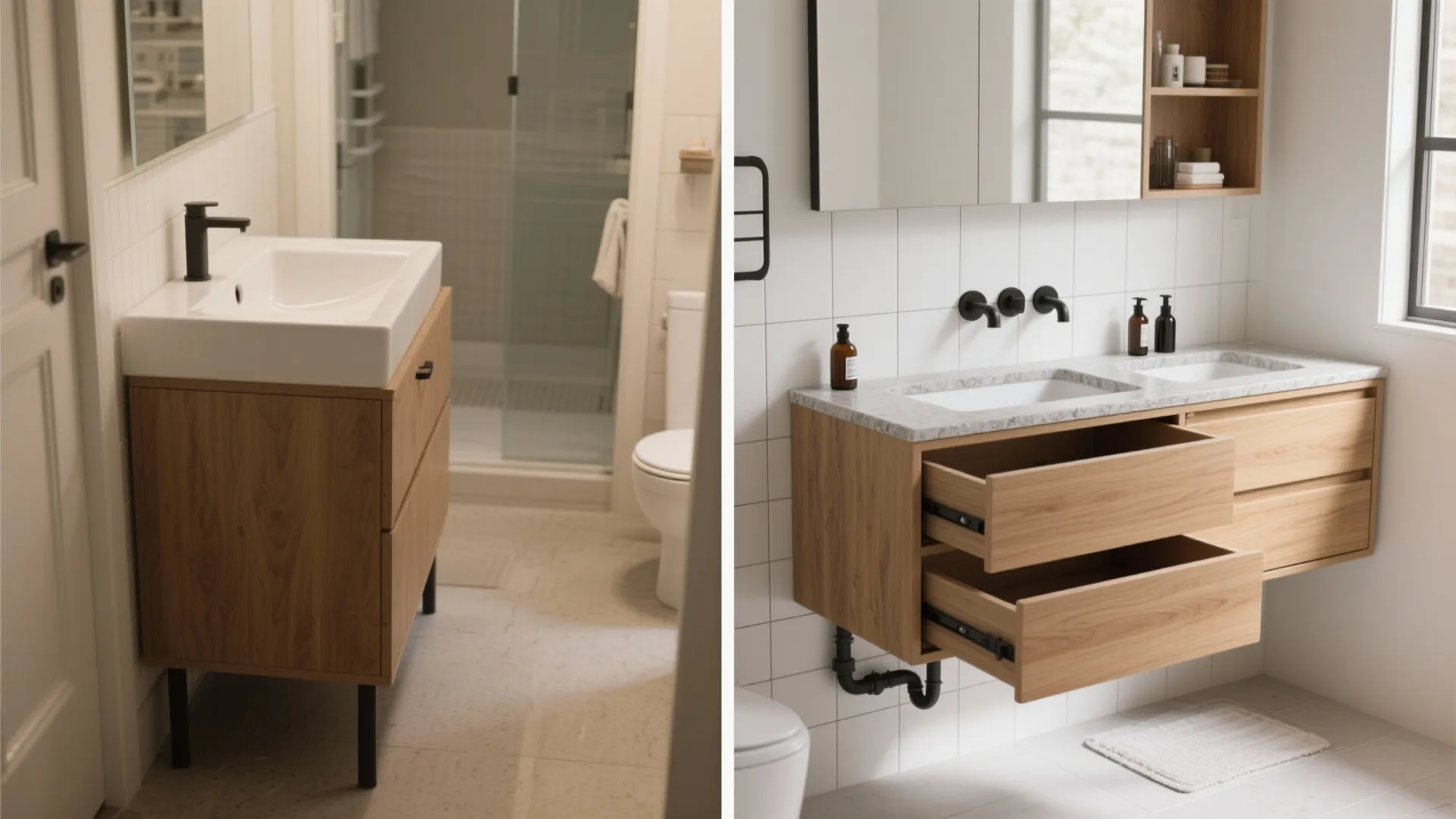

My Take — In a 45-square-foot bath I redid last spring, switching to a slim, wall-hung vanity with full-depth drawers was the single biggest upgrade. We gained organization without crowding the walkway, and cleaning became a two-minute job with a quick mop pass under the cabinet. The room felt calmer and more functional within a weekend of living with it.

Pros — A wall mounted bathroom vanity with drawers lets you use every inch: high sides prevent bottles from tipping, while dividers keep razors and tubes tidy. In tight layouts, a floating vanity for small bathrooms visually shrinks bulk and keeps the floor clear, which makes even a narrow space feel wider. You can spec soft-close hardware and a U-shaped cutout around the trap to maximize storage without fighting the plumbing.

Cons — Deep drawers can tempt you to stockpile; if you’re not careful, they turn into a “junk abyss.” Plumbing rough-ins that are off-center may steal space inside the top drawer, especially in older buildings. And if you’re DIYing, mounting a heavy vanity on weak walls is risky—blocking is a must.

Tips / Cost / Case — Ask your installer to add 2x6 blocking behind the wall during reno; it supports the bracket and keeps the vanity rock-solid. For apartment projects, I often spec a 16–18 inch depth cabinet to preserve circulation; it’s a sweet spot between function and footprint. Budget-wise, an entry-level wall-hung with two drawers starts around mid-range pricing, while custom widths, integrated organizers, and stone tops increase cost but deliver a truly tailored fit.

save pin

Under-Vanity Lighting for a Soft Night Glow

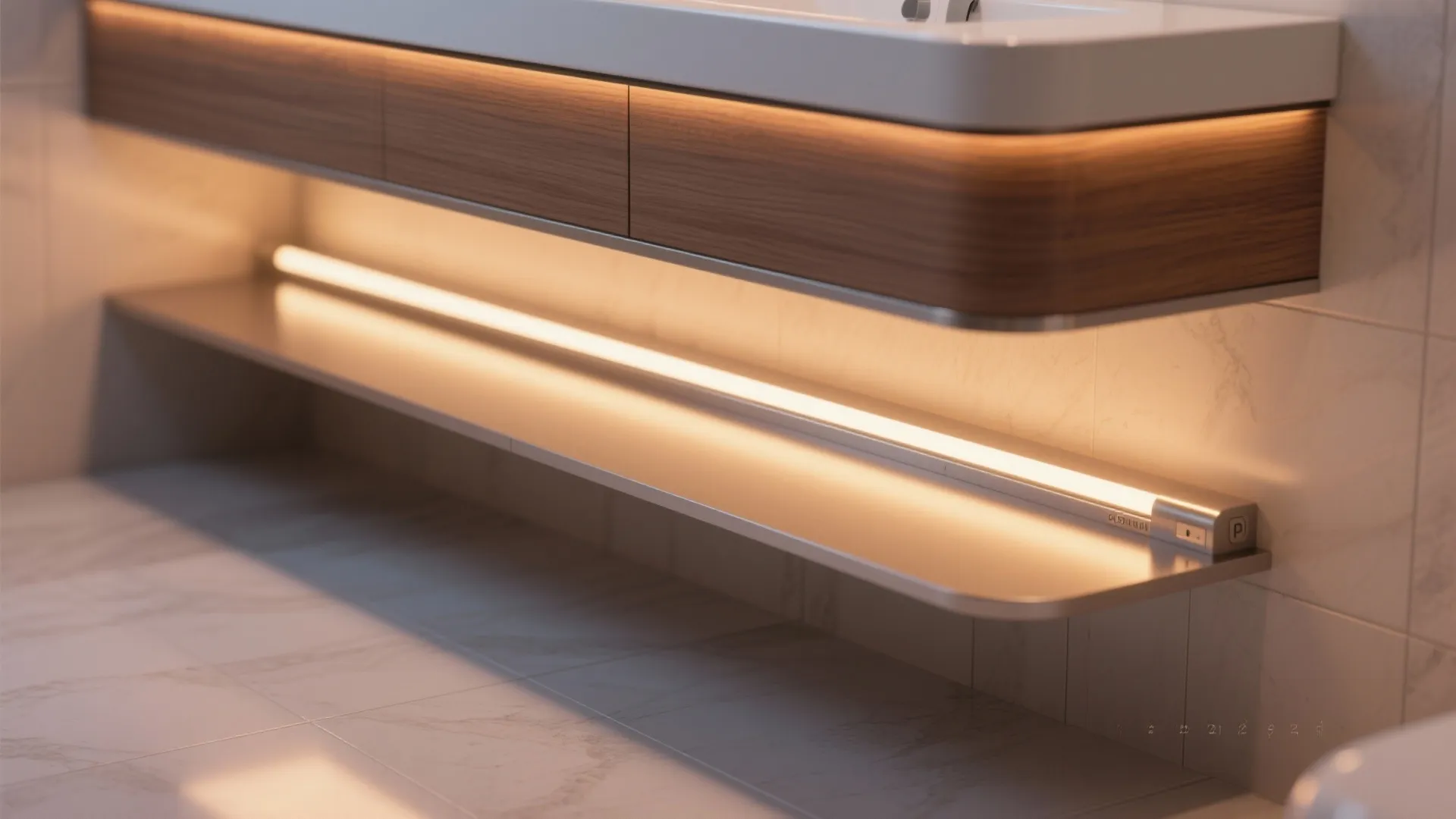

My Take — I love a subtle LED strip tucked under the vanity. It creates a calm, hotel-like glow and doubles as a nightlight—especially helpful if you have kids wandering in the dark or you prefer not to blast your eyes with overhead light at 2 a.m. It’s the kind of detail clients don’t know to ask for but never want to give up once they try it.

Pros — Under vanity lighting makes the cabinet appear to float, visually amplifying the sense of space. With a wall mounted bathroom vanity, that “halo” helps define the volume and adds a premium touch without a premium price. It’s also highly practical: motion sensors can trigger low-level light for safe late-night trips.

Cons — Cheap LED strips can shift color over time, and you’ll notice it against white tile or paint. Unshielded light can produce glare in glossy floors—use a diffuser channel and choose softer output. Retrofits need a bit of planning for power access, and wet-area code considerations vary by region.

Tips / Cost / Case — I target 2700K–3000K and CRI 90+ for flattering skin tones; dimmable drivers are worth it. Place the strip about 1–2 inches back from the cabinet face to avoid bright scallops on the floor. For durability, IP-rated components and aluminum channels keep things tidy and long-lasting; the upgrade cost is usually modest compared to the overall remodel but delivers outsized ambiance.

save pin

Wall-Hung Double Vanity on One Plumbing Wall

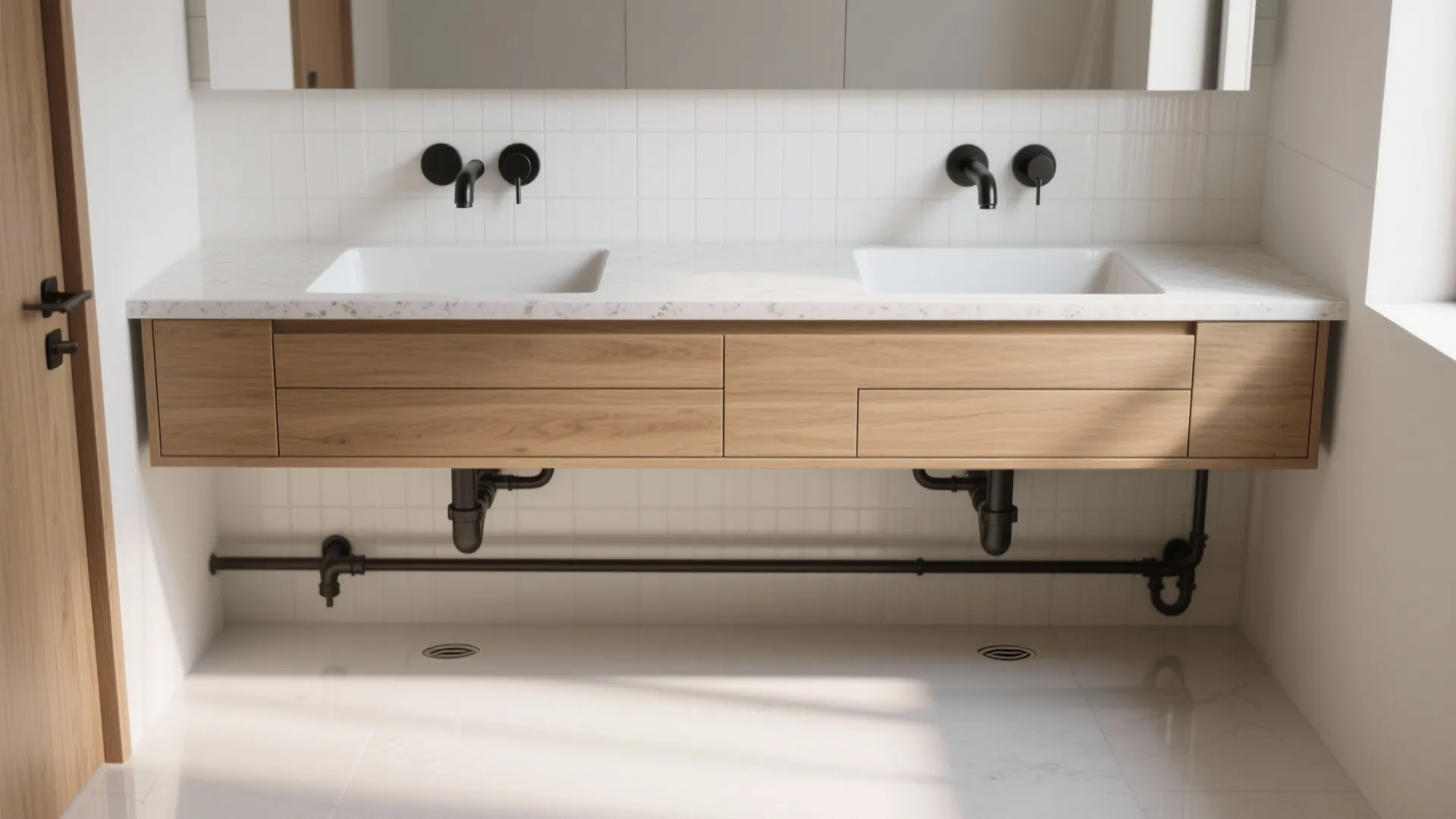

My Take — When couples ask for two sinks in a small bath, I often propose a wall-hung double vanity on a single plumbing wall. It contains complexity, looks balanced, and preserves walking room beneath. I’ve done this in 5-foot-wide baths with a 48-inch cabinet and careful faucet spacing—it works when every inch is counted.

Pros — A double sink wall mounted vanity feels generous without eating floor space. Consolidating services on one wall simplifies rough-in and keeps future maintenance straightforward. The continuous toe space makes cleaning easy and avoids water-damaged kick plates.

Cons — Two basins reduce counter area; if cosmetics and small appliances live on the surface, consider a single large sink with two faucets. Narrow counter depths, common in apartments, increase splash risk with vessel bowls. And double sets of faucets and drains raise both cost and points of failure.

Tips / Case / Visualization — If you’re worried about tight clearances, mock the layout with blue tape on the wall and floor first. I also like to show clients realistic 3D bathroom renderings to test mirror heights, faucet reach, and basin shapes before ordering. Pair a compact 8-inch-deep rectangular basin with a centered or slightly offset drain to save space inside the top drawer for organizers.

save pin

Comfort Height and Accessible Mounting

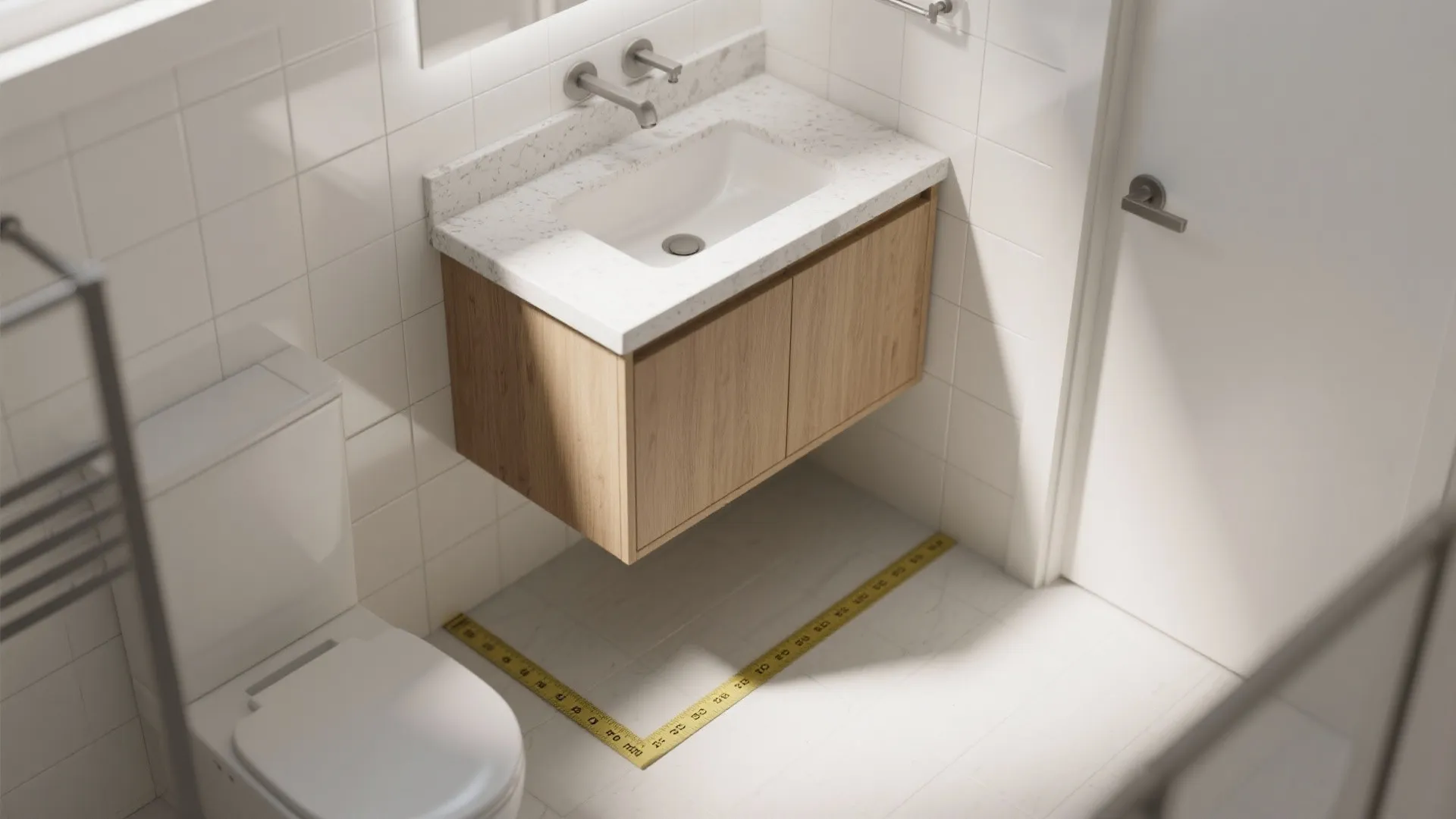

My Take — Over the last decade, most of my clients have shifted toward “comfort height” vanities, especially in primary suites. For a wall mounted bathroom vanity, this is easy to fine-tune: we set the top around 34–36 inches for taller users, or lower if children are the primary users. The flexibility is a real advantage of wall-hung cabinetry.

Pros — A wall hung vanity height is adjustable to your household, which improves ergonomics and reduces back strain during daily routines. If you’re planning for accessibility, the 2010 ADA Standards specify a maximum 34-inch lavatory rim height, plus knee and toe clearances, which a wall-hung cabinet can accommodate cleanly with an open area below. That makes it easier to future-proof without sacrificing style. (Source: ADA 2010 Standards for Accessible Design, Section 606, ada.gov)

Cons — Comfort-height for adults might be too tall for toddlers; step stools help but add visual clutter. If a future buyer needs wheelchair access, enclosed drawers below the sink may need reconfiguration—plan for modular or removable shelf panels. In older buildings with fragile plaster, raising or lowering mount points means more patching and reinforcement.

Tips / Cost / Case — During framing, I add solid blocking and mark a reference line for finished-floor height to account for tile thickness—this keeps the vanity at the exact intended elevation. For multi-user households, consider a top with a negative reveal to protect edges from bumps. Hardware that allows small post-install height adjustments can save the day when tolerances are tight.

save pin

Warm Wood Wall-Hung Vanity in a Narrow Depth

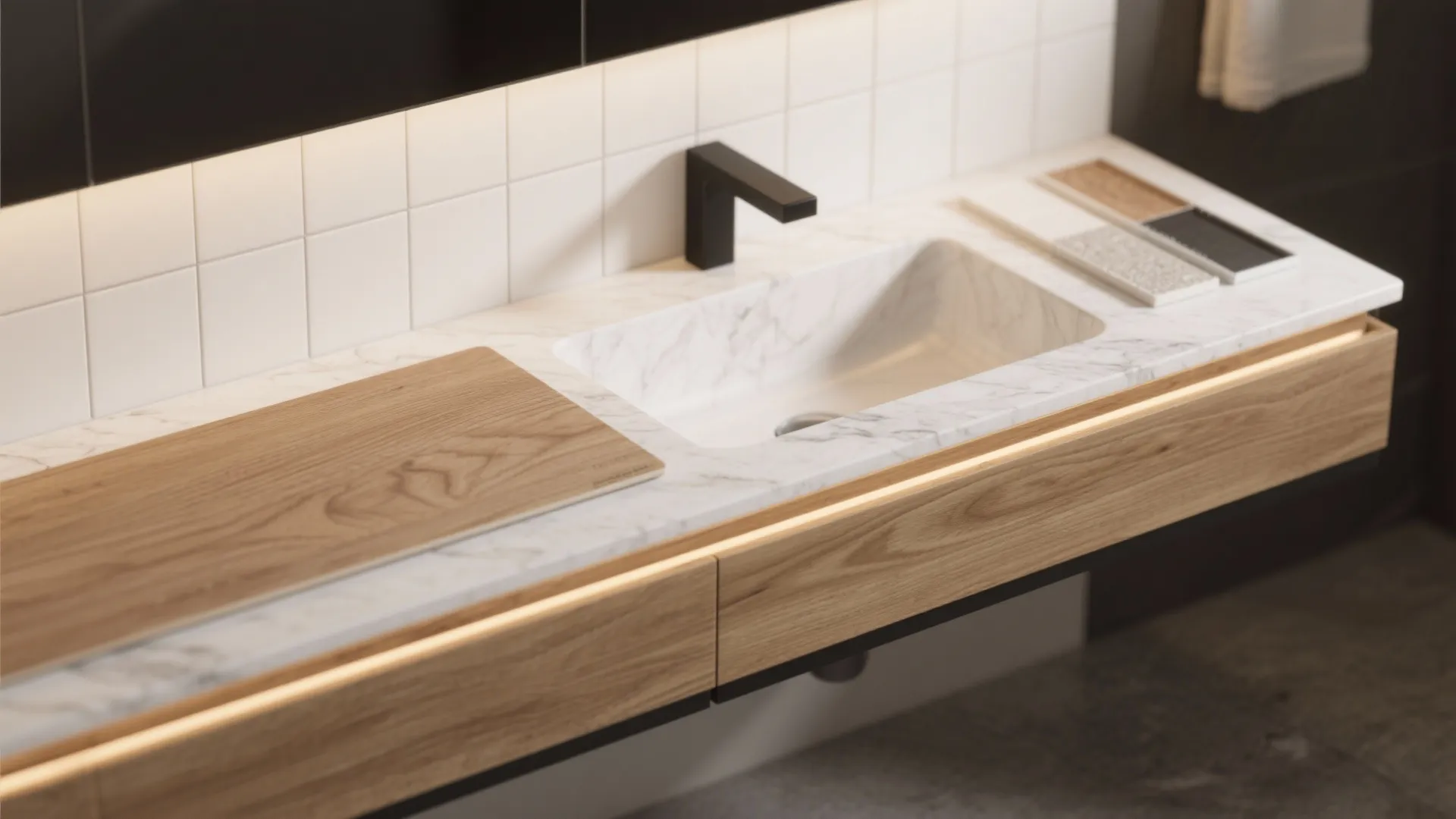

My Take — Some of my favorite small bathrooms pair a narrow-depth, wall-hung vanity with a warm wood finish. It softens all the hard surfaces and adds that spa feel without reading bulky. In a rental I refreshed last year, a 16-inch-deep oak veneer unit transformed a tight powder room into a little jewel box.

Pros — Natural wood tones bring a cozy, organic mood that balances white tile and polished metals. A narrow depth wall mounted vanity keeps circulation comfortable in compact layouts while still offering a full-width drawer. Matte or wire-brushed finishes hide everyday wear, and slim-profile pulls maintain a clean line.

Cons — Veneers need proper edge sealing near water; poor sealing leads to swelling over time. Lightweight tops can flex if spans are long; choose stone, sintered surface, or a reinforced solid surface for longevity. Dark stains may show water rings or soap drips more readily—keep a microfiber nearby.

Tips / Case / Finish Strategy — If splashback is a worry, choose an integrated backsplash or run tile 6–8 inches up for protection. I test samples in real bathroom lighting before ordering: warm LEDs can shift stain perceptions dramatically. For indecisive clients, an AI-assisted finishes palette is a fast way to audition wood tones against your actual tile and paint colors, cutting down on costly returns.

[Section: Summary]

A wall mounted bathroom vanity isn’t a constraint—it’s a catalyst. By lifting storage off the floor, dialing in height, and layering smart details like drawers and night lighting, your small bathroom can feel generous and genuinely personal. I’ve seen this approach unlock better daily routines and cleaner lines again and again.

The bottom line: a small footprint pushes us to design smarter, not smaller. Which of these five ideas are you most excited to try first?

[Section: FAQ]

save pin

FAQ

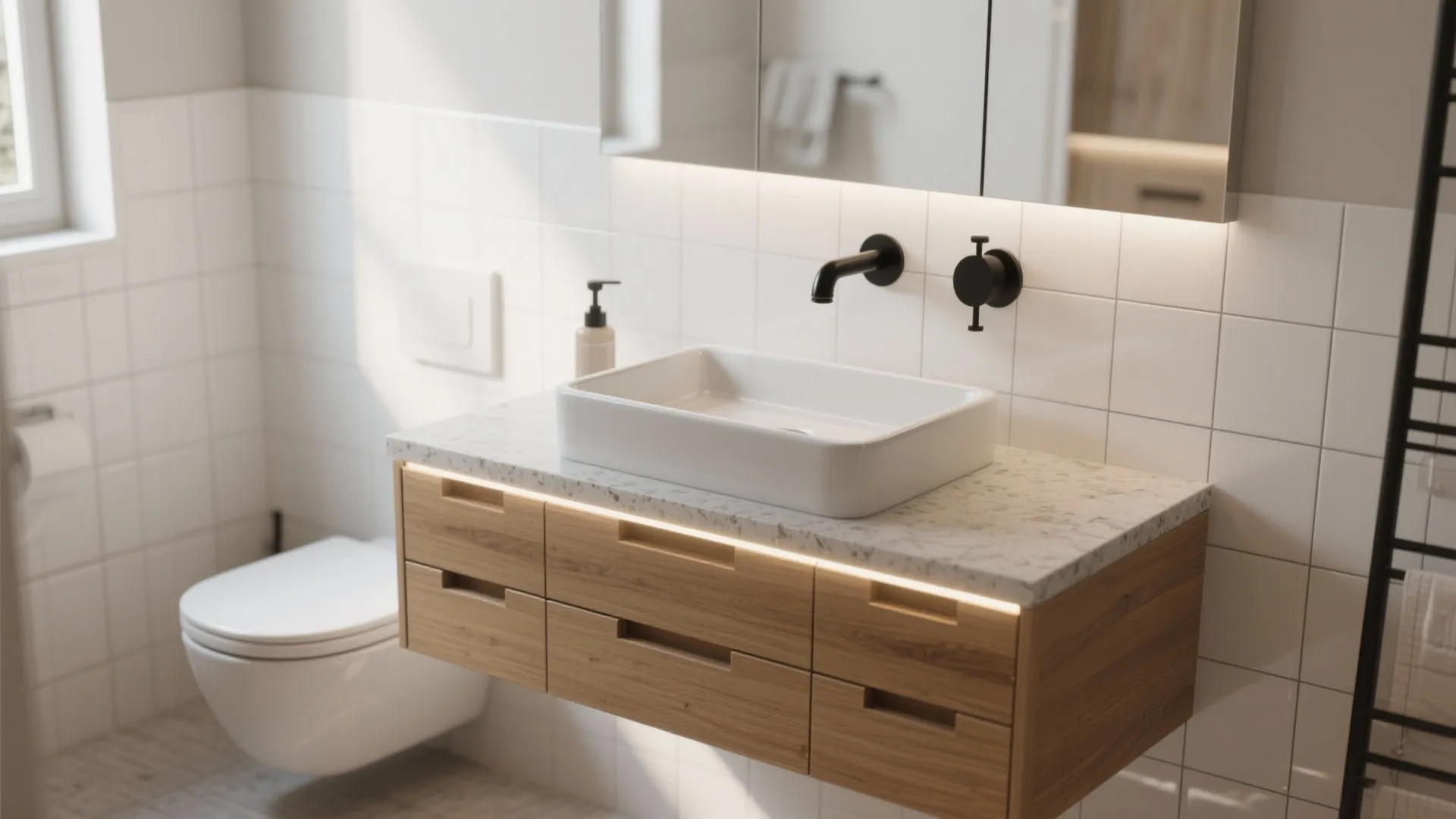

1) What is the ideal height for a wall mounted bathroom vanity?

Most adults find 34–36 inches to the top comfortable, but it depends on your household’s height. For accessibility, the ADA caps lavatory rim height at 34 inches and defines knee/toe clearances (2010 ADA Standards, Section 606).

2) Does a floating vanity really make a small bathroom feel bigger?

Yes. Seeing more floor creates visual openness, and under-vanity lighting enhances that effect. A wall mounted bathroom vanity also simplifies mopping and reduces that heavy “box on the floor” look.

3) Are wall-hung vanities sturdy enough for daily use?

Absolutely—if properly installed with wall blocking or solid anchors rated for the cabinet’s weight. I always add 2x6 blocking during reno so the bracket has a rigid core, especially for stone tops.

4) What depth should I choose for a narrow bathroom?

Look for 16–18 inches if your walkway is tight. A narrow depth wall mounted vanity can still offer full-width drawers and comfortable sink usage when paired with a compact rectangular basin.

5) Single or double sink for a small bathroom?

If counter space is precious, one larger basin often beats two small ones. A single sink with generous drawers beneath typically provides more usable storage than a double sink wall mounted vanity in the same width.

6) How do I prevent splash with a shallow basin?

Choose a rectangular basin with decent front-to-back slope and a faucet with moderate flow. WaterSense-labeled bathroom faucets reduce flow to 1.5 gpm or less and help control splash while saving water (Source: US EPA WaterSense).

7) What materials hold up best around water?

Look for well-sealed veneers, laminates, or solid wood with durable topcoats, paired with stone or sintered tops. Matte finishes hide wear; integrated backsplashes or short tile upstands help protect edges.

8) Can I install a floating vanity myself?

Experienced DIYers can, but accurate leveling, solid anchoring, and plumbing alignment are critical. If your walls are old plaster or out of square, hiring a pro for mounting and finish plumbing is often worth it.
