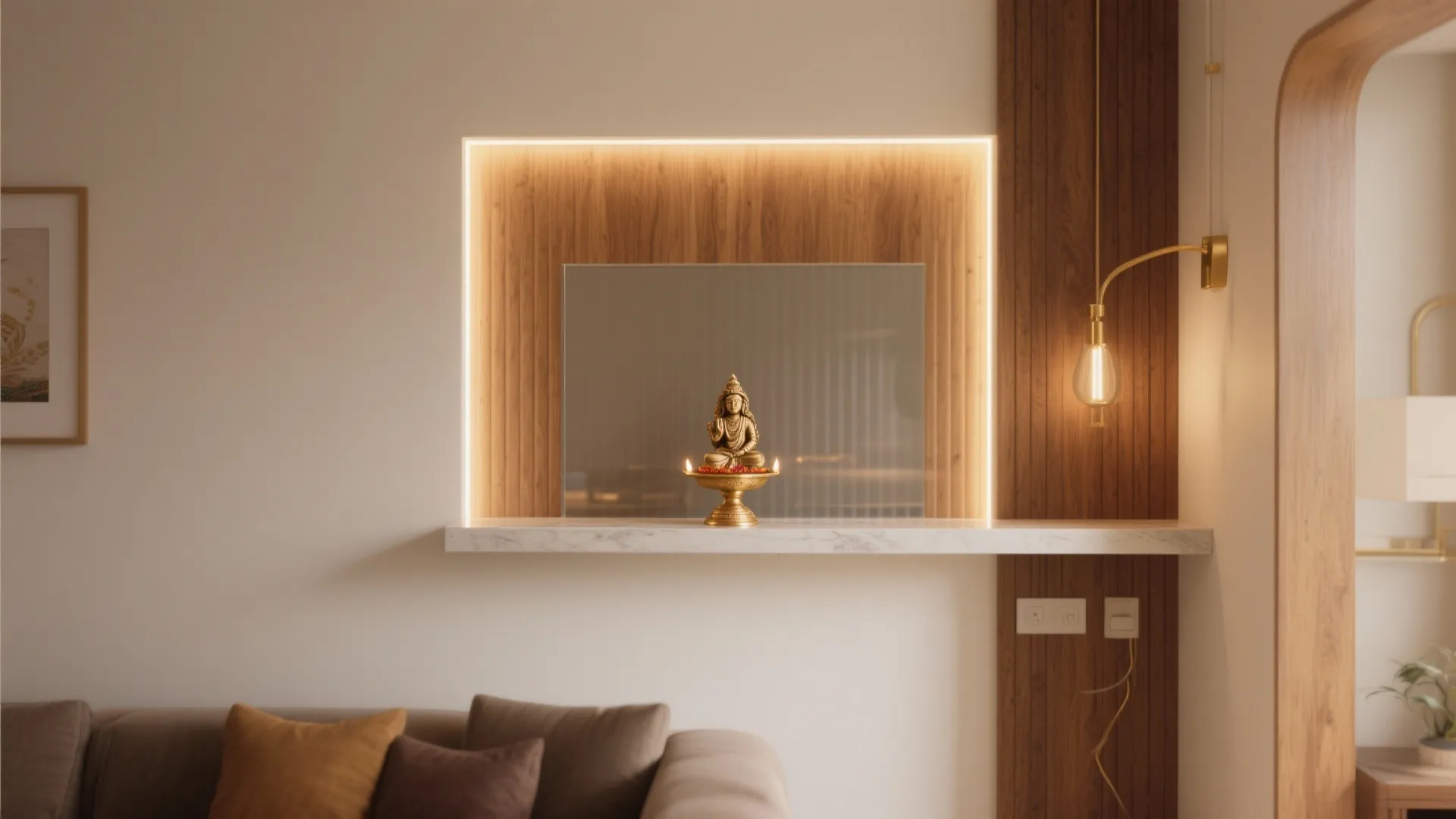

5 Wall-Mounted Pooja Unit Designs for Compact Homes: Space-smart, serene, and safe: my field-tested ideas for a beautiful wall altar in small apartments

[Section: Meta Information]

Core keyword: wall-mounted pooja unit designs

[Section: Introduction]

I’ve spent over a decade designing small homes where every inch must work hard, and lately I’m seeing a clear trend: calm, clutter-free worship corners that blend into the living space without losing sanctity. With wall-mounted pooja unit designs, small space truly sparks big creativity—done right, these altars look light, function beautifully, and stay easy to maintain. In this guide, I’ll share 5 design ideas I use with clients, weaving in my on-site lessons and a few expert data points to keep things safe and durable.

[Section: Inspiration List]

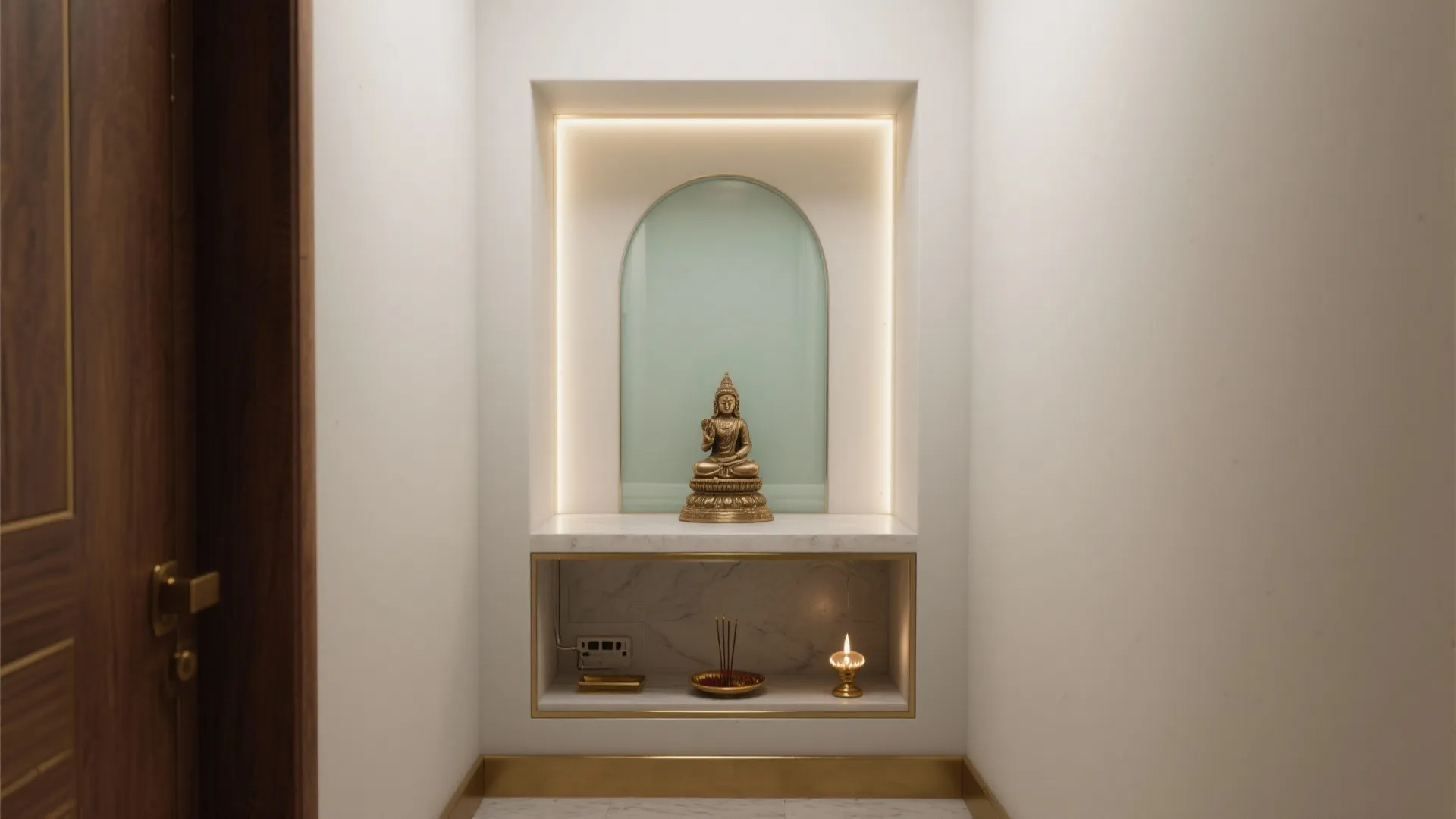

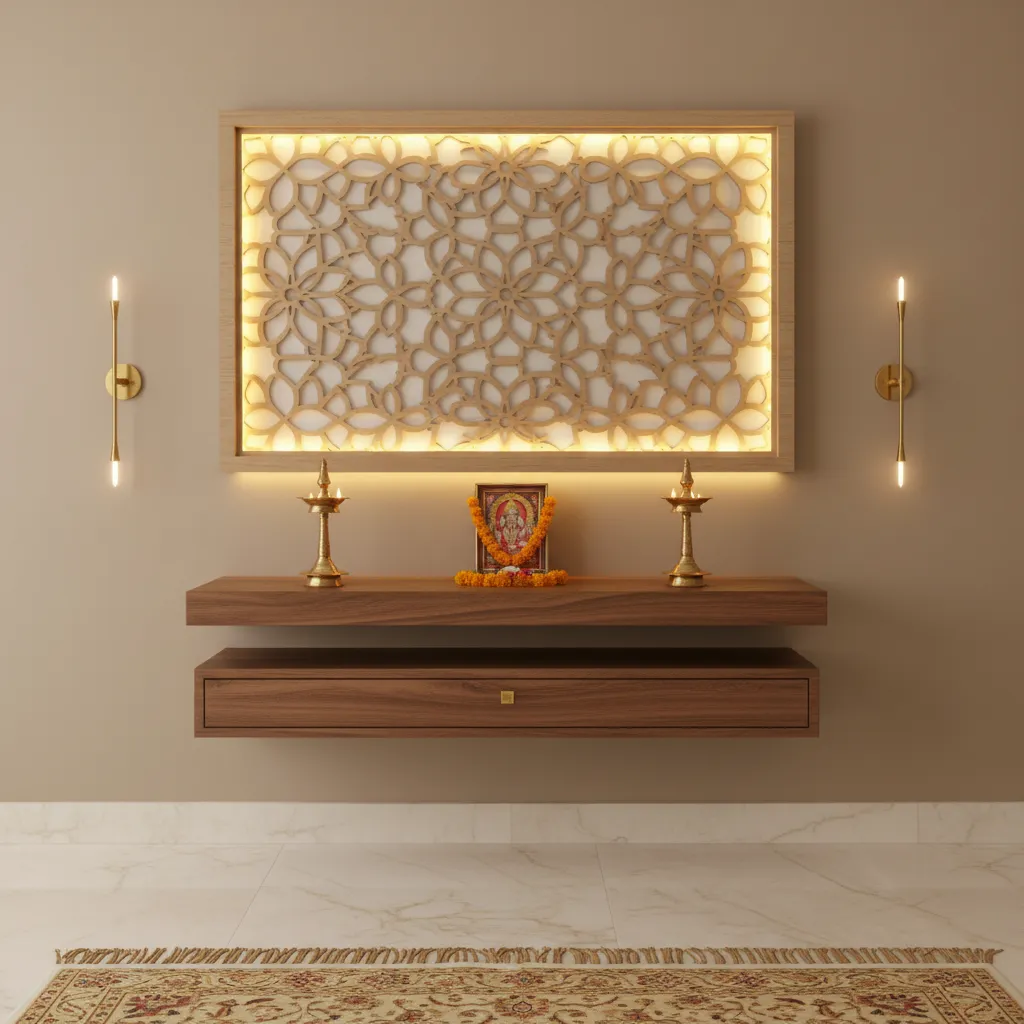

1) Slim Recessed Niche Mandir with Backlit Panel

My Take: A recessed niche is my go-to when I’m carving out a sacred corner in a narrow passage or entry wall. In a 480 sq ft Mumbai apartment, I tucked a 5-inch-deep niche between studs, added a back-painted glass panel, and routed a small drawer below for kumkum and agarbatti. The result looked built-in, airy, and surprisingly generous for the footprint.

Pros: Recessed niches keep circulation free—ideal for wall-mounted pooja unit designs in small apartments where every walkway matters. A dimmable, 2700–3000K LED backlight creates a soft halo around the deity; 300–500 lux at idol height typically feels comfortable for evening aarti and reading shlokas (per common IES task-light ranges for comfortable viewing). Because the cavity hides cables and drivers, maintenance is cleaner and safer for the long term.

Cons: You’ll need wall depth and a plan for wiring, which can be tricky in load-bearing or brick walls. If the back panel is glossy, fingerprints and soot may show, so be ready for gentle weekly wipe-downs. Also, cutting into a wall means coordination with plumbing and structural lines—never rush this step.

Tips/Case/Cost: Aim for 120–150 mm (5–6 inches) depth; I prefer 12V LED strips with aluminum channels and opal diffusers. Tempered back-painted glass resists staining better than paint, and a concealed incense tray keeps ashes from floating onto shelves. Typical cost: mid-range, mostly carpentry and electrical; add 10–15% contingency if wall reinforcement is needed. For a calm, gallery-like feel, I often compose a serene wall altar composition with one focal idol and a minimal oil lamp—less is more.

save pin

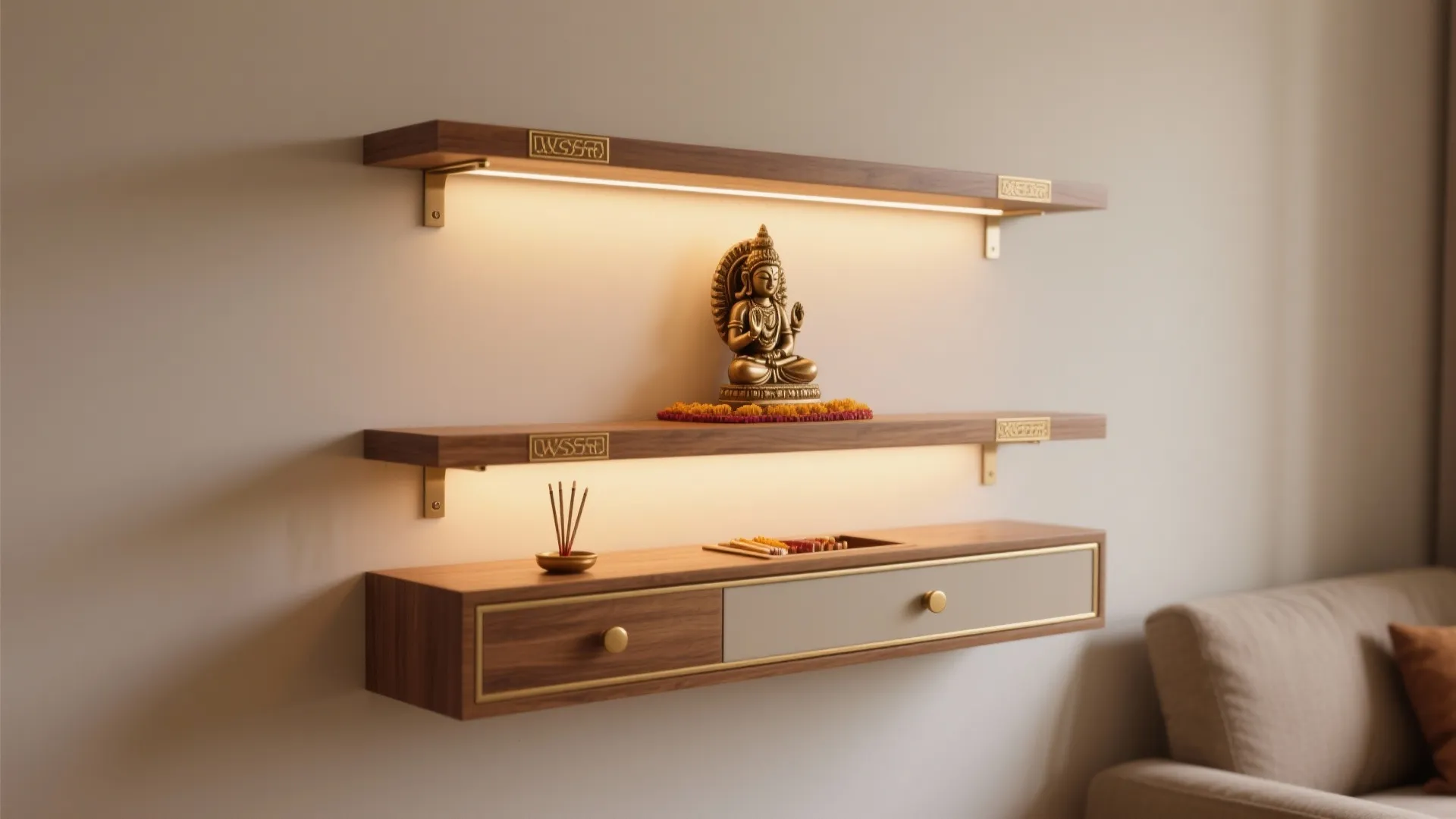

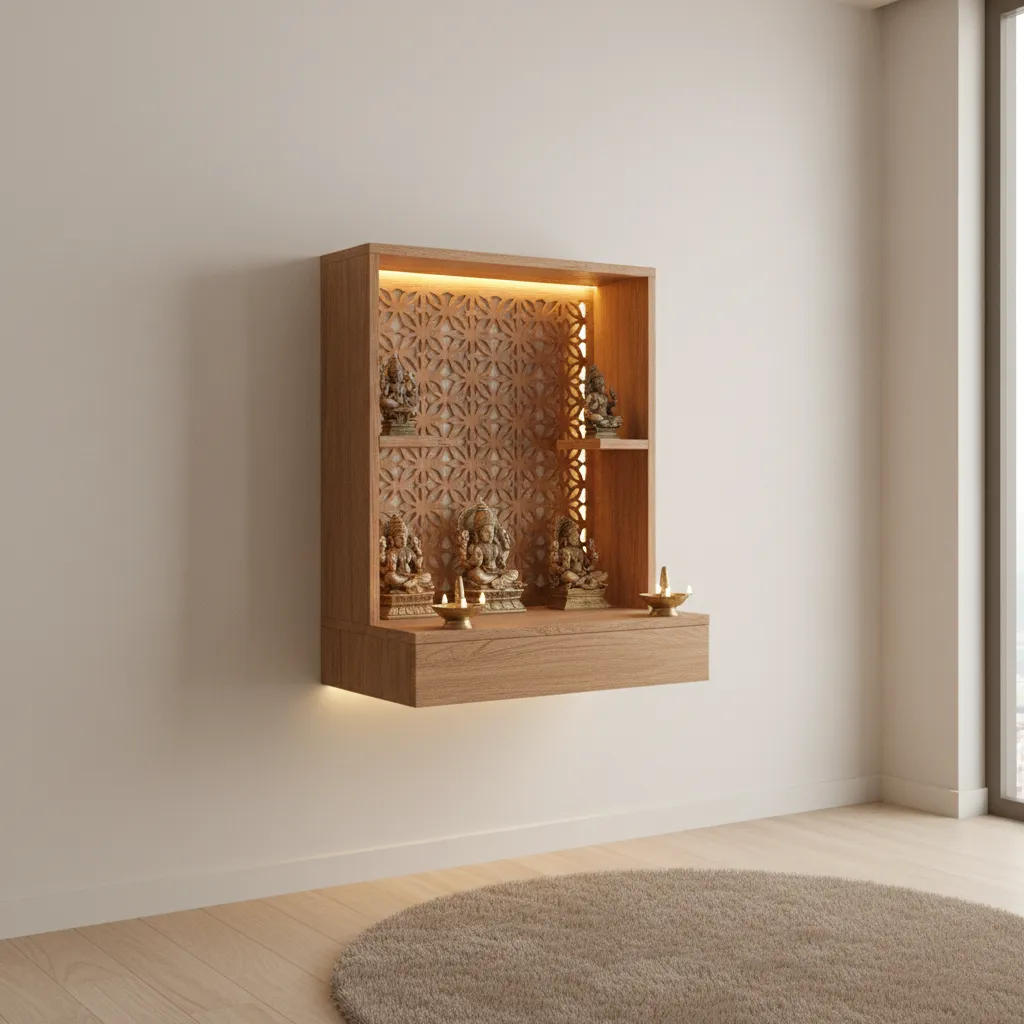

2) Floating Shelf Altar with Brass Accents and Hidden Drawer

My Take: When I can’t recess the wall, I float it. A pair of timber shelves (18–25 mm thick) with a slim brass inlay and a pencil-drawer below feels elegant and light. I’ve done this in rental apartments using French cleats and anchor bolts so the unit is removable without major wall damage.

Pros: Floating pooja shelf ideas look weightless and let you position the idol at eye level—great for meditative focus. The modularity is perfect for compact mandir designs: start with one shelf and add a second if you need a bell or diya platform later. With matching brass knobs and a small pull-out for incense sticks, daily rituals stay tidy and within reach.

Cons: Wall strength matters; drywall needs proper anchors, and brick needs shielded fasteners. Heavy stone or metal idols can overload a slim shelf; keep your load under the hardware rating and consider an anti-tip strap for the top piece. Also, floating edges gather dust, so a quick microfiber swipe is a weekly must.

Tips/Case/Cost: For 24–30-inch-wide shelves, I spec concealed brackets rated 50–75 lbs and fix them into studs or solid masonry. Set the top shelf 48–52 inches from the floor for a seated pooja posture; add an LED strip under the top shelf to softly wash the idol. Budget-friendly laminates look clean; upgrade to veneer with matte PU or solid wood if you want heirloom warmth.

save pin

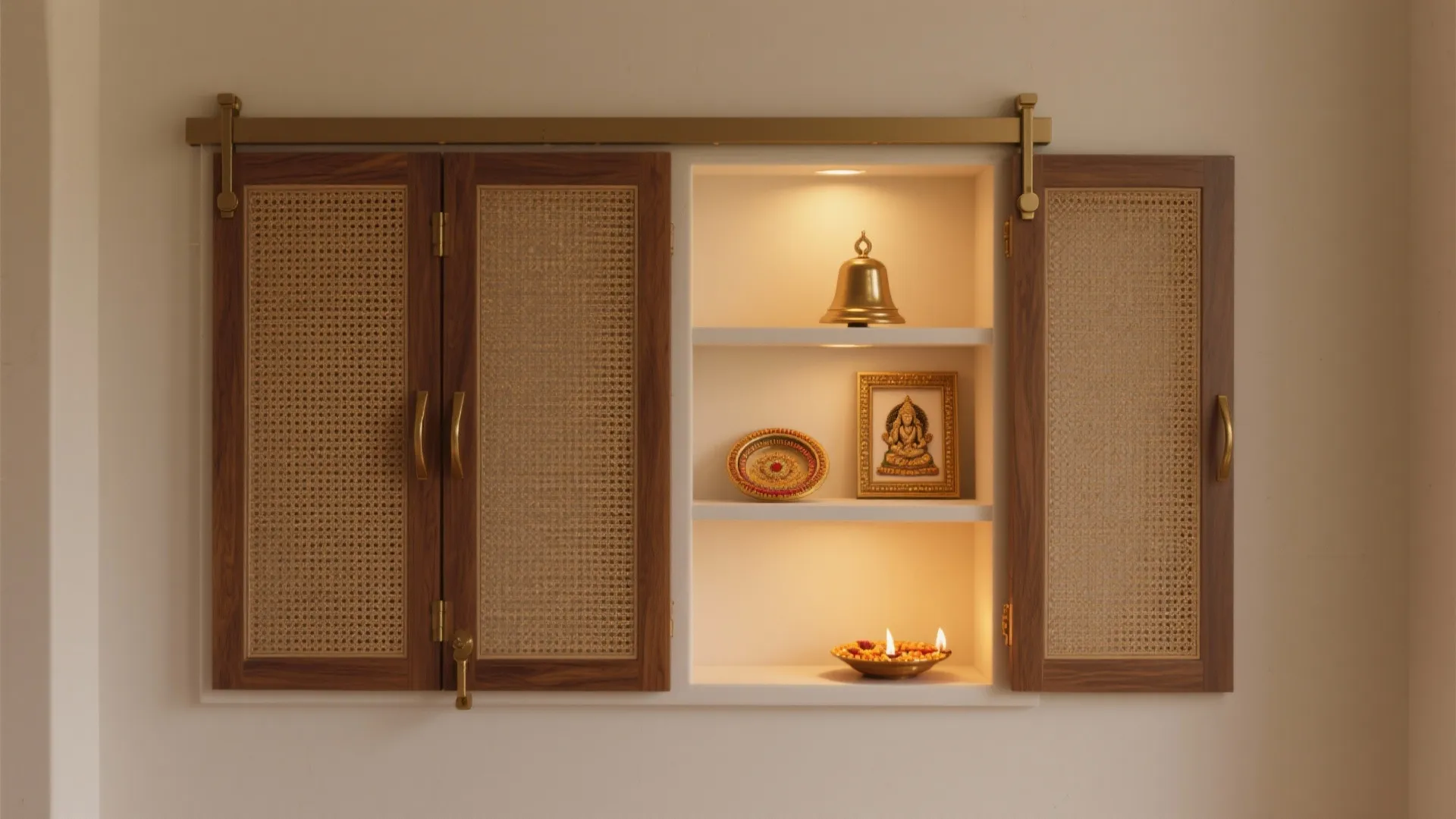

3) Sliding Jaali-Door Pooja Cabinet, Wall-Mounted

My Take: In living rooms, I often design a shallow cabinet with perforated cane, metal, or wood jaali doors—pure light and air, but visually serene. Sliding doors free up circulation in tight spots, and the interior can hold the bell, diya, aarti thali, and a small shelf for framed deities.

Pros: A pooja cabinet with sliding doors hides ritual items, visually calming the space after aarti, which helps in multifunctional rooms. Ventilation is built-in: I aim for at least 15–20% open perforation so incense smoke dissipates, reducing soot buildup inside. For open flame safety, keep combustibles at least 12 inches away from candles or diyas, a guideline echoed by the National Fire Protection Association’s Candle Safety Tip Sheet (NFPA).

Cons: Sliding tracks collect dust; choose top-hung systems to keep the floor track-free and easier to clean. Jaali can buzz if not stiffened—use a thicker frame or add magnets at the jamb to prevent rattle. If you love heavy brass bells, ensure the rail is rated and the carcass is well anchored.

Tips/Case/Cost: I like matte lacquer or veneer outside and wipe-clean laminate inside. Choose soft-close sliders and a small hidden drawer (80–100 mm height) for matchboxes and wicks. When clients want a richer focal point, I mock up an intricate jaali door pattern and test lighting color from warm white to amber; even tiny shifts in CCT change the mood dramatically.

save pin

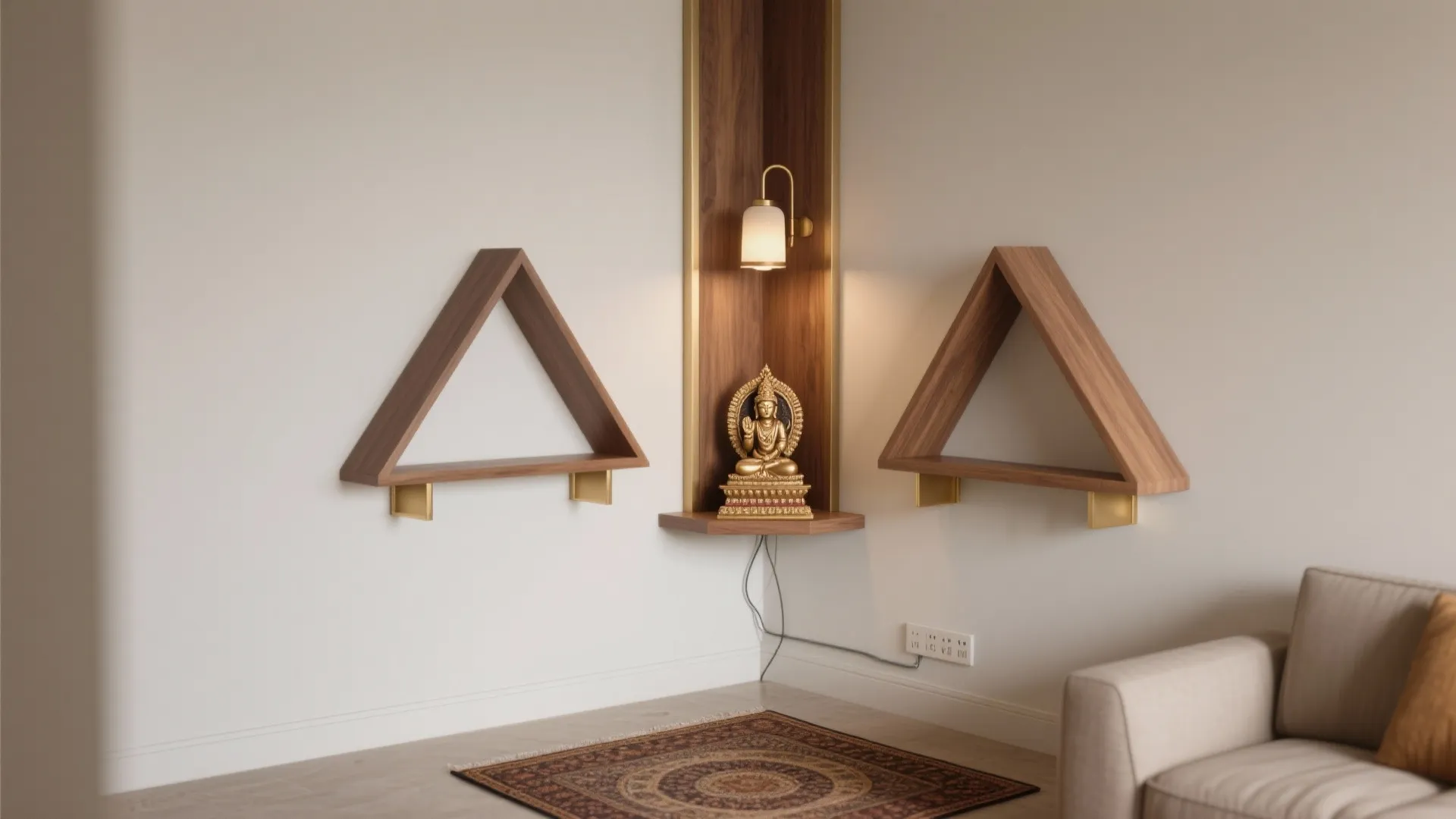

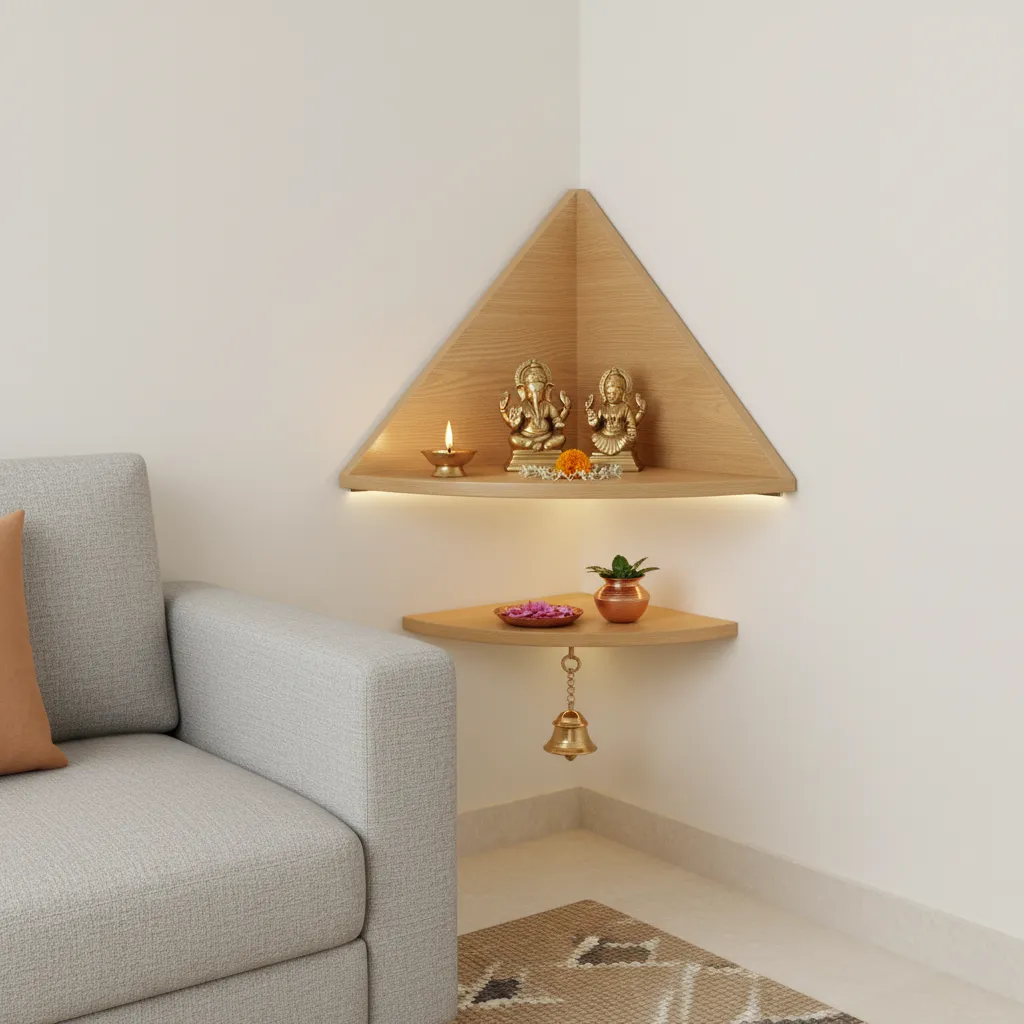

4) Corner Wall-Mounted Mandir to Unlock Dead Space

My Take: Corners are underrated blessings in small homes. I often wrap two triangular shelves across an internal corner, add a slender back panel, and angle a sconce so the idol glows without glare. The geometry feels intimate, and you reclaim “dead” space without blocking movement.

Pros: A corner pooja unit for studio apartments makes the most of odd niches, especially next to windows or a column return. Since the altar hugs two sides, you can visually zone the prayer area with a small rug and still keep the main room flexible. Corner mounting also improves sightlines—you get a gentle diagonal view from the sofa or dining table.

Cons: Aligning shelves in a true 90-degree corner takes patience; out-of-square walls are common. Cable routing to a corner sconce can be fussy if surface conduits aren’t allowed. Cleaning spider-prone corners is a chore, so choose wipe-friendly finishes and a sconce with a closed top.

Tips/Case/Cost: Keep each leg 18–24 inches for balance; if ceiling is high, a thin vertical back panel makes the setup feel taller. Use aluminum angle under the front edge if the shelf spans more than 24 inches. For layout clarity before drilling, I sketch a lightweight corner mandir layout and tape outlines on the wall to check reach and sightline comfort.

save pin

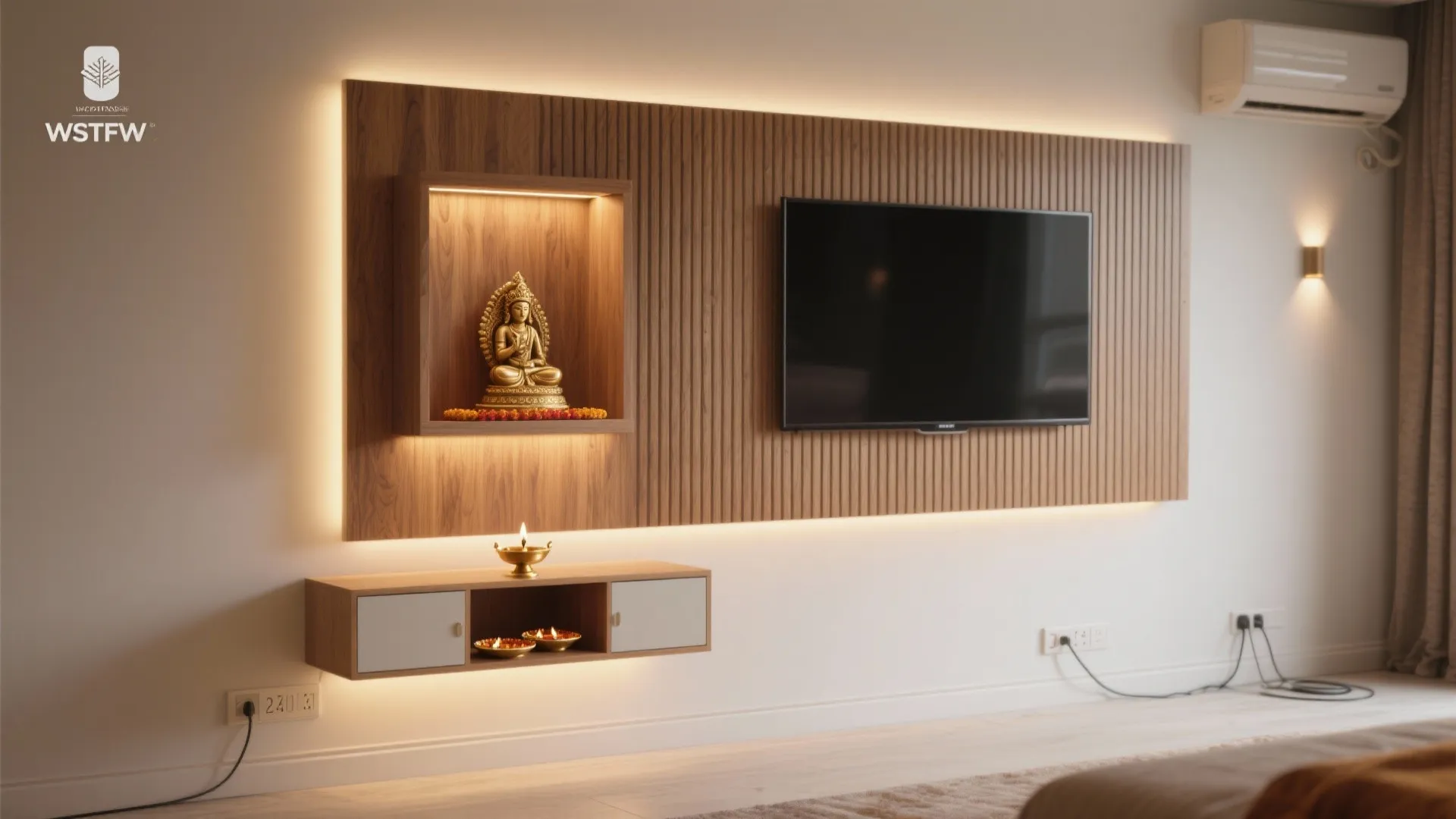

5) Media Wall Integration with Acoustic Backdrop

My Take: In ultra-compact living rooms, I integrate the pooja unit into the media wall but offset it from the TV. A sliver of fluted wood or PET acoustic panel becomes the altar backdrop, with a slim wall-mounted ledge and a tiny cabinet below. The look is cohesive yet respectfully zoned.

Pros: Integration keeps sightlines clean and minimizes visual clutter—perfect for wall-mounted pooja unit designs in living rooms that double as work-from-home zones. Acoustic PET panels (made from recycled fibers) subtly absorb noise, making chants feel calmer without visual heft. Warm LEDs are energy efficient; as the U.S. Department of Energy notes, LEDs use at least 75% less energy and last up to 25 times longer than incandescent bulbs, keeping your altar bright with minimal heat.

Cons: If the TV is too close, sound and visuals can distract during prayer—leave breathing room. Cable congestion behind a media wall is real, so plan early for a dedicated low-voltage channel to the altar lights. If the kitchen is open-plan, check that cooking grease isn’t drifting toward the pooja unit.

Tips/Case/Cost: Place the altar at least 24–30 inches from the TV edge and center it on a vertical feature like fluting to signal respect. Add a micro-cabinet with a lift-up flap for aarti plates; use soft-close hinges to avoid late-night clatter. In rentals, choose screw-mounted panels and cleats so the assembly is removable without heavy patchwork.

[Section: Summary]

Small pooja corners don’t limit you—they invite smarter choices: lighter profiles, safer lighting, and finishes that stay beautiful. With wall-mounted pooja unit designs, the mantra is simple: simplify, integrate, and protect. Mind the basics (clearances, ventilation, wiring), and you’ll enjoy years of calm rituals in even the tiniest home. Which of these five ideas would you try first in your space?

[Section: FAQ]

save pin

FAQ

1) What is the ideal depth for a wall-mounted pooja unit?

For most compact homes, 120–180 mm (5–7 inches) works well. It’s deep enough for small idols and diyas, yet shallow enough to keep hallways clear. If you need storage, add a 100 mm pencil drawer below rather than deepening the shelf.

2) Is it safe to use real diyas or candles in a wall-mounted altar?

Yes—with clearances and vigilance. Keep anything that can burn at least 12 inches from open flames, and never leave candles unattended; this aligns with the National Fire Protection Association’s Candle Safety guidance (NFPA). Prefer a stable diya holder with a drip tray to reduce soot.

3) What lighting specs should I consider?

Use warm LEDs (2700–3000K) and dimmable drivers. A comfortable target is around 300–500 lux on the idol for evening rituals, an informal range consistent with common IES task-light recommendations for visual comfort. Place LED strips in aluminum channels with diffusers to avoid hot spots.

4) Which materials resist soot and stains best?

Back-painted tempered glass, high-pressure laminates, and matte PU on veneer are easy to wipe. Avoid open-pore finishes right behind the diya to minimize staining. If you love fabric or wallpaper, confine it to outer zones and protect the core altar area with glass or laminate.

5) How do I mount a heavy brass or stone idol safely?

Check shelf and bracket load ratings and anchor into studs or solid masonry. For heavier pieces, add hidden steel angles beneath the front edge and an anti-tip tether at the back. Keep the idol centered over supports to prevent sagging over time.

6) Can I integrate a pooja unit into a living-room TV wall?

Absolutely—offset it from the screen and introduce a distinct backdrop like fluted wood or acoustic PET to signal a sacred zone. Maintain 24–30 inches clearance from the TV edge to reduce distractions and heat exposure.

7) What budget should I expect for wall-mounted pooja unit designs?

Simple floating shelves with LED can start modestly, while recessed niches or jaali-door cabinets fall into a mid-range bracket due to carpentry and electrical work. Premium veneers, brass inlays, and custom glass uppers will add to the bill; plan a 10–15% contingency for site surprises.

8) How do I keep smoke from staining the wall?

Use a lidded diya or incense holder with a drip tray and ventilated doors or perforations if the unit is enclosed. Position a small, upward-aimed LED or sconce to encourage airflow, and wipe the back panel weekly—glass and laminates clean fastest.

[Section: Sources Cited]

- National Fire Protection Association (NFPA) – Candle Safety Tip Sheet (clearance and supervision guidance).

- U.S. Department of Energy – LED Lighting Basics (energy and longevity data).

- Illuminating Engineering Society (IES) – General comfort ranges referenced for task lighting.
