I’ve redesigned dozens of compact apartments, and lately wall mounted track lighting has become a quiet star of small-space lighting trends. With flexible heads and slim rails, it delivers the layered lighting we crave without crowding ceilings. Small spaces spark big creativity, and lighting is where that truly shows.

In this guide I’ll share 5 design ideas for wall mounted track lighting, grounded in my own projects and what current data says about glare, beam spreads, and energy use. You’ll get practical placement tips, real pros and cons, and small-budget workarounds that I actually use on site.

First up, we’ll look at how to create task, accent, and ambient layers from the wall—then map them to your plan. To help you visualize layouts, I often reference “L-shaped counters” and “gallery-style walls” when choosing track positions. And yes, we’ll keep it friendly and hands-on throughout.

[Section: 灵感列表]

1) Minimal, wall-hugging runs for layered lighting

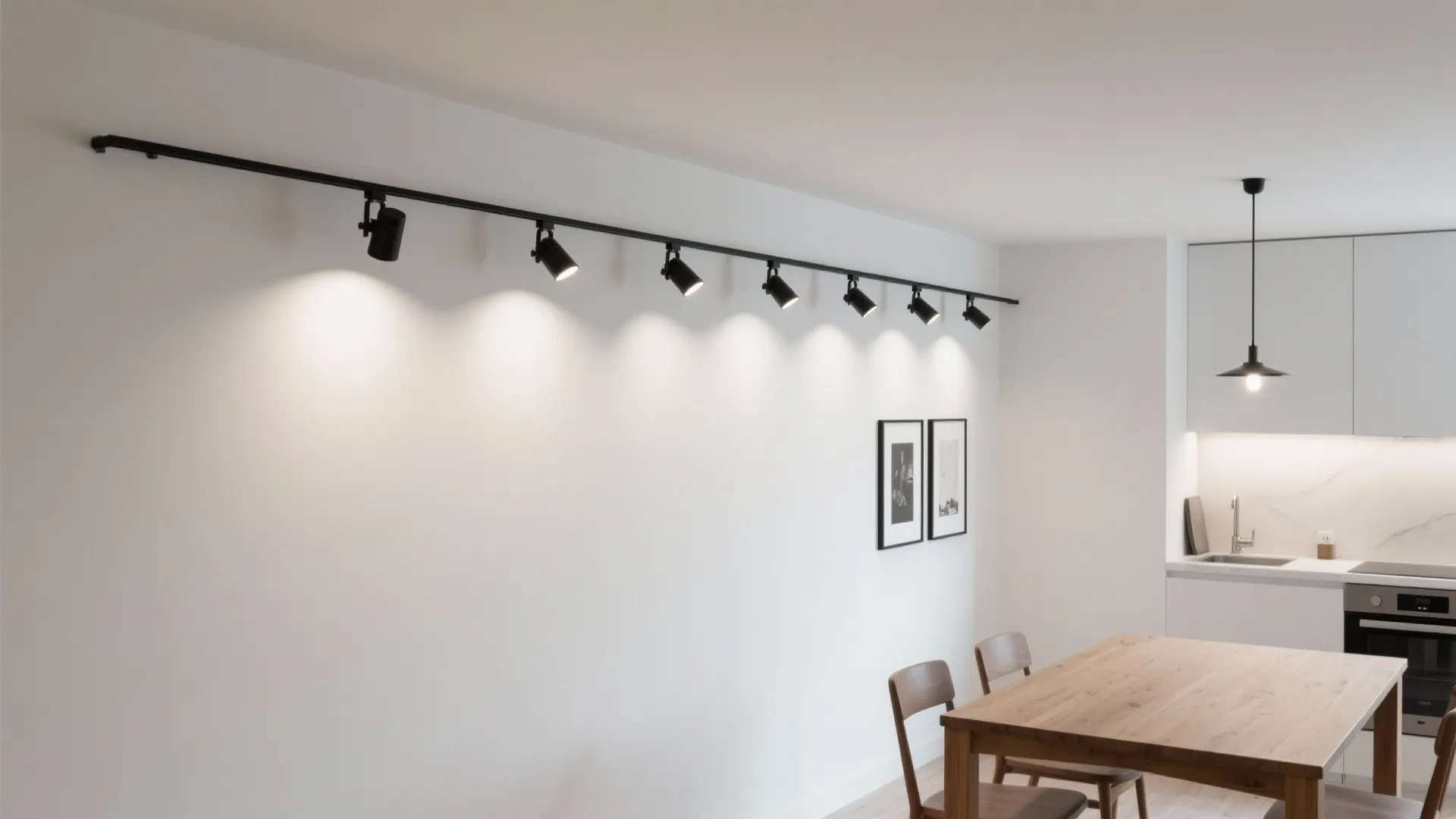

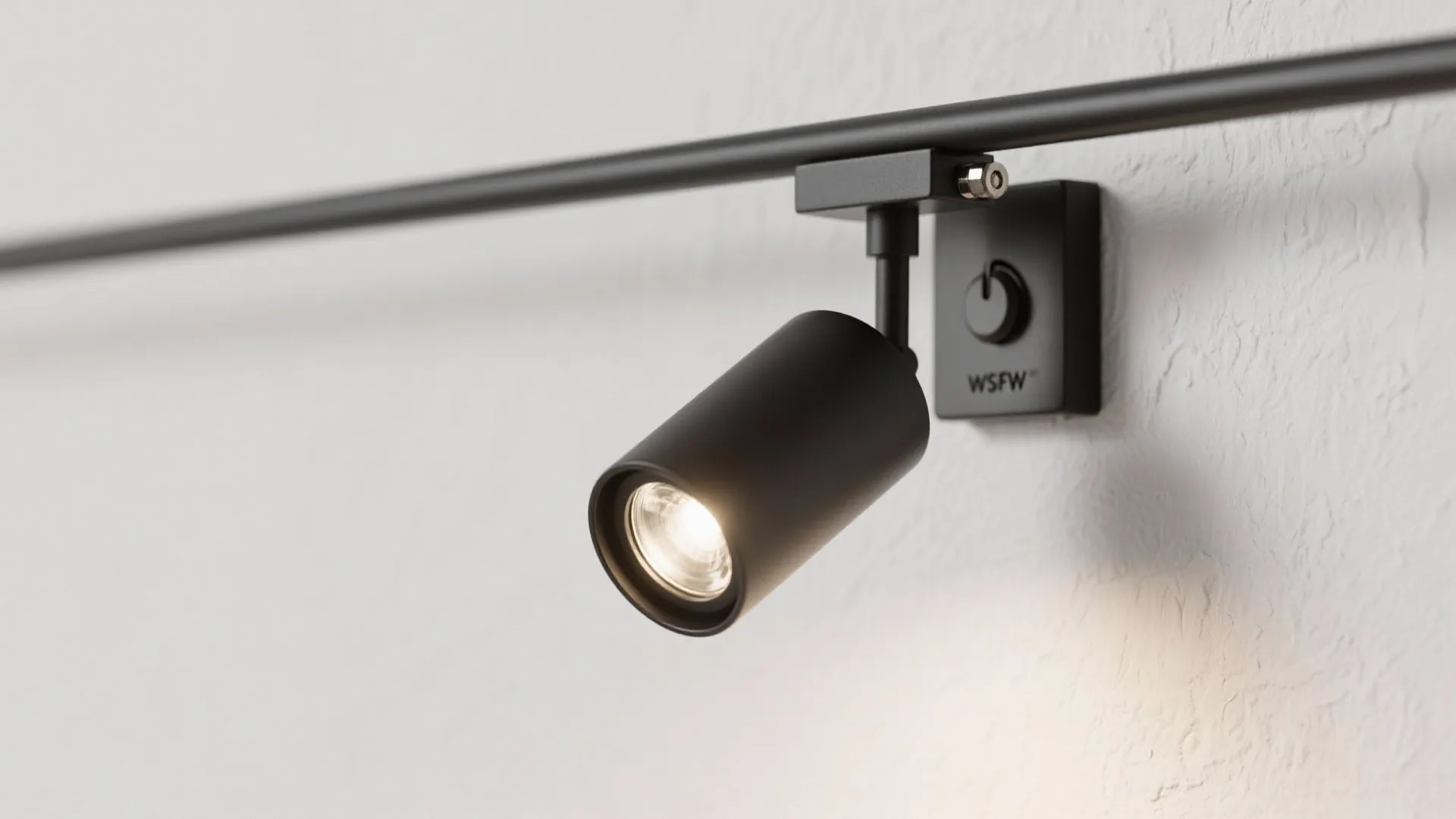

My Take: When ceiling access is messy or concrete, I mount a slim track 15–25 cm below the ceiling line. In a 38 m² studio I renovated last year, one continuous run along the long wall gave me ambient wash, art accents, and kitchen task lighting—all from a single circuit.

Pros: Wall mounted track lighting simplifies cable routing and avoids core-drilling ceilings. With wide-flood heads (e.g., 60°–90°), you can create soft ambient wash while keeping glare low—great for small apartments and renters. It’s also easy to expand later with extra heads or a second run, supporting the long-tail need for “modular wall track systems.”

Cons: A wall run shows more if the wall isn’t flat—shadows can expose imperfections. If the room is very deep, wall wash may feel uneven at the far side, and you’ll need tighter beam control to avoid hot spots over reflective art frames. Dimmers are essential; otherwise the wash can feel flat at night.

Tip: Choose matte-black tracks on white walls for a crisp architectural line, or color-match to make the hardware disappear. Use 2700–3000K LEDs for living areas to avoid a clinical mood.

To see a compact plan where a single wall run supports multiple zones, I like referencing gallery-inspired wall runs during early planning.

save pin

save pin

2) Aimable task beams over counters and desks

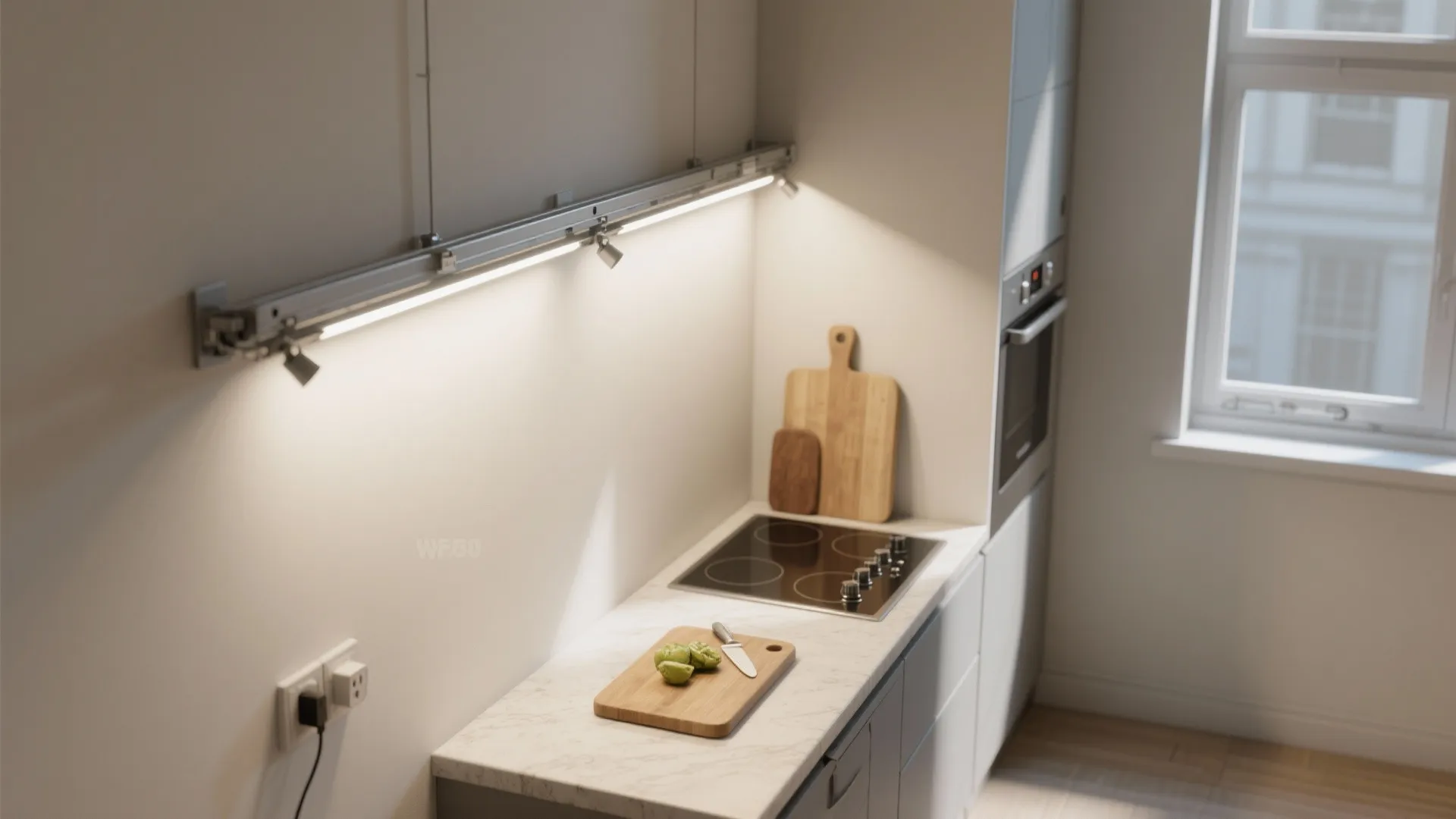

My Take: In narrow kitchens, I wall-mount a short track parallel to the counter, 40–50 cm above the worktop, then angle heads to skim the surface. It beats bulky under-cabinet lights when cabinetry is uneven or rental-grade.

Pros: Precise aim reduces shadows from your body, which is a common complaint with fixed ceiling cans. Using 24°–36° beams and a CRI 90+ LED supports the long-tail keyword “high-CRI task lighting for small kitchens,” giving better color rendering for food prep. According to the IES Lighting Handbook (Illuminating Engineering Society), targeted task lighting can reduce overall wattage by letting you dim ambient layers without sacrificing usability.

Cons: You’ll notice fingerprints on matte heads near grease zones—keep a microfiber cloth handy. If the track is too low, taller users might catch glare; add honeycomb louvers or step up one beam angle size to soften the cut-off.

Cost note: Expect $120–$250 for a 1–1.5 m track with 3–4 heads in mid-tier brands, plus $80–$150 for a dimmer module. For renters, look for plug-in kits with surface raceways.

save pin

save pin

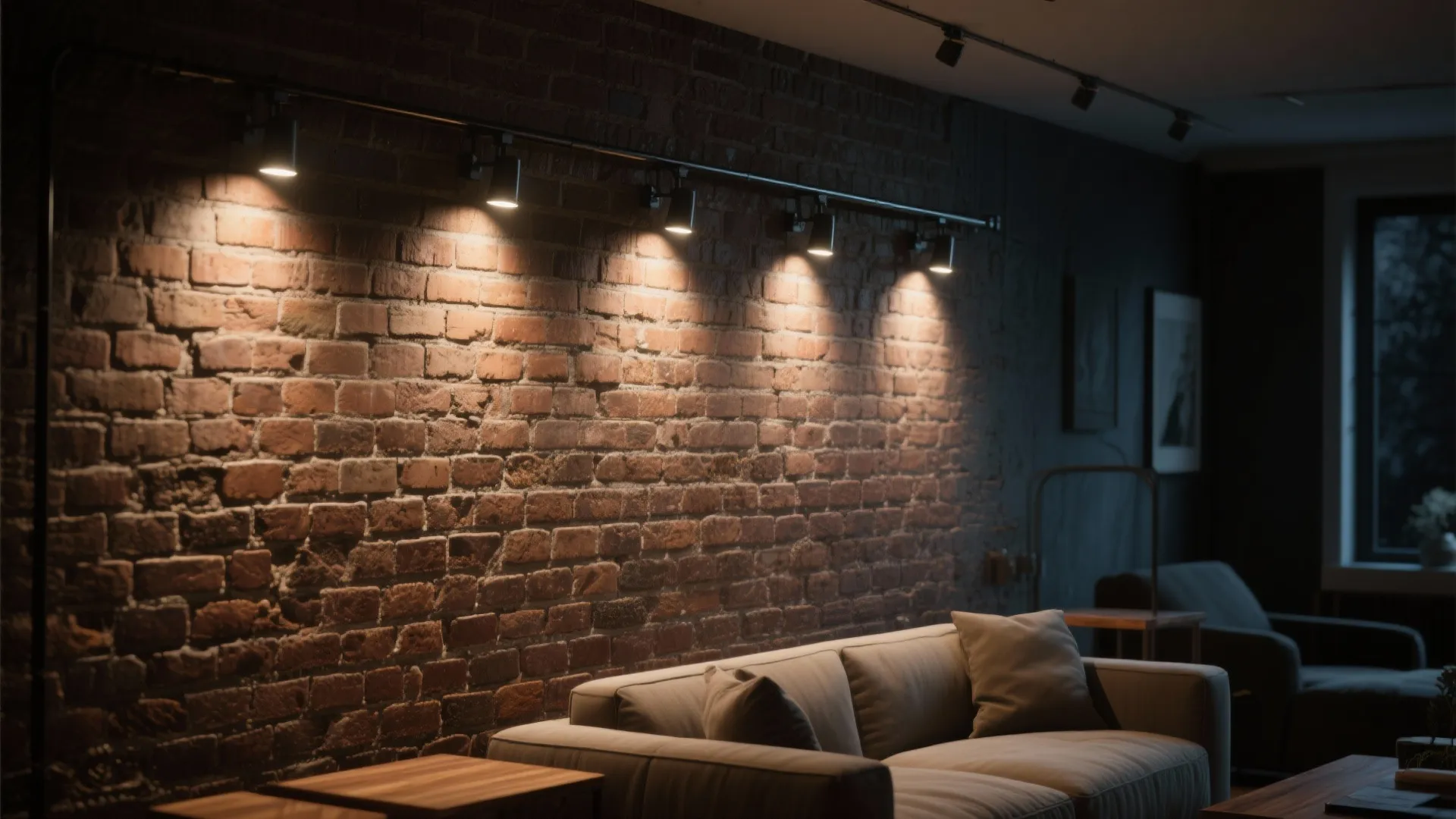

3) Wall grazing to celebrate texture (brick, limewash, wood slats)

My Take: In one loft with exposed brick, I installed a wall-mounted track just 15 cm off the surface and aimed heads steeply to graze. The texture came alive at night—instant depth without art.

Pros: Grazing amplifies material character, a favorite small-space trick because texture adds richness without adding objects. Long-tail benefit: “wall grazing track lighting for brick and plaster” uses narrow beams (10°–20°) to sculpt shadows. The IES recommends tight setbacks and consistent spacing to avoid scallops; it’s one of the most dramatic, energy-efficient accent techniques.

Cons: Grazing also highlights every patch and bump. If your wall is patched, consider a wider beam or step the track farther from the wall (25–30 cm) to soften imperfections. Dust shows on textured surfaces—keep a soft brush in your cleaning kit.

Case tip: Mark the aiming angle in pencil during testing; tiny tweaks change everything. If you’re planning multiple planes—brick plus art—stagger head wattage so art doesn’t compete with the wall glow.

For planning multi-plane lighting in tight rooms, I often reference layouts like multi-plane light studies to keep beam overlaps intentional.

save pin

save pin

4) Picture-perfect accenting for art and shelves

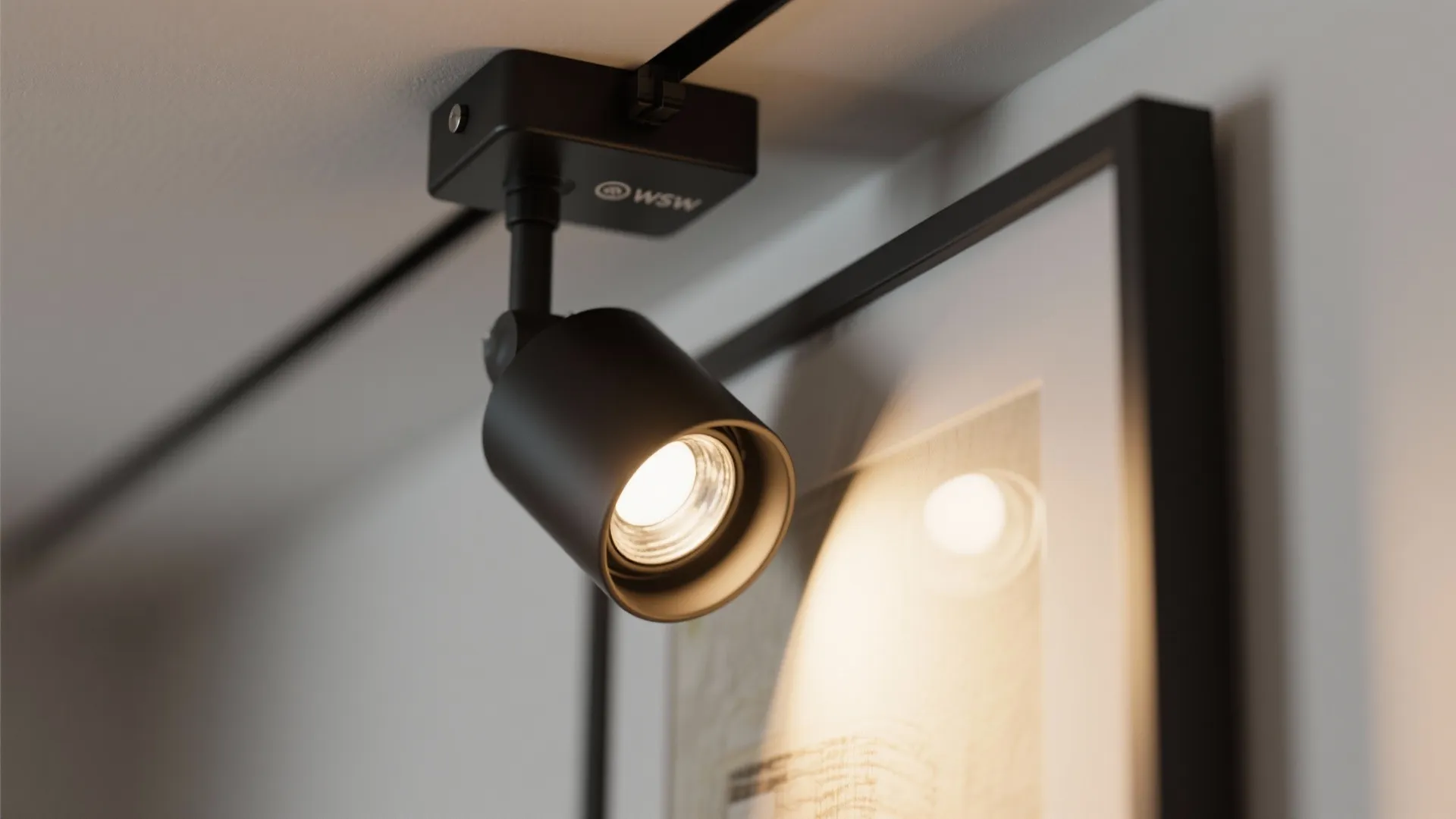

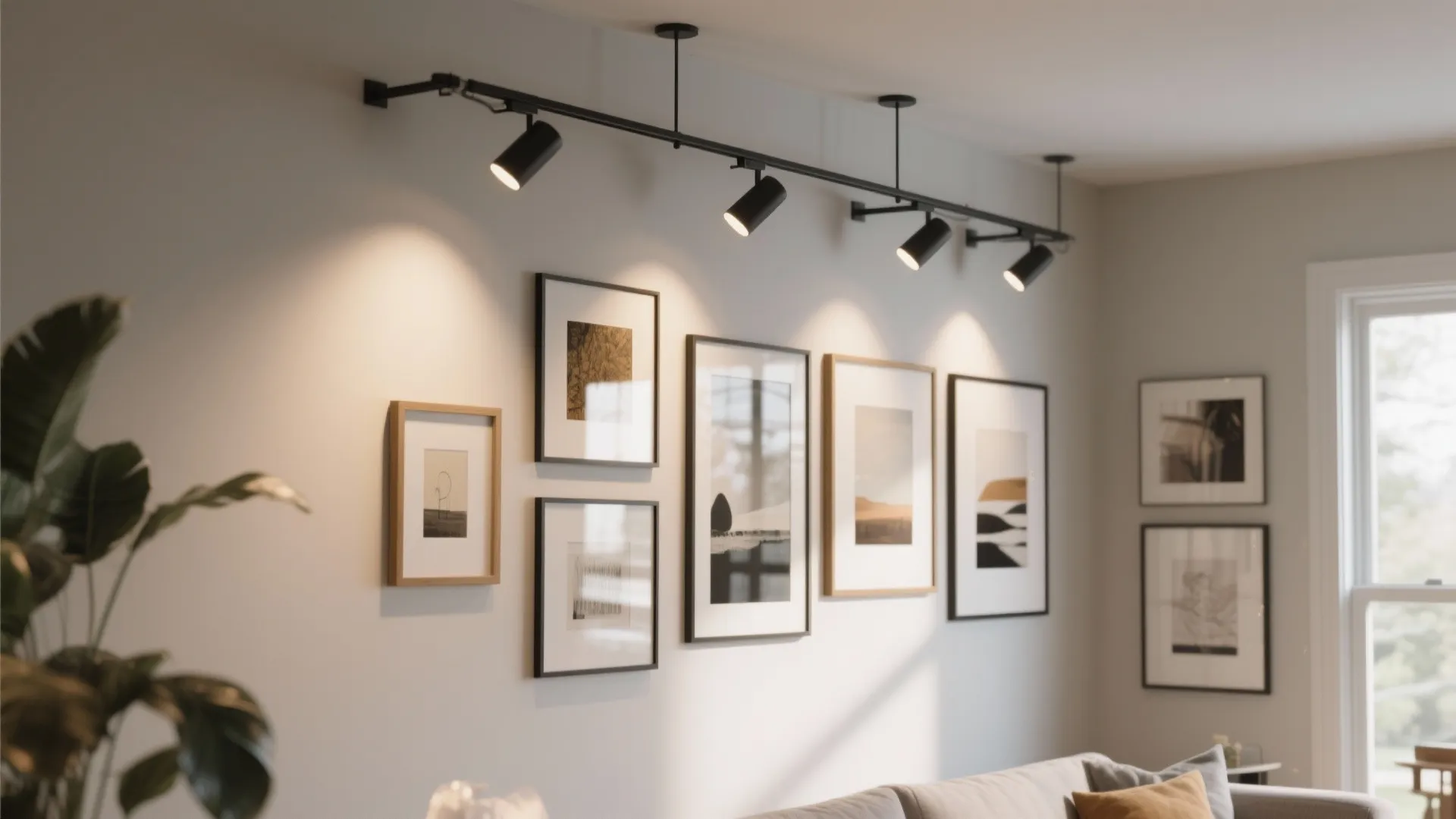

My Take: Clients love a salon wall, but glare on glass is a mood killer. I mount a track slightly off-center above the composition and aim at a 30° angle to the artwork—my go-to from gallery standards.

Pros: A 30° aim minimizes reflection and provides even coverage across frames; combine 2700–3000K with CRI 95+ for truer whites. This satisfies the long-tail need for “museum-style track lighting for small galleries at home.” The Getty Conservation Institute and IES both advise managing lux levels and UV output for sensitive works; quality LEDs meet these criteria with low IR and controlled output.

Cons: Highly reflective acrylic still bounces highlights—switch to matte glazing or tweak angle to 25°. Mixed frame depths create uneven spill; use snoots or barn doors to tighten the beam and keep shelves from washing out.

Budget tip: Prioritize two premium heads for hero pieces and use mid-tier heads for the rest. Calibrate with a cheap lux meter; target 150–300 lux for prints and non-sensitive art.

save pin

save pin

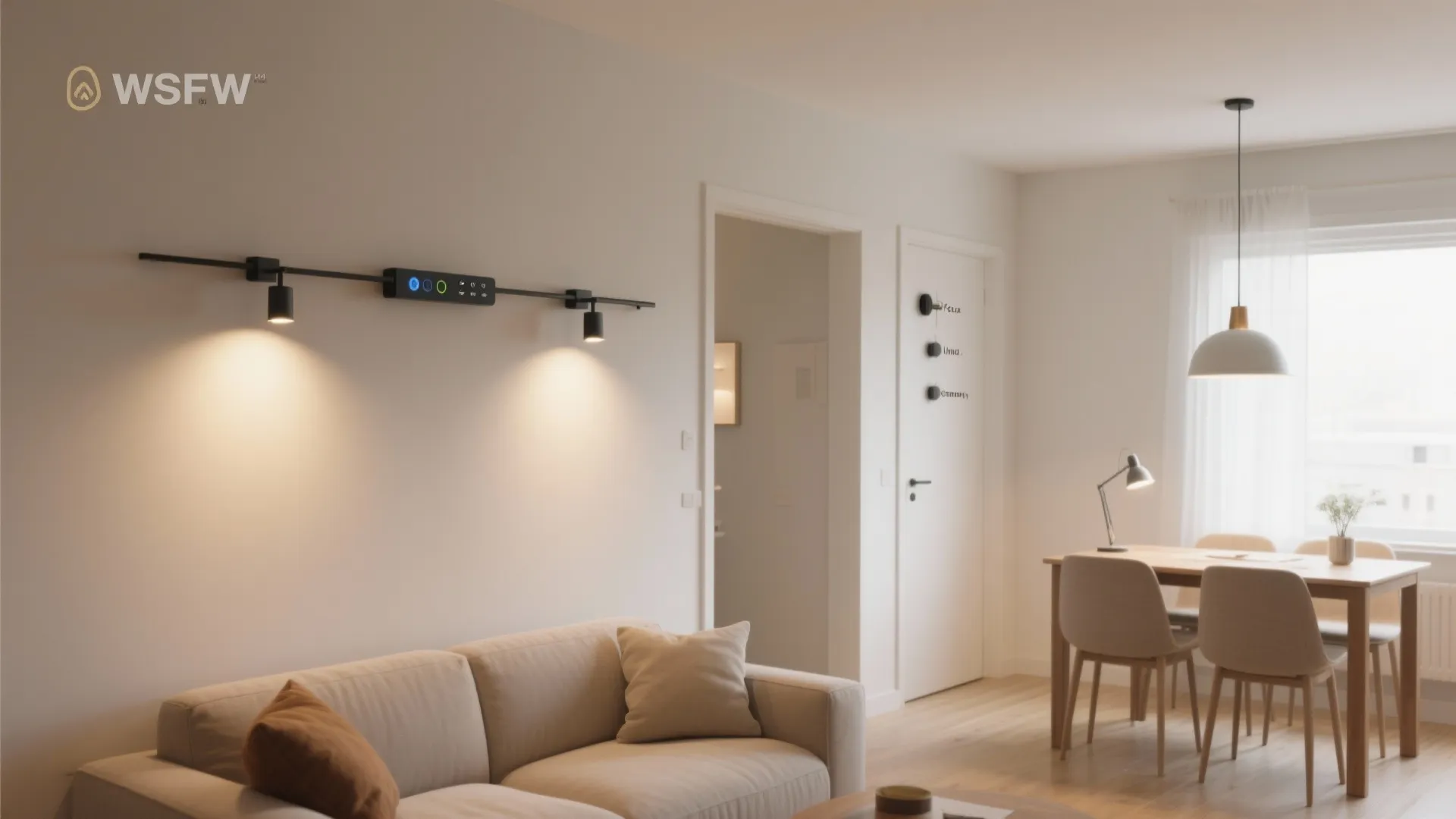

5) Flexible living zones in studio apartments

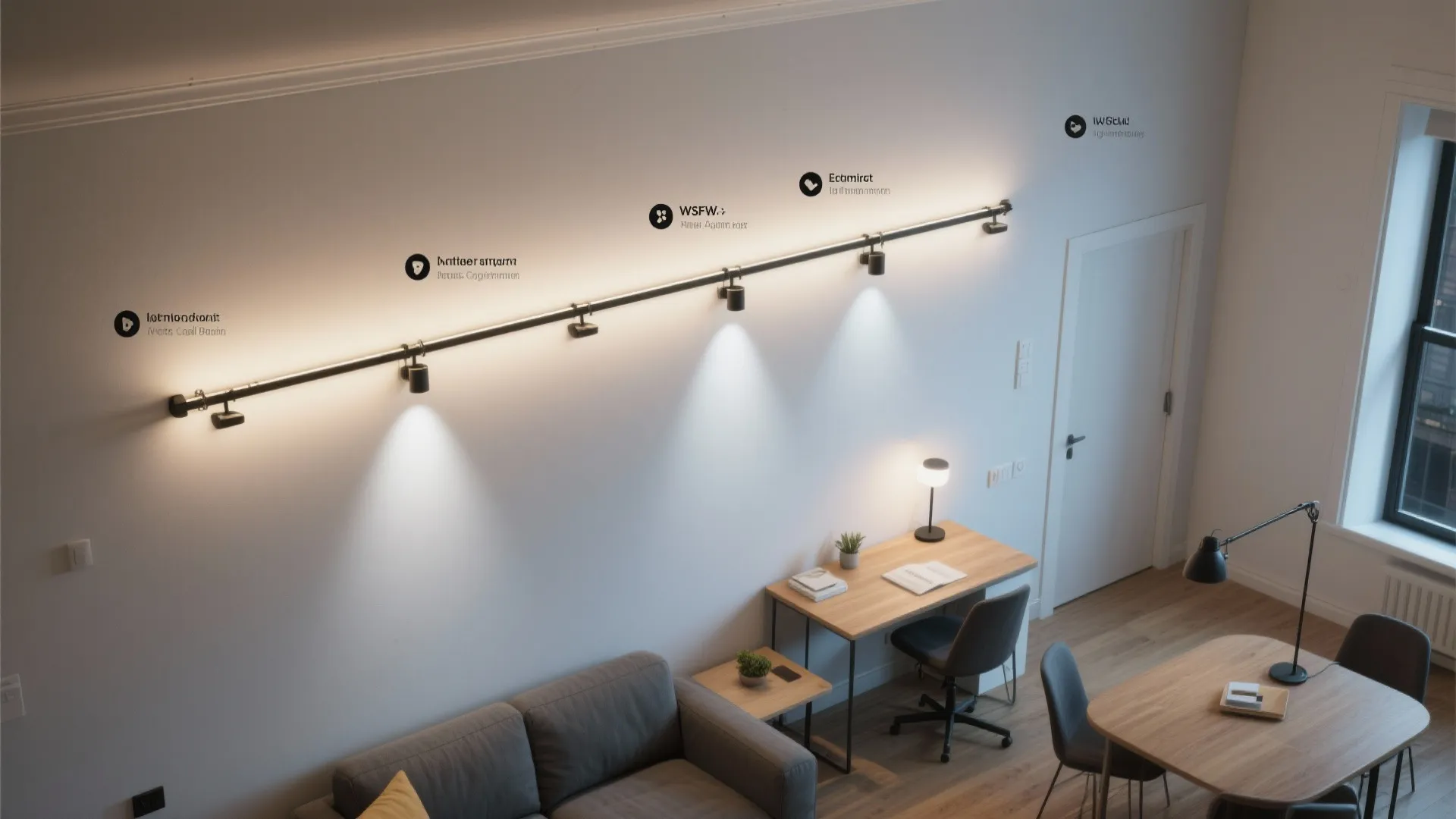

My Take: In studios, zones shift: sofa becomes guest bed, dining morphs into desk. I run a wall-mounted track spanning the main wall and assign heads to “zones”—two for the sofa, one for dining, one for entry. A single smart dimmer sets personalities for each activity.

Pros: This approach aligns with the long-tail keyword “zoned lighting control for small apartments,” helping a tiny home feel intentional rather than improvised. Smart dimmers and scene control reduce switches and clutter while boosting usability. You can add a pendant adapter on the track to drop a shade over dining when needed—no rewiring.

Cons: Over-zoning leads to visual noise if too many heads are visible—keep the count lean and finishes consistent. App-based dimmers can be fussy; keep a physical wall control for guests and quick adjustments.

Setup tip: Name scenes like “Focus,” “Unwind,” and “Company.” Use warmer CCT on sofa heads and slightly cooler on task heads for contrast without harshness.

When I lay out zones and head counts for clients, I often compare options using open-plan lighting mockups to balance task, accent, and ambient layers visually.

[Section: 总结]

Small kitchens and studios don’t limit style; they reward smarter choices—and wall mounted track lighting is one of my favorite tools for that. With careful beam selection, proper aiming angles, and thoughtful zoning, you can achieve gallery-worthy light on a renter’s timeline. As the IES notes, layering and control matter more than sheer wattage in residential design—especially in compact homes. Which of these five ideas are you most excited to try?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

1) What is wall mounted track lighting best for in small spaces?

It’s ideal for layered lighting without invasive ceiling work—task, accent, and ambient from one rail. You can add or re-aim heads as your layout changes.

2) How high should I mount the track?

For ambient wash, mount 15–25 cm below the ceiling line. For task over counters, aim for 40–50 cm above the worktop and use 24°–36° beams to cut shadows.

3) What color temperature and CRI should I choose?

Use 2700–3000K for living areas and CRI 90+ (95+ for art). This keeps skin tones and materials looking natural while avoiding a clinical feel.

4) Can wall mounted track lighting replace ceiling downlights?

Often yes in compact rooms. By combining wide-flood heads for ambient and tighter beams for tasks, you can avoid drilling ceilings while retaining flexibility.

5) How do I avoid glare on framed art and glossy surfaces?

Aim at roughly 30° to the artwork and consider honeycomb louvers or snoots. Museums follow similar guidance per the IES and Getty Conservation Institute.

6) What’s a typical budget?

Mid-tier kits with 1–1.5 m rail and 3–4 heads run $120–$250, plus $80–$150 for a dimmer. Expect higher for CRI 95+ heads or smart control.

7) Is installation renter-friendly?

Look for plug-in surface kits and paintable raceways. They minimize wall damage and can move with you—store original wall anchors and caps.

8) Can I plan my layout digitally first?

Yes—mockups help you test beam spreads and zones before buying. Try mapping zones and head counts against a simple floor plan; I often compare options using scene-based light studies to see overlaps before install.
