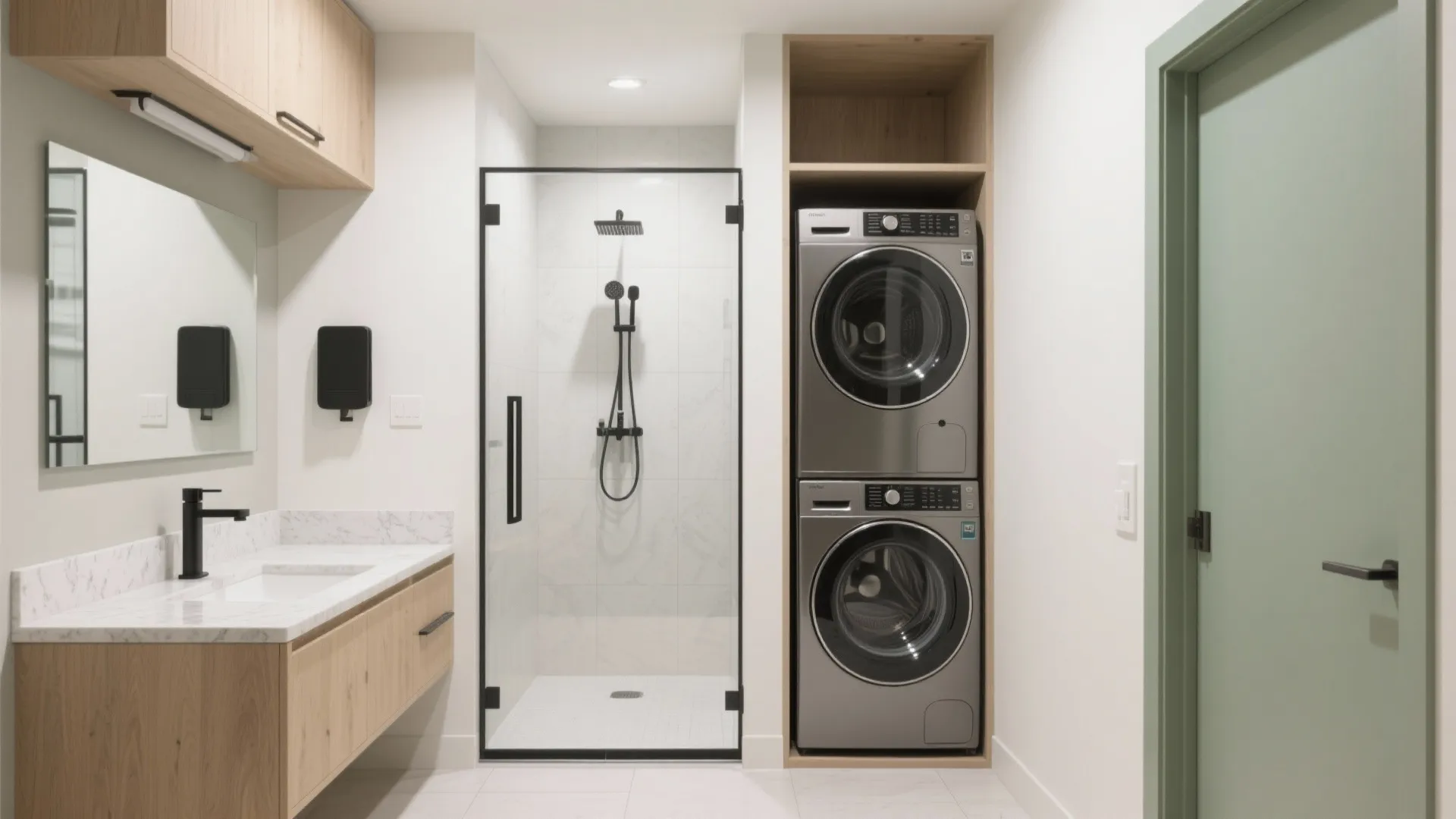

5 ways: small bathroom laundry room combo layout with shower: A senior interior designer’s field‑tested ideas for making a tiny bath + laundry + shower work beautifully

[Section: Introduction]

Designers talk a lot about micro-living for a reason: constraints force clarity. In the last few years, I’ve seen a surge of requests for a small bathroom laundry room combo layout with shower—especially in urban condos and accessory suites. The good news? Small space sparks big creativity when you know what to prioritize.

In this guide, I’ll share 5 design inspirations I’ve used on real projects. You’ll get my personal take, pros and cons grounded in experience, and a sprinkle of expert data so decisions feel less risky and more right. Let’s make every inch pay rent.

[Section: Inspiration List]

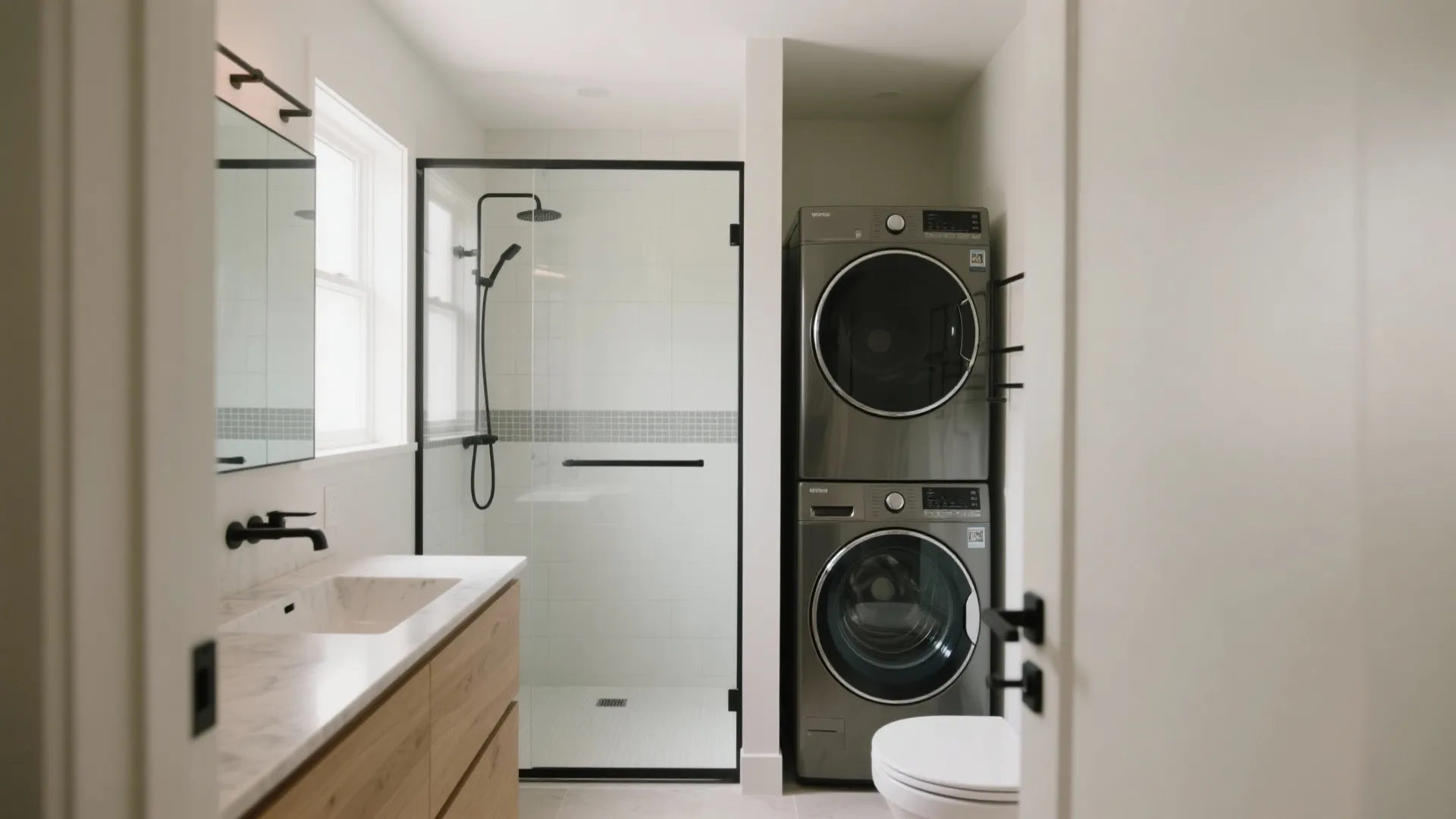

Glass partition or half-wall to shield laundry from the shower

My Take

I’m a huge fan of surgical separation in tight rooms. On several remodels, I’ve used a fixed glass pane or a waist-high half-wall to keep laundry machines dry while still letting light flow. A glass partition keeps the shower splash-free without making the room feel boxed in.

Pros

This move preserves sightlines and turns steam-prone spray into a controlled zone—perfect for a small bathroom laundry room combo layout with shower. Because the pane is fixed and frameless, cleaning is fast and there’s less hardware to crowd the room. In tiny spaces, a clear divider also pairs well with a light, neutral tile to amplify brightness and reduce visual clutter.

Cons

Fixed glass is, well, fixed—so you can’t redirect spray during cleaning, and it may require a squeegee habit. If the shower head is aimed poorly, even a pane can’t solve overspray entirely; you might need a handheld on a slide bar. Half-walls block more splash, but they’ll cut a little light compared to all-glass.

Tips / Case / Cost

Size the fixed pane to cover at least two-thirds of the shower’s open edge. Use a hydrophobic coating to reduce spots. If budget is tight, a tiled half-wall with a glass top portion can deliver a premium look without the cost of a full-height custom panel.

save pin

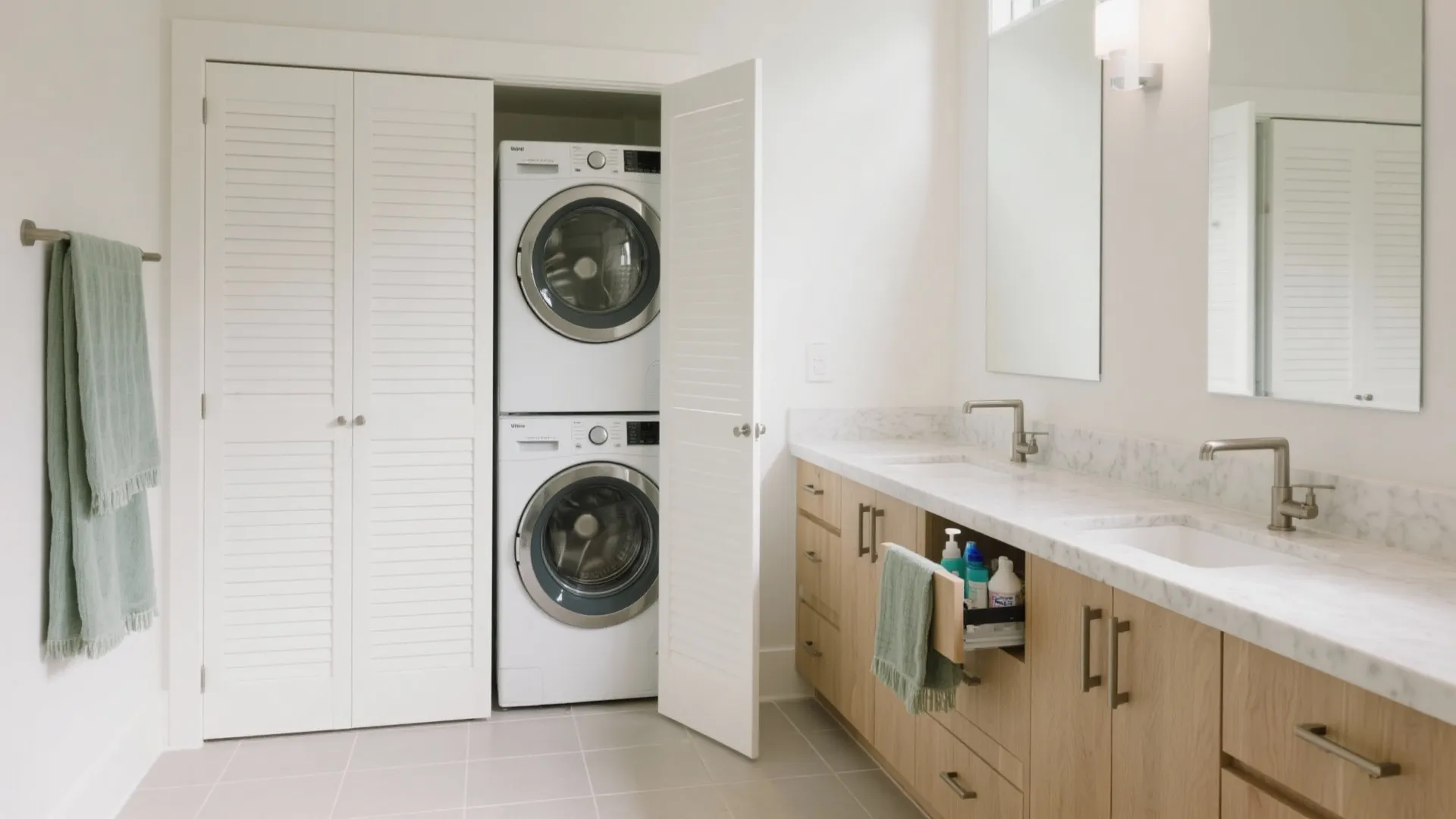

Stacked washer-dryer in a closet next to the vanity

My Take

When floor area is precious, I stack machines and slide them beside the sink wall. A shallow, vented closet with bi-fold or louvered doors hides the laundry hum and keeps towels within arm’s reach of the dryer. I like to run a continuous countertop over the closet return to make it feel integrated.

Pros

Stacking reclaims footprint, leaving room for a proper shower width and storage—vital in a stacked washer dryer in bathroom scenario. With decent door soundproofing and vibration pads, noise can be surprisingly tame. A closet creates a micro-utility zone for detergents, hamper, and a slim pull-out for cleaning supplies.

Cons

Stacked units can be tall; short users may need a step stool to reach controls. Service access is tighter, so plan removable panels and extra slack in hoses. Venting and makeup air need attention—especially with vented dryers—so coordinations with MEP trades are non-negotiable.

Tips / Case / Cost

If ducting is complicated, consider a heat-pump or condensing ventless dryer to simplify routing. Add an overflow pan under the washer tied to a drain or leak sensor. Soft-close bi-folds keep door projections minimal compared to swing doors.

save pin

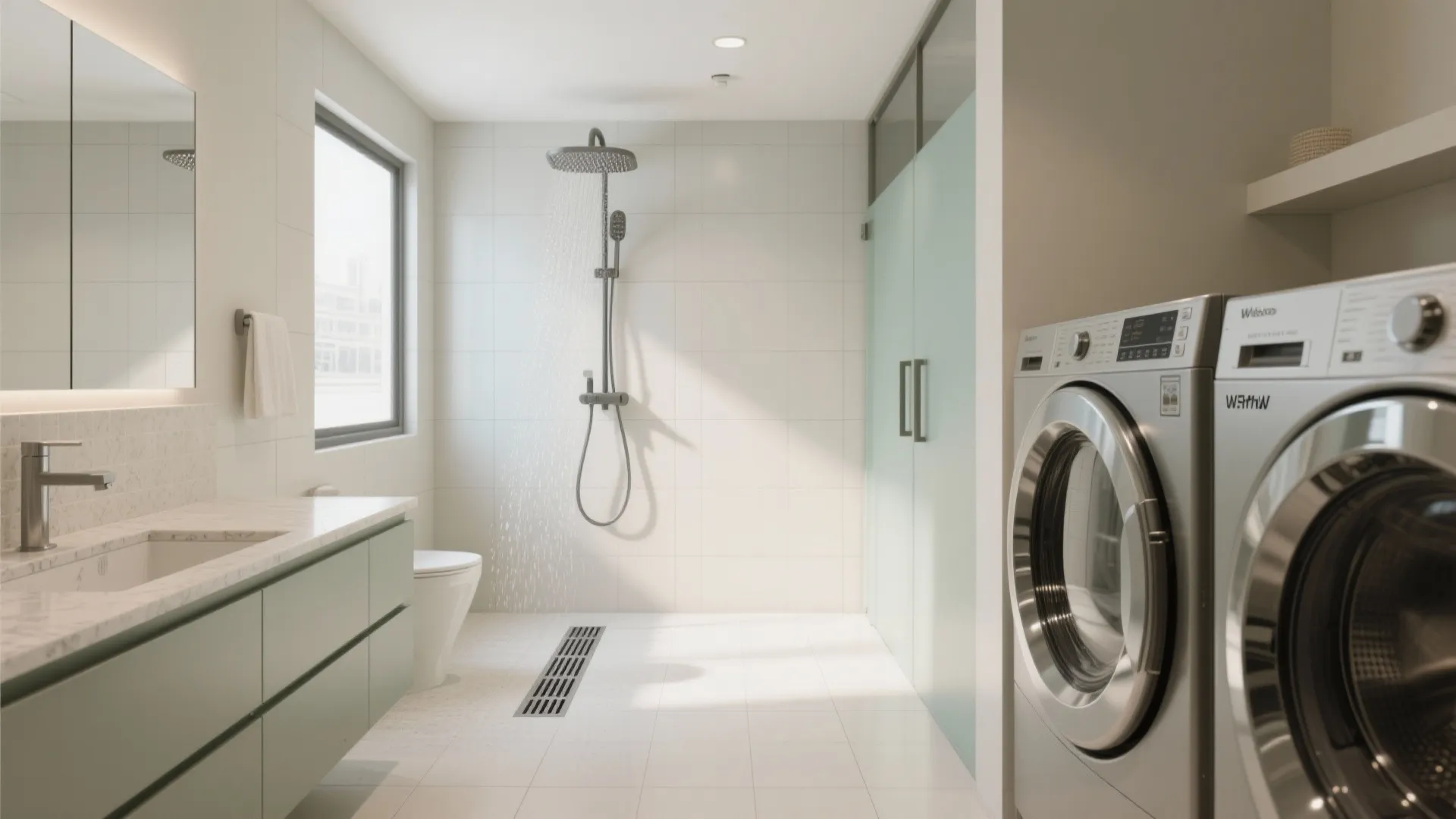

Wet room layout that unites shower and laundry zone

My Take

For the bold and practical, a wet room layout lets the entire shower area act as a waterproofed basin. I’ve used this when every inch matters: the shower and laundry share the same drain strategy and tile plane, with clear zoning and a smart slope. It’s the most space-efficient solution if your household can live with a little water exposure near the machines.

Pros

Waterproofing the whole envelope simplifies transitions and makes a wet room laundry bathroom combo especially resilient. A wet room with a linear drain allows a single-direction slope, keeping the floor nearly flat elsewhere for accessibility. Ventilation can be centralized and more effective when the entire space is treated as a moisture zone.

Cons

It’s critical to keep spray off machines—use side shields, a ceiling-mounted rain head set toward the back wall, and careful head placement. Towels and paper goods need protective storage; open shelving near the shower is a no-go. Not everyone loves the idea of a “wetter” bathroom, so discuss lifestyle fit first.

Tips / Case / Cost

Most plumbing codes recommend a 1/4 inch per foot (2%) slope to the drain in wet areas; combine that with full-height waterproofing behind tile. For ventilation, ASHRAE 62.2 calls for 50 cfm intermittent or 20 cfm continuous exhaust in bathrooms—go quiet (≤1.0 sone) so it actually gets used (ASHRAE 62.2-2019). A handheld shower on a bar gives control without overspray.

save pin

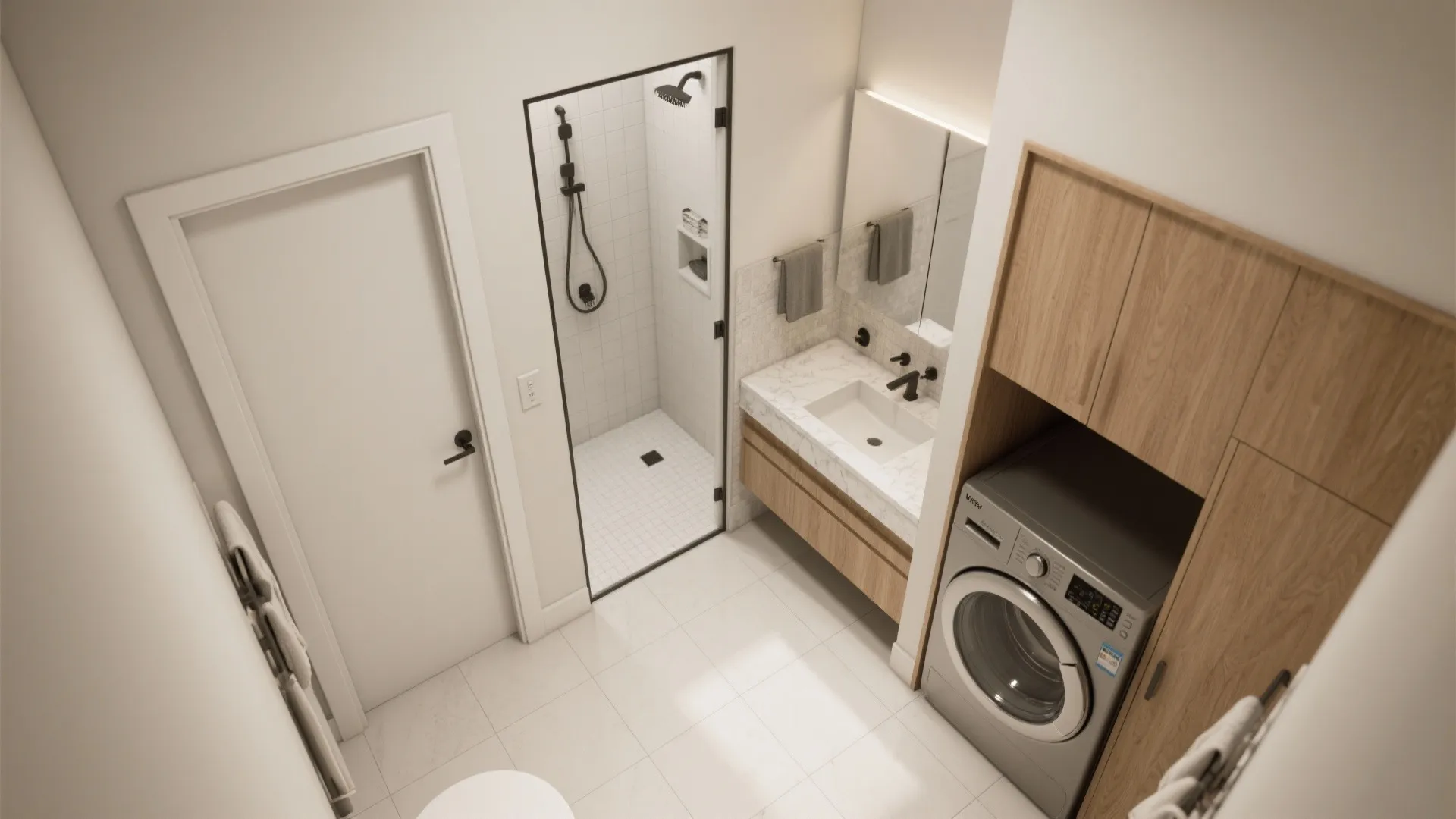

Pocket doors and clearances for a smooth path

My Take

Clear path equals calm mind. I often reclaim swing space by using a pocket door at the room entry, and sometimes another pocket or barn-style slider for the laundry closet. It lets you stand at the vanity, open the shower, and access the washer without door conflicts.

Pros

Eliminating door swings frees up precious inches—great for any small bathroom laundry room combo layout with shower. Fewer projections also make the room safer for kids and aging-in-place. Because the entry is streamlined, you can keep the shower at a comfortable 36 by 36 inches (NKBA recommends at least 36 inches square for comfort, with 30 inches minimum).

Cons

Pocket doors require proper framing and solid cavities; retrofits can get tricky around plumbing stacks. They’re not as soundproof as swing doors unless you invest in specialty hardware. Barn sliders can leak light and sound; use felt guides and seals to improve performance.

Tips / Case / Cost

Spec soft-close pocket hardware and a full-height slab to maximize visual height. If you can’t do a pocket, consider an outswing door—it’s code-friendly in many areas and safer in emergencies. For laundry closet doors, bi-folds with high-quality pivots are a compact, service-friendly alternative.

save pin

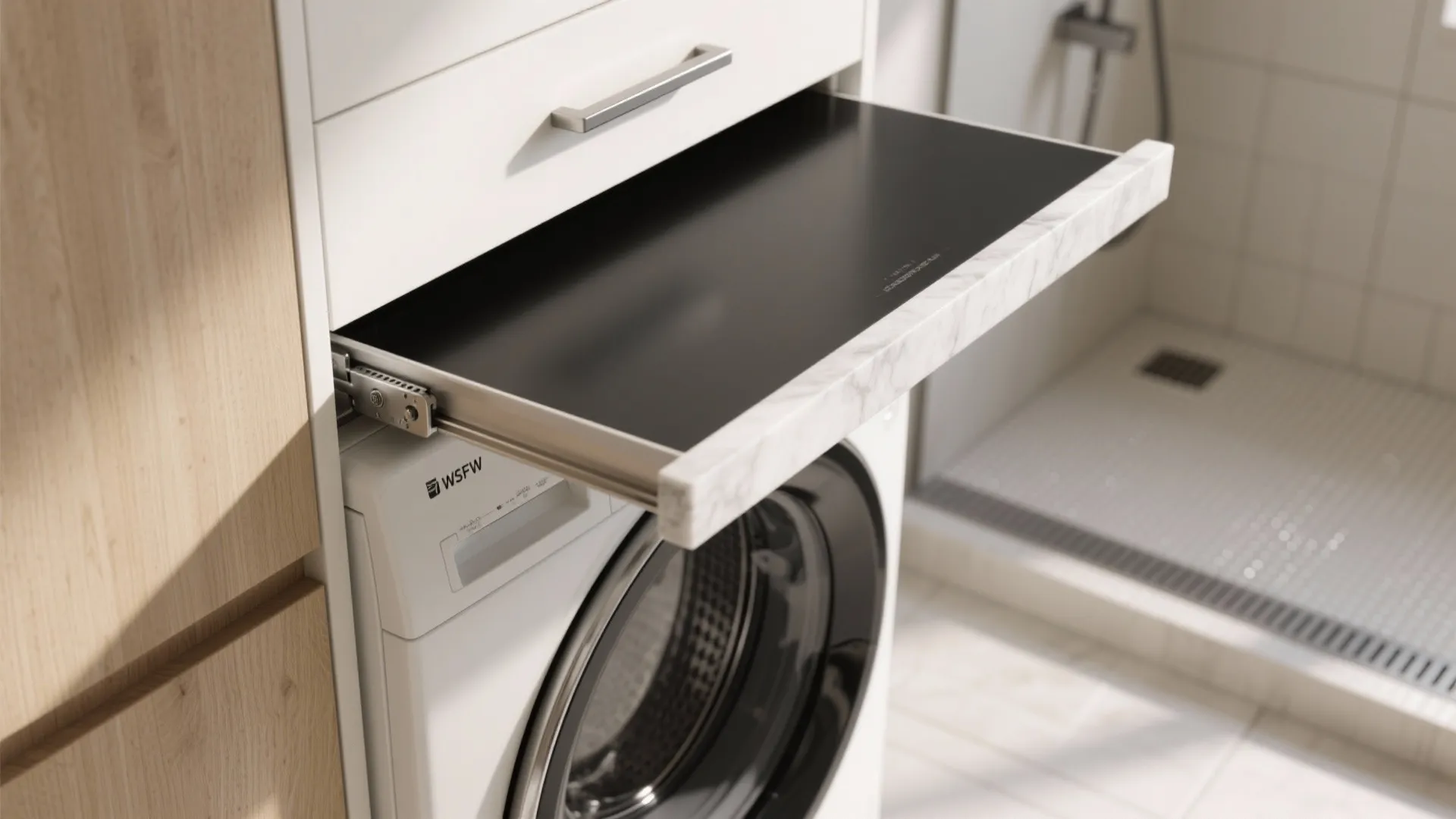

Overhead storage, folding ledge, and floor drainage strategy

My Take

Once the layout flows, I zoom in on vertical storage and water management. I’ll float a shallow cabinet over the machines for detergents and create a flip-up or fixed folding ledge above the washer-dryer. Underfoot, I plan slope and a secondary drain or pan so water never becomes a crisis.

Pros

Overhead cabinets corral clutter and keep the counter clear for grooming—vital in a compact laundry closet with bi-fold doors. A folding surface doubles as a vanity extension, adding function without enlarging the footprint. With a linear drain near the shower and a pan under the washer, minor mishaps don’t become insurance claims.

Cons

Cabinets can crowd headspace; keep them shallow (10–12 inches) and above eye level. A fixed ledge needs moisture-resistant materials; I prefer compact laminate, quartz, or sealed solid surface. Extra drains and pans add cost now, but they’re cheaper than repair work later.

Tips / Case / Cost

Add a motion sensor for the exhaust fan so it actually runs during laundry and showers; the EPA recommends keeping relative humidity below 60% to curb mold. Use a quiet, efficient fan rated for continuous use and backdraft dampers. To stretch space even further, consider a wall-hung vanity to free floor space and improve airflow around the machines.

[Section: Summary]

A small bathroom laundry room combo layout with shower isn’t a compromise—it’s an invitation to design smarter. With strategic separation (glass or half-wall), right-sized machines, thoughtful doors, and robust waterproofing and ventilation, you get a room that works hard and looks calm. NKBA’s comfort clearances and ASHRAE 62.2 ventilation guidance are my north stars; local codes will add the final layer for safety and performance.

Which of these five ideas would you try first in your own space?

[Section: FAQ]

save pin

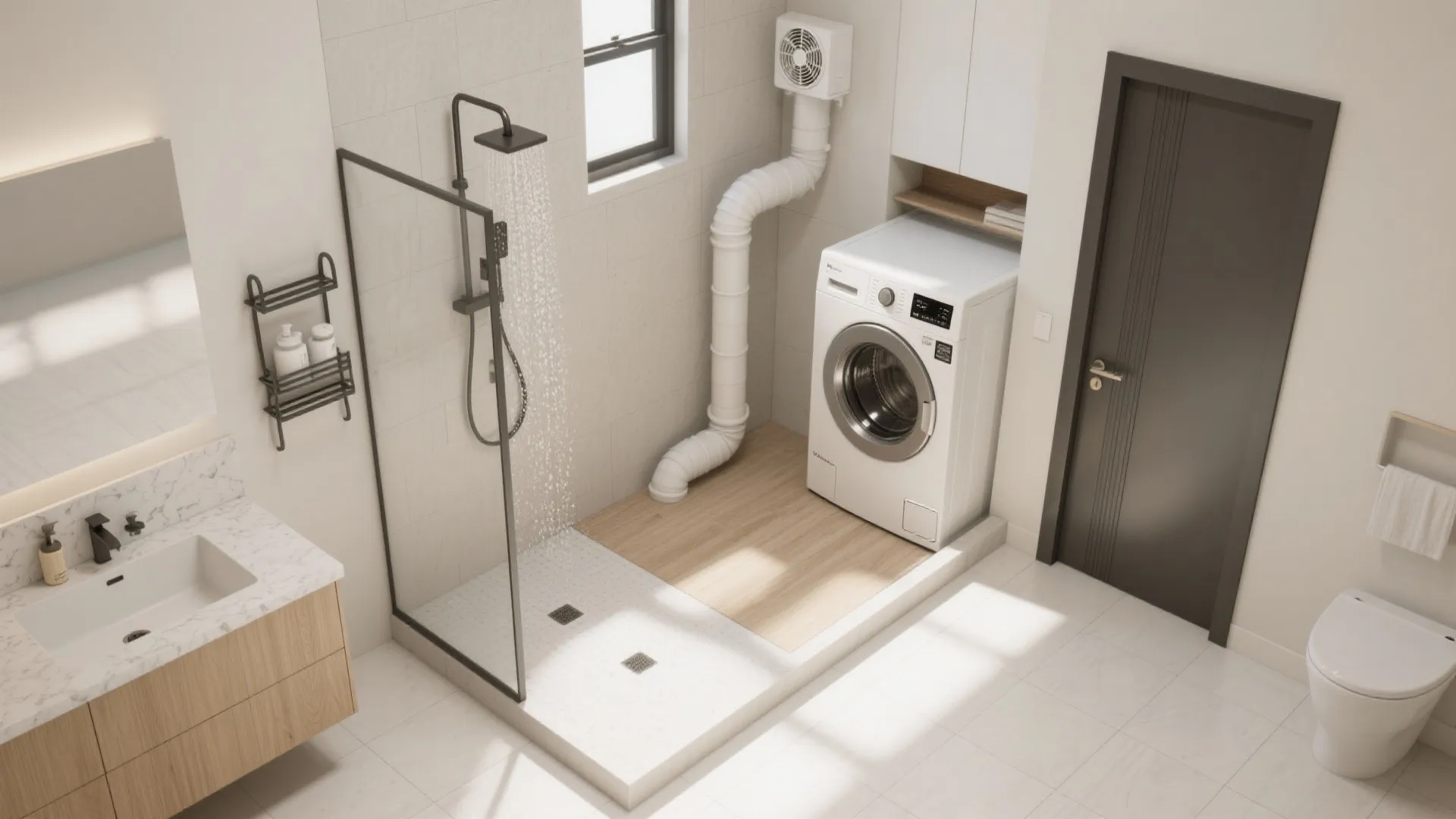

FAQ

1) How do I plan a small bathroom laundry room combo layout with shower?

Start with zones: shower spray control, laundry service access, and clear traffic paths. Use a scaled plan to test door swings or pocket doors, and verify ventilation and waterproofing early so systems support the layout.

2) What are the minimum clearances I should target?

For comfort, aim for a 36 by 36 inch shower and at least 30 inches of clear floor space in front of fixtures. NKBA guidelines recommend these as best practices; always check local code for minimums.

3) Is a ventless dryer a good idea in a tight bathroom?

Yes, especially heat-pump or condensing units, which simplify ducting. They still need good room ventilation to handle moisture and heat; pair with a quiet, continuous-rate exhaust fan.

4) How should I ventilate a bath-laundry combo?

Per ASHRAE 62.2, bathrooms should be ventilated at 50 cfm intermittent or 20 cfm continuous. Choose a fan with a humidity sensor or timer and run it long enough after showers and laundry cycles to keep RH below 60%.

5) Can I put laundry behind the vanity wall?

Often yes, if plumbing, electrical, and venting can be accommodated. Provide a serviceable closet with door clearance, GFCI-protected electrical per NEC, and either a pan-and-drain or leak sensors for peace of mind.

6) What materials hold up best near the shower?

Porcelain tile, sealed stone or quartz, compact laminate, and powder-coated metal resist moisture. For cabinets, use marine-grade plywood or PVC board finishes, and always seal cut edges and penetrations.

7) Do I need a linear drain for a wet room?

No, but it makes single-slope floors easier and cleaner looking. Most codes and best practice call for a 1/4 inch per foot slope toward the drain to move water efficiently without puddling.

8) How do I keep towels and detergents dry in a small combo space?

Use closed cabinetry or lidded bins away from the spray line and above 48 inches off finished floor. A short glass wing or half-wall shields shelves while keeping the room open.
