5 Ways to Draw Kitchen Cabinets like a Pro: My step‑by‑step, small‑space savvy approach to drawing kitchen cabinets with clarity, accuracy, and style

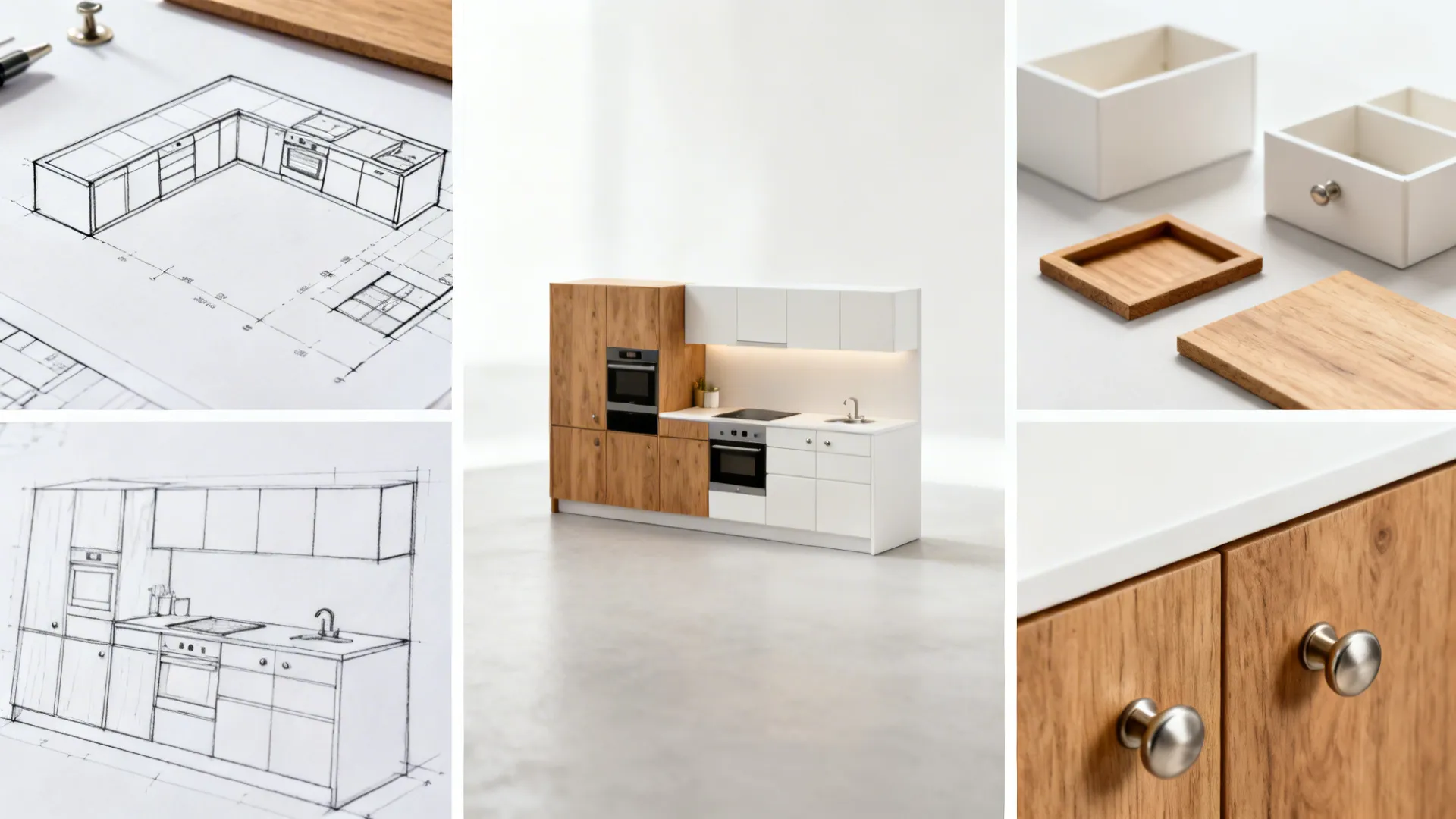

As an interior designer who’s drawn more kitchens than I can count, I’ve seen how current trends—clean lines, mixed materials, and smarter storage—start with a clear drawing. Small spaces spark big ideas, and nowhere is that truer than with kitchen cabinets. In this guide, I’ll share 5 practical design inspirations that show you how to draw kitchen cabinets with precision and personality, blending my real-world experience with data-backed insights.

Right upfront, one thing I’ve learned: in compact kitchens, drawing isn’t just documentation—it’s problem-solving. I’ll walk you through five inspirations that clarify dimensions, layout, materials, and details, all grounded in how to draw kitchen cabinets efficiently and accurately.

1) Minimalist elevations for ultra-clear cabinet planning

My Take

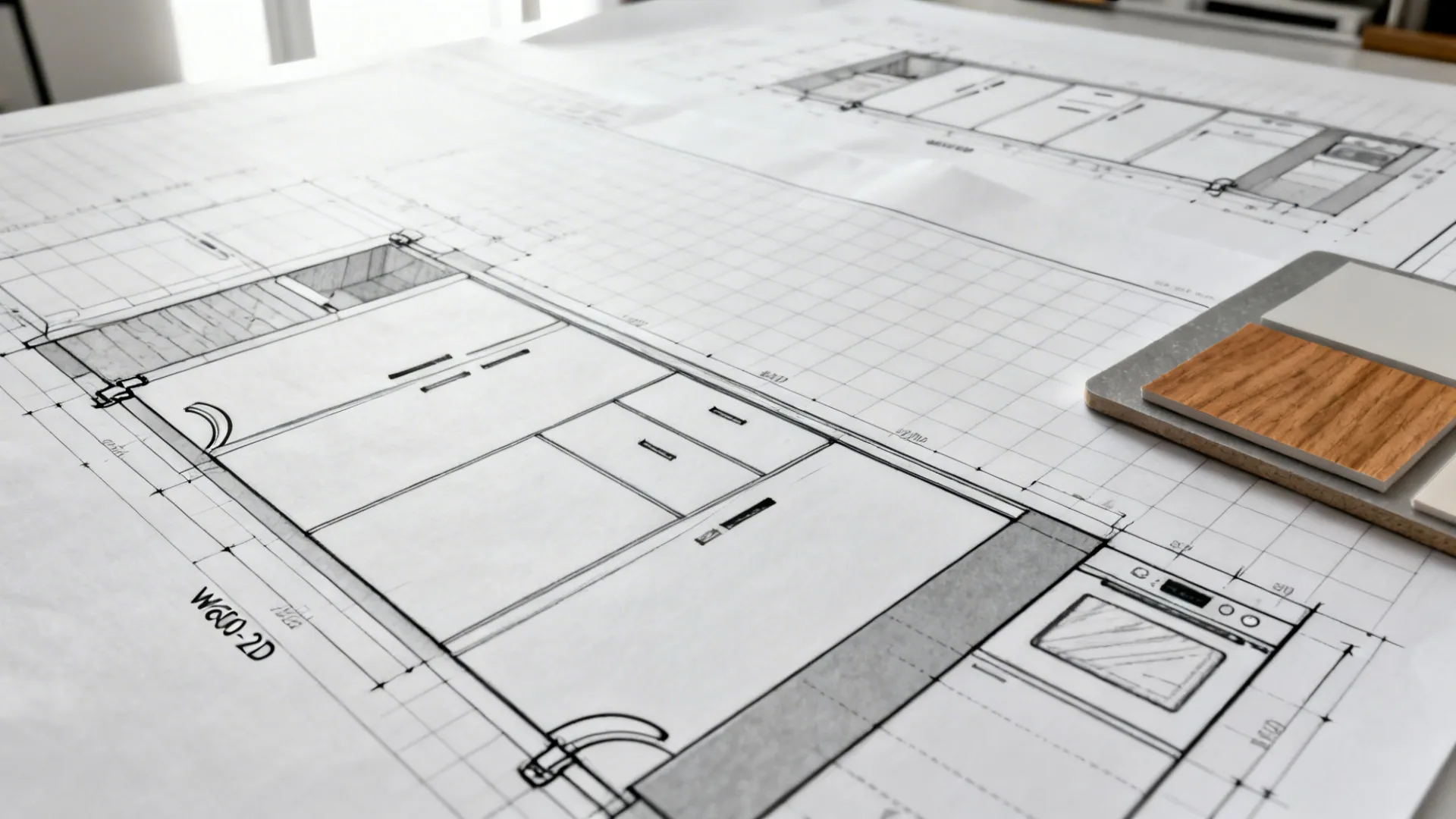

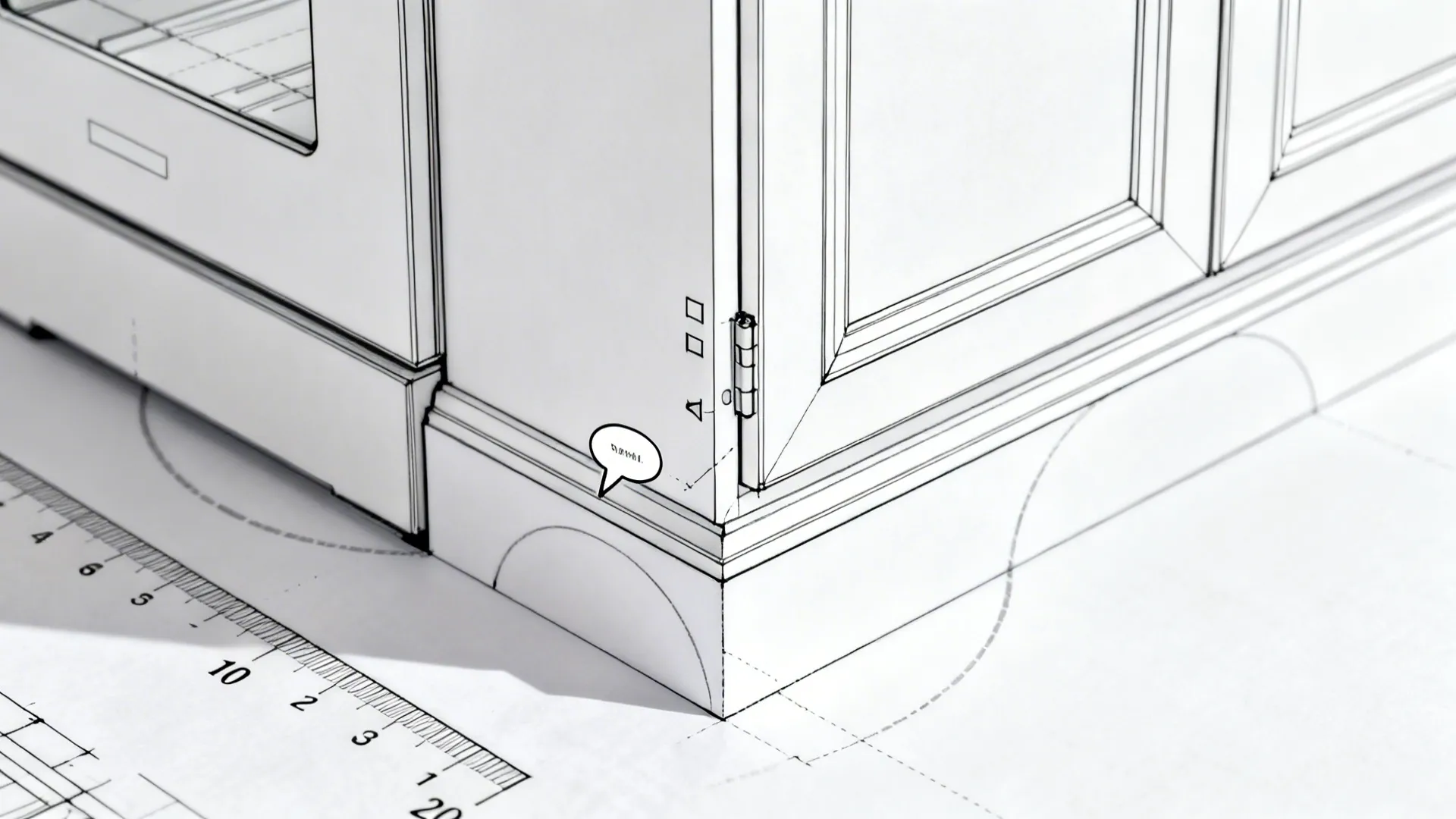

I start almost every cabinet project with crisp, minimalist elevations. Keeping the lines lean helps me catch door reveals, appliance gaps, and toe-kicks before anyone cuts a single board. On one 7 m² city kitchen, those pared-back elevations saved us from a costly filler panel fiasco.

Pros

Simple, annotated elevations make it easier to communicate cabinet door sizes, filler widths, and appliance clearances—great for the long-tail need of precise cabinet elevation drawings. Clean lineweights focus attention on hinge sides, swing arcs, and pull locations, speeding up approvals. According to NKBA planning guidelines, clear documentation of door swings and landing areas directly reduces user errors during install (NKBA Kitchen & Bathroom Planning Guidelines, latest edition).

Cons

Minimalism can hide complexity—if you don’t note materials and hardware, fabricators will call you all week. And when a client is very visual, sparse drawings may feel too abstract; I’ve had to add quick textures just to help them “see” it.

Tips / Cost

Set a consistent scale—1:20 or 1:25 works well for small kitchens. Label every cabinet with a code (e.g., W600-2D) so purchasing matches drawings.

When I illustrate narrow galley projects, I sometimes pair elevations with a quick concept view like “glass backsplash for a lighter feel.” If you’re testing cabinet lines against reflective surfaces, you can reference "glass backsplash makes the kitchen feel airier" to preview how materials influence the overall cabinet read.

save pin

save pin

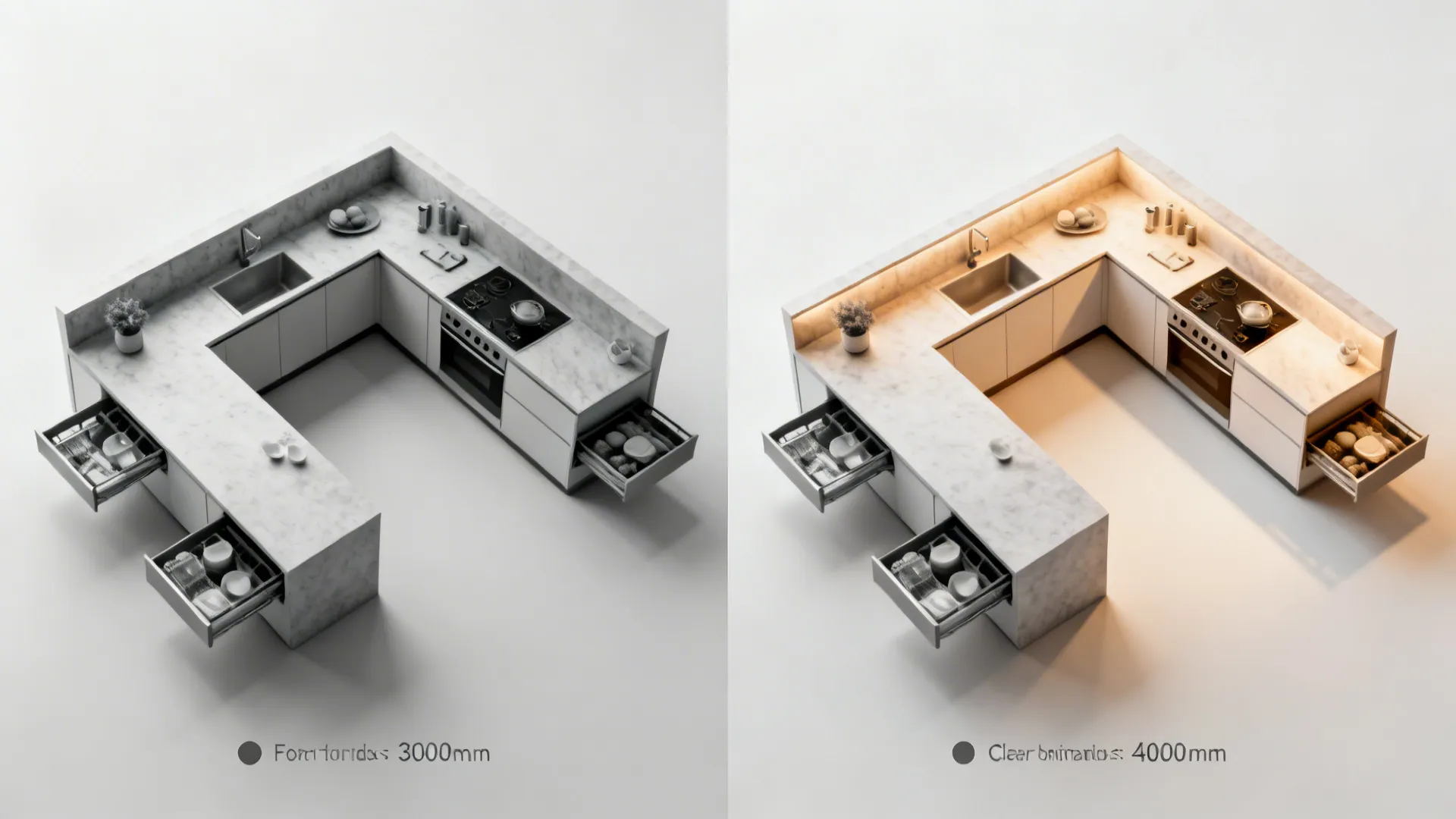

2) L-shaped layouts that free up counter runs

My Take

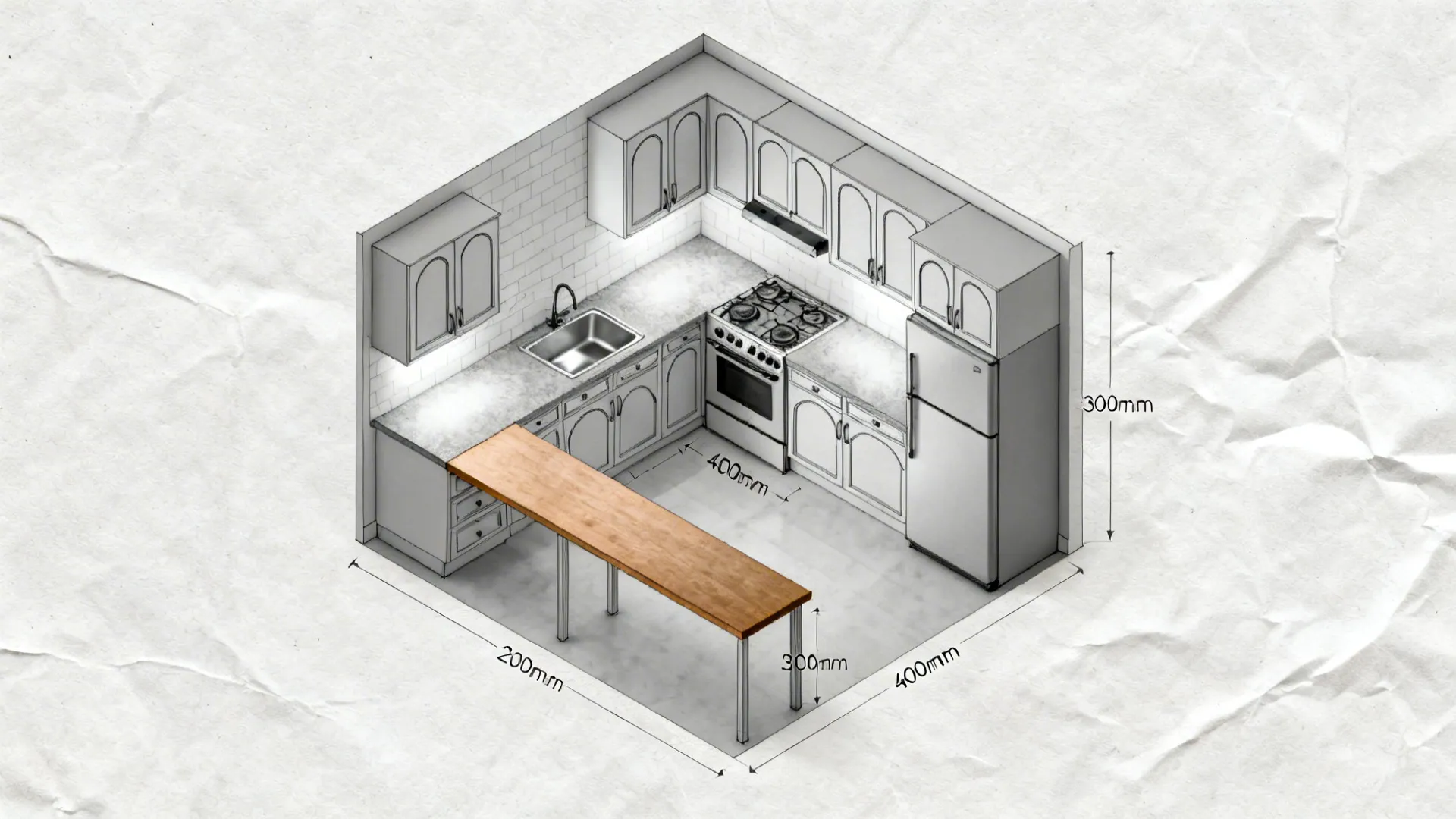

In tight apartments, I often sketch L-shapes first because they create an efficient work triangle without crowding. On a recent rental upgrade, shifting to an L freed 900 mm of uninterrupted counter—enough for prep and a compact dish rack.

Pros

An L-shaped cabinet layout produces longer continuous countertop and a logical path between sink, cooktop, and fridge—ideal for the long-tail phrase L-shaped kitchen cabinet layout. Corners become prime real estate for pull-out trays, while wall cabinets can align neatly for symmetry. The Kitchen Triangle principle, endorsed in many NKBA-aligned resources, still improves step counts and reach in small kitchens.

Cons

Corner cabinet geometry can be finicky; drawing blind corners or lazy Susans means triple-checking clearances. If windows or radiators sit in the return leg, you’ll redraw uppers more than you’d like (been there).

Tips / Case

Maintain at least 400 mm from cooktop edges to adjacent walls for safety and splash control. For tight turns, keep floor cabinet depths true and adjust wall cabinets to 300 mm to avoid crowding.

At the halfway point of a project, I like to sanity-check my cabinet lines in a layout tool using something like "L-shaped layout to unlock more counter space" so I can verify triangle distances and door swing conflicts before final dimensions go out.

save pin

save pin

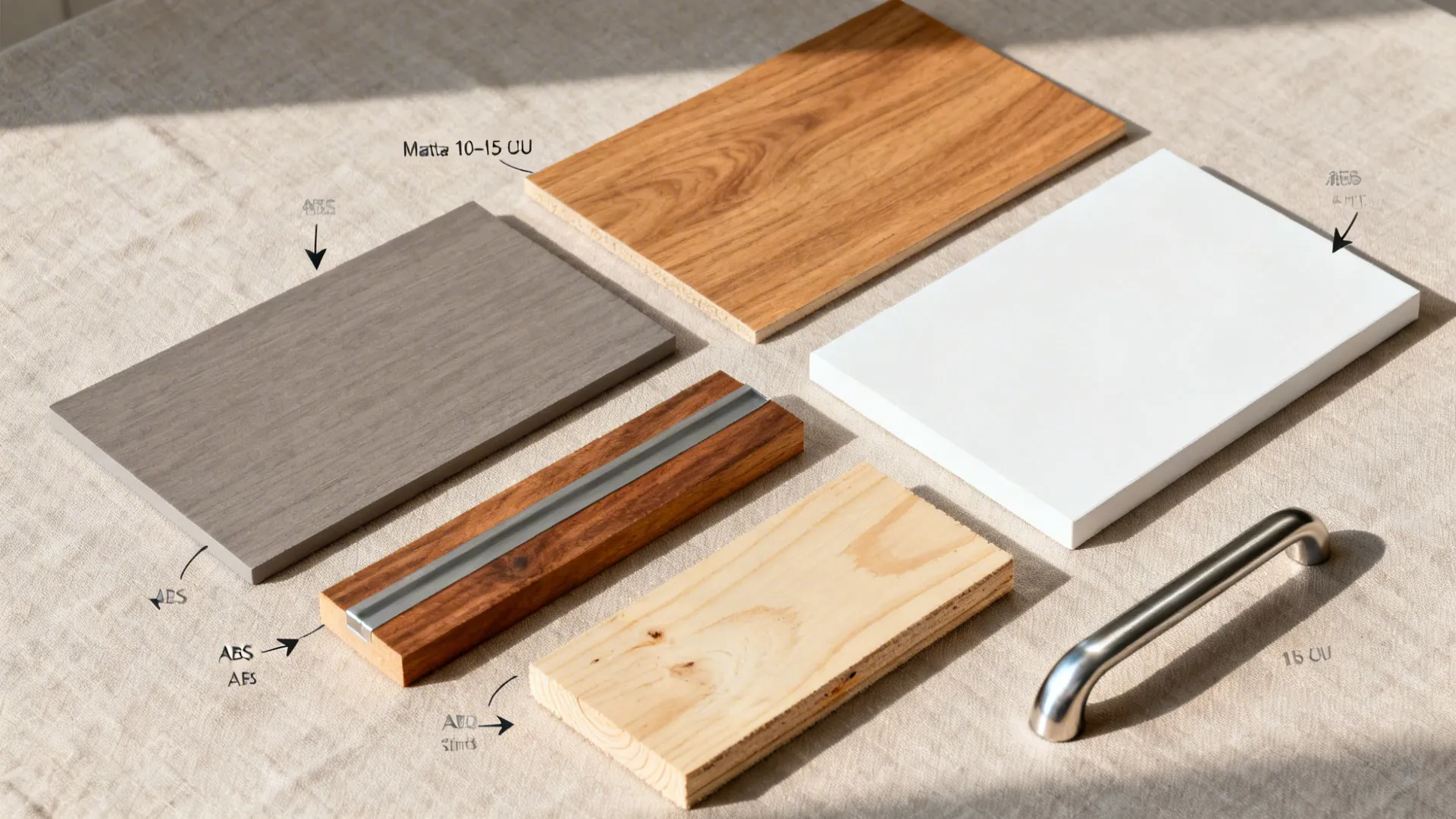

3) Material callouts that communicate texture and cost

My Take

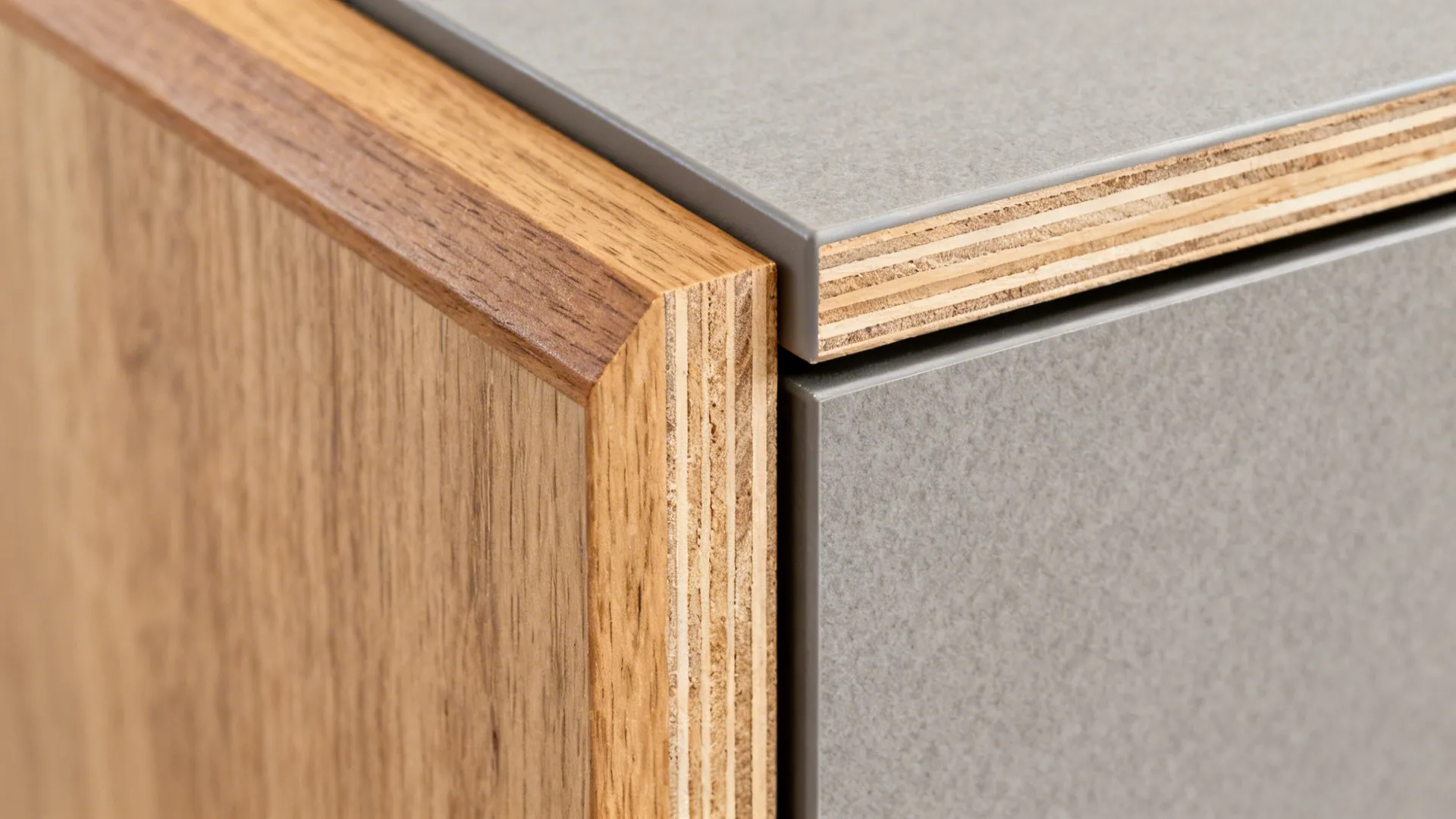

Clients choose with their eyes and hands. I annotate fronts (e.g., matte laminate, oak veneer), edges (ABS vs. solid wood), and interiors (white melamine vs. birch ply) right on the drawings. That way, the cabinet set isn’t just lines—it’s a tactile story.

Pros

Material callouts in cabinet drawings reduce change orders and clarify the long-tail intent of detailed cabinet construction drawings. Specifying sheen levels (e.g., 10–15 GU for matte) prevents mismatches under LED strips. A 2023 Houzz Kitchen Trends Study notes that durability and easy-clean finishes remain top priorities, so calling out HPL and high-wear edges keeps expectations aligned (Houzz U.S. Kitchen Trends Study, 2023).

Cons

Too many notes clutter the page, and I’ve definitely had to split sheets because a single elevation looked like a dictionary. Also, once you put a finish in writing, any mid-project swap means revising multiple sheets.

Tips / Cost

Create a legend for finishes (F1, F2, F3) and reference it across all elevations and sections. Include board thicknesses—18 mm carcass, 20–22 mm fronts—to ensure hardware screws and hinges match.

save pin

save pin

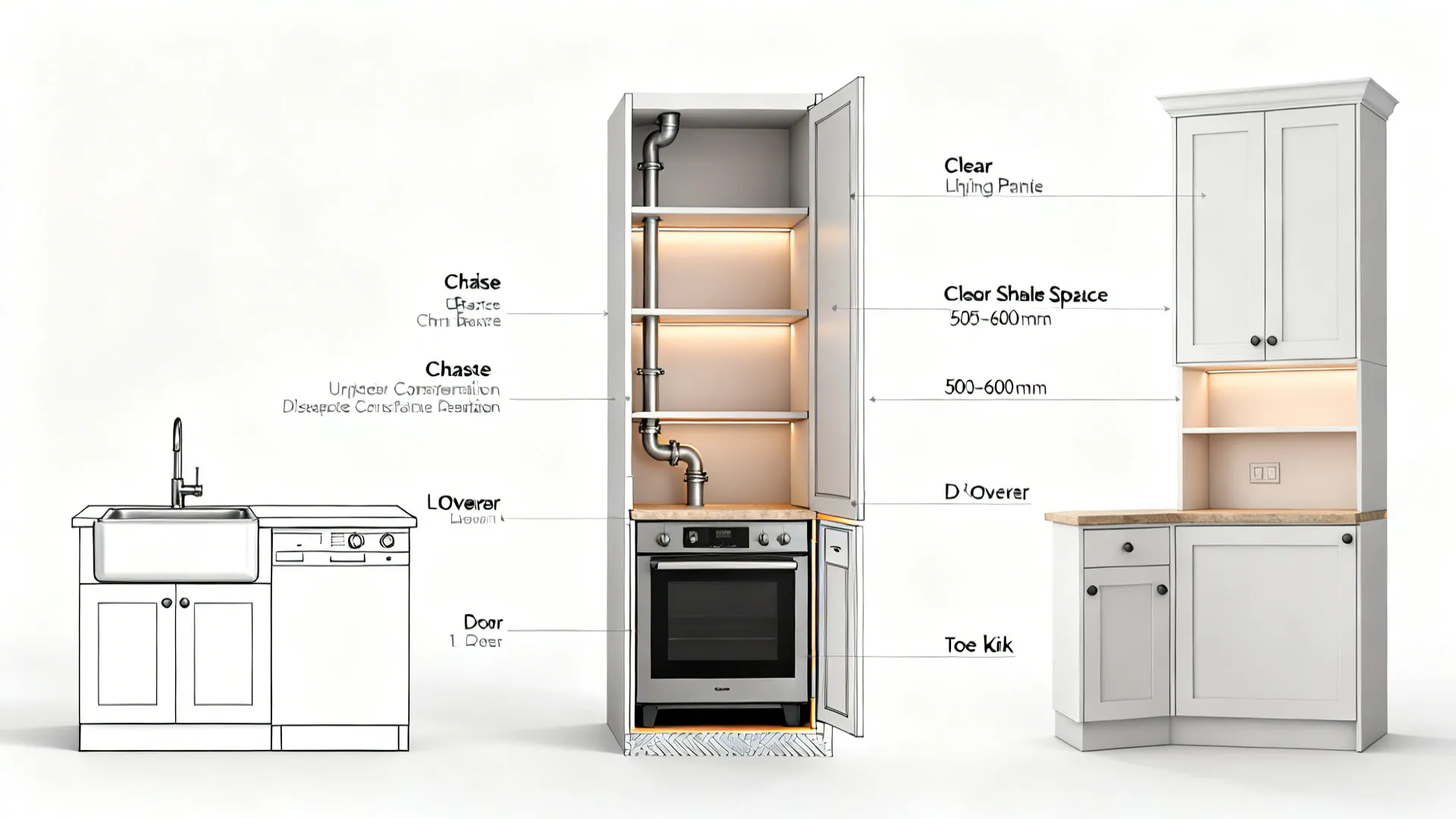

4) Section cuts that reveal the real-life usability

My Take

A good section turns questions into answers. I draw vertical cuts through sinks, tall pantries, and corner cabinets, so everyone sees how shelves, dividers, and toe-kicks actually work. It’s saved me from more than one “why doesn’t the mixer fit?” moment.

Pros

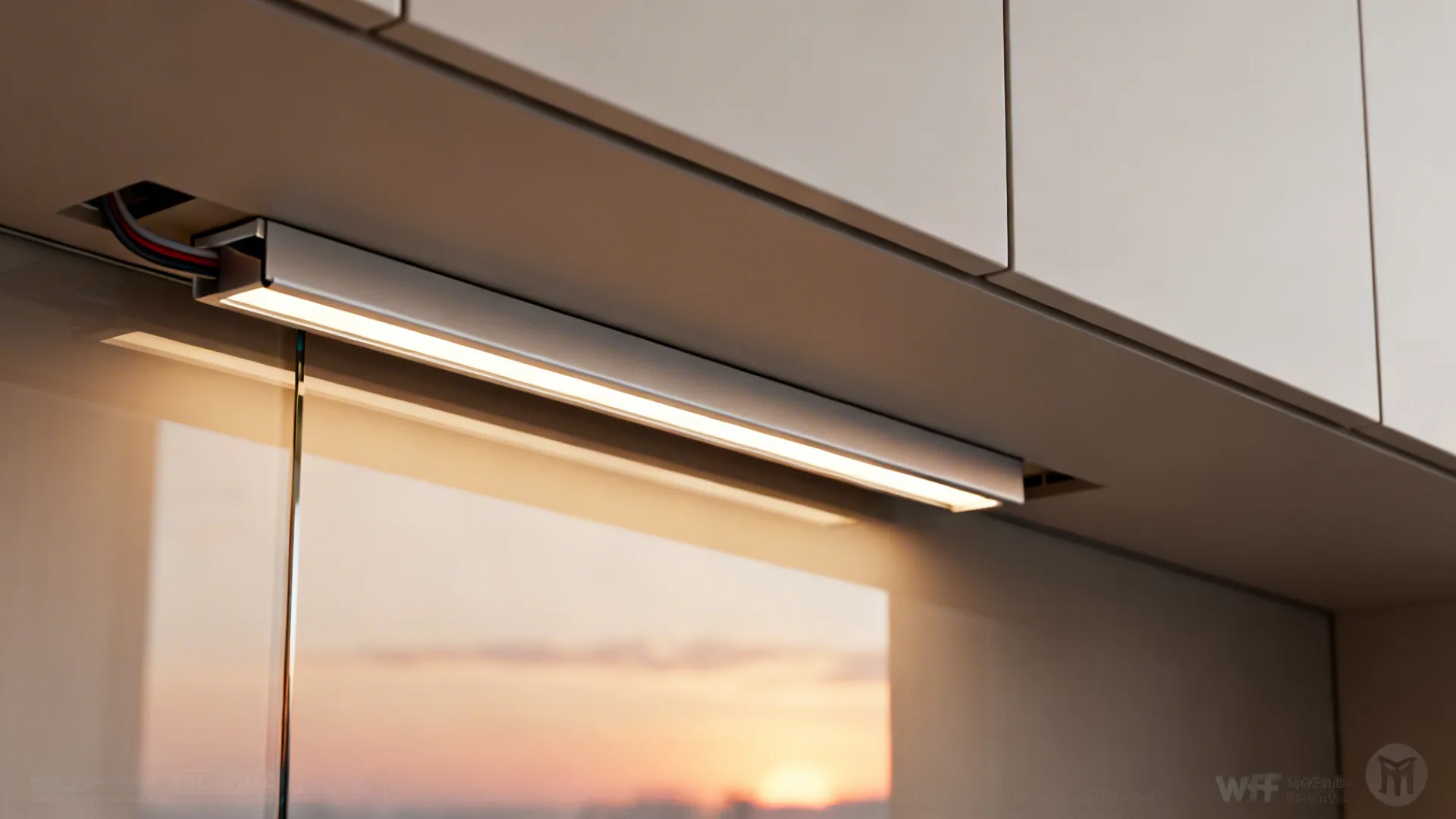

Sections expose clearances for sinks, disposals, and plumbing chases, aligning with the long-tail keyword cabinet section drawing for kitchen details. They also clarify under-cabinet lighting recesses and door overlay choices (full vs. half). The IES Lighting Handbook supports planning for task lighting at the drawing stage, noting improved visual comfort when fixtures and shielding are designed early (IES Lighting Handbook, latest edition).

Cons

They take time—and patience. If the section isn’t cut in the most informative spot, you’ll still field calls about shelf heights and drawer box clearances. Ask me how I know.

Tips / Case

Show dishwasher and oven ventilation gaps in section; manufacturers often require 5–10 mm on sides and back. Note maximum usable shelf heights (typically 500–600 mm between fixed shelves for tall items).

When validating cabinet interior fits with appliances, I sometimes prototype in a quick 3D. If you want to pressure-test door clearances against walls and fridges, try referencing "3D cabinet walk-through for conflict checks" during your review stage.

save pin

save pin

5) Hardware, reveals, and alignments that feel custom

My Take

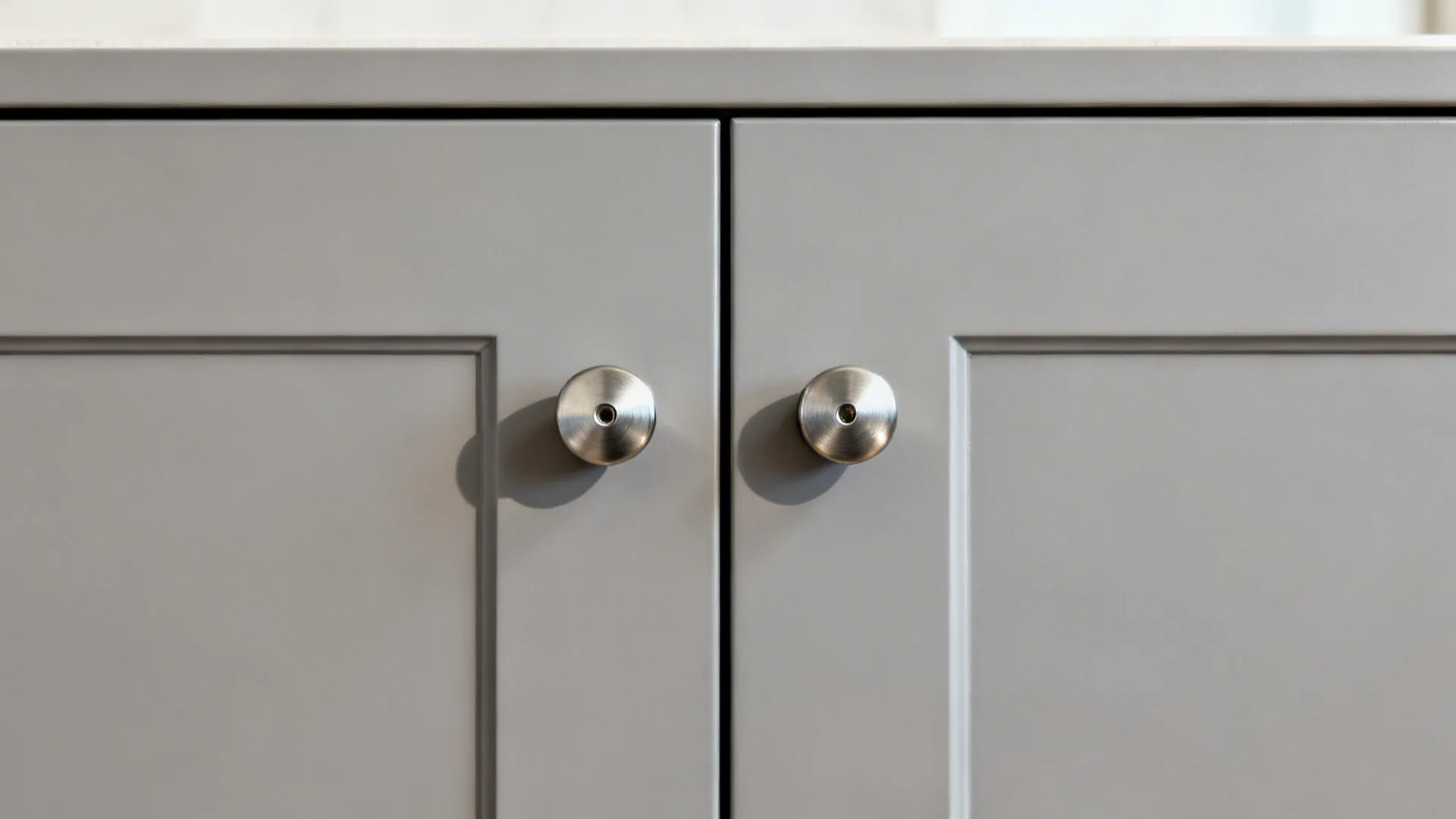

The difference between “okay” and “wow” is often 3 mm. I draw consistent top reveals, line up handle centers, and specify hinge types. In a recent micro-kitchen, shifting handle positions 20 mm improved reach for a client with limited grip strength.

Pros

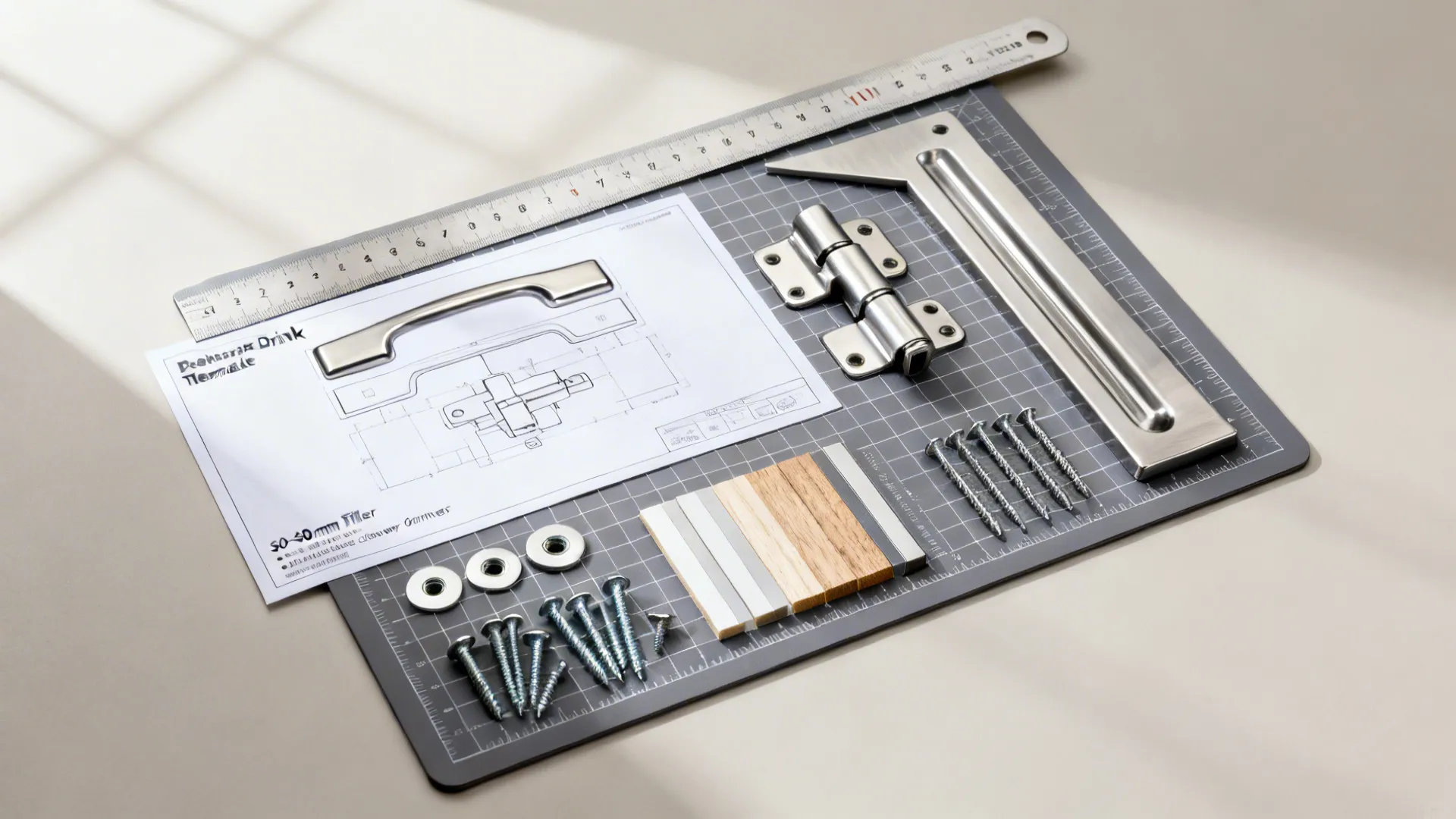

Documented reveals (2–3 mm) and alignment rules produce a cohesive façade, fulfilling the long-tail search for cabinet reveal alignment details. Specifying soft-close hinges, drawer runners, and handle drill templates cuts install time and call-backs. ADA-aligned reach ranges (where applicable) inform handle heights for accessibility.

Cons

Detailing every knob location can feel tedious, and contractors sometimes “eyeball” it if drawings aren’t crystal clear. I now include a handle template diagram to reduce guesswork—and grumbles.

Tips / Cost

Plan where fillers go; a 30–50 mm filler at walls can save doors from hitting tile edges. Budget-wise, premium hardware can add 10–15% to cabinet costs, but it pays back in durability and feel.

save pin

save pin

Summary

Small kitchens don’t limit you—they demand smarter drawing and design. From minimalist elevations to meticulous hardware alignment, these five approaches make how to draw kitchen cabinets both clearer and more creative. NKBA’s core guidelines and lighting best practices back up the details, but your space and habits should lead. Which of these drawing inspirations are you most excited to test on your next kitchen sketch?

save pin

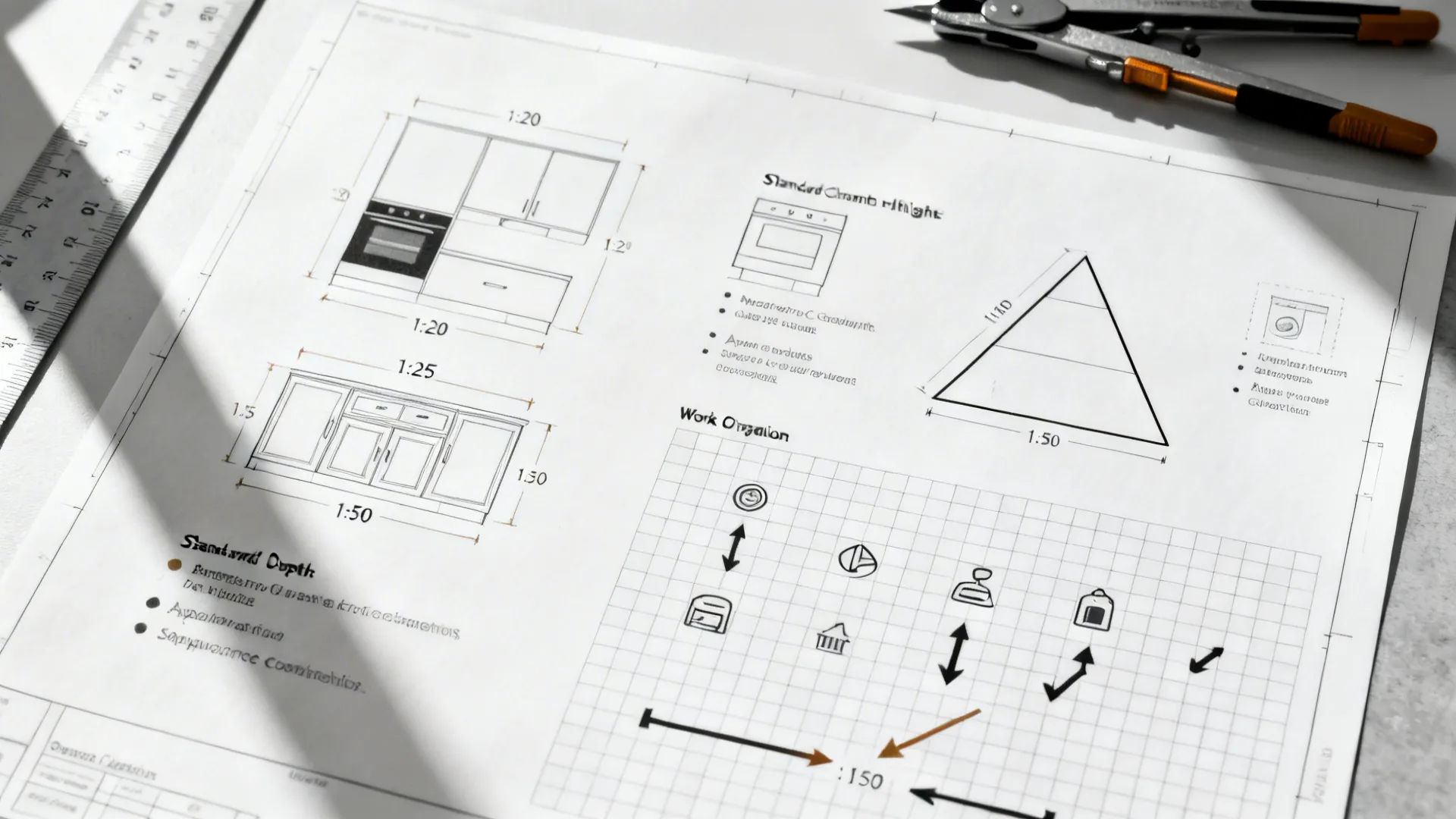

FAQ

1) What’s the best scale for drawing kitchen cabinets?

For small spaces, 1:20 or 1:25 keeps dimensions readable without oversizing the sheet. For big overviews, 1:50 works, but add enlarged details for hinges and reveals.

2) How do I ensure my cabinets fit appliances?

Get manufacturer spec sheets and include ventilation allowances in your drawings (often 5–10 mm). Show door swings and handle projections to avoid collisions.

3) What standard cabinet dimensions should I start with?

Base cabinets are typically 600 mm deep and 720 mm high (without countertop). Wall cabinets often run 300–350 mm deep; toe-kicks are about 100 mm high. Always verify local standards.

4) How can I visualize materials before ordering?

Add finish legends and apply textures in a simple 3D mockup. A quick pass using a resource like "material preview for cabinet fronts" can help clients choose confidently.

5) What’s the ideal work triangle for an L-shaped kitchen?

Sum of triangle legs typically falls between 4–7.9 m, with each leg 1.2–2.7 m. Keep paths clear and avoid appliance conflicts at corners.

6) How detailed should hardware notes be?

Include hinge model, overlay type, handle center-to-center, and exact drill positions. A small template diagram prevents field improvisation.

7) Are there standards for task lighting under wall cabinets?

Yes. The IES recommends task lighting that minimizes glare and places illuminance where tasks occur; plan recesses and shielding in sections (IES Lighting Handbook).

8) Do I need to follow NKBA guidelines?

While not law, NKBA Kitchen & Bathroom Planning Guidelines are widely referenced and reduce layout and safety issues. They’re a reliable baseline for how to draw kitchen cabinets in functional contexts.
