5 Wood Tile Bathroom Floor Ideas for Water-Safe Style: My pro-tested ways to get the warmth of wood with the durability of tile—especially in small bathrooms that demand smart design.

Over the last few years, one bathroom trend has stayed firmly on my job site: wood-look porcelain. Clients want the warmth of timber without the worry of swelling or stains, and a wood tile bathroom floor nails that brief. In small bathrooms, I’ve found the effect even stronger—tight spaces sharpen our choices and spark big creativity.

I’ve spent a decade remodeling compact city baths, where every grout line, plank width, and threshold matters. When we get those details right, the illusion of real wood meets the longevity of porcelain—and the room feels calmer, bigger, and more luxurious.

In this guide, I’ll share 5 design ideas I actually use, plus the trade-offs and what they cost. I’ll weave in my own project notes and a few expert references so you can plan with confidence.

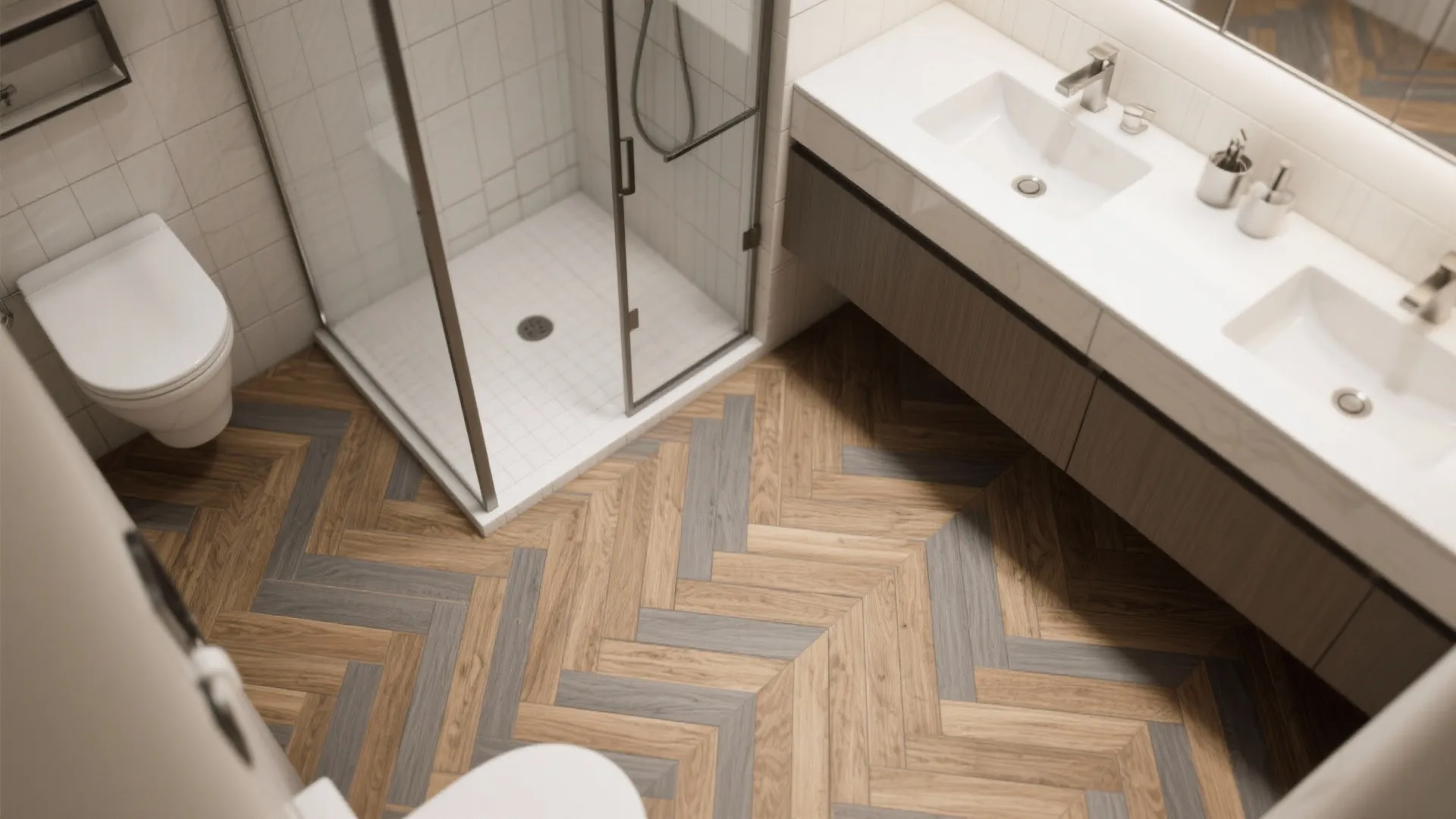

Herringbone Wood-Look Porcelain for Movement

My Take

I once transformed a 5 m² apartment bath using slim, oak-toned porcelain planks in a classic herringbone. The pattern added motion and made the narrow room feel intentional instead of cramped. The client’s first reaction: “It looks like a boutique hotel.”

Pros

Herringbone visually stretches small rooms, especially with 3"–4" wide planks; it’s a timeless upgrade for a wood-look porcelain tile bathroom floor. The zigzag hides minor irregularities and helps mask wear on busy paths to the vanity and shower. If you choose a matte finish and a warm gray grout, the pattern reads soft, not busy—a great long-tail win for a “herringbone wood tile bathroom” design.

Cons

Expect higher waste (often 15–20%) because of all the end cuts and directional layout. It also takes a patient installer—if the first few courses drift, you’ll see it across the floor, and straightening mid-way is no fun. On uneven slabs, small format planks can telegraph dips; plan for a skim coat or self-leveler.

Tips / Case / Cost

Budget roughly $6–12 per sq ft for quality wood-look porcelain and $8–15 per sq ft for installation, plus extra for leveling. Use a chalked 45° reference and dry-fit the first two triangles; once those are true, the rest follows. In one tiny reno, we even framed the field with a single-plank border to cleanly meet walls and keep that herringbone warmth in a tight bath feeling polished.

save pin

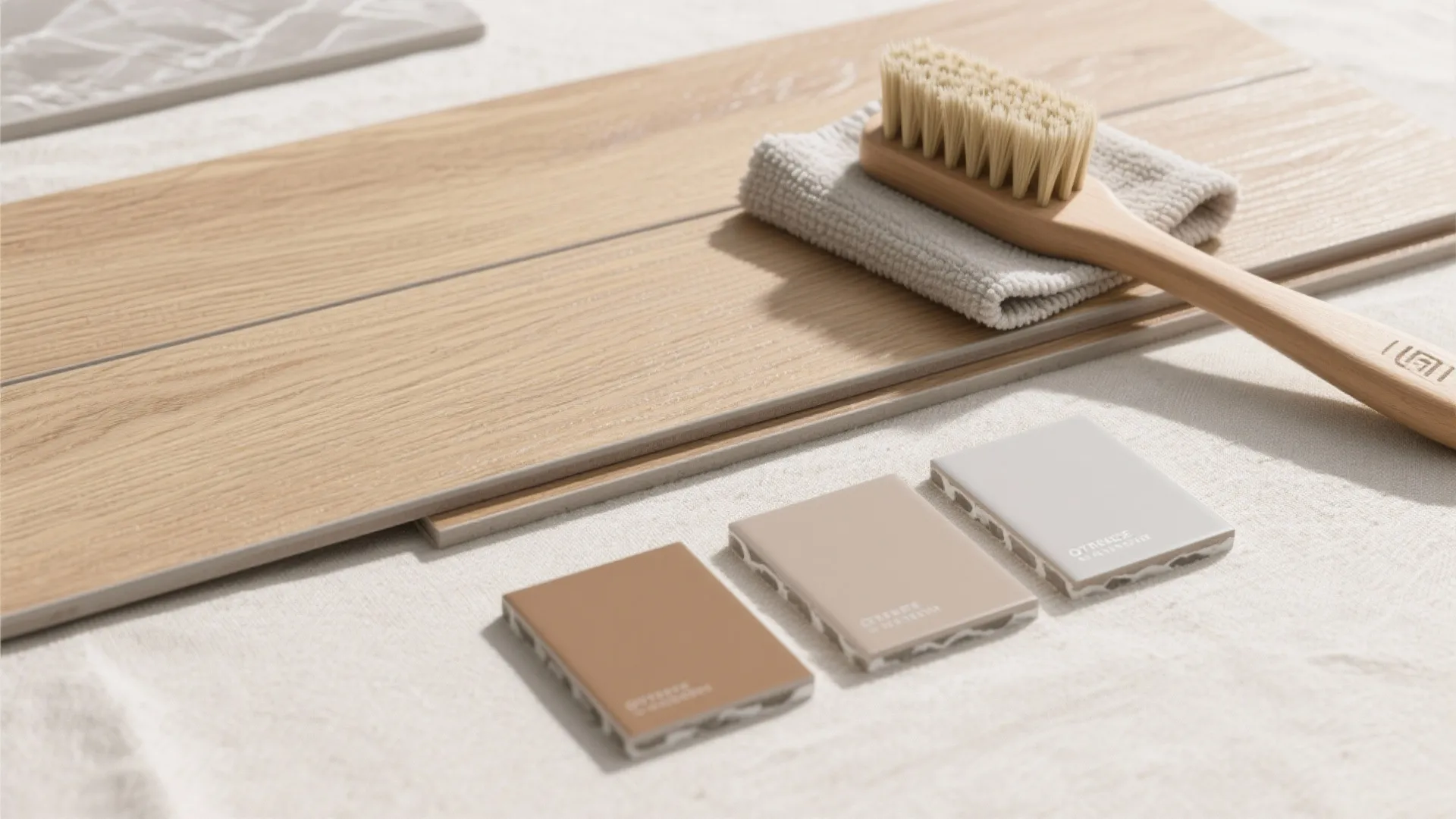

Matte Plank Tiles and Warm Grout for Safety

My Take

A couple with two kids asked me for “wood floors in the bath, but not slippery.” We landed on a matte porcelain plank with a soft, wire-brushed texture and a sanded taupe grout. The floor looks like weathered oak and, more importantly, feels stable with damp feet.

Pros

Look for non-slip wood tile for bathroom use by checking the DCOF (Dynamic Coefficient of Friction). For interior wet areas, ANSI A326.3 guidance cites 0.42 or greater wet DCOF as a common threshold for traction; many matte wood-look porcelains meet or exceed this. A light taupe or warm gray grout lines up with faux “wood grain” and makes cleaning easier than stark white—a practical long-tail tweak for “low-maintenance wood-look tile bathrooms.”

Cons

Heavily textured tiles can trap soap residue if you use oily cleaners; keep a soft-bristle brush handy for corners. Dark grout hides stains but can haze on the tile face if you rush cleanup—slow down and wash as you go. Ultra-matte tiles may look chalky under cold LED lighting; a warmer bulb (2700–3000K) restores the wood vibe.

Tips / Case / Cost

Plank sizes like 6×36 or 8×48 strike a sweet spot between realism and lippage control; longer planks demand a flatter subfloor. Upgrade to a stain-resistant epoxy or hybrid grout for kids’ baths; it costs more upfront but repays you on cleaning. On concrete, a liquid-applied crack-isolation membrane adds a little insurance for long plank runs.

save pin

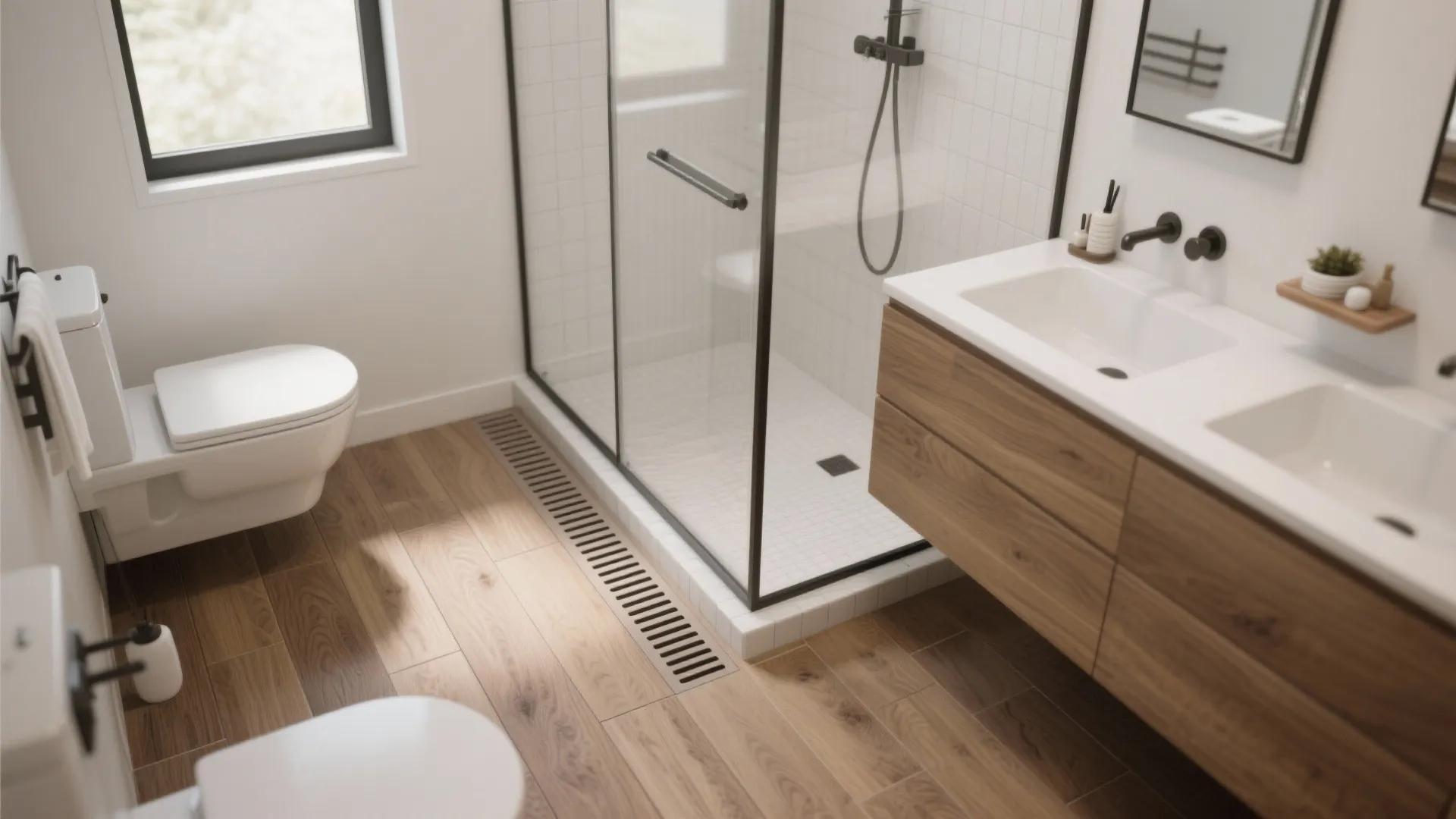

Carry Planks into a Curbless Shower

My Take

One of my favorite illusions is running the “wood” right into the shower for a seamless spa look. In a tub-to-shower conversion last spring, we kept the grain direction consistent and introduced a linear drain. The space instantly felt twice as long.

Pros

With a wood plank tile shower floor, you get continuity without the maintenance of real timber, especially with waterproof wood-look tile rated for wet areas. The Tile Council of North America (TCNA) Handbook calls for a typical slope of 1/4" per foot to drains; smaller formats or cut-down planks conform better to that slope. A linear drain lets your “boards” run straight, so the pattern reads intentional rather than chopped—a smart move for curbless shower wood tile designs.

Cons

Curbless builds demand meticulous waterproofing, from the pan to the wall-to-floor junctions and doorless splash zones—expect more prep time. Floor height transitions can be tricky; plan for recessing or shaving subfloor layers. If you keep full-width planks, cuts around the drain can look fussy; sometimes ripping into 3" strips gives a cleaner result.

Tips / Case / Cost

Budget $1,800–$4,000 for a waterproofed curbless base and linear drain before tile, depending on size and region. I often dry-lay the drain bay and test slope with a level before committing thinset. For visualizing drain placement and plank direction, I’ve shown clients a quick render of a curbless shower plank layout—it helps everyone see how the grain flows.

save pin

Add Radiant Heat Under Wood-Look Tile

My Take

Stepping onto a warm “wood” floor on winter mornings is one of those upgrades people rave about for years. I installed radiant heat under porcelain planks in my own main bath, and it instantly made 6 a.m. less, well, 6 a.m.

Pros

Heated bathroom floor with wood-look tile is a natural pairing—porcelain’s thermal conductivity and thinset’s bond create efficient, even warmth. Programmable thermostats let you preheat on schedule, so you’re not warming empty rooms. Electrical work in bathrooms should be protected by GFCI; most modern floor-heat thermostats integrate GFCI per NEC expectations, adding a safety layer for wet spaces.

Cons

Expect added height from heat mats and membranes; door undercuts and transitions may need tweaks. Repairs become harder if a cable fails later; choose a system with a clear warranty and photograph cable layout before tiling. Large rooms may preheat slower; in compact baths, that’s less of a concern.

Tips / Case / Cost

Budget $10–20 per sq ft for heat mats/loose cable, $200–350 for a smart thermostat, and standard tile labor on top. I like an uncoupling membrane over heat for insurance against movement; add soft joints at perimeters per ANSI A108 guidelines. On remodels, a timer schedule (6–9 a.m. and 8–11 p.m.) can save energy while keeping toes happy.

save pin

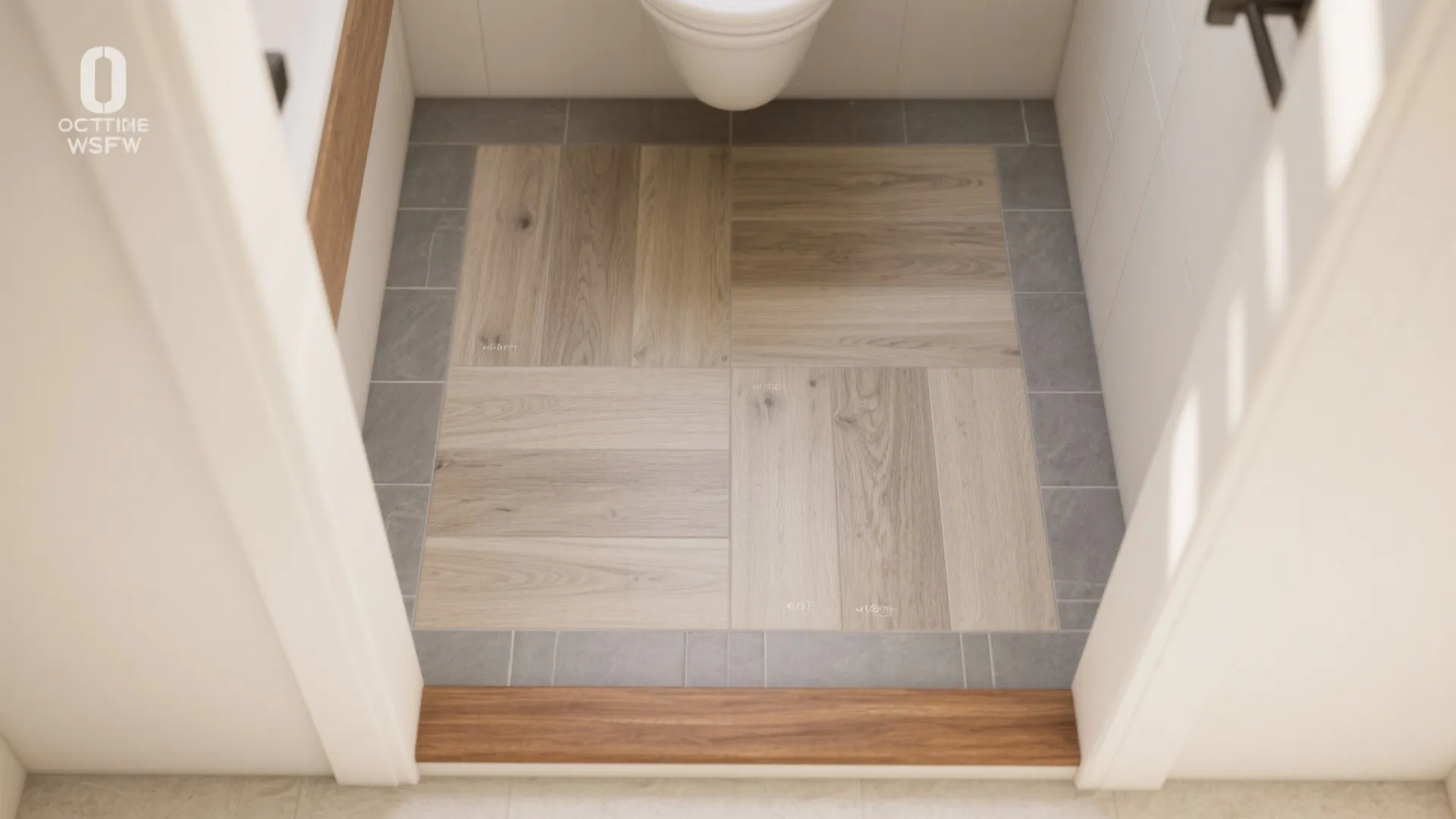

Mix Widths, Tones, and Borders for a Crafted Look

My Take

In powder rooms and compact ensuites, I’ll sometimes mix two plank widths to mimic custom wood floors. Add a border at the room’s edge, and it suddenly feels tailored—like a piece of furniture you walk into.

Pros

A mixed-width wood-look tile layout disguises odd room proportions and makes a small bath read more deliberate. Using a slightly cooler “ash” tone for the field and a warmer “oak” for the border adds subtle depth without visual noise. A border also creates a clean transition to patterned wall tile or a statement vanity—an easy way to make a builder bath feel bespoke.

Cons

Get the tones wrong and it can look patchy; I always test two daylight photos and one under vanity lighting before deciding. More layout lines mean more decisions, which can slow installers if the plan isn’t crystal clear. Borders amplify crooked walls—use a self-leveling laser and split the difference where needed.

Tips / Case / Cost

Dry-lay a 1 m strip of the field plus the border and take quick phone photos; cameras are ruthless and reveal alignment issues our eyes forgive. Metal schluter trim in brushed nickel or black elegantly caps the border at doorways. If you’re experimenting with a mixed-width board effect, keep grout tones consistent across widths so the composition reads as one floor.

save pin

Summary

Designing a wood tile bathroom floor—especially in a small bath—doesn’t limit you; it nudges you toward smarter choices. From herringbone motion to heated comfort, porcelain planks deliver the feel of timber with the protection bathrooms demand. For technical specs on slip and slope, I often check ANSI A326.3 and the TCNA Handbook; pairing those with your style vision is where the magic happens. Which one of these five ideas are you most excited to try?

save pin

FAQ

1) Is a wood tile bathroom floor slippery?

Choose matte porcelain with a wet DCOF at or above 0.42 per ANSI A326.3 guidance and you’ll improve traction in wet areas. Texture (wire-brushed, lightly ridged) and a quality bath mat near the shower help, too.

2) Porcelain or ceramic for wood-look bathroom floors?

Porcelain generally absorbs less water and offers higher density, making it a strong pick for bathrooms and showers. Many “wood-look” lines are porcelain for that reason, but a well-made ceramic can work in powder rooms or low-splash zones.

3) Can I run wood-look tile into the shower?

Yes—use planks rated for wet zones and respect slope requirements (commonly 1/4" per foot) outlined in the TCNA Handbook. Smaller pieces or ripped planks conform better to slope and boost traction with more grout lines.

4) What grout color works best with wood-look tile?

Warm gray or light taupe usually blends with faux grain, hiding joints while keeping the floor easy to clean. For maximum stain resistance, consider epoxy or hybrid grout in busy family baths.

5) Will radiant heat crack wood-look tiles?

Not when installed correctly. Use a compatible heating system, follow manufacturer and ANSI A108 guidance, and consider an uncoupling membrane to manage movement and temperature changes.

6) How do I clean a wood tile bathroom floor?

Stick to pH-neutral cleaners and microfiber mops; avoid oil soaps that can leave a film on matte textures. A soft brush helps lift residue from textured “grain” and grout lines.

7) How much does it cost to install?

Quality wood-look porcelain runs about $6–12 per sq ft, with installation at $8–15 per sq ft in many markets. Curbless showers, linear drains, and floor heating add to the budget but deliver big daily comfort.

8) Is wood-look tile eco-friendly?

Tiles are durable and low-VOC, and they outlast many resilient floors in wet zones, which reduces replacement cycles. Look for products with Environmental Product Declarations (EPDs) or recycled content to improve the footprint.
