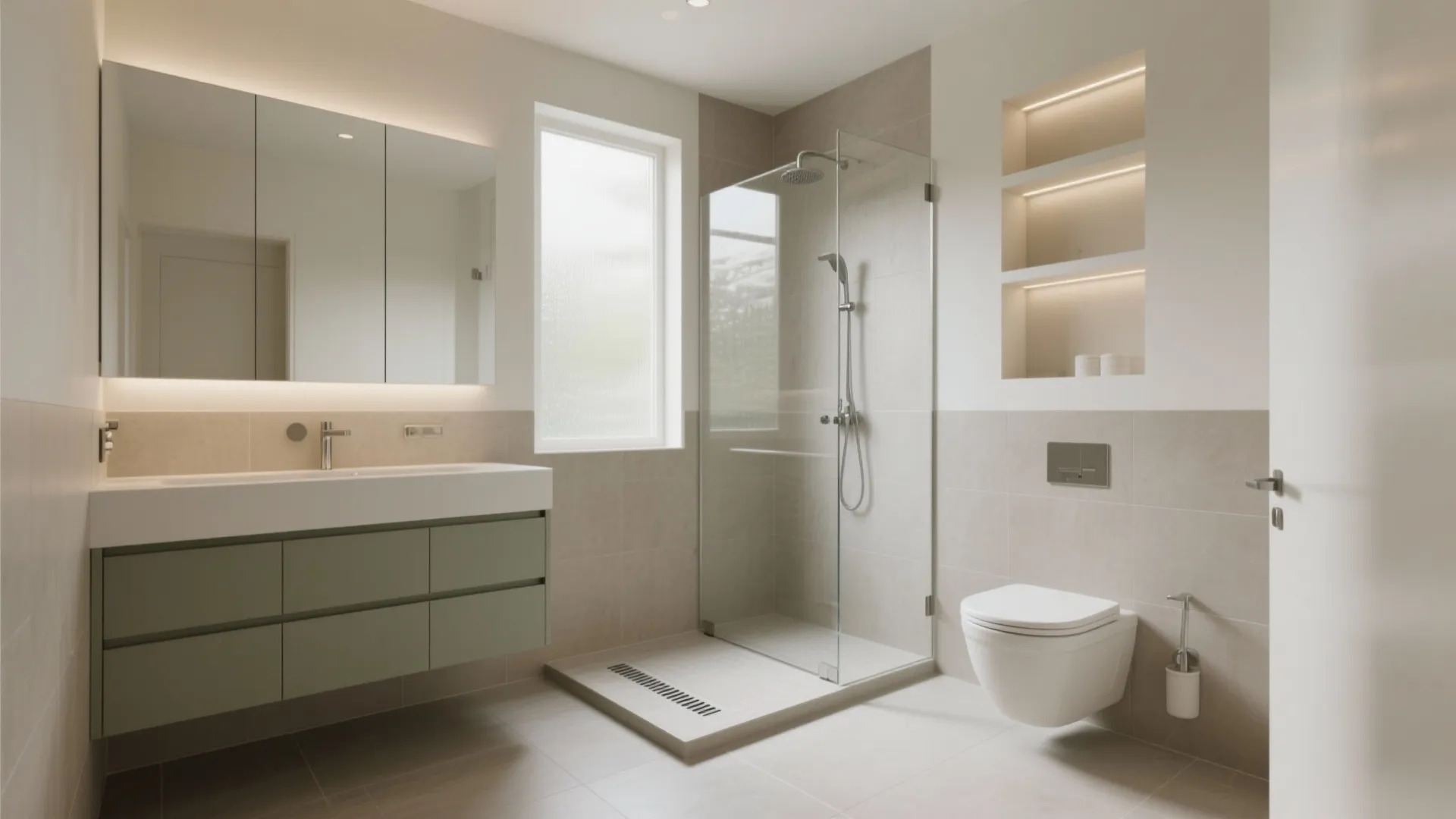

5x5 Bathroom Design: 5 Smart Layout Ideas That Work: As a senior interior designer, here are my 5 proven ways to make a 5x5 bathroom feel bigger, brighter, and more functional—without giving up comfort or style.

Small-space design trends are having a moment: warm minimalism, wet-room showers, and wall-hung fixtures are everywhere—and for good reason. In my 5x5 bathroom design projects, the tight footprint always sparks big creativity, not compromise. I’ll share 5 design inspirations below—rooted in real jobs I’ve led and supported by expert guidelines—so you can balance storage, light, code clearances, and cost. If you’re visual like me, you might sketch ideas around a compact flow or even simulate a compact floor plan with a compact wet-room layout in mind, then layer decisions step by step.

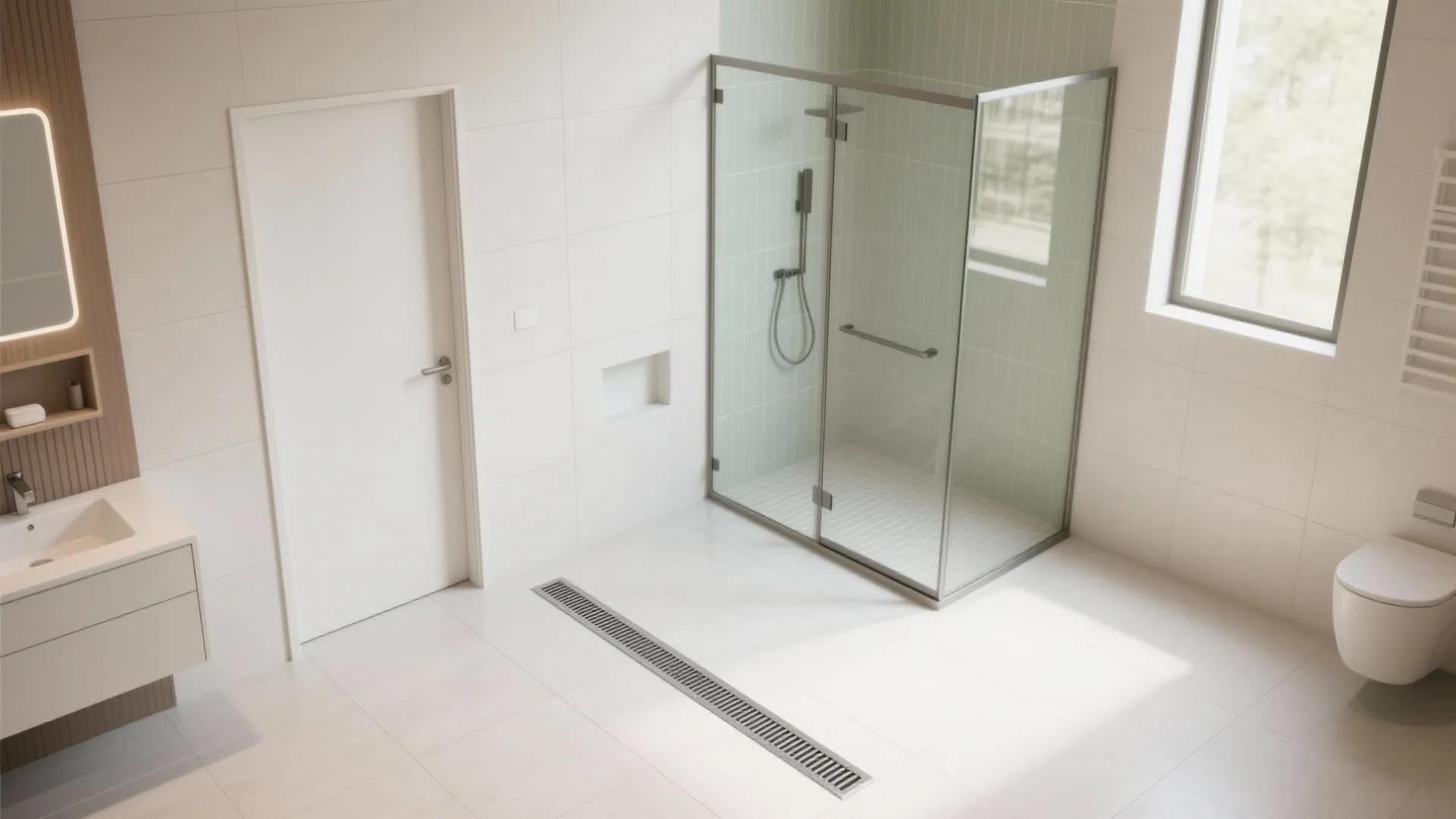

Wet-room layout with a seamless, curbless shower

My Take

I’ve converted several 5x5 bathrooms into mini wet rooms by running one continuous, slip-resistant tile floor and using a linear drain. The visual calm of one plane tricks the eye into reading the room as larger. The first time I tried this in a city condo, the client messaged me a week later: “It feels twice as big.”

Pros

A curbless shower in a 5x5 bathroom removes tripping points and creates true barrier-free access. With a linear drain at the back wall, you typically only need a single directional slope, which simplifies tile layout and keeps grout lines tidy—a small-bathroom game changer. The National Kitchen & Bath Association (NKBA) advises thoughtful placement of water zones and clearances; when the floor reads as one zone, circulation feels easier and safer (NKBA Bathroom Planning Guidelines, 2024).

Cons

Waterproofing is non-negotiable, and that adds cost and coordination; I always budget for a full-room membrane and flood test. Without a return panel or partial screen, overspray can wet towels or a mat—plan for a hook location outside the splash zone. Also consider slip resistance; I look for tiles meeting ANSI A326.3 DCOF recommendations for wet areas, then test a sample with wet feet at home before committing.

Tips / Case / Cost

Expect a waterproofing upgrade to add $600–$1,200 depending on products and labor in most markets. A partial fixed glass panel (no door) keeps sightlines open and costs less than a fully enclosed system. I aim for 3/16–1/4 inch per foot floor slope toward a linear drain and use a low-profile threshold at the door to contain any incidental water.

save pin

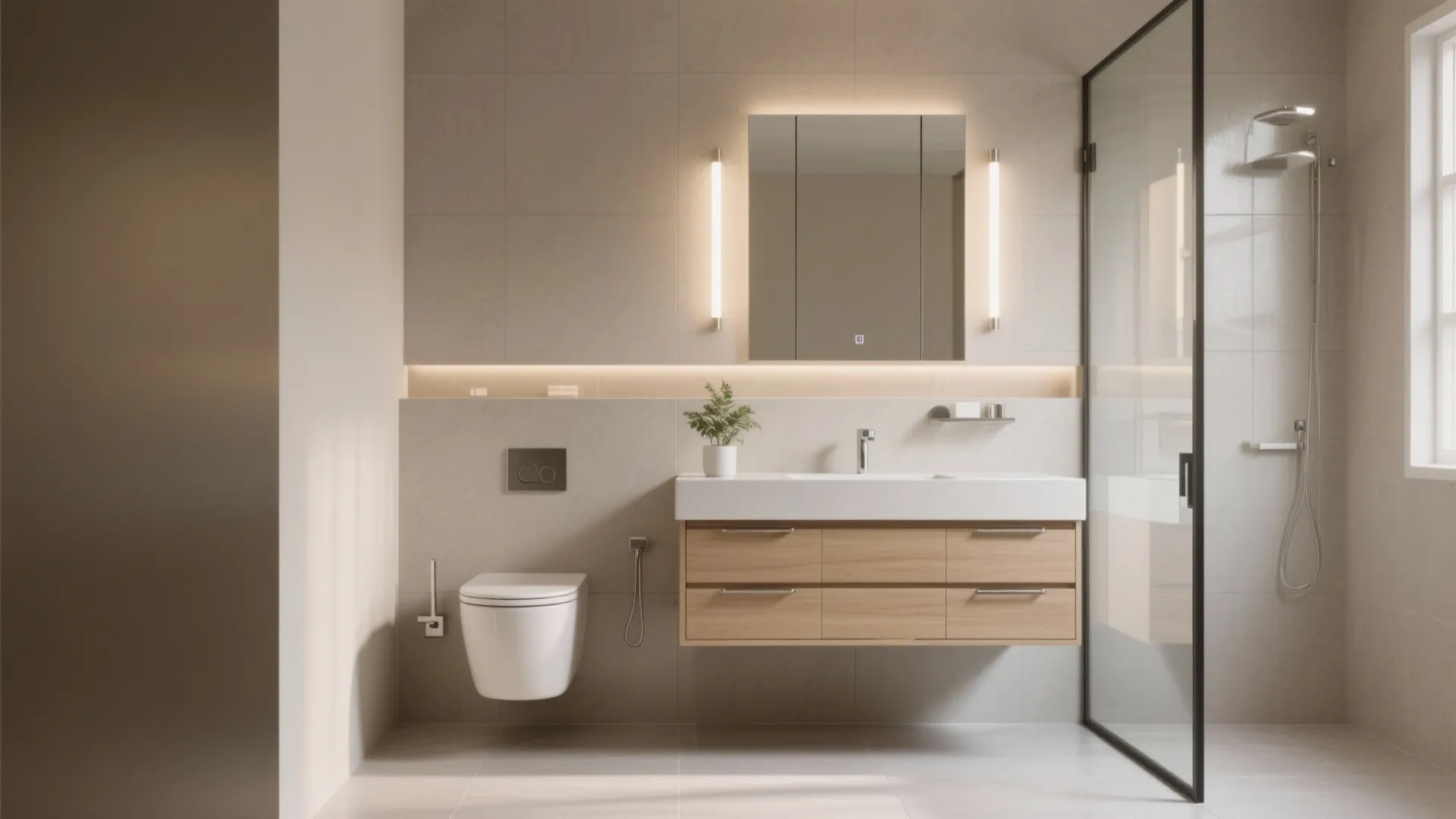

Wall-hung vanity and in-wall toilet: float to free the floor

My Take

When I install a wall-hung vanity and in-wall tank, clients often comment first about cleaning, then about how “airy” things feel. Floating elements expose more floor tile, so the brain reads more square footage. In one 5x5, switching to a 48-inch wall-hung vanity with drawers turned a chaotic space into something spa-like.

Pros

A wall-hung vanity for small bathrooms increases knee room and lets you tuck a slim stool or scale beneath. In-wall toilet carriers (often set in 2x6 framing) save several inches of projection and create a neat ledge above for plants or storage. Paired together, this 5x5 bathroom layout with wall-hung fixtures boosts both function and visual calm.

Cons

Upfront costs are higher: carriers, blocking, and coordination add hours to the job. You’ll need a service panel or tile access plate for the tank hardware—great design can hide this, but it must be planned. Older walls or unknown plumbing stacks can complicate rough-ins, and not every building allows wall modifications.

Tips / Case / Cost

Budget-wise, expect $800–$1,500 extra for a quality in-wall carrier, plus labor. I’ve disguised a maintenance hatch as an art panel or a recessed niche; a magnetic gasket keeps it flush. Keep vanity depth to 18–20 inches in a 5x5 bathroom design to preserve circulation while still fitting a full-size sink.

save pin

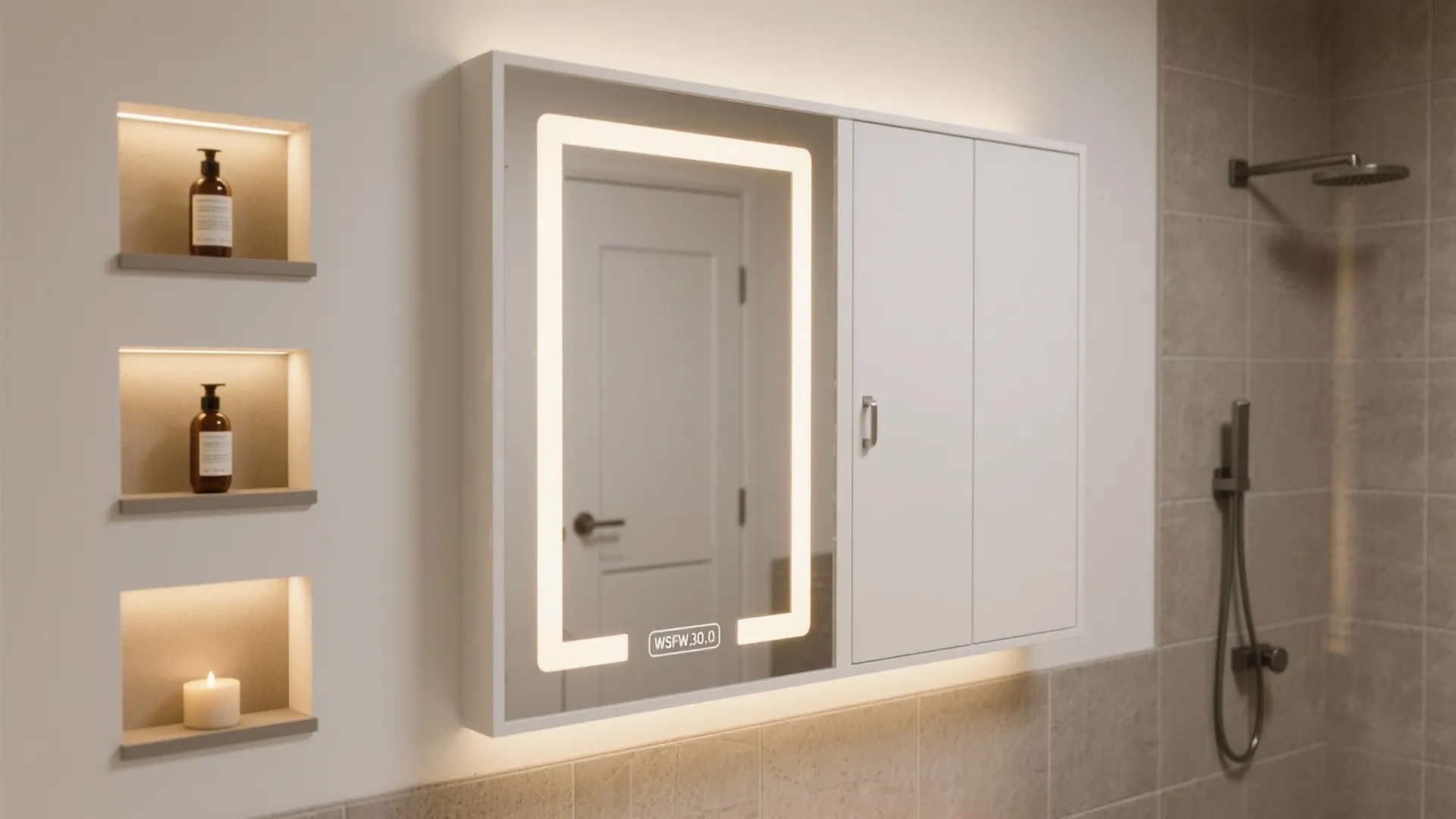

Mirror storage and vertical niches: power up the walls

My Take

Vertical space is your secret square footage. In one rental refresh, a 5-inch-deep, illuminated mirror cabinet above an 18-inch-deep vanity doubled daily-use storage without crowding elbows. Stacked shower niches at two heights—one for bottles, one for a speaker or candle—kept the sill and corners clear.

Pros

A recessed medicine cabinet with integrated lighting gives you task illumination right where you need it and frees the vanity top. A tall niche outside the shower, tucked into a stud bay, can hold backup toilet rolls and a slim laundry hamper—small bathroom storage ideas that don’t eat floor space. Use soft-close doors and 3000–3500K lighting to flatter skin tones during grooming.

Cons

Recessing requires wall cavity depth and planning around plumbing and vent stacks; on retrofits, I sometimes switch to a semi-recessed cabinet to dodge pipes. Mirror fronts can fog; I keep a small squeegee in the niche and specify quiet ventilation to clear steam quickly. Heavy cabinets need solid blocking—don’t rely on drywall anchors.

Tips / Case / Cost

On tight budgets, I’ve used a surface-mount cabinet with side fillers and a finished top panel to make it look built-in. If you’re modeling options, I like to try door swing and height variations before ordering an an illuminated recessed medicine cabinet so the mirror aligns with user eye levels and outlet locations. Shelf corners in niches chip easily; I bullnose or use Schluter-style trims for durability.

save pin

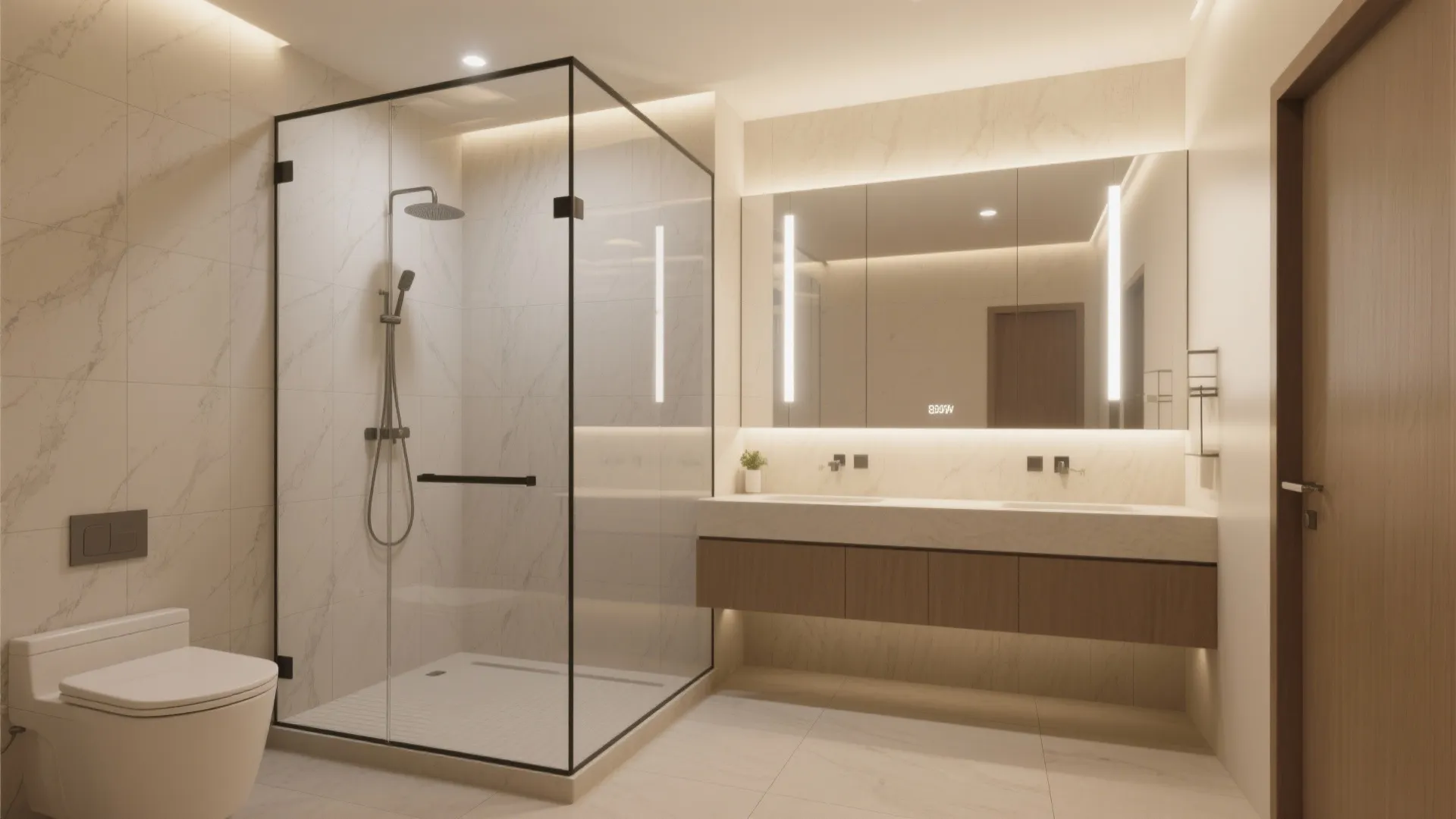

Light, glass, and large-format tile: expand with optics

My Take

Light is the ultimate space-maker. I often pair a frameless glass shower panel with large-format porcelain tile (like 24x48) to minimize grout lines and keep sightlines uncluttered. Add layered lighting—ceiling ambient plus vertical lights at the mirror—and even a 5x5 bathroom design feels boutique-hotel bright.

Pros

Frameless glass to open the sightlines makes the shower visually “disappear,” so the entire room reads as one volume. Large-format tile in small bathrooms reduces grout maintenance and visually stretches walls, especially if you wrap the same tile across floor and shower. The NKBA recommends layered lighting at the vanity to minimize shadows; placing fixtures at face height on both sides of the mirror is particularly flattering.

Cons

Custom glass can be pricey, and clear panels show water spots—daily squeegeeing helps. High-gloss tiles can become slick when wet; choose a matte or textured finish for floors and save the gloss for the walls. A wall-to-wall mirror can magnify clutter, so marry it with the storage strategies above.

Tips / Case / Cost

When budget is tight, I’ll use a single fixed panel instead of a swinging door—fewer hinges, fewer dollars. Keep color temperature consistent across fixtures (I aim for 3000K) to avoid mismatched whites. If you choose patterned tile, run it vertically to add visual height; even a subtle veining can lift the ceiling line.

save pin

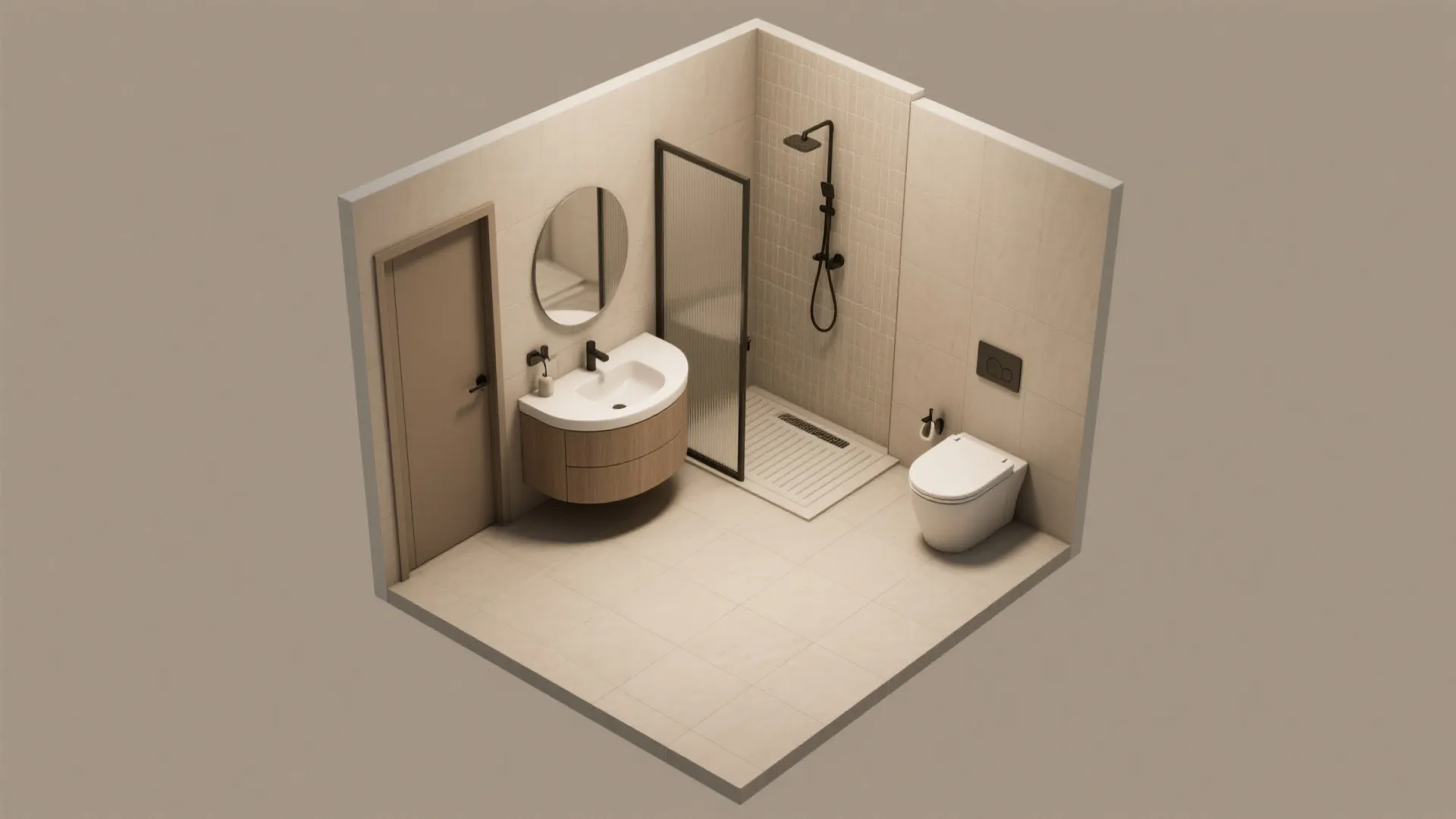

Smart clearances, doors, and corners: circulation is king

My Take

In one of my favorite 5x5 updates, switching to a pocket door reclaimed swing space and allowed a slightly larger vanity. I also chose a rounded-corner sink cabinet so hips glide by without bruises. The layout felt instantly calmer—no door conflicts, no shoulder bumps.

Pros

Thoughtful 5x5 bathroom layout planning makes every inch work harder: a pocket door for small bathrooms eliminates swing conflicts, and a corner or rounded vanity protects circulation paths. Building codes like the International Residential Code (IRC) require at least 21 inches of clear space in front of toilets and lavatories; the NKBA recommends even more generous 30-inch front clearances for comfort. Hitting these targets in a 5x5 is tight but doable with the right fixture sizes.

Cons

Pocket doors need straight, plumb walls and careful installation to avoid rattles; acoustics and privacy are slightly weaker than a solid swing door. Not every wall can host a pocket—plumbing stacks, ductwork, or shear walls may block it. Rounded vanities limit drawer shapes; you’ll rely more on shelves and organizers.

Tips / Case / Cost

When I specify a pocket, I use a solid-core slab and quality soft-close hardware; it costs more upfront but saves frustration daily. For tight corners, I like 12-inch-deep vanities or a small wall-mount sink with a bottle trap. If you’re optimizing movement lines, consider a pocket door to reclaim clearance and rotate the toilet slightly off-center to balance elbow room.

save pin

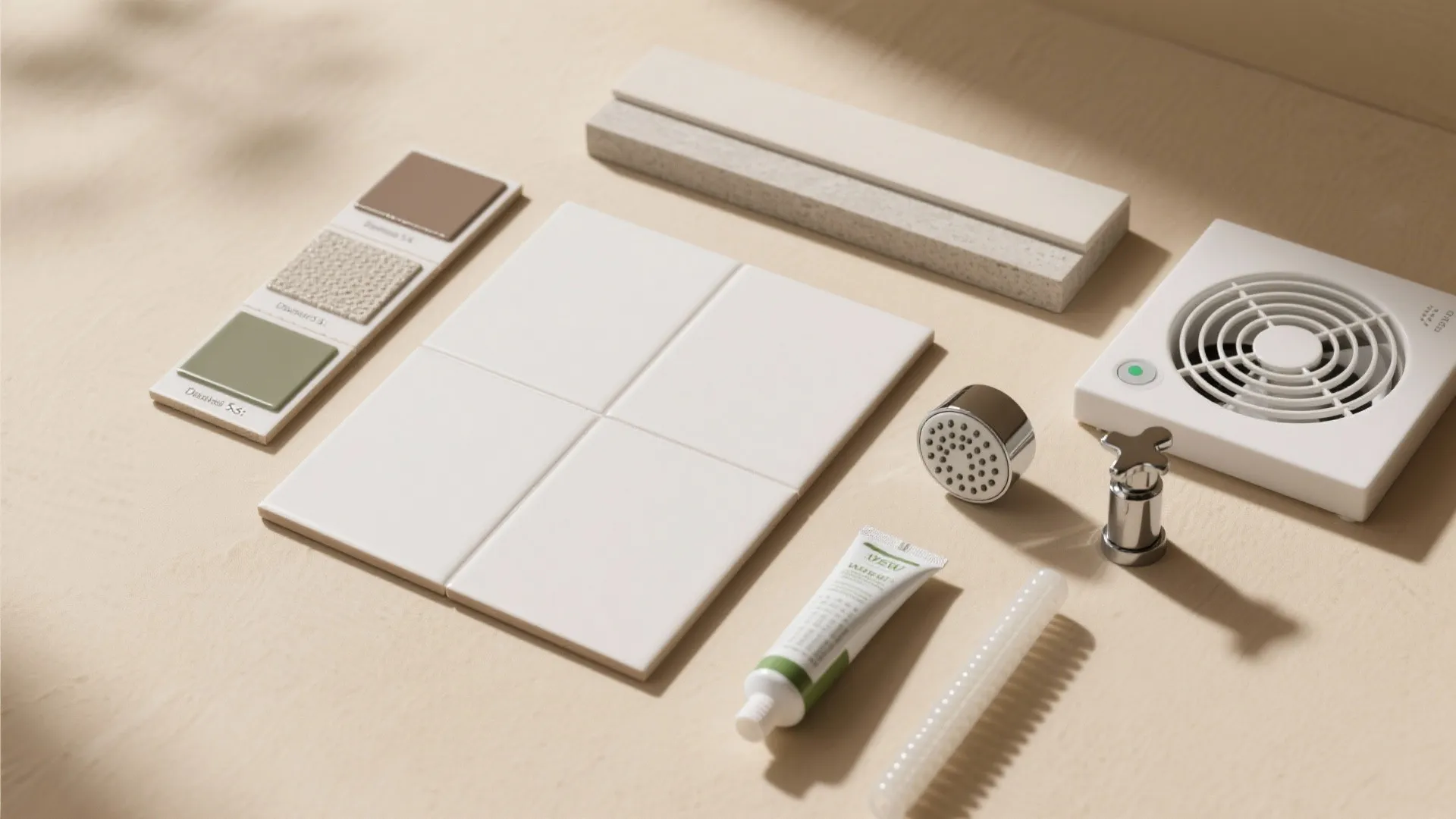

Water, air, and finishes: durable comfort in a tiny footprint

My Take

A great 5x5 bathroom design lives or dies by how it handles moisture and wear. I always pair quality ventilation with water-saving fixtures and finishes that clean easily. The difference is huge: fewer odors, less mildew, and a space that still looks fresh a year later.

Pros

WaterSense-labeled showerheads and faucets save water without sacrificing performance; the EPA’s WaterSense program specifies a maximum of 2.0 gpm for showerheads, which adds up to real savings over time. Quiet ventilation (I target 1.0 sone or less) keeps steam at bay and helps mirrors stay clear—especially with the wet-room approach. Durable finishes—porcelain tile, epoxy grout, and solid-surface sills—extend the remodel’s life in a high-use, small area.

Cons

Ultra-quiet fans cost more, and retrofits may need larger ducts to meet airflow requirements. Some water-saving showerheads feel weak without proper pressure—test before buying and look for models with pressure-compensating valves. Epoxy grout is more labor intensive; pros may charge extra, but it pays off in reduced maintenance.

Tips / Case / Cost

I like fans with humidity sensors so they run long enough to actually dry the room. Seal all penetrations (valve trims, niches, and wall caps) with quality sealants; a little time here prevents headaches. For walls, satin or semi-gloss paint in a mildew-resistant formula cleans up better than flat.

save pin

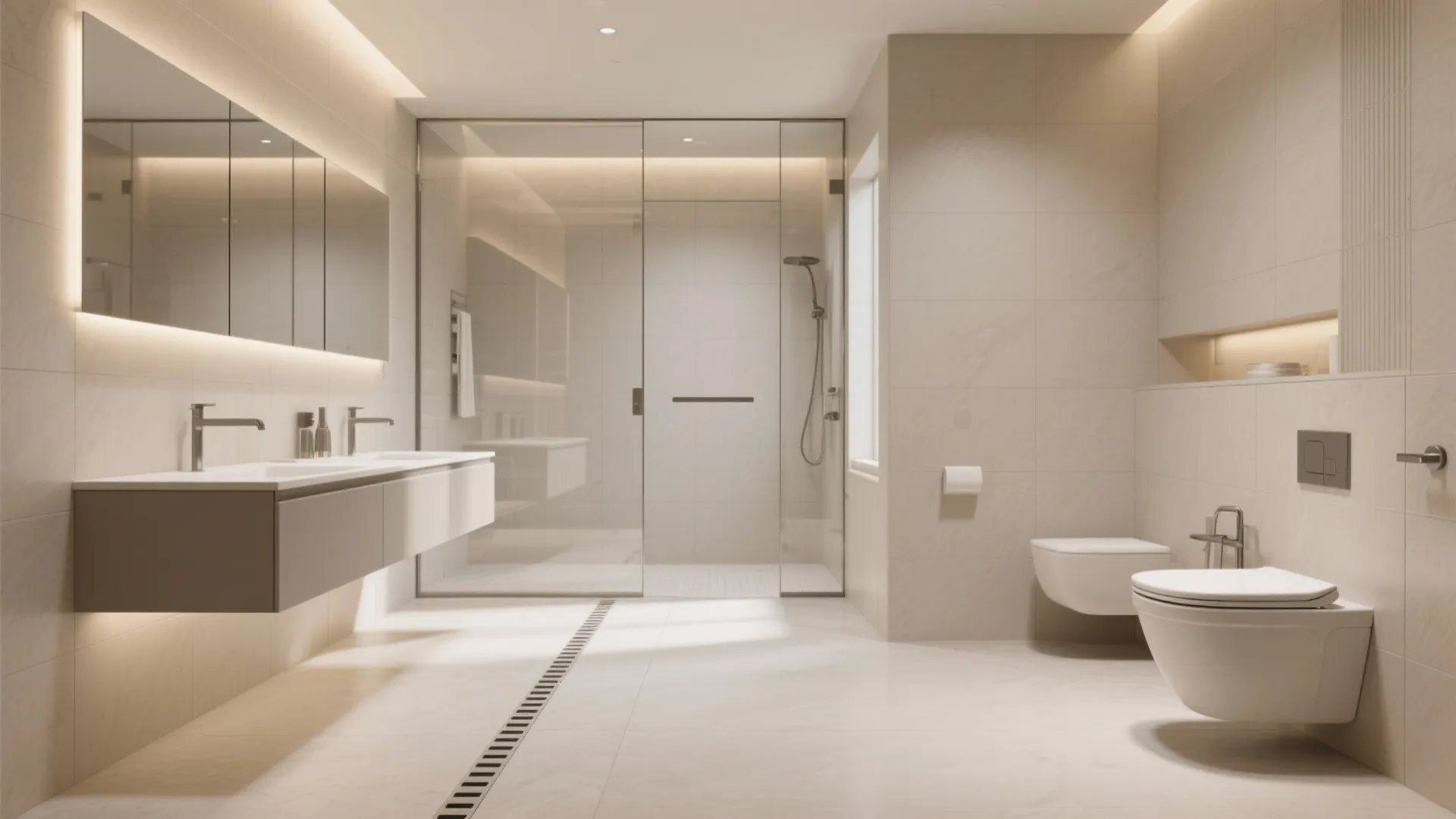

Summary

In short, a 5x5 bathroom design isn’t a limitation—it’s a prompt to design smarter. Lean on clearances that meet code, storage that lives in the walls, and finishes that amplify light and withstand moisture. As the NKBA often emphasizes, good planning beats square footage; the right sequence of decisions yields big-little bathrooms that feel effortless day to day. Which of these five ideas are you most excited to try in your space?

save pin

FAQ

1) What’s the best 5x5 bathroom layout if I want a shower?

A wet-room style with a partial glass panel and a linear drain often wins in a 5x5 bathroom design. It keeps the floor continuous, avoids curb tripping, and maximizes usable inches.

2) Can I fit a tub in a 5x5 bathroom?

A 54-inch “small soaking” tub can squeeze in if you choose a compact toilet and a shallow vanity. However, most clients prefer a walk-in shower for easier movement and lower maintenance in small footprints.

3) What clearances do I need to respect?

The IRC requires at least 21 inches of clear space in front of toilets and lavatories and 15 inches from the toilet centerline to side obstructions. The NKBA recommends more generous 30-inch front clearances when possible for comfort.

4) Are wall-hung toilets worth it in a small bathroom?

Yes if you can afford it. They save projection, make cleaning easier, and visually declutter, which matters a lot in a 5x5 bathroom layout.

5) How do I keep a small bathroom from fogging up?

Choose a quiet, appropriately sized fan (match CFM to room volume) and run it after showers. Pair it with a humidity sensor and consider an anti-fog mirror or a mirror with perimeter heating.

6) What tile size works best in a 5x5?

Large-format porcelain (like 24x48) reduces grout lines and visually expands the space. On floors, ensure sufficient slip resistance; on walls, a matte finish hides water spots better than high gloss.

7) Do water-saving fixtures actually perform well?

Today’s WaterSense-labeled fixtures are engineered to maintain good pressure while using less water; the EPA caps showerheads at 2.0 gpm under the label. Testing in person helps you confirm spray pattern and feel before buying.

8) Is a pocket door a good idea for privacy?

Pocket doors free up space, which is gold in a 5x5 bathroom design, but they’re slightly weaker acoustically than solid swing doors. Choose a solid-core slab and good seals to improve sound and feel.
