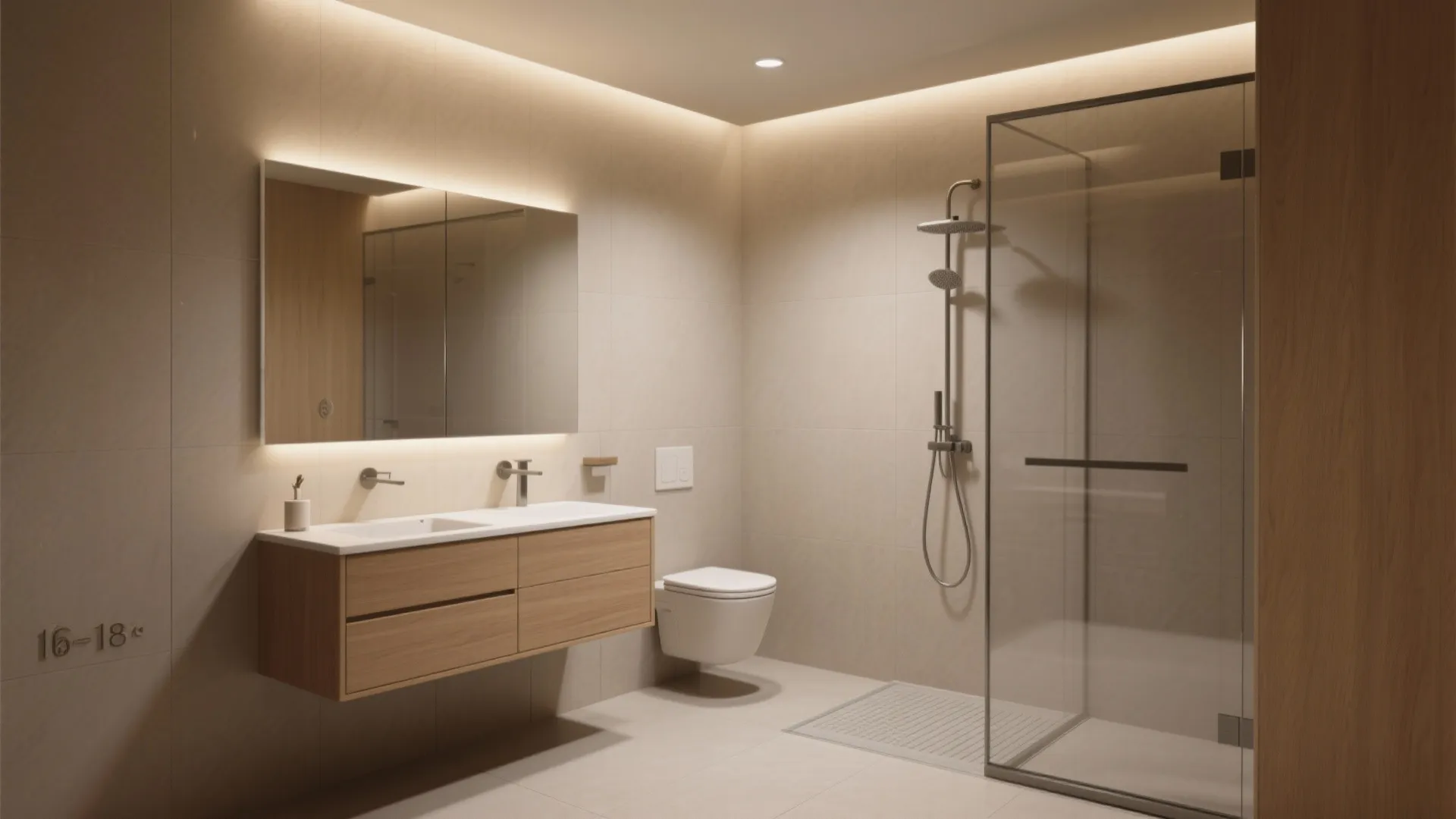

6 x 5 Bathroom Design: 5 Space-Savvy Ideas That Work: A senior designer’s friendly, field-tested playbook for turning a tight 6 x 5 bathroom into a beautiful, practical retreat—without wasting an inch

[Section: Intro]

Small spaces are driving some of the smartest interior trends I’ve seen in years—warm minimalism, lighter palettes, and multi-tasking fixtures. In my recent 6 x 5 bathroom design projects, the biggest wins came from removing visual barriers, dialing in clearances, and elevating the materials palette. I’m especially fond of a frameless glass shower to open up sightlines, which consistently makes a tight footprint feel bigger than it is. I often pair that with quieter textures and strong lighting control to keep things calm yet functional. Here’s the thing: small space sparks big creativity.

In this guide, I’ll share 5 design ideas that repeatedly deliver in a 6 x 5 bathroom design. They’re drawn from my own remodels, plus expert guidelines and field data (NKBA, ASHRAE, ANSI). I’ll be candid about pros and cons, and I’ll add tips on cost, timing, and avoidable pitfalls.

[Section: Inspiration List]

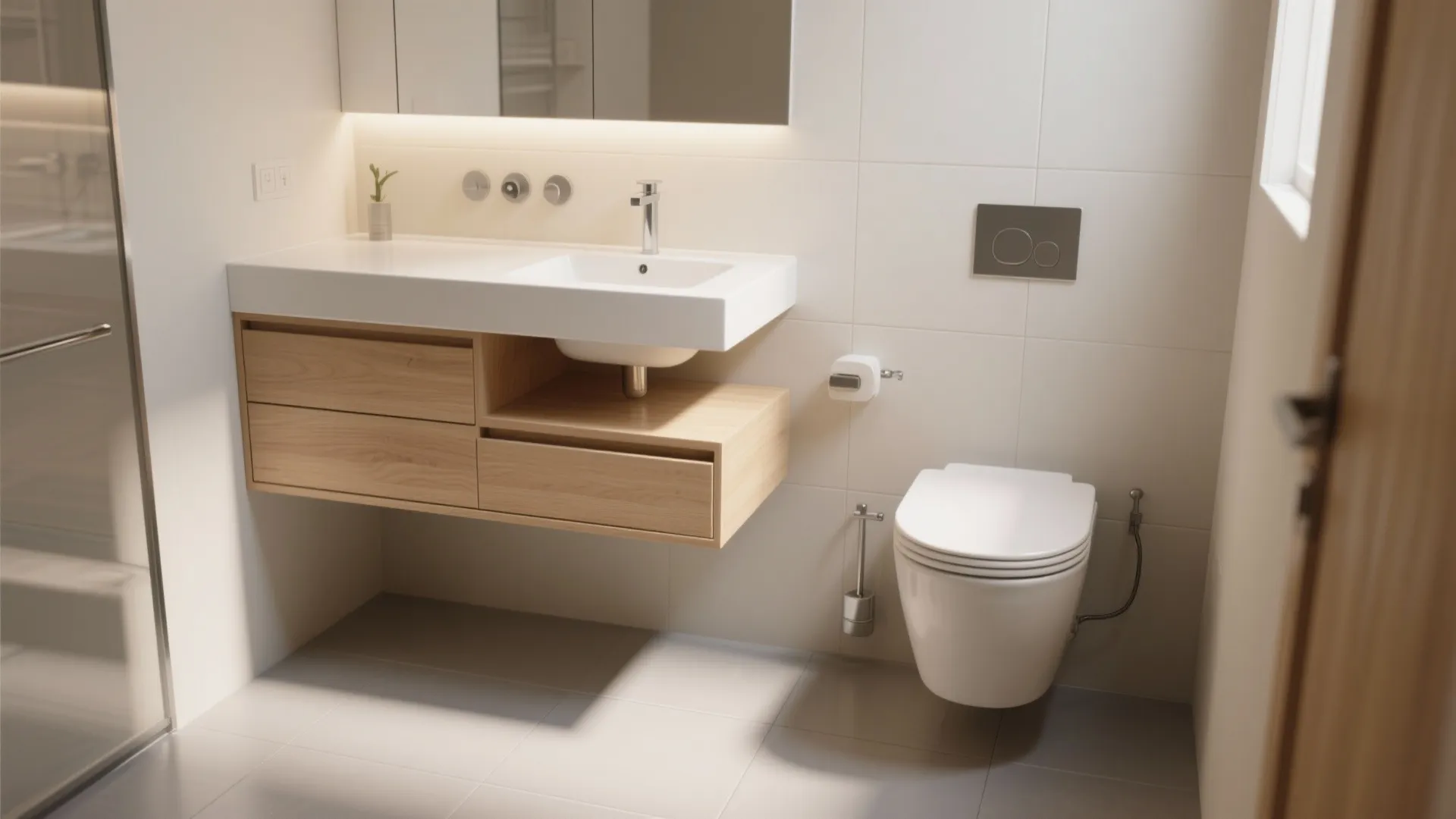

Wall-hung vanity and floating toilet free the floor

My Take: I still remember a 6 x 5 condo bath where shifting to a wall-hung vanity and an in-wall tank toilet changed everything. We gained just enough toe-kick and sightline to make cleaning easier and the room feel a size up. The client joked it felt like the floor “exhaled.”

Pros: A wall-hung vanity for small bathrooms creates the illusion of more square footage, helps light bounce underneath, and makes mopping a breeze. Paired with a compact, in-wall carrier, a floating toilet can save several inches in a 6x5 small bathroom layout and ease circulation. NKBA Bathroom Planning Guidelines recommend up to 30 inches of clear space in front of fixtures, and freeing the floor helps you get closer to that ideal even in a tight footprint.

Cons: You’ll likely open walls to install the carrier and reinforce framing, which adds labor and time. Access for maintenance is fine when designed right, but it’s not as plug-and-play as a floor-mount. If your walls are masonry or have old plumbing risers, expect more coordination.

Tips / Case / Cost: In many 6 x 5 bath remodels, I specify a 16–18 inch deep vanity (vs. a typical 21 inches) to gain precious inches in front. Wall-hung models with integrated drawers feel premium and hide clutter. For budget, plan an extra day for rough-in and blocking—it’s cheaper than reopening the wall later. Soft-close drawers and a full-overlay door style will maximize internal storage.

save pin

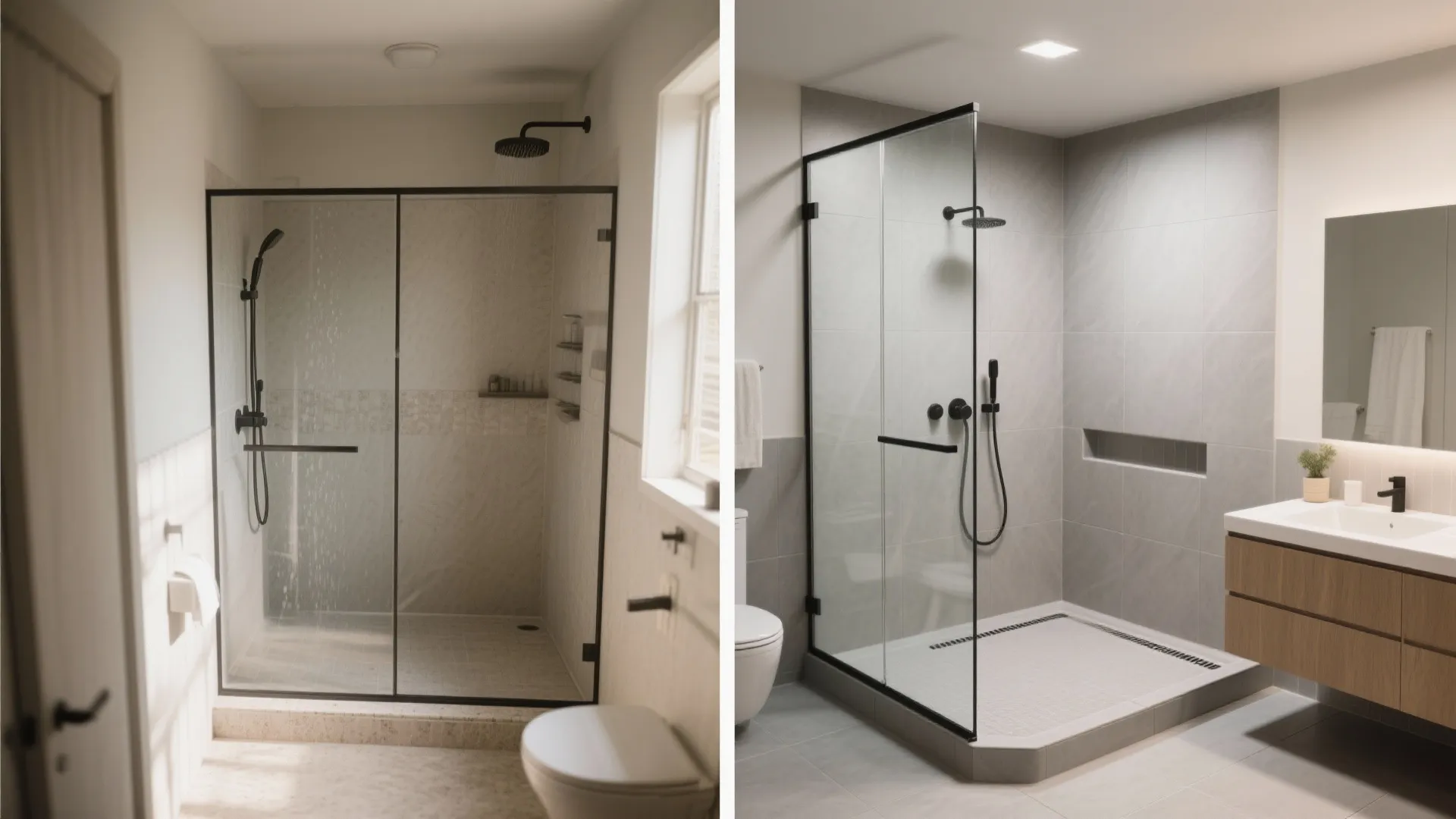

Curbless corner shower with clear glass and a linear drain

My Take: The most dramatic transformation I’ve achieved in a 6 x 5 bathroom was a corner, curbless shower with a single fixed glass panel. We tucked a linear drain along the back wall, sloped the floor subtly, and the room felt twice as open.

Pros: A curbless walk-in shower for small bathrooms eliminates the visual chop of a curb and makes entry safer and easier. Using a single, frameless panel preserves sightlines and keeps the space light. Code allows minimum showers as small as 30 x 30 inches, while NKBA recommends 36 x 36 inches for comfort (NKBA Bathroom Planning Guidelines). With smart detailing—a linear drain and large-format floor tile—you can meet clearances and improve perceived width.

Cons: Waterproofing matters more; this isn’t the place to cut corners. Expect higher tile and membrane precision, and consider a heated towel rail to offset the slightly cooler feel of a very open shower. If you’re a “long, steamy shower” person, a fully open corner might run cooler than a traditional enclosure.

Tips / Case / Cost: I like a 30–34 inch fixed glass panel with a minimal channel for stability and easy cleaning. Niches go on the control wall to hide bottles. If you can, slope the main floor uniformly (about 1/4 inch per foot toward the drain) so the curbless transition feels seamless; your tile setter will thank you. Keep grout joints narrow and pick an epoxy or urethane grout for durability.

save pin

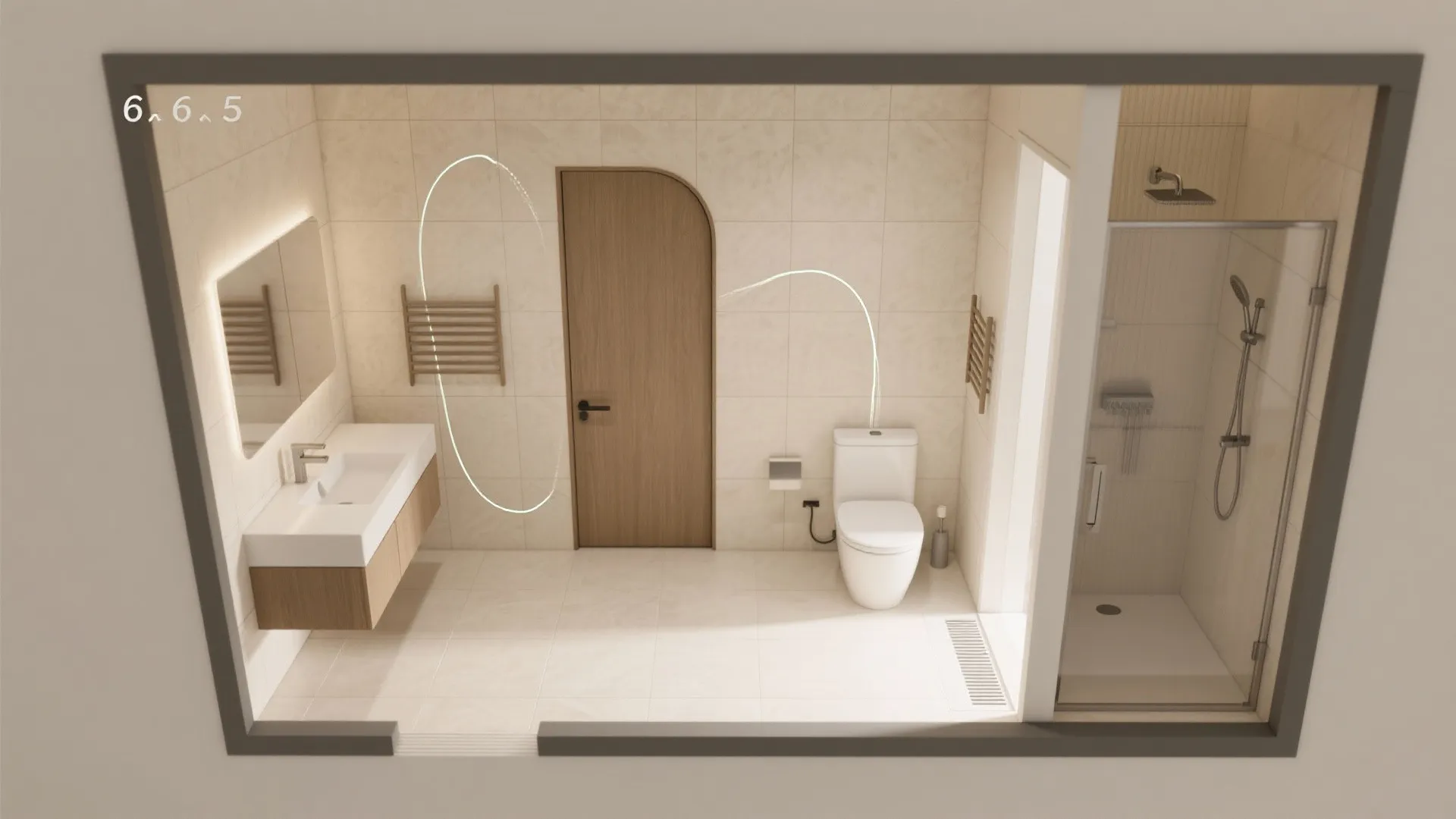

Smarter door and circulation: pocket, outswing, and inline fixtures

My Take: The number of times I’ve saved a 6 x 5 bathroom by rethinking the door swing is… a lot. In one 1950s cottage, swapping an inswing door for a pocket gave us safe, straight-line access to the vanity and shower without a shuffle dance.

Pros: In a tight 6 x 5 bathroom, a pocket door or an outswing hinge can recover crucial clearance in front of the vanity and toilet. An inline layout—vanity, toilet, shower all in a row—helps keep circulation natural and avoids awkward pinch points. When door and fixture placement align, even a 24-inch vanity and a standard elongated toilet feel comfortable to use.

Cons: Pocket doors need straight, unobstructed wall space with no vent stacks or wiring; sometimes you’ll need 2x6 framing to do it right. Sound privacy is a touch lower than a heavy swing door, so I often specify soft-close pocket hardware and solid-core slabs. Outswing doors require hallway clearance—double-check they won’t block stairs or other doors.

Tips / Case / Cost: I aim for at least 15 inches from toilet centerline to side obstructions (18 inches recommended), and 21 inches minimum clear in front of the lavatory, with 30 inches ideal (per NKBA). For the inline plan, I’ve had good luck with a 24-inch wall-hung vanity, 28–30 inches for the toilet bay, and a 30–34 inch shower—tight but very workable in a 6 x 5. If the wall allows, consider a pocket door to recover swing space—it’s the single most effective circulation fix I deploy.

save pin

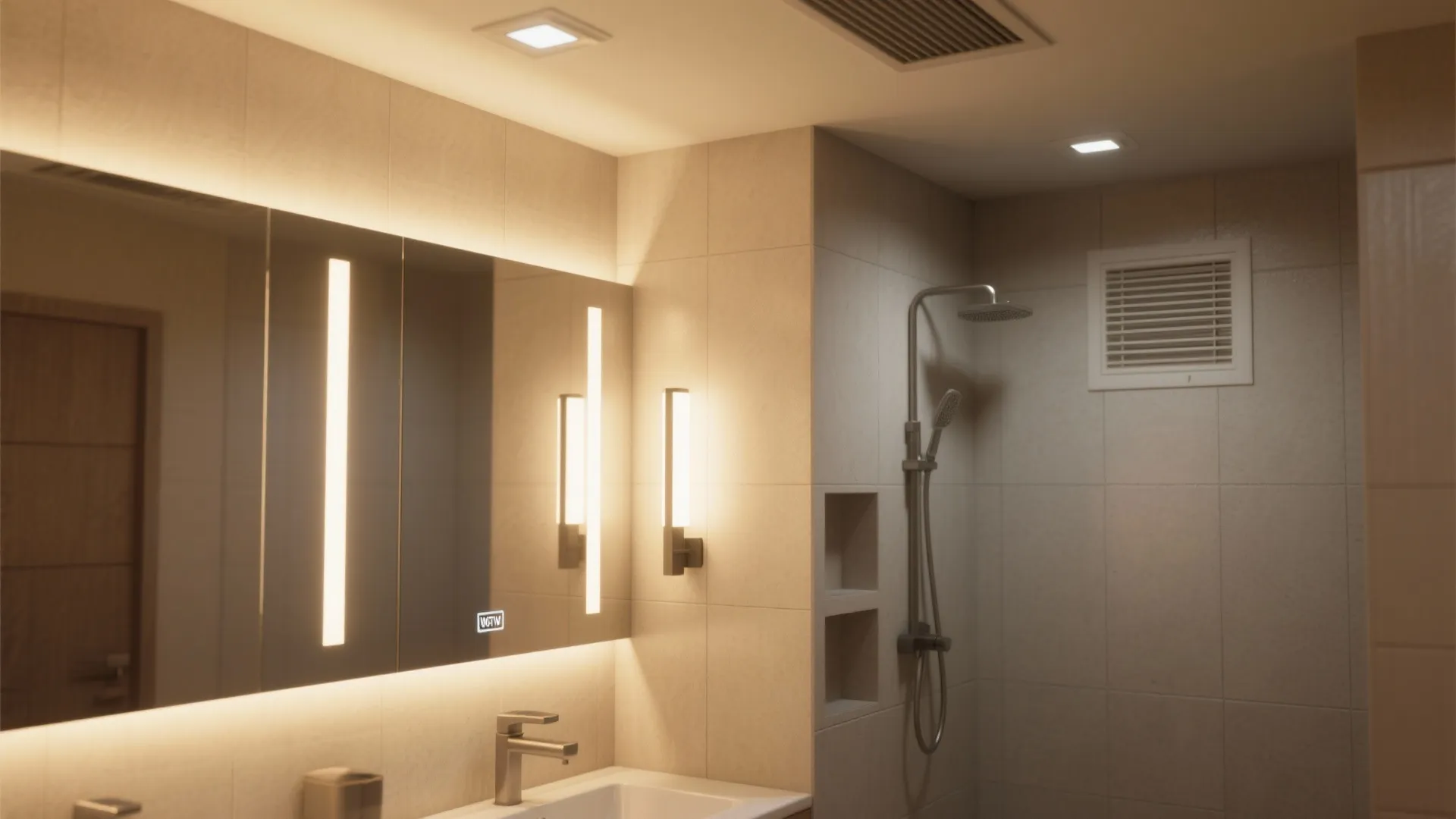

Layered lighting and real ventilation (small room, big difference)

My Take: When clients tell me their bathroom “still feels small,” nine times out of ten, the lighting and fan are to blame. In a 6 x 5, I combine a low-glare downlight, a high-CRI backlit mirror, and quiet, code-compliant ventilation. The room immediately feels taller, clearer, and fresher.

Pros: Face-level lighting reduces shadows—vertical sconces or an integrated mirror at roughly eye level does wonders. Dimmable, 90+ CRI LEDs at 2700–3000K keep skin tones flattering. For ventilation, ASHRAE 62.2 calls for 50 cfm intermittent or 20 cfm continuous exhaust in bathrooms; sizing the fan correctly and venting outside helps control moisture and odors reliably (ASHRAE 62.2 standard).

Cons: Too many fixture types can feel busy in a compact room; keep trims minimal and finishes consistent. In showers, you’ll need wet-location or damp-rated luminaires, which can narrow options. Cheap fans are loud—if it’s over 2 sones, you won’t use it, and poor usage kills the benefit.

Tips / Case / Cost: I like one low-glare recessed downlight centered on the vanity sink, plus a backlit mirror or slender vertical sconces. For fans, target 80–110 cfm at ≤1.0 sone for comfort; pair with a humidity sensor or timer switch so it actually runs long enough. If steam control is a concern, a partial glass return or a swing clip on the fixed panel can “catch” stray spray without closing off the room.

save pin

Material palette magic: large-format tile, light tones, and vertical lines

My Take: In a recent 6 x 5 remodel, 24 x 48 matte porcelain on walls and floors made the room feel calm and generous. We ran the tile vertically to elongate the walls and used a soft gray grout that nearly vanished. The client swore we “stole” a foot from somewhere.

Pros: Large-format tile for small bathrooms reduces visual clutter by minimizing grout lines; use it across floors and up at least one feature wall. A restrained palette—light, warm neutrals with a subtle texture—reflects light without glare and reads more expensive. For floors, ANSI A326.3 recommends a wet DCOF of ≥0.42 for slip resistance; look for that rating when selecting porcelain for shower and bath floors (ANSI A326.3).

Cons: Large tiles demand very flat substrates and precise setting to avoid lippage. Cutting around a niche or valve can require special blades and patience (budget some extra labor). Very polished tiles can be slippery and show water spots—go for honed or matte in wet zones.

Tips / Case / Cost: If you love contrast, concentrate it—perhaps a single darker wall or a band of mosaic in the niche—and keep the rest tone-on-tone. Extend floor tile into the shower with a linear drain to maintain pattern continuity. When planning the palette, I often mock up large-format tile for fewer grout lines to preview scale and balance with fixtures before ordering. For a budget-friendly splurge, add a custom mirror-to-ceiling medicine cabinet; it stores a lot and visually doubles the room.

[Section: Summary]

After dozens of tight remodels, my core belief stands: a 6 x 5 bathroom design isn’t a limitation—it’s an invitation to design smarter. Right-sizing the vanity, clarifying circulation, opening the shower, dialing in lighting, and simplifying materials work far harder than “just shrinking everything.” For comfort and safety benchmarks, I lean on NKBA planning guidance and ASHRAE ventilation targets as reliable guardrails. Which of these five ideas would you try first in your own space?

save pin

FAQ

[Section: FAQ]

Q1: Can a 6 x 5 bathroom fit a toilet, sink, and a shower comfortably?

A: Yes, with a thoughtful inline layout. Code minimums allow a 30 x 30 inch shower, but NKBA recommends 36 x 36 inches for comfort; pair that with a 24-inch wall-hung vanity and careful door planning to keep circulation safe.

Q2: Is a bathtub possible in a 6 x 5 footprint?

A: It’s tough but not impossible. A standard 60-inch tub technically fits along the 5-foot wall, but you’ll be very tight on the remaining 12 inches of length; most clients are happier with a walk-in shower in this footprint because it saves space and feels larger.

Q3: What’s the best vanity size for a 6 x 5 bathroom design?

A: I usually specify 16–18 inches deep and 20–24 inches wide, wall-hung, with drawers for efficient storage. A shallow-profile faucet and a mirrored medicine cabinet above can add function without bulk.

Q4: What clearances should I maintain around the toilet and vanity?

A: Plan for at least 15 inches from toilet centerline to any side obstruction (18 inches is more comfortable) and 21 inches minimum clear in front of the lavatory. NKBA recommends 30 inches in front of fixtures for easier use, even in small rooms (NKBA Bathroom Planning Guidelines).

Q5: How much ventilation does a small bathroom need?

A: ASHRAE 62.2 specifies 50 cfm intermittent or 20 cfm continuous exhaust for bathrooms; choose a quiet fan and vent it outdoors for best moisture control. Run it during showering and 20 minutes afterward for real results.

Q6: What lighting plan works best in a tiny bath?

A: Use layered light: a low-glare downlight for general illumination, plus vertical sconces or a backlit mirror for faces. Keep color temperature warm (2700–3000K) and aim for 90+ CRI to render skin tones naturally.

Q7: Are large tiles slippery in small bathrooms?

A: Not if you pick the right finish. Look for floor tiles with a wet DCOF of ≥0.42 per ANSI A326.3, and avoid highly polished surfaces in wet zones to keep traction comfortable.

Q8: What budget should I expect for a 6 x 5 bathroom remodel?

A: In my projects, modest cosmetic refreshes start around $6k–$10k, while full gut-and-waterproof with new tile, vanity, and lighting often ranges $15k–$30k+, depending on region and finishes. Curbless showers and in-wall carriers add precision—and cost—but deliver long-term value.
