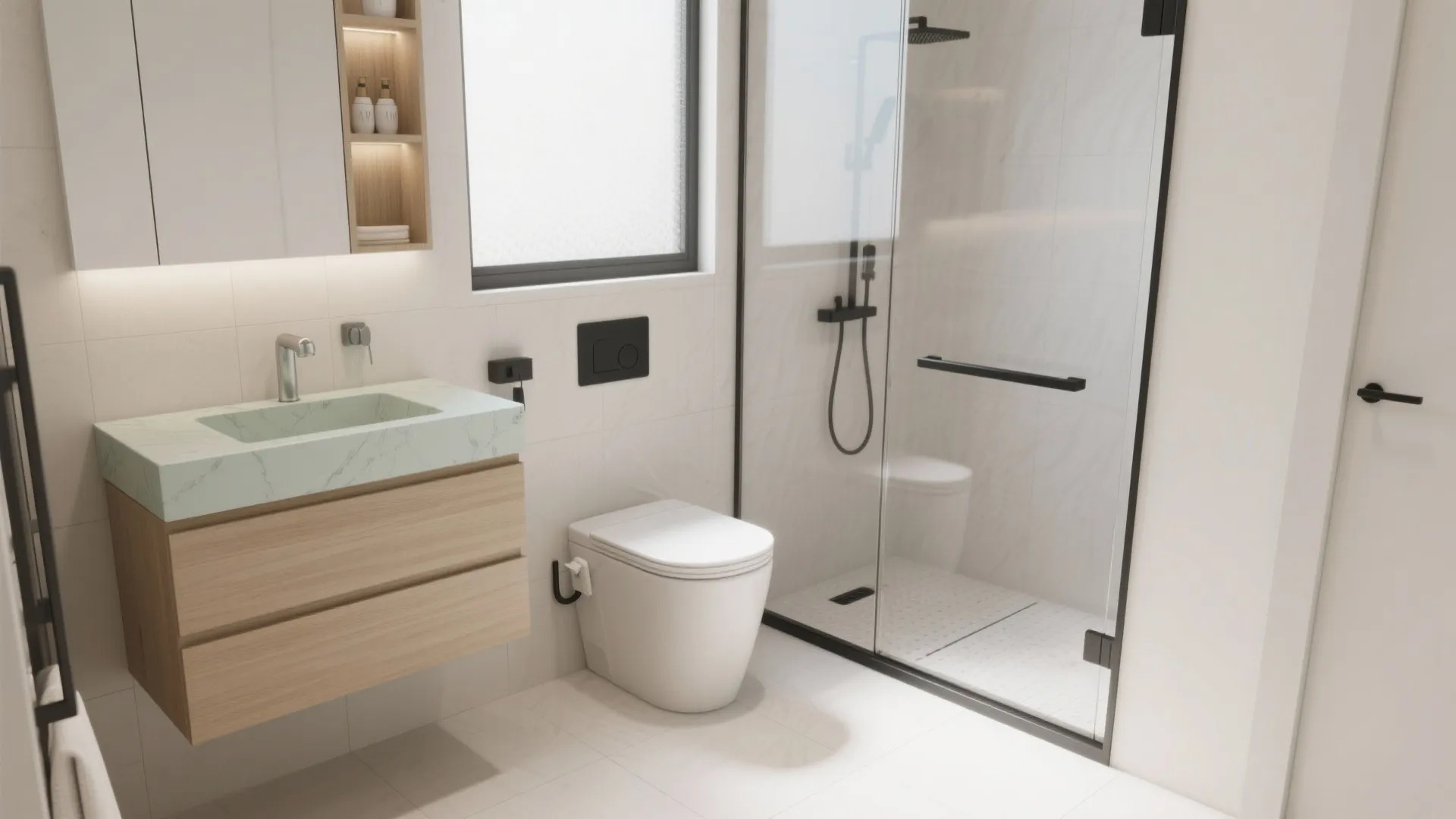

8x5 Bathroom Design: 5 Expert Ideas That Feel Bigger: Designing a compact 8x5 bathroom that looks spacious, functions beautifully, and meets code—my field-tested playbook with five inspirations and pro tips

[Section: 引言]

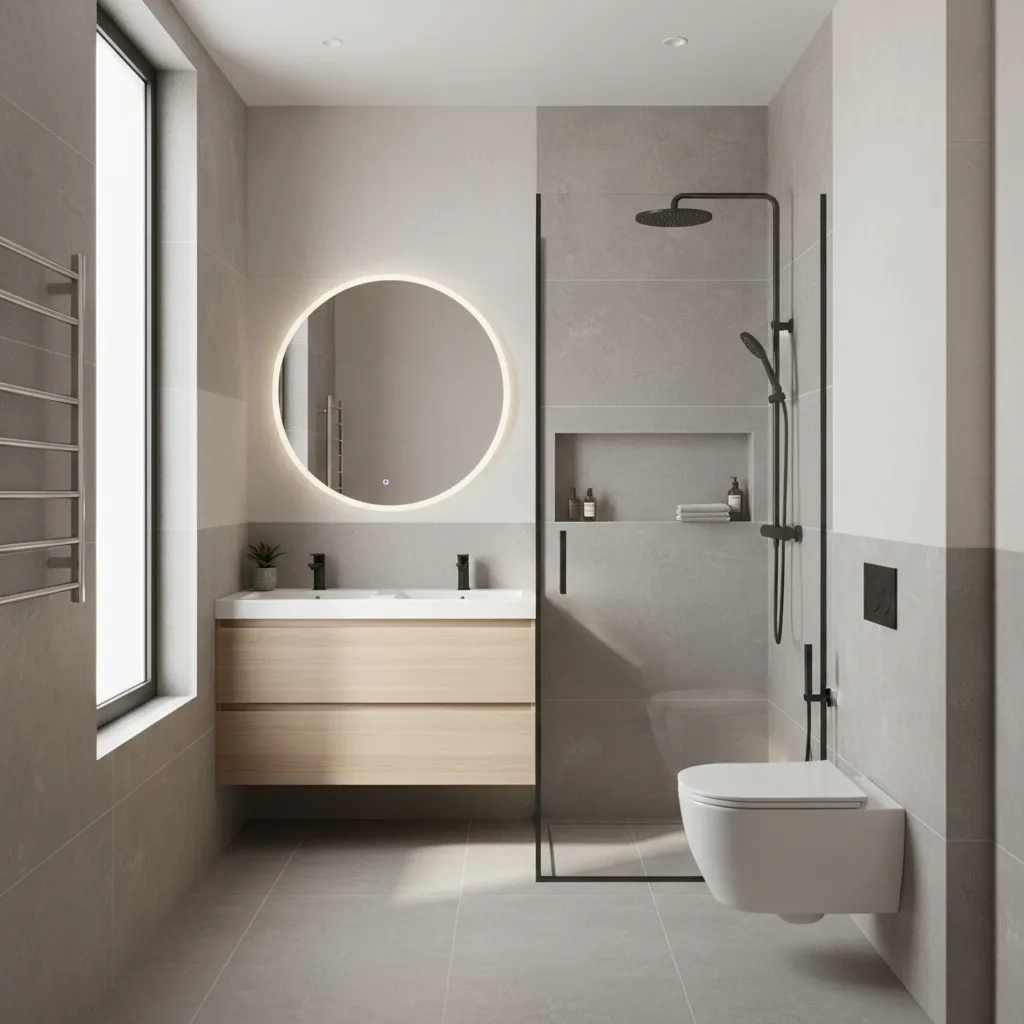

In the past decade, I’ve watched 8x5 bathroom design become the new urban norm—tight footprints, higher expectations, and trend-forward details like wall-hung vanities, slim-profile toilets, and textured tile. Small spaces spark big creativity, and that’s where the fun begins: thoughtful layouts, precise clearances, and materials that visually stretch the room. I’ll share 5 design inspirations I rely on, blending my own remodel lessons with expert guidelines—starting with Frameless glass for a brighter shower, a move that consistently makes compact baths feel gracious.

When I lead a small-bath project, I map circulation first, then prioritize light and storage. It’s a game of inches: every hinge, sconce, and grout line matters. If you’ve been staring at your 8 by 5 bath thinking it’s too small to love, I promise—there’s a smarter way to make it work.

[Section: 灵感列表]

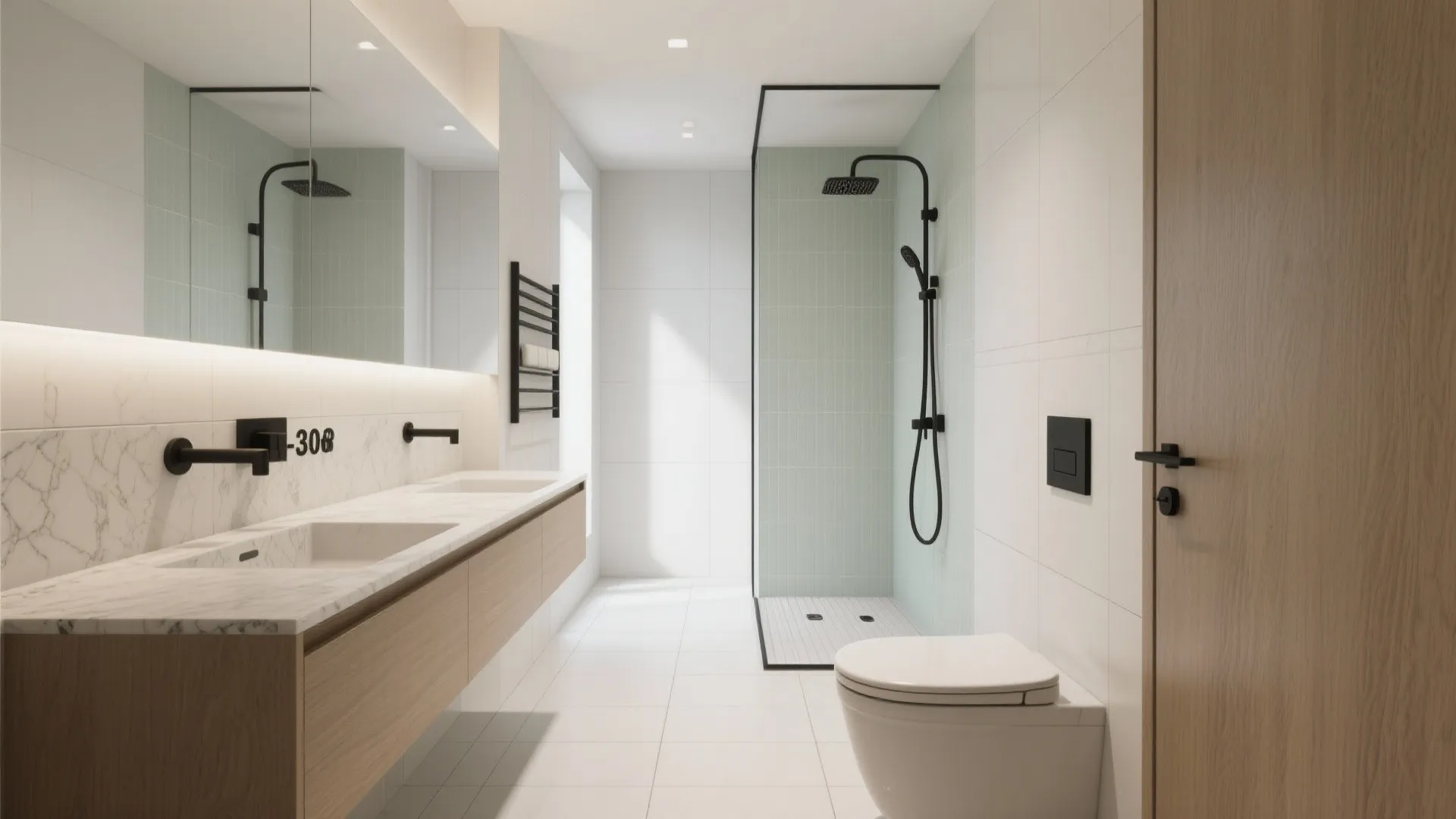

One-wall wet zone to simplify circulation

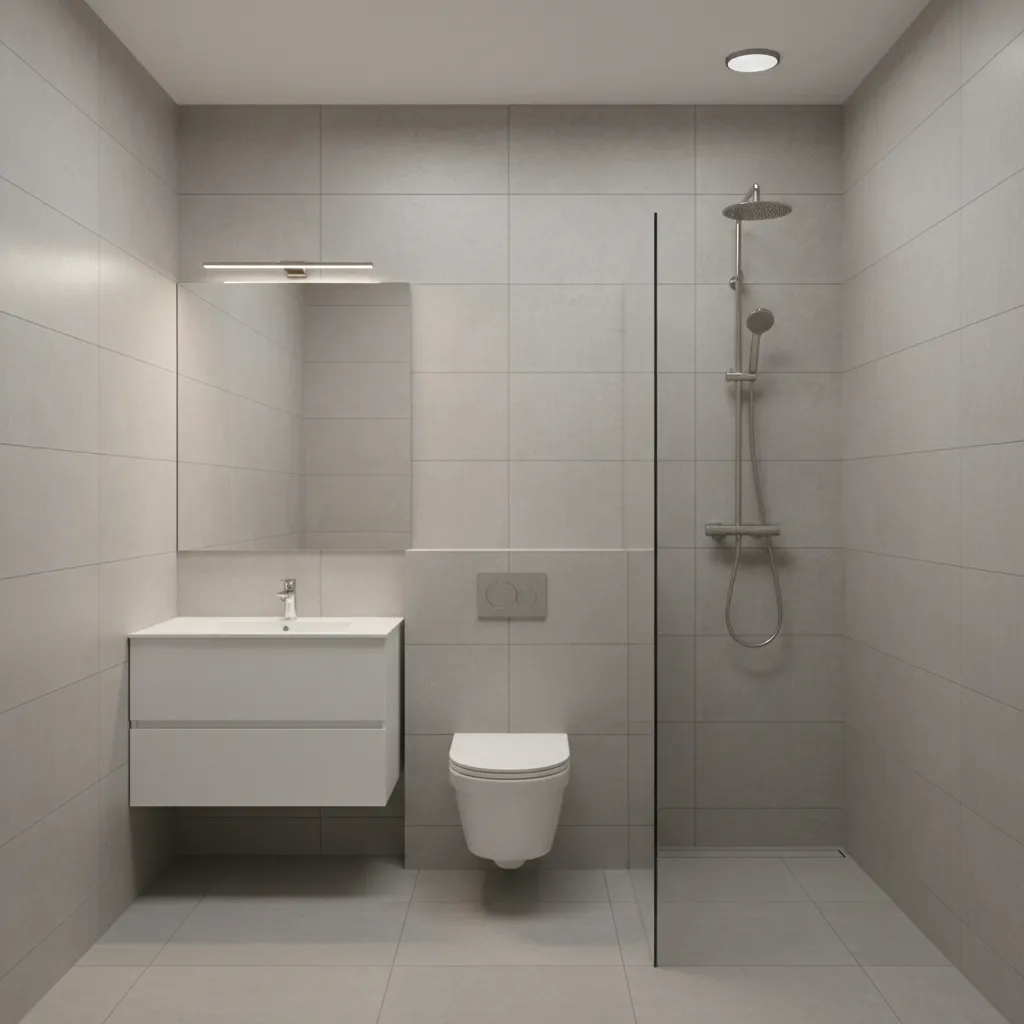

My Take: In many tight baths, I pull the shower, vanity, and toilet onto one long wall (the “wet wall”) to keep plumbing efficient and the pathway clear. I did this in a 1930s brick walk-up—moving fixtures just a few inches transformed how the room felt.

Pros: A one-wall layout reduces crossings and creates clean lines, ideal for an 8x5 bathroom design where every inch counts. You also minimize plumbing runs, which often lowers cost and speeds the remodel. According to the IRC (R307), keeping fixtures aligned makes it easier to meet the required 21 inches of clear floor space in front of the toilet—crucial in narrow bathrooms.

Cons: If your home has structural or slab constraints, rearranging the wet wall can mean core drilling or wall reframing—more noise and dust than anyone loves. And if you’re chasing perfect symmetry, existing window or door positions may force a little compromise.

Tips / Case / Cost: Consolidate shut-offs and use a shared access panel behind the toilet or vanity for maintenance. In older buildings, I also plan a small cleanout and confirm vent stack locations early to avoid surprises once demo starts.

save pin

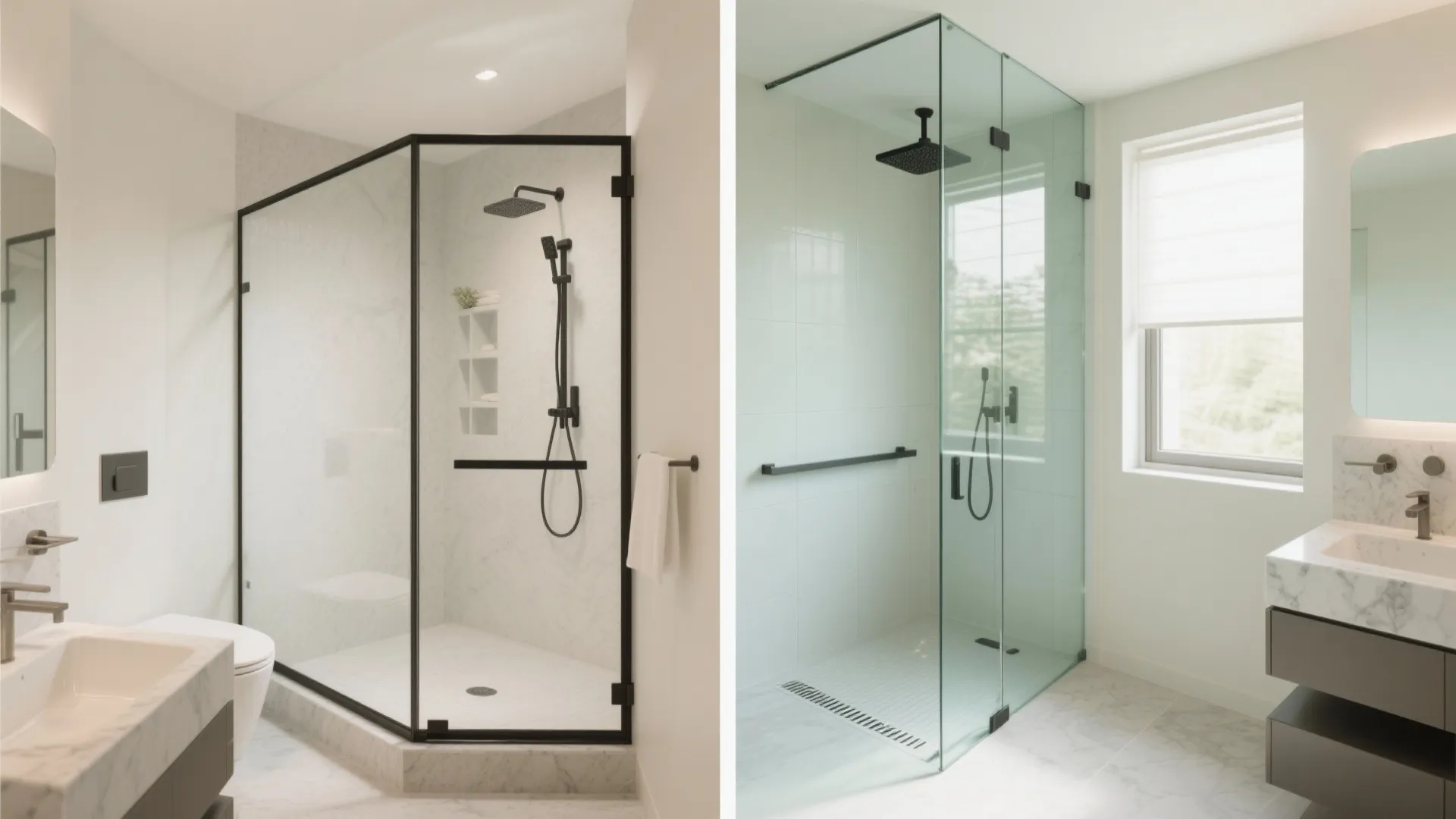

Frameless glass shower to borrow light

My Take: I once swapped a heavy framed enclosure for frameless glass in a long, narrow bath—instantly, the space felt wider, as if we added square footage. Clear sightlines and a low-profile threshold are the best visual trick in compact rooms.

Pros: Frameless panels boost perceived width and help daylight travel, a win for small bathroom walk-in shower ideas. Keeping the entry clear also aligns with NKBA guidance to provide safe, unobstructed access; and if you opt for a curbless shower, remember the UPC’s 1/4 inch per foot floor slope toward the drain for proper water management.

Cons: Frameless glass shows more water spotting, so your squeegee routine becomes daily zen. If you love taking scalding showers, condensation may be more visible—no big deal, just be ready with a good exhaust fan.

Tips / Case / Cost: Choose low-iron glass to avoid a green tint, and keep hardware minimal. A linear drain at the wall lets you maintain a single-plane slope—cleaner lines, easier tiling, and fewer trip points.

save pin

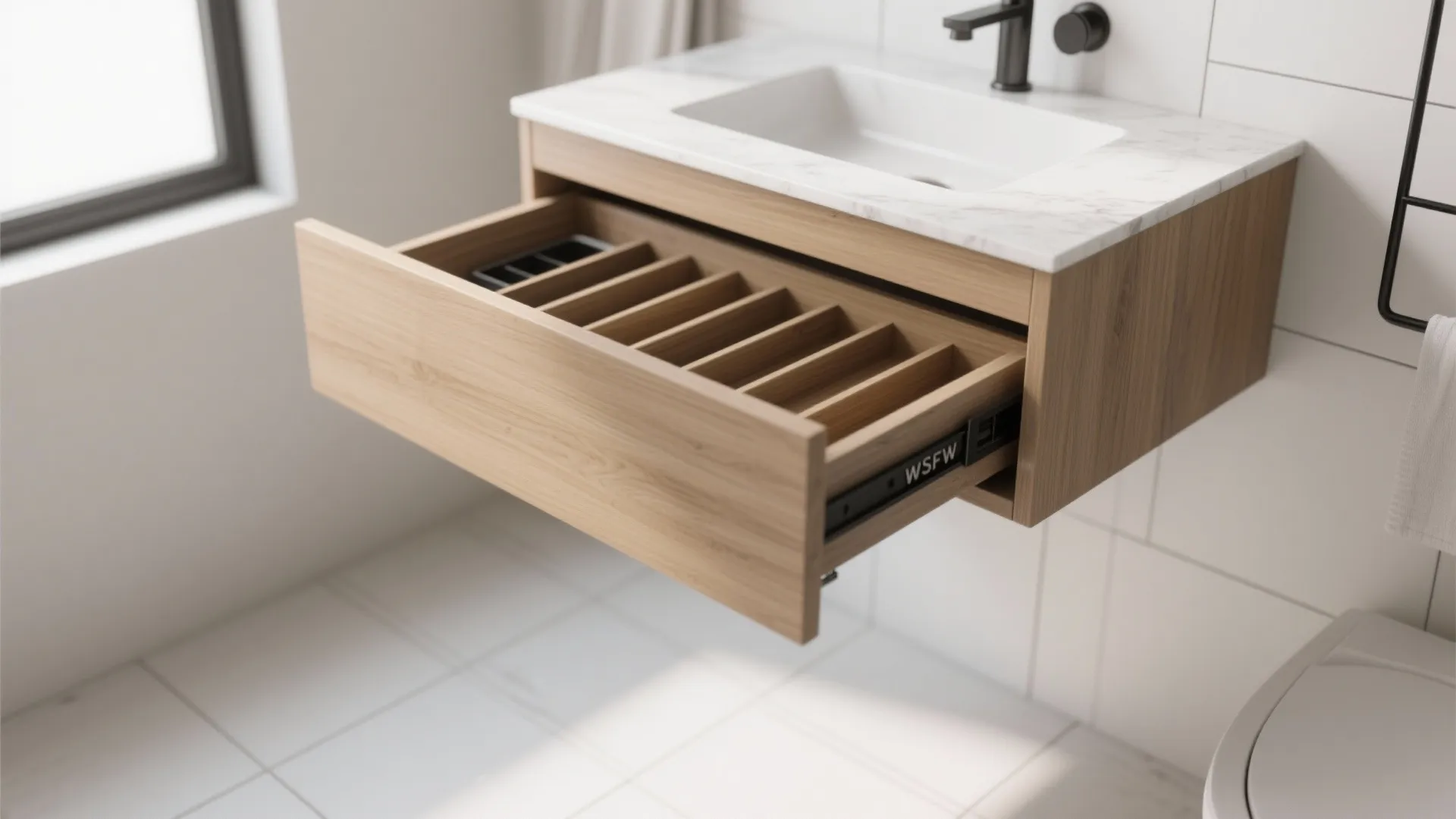

Wall-hung vanity with integrated storage

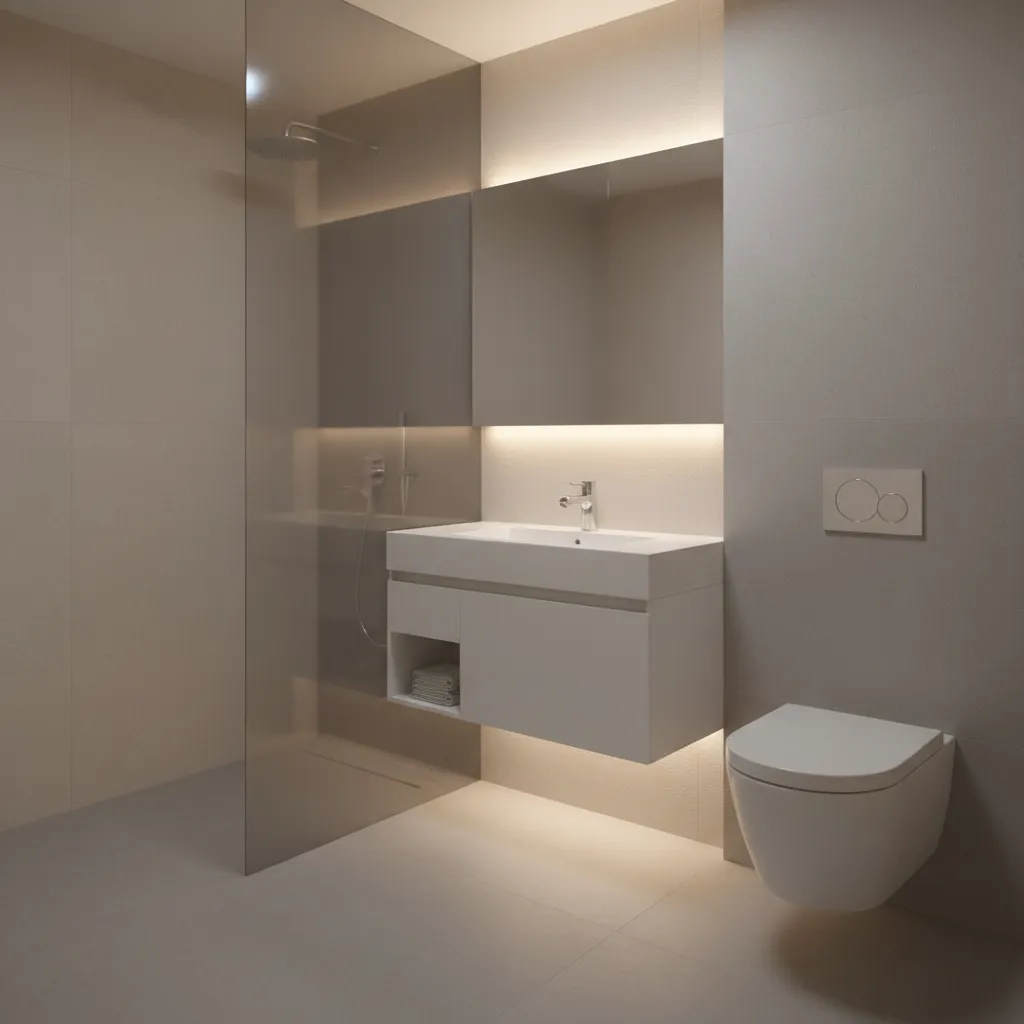

My Take: Floating the vanity changed everything in my own 8x5 remodel. The visual air space underneath makes the floor feel bigger, and a deep drawer with dividers beats a cluttered cabinet any day.

Pros: A wall-hung vanity opens floor area and increases perceived depth—great for small bathroom layout plans. Pair it with a slim, rimless toilet to free precious inches and keep cleaning simple. NKBA recommends at least 30 inches centerline clearance in front of a lavatory for comfort; in tight plans I aim for the code minimums but maintain good ergonomics with shallow sinks and right-sized faucets.

Cons: You’ll need solid blocking behind the wall to support the unit and countertop loads—a must if you love stone. Some plumbing traps and supplies need careful concealment; a well-placed access door and clean cut sheet help.

Tips / Case / Cost: Combine a 24–30 inch vanity width with drawer organizers for hair tools, skincare, and cleaning bottles. Mid-height mirrored medicine cabinets free the counter and add depth when you swing open the door.

By the way, layout mockups help you visualize circulation; I often point clients to Wall-hung vanity opens floor area examples so we can test clearances and fixture spacing before committing.

save pin

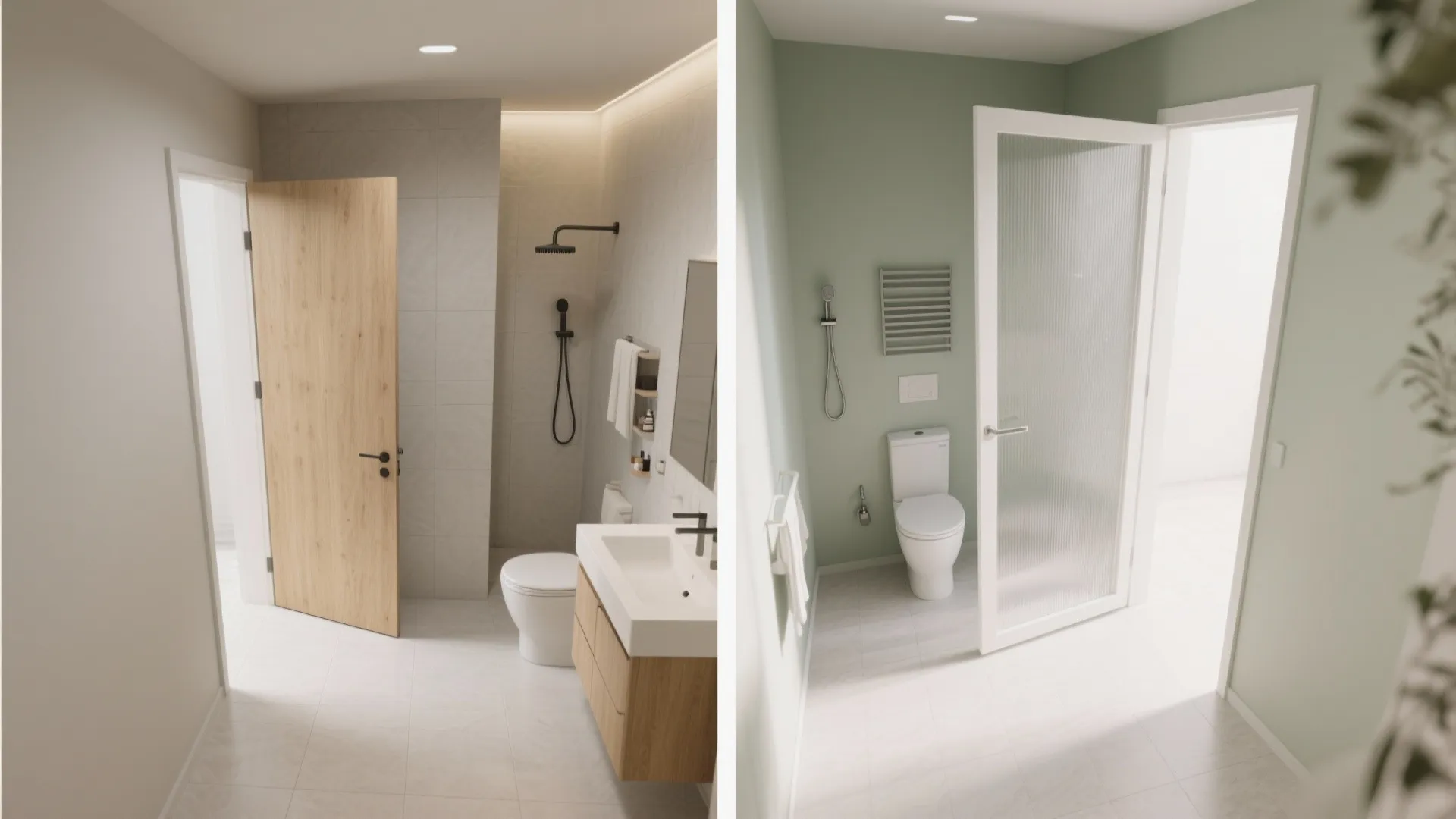

Pocket door or outswing barn door to free swing

My Take: Door swings are the silent space-stealer. In two recent projects, switching to a pocket or outswing barn door eliminated awkward maneuvers—no more shimmying around a door to get to the sink.

Pros: A pocket door keeps the floor area open and prevents conflicts with the toilet or vanity, ideal for narrow bathroom remodels. Outswing barn doors deliver similar benefits without wall reframing. You’ll preserve front-of-fixture clearances—vital in any 8x5 bathroom design where inches matter.

Cons: Pocket doors need clear wall cavities and careful planning around electrical runs; relocating switches and wiring can add time. Barn doors don’t fully seal sounds or steam, so they’re not for everyone.

Tips / Case / Cost: If you can’t do a pocket door, pivot hinges with soft-close can reduce swing intrusion. Check that the handle height aligns with your vanity top to avoid knuckle clashes.

save pin

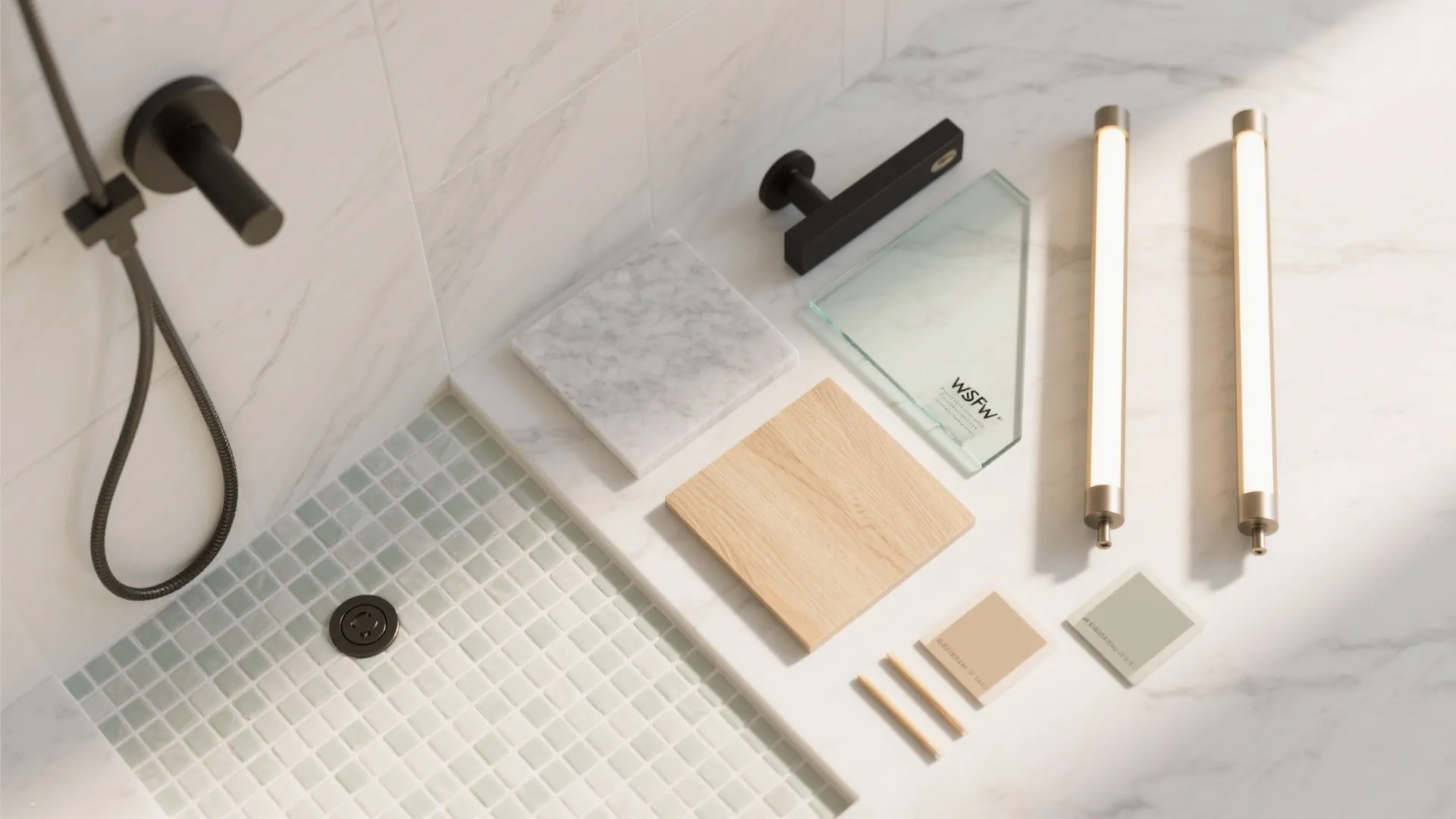

Layered lighting and pale materials to stretch space

My Take: Lighting turned my last compact bath from “fine” into “hello, spa.” Two vertical sconces at face level plus soft overhead ambient light made morning routines calmer and photos way better.

Pros: Side-mounted sconces provide even vertical illumination on the face, reducing shadows—key for grooming in small bathrooms. NKBA suggests placing sconces around 66 inches off the floor and flanking the mirror for balanced light; combine that with pale, light-reflective tile to enhance perceived width in an 8 by 5 bathroom.

Cons: Cheap LEDs can produce harsh color shifts; choose 90+ CRI and 2700–3000K for flattering skin tones. Glossy tile bounce is great, but go easy—too much sheen can show water spots like a detective show.

Tips / Case / Cost: Put task and ambient lighting on separate dimmers; it’s a low-cost feature that feels high-end. Ventilation matters too—ASHRAE 62.2 advises 50 cfm intermittent or 20 cfm continuous for bathrooms, which keeps mirrors clearer and humidity in check.

For storage, I love recessed niches between studs—clean and practical. See Niche storage tucked into stud bays for how built-ins can disappear visually while holding everything from extra TP to skincare.

[Section: 总结]

A small bath doesn’t limit you; it focuses you. An 8x5 bathroom design rewards thoughtful layout, lean materials, and honest lighting—and those choices make daily routines feel calm, not cramped. As NKBA and building codes remind us, clearances are non-negotiable, but the experience can still be bright, efficient, and personal.

Which of these five ideas would you try first in your own space?

[Section: FAQ 常见问题]

save pin

FAQ

1) What’s the best layout for an 8x5 bathroom design?

Often, a one-wall wet zone (shower, vanity, toilet aligned) simplifies circulation and plumbing. If the door entry is tight, use an outswing or pocket door to preserve clearances in front of fixtures.

2) Can I fit a walk-in shower in an 8x5 bathroom?

Yes—frameless glass and a linear drain maximize openness in small bathroom walk-in shower plans. Confirm floor slope of 1/4 inch per foot toward the drain to manage water effectively.

3) Should I keep a tub in an 8 by 5 bathroom?

If baths are part of your routine or a future buyer priority, consider a compact alcove tub. Otherwise, a walk-in shower often improves access and storage options while keeping the space visually light.

4) What clearances do I need to meet code in an 8x5 bathroom?

The IRC (R307) requires 21 inches of clear floor space in front of a toilet and minimum lateral distances from side walls. NKBA recommends 30 inches as a comfort guideline—aim for code minimums at least, and more where possible.

5) How should I plan lighting for a small bathroom?

Use vertical sconces flanking the mirror at approximately 66 inches high for balanced face lighting, plus a dimmable ambient fixture. Choose 90+ CRI and 2700–3000K for flattering, restful light.

6) What materials make an 8x5 bathroom feel larger?

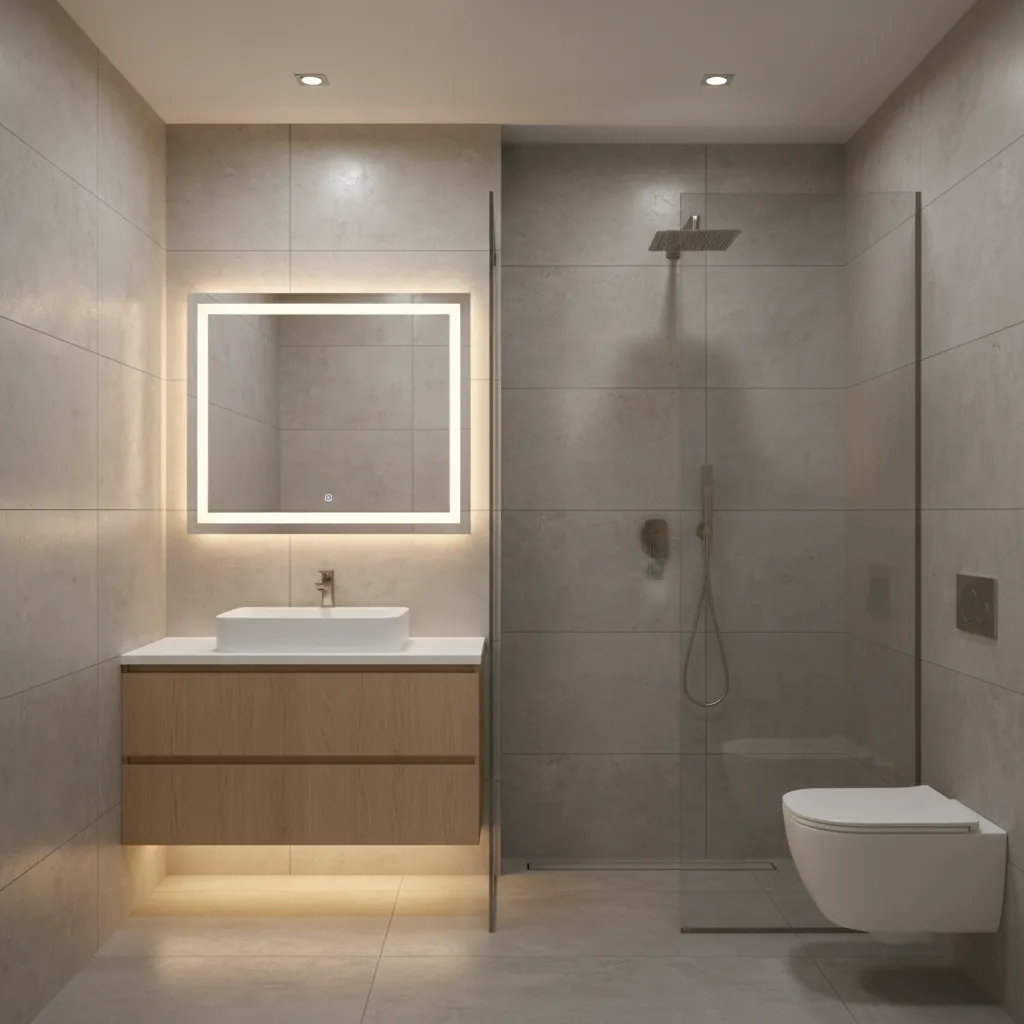

Pale, low-contrast tile and continuous flooring lines stretch the eye. Large-format tiles with tight grout joints reduce visual clutter while still providing grip if you choose a matte finish.

7) How do I add storage without crowding the room?

Recessed medicine cabinets, stud-bay niches, and a wall-hung vanity with deep drawers are compact powerhouses. Keep everyday items at hand height; stash bulk supplies in a nearby linen closet if possible.

8) What ventilation do I need in a compact bath?

Per ASHRAE 62.2, bathrooms need 50 cfm intermittent or 20 cfm continuous mechanical ventilation. A quiet, timer-controlled fan protects finishes and reduces mirror fogging in daily use.
