Angle Wall Design: 5 Ideas for Small Spaces: How I use angles and diagonals to unlock flow, storage, and light in tight homes—backed by real projects and expert guidelines

[Section: 引言]

I’ve watched angle wall design quietly shift from a niche trick to a mainstream move in small-space interiors. When square rooms feel static, a strategic diagonal can redirect circulation, reveal longer sightlines, and carve out storage without adding square footage. In compact kitchens, for example, I often start by testing how an L-shaped layout frees counter space in relation to an angled corner.

Over the past decade, I’ve renovated more than a few “impossible” rooms—awkward bays, tight hallways, and sloped ceilings included. Those projects taught me that small spaces spark big creativity: angles become a way to tune how a room feels and functions, not just how it looks.

In this guide, I’ll share 5 angle wall design ideas that consistently work in real homes. You’ll get my firsthand take, honest pros and cons, and a dash of expert data where it truly matters.

[Section: 灵感列表]

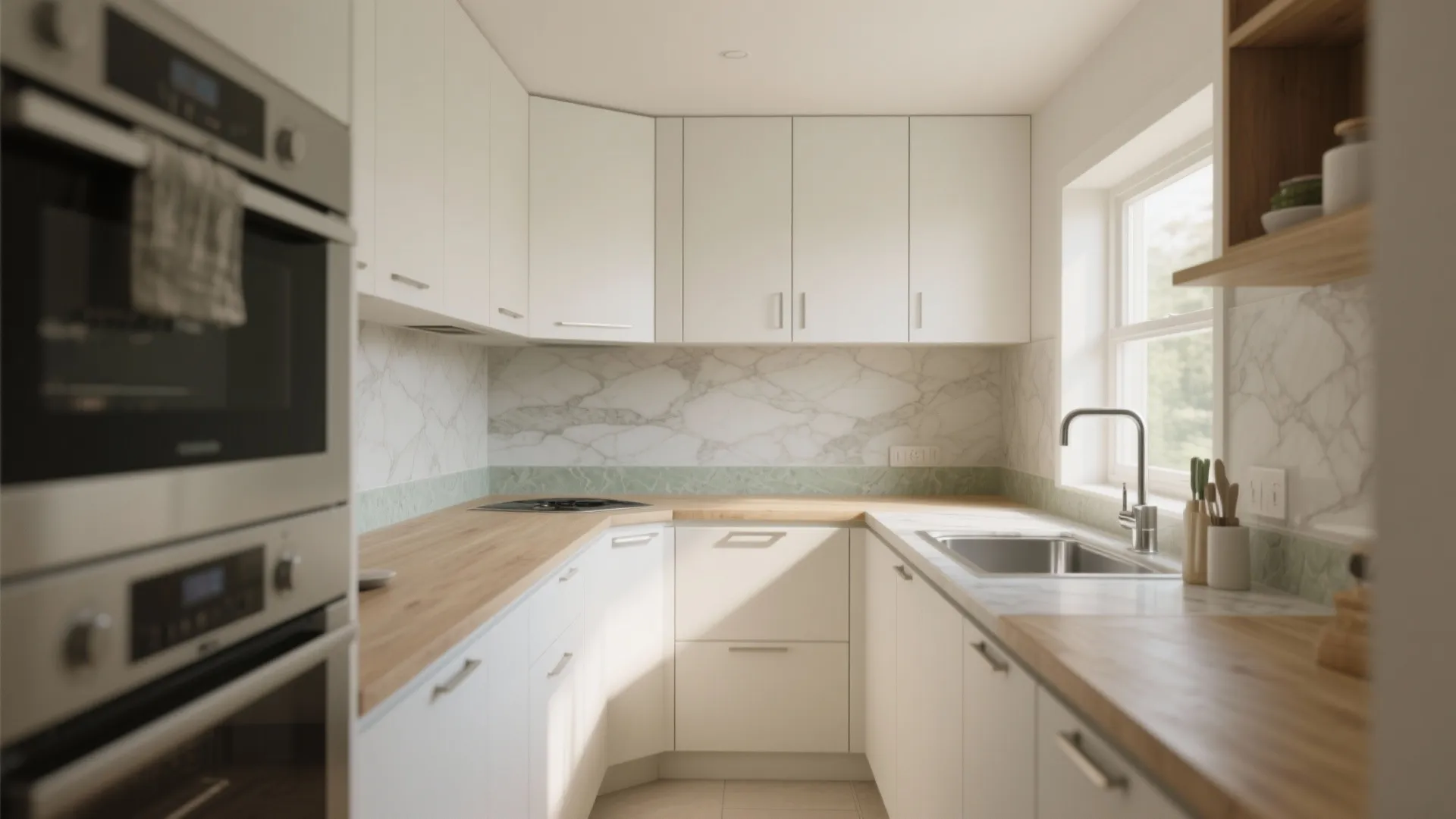

Angled Kitchen Corners That Work Harder

My Take

One of my favorite kitchen rescues was a 6.5 m² galley where a 45-degree return at the corner unlocked a wider prep zone. The client gained a reachable corner cabinet, and the diagonal clipped a visual “pinch point” that made the aisle feel bigger.

Pros

For a small kitchen, angled wall design can turn dead corners into functional storage with a 45-degree cabinet front or a diagonal pull-out—classic long-tail wins like “angled corner cabinet storage” and “small kitchen angled wall design.” Diagonal sightlines also make tight rooms feel longer because your eye travels across the room, not just to the back wall. Per NKBA guidelines, keeping work aisles at 42–48 inches (about 106–122 cm) helps workflow; using a clipped corner can maintain those clearances while reclaiming cabinet space (National Kitchen & Bath Association, Kitchen Planning Guidelines).

Cons

Custom cabinet faces and angled fillers can increase cost, and tile cuts at 45 degrees aren’t DIY-friendly. If the angle is too aggressive, you may lose wall space for a tall pantry or appliance panel—balance is everything.

Tips / Cost

Try a simple diagonal corner with a lazy Susan before committing to bespoke pull-outs. If budget is tight, align the angle with stock cabinet widths (e.g., 300/450/600 mm) to save on fabrication. Keep backsplashes in larger-format tiles to reduce visible cut lines.

save pin

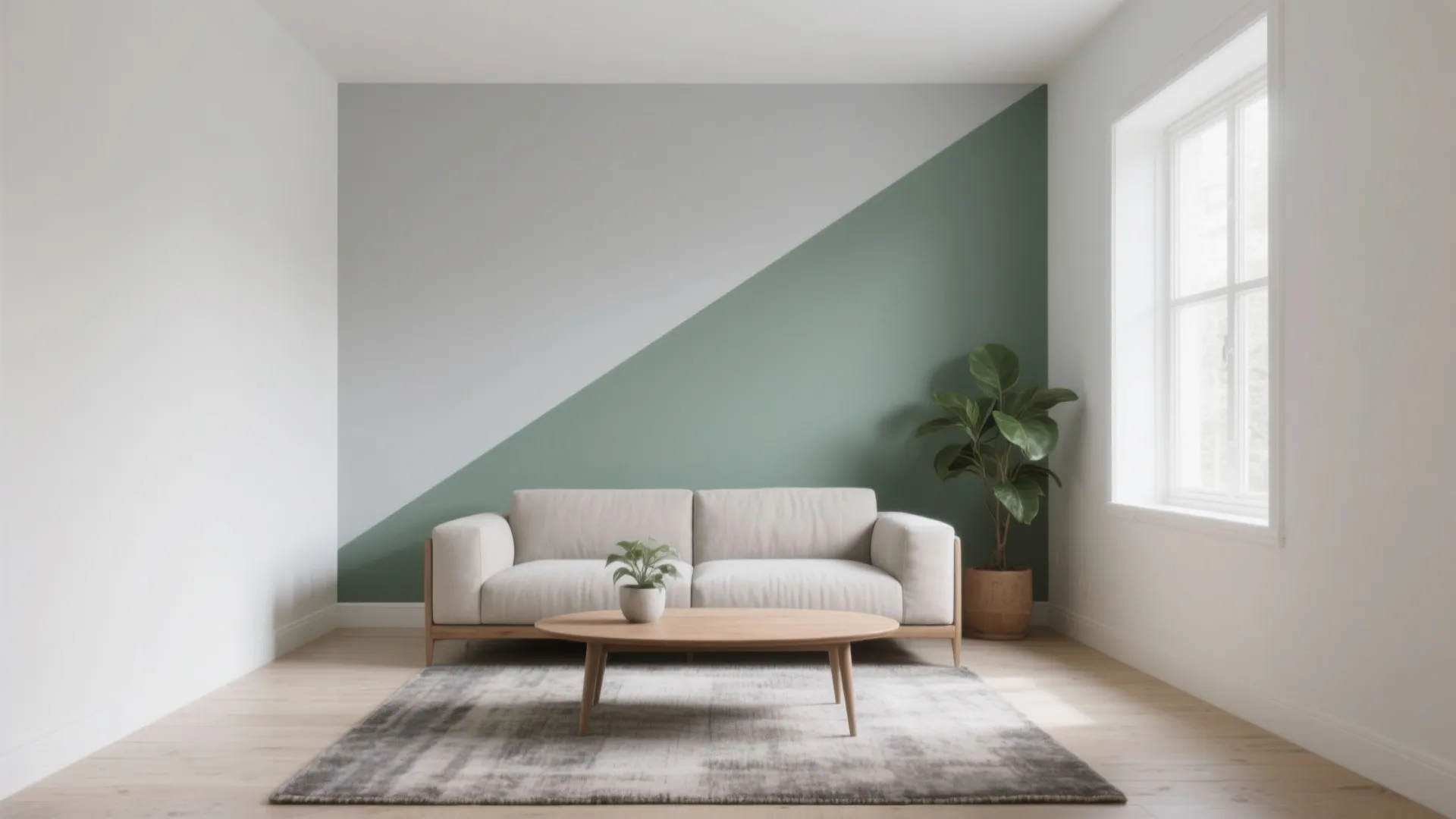

Diagonal Accent Walls for Depth and Direction

My Take

In a 28 m² studio, a diagonal color block behind the sofa pulled the eye toward the window wall and created a gentle “arrow” that guided furniture orientation. It felt intentional—like the room knew where it was going.

Pros

A diagonal accent wall introduces movement and depth; it’s a visual nudge that stretches a small living room. Light, high-LRV (light reflectance value) finishes on angled planes bounce daylight deeper into the space; the IES Lighting Handbook recommends wall reflectances in the 50–70% range to support comfortable brightness and daylight distribution (Illuminating Engineering Society, IES Lighting Handbook, 10th ed.). It’s an affordable refresh that delivers big impact with paint and tape.

Cons

Angles can highlight imperfect walls—waviness or uneven plaster reads loud under grazing light. If a diagonal fights your architecture, furniture placement can feel forced; keep the line aligned with a view, doorway, or main traffic path.

Tips / Case

Keep the most intense color in the far corner of a small room to “push” boundaries outward. If you’re nervous, start with a low-contrast diagonal (e.g., pale gray on off-white) and assess the effect before going bold.

save pin

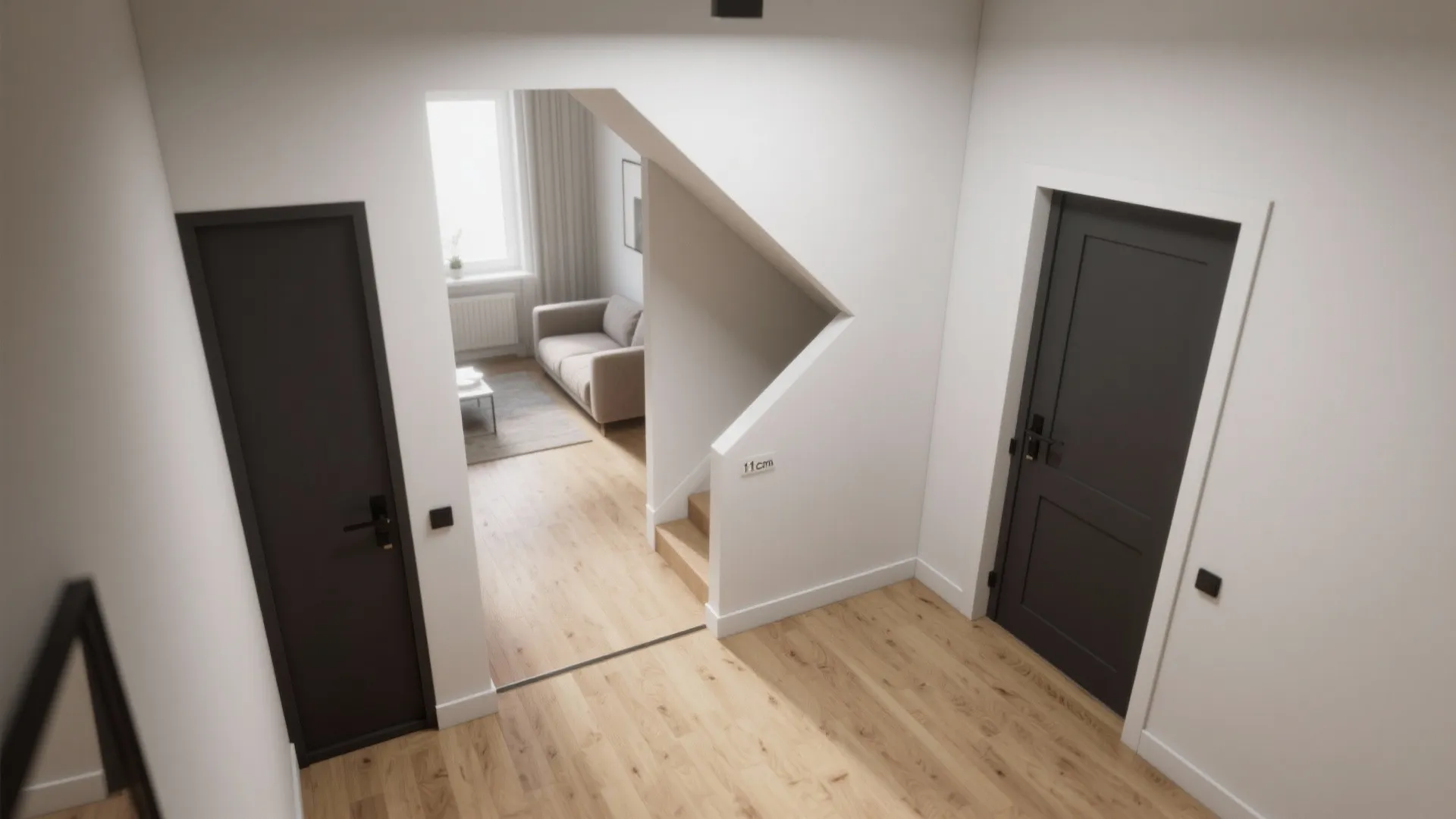

45-Degree Hallways to Improve Flow

My Take

In a micro-apartment, we rotated a short partition at 45 degrees where the entry met the living room. That small angle turned a collision-prone corner into a smooth transition—and the first view upon entry got wider and brighter.

Pros

Angled hall walls soften turns and reduce “dead-end” vibes, which is gold in tight layouts. Oblique views make spaces feel connected; by catching a slice of the next room, you borrow its light and volume. Keep in mind the International Residential Code requires typical hallway widths of at least 36 inches (91 cm) for safe egress (IRC R311); a clipped corner can help preserve that dimension without feeling cramped.

Cons

Running baseboards and door casings into a diagonal takes careful carpentry, and misaligned miters will show. You may slightly increase total wall length, which can add to framing and drywall costs.

Tips / Planning

Align the angle to a focal point (window, art wall) so the diagonal “points” somewhere meaningful. If two doors meet a corner, coordinate swing directions to avoid door clashes and to create a more generous passing zone near the angle. When mapping flow, I like to study how a Diagonal corridor improves flow before we commit to framing—mockups or painter’s tape on the floor work wonders.

save pin

Built-in Seating Along Angled Bays

My Take

A client with a tricky bay window swore a dining table would never fit. We wrapped a banquette along the bay’s angled walls, added drawers under the seats, and suddenly four people could dine comfortably in what used to be a dust-collecting corner.

Pros

Angled bay window seating turns awkward geometry into prime real estate—great for “angled bay banquette” and “small dining in a corner” use-cases. You gain storage, seating, and a panoramic feel courtesy of the angles catching more daylight. The curve-adjacent diagonal reduces circulation pinch points around the dining table.

Cons

Custom cushions on angled benches cost more, and getting the backrest pitch right can take a prototype. If your bay gets strong afternoon sun, fabrics may fade faster—consider UV-stable textiles and shades.

Tips / Dimensions

Target seat height around 17–19 inches (43–48 cm) and seat depth of 18 inches (46 cm) for comfort; increase to 20–21 inches if you’ll add plush back cushions. A hinged seat gives easy access to storage without eating floor space.

save pin

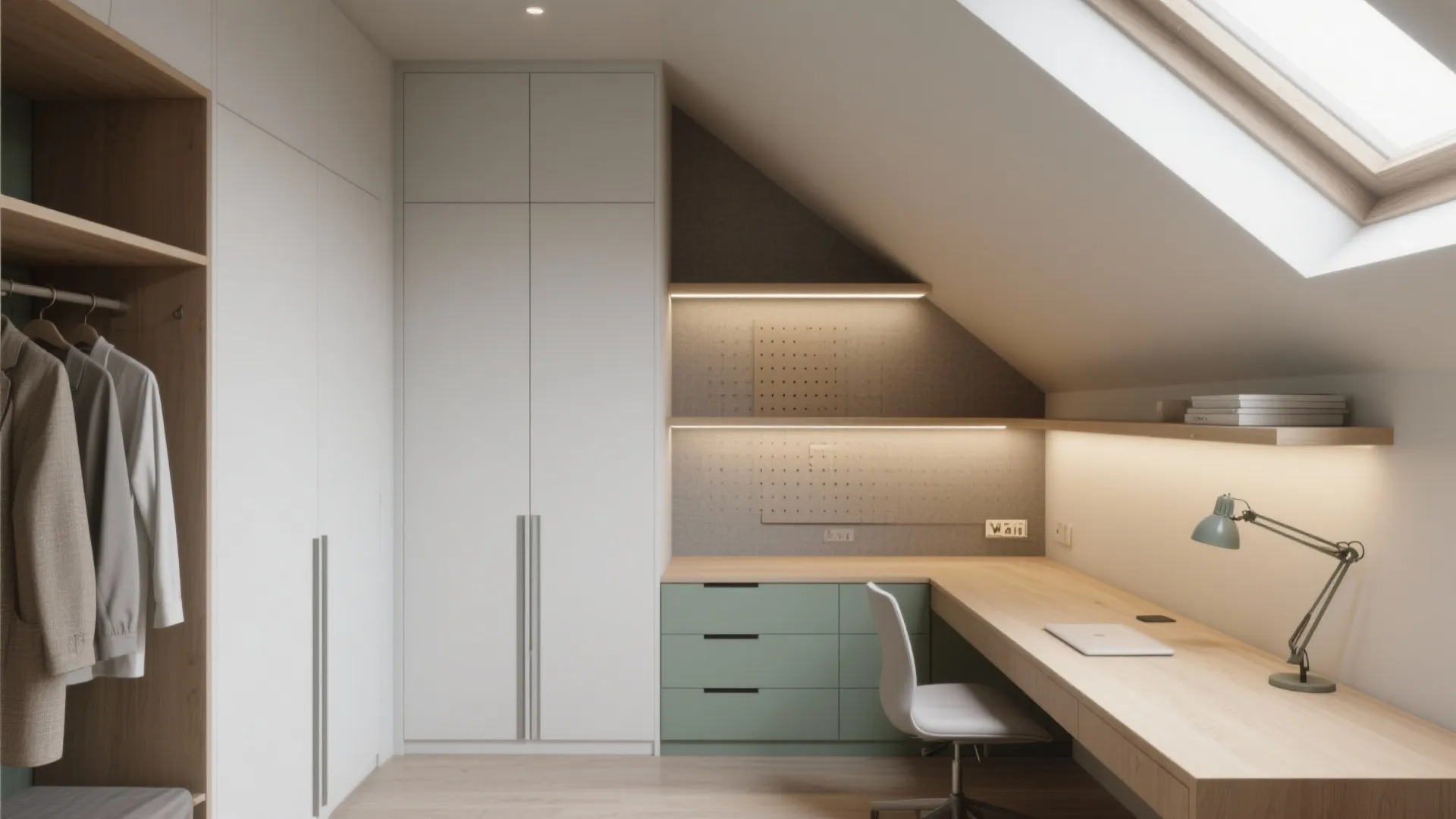

Multi-Tasking Nooks Under Sloped Ceilings

My Take

Attics and top-floor bedrooms often come with angled walls that scare off storage. I’ve had great success tucking shallow wardrobes and desks along the low knee walls—suddenly, those slopes become hard-working nooks.

Pros

For long-tail goals like “angled wall built-ins under eaves” and “sloped ceiling storage,” diagonals can be a secret weapon. Shallow wardrobes (350–450 mm) with sliding doors use the low-clearance zone efficiently, and a desk under the slope creates a cozy, focused workstation. Angled planes can also help scatter sound, avoiding harsh flutter echoes that flat parallel walls can create—handy in small home offices.

Cons

Standing headroom is the limiter; what looks good on a plan may feel cramped in person. Lighting must be layered—slopes cast shadows on tasks if you rely on a single overhead.

Tips / Style

Keep built-ins shallow but continuous so the angle reads intentional, not choppy. Linear LEDs under upper shelves preserve headroom while evenly lighting the work surface. I like to finish these nooks with natural tones—Warm wood accents balance sharp geometry and add calm to a busy multifunctional corner.

[Section: 总结]

Angle wall design is not a constraint—it’s a smarter way to shape circulation, storage, and light. Whether you’re clipping a kitchen corner or cueing direction with a diagonal accent, the right angle can make a small home feel more generous and more you. I lean on NKBA and IES guidance to keep comfort and brightness on track, then fine-tune with mockups and lived-in feedback.

Which of these five ideas would you try first—an angled kitchen corner, a diagonal hallway, or that cozy sloped-ceiling nook?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is angle wall design, and why use it in a small home?

Angle wall design means shaping or finishing walls with diagonals or non-90° lines to improve flow, sightlines, and function. In tight spaces, a small angle can unlock storage, soften turns, and make rooms feel larger.

2) Does angle wall design help kitchens specifically?

Yes—clipped corners and 45-degree cabinets can recover dead space in tight corners and preserve aisle clearances. It’s a practical way to make a small kitchen look bigger and work better.

3) Are there codes to consider for angled hallways?

Most residential codes care about clear width, not whether your wall is straight or diagonal. The IRC typically requires a 36-inch (91 cm) minimum hallway width for safe passage (IRC R311), so plan angles that maintain that dimension.

4) How do I pick colors for a diagonal accent wall?

Choose a hue that supports the room’s focal direction—cooler tones recede, warmer tones advance. For brightness and comfort, IES recommends walls with 50–70% light reflectance value to support good daylight distribution.

5) What’s the budget impact of angle wall design?

Painted diagonals are low-cost; angled partitions and custom cabinets add framing and fabrication expenses. I often phase projects—start with paint or furniture angles, then upgrade to millwork once you’re confident.

6) Can angle wall design affect acoustics?

Angled and non-parallel walls help scatter sound, reducing sharp echoes in small rooms. Combined with soft finishes (rugs, drapery), you can get a noticeably calmer acoustic profile.

7) How do I avoid angled walls looking “random”?

Give every angle a job: point toward a window, create a wider pass, or align with built-ins. Repeat the angle in small ways—shelf edges, rug pattern—so it feels cohesive, not accidental.

8) Is angle wall design a trend or a lasting approach?

While diagonals are trending, the function-first logic behind them is timeless. When angle wall design improves flow, storage, or light, it earns a lasting place in the plan.
