Balcony Construction Design: 5 Smart Ideas: How I turn tight balconies into livable gems—data-backed, code-smart, and buildable

Outdoor living isn’t just for sprawling terraces anymore. In the last two years, balcony construction design has moved squarely into the spotlight—think biophilic materials, micro-outdoor rooms, and smarter waterproofing that actually lasts. I’ve redesigned dozens of compact balconies, from city micro units to coastal walk-ups, and I’ve learned that small spaces ignite big creativity.

In this guide, I’ll share 5 balcony design inspirations I use in real projects. Each one blends first‑hand lessons with expert data—so you can avoid pitfalls and spend more nights outside, not in the contractor’s inbox.

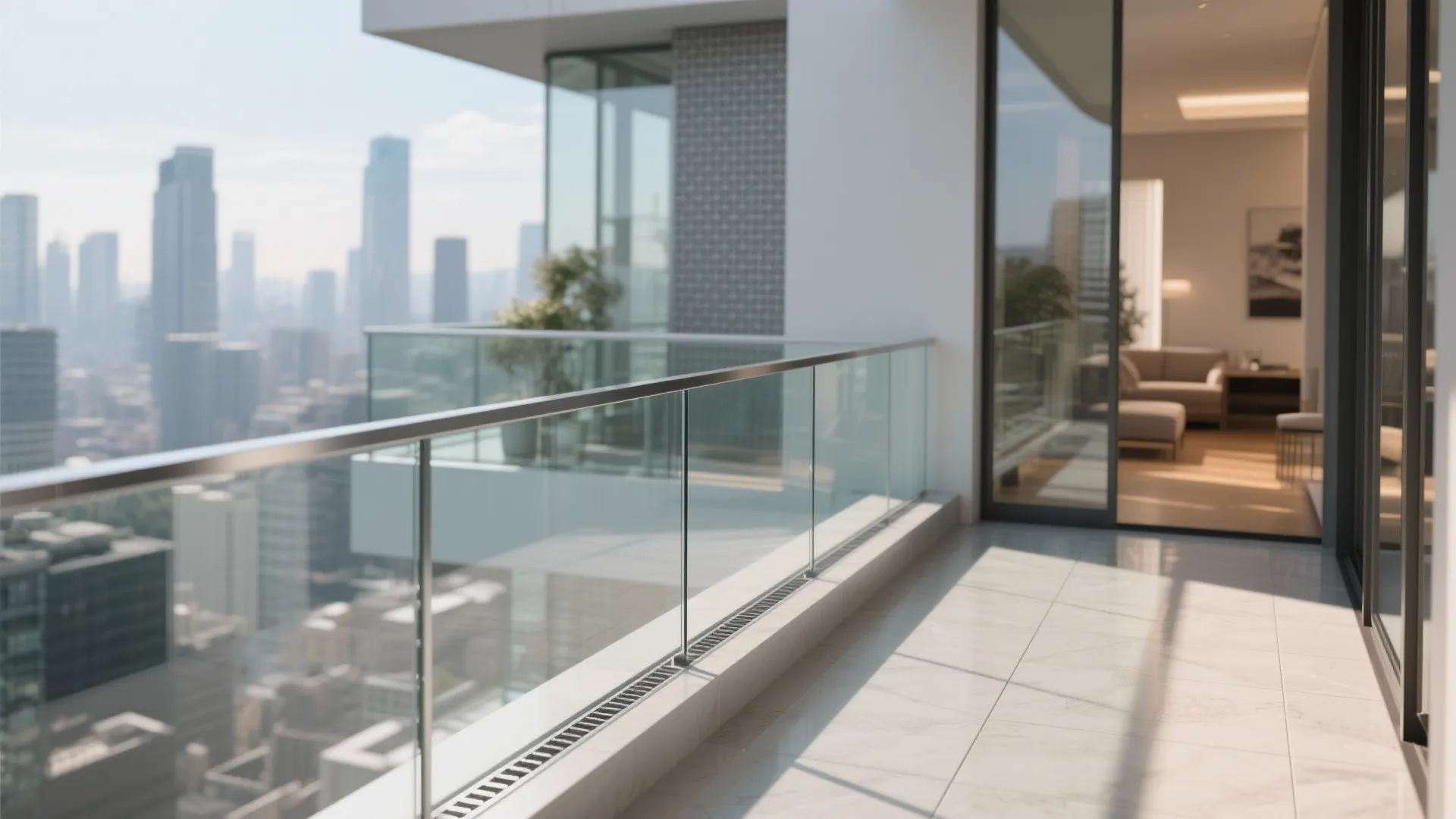

1) Slimline Glazing and Glass Balustrades

My Take: When I converted a shadowy city balcony into a sunlit nook, the single biggest upgrade was swapping a chunky rail for a slim, laminated glass guard. That glass balustrade makes the balcony feel limitless while blocking wind without killing daylight. The client told me their living room suddenly felt 20% bigger—just from the view.

Pros: A balcony glass balustrade keeps sightlines open and amplifies natural light, which is gold in small spaces. Low‑iron tempered and laminated glass tames color cast and adds safety; it’s code‑friendly for the 42 in (1100 mm) guard height and 4 in sphere rule in many regions. For urban sites, glass guards also temper wind without turning the balcony into a sail.

Cons: You’ll clean more often—fingerprints and water spots are real. Summer glare can be harsh if you face west, so consider a light frit band at eye level. Costs run higher than aluminum pickets; budget a premium for laminated glass and quality channels with drainage.

Tips / Cost / Details: I specify 17.52 mm laminated glass (two 8 mm plies + 1.52 mm interlayer) for guards. Use a top‑mounted or fascia‑mounted channel with weep holes; avoid trapping water against slab edges. Where codes require, select laminated glass that meets impact criteria; many jurisdictions reference IBC guard loading (200 lb concentrated load). A subtle gray frit at 36–40 in reduces glare without killing views.

save pin

2) Cantilevered Benches and Built‑In Planters

My Take: On a narrow prewar balcony, I designed a steel cantilevered bench that bolts to the slab edge and hovers above the floor. We paired it with a slim, built‑in planter that doubles as a wind break. The footprint stayed nearly the same, but the seating capacity doubled and the space felt lighter.

Pros: Cantilevered balcony design clears floor area for circulation and cleaning, and built‑in planters give you a living privacy screen. With the right steel brackets and waterproofing detail, you transfer loads back to structure without bulky legs. Using lightweight planter materials (FRP or aluminum) reduces dead load while achieving a lush look.

Cons: Structure and waterproofing need careful coordination. Penetrations through membranes are risky without proper flashing, and thermal bridges can cause condensation in certain climates. If you rent, mounting approvals can be a hurdle.

Tips / Code / Weights: Always verify live load for balconies; many residential codes reference 40 psf (IBC Table 1607.1) plus concentrated guard loads. Keep built‑ins shallow (10–12 in bench depth for perch seating, 16–20 in for lounge) and plant with lightweight media. For slab edges, we use hot‑dip galvanized steel brackets with isolation pads to limit galvanic corrosion. Waterproof all fasteners and terminations with compatible sealants and pre‑formed flashing boots.

save pin

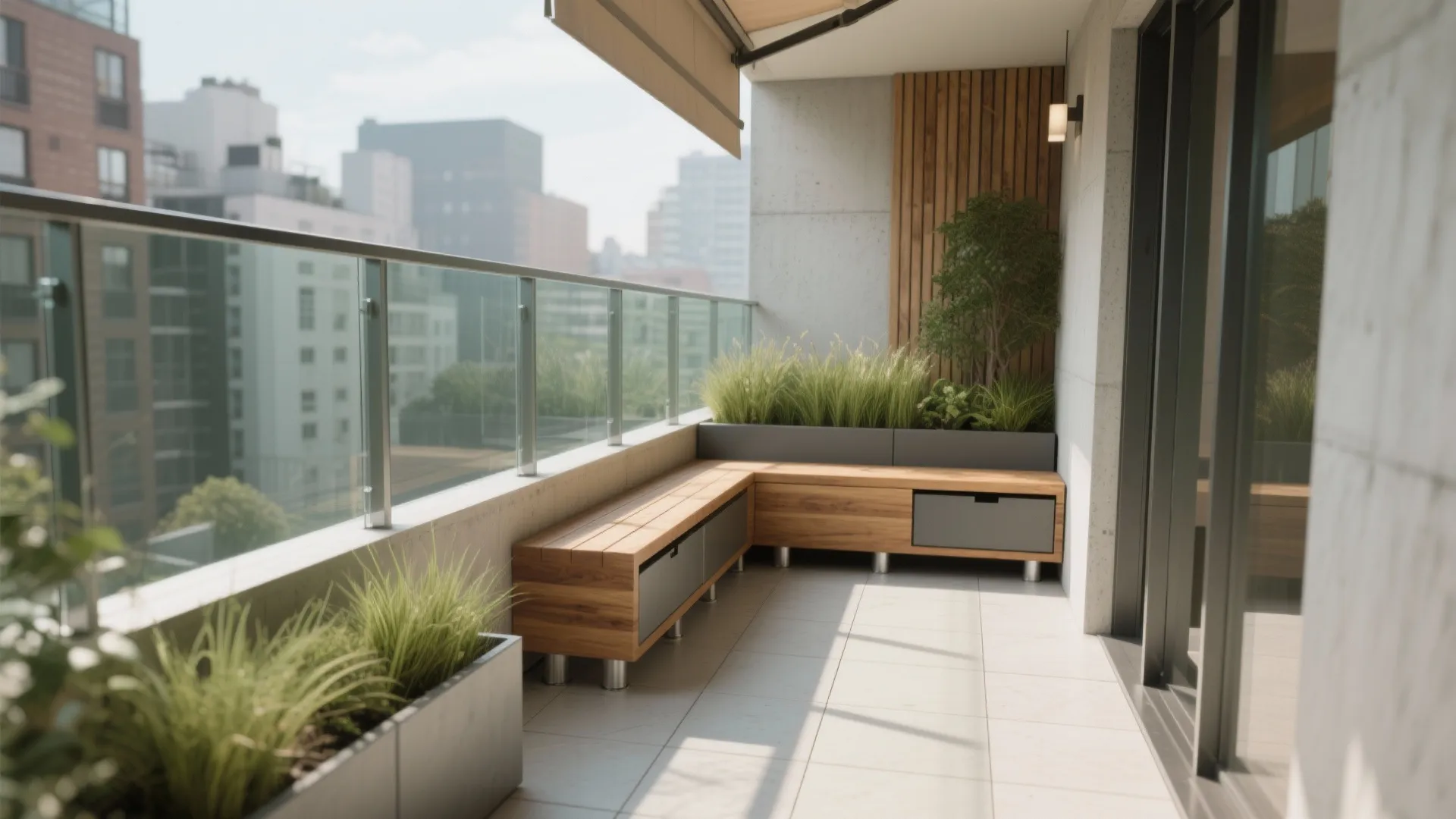

3) Modular L‑Shaped Layout for Small Balconies

My Take: If I had one layout trick for compact balconies, it’s an L‑shaped bench with hidden storage, paired with a fold‑down table. I’ve built this in apartments from 0.9–1.3 m wide; the corner seat feels generous, and the long leg hosts a planter or grill where allowed.

Pros: An L‑shape tucks seating into the corner, creating an open zone for circulation and planters. The L-shaped layout frees more floor space, which is a big win on narrow balconies. Add a wall‑mounted, folding balcony table to keep surfaces flexible; it’s a proven space‑saver and renter‑friendly if you choose clamp‑on hardware.

Cons: Corner cushions are pricey to custom‑fit, and standard rectangles can look sloppy. You’ll also fight crumbs in the corner if you don’t design lift‑up lids or an access panel. If your balcony door swings outward, double‑check clearances so the door doesn’t jam against the bench.

Tips / Dimensions: Target 17–18 in seat height and 24 in seat depth for lounging on the long leg; keep the short leg 16–18 in deep to avoid blocking the doorway. Maintain a 36 in clear path from door to rail. For storage, lift‑up seat lids with drip‑edge gaskets keep cushions dry.

save pin

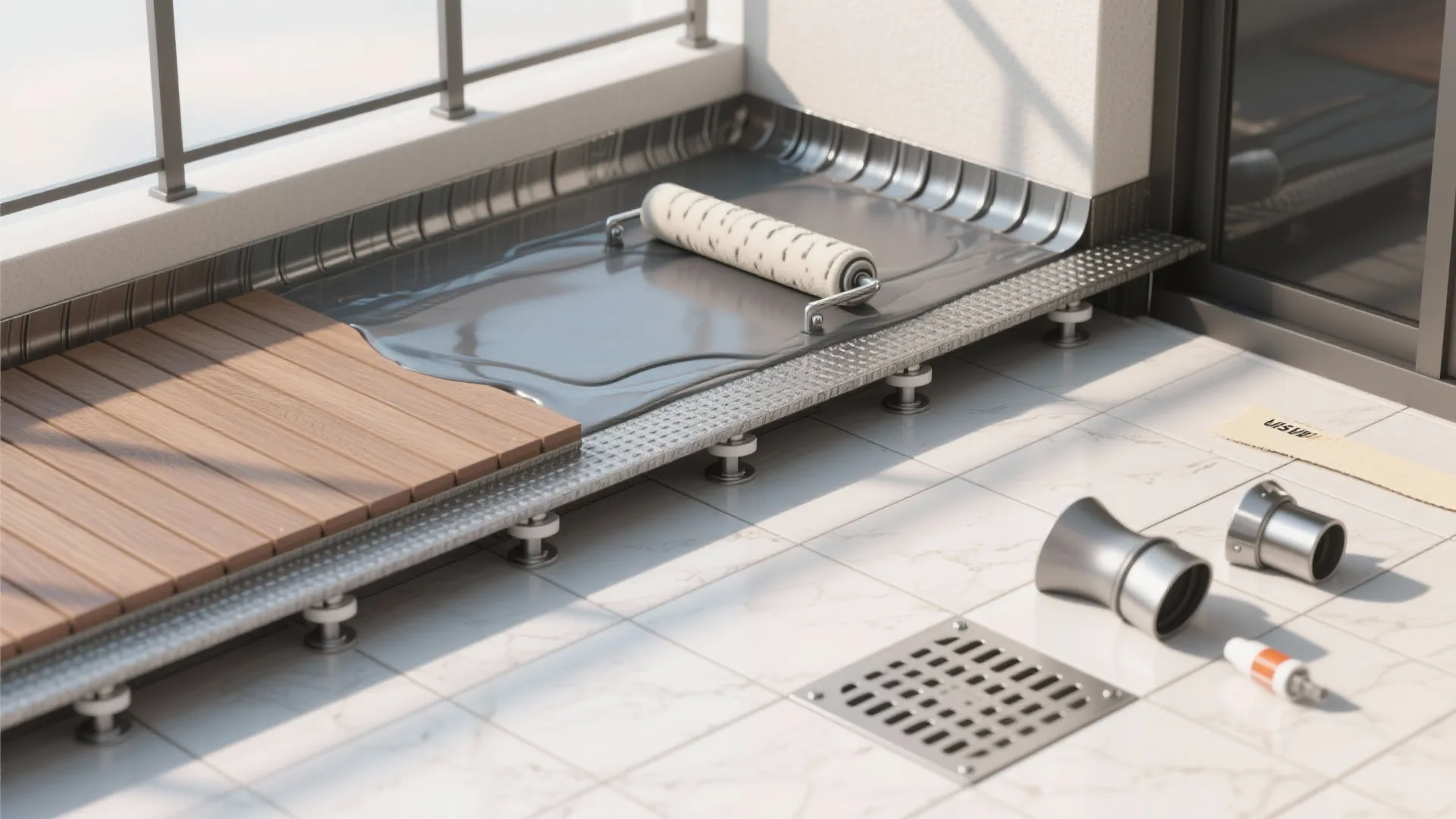

4) Waterproofing, Drainage, and Slip‑Resistant Decking

My Take: Most balcony failures I encounter trace back to waterproofing and drainage, not the furniture. I’ve retrofitted more “mystery leaks” than I care to admit—most solved with a liquid‑applied membrane, proper edge metal, and a 2% slope to drains. It’s not glamorous, but it’s the difference between a balcony you love and a ceiling stain downstairs.

Pros: A robust balcony waterproofing detail starts with slope: 1/4 in per foot (about 2%) toward a scupper or drain, continuous membrane upturns, and metal edge with drip. Industry guidance for exterior tile assemblies, like the TCNA Handbook, also stresses positive drainage and capillary breaks. Adding porcelain pavers on pedestals gets you level walking surfaces, great drainage, and easy access for maintenance.

Cons: Height build‑up can create tricky door thresholds, especially in retrofits. If you’re stacking a membrane, insulation, and pavers, you may need a low‑profile system and careful threshold flashing. Budget‑wise, membranes and pedestals add upfront cost, though they often pay back by preventing repairs.

Tips / Specs / Safety: Plan a minimum 2% drainage slope and include overflow protection where possible. For wet areas, aim for a dynamic coefficient of friction (DCOF) ≥ 0.42 per ANSI A326.3 when selecting tile or pavers. Include weep paths around posts and guard channels so water doesn’t pond. For structural loads, residential balconies commonly design for 40 psf live load per IBC Table 1607.1; concentrate heavy planters over bearing walls or columns. Reference reputable standards (e.g., IBC 2021; TCNA details for exterior decks) during design and permitting.

save pin

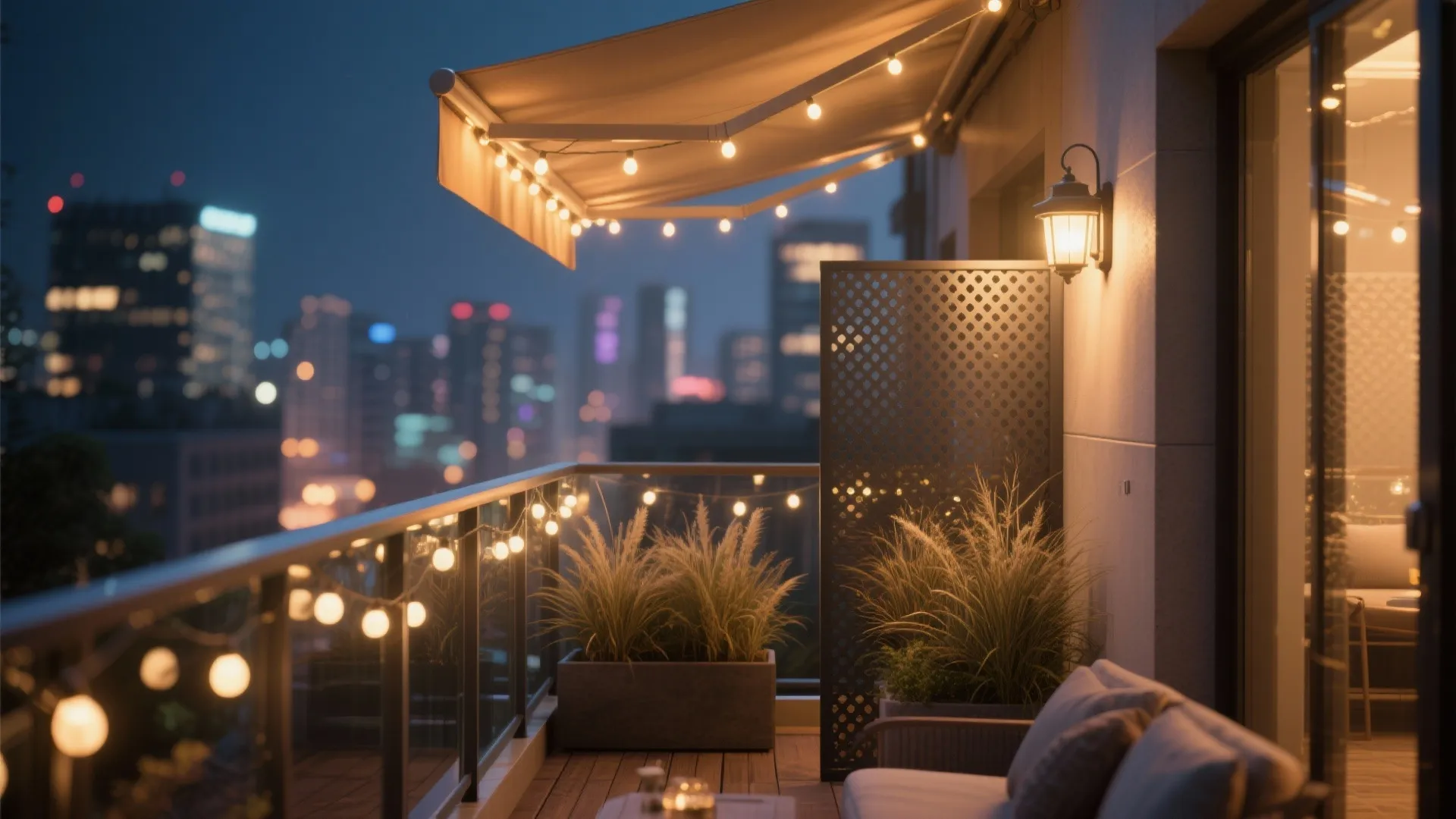

5) Layered Lighting, Privacy, and Microclimate Control

My Take: My favorite transformations layer three things: gentle ambient light, a tactile privacy screen, and shade that cools without darkening the home. On a windy 20th‑floor balcony, we paired dimmable string lighting, an IP65 wall sconce, and a perforated screen that softened harsh afternoon sun.

Pros: Layered lighting lets you shift mood from dinner to late‑night reading. A perforated metal screen for dappled privacy blocks views without killing airflow, and retractable shades help control heat gain at the interior door. For glare control and nighttime comfort, follow good lighting practice—shielded fixtures and warm 2700–3000K tones reduce harshness and light trespass (aligns with widely referenced dark‑sky guidance in exterior lighting practice).

Cons: Permanent privacy screens may need HOA or landlord approval; wind loads and anchorage details matter. Oversized pendants can sway in drafts, so hard‑mounted or low‑profile fixtures are safer. Solar string lights sound great, but tall buildings can shade them out—plug‑in with a GFCI circuit is more reliable.

Tips / Practicalities: Pick IP65 or better for exposed luminaires and marine‑grade finishes in coastal zones. Use dimmers to keep lumens gentle after dark and avoid washing neighbors’ windows. For shade, choose fabrics with 5–10% openness for a balance of view and UV control. Consider planters with tall grasses to create a soft acoustic buffer without a wall.

Summary: Small balconies don’t limit you—they ask you to design smarter. From glass guards that open the view to waterproofing that prevents headaches, balcony construction design is a game of good details and honest loads. When you align layout, structure, and weatherproofing, you win a durable outdoor room that lives much larger than its square footage. Which of these five ideas are you most excited to try on your balcony?

save pin

FAQ

1) What live load should I design for on a residential balcony?

Most jurisdictions adopt a 40 psf (pounds per square foot) minimum live load for residential balconies, per IBC Table 1607.1. Guards are typically designed for a 200 lb concentrated load at the top rail; always verify local code.

2) How do I waterproof a concrete balcony properly?

Start with a continuous membrane turned up at walls, a positive slope of about 2% to a drain or scupper, and edge metal with a drip to break capillary action. Add a protection layer or pedestal system to prevent damage during use, and detail all penetrations with compatible flashing.

3) What railing height and spacing do codes require?

Commonly, a 42 in (1100 mm) minimum guard height is required for residential balconies, with no opening allowing a 4 in sphere to pass. Some locales vary; check your local code and any HOA rules before ordering.

4) Can I use wood decking on a balcony?

Yes, but choose stable, exterior‑rated species or composites, and verify weight and fire requirements. On concrete balconies, I often specify pedestal‑supported porcelain or composite panels for drainage and maintenance access instead of direct‑fixed wood.

5) What’s the best layout for a narrow balcony?

An L‑shaped bench with a folding table is my go‑to because it keeps a 36 in clear path and consolidates seating. Modular pieces that tuck under rails or clip to walls can add surfaces without eating floor space.

6) How do I handle drainage on a retrofit balcony without changing the door?

Use thin, liquid‑applied membranes and low‑profile edge metals to preserve threshold heights. If you need a level walking surface, consider adjustable pedestals with shallow pavers to maintain slope below.

7) Are there standards for slip resistance on outdoor balcony surfaces?

For tile and similar materials, aim for a wet DCOF of at least 0.42 as referenced in ANSI A326.3. Textured porcelain pavers, flamed stone, or composite decking with grip profiles are reliable choices in rain.

8) How much does a small balcony upgrade cost and how long does it take?

For a 4–6 m² balcony, simple finishes and furniture might run $2,000–$5,000; add $3,000–$8,000 for membranes, edge metals, and pedestal pavers. Most projects complete in 2–4 weeks once materials and approvals are set; structural work or HOA reviews extend timelines.
