Bathroom drain design is having a moment, and for good reason: cleaner lines, curbless showers, and large-format tile all hinge on getting water to move exactly where we want it. In my remodels, dialing in slope, grate style, and waterproofing transforms both function and feel. Small spaces truly spark big creativity, and smart drains are the unsung heroes that make compact baths feel bigger, safer, and easier to clean. To kick us off, here’s how I often plan linear drain placement for small bathrooms without sacrificing style.

In this guide, I’ll share 5 bathroom drain design ideas I use in real homes. I’ll mix personal wins (and a few missteps) with expert data so you can choose confidently. Whether you’re going linear, center, or whole-wet-room, I’ve got practical layouts, cost cues, and maintenance tips to help you get it right the first time.

[Section: 灵感列表]

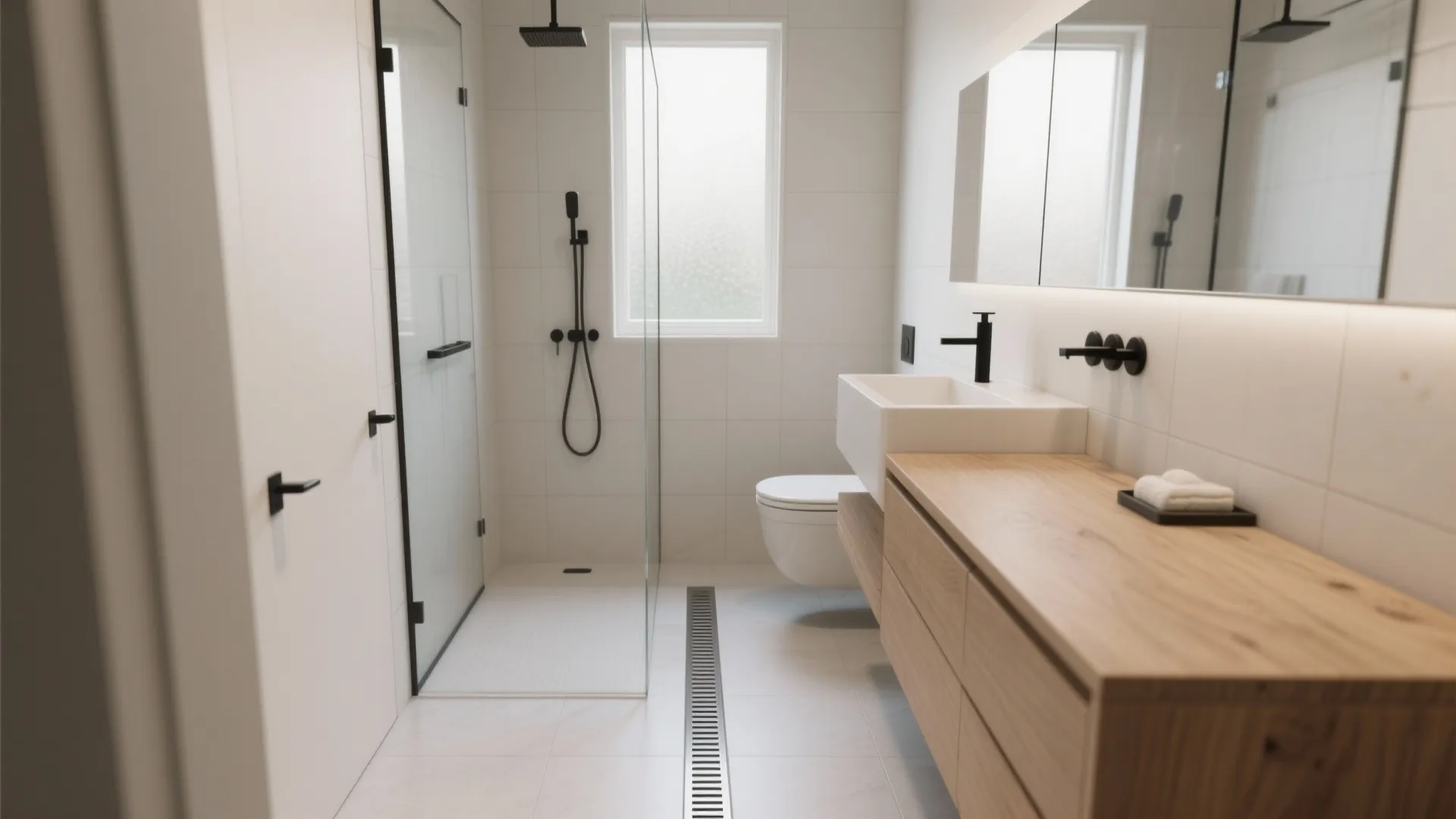

Linear Drains in Curbless Showers

My Take

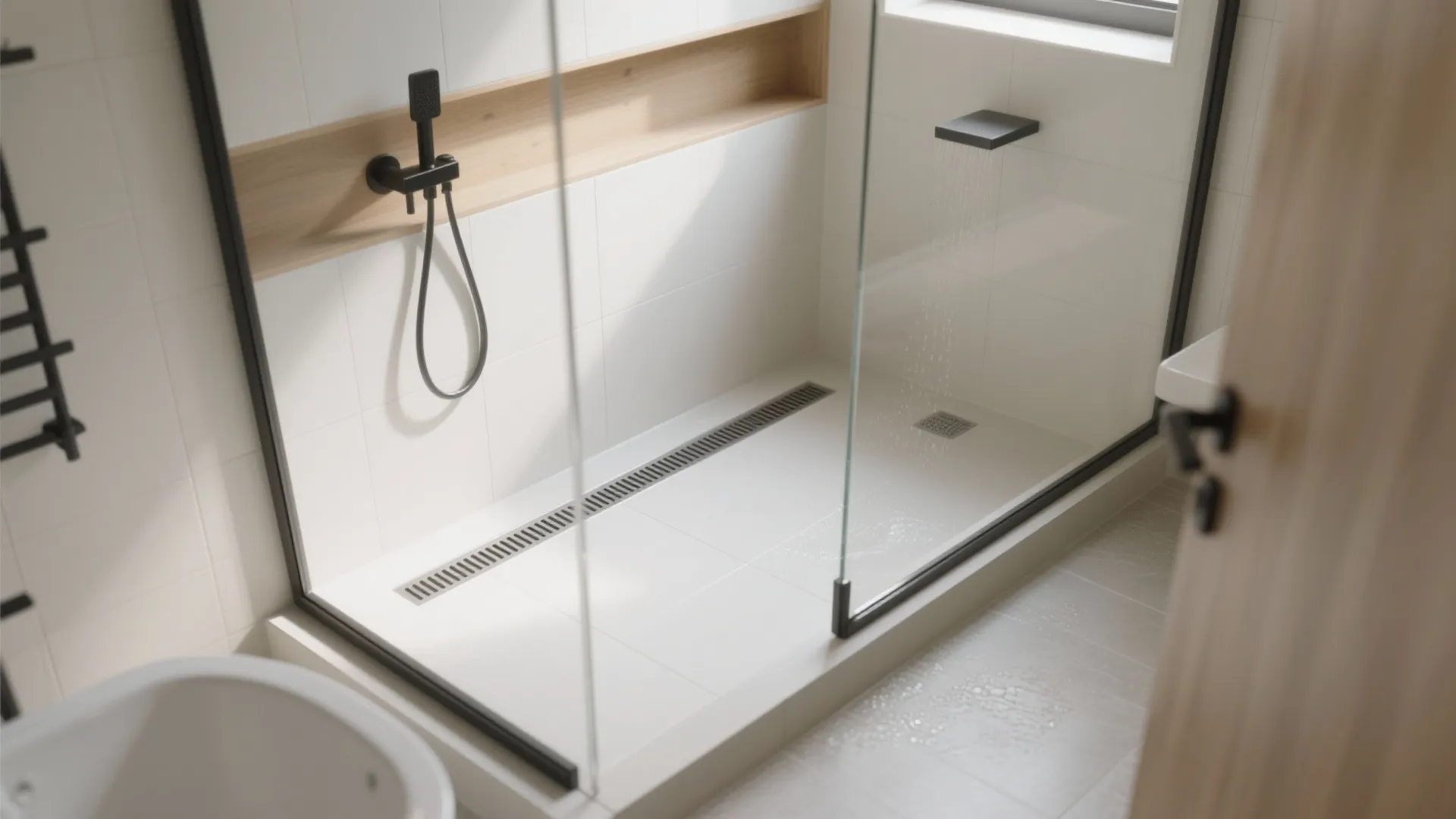

I still remember a 4' x 7' condo bath where a linear drain at the back wall turned a cramped shower into a spa moment. The single-plane slope let us run large-format tile straight through, and the room looked twice as long. It also made cleaning faster for the client—no micro-corners for grime to hide.

Pros

A linear shower drain for small bathrooms allows a gentle, single-direction slope, so large-format tile stays elegant and safer underfoot. Curbless shower drainage improves accessibility and makes the floor read as one continuous plane. For code-aligned slope and accessibility, follow a 1/4" per foot fall to the drain in the wet zone (TCNA Handbook B421) and keep adjacent walking surfaces under 1:48 max cross-slope (2010 ADA Standards, Section 302; Section 608 for showers).

Cons

Linear drains and their flanges can be pricier than standard point drains, and the grate you love might come in custom lengths. If your joists run the wrong direction, recessing the body can require more carpentry. And if you skip a hair trap, you’ll learn fast—long hair plus long channels equals slow mornings.

Tips / Case / Cost

On installs, I budget $350–$900 for a quality linear drain, plus waterproofing upgrades. I place it along the long wall or at the entry with a tile-in grate so the drain line “disappears.” For slab homes, surface-mount options with low-profile ramps can save demo time.

save pin

Classic Center Drains with Large-Format Tile

My Take

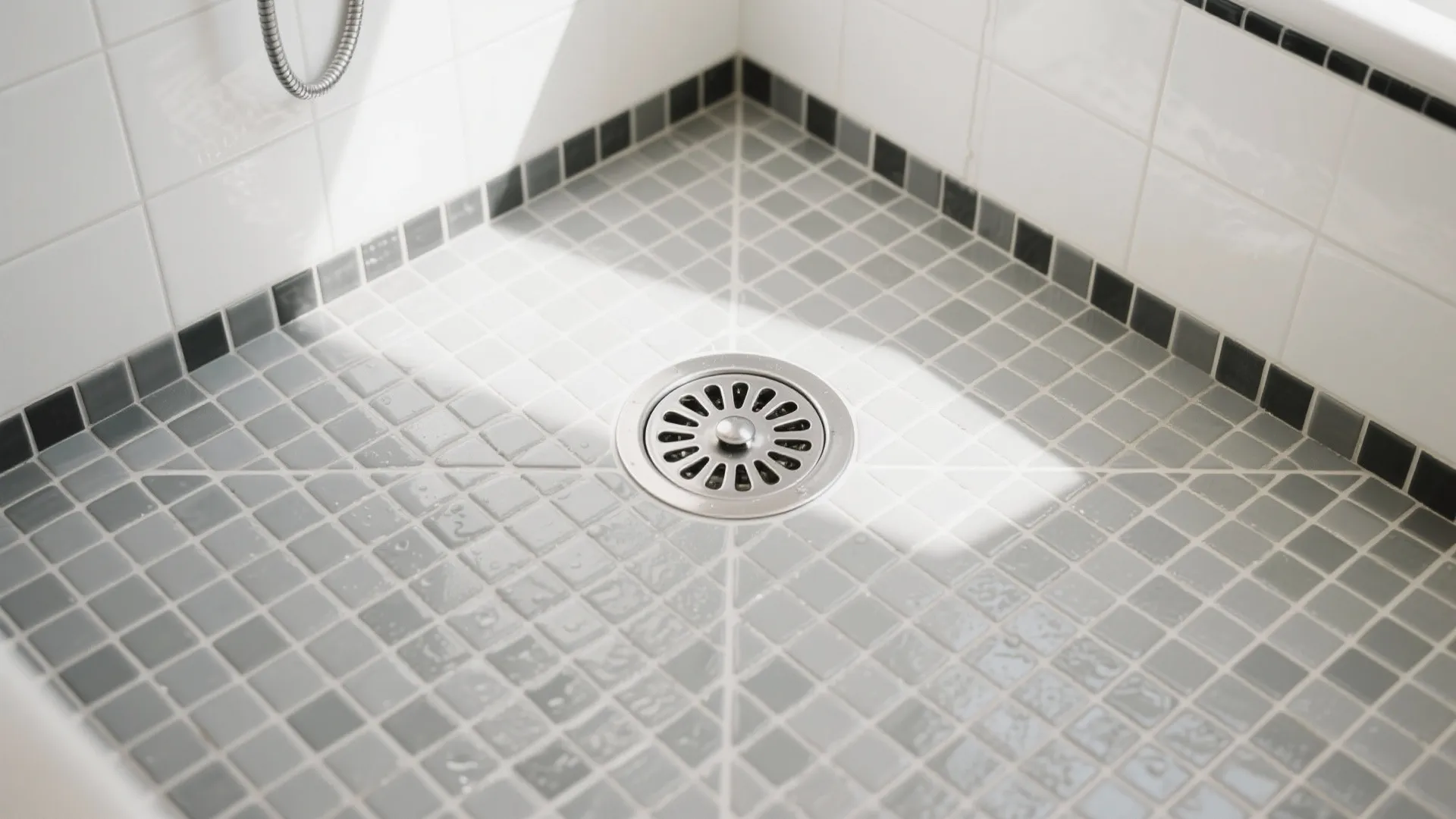

Center drains still earn a spot in my projects when budgets are tight or joists fight the plan. I did a rental refresh where we used a round stainless grate and a four-way slope—simple, reliable, and easy to source on short timelines. The key was trimming tiles cleanly and choosing mosaics on the shower floor.

Pros

A center shower drain is widely compatible, affordable, and serviceable. If you love a mosaic shower pan, the four-way slope makes natural sense. The long-tail win here is “center drain vs linear drain” cost savings—often $150–$400 for the drain kit, leaving more budget for waterproofing and a better shower valve.

Cons

With large-format tile, a four-way slope means more cuts and potential lippage if the crew isn’t meticulous. Grout lines channel water fine, but soap scum likes corners, and you’ll scrub more often. And if you try to force big tiles across a compound slope, you’ll see it every day—and not in a good way.

Tips / Case / Cost

Use a mosaic (1"–2") on the floor so your four-way slope looks intentional and drains quickly. I spec a drain body with a removable, high-capacity hair catcher and a standard 2" outlet so flow rates match common shower systems.

save pin

Whole-Room Wet Room Strategy

My Take

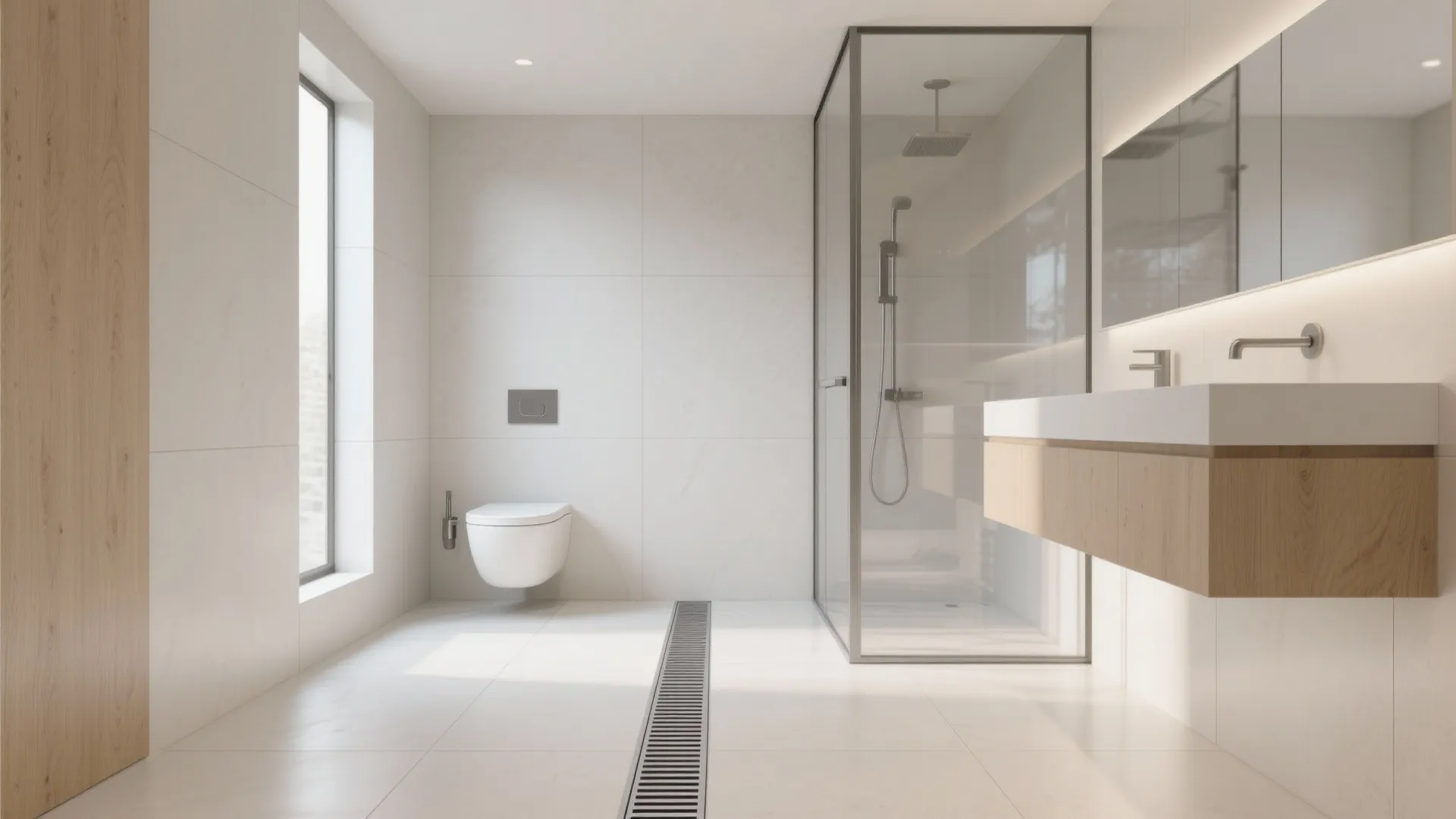

Converting a micro-bath into a wet room is my favorite small-space magic trick. I once turned a 5' x 5' bath into a visual “cube” with a single glass panel and a linear drain tucked along the back wall. The client’s wheelchair could roll in, and the floor read as one calm surface.

Pros

A wet room uses a single, coherent waterproofing plane, simplifying curbless access and cleaning. The wet room floor gradient can be subtle—aim for roughly 1/4" per foot toward the drain in the wet zone, with no ponding; branch drains downstream should maintain 1/4" per foot for ≤3" pipe under the International Plumbing Code (IPC 2021, Section 704.1). You also get planning freedom: a wall-hung toilet, compact vanity, and a fixed glass screen keep spray where it belongs.

Cons

Waterproofing the entire floor and up the walls adds cost and coordination. If your fan is undersized, humidity can linger, and you’ll chase streaks on glass. And without thoughtful splash control (screen height, towel hooks), you might surprise the bath mat more than once.

Tips / Case / Cost

When I design wet rooms, I model splash reach and tile transitions before demo. A quick 3D wet room visualization helps clients pick glass placement and grate styles with confidence. Budget a premium for continuous waterproofing membranes (ANSI A118.10 products) and add a secondary fan or a humidity-sensing switch.

save pin

Hidden or Wall-Edge Slot Drains

My Take

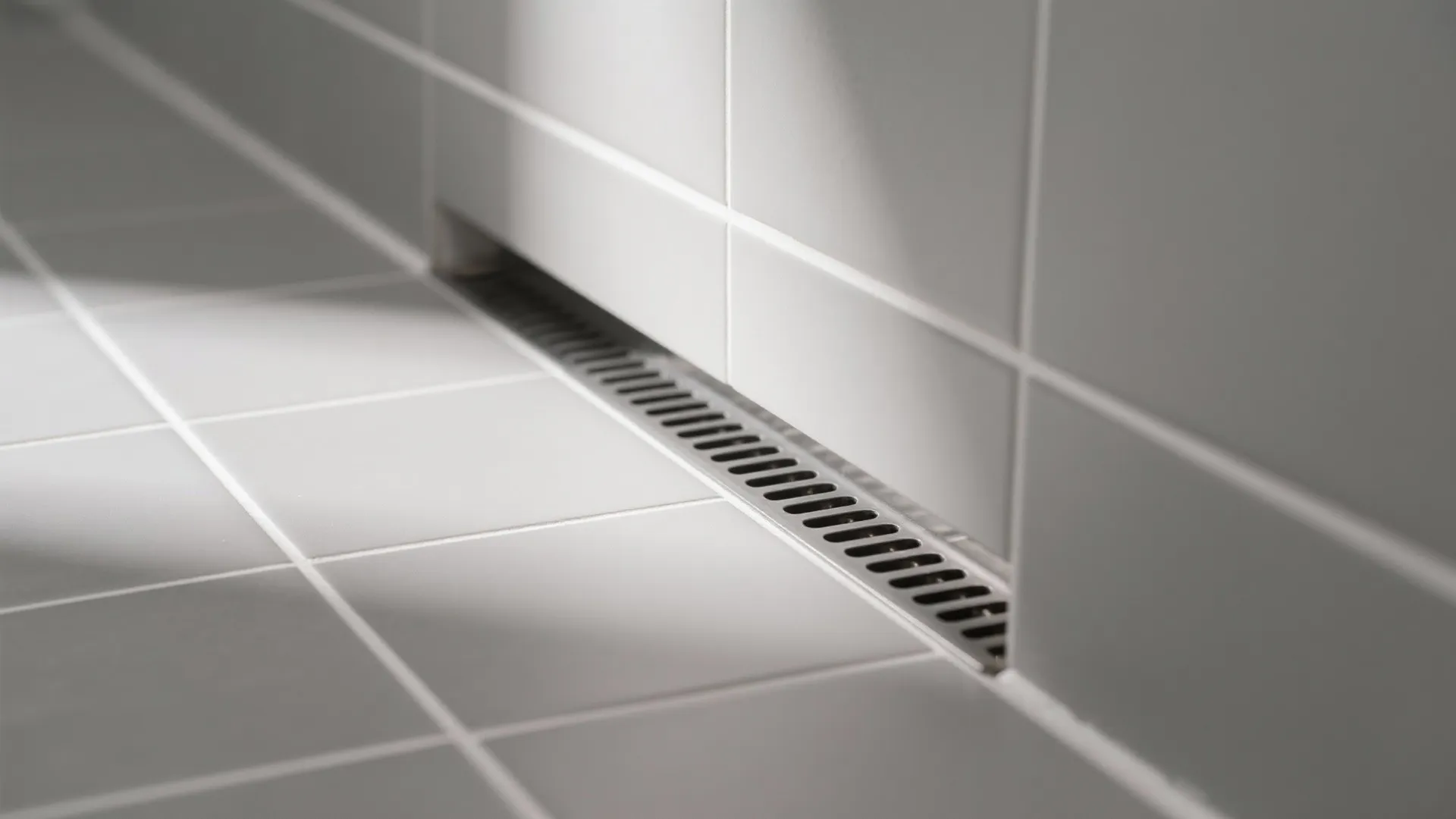

For a high-design look, I sometimes hide the drain at the wall edge or under a bench. In a recent townhouse, we ran a tile-in linear drain along a shadow gap against the back wall. The water vanished, and the client’s eye went straight to the textured stone—exactly the point.

Pros

Offsetting the drain to a wall means a clean tile field with a single-plane slope—great for large-format porcelain. It’s also friendly to curbless shower drainage because you can control the fall from entry to edge. Long-tail win: “hidden slot drain for minimalist bathrooms” creates that gallery-like effect clients ask me for.

Cons

Slot drains need precise tile heights; miss by a few millimeters and the reveal looks uneven. You’ll also want a removable cover and clear access for snaking—beauty shouldn’t come at the cost of serviceability. And if the wall isn’t dead straight, the shadow line will tell on your framer.

Tips / Case / Cost

Dry-fit the grate, tile, and channel before waterproofing. I use laser lines and a screed rail to set the fall. For peace of mind on complex layouts, I sometimes run AI-assisted drain slope checks against the tile grid to verify no ponding zones before we commit.

save pin

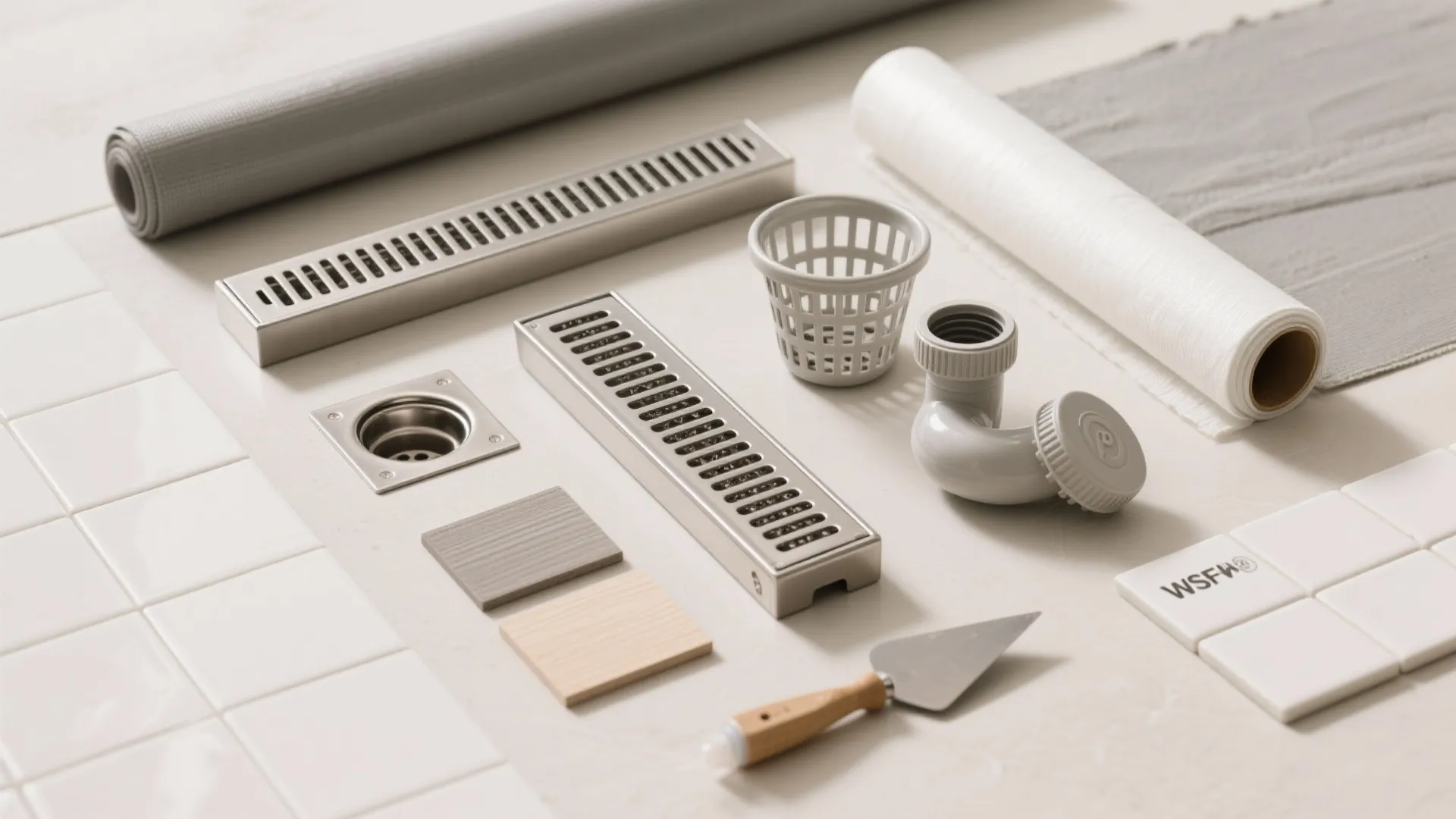

Maintenance-First Details: Traps, Grates, and Cleanouts

My Take

After a decade of call-backs, I’ve learned: the prettiest bathroom drain design is worthless if maintenance is a pain. On one project, a gorgeous custom grate got abandoned because it needed a special tool the client kept losing. Now I spec parts clients can clean in under five minutes.

Pros

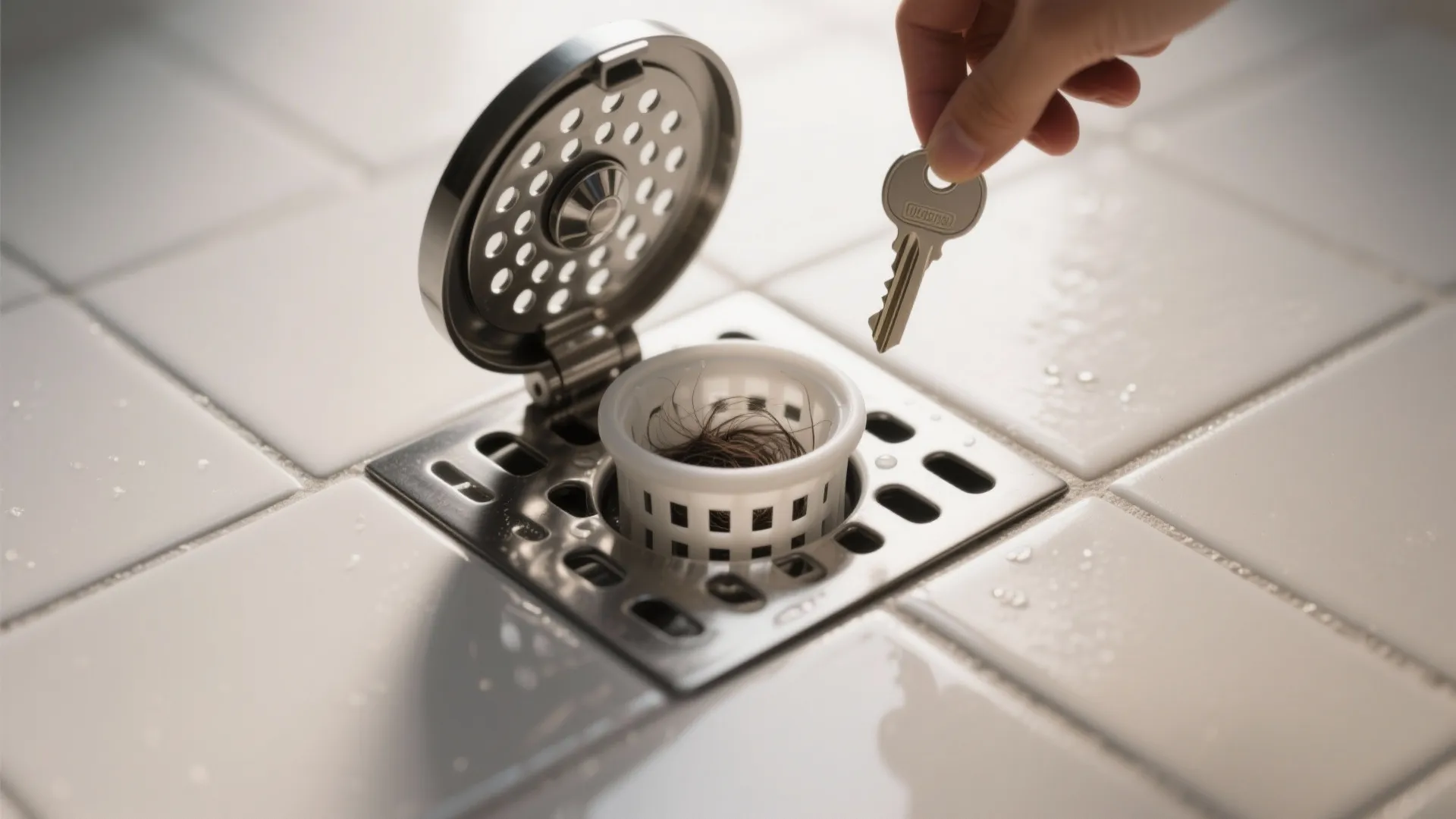

Choose grates with easy-lift keys and built-in hair traps to cut clogs and odors. A well-vented P-trap and accessible cleanout keep flow rates steady, especially with high-output shower heads. The long-tail benefit—“odor-free bathroom drain setup”—comes from matching trap sizes, venting, and flow rates instead of just the grate style.

Cons

Ultra-fine slot grates can restrict flow and gum up with soap and hard water. Cheaper chrome finishes pit fast in coastal homes, and water spots make daily cleaning feel endless. Hidden fasteners look sleek but can be frustrating if you lose the tiny wrench.

Tips / Case / Cost

Ask for ASME A112.18.2-compliant drains and corrosion-resistant grates; keep spare keys in a labeled pouch in the vanity. I coach clients on a monthly clean: lift grate, empty trap, flush with warm water, and check caulk lines. Bonus: a small squeeze bottle of tile-safe cleaner stored in the shower makes maintenance painless.

[Section: 总结]

In short, a small bath doesn’t limit you—it invites smarter bathroom drain design. Whether you choose linear, center, or a full wet room, success comes from matching slope, waterproofing, and maintenance to how you actually live. Remember: code-aligned slopes (like the 1/4" per foot fall to drain noted in TCNA) aren’t just rules—they’re what make your space safer and drier long-term.

I’ve seen compact bathrooms feel twice as calm just by aligning the plane, the grate, and the glass. Which of these five ideas would you try first in your space?

[Section: FAQ 常见问题]

save pin

FAQ

1) What’s the best bathroom drain design for a tiny shower?

For most small showers, a linear drain at the wall with a single-plane slope keeps tile cuts clean and reduces trip points. If budget is tight, a center drain with a mosaic floor is a classic, reliable setup.

2) How much slope do I need for proper drainage?

In the shower’s wet zone, target about 1/4" per foot toward the drain for dependable runoff. For an authoritative reference, the TCNA Handbook B421 and IPC 2021 Section 704.1 align with that 1/4" per foot guidance for many residential contexts.

3) Are curbless showers code-compliant and safe?

Yes, when detailed correctly. Keep wet-zone slope around 1/4" per foot and limit cross-slope outside the shower to 1:48 max for accessibility per the 2010 ADA Standards (Sections 302 and 608).

4) Linear drain vs center drain—what’s better?

A linear drain is great for large-format tile and curbless entries; it simplifies single-direction slope. A center drain is more budget-friendly and works best with small mosaics that adapt to a four-way slope.

5) Do I need a special waterproofing system for a wet room?

Yes. Use continuous waterproofing (ANSI A118.10 membranes) across the floor and up the walls, tying into your drain’s flange system. Properly sealed laps and corners prevent hidden leaks and mold.

6) How do I avoid odors from the shower drain?

Specify a vented P-trap, maintain water seals, and clean the hair trap monthly. If you notice recurring smells, check for a drying trap or improper venting and consult a licensed plumber.

7) Are hidden “slot” drains hard to clean?

They’re easy if you choose a model with a removable cover and accessible channel. Make sure the design includes a lift key and a debris basket you can empty without tools.

8) What tile works best over different drain types?

Large-format tile pairs beautifully with linear drains and single-plane slopes. For center drains, choose 1"–2" mosaics to contour the four-way slope without lippage and to improve wet traction.
