Bathroom Drain Design: 5 Smart Ideas: A senior interior designer’s field-tested guide to bathroom drain design for small spaces

[Section: Meta 信息]

Core keyword: bathroom drain design. I’ve spent over a decade remodeling compact homes where every inch matters, and the way a bathroom drains can make or break daily comfort. Small spaces spark big creativity, and in this guide I’ll share 5 design inspirations—grounded in my projects and expert data—to help you design a cleaner, quieter, and easier-to-maintain bathroom.

Quick note: I’ll blend real-world stories, pragmatic tips, and SEO-friendly insights so you can skim or dive deep as you like. First up—how to keep water where it should be and make cleaning less of a chore.

[Section: 引言]

Bathroom drain design has become a quiet hero in current interior trends: seamless floors, low-threshold showers, and smarter slope geometry are everywhere in compact apartments I’ve redesigned. Small spaces truly ignite big ideas; when there’s less room, we plan smarter drainage, fewer grout lines, and better maintenance loops. In this article, I’ll share 5 inspirations, backed by my on-site experience and expert references, to help you build a bathroom that drains effortlessly and looks polished.

[Section: 灵感列表]

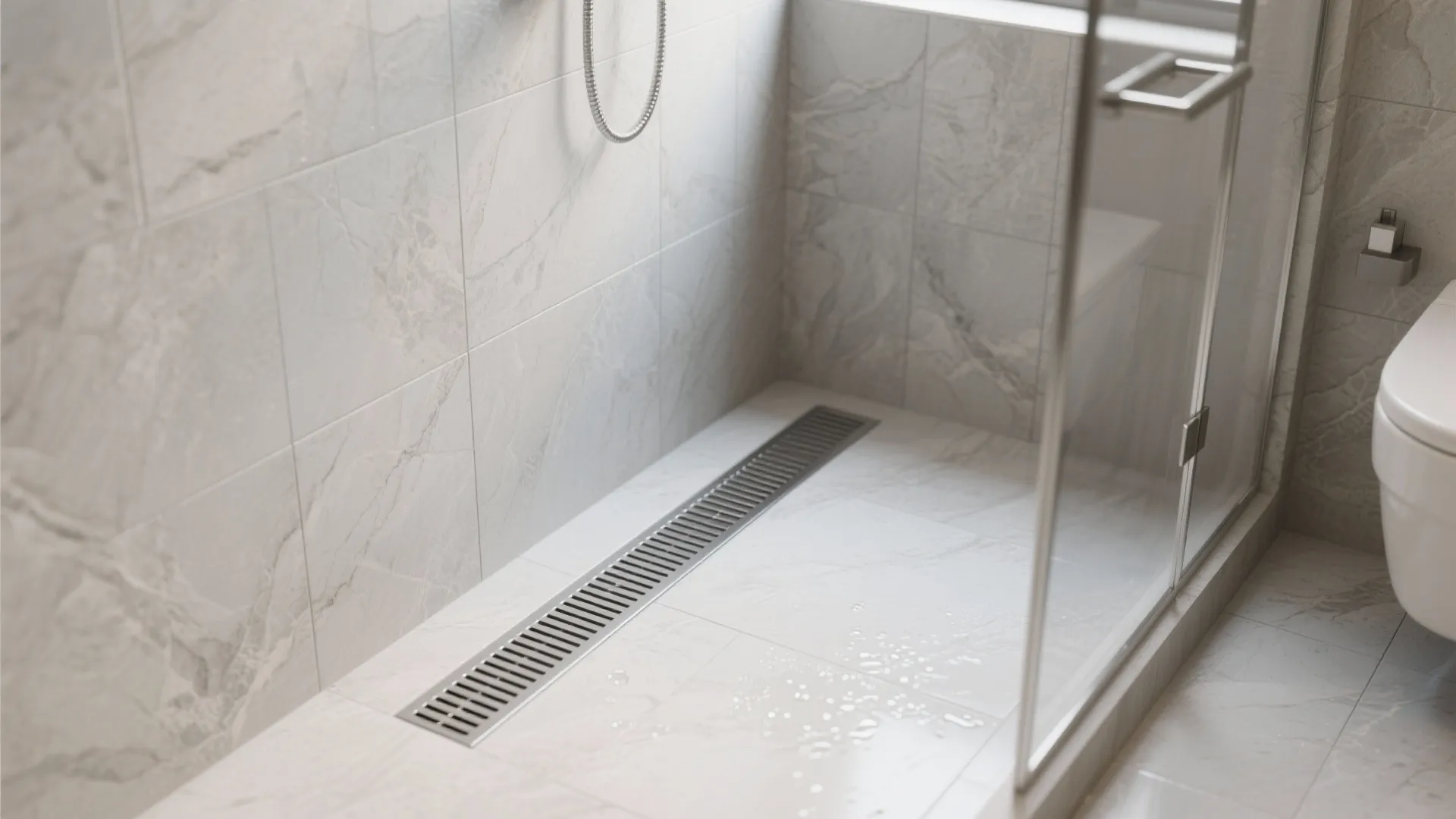

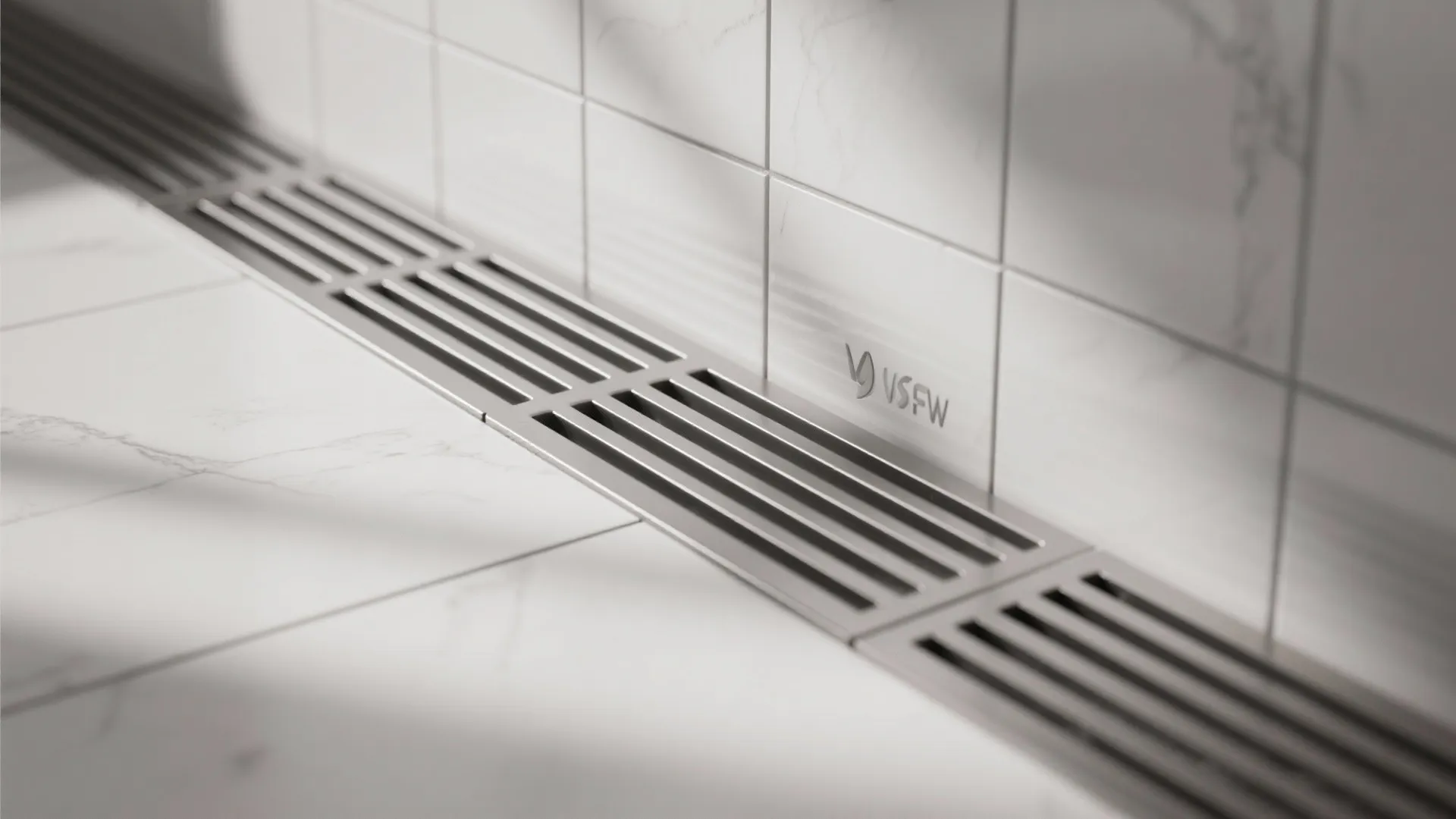

Linear shower drain along the wall

My Take: I first used a wall-adjacent linear drain in a 3'×5' shower where the client hated stepping over pools of water. Running the drain along the long wall gave me a single-plane slope and a cleaner sightline. It’s now my go-to for tight showers that need a seamless look.

Pros: A wall-line linear drain allows a single-direction slope, reducing tile cuts and simplifying waterproofing—great for “low-threshold shower drain design” in small bathrooms. It also improves accessibility and gives a minimalist aesthetic, especially with large-format tiles. Several building guides note fewer transitions mean fewer leak risks in wet rooms.

Cons: You’ll need precise slope planning; if the wall isn’t perfectly straight, water can creep toward corners. Linear grates can be pricier, and hair buildup along the long channel needs regular clearing or a removable hair trap.

Tips / Cost: Opt for a stainless steel channel with adjustable leveling feet and a removable strainer. Budget roughly 20–35% more than a standard center drain for quality hardware and waterproofing accessories.

"L 型布局释放更多台面空间"

save pin

save pin

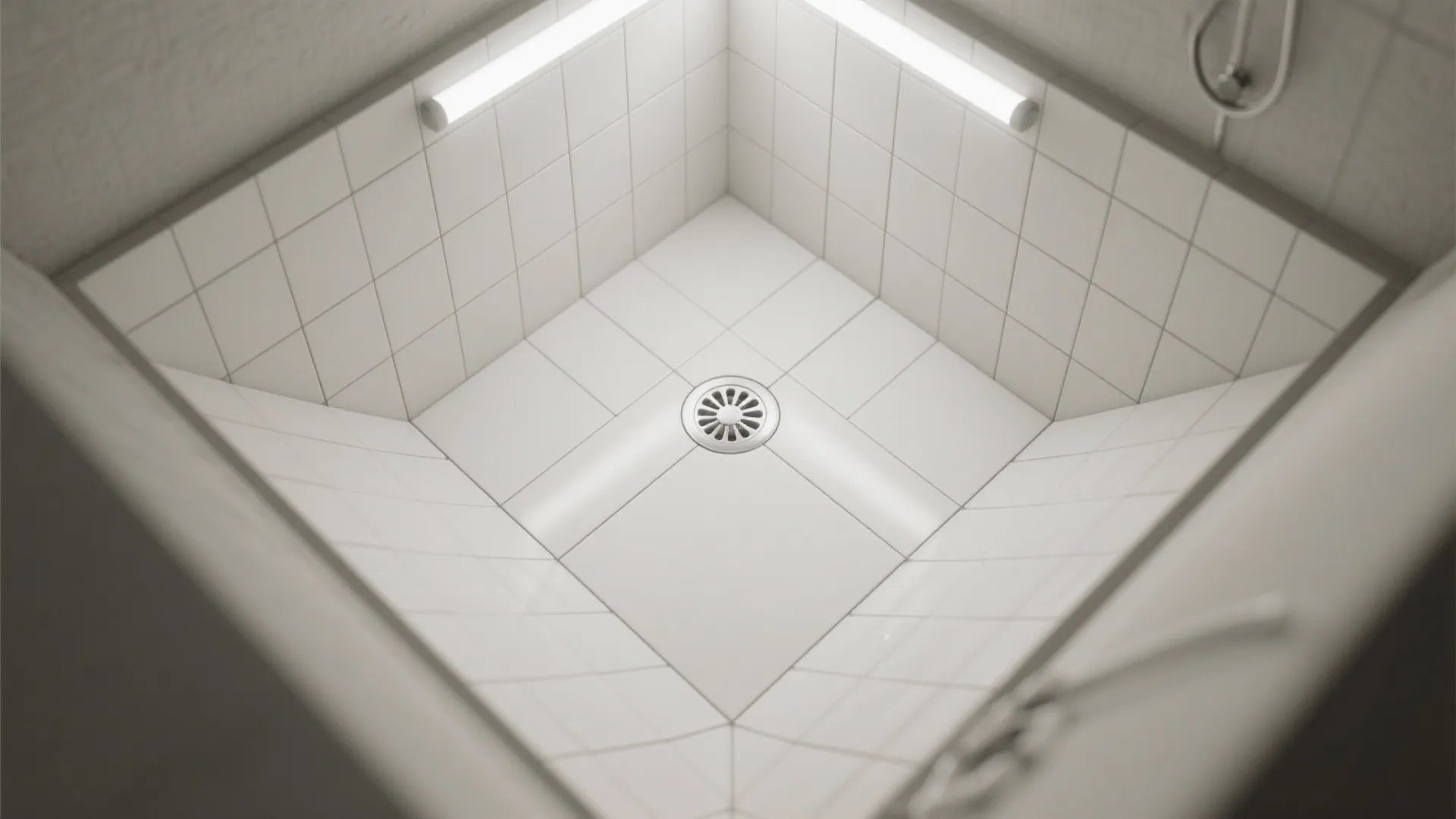

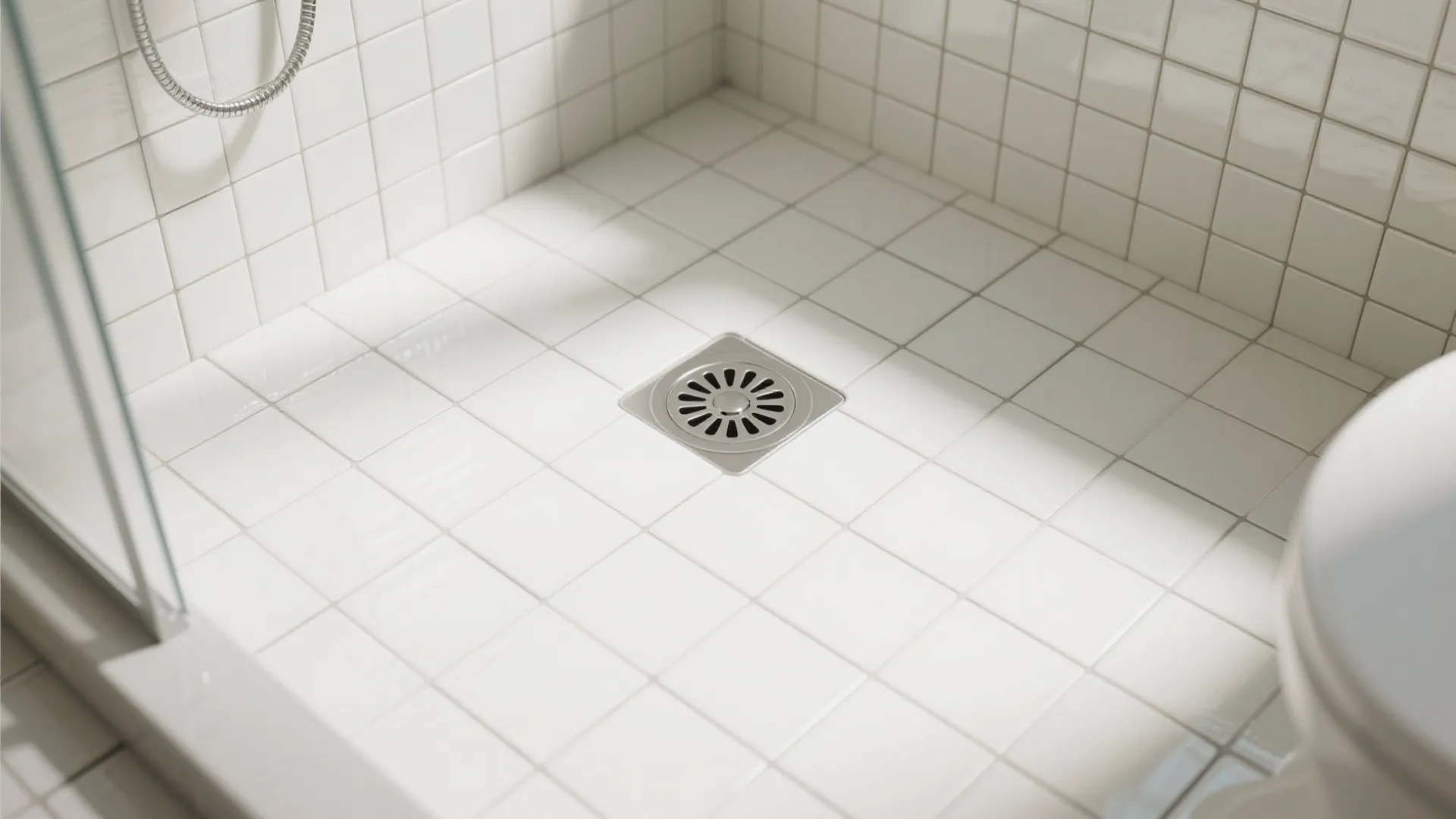

Center point drain with balanced slope

My Take: In older apartments with rigid plumbing, I’ll keep the center point drain and focus on micro-slopes (about 1/4" per foot) from all sides. Done right, you get predictable flow and classic reliability without rebuilding the whole subfloor.

Pros: Easy to retrofit and compatible with most pans—perfect for “retrofit bathroom drain ideas in small spaces.” Because the slope radiates evenly, puddling is limited when tiles are consistent. This layout often fits drain kits available off-the-shelf, saving both time and cost.

Cons: Mismatched tile thickness or uneven mortar can cause mini-pools around the grate. Round grates can be trickier with large-format tiles, leading to more cuts and visual clutter.

Tips / Data: Aim for 1/4" per foot slope to the drain; the International Association of Plumbing and Mechanical Officials (IAPMO) recognizes this as a standard gradient in many contexts. Keep grout joints uniform to avoid water skirting around lips.

save pin

save pin

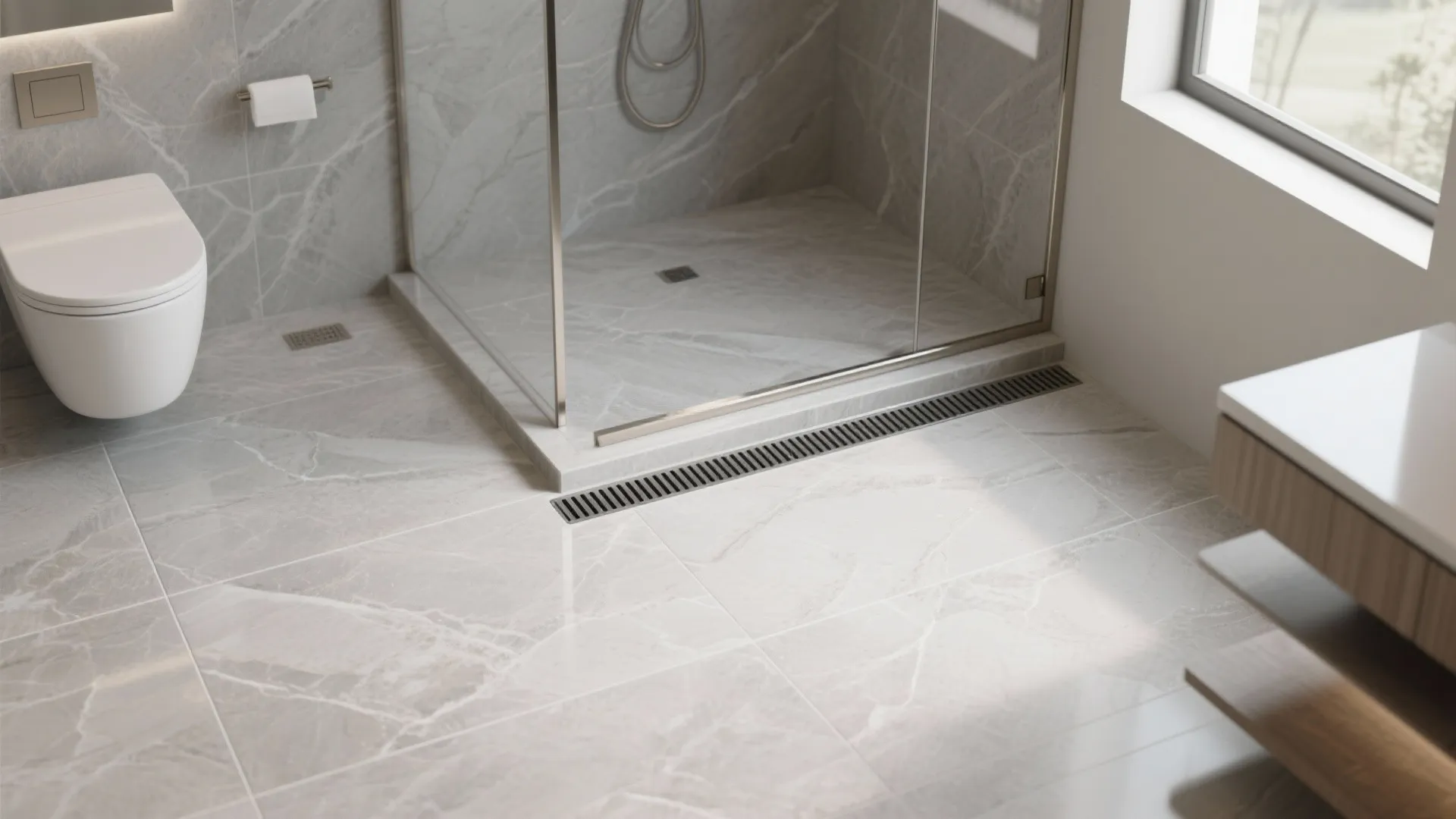

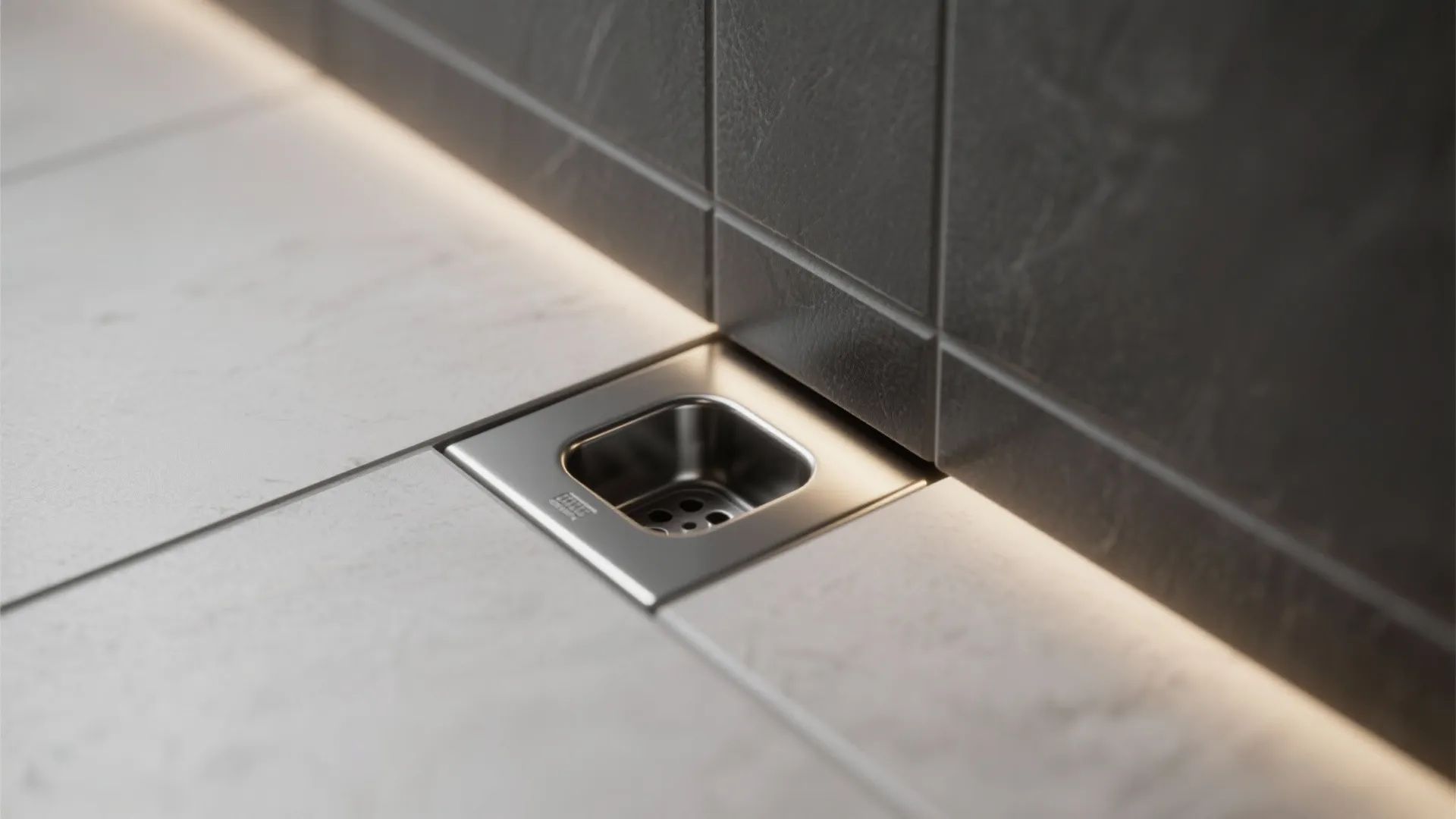

Invisible tile-over drain for a seamless floor

My Take: Tile-over (tile insert) drains have won over clients who love a monolithic floor. I used one in a micro-loft where the shower floor looked like continuous stone—only a thin perimeter slot revealed the drain.

Pros: A tile insert camouflages the grate, ideal for “seamless bathroom drain design with large-format tiles.” It minimizes visual breaks and makes cleaning feel easier because there’s less exposed metal. Drain manufacturers often provide hair traps that sit below the tile for quick lift-and-clean.

Cons: If the tile isn’t perfectly level, the slot can look uneven. Because the opening is slimmer, you’ll need frequent maintenance to prevent slow drainage after long showers.

Tips / Source: Check manufacturer flow rates against your shower head GPM. The EPA WaterSense program lists showerheads at ≤2.0 GPM—pairing a low-flow head with a tile-in drain helps avoid overwhelm during peak use.

"玻璃背板让厨房更通透"

save pin

save pin

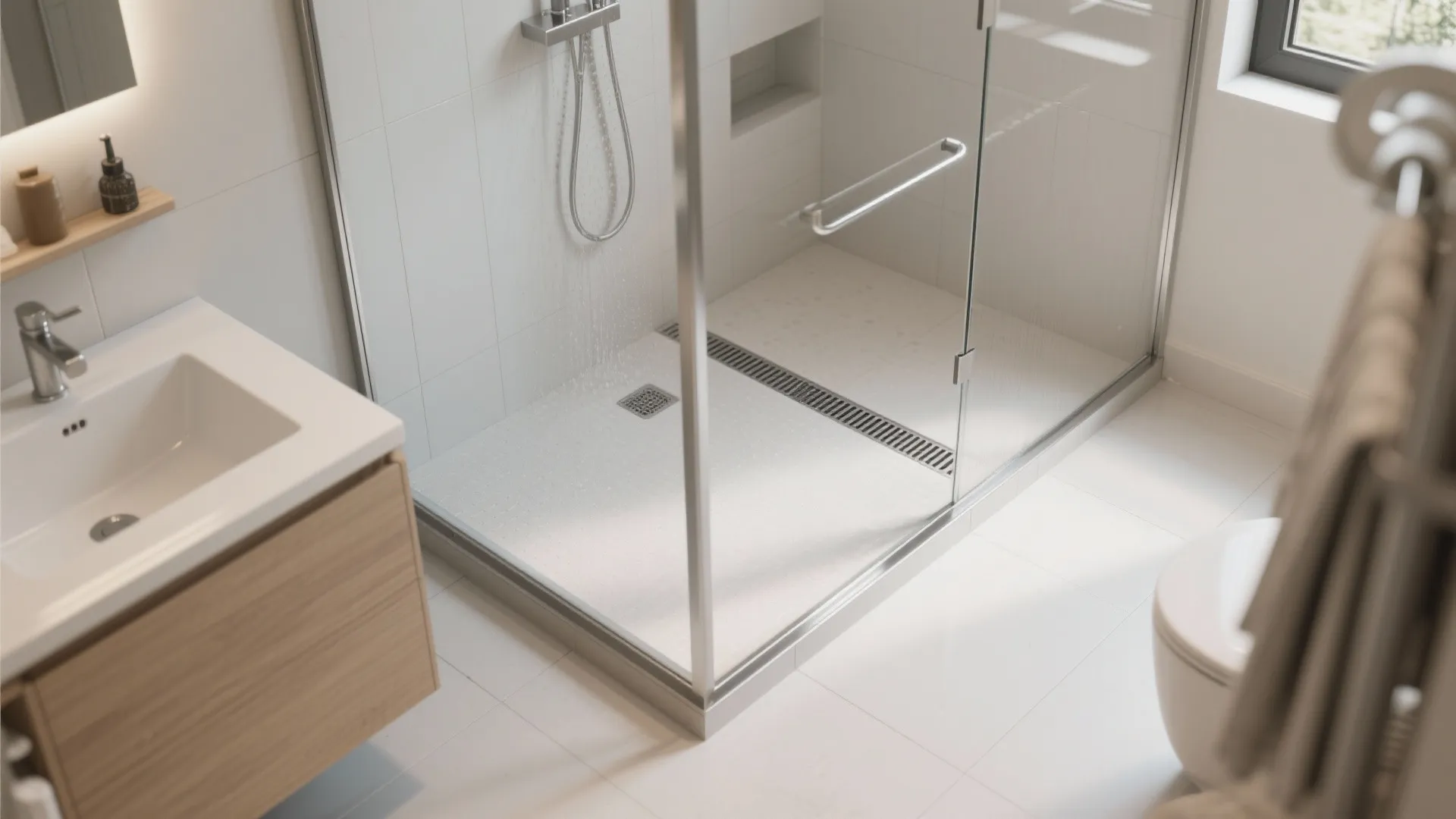

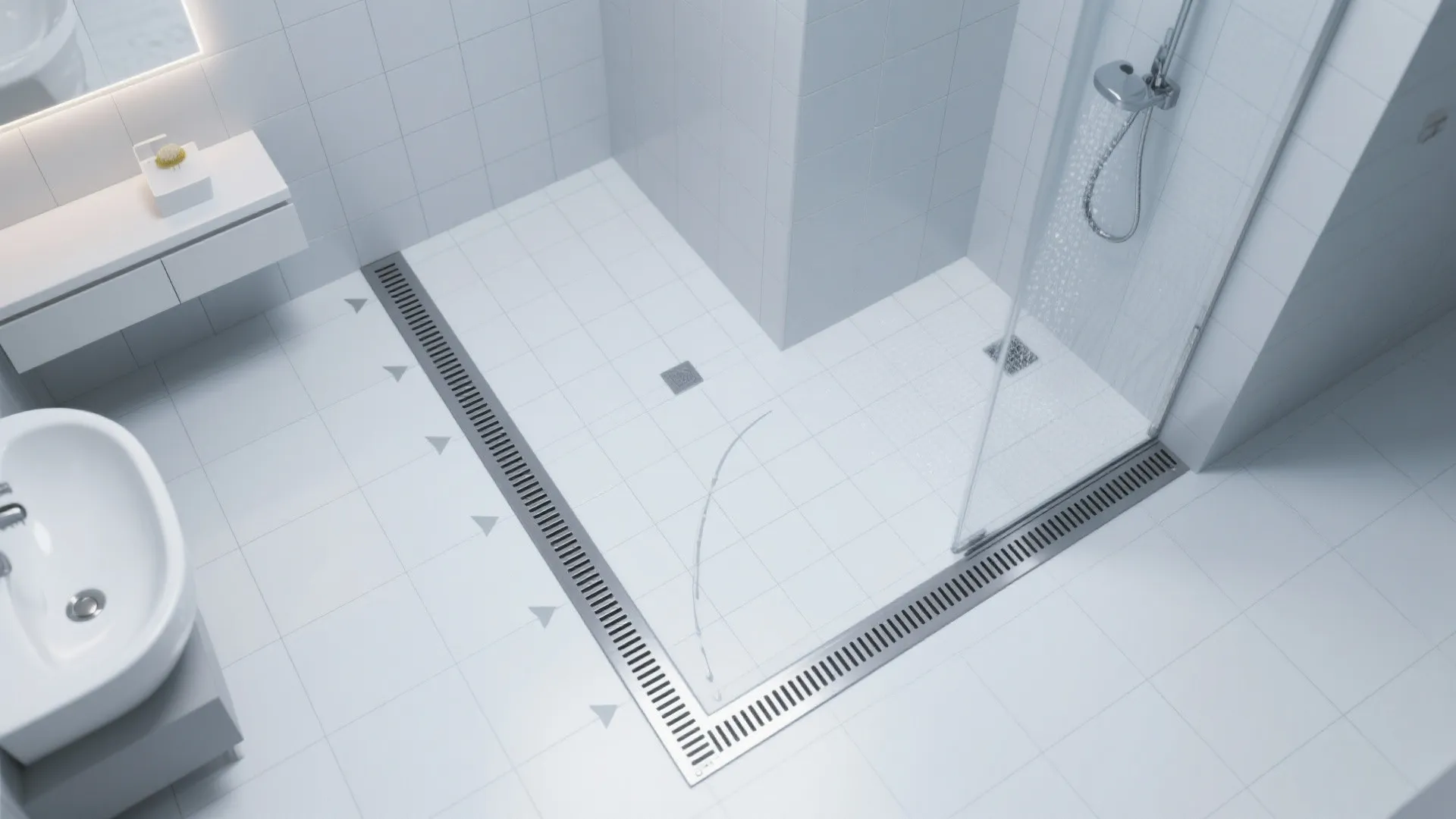

Curbless wet room with perimeter channel

My Take: When clients want barrier-free access, I design a wet room and push a perimeter channel drain just inside the shower zone. In a 42 m² apartment, this kept the main floor dry while maintaining a continuous tile field.

Pros: Ideal for “curbless shower bathroom drain design” and universal design; the perimeter channel intercepts water before it reaches the dry area. With correct pre-slope and waterproof membranes, cleaning is quicker and mobility devices roll freely.

Cons: Subfloor planning is non-negotiable—structural joists limit where you can recess the pan. More linear footage of drain equals higher cost, and mopping routines must include the channel to avoid biofilm.

Tips / Reference: Follow manufacturer instructions for liquid-applied membranes and flood testing; the TCNA provides guidance on slope and waterproofing best practices in wet areas.

save pin

save pin

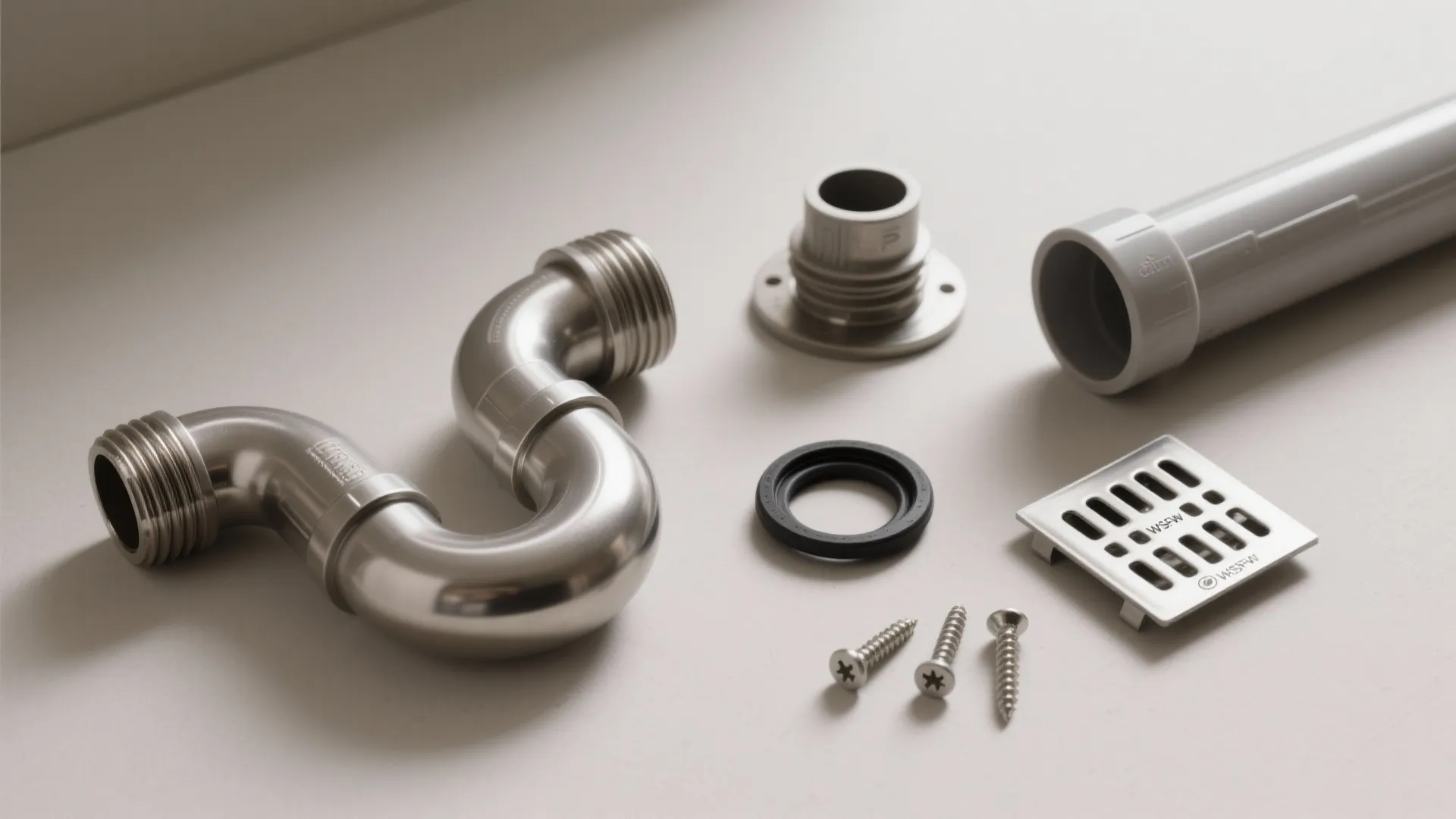

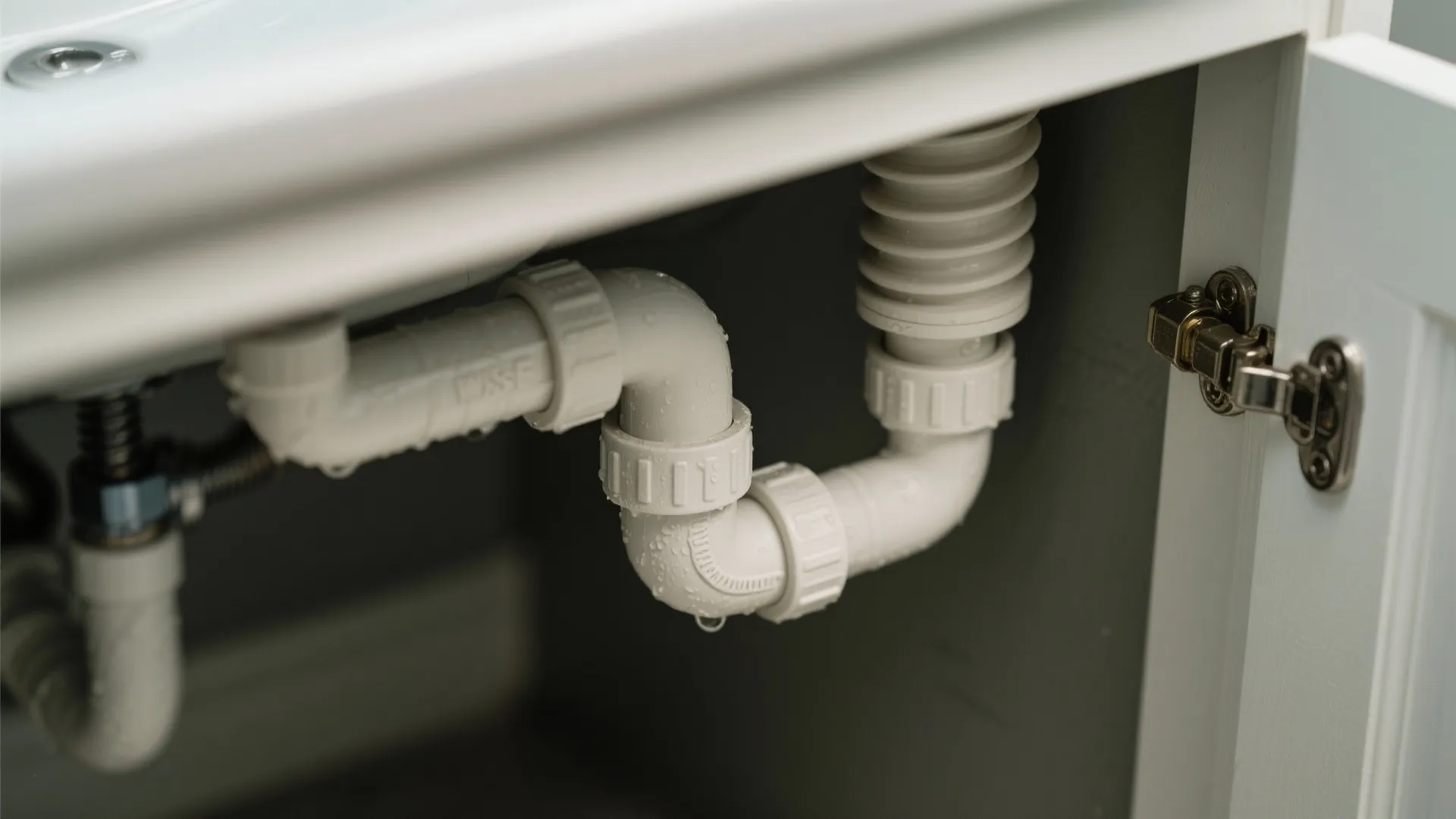

Siphon trap and venting that actually works

My Take: I learned the hard way: a gorgeous bathroom can be spoiled by sewer odors if the P-trap or venting is wrong. Now I always check trap seals, ventilation routes, and cleanout access before finalizing finishes.

Pros: Proper traps and venting support “odor-free bathroom drain design,” stopping backflow of gases and ensuring smooth drainage. It reduces gurgling, improves fixture performance, and lowers the risk of clogs by maintaining steady pressure.

Cons: Vent stacks in old buildings can be quirky; rerouting is noisy and may require permits. If you skip a cleanout, future maintenance becomes a crawl-under-the-sink adventure you’ll regret.

Tips / Data: Keep the P-trap close to the fixture (typically within 24"), ensure the trap weir is vented, and maintain water seals. Periodically run water in rarely used drains to prevent evaporation of trap seals.

"木质元素带来的温暖氛围"

[Section: 总结]

Small kitchens taught me this truth first, and bathrooms confirmed it: small spaces demand smarter choices, not compromises. Bathroom drain design is the backbone of comfort—get slopes, membranes, and venting right, and everything else feels effortless. If you’re renovating, start at the drain and work outward; your tiles, hardware, and daily routine will thank you.

Which of these five ideas would you try first in your bathroom drain design?

[Section: FAQ 常见问题]

save pin

save pin

FAQ

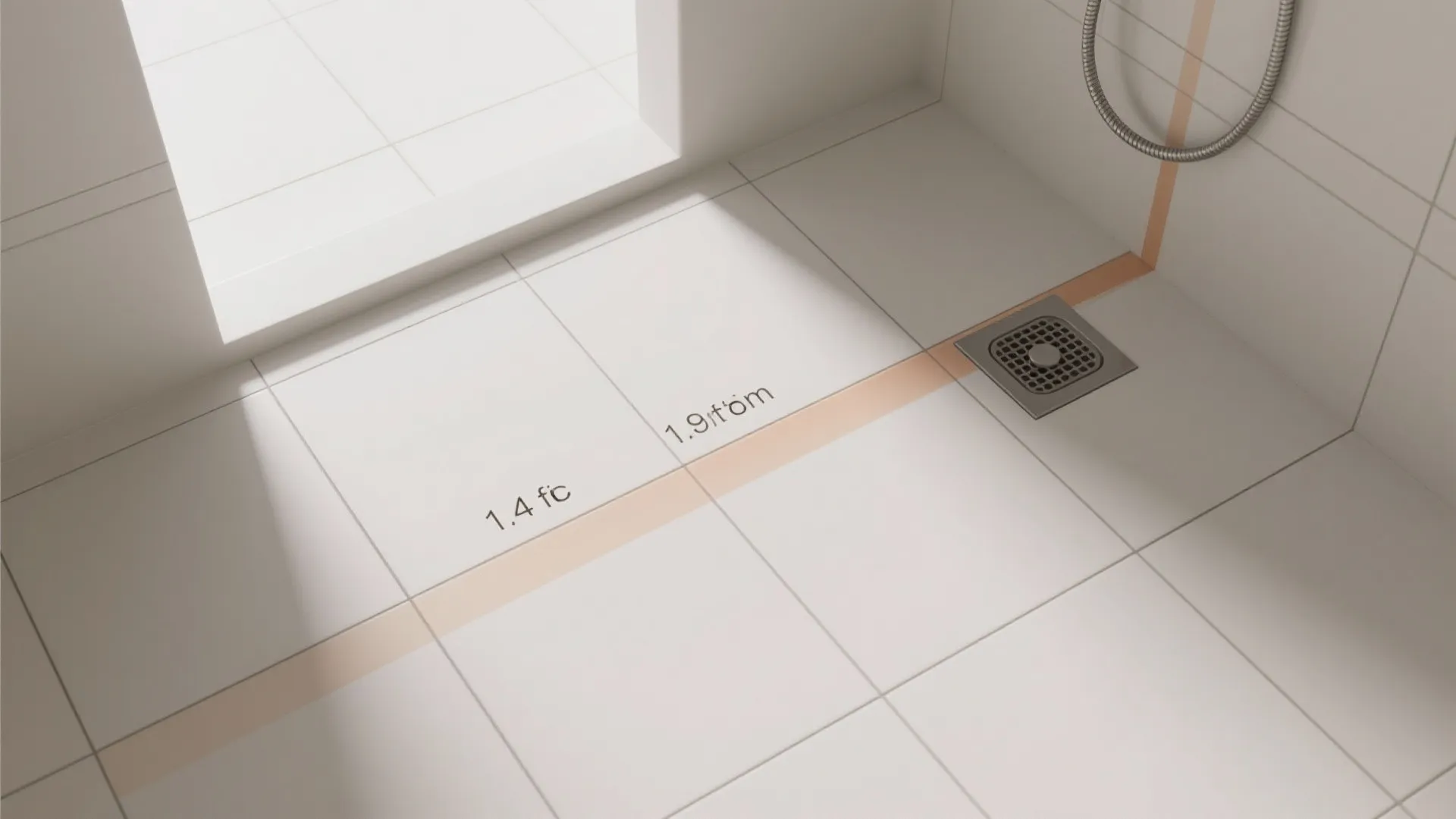

1) What slope should I use for bathroom drain design?

Most showers perform well at 1/4" per foot toward the drain. Consistent slope and tile thickness prevent puddling and ensure steady flow.

2) Are linear drains better for small bathrooms?

Linear drains allow single-direction slopes and fewer tile cuts, great for tight footprints. They also pair nicely with large-format tiles for a clean aesthetic.

3) How do I prevent sewer odors?

Ensure the P-trap is properly vented and maintains a water seal. Run water in rarely used drains; poorly vented lines can cause gurgling and allow gases back into the room.

4) Is a curbless shower compatible with apartment structures?

Yes, with planning. You may need to recess the pan or raise adjacent floors; always confirm joist direction and waterproofing requirements before demolition.

5) Do tile-in (invisible) drains clog more?

They can if maintenance is ignored. Choose a drain with a removable hair trap and match your showerhead’s GPM; EPA WaterSense can guide flow-rate selection.

6) Can I retrofit a center drain without moving plumbing?

Often yes. Keep the existing location and adjust the slope with mortar; use an off-the-shelf drain kit that matches your pipe size for a smoother install.

7) What waterproofing system is best?

Liquid-applied membranes and sheet systems both work if installed per instructions. The TCNA offers recognized best practices for wet area waterproofing.

8) Where should I start when planning bathroom drain design?

Begin with layout, slope, and venting, then choose the drain type and tile. In small spaces, sequencing the drain first makes finishes and maintenance far easier.
