Bathroom Drainage Design: 5 Smart Ideas: Small bathrooms, big creativity—my proven drainage design plays that save space, stop odors, and keep floors dry

[Section: Meta 信息] Meta Title: Bathroom Drainage Design: 5 Smart Ideas Meta Description: Explore 5 expert bathroom drainage system design ideas for small spaces—smart slopes, linear drains, venting, and waterproofing. Real tips, data, and costs. Meta Keywords: bathroom drainage system design, linear shower drain, floor slope to drain, wet room waterproofing, plumbing vent design, trap seal depth, low-profile drain, small bathroom layout [Section: 引言] I’ve spent over a decade fixing tricky bathroom drainage system design problems, especially in compact apartments. Trends now lean toward low-profile linear drains, wet-room concepts, and smarter venting to keep odors out and floors dry. Small spaces prompt big creativity—tight footprints force better planning, faster drying, and cleaner finishes. In this guide, I’ll share 5 design inspirations for bathroom drainage, blending stories from real remodels with expert data. You’ll get practical pros and cons, costs, and a few field-tested tricks that actually work. [Section: 灵感列表]

Minimalist Linear Shower Drain

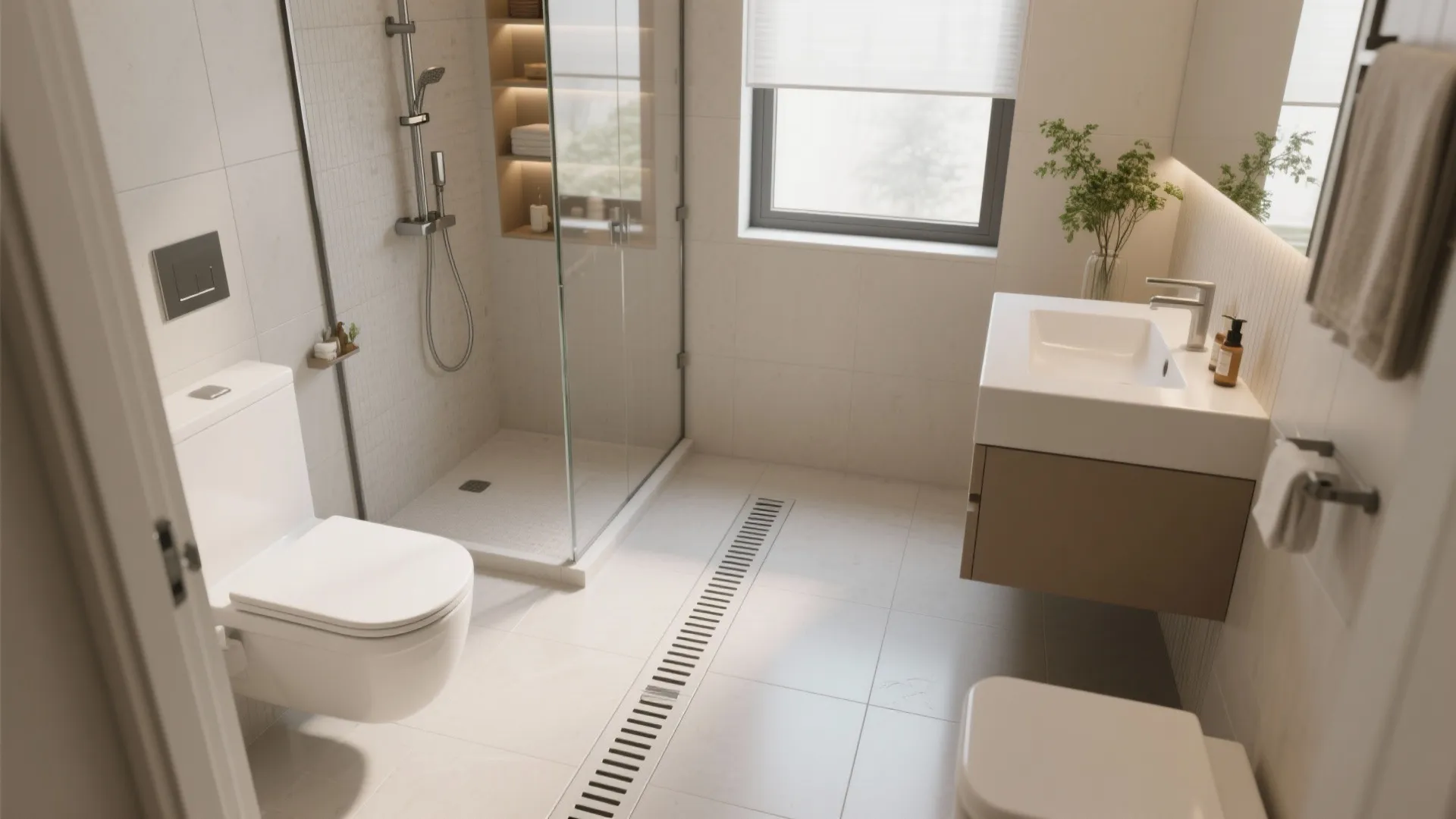

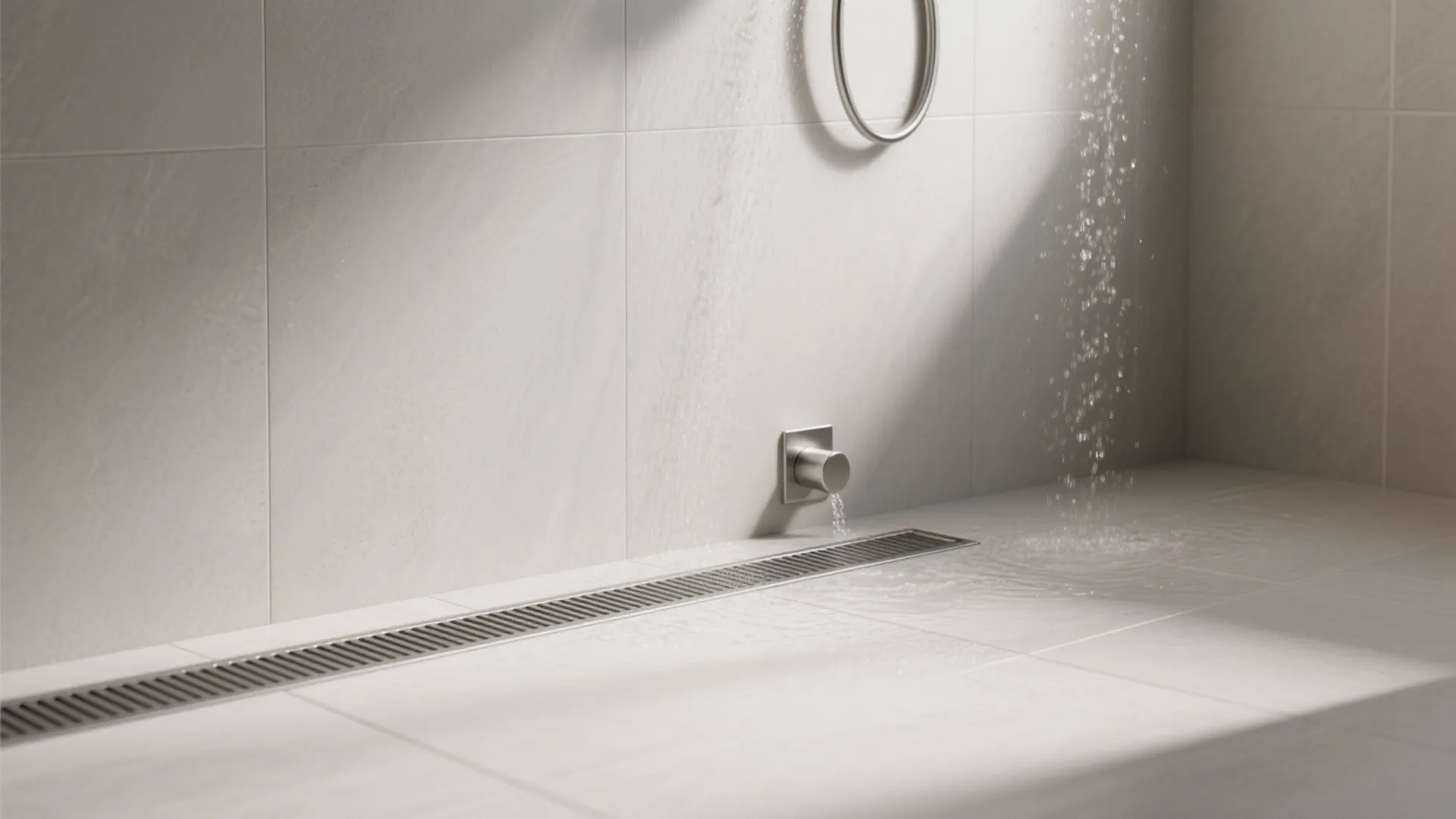

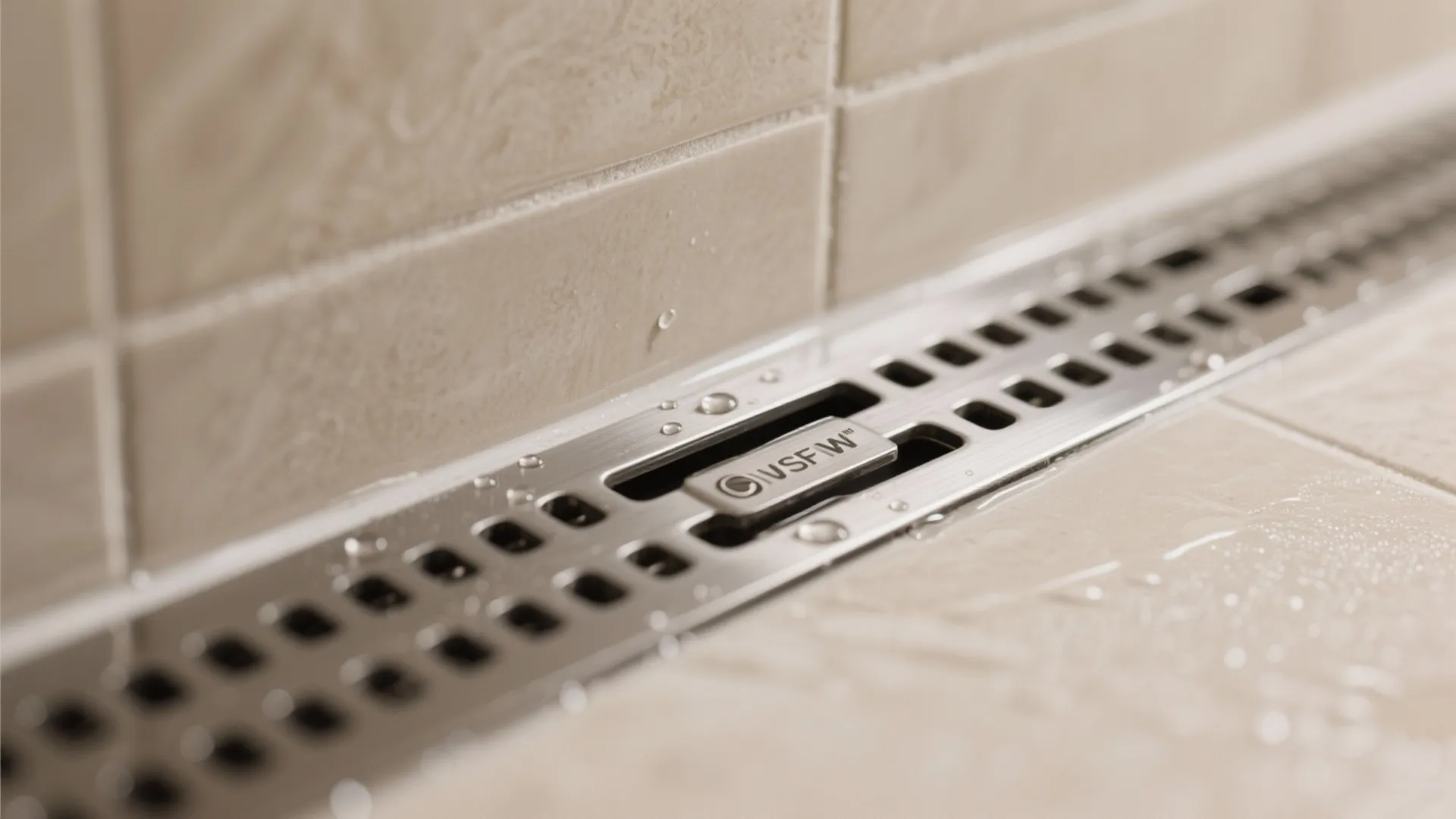

My Take A few years ago, I converted a cramped 1.2 m x 1.8 m shower into a sleek wet zone using a linear drain against the wall. The visual calm was instant, and my client finally got rid of puddles that used to collect at the curb. Pros - Linear shower drain layouts allow gentler floor slope to drain, so tile lippage is easier to avoid and large-format tiles stay seamless. - With a wall-line placement, water moves away from the main floor quickly, improving drying times and reducing slip risk. - ASME A112.6.3-compliant grates offer higher flow rates; pairing with a 2-inch outlet helps prevent backup during high-flow rain shower use. Cons - Precision matters: if your screed isn’t true, water can hang near the grate and look messy—been there, fixed that. - Good stainless grates aren’t cheap; custom lengths drive costs up and lead times longer. Tips / Case / Cost - I usually place the drain along the back wall for cleaner tile cuts. Budget roughly $180–$450 for quality linear drains; add $250–$600 for waterproofing prep. linear drain against the wall

save pin

save pin

Smart Floor Slope and Tile Transitions

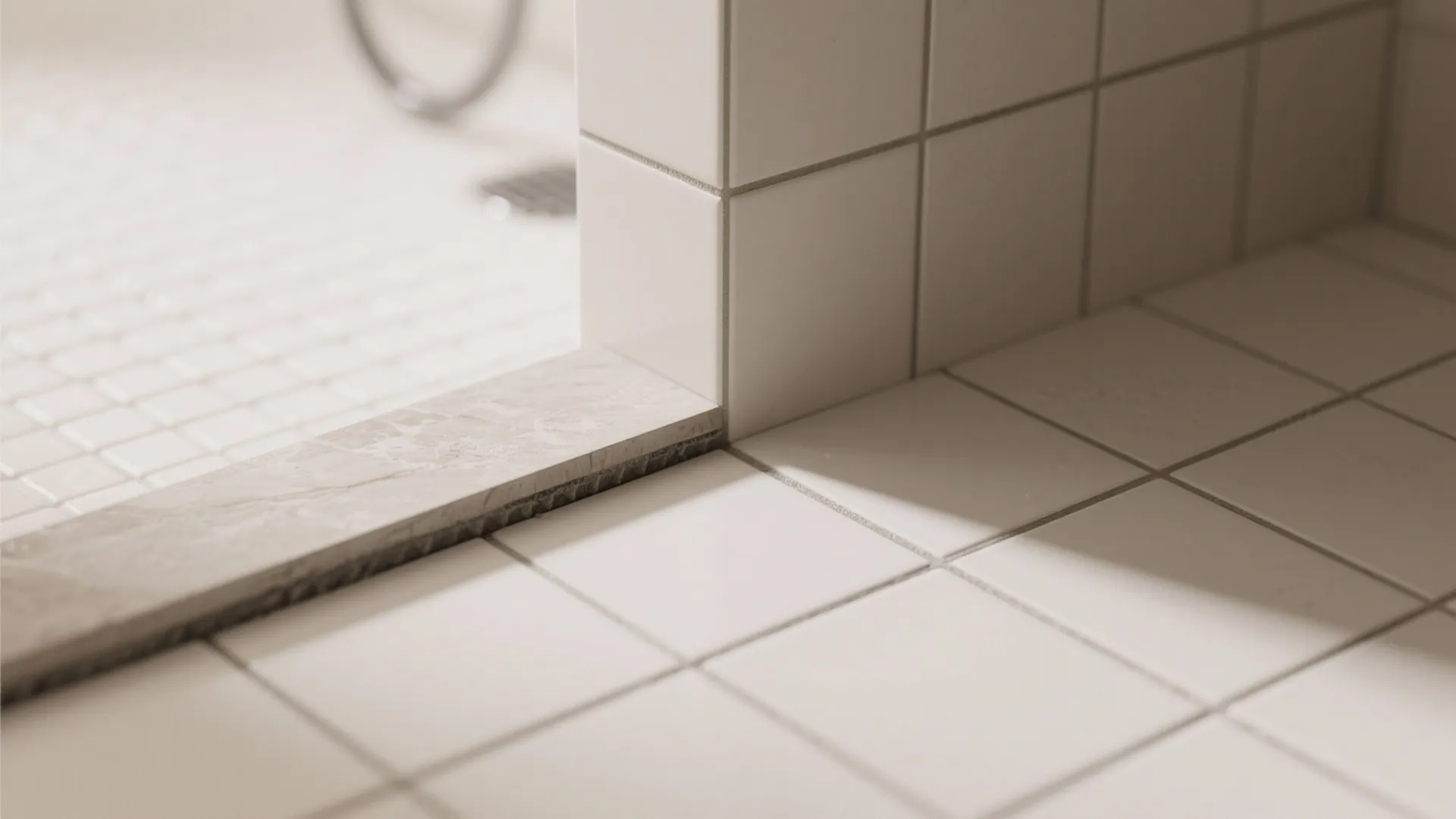

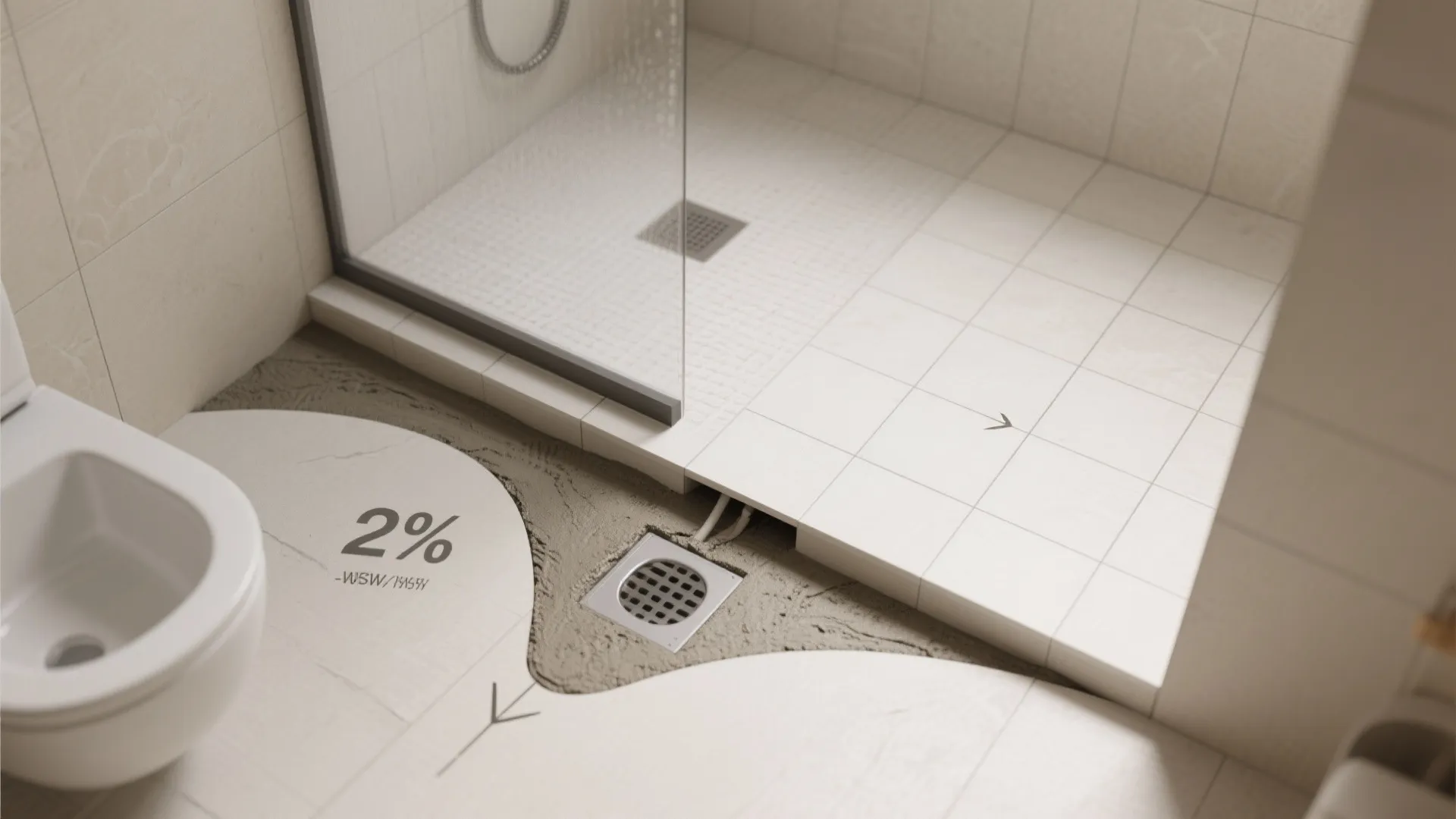

My Take Slope is the quiet hero of bathroom drainage system design. In one loft project with concrete subfloors, a 1.5%–2% fall saved us from micro-puddles that used to show up near the doorway. Pros - A consistent floor slope to drain (about 1/4" per foot) improves surface runoff and keeps grout joints cleaner longer. - Gentle transitions let you keep a curbless shower without wheel snag, great for aging in place and universal design. - Using uncoupling membranes under tile reduces cracking in high-moisture zones, and helps maintain slope integrity over time. Cons - Over-sloping makes standing feel awkward and can distort the tile layout—too much slope is as bad as too little. - If the main floor also slopes, furniture like freestanding vanities may need leveling feet. Tips / Case / Cost - I often score the slab or build a tapered mud bed to control falls precisely. Expect $8–$15 per sq ft for mud bed and membrane in urban markets.

save pin

save pin

Well-Vented Traps to Prevent Odors

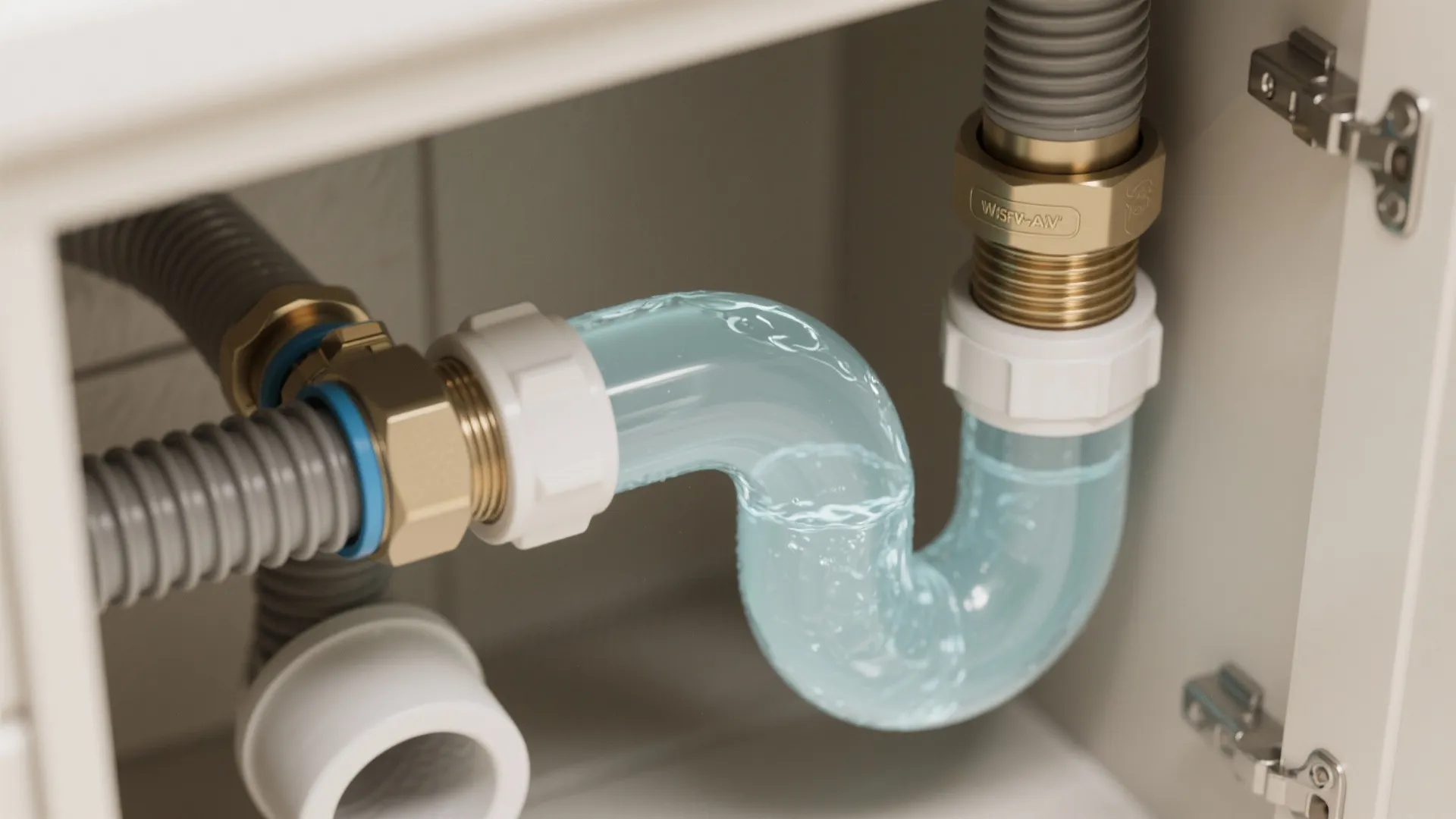

My Take A beautiful bathroom can still smell bad if the trap seal is lost. I learned this the hard way when a client’s seldom-used guest bath developed sewer gas odors—fixing the vent loop and adding a trap primer solved it. Pros - Proper plumbing vent design maintains trap seal depth (typically 2"–4"), preventing siphon and sewer gas ingress. - Adding an air admittance valve (AAV) where code allows can stabilize pressure in tight renovations without opening big chases. - Documented guidance from the International Plumbing Code (IPC) helps size vent stacks and distances for reliable performance. Cons - AAVs can fail if cheap; I only specify listed units with service access, and I still prefer hard-venting where possible. - Vent reroutes in old buildings can be noisy during construction and may require creative soffits. Tips / Case / Cost - For seldom-used showers, trap primers or periodic water flushes keep seals intact. Vent rework often runs $600–$1,800 depending on chase access. odor control in tight layouts

save pin

save pin

Waterproofing a True Wet Room

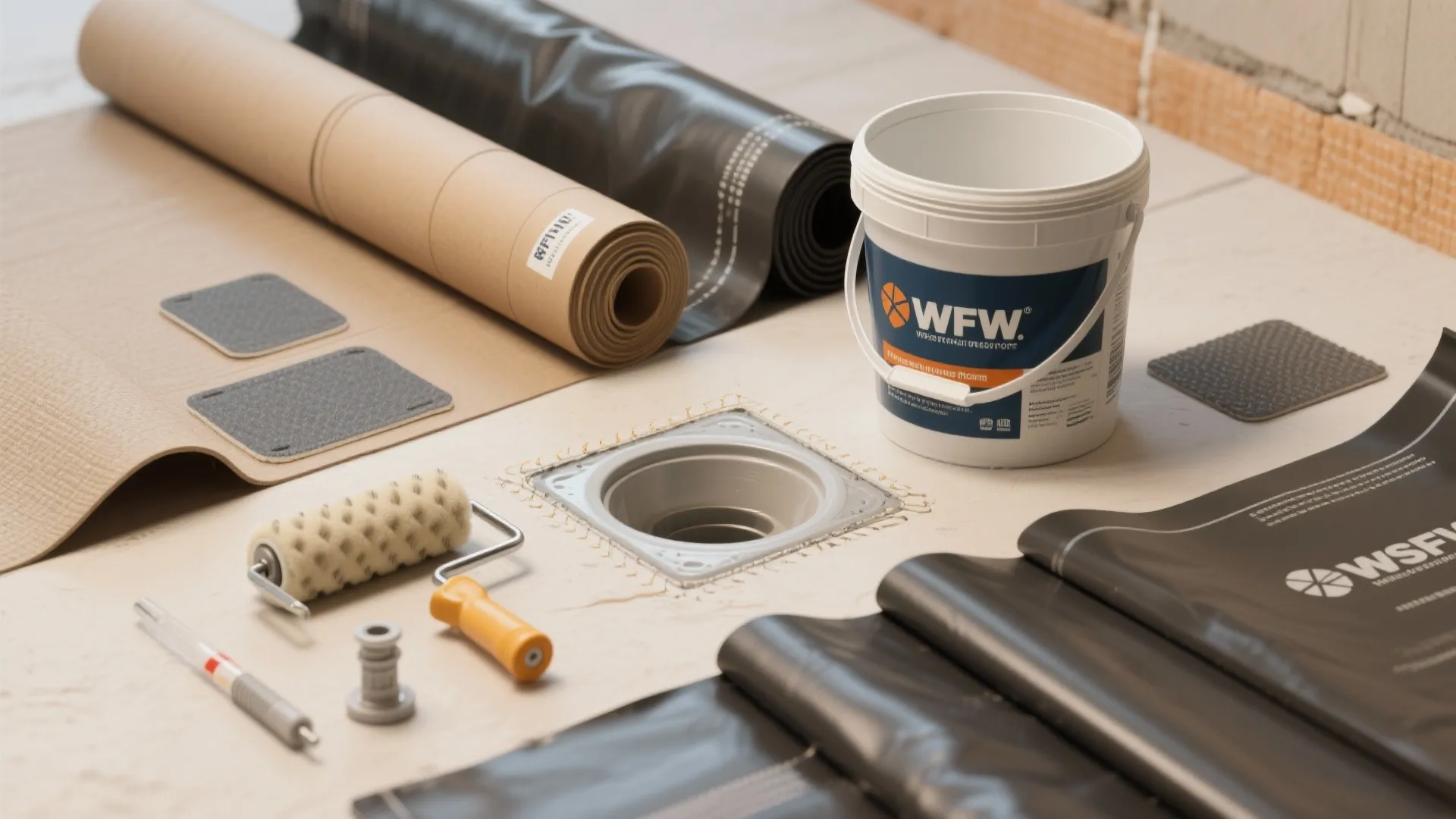

My Take Turning a tiny bath into a wet room let us gain shower space without a curb, thanks to continuous waterproofing. It’s liberating: the whole floor is a safe splash zone, and cleaning is faster. Pros - Full wet room waterproofing (liquid-applied or sheet membranes) creates redundancy, especially at wall-to-floor junctions and niches. - Pairing low-profile drains with flood-tested membranes reduces leakage risk—many systems are IAPMO-listed for performance. - Wet rooms simplify drainage pathways, and smart detailing around the toilet flange prevents failures. Cons - The prep is meticulous: every corner, penetration, and threshold needs careful reinforcement—no shortcuts. - Drying time for liquid membranes can slow schedules; sheet systems need exact overlaps and rolling. Tips / Case / Cost - I do a 24-hour flood test before tiling—non-negotiable. Expect $12–$22 per sq ft for comprehensive waterproofing in small bathrooms. wet room membrane detailing

save pin

save pin

Low-Profile Drains and Cleanable Traps

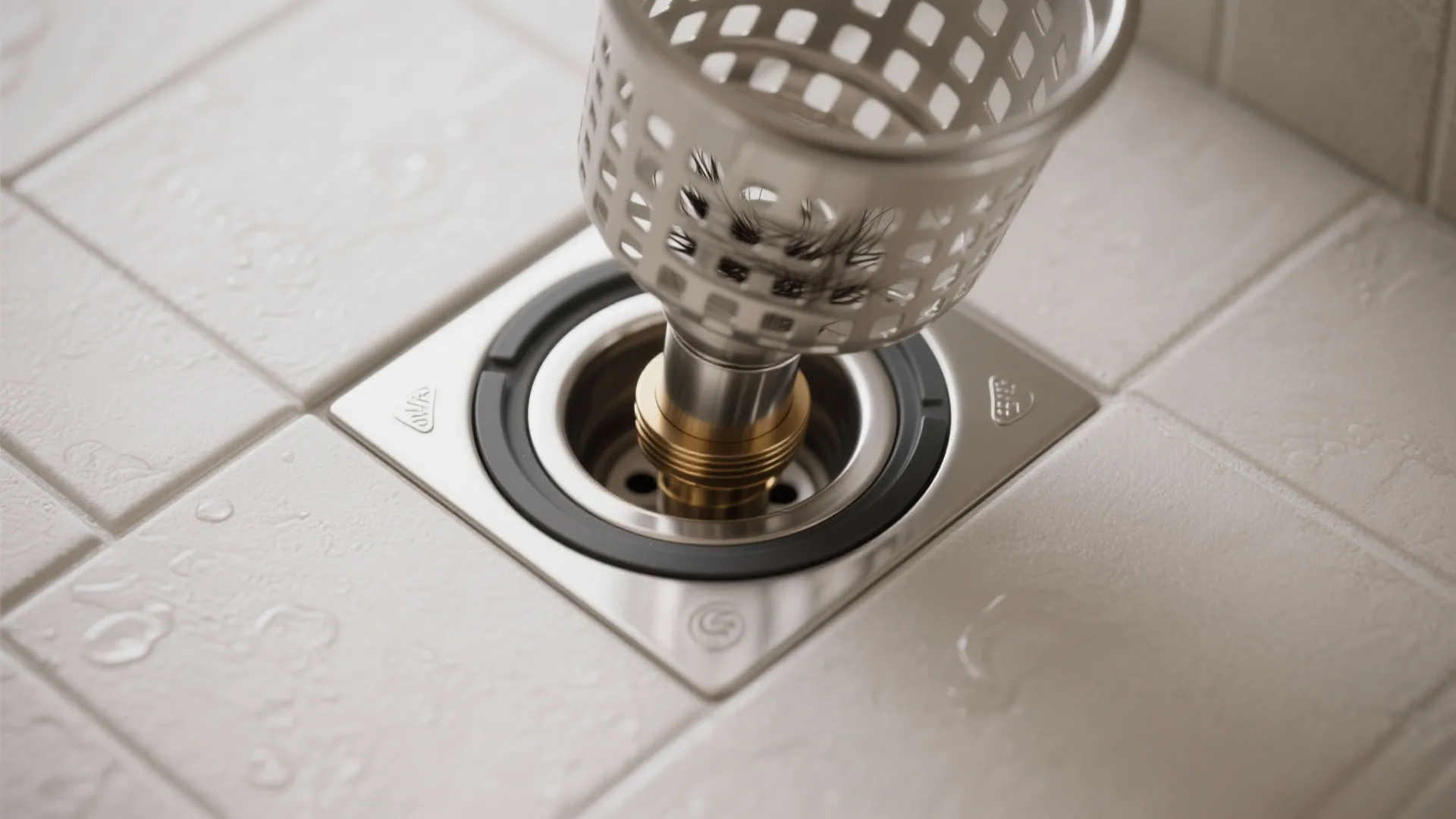

My Take Maintenance-friendly design is underrated. I once switched a family to a low-profile drain with a removable hair basket—they stopped calling me about slow showers. Pros - Low-profile drain bodies fit tight joist bays and thin build-ups, ideal for renovations where depth is limited. - Cleanable traps and hair baskets improve long-term flow and reduce biofilm, which supports better hygiene and odor control. - Matching drain body flow to high-flow fixtures (like 2.0–2.5 gpm showerheads) prevents pooling during peak use. Cons - Cheap strainers bend and rattle; I stick to solid stainless or brass even if it pushes the budget. - Some removable baskets are finicky—if clients won’t clean them, choose simpler grates. Tips / Case / Cost - I label maintenance points in the handover pack. Quality low-profile assemblies range $120–$300; add $80–$150 for an easy-clean trap. [Section: 总结] Small bathrooms don’t limit you—they demand smarter bathroom drainage system design. Get the slope right, vent the traps, waterproof like you mean it, and choose drains you can live with. The result is a cleaner, safer space that feels bigger. From my projects, these moves consistently improve daily life. Which of the five ideas are you most excited to try? [Section: FAQ 常见问题] 1) What is the best bathroom drainage system design for a small shower? A wall-line linear drain with a 1.5%–2% slope is my go-to. It keeps tiles flat and water moving fast, while simplifying cleaning in tight spaces. 2) How much slope should I build toward the drain? Around 1/4 inch per foot (about 2%) is common practice. This prevents puddling without making the floor feel steep during use. 3) How do I stop sewer gas smells in the bathroom? Protect your trap seal depth with proper venting or an approved AAV where code allows. The International Plumbing Code (IPC) provides sizing and distance rules. 4) Is a wet room safe for wood subfloors? Yes, if you use tested sheet or liquid membranes with careful detailing at penetrations and perform a flood test before tiling. This adds resilience over wood. 5) Do linear drains clog more than point drains? Not necessarily. Choose models with accessible hair baskets and clean them monthly; maintenance design matters more than drain type. 6) Can I do curbless showers in apartments? Often, with low-profile drains and careful build-up adjustments. Check building rules and consult a plumber to verify depth and waterproofing options. 7) Are air admittance valves (AAVs) reliable? Quality, listed AAVs can be reliable when installed per code, but I still prefer traditional vent stacks when feasible. Plan for access and periodic checks. 8) What standards should I look for in drains and waterproofing? Check ASME A112.6.3 for drains and IAPMO listings or manufacturer system approvals for membranes. Following these helps ensure performance and code compliance.
