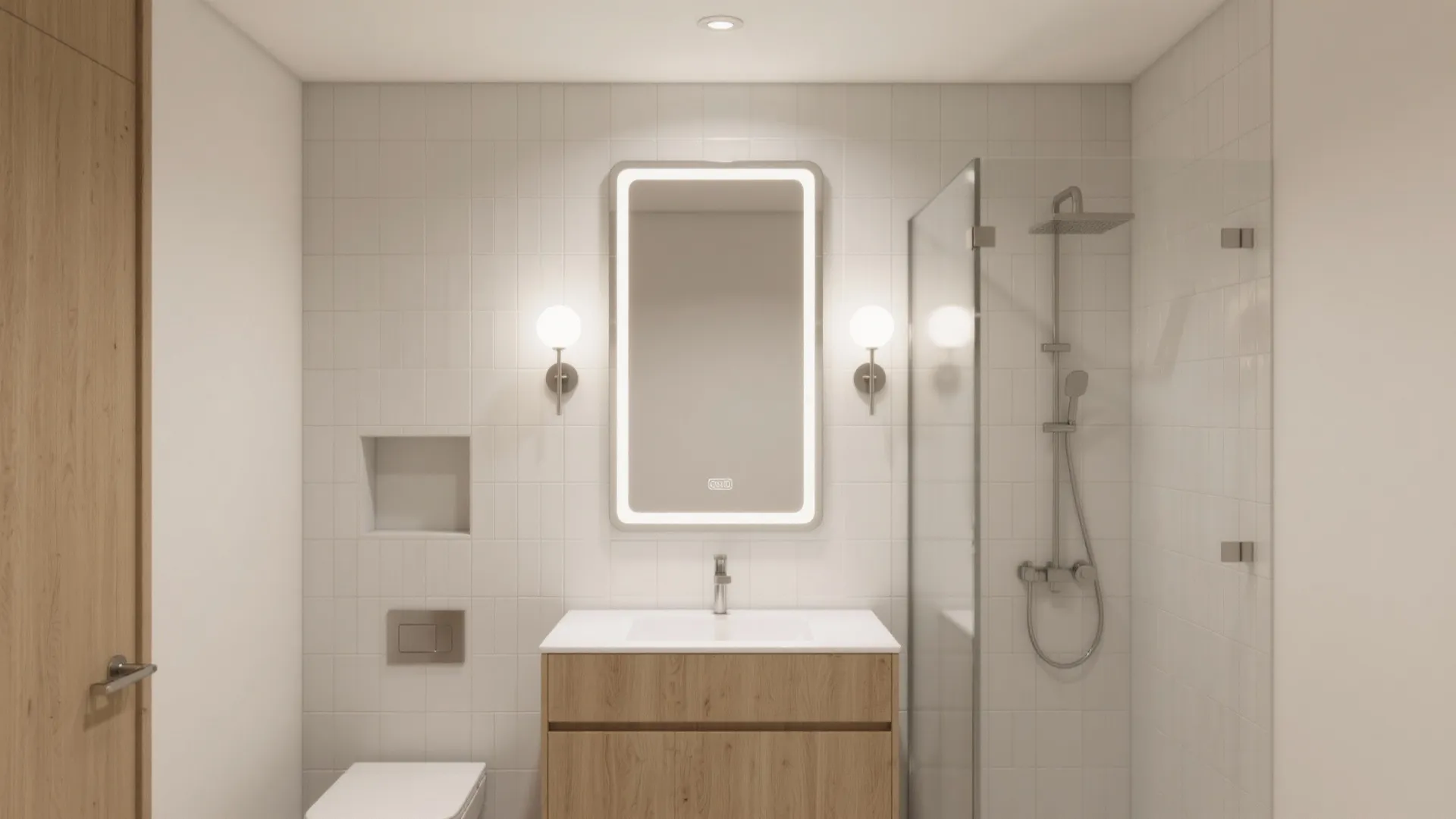

Bathroom Elevation Design: 5 Smart Ideas That Work: A senior interior designer’s field-tested playbook for small bathrooms that look taller, calmer, and more polished—starting from the elevations

I’ve spent the last decade sketching and building bathrooms where every millimeter matters, and one truth keeps coming back: bathroom elevation design shapes what you feel the moment you close the door. From grout lines to lighting, the wall elevations quietly decide whether a tiny room feels cramped or composed. That’s why I love small spaces—they force bigger, braver ideas.

Today’s trends lean clean and calm: large-format tiles with tight grout joints, fluted textures for subtle depth, backlit mirrors, and lean glass partitions without bulky frames. In this guide, I’ll share 5 bathroom elevation design ideas that I use in real projects. I’ll mix my on-site lessons with expert data so you can plan with confidence—and avoid expensive do-overs.

We’ll look at how to draw a crisp datum line, align tiles like a pro, layer light on the elevation, integrate storage, and zone wet areas with glass. Small space, big creativity: that’s our theme. Let’s dive into five inspirations that have consistently worked for my clients and for me.

Tile Grids That Guide the Eye

My Take — In a 3.3 m² city bathroom, I ran slim vertical tiles up to a clean datum line just under the ceiling. The walls instantly felt taller, even without changing the actual height. Elevations are where tile layout either sings—or stumbles—so I design the grid first, then everything else follows.

Pros

1. Using a considered tile layout for bathroom elevation can visually stretch the room. Vertical stacks create height, while horizontal running bonds widen tight spaces—both are powerful in small bathroom elevation design.
2. Large-format tiles (e.g., 600×1200 mm) reduce grout lines and deliver a calmer elevation. When I align grout joints with the vanity and niche edges, the whole wall reads orderly and premium.
3. Feature walls are your controlled drama. A herringbone or chevron pattern on one elevation can anchor the room without overwhelming it.

Cons

1. Pattern play needs discipline. If you drop a busy feature wall next to a heavily veined stone, the elevation gets noisy fast. I usually pair a statement tile with very quiet companions.
2. Cut lines can ruin the illusion. If your tile cuts land at eye height or misalign with fixtures, you’ll notice every single day. I sketch the elevation to scale before any purchase.
3. Super large tiles look great but require very flat walls and careful handling; budget for a skilled tiler and potential wall prep.

Tips / Case / Cost

1. Set a datum line—often the top of the door or mirror—and align tile terminations to it. It’s a small drafting move with huge impact on bathroom elevation drawings.
2. On a recent remodel with 300×600 mm tiles, I centered the grout line on the faucet centerline; the symmetry makes the vanity elevation feel custom.
3. For controlled drama, try a herringbone feature wall elevation behind the vanity and keep adjacent elevations matte and simple. Material and labor for a small feature wall typically add 8–15% to tile costs.

save pin

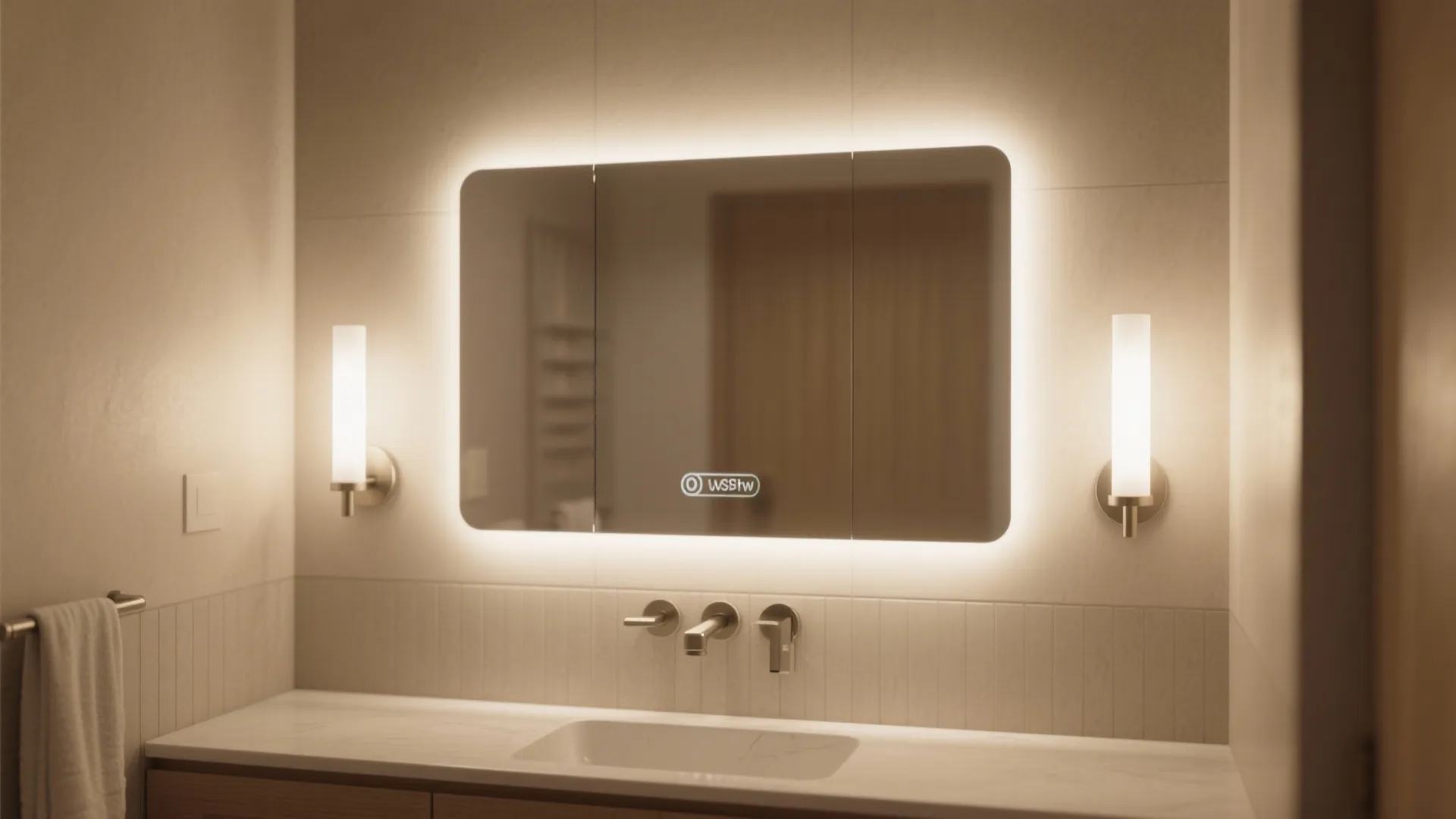

Light Where the Face Is: Layered Vanity and Wall Lighting

My Take — After a project where downlights gave my client “ghost eyes” in the mirror, I switched to side sconces at cheek level plus a backlit mirror. The difference on the elevation—and on the face—was night and day. Now I treat lighting as part of the wall composition, not an afterthought.

Pros

1. A vanity elevation lighting plan with side sconces at face height eliminates unflattering shadows. The National Kitchen & Bath Association (NKBA) recommends mounting side sconces around 64–66 inches (1625–1675 mm) above finished floor and near eye level for even facial illumination.
2. Backlit mirror elevation designs reduce glare, add a soft halo, and visually float the mirror. In small rooms, that edge glow makes the wall plane feel deeper.
3. Layered lighting—task at the mirror, ambient via a cove, accent in niches—lets you tune mood and function, especially helpful for bathrooms that double as a spa zone at night.

Cons

1. Too many fixtures crowd the elevation. I limit to two layers on tiny walls: a backlit mirror plus sconces, or sconces plus a discreet cove, depending on layout.
2. Integrated LEDs need drivers and service access. Factor in maintenance; I spec long-life, high-CRI strips from reputable brands to avoid early failures.
3. Shiny tile and glass can bounce hotspots; pick lenses or diffusers that soften the beam and avoid harsh reflections.

Tips / Case / Cost

1. Choose 90+ CRI LEDs and warm-dim if you can—task at 3000–3500K, ambiance at 2700–3000K. Dimmers are non-negotiable.
2. Mirror width should be within the vanity edges; sconces can sit 3–6 inches (75–150 mm) from mirror sides to light the face evenly.
3. For wet zones, check IP ratings (IP44 or better near water). Wire rough-ins early so boxes land exactly where your elevation drawing shows.
4. Source: NKBA Bathroom Planning Guidelines (latest edition) for mounting heights and clearances.

save pin

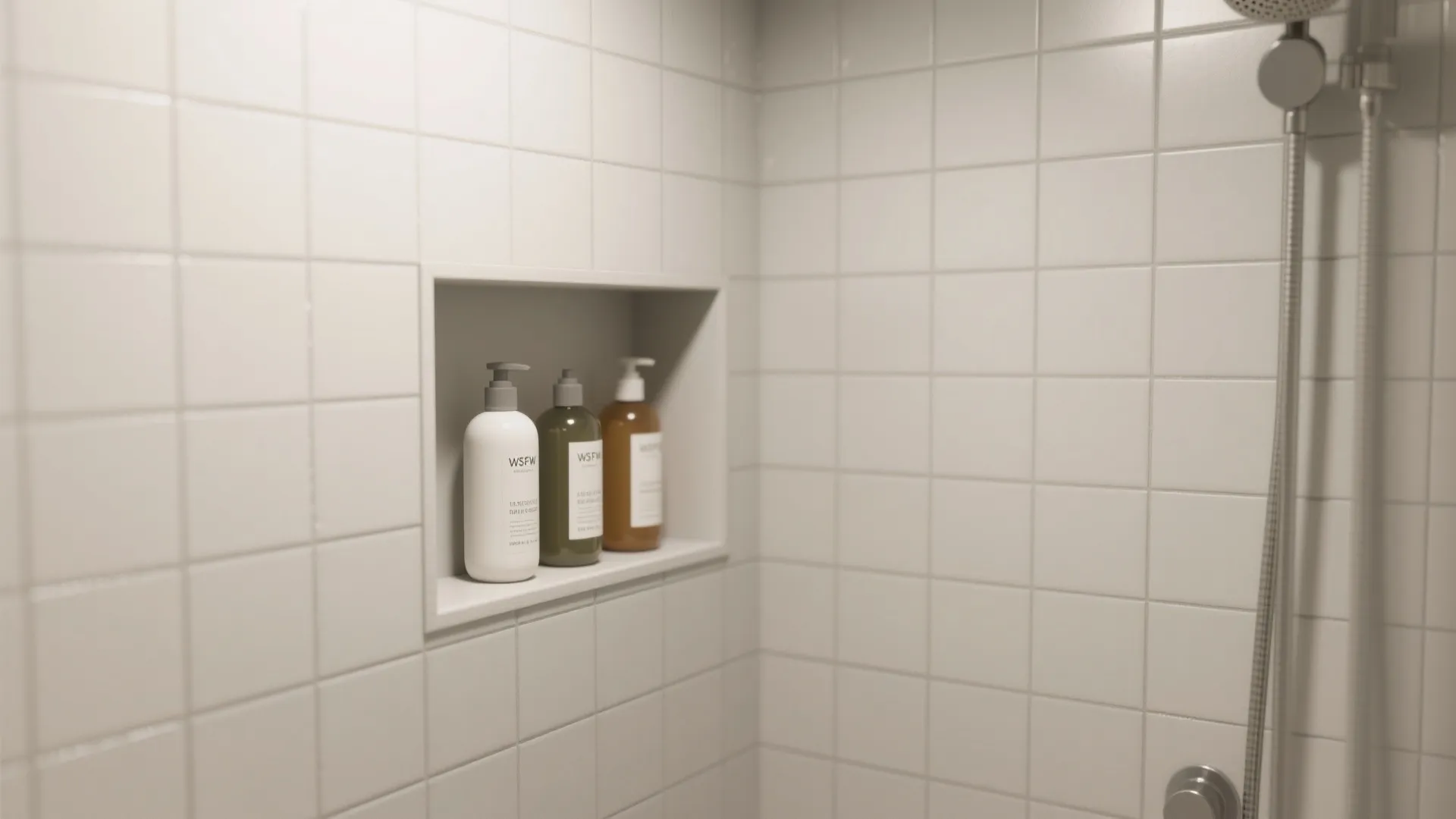

Storage in the Wall: Niches and Recessed Cabinets

My Take — On a 900 mm-wide shower, a surface shelf felt cramped, so I recessed a tall niche in the stud bay and lined it in the same tile. On the elevation, the shampoo clutter disappeared and the wall plane stayed clean. I also like semi-recessed medicine cabinets when depth is scarce.

Pros

1. A well-placed shower niche elevation keeps bottles off the floor and preserves the visual grid. I center tall niches on the faucet centerline or align the top with a tile course for a crisp look.
2. Recessed medicine cabinets provide storage without projecting into precious space; they read as part of the elevation rather than an add-on.
3. With small bathroom elevation design, recessing storage can reduce visual bulk, making the room feel wider and calmer.

Cons

1. Waterproofing is critical. Niches in wet walls need proper backer boards, membrane, and a slight shelf pitch (2–3 mm) so water drains. Skipping this invites mold.
2. Stud layout may not cooperate. I’ve had to shift niches slightly or add headers to keep the elevation symmetrical; it’s doable but adds labor.
3. Mirrored cabinets can create double reflections if the mirror sits proud of the wall—choose flush or low-profile frames.

Tips / Case / Cost

1. Standard niche heights: base around 42–48 inches (1065–1220 mm) to mid-shelf for easy reach; add a lower shaving niche if needed. Pitch shelves 1–2% toward the shower.
2. Frame niches to tile module dimensions (e.g., multiples of 300 mm) to avoid slivers. I lay this out on the elevation drawing before framing.
3. Test your layout with tape on the wall or a quick 3D—especially for a recessed niche layout on the shower wall—to confirm sightlines and symmetry. Expect $250–$600 per niche including waterproofing and trim, depending on finishes.

save pin

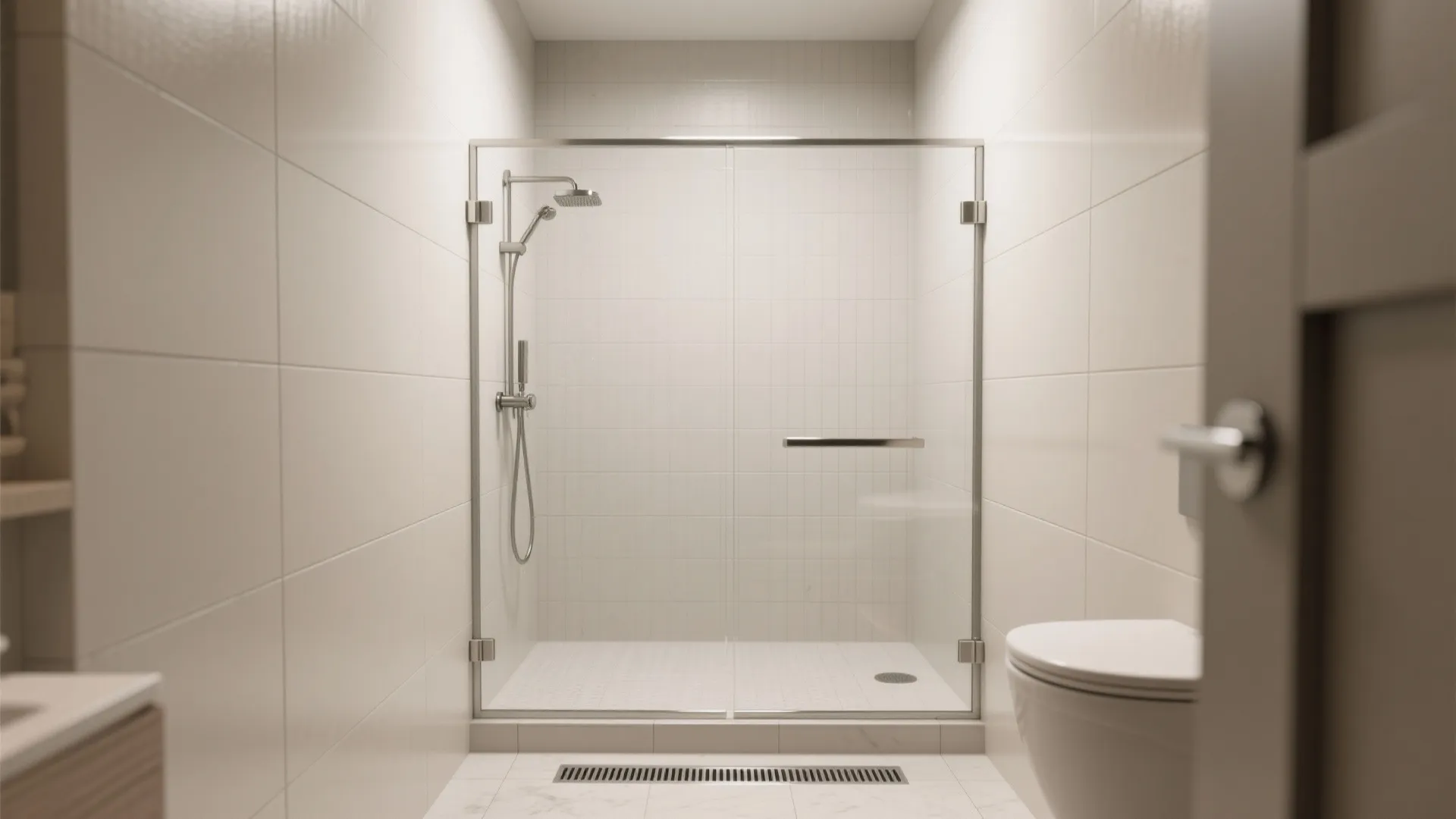

Wet-Dry Zoning with Glass and Clear Lines

My Take — I often “draw” the shower with a simple glass panel that lines up to the tile grid and the curb (or no curb at all). On the elevation, a single pane with minimal hardware keeps the room light and visually open. When the line is right, water stays put and the rest of the space stays serene.

Pros

1. A wet area glass partition elevation acts like a subtle boundary—enough to block overspray, not enough to chop up the room. Low-iron glass prevents the green tint that can muddy light finishes.
2. Curbless showers are friendlier and look premium. Aim for a 1/4 inch per foot (about 2%) slope to drain; a linear drain at the back wall simplifies the elevation and keeps the floor field clean.
3. Hardware placed on grout lines makes the elevation read cohesive—hinges, brackets, and clips align with the tile grid and feel intentional.

Cons

1. Glass panels show water spots and soap residue—use a squeegee habit and specify protective coatings if clients won’t mind a bit of upkeep humor from me: “Glass is honest; it tells on you.”
2. Curbless builds need precise subfloor prep; not all structures allow recessing. In tight retrofits, a low curb may be the pragmatic compromise.
3. Hardware can clutter if mismatched. I standardize finishes across faucet, handle, and hinges so the elevation doesn’t look piecemeal.

Tips / Case / Cost

1. Clear opening for showers should meet code; many jurisdictions follow IRC minimums and local amendments—check locally. ADA 2010 Standards suggest grab bars at 33–36 inches (840–915 mm) AFF and mindful placements if accessibility is a goal.
2. Keep the glass top line parallel to your tile datum or ceiling. If the ceiling isn’t level, set the glass to the tile grid for a cleaner read.
3. For narrow baths, a fixed panel plus walk-in opening reduces visual interruptions; the glass partition line keeps splashes in check while keeping the room feeling open. Expect $800–$2,000 for a custom fixed panel, depending on size and hardware.
4. Sources: ADA 2010 Standards for Accessible Design (for bar heights), local plumbing/building codes for clearances and slopes.

save pin

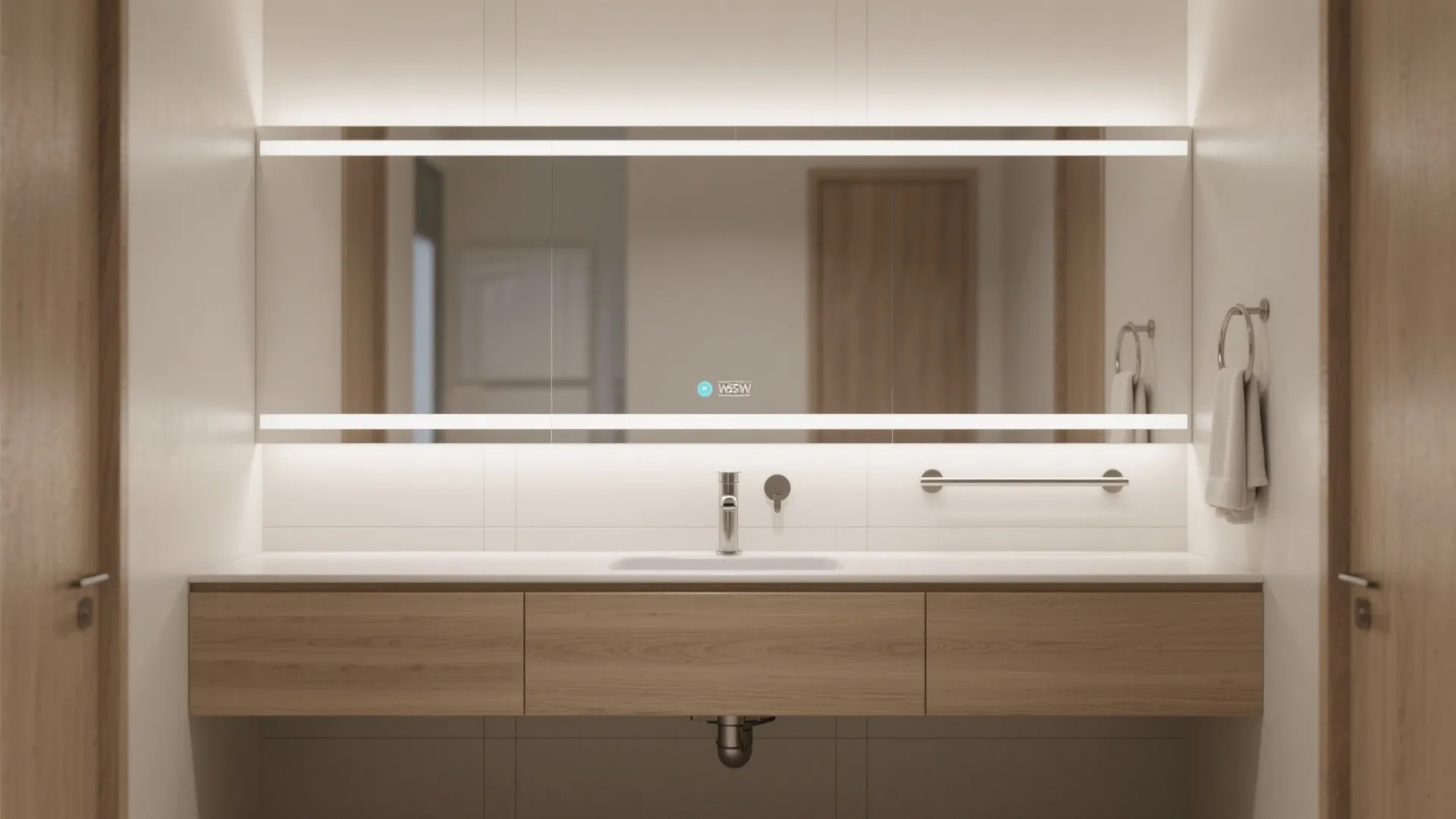

Mirror, Vanity, and Hardware: Align the Heroes

My Take — One of my favorite before/afters came from zero new square footage. We just aligned the mirror to the vanity edges, centered the faucet, and set the towel bar on the same horizontal line as the vanity top return. The bathroom instantly felt designed, not assembled.

Pros

1. Clear centerlines make the elevation feel calm: faucet centerline equals sink drain equals mirror center. It’s the quiet geometry behind a composed wall.
2. Mirror height in bathroom elevation should feel natural for the primary user—often the mirror bottom sits a few inches above the faucet arc to avoid splashes while showing the face and shoulders.
3. Consistent hardware heights—robe hook, towel bar, paper holder—create a rhythm across elevations. I often carry a 36–42 inch (915–1065 mm) horizontal line around the room for mid-height elements.

Cons

1. Standard heights are only a starting point; families vary. I’ve adjusted towel bars lower for kids and slightly higher for tall clients—just remember to keep the composition consistent.
2. Two sinks? If the wall is tight, double mirrors can feel busy. Consider one large mirror with two faucets aligned below; the elevation becomes calmer and often cheaper.
3. Wall-mounted faucets save deck space but raise precision demands—rough-in depths must match your finish thicknesses exactly, or you’ll fight the spout reach.

Tips / Case / Cost

1. Vanity heights commonly sit around 34–36 inches (865–915 mm) AFF; coordinate with the vessel sink height if used. On wall-mount vanities, draw the finish-floor-to-counter dimension on the elevation so installers don’t guess.
2. For medicine cabinets, check door swing conflicts with sconces. Recessed cabinets read flusher and keep the elevation sleek.
3. Budget tip: If stone is pricey, run a slab backsplash to the mirror bottom and paint above; you still get a strong horizontal read without full-height stone.

save pin

Summary

A smart bathroom elevation design doesn’t need more space—it needs more intention. The right tile grid, face-level light, recessed storage, and a disciplined glass line can make a tiny bath feel taller, wider, and far more serene. As NKBA and accessibility standards remind us, getting the heights and clearances right is half the magic; the other half is aligning them to your story and habits.

Small bathrooms don’t limit style—they focus it. Which of these five elevation ideas are you most excited to try in your own space?

save pin

FAQ

1) What is bathroom elevation design?

Bathroom elevation design is the plan and drawing of each wall, showing tiles, fixtures, lighting, mirrors, storage, and alignment. It’s how you control sightlines, heights, and symmetry so a small room feels composed. I always draft elevations before ordering materials.

2) How do I choose tile size for a small bathroom elevation design?

In tight rooms, large-format tiles calm the wall by reducing grout lines. If your walls aren’t flat, go mid-size (e.g., 300×600 mm) to avoid awkward cuts, and align grout to key features like mirror edges and faucet centerlines.

3) What is the ideal mirror height in bathroom elevation?

Center the reflection at face level for the primary user; often the mirror bottom sits just above the faucet arc. NKBA guidance for sconce height (around 64–66 inches AFF) pairs well with a mirror that sits between the sconces at eye level.

4) Where should a shower niche go on the elevation?

Common mid-shelf heights land around 42–48 inches (1065–1220 mm) AFF, with a slight pitch for drainage. I align the top or bottom of the niche to a tile course so cuts look intentional.

5) How should I plan vanity elevation lighting?

Place sconces at face height and near the mirror edges to reduce shadows; a backlit mirror can add soft fill. Choose 90+ CRI, dimmable LEDs, and coordinate junction box positions on your elevation drawing.

6) Can I do a curbless shower in a tiny bathroom elevation design?

Yes, if you can recess the floor to achieve about 1/4 inch per foot slope to drain and waterproof properly. If structure won’t allow it, a low curb paired with a clean glass line still reads minimal.

7) What clearances and heights should I follow for safety?

For accessibility, ADA 2010 Standards suggest grab bars at 33–36 inches AFF and specify placements around showers and toilets. Always check local building and plumbing codes for clear openings, ventilation, and electrical rules.

8) What’s a realistic budget for improving bathroom elevations?

Expect tile and lighting alignment work to add design/labor costs: a niche may be $250–$600, a custom glass panel $800–$2,000, and upgraded lighting $300–$1,200+. Smart elevations prevent costly rework, which often saves money overall.
