Bathroom Floor Drain Design: 5 Pro Ideas That Work: From linear drains to wet rooms, my field-tested playbook for better bathroom floor drain design in small spaces.

[Section: Introduction]

I’ve spent the last decade tweaking bathroom floor drain design in tight city apartments, and I can tell you this: today’s trend is all about clean lines, curbless showers, and smart drainage that disappears into the architecture. Small spaces really do ignite big creativity—especially when water management and safety are non-negotiable.

In this guide, I’ll share 5 bathroom floor drain design ideas I actually use in client projects. I’ll mix personal wins (and a few stumbles) with expert data, so you can see what truly works in compact bathrooms, from slope strategy to maintenance and cost.

Whether you’re after a minimal look, better access for aging in place, or fewer cleaning headaches, these five ideas will help you build a bathroom that’s safer, drier, and visually seamless.

[Section: Inspiration List]

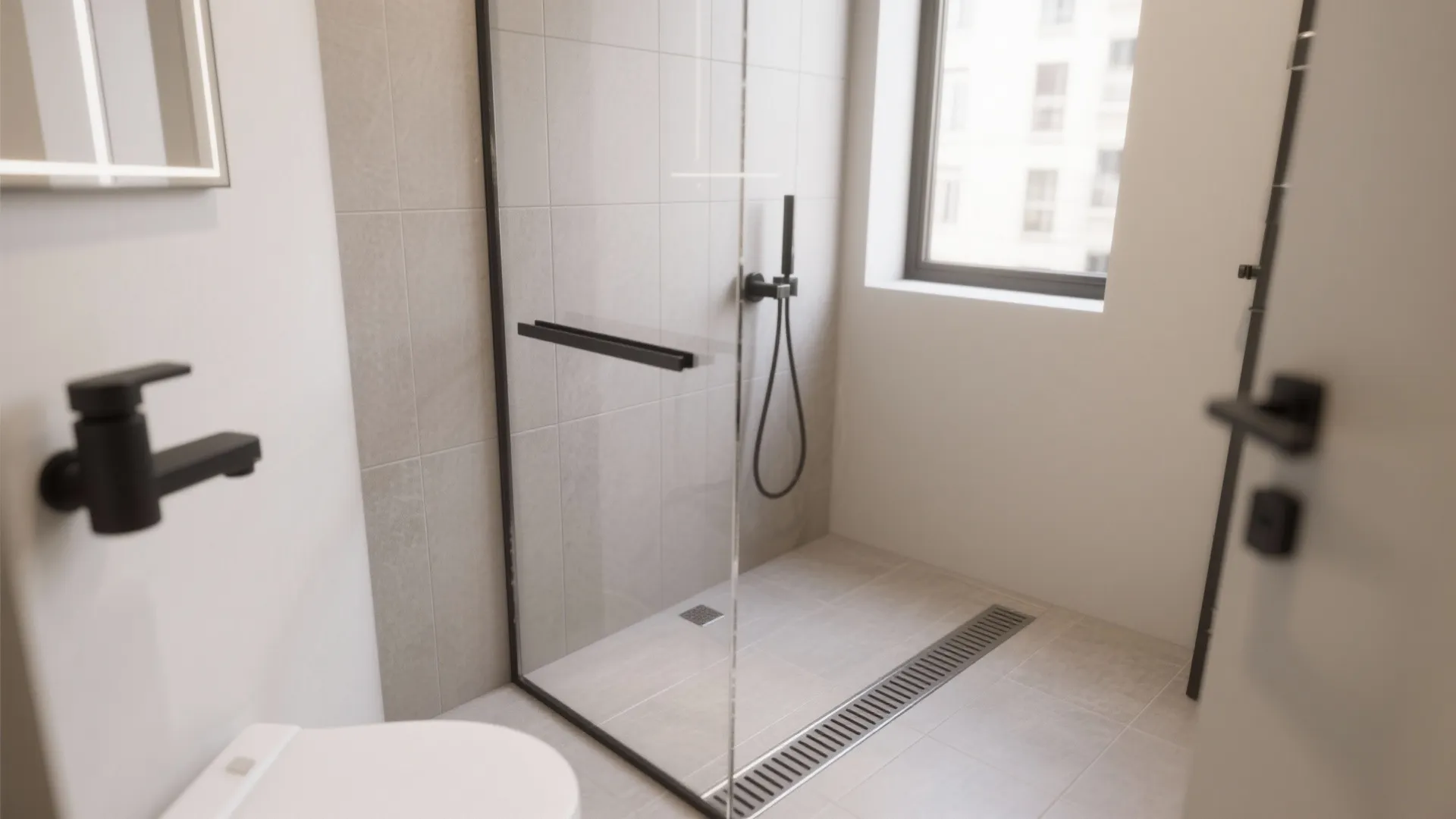

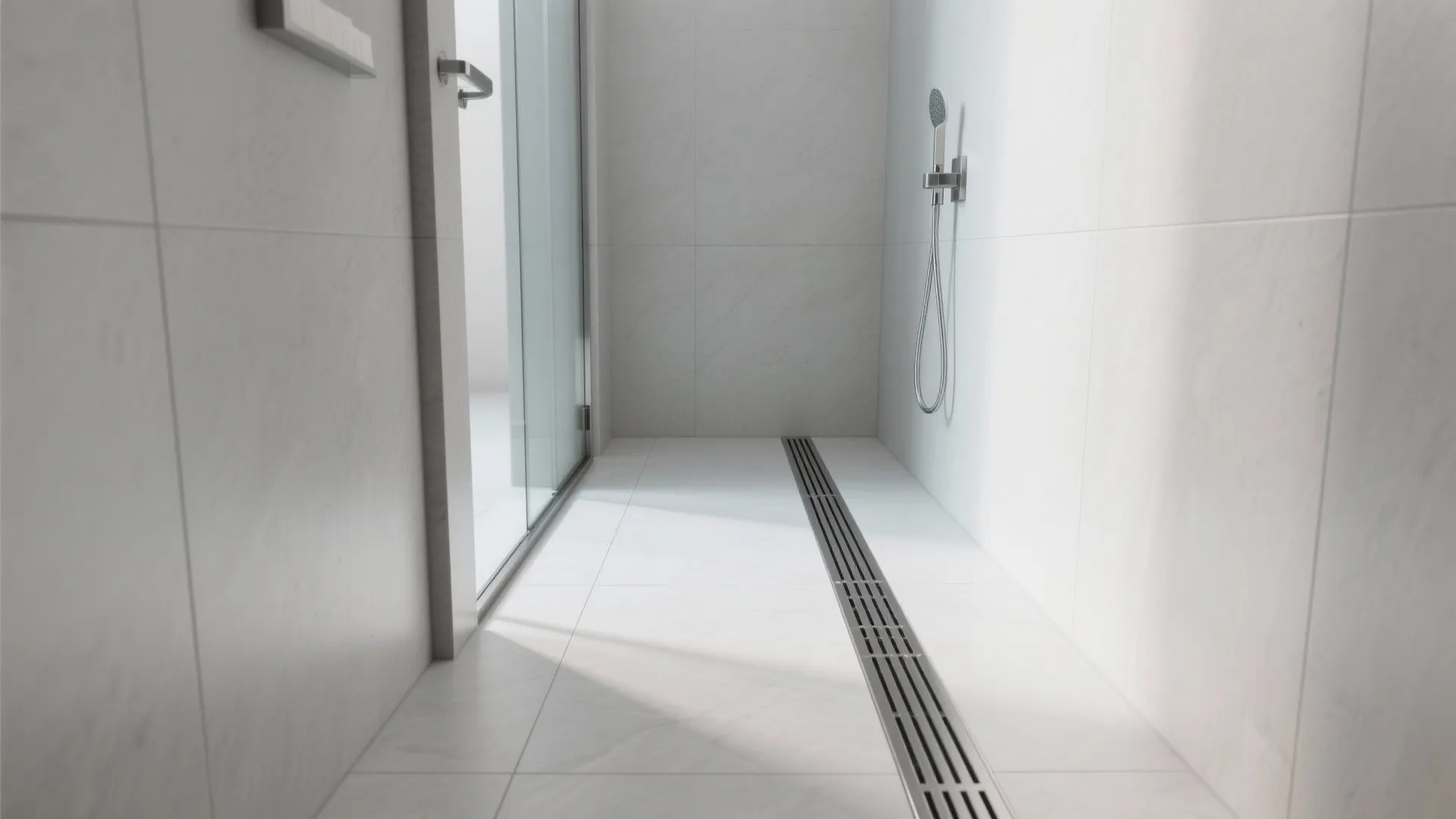

Wall-to-wall linear drain in a curbless shower

My Take

My most-requested move in small bathrooms is a wall-to-wall linear drain paired with a curbless entry. I first used it in a 3 m² ensuite where every centimeter mattered, and the result was a wider visual field and fewer grout lines underfoot. Here’s the real magic: a single-direction slope means larger tiles stay flat and elegant—perfect for narrow plans that need visual calm. I often show clients a linear drain in a curbless shower as the baseline concept for compact spaces.

Pros

A linear drain allows a single-plane pitch, so large-format tiles remain intact and you avoid awkward pie-slices around a point drain. For accessibility, curbless shower drain design removes trip points and makes rolling in with a stool or chair possible—great for aging in place. It’s also ideal for a linear shower drain for small bathrooms where you want simple floor geometry and fewer grout joints.

From a performance standpoint, a single gradient is easier to form consistently, especially with foam pans or mortar screeds. The aesthetic win is huge: the floor reads like a continuous surface, so even a tiny shower looks bigger.

Cons

Costs are typically higher due to the drain body, waterproofing integration, and sometimes a subfloor recess to achieve curbless continuity. If your plumber isn’t familiar with linear assemblies, setup can take longer. Hair can collect along a narrow channel if you skip a removable trap screen—keep that small accessory on your spec list.

Tips / Cost Factors

To keep this crisp: slope the shower field toward the drain at about 1/4 inch per foot (roughly 2%), and integrate a continuous waterproofing membrane up the walls at least a few inches. This is consistent with widely accepted plumbing and tile practices; the International Plumbing Code (IPC) calls for floors to drain effectively, and the Tile Council of North America (TCNA) details linear-drain assemblies in its shower receptor methods (e.g., B421). Expect the drain + waterproofing kit to add a mid-to-high three-figure line item, sometimes more for premium brands.

save pin

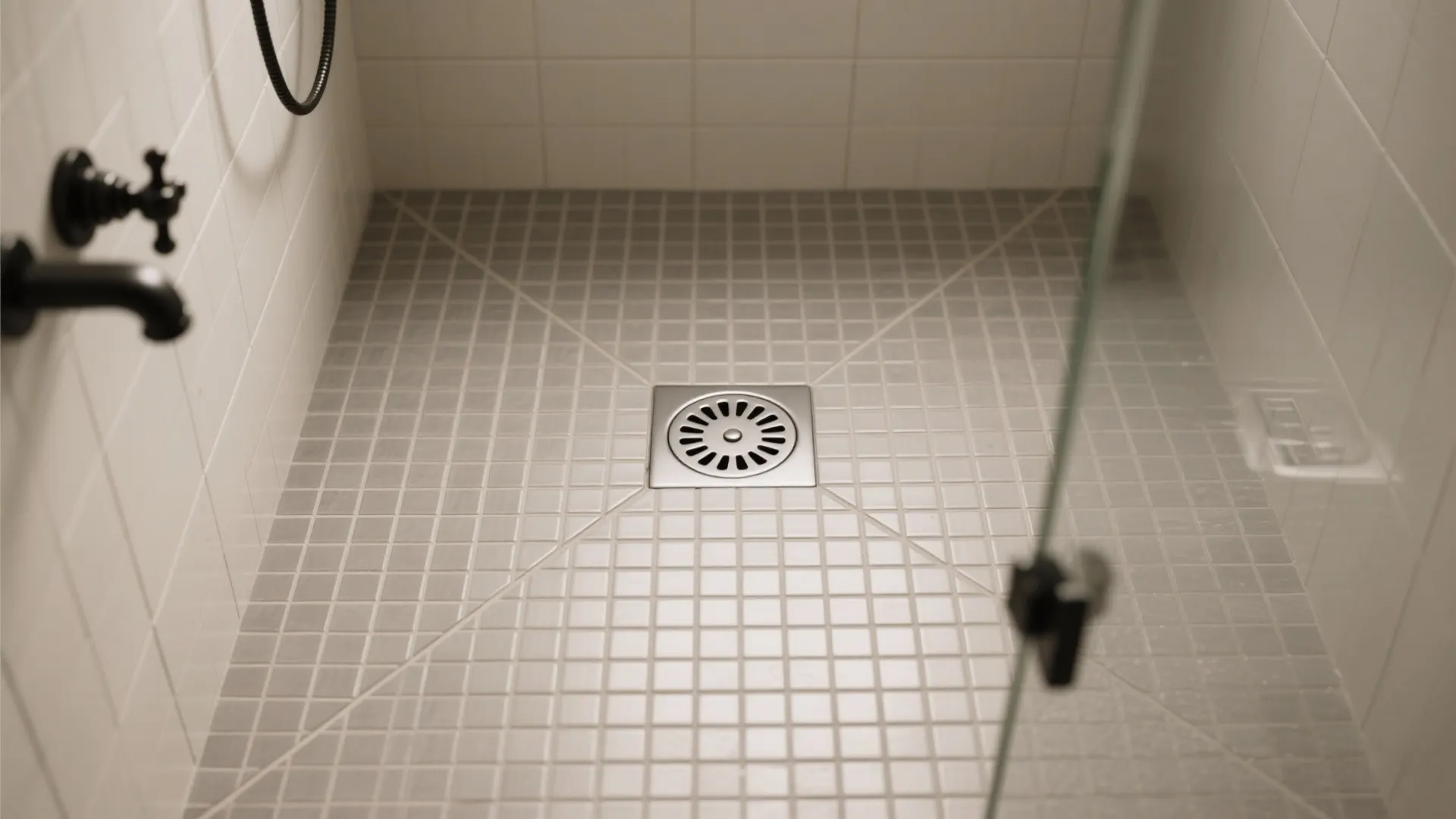

Classic center point drain with mosaic field

My Take

When budgets are tighter or we’re working within existing plumbing, I still reach for the humble center point drain. In rentals or lighter renovations, I’ll use 2×2 or 1×1 mosaics to build a smooth four-way pitch around the drain without lippage. It’s a straightforward, durable solution that has survived decades for good reason.

Pros

This is the most cost-effective approach and often the easiest to retrofit. Mosaics handle the compound slope well, reducing tile edge height differences that can cause toe-stubs. With clear point drain waterproofing details—curb or curbless—you get reliable performance and abundant grate options for future swaps.

Cons

Larger tiles become tricky on a four-way slope, so you’ll typically avoid 24×24s on the shower floor. Grout maintenance is real: more joints need more sealing and occasional scrubbing. Visually, the quadrant slope can look busier than a linear solution in minimalist schemes.

Tips / Cost Factors

A pre-sloped foam shower pan can speed installation and improve accuracy for DIYers and pros alike. If you’re hand-screeding mortar, take your time on the four planes to keep the water moving. Cost-wise, materials are affordable; the mosaic choice (ceramic vs. porcelain vs. stone) affects price as much as the drain body.

save pin

Full wet room slope for tiny bathrooms

My Take

For micro-baths, I often turn the entire room into a controlled wet area: one continuous membrane, one strategic drain, and careful zoning with glass. The result feels bigger because floor lines run uninterrupted, and cleaning is easier—water is meant to be there, then leave. To help clients visualize layout and angles, I sometimes show wet room detailing mockups before we lock in finishes.

Pros

A true wet room simplifies transitions and reduces the need for a curb, which is an accessibility plus. The wet room drainage slope typically runs 1/4 inch per foot toward a linear or point drain, and the waterproofing membrane extends beyond the shower zone—up walls and across the entire floor. With a floor drain positioned smartly (often opposite the door swing), you get quick evacuation and fewer puddles.

Authoritative guidance supports these practices: the IPC requires floors to drain effectively, while established tile standards (TCNA methods for wet areas) outline full-room waterproofing and proper movement joints. When done right, you get both safety and long-term durability.

Cons

Door transitions and adjacent flooring heights require planning to avoid water migration into the hallway. You may need a discreet water stop or a micro-threshold—think 3–7 mm—under the door to keep splashes in the wet zone. Ventilation becomes critical; if you don’t boost exhaust, drying time increases and you invite mildew.

Tips / Cost Factors

Use a linear drain along the back wall or across the shower entry to control flow direction. Heat-mat the floor (especially outside the main spray zone) to accelerate drying and comfort. Costs vary depending on membranes and glass—budget mid-range for quality waterproofing and a durable drain body, then add for custom glass if you want minimal framing.

save pin

Tile-in drain cover for a seamless look

My Take

One of my favorite minimalist moves is a tile-in drain cover: the grate accepts an inset of your floor tile, so it visually disappears. In small bathrooms, fewer visual breaks equal more perceived space, and clients love the magic trick. It’s a compact luxury that makes the floor read as a single slab.

Pros

With a tile-in drain cover, the floor pattern flows uninterrupted—ideal if you’re using large porcelain slabs or continuous terrazzo. Hidden floor drain design supports a high-end, gallery-clean aesthetic without sacrificing function, so long as you keep a cleanable hair screen below. For resale, it signals thoughtful detailing and premium build quality.

Cons

The cover is heavier and can be harder to locate if you’re not familiar with the bathroom; teach the household where it is and how to lift it safely. Flushness is everything—if it sits proud or low, you’ll notice it underfoot and trap water. Some tile thicknesses and mosaics don’t pair well, so confirm compatibility with the drain’s frame depth.

Tips / Cost Factors

Use a rigid tile piece inside the cover (porcelain or stone works well), and leave a neat 2 mm perimeter gap for movement and lifting. Coordinate tile thickness with the drain manufacturer’s specified frame depth; many offer shims for fine-tuning. Pricing is medium to premium compared to standard grates, depending on brand and finish.

save pin

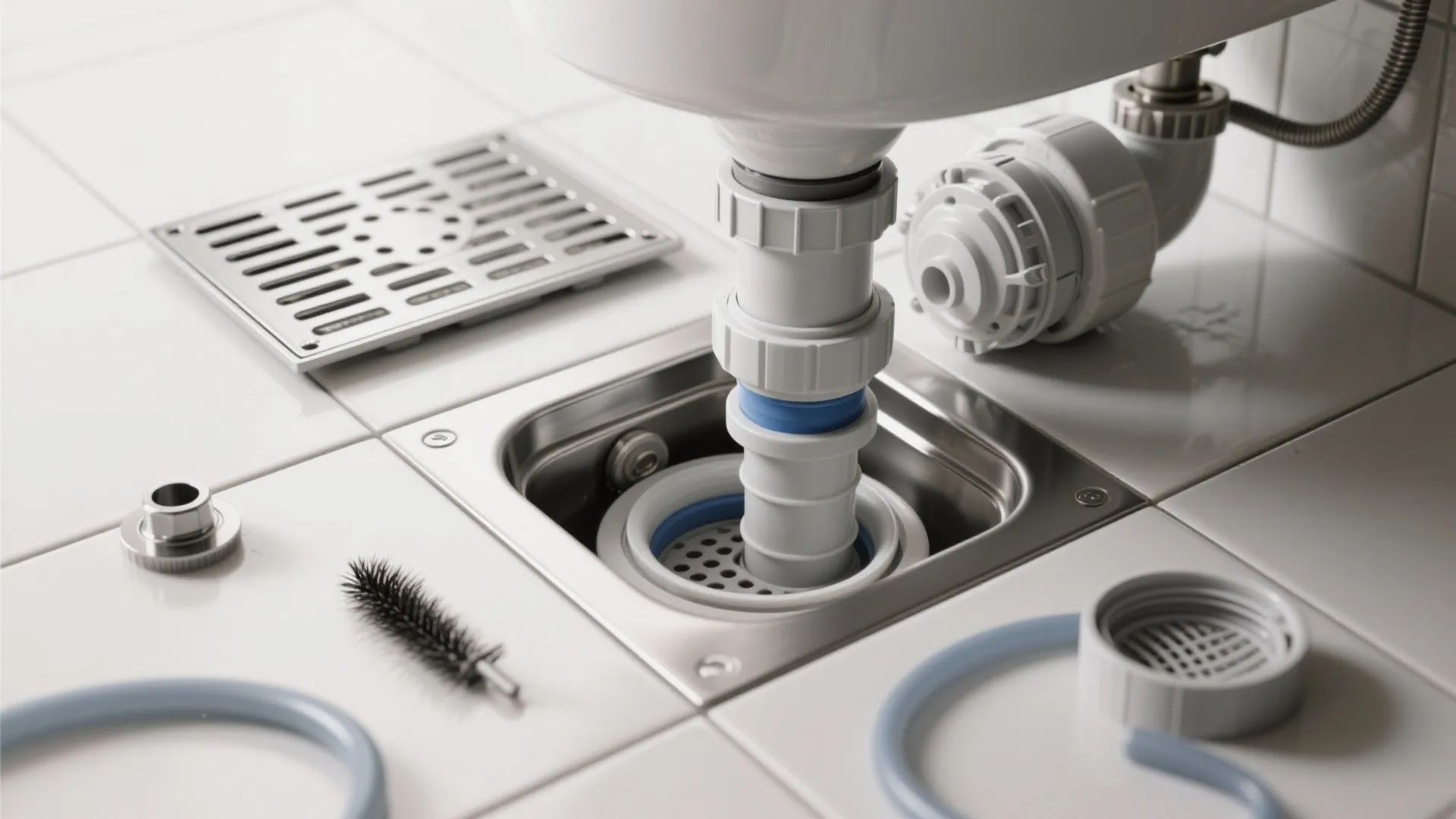

Low-maintenance, odor-safe drain system

My Take

After-service calls have taught me that the best bathroom floor drain design is not just beautiful—it’s easy to live with. I now spec deeper seal traps, hair catchers you can actually grab, and, when needed, mechanical trap seals that resist evaporation in guest baths. Designing for maintenance access upfront saves clients headaches later.

Pros

Odor-safe setups often combine a standard P-trap with a built-in hair catcher and an additional mechanical seal to reduce evaporation—great for rarely used showers. This floor drain odor trap solution improves hygiene and keeps sewer smells at bay. For families, quick-lift strainers make it simple to clear hair before it mats deeper in the system.

Cons

Adding components increases cost and the checklist: seals can wear out and need periodic replacement. Trap primers require a water source and proper installation to function, which not all remodels can accommodate. If parts become proprietary, long-term availability matters—stick to reputable brands with serviceable components.

Tips / Cost Factors

Code-wise, maintain a trap seal depth (commonly around 2 inches) and include a convenient clean-out where practical; IPC sections on traps and venting guide these basics. Schedule a quarterly clean: lift the grate, remove the hair catcher, rinse with warm soapy water, and inspect the seal. When presenting concepts, I show clients photo-realistic 3D bathroom renderings so they can see access points and clearances before we start.

[Section: Summary]

Small bathrooms don’t limit you—they just push you to design smarter. The right bathroom floor drain design blends slope strategy, waterproofing, and maintenance into a clean, safe, and elegant whole. If you want the science to back the art, plumbing codes support consistent slopes and proper trap seals, and tile standards outline robust wet-area assemblies that last.

Which of these five ideas would you try first in your space, and what’s the one pain point you’d love to solve—puddles, smells, or grout maintenance?

[Section: FAQ]

save pin

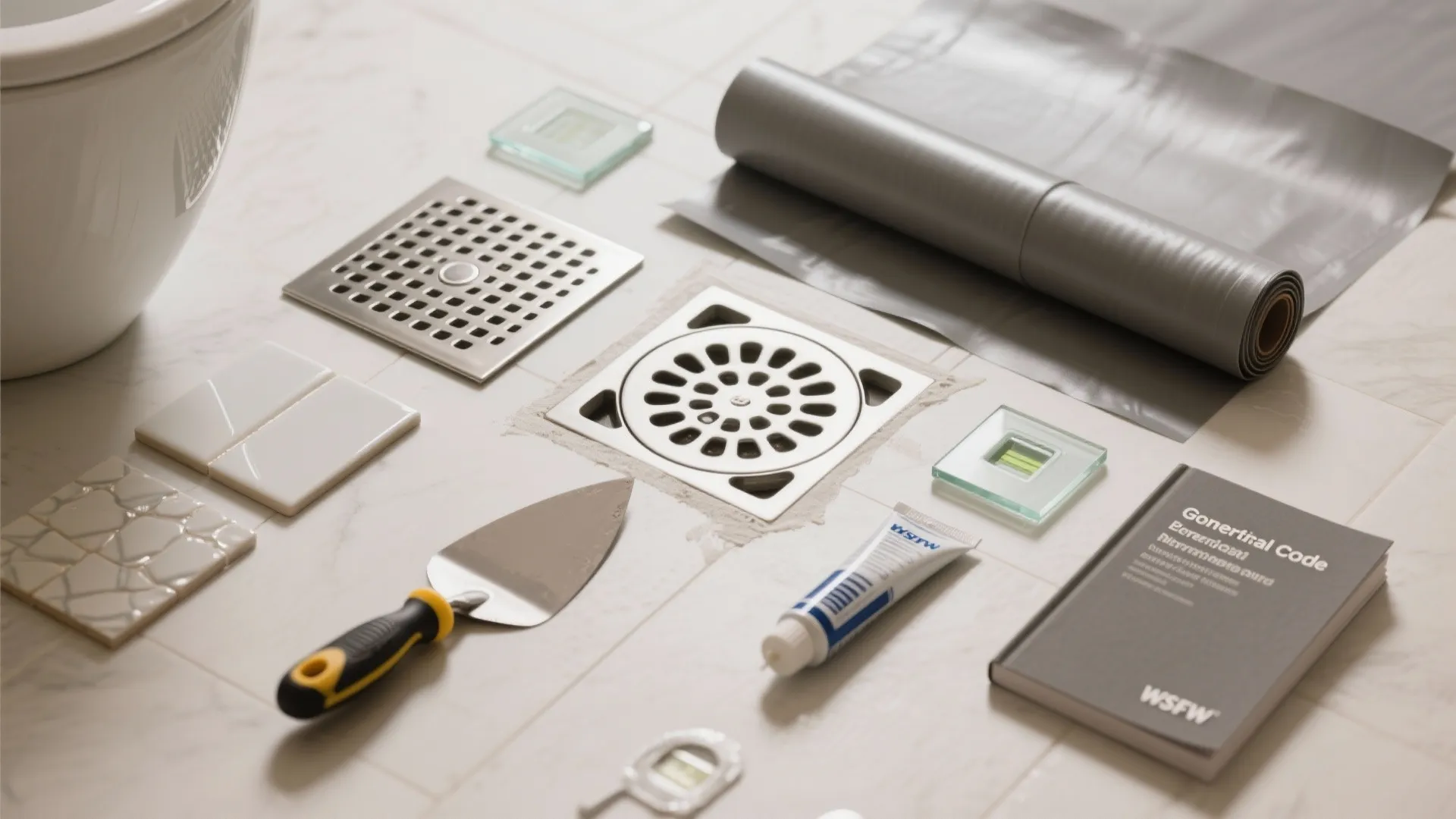

FAQ

1) What is the ideal slope for bathroom floor drain design?

Most showers perform best at about 1/4 inch per foot (roughly 2%) toward the drain. The International Plumbing Code requires floors to drain effectively and avoid standing water; this pitch is a proven standard for safe, reliable flow.

2) Linear drain vs. center drain—how do I choose?

Pick linear drains for a single-plane slope and larger tiles, especially in curbless showers. Choose a center point drain if you’re retrofitting on a budget or prefer a mosaic floor that handles a four-way pitch easily.

3) Can I do a curbless shower on a wood subfloor?

Yes, but you’ll often recess the subfloor or use an ultra-low-profile system to achieve continuous slope without a trip edge. Proper waterproofing and a compatible drain assembly are essential to prevent leaks.

4) What tile size works best over the drain area?

For linear drains, larger format tiles work beautifully because the floor pitches in one direction. For center drains, 2×2 or 1×1 mosaics flex around the four-way slope and reduce lippage at the drain.

5) How do I prevent odors from the bathroom drain?

Maintain a proper P-trap seal, consider a mechanical trap seal for infrequently used showers, and clean hair catchers regularly. If a trap dries out, odors can pass—run water weekly or use a trap primer in suitable installations.

6) Are there code references for slope and waterproofing?

Yes. The IPC requires floors to drain effectively and traps to maintain seal; tile standards like the TCNA Handbook outline proper membranes, slopes, and movement joints in wet areas. Referencing these helps ensure durability and safety.

7) What about accessibility for aging in place?

A curbless shower with a linear drain reduces tripping hazards and allows easier wheelchair or walker access. Pair with slip-resistant tile and grab bars for a complete, future-friendly solution.

8) How much should I budget for the drain and waterproofing?

A quality point drain plus membrane can be mid-three figures; linear systems often run higher, especially with tile-in covers and custom lengths. Prioritize waterproofing—it’s the one place you don’t want to cut corners.
