Bathroom Niche Design: 5 Smart Ideas: How I turn tiny walls into storage and style—without sacrificing soul

I once built a shower niche so perfectly aligned with the tile pattern… and then learned my client only buys 1-liter shampoo bottles. They didn’t fit. Since then, I sketch and test small-space bathroom layouts before I pick tiles, and I even mock up bottle heights so I don’t outsmart myself. Here’s the fun part: small spaces spark big creativity, and today I’m sharing five niche ideas I actually use in real projects. If you’re curious how I plan, I often start with small-space bathroom layouts to check clearances.

Think of a niche as a tiny built-in that saves floor space and cuts visual clutter. I’ll walk you through what works, where it gets tricky, and the little cheats that make it look custom without blowing the budget.

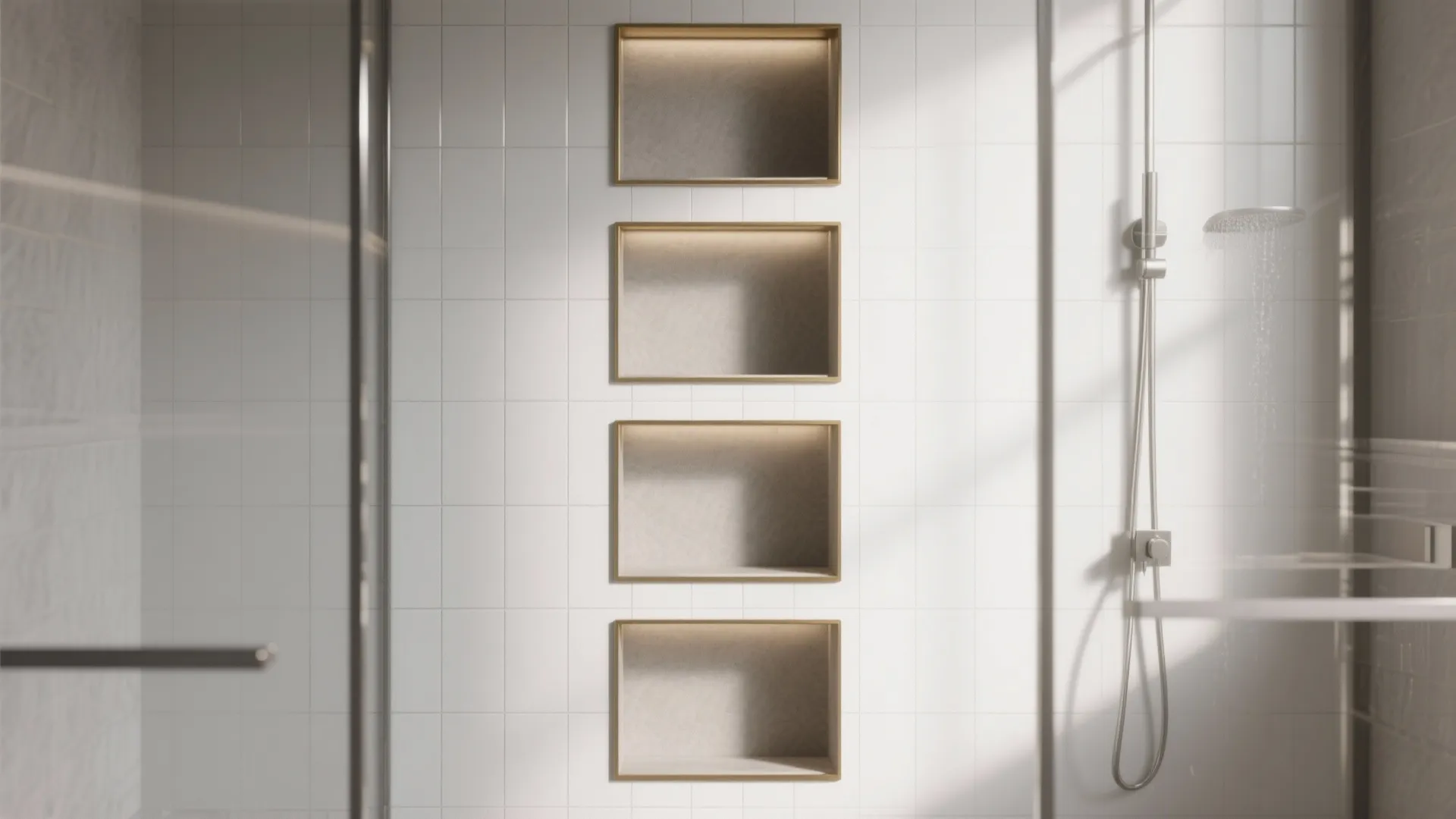

Idea 1: A Slim Vertical “Bottle Column” in the Shower

When the wall is tight, a narrow vertical stack of niches beats one big void. I size each opening around 12–14 inches tall and 6–8 inches wide, with an interior depth of 3.5–4 inches if the stud bay allows. Always pitch the sill slightly (about 1/16–1/8 inch) so water doesn’t sit.

The upside: bottles get their own spots and the tile pattern stays elegant. The challenge: aligning the niche heights with grout lines—measure twice, set your tile layout first. I learned to dry-fit the tallest bottle before the backer boards go up, and yes, I have literally carried client shampoo to site.

save pin

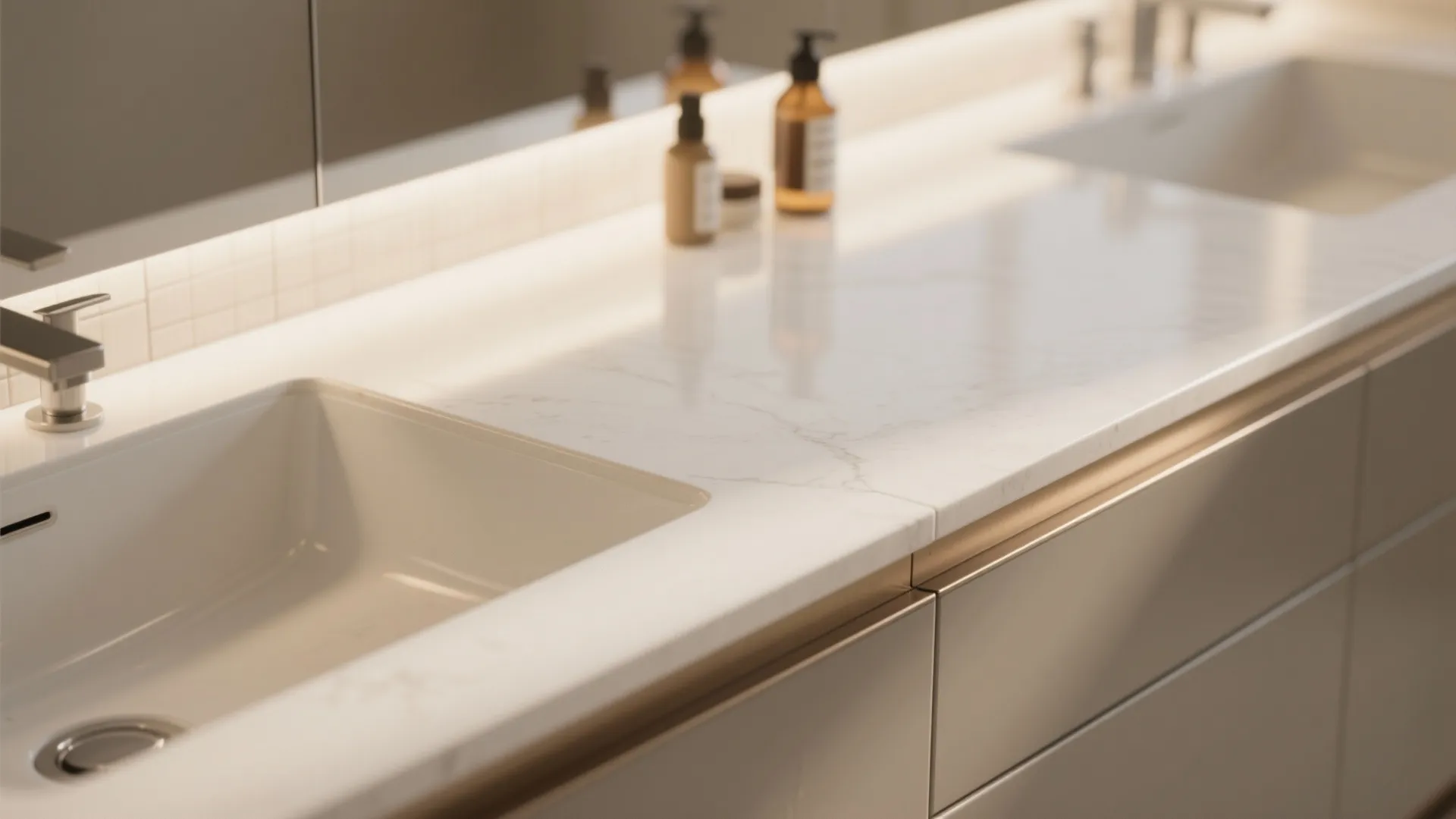

Idea 2: Low-Profile Vanity Backsplash Niche

A recessed ledge along the vanity backsplash keeps everyday items off the counter but within reach. I keep it shallow (2.5–3 inches) so elbows don’t bump, and use non-porous finishes like porcelain or solid-surface for easy wipe-down.

Perks: less countertop chaos, more visual calm. Watch-outs: splashes—add a tiny drip edge or micro-slope toward the sink. If you’re mixing materials, keep grout lines tight and match metal trim so it looks intentional, not like a last-minute carve-out.

save pin

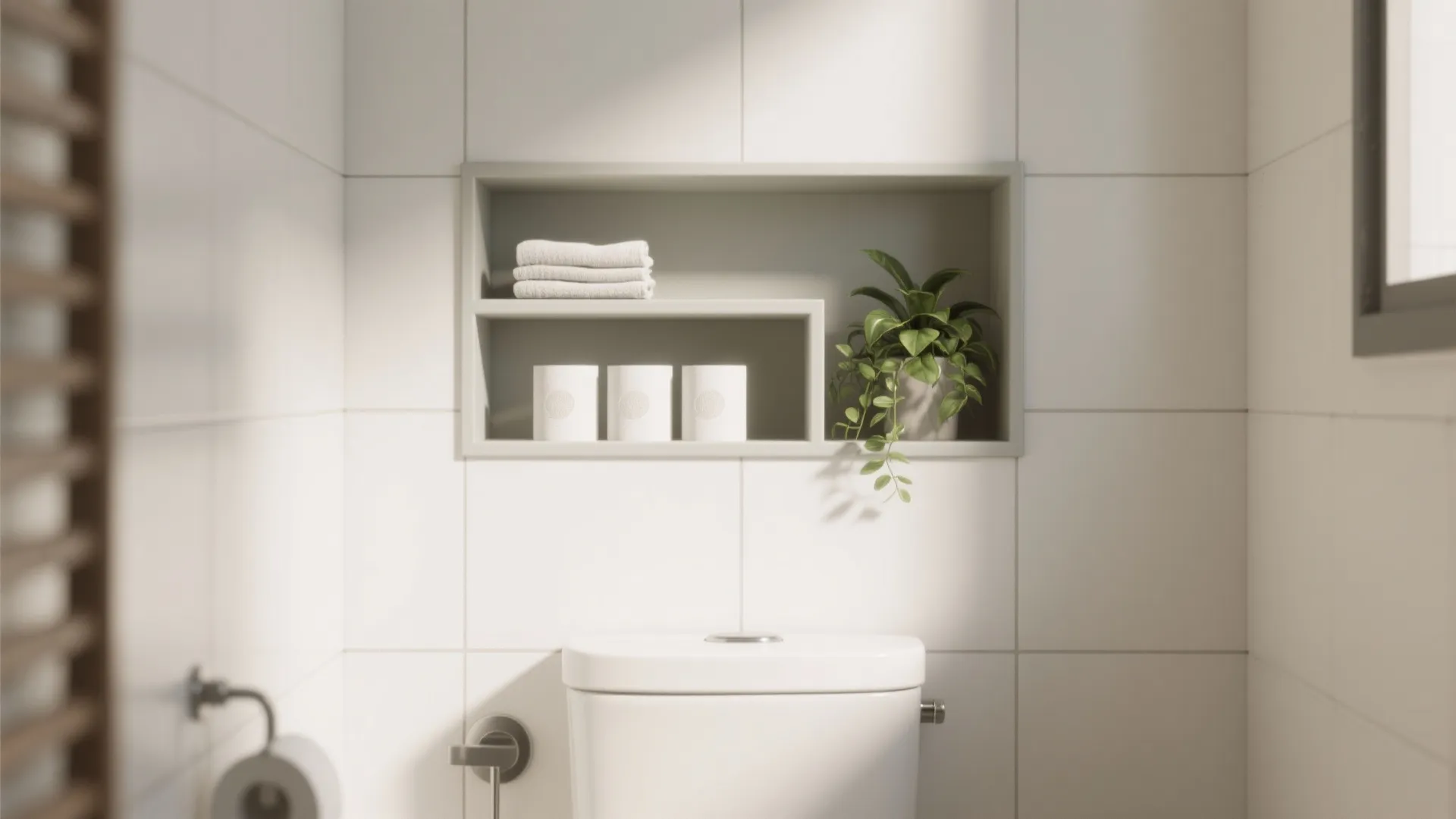

Idea 3: Over-the-Toilet Recess—Hidden Storage Without a Cabinet

Above the tank is prime real estate. A recessed niche here can hold spare rolls, hand towels, even a little plant. I center it between studs and avoid any vents or plumbing stacks, using a tile or paint finish that visually blends with the wall.

This is where proportions matter—too wide looks awkward; too deep risks hitting services. I like to visualize your niche proportions before opening the wall, especially in apartments where surprises lurk. Structural note: don’t notch or cut studs beyond code limits; sometimes a slim bump-out is safer than surgery inside a load-bearing wall.

save pin

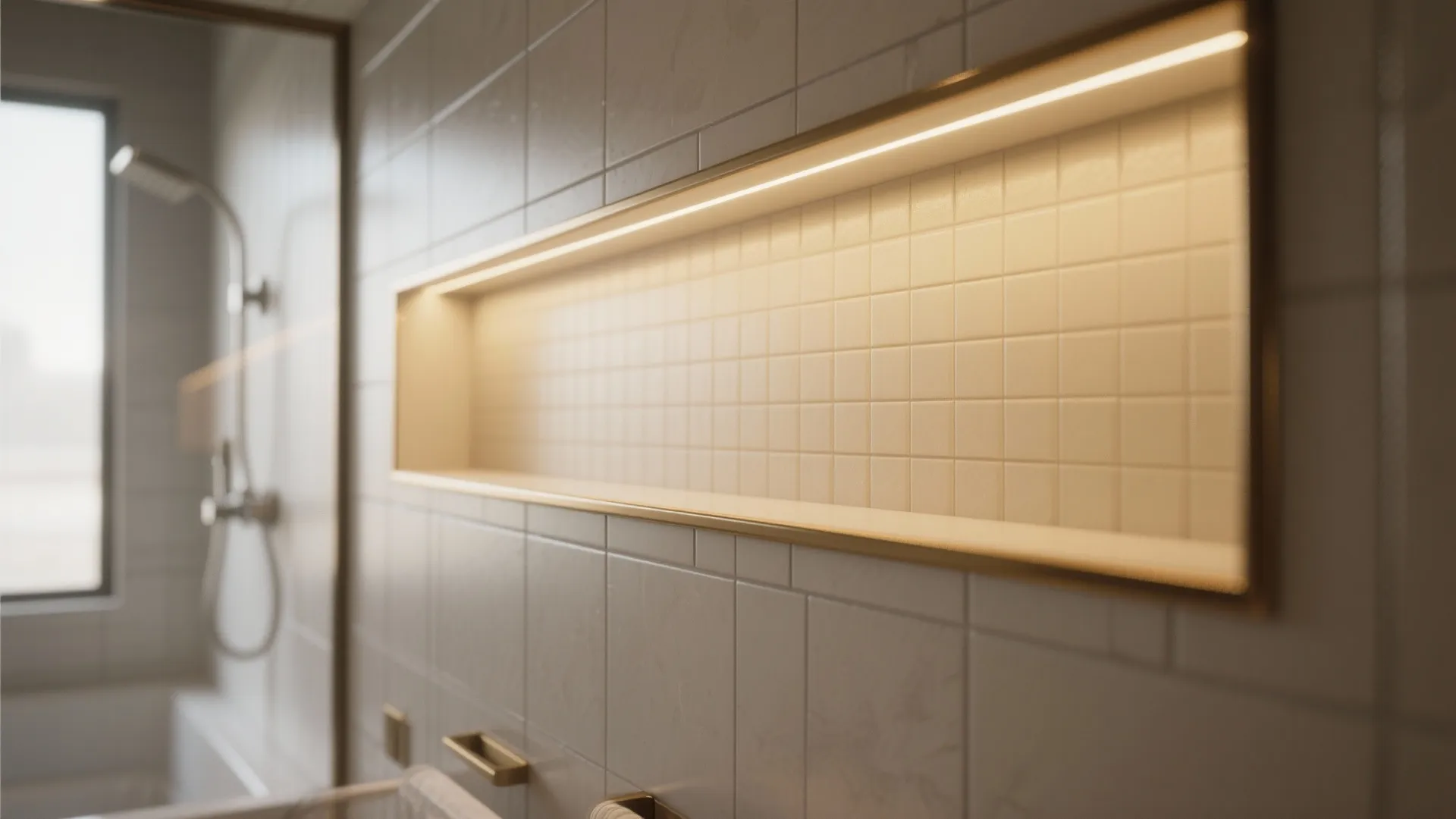

Idea 4: Long Horizontal Niche with Integrated Light

A sweeping horizontal niche along the shower or bath wall creates a hotel vibe. Add an IP-rated LED strip under the top reveal for soft glow and nightlight duty. I design the opening to hit a consistent grout elevation so the tile feels continuous, not chopped.

It’s beautiful but detail-heavy: waterproof the recess meticulously, cap edges with mitered tile or metal profiles, and keep the light channel sealed. Budget tip: run the niche only as long as needed—three feet can look expansive without the cost of a full wall-length slot.

save pin

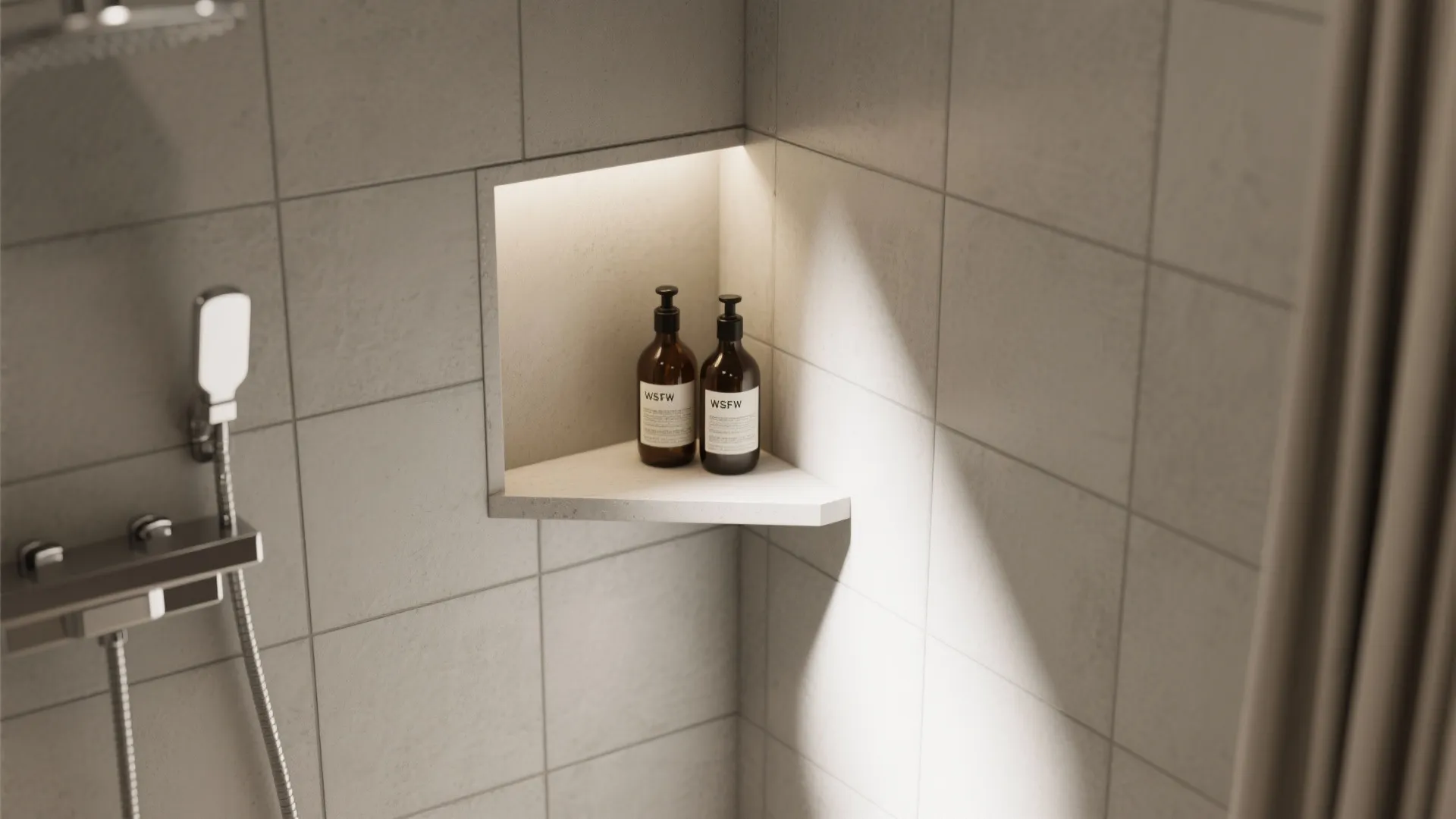

Idea 5: Corner Niche That Disappears

In tight showers, a corner niche uses dead space and stays out of the splash zone. Triangular or L-shaped recesses keep bottles stable and reduce visual clutter from the main sightline. I echo the corner with matching tile edges so it blends like a shadow.

It’s a little fiddly to tile, especially with mitered corners, but the payoff is big in footprints under 32 inches. If you’re indecisive about finishes, I’ve had great results testing ai-generated material combos to see how veined porcelain, matte brass, or microcement play together before I order anything.

save pin

FAQ

1) What’s the ideal depth for a bathroom niche?

For most bottles, 3.5–4 inches of interior depth works well in a 2x4 wall. If your studs are 2x6, you can go deeper, but check what’s in the bay (pipes, vents) before you commit.

2) How high should I place a shower niche?

I set the bottom between 40–48 inches above the floor for adult use. If kids use the shower, consider a second lower niche or step-shelf so everyone has a spot.

3) Do I really need waterproofing in the niche?

Yes—treat a niche like a mini-shower. The Tile Council of North America (TCNA) Handbook (2024, Showers) calls for waterproof membranes meeting ANSI A118.10 and proper slopes; skipping that is the fastest path to leaks.

4) Can I put a niche in an exterior wall?

Usually I avoid it. You’ll lose insulation and risk condensation; if there’s no alternative, use a shallow recess, add continuous insulation, and detail the vapor control carefully.

5) What lighting works inside a niche?

Use damp-rated or wet-rated LED strips with a sealed channel and compatible driver outside the wet zone. Warm color temp (2700–3000K) is flattering and less clinical.

6) How do I prevent water pooling in the niche?

Pitch the shelf slightly toward the shower—about 1/16–1/8 inch is enough. I also avoid perfectly flat slabs and choose materials with tight joints to reduce puddling.

7) How much does a tiled niche cost?

In my projects, labor and materials typically range from $250–$800 per niche, depending on tile type, trim, and waterproofing. Lighting and custom stone shelves push costs higher.

8) What are smart dimensions for oversized bottles?

Measure the tallest bottle you use (including pump) and add 1–1.5 inches of clearance. If you mix tall and short, stack niches vertically so each item has a dedicated bay.
