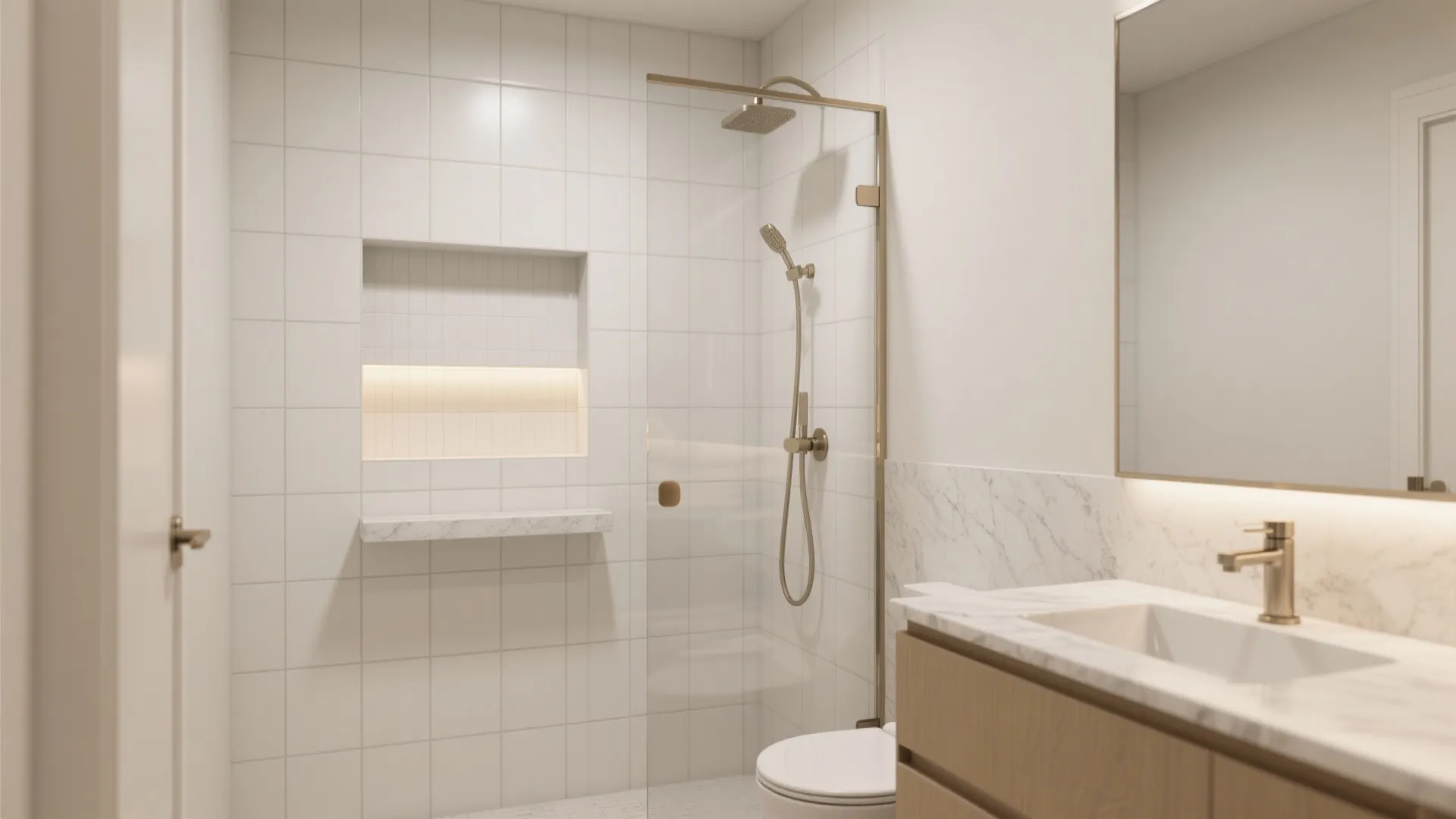

Bathroom Niche Design: 5 Smart Ideas: Real-world tips on planning, waterproofing, lighting, and styling niches in small bathrooms

[Section: 引言]

I’ve redesigned more bathrooms than I can count, and the most satisfying upgrades often come from the smallest moves. Right now, bathroom niche design is trending toward cleaner lines, integrated lighting, and smarter waterproofing—exactly the kind of details that make tiny spaces feel bespoke. Small spaces really do spark big creativity, and a well-placed niche is proof.

In this guide, I’ll share 5 niche design ideas I use in real homes, backed by lessons from the field and expert data. You’ll get pros and cons, practical sizing advice, waterproofing basics, and a few stories from jobs where we learned things the hard way.

[Section: 灵感列表]

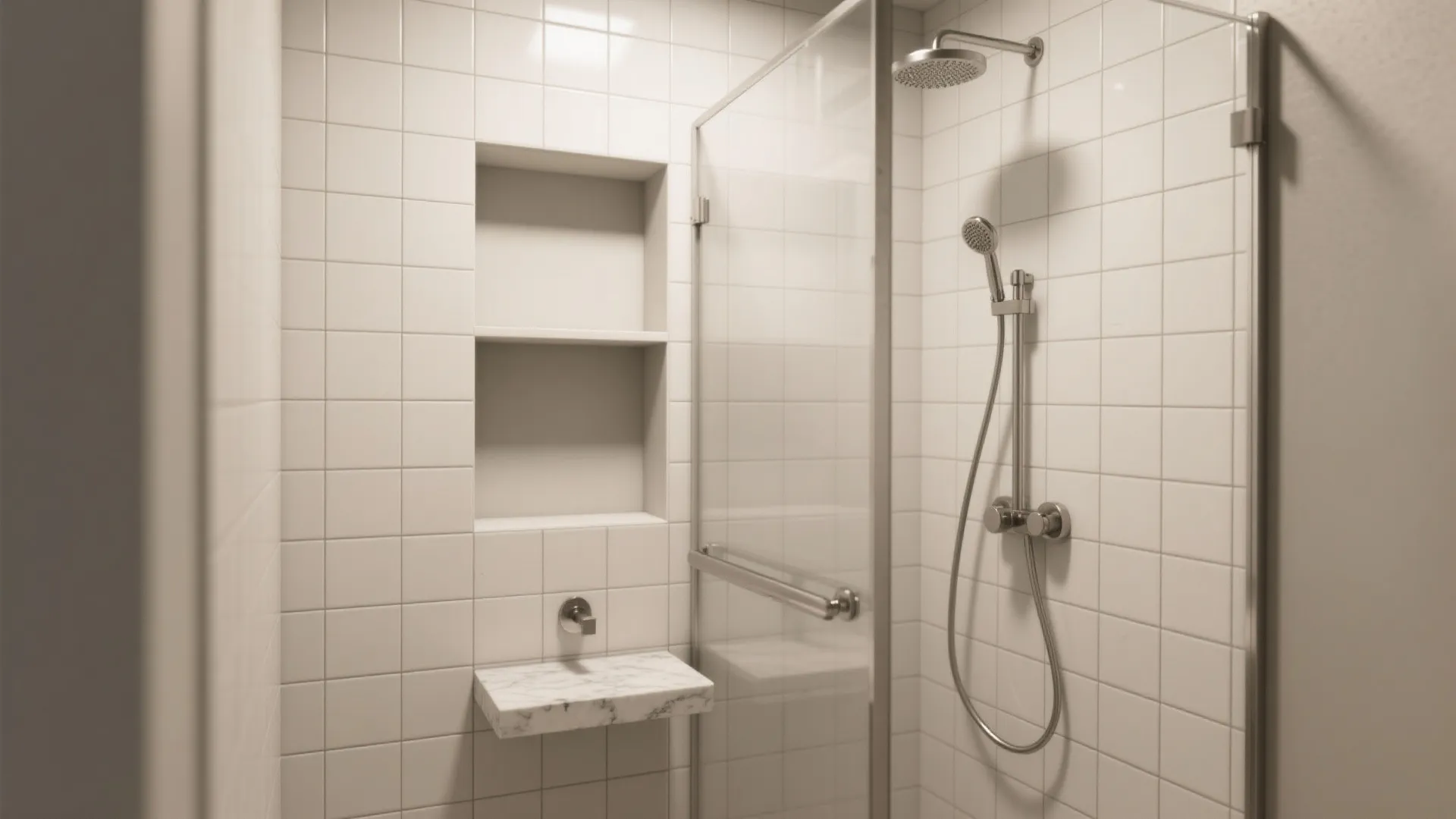

Minimalist tiled niches that disappear

My Take: In tight showers, I aim for niches that disappear into the wall. I start every concept with compact shower niche planning so the opening perfectly matches the tile module; no awkward slivers, no over-busy frames. On a 3'x5' shower in a 40 m² apartment, we sized the niche to two full courses of 3"x12" tile and mitered the edges for a clean, shadow-free reveal.

Pros: This approach keeps the sightline calm, which is critical in small bathrooms where visual clutter multiplies. True minimalist bathroom niche design also makes cleaning easier—fewer protrusions, fewer ledges. Matching the niche to the tile grid reduces cut labor and bad joints, and mitered tile edges or a slim metal profile can look custom without feeling flashy.

Cons: Perfect alignment demands precise framing and patience from your tile setter. Mitered corners take more time and skill; if you rush, you’ll end up with chipped edges or uneven joints. If your tiles vary in size (hello, handmade), maintaining the grid can be finicky.

Tips / Case / Cost: Ask your installer to dry-lay the tile around the niche before committing. Mitering adds about 1–2 labor hours per niche in my market; metal trim is faster and often more forgiving. If the wall is slightly out of plumb, a micro-bevel on the niche edge can hide the deviation without reading as a mistake.

save pin

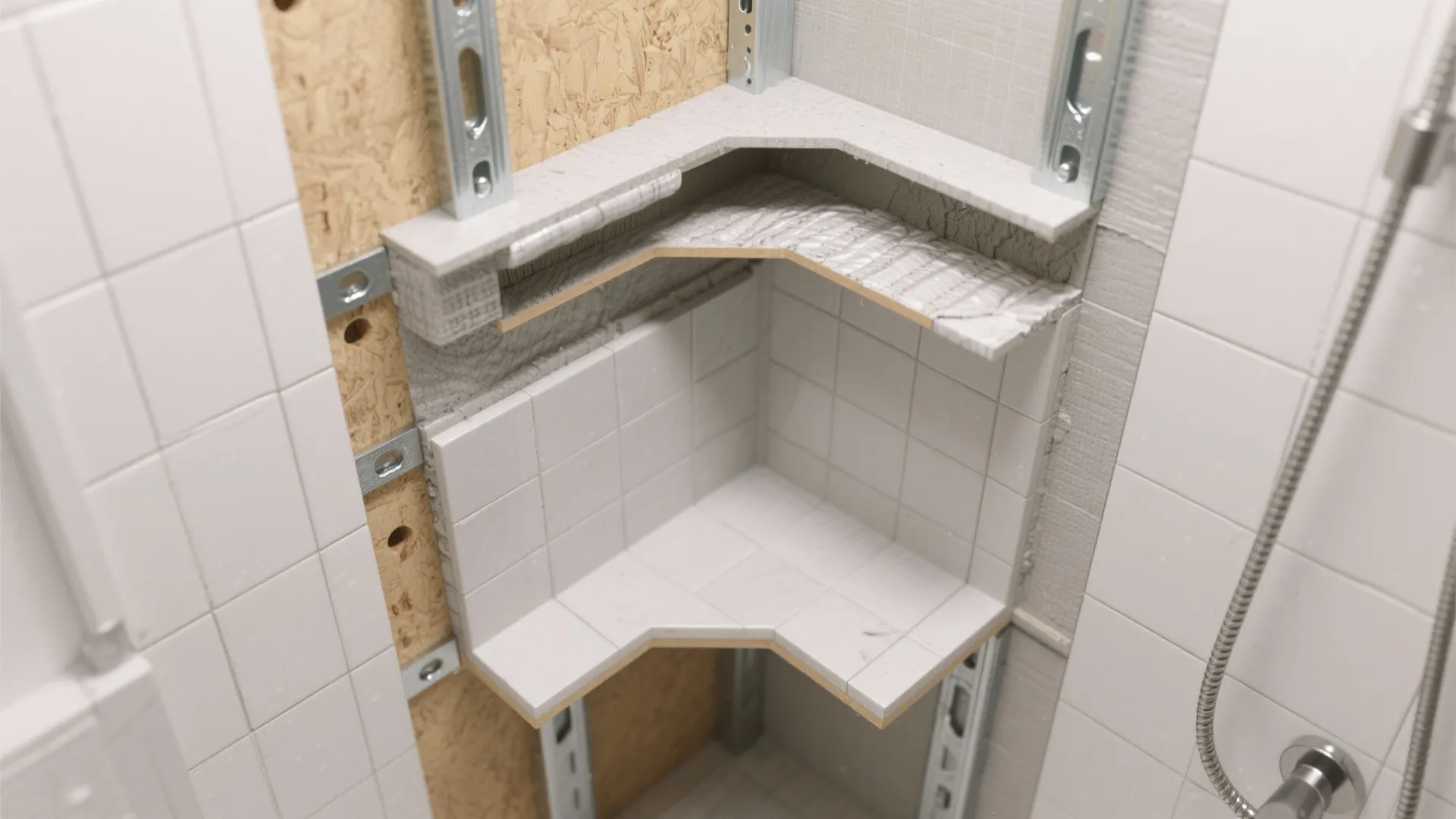

Waterproofing and drainage that last

My Take: A niche looks simple, but it’s a waterproofing puzzle. After one early rental flip sprung a slow leak behind a shampoo shelf, I never skip membranes and slope. Now I treat a niche like a miniature horizontal ledge—2% slope on the bottom shelf, and continuous waterproofing wrapped into the opening.

Pros: Robust shower niche waterproofing stops dark stains, swollen drywall, and mold from sneaking up months later. Per the TCNA Handbook (2024), use ANSI A118.10-compliant waterproofing membranes and maintain positive slope at all horizontal surfaces; that 2% (about 1/4" per foot) keeps water from pooling. Preformed niches can streamline this and reduce weak points at corners.

Cons: Waterproofing adds time and a bit of cost, especially if your contractor prefers to “wing it.” Some liquid-applied membranes need multiple coats and proper cure times; rushing is the enemy of watertight seams. On exterior walls, insulation and moisture management complicate things, making niches less ideal there.

Tips / Case / Cost: I spec sheet membranes or foam-board systems with factory corners to avoid pinholes. Mark slopes before tiling; it’s hard to fix once the first course sets. A quality membrane kit runs $60–$180 per niche; foam-board niches are $80–$250. Flood tests aren’t overkill in new builds—cheap insurance compared with demoing a soggy wall later.

save pin

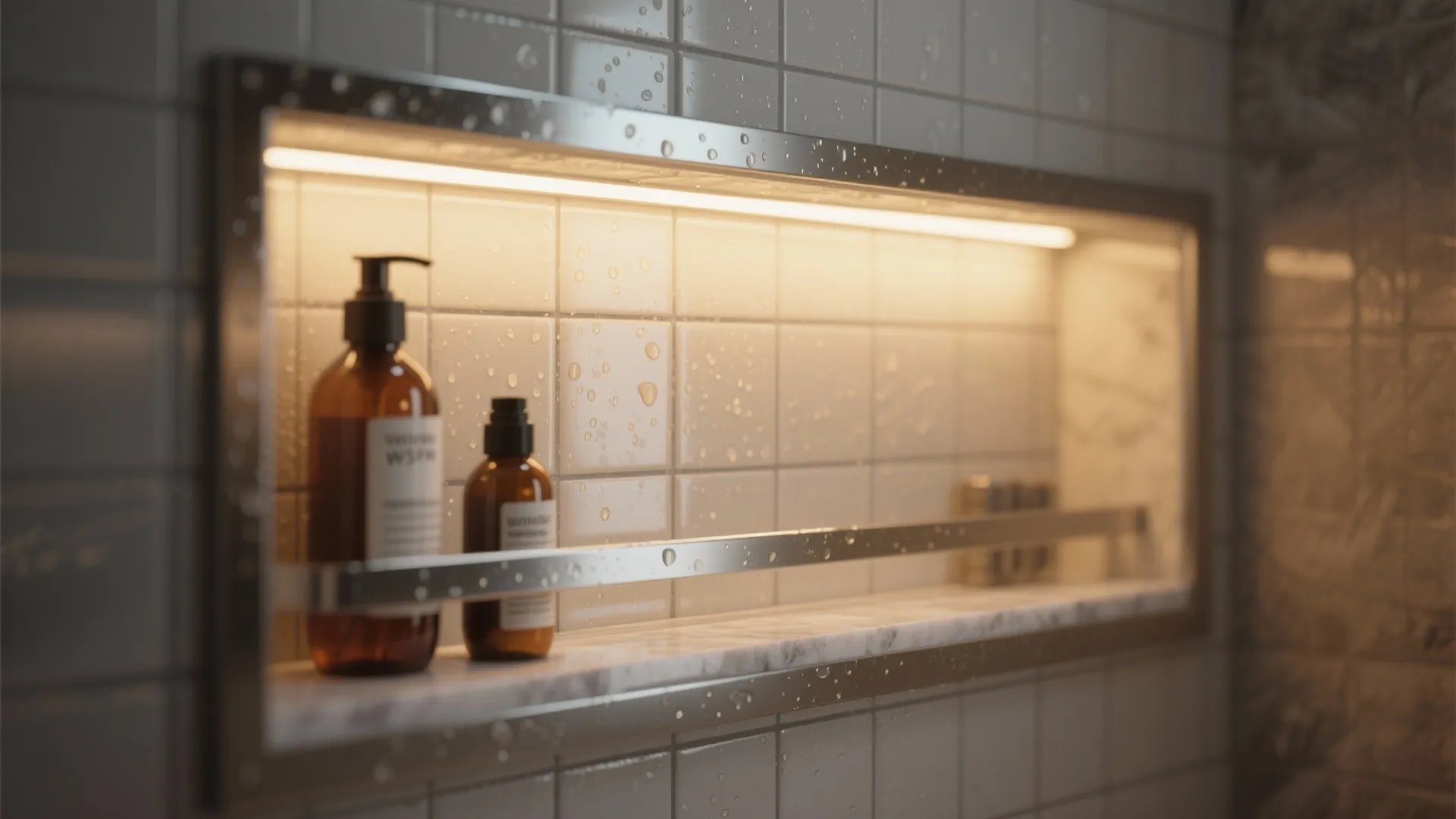

Lit niches for mood and safety

My Take: A softly lit niche feels hotel-level, but you don’t need a giant budget to get there. I tuck low-voltage LED strips in an aluminum channel with a diffuser, set back to avoid glare. In one curbless shower, that gentle glow became the only light needed for midnight trips—zero squinting, zero harshness.

Pros: LED niche lighting improves visibility for labels and razors while boosting ambiance. I aim for 2700–3000K warm-white; the IES Lighting Handbook recommends warm color temperatures for residential comfort, which helps small bathrooms feel welcoming. Choose IP65-rated tape and damp-location components; keep drivers accessible for maintenance.

Cons: Lighting adds coordination across trades—tile, electrical, and millwork need to dance together. Poor placement can cause reflections on glossy tile or spotlight every water mark. Cheap strips may drift in color or fail early; don’t skimp on quality.

Tips / Case / Cost: Plan wire paths before waterproofing, and use a dedicated low-voltage channel with a soft diffuser to hide hotspots. I keep drivers out of the wet zone (linen closet or vanity base works). Expect $120–$350 for quality tape, channel, and driver, plus 2–3 hours of install. Want to check aesthetics first? Generate a realistic 3D render of a tiled niche so you can preview light levels against your chosen tile sheen.

save pin

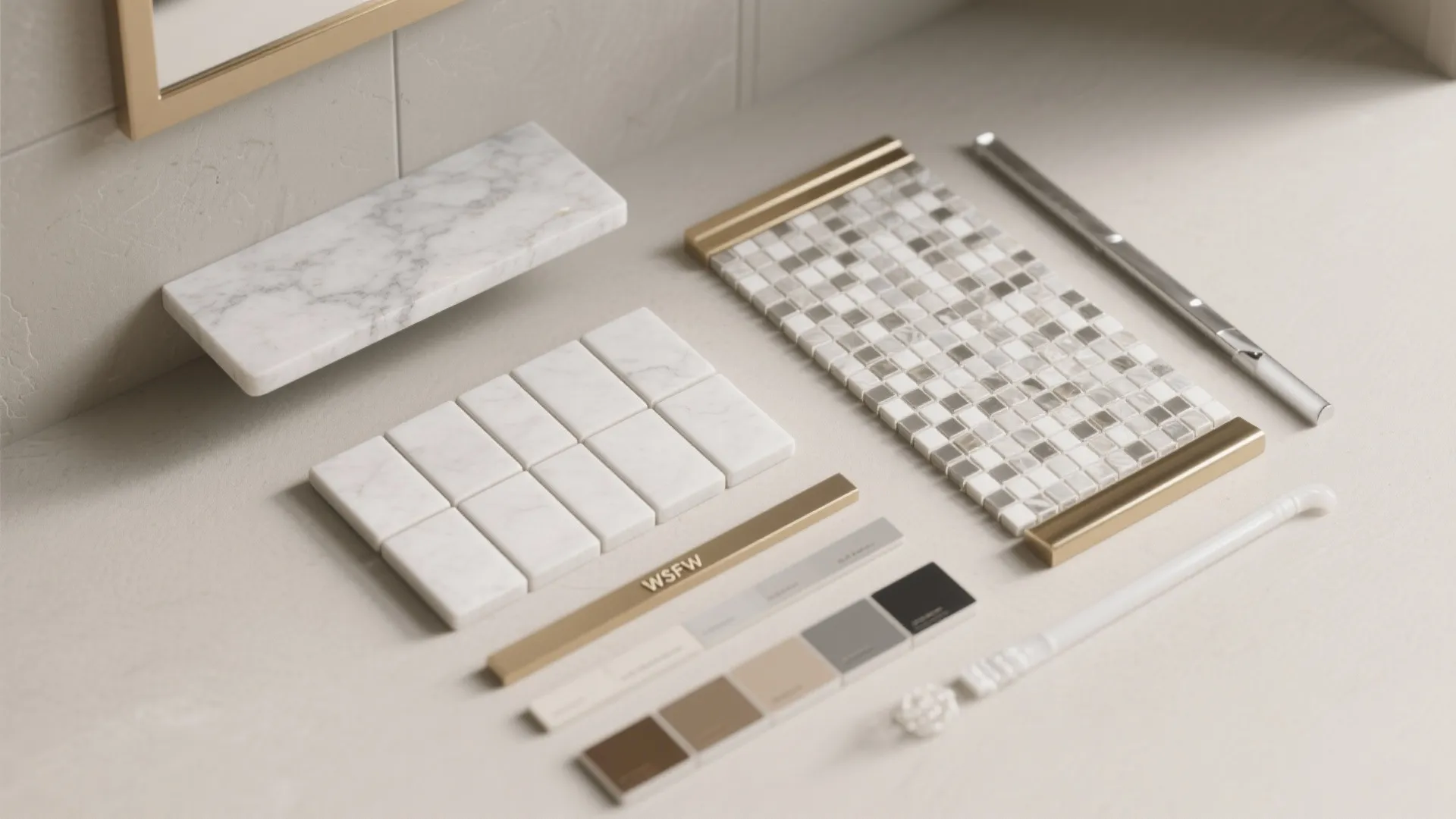

Material contrasts and edge details

My Take: A niche is the perfect micro-canvas for material stories. I often pair a quartz slab shelf (easy to wipe) with ceramic walls, or run a mosaic in the niche to highlight texture without overwhelming the room. Metal profiles in brushed nickel or champagne also add a clean line that complements faucets.

Pros: Contrasting materials help small bathrooms read deliberate, not cluttered. A quartz niche shelf resists soap scum and gives a crisp edge; mitered tile edges deliver a seamless minimal look. Using a different tile in the recess can create a focal point without needing busy feature walls.

Cons: Quartz and stone shelves are heavier and need solid support; floating them on weak caps can crack grout. High-contrast mosaics collect more grout lines, which take longer to clean. Metal reveals scratch if tools slip—keep blue tape on hand during installation.

Tips / Case / Cost: Keep the niche shelf slightly proud (1–2 mm) to ensure drips fall forward, not back. If you pick a mosaic, use epoxy grout in high-splash zones for stain resistance. Stone/quartz shelves cost $30–$90 cut from remnants; metal profiles add around $10–$25 per linear meter.

save pin

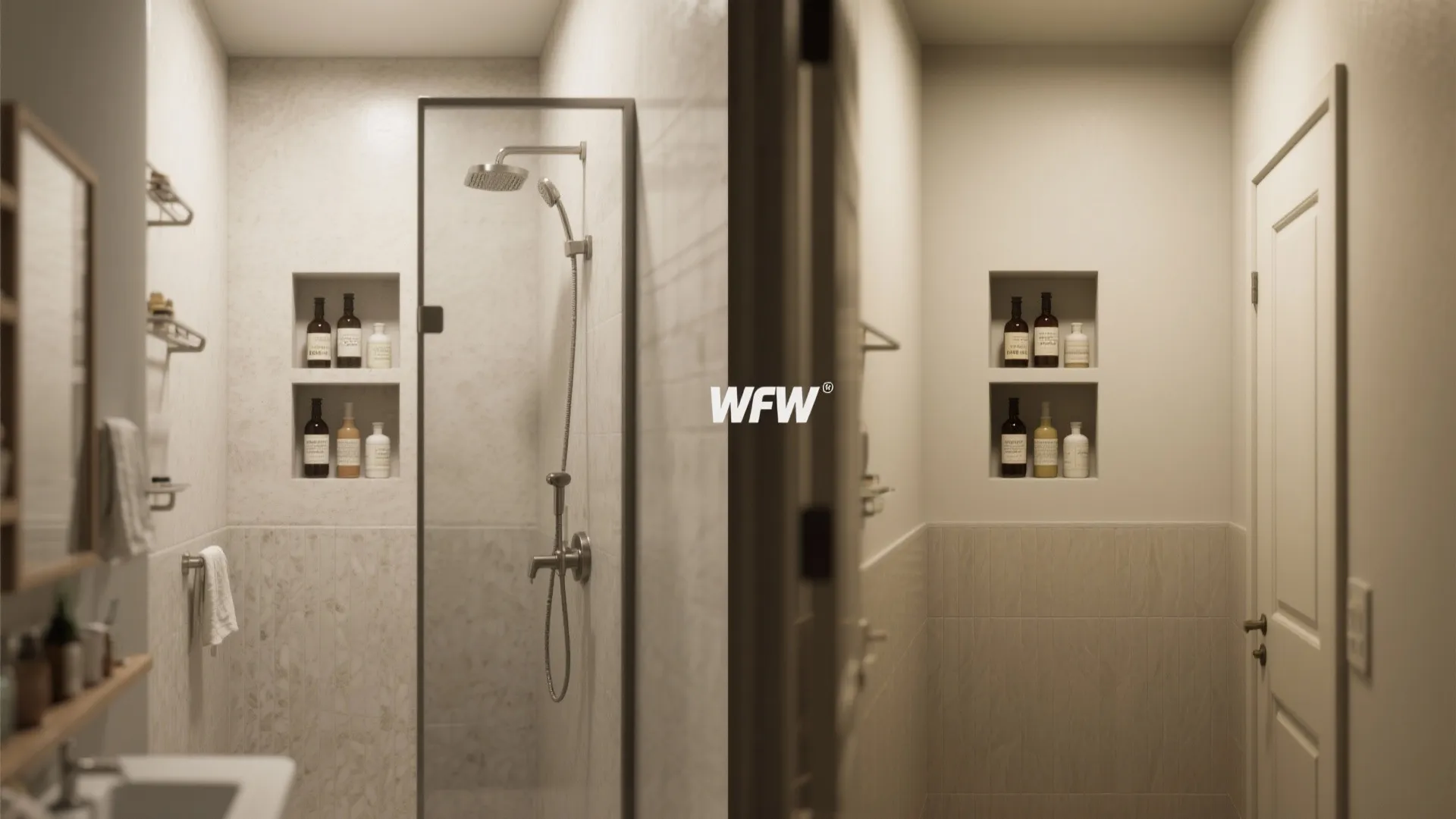

Smart placement: heights, walls, and traffic

My Take: Height is everything. I place the main shampoo niche so the tallest bottle sits comfortably—usually 42–48" above the finished floor—and I avoid exterior walls to prevent condensation and energy loss. In narrow showers, I favor the back wall to keep bottles out of the primary sightline from the door.

Pros: Thoughtful niche height and placement reduce reach and prevent shoulder bumps in tight stalls. Above-toilet recessed shelving adds storage where a cabinet might feel bulky. For curbless showers, keeping niches on non-splash walls means fewer water spots and happier morning routines.

Cons: Plumbing stacks, vent lines, and structural studs limit where you can recess a niche. Exterior walls introduce thermal bridging and moisture risk; Building Science Corporation cautions against interrupting insulation on cold-facing walls, which can invite condensation. Over-tall niches waste space and encourage clutter.

Tips / Case / Cost: Check bottle heights in the showroom and sketch your shelf clearances before framing. Typical niche depths range from 3–4" (standard studs) up to 5–6" with plumbing walls, but confirm conflicts. When layouts are tricky, I iterate with AI-generated small bathroom layouts to test sightlines and reach without opening walls. On costs, relocating a niche 16" off-center to dodge a vent stack usually adds just an hour of framing time.

[Section: 总结]

Small bathrooms don’t limit you—they demand smarter moves. Bathroom niche design is one of the most efficient ways to add storage, character, and comfort without eating floor area. Whether you chase a minimalist look, double down on waterproofing, or play with light and materials, a well-planned niche turns everyday routines into a more thoughtful experience.

I lean on standards like the TCNA Handbook for waterproofing and the IES for lighting comfort, then layer in lived experience from dozens of remodels. Which of these five ideas would you try first, and where would you place your niche?

[Section: FAQ 常见问题]

save pin

FAQ

1) What is the best height for a shower niche?

For most adults, 42–48" above the finished floor keeps shampoo within easy reach. If you have kids, add a lower niche around 32–36". Test with your tallest bottle before framing to avoid surprises.

2) How do I waterproof a bathroom niche?

Use an ANSI A118.10-compliant membrane and wrap it seamlessly into the opening; slope the bottom shelf 2% toward the shower. The TCNA Handbook (2024) outlines these requirements and is my go-to reference on tile assemblies.

3) Can I put a niche on an exterior wall?

I avoid it. Interrupting insulation on a cold-facing wall can cause condensation and reduce energy performance. Building Science Corporation discusses thermal bridging and moisture risks that make exterior-wall niches a poor bet in most climates.

4) Are lit niches safe in showers?

Yes, if you use damp-location rated components and keep drivers accessible outside the wet zone. I choose IP65 LED strips in a sealed channel and have a licensed electrician handle connections.

5) What tile size works best for bathroom niche design?

Match the niche to your tile module to avoid slivers—e.g., two full courses of 3"x12" or a clean 12"x24" frame. Large-format tiles reduce grout lines, while mosaics add grip and texture inside the niche.

6) Should the niche shelf be sloped?

Absolutely. A 2% slope (about 1/4" per foot) helps water roll off and prevents pooling. I mark the slope in the substrate before tiling so the finish work stays true.

7) What materials are best for niche shelves?

Quartz and solid-surface shelves are durable and easy to clean. If you prefer tile, use a bullnose or mitered edge and epoxy grout to resist staining where bottles sit.

8) How big should a niche be for everyday use?

For a single shelf, I like 12–16" wide, 10–14" tall, and 3–4" deep in standard stud walls. If you need two tiers, give the bottom shelf extra clear height for the tallest bottle and keep the upper shelf for smaller items.
