Bathroom Pipe Design: 5 Smart Ideas: Small-space strategies to route, vent, and silence your bathroom plumbing

I once sketched a tiny bath on a café napkin and felt invincible—until the plumber politely asked where the vent was supposed to go. Since that day, I always mock up pipes early and visualize complex layouts before anyone swings a hammer. It’s amazing how a tight footprint forces sharper thinking—small spaces really do spark big ideas.

Here’s my go-to playbook, distilled from years of renovations and a few almost-disasters. I’ll walk you through five bathroom pipe design inspirations that balance code, budget, and sanity.

Idea 1: Build a “wet wall” and let it do the heavy lifting

When space is tight, consolidate supply, drain, and vent lines along one service wall. A slightly deeper “wet wall” (often 2x6 studs or a chase) keeps pipes aligned, shortens runs, and makes future repairs less invasive.

The upside is cleaner routing and quieter fixtures because fewer pipes crisscross the room. The tradeoff is planning discipline: your layout needs to align toilets, sinks, and showers with that wall. I often include an discreet access panel behind the vanity or in an adjacent closet for shutoffs and cleanouts.

Idea 2: Respect slope and venting like your project depends on it (because it does)

Most bathroom drains perform best at a fall of about 1/4 inch per foot for 3-inch and smaller lines. That gentle slope prevents standing water without outrunning the solids—critical in tiny baths where runs are short and turns are tight.

Keep the vent close to the traps, and avoid S-traps; re-vent if a path gets too long. The perk is fewer clogs and fewer gurgles. The challenge is geometry: every inch of elevation matters when you’re threading pipes through joists and under tile.

save pin

Idea 3: Consider a manifold (home-run) system for fewer joints

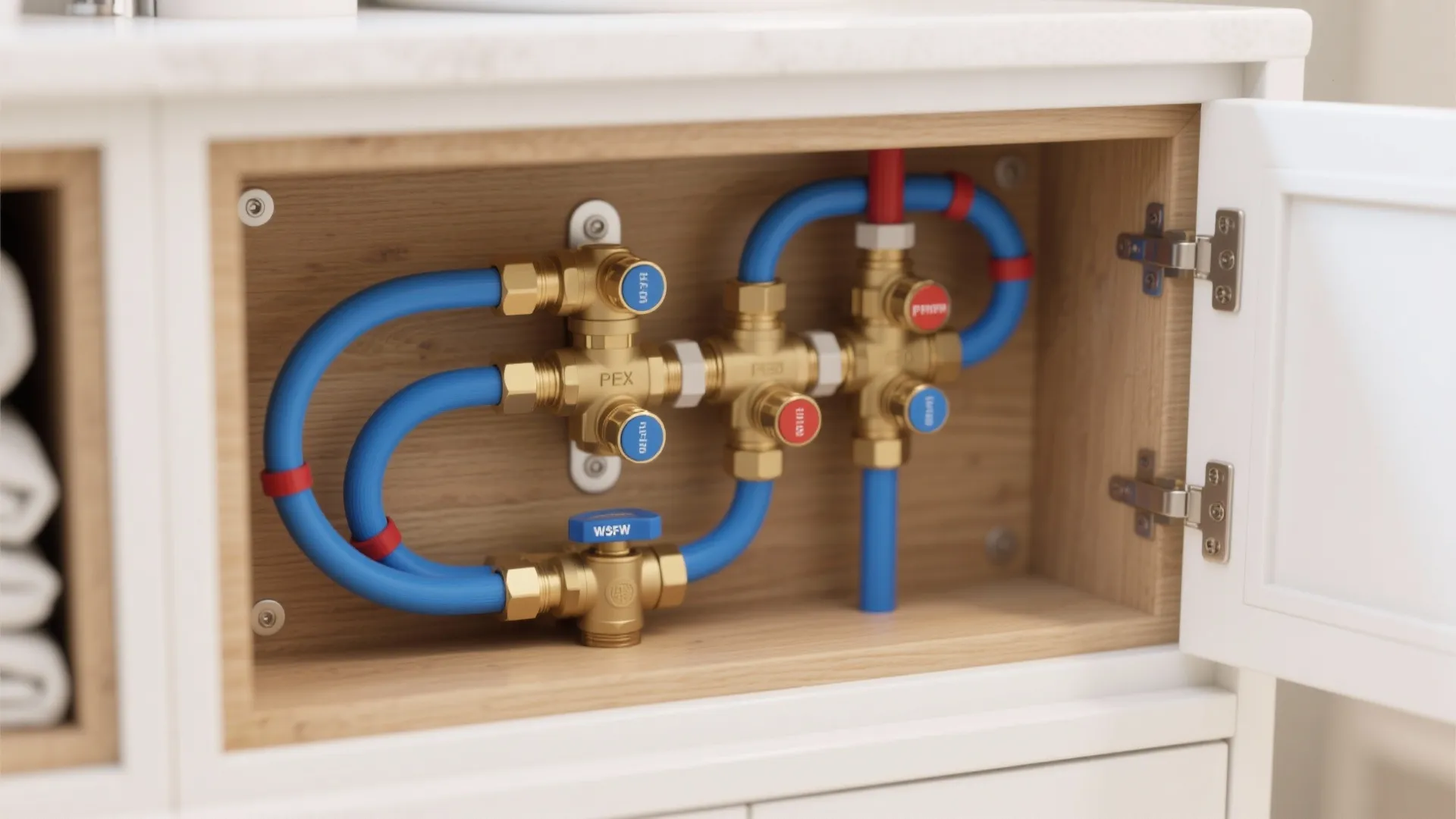

Running PEX from a central manifold to each fixture means fewer fittings inside walls and easier isolation if something leaks. It’s neat, flexible, and great for small baths with minimal cavity space.

You might use a compact manifold in the vanity or linen niche, labeled for each run—future you will thank you. I often preview fixtures and shutoff locations in a 3D layout I tested so I know exactly how tight the bends and cavities get before ordering the trim kits.

save pin

Idea 4: Hide the mess with wall-hung fixtures—and plan access

Wall-hung toilets and sinks tuck drains and supplies into the wall, freeing floor area and making cleaning easier. The best part is you gain a visual calm, which is gold in pocket-sized baths.

The catch is planning for the in-wall carrier, vent alignment, and an access strategy. I’ll often create a removable panel above the carrier or a neighboring closet hatch so service isn’t a nightmare.

save pin

Idea 5: Future-proof with access, isolation, and noise control

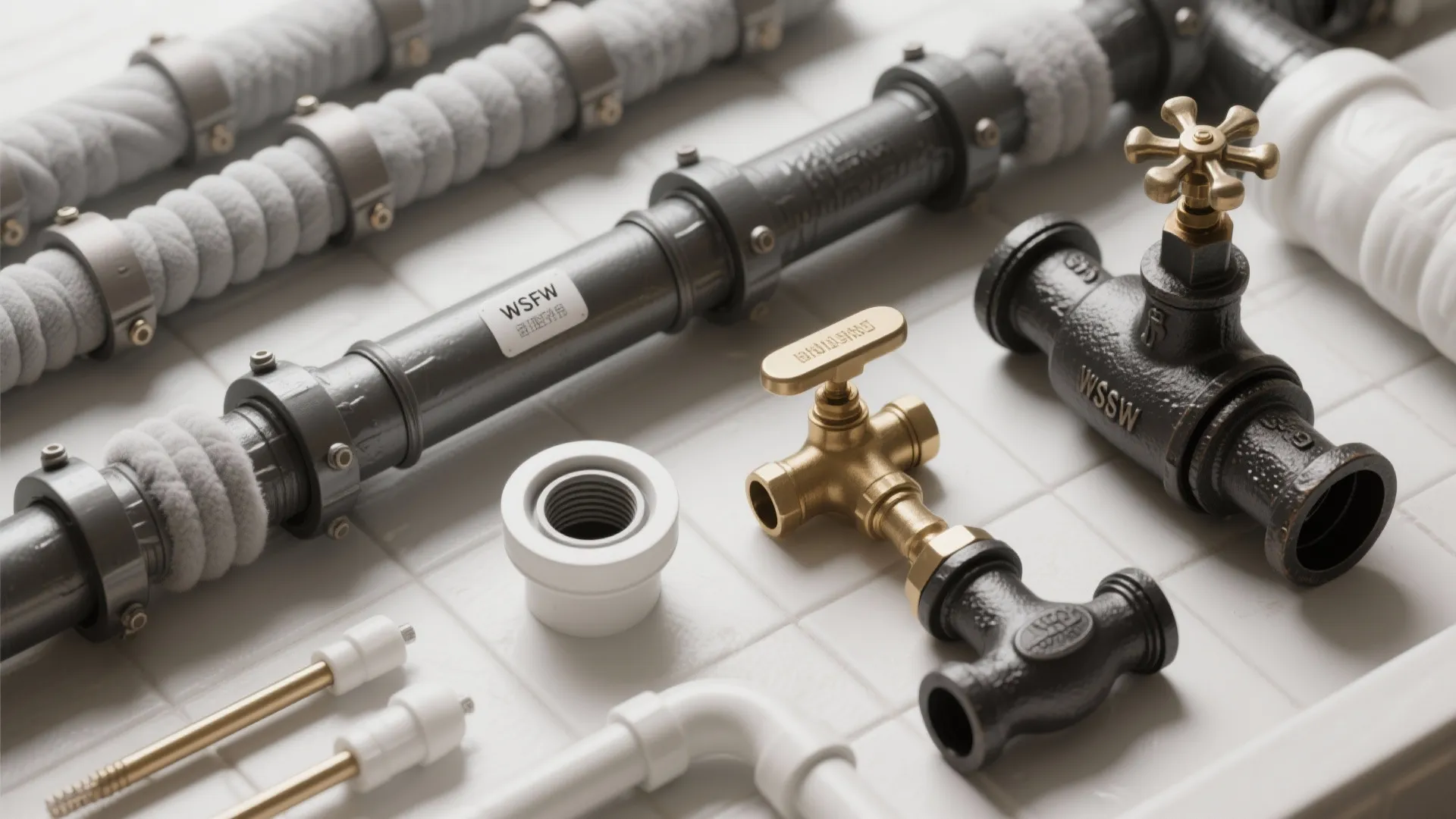

Small baths age gracefully when you include cleanouts, labeled shutoffs, and acoustic wrap on noisy lines. I like cushioned pipe clips and sound-insulating sleeves for the stack—cast iron for the main waste line can be blissfully quiet.

Thermal insulation matters too—especially if any pipe skirts an exterior wall. I test alternate fixture placements with quick scenario swaps so access and service clearances stay generous even after a style pivot.

save pin

FAQ

1) What’s the ideal drain slope in bathroom pipe design? For 3-inch and smaller drains, aim for about 1/4 inch per foot. This slope balances flow and helps avoid blockages; always verify local code requirements.

2) How close should a vent be to the trap? It depends on pipe size and code. The International Plumbing Code (IPC 2021, Table 909.1) sets maximum trap arm lengths—e.g., 1.5-inch typically up to 6 feet with proper slope (ICC). Check your jurisdiction’s adopted version.

3) Can I run pipes in exterior walls? It’s possible but risky in cold climates. Keep pipes on the warm side of insulation, use proper thermal wrap, and avoid deep cavities that invite freezing.

4) Is PEX good for bathroom pipe design? Yes—flexible, fewer joints, and faster installs. Watch for UV exposure during storage and use protective sleeving where rodents or abrasion could be an issue.

5) How do I reduce pipe noise in a small bathroom? Use cast iron for the waste stack, resilient pipe clips, and acoustic wrap. Avoid rigid contact points that transmit vibration to studs and tile.

6) Do I need cleanouts in a tiny bath? Absolutely. Provide accessible cleanouts near the base of the stack and along long horizontal runs; it saves drywall and headaches during maintenance.

7) Are wall-hung toilets harder to service? They require an in-wall carrier and a planned access path, but service is straightforward if you design a discrete panel. The payoff is space and easier cleaning.

8) How can I keep costs down when re-routing pipes? Cluster fixtures along a wet wall, minimize structural changes, and choose a manifold to reduce fittings. Pre-visualize the run to avoid surprises—mockups help prevent change orders.
