Bathroom Pipe Fitting Design: 5 Smart Ideas: From wet walls to venting, my field-tested playbook for small bathrooms that look clean, work quietly, and stay easy to service

[Section: 引言]

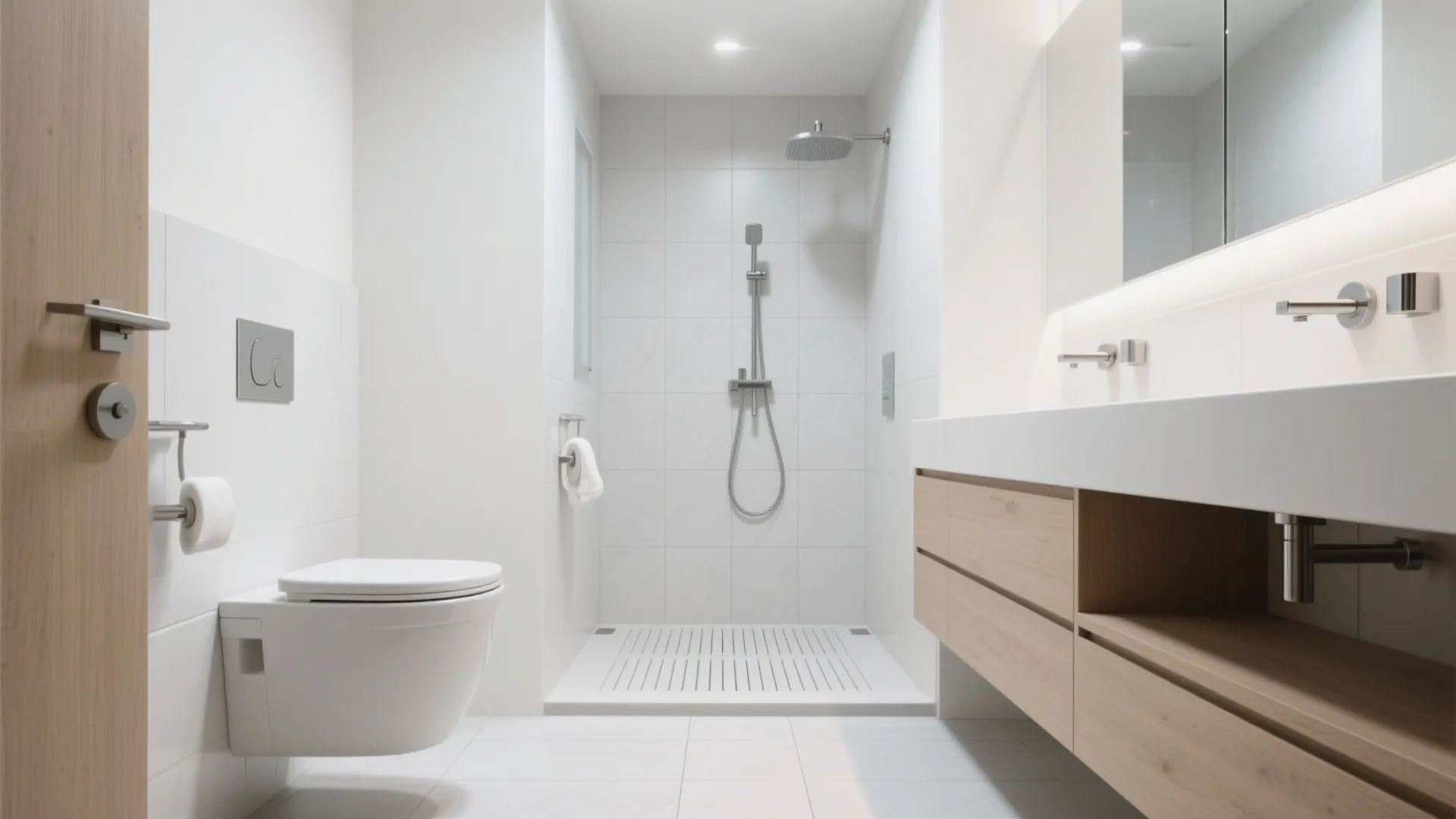

Bathroom pipe fitting design has been quietly driving many of this year’s clean, hotel-like bathroom trends—think wall-hung toilets, linear drains, and hidden cisterns. When I remodel small apartments, I see it again and again: smart piping decisions make the room feel bigger, quieter, and easier to maintain.

Small spaces spark big creativity. The best part? A thoughtful plumbing layout can unlock storage, improve water pressure, and cut future repair stress.

In this guide I’ll share 5 design inspirations grounded in real jobs I’ve led, plus code-aware tips, costs, and expert data you can trust.

[Section: 灵感列表]

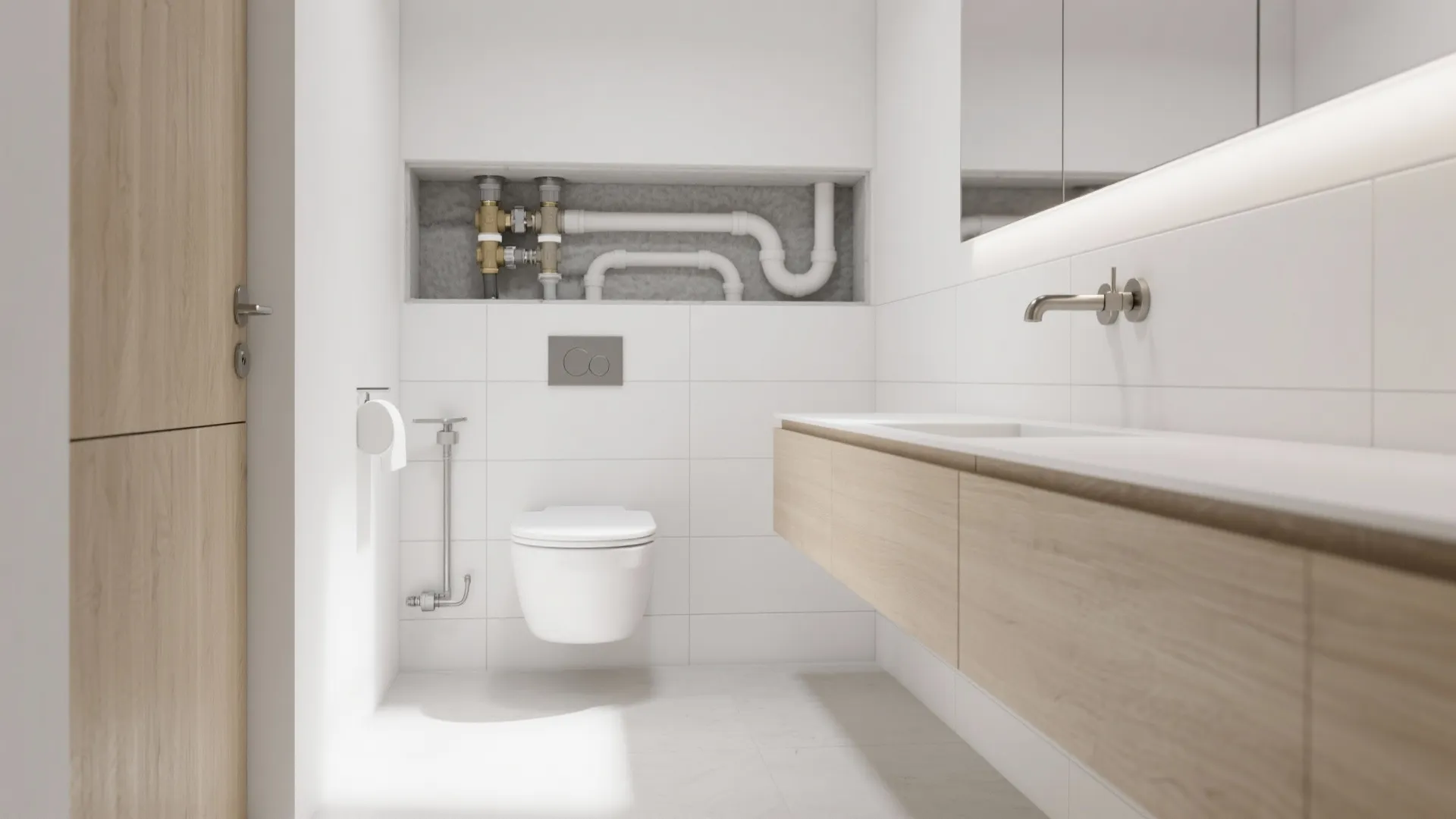

Concealed Piping With Smart Access

My Take — On a 5 m² loft bath, we tucked supply and waste lines into a shallow service chase behind the vanity and used an in-wall carrier for the WC. I gained roughly 240 mm of visual depth at the floor and cleaned up sightlines dramatically. I model concealed piping for a cleaner look early, then mark where hands can actually reach shutoff valves and P-traps.

Pros — Concealed runs make a compact bath feel minimal and calm—great for bathroom pipe fitting design in tight homes. Cleaning is faster with fewer dust-catching pipes and legs. In a small bathroom plumbing layout, hiding supply lines frees toe-kick space and allows a longer vanity drawer.

Cons — What you hide, you must access. Retiling to fix a leak is always a downer, so I plan removable panels behind fixtures. Sound can build inside cavities if you skip insulation, and repairs can be slower if access is an afterthought.

Tips / Case / Cost — Most plumbing codes require access to concealed slip-joint connections (check your local code; the International Plumbing Code, IPC, provides guidance). I use magnetized tile panels or a painted MDF door disguised by a mirror. Expect carriers and access hardware to add $400–$1,200 and 1–2 extra days.

save pin

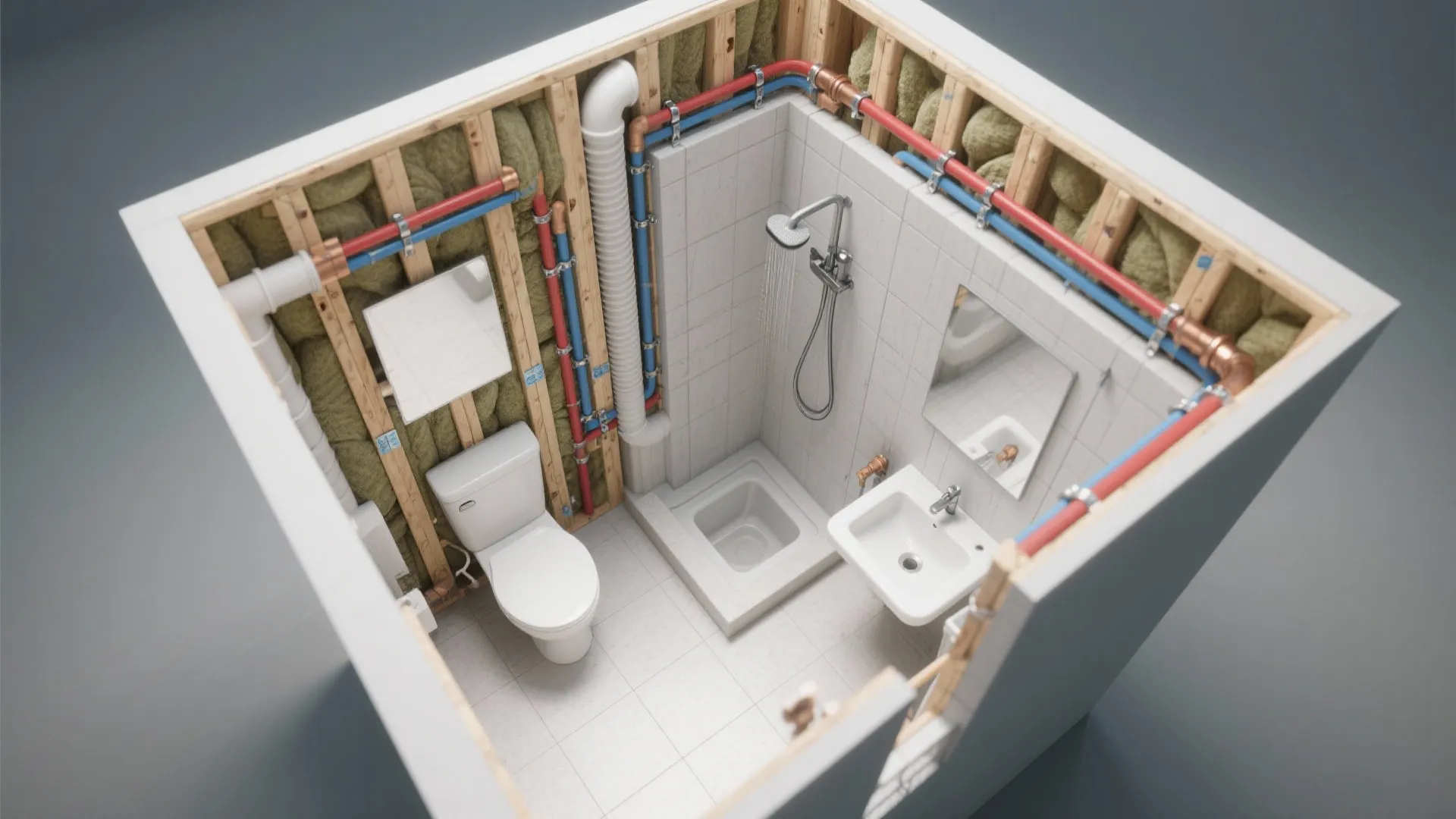

Plan a Shared Wet Wall and Align Fixtures

My Take — In many prewar buildings, floor joists are precious. I line up the toilet, basin, and shower along a single thickened wall, so I can run vent, waste, and supplies inside 2x6 studs without carving the structure. In a recent rental refresh, putting the stack in that wet wall cut two 90° turns and saved a full day of labor.

Pros — A wet wall plumbing design minimizes runs and fittings, which reduces clog risk and keeps the proper drain slope for bathrooms consistent. Fewer turns also means fewer pressure losses and easier future changes. For bathroom pipe fitting design, a shared chase keeps vent and waste lines straight and serviceable.

Cons — The room’s layout options narrow. If you dream of the toilet across from the basin, you’ll need longer lateral runs (and perhaps a raised floor). Sound can concentrate in the wet wall if you skip acoustic batts or isolation clips.

Tips / Case / Cost — I favor 2x6 studs for a true 3-inch stack and proper venting. The IPC generally calls for 1/4-inch per foot slope for 2-1/2-inch and smaller horizontal drains (verify locally)—easy to maintain inside a straight wet wall. Materials for a wet wall (stud upgrade, batts, clips) run $200–$600 extra, often worth it in small bathroom plumbing layout projects.

save pin

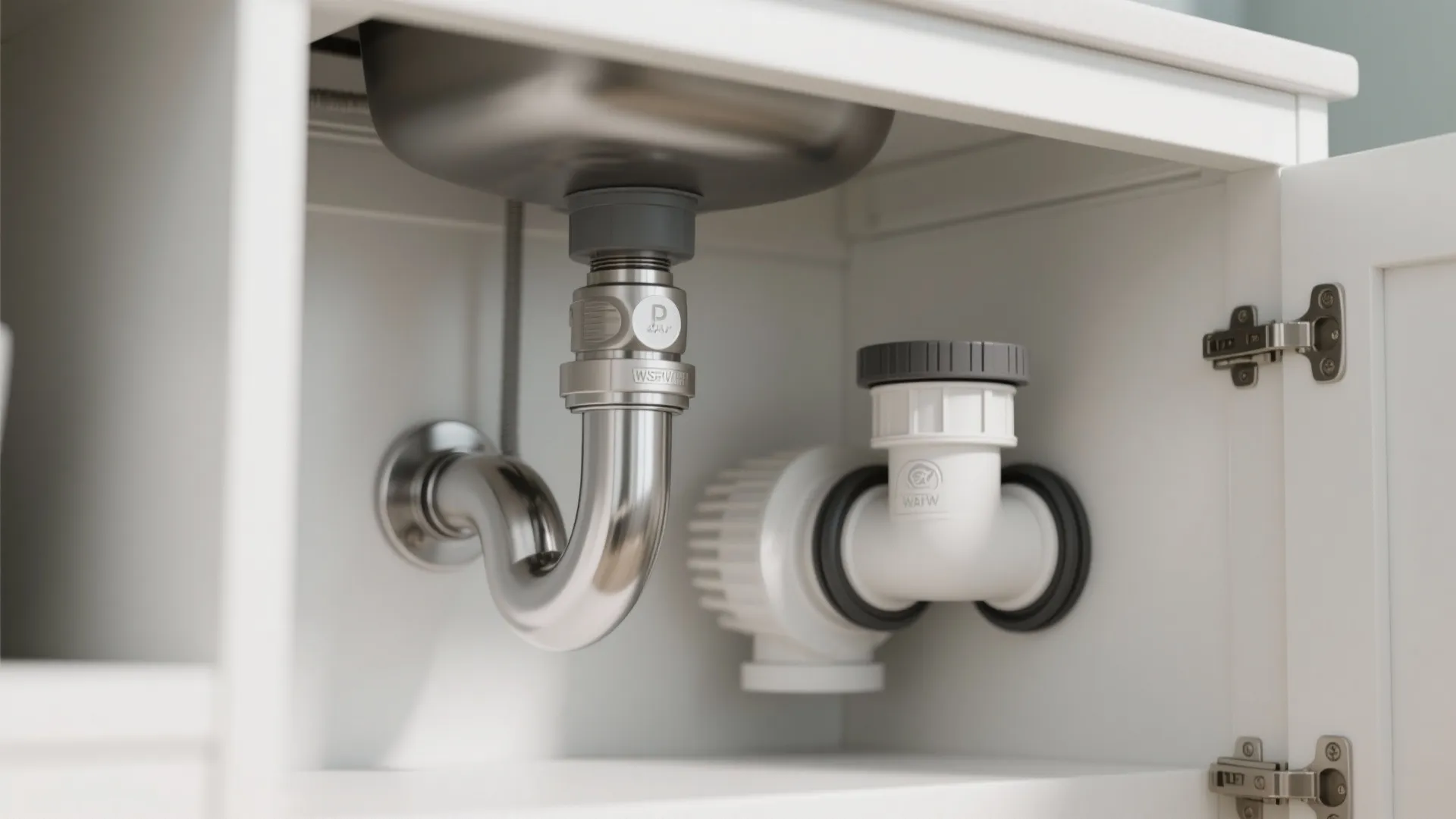

Vent Smarter: Traps, AAVs, and Wet Venting

My Take — In a 1920s brick walk-up, we couldn’t add a new roof penetration. I used a code-approved air admittance valve (AAV) for the lavatory and wet-vented the shower via the WC line. We tested with a bucket “slug” to confirm no gurgle or trap seal loss—worked perfectly.

Pros — A solid venting strategy reduces gurgling, keeps trap seals intact, and prevents odors—core to venting requirements for bathrooms. The IPC allows AAVs where permitted and spells out trap-arm limits and vent sizing; ASPE guidance echoes this and adds best practices for group venting. A clearly vented layout reduces siphon risk and makes inspections smoother, especially in remodels.

Cons — AAVs have moving parts and lifespans; I treat them as last-resort solutions, not first picks. Roof vent work can mean scaffolding, and wet venting demands precise pipe sizing and fixture order—small mistakes cause big whistling noises or slow drains.

Tips / Case / Cost — Keep trap arms short and sloped; IPC and many local codes provide exact distances by pipe size (for example, lavs often allow around 1.5–2.0 m trap arms; check your code). Use 2x6 stud bays for smoother vent routing and consider a “test tee” with a removable cap for troubleshooting. Budget $150–$350 for AAVs and service tees; roof vent work varies widely.

save pin

Right Pipe Sizes, Pressure Balance, and Mixing Valves

My Take — Few things feel more “budget” than a shower that goes cold when a neighbor flushes. I run a simple manifold—often with PEX home runs—to keep pressure balanced, and I specify a thermostatic or pressure-balancing valve. In one micro-bath, upsizing the cold line from 1/2 to 3/4 inch to the manifold steadied temperature immediately.

Pros — Correct supply sizing reduces pressure drops at peak demand—crucial in small bathroom plumbing layout with multiple outlets (rain head plus hand shower). A pressure-balancing valve adds anti-scald protection; thermostatic valves hold a precise setpoint. If you’re debating PEX vs copper for a bathroom remodel, PEX home runs can minimize joints, lower noise, and simplify future changes.

Cons — Thermostatic valves cost more and need careful rough-in depth. Manifold systems require a decent access spot, and tight bends in PEX can create kinks if you rush. Copper shines in rigidity and heat resistance but requires more fittings and skill to route in compact chases.

Tips / Case / Cost — Measure static and dynamic pressure before committing to fancy shower hardware; a $40 gauge tells the truth. Use bend supports for PEX and isolation valves for each run. Expect $250–$800 for a good pressure-balancing or thermostatic valve and $150–$400 for a compact manifold.

save pin

Soundproofing, Insulation, and Maintenance Zones

My Take — A young family hired me because their baby woke with every 6 a.m. shower. We wrapped PVC waste lines with mass-loaded vinyl and mineral wool, added isolation clamps, and framed a discreet access hatch behind the tub spout wall. The nursery stayed quiet, and we preserved a clean look.

Pros — Acoustic wraps and decoupling clamps cut water-rush noise and “tick” sounds from thermal expansion—key to quiet plumbing for a spa-like bath. Dedicated maintenance zones—cleanouts behind art, magnetized panels behind vanities—turn a leak into a 20-minute fix instead of a weekend demo. Insulating hot lines improves comfort and saves energy.

Cons — Sound control eats a bit of space and budget, and heavy wraps can be awkward in cramped shafts. If you forget to label hidden panels, the next plumber will play hide-and-seek (I learned that the hard way).

Tips / Case / Cost — I spec mineral wool (not fiberglass) for better sound absorption and fire resistance, MLV or acoustic jackets for risers, and rubber-lined clamps. Plan at least one labeled, tool-free access panel for every group of shutoffs and traps. Costs range $120–$500 for insulation on a small bath and save countless headaches.

quiet plumbing for a spa-like bath ties the technical work back to experience—worth the effort in compact homes.

[Section: 总结]

Small bathrooms don’t limit you; they demand smarter bathroom pipe fitting design. When you align fixtures on a wet wall, vent properly, size supplies, and hide lines with real access, you get crisp lines, quiet performance, and easier maintenance.

As a reference point, the IPC’s widely adopted rules for slope, traps, and vents keep designs safe and predictable—worth reviewing before you start. Which of these five ideas are you most excited to try in your own bath?

save pin

FAQ

[Section: FAQ 常见问题]

1) What is bathroom pipe fitting design?

It’s the planning of supply, waste, and vent routes, fittings, and access points to support your fixtures. Good design balances code compliance, serviceability, quiet performance, and a clean visual result.

2) How do I plan a small bathroom plumbing layout?

Start by aligning fixtures on a wet wall, then confirm drain slope and venting. Keep trap arms short, avoid excessive 90° turns, and reserve access panels behind valves and traps.

3) What is the proper drain slope for bathrooms?

Most codes, including the International Plumbing Code (IPC 704.1), call for 1/4 inch per foot (2%) for 2-1/2-inch and smaller horizontal drains. Larger lines may allow 1/8 inch per foot; always verify locally.

4) Do I need a vent for every fixture?

Every trap needs venting, but you can often combine vents via wet venting when sized and arranged correctly. Where allowed, an AAV can help in remodels, though a true roof vent is typically more robust long-term.

5) PEX vs copper for a bathroom remodel—what’s better?

PEX home runs reduce joints, resist scale, and are quick to route in tight chases. Copper offers rigidity, excellent heat tolerance, and familiar workmanship; your water chemistry, fire code, and budget will guide the choice.

6) How do I stop noisy pipes in a compact bath?

Use mineral wool, mass-loaded vinyl wraps on waste risers, and rubber-lined isolation clamps. Maintain gentle bends and include expansion loops for PEX to prevent ticking during temperature swings.

7) How do I conceal piping but keep access?

Hide lines inside a service chase, but add magnetized tile panels or disguised MDF doors behind vanities and tub walls. Label panels clearly so shutoffs and traps are reachable in minutes.

8) What does a pressure-balancing valve do?

It compensates for sudden supply pressure changes—so a toilet flush won’t freeze or scald your shower. Thermostatic valves add precise temperature control and are great when multiple outlets run at once.
