Bathroom Tub Design: 5 Smart Ideas: Small bathrooms, big creativity—my top five bathtub design inspirations with real-world tips and SEO-friendly insights

[Section: Meta 信息] Meta Title: Bathroom Tub Design: 5 Smart Ideas Meta Description: Discover 5 bathroom tub design ideas for small spaces—materials, layouts, storage, and spa vibes. Real designer tips and data-driven pros/cons. Meta Keywords: bathroom tub design, small bathroom tub ideas, freestanding tub small space, alcove tub with storage, tub shower combo design, textured tile bathtub, soaking tub depth, bathroom ventilation tips [Section: 引言] I’ve spent over a decade squeezing beauty and function into small bathrooms, and bathroom tub design is where the magic happens. Trends are leaning clean-lined, spa-light, and material-led—small spaces spark big creativity when the tub becomes the hero. In this guide, I’ll share 5 tub design inspirations, blending my hands-on experience with expert data so you can make confident choices. [Section: 灵感列表]

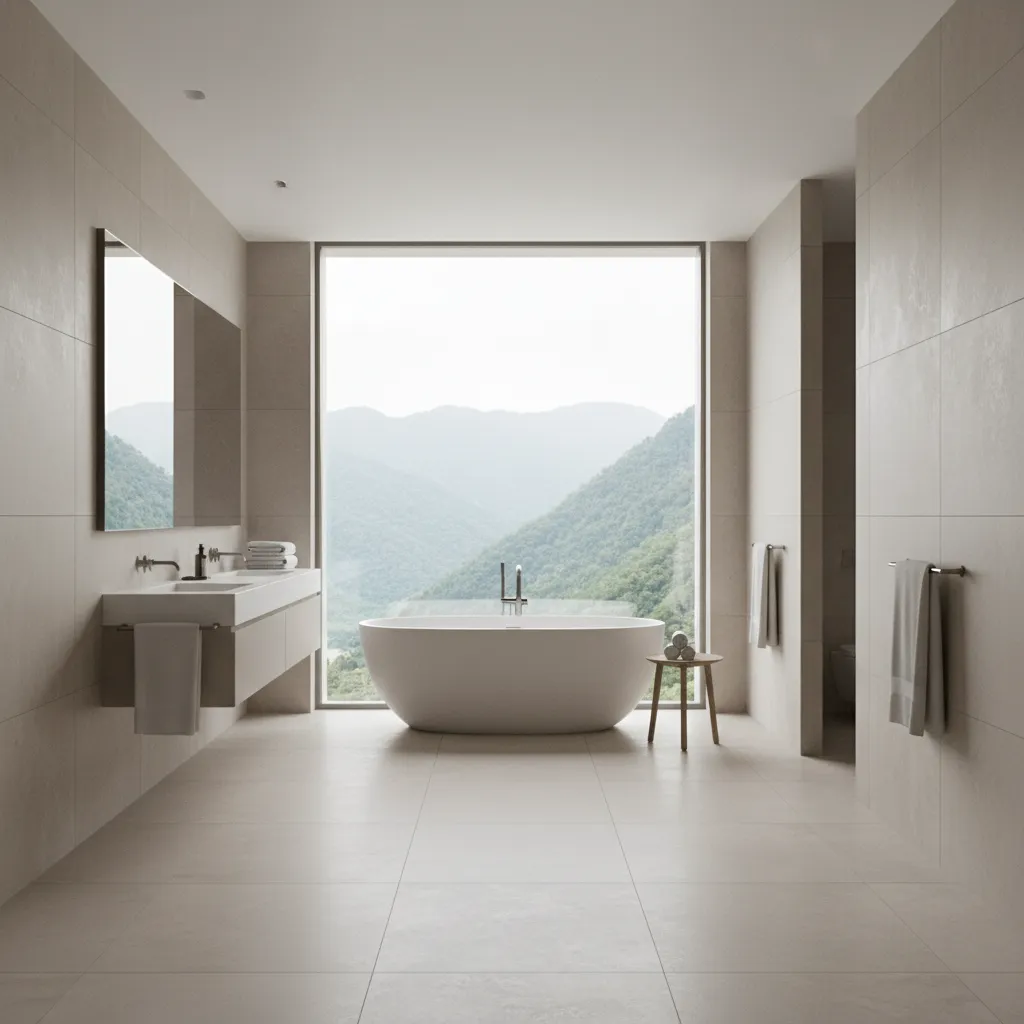

Freestanding Tub That Actually Fits

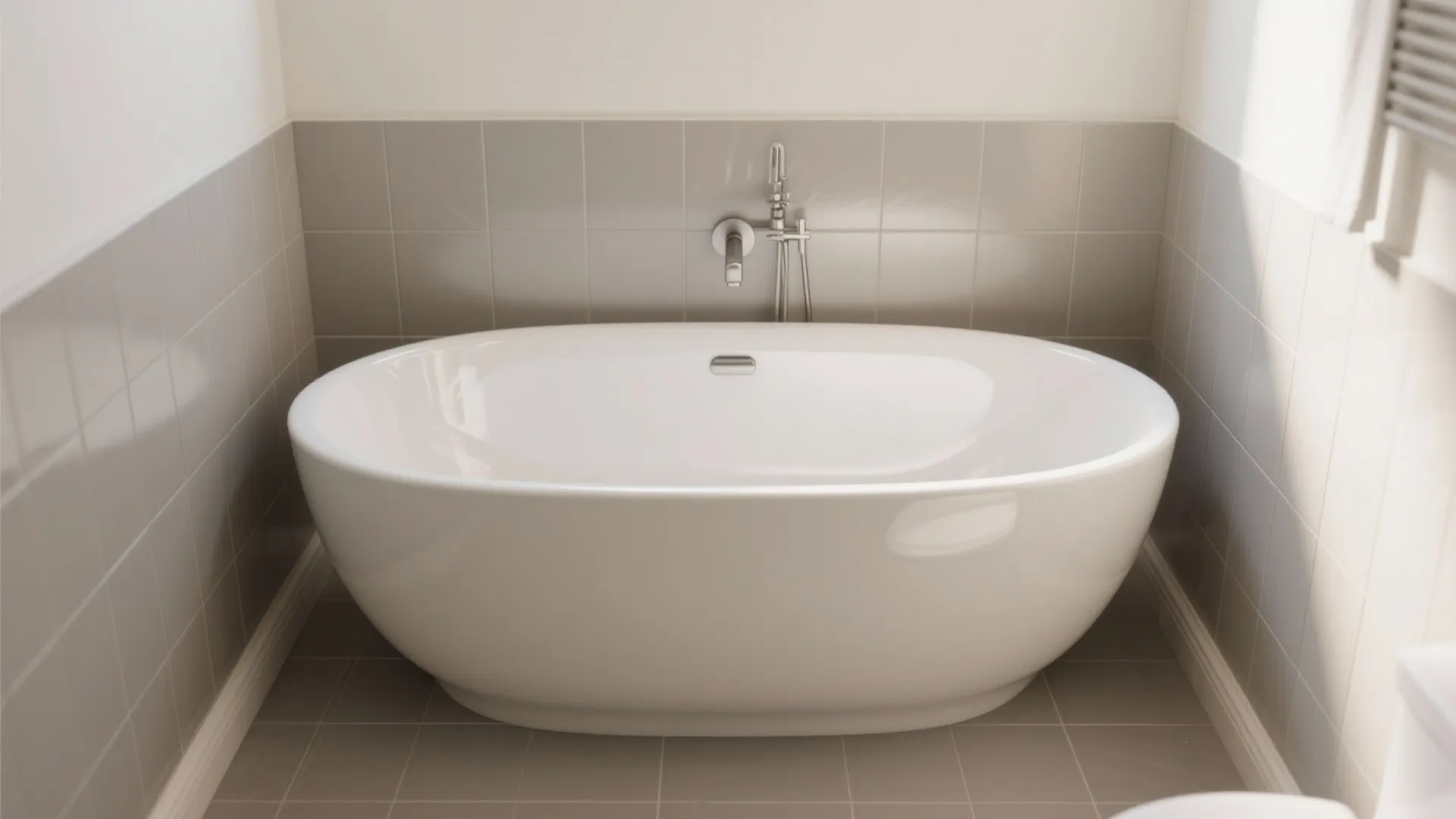

My Take: I once tucked a slim oval freestanding tub into a 60-inch niche for a downtown micro-loft—my client thought it was impossible until we tested cardboard templates. The trick was visually light forms and a floor-mounted filler that didn’t clutter sightlines. Pros: A compact freestanding tub (55–60 inches) creates a luxury look without eating floor area; long-tail keywords like “freestanding tub small space” matter because narrow footprints still feel generous. The elevated clearance around the tub improves cleaning and reduces mold-prone edges. According to NKBA size guidelines, small freestanding tubs can work if clearances of about 4 inches are maintained for cleaning access (NKBA Bath Planning Guidelines). Cons: Freestanding tubs may splash if the rim is shallow; towel and product storage aren’t built-in, so you’ll need accessories. Plumbing rough-in can add cost, especially for floor-mounted fillers, and floors may need reinforcement. Tips/Case/Cost: Try a 58-inch resin tub—lighter than cast iron and warmer to the touch. Budget roughly $1,500–$3,000 plus $800–$1,500 for plumbing changes. For visual calm, keep the wall tile tone-on-tone. First-screen inline link: I often prototype layouts with “L-shaped layout frees more counter space,” but here the lesson is similar—how you place fixtures saves space. See “L shaped layout releases more countertop space” in this case study: L shaped layout releases more countertop space.

save pin

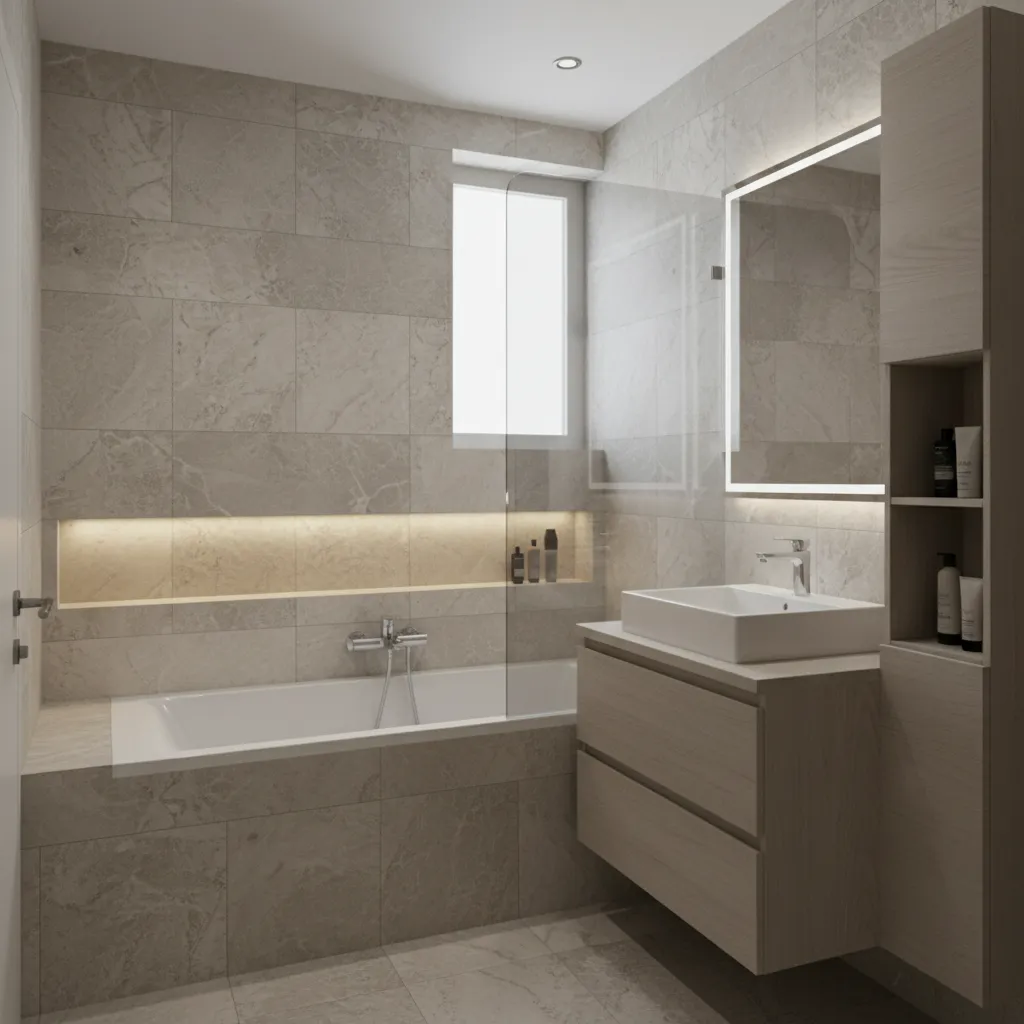

Alcove Tub With Integrated Storage

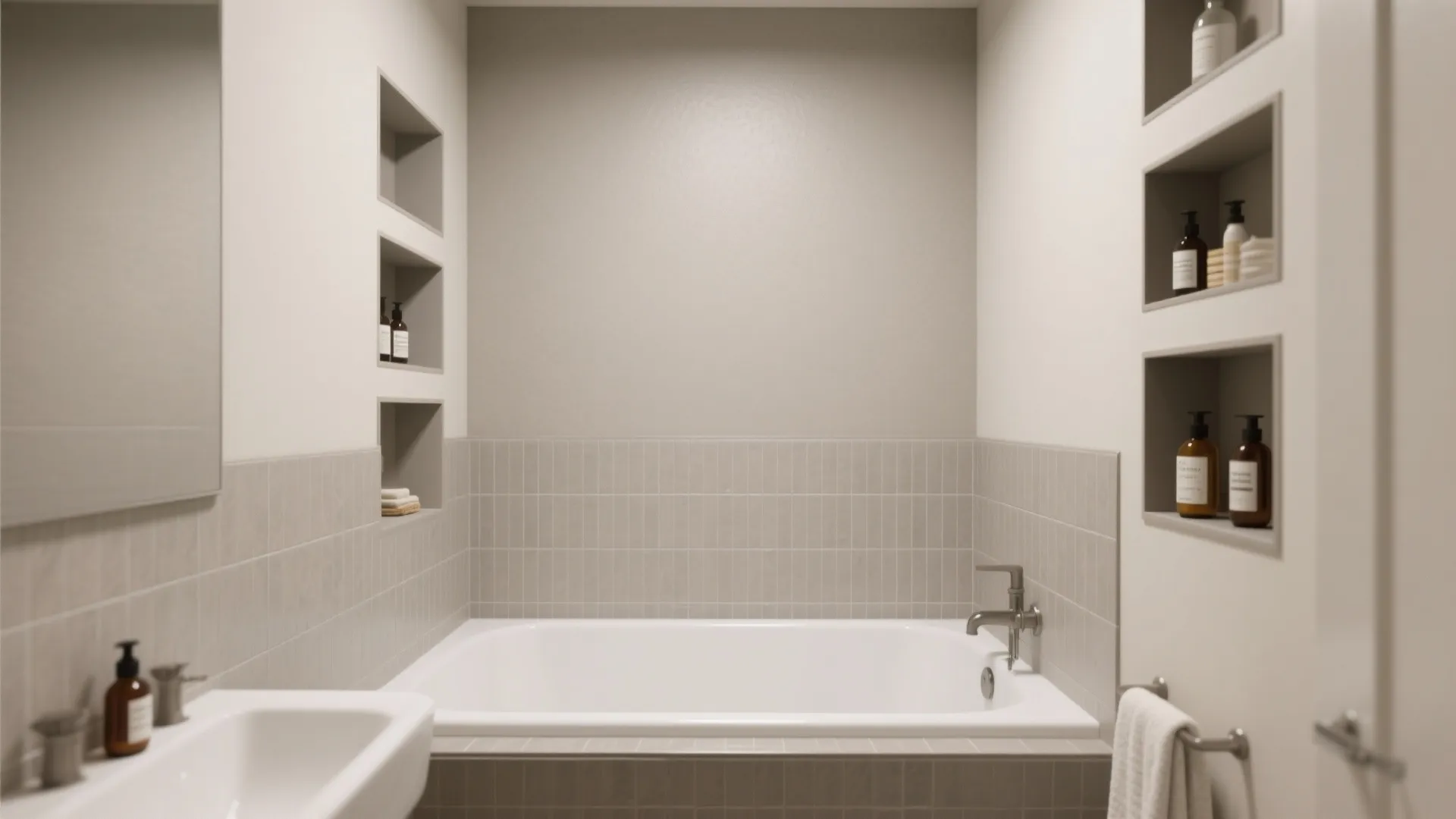

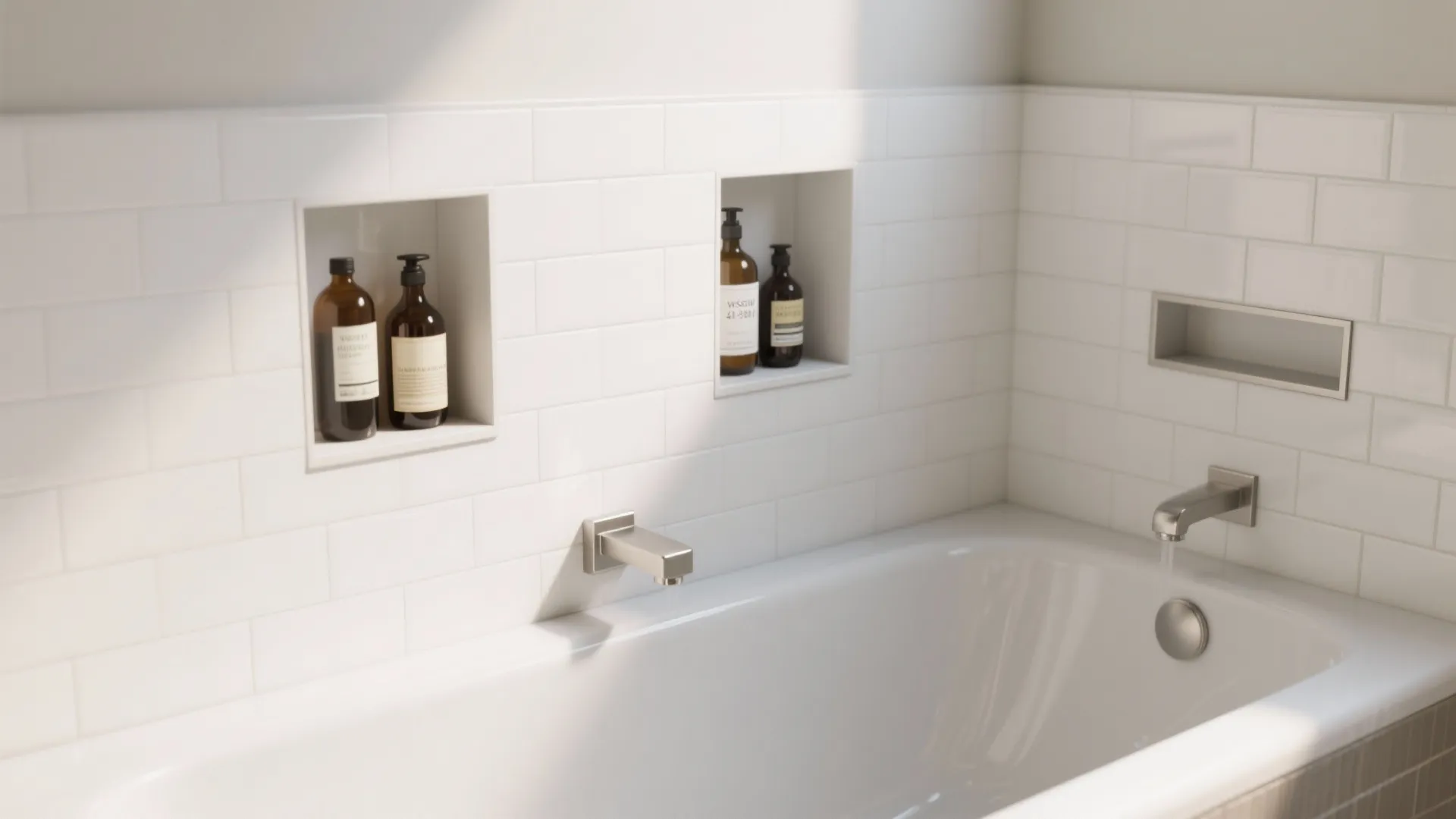

My Take: In my own 5' x 8' bath, I carved niches along the long wall of the alcove tub and never looked back—shampoo lives there, not on the sill. A slightly thicker backer allowed me to keep the niche flush and avoid those shadow traps that collect dust. Pros: An alcove tub with storage niches maximizes vertical real estate—“alcove tub with storage” is a smart long-tail approach for small bathrooms. Raised niches minimize bending and keep bottles organized; a sloped niche sill helps drain water. Cons: Misplaced niches can collide with plumbing; retrofits may limit depth to 3 inches, which frustrates pump-style bottles. Grout maintenance is real—tiny mosaic inside niches can be fussy. Tips/Case/Cost: Aim niches at 42–48 inches high, 12–14 inches wide; use a solid-surface sill. If you’re remodeling, coordinate stud bays early. Cost: $250–$600 per niche, materials and labor. Mid-article inline link (50%): In projects where I test placements, the “room planner case that maps storage around fixtures” has been spot-on: room planner case that maps storage around fixtures.

save pin

save pin

Tub-Shower Combo That Doesn’t Feel Compromised

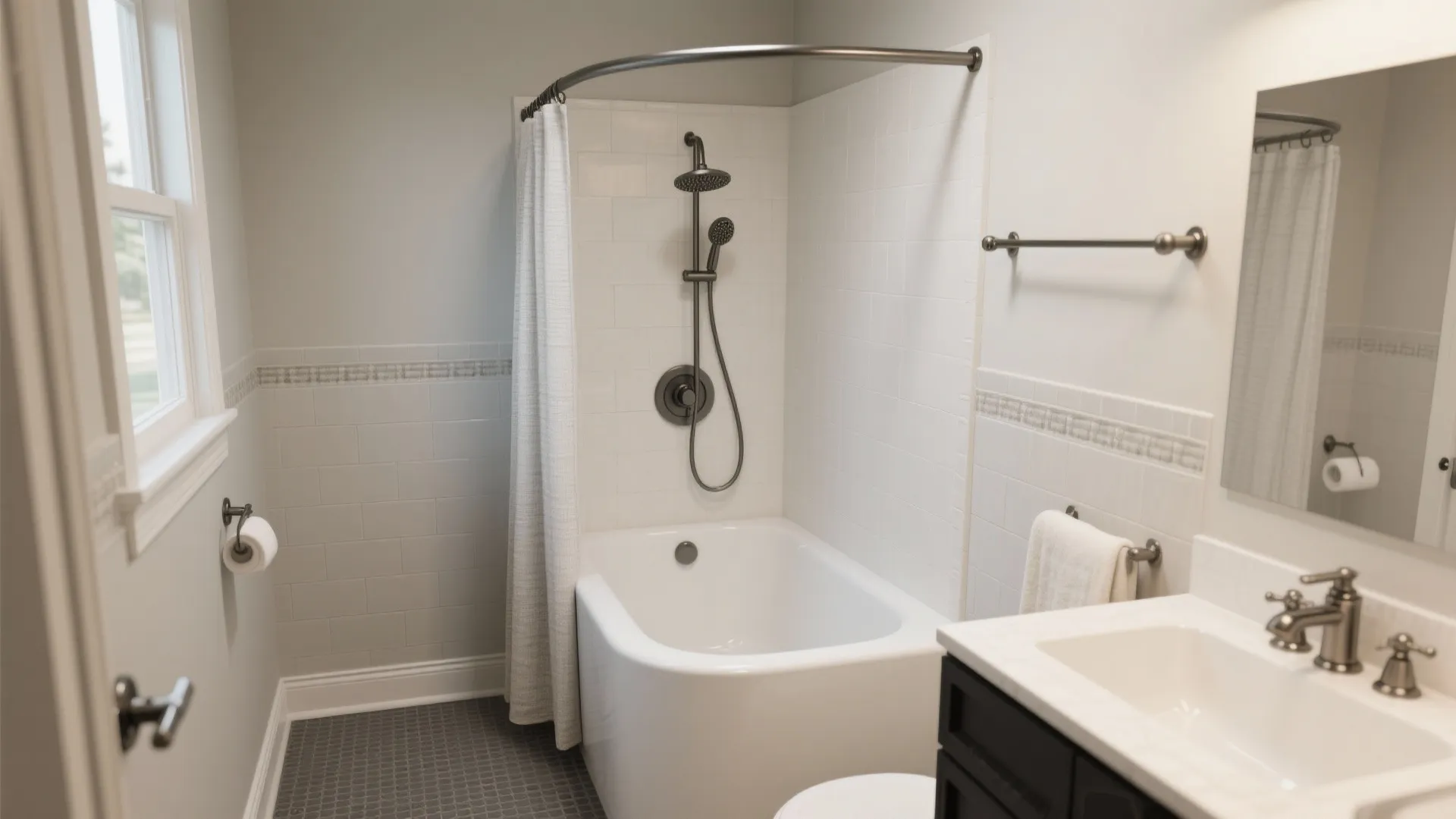

My Take: I designed a tub-shower combo for a family who needed quick showers on weekdays and kid-bath time on Sundays—the secret was a generous curved curtain rod and a deep-soak profile. Their small bath suddenly did everything. Pros: A tub-shower combo delivers flexibility; “tub shower combo design” works well in tight footprints of 60" x 30". Pair with a tall valve trim and a handheld on a slide bar so every height is covered, and use anti-slip textured floors for safety. Cons: Combos can look utilitarian if fixtures clash—keep finishes consistent. Water spots on clear glass are tedious; curtains reduce visual polish but are easier to maintain. Tips/Case/Cost: Choose a 15–17 inch soaking depth for comfort; install a curved rod to widen the showering zone. Expect $1,200–$2,500 for tub and surround, plus $600–$1,200 for glass if you go that route.

save pin

Textured Tile and Light Play Around the Tub

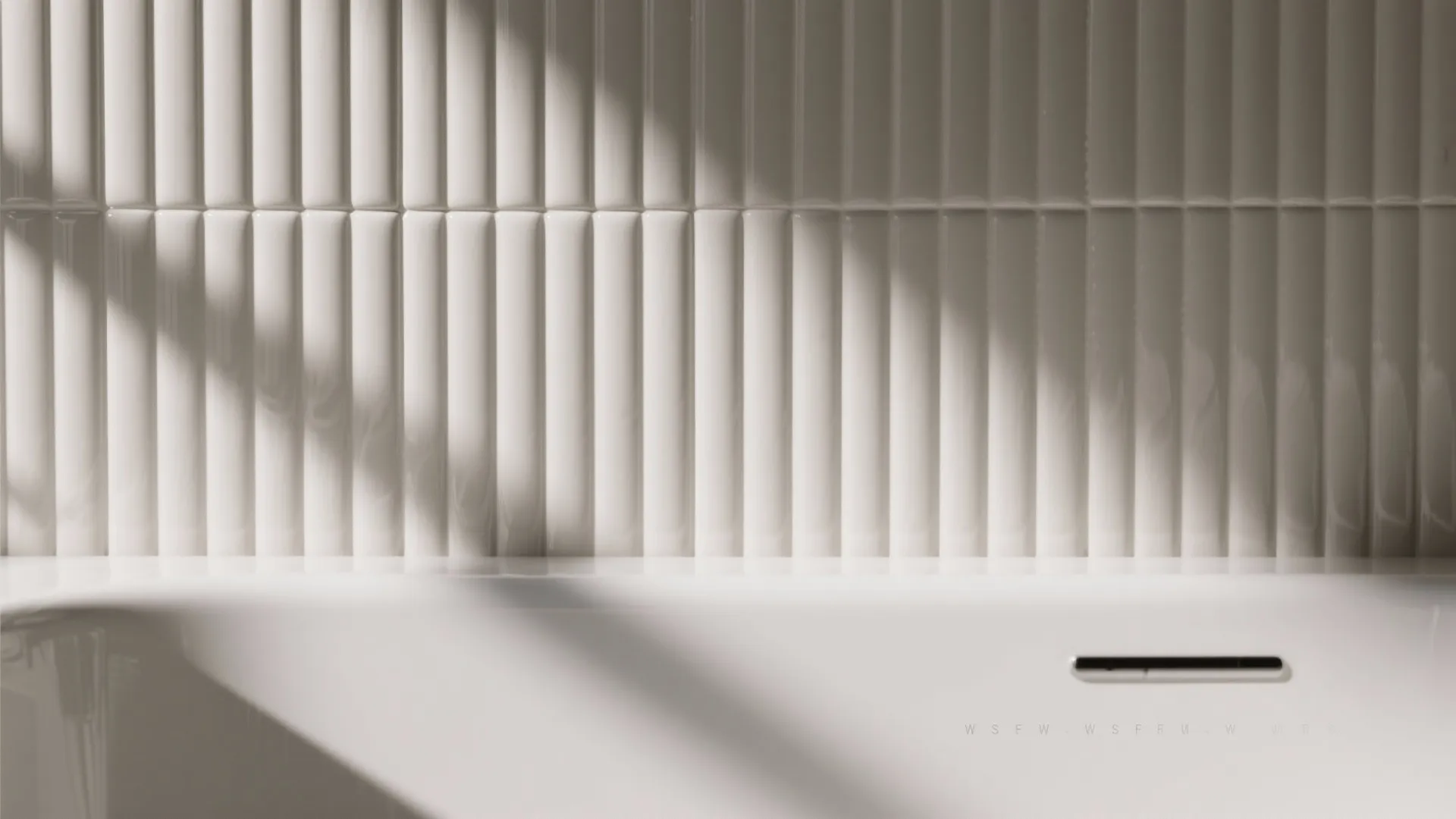

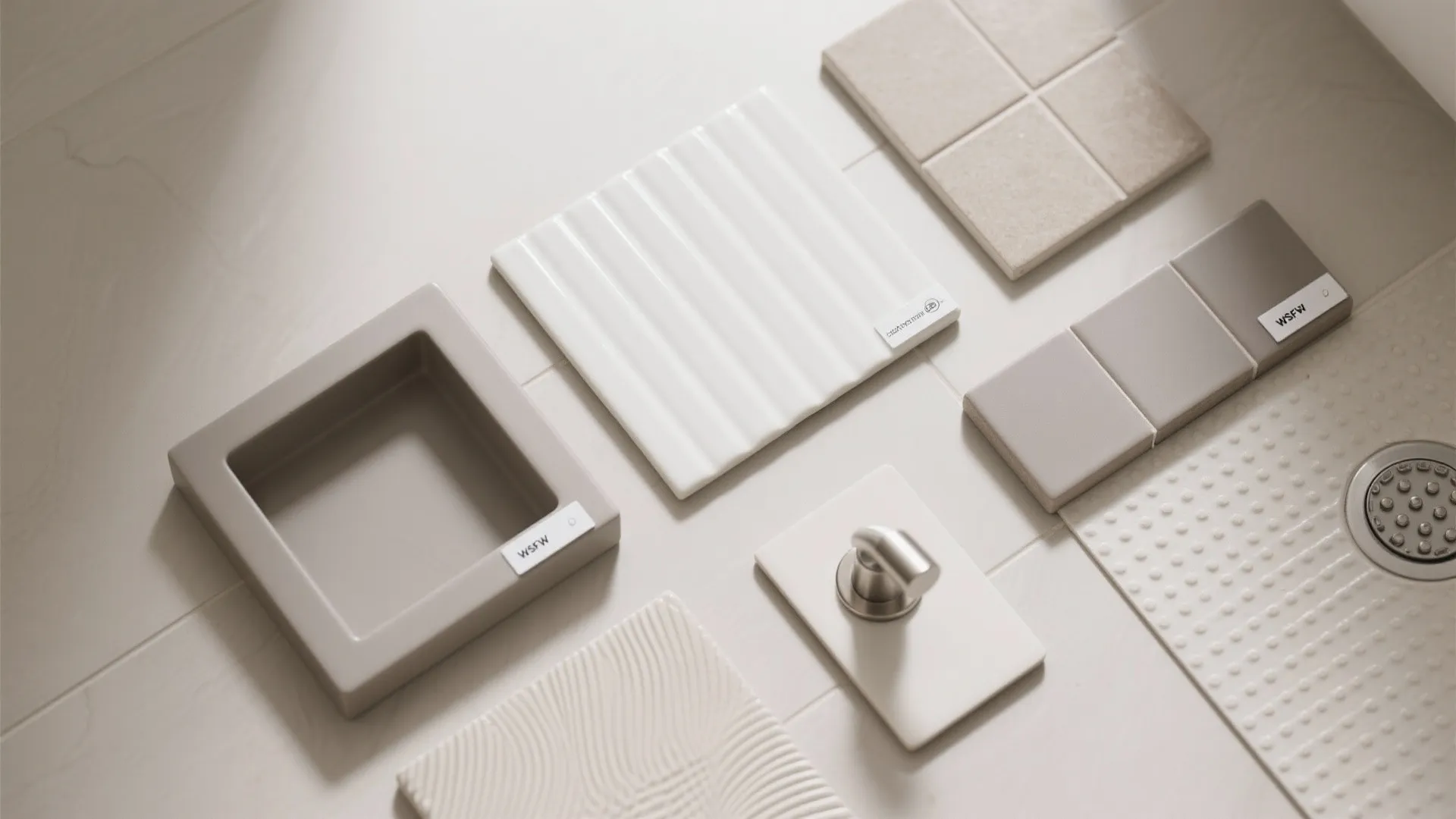

My Take: I’m obsessed with how texture transforms small bathrooms—I once used ribbed porcelain behind a white tub, and clients swore the room felt larger purely from light play. It’s subtle drama without busy patterns. Pros: “Textured tile bathtub wall” adds depth, diffuses glare, and hides minor water spots. Light, neutral tiles (warm gray, off-white) bounce light and calm visual noise; ribbed or fluted profiles create shadow lines that feel upscale. Cons: Deep grooves can be harder to clean; pick a satin glaze to reduce soap scum visibility. Bold textures fight with busy veining—choose one hero material. Tips/Case/Cost: Use a 2D-to-3D rendering workflow to preview texture scale at eye level. For a measured reference, the Illuminating Engineering Society (IES) notes that higher reflectance surfaces contribute to perceived brightness; aim for 70–80% reflectance on major wall finishes (IES Lighting Handbook). Inline link at ~80%: In my render process, “3D render home previews for tile scale” avoids purchase regrets: 3D render home previews for tile scale.

save pin

save pin

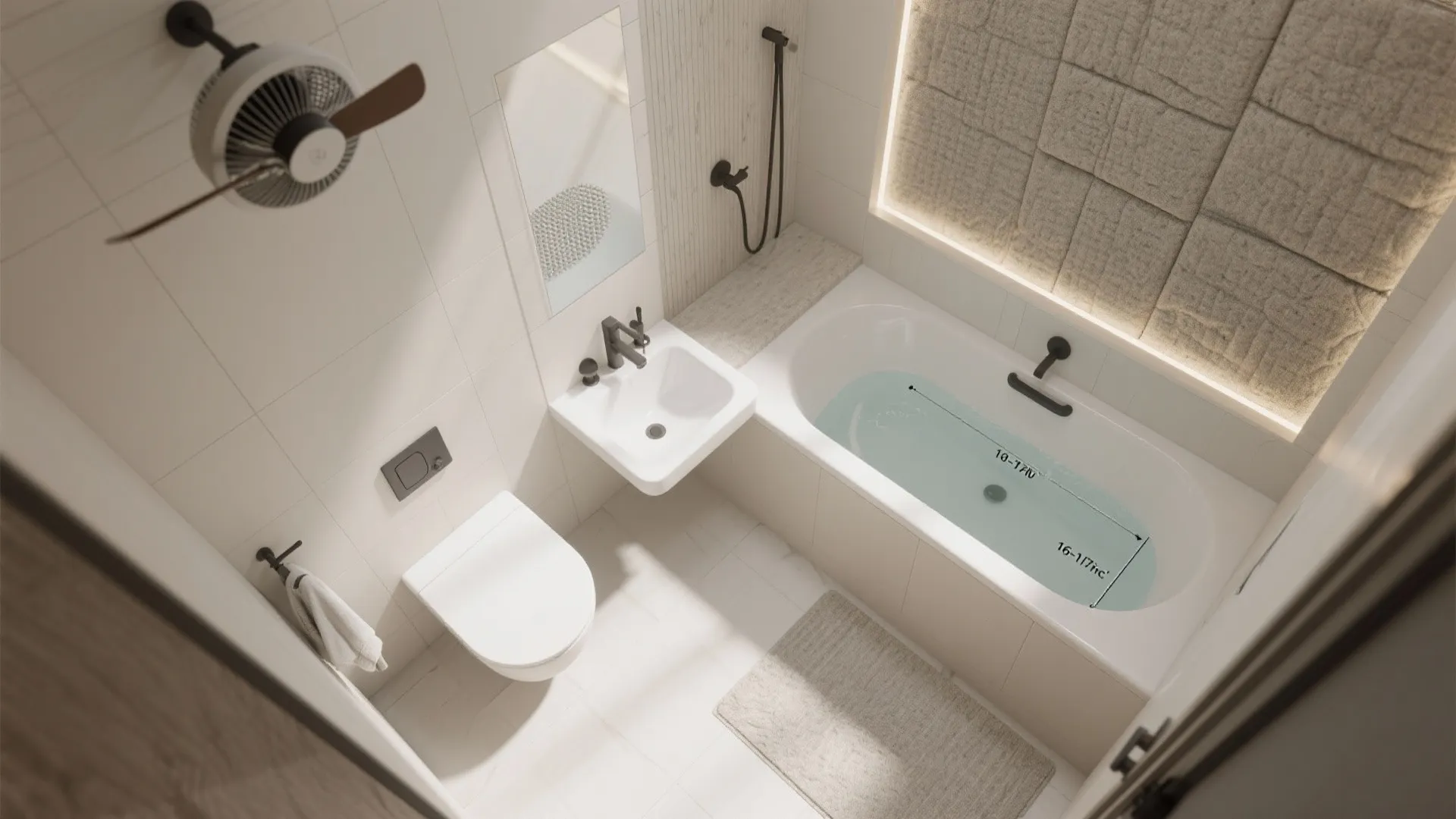

Ventilation, Sound, and Soak Depth: The Comfort Trio

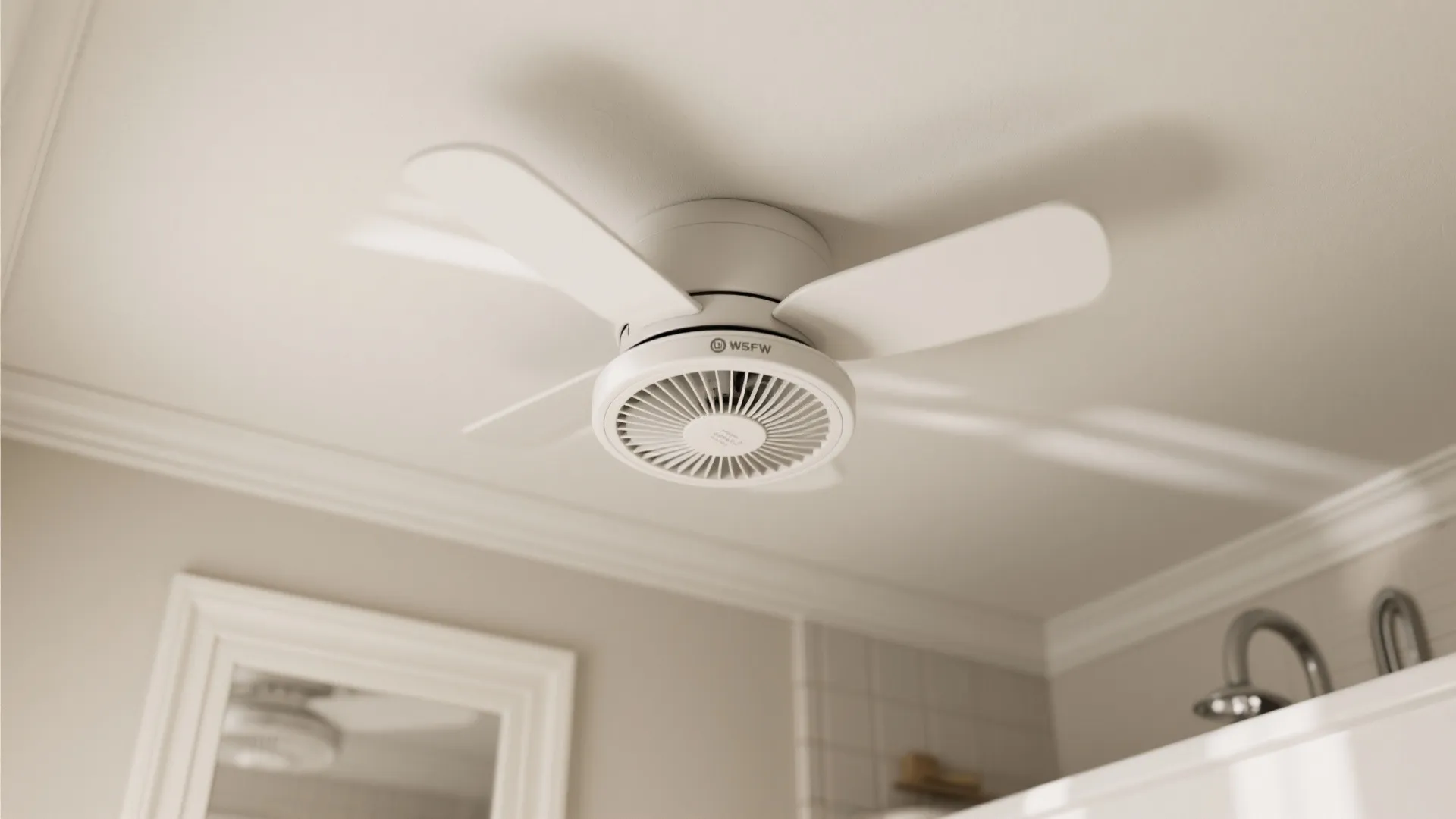

My Take: The most memorable baths in my projects nail the quiet stuff—air quality, acoustic hush, and the right soaking depth. I learned this after a client’s new tub felt perfect until steam lingered and the fan roared; we swapped a better unit and the space finally breathed. Pros: “Soaking tub depth” between 15–17 inches supports immersion without awkward climbing; pairing a 80–110 CFM quiet fan with a timer protects finishes and mirrors. CDC and ASHRAE data consistently point to ventilation reducing moisture and microbial growth—good airflow matters (ASHRAE Standard 62.2). Cons: Overpowered fans can be noisy and underused; badly placed intakes create drafts. Deeper tubs look luxurious but can be tough for kids or elders to step over—measure threshold height. Tips/Case/Cost: Seek fans rated ≤1.5 sones; add a 20–30 minute off-delay. Insulate the tub surround to dampen sound. Costs vary: $250–$600 for a better fan, $20–$40 for a timer switch. [Section: 总结] Small kitchen or small bathroom—either way, small means smarter design, not limitation. Bathroom tub design thrives when you balance footprint, storage, texture, and comfort. With the right plan and a bit of data-backed decision-making (NKBA, ASHRAE), you’ll squeeze spa-level moments into compact rooms. Which of these five ideas would you try first? [Section: FAQ 常见问题] 1) What is the best bathroom tub design for a small space? A compact freestanding or an alcove tub with storage niches works best. Keep overall length near 60 inches and prioritize “freestanding tub small space” or “alcove tub with storage” layouts. 2) How deep should a soaking tub be? A depth of 15–17 inches usually balances immersion and ease of entry. Deeper tubs look luxe but check the step-over height for safety. 3) Are freestanding tubs practical in tiny bathrooms? Yes, with careful clearances and floor-mounted plumbing planned early. Use lightweight materials like resin to avoid structural upgrades. 4) Do textured tiles make cleaning harder? Heavily fluted tiles can trap soap scum; choose satin finishes and larger profiles. Rinse walls after baths to reduce buildup. 5) What ventilation rating should I target? Look for 80–110 CFM with ≤1.5 sones for quiet operation. ASHRAE 62.2 provides guidance on residential ventilation rates. 6) Is a tub-shower combo outdated? Not if done right—consistent finishes, curved rods or minimal-framed glass, and a handheld on a slide bar keep it modern. It’s a versatile “tub shower combo design” for families. 7) How can I add storage to a tub area? Build wall niches at 42–48 inches high and use solid-surface sills. Coordinate stud bays and plumbing early to avoid conflicts. 8) Can I visualize textures before I buy? Yes—use 3D rendering to preview scale and light behavior around the tub. Test samples under your actual bathroom lighting.
