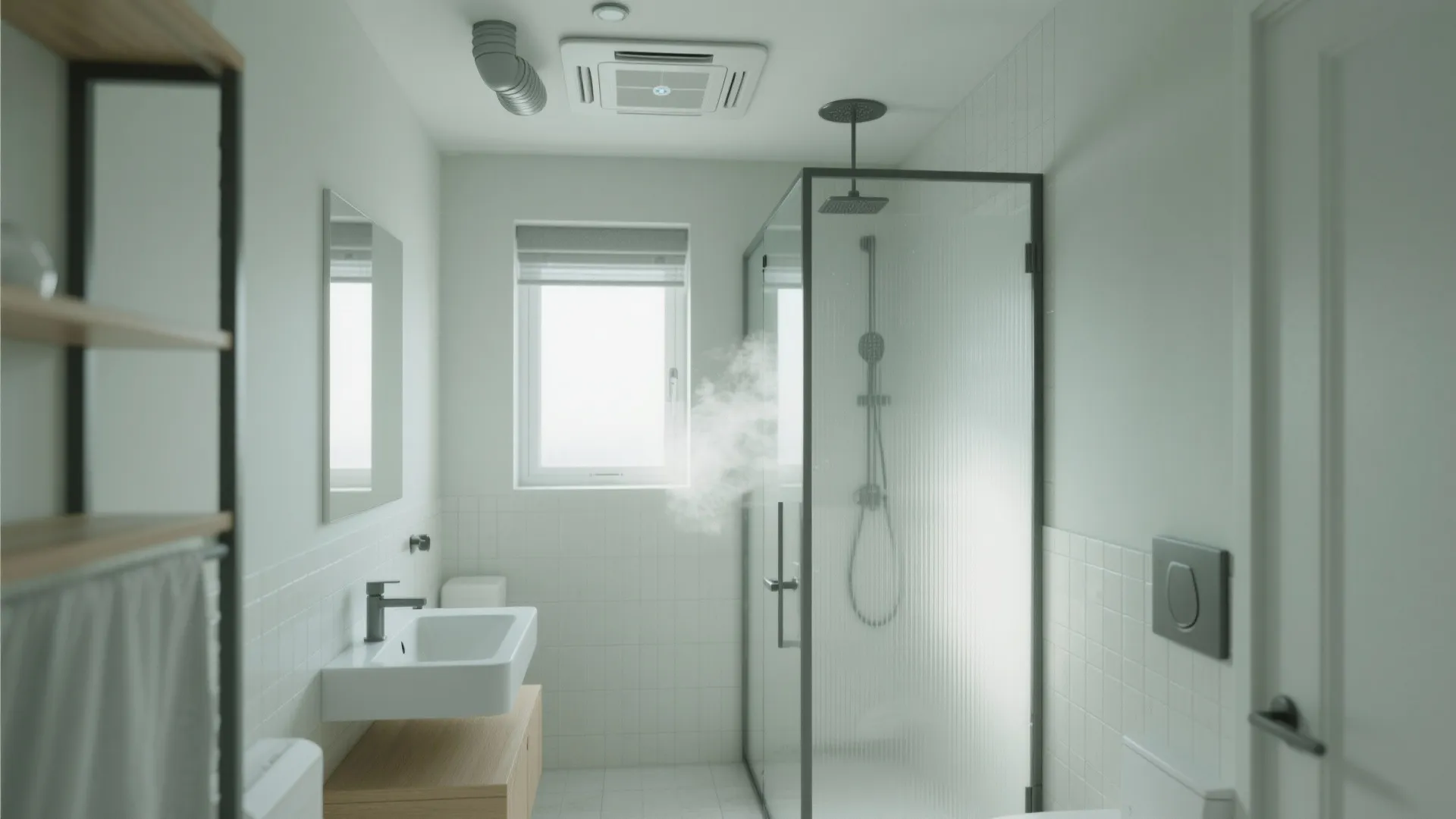

Bathroom Ventilation Design: 5 Proven Ideas: Small bathrooms, big airflow: my 5 expert-backed ventilation design strategies with real-world tips, costs, and mistakes to avoid

Over the past decade designing compact homes, I’ve learned that bathroom ventilation design is half science, half empathy. Trends are shifting toward quieter, smarter, and more energy-efficient solutions—think humidity-triggered fans and heat recovery systems. And yes, small spaces spark big creativity: tighter footprints force us to plan airflow, moisture paths, and maintenance from day one. In this guide, I’ll share 5 bathroom ventilation ideas I actually use, blending hands-on experience with expert data, so you can breathe easier—literally.

Before we dive in, one quick story: I once remodeled a 3 m² guest bath that constantly fogged up. The fix wasn’t a bigger fan—it was smarter duct routing and a timed control. The mirror stopped fogging, towels dried faster, and the family’s mold problem vanished in two weeks. That’s the power of integrated ventilation thinking. Also, if you’re considering layout tweaks alongside ventilation, I’ve found that “L 型布局释放更多台面空间” strategies in kitchens often inspire better airflow routes in bathrooms too—like keeping wet and dry zones clearly separated, similar to how L shaped layout frees up more countertop space helps prep areas stay clear.

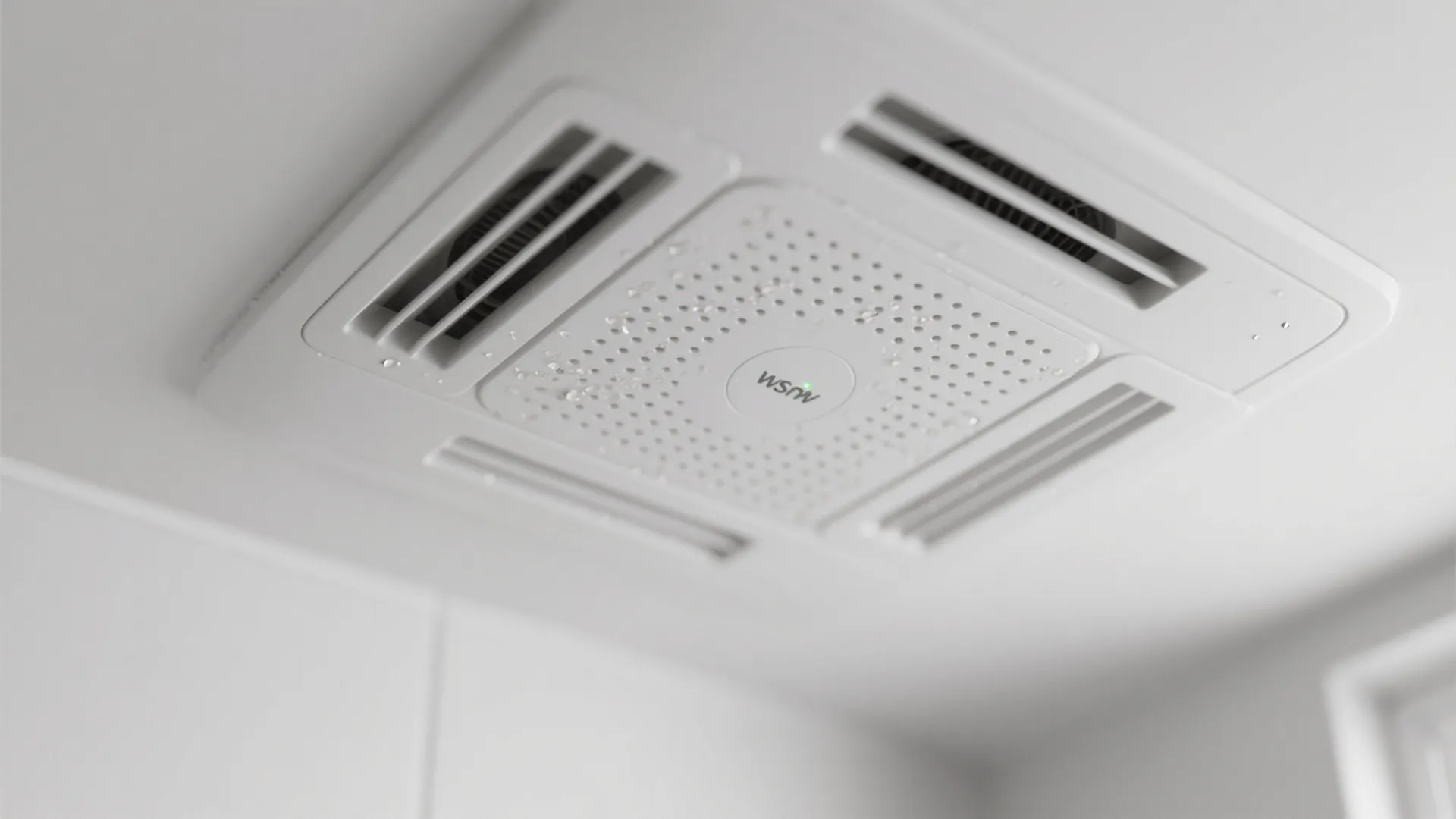

1) Quiet, Humidity-Sensing Exhaust Fans

My Take: I first installed a humidity-sensing fan for a client who loved steaming hot showers but hated lingering moisture. The auto sensor kicked in at 60% RH and shut off on its own—no nagging, no switches forgotten. Since then, it’s become my default in compact bathrooms with heavy daily use.

Pros: Humidity-triggered controls stabilize moisture levels and reduce mold risk—an ideal long-tail solution for “bathroom ventilation design for small spaces.” Energy-wise, they run only when needed, extending fan life. Many models meet low-sone ratings, keeping noise around 0.3–1.0 sones for whisper-quiet operation.

Cons: Sensors can drift over time and may need recalibration or replacement. Some budget models misread ambient humidity in coastal climates, cycling too often. And yes, you still need proper ducting—no sensor can fix a crushed or overly long duct run.

Tips / Cost: Set humidity trip at 50–60% RH; pair with a 20–30 minute overrun timer. Expect $120–$350 for a good fan, plus $150–$400 installation. Keep duct runs under 6 m where possible and use smooth, rigid ducts to minimize static pressure.

save pin

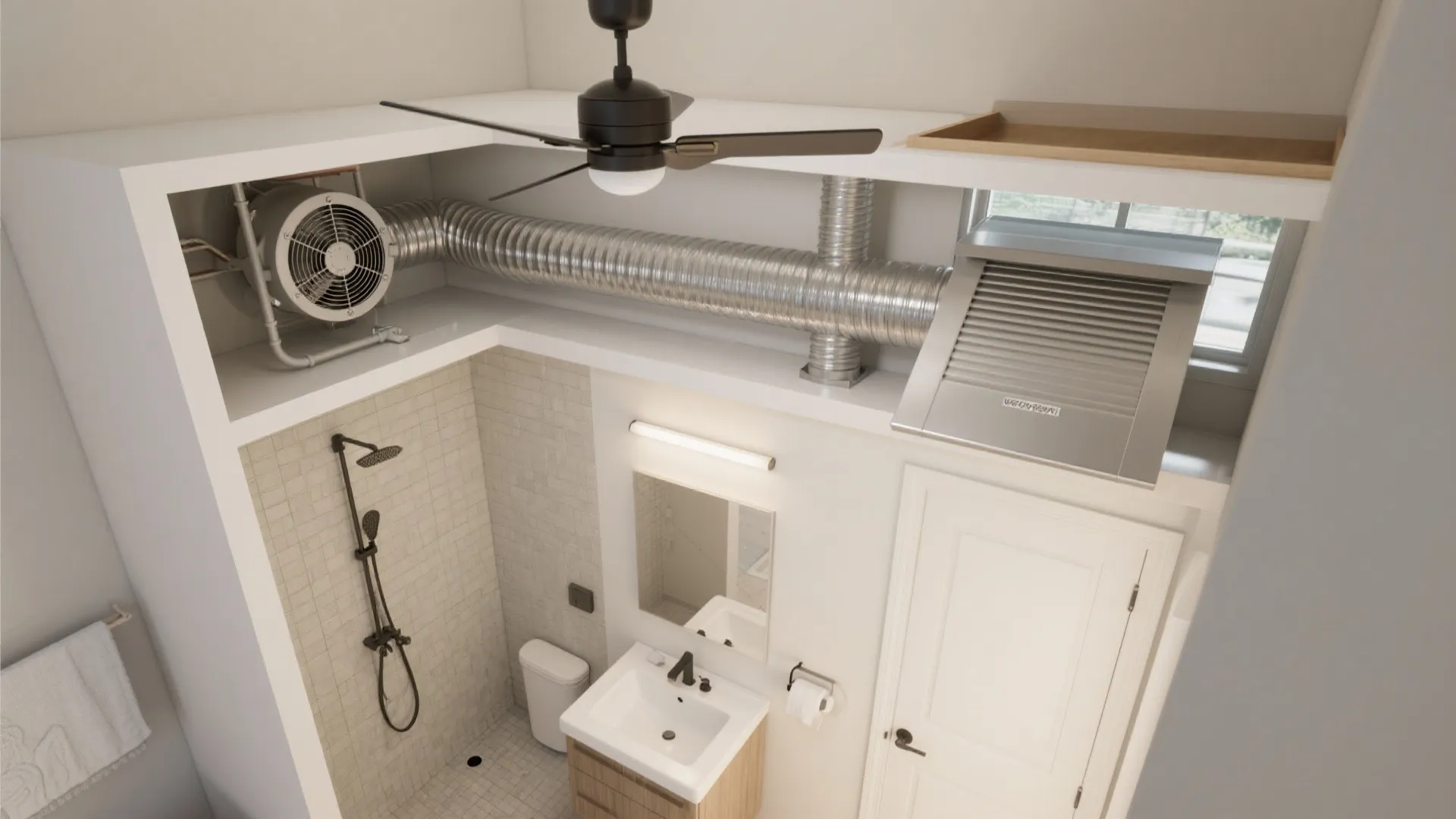

2) Right-Sizing CFM and Ductwork (Not Just Bigger)

My Take: I’ve seen more issues from oversized fans than undersized ones—short cycling, noise, and backdrafts. In a 4 m² apartment bath with a shower and no window, a 90–110 CFM fan with a 100 mm rigid duct performed better than a 150 CFM fan squeezed through a 75 mm flex duct.

Pros: Proper sizing reduces noise and improves actual air changes per hour—key for “bathroom ventilation design and airflow efficiency.” Following recognized ventilation rates helps ensure mirrors clear and towels dry in under 30 minutes. According to the U.S. EPA and ENERGY STAR guidance, matching CFM to room size and duct resistance is critical for real performance.

Cons: Calculations can feel tedious: factoring room volume, fixtures, and duct static pressure isn’t glamorous. Retrofitting rigid ducts in finished walls can be messy and may require soffits. Also, roof or wall caps with backdraft dampers add resistance you must include in calculations.

Tips / Case: For a 5 m² bath with standard 2.6 m ceilings, start around 80–100 CFM and adjust for duct length and elbows. One recent condo project improved fog clearance by replacing a 3 m flex with a 3 m rigid duct and a low-resistance wall cap—same fan, 30% better results. Around the halfway point of planning, I like to prototype layouts in 3D so ducts and terminations don’t collide with joists—similar to testing “玻璃背板让厨房更通透” ideas in digital models; it’s the same clarity-first thinking I apply with glass backsplash makes the kitchen more airy scenarios, but for airflow paths.

save pin

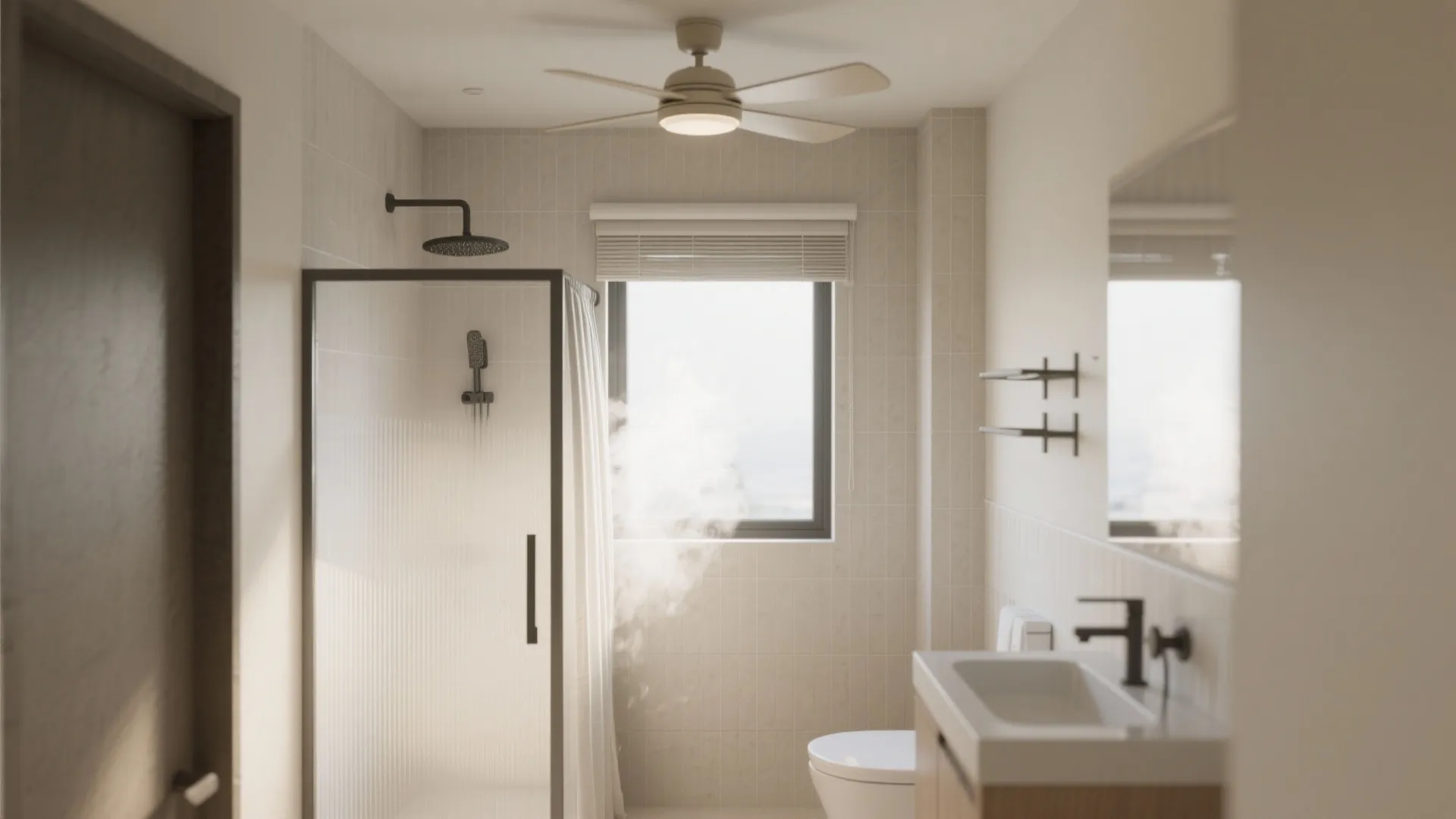

3) Window + Fan: Mixed-Mode Ventilation

My Take: If you have a window, use it—but not as your only defense. I’ve had success combining a low-sone fan with a top-hinged window that opens for quick purge, especially after bath time. Mixed-mode gives you speed when you want it and consistency when you forget.

Pros: Natural ventilation boosts purge rates and can reduce run-time, a smart angle for “bathroom ventilation design with window solutions.” It also improves perceived air quality and reduces odors without higher energy use. In spring and fall, clients love the fresh-air feel after quick showers.

Cons: In winter or humid summers, opening a window can add moisture or waste energy. Security and privacy might limit how wide you open it. In dense urban areas, outside air can be dusty or noisy—hardly spa-like.

Tips / Cost: Opt for top-hinged or awning windows to shed rain. Add insect screens and privacy glass. Use a timer switch so the fan still runs 20 minutes post-shower. Budget $250–$800 for window upgrades depending on size and glazing.

save pin

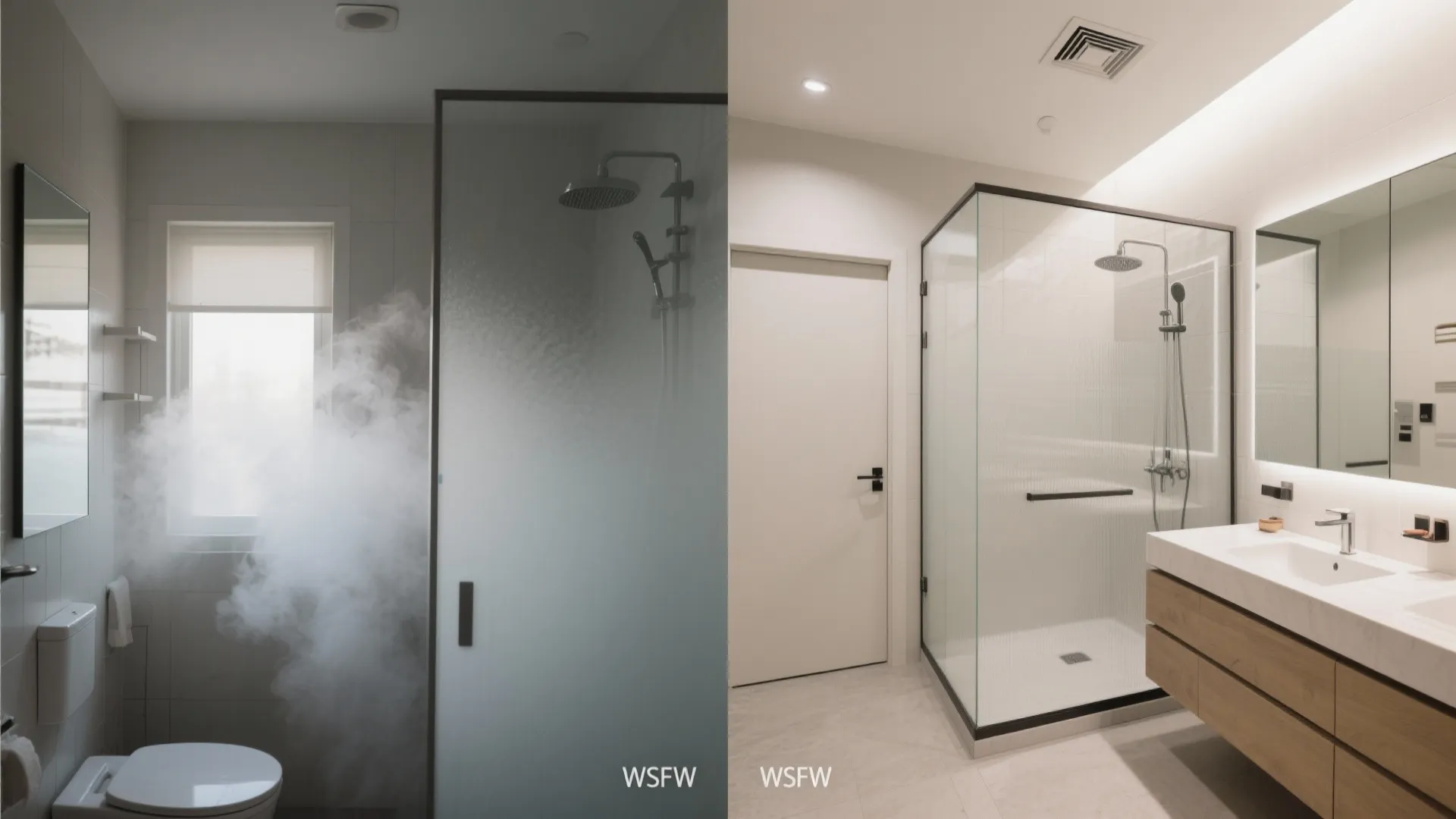

4) Zonal Planning: Wet vs. Dry Separation

My Take: My most mold-resistant bathrooms clearly separate wet and dry zones. I like placing the fan near the shower ceiling zone and leaving a 20 mm undercut at the door to pull makeup air from the hallway. In micro-baths, a glass screen can be a game changer for airflow direction.

Pros: Zonal layouts help create a predictable airflow path—makeup air at the door, extraction at the wettest point—ideal for “bathroom ventilation design for small bathrooms.” A partial glass partition keeps steam concentrated where the fan can grab it faster, improving mirror clarity across the room. ASHRAE 62.2-aligned practices support supplying makeup air and extracting near sources for efficiency.

Cons: Glass screens add cost and need cleaning. Door undercuts can transmit noise and odors unless you plan for it. In very tight apartments, pressure differences can whistle through cracks—annoying at midnight.

Tips / Case: Aim to place the fan within 0.6–0.9 m of the shower head. Use a 20–25 mm door undercut or a transfer grille rated for wet rooms. For steam-heavy users, consider a secondary low-CFM extractor near the toilet. When layouts get tricky, I sometimes borrow ideas from “极简风的厨房收纳设计” thinking—clear paths and clutter-free surfaces—mapped visually with minimalist kitchen storage design inspirations to streamline airflow routes and fixture placement.

save pin

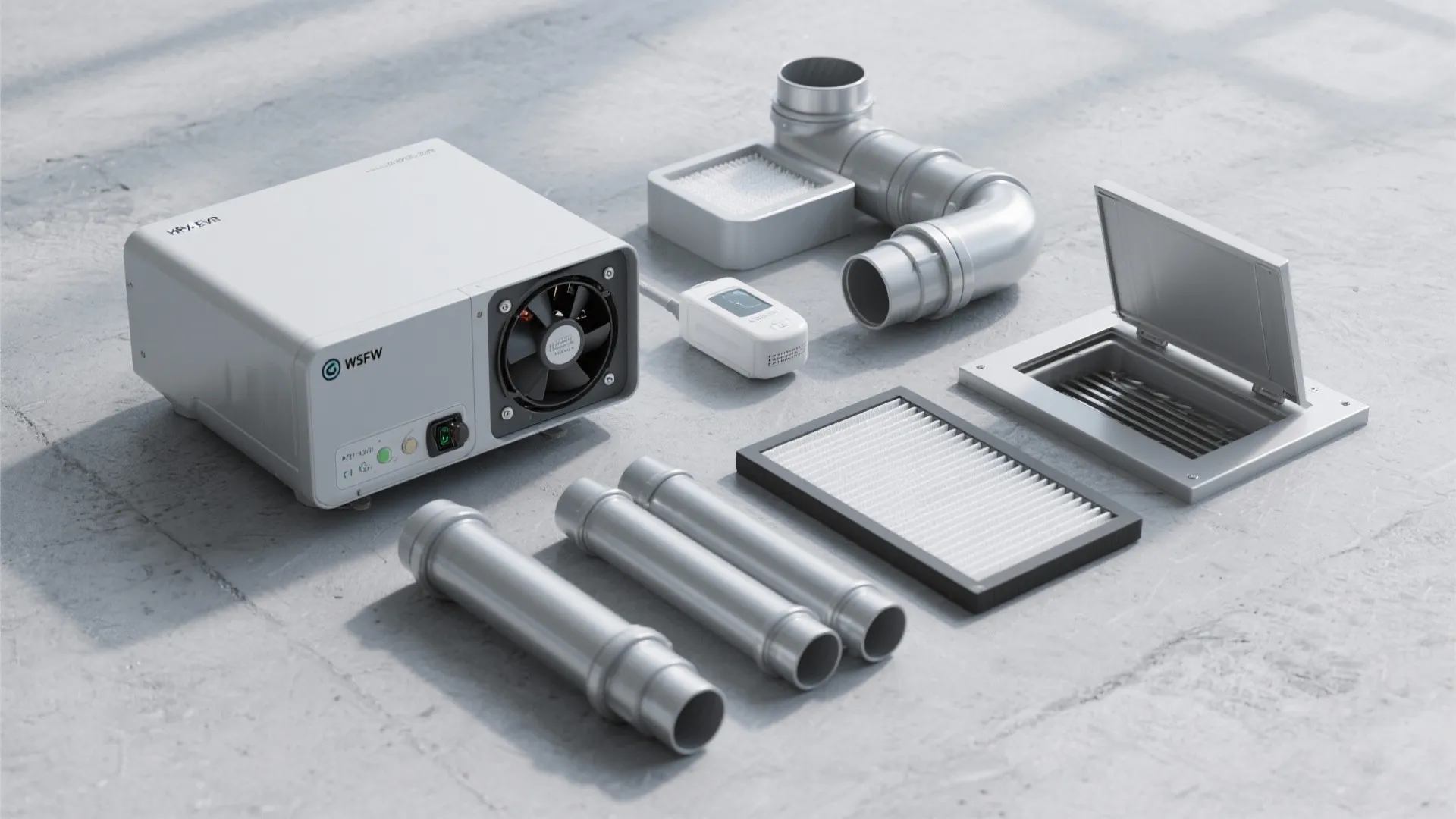

5) Advanced Options: HRV/ERV and Continuous Low Flow

My Take: For high-humidity homes or airtight renovations, I’ve had excellent results with small HRV/ERV units or fans that run continuously at low CFM, then boost during showers. One townhouse project cut condensation by 70% after adding a point-source ERV to the bath.

Pros: Heat or energy recovery ventilators preserve comfort while exhausting moist air, which is perfect for “bathroom ventilation design in airtight homes.” Continuous low-flow fans maintain baseline dryness, preventing the moisture spikes that cause mold. According to ASHRAE guidance, continuous ventilation with spot-exhaust improves overall indoor air quality and moisture control in tight envelopes.

Cons: Higher upfront cost and more maintenance—filters, core cleaning, and periodic checks. Routing dual ducts in finished spaces can be invasive. If poorly balanced, ERVs can underperform and even reintroduce moisture.

Tips / Cost: Expect $900–$2,500 for compact HRV/ERV units installed; continuous low-flow fans are typically $180–$450. Schedule filter changes every 3–6 months in humid climates. Use a boost switch or humidity sensor so you don’t rely on perfect habits.

save pin

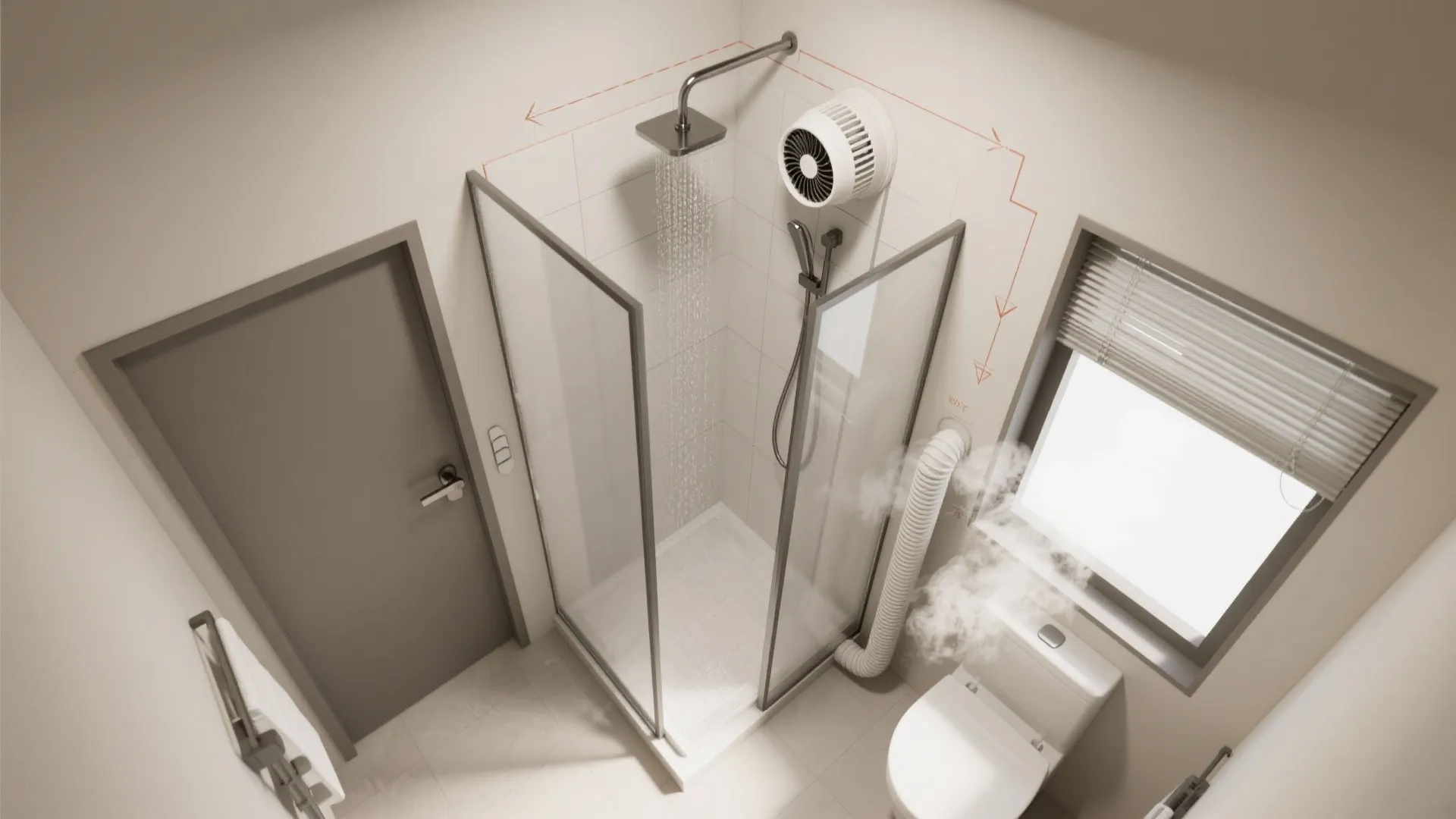

Putting It All Together

Bathroom ventilation design isn’t about the biggest fan—it’s about the right flow path, smart controls, and realistic habits. Small bathrooms push us to design smarter: clear wet/dry zones, precise CFM and ducting, and a plan for makeup air. If you’re renovating, align ventilation choices with your layout early, much like coordinating cabinetry and appliances—similar planning discipline helps avoid duct conflicts, as I also do when plotting “木质元素带来的温暖氛围” in tiny kitchens using visual tests like the warmth from wood elements to simulate finishes and fixture clearances before drilling holes.

Bottom line: a small bathroom isn’t a limitation—it’s an invitation to design with intention. Choose one idea to start—maybe a humidity-sensing fan or a better duct route—and build from there. Which of these five ventilation ideas are you most excited to try?

save pin

FAQ

1) What is the best CFM for bathroom ventilation design?

For a typical 4–6 m² bathroom, 80–110 CFM works well, adjusted for duct length, elbows, and termination caps. Larger rooms or those with jetted tubs may need more.

2) Do I need a window if I have a good exhaust fan?

No—code often allows a fan instead of a window, and a well-sized fan is more consistent. A window is nice for quick purge but shouldn’t be your only strategy.

3) Where should I place the exhaust fan?

Mount it near the shower or tub area to capture steam at the source, and ensure a door undercut or transfer grille provides makeup air. Keep ducts short and smooth.

4) Are humidity-sensing fans worth it?

Yes, especially in small bathrooms where moisture spikes are frequent. They reduce user error and run only when needed, saving energy while preventing mold.

5) What’s better: HRV or ERV for bathrooms?

In cold climates, HRVs typically manage moisture well by exhausting humid air and recovering heat. In humid climates, ERVs can help limit incoming moisture. Consult ASHRAE or a local pro for climate-specific advice.

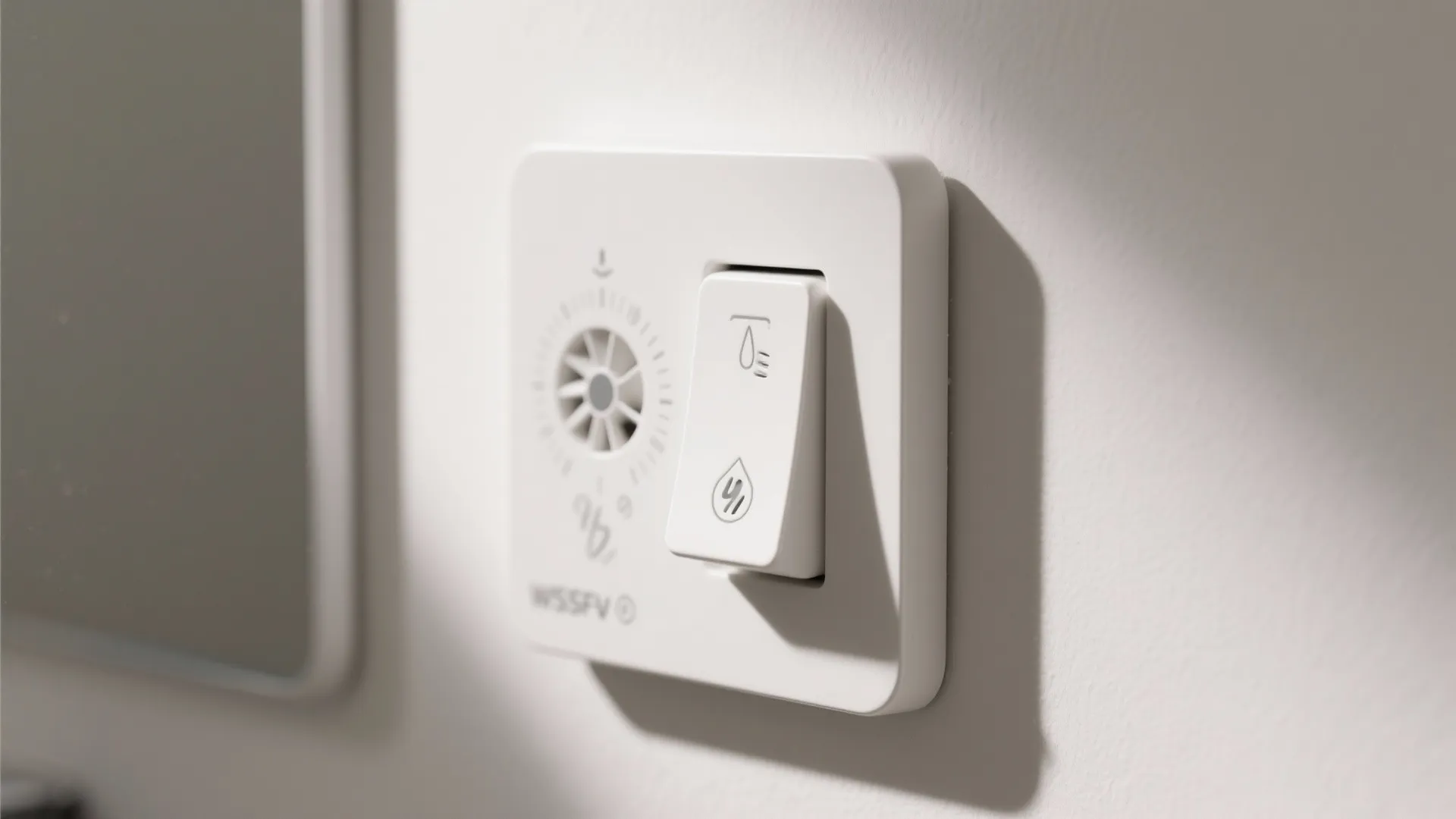

6) How long should the fan run after a shower?

Generally 20–30 minutes post-shower is effective. A timer or humidity control ensures consistency without you babysitting the switch.

7) Which authority should I follow for standards?

ASHRAE 62.2 provides recognized guidance for residential ventilation; EPA/ENERGY STAR also offer fan sizing and ducting tips. See the U.S. EPA’s ENERGY STAR ventilation resources for practical charts and specifications.

8) Can I improve ventilation without major renovation?

Yes—swap in a quiet, higher-efficiency fan, replace flex duct with rigid, add a timer, and ensure the exterior cap is clear. If you’re rearranging fixtures, planning airflow in 3D helps; I sometimes preview routes similar to testing “L 型小厨房布局” in digital tools like L shaped small kitchen layout to avoid clashes.
